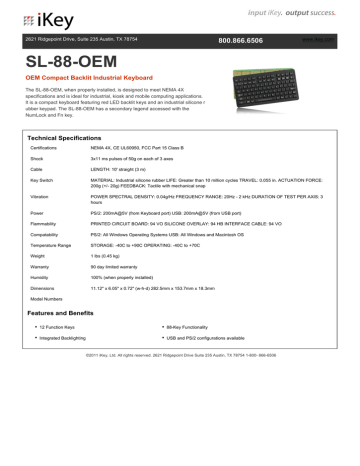

SL 88 OEM
2621 Ridgepoint Drive, Suite 235 Austin, TX 78754
800.866.6506
www.ikey.com
SL-88-OEM
OEM Compact Backlit Industrial Keyboard
The SL-88-OEM, when properly installed, is designed to meet NEMA 4X
specifications and is ideal for industrial, kiosk and mobile computing applications.
It is a compact keyboard featuring red LED backlit keys and an industrial silicone r
ubber keypad. The SL-88-OEM has a secondary legend accessed with the
NumLock and Fn key.
Technical Specifications
Certifications
NEMA 4X, CE UL60950, FCC Part 15 Class B
Shock
3x11 ms pulses of 50g on each of 3 axes
Cable
LENGTH: 10' straight (3 m)
Key Switch
MATERIAL: Industrial silicone rubber LIFE: Greater than 10 million cycles TRAVEL: 0.055 in. ACTUATION FORCE:
200g (+/- 20g) FEEDBACK: Tactile with mechanical snap
Vibration
POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3
hours
Power
PS/2: [email protected] (from Keyboard port) USB: [email protected] (from USB port)
Flammability
PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94 HB INTERFACE CABLE: 94 VO
Compatability
PS/2: All Windows Operating Systems USB: All Windows and Macintosh OS
Temperature Range
STORAGE: -40C to +90C OPERATING: -40C to +70C
Weight
1 lbs (0.45 kg)
Warranty
90 day limited warranty
Humidity
100% (when properly installed)
Dimensions
11.12" x 6.05" x 0.72" (w-h-d) 282.5mm x 153.7mm x 18.3mm
Model Numbers
Features and Benefits
12 Function Keys
88-Key Functionality
Integrated Backlighting
USB and PS/2 configurations available
©2011 iKey, Ltd. All rights reserved. 2621 Ridgepoint Drive Suite 235 Austin, TX 78754 1-800- 866-6506
