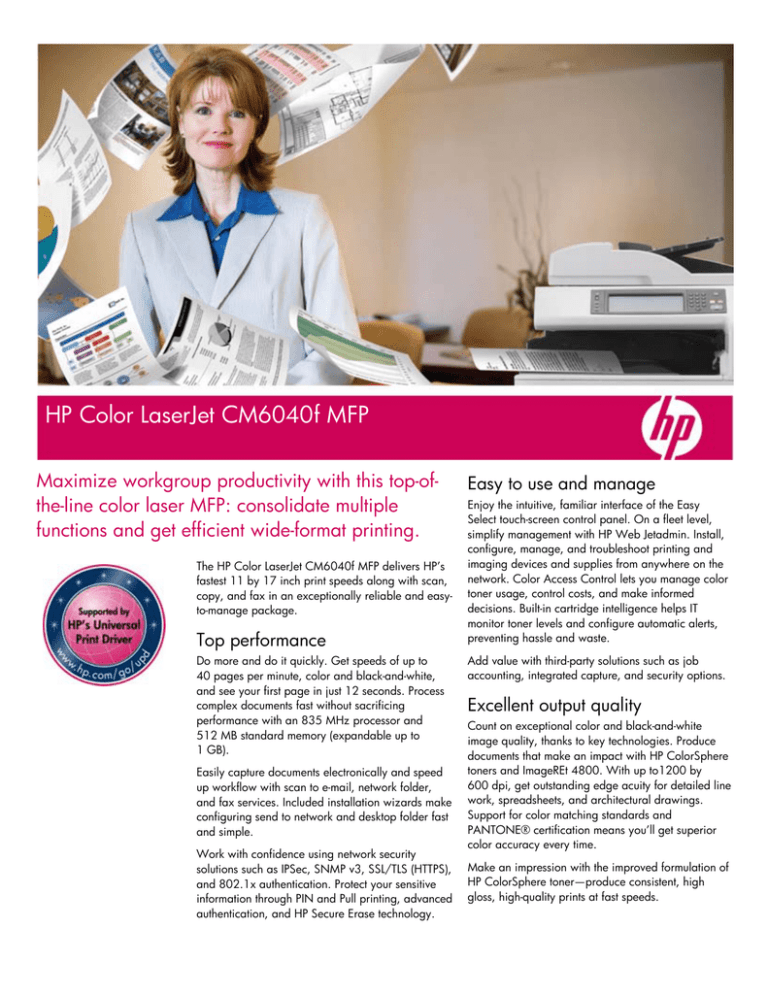

HP Color LaserJet CM6040f MFP
Maximize workgroup productivity with this top-ofthe-line color laser MFP: consolidate multiple
functions and get efficient wide-format printing.
The HP Color LaserJet CM6040f MFP delivers HP’s
fastest 11 by 17 inch print speeds along with scan,
copy, and fax in an exceptionally reliable and easyto-manage package.
Top performance
Do more and do it quickly. Get speeds of up to
40 pages per minute, color and black-and-white,
and see your first page in just 12 seconds. Process
complex documents fast without sacrificing
performance with an 835 MHz processor and
512 MB standard memory (expandable up to
1 GB).
Easily capture documents electronically and speed
up workflow with scan to e-mail, network folder,
and fax services. Included installation wizards make
configuring send to network and desktop folder fast
and simple.
Work with confidence using network security
solutions such as IPSec, SNMP v3, SSL/TLS (HTTPS),
and 802.1x authentication. Protect your sensitive
information through PIN and Pull printing, advanced
authentication, and HP Secure Erase technology.
Easy to use and manage
Enjoy the intuitive, familiar interface of the Easy
Select touch-screen control panel. On a fleet level,
simplify management with HP Web Jetadmin. Install,
configure, manage, and troubleshoot printing and
imaging devices and supplies from anywhere on the
network. Color Access Control lets you manage color
toner usage, control costs, and make informed
decisions. Built-in cartridge intelligence helps IT
monitor toner levels and configure automatic alerts,
preventing hassle and waste.
Add value with third-party solutions such as job
accounting, integrated capture, and security options.
Excellent output quality
Count on exceptional color and black-and-white
image quality, thanks to key technologies. Produce
documents that make an impact with HP ColorSphere
toners and ImageREt 4800. With up to1200 by
600 dpi, get outstanding edge acuity for detailed line
work, spreadsheets, and architectural drawings.
Support for color matching standards and
PANTONE® certification means you’ll get superior
color accuracy every time.
Make an impression with the improved formulation of
HP ColorSphere toner—produce consistent, high
gloss, high-quality prints at fast speeds.
HP Color LaserJet CM6040f MFP
1
Four-line Easy Select control
panel (including touch-screen
graphical display)
2
500-sheet face-down output bin
with long paper extension
3
Front-door access to the
four easy-to-install Original
HP LaserJet print cartridges with
ColorSphere toner
4
Built-in automatic two-sided
printing
5
Four 500-sheet input trays for
2,100-sheet input capacity
6
50-sheet automatic document
feeder
7
100-sheet multipurpose tray 1
8
HP high performance hard disk
for job storage
9
A powerful 835 MHz
processor and 512 MB
memory, upgradeable to 1 GB
6
1
2
3
7
4
5
Front view
10 Access port for Kensington lock
11 Foreign interface harness
8
12 Fax connection
9
10
13 One EIO expansion slot
14 Hi-Speed USB 2.0 device port
15 HP Jetdirect Gigabit Ethernet
embedded print server for easy
network sharing
Rear view
11
12
13
14
15
Improve workflow, easily manage jobs, and minimize
intervention—all at a great value.
Efficient to operate and maintain
Enhance business efficiency by combining the office
functions your workgroups rely on most—print, copy,
scan, digital send, and fax. Produce a greater variety
of output with support for media sizes up to 12 by 18
inches and weights up to 58 lb bond.
Job Queue Management allows you to view and
manipulate the list of print and copy jobs and faxes
via the control panel for more efficient workflow.
The MFP’s intuitive design enables you to operate
and maintain the device with minimal intervention.
Simplified accessibility means you can replace fusers,
transfer kits, and transfer rollers as easily as the toner
cartridges and image drums. And replacement parts
are easily identifiable with HP signature Blue tabs.
Create professional, complex marketing documents
more easily by adding the optional HP booklet
maker/finisher or HP stapler/stacker accessory.
Get the most out of your MFP with HP accessories, supplies, and services.
HP 3-bin stapler/stacker with output
accessory bridge
Enjoy hassle-free, unattended printing,
including automatic offset, multi-position
stapling, and a three-bin mailbox
CC517A
HP booklet maker/finisher with output
accessory bridge
Create complex documents with three bins,
automatic offset, inline stapling and
stacking, and booklet making with
saddle-stitching and v-folding
CC516A
HP Support Services
Minimize the cost of downtime
Because MFP downtime can have serious business consequences,
HP provides high-quality services that extend beyond the standard
warranty and help you avoid unbudgeted repair costs.
Benefits include reduced printing and infrastructure costs, maximized
uptime, expert technical phone support and delivery services, and
predictable and consistent service delivery across multiple locations.
Choose:
• Installation Service with Network Configuration: expert assembly of
HP accessories, hardware verification, network configuration, and
basic administrator familiarization
• Same Day Onsite Service: technician arrives at your site within four
hours after service call is received, if this time falls within the
coverage window
• Next Day Onsite Service: technician-delivered onsite service the next
business day after the service call
Any of the above options can be purchased as:
• HP Care Pack Services: easy-to-buy, easy-to-use support packages
• HP Contractual Services: a comprehensive portfolio for maintaining
maximum IT availability
HP also offers Managed Print Services: a solution scalable from
imaging and printing devices and toner cartridges, to installation,
management, maintenance, and support.
For more information visit: www.hp.com/go/printservices.
Print cartridges with HP ColorSphere toner1
HP Color LaserJet Black Print Cartridge
HP Color LaserJet Cyan Print Cartridge
HP Color LaserJet Yellow Print Cartridge
HP Color LaserJet Magenta Print Cartridge
Supplies
HP Color LaserJet Black Image Drum2
HP Color LaserJet Cyan Image Drum2
HP Color LaserJet Yellow Image Drum2
HP Color LaserJet Magenta Image Drum2
HP Color LaserJet 110 volt fuser kit
HP Color LaserJet 220 volt fuser kit
HP Color LaserJet roller kit
HP Color LaserJet transfer kit
HP ADF Roller Kit
Staple cartridge for the stapler/stacker
Staple cartridge for the booklet maker/finisher
Memory/storage
HP 128 MB, 167 MHz, 200-pin DDR DIMM
HP 256 MB, 167 MHz, 200-pin DDR DIMM
HP 512 MB, 167 MHz, 200-pin DDR DIMM
HP High Performance EIO Hard Disk
Connectivity
HP Jetdirect 635n EIO Print Server
HP Jetdirect 620n EIO Print Server
HP Jetdirect 630n EIO Print Server
HP Jetdirect 690n EIO 802.11g Wireless Print Server
HP Jetdirect en1700 IPv4/IPv6 Print Server
HP Jetdirect en3700 Fast Ethernet Print Server
HP Jetdirect ew2400 802.11g Wireless Print Server
HP EIO 1284B Adapter
Security Lock Adapter Kit3
Service and support
3-year, Next Business Day Onsite Service
3-year, 4-hour, 13 by 5 Same Day Onsite Service
On-site Installation and Network Configuration
1-year, Post-warranty, Next Business Day Onsite Service
1-year, Post-warranty, 4-hour, 13 by 5 Same Day Onsite Service
1-year, Post-warranty, Phone and Online Assistance
Paper
www.hp.com/go/paper
1-800-477-5010
Solutions
www.hp.com/go/gsc
CB390A
CB381A
CB382A
CB383A
CB384A
CB385A
CB386A
CB387A
CB457A
CB458A
CB459A
CB463A
CE487A
C8091A
CC383A
Q7557A
Q7558A
Q7559A
J7989G
J7961G
J7934G
J7997G
J8007G
J7988G
J7942G
J7951G
J7972G
Q393167925
UJ165E
UJ169E
U2014E
UJ174PE
UJ176PE
HC132PE
Average continuous composite black cartridge yield 19,500 standard pages and average continuous composite cyan/yellow/magenta cartridge yield 21,000 standard pages.
Declared yield value in accordance with ISO/IEC 19798. Actual yields vary considerably based on images printed and other factors. For more information, visit
www.hp.com/go/learnaboutsupplies.
2
Declared yield 35,000 pages based on HP testing methodology. Actual yields may vary considerably.
3
To order the Security Lock Adapter Kit, visit www.hp.com/go/hpparts.
1
HP Color LaserJet CM6040f MFP
Technical specifications
Part number
Print and copy speed
Document delivery speed
Resolution
Features
Copying
Scanning
Faxing
Digital sending
Processor
Memory
Durability ratings
Paper
Input
Output
Two-sided printing
Sizes
Weights
Types
Connectivity
Interfaces
Languages and fonts
Client operating systems
Network operating systems
Network protocols
Security
Dimensions (w by d by h)
Weight (includes print cartridge)
What’s in the box
Warranty
Environmental ranges
Recommended temperature
Storage temperature
Recommended relative humidity
Storage relative humidity
Altitude
Acoustics8
Sound power
Bystander sound pressure
Power specifications
Required input voltage
Power consumption9
Q3939A
Up to 40 ppm, color and black-and-white
First page out: up to 12 seconds from Ready mode
1200 by 600 dpi (Best mode), 600 by 600 dpi (default); HP ImageREt 4800 technology
Up to 999 multiple copies, reduce/enlarge from 25 to 200%, two-sided copying, collation, contrast adjustments, image adjustment, content orientation, N-up,
background removal, job storage, output bin selection, edge-to-edge printing, job build
Color flatbed scanner and ADF: up to 11.7 by 17 in; scan input modes: front-panel scan, copy, fax (optional), e-mail; file types: PDF, JPG, TIFF, MTIFF
Up to 33.6 kbps, fax forwarding, fax polling (receive only), broadcasting (up to 100 locations), speed dial (up to 100 lists), junk barrier, auto redialing, auto fax
reduction, Windows faxing supported, fax memory
Scan to folder (includes shared address book for fax), scan direct to e-mail server, send to e-mail, analog fax, LDAP e-mail addressing; authentication: Windows®
negotiated (Kerberos and NTLM), group 1 and group 2 PIN, LDAP, authentication manager; advanced digital sending capabilities via optional Digital Sending Software
835 MHz
512 MB, upgradeable to 1 GB via one additional DDR SODIMM slot
Recommended monthly volume 8,000 to 15,000 pages4; duty cycle: up to 200,000 pages5
50-sheet ADF,100-sheet multipurpose tray 1, 500-sheet trays 2, 3, 4, and 5
500-sheet output bin; optional finishers: HP 3-bin stapler/stacker or HP booklet maker
Automatic
ADF: letter, legal, 11 by 17
Multipurpose tray 1: letter, letter R, legal, executive, statement, 8.5 by 13, ledger, 12 by 18, index cards (4 by 6, 5 by 8), envelopes (#9, #10, Monarch, B5, C5, C6,
DL); 4 by 5.5 in to 12.6 by 18 in
Input tray 2: letter, letter R, legal, executive, 8.5 by 13, ledger; 5.8 by 8.2 in to 11.7 by 17 in
Input trays 3, 4, and 5: letter, letter R, legal, executive, 8.5 by 13, ledger, 12 by 18; 5.8 by 8.2 to 12.6 by 18 in
Duplex: letter, letter R, legal, executive, 8.5 by 13, ledger, 12 by 18
All trays: 16 to 58 lb bond
Paper (bond, recycled, glossy, mid-weight, heavy, heavy glossy, extra heavy, extra heavy glossy), transparencies, labels, envelopes, cardstock, tough paper,
rough paper, user-defined
Hi-Speed USB 2.0 device port, one EIO slot, fax port, FIH port, PCI express
HP PCL 5, HP PCL 6, HP postscript level 2 emulation; (HP postscript level 3 emulation supported); 80 HP font set (plus Greek, Hebrew, Cyrillic, Arabic)
Microsoft® Windows 2000, XP®, Server 2003, Vista®; Macintosh OS X v10.2.8 or later
Microsoft Windows 2000, Server 2003, XP, Vista, 2003 64-bit, XP 64-bit, Vista 64-bit (IPv6 compatible with Windows 2003, XP, and Vista); Novell 5.1 and later;
Mac OS X v10.2, v10.3, v10.4 and later; Red Hat Linux 7.x and later; SuSE Linux 8.x and later; HP-UX 10.20, 11.x, 11.i; Solaris 2.5 and later (SPARC systems only);
IBM AIX 3.2.5 and later 1; MPE-iX; Citrix MetaFrame Server; Windows Terminal Services
IPv4/IPv6: Apple Bonjour Compatible (Mac OS 10.2.4 and later), SNMPv1/v2c/v3, HTTP, HTTPS, FTP, Port 9100, LPD, IPP, Secure-IPP, WS Discovery, IPsec/Firewall
IPv6: DHCPv6, MLDv1, ICMPv6
IPv4: Auto-IP, SLP, TFTP, Telnet, IGMPv2, BOOTP/DHCP, WINS, IP Direct Mode, WS Print
Other: IPX/SPX, AppleTalk, NetWare NDS, Bindery, NDPS, iPrint
SNMP v3, SSL/TLS (HTTPS), 802.1x authentication (EAP-PEAP, EAP-TLS)
47 by 25 by 27.7 in (without finisher)
319.5 lb
MFP, preinstalled full-capacity black, cyan, magenta, and yellow HP Color LaserJet toner cartridges with HP ColorSphere toner6; preinstalled black, cyan, yellow, and
magenta image drums7; Getting Started Guide, Wall Poster, Telephone Support Flyer; software drivers and documentation on CD-ROM; control panel overlays; Digital
Sending Software Trial Version CD; power cables; HP embedded hard disk 100-sheet multipurpose tray, 500-sheet input trays 2, 3, 4, and 5; HP LaserJet MFP Analog
Fax Accessory 300
One-year, next-business-day, onsite warranty backed by HP Customer Care, service and support; one-year technical phone support
62 to 77 degrees F
32 to 95 degrees F
30 to 70 percent
35 to 85 percent
0 to 10,000 ft
Active print: 6.8 B(A), copy: 7.3 B(A); Ready: 4.3 B(A)
Active print: 56.8 dB(A), copy: 57.1 dB(A);
Ready: 40.3 dB(A)
110 to 127 V (±10 percent), 50/60 Hz (±2 Hz), 10.5 amp
220 to 240 V (±10 percent), 50/60 Hz (±2 Hz), 5.5 amp
Active print: 881 watts, copy: 920 watts; Ready: 230 watts
Sleep 1: 208 watts, Sleep 2: 24.5 watts; Off: 0.24 watts
Typical Electricity Consumption (TEC): 15.24 kWhr/Week
ENERGY STAR® qualified models, see www.hp.com/go/energystar
Certifications
Safety
IEC 60950-1 (International), IEC 60825-1+A1+A2, UL/cUL Listed (US/Canada), EN
60825-1+A1+A2 Class 1, 21 CFR Ch. 1/SubCh. J & Laser Notice#50 (July 26th 2001)
(Class 1 Laser/LED Device) GB4943-2001, other safety approvals as required by
individual countries
EMC
CISPR 22: 2005/EN 55022: 2006 Class B, EN 61000-3-2: 2000 +A2, EN 61000-33: 1995+A1, EN 55024: 1998+A1 +A2, FCC Title 47 CFR, Part 15 Class B (USA),
ICES-003, Issue 4, (Canada), other EMC approvals as required by individual countries
Telecom
ES 203 021, FCC Part 68, Industry Canada CS03, NOM-151-SCTI-1999 (Mexico),
other Telecom approvals as required by individual countries
HP SureSupply enabled.10 To learn more, visit www.hp.com/learn/suresupply
HP recommends that the number of printed pages per month be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.
5
Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate
deployment of printers and MFPs.
6
Average continuous composite black cartridge yield 19,500 standard pages and average continuous composite cyan/yellow/magenta cartridge yield 21,000 standard pages. Declared yield value in accordance with ISO/IEC
19798. Actual yields vary considerably based on images printed and other factors. For more information, visit www.hp.com/go/learnaboutsupplies.
7
Declared yield 35,000 pages based on HP testing methodology. Actual yields may vary considerably.
8
Configurations tested included color and mono printing, simplex and duplex printing, and 110 V and 220 V units at 40 ppm. 115 V unit tested. Data from color simplex printing and copying.
9
Values subject to change. See www.hp.com/support/cljcm6040mfp for current information.
10
HP SureSupply alerts you when you should replace a print cartridge and helps you purchase locally or via the Internet. Only available with original HP supplies; Internet access required.
4
ENERGY STAR and the ENERGY STAR logo are registered U.S. marks. Linux is a U.S. registered trademark of Linus Torvalds. Microsoft, Windows, and Windows XP are registered trademarks
of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. PANTONE is Pantone, Inc.’s
check-standard trademark for color.
© Copyright 2008 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
To learn more, visit www.hp.com
4AA1-6963ENUC, March 2008, Rev. 2.1
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
