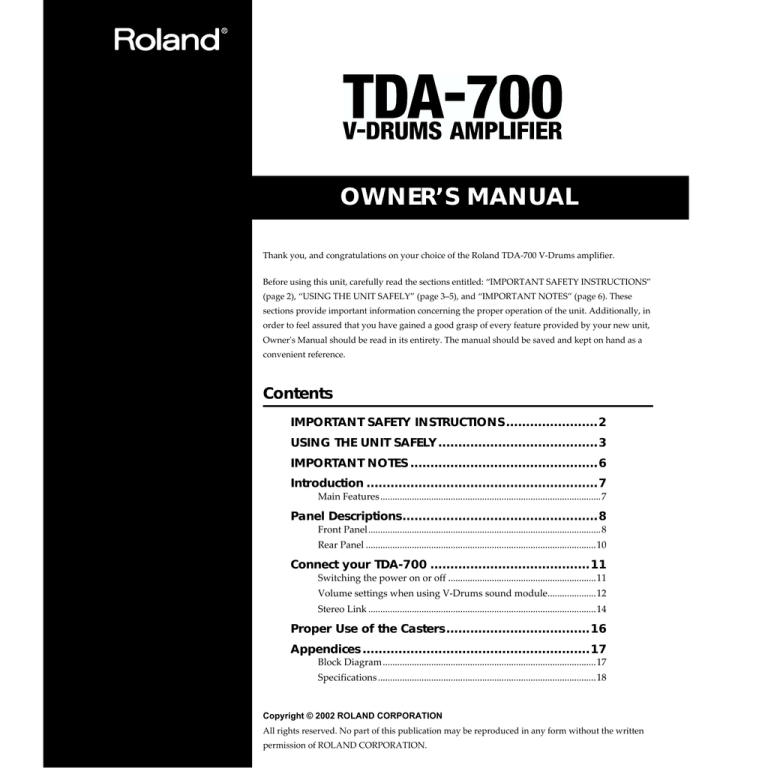

OWNER’S MANUAL
Thank you, and congratulations on your choice of the Roland TDA-700 V-Drums amplifier.
Before using this unit, carefully read the sections entitled: “IMPORTANT SAFETY INSTRUCTIONS”
(page 2), “USING THE UNIT SAFELY” (page 3–5), and “IMPORTANT NOTES” (page 6). These
sections provide important information concerning the proper operation of the unit. Additionally, in
order to feel assured that you have gained a good grasp of every feature provided by your new unit,
Owner's Manual should be read in its entirety. The manual should be saved and kept on hand as a
convenient reference.
Contents
IMPORTANT SAFETY INSTRUCTIONS .......................2
USING THE UNIT SAFELY ........................................3
IMPORTANT NOTES ...............................................6
Introduction ..........................................................7
Main Features ...........................................................................................7
Panel Descriptions.................................................8
Front Panel................................................................................................8
Rear Panel ...............................................................................................10
Connect your TDA-700 ........................................11
Switching the power on or off .............................................................11
Volume settings when using V-Drums sound module....................12
Stereo Link ..............................................................................................14
Proper Use of the Casters ....................................16
Appendices .........................................................17
Block Diagram........................................................................................17
Specifications ..........................................................................................18
Copyright © 2002 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written
permission of ROLAND CORPORATION.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING - When using electric products, basic precautions should always be followed, including the following:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any of the ventilation openings. Install in
accordance with the manufacturers instructions.
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. When the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Never use with a cart, stand, tripod, bracket,
or table except as specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
For the U.K.
WARNING:
THIS APPARATUS MUST BE EARTHED
IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.
GREEN-AND-YELLOW: EARTH, BLUE: NEUTRAL, BROWN: LIVE
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying
the terminals in your plug, proceed as follows:
The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol or coloured GREEN or GREEN-AND-YELLOW.
The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.
USING THE UNIT SAFELY
The
symbol alerts the user to important instructions
or warnings.The specific meaning of the symbol is
determined by the design contained within the
triangle. In the case of the symbol at left, it is used for
general cautions, warnings, or alerts to danger.
Used for instructions intended to alert
the user to the risk of death or severe
injury should the unit be used
improperly.
Used for instructions intended to alert
the user to the risk of injury or material
damage should the unit be used
improperly.
* Material damage refers
other adverse effects
respect to the home
furnishings, as well
animals or pets.
The
symbol alerts the user to items that must never
be carried out (are forbidden). The specific thing that
must not be done is indicated by the design contained
within the circle. In the case of the symbol at left, it
means that the unit must never be disassembled.
to damage or
caused with
and all its
to domestic
The ● symbol alerts the user to things that must be
carried out. The specific thing that must be done is
indicated by the design contained within the circle. In
the case of the symbol at left, it means that the powercord plug must be unplugged from the outlet.
001
009
• Before using this unit, make sure to read the
instructions below, and the Owner’s Manual.
• Do not excessively twist or bend the power cord,
nor place heavy objects on it. Doing so can
damage the cord, producing severed elements and
short circuits. Damaged cords are fire and shock
hazards!
..........................................................................................................
..........................................................................................................
002a
• Do not open or perform any internal modifications on the unit.
..........................................................................................................
003
• Do not attempt to repair the unit, or replace parts
within it (except when this manual provides
specific instructions directing you to do so). Refer
all servicing to your retailer, the nearest Roland
Service Center, or an authorized Roland
distributor, as listed on the “Information” page.
..........................................................................................................
004
• Never use or store the unit in places that are:
• Subject to temperature extremes (e.g., direct
sunlight in an enclosed vehicle, near a heating
duct, on top of heat-generating equipment); or
are
• Damp (e.g., baths, washrooms, on wet floors);
or are
• Humid; or are
• Exposed to rain; or are
• Dusty; or are
• Subject to high levels of vibration.
..........................................................................................................
007
• Make sure you always have the unit placed so it is
level and sure to remain stable. Never place it on
stands that could wobble, or on inclined surfaces.
..........................................................................................................
010
• This unit, either alone or in combination with an
amplifier and headphones or speakers, may be
capable of producing sound levels that could
cause permanent hearing loss. Do not operate for
a long period of time at a high volume level, or at
a level that is uncomfortable. If you experience
any hearing loss or ringing in the ears, you should
immediately stop using the unit, and consult an
audiologist.
..........................................................................................................
011
• Do not allow any objects (e.g., flammable material,
coins, pins); or liquids of any kind (water, soft
drinks, etc.) to penetrate the unit.
..........................................................................................................
013
• In households with small children, an adult
should provide supervision until the child is
capable of following all the rules essential for the
safe operation of the unit.
..........................................................................................................
014
• Protect the unit from strong impact.
(Do not drop it!)
..........................................................................................................
008a
• The unit should be connected to a power supply
only of the type described in the operating instructions, or as marked on the unit.
..........................................................................................................
3
015
• Do not force the unit’s power-supply cord to share
an outlet with an unreasonable number of other
devices. Be especially careful when using
extension cords—the total power used by all
devices you have connected to the extension
cord’s outlet must never exceed the power rating
(watts/amperes) for the extension cord. Excessive
loads can cause the insulation on the cord to heat
up and eventually melt through.
..........................................................................................................
016
• Before using the unit in a foreign country, consult
with your retailer, the nearest Roland Service
Center, or an authorized Roland distributor, as
listed on the “Information” page.
..........................................................................................................
Placement
351
• Using the unit near power amplifiers (or other equipment
containing large power transformers) may induce hum.
To alleviate the problem, change the orientation of this
unit; or move it farther away from the source of interference.
352a
• This device may interfere with radio and television
reception. Do not use this device in the vicinity of such
receivers.
352b
• Noise may be produced if wireless communications
devices, such as cell phones, are operated in the vicinity of
this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience
such problems, you should relocate such wireless devices
so they are at a greater distance from this unit, or switch
them off.
354b
• Do not expose the unit to direct sunlight, place it near
devices that radiate heat, leave it inside an enclosed
vehicle, or otherwise subject it to temperature extremes.
Also, do not allow lighting devices that normally are used
while their light source is very close to the unit (such as a
piano light), or powerful spotlights to shine upon the
same area of the unit for extended periods of time.
Excessive heat can deform or discolor the unit.
355
• To avoid possible breakdown, do not use the unit in a wet
area, such as an area exposed to rain or other moisture.
356
• Do not allow rubber, vinyl, or similar materials to remain
on the unit for long periods of time. Such objects can
discolor or otherwise harmfully affect the finish.
357
• Do not put anything that contains water (e.g., flower
vases) on the unit. Also, avoid the use of insecticides,
perfumes, alcohol, nail polish, spray cans, etc., near the
unit. Swiftly wipe away any liquid that spills on the unit
using a dry, soft cloth.
359
• Do not paste stickers, decals, or the like to this instrument.
Peeling such matter off the instrument may damage the
exterior finish.
4
• Do not allow objects to remain on top of the unit while it is
in operation.
Additional Precautions
553
• Use a reasonable amount of care when using the unit’s
buttons, sliders, or other controls; and when using its jacks
and connectors. Rough handling can lead to malfunctions.
556
• When connecting / disconnecting all cables, grasp the
connector itself—never pull on the cable. This way you
will avoid causing shorts, or damage to the cable’s
internal elements.
557
• A small amount of heat will radiate from the unit during
normal operation.
558a
• To avoid disturbing your neighbors, try to keep the unit’s
volume at reasonable levels. You may prefer to use
headphones, so you do not need to be concerned about
those around you (especially when it is late at night).
559a
• When you need to transport the unit, package it in the box
(including padding) that it came in, if possible. Otherwise,
you will need to use equivalent packaging materials.
562
• Use a cable from Roland to make the connection. If using
some other make of connection cable, please note the
following precautions.
• Some connection cables contain resistors. Do not use
cables that incorporate resistors for connecting to this unit.
The use of such cables can cause the sound level to be
extremely low, or impossible to hear. For information on
cable specifications, contact the manufacturer of the cable.
• This is a heavy device. To prevent injury caused by the
unit overturning or being dropped, use two or more
people to carry the unit whenever possible.
101a
• To avoid injury, avoid placing hands at points indicated
by the arrows in the following figure.
fig.01
• The unit should be located so that its location or
position does not interfere with its proper ventilation.
..........................................................................................................
102a
• Always grasp only the plug on the power-supply
cord when plugging into, or unplugging from an
outlet.
..........................................................................................................
104
• Try to prevent cords and cables from becoming
entangled. Also, all cords and cables should be
placed so they are out of the reach of children.
..........................................................................................................
105b
• If the unit could become a hazard if it moves, all
caster wheels should be removed once the unit has
been placed at the place of installation, or has been
loaded onto a vehicle.
..........................................................................................................
106
• Never climb on top of, nor place heavy objects on
the unit.
..........................................................................................................
107a
• Wrap the AC cord around the cord hook when transporting or storing the unit.
fig.02
• Never handle the power cord or its plug with wet
hands when plugging into, or unplugging from,
an outlet.
..........................................................................................................
108a
• Before moving the unit, disconnect the power
plug from the outlet, and pull out all cords from
external devices.
..........................................................................................................
109a
• Before cleaning the unit, turn off the power and
unplug the power cord from the outlet (p. 11).
..........................................................................................................
110a
• In order to obtain optimum performance from this
equipment, avoid allowing the areas indicated by the
arrows in the figure below to become obstructed.
fig.02
• Whenever you suspect the possibility of lightning
in your area, pull the plug on the power cord out
of the outlet.
..........................................................................................................
5
IMPORTANT NOTES
291b
In addition to the items listed under “IMPORTANT
SAFETY INSTRUCTIONS” and “USING THE UNIT
SAFELY” on pages 2 and 5, please read and observe
the following:
Power Supply
301
• Do not use this unit on the same power circuit with any
device that will generate line noise (such as an electric
motor or variable lighting system).
307
• Before connecting this unit to other devices, turn off the
power to all units. This will help prevent malfunctions
and/or damage to speakers or other devices.
Maintenance
401a
• For everyday cleaning wipe the unit with a soft, dry cloth
or one that has been slightly dampened with water. To
remove stubborn dirt, use a cloth impregnated with a
mild, non-abrasive detergent. Afterwards, be sure to wipe
the unit thoroughly with a soft, dry cloth.
402
• Never use benzine, thinners, alcohol or solvents of any
kind, to avoid the possibility of discoloration and/or
deformation.
• For routine care of the carpeted surfaces, use a brush with
stiff bristles.
6
Introduction
Main Features
FFP Technology
Stereo Link
This amplifier relies on Roland’s own innovative FFP
Stereo playback is made simple with a single audio cable
technology. By digitally processing the input signal, it
(phone type) connection.
provides response that is geared perfectly toward
Channel volume can be controlled totally on the main unit.
amplification of the V-drums sound. At the same time, it
achieves sonic pressure that surpasses the size and wattage
of the cabinet.
A Cabinet Designed for Monitor
Performance
The tweeter is located near the top of the cabinet, enhancing
Bi-amp System
the performance of the performer’s monitor speaker.
The woofer and tweeter are each driven by a dedicated amp,
so you get high-power, high-quality sound.
Broad Expandability
In addition to the channel inputs, the input/output
Dedicated input channel for V-Drums (CH1)
connectors also include headphones output, and two types of
The amp features an input channel tailored for V-Drums
Line Out jacks (XLR and 1/4" phone jacks), thus providing
sound.
support for a wide variety of applications.
V-Drums In
With this input jack, all you need is just one stereo cable to
make the connection from the headphone output jack on a VDrums sound module.
What’s FFP (Feed Forward Processing) Technology?
FFP is system control technology that optimizes the
V-Drums Shape
performance of the amp, speakers, and cabinet characteristics
The amp features a BOTTOM switch for truly awesome bass,
according to the signals being input, based on the results of
and a PUNCH switch for enhancing the contour of the
analyses of the operation and behavior of each section of
midrange and high-end. Together, they allow you to increase
existing amp systems.
the impact of the V-Drums sound.
Built-in 3-Channel Mixer Feature
Thanks to its Mixer feature, the TDA-700 makes it easy to
incorporate a variety of other devices, such as percussion
pads and rhythm machines, in addition to V-Drums.
And, since CH 2 and CH 3 are equipped with an OUTPUT
SEL switch, which lets you select headphones, speakers, or
line out as the output destination, the output for a device
you’ve input can be changed at will.
3-Band Equalizer
The TDA-700 is equipped with a three-band equalizer.
Moreover, when combined with the Shape switch, even more
tonal variations are possible.
7
Panel Descriptions
Front Panel
fig.20
4
1
2
3
CHANNEL CONTROL .............
* When using in “Stereo Link” (p. 14) configuration, the controls
explained here work only on the main unit.
● CH 1/V-DRUMS
1. VOLUME Knob
Sets the volume for CH1.
Rotating the knob clockwise increases the volume.
5
6
7
8
9
: Select this position when you wish to listen to guide
clicks or a drum machine (for example) through
headphones, without output to the internal or any
external speakers.
A: Output is through the headphones and the internal
speakers. No signals are output to Line Out. This can be
a handy function when you want to use the amplifier as
a fold back monitor during a live performance.
This is effective in preventing the loop noise that may
2. V-DRUMS SHAPE Switch
occur at times such as when the input (Channel 2 or 3)
Setting this switch to ON lets you apply distinctive sound
and Line Out on the TDA-700 are both connected to a
qualities to the signal input to CH 1 L, CH 1 R, or V-DRUMS
mixer.
IN.
BOTTOM Switch
B: Output is through the headphones, the internal
speakers, and Line Out.
Setting this to ON lets you boost the vividness of the low
end.
5. PHONES
PUNCH Switch
PHONES Jack
Setting this to ON lets you shape the contour of the midrange
This is for connecting headphones.
and high-end.
* Before plugging in or unplugging headphones, be sure to place
* This does not work on Channel 2 or 3.
● CH 2 or CH 3
the PHONES VOLUME knob at 0.
* The V-DRUMS SHAPE Switch, EQUALIZER, and MASTER
do not affect the headphone output.
3. VOLUME Knobs
PHONES VOLUME Knob
Sets the volume for each channel.
This knob adjusts the headphone volume.
Rotating a knob clockwise increases the volume.
This control does not affect LINE OUT and speaker output.
4. OUTPUT SEL (output select) Switch
This knob allows you to select the output destination for
signals input to Channel 2 and 3.
8
* The amplifier’s speakers work even when headphones are
connected.
Panel Descriptions
MASTER CONTROL ................
6. EQUALIZER
The TDA-700 comes with a three-band equalizer.
BASS Knob
This adjusts the tone of the bass range.
MIDDLE Knob
This adjusts the tone of the middle range.
TREBLE Knob
This adjusts the tone of the treble range.
7. MASTER
MASTER VOLUME Knob
This adjusts the total volume level of the unit’s internal
speaker.
* The two knobs (6) (7) in the MASTER CONTROL Section do
not affect the headphone output.
POWER INJECTION Indicator
This indicator shows the power-boosting effect of FFP.
It lights green when the effect is moderate, and turns red
when the effect reaches its maximum.
A red light indicates that the system is working at full power.
This indicator only applies to the speaker output.
8. POWER Switch
This switches the power on and off.
The pilot light illuminates when the power is on.
* Before turning the power on or off, be sure to put the MASTER
VOLUME knob (7) at 0.
9. POWER Indicator
This indicator lights when the unit is turned on.
9
Panel Descriptions
Rear Panel
fig.21
15 14
13
12
CHANNEL INPUT...................
10. V-DRUMS IN Jack
11
10
STEREO LINK ........................
* For details on the Stereo Link function, refer to
“Stereo Link” (p. 14).
This is an input that accepts a stereo signal from the VDrums module through a single jack.
Connection is made simple using just one stereo phone cable
to the module’s headphone output.
11. Input Jacks
These jacks are for connecting a V-Drums sound module,
backing machine, rhythm machine, etc.
If you’re connecting a monaural device, connect to the L
(MONO) jack of one pair.
If you’re connecting a stereo device, make connections to
both the L and R jacks of a pair.
LINE OUT..............................
12. LINE OUT Jacks
Connect a mixer or recording device to either (or both) of
these pairs of outputs.
There are two types of connectors: an XLR type and an
unbalanced TRS 1/4" phone jack. Use the one appropriate for
the equipment you’re connecting.
If you’re making a mono connection, connect to the L
(MONO) phone jack.
* V-DRUMS SHAPE Switch, EQUALIZER, and MASTER do
not affect LINE OUT.
13. GND LIFT Switch
This selects whether the XLR-type LINE OUT jacks are
grounded or not. If you encounter noise problems that are
possibly caused by a ground loop, try changing the switch
position to alleviate the problem.
10
14. STEREO LINK OUT Jack
Connect this jack to the STEREO LINK IN jack on a second
TDA-700 when you wish to have true stereo output.
When a cable is connected to the STEREO LINK OUT jack,
the right-channel input signals are output from the internal
speakers. The left-channel input signals are output from the
STEREO LINK OUT jack to the other TDA-700.
15. STEREO LINK IN Jack
Connect this jack to the STEREO LINK OUT jack on the main
unit (the other TDA-700) when a true stereo output is
required. Left-channel input signals are output from the
internal speakers.
Connect your TDA-700
Refer to the following diagram and connect the TDA-700 to the external equipment you are using.
fig.30-1
(Rear Panel)
(Front Panel)
Stereo
Headphones
or
or
MASTER
Recorder
Percussion Pad
PHONES
V-Drums Sound Module
Mixer
* To prevent malfunction and/or damage to speakers or other
devices, always turn down the volume, and turn off the power
on all devices before making any connections.
* The pin assignment for the XLR type connectors is as shown
below. Before making any connections, make sure that this pin
assignment is compatible with that of all your other devices.
Switching the power on or off
Once the connections have been completed, turn on power to
your various devices in the order specified. By turning on
devices in the wrong order, you risk causing malfunction
and/or damage to speakers and other devices.
1. Switch on the power to the V-Drums sound module and
fig.31
2
1
1: GND
2: HOT
3: COLD
3
any equipment connected to CH 1–3.
2. TDA-700
3. If a mixer is connected to the LINE OUT jack(s) on the
TDA-700, turn on the mixer.
Q: The volume level of the instrument connected to CH1–3 is too low.
A: Could you be using a connection cable that contains a
resistor?
Use a connection cable that does not contain a
resistor.
* This unit is equipped with a protection circuit. A brief interval
(a few seconds) after power up is required before the unit will
operate normally.
* Always make sure to have the volume level turned down before
switching on/off power. Even with the volume all the way down,
you may still hear some sound when the power is switched on/
off, but this is normal, and does not indicate a malfunction.
11
Connect your TDA-700
Volume settings when using V-Drums sound module
For best possible sound quality, set the volume of the V-Drums sound module and TDA-700 as follows.
1.
When PHONES on the V-Drums sound generator is
• V-Drums PHONES connection
connected to the TDA-700’s V-DRUMS IN , set the VDrums generator’s PHONES VOLUME to the center
position.
When the V-Drums sound generator’s MASTER
OUTPUT is connected to the TDA-700’s CH 1 INPUT ,
set the V-Drums MASTER VOLUME to the maximum
position.
2. Set the TDA-700 CH1 VOLUME to the center “5”
position.
3. Adjust the TDA-700’s MASTER VOLUME to determine
the overall volume level.
* If the POWER INJECTION indicator turns red quite often,
lower MASTER VOLUME until it turns red only
occasionally.
* If other sound sources are connected to CH 2, CH 3, adjust the
CH2, CH3 VOLUME also.
4. Adjust the tone to your liking using the V-DRUMS
SHAPE Switch and the EQUALIZER.
* If you hear distortion after the adjustment, lower the CH1
VOLUME or V-Drums VOLUME until the distortion is gone.
* Above also applies to cases with other sound sources connected
to CH2, CH3. In that case, lower the CH2, CH3 VOLUME or
VOLUME at the sound source.
12
• V-Drums MASTER connection
Connect your TDA-700
Adjust the direction of TDA-700 to suit the environment in which you are using it.
● When using TDA-700 as a personal monitor . . . . . . . . . . . . . . . . . . . . . . . . . . .
Try several positions and angles until you find the most comfortable setup.
or
or
or
or
● When using TDA-700 as a monitor for the whole band . . . . . . . . . . . . . . . . . . .
Try several positions and angles until you find a setup that is good not only for yourself, but for other players as well.
Other Players
Other Players
or
or
13
Connect your TDA-700
Stereo Link
Stereo playback is enabled simply by connecting two TDA-700 units with a single audio cable (phone type).
This function is called “Stereo Link.” As the channel control section is designed to accept stereo signals, connection of sound
sources is needed only at the main unit, thus enabling channel volumes to be centrally controlled on the main unit.
The right-channel signals are output from the speakers in the main unit, while the left-channel signals are output from the
speakers in the sub unit (the other TDA-700).
fig.30-2
Sub (L-channel signals)
Main (R-channel signals)
or
or
IN
OUT
MASTER
Recorder
Percussion Pad
Mixer
PHONES
V-Drums
Sound Module
Connections
In performance
When using a Stereo Link configuration, connect all
In stereo link configuration, adjust volumes with VOLUME
peripheral equipment to the main unit. On the sub unit, the
knobs in CH 1–CH 3 of the main unit.
only functional input/output jack is STEREO LINK IN.
* The CH 1–CH 3 VOLUME knobs of the main unit affect both
* Before making the connections, be sure that the volume setting
of the MASTER VOLUME knob for both amplifiers is set to
“0.”
Switching the power on or off
Once the connections have been completed, turn on power to
your various devices in the order specified. By turning on
devices in the wrong order, you risk causing malfunction
and/or damage to speakers and other devices.
the left and right units.
* CH 1–CH 3 VOLUME and V-DRUMS SHAPE are controlled
on the main unit. The sub unit does not respond to these controls.
* CH 1–CH 3 VOLUME and V-DRUMS SHAPE of the sub unit
are independent of the main unit.
Basically, these controls should be set to the same position.
However, depending on the conditions, you may want to adjust
each unit so as to better suit the situation.
1. Turn on V-Drums sound module and other sound
sources connected to CH 1–3.
2. Turn on the main TDA-700 amplifier.
3. Turn on the sub TDA-700 amplifier.
4. Turn on the device connected to LINE OUT.
5. Adjust the volume levels on all devices.
Before switching off the power, lower the volume on each of
the devices in your system, then TURN OFF the devices in
the reverse order of that used when switching them on.
14
The output from STEREO LINK OUT on a device must never
be input to the STEREO LINK IN on the same device. Doing
so may damage the unit.
fig.30-3
Connect your TDA-700
The following shows the placement of V-Drums KIT and the TDA-700 in a Stereo Link configuration.
● When using TDA-700 as a personal monitor . . . . . . . . . . . . . . . . . . . . . . . . . . .
Place the main unit to your right. Try several positions and angles until you find the most comfortable setup.
TDA-700
Sub (L-ch signals)
TDA-700
Main (R-ch signals)
CH 1/V-DRUMS IN
LINK OUT
LINK IN
LINK IN
LINK OUT
CH 1/V-DRUMS IN
TDA-700
Main (R-ch signals)
TDA-700
Sub (L-ch signals)
● When using TDA-700 as a monitor for the whole band . . . . . . . . . . . . . . . . . . .
Place the main unit to your right. Try several positions and angles until you find a setup that is good not only for yourself, but for
other players as well.
Other Players
Other Players
TDA-700
Main (R-ch signals)
TDA-700
Sub (L-ch signals)
LINK IN
LINK OUT
CH 1/V-DRUMS IN
15
Proper Use of the Casters
Attaching and Removing the Casters
You can attach or remove the casters as shown in the following figure.
Be sure to remove all the casters when accidental movement may be dangerous, such as when setting up the TDA-700 on
stage, or when transporting it in a vehicle.
This is a heavy piece of equipment. To prevent injury caused by the unit overturning or being dropped, two or more
people should work together when carrying the unit.
If casters have been attached to the amp, make sure it is used only on a stable, level surface.
fig.40
16
Appendices
Block Diagram
fig.50
LINK OUT
LINK IN
POWER
INJECTION
TREBLE
MIDDLE
BASS
PUNCH
BOTTOM
MASTER
VR
CH1 /
V-DRUMS
POWER AMP
HF
V-DRUMS
SHAPE
EQUALIZER
MIXER
CH 1 VR
TWEETER
FFP
LF
WOOFER
POWER AMP
DSP
CH 2
CH 2 VR
OUTPUT SEL
LINE OUT
CH 3
CH 3 VR
OUTPUT SEL
PHONES
LINE OUT
SPEAKER
PHONES
17
Appendices
Specifications
Rated Power Output
Indicators
300 W (LF 240 W + HF 60 W)
POWER INJECTION (2 colors)
POWER
Nominal Input Level (1 kHz)
CHANNEL INPUT (CH1–CH3): -20 dBu
Connectors
STEREO LINK INPUT:
V-DRUMS IN Jack (Stereo 1/4” phone type)
+4 dBu
CH1–CH3 INPUT L Jacks (1/4” phone type)
Nominal Output Level (1 kHz)
CH1–CH3 INPUT R Jacks (1/4” phone type)
LINE OUT:
LINE OUT L Jacks (XLR type, 1/4” phone type)
+4 dBu (XLR type, Phone type)
STEREO LINK OUTPUT: +4 dBu
LINE OUT R Jacks (XLR type, 1/4” phone type)
* 0 dBu = 0.775 Vrms
STEREO LINK IN Jack (1/4” phone type)
STEREO LINK OUT Jack (1/4” phone type)
Speakers
PHONES Jack (stereo 1/4” phone type)
38 cm (15 inches) x1
Horn Tweeter x 1
Power Supply
AC 117, 230, 240 V
Controls
CHANNEL CONTROL
CH1
VOLUME Knob
V-DRUMS SHAPE BOTTOM Switch
V-DRUMS SHAPE PUNCH Switch
CH2
VOLUME Knob
OUTPUT SELECT Knob
CH3
VOLUME Knob
OUTPUT SELECT Knob
PHONES
VOLUME Knob
MASTER CONTROL
EQUALIZER
BASS Knob
Power Consumption
260 W
Dimensions
514 (W) x 540 (D) x 950 (H) mm
20-1/4 (W) x 21-5/16 (D) x 37-7/16 (H) inches
(excluding casters)
514 (W) x 540 (D) x 1015 (H) mm
20-1/4 (W) x 21-5/16 (D) x 40 (H) inches
(including casters)
Weight
50 kg/110 lbs 4 oz
Accessories
Owner’s Manual
Casters (x4)
MIDDLE Knob
TREBLE Knob
MASTER VOLUME Knob
* In the interest of product improvement, the specifications and/or
appearance of this unit are subject to change without prior
notice.
POWER Switch
GND LIFT Switch
18
For EU Countries
This product complies with the requirements of European Directives EMC 89/336/EEC and LVD 73/23/EEC.
For the USA
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Unauthorized changes or modification to this system can void the users authority to operate this equipment.
This equipment requires shielded interface cables in order to meet FCC class B Limit.
For Canada
NOTICE
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
AVIS
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
xxxxxxxx
’00-xx-xx-xxx
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
