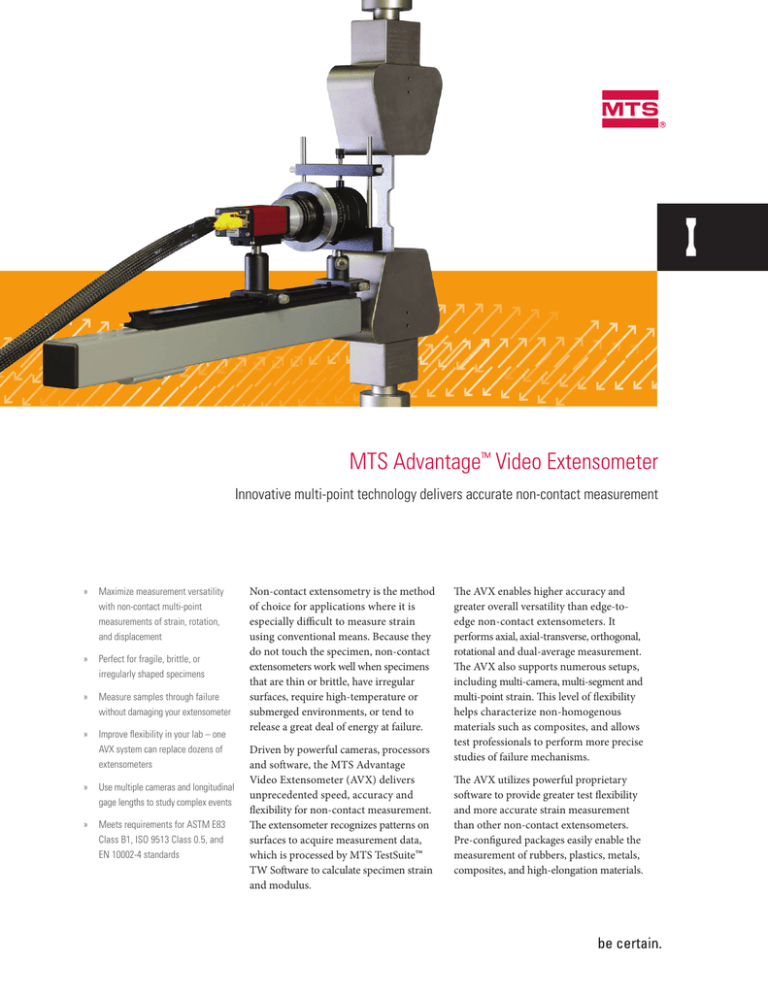

MTS Advantage™ Video Extensometer
Innovative multi-point technology delivers accurate non-contact measurement
»» Maximize measurement versatility
with non-contact multi-point
measurements of strain, rotation,
and displacement
»» Perfect for fragile, brittle, or
irregularly shaped specimens
»» Measure samples through failure
without damaging your extensometer
»» Improve flexibility in your lab – one
AVX system can replace dozens of
extensometers
»» Use multiple cameras and longitudinal
gage lengths to study complex events
»» Meets requirements for ASTM E83
Class B1, ISO 9513 Class 0.5, and
EN 10002-4 standards
Non-contact extensometry is the method
of choice for applications where it is
especially difficult to measure strain
using conventional means. Because they
do not touch the specimen, non-contact
extensometers work well when specimens
that are thin or brittle, have irregular
surfaces, require high-temperature or
submerged environments, or tend to
release a great deal of energy at failure.
Driven by powerful cameras, processors
and software, the MTS Advantage
Video Extensometer (AVX) delivers
unprecedented speed, accuracy and
flexibility for non-contact measurement.
The extensometer recognizes patterns on
surfaces to acquire measurement data,
which is processed by MTS TestSuite™
TW Software to calculate specimen strain
and modulus.
The AVX enables higher accuracy and
greater overall versatility than edge-toedge non-contact extensometers. It
performs axial, axial-transverse, orthogonal,
rotational and dual-average measurement.
The AVX also supports numerous setups,
including multi-camera, multi-segment and
multi-point strain. This level of flexibility
helps characterize non-homogenous
materials such as composites, and allows
test professionals to perform more precise
studies of failure mechanisms.
The AVX utilizes powerful proprietary
software to provide greater test flexibility
and more accurate strain measurement
than other non-contact extensometers.
Pre-configured packages easily enable the
measurement of rubbers, plastics, metals,
composites, and high-elongation materials.
Advantages of Video Extensometry
P ER FECT FO R DEL ICATE SPECIM EN SAM PL ES
When testing a specimen sample that is
fragile, brittle or irregularly shaped,
non-contact extensometry prevents
damage caused by the contact forces of
a clip on extensometer.
TA KE MU LTIPL E M EASUREM ENTS
The MTS AVX allows users to take up to
200 measurements in real time with one
instrument. Options allow users to upgrade
to a more advanced package to measure
strain, Possion’s ratio, and rotation or
shear strain.
IM PRO VE T E ST D ATA RE L IA B IL IT Y
The AVX eliminates the chance for operator
error in placing the extensometer on the
specimen, and allows repeatable
measurements to be taken after the physical
test is complete in post process mode.
Put the MTS Advantage Video Extensometer to Work for You
The AVX allows for non-contact multi-point measurement of
strain, rotation, and displacement by using pattern recognition
and sub-pixel interpolation to measure exact displacements of
selected points on a video image.
TEN S ILE TESTING
The MTS AVX works with virtually all tensile test set-ups, and
unlimited gage lengths are possible through use of the appropriate
lenses. High-temperature testing may also be performed as
long as the unit has a line of site through the furnace window.
Additionally, AVX avoids common tensile testing problems like
slipping, adding stress concentrations or breaking during
high-energy fractures.
Tensile Testing
C O MP R ES S ION TESTING
Compression platens often inhibit access to the specimen, but
unlike contacting methods the AVX only requires line of site to
the specimen. This eliminates any risk of damage to the strain
measurement device.
MU LTI-P O INT BEND TESTING
Compression Testing
High precision deflection measurements may be taken during a
multi-point bend test. Point deflection measurements may be
taken for the rollers or specimen, or strain can be directly
measured from the surface in tension.
S H EA R TESTING
2D multi-point tracking allows for direct measurements of
shear strain. Direct measurements can be taken through
measuring the change in angle between three points. Shear
modulus measurements can be taken using these methods for
v-notch or short beam specimens of any size using the
appropriate hardware and minimal specimen preparation.
Multi-point Bend Testing
PRO T E CT YO U R INVE ST M E NT
Measurements through failure can be taken
without any threat of damage to the video
extensometer so tests can run without
interruption. The MTS AVX can replace
dozens of contact extensometers and
when ASTM or ISO standards change, a
properly designed video extensometer
will meet those needs.
User-friendly Software Enables Quick Measurements
Upgrade to 2D Digital Image Correlation (DIC)
The AVX software is extremely intuitive and easy-to-use. After
half a day’s training any user will be confident that they are
obtaining accurate measurements. The main software window is
divided into three sections: a navigation bar, a control window
and a video window. The navigation bar allows you to move
through the steps for configuring the extensometer, and the
control window shows controls for configuring the application.
The AVX packages include an option of adding DIC capability
to create full-field color maps of strain and displacement. This
convenient visual tool for scanning an area under load to helps to
identify areas of high stress, crack opening or other discontinuities.
A NA L O G /D IG ITA L IN P U TS
Up to 32 signals including force, crosshead
displacement, or temperature from your
test system can be read by the AVX
software. An integrated calibration wizard
allows it to convert the voltage signal back
to the parameter being measured.
The DIC option operates in real-time as well as post-process
analysis to create high-resolution full field maps that are
overlaid on the original video files. Results are easy to interpret
and it is possible to toggle between all measurement options
without reprocessing a test.
C A L I BRATIO N
Includes simple step by step wizards to
convert pixels to real-world measurements.
A D D M EA S U REMEN TS
Simply add measurements of interest by
pointing and clicking at the desired
measurement locations.
E A SILY VISU A L IZ E ST RA IN A ND
D ISPL A CE M E NT G RA D IE NT S
GRAPHS ALLOW REAL-TIME VISUALIZATION OF DATA
Create a graph before or after your test
using the intuitive graphing interface.
Simply select the x and y axis to plot any
measurement outcome or input signal
against any other measurement outcome
or input signal.
A NA L O G & D IG ITA L O U TP U T S
Up to 16 analog digital outputs give you the
ability to connect digital or analog outputs
to measurement results for real time output
of data to MTS TestSuite TW Software.
The DIC software outputs 2D contour plots where color gradients
show levels of strain. The software allows the user to define the
x-axis and show Exx, Eyy or Exy.
Specifications
FIV E PR EC O N FIGURED PACKAGES OF F ER F L EXIBIL ITY AND SIM PL ICIT Y
AVX-51AVX-52 AVX-53
Axis of Measurement
Application Multiple
(orthogonal, rotation, dual average)
Multiple
(orthogonal, rotation, dual average)
Multiple
(orthogonal,
rotation, dual average)
Typical Applications
AVX-54
AVX-55
Multiple (orthogonal, rotation, dual average)
Multiple
(orthogonal,
rotation,
dual average)
Rubbers/Plastics
Metals
Composites
R&D
High-Elongation
Video Camera
1 x HD
2 x HD
2 x HD
1 x HD
1 x 5 MP
Measurement Rate (Hz)
17-50 17-50 17-50 17-50 Focal Length (mm)
Lens
Working Distance (mm)
Suitable for
Measuring Modulus
Hardware
Gage Length (mm)
Camera(s)
8
12.5
12
16
8
N/A
N/A
3 Lenses
2 Lenses
1 Lens
Adjustable
Adjustable 307
297
15-50
25 N/A
4 Lenses
Adjustable
8
12
16
3 Lenses
297
Adjustable
√ √
M
aximum strain range at gauge length (%)
250
87
92
10
50 413253 173 413
13
-
413173 87 - 580 364257
10017393 53 173
-
-
17353 10 - 25714995
-
53---9541
14
– 893
16
25 893573 413 893
–
√
8
–
200
53
13- 53 -
– 893 548 87
– 10001000
893413421 10 1000796580
Best Possible
ISO 9513 Accuracy
0.5
0.2
0.2
0.2
0.5
Best Possible ASTM E83
B2
B1
B1
B1
B2
Resolution (µm) based
on 500 mm WD
AVX Instrument Controller
Live
1.41.00.8 1.4 0.2
1.40.8 0.50.1 1.1 0.80.6
√
√
√
√
√
√
√
√
√
√
√
√
√
√
General
Record Archive
√
√
FeaturesPost-Process
0.1
√
Review Mode
√
√
√
√
√
Video Channels
2
2
8
8
2
Time
1
1
1
1
1
√
√
√
√
√
2
2
UTC Time
SoftwarePos
Distance
MeasurementDisplacement
CountsExtensometer
2
[max. no.Strain
2
(√ = Infinity)] Dual Avg Strain
2
2
2
√
√2
2
√
√2
1
√
√1
1
√
√1
Poisson’s Ratio
1
√
√1
Std Mat Test
√
√
Rotation
1
√
√1
Shear Strain
2
√
√2
2D DIC Optional
Optional
Optional
Optional
Optional
