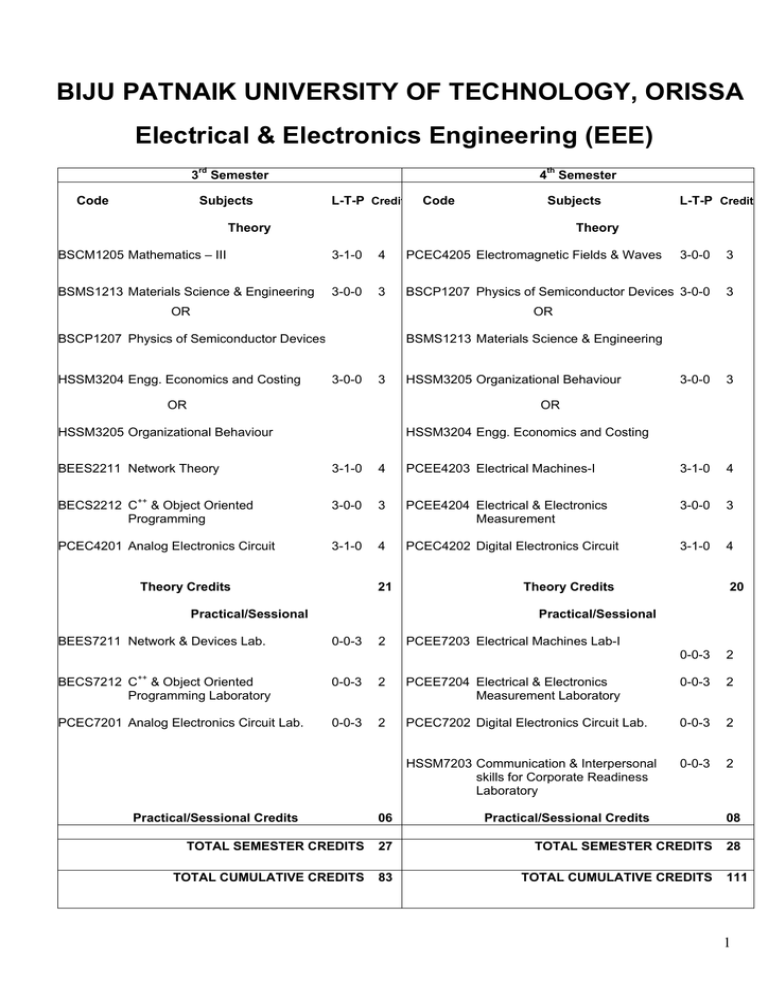

BIJU PATNAIK UNIVERSITY OF TECHNOLOGY, ORISSA
Electrical & Electronics Engineering (EEE)
3rd Semester
Code
Subjects
4th Semester
L-T-P Credit
Code
Subjects
Theory
L-T-P Credit
Theory
BSCM1205 Mathematics – III
3-1-0
4
PCEC4205 Electromagnetic Fields & Waves
3-0-0
3
BSMS1213 Materials Science & Engineering
3-0-0
3
BSCP1207 Physics of Semiconductor Devices 3-0-0
3
OR
OR
BSCP1207 Physics of Semiconductor Devices
HSSM3204 Engg. Economics and Costing
BSMS1213 Materials Science & Engineering
3-0-0
3
OR
HSSM3205 Organizational Behaviour
3-0-0
3
OR
HSSM3205 Organizational Behaviour
HSSM3204 Engg. Economics and Costing
BEES2211 Network Theory
3-1-0
4
PCEE4203 Electrical Machines-I
3-1-0
4
BECS2212 C++ & Object Oriented
Programming
3-0-0
3
PCEE4204 Electrical & Electronics
Measurement
3-0-0
3
PCEC4201 Analog Electronics Circuit
3-1-0
4
PCEC4202 Digital Electronics Circuit
3-1-0
4
Theory Credits
21
Practical/Sessional
Theory Credits
20
Practical/Sessional
BEES7211 Network & Devices Lab.
0-0-3
2
PCEE7203 Electrical Machines Lab-I
BECS7212 C++ & Object Oriented
Programming Laboratory
0-0-3
2
PCEC7201 Analog Electronics Circuit Lab.
0-0-3
2
Practical/Sessional Credits
06
0-0-3
2
PCEE7204 Electrical & Electronics
Measurement Laboratory
0-0-3
2
PCEC7202 Digital Electronics Circuit Lab.
0-0-3
2
HSSM7203 Communication & Interpersonal
skills for Corporate Readiness
Laboratory
0-0-3
2
Practical/Sessional Credits
TOTAL SEMESTER CREDITS
27
TOTAL SEMESTER CREDITS
TOTAL CUMULATIVE CREDITS
83
TOTAL CUMULATIVE CREDITS
08
28
111
1
BSCM1205 Mathematics
Module-I
- III
(18 hours)
Partial differential equation of first order, Linear partial differential equation, Non-linear partial
differential equation, Homogenous and non-homogeneous partial differential equation with
constant co-efficient, Cauchy type, Monge’s method, Second order partial differential equation
The vibrating string, the wave equation and its solution, the heat equation and its solution, Two
dimensional wave equation and its solution, Laplace equation in polar, cylindrical and spherical
coordinates, potential.
Module-II
(12 hours)
Complex Analysis:
Analytic function, Cauchy-Riemann equations, Laplace equation, Conformal mapping,
Complex integration: Line integral in the complex plane, Cauchy’s integral theorem, Cauchy’s
integral formula, Derivatives of analytic functions
Module –III
(10 hours)
Power Series, Taylor’s series, Laurent’s series, Singularities and zeros, Residue integration
method, evaluation of real integrals.
Text books:
1. E. Kreyszig,” Advanced Engineering Mathematics:, Eighth Edition, Wiley India
Reading Chapters: 11,12(except 12.10),13,14,15
2. B.V. Ramana, “ Higher Engineering Mathematics”, McGraw Hill Education, 2008
Reading chapter: 18
Reference books:
1. E.B. Saff, A.D.Snider, “ Fundamental of Complex Analysis”, Third Edition, Pearson
Education, New Delhi
2. P. V. O’Neil, “Advanced Engineering Mathematics”, CENGAGE Learning, New Delhi
2
BSMS1213 Material
MODULE-I
Science and Engineering
(11 Hours)
Introduction, Classification of Engineering Materials, Engineering properties of materials, Selection of Materials
Mechanical Properties of Materials: Tensile strength, Stress–strain behaviour, Ductile and brittle material, Impact test,
Toughness, Hardness test, Fatigue and fatigue test, Creep and Creep test, Fracture
MODULE-II
(13 Hours)
Electrical and Electronic materials: Electrical conductivity, Thermal conductivity, Free electron theory, Energy band
concept of conductor, insulator & semiconductor.
Superconductor materials: Principles of superconductivity, zero resistivity, Critical magnetic field and critical current
density, Type I & II superconductors, Applications of superconductors
Dielectric Materials: Microscopic displacement of atoms and molecules in an external DC electric field, Polarization
and dielectric constant, Dielectric susceptibility, polarization mechanisms, Temperature and frequency dependence of
dielectric constant, Dielectric breakdown, Ferroelectric materials, Piezoelectrics, pyroelectrics and ferroelectrics,
Dielectric materials as electrical insulators
Magnetic Materials: Concept of magnetism – Diamagnetic, Paramagnetic, Ferromagnetic materials, Hysteresis, Soft &
hard magnetic materials, Ferrite
MODULE-III
(11 Hours)
Optical materials: optical properties – scattering, refraction, reflection, transmission & absorption, Laser – principles
and applications, Optical fibres – principles and applications
Polymeric materials: Types of polymers, Mechanism of polymerization, Mechanical behaviour of polymers, Fracture in
polymers, Rubber types and applications, Thermosetting and thermoplastics, Conducting polymers
Composite Materials: Microcomposites & Macrocomposites, fibre reinforced composites, Continuous fibre
composites, Short fibre composites, Polymer matrix composites, Metal-matrix composites, Ceramic-matrix
composites, Carbon-carbon Composites, Hybrid composites.
Ceramics: Types, structure, properties and application of ceramic materials
Other materials: Brief description of other materials such as Corrosion resistant materials, Nano phase materials,
Shape memory alloy, SMART materials
Text Books:
1.
Material Science for Engineers, James F. Shackelford & Madanapalli K Muralidhara, Pearson Education
2.
Materials Science and Engineering, W.D.Callister, Wiley and Sons Inc.
Reference Books
1.
Materials Science by M.S. Vijaya , G.Rangarajan, Tata MacGraw Hill
2.
Materials Science by V. Rajendra, A. Marikani, Tata MacGraw Hill
3.
Materias Science for Electrical and Electronic Engineers, I.P.Jones, Oxford University Press
4.
Elements of Material Science and Engineering, L.H.Van Vlack, Addison Wesley
5.
The Science and Engineering of Materials, Donald R. Askeland and Pradeep P Phule, Thomson Learning
(India Edition)
6.
Materials Science and Engineering, V.Raghavan, Prentice Hall of India Pvt.Ltd.
7.
Materials Science and Engineering in SI units, W.F.Smith, J.Hashemi and R.Prakash, Tata MacGraw Hill
8.
Engineering Materials, Properties and Selection, Kenneth G. Budinski and Michael K. Budinski, Prentice Hall
of India
9.
Material Science & Engineering, Vijaya M. S., Rangarajan G, Tata McGraw Hill.
10. Material Science & Enginnering, S.K.Tripathy, A.K.Padhy & A. Panda, Scitech publication.
3
BSCP 1207
Module-I
Physics of Semiconductor Devices
(10 Hours)
1. Introduction to the quantum theory of solids: Formation of energy bands, The k-space diagram (two
and three dimensional representation), conductors, semiconductors and insulators.
2. Electrons and Holes in semiconductors: Silicon crystal structure, Donors and acceptors in the band
model, electron effective mass, Density of states, Thermal equilibrium, Fermi-Dirac distribution function
for electrons and holes, Fermi energy. Equilibrium distribution of electrons & holes: derivation of n and p
from D(E) and f(E), Fermi level and carrier concentrations, The np product and the intrinsic carrier
concentration. General theory of n and p, Carrier concentrations at extremely high and low temperatures:
complete ionization, partial ionization and freeze-out. Energy-band diagram and Fermi-level, Variation of
EF with doping concentration and temperature.
3. Motion and Recombination of Electrons and Holes: Carrier drift: Electron and hole mobilities,
Mechanism of carrier scattering, Drift current and conductivity.
Module II
(11 Hours)
4. Motion and Recombination of Electrons and Holes (continued): Carrier diffusion: diffusion current,
Total current density, relation between the energy diagram and potential, electric field. Einstein
relationship between diffusion coefficient and mobility. Electron-hole recombination, Thermal generation.
5. PN Junction: Building blocks of the pn junction theory: Energy band diagram and depletion layer of a pn
junction, Built-in potential; Depletion layer model: Field and potential in the depletion layer, depletionlayer width; Reverse-biased PN junction; Capacitance-voltage characteristics; Junction breakdown: peak
electric field. Tunneling breakdown and avalanche breakdown; Carrier injection under forward biasQuasi-equilibrium boundary condition; current continuity equation; Excess carriers in forward-biased pn
junction; PN diode I-V characteristic, Charge storage.
6. The Bipolar Transistor: Introduction, Modes of operation, Minority Carrier distribution, Collector
current, Base current, current gain, Base width Modulation by collector current, Breakdown mechanism,
Equivalent Circuit Models - Ebers -Moll Model.
Module III
(12 Hours)
7. Metal-Semiconductor Junction: Schottky Diodes: Built-in potential, Energy-band diagram, I-V
characteristics, Comparison of the Schottky barrier diode and the pn-junction diode. Ohmic contacts:
tunneling barrier, specific contact resistance.
8. MOS Capacitor: The MOS structure, Energy band diagrams, Flat-band condition and flat-band voltage,
Surface accumulation, surface depletion, Threshold condition and threshold voltage, MOS C-V
characteristics, Qinv in MOSFET.
9. MOS Transistor: Introduction to the MOSFET, Complementary MOS (CMOS) technology, V-I
Characteristics, Surface mobilities and high-mobility FETs, JFET, MOSFET Vt, Body effect and steep
retrograde doping, pinch-off voltage,
Text Books:
1. Modern Semiconductor Devices for Integrated Circuits,ChenmingCalvinHu,PearsonEducation/Prentice Hall,
2009.
2. Semiconductor Physics and Devices, 3rd Edition, Donald A. Neamen, Tata McGraw Hill Publishing Company
Limited, New Delhi.
Reference Books:
1. Fundamentals of Semiconductor Devices, M.K. Achuthan and K.N. Bhatt, Tata McGraw Hill Publishing
Company Limited, New Delhi.
2. Solid State Electronics Devices, 6th Edition, Ben. G. Stretman and Sanjay Banarjee, Pearson Education, New
Delhi.
3. Physics of Semiconductor Devices, 3rd Edition, S.M. Sze and Kwok K. Ng, Wiley India Pvt. Limited, New Delhi.
4. Physics of Semiconductor Devices, 2nd Edition, Dillip K. Roy, University Press (India) Pvt. Ltd., Hyderabad.
5. Solid State Electronics Devices, D.K. Bhattacharya and Rajnish Sharma, Oxford University Press, New Delhi.
4
HSSM3204 Engineering
Economics & Costing
Module-I:
(12 hours)
Engineering Economics – Nature and scope, General concepts on micro & macro economics. The
Theory of demand, Demand function, Law of demand and its exceptions, Elasticity of demand,
Law of supply and elasticity of supply. Determination of equilibrium price under perfect competition
(Simple numerical problems to be solved). Theory of production, Law of variable proportion, Law
of returns to scale.
Module-II:
(12 hours)
Time value of money – Simple and compound interest, Cash flow diagram, Principle of economic
equivalence. Evaluation of engineering projects – Present worth method, Future worth method,
Annual worth method, internal rate of return method, Cost-benefit analysis in public projects.
Depreciation policy, Depreciation of capital assets, Causes of depreciation, Straight line method
and declining balance method.
Module-III:
(12 hours)
Cost concepts, Elements of costs, Preparation of cost sheet, Segregation of costs into fixed and
variable costs. Break-even analysis-Linear approach. (Simple numerical problems to be solved)
Banking: Meaning and functions of commercial banks; functions of Reserve Bank of India.
Overview of Indian Financial system.
Text Books:
1. Riggs, Bedworth and Randhwa, “Engineering Economics”, McGraw Hill Education India.
2. D.M. Mithani, Principles of Economics. Himalaya Publishing House
Reference Books :
1. Sasmita Mishra, “Engineering Economics & Costing “, PHI
2. Sullivan and Wicks, “ Engineering Economy”, Pearson
3. R.Paneer Seelvan, “ Engineering Economics”, PHI
4. Gupta, “ Managerial Economics”, TMH
5. Lal and Srivastav, “ Cost Accounting”, TMH
5
HSSM 3205 Organizational
Behaviour
Module I :
The study of Organizational Behaviour : Definition and Meaning, Why Study OB
Learning – Nature of Learning, How Learning occurs, Learning and OB.
Foundations of Individual Behaviour : Personality – Meaning and Definition, Determinants of Personality,
Personality Traits, Personality and OB.
Perception – Meaning and Definition, Perceptual Process, Importance of Perception in OB. Motivation –
Nature and Importance, Herzberg’s Two Factor Theory, Maslow’s Need Hierarchy Theory, Alderfer’s ERG
Theory, Evaluations.
Module II :
Organizational Behaviour Process : Communication – Importance, Types, Gateways and Barriers to
Communication, Communication as a tool for improving Interpersonal Effectiveness, Groups in
Organizations – Nature, Types, Why do people join groups, Group Cohesiveness and Group Decisionmaking Managerial Implications, Effective Team Building. Leadership-Leadership & Management, Theories
of Leadership-Trait theory, Leader Behaviour theory, Contingency Theory, Leadership and Follower ship,
How to be an effective Leader, Conflict-Nature of Conflict and Conflict Resolution. An Introduction to
Transactional Analysis (TA).
Module-III :
Organization : Organizational Culture – Meaning and Definition, Culture and Organizational Effectiveness.
Introduction to Human Resource Management-Selection, Orientation, Training and Development,
Performance Appraisal, Incentives Organizational Change – Importance of Change, Planned Change and
OB techniques. International Organisational Behaviour – Trends in International Business, Cultural
Differences and Similarities, Individual and Interpersonal Behaviour in Global Perspective.
Text Books :
1. Keith Davis, Organisational Behaviour, McGraw-Hill.
2. K.Aswathappa, Organisational Behaviour, Himalaya Publishing House.
Reference Books :
1. Stephen P. Robbins, Organisational Behaviour, Prentice Hall of India
2. Pradip N. Khandelwal, Organizational Behaviour, McGraw-Hill, New Delhi.
3. Uma Sekaran, “Organizational Behaviour”, TATA McGraw-Hill, New Delhi.
4. Steven L McShane, Mary Ann Von Glinow, Radha R Sharma” Organizational
Behaviour” , TATA McGraw- Hill.
5. D.K. Bhattachayya, “Organizational Behaviour”, Oxford University Press
6. K.B.L.Srivastava & A.K.Samantaray, “Organizational Behaviour” India Tech
7. Kavita Singh, “Organizational Behaviour”, Pearson
6
BEES2211
MODULE- I
Network Theory
(14 Hrs)
1. NETWORK TOPOLOGY: Graph of a network, Concept of tree, Incidence matrix, Tie-set matrix, Cut-set
matrix, Formulation and solution of network equilibrium equations on loop and node basis.
2. NETWORK THEOREMS & COUPLED CIRCUITS: Substitution theorem, Reciprocity theorem, Maximum
power transfer theorem, Tellegen’s theorem, Millman’s theorem, Compensation theorem, Coupled Circuits,
Dot Convention for representing coupled circuits, Coefficient of coupling, Band Width and Q-factor for series
and parallel resonant circuits.
MODULE- II
(13 Hrs)
3. LAPLACE TRANSFORM & ITS APPLICATION: Introduction to Laplace Transform, Laplace transform of
some basic functions, Laplace transform of periodic functions, Inverse Laplace transform, Application of
Laplace transform: Circuit Analysis (Steady State and Transient).
4. TWO PORT NETWORK FUNCTIONS & RESPONSES: z, y, ABCD and h-parameters, Reciprocity and
Symmetry, Interrelation of two-port parameters, Interconnection of two-port networks, Network Functions,
Significance of Poles and Zeros, Restriction on location of Poles and Zeros, Time domain behaviour from
Pole-Zero plots.
MODULE- III
(13 Hrs)
5. FOURIER SERIES & ITS APPLICATION: Fourier series, Fourier analysis and evaluation of coefficients,
Steady state response of network to periodic signals, Fourier transform and convergence, Fourier transform
of some functions, Brief idea about network filters (Low pass, High pass, Band pass and Band elimination)
and their frequency response.
6. NETWORK SYNTHESIS: Hurwitz polynomial, Properties of Hurwitz polynomial, Positive real functions
and their properties, Concepts of network synthesis, Realization of simple R-L, R-C and L-C functions in
Cauer-I, Cauer-II, Foster-I and Foster-II forms.
Text Book:
1. Network Theory – P K Satpathy, P Kabisatpathy, S P Ghosh and A K Chakraborty – Tata
McGraw Hill, New Delhi.
Reference Book(s):
2. Network Analysis – M E Van Valkenburg – Pearson Education.
3. Network Synthesis – M E Van Valkenburg – Pearson Education.
4. Network Analysis and Synthesis – Franklin F. Kuo – Wiley Student Edition.
5. Fundamentals of Electric Circuits – Alexander & Sadiku – Tata McGraw Hill.
6. Linear Circuits Analysis and Synthesis – A Ramakalyan – Oxford University Press.
7. Problems & Solutions in Electric Circuit Analysis – Sivananda & Deepa – Jaico Book.
8. Network Theory, Smarajit Ghosh, PHI.
7
BECS2212 C++
& Object Oriented Programming
Module I
(08 hrs)
Introduction to object oriented programming, user defined types, structures, unions,
polymorphism, encapsulation. Getting started with C++ syntax, data-type, variables, strings,
functions, default values in functions, recursion, namespaces, operators, flow control, arrays and
pointers.
Module II
(16 hrs)
Abstraction mechanism: Classes, private, public, constructors, destructors, member data, member
functions, inline function, friend functions, static members, and references.
Inheritance: Class hierarchy, derived classes, single inheritance, multiple, multilevel, hybrid
inheritance, role of virtual base class, constructor and destructor execution, base initialization
using derived class constructors.
Polymorphism: Binding, Static binding, Dynamic binding, Static polymorphism: Function
Overloading, Ambiguity in function overloading, Dynamic polymorphism: Base class pointer,
object slicing, late binding, method overriding with virtual functions, pure virtual functions, abstract
classes.
Operator Overloading: This pointer, applications of this pointer, Operator function, member and
non member operator function, operator overloading, I/O operators.
Exception handling: Try, throw, and catch, exceptions and derived classes, function exception
declaration.
Module III
(08 hrs)
Dynamic memory management, new and delete operators, object copying, copy constructor,
assignment operator, virtual destructor.
Template: template classes, template functions.
Namespaces: user defined namespaces, namespaces provided by library.
Text Books:
1.
Object Oriented Programming with C++ - E. Balagurusamy, McGraw-Hill Education
(India)
2.
ANSI and Turbo C++ - Ashoke N. Kamthane, Pearson Education
Reference Books:
1.
2.
3.
4.
5.
Big C++ - Wiley India
C++: The Complete Reference- Schildt, McGraw-Hill Education (India)
C++ and Object Oriented Programming – Jana, PHI Learning.
Object Oriented Programming with C++ - Rajiv Sahay, Oxford
Mastering C++ - Venugopal, McGraw-Hill Education (India)
8
PCEC4201
MODULE – I
1.
2.
3.
5.
6.
8.
9.
(17 Hours)
Small Signal Analysis of BJTs: Small-Signal Equivalent-Circuit Model, Graphical Determination
of h-parameters Small Signal Analysis of CE, CC, CB Amplifier with and without RE. Effect of RS
and RL on CE Amplifier, Emitter Follower, Analysis of Cascade, Darlington Connection and Current
Mirror Circuits using BJTs.
(6 Hrs)
Small Signal Analysis of FETs: Small-Signal Equivalent-Circuit Model, Small Signal Analysis of
CS, CD, CG Amplifier with and without RS. Effect of RSIG and RL on CS Amplifier, Analysis of
Source Follower and Cascaded System using FETs.
(6 Hrs)
High Frequency Response of FETs and BJTs: Low and High Frequency Response of BJTs and
FETs, The Unit gain – frequency (ft), Frequency Response of CS Amplifier, Frequency Response of
CE Amplifier, Multistage Frequency Effects, Miller Effect Capacitance, Square Wave Testing.(5
Hrs)
MODULE – III
7.
(12 Hours)
MOS Field-Effect Transistor: Principle and Physical Operation of FETs and MOSFETs. PChannel and N-Channel MOSFET, Complimentary MOS, V-I Characteristics of E- MOSFETS and
D-MOSFETS, MOSFETS as an Amplifier and a Switch
(4 Hrs)
Biasing of BJTs: Load lines (AC and DC), Operating Points, Fixed Bias and Self Bias, DC Bias
with Voltage Feedback, Bias Stabilization, Design Operation.
(4 Hrs)
Biasing of FETs and MOSFETs: Fixed Bias Configuration and Self Bias Configuration, Voltage
(4 Hrs)
Divider Bias and Design
MODULE – II
4.
Analog Electronics Circuit
(12 hours)
Feedback and Oscillators: Feedback Concepts, Four Basic Feedback Topologies, Practical
Feedback Circuits, Feedback Amplifier Stability using Nyquist Plot, Basic Principle of Sinusoidal
Oscillator, Wein-Bridge, Phase Shift and Crystal Oscillator Circuits.
(4 Hrs)
Operational Amplifier: Ideal Op-Amp, Differential Amplifier, Op-Amp Parameters, Slew rate, Noninverting Configurations, Effect of Finite Open-loop and Closed-loop Gain, Differentiator and
Integrator, Instrumentation amplifier, µA 741-Op-Amp .
(5 Hrs)
Power Amplifier: Classifications, Class-A and Class-B Amplifier Circuits, Transfer Characteristics,
Power Dissipation and Conversion Efficiency of Power Amplifiers.
(3 Hrs)
Text Books:
1.
2.
3.
Electronic Devices and Circuits theory, 9th/10th Edition, R.L. Boylestad and L.Nashelsky
(Selected portions of Chapter 4, 5, 6, 7, 8, 9, 10, 11, 12, and 14), Pearson Education, New Delhi.
Microelectronics Circuits, 5th Edition, International Student Edition Sedra and Smith (Selected
portion of Chapter 2,4, 5, 6, 8, 13, and 14), Oxford University Press, New Delhi.
Electronic Devices and Circuits, 3rd Edition, Jimmie J. Cathey adapted by Ajay Kumar Singh,
Tata McGraw Hill Publishing Company Ltd., New Delhi. (For Problem Solving)
Reference Books:
1.
Electronics Circuits Analysis and Design, 3rd Edition, Donald A. Neamen, Tata McGraw Hill
Publishing Company Ltd., New Delhi.
9
2.
3.
4.
Milliman’s Electronics Devices and Circuits, 2nd Edition, J. Milliman, C. Halkias, S. Jit., Tata
McGraw Hill Education Pvt. Ltd., New Delhi
Integrated Electronics: Analog and Digital Circuits and Systems, J. Milliman, C. Halkias, Tata
McGraw Hill Publishing Company Ltd., New Delhi.
Microelectronic Circuits: Analysis and Design, India Edition, M.H. Rashid, PWS Publishing
Company, a division of Thomson Learning Inc.
BEES7211
Network and Devices Lab
Select any 8 experiments from the list of 10 experiments
1. Verification of Network Theorems (Superposition, Thevenin, Norton, Maximum
Power Transfer).
2. Study of DC and AC Transients.
3. Determination of circuit parameters: Open Circuit and Short Circuit parameters.
4. Determination of circuit parameters: Hybrid and Transmission parameters.
5. Frequency response of Low pass and High Pass Filters.
6. Frequency response of Band pass and Band Elimination Filters.
7. Determination of self inductance, mutual inductance and coupling coefficient
of a single phase two winding transformer representing a coupled circuit.
8. Study of resonance in R-L-C series circuit.
9. Study of resonance in R-L-C parallel circuit.
10. Spectral analysis of a non-sinusoidal waveform.
BECS7212
C++ & Object Oriented Programming Lab
1. Programs on concept of classes and objects.(1 class)
2. Programs using inheritance.(1 class)
3. Programs using static polymorphism.(1 class)
4. Programs on dynamic polymorphism.(1 class)
5. Programs on operator overloading.(1 class)
6. Programs on dynamic memory management using new, delete operators.(1 class)
7. Programs on copy constructor and usage of assignment operator.(1 class)
10
8. Programs on exception handling .(1 class)
9. Programs on generic programming using template function & template class.(1 class)
10. Programs on file handling.(1 class)
PCEC7201
Analog Electronics Circuit Lab
List of Experiments
(At least 10 out of 13 experiments should be done)
1.
BJT bias circuit – Design, assemble and test.
2.
JEET/MOSFET bias circuits – Design, assemble and test.
3.
Design, assemble and test of BJT common-emitter circuit – D.C and A.C performance: Voltage gain,
input impedance and output impedance with bypassed and un-bypassed emitter resistor.
4.
Design, assemble and test of BJT emitter-follower – D.C and A.C performance: A.C. voltage gain,
input impedance and output impedance.
5.
Design, assemble and Test of JFET/MOSFET common-source and common-drain amplifiers – D.C
and A.C performance: Voltage gain, input impedance and output impedance.
6.
Frequency response of a common-emitter amplifier: low frequency, high frequency and mid frequency
response.
7.
Differential amplifiers circuits: D.C bias and A.C operation without and with current source.
8.
Study of Darlington connection and current mirror circuits.
9.
OP-Amp Frequency Response and Compensation.
10.
Application of Op-Amp as differentiator, integrator, square wave generator.
11.
Square wave testing of an amplifier.
12.
R.C phase shift oscillator/Wien-Bridge Oscillator using OP-Amp/Crystal Oscillator.
13.
Class A and Class B Power Amplifier.
11
4th Semester
PCEC4205 Electromagnetic
MODULE – I
7.
8.
9.
11.
13.
(11 Hours)
Wave Propagation in Free Space: Infinite Plane Current Sheet, Magnetic Field Adjacent to the
Current Sheet, Successive Solution of Maxwells’s Equations, Wave Equation and Solution, Uniform
Plane Waves, Poynting Vector and Energy Storage.
Wave Propagation in Material Media: Conductors and Dielectrics, Magnetic Materials, Wave
Equation and Solution, Uniform Plane Waves in Dielectrics and Conductors, Boundary Conditions,
Reflection and Transmission of Uniform Plane Waves.
MODULE – III
12.
(11 Hours)
Vectors and Fields: Vector Algebra, Cartesian Coordinate System, Scalar and Vector Fields,
Sinusoidally Time-Varying Fields, Electric Field, Magnetic Field.
Maxwell’s Equations in Integral Form: Line Integral, Surface Integral, Faradays Law, Ampere’s
Circuital Law, Gauss’s Law for Electric Field, Gauss’s Law for Magnetic Field.
Maxwell’s Equations in Differential Form: Faradays Law, Ampere’s Circuital Law, Curl and Stoke’s
Theorem, Gauss’s Law for Electric Field, Gauss’s Law for Magnetic Field, Divergence and
Divergence Theorem.
MODULE – II
10.
Fields and Waves
(10 Hours)
Transmission Line Analysis: Gradient and Electric Potential, Poisson’s and Laplace’s Equations,
Low Frequency Behavior via Quasistatics, Short Circuited Line and Frequency Behavior.
Wave Guide Principles: Uniform Plane Wave Propagation in an Arbitrary Direction, Transverse
Electric Waves in a Parallel-Plate Waveguide, Dispersion and Group Velocity, Rectangular
Waveguide and Cavity Resonator, Reflection and Refraction of Plane Waves, Dielectric Slab Guide.
Text Book(s):
9.
10.
11.
Fundamentals of Electromagnetics for Engineering, First Impression – 2009, N. N. Rao, Pearson
Education, New Delhi.
Introduction to Electromagnetic Fields, 3rd Edition, Clayton R. Paul, Keith W. Whites and Syed
A. Nasar, Tata McGraw Hill Publishing Company Ltd., New Delhi.
Electromagnetics, 2nd Edition, Joseph A. Edminister, adapted by Vishnu Priye, Tata McGraw
Hill Publishing Company Ltd., New Delhi. (For Problem Solving)
Reference Book(s):
1.
2.
3.
4.
5.
Elements of Engineering Electromagnetics, 6th Edition, N. N. Rao, Pearson Education, New
Delhi.
Electromagnetic Waves and Radiating Systems, 2nd Edition, E.C. Jordan and K.G. Balman,
Pearson Education, New Delhi.
Engineering Electromagnetics, 7th Edition, William H. Hayt, Tata McGraw Hill Publishing
Company Ltd., New Delhi.
Electromagnetic Field Theory Fundamentals, B.S. Guru and H.R. Hiziroglu, PWS Publishing
Company, a division of Thomson Learning Inc.
Elements of Electromagnetics, Mathew N.O. Sadiku, Oxford University Press, New Delhi.
12
PCEE4203
MODULE- I
Electrical Machines- I
(12 Hrs)
1. GENERAL PRINCIPLES OF DC MACHINES: Armature Windings (Simplex Lap and Simplex Wave),
Methods of Excitation, Expression for EMF Induced and Torque Developed in the Armature, Counter
Torque and Counter or Back EMF, Armature Reaction, Commutation, Brush Shift and its Effects,
Interpoles, Compensationg Windings.
2. DC GENERATOR CHARACTERISTICS: Characteristics for Separately Excited DC Generator (No-Load
and Load), Conditions for Self Excitation, Critical Resistance and Critical Speed, Characteristics for Self
Excited DC Shunt Generator (No-Load and Load), Voltage Regulation, Parallel Operation of DC Shunt
Generators and DC Series Generators.
MODULE- II
(13 Hrs)
3. DC MOTOR CHARACTERISTICS: Characteristic for Speed~Armature Current, Torque~Armature Current
and Speed~Torque of (i) Separately Excited DC Motor, (ii) DC Shunt Motor, (iii) DC Series Motor, and
(iv) DC Compound Motor, Comparison Between Different types of DC Motors and their Application.
4. DC MOTOR STARTING and PERFORMANCE: Necessity of a Starter, Starting of DC Shunt, Series and
Compound Motors, Precautions During Starting of DC Series Motor, Speed Control of DC Shunt and
Series Motors, Classification of Losses, Efficiency Evaluation from Direct and Indirect Methods (i) Brake
Test (Direct method), (ii) Swinburne’s Test (Indirect method), (iii) Regenerative/Hopkinson’s Test
(Indirect method).
MODULE- III
(15 Hrs)
5. SINGLE PHASE TRANSFORMERS: Constructional Features, EMF Equation, Turns Ratio, Phasor
Diagrams at No-Load and Load Conditions, Equivalent Circuit, Determination of Parameters From
Tests (Polarity Test, Open Circuit Test and Short Circuit Test, Back to Back test), Voltage Regulation,
Per Unit Calculation, Losses and Efficiency, Auto Transformers and their application.
6. THREE PHASE INDUCTION MACHINES: Constructional Features of Squirrel Cage Rotor type and Slip
Ring/Wound Rotor type of Induction Motors, Principle of Operation, Concept of Slip, Slip Speed,
Equivalent Circuit and Phasor Diagram, No-Load and Blocked Rotor tests, Determination of
Parameters, Slip~Torque Characteristics and Effect of Rotor resistance on it, Losses and Efficiency.
Starting of Squirrel Cage Rotor type and Slip Ring/Wound Rotor type of Induction Motors, Speed
Control of Induction Motors, Cogging, Crawling and Electrical Braking of Induction Motors, Brief Idea on
Induction Generators.
Text Book :
1. Electric Machines – D P Kothari and I J Nagrath – Tata McGraw Hill.
Reference Book(s):
1. The Performance and Design of DC Machines – A E Clayton.
2. Theory and Performance of AC Machines – M G Say
3. Electrical Machinery – P S Bimbhra – Khanna Publishers.
4. Electrical Machines –P.K.Mukherjee & S.Chakravorti–Dhanpat Rai Publications.
5. Electric Machinery – Fitzgerald, Charles Kingsley Jr., S. D. Umans – Tata Mc Graw Hill.
6. Electric Machinery And Transformers – Guru & Hiziroglu – Oxford University Press.
7. Electric Machines – Charles Hubert – Pearson Education.
13
PCEE4204
Electrical and Electronics Measurement
MODULE- I
(14 Hrs)
MODULE- II
(14 Hrs)
1. INTRODUCTION: (a) Measurement and Error: Definition, Accuracy and Precision, Significant Figures,
Types of Errors. (b) Standards of Measurement: Classification of Standards, Electrical Standards, IEEE
Standards.
2. MEASUREMENT OF RESISTANCE, INDUCTANCE and CAPACITANCE: (a) Resistance: Measurement
of Low Resistance by Kelvin’s Double Bridge, Measurement of Medium Resistance, Measurement of
High Resistance, Measurement of Resistance of Insulating Materials, Portable Resistance Testing set
(Megohmmeter), Measurement of Insulation Resistance when Power is ON, Measurement of Resistance
of Earth Connections. (b) Inductance: Measurement of Self Inductance by Ammeter and Voltmeter, and
AC Bridges (Maxwell’s, Hay’s, & Anderson Bridge), Measurement of Mutual Inductance by Felici’s
Method, and as Self Inductance. (c) Capacitance: Measurement of Capacitance by Ammeter and
Voltmeter, and AC Bridges (Owen’s, Schering & Wien’s Bridge), Screening of Bridge Components and
Wagnor Earthing Device.
3. GALVANOMETER: Construction, Theory and Principle of operation of D’Arsonval, Vibration (Moving
Magnet & Moving Coil types), and Ballistic Galvanometer, Influence of Resistance on Damping,
Logarithmic decrement, Calibration of Galvanometers, Galvanometer Constants, Measurement of Flux
and Magnetic Field by using Galvanometers.
4. AMMETER and VOLTMETER: Derivation for Deflecting Torque of; PMMC, MI (attraction and repulsion
types), Electro Dynamometer and Induction type Ammeters and Voltmeters.
5. POTENTIOMETER: Construction, Theory and Principle of operation of DC Potentiometers (Crompton,
Vernier, Constant Resistance, & Deflectional Potentiometer), and AC Potentiometers (Drysdale-Tinsley &
Gall-Tinsley Potentiometer).
6. MEASUREMENT OF POWER, ENERGY, FREQUENCY and POWER FACTOR: Measurement of single
phase and three phase power by wattmeter, Construction, Theory and Principle of operation of (a)
Electro-Dynamometer and Induction type Wattmeters, (b) Single Phase and Polyphase Induction type
Watt-hour meters, (c) Frequency Meters, and (d) Power Factor Meters.
MODULE- III
(14 Hrs)
7. CURRENT TRANSFPRMER and POTENTIAL TRANSFOMER: Construction, Theory, Characteristics
and Testing of CTs and PTs.
8. ELECTRONIC INSTRUMENTS FOR MEASURING BASIC PARAAMETERS: Amplified DC Meters, AC
Voltmeters using Rectifiers, True RMS Voltmeter, Considerations for choosing an Analog Voltmeter,
Digital Voltmeters (Block Diagrams only), Q-meter.
9. OSCILLOSCOPE: Block Diagrams, Delay Line, Multiple Trace, Oscilloscope Probes, Oscilloscope
Techniques, Introduction to Analog and Digital Storage Oscilloscopes, Measurement of Frequency,
Phase Angle, and Time Delay using Oscilloscope.
10. COUNTERS and ANALYZERS: Introduction to Wave, Harmonic Distortion and Spectrum Analyzers,
Frequency Counters, Computer Controlled Test Systems: Testing an Audio Amplifier.
Text Book(s) :
1. Electrical Measurements and Measuring Instruments – Golding & Widdis – 5th Edition, Reem
Publication (For sections 2 to 6: Selected Portions from Ch.-VI, VII, IX, XIX, XX, XXI & XXII).
2. Modern Electronic Instrumentation and Measurement Techniques – Helfrick & Cooper –
Pearson Education (For sections 1, 7 to 9: Selected Portions from Ch.-1, 3, 6, 7, 9, 10, and 13).
Reference Book(s):
3. A Course in Electrical and Electronic Measurements and Instrumentation – A K Sawhney –
Dhanpat Rai & Co.
4. Elements of Electronic Instrumentation and Measurement – Joshep Carr – 3rd Edition, Pearson
Education.
5. Electronic Instrumentation – H C Kalsi – 2nd Edition, Tata McGraw Hill.
6. Electronic Measurement and Instrumentation – Oliver & Cage – Tata McGraw Hill.
14
PCEC4202
Digital Electronics Circuit
MODULE – I (11 Hours)
1. Number System: Introduction to Binary Numbers, Data Representation, Binary, Octal, Hexadecimal
and Decimal Number System and their Conversion.
(2 Hours)
2. Boolean Algebra and Logic Gates: Basic Logic Operation and Identities, Algebraic Laws, NOR and
NAND Gates, Useful Boolean Identities, Algebraic Reduction, Complete Logic Sets, Arithmetic
Operation using 1’s and 2`s Compliments, Signed Binary and Floating Point Number Representation.
(4 Hours)
3. Combinational Logic Design: Specifying the Problem, Canonical Logic Forms, Extracting Canonical
Forms, EX-OR Equivalence Operations, Logic Array, K-Maps: Two, Three and Four variable K-maps,
NAND and NOR Logic Implementations.
(5 Hours)
MODULE – II (15 Hours)
4. Concepts in VHDL: Basic Concepts, Using a Hardware Description Language, Defining Module in
VHDL, Structural and Combinational Modelling, Binary Words, Libraries, Learning VHDL. (4 Hours)
5. CMOS Logic Circuits: Voltages as Logic Variables, Logic Delay Times: Output Switching Times,
Propagation Delay, Fan-In and Fan-out, Extension to other Logic Gate.
C-MOS Electronics, MOSFETS, The NOT Function in C-MOS: Complimentary Pairs and the C-MOS
Invertors, Logic Formation Using MOSFETS: the NAND and NOR Gate, C-MOS Logic Connection,
Complex Logic Gates in C-MOS: 3-input Logic Gates, A general 4-input Logic Gate, Logic Cascades.
(6 Hours)
6. Introduction to VLSI: Introduction, Lithography and Patterning, MOSFET Design Rules, Basic
Circuit Layout, MOSFET Arrays and AOI Gates, Cells, Libraries, and Hierarchical Design, Floor Plans
and Interconnect Wiring.
(5 Hours)
MODULE – III (16 hours)
7.
8.
9.
Logic Components: Concept of Digital Components, An Equality Detector, Line Decoder,
Multiplexers and De-multiplexers, Binary Adders, Subtraction and Multiplication. (5 Hours)
Memory Elements and Arrays: General Properties, Latches, Clock and Synchronization, MasterSlave and Edge-triggered Flip-flops, Registers, RAM and ROMs, C-MOS Memories. (6 Hours)
Sequential Network: Concepts of Sequential Networks, Analysis of Sequential Networks: Single
State and Multivariable Networks, Sequential Network Design, Binary Counters, Importance of state
machine.
(5 Hours)
Text Books:
1.
2.
3.
A First Course in Digital System Design: An Integrated Approach, India Edition, John P.
Uyemura, PWS Publishing Company, a division of Thomson Learning Inc.
Digital Systems – Principles and Applications, 10th Edition, Ronald J. Tocci, Neal S. Widemer
and Gregory L. Moss, Pearson Education.
Digital Design, Robert K. Dueck, CENGAGE Learning.
Reference Books:
1.
2.
3.
4.
Digital Principles and Applications, 6th Edition, Donald P. Leach, Albert Paul Malvino and
Goutam Saha, Tata McGraw Hill Publishing Company Ltd., New Delhi.
Digital Fundamentals, 5th Edition, T.L. Floyd and R.P. Jain, Pearson Education, New Delhi.
Digital Electronics, Principles and Integrated Circuit, Anil K. Jain, Wiley India Edition.
Digital Design, 3rd Edition, Moris M. Mano, Pearson Education.
15
PCEE7203
Electrical Machines Lab-I
Select any 8 experiments from the list of 10 experiments
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Determination of critical resistance & critical speed from no load test of a DC shunt generator.
Plotting of external and internal characteristics of a DC shunt generator.
Speed control of DC shunt motor by armature voltage control and flux control method.
Determination of efficiency of DC machine by Swinburne’s Test and Brake Test.
Determination of efficiency of DC machine by Hopkinson’s Test.
Determination of Efficiency and Voltage Regulation by Open Circuit and Short Circuit test on
single phase transformer.
Polarity test and Parallel operation of two single phase transformers.
Back-to Back test on two single phase transformers.
Determination of parameters of three phase induction motor from No load Test and Blocked
Rotor Test.
Determination of Efficiency, Plotting of Torque-Slip Characteristics of Three Phase Induction
motor by Brake Test.
PCEE7204
Electrical and Electronics Measurement Lab
Select any 8 experiments from the list of 10 experiments
1.
Measurement of Low Resistance by Kelvin’s Double Bridge Method.
2.
Measurement of Self Inductance and Capacitance using Bridges.
3.
Study of Galvanometer and Determination of Sensitivity and Galvanometer Constants.
4.
Calibration of Voltmeters and Ammeters using Potentiometers.
5.
Testing of Energy meters (Single phase type).
6.
Measurement of Iron Loss from B-H Curve by using CRO.
7.
Measurement of R, L, and C using Q-meter.
8.
Measurement of Power in a single phase circuit by using CTs and PTs.
9.
Measurement of Power and Power Factor in a three phase AC circuit by two-wattmeter
method.
10.
Study of Spectrum Analyzers.
16
PCEC7202
Digital Electronics Circuit Lab
List of Experiments:
(Atleast 10 experiments should be done, Experiment No. 1 and 2 are compulsory and out of the balance 8
experiments atleast 3 experiments has to be implemented through both Verilog/VHDL and hardware
implementation as per choice of the student totaling to 6 and the rest 2 can be either through
Verilog/VHDL or hardware implementation.)
1.
Digital Logic Gates: Investigate logic behavior of AND, OR, NAND, NOR, EX-OR, EX-NOR, Invert
and Buffer gates, use of Universal NAND Gate.
2.
Gate-level minimization: Two level and multi level implementation of Boolean functions.
3.
Combinational Circuits: design, assemble and test: adders and subtractors, code converters, gray
code to binary and 7 segment display.
4.
Design, implement and test a given design example with (i) NAND Gates only (ii) NOR Gates only
and (iii) using minimum number of Gates.
5.
Design with multiplexers and de-multiplexers.
6.
Flip-Flop: assemble, test and investigate operation of SR, D & J-K flip-flops.
7.
Shift Registers: Design and investigate the operation of all types of shift registers with parallel load.
8.
Counters: Design, assemble and test various ripple and synchronous counters - decimal counter,
Binary counter with parallel load.
9.
Memory Unit: Investigate the behaviour of RAM unit and its storage capacity – 16 X 4 RAM: testing,
simulating and memory expansion.
10.
Clock-pulse generator: design, implement and test.
11.
Parallel adder and accumulator: design, implement and test.
12.
Binary Multiplier: design and implement a circuit that multiplies 4-bit unsigned numbers to produce a
8-bit product.
13.
Verilog/VHDL simulation and implementation of Experiments listed at Sl. No. 3 to 12.
17
HSSM7203
Communication & Interpersonal skills for
Corporate Readiness Lab.
Lab
30 hours
This course will focus on communication in professional (work-related) situations of the kind
that BPUT graduates may expect to encounter on entering the professional domain.
Some typical forms of work-related communication, oral or written, are listed below. Practice
activities for all four skills can be designed around these or similar situations.
1.
Gaining entry into an organization
i.
Preparing job-applications and CVs
ii.
Facing an interview
iii.
Participating in group discussion (as part of the recruitment process)
2
In-house communication
a.
Superior/ Senior Î subordinate / junior (individual Î individual / group)
i. Welcoming new entrants to the organization, introducing the workplace culture
etc.
ii. Briefing subordinates / juniors : explaining duties and responsibilities etc.
ii. Motivating subordinates / juniors (‘pep talk’)
iii. Instructing/ directing subordinates/ juniors
iv. Expressing / recording appreciation, praising / rewarding a subordinate or junior
v Reprimanding / correcting / disciplining a subordinate/junior (for a lapse) ; asking
for an explanation etc.
b.
i.
ii.
iii.
Subordinate / Junior Î Superior / Senior
Responding to the above
Reporting problems / difficulties / deficiencies
Offering suggestions
*****************************
18
BIJU PATNAIK UNIVERSITY OF TECHNOLOGY ,
ORISSA
ELECTRICAL & ELECTRONICS ENGINEERING (EEE)
5th Semester
Code
Subjects
6th Semester
L-T-P
Credit
Theory
Subjects
L-T-PCredit
Theory
HSSM3303 Environmental Engineering & Safety
OR
HSSM3302 Optimization in Engineering
3-0-0
3
PCEC4303 Control Systems Engineering
3-0-0
PCEL4301 Power Electronics
PCEL4302 Electrical Machines-II
HSSM3302 Optimization in Engineering
OR
3-0-0 3
3
PCEL4303 Microprocessor & Microcontrollers
3-0-0 3
3-0-0
3
PCEC4304 Digital Signal Processing
3-0-0 3
3-1-0
4
PCEE4304 Communication Engineering
3-0-0 3
Professional Elective-I (Any one)
3-0-0
3
Free Elective-I (Any one)
Numerical methods
Data Base Management Systems
Computer Organization
Java Programming
3-0-0
3
PEEL5302 Renewable Energy Systems
PEEL5301 Sensors and Transducers
PEEC4301 Advanced Electronic Circuits
FESM6301
FEEC6301
PCCS4301
PCIT4303
Code
Theory Credits
HSSM3303 Environmental Engineering & Safety
Professional Elective-II (Any one)
3-0-0 3
Free Elective-II (Any one)
3-0-0 3
PEME5305 Robotics & Robot Applications
PEEE5301 Optoelectronics Devices & Instrumentation
PEEL5303 Electric Drives
PEEC4304 ComputerNetworks& Data Communication
PCCS4304 Operating Systems
FEEE6301 Industrial Process Control and Dynamics
19
Theory Credits
Practical/ Sessional
18
Practical/ Sessional
PCEC7303 Control & Instrumentation Lab.
0-0-3
2
PCEL7303 Microprocessor & Microcontroller Lab 0-0-3
2
PCEL7301 Power Electronics Lab.
0-0-3
2
PCEC7304 Digital Signal Processing Lab.
0-0-3
2
PCEL7302 Electrical Machines Lab-II
0-0-3
2
PCEE7304 Communication Engineering Lab.
0-0-3
2
Practical/ Sessional Credits
TOTAL SEMESTER CREDITS
TOTAL CUMULATIVE CREDITS
06
Practical/ Sessional Credits
25
136
TOTAL SEMESTER CREDITS
TOTAL CUMULATIVE CREDITS
06
24
160
5th Semester
HSSM3303 ENVIRONMENTAL ENGINEERING
SAFETY (3-0-0)
&
Module – I
Ecological Concepts: Biotic components, Ecosystem Process: Energy, Food Chain,
Water cycle, Oxygen cycle, Nitrogen cycle etc., Environmental gradients, Tolerance
levels of environment factor, EU, US and Indian Environmental Law. Chemistry in
Environmental Engineering: Atmospheric chemistry, Soil chemistry. Noise pollutionNoise standards, measurement and control. Water Treatment: water quality
standards and parameters, Ground water. Water treatment processes, Pre-treatment
of water, Conventional process, Advanced water treatment process.
Module – II
(a)Waste Water Treatment: DO and BOD of Waste water treatment process,
pretreatment, primary and secondary treatment of waste water, Activated sludge
treatment: Anaerobic digestion, Reactor configurations and methane production.
(b)Air Pollution : Air pollution and pollutants, criteria pollutants, Acid deposition,
Global climate change –greenhouse gases, non-criteria pollutants, air pollution
meteorology, Atmospheric dispersion. Industrial Air Emission Control. Flue gas
desulphurization, NOx removal, Fugitive emissions.
(c) Solid waste, Hazardous waste management, Solid Waste Management, Source
classification and composition of MSW: Separation, storage and transportation,
Reuse and recycling, Waste Minimization Techniques. Hazardous Waste
Management, Hazardous waste and their generation, Transportation and treatment:
Incinerators, Inorganic waste treatment. E.I.A., Environmental auditing,
Module – III
Occupational Safety and Health Acts, Safety procedures, Type of Accidents,
Chemical and Heat Burns, Prevention of Accidents involving Hazardous substances,
Human error and Hazard Analysis. Hazard Control Measures in integratednsteel
industry, Petroleum Refinery, L.P.G. Bottling, Pharmaceutical industry. Fire
Prevention – Detection, Extinguishing Fire, Electrical Safety, Product Safety. Safety
Management- Safety Handling and Storage of Hazardous Materials, Corrosive
Substances, Gas Cylinders, Hydro Carbons and Wastes. Personal Protective
Equipments.
Text Book :
1.
2.
3.
Environmental Engineering Irwin/ McGraw Hill International Edition, 1997, G. Kiely,
Environmental Engineering by Prof B.K. Mohapatra, Seven Seas Publication, Cuttack
Industrial Safety Management, L. M. Deshmukh, Tata McGraw Hill Publication.
Reference Books
1. Environmental Engineering by Arcadio P. Sincero & Gergoria A. Sincero PHI
Publication
2. Principles of Environmental Engineering and Science, M. L. Davis and S. J. Masen,
McGraw Hill International Edition, 2004
3. Environmental Science, Curringham & Saigo, TMH,
4. Man and Environment by Dash & Mishra
5. An Introduction to Environmental Engineering and Science by Gilbert M. Masters &
Wendell P. Ela - PHI Publication.
6. Industrial Safety Management and Technology, Colling. D A – Prentice Hall, New
Delhi.
HSSM3302 OPTIMIZATION
IN ENGINEERING (3-0-0)
Unit-I
(10 Hours)
Idea of Engineering optimization problems, Classification of optimization algorithms,
Modeling of problems and principle of modeling.
Linear programming: Formulation of LPP, Graphical solution, Simplex method, BigM method, Revised simplex method, Duality theory and its application, Dual simplex
method , Sensitivity analysis in linear programming
Unit-II
(10 Hours)
Transportation problems: Finding an initial basic feasible solution by Northwest
Corner rule, Least Cost rule, Vogel’s approximation method, Degeneracy, Optimality
test, MODI method, Stepping stone method
Assignment problems: Hungarian method for solution of Assignment problems
Integer Programming: Branch and Bound algorithm for solution of integer
Programming Problems
Queuing models: General characteristics, Markovian queuing model, M/M/1 model,
Limited queue capacity, Multiple server, Finite sources, Queue discipline.
Unit-III
(10 Hours)
Non-linear programming: Introduction to non-linear programming.
Unconstraint optimization: Fibonacci and Golden Section Search method.
Constrained optimization with equality constraint: Lagrange multiplier, Projected
gradient method
Constrained optimization with inequality constraint: Kuhn-Tucker condition,
Quadratic programming
Introduction to Genetic Algorithm.
Recommended text books
1. A. Ravindran, D. T. Philips, J. Solberg, “ Operations Research- Principle and
Practice”, Second edition, Wiley India Pvt Ltd
2. Kalyanmoy Deb, “ Optimization for Engineering Design”, PHI Learning Pvt Ltd
Recommended Reference books:
1. Stephen G. Nash, A. Sofer, “ Linear and Non-linear Programming”, McGraw Hill
2. A.Ravindran, K.M.Ragsdell, G.V.Reklaitis,” Engineering Optimization”, Second
edition, Wiley India Pvt. Ltd
3. H.A.Taha,A.M.Natarajan, P.Balasubramanie, A.Tamilarasi, “Operations Research”,
Eighth Edition, Pearson Education
4. F.S.Hiller, G.J.Lieberman, “ Operations Research”, Eighth Edition, Tata McDraw Hill
5. P.K.Gupta, D.S.Hira, “Operations Research”, S.Chand and Company Ltd.
PCEC4303 CONTROL
SYSTEM ENGINEERING (3-0-0)
Module-I :
(12 Hours)
Introduction to Control Systems : Basic Concepts of Control Systems, Open loop and
closed loop systems, Servo Mechanism/Tracking System, Regulators, Mathematical
Models of Physical Systems: Differential Equations of Physical Systems: Mechanical
Translational Systems, Mechanical Acceloroments, Retational systems, Gear Trains,
Electrical Systems, Analogy between Mechanical and electrical quanties, Thermal
systems, fluid systems, Derivation of Transfer functions, Block Diagram Algebra,
Signal flow Graphs, Mason’s Gain Formula. Feedback characteristics of Control
Systems: Effect of negative feedback on sensitivity, bandwidth, Disturbance,
linearizing effect of feedback, Regenerative feedback.
Control Components : D.C. Servomotors, A.C. Servomotors, A.C. Tachometer,
Synchros, Stepper Motors.
Module-II :
(15 Hours)
Time response Analysis : Standard Test Signals : Time response of first order
systems to unit step and unit ramp inputs. Time Response of Second order systems
to unit step input, Time Response specifications, Steady State Errors and Static
Error Constants of different types of systems. Generalised error series and
Gensalised error coefficients, Stability and Algebraic Criteria, concept of stability,
Necessary conditions of stability, Hurwitz stability criterion, Routh stability criterion,
Application of the Routh stability criterion to linear feedback system, Releative
stability by shifting the origin in s-plane.
Root locus Technique: Root locus concepts, Rules of Construction of Root locus,
Determination of Roots from Root locus for a specified open loop gain, Root
contours, Systems with transportation lag. Effect of adding open loop poles and
zeros on Root locus.
Module-III :
(13 Hours)
Frequency Response Analysis : Frequency domain specifications, correlation
between Time and Frequency Response with respect to second order system, Polar
plots, Bode plot. Determination of Gain Margin and Phase Margin from Bode plot.
Stability in frequency domain : Principle of argument, Nyquist stability criterion,
Application of Nyquist stability criterion for linear feedback system.
Closed loop frequency response : Constant Mcircles, Constant N-Circles, Nichol’s
chart.
Controllers : Concept of Proportional, Derivative and Integral Control actions, P, PD,
PI, PID controllers. Zeigler-Nichols method of tuning PID controllers.
Text Books :
1. Modern Control Engineering by K. Ogata, 5th edition PHI.
2. Control Systems Engg. by I.J. Nagrath and M.Gopal, 5th Edition, New Age International
Publishers (2010).
3. Modern Control Systems by Richard C.Dorf and Robert H. Bishop, 11th Ed (2009),
Pearson
Reference Books :
1. Design of Feedback Control Systems by R.T. Stefani, B. Shahian, C.J. Savator, G.H.
Hostetter, Fourth Edition (2009), Oxford University Press.
2. Control Systems (Principles and Design) by M.Gopal 3rd edition (2008), TMH.
3. Analysis of Linear Control Systems by R.L. Narasimham, I.K. International Publications
4. Control Systems Engineering by S.P. Eugene Xavier and J. Josheph Cyril Babu, 1st
Edition (2004), S. Chand Co. Ltd.
5. Problems and solutions in Control System Engineering by S.N. Sivanandam and S.N.
Deepa, Jaico Publishing House.
PCEL4301 POWER
ELECTRONICS (3-0-0)
Module-1
12 Lecturers
1. Power semiconductor devices: Switching and V-I characteristic of devices
Thyristor family: SCR, TRIAC,GTO,RCT,MCT, and Transistor Family: BJT,
IGBT, and MOSFET. Ch:(1.3, 1.4 , 4.2.2, 4.2.3, 4.3.2, 4.6, 4.10, 7.2, 7.4,7.5).
2. (a) Triggering Methods: SCR: UJT and R-C triggering scheme, Power Transistor:
MOSFET Gate drive, BJT base drive, IGBT gate drive, Isolation of gate and
base drive.
Ch: (17.2, 17.3,17.4, 17.5).
(b) Protection of Devices: SCR: Over voltage, over current, dv/dt, di/dt, Gate
Protection. Transistor: protection of power BJT, IGBT and power MOSFET,
dv/dt & di/dt limitation.
Ch: (18.4, 18.5, 18.6, 18.7, 18.8, 4.8, 7.9, 7.10)
Module-2
12 Lectures
3(a). AC to DC converter: Un controlled Diode rectifier : Single phase half wave
and full wave rectifiers with R-L and R -L-E load ,3 phase bridge rectifier with
R-L and R-L-E load
Ch: (3.2, 3.3, 3.4, 3.5, 3.8)
Controlled rectifiers : Principle of phase controlled converter operation, single
phase full converter with R-L and R-L-E load,3 phase full converter with R-L
and R-L-E load ,single phase semi converter with R-L and R-L-E load, 3
phase semi converter with R-L and R-L-E load.
Ch: (10.2, 10.3, 10.6, 10.9, 10.10)
Single phase PWM rectifier, Three phase PWM rectifier.
Ch: (10.8.3, 10. 8.4, 10.8.5)
3(b).AC –AC converter : AC voltage controller: Single phase bi-directional
controllers with R and R-L load, single phase cycloconverters, ac-voltage
controllers with PWM control.
Ch: (11.4, 11.5, 11.9.1, 11.10)
Module 3
12 Lectures
3(c). DC to DC converter: Classification: First quadrant, second quardrant, first
and second quardrant, third and fourth quardrant, fourth quardrant converter.
Switching mode regulators: Buck regulators, Boost regulators, Buck-Boost
regulators, Cuk regulators, Isolated Types: Fly Back Converters, Forward
converters, Push Pull Converters, Bridge Converter.
Ch: (5.7,5.8.1,5.8.2,5.8.3,5.8.4)
3(d) DC to AC converter: Inverters: PWM inverters, Single phase Bridge
Inverters, 3-Phase Inverters-180 deg. conduction, 120 deg. conduction.
voltage control of 3-Phase Inverters: Sinusoidal PWM , space vector
modulation, Current Source Inverter, Zero Current Switching resonant
inverters, Zero Voltage Switching resonant inverter. Ch: (6.4, 6.5, 6.8.1,
6.8.4, 6.10, 8.8, 8.9)
4. Applications: UPS, SMPS, Battery Chargers, Electronic Ballast, Static VAR
Compensator.
Ch: (14.2.1, 14.2.2, 14.2.3, 14.2.4,14.2.6, 13.6.4)
Text Books:
1.Power Electronics: Circuits,Devices and Applications by M H Rashid, 3rd Edition, Pearson
Reference Books:
1. Power Electronics: Principles and Applications by J. Vithayathil, TMH Edition
2. Power Converter Circuits by W Shepherd and L Zhang, CRC, Taylor and Francis,
Special Indian Edition.
3. Power Electronics: Converters , Applications, and Design by Mohan, Undeland and
Robbins, Wiley Student Edition.
PCEL4302 ELECTRICAL
MACHINES-II (3-1-0)
MODULE-I
[15 HOURS]
1. Three Phase Synchronous Generators (5 hours)
Synchronous Generator Construction (both Cylinderical Rotor and Salient
Pole type), The Speed of Rotation of a Synchronous Generator, Induced voltage in
A.C. Machines, The Internal Generated Voltage of a Synchronous Generator, The
Effect of Coil Pitch on A.C. Machines, Distributed Windings in A.C. Machines, The
Rotating Magnetic Field, The Equivalent Circuit of a Synchronous Generator
(Armature Reaction Reactance, Synchronous Reactance and Impedance).
[Chapman: Ch. 5.1, 5.2, 4.4, 5.3, B.1, B.2, 4.2, 5.4]
2. Cylindrical Rotor type Three Phase Synchronous Generators (4+2=6 hours)
(a) The Phasor Diagram of a Synchronous Generator, Power and Torque in
Synchronous Generators (Power Angle Equation and Power Angle Characteristic),
Measuring Synchronous Generator Model Parameters (Open Circuit and Short
Circuit Tests and Determination of Synchronous Impedance and Reactance, The
Short Circuit Ratio), Voltage Regulation and Speed Regulation.
[Chapman: Ch.
5.5, 5.6, 5.7, 4.8] (4 hours)
(b) Zero Power Factor characteristic, Potier Reactance, Voltage Regulation by
Synchronous Impedance Method, Potier Reactance (Zero Power Factor = ZPF)
Method.
[M.G.Say: Selected Portions of Ch.10.2, 10.3, 10.4, 10.15] (2 hours)
3. Salient Pole type Three Phase Synchronous Generators (3+1=4 hours)
Two Reaction Concept, Development of the Equivalent Circuit of a Salient
Pole type Three Phase Synchronous Generator (Direct axis and Quadrature axis
Reactances, Phasor Diagram for various load power factors,), Torque and Power
Equations of Salient Pole Synchronous Generator (Power Angle Equation and
Power Angle Characteristic with stator resistance neglected). [Chapman: Appendix
C.1, C.2] (3 hours)
Slip Test for determination of Direct axis and Quadrature axis Reactances.
[M.G.Say: Ch.10.15]
(1hour)
MODULE-II
[12 HOURS]
4. Parallel operation of Three Phase A.C. Synchronous Generators (4 hours)
The Conditions Required for Paralleling, The General Procedure for
Paralleling Generators, Frequency - Real Power and Voltage – Reactive Power
Characteristics of a Three Phase Synchronous Generator, Operation of Generators
in Parallel with large Power Systems, Operation of generators in parallel with other
Generators of the same size.
[Chapman: Ch.5.9]
5. Three Phase Synchronous Motors
(8 hours)
Basic Principles of Motor operation, Steady State Synchronous Motor
operation, Starting Synchronous Motors, Synchronous Generators and Synchronous
Motors, Synchronous Motor Ratings.
[Chapman: Ch.6.1, 6.2, 6.3, 6.4, 6.5]
MODULE-III
[13 HOURS]
6. Three Phase Transformers (5+3=8 hours)
Constructional features, Three-Phase Transformer connections, The per unit
system for Three Phase Transformer, Transformer Ratings and Related problems,
Two Single-Phase Transformers connected in Open Delta (V-Connection) and their
rating, T-Connection (Scott Connection) of Two Single-Phase Transformers to
convert Three-Phase balanced supply to Two-Phase balanced supply.[Chapman:
Ch.2.10, 2.11, 2.12] (5 hours)
Transformer Three phase Connections: Various Phase Displacements (0o,
180o,+30o and -30o), Connection Diagrams and Phasor Diagrams of various Vector
Groups (Yy0, Dd0, Dz0, Yy6, Dd6, Dz6, Yd1, Dy1, Yz1, Yd11, Dy11, Yz11), Parallel
operation of three phase transformers. [M.G.Say: Ch.5.9, 5.15] (3 hours)
7. Single Phase and Special Purpose Motors (5 hours)
The Universal Motor, Introduction to Single Phase Induction Motors, Starting
of Single Phase Induction Motors, Speed Control of Single Phase Induction Motors,
The Circuit Model of a Single Phase Induction Motor, Other types of Motors:
Reluctance Motors, Stepper Motors.
[Chapman: Ch.10.1, 10.2, 10.3, 10.4, 10.5,
10.6]
TEXT BOOKS:
(1) Stephen J. Chapman-‘Electric Machinery and Fundamentals’- McGraw Hill
International Edition, (Fourth Edition), 2005.
(2) M.G.Say-‘Alternating Current Machines’, English Language Book Society (ELBS)
/Longman,
5th Edition, Reprinted 1990.
REFERENCE BOOKS:
(1) P.C.Sen-‘Principles of Electric Machines and Power Electronics’-2nd Edition, John Wiley
and Sons, Wiley India Reprint, 2007.
(2) B.S.Guru & H.R.Hiziroglu-‘Electric Machinery & Transformers’-3rd Ed-Oxford Press, 2010.
Professional Elective-I
PEEL5302 RENEWABLE
ENERGY SYSTEMS (3-0-0)
Module I
(5 Hours)
Introduction: Fossil fuel based systems Impact of fossil fuel based systems, Non
conventional energy – seasonal variations and availability, Renewable energy –
sources and features, Hybrid energy systems, Distributed energy systems and
dispersed generation (DG)
Module II:
(20 Hours)
Solar Photovoltaic systems: Operating principle, Photovoltaic cell concepts, Cell,
module, array, Series and parallel connections, Maximum power point tracking,
Applications, Battery charging, Pumping, Lighting, Peltier cooling
Solar processes and spectral composition of solar radiation; Radiation flux at the
Earth’s surface. Solar collectors. Types and performance characteristics.
Applications
Wind Energy:Wind energy conversion; efficiency limit for wind energy conversion,
types of converters, aerodynamics of wind rotors, power ~ speed and torque ~ speed
characteristics of wind turbines, wind turbine control systems; conversion to electrical
power: induction and synchronous generators, grid connected and self excited
induction generator operation, constant voltage and constant frequency generation
with power electronic control, single and double output systems, reactive power
compensation; Characteristics of wind power plant. Applications:
Module III
(15 hours)
Biomass Power:Operating principle, Combustion and fermentation, Anaerobic
digester. Wood gassifier, Pyrolysis, Applications, Bio gas, Wood stoves, Bio diesel,
Combustion engine. Application,
Hybrid Systems
Need for Hybrid Systems, Range and type of Hybrid systems, Case studies of
Diesel-PV, Wind-PV, Microhydel-PV, Biomass-Diesel systems, electric and hybrid
electric vehicles
Text Books:
1. D. P. Kothari, K. C. Singal, R. Ranjan, Renewable Energy Sources and
Emerging Technologies, Prentice Hall of India, New Delhi, 2008.
2. B.H.Khan, Non-Conventional Energy Resources, Tata McGrawHill, 2009
3. S. N. Bhadra, D. Kastha, S. Banerjee, Wind Electrical Systems, Oxford Univ.
Press, New Delhi, 2005.
Reference Books:
1. S. A. Abbasi, N. Abbasi, Renewable Energy Sources and Their Environmental
Impact, Prentice Hall of India, New Delhi, 2006.
PEEL5301 SENSORS
AND TRANSDUCERS (3-0-0)
Module –1
10 lectures
Elements of a general measurement system;
Static Characteristics: systematic characteristics, statistical characteristics,
calibration;
Dynamic characteristics of measurement systems: transfer functions of typical
sensing elements, step and frequency response of first and second order elements,
dynamic error in measurement systems.
(Bentley: Chapters 14)
Module-2
14 lectures
Sensing elements: Resistive sensing elements: potentiometers, Resistance
Temperature Detector (RTD), thermistors, strain gages.
Capacitive sensing elements: variable separation, area and dielectric;
Inductive sensing elements: variable reluctance and LVDT displacement sensors;
Electromagnetic sensing elements: velocity sensors,
Thermoelctric sensing elements: laws, thermocouple characteristics, installation
problems, cold junction compensation.
IC temperature sensor
Elastic sensing elements: Bourdon tube, bellows, and diaphragms for pressure
sensing, force and torque measurement.
(Bentley: Sections 8.1 to 8.6; Ghosh: Section 10.3 to 10.4).
Module-3
10 lectures
Signal Conditioning Elements:
Deflection bridges: design of resistive and reactive bridges, push-pull configuration
for improvement of linearity and sensitivity
Amplifiers: Operational amplifiers-ideal and non-ideal performances, inverting, noninverting and differential amplifiers, instrumentation amplifier, filters. A.C. carrier
systems, phase sensitive demodulators and its applications in instrumentation.
(Bentley: Sections 9.1 to 9.3; Ghosh: Sections 15.1 and 15.2) .
Text Books:
1.
Principles of Measurement Systems- J.P. Bentley (3/e), Pearson Education, New
Delhi, 2007.
2.
Introduction to Measurement and Instrumentation- A.K. Ghosh(3/e), PHI Learning,
New Delhi, 2009.
3.
Transducers and Instrumentation- D.V.S. Murthy (2/e), PHI Learning, New Delhi, 2009.
Reference Books:
1.
Measurement Systems Application and Design- E.O. Doeblin (4/e), McGraw-Hill,
International, NY.
2.
Instrumentation for Engineering Measurements- J.W. Dally, W.F. Riley and K.G.
McConnel (2/e), John Wiley, NY, 2003.
3.
Industrial Instrumentation- T.R. Padmanabhan, Springer, London, 2000.
PEEC4301 ADVANCED
ELECTRONIC CIRCUIT
(3-0-0)
MODULE-I
(10 Hours)
1: Active Filters :Active Filters, Frequency response of Major Active filters, First order lowpass Butterworth filter: Filter Design, Frequency
Scaling, Second-order low-pass
Butterworth filter: First-order high-pass Butterworth filter, Second-order high-pass
Butterworth filter, Band-pass filters: Wide band-pass Filter, Narrow Band-Pass Filter, Bandreject filters: Wide Band-Reject Filter, Narrow Band-Reject Filter, All-Pass filter.
2: Oscillators: Oscillators: Oscillator Principles, Oscillator Types, Quadrature Oscillator,
Sawtooth wave generator, Voltage-controlled oscillator.
3: Comparators: Comparators: basic comparator, zero-crossing detector, Schmitt trigger,
comparator characteristics, limitations of Op-Amp as comparators, voltage limiters.
MODULE-II
(14 Hours)
4: Bistable Multivibrator: Bistable Multivibrator, fixed-bias bistable multivibrator, Loading,
self-biased transistor binary, commutating capacitors, Triggering the binary, Unsymmetrical
Triggering of the bistable multivibrator, Triggering Unsymmetrically through a Unilateral
Device, Symmetrical Triggering, Triggering of a Bistable Multi Symmetrically without the Use
of Auxiliary Diodes, Schmitt Trigger Circuit (Emitter-coupled Bistable Multivibrator).
5: Monostable and Astable Multivibrator: Monostable Multivibrator, Gate Width of a
Collector-Coupled Monostable Multivibrator, Waveforms of the Collector-Coupled
Monostable Multivibrator, Emitter-Coupled Monostable Multivibrator, Triggering of the
Monostable Multivibrator. Astable Collector-Coupled Multivibrator, Emitter-coupled Astable
multivibrator.
6: Wideband amplifiers: Wideband amplifiers: The Hybrid-π , High-frequency, Small-signal,
Common-emitter Model, RC-Coupled Amplifier, Frequency Response of a Transistor StageThe Short-Circuit Current Gain, Current Gain with Resistive Load, Transistor Amplifier
Response taking Source Impedance into Account, Transient Response of a Transistor
Stage, Cascaded C E Transistor Stages, Rise-time Response of Cascaded Stages, Shunt
Compensation of a Transistor Stage in a Cascade, Rise Time of Cascaded Compensated
Stages, Low frequency Compensation.
MODULE-III
(12 Hours)
7: Negative Resistance Switching Devices: Voltage Controllable Negative resistance
devices, Tunnel Diode operation and characteristics, Monostable Astable, Bistable circuits
using tunnel diode, Voltage controlled Negative Resistance Switching Circuits.
8: Voltage and Current Time Base Generators: Time-Base Generators, General features of a
Time-base signal, Methods of generating a voltage time-base waveform, Exponential sweep
circuit, Miller and bootstrap time base generators-Basic principles, Transistor miller time
base generator, Transistor bootstrap time base generator, Current Time-Base Generators, A
Simple Current sweep, Linearity Correction through adjustment of driving waveform,
Transistor current time base generator.
9: Specialized IC Applications: IC 555 Timer: IC 555 Timer as a Monostable Multivibrator
and its applications, IC 555 Timer as Astable Multivibrator and its applications. Phase
Locked Loop: Operating principle of PLL, Phase detectors, Exclusive-OR phase detector,
Monolithic phase detector, Instrumentation Amplifier and its applications.
Text Books:
1. Pulse, Digital and switching Waveforms, Second Edition - Jacob Millman, Herbert Taub
and Mothiki S Prakash Rao (TMH Publication).
(Selected portion from Chapter 3, 8, 9, 10, 11, 12 and 13)
2. OP-Amps and Linear Integrated Circuits- Ramakant A. Gayakwad (PHI Publication).
(Selected portion from Chapter 7, 8 and 9)
3. Pulse & Digital Circuits by K.Venkata Rao, K Rama Sudha & G Manmadha Rao, Pearson
Education, 2010. (Selected portions)
Reference Books:
1. OP-Amps and Linear Integrated Circuits - Robert F. Coughlin, Frederick F. Driscoll
(Pearson Education Publication).
2. Pulse and Digital Circuits by A. Anand Kumar, PHI.
Free Electives - II
FESM6301NUMERICAL
METHODS (3-0-0)
Unit –I (10 hors)
Approximation of numbers, Significant figures, Accuracy and precision, Error
definition, Round off errors, Error propagation, Total numerical error
Roots of equation: Bisection ethos, False-position method, Fixed point iteration,
Newton-Raphson method, Secant method, Convergence and error analysis, System
of non-linear equations
Linear algebraic equation: LU decomposition, The matrix inversion, Error analysis
and system conditions, Gauss-Siedel method
Unit-II (10 hours)
Interpolation: Newton’s divided difference interpolating polynomial, Lagrange
interpolating polynomial, Spline interpolation.
Numerical integration: The Trapezoidal rule, Simpson’s rule, Newton-Cotes algorithm
for equations, Romberg integration, Gauss quadrature
Unit-III(10 Hours)
Ordinary differential equation: Euler method, Improvement of Euler’s method,
Runge-Kutta methods, System of equations, Multi step methods,
General methods for boundary value problems, Eigen value problems
(Algorithm and error analysis of all methods are included )
Text Book:
1. S.C. Chapra, R.P.Canale,” Numerical methods for Engineers”, Fifth edition, THM
Publication.
Reference Books
1. S. Kalavathy, “ Numerica methods”, Thomson/ Cengage India
2. K.E. Atkinson,” Numerical analysis,” Second edition, John Wiley & Sons.
FEEC6301Database
Management System (3-0-0)
Module I : (10 hours)
Database System Architecture - Data Abstraction, Data Independence, Data
Definitions and Data Manipulation Languages. Data models - Entity
Relationship(ER), Mapping ER Model to Relational Model, Network .Relational and
Object Oriented Data Models, Integrity Constraints and Data Manipulation
Operations.
Module II : (12 hours)
Relation Query Languages, Relational Algebra and Relational Calculus, SQL.
Relational Database Design: Domain and Data dependency, Armstrong's Axioms,
Normal Forms, Dependency Preservation, Lossless design.
Query Processing Strategy.
Module III: (10 hours)
Transaction processing: Recovery and Concurrency Control. Locking and
Timestamp based Schedulers.
Database Recovery System: Types of Data Base failure & Types of Database
Recovery, Recovery techniques
Text Books:
1. Database System Concepts by Sudarshan, Korth (McGraw-Hill Education )
2. Fundamentals of Database System By Elmasari & Navathe- Pearson
Education
References Books:
(1) An introduction to Database System – Bipin Desai, Galgotia Publications
(2) Database System: concept, Design & Application by S.K.Singh (Pearson Ed)
(3) Database management system by leon &leon (Vikas publishing House).
(4) Fundamentals of Database Management System – Gillenson, Wiley India
(5) Database Modeling and Design: Logical Design by Toby J. Teorey, Sam S.
th
Lightstone, and Tom Nadeau, 4 Ed., 2005, Elsevier India Publications, New Delhi
PCCS4301COMPUTER
ORGANIZATION (3-0-0)
Module –I
12 Hrs
Basic structures of Computers: Functional units, operational concepts, Bus
structures, Software, Performance, Computer Architecture vs Computer
Organization.
Machine Instruction and Programs: Memory location and addresses, Big-endian and
Little-endian representation. Memory Operations, Instructions and instruction
Sequencing, Addressing modes, Assembly Language, Basic Input/output operations,
subroutine, additional Instructions.
Module – II
12 Hrs
Arithmetic : Addition and subtraction of signed Numbers, Design of Fast Adders,
Multiplication of positive Numbers, Signed-operand multiplication , Fast
multiplication, Integer Division, Floating- point Numbers, (IEEE754 s…) and
operations.
Module – III
12 Hrs
Basic Processing units: Fundamental concepts, execution of complete Instructions,
Multi bus organization, Hardwired control, Micro programmed control, RISC vs CISC
architecture.
Memory System: Basic Concepts, cache Memory, Cache memory mapping policies,
Cache updating schemes, performance consideration, Virtual memories, Paging and
Page replacement policies, Memory Management requirement, secondary storage.
Text Books:
1. Computer Organization: Carl Hamacher, Zvonkovranesic, Safwat Zaky, Mc Graw Hill, 5th
Edition.
2. Computer Organization and Design Hardware/ Software Interface: David A. Patterson,
John L.
Hennessy, Elsevier, 4th Edition.
Reference Book :
1. Computer Architecture and Organization: William Stallings, Pearson Education.
2. Computer Architecture and Organizations, Design principles and Application: B. Govinda
Rajalu, Tata McGraw-Hill Publishing company Ltd.
3. Computer Architecture: Parhami, Oxford University Press
4. Computer system Architecture: Morris M. Mano PHI NewDelhi.
5. Computer Architecture and Organization: John P. Hayes Mc Graw Hill introduction.
6. Structured Computer Organization: A.S. Tanenbum, PHI
7. Computer Architecture And Organization: An Integrated Approach, Murdocca,
Heuring Willey India, 1st Edition.
PCIT4303 JAVA
Programming (3-0-0)
Module – I
12 Hrs
Introduction to Java and Java programming Environment. Object Oriented
Programming. Fundamental Programming Structure: Data Types, variable,
Typecasting Arrays, Operators and their precedence.
Control Flow: Java’s Selection statements (if, switch, iteration, statement, while, dowhile, for, Nested loop).
Concept of Objects and Classes, Using Exiting Classes building your own classes,
constructor overloading, static , final, this keyword .
Inheritance: Using Super to Call Super class constructor, Method overriding,
Dynamic method Dispatch, Using Abstract Classes, Using final with inheritance. The
Object Class.
Packages & Interfaces : Packages, Access Protection, Importing package,
Interface, Implementing Interfaces, variables in Interfaces, Interfaces can be
extended.
Exception Handling: Fundamentals, Types Checked , Unchecked exceptions,
Using try & catch, Multiple catch, throw , throws, finally, Java’s Built in exceptions,
user defined exception.
Module - II
12 Hrs
Multi Threading: Java Thread Model, Thread Priorities, Synchronization, Creating a
thread, Creating Multiple threads, Using isAlive ( ) and join ( ), wait () & notify ( ).
String Handling: String constructors, String length, Character Extraction, String
Comparison, Modifying a string.
Java I/O: Classes & Interfaces, Stream classes, Byte streams, Character streams,
Serialization.
JDBC: Fundamentals, Type I, Type II, Type III, Type IV drivers.
Networking: Basics, Socket overview, Networking classes, & interfaces, TCP/IP
client sockets, whois, URL format, URL connection, TCP/IP Server Sockets.
Module - III
12 Hrs
Applets: Basics, Architecture, Skeleton, The HTML APPLET Tag, Passing
Parameters to Applets, Applet context and show documents ().
Event Handing: Delegation Event model, Event Classes, Event Listener Interfaces,
Adapter classes.
AWT: AWT Classes window fundamentals, component, container, panel, Window,
Frame , Canvas, Creating a frame window in an Applet , working with Graphics ,
Control Fundamentals , Layout managers, Handling Events by Extending AWT
components.
Core java API package, reflection, Remote method Invocation (RMI)
Swing: J applet, Icons & Labels, Text fields, Buttons, Combo boxes, Tabbed panes,
Scroll panes, Trees, Tables.
Exploring Java-lang: Simple type wrappers, Runtime memory management, object
(using clone () and the cloneable Interface), Thread, Thread Group, Runnable.
Text Books:
1. Introduction to Java Programming: Liang, Pearson Education, 7th Edition.
2. Java The complete reference: Herbert Schildt, TMH, 5th Edition.
Reference Books:
1. Balguruswamy, Programming with JAVA, TMH.
2. Programming with Java: Bhave &. Patekar, Pearson Education.
3. Big Java: Horstman, Willey India, 2nd Edition.
4. Java Programming Advanced Topics: Wigglesworth, Cengage Learning.
th
5. Java How to Program: H.M. Deitel & Paul J. Deitel, PHI, 8 Edition.
PCEC7303 Control
and Instrumentation laboratory(0-0-3)
List of Experiment :
Control: (Any five)
1. Study of a dc motor driven position control system
2. Study of speed torque characteristics of two phase ac servomotor and
determination of its transfer function
3. Obtain the frequency response of a lag and lead compensator
4. To observe the time response of a second order process with P, PI and PID
control and apply PID control to servomotor
5. To determine the transfer function of a system(network) using transfer
function analyser.
6. To study and validate the controllers for a temperature control system
7. To study the position control system using Synchros
Instrumentation:(Any five)
1. Measurement of unknown resistance, inductance and capacitance using
bridges
2. To plot the displacement-voltage characteristics of the given LVDT
3. Measurement of temperature-voltage characteristics of J-type thermocouple
4. Use a strain gauge to plot the curve between strain applied to a beam and
the output voltage
5. Study of resistance-voltage characteristics of Thermistors
6. To study on the interface of PLC with PC for data acquisition applications
7. Measurement of speed by using magnetic pick up.
PCEL7301 Power
Electronics laboratory
(0-0-3)
List of Experiment : (any ten)
1. Study of the V-I characteristics of SCR, TRIAC and MOSFET.
2. Study of the V-I characteristics of UJT
3. To measure the latching and holding current of a SCR
4. (a)Study of the synchronized UJT triggering circuit.
(b) Study of the cosine controlled triggering circuit
5. Study of the single phase half wave controlled rectifier and semi converter circuit
with R and R-L Load
6. Study of single phase full wave controlled rectifier circuits(mid point and Bridge type)
with R and R-L Load
7. Study of three phase full wave controlled rectifier circuits(Full and Semi converter)
with R and R-L Load
8. Study of the forward converter (Buck converter) and flyback converter(boost
converter) operation.
9. Study of the single phase pwm voltage source inverter.
10. Study the performance of three phase VSI with PWM control.
11. Study the performance of single phase AC Voltage controller with R and R-L Load
12. Study of the resonant inverter.
PCEL7302 Electrical
Machines laboratory-II (0-0-3)
List of Experiment: (any ten)
1.
Determination of the voltage regulation of an alternator by zero power factor
(zpf) method
2. Determination of the V and inverted V curves of a synchronous motor
3. Speed control of a three phase induction motor using variable frequency drives
4. Determination of parameters of synchronous machine
(a) Positive sequence reactance
(b) Negative sequence reactance
(c) Zero sequence reactance
5. Determination of power angle characteristics of an alternator
6. Determination of parameter of a single phase induction motor and study of
(a) Capacitor start induction motor
(b) Capacitor start and capacitor run induction motor
(c) Universal motor
(d) Shaded pole motor
7. Study of parallel operation of two alternators
8. Measurement of direct and quadrature axis reactance of a salient pole
synchronous machine
9. Measurement of transient and sub transient reactance of a salient pole
alternator
10. Performance of grid connected induction generator.
11. Three phase transformer connections ( Star, Delta and Scott).
12. Determination of voltage regulation of alternator by synchronous impendence
method.
6th Semester
PCEL4303 MICROPROCESSOR
& MICRO
CONTROLLERS
MODULE - I (10 hours)
Microprocessor Architecture: Microprocessor and Microcomputer Architecture, Pins &
Signals, Register Organization, Timing & Control Module, 8085 Instruction Timing & Execution.
Assembly Language Programming of 8085: Instruction set of 8085, Memory & I/O
Addressing, Assembly language programming, Stack & Subroutines.
Interfacing EPROM & RAM Memories: 2764 & 6264, 8085 Interrupts
(Book 1: Ch.1,2,3,4 & 7)
MODULE – II (15 hours)
8086 Microprocessor: Architectures, Pin Diagrams and Timing Diagrams: Register
Organisation, Architecture, Signal Description, Physical Memory Organisations, Bus
Operation, I/O Addressing Capability, Special Processor Activities, Minimum Mode
System and Timings, Maximum Mode System and Timings
8086 Instruction Set and Assembler Directives: Machine Language Instruction
Formats, Addressing Modes, Instruction Set, Assembler Directives and Operators
Assembly Language Programming with 8086: Machine Level Programs, Machine
Coding the Programs ,Programming with an Assembler
Special Architectural Features and Related Programming: Stack, Interrupts and
Interrupt Service Routines, Interrupt Cycle,Non Maskable Interrupt, Maskable Interrupt,
Interrupt Programming, Passing Parameters to Procedures, Handling Programs of Size
More than 64k,MACROS, Timings and Delays
Basic Peripherals and Their Interfacing with 8086: Semiconductor Memory
Interfacing, Dynamic RAM Interfacing, Interfacing I/O Ports, PIO 8255],Modes of
Operation of 8255, Interfacing Analog to Digital Data Converters, Interfacing Digital to
Analog to Converters, Stepper Motor Interfacing ,
Special Purpose Programmable Peripheral Devices and Their Interfacing
Programmable Interval Timer 8253, Programmable Interrupt Controller 8259A, The
Keyboard/Display Controller 8279, Programmable Communication Interface
8251USART
DMA, Floppy Disk and CRT Controllers
DMA Controller 8257,DMA Transfers and Operations, Programmable DMA Interface
8237, Floppy Disk Controller 8272, CRT Controller 8275
80386 Microprocessor: Introduction, Architecture, Pins & Signals, Memory System, Registers,
Memory Management, Paging Technique, Protected Mode Operation.
(Book-2: Ch.1.1 to 1.9, ch.2.1 to 2.4,ch.3.1 to 3.3, ch.4.1 to 4.10,ch.5.1 to 5.8,ch.6.1 to 6.4,
ch.7.1 to 7.5, ch.10.1 to 10.3, 10.7,10.9)
MODULE –III (15 HOURS)
8051 Microcontrollers: Microcontrollers and embedded processors, Overview of the
8051 family
8051 Hardware Connection: Pin description of the 8051
8051 Assembly Language Programming: Inside the 8051, Assembly, Programming
Assembling and Running an 8051 Program, The Program Counter and ROM Space in
the 8051
8051 data types and Directives, PSW Register, register Banks and Stack
Jump, loop, and Call Instructions: Loop and Jump Instructions, Call Instructions,
Time Delay for Various 8051 chips
8051 I/O Port Programming: I/O Programming, I/O Bit Manipulation Programming,
8051 Addressing Modes: Immediate and register Addressing Modes, Accessing
memory using various Addressing Modes, Bit Addresses for I/O and RAM
Arithmetic & Logic Instructions and Programs: Arithmetic Instructions, Signed
number concepts and Arithmetic Operations, Logic and Compare Instructions, Rotate
Instruction and data Serialization, BCD, ASCII, and other Application Programs
8051 Serial Port Programming in Assembly: Basic of Serial communication, 8051
connection to RS232, 8051 Serial port Programming in Assembly, Programming the
second Serial port
Interrupts Programming in Assembly: 8051 Interrupts, Programming timer Interrupts,
Programming external hardware Interrupts, Programming the Serial Communication
interrupt, Interrupt Priority in the 8051
ADC, DAC, and Sensor Interfacing: Parallel and Serial ADC, DAC Interfacing
Sensor Interfacing and Signal Conditioning
Interfacing to External Memory: Semiconductor Memory, Memory Address Decoding,
Interfacing with External ROM, 8051 Data Memory space, Accessing External data
Memory
8051 Interfacing with the 8255: 8255 Interfacing, Pogramming for the 8255
Motor Control: RELAY, PWM, DC, and Stepper Motors: Relays and Opto-isolations,
Stepper Motor Interfacing, DC Motor Interfacing and PWM
(Book-3: Ch.1.1,1.2,ch.2.1 to 2.7,ch.3.1 to 3.3,ch.4.1,4.2,ch.5.1 to 5.3,ch.6.1 to
6.5,ch.10.1 to 10.4,ch.11.1 to 11.5,ch.13.1 to 13.3,ch.14.1 to 14.4,ch.15.1,15.2,ch.17.1
to 17.3)
TEXT BOOKS
1. Ghosh & Sridhar,0000 to 8085–Introduction to Microprocessor for Scientists & Engineers,
PHI
2. A.K. Roy & K.M. Bhurchandi, Advanced Microprocessor and Peripherals (Architecture,
Programming & Interfacing)– TMH Publication
3. Mazidi & Mazidi, The 8051 Microcontroller & Embedded Systems– Pearson / PHI publication
. REFERENCE:
1. M. Rafiqzzaman, Microprocessor – Theory & Applications. (Intel & Motorola ), PHI
2.The 8086 Microprocessor: Programming & Interfacing the PC by Keneeth J. Ayela
3. Douglas V.Hall, “Microprocessors and Interfacing: Programming and Hardware”, TMH
4. R.S. Gaonkar, Microprocessor architecture, programming & application with 8085, Penram
International Publishing. (India) Pvt. Ltd.
5.W.A.Triebel and Avtar Singh, The 8088 and 8086 Microprocessors, Pearson Education
6. Barry B. B The Intel Microprocessor – (Architecture, Programming & Interfacing) by Pearson
PCEC4304
DIGITAL SIGNAL PROCESSING (3-0-0)
Module – I
(10 hours)
The Z-Transform and Its Application to the Analysis of LTI Systems:
The Z-Transform: The Direct Z-Transform, The Inverse Z-Transform; Properties of the
Z-Transform; Inversion of the Z-Transforms: The Inversion of the Z-Transform by Power
Series Expansion, The Inversion of the Z-Transform by Partial-Fraction Expansion;
Analysis of Linear Time-Invariant Systems in the z-Domain: Response of Systems with
rational System Functions, Transient and Steady-State Responses, Causality and
Stability, Pole-Zero Cancellations.
Selected portions from Chapter 3 (3.1.1, 3.1.2, 3.2, 3.4.2, 3.4.3, 3.5.1, 3.5.2, 3.5.3,
3.5.4) of Textbook – I
The Discrete Fourier Transform: Its Properties and Applications
Frequency Domain Sampling: Frequency-Domain Sampling and Reconstruction of
Discrete-Time Signals, The Discrete Fourier Transform, The DFT as a Linear
Transformation, Relationship of the DFT to other Transforms; Properties of the DFT:
Periodicity, Linearity, and Symmetry Properties, Multiplication of Two DFTs and Circular
Convolution, Additional DFT Properties; Linear Filtering Methods Based on the DFT:
Use of the DFT in Linear Filtering, Filtering of Long Data Sequences; Frequency
Analysis of Signals using the DFT; The Discrete Cosine Transform: Forward DCT,
Inverse DCT, DCT as an Orthogonal Transform.
Chapter – 7 of Textbook – 1.
Module – II
(10 hours)
Implementation of Discrete-Time Systems:
Structure for the Realization of Discrete-Time Systems, Structure for FIR Systems:
Direct-Form Structure, Cascade-Form Structures, Frequency-Sampling Structures;
Structure for IIR Systems: Direct-Form Structures, Signal Flow Graphs and Transposed
Structures, Cascade-Form Structures, Parallel-Form Structures.
Selected portions from Chapter 9 (9.1, 9.2.1, 9.2.2, 9.2.3, 9.3.1, 9.3.2, 9.3.3, 9.3.4) of
Textbook – I
Design of Digital Filters:
General Considerations: Causality and Its Implications, Characteristics of Practical
Frequency-Selective Filters; Design of FIR Filters: Symmetric and Antisymmetric FIR
Filters, Design of Linear-Phase FIR Filters by using Windows, Design of Linear-Phase
FIR Filters by the Frequency-Sampling Method; Design of IIR Filters from Analog
Filters: IIR Filter Design by Impulse Invariance, IIR Filter Design by the Bilinear
Transformation.
Selected portions from Chapter 10 (10.1.1, 10.1.2, 10.2.1, 10.2.2, 10.2.3, 10.2.4, 10.3.2,
10.3.3) of Textbook – I
(15 hours)
Module- III
Efficient Computation of the DFT: Fast Fourier Transform Algorithms
Efficient Computation of the DFT: FFT Algorithms: Direct Computation of the DFT,
Radix-2
FFT
Algorithms:
Decimation-In-Time
(DIT),
Decimation-In-Time
(DIF);
Applications of FFT Algorithms: Efficient Computation of the DFT of two Real
Sequences, Efficient Computation of the DFT a 2N-Point Real Sequence, Use of the
FFT Algorithm in Linear Filtering and Correlation.
Selected portions from Chapter 8 (8.1.1, 8.1.3, 8.2.1, 8.2.2, 8.2.3) of Textbook – I
Adaptive Filters:
Application of Adaptive Filters: System Identification or System Modeling, Adaptive
Channel Equalization, Adaptive Line Enhancer, Adaptive Noise Cancelling; Adaptive
Direct-Form FIR Filters-The LMS Algorithm: Minimum Mean Square Error Criterion, The
LMS Algorithm.
Selected portions from chapter 13 (13.1.1, 13.1.2, 13.1.5, 13.1.6, 13.2.1, 13.2.2) of Text
book –I
Text Books
1. Digital Signal Processing – Principles, Algorithms and Applications by J. G.
Proakis and D. G. Manolakis, 4th Edition, Pearson.
Reference Book :
1. Digital Signal Processing – S.K. Mitra, TMH
PCEE4304
Communication Engineering(3-0-0)
MODUE-I
INTRODUCTION: Elements of an Electrical Communication System, Communication
Channels and their Characteristics, Mathematical Models for Communication Channels
FREQUENCY DOMAIN ANALYSIS OF SIGNALS AND SYSTEMS: Fourier series, Fourier
Transforms, Power and Energy, Sampling and Band limited signals, Band pass signals
MODULE-II
ANALOG SIGNAL TRANSMISSION AND RECEPTION: Introduction to modulation,
Amplitude Modulation (AM), Angle Modulation, Radio and Television broadcasting
MODULE-III
PULSE MODULATION SYSTEMS: Pulse amplitude modulation, Pulse Time Modulation
PULSE CODE MODULATION: PCM system, Intersymbol interference, Eye patterns,
Equalization, Companding, Time Division Multiplexing of PCM signals, Line codes,
Bandwidth of PCM system, Noise in PCM systems, Delta Modulation (DM), Limitations of
DM, Adaptive Delta Modulation, Noise in Delta Modulation, Comparison between PCM and
DM, Delta or Differential PCM (DPCM), S-Ary System
Text Book:
1. John G.Proakis,M. Salehi, COMMUNICATION SYSTEMS ENGINEERING, 2nd ed.
New Delhi,India: PHI Learning Private Limited, 2009.; Selected portion from
Chapter 1,2 and 3 for module MODULE-I and MODULE-II of the course.
2. R.P Singh and S.D Sapre, COMMUNICATION SYSTEMS Analog & Digital, 2nd ed.
New Delhi, India: Tata McGraw Hill Education Private Limited, 2009; Selected
portions from Chapter 7 and 8 of the book for MODULE-III.
Reference Book:
1. Taub, Schilling, Saha, Taub’s Principles of Communication Systems, TMH.
2. Modern Digital and Analog Communication Systems, by B.P. Lathi, Oxford
PEME5305 ROBOTICS
& ROBOT APPLICATIONS (3-0-0)
Module – I
1. Fundamentals of Robotics: Evolution of robots and robotics, Definition of
industrial robot, Laws of Robotics, Classification, Robot Anatomy, Work volume
and work envelope, Human arm characteristics, Design and control issues,
Manipulation and control, Resolution; accuracy and repeatability, Robot
configuration, Economic and social issues, Present and future application.
2. Mathematical modeling of a robot: Mapping between frames, Description of
objects in space, Transformation of vectors.
Direct Kinematic model: Mechanical Structure and notations, Description of links
and joints, Kinematic modeling of the manipulator, Denavit-Hartenberg Notation,
Kinematic relationship between adjacent links, Manipulator Transformation
matrix.
Module – II
3. Inverse Kinematics: Manipulator workspace, Solvable of inverse kinematic
model, Manipulator Jacobian, Jacobian inverse, Jacobian singularity, Static
analysis.
4. Dynamic modeling: Lagrangian mechanics, 2D- Dynamic model, Lagrange-Euler
formulation, Newton-Euler formulation.
5. Robot Sensors: Internal and external sensors, force sensors, Thermocouples,
Performance characteristic of a robot.
Module – III
6. Robot Actuators: Hydraulic and pneumatic actuators, Electrical actuators,
Brushless permanent magnet DC motor, Servomotor, Stepper motor, Micro
actuator, Micro gripper, Micro motor, Drive selection.
7. Trajectory Planning: Definition and planning tasks, Joint space planning,
Cartesian space planning.
8. Applications of Robotics: Capabilities of robots, Material handling, Machine
loading and unloading, Robot assembly, Inspection, Welding, Obstacle
avoidance.
Text Books:
1.
Robotics and Control, R.K. Mittal and I.J. Nagrath, Tata McGraw Hill
2.
Introduction to Robotics: Mechanics and control, John J Craig, PHI
3.
Robotics Technology and Flexible Automation, S.R.Deb and S. Deb, TMH
Reference Books:
1. Introduction to Robotics, S. K. Saha, Tata McGraw Hill
2. Robotics: Control, Sensing, Vision and Intelligence, K.S.Fu, R.C.Gonzalez and
C.S.G.Lee, McGraw Hill
3. Robotics, Appuu Kuttan K.K., I.K. international
4. Robot Dynamics and Control, M.W.Spong and M. Vidyasagar , Wiley India.
5. Industrial Robotics Technology, programming and application, M.P.Groover, TMH.
6. Introduction to Robotics: Analysis, Systems, Applications, S.B.Niku, PHI
7. Robotics: Fundamental Concepts and Analysis, A. Ghosal, Oxford University Press
8. Fundamentals of Robotics: Analysis and Control, R. J. Schilling, PHI
9. Robotic Engineering: An Integrated Approach, R.D. KLAFTER, T. A. Chmielewski, and
M. Negin, PHI
10. Robot Technology: Fundamentals: J. G. Keramas, Cengage Learning
PEEE5301
Optoelectronics Devices & Instrumentation (30-0)
Module –1
Wave Optics:
12 Hrs
Wave properties of light: Propagation, polarization, interference, diffraction,
transmission of light through slab and cylindrical waveguides.
Optical Fiber:
Construction of step and graded index fibers, single mode and multimode fibers, loss
and dispersion characteristics;
Module –2
12 Hrs
Fiber optic components: couplers, splicer, polarizer.
Sources and Detectors
:
Sources: LED, Lasers-fundamentals, conditions for oscillations, construction and
principle of operation of gas and semiconductor, pulsed and continuous type lasers;
Detectors: photodiodes- PN, PIN and APD.
Module –3
Optoelectronic Instrumentation
12 lectures
Modulation
techniques:
intensity,
polarization,
interference,
electro-optic,
electromagnetic; Sensing techniques for displacement, pressure, acceleration, flow,
current and voltage measurement, Fiber optic gyroscope, Distributed fiber optic
sensors- OTDR and OFDR principles.
Text Books:
1. A. Ghatak and K. Tyagrajan: Introduction to Fiber Optics: Cambridge University Press,
New Delhi, 2004. (Chapter 2, Sections 7.2-7.3, Chapter 3, Sections 4.3,8.2, 17.2, 17.8,
Section 11.3, 11.6, Chapter 12, Chapter 18)
2. J. Wilson and J.F.B. Hawkes: Optoelectronics: An Introduction (2/e), PHI, New Delhi,
2001. (Chapter 1, Sections 3.1-3.2; 8.1-8.2, Sections 8.3-8.4, 8.5, Sections 4.6, 5.1-5.6,
5.10.2, 7.2, Sections 3.4, 3.7, 3.8, Chapter 10)
Reference Books:
1. J.P. Bentley- Principles of Measurement Systems (3/e), Pearson Education, New Delhi,
2007.
2. N. Bala Saraswathi and I. Ravi Kumar- Principles of Optical Communications and
Optoelectronics (2/e), Laxmi Publications, New Delhi, 2007.
3. M.K. Ghosh, S.Sen and S. Mukhopadhyay (ed.)- Measurement and Instrumentation:
Trends and Applications, Ane Books, New Delhi, 2008.
4. R.P.Khare: Fibre Optics & Optoelectronics, Oxford University Press, New Delhi, 2010.
PEEL5303: Electric
Drives (3-0-0)
Module-I
(12 Hours)
Study of Motor Drives: Electrical Drives, Advantages of Electrical Drives, Electrical Motors,
Power Modulators, Choice of electrical Drives, Fundamentals of Torque Equations, Speed
Torque Conventions and Multi-quadrant Operation, Equivalent Values of Drive Parameters,
Components of Load Torques, Nature and Classification of Load Torques, Calculation of Time
and Energy Loss in Transient Operations, Steady State Stability, Load Equalization, Control of
Electrical Drives, Thermal Model of Motor for Heating and Cooling, Classes of Motor Duty,
Determination of Motor Rating.Book-1:Ch. 1.1, Ch. 1.2, Ch. 1.3, Ch. 1.4; Ch. 2.1, Ch. 2.2, Ch.
2.3, Ch. 2.4, Ch. 2.5, Ch. 2.6, Ch. 2.7, Ch. 2.8; Ch. 3.3, Ch. 4.1; Ch. 4.2, Ch. 4.3.
Module-II
(14 Hours)
Steady State Performance of DC/AC Drives: Closed Loop Control of Drives, DC Motors and
their Performances, Starting, Braking, Transient Analysis, Speed Control, Methods of Armature
Voltage Control, Transformer and Uncontrolled Rectifier Control, Controlled Rectifier Fed DC
Drives, Chopper Controlled DC Drives.
Induction Motor Drives: Speed Control, Pole Changing, Pole Amplitude Modulation, Stator
Voltage Control, Variable Frequency Control from Voltage Source, Voltage Source Inverter
Control, Variable Frequency Control from Current Source, Current Source Inverter Control,
Current Regulated Voltage Source Inverter Control, Rotor Resistance Control, Slip Power
Recovery.Synchronous Motor Drives: Synchronous Motor Variable Speed Drives, Variable
Frequency Control of Multiple Synchronous Motors.Book-1:Ch. 5.1, Ch. 5.2, Ch. 5.3, Ch. 5.4,
Ch. 5.5, Ch. 5.6, Ch. 5.8, Ch. 5.9, Ch. 5.10, Ch. 5.11, Ch. 5.12, Ch. 5.13, Ch. 5.14, Ch. 5.15,
Ch. 5.18, Ch. 5.19, Ch. 5.20, Ch. 5.21; Ch. 6.8, Ch. 6.9, Ch. 6.10, Ch. 6.11, Ch. 6.12, Ch.
6.13, Ch. 6.16, Ch. 6.17, Ch. 6.18, Ch. 6.20, Ch. 6.21; Ch. 7.3.1, Ch. 7.3.2, Ch. 7.4.
Module-III
(12 Hours)
Traction Drives: Nature of Traction Load, Calculation of Traction Drive Ratings and Energy
Consumption, Tractive Effort and Drive Ratings, Specific Energy Consumption, Maximum
Allowable Tractive Effort, Conventional DC and AC Traction Drives, 25 kV AC Traction using
Semiconductor Converter Controlled DC Motors, DC Traction employing Polyphase AC
Motors, AC Traction employing Polyphase AC Motors.
Book-1:Ch. 10.2, Ch. 10.6, Ch. 10.10, Ch. 10.12, Ch. 10.15, Ch. 10.16.
Drives for Specific Applications: Drive Considerations for Textile Mills, Steel Rolling Mills,
Cranes and Hoist Drives, Cement Mills, Sugar Mills, Machine Tools, Paper Mills, Coal Mines,
Centrifugal Pumps.Book-2:Ch. 7.1, Ch. 7.2, Ch. 7.3, Ch. 7.4, Ch. 7.5, Ch. 7.6, Ch. 7.7, Ch.
7.8, Ch. 7.9.
Microprocessors and Control of Electrical Drives: Dedicated Hardware Systems versus
Microprocessor Control, Application Areas and Functions of Microprocessors in Drive
Technology, Control of DC Drives using Microprocessors.
Book-2:Ch. 8.2, Ch. 8.3, Ch. 8.4.1.
Text Books:
(1) Book-1: Fundamentals of Electrical Drives-By G.K.Dubey, Alpha Science International
Limited, Pangbourne, UK, Second Edition, 2001.
(2) Book-2: Electric Drives-Concepts and Applications- By Vedam Subramanyam, Second
Edition, Tata McGraw Hill Publication, 2010-11.
Reference Book:
(1) Modern Power Electronics and AC drives- by B.K.Bose, Pearson Education.
PEEC4304
COMPUTER NETWORK & DATA
COMMUNICATION (3-0-0)
Module – I
12 Hrs
Overview of Data Communications and Networking.
Physical Layer : Analog and Digital, Analog Signals, Digital Signals, Analog versus Digital,
Data Rate Limits, Transmission Impairment, More about signals.
Digital Transmission: Line coding, Block coding, Sampling, Transmission mode.
Analog Transmission: Modulation of Digital Data; Telephone modems, modulation of Analog
signals. Multiplexing : FDM , WDM , TDM ,
Transmission Media: Guided Media, Unguided media (wireless)
Circuit switching and Telephone Network: Circuit switching, Telephone network.
Module –II
12 Hrs
Data Link Layer
Error Detection and correction: Types of Errors, Detection, Error Correction
Data Link Control and Protocols:
Flow and Error Control, Stop-and-wait ARQ. Go-Back-N ARQ, Selective Repeat ARQ,
HDLC.
Point-to –Point Access: PPP
Point –to- Point Protocol, PPP Stack,
Multiple Access
Random Access, Controlled Access, Channelization.
Local area Network: Ethernet.
Traditional Ethernet, Fast Ethernet, Gigabit Ethernet. Token bus, token ring
Wireless LANs: IEEE 802.11, Bluetooth virtual circuits: Frame Relay and ATM.
Module – III
12 Hrs
Network Layer:
Host to Host Delivery: Internetworking, addressing and Routing
Network Layer Protocols: ARP, IPV4, ICMP, IPV6 ad ICMPV6
Transport Layer: Process to Process Delivery: UDP; TCP congestion control and Quality of
service.
Application Layer :
Client Server Model, Socket Interface, Domain Name System (DNS): Electronic Mail
(SMTP) and file transfer (FTP) HTTP and WWW.
Text Books:
th
1. Data Communications and Networking: Behrouz A. Forouzan, Tata McGraw-Hill, 4 Ed
th
3. Computer Networks: A. S. Tannenbum, D. Wetherall, Prentice Hall, Imprint of Pearson 5 Ed
Reference Book : .
th
1. Computer Networks:A system Approach:Larry L, Peterson and Bruce S. Davie,Elsevier, 4 Ed
2. Computer Networks: Natalia Olifer, Victor Olifer, Willey India
th
3. Data and Computer Communications: William Stallings, Prentice Hall, Imprint of Pearson, 9 Ed.
4. Data communication & Computer Networks: Gupta, Prentice Hall of India
5. Network for Computer Scientists & Engineers: Zheng, Oxford University Press
6. Data Communications and Networking: White, Cengage Learning
PCCS4304 OPERATING
SYSTEM (3-0-0)
MODULE-I
12 Hours
INTRODUCTION TO OPERATING SYSTEM:
What is an Operating System? Simple Batch Systems, Multiprogramming and Time Sharing
systems. Personal Computer Systems, Parallel Systems, Distributed Systems and Real time
Systems.
Operating System Structures: Operating System Services, System components, Protection
system, Operating System Services, system calls
PROCESS MANAGEMENT:
Process Concept, Process Scheduling, Operation on Processes, Interprocess
communication, Examples of IPC Systems, Multithreading Models, Threading Issues,
Process Scheduling Basic concepts, scheduling criteria, scheduling algorithms, Thread
Scheduling.
MODULE-II
12 Hours
PROCESS COORDINATION: Synchronization: The Critical section problem, Peterson’s
solution, Synchronization hardware, Semaphores, Classical problems of synchronization,
Monitors.
Deadlocks: System model, Deadlock Characterization Methods for Handling Deadlocks,
Deadlock Prevention, Deadlock avoidance, Deadlock Detection, recovery from Deadlock.
MEMORY MANAGEMENT: Memory Management strategies, Logical versus Physical
Address space, swapping, contiguous Allocation, Paging, Segmentation.
Virtual Memory: Background, Demand paging, performance of Demand paging, Page
Replacement, Page Replacement Algorithms. Allocation of frames, Thrashing, Demand
Segmentation.
MODULE-III
11 Hours
STORAGE MANAGEMENT:
File System Concept, Access Methods, File System Structure, File System Structure, File
System Implementation, Directory implementation, Efficiency and Performance, Recovery,
Overview of Mass Storage Structure, Disk Structure, Disk Scheduling, Disk Management,
Swap-Space Management, I/O System Overview, I/O Hardware, Application I/O Interface,
Kernel I/O Subsystem, Transforming I/O Request to Hardware Operation.
CASE STUDIES: The LINUX System, Windows XP, Windows Vista
TEXT BOOK:
1. Operating System Concepts – Abraham Silberschatz, Peter Baer Galvin, Greg Gagne, 8th
edition, Wiley-India, 2009.
2. Mordern Operating Systems – Andrew S. Tanenbaum, 3rd Edition, PHI
3. Operating Systems: A Spiral Approach – Elmasri, Carrick, Levine, TMH Edition
REFERENCE BOOK:
1. Operating Systems – Flynn, McHoes, Cengage Learning
2. Operating Systems – Pabitra Pal Choudhury, PHI
3. Operating Systems – William Stallings, Prentice Hall
4. Operating Systems – H.M. Deitel, P. J. Deitel, D. R. Choffnes, 3rd Edition, Pearson
FEEE6301 INDUSTRIAL PROCESS CONTROL AND DYNAMICS (3‐0‐0) Module‐I (10 Hrs)) Analog Signal Conditioning
Introduction, Principles of Analog Signal Conditioning, Signal-Level Changes, Linearization,
Conversions, Zero adjustment, Span adjustment, Level changing, AC/DC Power supply,
Filtering and Impedance Matching, Passive Circuits, Divider Circuit, Bridge Circuits, RC Filters,
Operational Amplifiers, Op Amp Characteristics, Op Amp Specifications, Op Amp Circuits in
Instrumentation, Voltage Follower, inverting Amplifier, Non- inverting Amplifier, Differential
Amplifier, Active Filters, Protection Voltage-to –Current Converter, Current-to-Voltage
Converter, Integrator, Linearization.
Book-1-Ch-2.2,2.3,2.4,2.5,2.6.
Digital Signal Conditioning
Introduction, Review of Digital Fundamentals, Digital Information, Fractional Binary Numbers,
Boolean Algebra, Digital Electronics, Programmable Logic Controllers, Busses and Tri-State
Buffers, Converters, Comparators, Digital-to-Analog Converters (DCA), Analog-to-Digital
Converters (ADCs), Sample and Hold, Multiplexer and De-multiplexer, decoder and encoder,
Pulse modulations, Digital recorder.
Book-1-Ch-3.1,3.2,3.3,3.4,3.5.
Module-2 (20 Hrs)
Thermal Sensors
Definition of Temperature, Metal Resistance versus Temperature Device, Thermistors,
Thermocouples, Other Thermal Sensors, Design Consideration.
Book-1-Ch-4.1,4.2,4.3,4.4,4.5,4.6,4.7.
Mechanical Sensors
Displacement, Position Sensors, Strain Sensors, Motion Sensors, Pressure Sensors, Flow
Sensors.
Book-1-Ch-5.2,5.3,5.4,5.5,5.6
Optical Sensors
Photodetectors, Pyrometry, Leser Principles,Applications.
Book-1-6.2,6.3,6.4,6.5,6.6.
Final Control
Final Control Operation, Signal Conversions, Switching and Control Devices, Actuators, control
Elements.
Book-1-Ch-7.2,7.3,7.4,7.5,7.6.
Discrete-State Process Control
Characteristics of the System, Relay Controllers and Ladder diagrams, PLCs.
Book-1-Ch-8.2,8.3,8.4,8.4,8.5.
Module-3 (10 Hrs)
Controller Principles
Process Characteristics, Control System Parameters, Discontinuous and Continuous Controller
Modes, Composite Control Modes.
Book-1-Ch-9.2,9.3,9.4,9.5,9.6.
Analog Controllers
Electronic controllers, pneumatic controllers, design consideration.
Book-1-10.2,10.3,10.4,10.5.
Casecade,Feedforward, and Ratio Control
Casecade Control,Feedfrrward Control,Feedforward-feedback cControl Configuration,Ratio
Control.
Book-2, Ch-!0.1,!0.2,!0.3,!0.4,!0.5.
Selective and Adaptive Control Systems
Selective Control, Adaptive Control,Adaptive Control Configuration.
Book-2. Ch-11.1,11.2,11.3,11.4.
TEXT BOOK
1.-PROCESS CONTROL INSTRUMENTATION TECHNOLOGY BY-Curtis D.Johnson.PHI
Publication.
2-PROCESS CONTROL PRINCIPLES AND APPLICATIONS BY-Surekha Bhanot.Oxford
Publication
Reference:Process control Systems and Instrumentation By-Terry Bartelt , Cengage Learning Publication
Microprocessor & Microcontroller Laboratory
List of Experiment :
8085
1. Addition, subtraction, multiplication and division of two 8 bit numbers
2. Smallest/largest number among n numbers in a given data array, Binary to Gray
code, Hexadecimal to decimal conversion
Interfacing
1. Generate square wave on all lines of 8255 with different frequencies
2. Study of stepper motor and its operations
Optional (any two)
1. Study of traffic light controller
2. Study of elevator simulator
3. Generation of square, triangular and saw tooth wave using D to A Converter
4. Study of 8253 and its operation(Mode0, Mode2, Mode3)
5. Study of Mode0,Mode1 and BSR Mode operation of 8255
6. Study of 8279 (keyboard and display interface)
7. Study of 8259 Programmable Interrupt Controller
8051 Microcontroller
1. Initialize data to registers and memory using immediate, register, direct and
indirect
Addressing mode
Optional (any one)
1. Addition and subtraction of 16 bit numbers
2. Multiplication and division of two 16 bit numbers
3. Transfer a block of data to another memory location using indexing
4. Operation of 8255 using 8051 microcontroller
8086
1.Addition , subtraction ,multiplication and division of 16 bit numbers, 2’s complement of
a 16 bit number
Optional (any one)
1. Finding a particular data element in a given data array
2. Marking a specific bit of a number using look-up table
3. Largest/smallest number of a given data array
4. To separate the odd and even numbers from a given data array
5. Sorting an array of numbers in ascending/descending order
Digital Signal Processing Laboratory (0-0-3)
List of Experiment:
1. Different types of signal generation using MATLAB
2. Linear convolution of sequences (without using the inbuilt function ‘conv’
available in MATLAB)
3. Circular convolution of two sequences, Comparison of result with that of Linear
convolution
4. (a) Finding auto correlation of a sequence
(b) Finding cross correlation of two sequences
( c ) Finding power spectral density of a sequence
5. Finding the convolution of periodic sequence using DFT and IDFT
6. Implementation of FFT (Fast Fourier Transform) algorithm
(i)
Decimation in Time (DIT)
(ii)
Decimation in Frequency (DIF)
7. Design of FIR filter(low pass, high pass and band pass) using windowing
technique(harming window, haming window, rectangular window and Kaiser
window)
8. Design of IIR filter (Design of Butterworth and Chebyshev filter)
9. Convolution of long duration sequences using overlap add, overlap save meter
10. Working with DSP processor (fixed point-TMS320C-5X/Floating point) series
(i)
Implement convolution (Linear and circular convolution)
FIR and IIR implementation
Communication System Engineering Lab (0 0 2 )
Analyze and plot the spectrum of following signals with aid of spectrum analyzer: Sine
wave, square wave, triangle wave, saw-tooth wave of frequencies 1KHz, 10Khz, 50Khz,
100KKz and 1 MHz.
•
•
Experiment objective: Analysis of spectrum of different signals. Measurement of
power associated with different harmonics in signals.
Equipment Required:
Signal/ function generator- frequency range upto 1MHz, signal types: square,
triangle, sinusoidal, saw-tooth, DC offset signal.
Spectrum analyzer Upto 100MHz atleast
1. Analyze the process of frequency division multiplexing and frequency division demultiplexing.
Experiment objective: Demonstrate the process of multiplexing of signals in time
and frequency domain.
Equipment Required:
• Frequency division multiplexing/ de-multiplexing experiment board.
• CRO
2. Study and design of AM modulator and demodulator. (Full AM, SSB, DSBSC, SSBSC)
Experiment objective: Demonstrate the process of modulation and demodulation
using AM. Measure different parameters associated with modulated signals.
Analyze the spectrum of modulated signals.
Equipment Required:
• AM modulator/ demodulator experimental board.
• Function generator (sine, square, modulating signal), 1MHz maximum
frequency
• CRO - 20MHz, dual trace
• Spectrum analyzer.
3. Study of FM modulation and Demodulation Techniques.
Experiment objective: Demonstrate the process of modulation and demodulation
using FM. Measure different parameters associated with modulated signals. Analyze
the spectrum of FM modulated signals and compare with theoretical bandwidth.
Equipment Required:
•
FM modulator/ demodulator experimental board.
•
Function generator (sine, square, modulating signal), 1MHz maximum
frequency
•
CRO - 20MHz, dual trace
•
Spectrum analyzer.
4. Observer the process of PAM, quantization and determination of quantization noise.
Experiment objective: Demonstrate the process of PAM, PWM and PPM. Measure
the spectrum of the PAM, PPM and PWM signals.
Equipment Required:
•
Experiment board for PAM/ PPM/ PWM signal generation and detection
•
Multiplexing board
•
CRO
5. Multiplex 2-4 PAM/ PPM and PWM signals.
Experiment objective: Demonstrate the process of multiplexing in time domain.
Equipment Required:
•
•
•
Experiment board for PAM/ PPM/ PWM signal generation and detection
Multiplexing board
CRO
6. Study the functioning of PCM and Delta modulator
Experiment objective: Demonstrate the process of PCM modulation and Delta
modulation.
Equipment Required:
•
Experiment board for PCM/ Delta Modulation/ Adaptive Delta Modulation
generation and detection
•
Signal generator
•
CRO
7. Using MATLAB/ SCILAB generate a carrier and a modulating signal. Modulate the
carrier using AM. Show the waveform in time domain and analyze its frequency
spectrum. Repeat the simulation for modulating signal being square, triangular and
other forms waveform.
8. Using MATLAB/ SCILAB generate a carrier and a modulating signal. Modulate the
carrier using FM. Show the waveform in time domain and analyze its frequency
spectrum. Repeat the simulation for modulating signal being square, triangular and
other forms waveform.
•
For experiment 7/8 MATLAB of current version/ scilab is required.
•
Computer of good configuration
9. Using Lab-View software simulate AM modulation and demodulation system.
10. Using Lab-View software simulate FM modulation and demodulation system.
•
For experiment 9/10 Lab-View of current version is required.
•
Computer of good configuration
11. Design a receiver to demodulate and receive the signal from am AM radio station.
12. Design a receiver to demodulate and receive the signal from the local FM radio station.
•
For experiment 11/12 following equipment is required
•
CRO
•
Components of assorted values.
•
AM and FM receiver ICs.
Experiment objective (for simulation exercises): Verify the process of modulation and
demodulation in simulation environment. Analyze frequency spectrum of the signal after
modulation and demodulation. Observe the modulated and demodulated signals for different
forms of modulation signal.
************
BIJU PATNAIK UNIVERSITY OF TECHNOLOGY ,
ORISSA
ELECTRICAL & ELECTRONICS ENGINEERING (EEE)
7th Semester
Code
Subjects
8th Semester
L-T-P
Credit
HSSM3401 Entrepreneurship Development
PCEE4401 Electrical Power Transmission and
Distribution
3-0-0
3-0-0
3
3
PE
PEEE5406
PEEE5407
PCEC4401
PEEE5408
PEEE5409
3-0-0
3
3-0-0
3
PEEC5402 Advanced Communication Systems
PCEL4401 Power System Operation and Control
3-0-0
Free Elective-III (Any one)
PEEC5416 Biomedical Instrumentation
PEEL5401 Adaptive Signal Processing
PEME5407 Mechatronics
3
Theory
Professional Elective-III (Any one)
Soft Computing
Industrial Automation & Control
VLSI Design
High Voltage DC Transmission
Flexible AC Transmission System
Professional Elective-IV (Any one)
PEEC5414 Advanced Control Systems
Theory Credits
Code
Subjects
L-T-P
Credit
3-0-0
3
Professional Elective-V (Any one) 3-0-0
PEEE5410 Advanced Power Electronics
PEEL5403 Electrical Power Quality
PEEI5402 Optimal Control
3
Free Elective-IV (Any one)
Satelite Communication Systems
Digital Image Processing
Industrial Instrumentation
Embedded Systems
Free Elective-V (Any one)
FEEE6401 Power Station Engg and Economy
HSSM3403 Marketing Management
PCME4404 Production & Operations
Management
3-0-0
3
3-0-0
3
Theory
PCEE4402 Power System Protection
PEEC5418
PECS5406
PEEI5403
PEEC5405
15
Practical/Sessional
Theory Credits
12
Practical/Sessional
PCEE7401 Power System Lab.
0-0-3
2
PCEE7404 Major Project
0-0-6
7
PCEE7402 Minor Project
0-0-3
3
PCEE7405 Comprehensive Viva-Voce
0-0-3
2
PCEE7403 Seminar / Training Seminar
0-0-3
3
Practical/Sessional Credits
TOTAL SEMESTER CREDITS
TOTAL CUMULATIVE CREDITS
08
23
183
Practical/Sessional Credits
TOTAL SEMESTER CREDITS
TOTAL CUMULATIVE CREDITS
09
21
204
ENTREPRENEURSHIP DEVELOPMENT Module I:
Understanding Entrepreneurship
Concept of Entrepreneurship, Motivation for Economic Development and
Entrepreneurial Achievement, Enterprise and Society
Why and how to start Business – Entrepreneurial traits and skills, Mind Vrs
Money in Commencing New Ventures, Entrepreneurial success and failures,
Environmental dynamics and change.
Entrepreneurial Process
Step by step approach to entrepreneurial start up
Decision for Entrepreneurial start up.
Module II:
Setting up of a small Business Enterprise.
Identifying the Business opportunity - Business opportunities in various
sectors, formalities for setting up small enterprises in manufacturing and
services, Environmental pollution and allied regulatory and non-regulatory
clearances for new venture promotion in SME sector.
Writing a Business plan, components of a B-Plan, determining Bankability of
the project.
Module III:
Institutional Support for SME.
Central / State level Institution promoting SME.
Financial Management in small business.
Marketing Management, problems & strategies
Problems of HRM – Relevant Labour – laws.
Sickness in Small Enterprises.
Causes and symptoms of sickness – cures of sickness.
Govt. policies on revival of sickness and remedial measures.
Reference Books:
1. Entrepreneurship Development, Small Business Enterprises, Chavantimath,
Pearson.
2. Entrepreneurial Development, S.S. Khanka, S Chand
3. Entrepreneurship, Barringer BR, Ireland R.D., Pearson
4. Entrepreneurship, David H Holt, PHI
5. Entrepreneurship, Kurilko, D.F. and Attodgets RM, Cengage
6. The Dynamics of Entrepreneurial Development & Management, Vasant Desai,
HPH.
7. Entrepreneurship, Roy, Oxford
8. Entrepreneurship, Hisrich, Peters, Shepherd, TMH
ELECTRICAL POWER TRANSMISSION & DISTRIBUTION
Module – I
(13 Hours)
Transmission Line Parameters:
(Book – 1, Ch.4)
Types of Conductors, Resistance, Tabulated Resistance Values, Inductance of a
Conductor due to Internal Flux, Flux Linkages between Two Points External to an Isolated
Conductor, Inductance of a Single Phase Two Wire Line, Flux Linkages of One Conductor
in a Group, Inductance of Composite-Conductor Lines, The Use of Tables, Inductance of
a Three Phase Line with Equilateral Spacing, Inductance of a Three Phase Line with
Unsymmetrical Spacing, Inductance Calculations for Bundled Conductors. Book-1:Ch.
4.1, Ch. 4.2, Ch. 4.3, Ch. 4.4, Ch. 4.5, Ch. 4.6, Ch. 4.7, Ch. 4.8, Ch. 4.9, Ch. 4.10, Ch.
4.11, Ch. 4.12.
Resistance, Inductance, Capacitance
(Book – 1, Ch.5)
Electric Field of a Long, Straight Conductor, The Potential Difference between Two Points
due to a Charge, Capacitance of a Two Wire Line, Capacitance of a Three Phase Line
with Equilateral Spacing, Capacitance of a Three Phase Line with Unsymmetrical Spacing,
Effect of Earth on the Capacitance of a Three Phase Line, Capacitance Calculations for
Bundled Conductors, Parallel-Circuit Three Phase Lines. Book-1:Ch. 5.1, Ch. 5.2, Ch.
5.3, Ch. 5.4, Ch. 5.5, Ch. 5.6, Ch. 5.7, Ch. 5.8.
Module – II
(12 Hours)
Transmission Line Performances
(Book – 1, Ch.6)
Short, Medium & Long Transmission Lines
Representation of Lines, Short Transmission Lines, The Medium Transmission Lines, The
Long Transmission Line: Interpretation of Equations, The Long Transmission Line:
Interpretation of Equations, The Long Transmission Line: Hyperbolic Form of The
Equations, The Equivalent Circuit of a Long Line, Power Flow Through Transmission Line,
Reactive Compensation of Transmission Line. Book-1:Ch. 6.1, Ch. 6.2, Ch. 6.3, Ch. 6.4,
Ch. 6.5, Ch. 6.6, Ch. 6.7, Ch. 6.8, Ch. 6.9.
HVDC Transmission
(Book – 2, Ch.15)
Introduction, Types of DC Links, Advantages of DC Transmission, Incorporating HVDC
into AC system, Converter station Equipment, Ground Return, Earth Electrode, Station
Earth, Reliability of HVDC Systems, Recent Advances, HVDC Systems in India. Book2:Ch. 15.1, Ch. 15.2, Ch.15.3, Ch. 15.4, Ch. 15.5, Ch. 15.6, Ch. 15.7, Ch. 15.8, Ch. 15.9,
Ch.15.10.
Overhead Line Insulators
(Book – 2, Ch.4)
Insulator Materials, Types of Insulators, Voltage Distribution over Insulator String,
Improvement of String Efficiency, Insulator Failure, Testing of Insulators. Book-2:Ch. 4.1,
Ch. 4.2, Ch.4.3, Ch. 4.4, Ch. 4.5, Ch. 4.6.
Module – III
(15 Hours)
Mechanical Design of Overhead Transmission Lines
(Book – 2, Ch.5)
General Considerations, Line Supports, Types of Steel Towers, Cross Arms, Span,
Conductor Configuration, Spacings and Clearances, Sag and Tension Calculations,
Erection Conditions, Factors affecting Sag, Sag Template, Catenary, Conductor Vibration.
Book-2:Ch. 5.1, Ch. 5.2, Ch. 5.3, Ch. 5.4, Ch. 5.5, Ch. 5.6, Ch. 5.7, Ch. 5.8, Ch. 5.9,
Ch.5.10, Ch.5.11.
Distribution
(Book – 2, Ch.16)
Comparison of various Distribution Systems, AC three-phase four-wire Distribution
System, Types of Primary Distribution Systems, Types of Secondary Distribution Systems,
Voltage Drop in DC Distributors, Voltage Drop in AC Distributors, Kelvin’s Law, Limitations
of Kelvin’s Law, General Design Considerations, Load Estimation, Design of Primary
Distribution, Sub-Stations, Secondary Distribution Design, Economical
Design of
Distributors, Design of Secondary Network, Lamp Flicker, Application of Capacitors to
Distribution Systems.
Book-2:Ch. 16.1, Ch. 16.2, Ch.16.3, Ch. 16.4, Ch. 16.5, Ch. 16.6, Ch. 16.7, Ch. 16.8,
Ch. 16.9, Ch.16.10, Ch. 16.11, Ch. 16.12, Ch.16.13, Ch. 16.14, Ch. 16.15, Ch. 16.16,
Ch. 16.17.
Underground Cables
(Book – 2, Ch. 8)
Introduction, Insulation, Sheath, Armour and Covering, Classification of Cables,
Pressurized Cables, Effective Conductor Resistance, Conductor Inductive Reactance,
Parameters of Single Core Cables, Grading of Cables, Capacitance of Three Core Belted
Cable, Breakdown of Cables, Cable Installation, Current Rating of Cables, System
Operating Problems with Underground Cables, HVDC Cables.
Book-2:Ch. 8.1, Ch. 8.2, Ch.8.3, Ch. 8.4, Ch. 8.5, Ch. 8.6, Ch. 8.7, Ch. 8.8, Ch. 8.9,
Ch.8.10, Ch. 8.11, Ch. 8.12, Ch.8.13, Ch. 8.14, Ch. 8.15.
Power System Earthing:
(Book – 2, Ch.18)
Soil Resistivity, Earth Resistance, Tolerable Step and Touch Voltage, Actual Touch and
Step Voltages, Design of Earthing Grid.
Book-2: Ch. 18.4, Ch. 18.5, Ch. 18.6, Ch. 18.7, Ch. 18.8.
Text Books:
1. Power System Analysis- By John J. Grainger & W. D. Stevenson, Jr, Tata
Mcgraw-Hill, 2003 Edition, 15th Reprint, 2010.
2. Power System Analysis & Design- By B. R. Gupta, S. Chand Publications, 3rd
Edition, Reprint, 2003.
SOFT COMPUTING (3-0-0)
MODULE-I
(12 Lectures)
Introduction: Soft Computing Constituents and Conventional Artificial Intelligence, NeuroFuzzy and Soft Computing Characteristics.
Fuzzy Sets: Introduction, Basic Definitions and Terminology, Set Theoretic Operations,
MF Formulation and Parameterization.
Fuzzy Rules & Fuzzy Reasoning: Extension Principle and Fuzzy Relations, Fuzzy IfThen Rules, Fuzzy Reasoning.
Fuzzy Inference Systems: Mamdani Fuzzy Models, Sugeno Fuzzy Models, Tsukamoto
Fuzzy Models, Other Considerations.
(BOOK-1:- Chap-1: 1.1 to 1.3, Chap-2: 2.1 to 2.4, Chap-3: 3.2 to 3.4 & Chap-4: 4.2 to 4.5)
MODULE-II
(14 Lectures)
Neural Networks: Neuron Abstraction, Neuron Signal Functions, Mathematical
Preliminaries, Neural Networks Defined, Architectures: Feed forward and Feedback,
Salient Properties and Application Domains of Neural Networks, Multi-layered Network
Architectures, Back-propagation Learning Algorithm, Practical Considerations in
Implementing the BP Algorithm, Structure Growing Algorithms, Universal Function
Approximation and Neural Networks, Applications of Feed Forward Neural Networks,
Reinforcement Learning, Radial Basis Function Networks, Regularization Theory Route to
RBFNs, Generalized Radial Basis Function Network, Learning in RBFNs, Associative
Learning, Hopfield Network, Content Addressable Memory, Bidirectional Associative
Memory, Self Organizing Feature Maps, Applications of the Self Organizing Map.
(BOOK-2:-Chap-3: 3.1 to 3.6, Chap-6: 6.1 to 6.2, 6.5 to 6.6 & 6.8 to 6.10, Chap-8: 8.4 to
8.7,
Chap-10: 10.2 & 10.5 to 10.6 & 10.16 and Chap-12: 12.8 to 12.9)
MODULE-III
(08 Lectures)
Regression & Optimization: System Identification: an Introduction, Least Squares
Estimator, Geometric Interpretation of LSE, Recursive Least Squares Estimator.
Derivative-Free Optimization: Genetic Algorithms, Simulated Annealing, random Search,
Downhill Simplex Search.
Adaptive Neuro-Fuzzy Inference Systems (ANFIS): ANFIS Architecture, Hybrid
Learning Algorithm.
(BOOK-1:- Chap-5: 5.1, 5.3 to 5.5, Chap-7: 7.2 to 7.5 and Chap-12: 12.2 to 12.3)
TEXT BOOK:
1. “Neuro-Fuzzy and Soft Computing” By J.-S.R.Jang, C.-T.Sun & E. Mizutani, PHI
2. “Neural Networks: A Classroom Approach” By Satish Kumar, TMH Education
Reference Book:
1. “Neural Networks Fuzzy Logic & Genetic Algorithms; Synthesis &
Applications, S.Rajasekaran & G.A. VijayaLaxmi Pai, Prentice Hall, India,
May’2006- LakshmiPai
2. Principle of Soft Computing, S.N. Sivanandan & S.N. Deepa, Wiley India
Edition,2010.
INDUSTRIAL AUTOMATION AND CONTROL
(Prerequisite: Control System Engineering – I)
Module I:
(12 Hours)
Process Control: Introduction: Process Definition, Feedback Control, PID Control,
Multivariable Control. (Chapter 1 of Text Book 1)
PID Controller Tuning: Introduction, Zeigler-Nichols Tuning Method (Based on Ultimate
Gain and Period, and Process Reaction Curve), Digital PID Controllers. (Chapter 13 of
Text Book 2)
Module II:
(15 Hours)
Special Control Structures: Cascade Control, Feedfroward Control, FeedfrowardFeedback Control Configuration, Ratio Control, Selective Control, Adaptive Control,
Adaptive Control Configuration. (Chapter 10 and 11 of Text book 3)
Actuators: Introduction, Pneumatic Actuation, Hydraulic Actuation, Electric Actuation,
Motor Actuators and Control Valves. (Chapter 8 of Text Book 1)
Module III:
(10 Hours)
Industrial Automation: Programmable Logic Controllers: Introduction, Principles of
operation, Architecture, Programming (Programming Languages, Ladder Diagram,
Boolean Mnemonics) (Chapter 5 of Text Book 1)
Distributed Control: Distributed vs. Centralized, Advantages, Functional Requirements,
System Architecture, Distributed Control Systems (DCS), Communication options in DCS.
(Chapter 6 of Text Book 1)
Real-time Programming: Multi-tasking, Task Management, Inter-task Communication,
Real-time Operating System. (Chapter 9 of Text Book 1)
Text Books:
1.
Krishna Kant, “Computer-Based Industrial Control”, PHI, 2009.
2.
M. Gopal, “Digital Control and State Variable Methods” Tata McGraw Hill, 2003.
3.
Surekha Bhanot, Process Control: Principles and Applications, Oxford university
Press, 2010
Reference Books:
1.
Smith Carlos and Corripio, “Principles and Practice of Automatic Process Control”,
John Wiley & Sons, 2006.
2.
Jon Stenerson, “Industrial Automation and Process Control”, Prentice Hall, 2003.
3.
C. Johnson, “Process Control Instrumentation Technology”, PHI, New Delhi
4.
D.R. Coughnowr, “Process System analysis and Control”, McGraw Hill.
\
VLSI DESIGN
Module – I
08 Hours
Introduction: Historical Perspective, VLSI Design Methodologies, VLSI Design Flow,
Design Hierarchy, Concept of Regularity, Modularity and Locality, VLSI Design Styles,
Computer-Aided Design Technology.
Fabrication of MOSFETs: Introduction, Fabrication Processes Flow – Basic Concepts,
The CMOS n-Well Process, Layout Design Rules, Stick Diagrams, Full-Customs Mask
Layout Design.
MOS Transistor: The Metal Oxide Semiconductor (MOS) Structure, The MOS System
under External Bias, Structure and Operation of MOS Transistor (MOSFET), MOSFET
Current-Voltage Characteristics, MOSFET Scaling and Small-Geometry Effects, MOSFET
Capacitance.
(Chapter 1 to 3 of Text Book 1 and for Stick Diagram Text Book 2)
Module – II
14 Hours
MOS Inverters – Static Characteristics: Introduction, Resistive-Load Inverters, Inverters
with n-Type MOSFET Load, CMOS Inverter.
MOS Inverters – Switching Characteristics and Interconnect Effects: Introduction,
Delay-Time Definitions, Calculation of Delay-Times, Inverter Design with Delay
Constraints, Estimation of Interconnect Parasitics, Calculation of Interconnect Delay,
Switching Power Dissipation of CMOS Inverters.
Combinational MOS Logic Circuits: Introduction, MOS Logic Circuits with Depletion
nMOS Loads, CMOS Logic Circuits, Complex Logic Circuits, CMOS Transmission Gates
(Pass Gates).
(Chapter 5 to 7 of Text Book 1)
Module – III
18 Hours
Sequential MOS Logic Circuits: Introduction, Behaviour of Bistable Elements, SR Latch
Circuits, Clocked Latch and Flip-Flop Circuits, CMOS D-Latch and Edge-Triggered FlipFlop.
Dynamic Logic Circuits: Introduction, Basic Principles of Pass Transistor Circuits,
Voltage Bootstrapping, Synchronous Dynamic Circuit Techniques, Dynamic CMOS Circuit
Techniques, High Performance Dynamic CMOS Circuits.
Semiconductor Memories: Introduction, Dynamic Random Access Memory (DRAM),
Static Random Access Memory (SRAM), Non-volatile Memory, Flash Memory.
Design for Testability: Introduction, Fault Types and Models, Ad Hoc Testable Design
Techniques, Scan-Based Techniques, Built-In Self-Test (BIST) Techniques, Current
Monitoring IDDQ Test.
Text Books:
1. Sung-Mo Kang and Yusuf Leblebici, CMOS Digital Integrated Circuits: Analysis and
Design, 3rd Edn., Tata McGraw-Hill Publishing Company Limited, 2003.
2. K. Eshraghian and N.H.E. Weste, Principles of CMOS VLSI Design – a Systems
Perspective, 2nd Edn., Addison Wesley, 1993.
Reference Books:
1. Jan M. Rabaey, Anantha Chandrakasan, Borivoje Nikolic, Digital Integrated Circuits –
A Design Perspective, 2nd Edn., Pearson Education, 2003.
2. Wayne Wolf, Modern VLSI Design System – on – Chip Design, 3rd Edn., Pearson
Education, 2003.
3. Debaprasad Das, VLSI Design, Oxford University Press, New Delhi, 2010.
4. John P. Uyemura, CMOS Logic Circuit Design, Springer (Kluwer Academic
Publishers), 2001.
5. Ken Martin, Digital Integrated Circuit Design, Oxford University Press, 2000.
HIGH VOLTAGE DC TRANSMISSION (3-0-0)
MODULE-I (12 Lectures)
HVDC Transmission: Introduction, Equipment required for HVDC Systems, Comparison of
AC and DC Transmission, Limitations of HVDC Transmission Lines, Reliability of HVDC
Systems, Comparison of HVDC Link with EHVAC Link, HVDC-VSC Transmission Systems.
HVDC Converters: Introduction, HVDC Converter Valves and Valve Assembly, HVDCVoltage Source Converters: Principle and Operation, 3-phase 6-pulse Converters using SCRs
or Thyristors, 12-pulse Bridge Converters.
6-Pulse Converter Operation and Analysis: Introduction, Conduction Sequence in 6-pulse
Converter Configuration, The Ideal Commutation Process without Gate Control, DC Output
Voltage, Gate Control (Phase Control) of Valves, Analysis of Voltage Waveforms with Overlap
Angle (µ), Complete Characteristics of Converter as Rectifier/Inverter, Analysis of 12-pulse
Converter, Power Flow in HVDC Links, Operation and Analysis of VSC Converters
(Chapter-1: 1.3 to 1.6 & 1.9 to 1.10, Chapter-2: 2.5 to 2.8 and Chapter-3: 3.2 to 3.6 & 3.8 to
3.11)
MODULE-II (14 Lectures)
Control of HVDC Converter and Systems: Mechanism of AC Power Transmission, Principle
of Control, Necessity of Control in case of a DC link, Rectifier Control, Compounding of
Rectifiers, Power Reversal in a DC Link, Voltage Dependent Current Order Limit (VDCOL)Characteristics of the Converter, System Control Hierarchy and Basic Philosophy, Inverter
Extinction Angle Control (EAG), Pulse Phase Control, Starting and Stopping of a DC Link,
Constant Power Control, Control Systems for HVDC Converters, Inverter Operation Problems,
Control of VSC Converters.
Harmonics in HVDC Systems: Importance of Harmonic Study, Generation of Harmonics by
Converters, Characteristic Harmonics on the DC Side, Characteristic Current Harmonics,
Characteristic variations of Harmonic Currents with Variation of α & μ, Effect of Control modes
on Harmonics, Non-Characteristic Harmonics, Harmonics in VSC Converters.
(Chapter-4: 4.2 to 4.16 and Chapter-5: 5.2 to 5.9)
MODULE-III (10 Lectures)
Harmonic Suppression in HVDC System-Filters: Harmonic Model & Equivalent Circuit, Use
of Filters, Filter Configurations, Design of a Band-Pass Filter, Design of High-Pass Filters,
Protection of Filters, DC Filters.
Faults and Protection Schemes in HVDC Systems: Nature and Types of Faults, Faults on
AC Side of Converter Stations, Converter Faults, Faults on DC Side of the System, Protection
against Over Currents/ Over Voltages, Protection of Filter Units.
Multi-terminal HVDC Systems : Types of Multi-terminal (MTDC) Systems, Parallel Operation
Aspects of MTDC, Paralleling (Disconnecting) of Units or Converter, Control of Power in
MTDC, VSC-Multi-level DC Systems.
(Chapter-6: 6.2 to 6.5 & 6.7 to 6.8, 6.10, Chapter-8: 8.2 to 8.7 and Chapter-10: 10.2 to 10.6)
TEXT BOOK:
1. “HVDC Transmission” By S. Kamakshaiah & V. Kamaraju, TMH Education Private
Ltd., 2011, New Delhi.
Reference Book:
1. “HVDC Power Transmissions Systems: Technology & Systems Interaction”, K.R.
Padiyar, New Age Publication, 2005
FLEXIBLE AC TRANSMISSION SYSTEM (3-0-0)
MODULE-I
(12 Lectures)
FACTS concept and General System Considerations: Transmission Interconnections,
Flow of Power in an AC System, What limits the Loading Capability, Power Flow and
Dynamic Stability Considerations of a Transmission Interconnection, Relative Importance
of Controllable Parameters, Basic Types of FACTS Controllers, Basic Description and
Definitions of FACTS Controllers.
Static Shunt Compensation: Objectives of Shunt Compensation, Methods of
Controllable VAR Generation, Static VAR Compensators, SVC and STATCOM.
(Chapter-1: 1.1, 1.2, 1.3, 1.4, 1.5, 1.6 and 1.7)
(Chapter-5: 5.1, 5.2 and 5.3)
MODULE-II
(12 Lectures)
Static Series Compensators: Objective of Series Compensation (GCSC, TSSC, TCSC),
Variable Impedance Type Series Compensators, Switching Converter Type Series
Compensators (SSSC)
Static Voltage and Phase Angle Regulators: Objectives of Voltage and Phase Angle
Regulators, Approaches to Thyristor-Controlled Voltage and Phase Angle Regulators
(TCVRs and TCPARs).
(Chapter-6: 6.1, 6.2 and 6.3)
(Chapter-7: 7.1 and 7.2)
MODULE-III
(10 Lectures)
Combined Compensators: Introduction, Unified Power Flow Controller (UPFC), The
Interline Power Flow Controller (IPFC), Generalized and Multifunctional FACTS
Controllers.
(Chapter-8: 8.1, 8.2, 8.3 and 8.4)
TEXT BOOK:
“Understanding FACTS: Concepts & Technology of Flexible AC Transmission
Systems” By N.G.Hingorani & L.Gyugyi, IEEE Press, Standard Publishers Distributors,
Delhi.
Reference Book:
1) Facts Controllers in Power Transmission & Distribution by K.R.Padiyan, New Age
Intermational.
2) Modelling & Simulation in Power Networks, Enrique Acha, Clandio Esquival &
H.A.Perez,CA Camcho, John Wiley & Sons.
ADVANCED CONTROL SYSTEMS
Module-I :
(15 Hours) Discrete - Time Control Systems :
Introduction: Discrete Time Control Systems and Continuous Time Control Systems, Sampling
Process.
Digital Control Systems: Sample and Hold, Analog to digital conversion, Digital to analog
conversion.
The Z-transform: Discrete-Time Signals, The Z-transform, Z-transform of Elementary functions,
Important properties and Theorms of the Z-transform. The inverse Z-transform, Z-Transform
method for solving Difference Equations.
Z-Plane Analysis of Discrete Time Control Systems: Impulse sampling & Data Hold,
Reconstruction of Original signals from sampled signals: Sampling theorm, folding, aliasing. Pulse
Transfer function: Starred Laplace Transform of the signal involving Both ordinary and starred
Laplace Transforms; General procedures for obtaining pulse Transfer functions, Pulse Transfer
function of open loop and closed loop systems. Mapping between the s-plane and the z-plane,
Stability analysis of closed loop systems in the z-plane: Stability analysis by use of the Bilinear
Transformation and Routh stability critgion, Jury stability Test. Book No. 1: 1.1; 1.2; 1.4; 2.1; 2.2;
2.3; 2.4; 2.5; 2.6; 3.2; 3.4; 3.5; 4.2; 4.3.
Module -II : (15 Hours) State Variable Analysis & Design:
Introduction: Concepts of State, State Variables and State Model (of continuous time systems):
State Model of Linear Systems, State Model for Single-Input-Single-Output Linear Systems,
Linearization of the State Equation. State Models for Linear Continuous – Time Systems: StateSpace Representation Using Physical Variables, State – space Representation Using Phase
Variables, Phase variable formulations for transfer function with poles and zeros, State – space
Representation using Canonical Variables, Derivation of Transfer Function for State Model.
Diagonalization: Eigenvalues and Eigenvectors, Generalized Eigenvectors. Solution of State
Equations: Properties of the State Transition Matrix, Computation of State Transition Matrix,
Computation by Techniques Based on the Cayley-Hamilton Theorem, Sylvester’s Expansion
theorm. Concepts of Controllability and Observability: Controllability, Observability, Effect of Polezero Cancellation in Transfer Function. Pole Placement by State Feedback, Observer Systems.
State Variables and Linear Discrete – Time Systems: State Models from Linear Difference
Equations/z-transfer Functions, Solution of State Equations (Discrete Case), An Efficient Method
of Discretization and Solution, Linear Transformation of State Vector (Discrete-Time Case),
Derivation of z-Transfer Function from Discrete-Time State Model.
Book No. 2: 12.1 to 12.9.
Module -III : (12 Hours)
Nonlinear Systems :
Introduction : Behaviour of Non linear Systems, Investigation of nonlinear systems.
Common Physical Non Linearities: Saturation, Friction, Backlash, Relay, Multivariable
Nonlinearity.
The Phase Plane Method: Basic Concepts, Singular Points: Nodal Point, Saddle Point, Focus
Point, Centre or Vortex Point, Stability of Non Linear Systems: Limit Cycles, Construction of Phase
Trajectories: Construction by Analytical Method, Construction by Graphical Methods. The
Describing Function Method: Basic Concepts: Derivation of Describing Functions: Dead-zone and
Saturation, Relay with Dead-zone and Hysteresis, Backlash. Stability Analysis by Describing
Function Method: Relay with Dead Zone, Relay with Hysteresis, Stability Analysis by Gain-phase
Plots. Jump Resonance. Liapunov’s Stability Analysis: Introduction, Liapunov’s Stability Critrion:
Basic Stability Theores, Liapunov Functions, Instability. Direct Method of Liapunov & the Linear
System: Methods of constructing Liapunov functions for Non linear Systems.Book 2: 13.1 to 13.4;
15.1 to 15.10.
Text :
1. Discrete-Time Control System, by K.Ogata, 2nd edition (2009), PHI.
2. Control Systems Engineering, by I.J. Nagrath and M.Gopal., 5th Edition (2007 / 2009), New Age
International (P) Ltd. Publishers.
Reference :
1. Design of Feedback Control Systems-Stefani,Shahian, Savant,Hostetter, 4th Ed, OxfordPress.
2. Modern Control Systems by K.Ogata, 5th Edition (2010), PHI.
3. Modern Control Systems by Richard C. Dorf. And Robert, H.Bishop, 11th Edition (2008), Pearson
Education Inc. Publication.
4. Control Systems (Principles & Design) by M.Gopal, 3rd Edition (2008), Tata Mc.Graw Hill Publishing
Company Ltd.
5. Control Systems Engineering by Norman S.Nise, 4th Edition (2008), Wiley India (P) Ltd.
ADVANCED COMMUNICATION SYSTEMS
MODULE – I:
(10 hrs)
Data-Link Protocol and Data Communications Networks: Data-link Protocol Function,
Character and bit Oriented Data Link Protocols. Asynchronous Data Link Protocols,
Synchronous Data-Link Protocols, Synchronous Data –Link Control, High-Level Data Link
Control, Public Switched Data Networks, CCITTX. 25, User-to-Network Interface Protocol.
Integrated Services Digital Network (ISDN) (Chapter 23)
MODULE – II:
(15 hrs)
Digital T-Carriers and Multiplexing :Time-Division Multiplexing (TDM); T1 Digital Carrier.
North American Digital Hierarchy. Digital Carrier Line Encoding. T Carrier Systems, Digital
Carrier Frame Synchronization. Bit Vrs Word Interleaving. Statistical TDM. Codecs and
Combo Chips. FDM. AT & T’s FDM Hierarchy. Composite Base band Signal . Formation
of Master group. Wavelength Division Multiplexing (WDM) (Chapter 11)
Cellular Telephone Concepts: Mobile telephone service, Cellular Telephone, Frequency
Reuse, Interefernce, Cell Splitting, Sectoring, Segmentation, and dualization, Cellular
System Topology, Roaming and Hand ofs, Cellular Telephone Network Components,
Cellular Telephone call Processing (Chapter 19)
Data Communication and Networking: Data Communication Network Architecture,
Protocols, and standards, Layered Network Architecture, Introduction to GSM, GPRS,
CDMA (Chapter 20)
MODULE – III:
(15 hrs)
Satellite Communication: Introduction, Keepler’s Law, Satellite Orbir\ts, geosynchronous
satellites, Antenna Look Angles, Satellite Classifications, spacing and frequency
allocation, Satellite Antenna Radiation patterns, Satellite System Link Models, Satellite
System Parameters, Satellite System Link Equations, Link Budget (Chapter 25)
Satellite Multiple Accessing Arrangements: Introduction, FDM/FM Satellite Systems,
Multiple Access Techniques, Frequency Division Multiple Access (FDMA), TDMA, CDMA,
Channel Capacity, Satellite Radio NavigationEstimating Channel Requirements, Practical
Demand Access Systems, Random Access, Multiple Access With On Board Processing.
VSAT (Chapter 26)
Text Book:
1. Electronic Communications Systems Fundamentals through Advanced by Wayne
Tomasi; Pearson.
References:
1. Satellite Communication - by Timothy Pratt; Addison Wesley.
POWER SYSTEM OPERATION & CONTROL (3-0-0)
Module – I
(14 Hours)
Fundamentals of Power System
(Book No.1, Ch. 1)
Introduction, Single Subscript Notation, Double Subscript Notation, Power in Single Phase AC
Circuit, Complex Power, The Power Triangle, Direction of Power Flow, Voltage and Current in
Balanced Three Phase Circuits, Power in Balanced Three Phase Circuits, Per- Unit Quantities,
Changing the Base in Per- Unit Quantities, Node Equations, The Single Line or One Line Diagram,
Impedance and Reactance Diagrams. (Book-1:Ch. 1.1, Ch. 1.2, Ch. 1.3, Ch. 1.4, Ch. 1.5, Ch. 1.6,
Ch. 1.7, Ch. 1.8, Ch. 1.9, Ch. 1.10, Ch. 1.11, Ch. 1.12, Ch. 1.13, Ch. 1.14.)
The Admittance Models & Network Calculations
(Book – 1) Ch. 7 (7.1 To 7.5)
Branch and Node Admittances, Mutually Coupled Branches in Ybus, An Equivalent Admittance
Network, Modification of Ybus, The Network Incidence Matrix and Ybus.
(Book-1:Ch. 7.1, Ch. 7.2,
Ch. 7.3, Ch. 7.4, Ch. 7.5.)
Power Flow Solutions
(Book – 1, Ch. 9)
The Power-Flow Problem, The Gauss-Seidal Method, The Newton-Raphson Method, The NewtonRaphson Method, Power-Flow Studies in System Design and Operation, Regulating Transformers,
The Decoupled Method. (Book-1:Ch. 9.1, Ch. 9.2, Ch. 9.3, Ch. 9.4, Ch. 9.5, Ch. 9.6, Ch. 9.7.)
Module – II
(14 Hours)
Economic Operation of Power System
(Book – 1, Ch.13)
Distribution of Load between Units within a Plant, Distribution of Load between Plants, The
Transmission-Loss Equation, An interpretation of Transformation C, Classical Economic Dispatch
with Losses, Automatic Generation Control, Unit Commitment, Solving the Unit Commitment
Problems.
(Book-1: Ch. 13.1, Ch. 13.2, Ch. 13.3, Ch. 13.4, Ch. 13.5, Ch. 13.6, Ch. 13.7, Ch. 13.8.)
Load Frequency Control, Control Area Concept
(Book – 2, Ch.9)
Automatic Load-Frequency Control of Single Area Systems: Speed-Governing System, Hydraulic
Valve Actuator, Turbine-Generator Response, Static Performance of Speed Governor, Closing the
ALFC Loop, Concept of Control Area, Static Response of Primary ALFC Loop, Dynamic Response
of ALFC Loop, Physical Interpretation of Results, The Secondary (“Reset”) ALFC Loop, Economic
Dispatch Control.
(Book – 2: Ch. 9.3.1, Ch. 9.3.2, Ch. 9.3.3,Ch. 9.3.1, Ch. 9.3.4, Ch. 9.3.5, Ch. 9.3.6, Ch. 9.3.7, Ch.
9.3.8, Ch. 9.3.9, Ch. 9.3.10, Ch. 9.3.11.)
Module – III
(12 Hours)
Two Area System
(Book – 2, Ch.9)
ALFC of Multi-Control-Area Systems (Pool Operation): The Two Area Systems, Modeling the TieLine, Block Diagram Representation of Two Area System, Mechanical Analog of Two Area
System, Dynamic Response of Two Area System, Static System Response, Tie-Line Bias Control
of Multi-area Systems. (Book – 2: Ch. 9.4.1, Ch. 9.4.2, Ch. 9.4.3 Ch. 9.4.1, Ch. 9.4.4, Ch. 9.4.5,
Ch. 9.4.6, Ch. 9.4.7, Ch. 9.4.8, Ch. 9.4.9, Ch. 9.4.10.)
Power System Stability
(Book-1, Ch.16)
The Stability Problem, Rotor Dynamics and the Swing Equation, Further Considerations of the
Swing Equations, The Power-Angle Equation, Synchronizing Power Coefficients, Equal- Area
Criterion for Stability, Further Applications of the Equal-Area Criterion, Multi-machine Stability
Studies: Classical Representation, Step-By-Step Solution of the Swing Curve, Computer Programs
for Transient Stability Studies, Factors Affecting Transient Stability. (Book-1:Ch. 16.1, Ch. 16.2,
Ch. 16.3, Ch. 16.4, Ch. 16.5, Ch. 16.6, Ch. 16.7, Ch. 16.8, Ch. 16.9, Ch. 16.10, Ch. 16.11.)
Text Books:
1. Power System Analysis- John. J. Grainger & W. D. Stevenson, Jr.,TMH Pub,15th Reprint.
2. An Introduction to Electric Energy System Theory- By O. I. Elgerd, TMH Pub, 2nd Edition.
Reference:
1. Power System Analysis- By Hadi Saadat, TMH Publications, 2002 Edition, Eighth Reprint.
2. Power System Analysis Operation and Control- By A. Chakrabarti and S. Haldar, Third
Edition, PHI Publications, 6th Reprint, 2010.
BIOMEDICAL INSTRUMENTATION
Module – I
(10 Hours)
Fundamentals of Biomedical Instrumentation: Sources of Biomedical Signals, Basic
Medical Instrumentation System, Intelligent Medical Instrumentation Systems, PC Based
Medical Instrumentation Systems, General Constraints & Regulations of Medical Devices
Biomedical Signals & Electrodes: Origin of Bioelectric Signals-Repolarization,
Depolarization, Resting Potential Recording Electrodes – Ag-AgCl Electrodes, Electrodes
for ECG, EEG, EMG, Microelectrodes, Skin Contact Impedance, Motion Artifacts
Module – II
(13 Hours)
Physiological Transducers: Introduction to Physiological Transducers, Classification of
Transducers, Pressure Transducers, Transducers for Body Temperature Measurement,
Biosensors, Smart Sensors
Biomedical Recording Systems: Basic Recording Systems, General Considerations for
Signal Conditioners, Biomedical Signal Analysis Techniques, Signal Processing
Techniques, Writing Systems: Direct Writing Recorders, Inkjet Recorder, Potentiometric
Recorders, Digital Recorders
Biomedical
Recorders:
Electrocardiograph
(ECG),
Phonocardiograph,
Electroencephalograph (EEG), Electromayograph (EMG)
Module – III
(14 Hours)
Patient Monitoring Systems: System Concepts, Measurement of Heart Rate, Blood
Pressure Measurement, Measurement of Respiration Rate
Blood Flow meters: Electromagnetic Blood Flow meter, Ultrasonic Blood Flow meter,
NMR Blood Flow meter, Laser-Doppler Blood Flow meter
Patient Safety: Electric Shock Hazards, Leakage Currents, Safety Codes for Biomedical
Equipment
Text Books:
1.
Hand Book of Biomedical Instrumentation-2nd Edition by R.S.Khandpur, Tata
McGraw Hill 2003 (Chapters 1-6,11,18)
2.
Biomedical Instrumentation and Measurements-2nd Edition by Leslie Cromwell, Fred
J. Weibell, Erich A. Pfeiffer, PHI learning Pvt Ltd 2nd Edition
Reference Books:
1.
Introduction to Biomedical Equipment Technology-4th Edition by Joseph J. Carr, John
M. Brown, Pearson Education 2007
ADAPTIVE SIGNAL PROCESSING
Module – I(10 Hours)
Introduction: Adaptive Systems – Definition and characteristics, General properties,
Open and Closed Loop Adaptations, Applications
The Adaptive Linear Combiner: Performance function, Gradient and Mean Square Error,
Examples.
Module – II(14 Hours)
Theory of Adaptation with Stationary Signals: Properties of the Quadratic Performance
Surface, Significance of eigen values, eigen vectors, coorelation matrix.
Searching the Proformance Surface: A simple gradient search algorithm, Stability and
Rate of convergence, the learning curve
Gradient Estimation and its effects on Adoption: The performance penalty, Variance of
the gradient estimate, Misadjustment.
Module – III(16 Hours)
Adaptive Algorithms and Structures: The LMS Algorithm, Convergence, learning
Curve, Performanece analysis, Filtered X LMS algorithm,
Applications: Adaptive Modeling and System Identification using adaptive filter, Inverse
Adaptive Modeling, Deconvolution, and equalization using adaptive filter, Adaptive Control
Systems using Filtered X LMS Algorithm, Adaptive Noise Cancellation using Adaptive filter
Text Books :
1.
Bernard Widrow and Samuel D. Stearns, Adaptive Signal Processing, Pearson
Education, 2nd impression 2009.
Reference Book:
1.
Simon Haykin, Adaptive Filter Theory, 4th Edn., Pearson Education.
MECHATRONICS
Module – I:Sensors and Transduceers:- Sensors and transducers, Performance terminology,
Displacement, position and proximitry, Velocity and motion, Force, Fluid pressure, Liquid
flow, Liquid level, Temperature, Light sensors, Selection of sensors, Inputting data by
switches.
Book – 1: 2.1, 2.2, 2.3, 2.4, 2.5, 2.6, 2.7, 2.8, 2.9, 2.10, 2.11, 2.12.
Signal conditioning:- Signal conditioning, The operational amplifier, Protection, Filtering,
Pulse modulation.
Book – 1: 3.1, 3.2, 3.3, 3.4, 3.5, 3.6.
Digital Signals:- Digital signals, Analogue and digital signals, digital-to-analogue and
analogue-to-digital converters, Multiplexers, Data acquisition, Digital signal processing.
Book – 1: 4.1, 4.2, 4.3, 4.4, 4.5, 4.6.
Pneumatic and Hydraulic Actuation Systems:- Actuation systems, Pneumatic and
hydraulic systems, Directional control valves, Pressure control valves, Cylinders, Servo
and proportional control valves, process control valves, Rotary actuators.
Book – 1: 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8.
Module – II:Mechanical Actuation Systems:- Mechanical systems, Types of motion, Kinematic
chains, Cams, GTears, Belt and chain drives, bearings, Mechanical aspects of motor
selection.
Book – 1: 8.1, 8.2, 8.3, 8.4, 8.5, 8.6, 8.7, 8.8, 8.9.
Electrical Actuation Systems:- Electrical systems, Mechanical switches, Solid-state
switches, Solenoids, D.C. motors, A.C. motors, Stepper motors.
Book – 1: 9.1, 9.2, 9.3, 9.4, 9.5, 9.6, 9.7.
Basic System Models:- Mathematical models, Mechanical system building blocks,
Electrical system building blocks, Electrical system building blocks, Fluid system building
blocks, Thermal system building blocks.
Book – 1: 10.1, 10.2, 10.3, 10.4, 10.5.
Module – III:System
Models:Engineering
systems,
Rotational-translational
systems,
Electromechanical systems, Electromechanical systems, Linearity, Hydraulic-mechanical
systems, Summary, Problems.
Book – 1: 11.1, 11.2, 11.3, 11.4, 11.5.
Closed-loop Controllers:- Continuous and discrete control processes, Terminology,
Two-step mode, Proportional mode, Derivative control, Integral control, PID controller,
Digital controllers, Control system performance, Controller tuning, Velocity control,
Adaptive control, Summary, Problems.
Book – 1: 15.1, 15.2, 15.3, 15.4, 15.5, 15.6, 15.7, 15.8, 15.9, 15.10, 15.11, 15.12.
Programmable Logic Controllers:- Introduction to PLCs, Basic Structure of a PLC,
Principles of Operation, PLCs versus Computers, Introduction to Internal Architecture and
Hardware Components, PLC Programming, Analog I/O, Selecting a PLC for the
Application, Application of PLCs for Control.
Book – 2: 13.1, 13.2, 13.3, 13.4, 13.5, 13.6, 13.7, 13.8, 13.9.
Text Books:
1. Mechatronics Electronic Control Systems in Mechanical and Electrical Engg.
Pearson Publication, 4th Edition by William Bolton, 2010.
2. Mechatronics Integrated Mechanical Electronic Systems by K. P. Ramachandran,
G. K. Vijayaraghavan, M. S. Balasundaram, Wiley India Edition, Printed on 2008.
Reference Books:
1. Mechatronics integrated Technologies for Intelligent Machines by A. Smaili, F.Mrad,
Oxford University Press, Printed on 2009.
2. Mechatronic Sources Book, Cengage Learning India Edition by Newton C Braga,
2nd Edition, 2010.
Practical / Sessional
POWER SYSTEM LAB
Any 10 experiments out of which atleast 7 experiments from Group-A and 3
experiments from Group-B.
Group A: HARDWARE BASED
1. To determine negative and zero sequence synchronous reactance of an alternator.
2. To determine sub-transient direct axis and sub-transient quadrature axis
synchronous reactance of a 3-ph salient pole alternator.
3. To determine fault current for L-G, L-L, L-L-G and L-L-L faults at the terminals of an
alternator at very low excitation.
4. To study the IDMT over-current relay and with different plug setting and time setting
multipliers and plot its time – current characteristics.
5. To determine the operating characteristics of biased different relay with different %
of biasing.
6. To study the MHO and reactance type distance relays.
7. To determine A, B, C, D parameters of an artificial transmission line.
8. To compute series inductance and shunt capacitance per phase per km of a three
phase line with flat horizontal spacing for single stranded and bundle conductor
configuration.
9. To determine location of fault in a cable using cable fault locator.
10. To study the Ferranti Effect and voltage distribution in HV long transmission line
using transmission line model.
11. Insulation test for Transformer oil.
12. a) Study of various types of Lightning arrestors.
b) Study of layout of outdoor pole mounted & plinth mounted sub-stations.
Group B : SIMULATION BASED (USING MATLAB OR ANY OTHER SOFTWARE)
1. To obtain steady-state, transient and sub-transient short-circuit currents in an
alternator.
2. To formulate the Y-Bus matrix and perform load flow analysis.
3. To compute voltage, current, power factor, regulation and efficiency at the
receiving end of a three phase Transmission line when the voltage and power at
the sending end are given. Use П model.
4. To perform symmetrical fault analysis in a power system.
5. To perform unsymmetrical fault analysis in a power system.
6. Write a program in ‘C’ language to solve economic dispatch problem of a power
system with only thermal units. Take production cost function as quadratic and
neglect transmission loss.
TEXT BOOKS:
1. Hadi Sadat- Power System Analysis – TMH
2. T. K. Nagsarkar and M. S. Sukhija - Power System Analysis – Oxford University
Press
8th Semester
POWER SYSTEM PROTECTION (3-0-0)
MODULE-I
(10 Hours)
Introduction and Basic Principles: Basic Idea of relay protection, Nature and causes of
faults, Zones of protection, Primary and back-up protection, Basic principle of operation of
protective system, Methods of discrimination, Derivation of single phase quantity from
three phase quantity, Components of Protection.
Relay (Principle, Construction and Characteristics): Relay classification, Principal Types of
Electromagnetic relays, Theory of Induction relay torque, Relay design and construction,
General Equations of Comparators and Electromagnetic Relays, Over Current relays,
Directional relays, Distance relays, Differential relays. Book-1: CH 1.1, 1.2, 1.5, 1.7, 1.8,
2.1, 2.2, 2.3, 3.1, 3.2, 3.3, 3.4, 4.2, 4.3, 4.4, 4.7, 4.8, 4.9.
MODULE-II
(12 Hours)
Fault analysis using symmetrical components: Symmetrical & unsymmetrical faults.
3-Phase systems, Significance of positive, negative and zero sequence components,
Average 3-phase power in terms of symmetrical components, sequence impedance, fault
calculations, Single line to ground fault, Line to ground fault with Zf, Faults in Power
systems, Concept of short circuit capacity of a Bus. Book-3: CH 13.1, 13.2, 13.3, 13.4,
13.5, 13.6, 13.7, 13.8, 13.10, 13.13.
Feeder Protection: Overcurrent, Distance and Pilot Protection Schemes. Book-1: CH 5.2,
5.3, 5.4.
Apparatus Protection: Transformer Protection, Generator Protection, Motor Protection,
Bus zone protection schemes. Book-1: CH 6.2, 6.3, 6.4, 6.5.
MODULE-III
(12 Hours)
Static Relays: Comparators and different relays.
Amplitude comparator, Phase Comparator, Coincidence type phase comparator, Basic
elements of a static relay, OverCurrent Relays, Differential Protection, Static distance
Protection.
Book-1: CH 11.1, 11.2, 11.3 & CH 12.1, 12.2, 12.3, 12.4.
Numerical relays:
Block Diagram of Numerical Relay, Signal Sampling & Processing , Numerical Overcurrent protection, Numerical Transformer differential Protection, Numerical distance
Protection of Transmission Line.
Book-2: CH 11.2, 11.3, 11.7, 11.8, 11.9.
Switchgears: Autoreclosing fundamentals, Circuit breaker rating, Circuit constants and
circuit conditions, Theory of Circuit interruption, Restriking voltage transients,
characteristics of Restriking Voltage, Interaction between breaker and circuit, Current
chopping, Automatic switch, Air-break circuit breakers, Oil circuit breakers, Air-blast circuit
breakers, Vacuum circuit breakers, SF6 circuit breakers, DC circuit breakings.
Book-1: CH 7.1, 7.2, 7.3, 7.4, CH 13.1, 13.2, 13.3, 13.4, 13.5, 13.6, 14.2,14.3, 14.4, 14.5,
14.6, 14.7, 15.1, 15.2, 15.3, 15.5, 16.2, 16.3, 16.4.
Text Book(s):
1) Power System Protection and Switchgear–B Ravindranath & M Chander–New Age
International Publishers. (Book-1)
2) Fundamentals of Power system Protection–Y G Paithankar & S R Bhide, PHI Pub.(Book-2)
3) Electrical Power System by C L Wadhwa New Age International Publishers. (4th Ed),(Book3)
Reference books:
1) Power System relaying by Horwitz, Phadke, Research Press.
2) Power System Protection and Switchgear by B.Oza, N.K Nair, R.Mehta,V.H.Makwana, TMH
Advanced Power Electronics (3-0-0)
Module I (12 Lectures)
Switched Mode Power Supply:
Isolated switched mode power supplies, Forward converter, Fly back converter,Half bridge
converter, Bridge converter, Push pull converter, Cuk converter, resonant converter,
Switched mode power supply with multiple outputs
(1.5, 1.7 SMPS Design and Construction by H W Whittington, Universities Press)
Multi output Boost Converter, Diode rectifier fed boost converter, State space analysis of
regulators.
(5.10,5.11 and 5.13 Power Electronics, Circuits, Devices and Applications by M H
Rashid,Pearson)
SMPS Control: Control requirements and technique, PWM controller, Isolation in the feed
back loop, Power supplies with multiple outputs
(3.3 SMPS Design and Construction by H W Whittington, Universities Press)
Module II (12 Lectures)
Inverters:
Voltage Fed Converters:
Pulse width modulation techniques, Sinusoidal PWM, Selected harmonic elimination
PWM, Space vector PWM, Hysteresis band current control PWM, Sigma delta modulation
Three level inverters, Resonant inverters, Soft switched inverters
Current Fed Converters:
Load commuted inverters, Forced commutated inverters, Inverters with self commutated
devices
(5.5,5.6,5.7,5.8,5.9,6.3,6.4,6.7,6.7.2.2,6.8 Modern Power Electronics and AC Drives by
Bimal K Bose, Eastern Economy Edition, PHI)
Module III (12 Lectures)
AC voltage controllers with PWM Control, Matrix Converter
(11.10,11.11 Power Electronics, Circuits, Devices and Applications by M H Rashid,
Pearson)
Application: High Voltage DC Transmission, Interconnection of renewable energy sources
and energy storage system to the utility grid, Active harmonic filter
(11.4, 17.2, 17.4 Power Electronics: Converters , Applications and Design by Mohan,
Undeland and Robbin, Wiley India Edition)
Text Books:
1) Power Electronics: Circuits, Devices and Applications by M H Rashid, 3rd Edition,
Pearson
2) Power Electronics: Converters , Applications and Design by Mohan, Undeland and
Robbin, Wiley India Edition
3) Modern Power Electronics and AC Drives by Bimal K Bose, Eastern Economy
Edition, PHI.
4) Switched Mode Power Supplies: Design and Construction by H W Whittington, B.W
Flynn and D E Macpherson, 2nd Edition, Universities Press)
ELECTRICAL POWER QUALITY (3-0-0)
MODULE-I
(12 Lectures)
Terms & Definitions: General Classes of Power Quality Problems, Transients, Long
Duration Voltage Variations, Short-Duration Voltage Variations, Voltage Imbalance,
Waveform Distortion, Voltage Fluctuations, Power Frequency Variations, Power Quality
Terms.
Voltage Sags & Interruptions: Sources of Sags and Interruptions, Estimating Voltage
Sag Performance, Fundamental Principles of Protection, Solutions at the End-User Level,
Evaluating the Economics of Different Ride-Through Alternatives, Motor Starting Sags,
Utility System Fault-Clearing Issues.
(Chapter-2: 2.2 to 2.10 and Chapter-3: 3.1 to 3.7)
MODULE-II
(12 Lectures)
Transient Over Voltages: Sources of Transient Over Voltages, Principle of Over Voltage
Protection, Devices for Over Voltage Protection, Utility Capacitor-Switching Transients,
Utility System Lightning Protection, Managing Ferro-resonance, Switching Transient
Problems with Loads, Computer Tools for Transient Analysis.
Fundamentals of Harmonics: Harmonic Distortion, Voltage Versus Current Distortion,
Harmonics Versus Transients, Power System Quantities under Non-sinusoidal Conditions,
Harmonic Indices, Harmonic Sources from Commercial Loads, Locating Harmonic
Sources, System Response Characteristics, Effects of Harmonic Distortion, Interharmonics.
(Chapter-4: 4.1 to 4.8 and Chapter-5: 5.1 to 5.11)
MODULE-III
(10 Lectures)
Long Duration Voltage Variations: Principles of Regulating the Voltage, Devices for
Voltage Regulation, Utility Voltage Regulator Application, Capacitors for Voltage
Regulation, End-User Capacitor Application, Regulating Utility Voltage with Distributed
resources, Flicker.
Power Quality Monitoring: Monitoring Considerations, Historical Perspective of Power
Quality Measuring Instruments, Power Quality Measurement Equipments, Assessment of
Power Quality Measurement Data, Application of Intelligent Systems, Power Quality
Monitoring Standards.
(Chapter-7: 7.1 to 7.7 and Chapter-11: 11.1 to 11.6)
TEXT BOOK:
1.“Electrical Power Systems Quality” By Roger C. Dugan, Mark F. Mcgranaghan, Surya
Santoso & H.Wayne Beaty, 2nd Edition, TMH Education Private Ltd., New Delhi.
Reference Book:
1. Power System Quality Assesment, J.Arrilaga, N.R.Watson, S.Chen, John Wiley &
Sons.
2. Understanding Power Quality Problems: Voltage Sags & Interruptions, M.H.J.
Boller IEEE, 1999
OPTIMAL CONTROL
Module-I :
(15 Hours)
Performance Indices: Selection of Performance Index, Calculus of variations: Variation
and its properties, Euler-Lagrange Equation.
Linear Quadratic Regulator: Formulation of Algebraic Riccati Equation (ARE), Solving the
ARE using the Eigenvector Method, Optimal systems with prescribed poles, Linear
Quadratic Regulator for Discrete Systems on an infinite Time Interval.
Book-1: 5.1, 5.2, 5.2.1, 5.2.2, 5.3, 5.3.1, 5.3.2, 5.3.3, 5.3.5.
Module -II :
(10 Hours)
Dynamic Programming: Discrete Time Systems, Discrete Linear Quadratic Regulator
Problem, Continous Minimum Time Regulator Problem, The Hamilton Jacobi Belman
Equation.
Pontryagin’s Minimum Principle: Optimal control with constraints on inputs.
Book-1: 5.4, 5.4.1, 5.4.2, 5.4.3, 5.4.4, 5.5, 5.5.1.
Module - III :
(15 Hours)
Optimal Observers-the Kalmanfilter: The linear Quadratic Gaussian (LQG) problem, Loop
Transfer Recovery (LTR). H∞ Control: H∞ Control Solution, Sub-optimal linear regulators:
Continuous Time Systems, Discrete Time Systems, Introduction to Stochastic Optimal
Linear Estimation and Control.
Book-2: 10.3, 10.4, 10.6, 10.7, 10.7.1, 10.7.2, 10.7.3.
Book-3: 11.7, 12.1, 12.2.
Text Books:
1. Systems and Control by Stanislaw h.Zak, Oxford University Press, Publication
(2003).
2.
Design of Feedback Control Systems by Raymond T. Stefani, B.Shahian, Clement
J.Savant, Jr. Gene H. Hostetter, 4th edition (2002), Oxford University Press
Publication.
3.
Modern Control System Theory by M.Gopal, Second edition (2000), New Age
International (P) Ltd. Publishers.
Reference:
1. Linear Optimal Control by Jeffrey B.Burl, Prentice Hall Publication (1999).
2. Control Theory (Multivariable and Non linear Methods) by Torkel Glad and Lennart
Ljung, Taylor & Francis Publications (2009).
3.
Control Systems Theory (with Engineering Application) by Sergey, Edward Lysters
(2006).
SATELLITE COMMUNICATION SYSTEMS
Module – I
(12 Hours)
Introduction to state of satellite communication: Orbital mechanics and parameters,
look angle determination, Launches and Lunch vehicle, Orbital effects in communication
system performance. Attitude and orbit control system(AOCS), TT&C , Description of
spacecraft System – Transponders,
Equipment reliability and space qualification.
Satellite Link Design: Basics of transmission theory, system noise temperature and G/T
ratio, Uplink and Downlink design, design of satellite links for specified (C/N) performance.
Module – II
(10 Hours)
Analog telephone and television transmission: Energy dispersal, digital transmission
Multiple Access: Multiplexing techniques for satellite links, Comprehensive study on
FDMA, TDMA and CDMA. Spread Spectrum Transmission and Reception. Estimating
Channel requirements, SPADE, Random access
Application of Satellite communication: Network distribution and direct broad casting
TV, fundamentals of mobile communication satellite
Module – III
(12 Hours)
Propagation on satellite: Earth paths and influence on link design: Quantifying
attenuation and depolarization, hydrometric & non hydrometric effects, ionosphere effects,
rain and ice effects
Satellite Antennas: Types of antenna and relationships , Basic Antennas Theory – linear,
rectangular & circular aperture. Gain, pointing loss,
Earth station Technology: Earth station design, Design of large antennas – Cassegrain
antennas, optimizing gain of large antenna, antenna temperature, feed system for large
cassegrain antennas,
Design of small earth station antennas: Front fed paraboloid reflector antennas, offset
fed antennas, beam steering, Global Beam Antenna, equipment for earth station
Text Books:
1.
Satellite Communication by T. Pratt, C. Bostian. 2nd Edition, John Wiley Co.
Reference Books:
1.
Digital Communication with Satellite and Fiber Optic Application, Harlod Kolimbins,
PHI
2.
Satellite Communication by Robert M. Gagliardi, CBS Publishers
DIGITAL IMAGE PROCESSING
Module: 1
(12 hours)
Introduction: Digital Image fundamentals: Image sampling and quantization, relationship
between pixels, Intensity transformations and spatial filtering, some basic intensity
transformation functions, Histogram processing, spatial filters for smoothing and
sharpening (Chapt: 2 & 3 of Text book 1)
Module: 2
(12 hours)
Filtering in the Frequency Domain: preliminary concepts, 2D DFT and its properties,
basic filtering in the frequency domain, image smoothing and sharpening (Chapt: 4 of Text
book 1)
Image Restoration and Reconstruction: Image restoration/degradation model, noise
models, restoration in the presence of noise only, estimating the degradation function
(Chapt: 5 of Text Book 1)
Module: 3
(12 hours)
Color Image Processing: color models, Color transformation (Chapt: 6 of Text book 1)
Wavelets and Multi-resolution Processing: multiresolution expansions, wavelet
transforms in one and two dimension (Chapt: 7 of Text book 1)
Image Compression: Fundamentals, Some basic compression methods (Chapt: 8 of
Text book 1)
Morphological Image Processing: Erosion and Dilation, opening and closing (Chapt: 9
of Text book 1)
Text Books:
1.
R.C. Gonzalez, R.E. Woods, Digital Image Processing, 3rd Edition, Pearson
Education
2.
R C Gonzalez, Woods and Eddins, Digital Image Processing using Matlab, 2nd
Edition, Tata McGraw Hill
Reference Books:
1.
S.Sridhar, Digital Image Processing, Oxford University Press, 2011
INDUSTRIAL INSTRUMENTATION
Module 1
18 Hours
Introduction: Functional Units, Classification, Performance characteristics, Dynamic
Calibration, Errors: An Overview, Statistical Error Analysis, Reliability and Related Topics
(Chapter 1 of Text book)
Instruments for Analysis: Introduction, Gas Analysers, Liquid Analysers, X-ray Methods,
Chromatography (Chapter 8 of Text Book)
Module II:
10 Hours
Telemetry: Introduction, Pneumatic Means, Electrical Means, Frequency Telemetring,
Multiplexing, Modulation, Modulation of Digital Data, Transmission Channels, Briefing of a
Telemetry System in Operation, Wireless I/O (Chapter 10 of Text Book)
Module III:
10 Hours
Power Plant Instruments: Introduction, The Power Plant Scheme, Pressure,
Temperature, Flow and Level, Vibration and Expansion, Analysis, Flue Gas Analysis
(Chapter 12 of Text Book)
Hazard and Safety: Initial consideration, Enclosures, Intrinsic Safety, Prevention of
Ignition, Methods of Production, Analysis Evaluation and Construction (Chapter 13 of Text
Book)
Text Book:
1.
Principles of Industrial Instrumentation, Third Edition, D Patranabis, Tata McGraw
Hill Education Private Limited, New Delhi
Reference Books:
1.
Process/Industrial Instruments and Controls Handbook, Gregory K. Mc Millian Editorin-Chief, Douglas M. Considine Late Editor-in-Chief
EMBEDDED SYSTEMS
MODULE – I
10 Hours
Embedded System: Understanding the Basic Concepts:
Introduction to Embedded System: Embedded Systems Vs General Computing
Systems, History of Embedded Systems, Classification of Embedded Systems, Major
Application Areas of Embedded Systems, Purpose of Embedded Systems, ‘Smart’ running
shoes from Adidas – The Innovative bonding of Life Style with Embedded Technology.
The Typical Embedded System: Core of the Embedded System, Memory, Sensors and
Actuators, Communication Interface, Embedded Firmware, Other System Components,
PCB and Passive Components.
Characteristics and Quality Attributes of Embedded System: Characteristics of
Embedded System, Quality Attributes of Embedded System.
Embedded Systems – Application and Domain Specific: Washing Machine –
Application Specific Embedded System, Automotive – Domain Specific Example for
Embedded System.
Hardware Software Co-Design and Program Modeling: Fundamental Issues in
Hardware Software Co-Design, Computational Models in Embedded Design, Introduction
to Unified Modeling Language (UML), Hardware Software Trade-offs.
MODULE – II
12 Hours
Design and Development of Embedded Product:
Embedded Hardware Design and Development: Analog Electronic Components, Digital
Electronic Components, VLSI and Integrated Circuit Design, Electronic Design Automation
(EDA) Tools.
Embedded Firmware Design and Development: Embedded firmware Design
Approaches, Embedded firmware Development Languages, Programming in Embedded
‘C’.
Real Time Operating System (RTOS) based Embedded System Design: Operating
System Basics, Types of Operating Systems, Tasks, Process and Threads,
Multiprocessing and Multitasking, Task Scheduling, Threads, Processes and Scheduling:
Putting them altogether, Task Communication, Task Synchronisation, Device Drivers, How
to choose an RTOS.
MODULE – III
14 Hours
Design and Development of Embedded Systems:
An Introduction to Embedded System Design with VxWorks and MicroC/OS-II
(μCOS-II) RTOS: VxWorks, MicroC/OS-II (μCOS-II).
Integration and Testing of Embedded Hardware and Firmware: Integration of
Hardware & Firmware, Board Power up.
The Embedded System Development Environment: Integrated Development
Environment
(IDE),
Types
of
files
generated
on
cross-compilation,
Disassembler/Decompiler, Simulators, Emulators & Debugging, Target Hardware
Debugging, Boundary Scan.
Product Enclosure Design & Development: Product Enclosure Design Tools, Product
Enclosure Development Techniques.
Embedded Product Development Life Cycle (EDLC): Definition and Objectives of
EDLC, Different Phases of EDLC, EDLC Approaches (Modeling the EDLC).
Trends in the Embedded Industry: Processor Trends in Embedded System, Embedded
OS Trends, Development Language Trends, Open standards, Frameworks and Alliances,
Bottlenecks.
Text Book:
1.
Shibu K.V., Introduction to Embedded Systems, Tata McGraw Hill Education Private
Limited, New Delhi, 2009.
Reference Book:
1.
Peter Marwedel, Embedded System Design, Springer, 2006 http://ls12-www.cs.unidortmund.de/~marwedel/kluwer-es-book/
2.
Wayne Wolf, Computers as Components, Morgan Kaufmann, 2001
http://www.ee.princeton.edu/~wolf/embedded-book
3.
G. De Micheli, Rolf Ernst and Wayne Wolf, eds, Readings in Hardware/Software CoDesign, Morgan Kaufmann, Systems-on-Silicon Series Embedded
4.
Frank Vahid and Tony D. Givargis, System Design: A Unified Hardware/Software
Introduction, Addison Wesley, 2002.
5.
Michael Barr, Programming Embedded Systems in C and C++, O'Reilly, 1999.
6.
David E. Simon, An Embedded Software Primer, Addison Wesley, 1999.
7.
Jack Ganssle, The Art of Designing Embedded Systems, Newnes, 2000.
8.
K. Short, Embedded Microprocessor System Design, Prentice Hall, 1998.
9.
C. Baron, J. Geffroy and G. Motet, Embedded System Applications, Kluwer, 1997.
10. Raj Kamal, Embedded Systems – Architecture, Programming and Design, Tata
McGraw Hill Publishing Company Limited, New Delhi,
POWER STATION ENGINEERING AND ECONOMY
MODULE-1:
14 classes
Introduction to different sources of energy and general discussion on their application to
generation, Indian Energy Scenario. (Nag-1.5)
Load duration curves, Load Factor, Capacity Factor, Reserve Factor, Demand Factor,
Diversity Factor, Plant Use Factor, Base Load, Intermediate Load and Peak Load Plants.
(Nag-1.2)
ECONOMICS OF POWER GENERATION:
Construction costs, Fixed cost and Depreciation, Fuel cost, Economic scheduling principle,
Annual Operating Costs, Effect of Load Factor on cost per kWh. (Vopat- 29.2- 29.5, 29.1329.22, Nag-1.4)
NUCLEAR POWER STATION:
Introduction to fission & fusion, reactor construction, controlled chain reaction, operational
control of reactors, Brief study of various types of reactors (Boiling water, pressurized water,
heavy water, breeder) , Location and layout of nuclear power plant (Nag- 9.5, 9.6, 9.13, 9.15 9.21
MODULE-2:
10 classes
HYDEL POWER STATION:
Selection of site for hydro-electric power plant. (Nag-10.4)
Hydrology: Hydrological cycle, precipitation, run-off and its measurement, hydrograph, flow
duration and mass curves, Estimation of amount stored by a dam across the river, Storage
and Pondage. (Vopat- 25.2, 25.3, 25.5, Nag – 10.5 - 10.7)
Turbines: Operational principle of Kaplan and Francis Turbine and Pelton wheel, Speed and
Pressure Regulation, Work done, efficiency ( Vopat – Chapter-26, Nag- 10.10 – 10.15, 10.24 10.25)
Essential Elements of a Hydro-electric Power Plant: Catchment area, Reservoir, Dam, Head
Gate, Spillways, Pen stock, Surge Tanks, Scroll case, Draft tubes and Tail Race, Power
House, Classification of Hydroelectric Power Plants. (Vopat- 25.6 – 25.9, Nag- 10.8, 10.9)
Governors, Plant auxiliaries (Nag – 10.21)
MODULE-3:
11 classes
THERMAL POWER STATION:
Selection of site for thermal power plant. (Vopat-31.3, Nag-1.3)
Overall Block Diagram indicating the air circuit, coal and ash circuit, water and steam circuit,
various types of steam turbines, ash and coal handling system, High Pressure and High
capacity water tube boilers, Economizer, Superheaters, De-Superheater, Re-heater, Air Preheater. (Vopat – 7.4, Chap-8, Chap-10, Nag-2.15, 6.3.1, 6.3.2, 6.4-6.6, 6.8, 6.12 - 6.15 )
Draft System: Natural, Induced Forced and Balance Draft, PA fan, FD fan, ID fan, Chimney.
(Vopat – 9.1, 9.4, Nag- 4.14.1, 4.14.3, 4.15)
Condensers, Feed water heaters, Evaporators, Make-up water, Bleeding of steam, Cooling
water system. (Vopat- 14.1, 14.6, 18.2, 18.13, Nag – 8.1- 8.6),
Electrostatic Precipitator: Basic working Principle and constructional details (Nag-6.10)
Governors, Plant auxiliaries (Vopat- 12.14)
TEXT BOOKS AND REFERENCES:
1) P. K. Nag, “Power Plant Engineering”, 3rd Edition, Tata McGraw Hill Publication
2) Bernhardt G. A. Skrotzki, William A. Vopat, ‘Power Station Engineering and Economy’, 2nd
Ed, Tata McGraw Hill Publication
3) M. V. Deshpande, Elements of Electrical Power Station Design, PHI
4) Arora & Domkundwar, ‘A Course in Power Plant Engineering’, Dhanpat Rai and sons.
5) R. K. Rajput, ‘A Text Book of Power Plant Engineering’, 3rd Edition, Laxmi Publishing.
MARKETING MANAGEMENT (3-0-0)
Objective of the Course: The course aims at introducing the basic concepts of marketing
to the undergraduate students in engineering. The learning shall help the students in
better designing, manufacturing and selling product/ service packages keeping
competitive market, customers and cost in view.
Module – I
(10 hours)
Marketing Management: Concept, Process, Functions and relevance in the current
context.
Marketing Environment: Elements of micro and macro environment
Competition Analysis: Factors contributing to competition, porter’s five forces model,
Identifying and analyzing competitors.
Marketing Planning : Exploring Opportunity, Product –market selection, Marketing
Planning Process.
Market Research and Information Systems: Research Process, The Internet and World
Wide Web based Information collection and processing, Database, Data Warehouses and
Data Mining, Global Market Research.
Consumer Behavior: Factors influencing consumer behavior, consumer decision process.
Organizational buying behavior.
Module II
(10 hours)
Market Segmentation, Targeting and Positioning: Definition, Bases of segmenting
consumer and Industrial markets. Target Market strategies: Market Positioning.
Market Demand Forecasting: Key Terms, Forecasting Tools: Short term tools: Moving
average and Exponential smoothing methods, Long-term forecasting Tools: Time series
analysis, Econometrics methods, Qualitative tools : Buying Intention Survey, Sales Force
Opinion and Delphi Techniques.
Product Planning : Product Life Cycle, New Product Development Process, Branding
Strategy, Positioning a Brand, Brand Equity, Packaging and Labeling, Product-mix and
Product Line, Planned Obsolescence.
Module – III
(10 hours)
Pricing Decision: Objectives and Factors influencing pricing, Pricing method and
strategies.
Integrated Marketing Communication(IMC)- Concept of IMC, the marketing
communication process, Promotion Mix, elements of promotion mix, Direct marketing.
Channels of Distributions: Types of intermediaries, functions of distribution channels,
channel levels, Designing Distribution Channels, Physical Distribution, Supply Chain
Management (Basic only).
Trends in Marketing: Green Marketing, Customer Relationship Management, E-marketing,
Rural Marketing and Service Marketing (concepts only)
Books:
Text Book:
1. Etzel , Walker ,Stanton and Pandit, Marketing, 14/e, Tata McGraw Hill.
2. Saxena, “Marketing Management” Tata McGraw Hill, 4/e.
Reference
1. Grewal, Levy, ‘Marketing’ Tata McGraw Hill, special Indian edition.
2. Karunakaran “Marketing Management”, Himalaya Publishing House, 2010/e.
3. Kotler, Keller,Koshy and Jha, “Marketing Management”, 13/e, Pearson Education.
PRODUCTION & OPERATION MANAGEMENT
Objective : The course aims at acquainting all engineering graduates irrespective of their
specializations the basic issues and tools of managing production and operations functions of an
organization.
Module I
1. Operations Function in an Organization, Manufacturing Vrs Service Operations, System view of
Operations, Strategic Role of Operations, Operations Strategies for Competitive Advantage,
Operations Quality and Productivity Focus, Meeting Global Challenges of Production and
Operations Imperatives.
(3 Hours)
2. Designing Products, Services and Processes: New Product Design- Product Life Cycle, Product
Development Process, Process Technology : Project, Jobshop, Batch, Assembly Line, Continuous
Manufacturing; Process Technology Life Cycle, Process Technology Trends, FMS, CIM, CAD,
CAM; Design for Services, Services Process Technology.
(4 Hours)
3. Work Study:
Methods Study- Techniques of Analysis, recording, improvement and
standardization; Work Measurement : Work Measurement Principles using Stopwatch Time Study,
Predetermined Motion Time Standards and Work Sampling, Standard Time Estimation.
(4 Hours)
Module II
4. Location and Layout Planning : Factor Influencing Plant and Warehouse Locations, Impact of
Location on cost and revenues. Facility Location Procedure and Models : Qualitative Models,
Breakeven Analysis, location Model, centroid method.
Layout Planning: Layout Types : Process Layout, Product Layout, Fixed Position Layout Planning,
block diagramming, line balancing, computerized layout planning- overview.
Group Technology
(4 Hours)
5. Forecasting : Principles and Method, Moving Average, weighted Moving Average, Exponential
Smoothing, Winter’s Method for Seasonal Demand, Forecasting Error.(4 Hours)
6. Manufacturing Planning and Control : The Framework and Components : Aggregate Planning,
Master Production Scheduling, Rough-cut-Capacity Planning, Material Requirements Planning,
Capacity Requirements Planning.
(5 Hours)
Module III
7. Sequencing and Scheduling : Single Machine Sequencing : Basics and Performance Evaluation
Criteria, Methods for Minimizing Mean Flow Time, Parallel Machines : Minimization of Makespan,
Flowshop sequencing : 2 and 3 machines cases : Johnson’s Rule and Jobshop Scheduling :
Priority dispatching Rules.
(3 Hours)
8. Inventory Control : Relevant Costs, Basic EOQ Model, Model with Quantity discount, Economic
Batch Quantity, Periodic and Continuous Review Systems, Safety Stock, Reorder Point and Order
Quantity Calculations. ABC Analysis.
(4 Hours)
9. Modern Trends in Manufacturing : Just in Time (JIT) System : Shop Floor Control By Kanbans,
Total Quality Management, Total Productive Maintenance, ISO 9000, Quality Circle, Kaizen, Poka
Yoke, Supply Chain Management.
(4 Hours)
Reference Book:
1. S.N.Chary, “Production and Operations Management”, Tata McGraw Hill.
2. R. Paneerselvam, “Production and Operations Management, Prentice Hall of India.
3. Aswathappa & Bhatt – Production & Operations Management, HPH.
4. Gaither & Frazier - Operations Management, Cengage Publication
5. Russell & Taylor - Operations Management, PHI Publication
6. Chase, Aquilanno, Jacob & Agarwal - Operations Management, TMH Publication.
7. E.E. Adam and R.J. Ebert “Production and Operations Management”, Prentice Hall of India
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
