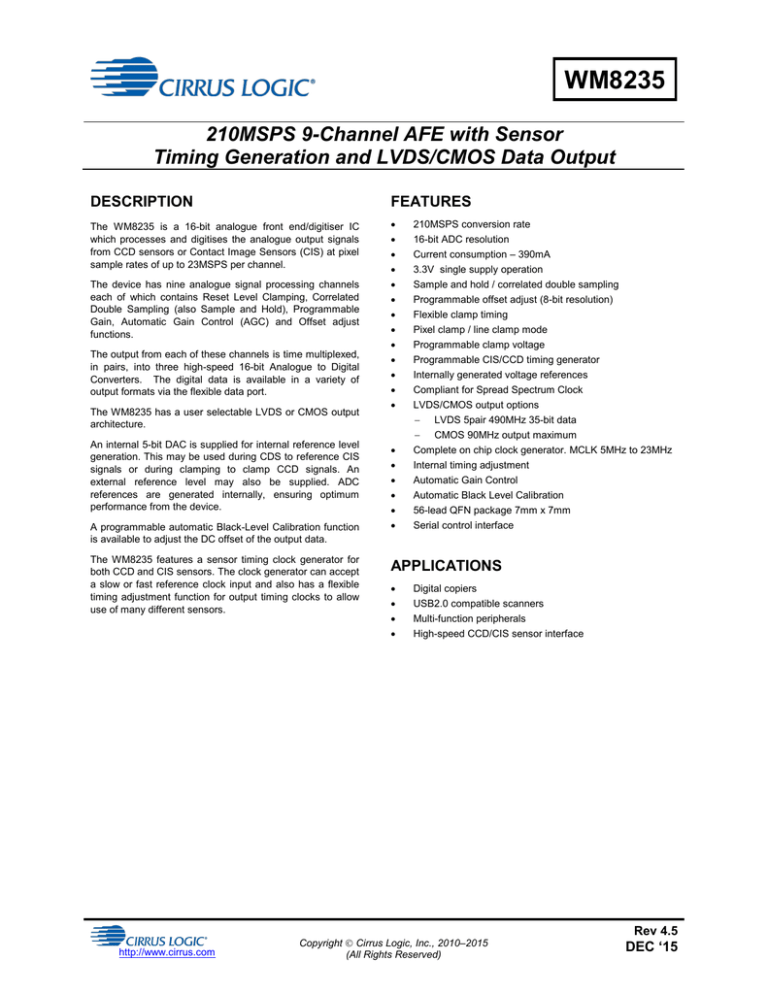

WM8235

210MSPS 9-Channel AFE with Sensor

Timing Generation and LVDS/CMOS Data Output

DESCRIPTION

The WM8235 is a 16-bit analogue front end/digitiser IC which processes and digitises the analogue output signals from CCD sensors or Contact Image Sensors (CIS) at pixel sample rates of up to 23MSPS per channel.

The device has nine analogue signal processing channels each of which contains Reset Level Clamping, Correlated

Double Sampling (also Sample and Hold), Programmable

Gain, Automatic Gain Control (AGC) and Offset adjust functions.

The output from each of these channels is time multiplexed, in pairs, into three high-speed 16-bit Analogue to Digital

Converters. The digital data is available in a variety of output formats via the flexible data port.

The WM8235 has a user selectable LVDS or CMOS output architecture.

An internal 5-bit DAC is supplied for internal reference level generation. This may be used during CDS to reference CIS signals or during clamping to clamp CCD signals. An external reference level may also be supplied. ADC references are generated internally, ensuring optimum performance from the device.

A programmable automatic Black-Level Calibration function is available to adjust the DC offset of the output data.

The WM8235 features a sensor timing clock generator for both CCD and CIS sensors. The clock generator can accept a slow or fast reference clock input and also has a flexible timing adjustment function for output timing clocks to allow use of many different sensors.

FEATURES

210MSPS conversion rate

16-bit ADC resolution

Current consumption

– 390mA

3.3V single supply operation

Sample and hold / correlated double sampling

Programmable offset adjust (8-bit resolution)

Flexible clamp timing

Pixel clamp / line clamp mode

Programmable clamp voltage

Programmable CIS/CCD timing generator

Internally generated voltage references

Compliant for Spread Spectrum Clock

LVDS/CMOS output options

LVDS 5pair 490MHz 35-bit data

CMOS 90MHz output maximum

Complete on chip clock generator. MCLK 5MHz to 23MHz

Internal timing adjustment

Automatic Gain Control

Automatic Black Level Calibration

56-lead QFN package 7mm x 7mm

Serial control interface

APPLICATIONS

Digital copiers

USB2.0 compatible scanners

Multi-function peripherals

High-speed CCD/CIS sensor interface http://www.cirrus.com

Copyright

Cirrus Logic, Inc., 2010

–2015

(All Rights Reserved)

Rev 4.5

DEC

‘15

WM8235

BLOCK DIAGRAM

VRLC /VBIAS

AVDD1

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

RLC

RLC

RLC

RLC

RLC

RLC

RLC

RLC

RLC

CDS

S/H

CDS

S/H

CDS

S/H

CDS

S/H

CDS

S/H

CDS

S/H

CDS

S/H

CDS

S/H

CDS

S/H

AGND1

OFFSET

DAC

+

OFFSET

DAC

+

OFFSET

DAC

+

OFFSET

DAC

+

OFFSET

DAC

+

OFFSET

DAC

+

OFFSET

DAC

+

OFFSET

DAC

+

OFFSET

DAC

+

VREF1C VREF2C VREF3C

VREF

/BIAS

PGA

I/P SIGNAL

POLARITY

ADJUST

PGA

I/P SIGNAL

POLARITY

ADJUST

PGA

I/P SIGNAL

POLARITY

ADJUST

PGA

I/P SIGNAL

POLARITY

ADJUST

PGA

I/P SIGNAL

POLARITY

ADJUST

PGA

I/P SIGNAL

POLARITY

ADJUST

PGA

I/P SIGNAL

POLARITY

ADJUST

PGA

I/P SIGNAL

POLARITY

ADJUST

PGA

I/P SIGNAL

POLARITY

ADJUST

+

+

M

U

X

+

+

+

M

U

X

+

+

+

M

U

X

+

WM8235

DBVDD

16bit

ADC

10/16

+

16bit

ADC

10/16

+

&

D

A

T

A

M

A

P

P

I

N

G

C

O

N

T

R

O

L

D

I

G

I

T

A

L

7

7

7

LVDS(

Chanel link)/

CMOS

7

7

7

16bit

ADC

10/16

+

LDO1

LDO2

HZCTRL

D1P/OP[0]

D1N/OP[1]

D2P/OP[2]

D2N/OP[3]

D3P/OP[4]

D3N/OP[5]

D4P/OP[6]

D4N/OP[7]

D5P/OP[8]

D5N/OP[9]

DCLKP/OC[1]

DCLKN/OC[2]

LDO1VDD

LDO1GND

LDO1VOUT

LDO2VDD

LDO2GND

LDO2VOUT

BLACK LEVEL

CALIBRATION

RLC

DAC

AUTO GAIN

CONTROL

CCD SENSOR

TIMING GENERATION

Phase

Adjustment

MCLK

SERIAL

CONTROL

INTERFACE

SDO

SEN

SCK

SDI

MON DSLCT1 DSLCT2 DBGND

2 Rev 4.5

WM8235

TABLE OF CONTENTS

DESCRIPTION ................................................................................................................ 1

FEATURES ..................................................................................................................... 1

APPLICATIONS .............................................................................................................. 1

BLOCK DIAGRAM .......................................................................................................... 2

TABLE OF CONTENTS .................................................................................................. 3

PIN CONFIGURATION ................................................................................................... 5

ORDERING INFORMATION ........................................................................................... 5

PIN DESCRIPTION ......................................................................................................... 6

ABSOLUTE MAXIMUM RATINGS ................................................................................. 7

RECOMMENDED OPERATING CONDITIONS .............................................................. 7

ELECTRICAL CHARACTERISTICS ............................................................................... 8

INTERNAL POWER ON RESET CIRCUIT ................................................................... 11

SIGNAL TIMING REQUIREMENTS ............................................................................. 12

SERIAL CONTROL INTERFACE ..........................................................................................12

DEVICE IDENTIFICATION ....................................................................................................12

REGISTER WRITE ................................................................................................................13

REGISTER READ-BACK .......................................................................................................13

INPUT VIDEO SAMPLING ....................................................................................................14

NON-CDS (S/H) MODE ....................................................................................................................................... 14

CDS MODE .......................................................................................................................................................... 14

OUTPUT DATA TIMING (CMOS OUTPUT) ..........................................................................16

OUTPUT DATA TIMING (LVDS OUTPUT) ............................................................................16

DEVICE DESCRIPTION ............................................................................................... 17

INTRODUCTION ...................................................................................................................17

RESET LEVEL CLAMPING (RLC) .........................................................................................17

CDS/NON-CDS PROCESSING .............................................................................................19

OFFSET ADJUST AND PROGRAMMABLE GAIN ................................................................20

ADC INPUT BLACK LEVEL ADJUST ....................................................................................20

OVERALL SIGNAL FLOW SUMMARY ..................................................................................21

ADC PGA BIAS CURRENT CONTROL .................................................................................22

PLL DLL SETUP ....................................................................................................................23

OUTPUT DATA FORMAT .....................................................................................................25

LVDS 10-BIT 5PAIR MODE ................................................................................................................................. 25

LVDS 16-BIT 5PAIR MODE ................................................................................................................................. 26

LVDS 10-BIT 3PAIR MODE ................................................................................................................................. 28

LVDS 16-BIT 3PAIR MODE ................................................................................................................................. 30

LVDS 12-BIT 4PAIR MODE ................................................................................................................................. 31

LVDS DATA OUTPUT ORDER ............................................................................................................................ 33

LVDS SYNCHRONOUS OUTPUT ....................................................................................................................... 34

CMOS OUTPUT MODE ....................................................................................................................................... 35

CLOCK TIMING CONFIGURATION ......................................................................................35

SENSOR TIMING GENERATION ..........................................................................................37

TG MASTER MODE OPERATION ....................................................................................................................... 38

TG SLAVE MODE OPERATION .......................................................................................................................... 38

TG PULSE AND TRIGGER DATA ....................................................................................................................... 39

TG PULSE ........................................................................................................................................................... 40

TRIGGER DATA .................................................................................................................................................. 40

CHANNEL ID ....................................................................................................................................................... 40

TG MASK TIMING ................................................................................................................................................ 43

TG CYCLE MODE ................................................................................................................................................ 44

Rev 4.5

3

WM8235

PROGRAMMABLE AUTOMATIC BLACK LEVEL CALIBRATION (BLC) ...............................45

TARGET CODES ................................................................................................................................................. 45

BLC SCENARIOS OF OPERATION ......................................................................................46

SCENARIO 1 ....................................................................................................................................................... 46

SCENARIO 2 ....................................................................................................................................................... 47

SCENARIO 3 ....................................................................................................................................................... 48

AUTOMATIC GAIN CONTROL (AGC) ..................................................................................49

LINE-BY-LINE OPERATION ..................................................................................................51

TEST PATTERN GENERATOR ............................................................................................53

REGISTER SETTING PROCEDURE ....................................................................................55

OVERALL............................................................................................................................................................. 55

PLL/DLL CONFIGURATION ................................................................................................................................ 56

SAMPLING CONFIGURATION ............................................................................................................................ 56

CLAMP CONFIGURATION .................................................................................................................................. 57

VRLC CONFIGURATION ..................................................................................................................................... 57

OFFSET DAC CONFIGURATION ........................................................................................................................ 58

PGA CONFIGURATION ....................................................................................................................................... 59

TG CLOCK CONFIGURATION ............................................................................................................................ 61

TG PULSE CONFIGURATION............................................................................................................................. 62

DATA OUTPUT CONFIGURATION ..................................................................................................................... 63

REGISTER MAP ........................................................................................................... 66

EXTENDED PAGE REGISTERS ...........................................................................................71

REGISTER BITS BY ADDRESS ............................................................................................72

APPLICATIONS INFORMATION ................................................................................ 148

RECOMMENDED EXTERNAL COMPONENTS .................................................................. 148

RECOMMENDED EXTERNAL COMPONENT VALUES...................................................... 149

PACKAGE DIMENSIONS ........................................................................................... 150

IMPORTANT NOTICE ................................................................................................ 151

REVISION HISTORY .................................................................................................. 152

4 Rev 4.5

PIN CONFIGURATION

WM8235

56 55 54 53 52 51 50 49 48 47 46 45 44 43

VREF2C

1

VRLC/VBIAS 2

VREF3C 3

VREF1C 4

SEN 5

SDO 6

SCK 7

SDI 8

LDO2VDD 9

LDO2GND 10

LDO2VOUT 11

DSLCT2 12

MCLK

13

DSLCT1

14

WM8235

15 16 17 18 19 20 21 22 23 24 25 26 27 28

42 CLK8

41 CLK7

40 CLK6

39 CLK5

38 CLK4

37 CLK3

36

CLK2

35 CLK1

34 TGSYNC

33

LDOV1DD

32

LDO1GND

31

LDO1VOUT

30

MON

29

HZCTRL

ORDERING INFORMATION

DEVICE

TEMPERATURE

RANGE

WM8235GEFL/V -40 to 85 o

C

-40 to 85 o

C

PACKAGE

56-lead QFN

(7 x 7 x 0.85 mm)

(Pb-free)

56-lead QFN

(7 x 7 x 0.85 mm)

(Pb-free, tape and reel)

MOISTURE

SENSITIVITY

LEVEL

MSL3

MSL3

PEAK

SOLDERING

TEMPERATURE

260

C

260

C WM8235GEFL/RV

Reel quantity = 2,200

Rev 4.5

5

WM8235

8

9

10

11

5

6

7

40

41

42

43

44

45

46

36

37

38

39

32

33

34

35

23

24

25

26

19

20

21

22

12

13

14

15

16

17

18

27

28

29

30

31

PIN DESCRIPTION

PIN

1

2

3

4

NAME

VREF2C

VRLC

VREF3C

VREF1C

SEN

SDO

SCK

SDI

LDO2VDD

LDO2GND

LDO2VOUT

TYPE DESCRIPTION

Analogue output Mid reference voltage.

This pin must be connected to AGND via a decoupling capacitor.

Analogue I/O

Reference voltage input/output

Analogue output Lower reference voltage.

This pin must be connected to AGND via a decoupling capacitor.

Analogue output Upper reference voltage.

This pin must be connected to AGND via a decoupling capacitor.

Digital input Enables the serial interface when high.

Digital output

Serial interface data output

Digital input Serial interface clock

Digital input

Supply

Supply

Supply

Serial interface data input

Analogue supply

Analogue ground

LDO output

This pin must be connected to AGND via a decoupling capacitor.

DSLCT2

MCLK

Analogue input Device select 2

Analogue input Master clock

DSLCT1

D5N/OP[9]

D5P/OP[8]

D4N/OP[7]

Analogue input Device select 1

LVDS output LVDS Data output 5

– Negative / CMOS output 9

LVDS output LVDS Data output 5

– Positive / CMOS output 8

LVDS output LVDS Data output 4

– Negative / CMOS output 7

D4P/OP[6] LVDS output LVDS Data output 4

– Positive / CMOS output 6

DCLKN/OC[2] LVDS output

LVDS Clock Output

– Negative/ CMOS flag output

DCLKP/OC[1] LVDS output LVDS Clock Output

– Positive/ CMOS clock output

DBGND

DBVDD

D3N/OP[5]

D3P/OP[4]

D2N/OP[3]

D2P/OP[2]

D1N/OP[1]

D1P/OP[0]

Supply

Analogue ground

Supply Analogue supply

LVDS output LVDS Data output 3

– Negative / CMOS output 5

LVDS output LVDS Data output 3

– Positive / CMOS output 4

LVDS output LVDS Data output 2

– Negative / CMOS output 3

LVDS output LVDS Data output 2

– Positive / CMOS output 2

LVDS output LVDS Data output 1

– Negative / CMOS output 1

LVDS output LVDS Data output 1

– Positive / CMOS output 0

HZCTRL

MON

LDO1VOUT

LDO1GND

LDO1VDD

TGSYNC

CLK1

CLK2

CLK3

CLK4

CLK5

CLK6

CLK7

CLK8

AGND3

IN1

IN2

IN3

Digital input Internal use only. Must be connected to AGND

Analogue output Clock monitor

Supply LDO output.

Supply

This pin must be connected to AGND via a decoupling capacitor.

Analogue ground

Supply

Digital input

Analogue supply

Sensor Timing Sync pulse from host

Digital output

Digital output

Digital output

Digital output

Digital output

Digital output Sensor Timing Output 6

Digital output Sensor Timing Output 7

Digital output Sensor Timing Output 8

Supply Analogue ground

Analogue input

Analogue input

Analogue input

Sensor Timing Output 1

Sensor Timing Output 2

Sensor Timing Output 3

Sensor Timing Output 4

Sensor Timing Output 5

Analogue input 1

Analogue input 2

Analogue input 3

6 Rev 4.5

WM8235

PIN

47

48

49

50

51

52

53

54

55

56

NAME

AGND2

AVDD2

IN4

IN5

IN6

IN7

IN8

IN9

AVDD1

AGND1

TYPE

Supply

Supply

DESCRIPTION

Analogue ground

Analogue supply

Analogue input Analogue input 3

Analogue input Analogue input 4

Analogue input Analogue input 3

Analogue input

Analogue input 4

Analogue input Analogue input 5

Analogue input

Analogue input 6

Supply Analogue supply

Supply Analogue ground

ABSOLUTE MAXIMUM RATINGS

Absolute Maximum Ratings are stress ratings only. Permanent damage to the device may be caused by continuously operating at or beyond these limits. Device functional operating limits and guaranteed performance specifications are given under Electrical

Characteristics at the test conditions specified.

ESD Sensitive Device. This device is manufactured on a CMOS process. It is therefore generically susceptible to damage from excessive static voltages. Proper ESD precautions must be taken during handling and storage of this device.

Cirrus Logic tests its package types according to IPC/JEDEC J-STD-020 for Moisture Sensitivity to determine acceptable storage conditions prior to surface mount assembly. These levels are:

MSL1 = unlimited floor life at <30

C / 85% Relative Humidity. Not normally stored in moisture barrier bag.

MSL2 = out of bag storage for 1 year at <30

C / 60% Relative Humidity. Supplied in moisture barrier bag.

MSL3 = out of bag storage for 168 hours at <30

C / 60% Relative Humidity. Supplied in moisture barrier bag.

The Moisture Sensitivity Level for each package type is specified in Ordering Information.

CONDITION

Analogue supply voltage: AVDD1-2, LDO1VDD-LDO2VDD, DBVDD

MIN

GND - 0.3V

MAX

GND + 5V

Analogue grounds: AGND1-3, LDO1GND-LDO2GND, DBGND

Analogue inputs (IN1-6)

Other Analogue pins

Digital I/O pins

Operating temperature range: T

A

Storage temperature prior to soldering

GND - 0.3V

GND - 0.3V

GND + 0.3V

AVDD + 0.3V

GND - 0.3V AVDD + 0.3V

GND - 0.3V AVDD + 0.3V

-40

C +85

30

C max / 85% RH max

C

-65

C +150

C

Storage temperature after soldering

Notes:

1.

2.

GND denotes the voltage of any ground pin.

AGND, LDOGND and DBGND pins are intended to be operated at the same potential. Differential voltages between these pins will degrade performance.

RECOMMENDED OPERATING CONDITIONS

CONDITION

Operating temperature range

Analogue Supply voltage

SYMBOL

T

A

AVDD1-2

LDO1VDD-

LDO2VDD

DBVDD

MIN

-40

2.97

TYP

3.3

MAX

85

3.63

UNITS

C

V

Rev 4.5

7

WM8235

ELECTRICAL CHARACTERISTICS

Test Conditions

AVDD = LDOVDD = DBVDD = 3.3V, AGND = LDOGND = DBGND= 0V, T

A

= 25

C, MCLK= 23.3MHz unless otherwise stated.

UNIT PARAMETER SYMBOL TEST

CONDITIONS

MIN

Overall System Specification (including 10-bit ADC, PGA, Offset and CDS functions)

Conversion rate per channel

Full-scale input voltage

(see Note 1)

ADCFS=0, Max Gain

ADCFS=0, Min Gain

ADCFS=1, Max Gain

ADCFS=1, Min Gain

5

Input signal voltage range V

IN

Input capacitance

Full-scale transition error

Zero-scale transition error

Differential non-linearity

Integral non-linearity (pk-pk/2)

Channel to channel crosstalk

C

IN

INL

DNL

Channel to channel gain matching Min Gain

Output noise

Max Gain

SF_INP=0

SF_INP=1

Inputs to AGND

Gain = 0dB;

AGAIN[4:0] = 02(hex)

DGAIN[11:0] = 6AB(hex)

Gain = 0dB;

AGAIN[4:0] = 02(hex)

DGAIN[11:0] = 6AB(hex)

10-bit

10-bit

10-bit, Unity Gain

(Unused channels grounded)

10-bit

AGND

AGND

BLC disabled Channel to channel offset matching

Programmable Gain Amplifier

Total Resolution (Ga + Gd)

Analogue Gain

Max gain, each channel (Ga)

Min gain, each channel (Ga)

Digital Gain

Max gain, each channel (Gd)

Min gain, each channel (Gd)

Max gain, each channel

(Ga + Gd)

Min gain, each channel

(Ga + Gd)

Analogue to Digital Converter

Resolution

Speed

G

T

Ga

Ga

MAX

Ga

MIN

Gd

Gd

MAX

Gd

MIN

G

G

T

T

MAX

MIN

AGAIN[4:0] = 1F(hex)

AGAIN[4:0] = 0(hex)

DGAIN[11:0] = FFF(hex)

DGAIN[11:0] = 400 (hex)

AGAIN[4:0] = 1F(hex)

DGAIN[11:0] = FFF(hex)

AGAIN[4:0] = 0(hex)

DGAIN[11:0] = 400 (hex)

TYP

0.12

2.0

0.18

3.0

10

20

20

+/-0.5

+/-1

5

15

0.5

+/-0.5

70

23.3

AVDD

1.2

12

+/-1.5

+/-4

2.5

210

12

0.6 + 0.3 * AGAIN[4:0]

8.00 9.9 11.43

0.44 0.6

DGAIN[11:0] / 2

11

0.77

2

0.5

19.8

0.3

16

MAX

70

MSPS

Vp-p

Vp-p

Vp-p

Vp-p

V

V pF mV mV

LSB

LSB

%

%

LSB rms

LSB mV bits

V/V

V/V

V/V

V/V

V/V

V/V

V/V

V/V bits

MSPS

8 Rev 4.5

WM8235

Test Conditions

AVDD = LDOVDD = DBVDD = 3.3V, AGND = LDOGND = DBGND= 0V, T

A

= 25

C, MCLK= 23.3MHz unless otherwise stated.

PARAMETER SYMBOL TEST

CONDITIONS

MIN TYP MAX UNIT

References

Upper reference voltage

V

REF1C

Lower reference voltage

V

V

V

REF3C

REF2C

REF1C3C

ADCFS=0

ADCFS=1

ADCFS=0

ADCFS=1

ADCFS=0

ADCFS=1

1.14

0.72

1.00

2.05

2.25

1.25

1.05

1.2

0.8

1.2

1

1.26

0.88

1.35

V

V

V

V

V

V

V



Input return bias voltage

Diff. Reference voltage

(VREF1C-VREF3C)

Output resistance

VREF1C, VREF3C, VREF2C

VRLC/Reset-Level Clamp (RLC)

VRLC input voltage range

(see Note 2)

RLC switching impedance

RLC short-circuit current

RLC output resistance

RLC Hi-Z leakage current

RLCDAC resolution

RLCDAC step size

RLCDAC output voltage at code 0(hex)

RLCDAC output voltage at code 1F(hex)

V

V

V

VRLC

RLCSTEP

RLCBOT

RLCTOP

SF_INP=0

SF_INP=1

VRLC = 0 to AVDD

VRLC_TOP_SEL=0

VRLC_TOP_SEL=1

VRLC_TOP_SEL=0,

VRLC_VSEL[4:0]=00000

VRLC_TOP_SEL=1,

VRLC_VSEL[4:0]=00000

VRLC_TOP_SEL=0,

VRLC_VSEL[4:0]=11111

VRLC_TOP_SEL=1,

VRLC_VSEL[4:0]=11111

0.11

0.11

50

2

2

5

0.09

0.048

0.2

0.11

3.0

1.6

0.5

0.5

3.0

1.2

1

V

 mA

A bits

V/step

V

V

V

V

LSB

LSB

VRLC DNL

VRLC INL

Offset DAC, Monotonicity Guaranteed

Resolution

Differential non-linearity DNL

Integral non-linearity

Step size

Output voltage

INL

Code 00(hex)

Code FF(hex)

-400

+100

8

0.5

0.5

2.04

-250

+250

1

1

-100

+400 bits

LSB

LSB mV/step mV mV

DIGITAL SPECIFICATIONS

Digital Inputs

High level input voltage

Low level input voltage

V

V

IH

IL

0.7

AVDD

V

V

High level input current

Low level input current

Input capacitance

I

I

IH

IL

C

I

5

0.2

AVDD

1

1

A

A pF

Rev 4.5

9

WM8235

Test Conditions

AVDD = LDOVDD = DBVDD = 3.3V, AGND = LDOGND = DBGND= 0V, T

A

= 25

C, MCLK= 23.3MHz unless otherwise stated.

PARAMETER SYMBOL TEST

CONDITIONS

MIN TYP MAX UNIT

CMOS Outputs

High level output voltage

Low level output voltage

High impedance output current

TG Outputs

High level output voltage

V

OH

V

OL

I

OZ

I

OH

= 6mA

I

OL

= 1mA

AVDD

– 0.5

0.5

1

V

V

A

Low level output voltage

High impedance output current

Digital IO Pins

Applied high level input voltage

V

OHTG

V

OLTG

I

OZTG

I

OH

= 1mA

I

OL

= 1mA

Grounded

AVDD

– 0.5

0.5

1

V

V

A

Applied low level input voltage

V

IH

V

IL

0.7

AVDD

0.2

AVDD

V

V

High level output voltage

Low level output voltage

Low level input current

High level input current

Input capacitance

Output Impedance

High impedance output current

LVDS Outputs

Differential load impedance

Differential steady-state output voltage magnitude

Change in the steady-state differential output voltage magnitude between opposite binary states

Steady-state common-mode output voltage

Peak-to-peak common-mode output

Short-circuit output current

High-impedance state output current

Supply Currents

Total supply current

active

V

OH

V

OL

I

IL

I

IH

C

I

R

O

I

OZ

R

L

|V

OD

|

Δ|V

OD

|

V

OC

(SS)

V

OC

(PP)

I

OS

I

OZ

I

OH

= 1mA

I

OL

= 1mA

I

O

= 1mA

LVDS_AMP=011,

R

L

=100Ω

R

L

=100Ω

R

L

=100Ω

AVDD

– 0.5

90

–6

–10

5

38

100

200

1.25

20

0.5

1

1

1

110

15

50

6

10

V

V

A

A pF

A

Ω mV mV

V mV mA uA

SF_INP=0, SF_VRLC=0 390 mA

SF_INP=1, SF_VRLC=1 440 mA

Total supply current

full power down mode

1.2 mA

Notes:

1. Full-scale input voltage denotes the differential input signal amplitude (V

IN

-VRLC in non-CDS mode, V

IN

-RESET level in

CDS mode) that corresponds to the ADC full-scale input level.

2. If AVDD < 3.0V, the VRLC input voltage must not exceed AVDD.

10 Rev 4.5

WM8235

INTERNAL POWER ON RESET CIRCUIT

AVDD

VDD

LDOOUT

T

Power On Reset

Circuit

GND

INTERNAL PORB

AGND

Figure 1 Internal Power On Reset Circuit Schematic

The WM8235 includes an internal Power-On-Reset Circuit, as shown in Figure 1, which is used reset the digital logic into a default state after power up. The POR circuit is powered from AVDD and monitors LDOOUT. It asserts PORB low if AVDD or LDOOUT is below a minimum threshold.

LDOOUT

LDOGND

V pord_on

AVDD

V pora

AGND

HI

INTERNAL PORB

LO

No Power

POR

Undefined

Internal

POR active

Device Ready

V pora_off

Internal POR active

Figure 2 Typical Power up Sequence where AVDD is Powered before LDOOUT

Figure 2 shows a typical power-up sequence where AVDD is powered up first. When AVDD rises above the minimum threshold, Vpora, there is enough voltage for the circuit to guarantee PORB is asserted low and the chip is held in reset. In this condition, all writes to the control interface are ignored. When LDOOUT rises to Vpord_on, PORB is released high and all registers are in their default state and writes to the control interface may take place. On power down, where AVDD falls first, PORB is asserted low whenever AVDD drops below the minimum threshold Vpora_off.

SYMBOL

Vpora

Vpora_off

Vpord_on

MIN

0.4

0.4

0.5

TYP

0.6

0.6

0.7

MAX

0.8

0.8

0.9

Table 1 Typical POR Operation (typical values, not tested)

UNIT

V

V

V

Rev 4.5

11

WM8235

SIGNAL TIMING REQUIREMENTS

SERIAL CONTROL INTERFACE

t

CSU t

CHO

SEN

(input) t

SCY

SCK

(input) t

SCH t

SCL

SDI

(input) t

DSU t

DHO

SDO

(output) t

DL

Figure 3 Serial Interface Timing

PARAMETER

SEN falling edge to SCK rising edge

SCK falling edge to SEN rising edge

SCK pulse cycle time

SCK pulse width low

SCK pulse width high

SDI to SCK set-up time

SDI to SCK hold time

SCK falling edge to SDO transition

SYMBOL

t

CSU t

CHO t

SCY t

SCL t

SCH t

DSU t

DHO t

DL

TEST CONDITIONS MIN

20

20

83.3

33

33

20

20

TYP MAX

33

UNITS

ns ns ns ns ns ns ns ns

The internal control registers are programmable via the serial digital control interface. The register contents can be read back via the serial interface on pin SDO.

It is recommended that a software reset is carried out after the power-up sequence, before writing to any other register. This ensures that all registers are set to their default values.

DEVICE IDENTIFICATION

Up to 4 WM8235 devices can share a common set of serial interface pins. Each device on the common interface bus must be given a different device ID. The device ID is set by the input pin

DSLCT2 and DSLCT1as shown in Table 2.

DSLCT2 DSLCT1

L

L

H

H

L

H

L

H

Table 2 Device Identification

DEVICE ID

(ID[1:0])

00

01

10

11

12 Rev 4.5

WM8235

REGISTER WRITE

Figure 4 shows sequence of operations for performing a register write. Three pins, SCK, SDI and

SEN are used for the control interface. A 16-bit address (R/W, CS0, CS1, CS2, A11 to A0) is clocked in through SDI, MSB first, followed by an 8

–bit data word (b7 to b0), also MSB first. Setting address bit R/W to 0 indicates that the operation is a register write. The device ID bits (CS0 and CS1) indicate which device is being written to on a shared control bus. A register write with CS2 set to 1 writes data to all devices on the common bus. Each bit is latched on the rising edge of SCK. When the data has been shifted into the device, a rising edge on the SEN pin transfers the data to the appropriate internal register.

DESCRIPTION CS2

0

1

CS1

(DSLCT2)

ID[1:0]

CS0

(DSLCT1)

X

Table 3 Device Identification

X

Indicated a device to write data

Writes data to all devices

SEN

SCK

SDI

0 CS2

CS0 A11 A2 A1 A0 B7 B6 B5 B2 B1 B0

R/W

3bit device ID 12-bit Control register address 8-bit control register data

Figure 4 Serial Interface Register Write

REGISTER READ-BACK

Figure 5 shows register read-back in serial mode. Read-back is initiated by writing to the serial bus as

described above but with address bit R/W set to 1, followed by an 8-bit dummy data word. Writing address (A11 to A0) will cause the contents (B7 to B0) of corresponding register in the addressed device to be output MSB first on pin SDO (on the following edge of SCK). In this mode, the CS2 register should be set to 0.

SEN

SCK

SDI

SDO

1

R/W

0

3bit device ID

CS0 A11

Hi-Z

A2 A1 A0 X

X: Don’t care

X X

B7 B6 B5

12-bit Read back register address 8-bit outputl register data

X X X

B2 B1 B0

Hi-Z

Figure 5 Serial Interface Register Read-back

Rev 4.5

13

INPUT VIDEO SAMPLING

NON-CDS (S/H) MODE

tMCLKD tPER

MCLK (input)

Input Video (Input)

VSMP_RISE[5:0]

VSMP_FALL[5:0]

VSMP (Internal) tVSMPH tMCLKH tMCLKL tVSMPD

Figure 6 Input Video Timing (non-CDS (S/H) mode)

CDS MODE

t

MCLKD

MCLK (input) t

PER

Input Video (Input)

RSMP (Internal) t

RSMPD

RSMP_RISE[5:0]

RSMP_FALL[5:0] t

RSMPH

VSMP_RISE[5:0]

VSMP_FALL[5:0] t

VSMPH

VSMP (Internal) t

MCLKH t

MCLKL t

VSMPD

WM8235

Figure 7 Input Video Timing (CDS mode)

14 Rev 4.5

WM8235

Test Conditions

AVDD = LDOVDD = DBVDD = 3.3V, AGND = LDOGND = DBGND= 0V, T

A

= 25

C, MCLK= 23.3MHz unless otherwise stated.

PARAMETER

MCLK cycle period (see note 2)

MCLK high period (see note 2)

MCLK low period (see note 2)

MCLK rising edge to DLL tap 0

Aperture delay

(from RSMP falling edge)

Aperture delay

(from VSMP falling edge)

RSMP high period

VSMP high period

REGISTER

ADDRESS

R130 (82h)

RSMP rise

R131 (83h)

RSMP fall

R132 (84h)

VSMP rise

R133 (85h)

VSMP fall

BIT

5:0

5:0

5:0

5:0

LABEL

SYMBOL

t t

PER t

MCLKH t

MCLKL t

MCLKD t

RSMPD

VSMPD

RSMP_RISE[5:0]

RSMP_FALL[5:0]

VSMP_RISE[5:0]

VSMP_FALL[5:0]

TEST CONDITIONS

DEFAULT

01_1100

10_0110

00_1000

10_1000

MIN

42.9 t t

RSMPH

VSMPH

5

5

RSMP falling edge to VSMP rising edge

VSMP falling edge to RSMP rising edge

Output data latency

(from 1 st

falling edge of VSMP)

Notes:

tRV tVR

LAT

LVDS 10-bit 5pair mode

Other output modes

0.5

0.5

7

6

1. 1clock = t

PER

(MCLK cycle period)

2. MCLK cycle period and MCLK high/low period are measured at 50% of the respective rising/falling edges

8 * t

PER

/60

DESCRIPTION

RSMP rise edge (0 to 59)

RSMP fall edge (0 to 59)

VSMP rise edge (0 to 59)

VSMP fall edge (0 to 59)

TYP

5

5

MAX

200

0.4 * t

PER

0.5 * t

PER

0.6 * t

PER

0.4 * t

PER

0.5 * t

PER

0.6 * t

PER

20

UNITS

ns ns ns ns ns ns ns ns ns ns clock clock

Rev 4.5

15

OUTPUT DATA TIMING (CMOS OUTPUT)

t

SKOP

OP[10:0]

(Output)

WM8235

OC1

(Output)

Figure 8 CMOS Output Data Timing

Test Conditions

AVDD = LDOVDD = DBVDD = 3.3V, AGND = LDOGND = DBGND= 0V, T

A

= 25

C, MCLK= 23.3MHz unless otherwise stated.

PARAMETER

Data output skew

SYMBOL

t

SKOP

TEST CONDITIONS MIN TYP

+/-500

MAX UNITS

ps

OUTPUT DATA TIMING (LVDS OUTPUT)

t

SKLV t

SKLV

D1,D2,D3

D4,D5

80%

DCLK

20% t

LVTf t

LVTr

Figure 9 CMOS Output Data Timing

Test Conditions

AVDD = LDOVDD = DBVDD = 3.3V, AGND = LDOGND = DBGND= 0V, T

A

= 25

C, MCLK= 15MHz unless otherwise stated.

PARAMETER

LVDS output skew

LVDS output signal rise time

LVDS output signal fall time

SYMBOL

t

SKLV t

LVTr t

LVTf

TEST CONDITIONS MIN TYP

+/-250

MAX

1

1

UNITS

ps ns ns

16 Rev 4.5

WM8235

DEVICE DESCRIPTION

INTRODUCTION

A block diagram of the device showing the signal path is presented on the front page of this datasheet.

The WM8235 samples up to nine inputs (IN1, IN2, IN3, IN4, IN5, IN6, IN7, IN8 and IN9) simultaneously. The device then processes the sampled video signal with respect to the video reset level or an internally/externally generated reference level using between one and nine processing channels.

Each processing channel consists of an Input Sampling block with optional Reset Level Clamping

(RLC) and Correlated Double Sampling (CDS), an 8-bit programmable offset DAC and a 12-bit

Programmable Gain Amplifier (PGA).

The processing channel outputs are switched, in pairs, alternately by a 3:1 multiplexer to the three

ADC inputs.

The ADC then converts each resulting analogue signal to a digital word. The digital output from the

ADC is presented in a variety of possible output formats in LVDS and CMOS format.

On-chip control registers determine the configuration of the device, including the offsets and gains applied to each channel. These registers are programmable via a serial interface.

The device has an automatic Black-Level Calibration function which allows the D.C. offset determined during the optically-black pixels at the beginning of the linear sensor to be removed during the imagepixels.

The WM8235 also has an Automatic Gain Control function which automatically adjusts the gain to an appropriate level for a detected input level.

The device incorporates a sensor timing generation function which allows CCD and CMOS sensor timing to be controlled directly from the device using internal clock generation and register settings.

RESET LEVEL CLAMPING (RLC)

To ensure that the signal applied to the WM8235 lies within the supply voltage range (0V to AVDD), the output signal from a CCD is usually level shifted by coupling through a capacitor, C

IN.

The RLC circuit clamps the WM8235 side of this capacitor to a suitable voltage through a CMOS switch during the CCD reset period (pixel clamping) or during the black pixels (line clamping). In order for clamping to produce correct results the input voltage during the clamping must be a constant value.

Note that if the A.C. coupling capacitor (C

IN

) is used in non-CDS mode (CDS=0), then to minimise code drift, line clamping should be used and internal input voltage buffers enabled using the SF_INP and SF_VRLC register bit.

Alternatively, if the input signal contains a stable reference/reset level in CDS mode, then pixel clamping should be used (CLPMD=1), and the voltage buffers need not be enabled. Note that the pixel clamping is used only CDS mode (CDS=1).

The WM8235 allows the user to control the RLC switch in a variety of ways as illustrated in Figure 10 .

This figure shows a single channel; however, all 9 channels are identical, each with its own clamp switch controlled by the common CLMP signal.

The method of control chosen depends upon the characteristics of the input video. The VRLCEN register bit must be set to 1 to enable clamping; otherwise, the RLC switch cannot be closed (by default VRLCEN=1).

Note that unused inputs should be grounded through a decoupling capacitor, if reset level clamping is used.

Rev 4.5

17

WM8235

C

IN

IN*

VSMP 'Video' sample capacitor

CONTROL

INTERFACE

CLAMP

RLC switch

VSMP (if CDS=0)

RSMP (if CDS=1)

CLAMP

VSMP

VSMP (if CDS=0)

RSMP (if CDS=1)

'Reference' sample capacitor

VRLC/

VBIAS

5-BIT

RLCDAC

VRLC_VSEL[4:0]

VRLCEN

Figure 10 RLC Clamp Control Options

In CDS operation, when an input waveform has a stable reference level on every pixel, it may be desirable to clamp every pixel during this period. Setting CLAMP=high means that the RLC switch is

closed whenever the RSMP is high, as shown in Figure 11.

In non-CDS operation, setting CLAMP=high means that the RLC switch is closed whenever the

VSMP is high, as shown in Figure 12.

reference

("black") level video level

INPUT VIDEO

SIGNAL

Pixel counter

VSMP

RSMP

CLAMP

RLC switch control

"CLAMP"

Video sample taken on fallling edge of VSMP

Reset/reference sample taken on fallling edge of RSMP

RLC switch closed when RSMP=1

Figure 11 Line Clamp Operation, CDS operation shown

INPUT VIDEO

SIGNAL

Pixel counter

VSMP

CLAMP

RLC switch control

"CLAMP"

Video sample taken on fallling edge of VSMP video level

RLC switch closed when VSMP=1

Figure 12 Line Clamp Operation, non-CDS operation shown

18 Rev 4.5

WM8235

CDS/NON-CDS PROCESSING

For CCD type input signals, containing a fixed reference/reset level, the signal may be processed using Correlated Double Sampling (CDS), which will remove pixel-by-pixel common mode noise. With

CDS processing, the input waveform is sampled at two different points in time for each pixel, once during the reference/reset level and once during the video level. To sample using CDS, register bit

CDS must be set to 1 (default = 0). This causes the signal reference to come from the video

reference level as shown in Figure 13.

For input signals that do not contain a reference/reset level (e.g. CIS sensor signals), non-CDS processing is used (CDS=0). In this case, the video level is processed with respect to the voltage on pin VRLC/VBIAS. The VRLC/VBIAS voltage is sampled during VSMP low period in this mode. Note that if the A.C. coupling capacitor (C

IN

) is used in non-CDS mode (CDS=0), then to minimise code drift, line clamping should be used and internal input voltage buffers enabled using the SF_INP and

SF_VRLC registers. Alternatively, if the input signal contains a stable reference/reset level, then pixel clamping should be used, and the voltage buffers need not be enabled.

C

IN

IN*

VRLC/

VBIAS

CLAMP

RLC switch

VSMP

VSMP (if CDS=0)

RSMP (if CDS=1)

'Video' sample capacitor

CONTROL

INTERFACE

CLAMP

VSMP

VSMP (if CDS=0)

RSMP (if CDS=1)

'Reference' sample capacitor

5-BIT

RLCDAC

VRLC_VSEL[4:0]

VRLCEN

Figure 13 CDS/non-CDS Input Configuration

Rev 4.5

19

WM8235

OFFSET ADJUST AND PROGRAMMABLE GAIN

The output from the CDS block is a differential signal, which is added to the output of an 8-bit Offset

DAC to compensate for offsets and then amplified by a 12-bit PGA. The gain and offset for each channel are independently programmable by writing to control bits DACINP[7:0] for the Offset DAC, and AGAIN[4:0] and DGAIN[11:0] for the PGA.

The gain characteristic of the WM8235 PGA is shown in Figure 14.

9.9

7.8

5.4

9.9V/V

32step

1.99

APGA = 0.6 + 0.3 * AGAIN[4:0]

DPGA = DGAIN[11:0] / 2^11

Total Gain Range

0.3V/V APGA*DPGA 19.8V/V

1.99V/V

3.0

3072 step

1.0

0.6

0 8 16 24

GAIN CODE (AGAIN[4:0])

Figure 14 PGA Gain Characteristic

31

0.6V/V 0.5

1024 2048 3072

GAIN CODE (DGAIN[11:0])

4095

0.5V/V

ADC INPUT BLACK LEVEL ADJUST

The output from the PGA can be offset to match the full-scale range of the differential ADC

(1.5*[VREF1C-VREF3C]).

For negative-going input video signals, a black level (zero differential) output from the PGA should be offset to the top of the ADC range by setting register bits PGAFS=0. For positive going input signals the black level should be offset to the bottom of the ADC range by setting PGAFS=1.

PGAFS= 0, PGA gain=0.9V/V, Offset = 0V

Output code

= (V

RLC

- V

IN

) * Gain * 65535/(1.5*[VREF1C-VREF3C])

VRLC/VBIAS

PGAFS= 1, PGA gain=0.9V/V, Offset = 0V

Output code

= (V

IN

- V

RLC

) * Gain * 65535/(1.5*[VREF1C-VREF3C])

V

IN

(INPx)

1.33V

or

2.0V

1.33V

or

2.0V

OP=0 OP=32768

V

IN

(INPx)

OP=65535 OP=0 OP=32768

VRLC/VBIAS

OP=65535

Figure 15 ADC Input Black Level Adjust Settings

20 Rev 4.5

OVERALL SIGNAL FLOW SUMMARY

Figure 16 represents the processing of the video signal through the WM8235.

WM8235

V

IN

V

RESET

CDS = 1

INPUT

SAMPLING

BLOCK

V

1

+

-

INPUT

INVERT

BLOCK

V1=V1 if PGAFS = 1

V1= -V1 if PGAFS = 0

CDS = 0

V

VRLC

OFFSET DAC

BLOCK

V

2

+

-

PGA

BLOCK

V

3

X analog

APGA gain

A= 0.6+0.3*AGAIN[4:0]

Offset

DAC

250mV*(DAC[7:0]-127.5)/127.5

VRLCEN=0 VRLCEN=1

ADC BLOCK

16bits

D

1

digital

RLC

DAC

See parametrics for

DAC voltages.

V

IN

is IN*

V

RESET

is V

IN

sampled during reset clamp

V

RLC

is voltage applied to VRLC/VBIAS pin

Figure 16 Overall Signal Flow

The INPUT SAMPLING BLOCK produces an effective input voltage V

1

. For CDS, this is the difference between the input video level V

IN

and the input reset level V

RESET

. For non-CDS this is the difference between the input video level V

IN

and the voltage on the VRLC/VBIAS pin, V

VRLC

, optionally set via the RLC DAC.

The OFFSET DAC BLOCK then adds the amount of fine offset adjustment required to move the black level of the input signal towards 0V, producing V

2

.

The PGA BLOCK then amplifies the white level of the input signal to maximise the ADC range, outputting voltage V

3

.

The ADC BLOCK then converts the analogue signal, V

3

, to a 16-bit unsigned digital output, D

1

.

Rev 4.5

21

WM8235

ADC PGA BIAS CURRENT CONTROL

The WM8235 can be changed the bias current for PGA and ADC comparator as the following step. It would be effective for high frequency operation.

1. R1C0h=1

2. R1CBh=11h

REGISTER

ADDRESS

R448 (1C0h)

User access control2

BIT

0

LABEL

User_KEY2

DEFAULT

0 0 = User access2 disabled

1 = User access2 enabled

DESCRIPTION

REGISTER

ADDRESS

R459 (1CBh)

Comp control

BIT

1:0

LABEL

PT_COMP

DEFAULT

01

DESCRIPTION

01 = Standard operation

11 = High performance operation

Other = Inhibit.

Notes:

1.

2.

To change the Comp control, the USER_KEY2 bit must be set to ‘1’.

If it’s not required to change this register, must be set as default.

22 Rev 4.5

WM8235

PLL DLL SETUP

WM8235 is supporting wide range of input frequency. PLL_EXDIV_SEL[2:0], LVDLGAIN[1:0] and

DLGAIN[1:0] must be configured by MCLK clock rate and data output format.

Note that after PLL and DLL configuration, the device must be reset as the following step.

R03[1:0]=11 (PDMD=1, PD=1)

Delay 1ms

R03[1:0]=00 (Normal operation)

Also, several LVDS operation mode is required to change internal LDO configuration to perform

LVDS clocking properly. The following register need to set to change the LDO configuration.

R1B0h=1

R1B4h=12h

17.5

~

23.3

15.0

~

17.49

12.0

~

14.99

10.0

~

11.99

8.33

~

9.99

7.5

~

8.32

5.0

~

7.49

000 000 001 001

WM8235

CMOS 10 bit

LVDS 5pair 10bit

LVDS 5pair 16bit

LVDS 3pair 10bit

LVDS 4pair 12bit

LVDS 3pair 16bit

Max sample rate

10MHz

23.3MHz

15.56MHz

14.0MHz

7.0MHz

MCLK Clock rate

[MHz]

PLL_EXDIV_SEL[2:0]

LVDLGAIN[1:0]

DLGAIN[1:0]

LDO setting

PLL_EXDIV_SEL[2:0]

LVDLGAIN[1:0]

DLGAIN[1:0]

LDO setting

PLL_EXDIV_SEL[2:0]

LVDLGAIN[1:0]

DLGAIN[1:0]

LDO setting

PLL_EXDIV_SEL[2:0]

LVDLGAIN[1:0]

DLGAIN[1:0]

LDO setting

PLL_EXDIV_SEL[2:0]

LVDLGAIN[1:0]

DLGAIN[1:0]

LDO setting

10 10 10 10

001 001 001 001 001 010 010

00 00 01 01 01 01 01

01 01

12h 12h

10 10 10 10 10

000 000 000 000 001 001

00

01

00

10

00

10

01

10

01

10

01

10

12h 12h 12h

000 000 000 001 001

00

10

00

10

12h 12h

01

10

01

10

01

10

001

00

10

12h

Table 4 PLL and DLL Setting

Rev 4.5

23

WM8235

REGISTER

ADDRESS

R28 (1Ch)

PLL divider control 1

BIT

6:4

LABEL

PLL_EXDIV_

SEL[2:0]

DEFAULT

001

DESCRIPTION

Select EX DIV ratio.

Need to set according to input frequency. See Table 4.

000 = 1

001 = 2

010 = 4

011 = 8

100 = 16

101 to 111 = reserved.

REGISTER

ADDRESS

R128 (80h)

DLL config 1

BIT

5:4

LABEL

DLGAIN[1:0]

DEFAULT

10

DESCRIPTION

gain control of DLL delay line

Need to set according to input frequency. See Table 4.

REGISTER

ADDRESS

R129 (81h)

DLL config 2

BIT

5:4

LABEL

LVDLGAIN[1:0]

DEFAULT

01

DESCRIPTION

gain control of LVDS DLL delay line

Need to set according to input frequency. See Table 4.

REGISTER

ADDRESS

R432 (1B0h)

User access control

BIT

0

LABEL

USER_KEY

DEFAULT

0 0 = User access disabled

1 = User access enabled

REGISTER

ADDRESS

R436 (1B4h)

LDO2 control

BIT

4:0

LABEL

LDO2 VSEL

DEFAULT

1_0000 1_0000 = 1.8V

1_0010 = 2.0V

Notes:

1.

2.

To change the LDO2 control, the USER_KEY bit must be set to ‘1’.

If it’s not required to change this register, it must be set as default.

DESCRIPTION

DESCRIPTION

24 Rev 4.5

WM8235

OUTPUT DATA FORMAT

The output from the WM8235 can be presented in several different formats under control of the

CMOSMODE and the LVDSMODE register. Depending on the output modes, maximum MCLK rate is different as sown in Table 5.

MODES DESCRIPTION

1

2

3

4

LVDS 10-bit 5pair

LVDS 16-bit 5pair

LVDS 10-bit 3pair

LVDS 16-bit 3pair

5

6

LVDS 12-bit 4pair

CMOS 10-bit

Table 5 Output Format and Data Rate

OUTPUT

DATA RATE

MCLK x21

MCLK x31.5

MCLK x31.5

MCLK x63

MCLK x31.5

MCLK x9

MAXIMUM

MCLK RATE

23.3MSPS

15.5MSPS

14.0MSPS

7MSPS

14.0MSPS

10MSPS

LVDS 10-BIT 5PAIR MODE

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

MCLK x1

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

ADC1

ADC2

ADC3

MCLK x3 (ADCLK)

IN1

IN4

IN7

IN2

IN5

IN8

IN3

IN6

IN9

MCLK x3 (OCLK)

D5

D4

D3

D2

D1

DCLK

A

H H L L L H H

B

H H L L L H H

MCLK x21 (LVCK)

C

H H L L L H H

A

D5

D4

D3

D2

D1

DCLK

S0

IN1[4]

S4

IN2[6]

IN3[3]

H

S1

IN1[5]

IN2[0]

IN2[7]

IN3[4]

H

S2

IN1[6]

IN2[1]

IN2[8]

IN3[5]

L

IN1[0]

IN1[7]

IN2[2]

IN2[9]

IN3[6]

L

IN1[1]

IN1[8]

IN2[3]

IN3[0]

IN3[7]

L

IN1[2]

IN1[9]

IN2[4]

IN3[1]

IN3[8]

H

IN1[3]

S3

IN2[5]

IN3[2]

IN3[9]

H

Rev 4.5

25

26

WM8235

B

D5

D4

D3

D2

D1

DCLK

S0

IN4[4]

S4

IN5[6]

IN6[3]

H

S1

IN4[5]

IN5[0]

IN5[7]

IN6[4]

H

C

D5

D4

D3

D2

D1

DCLK

S0

IN7[4]

S4

IN8[6]

IN9[3]

H

S1

IN7[5]

IN8[0]

IN8[7]

IN9[4]

H

Table 6 10-bit 5pair LVDS Output Format

S2

IN7[6]

IN8[1]

IN8[8]

IN9[5]

L

S2

IN4[6]

IN5[1]

IN5[8]

IN6[5]

L

IN4[0]

IN4[7]

IN5[2]

IN5[9]

IN6[6]

L

IN7[0]

IN7[7]

IN8[2]

IN8[9]

IN9[6]

L

IN4[1]

IN4[8]

IN5[3]

IN6[0]

IN6[7]

L

IN7[1]

IN7[8]

IN8[3]

IN9[0]

IN9[7]

L

IN4[2]

IN4[9]

IN5[4]

IN6[1]

IN6[8]

H

IN7[2]

IN7[9]

IN8[4]

IN9[1]

IN9[8]

H

IN7[3]

S3

IN8[5]

IN9[2]

IN9[9]

H

LVDS 16-BIT 5PAIR MODE

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

MCLK x1

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

ADC1

ADC2

ADC3

MCLK x3 (ADCLK)

IN1

IN4

IN7

IN2

IN5

IN8

IN3

IN6

IN9

IN1

IN4

IN7

IN3

IN6

IN9

MCLK x4.5 (OCLK)

D5

D4

D3

D2

D1

DCLK

A B C D E A2 D2

H H L L L H H H H L L L H H H H L L L H H H H L L L H H H H L L L H H H H L L L H H H H L L L H H

MCLK x31.5 (LVCK)

A

D5

D4

D3

D2

D1

DCLK

S0

IN1[4]

S1

IN1[5]

S2

IN1[6]

IN1[0]

IN1[7]

IN1[1]

IN1[8]

IN1[11] IN1[12] IN1[13] IN1[14] IN1[15]

IN2[2] IN2[3] IN2[4] IN2[5] IN2[6]

IN2[9]

H

IN1[2]

IN1[9]

IN2[0]

IN2[7]

IN1[3]

IN1[10]

IN2[1]

IN2[8]

IN2[10] IN2[11] IN2[12] IN2[13] IN2[14] IN2[15]

H L L L H H

IN4[3]

S3

IN5[5]

IN6[2]

IN6[9]

H

Rev 4.5

Rev 4.5

WM8235

C

D5

D4

D3

D2

D1

DCLK

B

D5

D4

D3

D2

D1

DCLK

D

D5

D4

D3

D2

D1

DCLK

E

D5

D4

D3

D2

D1

DCLK

A2

D5

D4

D3

D2

D1

DCLK

S0

IN3[4] IN3[5] IN3[6] IN3[7] IN3[8]

IN3[11] IN3[12] IN3[13] IN3[14] IN3[15]

IN4[2]

IN4[9]

H

IN6[9]

H

S0

IN8[2]

IN8[9]

H

S1 S2 IN[0] IN3[1]

S0

IN5[4]

S1

IN5[5]

S2

IN5[6]

IN5[0]

IN5[7]

IN5[1]

IN5[8]

IN5[11] IN5[12] IN5[13] IN5[14] IN5[15]

IN6[2] IN6[3] IN6[4] IN6[5] IN6[6]

IN3[2]

IN3[9]

IN4[0]

IN5[2]

IN5[9]

IN6[0]

IN6[7]

IN3[3]

IN3[10]

IN4[1]

IN4[3] IN4[4] IN4[5] IN4[6] IN4[7] IN4[8]

IN4[10] IN4[11] IN4[12] IN4[13] IN4[14] IN4[15]

H L L L H H

IN5[3]

IN5[10]

IN6[1]

IN6[8]

IN6[10] IN6[11] IN6[12] IN6[13] IN6[14] IN6[15]

H L L L H H

S1

IN7[4] IN7[5] IN7[6] IN7[7] IN7[8]

IN7[11] IN7[12] IN7[13] IN7[14] IN7[15]

IN8[3]

IN8[10]

H

S2

IN8[4]

IN8[11]

L

IN7[0]

IN8[5]

IN8[12]

L

IN7[1]

IN8[6]

IN8[13]

L

IN7[2]

IN7[9]

IN8[0]

IN8[7]

IN8[14]

H

IN7[3]

IN7[10]

IN8[1]

IN8[8]

IN8[15]

H

S0

IN9[4]

S1

IN9[5]

S2

IN9[6]

IN9[0]

IN9[7]

IN9[1]

IN9[8]

IN9[11] IN9[12] IN9[13] IN9[14] IN9[15]

IN1[2] IN1[3] IN1[4] IN1[5] IN1[6]

IN1[9]

H

IN9[2]

IN9[9]

IN1[0]

IN1[7]

IN9[3]

IN9[10]

IN1[1]

IN1[8]

IN1[10] IN1[11] IN1[12] IN1[13] IN1[14] IN1[15]

H L L L H H

S0 S1 S2 IN2[0] IN2[1]

IN2[4] IN2[5] IN2[6] IN2[7] IN2[8]

IN2[11] IN2[12] IN2[13] IN2[14] IN2[15]

IN3[2]

IN3[9]

H

IN3[3]

IN3[10]

H

IN3[4]

IN3[11]

L

IN3[5]

IN3[12]

L

IN3[6]

IN3[13]

L

IN2[2]

IN2[9]

IN3[0]

IN3[7]

IN3[14]

H

IN2[3]

IN2[10]

IN3[1]

IN3[8]

IN3[15]

H

27

28

WM8235

B2

D5

D4

D3

D2

D1

DCLK

S0 S1 S2 IN4[0] IN4[1]

IN4[4] IN4[5] IN4[6] IN4[7] IN4[8]

IN4[11] IN4[12] IN4[13] IN4[14] IN4[15]

IN5[2]

IN5[9]

IN4[2]

IN4[9]

IN5[0]

IN4[3]

IN4[10]

IN5[1]

IN5[3] IN5[4] IN5[5] IN5[6] IN5[7] IN5[8]

IN5[10] IN5[11] IN5[12] IN5[13] IN5[14] IN5[15]

H H L L L H H

C2

D5

D4

D3

D2

D1

DCLK

S0

IN6[4]

S1

IN6[5]

S2

IN6[6]

IN6[0]

IN6[7]

IN6[1]

IN6[8]

IN6[2]

IN6[9]

IN6[3]

IN6[10]

IN6[11] IN6[12] IN6[13] IN6[14] IN6[15]

IN7[2] IN7[3] IN7[4] IN7[5] IN7[6]

IN7[9]

IN7[0]

IN7[7]

IN7[1]

IN7[8]

IN7[10] IN7[11] IN7[12] IN7[13] IN7[14] IN7[15]

H H L L L H H

D2

D5

D4

D3

D2

D1

DCLK

Table 7 16-bit 5pair LVDS Output Format

S0 S1 S2 IN8[0] IN8[1]

IN8[4] IN8[5] IN8[6] IN8[7] IN8[8]

IN8[11] IN8[12] IN8[13] IN8[14] IN8[15]

IN9[2]

IN9[9]

H

IN9[3]

IN9[10]

H

IN9[4]

IN9[11]

L

IN9[5]

IN9[12]

L

IN9[6]

IN9[13]

L

IN8[2]

IN8[9]

IN9[0]

IN9[7]

IN9[14]

H

IN8[3]

IN8[10]

IN9[1]

IN9[8]

IN9[15]

H

LVDS 10-BIT 3PAIR MODE

WM8235

CMOS 10 bit

LVDS 5pair 10bit

LVDS 5pair 16bit

LVDS 3pair 10bit

LVDS 3pair 16bit

Max sample rate MCLK Clock rate

PLL_EXDIV_SEL[2:0]

10MHz

LVDLGAIN[1:0]

DLGAIN[1:0]

23.3MHz

LDO configuration

PLL_EXDIV_SEL[2:0]

LVDLGAIN[1:0]

15.56MHz

DLGAIN[1:0]

LDO configuration

PLL_EXDIV_SEL[2:0]

LVDLGAIN[1:0]

14.0MHz

DLGAIN[1:0]

LDO configuration

PLL_EXDIV_SEL[2:0]

LVDLGAIN[1:0]

7.0MHz

DLGAIN[1:0]

LDO configuration

PLL_EXDIV_SEL[2:0]

LVDLGAIN[1:0]

DLGAIN[1:0]

LDO configuration

23.3

20 18 17.5

15 13.3 12.5

12 10 8.3

7.5

7 5

000 000 001 001 001

10 10 10 10 10

001 001 001 001 001 001 001 001 001 001 010 010 010

00 00 00 00 00 01 01 01 01 01 01 01 01

01 01 01 01 01 10 10 10 10 10 10 10 10

12h 12h 12h 12h 12h

000 000 000 000 000 000 001 001 001

00 00 00 00 00 01 01 01 01

01 10 10 10 10 10 10 10 10

12h 12h 12h 12h 12h

000 000 000 000 000 001 001 001

00 00 00 00 01 01 01 01

10 10 10 10 10 10 10 10

12h 12h 12h 12h

001 001

00 00

10 10

12h 12h

Rev 4.5

Rev 4.5

A

D3

D2

D1

DCLK

B

D3

D2

D1

DCLK

C

D3

D2

D1

DCLK

D

D3

D2

D1

DCLK

E

D3

D2

D1

DCLK

A2

D3

D2

D1

DCLK

B2

D3

D2

D1

DCLK

WM8235

S0

IN1[6]

IN2[3]

H

IN1[0]

IN1[7]

IN2[4]

H

IN1[1]

IN1[8]

IN2[5]

L

IN1[2]

IN1[9]

IN2[6]

L

IN1[3]

IN2[0]

IN2[7]

L

IN1[4]

IN2[1]

IN2[8]

H

IN1[5]

IN2[2]

IN2[9]

H

S0

IN3[6]

IN4[3]

H

IN3[0]

IN3[7]

IN4[4]

H

IN3[1]

IN3[8]

IN4[5]

L

IN3[2]

IN3[9]

IN4[6]

L

IN3[3]

IN4[0]

IN4[7]

L

IN3[4]

IN4[1]

IN4[8]

H

IN3[5]

IN4[2]

IN4[9]

H

S0

IN5[6]

IN6[3]

H

IN5[0]

IN5[7]

IN6[4]

H

IN5[1]

IN5[8]

IN6[5]

L

IN5[2]

IN5[9]

IN6[6]

L

IN5[3]

IN6[0]

IN6[7]

L

IN5[4]

IN6[1]

IN6[8]

H

IN5[5]

IN6[2]

IN6[9]

H

S0

IN7[6]

IN8[3]

H

IN7[0]

IN7[7]

IN8[4]

H

IN7[1]

IN7[8]

IN8[5]

L

IN7[2]

IN7[9]

IN8[6]

L

IN7[3]

IN82[0]

IN8[7]

L

IN7[4]

IN8[1]

IN8[8]

H

IN7[5]

IN8[2]

IN8[9]

H

S0

IN9[6]

IN1[3]

H

IN9[0]

IN9[7]

IN1[4]

H

IN9[1]

IN9[8]

IN1[5]

L

IN9[2]

IN9[9]

IN1[6]

L

IN9[3]

IN1[0]

IN1[7]

L

IN9[4]

IN1[1]

IN1[8]

H

IN9[5]

IN1[2]

IN1[9]

H

S0

IN2[6]

IN3[3]

H

IN2[0]

IN2[7]

IN3[4]

H

IN2[1]

IN2[8]

IN3[5]

L

IN2[2]

IN2[9]

IN3[6]

L

IN2[3]

IN3[0]

IN3[7]

L

IN2[4]

IN3[1]

IN3[8]

H

IN2[5]

IN3[2]

IN3[9]

H

S0

IN4[6]

IN5[3]

H

IN4[0]

IN4[7]

IN5[4]

H

IN4[1]

IN4[8]

IN5[5]

L

IN4[2]

IN4[9]

IN5[6]

L

IN4[3]

IN5[0]

IN5[7]

L

IN4[4]

IN5[1]

IN5[8]

H

IN4[5]

IN5[2]

IN5[9]

H

29

30

WM8235

C2

D3

D2

D1

DCLK

S0

IN6[6]

IN7[3]

H

IN6[0]

IN6[7]

IN7[4]

H

IN6[1]

IN6[8]

IN7[5]

L

D2

D3

D2

D1

DCLK

S0

IN8[6]

IN9[3]

H

IN8[0]

IN8[7]

IN9[4]

H

Table 8 10-bit 3pair LVDS Output Format

IN8[1]

IN8[8]

IN9[5]

L

IN6[2]

IN6[9]

IN7[6]

L

IN8[2]

IN8[9]

IN9[6]

L

IN6[3]

IN7[0]

IN7[7]

L

IN8[3]

IN9[0]

IN9[7]

L

IN6[4]

IN7[1]

IN7[8]

H

IN8[4]

IN9[1]

IN9[8]

H

IN6[5]

IN7[2]

IN7[9]

H

IN8[5]

IN9[2]

IN9[9]

H

LVDS 16-BIT 3PAIR MODE

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

MCLK x1

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

ADC1

ADC2

ADC3

D3

D2

D1

DCLK

MCLK x3 (ADCLK)

IN1

IN4

IN7

MCLK x9 (OCLK)

A B C D E F G H I

H H L L L H H H H L L L H H H H L L L H H H H L L L H H H H L L L H H H H L L L H H H H L L L H H H H L L L H H H H L L L H H

MCLK x63 (LVCK)

IN2

IN5

IN8

IN3

IN6

IN9

A

D3

D2

D1

DCLK

S0 S1 S2 IN1[0] IN1[1]

IN1[4] IN1[5] IN1[6] IN1[7] IN1[8]

IN1[11] IN1[12] IN1[13] IN1[14] IN1[15]

H H L L L

IN1[2]

IN1[9]

S3

H

IN1[3]

IN1[10]

S4

H

B

D3

D2

D1

DCLK

S0

IN2[4]

S1

IN2[5]

S2

IN2[6]

IN2[0]

IN2[7]

IN2[1]

IN2[8]

IN2[11] IN2[12] IN2[13] IN2[14] IN2[15]

H H L L L

IN2[2]

IN2[9]

S3

H

IN2[3]

IN2[10]

S4

H

Rev 4.5

Rev 4.5

WM8235

I

D3

D2

D1

DCLK

S0

IN9[4]

S1

IN9[5]

S2

IN9[6]

IN9[0]

IN9[7]

IN9[1]

IN9[8]

IN9[11] IN9[12] IN9[13] IN9[14] IN9[15]

H H L L L

Table 9 16-bit 3pair LVDS Output Format

IN9[2]

IN9[9]

S3

H

IN9[3]

IN9[10]

S4

H

Note:

A: IN1, B:IN2, C:IN3, D:IN4, E:IN5, F:IN6, G:IN7, H:IN8, I:IN9.

LVDS 12-BIT 4PAIR MODE

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

MCLK x1

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

ADC1

ADC2

ADC3

MCLK x3 (ADCLK)

IN1

IN4

IN7

IN2

IN5

IN8

IN3

IN6

IN9

IN1

IN4

IN7

IN3

IN6

IN9

MCLK x4.5 (OCLK)

D4

D3

D2

D1

DCLK

A B C D E A2 D2

H H L L L H H H H L L L H H H H L L L H H H H L L L H H H H L L L H H H H L L L H H H H L L L H H

MCLK x31.5 (LVCK)

A

D4

D3

D2

D1

DCLK

S0

IN1[6]

S2

IN2[5]

H

IN1[0]

IN1[7]

S3

IN2[6]

H

IN1[1]

IN1[8]

IN2[0]

IN2[7]

L

IN1[2]

IN1[9]

IN2[1]

IN2[8]

L

IN1[3] IN1[4]

IN1[10] IN1[11]

IN2[2]

IN2[9]

L

IN2[3]

H

IN1[5]

S1

IN2[4]

IN2[10] IN2[11]

H

B

D4

D3

D2

D1

DCLK

S0

IN3[6]

S2

IN4[5]

H

IN3[0]

IN3[7]

S3

IN4[6]

H

IN3[1]

IN3[8]

IN4[0]

IN4[7]

L

IN3[2]

IN3[9]

IN4[1]

IN4[8]

L

IN3[3] IN3[4]

IN3[10] IN3[11]

IN4[2]

IN4[9]

L

IN4[3]

H

IN3[5]

S1

IN4[4]

IN4[10] IN4[11]

H

31

32

D

D4

D3

D2

D1

DCLK

C

D4

D3

D2

D1

DCLK

E

D4

D3

D2

D1

DCLK

A2

D4

D3

D2

D1

DCLK

B2

D4

D3

D2

D1

DCLK

C2

D4

D3

D2

D1

DCLK

WM8235

S0

IN5[6]

S2

IN6[5]

H

IN5[0]

IN5[7]

S3

IN6[6]

H

IN5[1]

IN5[8]

IN6[0]

IN6[7]

L

IN5[2]

IN5[9]

IN6[1]

IN6[8]

L

IN5[3] IN5[4]

IN5[10] IN5[11]

IN6[2]

IN6[9]

L

IN6[3]

H

IN5[5]

S1

IN6[4]

IN6[10] IN6[11]

H

S0

IN7[6]

S2

IN8[5]

H

IN7[0]

IN7[7]

S3

IN8[6]

H

IN7[1]

IN7[8]

IN8[0]

IN8[7]

L

IN7[2]

IN7[9]

IN8[1]

IN8[8]

L

IN7[3] IN7[4]

IN7[10] IN7[11]

IN8[2]

IN8[9]

L

IN8[3]

H

IN7[5]

S1

IN8[4]

IN8[10] IN8[11]

H

S0

IN9[6]

S2

IN1[5]

H

IN9[0]

IN9[7]

S3

IN1[6]

H

IN9[1]

IN9[8]

IN1[0]

IN1[7]

L

IN9[2]

IN9[9]

IN1[1]

IN1[8]

L

IN9[3] IN9[4]

IN9[10] IN9[11]

IN1[2]

IN1[9]

L

IN1[3]

H

IN9[5]

S1

IN1[4]

IN1[10] IN1[11]

H

S0

IN2[6]

S2

IN3[5]

H

IN2[0]

IN2[7]

S3

IN3[6]

H

IN2[1]

IN2[8]

IN3[0]

IN3[7]

L

IN2[2]

IN2[9]

IN3[1]

IN3[8]

L

IN2[3] IN2[4]

IN2[10] IN2[11]

IN3[2]

IN3[9]

L

IN3[3]

H

IN2[5]

S1

IN3[4]

IN3[10] IN3[11]

H

S0

IN4[6]

S2

IN5[5]

H

IN4[0]

IN4[7]

S3

IN5[6]

H

IN4[1]

IN4[8]

IN5[0]

IN5[7]

L

IN4[2]

IN4[9]

IN5[1]

IN5[8]

L

IN4[3] IN4[4]

IN4[10] IN4[11]

IN5[2]

IN5[9]

L

IN5[3]

H

IN4[5]

S1

IN5[4]

IN5[10] IN5[11]

H

S0

IN6[6]

S2

IN7[5]

H

IN6[0]

IN6[7]

S3

IN7[6]

H

IN6[1]

IN6[8]

IN7[0]

IN7[7]

L

IN6[2]

IN6[9]

IN7[1]

IN7[8]

L

IN6[3] IN6[4]

IN6[10] IN6[11]

IN7[2]

IN7[9]

L

IN7[3]

H

IN6[5]

S1

IN7[4]

IN7[10] IN7[11]

H

Rev 4.5

WM8235

D2

D4

D3

D2

D1

DCLK

S0

IN8[6]

S2

IN9[5]

H

IN8[0]

IN8[7]

S3

IN9[6]

H

Table 10 12-bit 4pair LVDS Output Format

IN8[1]

IN8[8]

IN9[0]

IN9[7]

L

IN8[2]

IN8[9]

IN9[1]

IN9[8]

L

IN8[3] IN8[4]

IN8[10] IN8[11]

IN9[2]

IN9[9]

L

IN9[3]

H

IN8[5]

S1

IN9[4]

IN9[10] IN9[11]

H

LVDS DATA OUTPUT ORDER

The WM8235 can be presented 2 types of LVDS data output order, Ascending order mode and

Descending order mode as the following.

Ascending Order Mode

10bit 5pair mode

D5 S0

D4

D3

IN1[4]

S4

S1

IN1[5]

IN2[0]

S2

IN1[6]

IN2[1]

IN1[0]

IN1[7]

IN2[2]

IN1[1]

IN1[8]

IN2[3]

IN1[2]

IN1[9]

IN2[4]

IN1[3]

S3

IN2[5]

D2

D1

DCLK

IN2[6] IN2[7] IN2[8] IN2[9] IN3[0] IN3[1] IN3[2]

IN3[3] IN3[4] IN3[5] IN3[6] IN3[7] IN3[8] IN3[9]

H H L L L H H

Decending Order Mode

10bit 5pair mode

D5 S4

D4

D3

IN1[5]

S0

S3

IN1[4]

IN2[9]

S2

IN1[3]

IN2[8]

IN1[9]

IN1[2]

IN2[7]

IN1[8]

IN1[1]

IN2[6]

IN1[7]

IN1[0]

IN2[5]

IN1[6]

S1

IN2[4]

D2

D1

DCLK

IN2[3] IN2[2] IN2[1] IN2[0] IN3[9] IN3[8] IN3[7]

IN3[6] IN3[5] IN3[4] IN3[3] IN3[2] IN3[1] IN3[0]

H H L L L H H

16bit 5pair mode

D5 S0 S1 S2 IN1[0] IN1[1] IN1[2] IN1[3]

D4 IN1[4] IN1[5] IN1[6] IN1[7] IN1[8] IN1[9] IN1[10]

D3 IN1[11] IN1[12] IN1[13] IN1[14] IN1[15] IN2[0] IN2[1]

D2

D1

DCLK

IN2[2] IN2[3] IN2[4] IN2[5] IN2[6] IN2[7] IN2[8]

IN2[9] IN2[10] IN211] IN2[12] IN2[13] IN2[14] IN2[15]

H H L L L H H

10bit 3pair mode

D3

D2

D1

DCLK

S0

IN2[3]

H

IN1[0] IN1[1] IN1[2] IN1[3] IN1[4] IN1[5]

IN1[6] IN1[7] IN1[8] IN1[9] IN2[0] IN2[1] IN2[2]

IN2[4]

H

IN2[5]

L

IN2[6]

L

IN2[7]

L

IN2[8]

H

IN2[9]

H

16bit 3pair mode

D3

D2

S0 S1 S2 IN1[0] IN1[1] IN1[2] IN1[3]

IN1[4] IN1[5] IN1[6] IN1[7] IN1[8] IN1[9] IN1[10]

D1

DCLK

IN111] IN1[12] IN1[13] IN1[14] IN1[15] S3

H H L L L H

S4

H

12bit 4pair mode

D4 S0 IN1[0] IN1[1] IN1[2] IN1[3] IN1[4] IN1[5]

D3

D2

D1

DCLK

IN1[6]

S2

IN2[5]

H

IN1[7]

S3

IN2[6]

H

IN1[8]

IN2[0]

IN2[7]

L

IN1[9] IN1[10] IN1[11]

IN2[1]

IN2[8]

L

IN2[2] IN2[3]

S1

IN2[4]

IN2[9] IN2[10] IN211]

L H H

16bit 5pair mode

D5 S2 S1 S0 IN1[15] IN1[14] IN1[13] IN1[12]

D4 IN1[11] IN1[10] IN1[9] IN1[8] IN1[7] IN1[6] IN1[5]

D3 IN1[4] IN1[3] IN1[2] IN1[1] IN1[0] IN2[15] IN2[14]

D2 IN2[13] IN2[12] IN2[11] IN2[10] IN2[9] IN2[8] IN2[7]

D1 IN2[6] IN2[5] IN2[4] IN2[3] IN2[2] IN2[1] IN2[0]

DCLK H H L L L H H

10bit 3pair mode

D3

D2

D1

DCLK

S0

IN2[6]

H

IN1[9] IN1[8] IN1[7] IN1[6] IN1[5] IN1[4]

IN1[3] IN1[2] IN1[1] IN1[0] IN2[9] IN2[8] IN2[7]

IN2[5]

H

IN2[4]

L

IN2[3]

L

IN2[2]

L

IN2[1]

H

IN2[0]

H

16bit 3pair mode

D3 S4 S3 S2 IN1[15] IN1[14] IN1[13] IN1[12]

D2 IN1[11] IN1[10] IN1[9] IN1[8] IN1[7] IN1[6] IN1[5]

D1

DCLK

IN1[4] IN1[3] IN1[2] IN1[1] IN1[0]

H H L L L

S1

H

S0

H

12bit 4pair mode

D4 S3 IN1[11] IN1[10] IN1[9] IN1[8] IN1[7] IN1[6]

D3

D2

D1

DCLK

IN1[5]

S1

IN2[6]

H

IN1[4]

S0

IN2[5]

H

IN1[3]

L

IN1[2]

L

IN1[1]

IN2[11] IN2[10] IN2[9]

IN2[4] IN2[3] IN2[2]

L

IN1[0]

IN2[8]

IN2[1]

H

S2

IN2[7]

IN2[0]

H

Rev 4.5

33

WM8235

REGISTER

ADDRESS

R7 (07h) output

control

BIT

3

LABEL DEFAULT DESCRIPTION

LVDSORDER 0 control LVDS data output order

0 = descending order

1 = ascending order

LVDS SYNCHRONOUS OUTPUT

The LVDS synchronous output function can be used in LVDS 16-bit 5pair mode, 10-bit 3pair mode and 12-bit 4 pair mode. In these LVDS output mode, the output data packet cycle is not same as

MCLK clock period, so that the output data at pixel counter = 0 will not be same format when the line length is odd number.

If OUTSYNC = 1, the LVDS output format will be synchronized to pixel counter = 0.

When the line length is even number, the output data at pixel counter = 0 will be always same format, so that the OUTSYNC is invalid. Also, the OUTSYNC is invalid in other LVDS and CMOS format. The following shows detailed information of this mode.

Odd number line length

In odd number line length operation, the output data at pixel counter = 0 will not be same format as

shown in Figure 17. When set the OUTSYNC register, the LVDS output format will be synchronized to pixel counter = 0 as shown in Figure 18 below.

Odd number line length, OUTSYNC = 0

Line 0

Pix counter

0 1 2

LVDS data output

A B C D E

A

2

B

2

C

2

D

2

A B C D E

Line 1

1

Line 2

Last pixel 0 2 Last pixel 0 1

D

2

A B C D E

A

2

B

2

C

2

D

2

A B C D E

A

2

B

2

C

2

D

2

A E

A

2

B

2

C

2

D

2

A B C D E

A

2

B

2

C

2

D

2

Figure 17 LVDS output data cycle (odd number line length, OUTSYNC=0)

Odd number line length, OUTSYNC = 1

Line 0

Pix counter

0 1 2 Last pixel 0

Line 1

1 2 Last pixel 0

Line 2

1

LVDS data output

A B C D E

A

2

B

2

C

2

D

2

A B C D E

D

2

A B C D E A B C D E

A

2

B

2

C

2

D

2

A B C D E

D

2

A B C D A B C D E

A

2

B

2

C

2

D

2

Figure 18 LVDS output data cycle (odd number line length, OUTSYNC=1)

Even number line length

When the line length is even number, the output data at pixel counter = 0 will be always same format, so that the OUTSYNC is invalid.

Even number line length (OUTSYNC is invalid)

Line 0

Pix counter

0 1 2

LVDS data output

A B C D E

A

2

B

2

C

2

D

2

A B C D E

Line 1

1 Last pixel 0 2

E

A

2

B

2

C

2

D

2

A B C D E

A

2

B

2

C

2

D

2

A B C D E

Line 2

Last pixel 0 1

E

A

2

B

2

C

2

D

2

A B C D E

A

2

B

2

C

2

D

2

Figure 19 LVDS output data cycle (even number line length)

34 Rev 4.5

WM8235

CMOS OUTPUT MODE

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

ADC1

ADC2

ADC3

MCLK x3 (ADCLK)

IN1

IN4

IN7

MCLK x9 (OCLK)

OP9

OP8

OP7

OP6

OP5

OP4

OP3

OP2

OP1

OP0

MCLK x9 (OC1)

A

OP9

OP8

OP7

OP6

OP5

OP4

OP3

OP2

OP1

OP0

IN1[9]

IN1[8]

IN1[7]

IN1[6]

IN1[5]

IN1[4]

IN1[3]

IN1[2]

IN1[1]

IN1[0]

IN2[9]

IN2[8]

IN2[7]

IN2[6]

IN2[5]

IN2[4]

IN2[3]

IN2[2]

IN2[1]

IN2[0]

Table 11 10-bit CMOS Output Format

IN3[9]

IN3[8]

IN3[7]

IN3[6]

IN3[5]

IN3[4]

IN3[3]

IN3[2]

IN3[1]

IN3[0]

IN4[9]

IN4[8]

IN4[7]

IN4[6]

IN4[5]

IN4[4]

IN4[3]

IN4[2]

IN4[1]

IN4[0]

IN5[9]

IN5[8]

IN5[7]

IN5[6]

IN5[5]

IN5[4]

IN5[3]

IN5[2]

IN5[1]

IN5[0]

MCLK x1

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

IN2

IN5

IN8

A

IN6[9]

IN6[8]

IN6[7]

IN6[6]

IN6[5]

IN6[4]

IN6[3]

IN6[2]

IN6[1]

IN6[0]

IN7[9]

IN7[8]

IN7[7]

IN7[6]

IN7[5]

IN7[4]

IN7[3]

IN7[2]

IN7[1]

IN7[0]

IN3

IN6

IN9

IN8[9]

IN8[8]

IN8[7]

IN8[6]

IN8[5]

IN8[4]

IN8[3]

IN8[2]

IN8[1]

IN8[0]

IN9[9]

IN9[8]

IN9[7]

IN9[6]

IN9[5]

IN9[4]

IN9[3]

IN9[2]

IN9[1]

IN9[0]

CLOCK TIMING CONFIGURATION

The RSMP signal, VSMP signal and clock output from CLK pin are generated internally by 60 tap

DLL circuit. The rising and falling timing of each clock is set by DLL tap setting. The following setting and timing chart shows example configuration for RSMP, VSMP and CLK1.

RSMP: 0x82(RSMP_RISE)=0x07(dec7), 0x83(RSMP_FALL)=0x10(dec16)

VSMP: 0x84(VSMP_RISE)=0x1C(dec28), 0x85(VSMP_FALL=0x29(dec41)

CLK1: 0x87(CLK1_RISE)=0x39(dec57), 0x88(CLK1_FALL)=0x0B(dec11)

Rev 4.5

35

MCLK (input) tMCLKD

Tap 0 tPER/60

7 16 tPER

RSMP

28

VSMP

57 11

CLK1

DLL TAP

59 0 1 2 30

Figure 20 Example of Clock Timing configuration

REGISTER

ADDRESS

R130 (82h) RSMP rise

R131 (83h) RSMP fall

R132 (84h)

VSMP rise

R133 (85h)

VSMP fall

R134 (86h)

TGCKO rise

R135 (87h)

CLK1 rise

R136 (88h)

CLK1 fall

R137 (89h)

CLK2 rise

R138 (8Ah)

CLK2fall

R139 (8Bh)

CLK3 rise

R140 (8Ch)

CLK3 fall

R141 (8Dh)

CLK4 rise

R142 (8Eh)

CK4 fall

R143 (8Fh)

CLK5 rise

R144 (90h)

CLK5 fall

R145 (91h)

CLK6 rise

R146 (92h)

CLK6 fall

BIT

5:0

5:0

5:0

5:0

5:0

5:0

5:0

5:0

5:0

5:0

5:0

5:0

5:0

5:0

5:0

5:0

5:0

LABEL

RSMP_RISE

[5:0]

RSMP_FALL

[5:0]

VSMP_RISE

[5:0]

VSMP_FALL

[5:0]

TCLKO_RISE

[5:0]

CLK1_RISE[5:0]

CLK1_FALL[5:0]

CLK2_RISE[5:0]

CLK2_FALL[5:0]

CLK3_RISE[5:0]

CLK3_FALL[5:0]

CLK4_RISE[5:0]

CK4_FALL[5:0]

CLK5_RISE[5:0]

CLK5_FALL[5:0]

CLK6_RISE[5:0]

CLK6_FALL[5:0]

DEFAULT

01_1100

RSMP rise edge

10_0110 RSMP fall edge

00_0000 VSMP rise edge

00_1000 VSMP fall edge

11_0111 TCLKO rise edge

00_1010 CLK1 rise edge

01_1001 CLK1 fall edge

01_1001 CLK2 rise edge

10_1000

CLK2 fall edge

10_1000 CLK3 rise edge

00_1010 CLK3 fall edge

00_0000

CLK4 rise edge

00_0000 CK4 fall edge

00_1010 CLK5 rise edge

10_1000 CLK5 fall edge

00_1010 CLK6 rise edge

10_1000

CLK6 fall edge

41

DESCRIPTION

WM8235

Tap 0

57

59 0 1

36 Rev 4.5

WM8235

SENSOR TIMING GENERATION

WM8235 provide two types of clock internally. C_CK* are high speed clocks, these clocks can set the clock phase by using fine pitch phase control. P_CK* are pixel rate signals which is selected by PO0 to PO7. WM8235 has eleven TG outputs pins. CLK1 is for clock type use only. CLK2, CLK3, CLK4,

CLK5 and CLK6 are selectable high speed type signal or pulse type signal. CLK7 and CLK8 are pulse type use only.

PO0

PO1

PO2

PO3

PO4

PO5

PO6

PO7

C_CK1

C_CK2

C_CK3

C_CK4

C_CK5

C_CK6

P_CK2

P_CK3

P_CK4

P_CK5

P_CK6

P_CK7

P_CK8 delay delay delay delay delay delay delay

OE

CLK1

OE

CLK2

OE

CLK3

OE

CLK4

OE

CLK5

OE

CLK6

OE

CLK7

OE

CLK8

MCLK (input)

VSMP (Internal)

TGCK (Internal)

Pixel Counter

(Internal)

CK1,2,3,4,5,6

(Clock Output)

TGCO (Internal)

CK2,3,4,5,6,7,8

(Pulse output) tMCLKD

VSMP_RISE[5:0]

VSMP_FALL[5:0] tPER

Duty=50%

2*tPER/60

CK_RISE[5:0]

CK_FALL[5:0]

TCLKO_RISE[5:0]

Duty=50%

DEL_PCK [1:0]

Figure 21 TG Output Timing

Rev 4.5

37

WM8235

REGISTER

ADDRESS

R176 (B0h)

– R177 (B1h)

R135 (81h)

– R146 (92h)

BIT LABEL DEFAULT DESCRIPTION

master

TGEN(Serial I/F)

VSMP

TGCK

Pixel counter

VSMP

TGCK

2*tPER/60

L=LLENGTH[14:0]

TGSYNC(Output) pixcnt=0 pixcnt=0 pixcnt=0

TPn=P1 TPm=P2

POn(Internal)

CLKn(TG pulse out)

PO_ Flag

(LVDS/CMOS out) tPCKD tTRIGD

FLAGPIX=P1

Datatrig(Internal)

Datatrig

(LVDS/CMOS output) tTRIGD

Figure 22 Master Mode Pixel Counter and Line Start Timing

TG SLAVE MODE OPERATION

In slave mode, line length depends on TGSYNC input. The pixel counter is reset by TGSYNC input. slave

5:0

5:0

5:0

DEL_PCK*[1:0] 00

CLK*_RISE[5:0]

CLK*_FALL[5:0]

TG MASTER MODE OPERATION

control delay for pulse output

00 = 0nsec, 01 = 1nsec, 10 = 2nsec, 11 = 3nsec

CLK* rise edge (0 to 59)

CLK* fall edge (0 to 59)

In master mode, line length is defined by LLENGTH register.

VSMP

TGCK

2*tPER/60

TGSYNC t

SYH tSCKSY

TGEN(Serial I/F)

VSMP

TGCK

TGSYNC(Input)

Linestart(Internal)

Pixel counter tSYH tCOUNTD pixcnt=0

Q=OFFSET[3:0]

0 tSYL

TPn=P1 TPm=P2 pixcnt=0

32767 pixcnt=0

POn(Internal)

CLKn(TG pulse out)

PO_Flag

(LVDS/CMOS out) tPCKD tTRIGD

FLAGPIX=P1

Flag(Internal)

Flag

(LVDS/CMOS out) tTRIGD

Figure 23 Slave Mode Pixel Counter and Line Start Timing

38 Rev 4.5

WM8235

Test Conditions

AVDD = LDOVDD = DBVDD = 3.3V, AGND = LDOGND = DBGND= 0V, T

A

= 25

C, unless otherwise stated.

PARAMETER

TGSYNC Setup time

(only for slave mode)

Pixel counter start timing

(only for slave mode)

TGSYNC high period

(only for slave mode)

TGSYNC low period

(only for slave mode)

Data trigger timing delay

SYMBOL

t t

COUNTD t

SCKSY t t

SYH

SYL

TRIGD

TEST CONDITIONS MIN

t

PER

/ 4

1

1 t

TYP

PER

/ 2

2

MAX

3 * t

PER

/ 4 t

PCKD

LVDS 10-bit 5pair mode

Other output mode

11

10

2 TG pulse output timing delay

Note:

1clock = t

PER

(MCLK cycle period)

REGISTER

ADDRESS

R160 (A0h)

BIT

7:4

2

LABEL DEFAULT DESCRIPTION

R161 (A1h)

R162 (A2h)

1

0

7:0

6:0

OFFSET[3:0]

POLSYNC

TGMD

TG_EN

LLENGTH[7:0]

LLENGTH[6:0]

0000

0

0

0 offset count (only for slave mode) polarity of Sync signal

0 = positive edge, 1 = negative edge

TG operation mode

0 = slave, 1 = master

TG enable

0 = disable, 1 = enable

0000_0000 the number of pixels in 1line (only for master mode)

000_0000 the number of pixels in 1line (only for master mode)

TG PULSE AND TRIGGER DATA

UNITS

ns clock clock clock clock clock clock

C_CK1

C_CK2

VSMP

TGCK pixcnt

P_CK1

(Selected from P0-P7)

P_CK2

(Selected from P0-P7)

P_CK3

(Selected from P0-P7)

DataTrig

(FLUGPIX is selected )

Datatrig_out

(FLUGPIX is selected )

DataTrig

(PO* is Selectd )

DataTrig_out

(PO* is Selectd )

TP1

TP1

[email protected]

TP2 TP3

TP2

[email protected]

TP3

[email protected]

FLUGPIX t

TRIGD

Figure 24 TG Pulse Toggle Setting and Data Trigger Timing

t

TRIGD

TP3

TP3

[email protected]

TP4 TP5

TP4

[email protected]

TP5

[email protected]TP5

TP4

[email protected] t

TRIGD

TP6

TP6

[email protected]

Rev 4.5

39

40

WM8235

TG PULSE

WM8235 can be generated 8 TG pulse internally (PO0

– PO7). These pulses are generated by toggle point setting register (TP*) and polarity setting register (POL*_PO*). WM8235 provided up to 32 toggle point by using TP0 to TP31. PO0-PO7 signals can be assigned to CLK2-CLK8 by SEL_PCK* and SEL_CLK* register.

TRIGGER DATA

WM8235 can implement trigger data in LVDS flag data (S0, S1, S2, S3 and S4). This can be selected from two methods. One is FLAGPIX register, this can be set one pixel by each line. The

other is to apply PO* pulse. Figure 24 shows the trigger data implementation timing.

CHANNEL ID

Also WM8235 can implement channel identification data instead of trigger data. Table 12 shows the

matrix of input channel and channel ID.

IN4

IN5

IN6

IN7

IN1

IN2

IN3

IN8

IN9

Table 12 Channel ID

0

0

0

0

ID[3]

0

0

0

1

1

ID[2]

0

0

0

1

1

1

1

0

0

ID[1]

0

1

1

0

0

1

1

0

0

ID[0]

1

0

1

0

1

0

1

0

1

Channel ID can be assigned to flag data (S0, S1, S2, S3 or S4). The following is the example of channel ID assignment.

Example: Assigned channel ID to flag data as ID[3]=S0, ID[2] =S1, ID[1]=S2, ID[0]=S3.

If output data is as follows, channel ID will be IN1. (i.e. ID[3]=S0=0, ID[2]=S1=0, ID[1]=S2=0,

ID[0]=S3=1)

A

D5

D4

D3

D2

D1

DCLK

S0

IN1[4]

S4

S1

IN1[5]

IN2[0]

S2

IN1[6]

IN2[1]

IN1[0]

IN1[7]

IN2[2]

IN1[1]

IN1[8]

IN2[3]

IN1[2]

IN1[9]

IN2[4]

IN1[3]

S3

IN2[5]

IN2[6] IN2[7] IN2[8] IN2[9] IN3[0] IN3[1] IN3[2]

IN3[3] IN3[4] IN3[5] IN3[6] IN3[7] IN3[8] IN3[9]

H H L L L H H

Rev 4.5

WM8235

Channel ID Setting Limitation

There are some notices to assign channel ID. It’s depending on LVDS output format. (refer to

OUTPUT DATA FORMAT)

1) 10-bit 5pair mode LVDS output

In this mode, channel ID will be IN1, IN4 or IN7 only.

Case-1 ID indicate IN1

A

D5

D4

D3

D2

D1

DCLK

S0 S1 S2 IN1[0] IN1[1] IN1[2] IN1[3]

IN1[4] IN1[5] IN1[6] IN1[7] IN1[8] IN1[9] S3

S4 IN2[0] IN2[1] IN2[2] IN2[3] IN2[4] IN2[5]

IN2[6] IN2[7] IN2[8] IN2[9] IN3[0] IN3[1] IN3[2]

IN3[3] IN3[4] IN3[5] IN3[6] IN3[7] IN3[8] IN3[9]

H H L L L H H

Case-2 ID indicate IN4

B

D5

D4

D3

D2

D1

DCLK

S0

IN4[4]

S4

IN5[6]

IN6[3]

H

Case-3 ID indicate IN7

C

D5

D4

D3

D2

D1

DCLK

S0

IN7[4]

S4

IN8[6]

IN9[3]

H

S1

IN4[5]

IN5[0]

IN5[7]

IN6[4]

H

S1

IN7[5]

IN8[0]

IN8[7]

IN9[4]

H

S2

IN4[6]

IN5[1]

IN5[8]

IN6[5]

L

S2

IN7[6]

IN8[1]

IN8[8]

IN9[5]

L

IN4[0]

IN4[7]

IN5[2]

IN5[9]

IN6[6]

L

IN7[0]

IN7[7]

IN8[2]

IN8[9]

IN9[6]

L

IN4[1]

IN4[8]

IN5[3]

IN6[0]

IN6[7]

L

IN7[1]

IN7[8]

IN8[3]

IN9[0]

IN9[7]

L

IN4[2]

IN4[9]

IN5[4]

IN6[1]

IN6[8]

H

IN7[2]

IN7[9]

IN8[4]

IN9[1]

IN9[8]

H

IN7[3]

S3

IN8[5]

IN9[2]

IN9[9]

H

IN4[3]

S3

IN5[5]

IN6[2]

IN6[9]

H

Rev 4.5

41

REGISTER

ADDRESS

R171 (ABh)

- R175 (AFh)

R208 (D0h)

- R270 (10Eh)

R271 (10Fh)

- R310 (136h)

R163 (A3h)

R164 (A4h)

R180 (B4h)

42

R10 (0Ah)

R11 (0Bh)

WM8235

6:0

7:0

6:0

3:0

BIT

2) 16-bit 5pair mode LVDS output

This mode has only three data flags as S0, S1 and S2. Therefore it cannot assign all channel ID to data flags.

A

D5

D4

D3

D2

D1

DCLK

S0

IN1[4]

S1

IN1[5]

S2

IN1[6]

IN1[0]

IN1[7]

IN1[1]

IN1[8]

IN1[2]

IN1[9]

IN1[3]

IN1[10]

IN1[11] IN1[12] IN1[13] IN1[14] IN1[15] IN2[0]

IN2[2] IN2[3] IN2[4] IN2[5] IN2[6] IN2[7]

IN2[1]

IN2[8]

IN2[9] IN2[10] IN2[11] IN2[12] IN2[13] IN2[14] IN2[15]

H H L L L H H

LABEL DEFAULT DESCRIPTION

7

SEL_PCK*

SEL_CLK*

EN_TP*

000

0

0 pulse mapping control for CLK*

000 = PO1, 001 = PO2, 010 = PO3, 011 = PO4

100 = PO5, 101 = PO6, 110 = PO7, 111 = PO8 mapping control

0 = output clock, 1 = output pulse enable toggle point

0 = disable and subsequent toggle point

1 = enable toggle point pixel count of toggle point polarity of PO* pulse at TP*

TP*

POL*_PO*

FLAGPIX[7:0]

FLAGPIX[6:0]

SEL_FLAG[3:0]

7:4

3:0

7:4

FLAG_S1[3:0]

FLAG_S0[3:0]

FLAG_S3[3:0]

0000_0000 flag pixel

000_0000 flag pixel

0000 select signal to be output as datatrig

0xxx = flagpix, 1000 = PO0, 1001 = PO1, 1010 = PO2,

1011 = PO3, 1100 = PO4, 1101 = PO5, 1110 = PO6

1111 = PO7

0001 output dataflag as S1

(valid only LVDS mode)

0000 = always low, 0001 = start flag

0010 = reserved, 0011 = reserved, 0100 = reserved

0101 = channel ID[0], 0110 = channel ID[1],

0111 = channel ID[2], 1000 = channel ID[3]

1001 = reserved, 1010 = reserved, 1011 = reserved,

1100 = reserved, 1101 = reserved, 1110 = reserved

1111 = always high

0000

0001 output dataflag as S0

(valid only LVDS mode)

0000 = always low, 0001 = start flag

0010 = reserved, 0011 = reserved, 0100 = reserved

0101 = channel ID[0], 0110 = channel ID[1],

0111 = channel ID[2], 1000 = channel ID[3]

1001 = reserved, 1010 = reserved, 1011 = reserved,

1100 = reserved, 1101 = reserved, 1110 = reserved

1111 = always high output dataflag as S3

(valid only LVDS mode)

0000 = always low, 0001 = start flag

0010 = reserved, 0011 = reserved, 0100 = reserved

Rev 4.5

WM8235

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

R12 (0Ch)

3:0

3:0

CKGO3

(Internal)

VSMP

TGCK pixcnt

TGCKO

[email protected]

[email protected]

CKGO3 + M2

[email protected]

[email protected]

C_CK3

N-1 N N+1 N+2 [email protected] N

Figure 25 TG Mask Timing

FLAG_S2[3:0]

FLAG_S4[3:0]

0000

0000

0101 = channel ID[0], 0110 = channel ID[1],

0111 = channel ID[2], 1000 = channel ID[3]

1001 = reserved, 1010 = reserved, 1011 = reserved,

1100 = reserved, 1101 = reserved, 1110 = reserved

1111 = always high output dataflag as S2

(valid only LVDS mode)

0000 = always low, 0001 = start flag

0010 = reserved, 0011 = reserved, 0100 = reserved

0101 = channel ID[0], 0110 = channel ID[1],

0111 = channel ID[2], 1000 = channel ID[3]

1001 = reserved, 1010 = reserved, 1011 = reserved,

1100 = reserved, 1101 = reserved, 1110 = reserved

1111 = always high output dataflag as S4

(valid only LVDS mode)

0000 = always low, 0001 = start flag

0010 = reserved, 0011 = reserved, 0100 = reserved

0101 = channel ID[0], 0110 = channel ID[1],

0111 = channel ID[2], 1000 = channel ID[3]

1001 = reserved, 1010 = reserved, 1011 = reserved,

1100 = reserved, 1101 = reserved, 1110 = reserved

1111 = always high

TG MASK TIMING

The WM8235 has TG clock mask function. M1, M2 and M3 pulse specifies the mask period; T1 and

T2 pulses are used for changing the signal polarity during the mask period. C_CK1 and C_CK2 are applied to the M pulse only; they cannot be applied to the T pulse. C_CK3 and C_CK4 are applied to

M1 and T1; C_CK5 and C_CK6 are applied to M2 and T2. The mask timing is synchronized with

TGCKO rise edge.

N+3 P1 TP1

TP1

[email protected]

P2 TP2 M-2

TP2

[email protected]

M-1 M M+1

M-1 [email protected] M-1

M+2 M+3 k

TG CLOCK

C_CK1

C_CK2

C_CK3

C_CK4

C_CK5

C_CK6

APPLIED

“M” PULSE

M3

M1

M2

APPLIED

“T” PULSE

none

T1

T2

Rev 4.5

43

WM8235

REGISTER

ADDRESS

R195 (C3h)

R196 (C4h)

R197 (C5h)

R198 (C6h)

R199 (C7h)

R200 (C8h)

R201 (C9h)

R202 (CAh)

R203 (CBh)

R204 (CCh)

R205 (CDh)

R206 (CEh)

R271 (010Fh)

– R278 (116h)

BIT

Cycmd [Serial I/F]

TGSYNC pixel counter cyccnt

Generated pulse0

Generated pulse1

Generated pulse2

Generated pulse3 cycen_p0 cycen_p1 cycen_p2 cycen_p3

PO0

PO1

PO2

PO3

000

High

High

High

High

Figure 26 TG Cycle Mode

LABEL

15'h7FFF

001 010

DEFAULT

100 001

01

0

100

DESCRIPTION

7:0

6:0

7:0

6:0

7:0

6:0

7:0

6:0

7:0

6:0

7:0

6:0

7:0

7:0

M1_RISE[7:0]

M1_RISE[6:0]

M1_FALL[7:0]

M1_FALL[6:0]

M2_RISE[7:0]

M2_RISE[6:0]

M2_FALL[7:0]

M2_FALL[6:0]

M3_RISE[7:0]

M3_RISE[6:0]

M3_FALL[7:0]

M3_FALL[6:0]

POL*_T1

POL*_T2

TG CYCLE MODE

0000_0000

000_0000

0000_0000

000_0000

0000_0000

000_0000

0000_0000

000_0000

0000_0000

000_0000

0000_0000

000_0000

1111_1111

1111_1111

M1 pulse rise count (mask start)

M1 pulse rise count (mask start)

M1 pulse fall count (mask end)

M1 pulse fall count (mask end)

M2 pulse rise count (mask start)

M2 pulse rise count (mask start)

M2 pulse fall count (mask end)

M2 pulse fall count (mask end)

M3 pulse rise count (mask start)

M3 pulse rise count (mask start)

M3 pulse fall count (mask end)

M3 pulse fall count (mask end) polarity of T1 pulse at TP* polarity of T2 pulse at TP*

TG cycle mode can be set the different TG pulse line by line. This mode is for slave mode only.

No SH

No pulse generation

No SH

No pulse generation

001 010 cycpat_p0[0] cycpat_p1[0] cycpat_p2[0] cycpat_p3[0] cycpat_p0[1] cycpat_p1[1] cycpat_p2[1] cycpat_p3[1] cycpat_p0[2] cycpat_p1[2] cycpat_p2[2] cycpat_p3[2] cycpat_p0[0] cycpat_p1[0] cycpat_p2[0] cycpat_p3[0] cycpat_p0[1] cycpat_p1[1] cycpat_p2[1] cycpat_p3[1] cycpat_p0[2] cycpat_p1[2] cycpat_p2[2] cycpat_p3[2] cycpat_p0[0] cycpat_p1[0] cycpat_p2[0] cycpat_p3[0] cycpat_p0[1] cycpat_p1[1] cycpat_p2[1] cycpat_p3[1]

000

High

High

High

High

REGISTER

ADDRESS

R160 (A0h)

BIT

3

LABEL

CYCMD

DEFAULT

0

DESCRIPTION

R181 (B5h)

– R184 (B8h)

CYCPAT_PO*[2:0] 000 cycle mode enable

0 = normal (same operation at every line)

1 = cycle mode

PO* cycle mode control

[0] = pulse enable at cycle-1

[1] = pulse enable at cycle-2

[2] = pulse enable at cycle-3

44 Rev 4.5

WM8235

PROGRAMMABLE AUTOMATIC BLACK LEVEL CALIBRATION (BLC)

The Programmable Automatic Black-Level Calibration (BLC) function is to adjust the D.C. offset of the output data such that the digital output code for black pixels is calibrated to a target black level value. The D.C. offset is determined during the optically-black pixels at the beginning of the linear

sensor and removed during the image-pixels as shown in Figure 27.

Black Pixel Period Image Pixel Period

Rev 4.5

Determine Black

Level Offset

Remove Black Level Offset from Image Pixels

Figure 27 Linear Sensor Model

The automatic black level calibration operates assuming 12-bits ADC resolution. Adjustments to calculations must be made for different ADC resolutions.

The black level calibration process occurs in two stages as shown in Figure 28 below:

Coarse Adjust Calibration - This is a mixed signal loop which removes the coarse offset by adjusting the offset DAC.

Fine Adjust Calibration - This is a digital loop which removes the remaining offset with better noise tolerance, utilising ADC over-range to improve the dynamic range of the system.

Adjusted

ADC Output

Input Black Level V1

Offset

DAC

PGA

Coarse Adjust

Calibration

Mixed

Signal

LOOP

Digits

ADC

Fine Adjust

Calibration

Digital

LOOP

Digits

TARGET BL

Figure 28 BLC Top-Level Circuitry

TARGET CODES

The user must specify a target black level for each channel through the registers TARGETINP*. If, during the black-pixel period, the average ADC output code was, for example, 100 and the user specified the target black level code to be 10, the BLC circuitry would determine 90 codes should be subtracted from the ADC output. These 90 codes will then be subtracted from every image-pixel code output from the ADC.

Note: Changing the PGA gain affects the black-level through the device; the gain should therefore not be changed during a BLC procedure. If the PGA gain changes, then the BLC routine should be re-run.

The automatic black level calibration feature operates with the assumption of a 12-bit ADC resolution.

The register settings for Target Codes (TARGETINP*) should be set differently depending on the

45

WM8235

ADC resolution being used. As TARGETINP* is an 8 bit register, the 4 MSBs of a data output code cannot be changed.

16-bit ADC Resolution

For 16-bit resolution the target code entered into TARGETINP* will ignore the 4 MSBs and 4 LSBs of the 16-bit data output. For example if the desired code out is 0000111111110001, the value entered into TARGETINP* would be 11111111.

10-bit ADC Resolution

For 10-bit resolution the 4 MSBs of the 10bit data output code will be ignored. The 2 LSBs of the target code should be set to ‘00’. For example if the desired code out is 0000111111, the value entered into TARGETINP* would be 11111100.

BLC SCENARIOS OF OPERATION

The BLC can be used in various ways to suit the application, for example calibration can be done once per page or once per line. Three potential scenarios of operation are suggested below.

Note: The registers FRAME_START and SEQ_START when set high by the user will automatically be set low by the device.

SCENARIO 1

In this scenario, Coarse Adjust Calibration is enabled for the 1 st

line; Fine Adjust Calibration is enabled for every line, with the Fine Adjust Calibration result recalculated every line. This scenario is suitable for dealing with large amounts of D.C. drift throughout a frame; but this is at a cost of potential line-by-line variation in the Fine Adjust result (dependent on sensor noise and the PGA

gain). Table 13 shows which registers are required for this scenario with example settings.

SETUP

REGISTER

BPIX_AVAIL CADUR

Value

50 2

Table 13 Example Register Settings for Scenario 1

FRAME_START

1

FA_EVERYLINE

1

Black Pixels Image Pixels

Auto Fine Adjust clear

Fine Adjust cleared

Fine Adjust cleared

Fine Adjust cleared

Fine Adjust cleared

Fine Adjust cleared

Fine Adjust cleared

Fine Adjust cleared

Fine Adjust cleared

Fine Adjust cleared

Fine Adjust cleared

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Line 1

Line 2

Line 3

Line 4

Line 5

Line 6

Line 7

- - -

- - -

- - -

Line n

Figure 29 Scenario 1

46 Rev 4.5

WM8235

SCENARIO 2

In this scenario, Coarse Adjust and Fine Adjust Calibration is enabled for the 1 st

line, with the Fine

Adjust result updated on the 1 st

line only. This scenario is suitable for adjusting for black-level D.C. drift on a frame-by-frame basis; there will be no line-by-line variation in the black-level from the BLC

circuitry. Table 14 shows which registers are required for this scenario with example settings.

SETUP

REGISTER

BPIX_AVAIL CADUR

Value

50 2

Table 14 Example Register Settings for Scenario 2

FRAME_START

1

Black Pixels Image Pixels

Auto Fine Adjust clear Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Line 1

Line 2

Line 3

Line 4

Line 5

Line 6

Line 7

- - -

- - -

- - -

Line n

Figure 30 Scenario 2

Rev 4.5

47

WM8235

SCENARIO 3

In this scenario, Coarse Adjust Calibration is enabled for the 1 st

line; Fine Adjust Calibration is enabled for every line, with the Fine Adjust result accumulated throughout frame and used every line.

This scenario allows any variation in the black-level to be tracked throughout the frame by accumulating the Fine Adjust result over multiple lines. This method does not deal with as large amounts of D.C. drift throughout the frame as scenario 1, but it will produce less line-by-line variation.

Table 15 shows which registers are required for this scenario with example settings.

SETUP

REGISTER

BPIX_AVAIL CADUR FRAME_START

Value

50 2 1

Table 15 Example Register Settings for Scenario 3

FA_EVERYLINE

1

FA_ACCUM

1

Black Pixels Image Pixels

Auto Fine Adjust clear

Fine Adjust not cleared

Fine Adjust not cleared

Fine Adjust not cleared

Fine Adjust not cleared

Fine Adjust not cleared

Fine Adjust not cleared

Fine Adjust not cleared

Fine Adjust not cleared

Fine Adjust not cleared

Fine Adjust not cleared

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Use Fine Adjust Result here

Line 1

Line 2

Line 3

Line 4

Line 5

Line 6

Line 7

- - -

- - -

- - -

Line n

Figure 31 Scenario 3

48 Rev 4.5

WM8235

AUTOMATIC GAIN CONTROL (AGC)

The Automatic Gain Control (AGC) function is to adjust the gain to an appropriate level for a range of input signal levels. The AGC function is enabled by AGC_EN register set to 1. The gain control

process has three stages as shown in Figure 32 below:

SPI SPI

First rising edge of

PEAK_DET after

AGE_EN=0

AGC_EN

Status of AGC

Disable

PEAK_DET

(internal)

PEAK

(read only)

AGAIN

DGAIN

FLAG_AGC

(read only)

Disable

AGAIN

1line

0

Peak detection for analogue gain

N line = AGC_APD[2:0]

Peak detection for digital gain

Gain caluculation

M line = AGC_DPD[2:0]

Peak

(1)

Peak

(2)

Peak

(N)

Cleared peak value

Peak

(1)

Peak

(2)

Peak

(M)

Again(N)

DGAIN DGAIN(x1)

Applied calibrated gain

Dgain(M)

0

AGAIN

DGAIN

Figure 32 Automatic Gain Control

Analogue Gain Calibration

The analogue gain keep the previous setting (AGAIN) and the digital gain set to x1

(DGAIN=12’d2048) automatically. During the PEAK_DET=high period, peak detection is executed then calculate an appropriate analogue gain (Again(N)) while PEAK_DET=low period. This period needs 200 pixels at least. The number of peak detection cycle is selectable by AGC_APD register.

Minimum cycle is 0 (In this case the analogue gain calibration is not executed), Maximum cycle is 7 lines. The peak value is cleared when analogue peak detection finished.

Digital Gain Calibration

The analogue gain is set to the calibrated value (Again(N)), and the digital gain is set to x1

(DGAIN=12’d2048) automatically. Then peak detection and digital gain calibration are executed. Also, the number of peak detection line is selectable by AGC_DPD register. Minimum cycle is 0 (In this case the digital gain calibration is not executed), Maximum cycle is 7 lines.

Applied Calibrated Analogue and Digital Gain

The analogue and digital gain are holding calibrated value until AGC_EN register set to 0.

Again(N) = AGC_TARGETINP* / peak(n) x AGAIN

Dgain(M) = (AGC_TARGETINP*

– TARGETINP*) / (peak(M) – TARGETINP*)

Rev 4.5

49

REGISTER

ADDRESS

R72 (48h)

R73 (49h)

R74 (4Ah)

R75 (4Bh)

R76 (4Ch)

R77 (4Dh)

R78 (4Eh)

R79 (4Fh)

R80 (50h)

R87 (57h)

R88 (58h)

R96 (60h)

R97 (61h)

R98 (62h)

R99 (63h)

R100 (64h)

R101 (65h)

R102 (66h)

R103 (67h)

R89 (59h)

R90 (5Ah)

R91 (5Bh)

R92 (5Ch)

R93 (5Dh)

R94 (5Eh)

R95 (5Fh)

WM8235

2

1

0

6:4

2:0

7:0

1:0

7:0

1:0

7:0

1:0

7:0

7:0

1:0

7:0

1:0

7:0

1:0

1:0

7:0

BIT

7:0

7:0

7:0

7:0

7:0

7:0

7:0

7:0

7:0

7:4

LABEL DEFAULT DESCRIPTION

TARGETIN1[7:0]

TARGETIN2[7:0]

TARGETIN3[7:0]

TARGETIN4[7:0]

TARGETIN5[7:0]

TARGETIN6[7:0]

TARGETIN7[7:0]

TARGETIN8[7:0]

TARGETIN9[7:0]

AGCAVE[3:0]

AGC_ERRFLAG

AGC_ENDFLAG

AGC_EN

AGC_DPD[2:0]

AGC_APD[2:0]

AGC_TARGETIN1

[7:0]

AGC_TARGETIN1

[9:8]

AGC_TARGETIN2

[7:0]

AGC_TARGETIN2

[9:8]

AGC_TARGETIN3

[7:0]

AGC_TARGETIN3

[9:8]

AGC_TARGETIN4

[7:0]

AGC_TARGETIN4

[9:8]

AGC_TARGETIN5

[7:0]

AGC_TARGETIN5

[9:8]

AGC_TARGETIN6

[7:0]

AGC_TARGETIN6

[9:8]

AGC_TARGETIN4

[7:0]

AGC_TARGETIN4

[9:8]

AGC_TARGETIN5

[7:0]

0000_0000 target black level for IN1[7:0]

0000_0000 target black level for IN2[7:0]

0000_0000 target black level for IN3[7:0]

0000_0000 target black level for IN4[7:0]

0000_0000 target black level for IN5[7:0]

0000_0000 target black level for IN6[7:0]

0000_0000 target black level for IN7[7:0]

0000_0000 target black level for IN8[7:0]

0000_0000 target black level for IN9[7:0]

0000 averaging factor before peak detection

0000 = no average, 0001 = 2, 0010 = 4, 0011 = 8

…, 1010

= 1024 (1011 = 1100 = 1101 = 1110 = 1111 = reserved)

0

0

0

AGC error flag

0 = no error detected, 1 = AGC finish with error

AGC end flag

0 = not end or not run, 1 = AGC sequence was done

AGC enable

0 = disable, 1 = enable

000

000

0000_0000 the number of peak detection iterations to calculate digital gain the number of peak detection iterations to calculate analogue gain

LSB of AGC target level for IN1

00

0000_0000

00

0000_0000

00

0000_0000

00

0000_0000

00

0000_0000

00

0000_0000

00

0000_0000

MSB of AGC target level for IN1

LSB of AGC target level for IN2

MSB of AGC target level for IN2

LSB of AGC target level for IN3

MSB of AGC target level for IN3

LSB of AGC target level for IN4

MSB of AGC target level for IN4

LSB of AGC target level for IN5

MSB of AGC target level for IN5

LSB of AGC target level for IN6

MSB of AGC target level for IN6

LSB of AGC target level for IN4

MSB of AGC target level for IN4

LSB of AGC target level for IN5

50 Rev 4.5

WM8235

REGISTER

ADDRESS

R104 (68h)

BIT LABEL DEFAULT DESCRIPTION

R105 (69h)

R106 (6Ah)

R191 (BFh)

R192 (C0h)

R193 (C1h)

R194 (C2h)

1:0

7:0

1:0

7:0

6:0

7:0

6:0

AGC_TARGETIN5

[9:8]

AGC_TARGETIN6

[7:0]

AGC_TARGETIN6

[9:8]

PEAKDET_RISE

[7:0]

PEAKDET_RISE

[14:8]

PEAKDET_FALL

[7:0]

PEAKDET_FALL

[14:8]

00

0000_0000

00

MSB of AGC target level for IN5

LSB of AGC target level for IN6

MSB of AGC target level for IN6

0000_0000 LSB of PEAKDET_RISE[14:0] peak detection start pixel count

000_0000 MSB of PEAKDET_RISE[14:0] peak detection start pixel count

0000_0000

LSB of PEAKDET_FALL[14:0] peak detection start pixel count

000_0000 MSB of PEAKDET_FALL[14:0] peak detection start pixel count

LINE-BY-LINE OPERATION

Certain linear sensors give colour output on a line-by-line basis. i.e. a full line of red pixels followed by a line of green pixels followed by a line of blue pixels.

The WM8235 can accommodate this type of input by setting the LINEBYLINE register bit high. The offset and gain values that are applied to every input channel can be selected, by internal multiplexers, to come from IN7, IN8 or IN9 offset and gain registers. This allows the gain and offset values for each of the input colours to be setup individually at the start of a scan.

When register bit ACYC=0 the gain and offset multiplexers are controlled via the INTM[1:0] register bits. When INTM=00 the IN7 offset and gain control registers are used to control every input channel,

INTM=01 selects the IN8 offset and gain registers and INTM=10 selects the IN9 offset and gain registers to control every input channel.

When register bit ACYC=1,

‘auto-cycling’ is enabled, and the input channel switches to the next offset and gain registers in the sequence by TGSYNC. The sequence is IN7  IN8  IN9  IN7

… offset and gain registers applied to every input channel.

INTM=00

INTM=01

INTM=10

INTM=11

LINEBYLINE 0x23[0]

INTM 0x23[3:2]

ACYC 0x23[1]

TGSYNC

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

AGAININ7, DGAININ7, DACIN7

AGAININ8, DGAININ8, DACIN8

AGAININ9, DGAININ9, DACIN9

Reserved

00

Normal Operation

0

ACYC=0

ACYC=1

AGAININ1, DGAININ1, DACIN1

AGAININ2, DGAININ2, DACIN2

AGAININ3, DGAININ3, DACIN3

AGAININ4, DGAININ4, DACIN4

AGAININ5, DGAININ5, DACIN5

AGAININ6, DGAININ6, DACIN6

AGAININ7, DGAININ7, DACIN7

AGAININ8, DGAININ8, DACIN8

AGAININ9, DGAININ9, DACIN9

01

INTM Mode (depends on INTM register)

Auto Cycling mode (IN7 -> IN8 -> IN9)

AGAININ8,

DGAININ8,

DACIN8

00

AGAININ7,

DGAININ7,

DACIN7

LINEBYLINE

INTM Mode

1

01

Must be set to 0

AGAININ8,

DGAININ8,

DACIN8

AGAININ9,

DGAININ9,

DACIN9

11

Normal Operation

0

AGAININ1, DGAININ1, DACIN1

AGAININ2, DGAININ2, DACIN2

AGAININ3, DGAININ3, DACIN3

AGAININ4, DGAININ4, DACIN4

AGAININ5, DGAININ5, DACIN5

AGAININ6, DGAININ6, DACIN6

AGAININ7, DGAININ7, DACIN7

AGAININ8, DGAININ8, DACIN8

AGAININ9, DGAININ9, DACIN9

Figure 33 Line-by-Line Operation (ACYC=0, INTM mode)

Rev 4.5

51

ACYC=0

ACYC=1

INTM Mode (depends on INTM register)

Auto Cycling mode (IN7 -> IN8 -> IN9)

LINEBYLINE 0x23[0]

ACYC 0x23[1]

0

Normal Operation

0

TGSYNC

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

AGAININ1, DGAININ1, DACIN1

AGAININ2, DGAININ2, DACIN2

AGAININ3, DGAININ3, DACIN3

AGAININ4, DGAININ4, DACIN4

AGAININ5, DGAININ5, DACIN5

AGAININ6, DGAININ6, DACIN6

AGAININ7, DGAININ7, DACIN7

AGAININ8, DGAININ8, DACIN8

AGAININ9, DGAININ9, DACIN9

LINEBYLINE

Auto Cycling Mode

1

1

AG7,

DG7,

DA7

AGAININ8,

DGAININ8,

DACIN8

AGAININ9,

DGAININ9,

DACIN9

AGAININ7,

DGAININ7,

DACIN7

AGAININ8,

DGAININ8,

DACIN8

AGAININ9,

DGAININ9,

DACIN9

AGAININ7,

DGAININ7,

DACIN7

AGAININ8,

DGAININ8,

DACIN8

AGAININ9,

DGAININ9,

DACIN9

AG7,

DG7,

DA7

WM8235

Normal Operation

0

AGAININ1, DGAININ1, DACIN1

AGAININ2, DGAININ2, DACIN2

AGAININ3, DGAININ3, DACIN3

AGAININ4, DGAININ4, DACIN4

AGAININ5, DGAININ5, DACIN5

AGAININ6, DGAININ6, DACIN6

AGAININ7, DGAININ7, DACIN7

AGAININ8, DGAININ8, DACIN8

AGAININ9, DGAININ9, DACIN9

Figure 34 Line-by-Line Operation (ACYC=1, Auto-cycling mode)

REGISTER

ADDRESS

R35 (23h)

DAC IN1

BIT

3:2

LABEL

INTM[1:0]

DEFAULT

00

1

0

ACYC

LINEBYLINE

0

0

DESCRIPTION

When LINEBYLINE=1, controls the GAIN and DAC mux selector when ACYC=0

00 = IN7

01 = IN8

10 = IN9

11 = reserved when LINEBYLINE=1, determines the function of the MUX control

0 = decided by INTM register

1= auto-cycling enabled select line by line operation

0=normal operation

1=Line by Line operation

52 Rev 4.5

WM8235

TEST PATTERN GENERATOR

WM8235 has test pattern generator which can be used for interface verification between AFE data output and back-end devices without sensor signal input. This function can be presented in several different patterns by PGPAT[1:0] and PGMARCH registers as shown below. The PGLEVEL,

PGWIDTH1 and PGWIDTH2 are the parameter to define the pattern level and width. The PGLEVEL register has 16bit length, PGWIDTH1 and PGWIDTH2 has 8bit length.

Note that test pattern generator is required TGSYNC input. (i.e. this can be used under TG slave mode operation only.) d=PGLEVEL

A=PGWIDTH1

B=PGWIDTH2

PGEN (register)

TGSYNC (input)

PGPAT=00

(Fixed Pattern)

PGPAT=01

(Vertical RAMP)

PGPAT=10

(Horizontal RAMP)

PGPAT=11

(Patch)

0

0

0

0 d

A d

0 md

A

0

B

B A d

A

Figure 35 Test Pattern Output Data Formats

d

A

0

B d

A

2d

0 0 nd d

0

0

Return to 0 at 65535

65535

0

0

0 d=PGLEVEL

A=PGWIDTH1

B=PGWIDTH2

PGINV=0

PGPAT=01

(Vertical RAMP)

TGSYNC

A

A

A

A

A

A

A

0 d

2d

3d

4d

5d

6d

PGINV=1

A

A

A

A

A

A

A

~0

~d

~2d

~3d

~4d

~5d

~6d

PGPAT=10

(Horizontal RAMP)

TGSYNC

A

A

A

A

A

A

A

A

0

A A A A A A A d 2d 3d 4d 5d 6d 7d

A d

A d

A d

A d

A d

A d

A d

A

A A A A A A A A

~0 ~d ~2d ~3d ~4d ~5d ~6d ~7d

PGPAT=11

TGSYNC

(Patch)

B A d d

0 d

0 d d d

B A B A d

B A

A ~d

~d

~0

~d

~0

~d

~d

~d

B

A

B

A

B

Figure 36 Test Pattern Output image

Rev 4.5

53

WM8235

PGEN (register)

TGSYNC (input)

PGMARCH=1

(Marching mode)

0 d[15:0]

{d[14:0], d[15]}

{d[13:0], d[15:14]}

{d[12:0], d[15:13]}

{d[1:0], d[15:2]}

{d[0], d[15:1]} d[15:0]

{d[14:0], d[15]}

1 bit shift per TGSYNC

0

Figure 37 Test Pattern Output Data Formats (Marching mode)

REGISTER

ADDRESS

R20 (14h) PG config

BIT

7

LABEL

PGMARCH

DEFAULT

0

6:5

4

3

2

1

0

PGPAT[1:0]

PGINV

SEL_PGZ

SEL_PGY

SEL_PGX

PGEN

00

0

0

0

0

0

DESCRIPTION

pattern generator marching mode enable

0 = controlled by PGPAT

1 = marching pattern select pattern generator output

00 = fixed value

01 = vertical ramp

10 = horizontal ramp

11 = patch invert pattern generator output

0 = normal

1 = invert select output of pattern generator (IN7, IN8, IN9)

0 = normal ouput

1 = output generated digital pattern instead of ADC outputs select output of pattern generator (IN4, IN5, IN6))

0 = normal ouput

1 = output generated digital pattern instead of ADC outputs select output of pattern generator (IN1, IN2, IN3)

0 = normal ouput

1 = output generated digital pattern instead of ADC outputs enable pattern generator

0 = disable

1 = enable

REGISTER

ADDRESS

R21 (15h)

PGCODE

LSB

BIT

7:0

LABEL

PGLEVEL[7:0]

DEFAULT

0000_0000

DESCRIPTION

parameter of pattern generator

REGISTER

ADDRESS

R22 (16h)

PGCODE

MSB

BIT

7:0

LABEL

PGLEVEL[7:0]

DEFAULT

0000_0000

DESCRIPTION

parameter of pattern generator

REGISTER

ADDRESS

R23 (17h) PG width 1

BIT

7:0

LABEL

PGWIDTH1[7:0]

DEFAULT

0000_0000

DESCRIPTION

parameter of pattern generator

54 Rev 4.5

WM8235

REGISTER

ADDRESS

R24 (18h) PG width 2

BIT

7:0

LABEL DEFAULT DESCRIPTION

PGWIDTH2[7:0] 0000_0000 parameter of pattern generator

REGISTER SETTING PROCEDURE

OVERALL

Figure 38 shows the overall procedure for WM8235 register setting. Every register can be configured

without MCLK and TGSYNC input, but the following Note1~3 must be followed before starting normal operation.

POWER ON

Present External clock

MCLK (*1), TGSYNC (*2)

PLL/DLL

Configuration(*3)

Offset DAC configuration

Sampling configuration

PGA configuration

Clamp configuration(*4)

TG Clock/Pulse configuration

VRLC configuration

Data output configuration

System Reset (*3)

NORMAL OPERATION

Figure 38 Overall Procedure

Notes:

1. MCLK must be present before System Reset. Also, System Reset must be done when MCLK is interrupted during normal operation.

2. TGSYNC input is required in TG slave mode. Also, this must be present before normal operation.

3. System Reset must be done after PLL/DLL configuration.

Rev 4.5

55

WM8235

PLL/DLL CONFIGURATION

PLL and DLL registers must be configured depending on the MCLK frequency and data output format.

See

“PLL DLL Setup” section for details of configuring PLL/DLL registers. The device must be reset

after PLL/DLL configuration as shown in Figure 40.

PLL/DLL configuration

PLL configuration

0x1C[6:4]

PLL_EXDIV_SEL

DLL configuration

0x80[5:4] DLGAIN

0x81[5:4] LVDLGAIN

LDO configuration

(if required)

0x1B0[0] USER_KEY

0x1B4[4:0] LDO2_VSEL

System reset

Figure 39 PLL/DLL Configuration

System reset

Power down

(Sleep mode)

0x03[1] PDMD=1

0x03[0] PD=1

Back to

Normal operation

0x03[1] PDMD=0

0x03[0] PD=0

Figure 40 System Reset

SAMPLING CONFIGURATION

Sampling configuration is the setting for input signal polarity and sampling timing. See

“CDS/Non-

CDS Processing

” section for details of configuring this register.

Non-CDS mode (S/H mode): RSMP configuration is not required.

CDS mode: RSMP and VSMP configurations are required.

Sampling configuration

Input signal polarity configuration

0x04[6]

PGAFS

Sampling mode selection

0x04[0]

CDS=0

Non-CDS mode

0x04[0]

CDS=1

CDS mode

VSMP configuration

0x84 VSMP_RISE

0x85 VSMP_FALL

RSMP, VSMP configuration

0x82,0x83 RSMP_RISE, RSMP_FALL

0x84,0x85 VRMP_RISE, VSMP_FALL

Figure 41 Sampling Configuration

56 Rev 4.5

Rev 4.5

WM8235

CLAMP CONFIGURATION

Clamp configuration is the setting for clamp modes and clamp timing configuration in line clamp mode. See

“Reset Level Clamping (RLC)” section and “CDS/Non-CDS Processing” section for details

of configuring this register.

TG enabled: This must be enabled when AGC function is used.

Line clamp configuration: Line clamp operation is enabled during CLAMP_RISE ~ CLAMP_FALL period. Also, the source follower should be set to prevent clamp voltage drop in line clamp mode.

Pixel clamp (Bit clamp) mode: The pixel clamping is enabled during RSMP = high period. This mode can be used in CDS operation only.

Clamp configuration

Clamp mode selection

0x04[1]

CLPMD=0

Line clamp

0x04[1]

CLPMD=1

Bit clamp

TG enabled (*1)

Pixel clamp mode (*3)

TG mode selection

Master mode

0xA0[1] TGMD=1

Line length configuration

0xA1,0xA2 LLENGTH

TG enabled

0xA0[0] TG_EN

Slave mode

0xA0[1] TGMD=0

Line clamp configuration

Clamp timing configuration

0xB9,0xBA CLAMP_RISE

0xBB,0xBC CLAMP_FALL

Source follower configuration (*2)

0x05[1] SF_INP

0x05[0] SF_VRLC

Figure 42 Clamp Configuration

Notes:

1. This must be set when Line clamp is used.

2. SF_INP and SF_VRLC must be set both when source follower enabled

3. Pixel clamp can be used in CDS operation only.

VRLC CONFIGURATION

VRLC configuration is the setting for VRLC voltage, which is used for input signal clamp voltage at line clamp operation. The VRLC voltage is also used as the reference level of non-CDS (S/H) operation. See

“Reset Level Clamping (RLC)” section and “CDS/Non-CDS Processing” section for

details of configuring this register.

VRLC configuration

0x06[7]

VRLCEN=1

VRLC configuration

0x06[7]

VRLCEN=0

VRLC output range configuration

0x04[7] VRLC_TOP_SEL

VRLC output voltage configuration

0x06[4:0] VRLC_VSEL

VRLC disabled

(External VRLC operation)

Figure 43 VRLC Configuration

57

WM8235

OFFSET DAC CONFIGURATION

The offset DAC is used for black level offset compensation. WM8235 has BLC function to calibrate black level. In this mode, the offset DAC will be configured automatically. When this function is not needed, the offset DAC can be configured manually. See

“Overall Signal Flow Summary” section for

details of offset DAC configuration, and see

“BLC Scenarios of Operation” for details of BLC

sequence.

Offset DAC configuration

No

Using BLC function

Yes

Offset DAC configuration

0x24~0x2C DACIN*

BLC configuration

Figure 44 Offset DAC Configuration

BLC configuration

TG enabled: This must be enabled when AGC function is used.

BLC start pixel configuration: This is start pixel configuration for BLC.

BLC period configuration: BLC will operate while this period from BLC start pixel.

BLC target level configuration: This is configuration for the target level of black pixel.

Coarse adjust configuration:

CADUR: This is the coarse adjust iteration setting during BLC period.

CA_EVERYLINE: When this register set, coarse adjust will operate on every line.

Fine adjust configuration: This is configuration for Coarse adjust iteration.

FA_EN: When this register set, fine adjust will operate during BLC period.

FA_EVERYLINE: When this register set, fine adjust will operate on every line.

58 Rev 4.5

WM8235

BLC configuration

TG enabled (*1)

TG mode selection

Master mode

0xA0[1] TGMD=1

Line length configuration

0xA1,0xA2 LLENGTH

TG enabled

0xA0[0] TG_EN

Slave mode

0xA0[1] TGMD=0

BLC start pixel configuration

0xBD,0xBE OB_START

Coarse adjust configuration

0x51[2:0] CADUR

0x51[3] CA_EVERYLINE

BLC period configuration

0x53,0x54 BPIX_AVAIL

Fine adjust configuration

0x51[4] FA_EN

0x51[6] FA_EVERYLINE

BLC target level configuration

0x48~0x50 TARGETINn*

Set the frame start indicator (*2)

0x52[0] FRAME_START

TGSYNC

Start the frame sequence

Figure 45 BLC Configuration

Notes:

1. This must be set when BLC is used.

2. With this register set, frame sequence will be started after TGSYNC is recognized. Therefore this should be set within the last line of previous frame.

PGA CONFIGURATION

The WM8235 provides an Automatic Gain Control (AGC) function. The output code is calibrated to target level by this automatic gain control function. See

“Automatic Gain Control (AGC)” section for

details of AGC sequence. Also, see the following instruction to configure AGC related registers. The analogue PGA (APGA) and digital PGA (DPGA) can be configured manually when AGC is not required. See

“Offset Adjust and Programmable Gain” section for details of PGA configuration.

PGA configuration

Using AGC function

No

Yes

Manual PGA configuration

APGA configuration

0x2D~0x35 AGAININ*

DPGA configuration

0x36~0x47 DGAININ*

AGC configuration

Figure 46 PGA Configuration

Rev 4.5

59

WM8235

AGC CONFIGURATION

Figure 47 shows the procedure for AGC Configuration.

TG enabled: This must be enabled when AGC function is used.

AGC averaging factor configuration: This is averaging factor for peak level detection.

AGC APD/DPD configuration: This is line iteration setting for peak level detection.

AGC target level configuration: The output code will be calibrated to this target level after APGA and DPGA calibration. APGA and DPGA keep calibrated gain value while AGC is enabled.

(AGC_EN=1)

Peak detection period configuration: This is the setting for peak detection period.

AGC configuration

TG enabled (*1)

TG mode selection

Master mode

0xA0[1] TGMD=1

Line length configuration

0xA1,0xA2 LLENGTH

TG enabled

0xA0[0] TG_EN

Slave mode

0xA0[1] TGMD=0

AGC averaging factor configuration

0x57[7:4] AGCAVE

AGC target level configuration

0x59~0x6A

AGC_TARGETIN*

AGC APD configuration

0x58[2:0] AGC_APD

Peak detection period configuration

0xBF,0xC0 PEAKDET_RISE

0xC1,0xC2 PEAKDET_FALL

AGC DPD configuration

0x58[6:4] AGC_DPD

AGC enabled (*2)

0x57[0] AGC_EN=1

TGSYNC

Start AGC operation

Figure 47 AGC Configuration

Notes:

1. This must be set when AGC is used.

2. With this register set, AGC sequence will be started after TGSYNC is recognized.

60 Rev 4.5

Rev 4.5

WM8235

TG CLOCK CONFIGURATION

Figure 48 shows the procedure for TG Clock Timing and Mask Configuration. CLK1~CLK6 can be

configured as clock type output. See

“Sensor Timing Generation” section for details of TG function.

TG enabled: This must be enabled when TG mask function is used.

Mask period configuration: TG clock will be masked while mask signal is high. The rising and falling timing is configured by M*_RISE/FALL register. See

“TG Mask Timing” section for details of

this function.

Toggle point configuration: Pulse toggle timing is configured by toggle point setting (TP0~TP31).

TP* register consists of toggle point setting bit (TP value bit) and enable bit. The enable bit must be set when TP is used. Unused TP can be disabled, but it must be followed Note-2 as described below.

T1 and T2 polarity configuration: T1 and T2 are internal signal to set the TG signal polarity during mask period. See

“TG Mask Timing” section for details of this function.

TG Clock configuration

No

CLK1~6 rise/fall timing configuration

0x87~0x92

CLK*_RISE/FALL

TG enabled (*1)

Using TG Mask function

Yes

Slave mode

0xA0[1] TGMD=0

TG mode selection

Master mode

0xA0[1] TGMD=1

Line length configuration

0xA1,0xA2 LLENGTH

TG enabled

0xA0[0] TG_EN

Mask configuration

Mask period configuration

0xC3~0xCE

M*_RISE/FALL

Using T1,T2 function

Toggle setting for

M1 and M2 period

Yes

No

Toggle point

Configuration (*2)

0xCF~0x10E TP0~TP31

T1 and T2 polarity configuration

0x10F~0x116 POL*_T*

TG output enabled

CLK pin enabled

0xA5 OE_CK*=1

TG signal output enabled

0xA9 EN_CK*=1

Figure 48 TG Clock Configuration

Notes:

1. This must be set when the TG-MASK function is used.

2. When configure Toggle point (TP), it must be used from TP0 in ascending order. Also, TP pixel counter value must be se t as TP0<TP1<TP2 …..

61

62

WM8235

TG PULSE CONFIGURATION

Figure 49 shows the procedure for TG Pulse Configuration. CLK2~CLK8 can be configured as pulse

type output. See

“Sensor Timing Generation” section for details of TG function.

TG enabled: This must be enabled when TG pulse function is used.

Toggle point configuration: Pulse toggle timing is configured by toggle point setting (TP0~TP31).

TP* register consists of toggle point setting bit (TP pixel counter value bit) and enable bit. The enable bit must be set when TP is used. Unused TP can be disabled, but this must be followed Note-1 as described below.

PO0~PO7 configuration: PO0~PO7 are internal pulse for CLK pulse output. Pulse toggle timing is configured by polarity setting register (0x117~0x136 POL*_PO*).

CLK2~6 pulse out configuration: CLK2~CLK6 can select output signal type, clock type or pulse type by SEL_CK* register bit. This register must be set when pulse output is required.

PO assignment: Internal PO* pulse will be assigned to CLK2~CLK8 pin with this register.

TG Pulse configuration

TG enabled

Slave mode

0xA0[1] TGMD=0

TG mode selection

Master mode

0xA0[1] TGMD=1

Line length configuration

0xA1,0xA2 LLENGTH

TG enabled

0xA0[0] TG_EN

Pulse configuration

Toggle point

Configuration (*1)

0xCF~0x10E

TP*, GEN_TP0, EN_TP*

CLK2~6 pulse out

Configuration

0xAB~0xAD SEL_CK*=1

PO0~PO7 configuration

0x117~0x136 POL*_PO*

PO assignment

0xAB~0xAE SEL_PCK*

TG output enabled

CLK pin enabled

0xA5 OE_CK*=1

TG signal output enabled

0xA9 EN_CK*=1

Figure 49 TG Pulse Configuration

Notes:

1. When configure Toggle point (TP), it must be used from TP0 in ascending order. Also, TP pixel counter value must be set as TP0<TP1<TP2 …..

Rev 4.5

Rev 4.5

WM8235

DATA OUTPUT CONFIGURATION

Figure 50 shows the procedure for Data Output Configuration. WM8235 provides 10-bit CMOS output

and various LVDS output formats. See

“Output Data Format” section for details of LVDS and CMOS

output format.

DATA output configuration

Output mode

Selection

0x07[5]

CMOSMODE=0

0x07[5]

CMOSMODE=1

CMOS output configuration

LVDS output configuration

PLL/DLL

Configuration (*1)

Data output enabled

Output pin enabled

0x07[7] OE_OP=1

Data output enabled

0x07[6] OUTPD=0

Figure 50 Data Output Configuration

Notes: 1. For details, see

“PLL/DLL Configuration” section.

CMOS Output Configuration

Figure 51 shows the procedure for CMOS Output Configuration. Output drivability must be set when

CMOS output is selected. In CMOS output mode, flag signal will be output from DCLKN/OC[2] pin.

CMOS output configuration

Output drivability configuration (*1)

0x0D[2:0] OP_DRV

Output flag configuration

TG enabled (*2)

Use flag signal

Yes

TG mode selection

Master mode

0xA0[1] TGMD=1

Line length configuration

0xA1,0xA2 LLENGTH

TG enabled

0xA0[0] TG_EN

Slave mode

0xA0[1] TGMD=0

No

PO* pulse

Flag signal

Selection

0xB4[3:0]

SEL_FLAG

Flagpix

Flag output timing configuration

0xA3,0xA4 FLAGPIX

Flag output

(PO* period)

Flag output

(1 pixel period)

Figure 51 CMOS Output Configuration

63

WM8235

Notes:

1. OP_DRV is valid when 0x0D[3] DRV_CTRL set to 0.When DRV_CTRL set to 1, OP_DRV is invalid, and drivability of output pin can be configured individually by 0x0E~0x13 OP*_DRV and

OC*_DRV.

2. This must be set when flag is used.

LVDS Output Configuration

Figure 52 shows the procedure for LVDS Output Configuration.

LVDS format configuration: LVDS format can be configured by this register. See

“Output Data

Format

” section for details of each format.

Data output order configuration: Data output order can be set by this register. See

“LVDS Data

Output Order

” section for details of output order.

LVDS amplitude configuration: This is LVDS signal amplitude configuration. The LVDS amplitude is configured using the LVDS_AMP register field. Selections in the range 50mV to 200mV are supported. Note that the default code (110) should not be used.

LVDS VCM level configuration: This is LVDS common mode voltage configuration.

LVDS DCLK pattern configuration: This is DCLK output pattern configuration.

Output flag configuration: Flag type can be selected from start flag or cannel ID. See

“Trigger Data”

and

“Channel ID” section for details of output flag. When this is not used, flag data (S~S4) will be

always 0.

64 Rev 4.5

LVDS output configuration

Output signal configuration

LVDS format configuration

0x07[2:0] LVDSMODE

LVDS VCM level configuration

0x08[2:0] LVDS_VCM

Data output order configuration

0x07[3] LVDSORDER

LVDS DCLK pattern configuration

0x09[6:0] LVCKPAT

LVDS amplitude configuration

0x08[5:3] LVDS_AMP

Use flag signal

No

Yes

Output flag configuration

Channel ID

Flag type

Selection

0x0A~0x0C

FLAG_S*

Start flag

TG enabled (*1)

Channel ID output

Slave mode

0xA0[1] TGMD=0

TG mode selection

Master mode

0xA0[1] TGMD=1

Line length configuration

0xA1,0xA2 LLENGTH

TG enabled

0xA0[0] TG_EN

PO* pulse

Flag signal

Selection

0xB4[3:0]

SEL_FLAG

Flagpix

Flag output timing configuration

0xA3,0xA4 FLAGPIX

Flag output

(PO* period)

Flag output

(1 pixel period)

WM8235

Figure 52 LVDS Output Configuration

Notes:

1. This must be set when start flag is used.

Rev 4.5

65

WM8235

REGISTER MAP

The WM8235 can be configured using the Control Interface. All registers not listed and all unused bits should be set to '0'.

REG NAME

R0 (0h)

Software Reset/Chip ID 1

R1 (1h)

Chip ID 2

R2 (2h) Chip Rev

R3 (3h)

Setup Reg 1

R4 (4h)

Setup Reg 2

R5 (5h) Setup Reg 3

7

0

6

0

0 0

VVRLC_TOP_SEL PGAFS

0 0

R6 (6h)

VRLC control

R7 (7h) output control

R8 (8h)

LVDS control

R9 (9h) LVDS clock pattern

VRLCEN

OE_OP

0

0

5

0

0

ADCFS

0

VRLC_ISEL[1:0]

OUTPD

LVDS_POL

CMOSMODE

4

SW_RESET_CHIP_ID[7:0]

0

CHZPD

0

CHIP_ID[7:0]

SF_BYPLS PT_SF[1:0]

OUTSYNC LVDSORDER

LVDS_AMP[2:0]

3

CHYPD

0

LVCKPAT[6:0]

2

CHIP_REV[3:0]

CHXPD

0

VRLC_VSEL[4:0]

1

PDMD

CLPMD

SF_INP

LVDSMODE[2:0]

LVDS_VCM[2:0]

0

PD

CDS

SF_VRLC

R10 (Ah) flag control 1

R11 (Bh) flag control 2

R12 (Ch) flag control 3

R13 (Dh) CMOS drivability control 1

R14 (Eh) CMOS drivability control 2

R15 (Fh) CMOS drivability control 3

R16 (10h) CMOS drivability control 4

R17 (11h) CMOS drivability control 5

R18 (12h) CMOS drivability control 6

R19 (13h) CMOS drivability control 7

R20 (14h) PG config

R21 (15h) PGCODE LSB

R22 (16h) PGCODE MSB

R23 (17h) PG width 1

R24 (18h) PG width 2

0

0

0

0

0

0

0

0

PGMARCH

0

0

FLAG_S1[3:0]

FLAG_S3[3:0]

0

0

OP1_DRV[2:0]

OP3_DRV[2:0]

OP5_DRV[2:0]

OP7_DRV[2:0]

OP9_DRV[2:0]

OC2_DRV[2:0]

PGPAT[1:0]

0

0 DRV_CTRL

0

0

0

0

0

0

PGINV SEL_PGZ

PGLEVEL[7:0]

PGLEVEL[14:8]

PGWIDTH1[7:0]

PGWIDTH2[7:0]

FLAG_S0[3:0]

FLAG_S2[3:0]

FLAG_S4[3:0]

OP_DRV[2:0]

SEL_PGY

OP0_DRV[2:0]

OP2_DRV[2:0]

OP4_DRV[2:0]

OP6_DRV[2:0]

OP8_DRV[2:0]

OC1_DRV[2:0]

SEL_PGX PGEN

0

0

0

0

0

0

R25 (19h) clock monitor

R26 (1Ah) PLL control 1

R27 (1Bh) PLL control 2

R28 (1Ch) PLL divider control 1

R29 (1Dh) PLL divider control 2

R35 (23h) Cycle mode control

R36 (24h) DAC IN1

R37 (25h) DAC IN2

R38 (26h) DAC IN3

R39 (27h) DAC IN4

R40 (28h) DAC IN5

R41 (29h) DAC IN6

R42 (2Ah) DAC IN7

R43 (2Bh) DAC IN8

R44 (2Ch) DAC IN9

R45 (2Dh) AGAIN IN1

R46 (2Eh) AGAIN IN2

R47 (2Fh) AGAIN IN3

R48 (30h) AGAIN IN4

R49 (31h) AGAIN IN5

R50 (32h) AGAIN IN6

R51 (33h) AGAIN IN7

0

0

0

0

0

0

0

0

0

0

0

PLL_LPF_SEL 0

PLL_EXDIV_SEL[2:0]

0

0

0

0

0

PLL_POSTDIV2_SEL[1:0]

0 0

DACIN1[7:0]

DACIN2[7:0]

0

0

MONCLK[2:0]

PLL_LPF_RST PLL_CP_PD PLL_VCO_PD

PLL_PFD_CTRL[1:0] PLL_CP_GAIN[1:0]

PLL_FBDIV_SEL[3:0]

PLL_POSTDIV1_SEL[3:0]

INTM[1:0] ACYC LINBYLINE

DACIN3[7:0]

DACIN4[7:0]

DACIN5[7:0]

DACIN6[7:0]

DACIN7[7:0]

DACIN8[7:0]

DACIN9[7:0]

0

0

0

0

0

0

0

0

AGAININ1[4:0]

AGAININ2[4:0]

AGAININ3[4:0]

AGAININ4[4:0]

0

0

0

0

0

0

AGAININ5[4:0]

AGAININ6[4:0]

AGAININ7[4:0]

80h

80h

80h

01h

80h

80h

80h

80h

14h

00h

80h

80h

00h

00h

09h

14h

01h

01h

01h

01h

01h

01h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

10h

00h

00h

00h

DEFAULT

35h

82h

00h

00h

40h

1Ch

8Ah

40h

35h

63h

66 Rev 4.5

WM8235

R78 (4Eh) BLC IN7 target

R79 (4Fh) BLC IN8 target

R80 (50h) BLC IN9 target

R81 (51h) BLC control 1

R82 (52h) BLC control 2

R83 (53h) BLC control 3

R84 (54h) BLC control 4

R85 (55h) BLC control 5

R86 (56h) BLC control 6

R87 (57h) AGC config 1

R88 (58h) AGC config 2

R89 (59h) AGC target IN1 LSB

R90 (5Ah) AGC target IN1 MSB

R91 (5Bh) AGC target IN2 LSB

R92 (5Ch) AGC target IN2 MSB

R93 (5Dh) AGC target IN3 LSB

R94 (5Eh) AGC target IN3 MSB

R95 (5Fh) AGC target IN4 LSB

R96 (60h) AGC target IN4 MSB

R97 (61h) AGC target IN5 LSB

R98 (62h) AGC target IN5 MSB

R99 (63h) AGC target IN6 LSB

R100 (64h) AGC target IN6 MSB

R101 (65h) AGC target IN7 LSB

R102 (66h) AGC target IN7 MSB

REG NAME

R52 (34h) AGAIN IN8

R53 (35h) AGAIN IN9

R54 (36h) DGAIN IN1 LSB

R55 (37h) DGAIN IN1 MSB

R56 (38h) DGAIN IN2 LSB

R57 (39h) DGAIN IN2 MSB

R58 (3Ah) DGAIN IN3 LSB

R59 (3Bh) DGAIN IN3 MSB

R60 (3Ch) DGAIN IN4 LSB

R61 (3Dh) DGAIN IN4 MSB

R62 (3Eh) DGAIN IN5 LSB

R63 (3Fh) DGAIN IN5 MSB

R64 (40h) DGAIN IN6 LSB

R65 (41h) DGAIN IN6 MSB

R66 (42h) DGAIN IN7 LSB

R67 (43h) DGAIN IN7 MSB

R68 (44h) DGAIN IN8 LSB

R69 (45h) DGAIN IN8 MSB

R70 (46h) DGAIN IN9 LSB

R71 (47h) DGAIN IN9 MSB

R72 (48h) BLC IN1 target

R73 (49h) BLC IN2 target

R74 (4Ah) BLC IN3 target

R75 (4Bh) BLC IN4 target

R76 (4Ch) BLC IN5 target

R77 (4Dh) BLC IN6 target

Rev 4.5

7

0

0

6 5

0

0

DGAININ1[3:0]

0

0

FRAME_SEQ FA_EVERYLINE FA_ACCUM

0 0 0

0

0

0

0

0

0

0

0

0

0

0

0

AGCAVE[3:0]

0

AGC_DPD[2:0]

0

0

0

0

0

0

0

DGAININ2[3:0]

DGAININ3[3:0]

DGAININ4[3:0]

DGAININ5[3:0]

DGAININ6[3:0]

DGAININ7[3:0]

DGAININ8[3:0]

DGAININ9[3:0]

0

0

0

0

0

0

0

0

4 3

0

DGAININ1[11:4]

0

DGAININ2[11:4]

0

DGAININ3[11:4]

0

DGAININ4[11:4]

0

DGAININ5[11:4]

0

DGAININ6[11:4]

0

DGAININ7[11:4]

0

DGAININ8[11:4]

0

DGAININ9[11:4]

TARGETIN1[7:0]

TARGETIN2[7:0]

TARGETIN3[7:0]

TARGETIN4[7:0]

TARGETIN5[7:0]

TARGETIN6[7:0]

TARGETIN7[7:0]

TARGETIN8[7:0]

TARGETIN9[7:0]

FA_EN CA_EVERYLINE

2

AGAININ8[4:0]

AGAININ9[4:0]

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

CADUR[2:0]

SEQ_START FRAME_START 0 0

BPIX_AVAIL[7:0]

0

LINE_DEL[7:0]

0

0 0

0

0

AGC_TARGETIN1[7:0]

0 0

AGC_TARGETIN2[7:0]

0 0

AGC_TARGETIN3[7:0]

0 0

AGC_TARGETIN4[7:0]

0 0

0

0

0

0

0

0

BPIX_AVAIL[9:8]

0 LINE_DEL[8]

AGC_ERRFLAG AGC_ENDFLAG AGC_EN

AGC_APD[2:0]

AGC_TARGETIN1[9:8]

AGC_TARGETIN2[9:8]

AGC_TARGETIN3[9:8]

AGC_TARGETIN4[9:8]

80h

00h

00h

00h

00h

00h

00h

80h

00h

80h

00h

80h

00h

80h

00h

DEFAULT

01h

01h

00h

80h

00h

80h

00h

80h

00h

80h

00h

AGC_TARGETIN5[7:0]

0 0

AGC_TARGETIN6[7:0]

0 0

AGC_TARGETIN7[7:0]

0 0

0

0

0

AGC_TARGETIN5[9:8]

AGC_TARGETIN6[9:8]

AGC_TARGETIN7[9:8]

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

67

WM8235

R132 (84h) VSMP rise

R133 (85h) VSMP fall

R134 (86h) TGCKO rise

R135 (87h) CLK1 rise

R136 (88h) CLK1 fall

R137 (89h) CLK2 rise

R138 (8Ah) CLK2fall

R139 (8Bh) CLK3 rise

R140 (8Ch) CLK3 fall

R141 (8Dh) CLK4 rise

R142 (8Eh) CLK4 fall

R143 (8Fh) CLK5 rise

R144 (90h) CLK5 fall

R145 (91h) CLK6 rise

R146 (92h) CLK6 fall

R160 (A0h) TG config 1

R161 (A1h) TG config 2

R162 (A2h) TG config 3

R163 (A3h) TG config 4

R164 (A4h) TG config 5

R165 (A5h) TG config 6

R167 (A7h) TG config 8

R169 (A9h) TG config 10

R171 (ABh) TG config 12

R172 (ACh) TG config 13

REG NAME

R103 (67h) AGC target IN8 LSB

R104 (68h) AGC target IN8 MSB

R105 (69h) AGC target IN9 LSB

R106 (6Ah) AGC target IN9 MSB

R107 (6Bh) AGC peak level IN1 LSB

R108 (6Ch) AGC peak level IN1 MSB

R109 (6Dh) AGC peak level IN2 LSB

R110 (6Eh) AGC peak level IN2 MSB

R111 (6Fh) AGC peak level IN3 LSB

R112 (70h) AGC peak level IN3 MSB

R113 (71h) AGC peak level IN4 LSB

R114 (72h) AGC peak level IN4 MSB

R115 (73h) AGC peak level IN5 LSB

R116 (74h) AGC peak level IN5 MSB

R117 (75h) AGC peak level IN6 LSB

R118 (76h) AGC peak level IN6 MSB

R119 (77h) AGC peak level IN7 LSB

R120 (78h) AGC peak level IN7 MSB

R121 (79h) AGC peak level IN8 LSB

R122 (7Ah) AGC peak level IN8 MSB

R123 (7Bh) AGC peak level IN9 LSB

R124 (7Ch) AGC peak level IN9 MSB

R128 (80h) DLL config 1

R129 (81h) DLL config 2

R130 (82h) RSMP rise

R131 (83h) RSMP fall

68

7

0

0

0

0

0

0

0

0

0

0

0

0

OE_CLK8

INV_CLK8

EN_CLK8

SEL_CLK3

SEL_CLK5

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

6

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

OFFSET[3:0]

5

0

0

0

0

0

4 3

AGC_TARGETIN8[7:0]

0 0

AGC_TARGETIN9[7:0]

0 0

0

PEAK_IN1[7:0]

0

PEAK_IN2[7:0]

0

PEAK_IN3[7:0]

0

0

PEAK_IN4[7:0]

0

2

0

0

0

0

0

0

0

0

0

0

PEAK_IN5[7:0]

0

0

PEAK_IN6[7:0]

0

0

PEAK_IN7[7:0]

0

0

PEAK_IN8[7:0]

0

0

0

0

0

0

0

DLGAIN[1:0]

LVDLGAIN[1:0]

0

PEAK_IN9[7:0]

0

0 0

0

0

0

0

DLLRST

0

RSMP_RISE[5:0]

RSMP_FALL[5:0]

VSMP_RISE[5:0]

VSMP_FALL[5:0]

TCLKO_RISE[5:0]

CLK1_RISE[5:0]

CLK1_FALL[5:0]

CLK2_RISE[5:0]

CLK2_FALL[5:0]

CLK3_RISE[5:0]

CLK3_FALL[5:0]

CLK4_RISE[5:0]

CLK4_FALL[5:0]

CLK5_RISE[5:0]

CLK5_FALL[5:0]

CLK6_RISE[5:0]

CLK6_FALL[5:0]

CYCMD POLSYNC

OE_CLK7

INV_CLK7

EN_CLK7

OE_CLK6

INV_CLK6

EN_CLK6

SEL_PCK3[2:0]

SEL_PCK5[2:0]

LLENGTH[7:0]

LLENGTH[14:8]

FLAGPIX[7:0]

OE_CLK5

INV_CLK5

EN_CLK5

FLAGPIX[14:8]

OE_CLK4

INV_CLK4

EN_CLK4

SEL_CLK2

SEL_CLK4

OE_CLK3

INV_CLK3

EN_CLK3

1

AGC_TARGETIN8[9:8]

AGC_TARGETIN9[9:8]

PEAK_IN1[9:8]

PEAK_IN2[9:8]

PEAK_IN3[9:8]

PEAK_IN4[9:8]

PEAK_IN5[9:8]

PEAK_IN6[9:8]

PEAK_IN7[9:8]

PEAK_IN8[9:8]

PEAK_IN9[9:8]

CKOSTB AFECKSTB

LVDLLRST LVDLLSTB

TGMD

0

TG_EN

OE_CLK2

INV_CLK2

EN_CLK2

SEL_PCK2[2:0]

SEL_PCK4[2:0]

OE_CLK1

INV_CLK1

EN_CLK1

28h

0Ah

28h

00h

0Ah

00h

00h

0Ah

19h

19h

28h

28h

00h

08h

37h

0Ah

00h

00h

00h

00h

FFh

00h

00h

00h

00h

00h

00h

00h

20h

10h

1Ch

26h

00h

00h

00h

00h

00h

00h

00h

00h

DEFAULT

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

Rev 4.5

WM8235

R200 (C8h) Mask pulse 2 rise MSB

R201 (C9h) Mask pulse 2 fall LSB

R202 (CAh) Mask pulse 2 fall MSB

R203 (CBh) Mask pulse 3 rise LSB

R204 (CCh) Mask pulse 3 rise MSB

R205 (CDh) Mask pulse 3 fall LSB

R206 (CEh) Mask pulse 3 fall MSB

R207 (CFh) Toggle point 0 LSB

R208 (D0h) Toggle point 0 MSB

R209 (D1h) Toggle point 1 LSB

R210 (D2h) Toggle point 1 MSB

R211 (D3h) Toggle point 2 LSB

R212 (D4h) Toggle point 2 MSB

R213 (D5h) Toggle point 3 LSB

R214 (D6h) Toggle point 3 MSB

R215 (D7h) Toggle point 4 LSB

R216 (D8h) Toggle point 4 MSB

R217 (D9h) Toggle point 5 LSB

R218 (DAh) Toggle point 5 MSB

R219 (DBh) Toggle point 6 LSB

R220 (DCh) Toggle point 6 MSB

R221 (DDh) Toggle point 7 LSB

R222 (DEh) Toggle point 7 MSB

R223 (DFh) Toggle point 8 LSB

R224 (E0h) Toggle point 8 MSB

REG NAME

R173 (ADh) TG config 14

R174 (AEh) TG config 15

R176 (B0h) TG config 17

R177 (B1h) TG config 18

R178 (B2h) TG config 19

R179 (B3h) TG config 20

R180 (B4h) TG config 21

R181 (B5h) TG config 22

R182 (B6h) TG config 23

R183 (B7h) TG config 24

R184 (B8h) TG config 25

R185 (B9h) clamp enable rise LSB

R186 (BAh) clamp enable rise MSB

R187 (BBh) clamp enable fall LSB

R188 (BCh) clamp enable fall MSB

R189 (BDh) OB start LSB

R190 (BEh) OB start MSB

R191 (BFh) peak_det rise LSB

R192 (C0h) peak_det rise MSB

R193 (C1h) peak_det fall LSB

R194 (C2h) peak_det fall MSB

R195 (C3h) Mask pulse 1 rise LSB

R196 (C4h) Mask pulse 1 rise MSB

R197 (C5h) Mask pulse 1 fall LSB

R198 (C6h) Mask pulse 1 fall MSB

R199 (C7h) Mask pulse 2 rise LSB

Rev 4.5

0

0

0

0

0

0

0

7 6

0

0

DEL_PCK5[1:0]

0

0 0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

GEN_TP0

EN_TP1

EN_TP2

EN_TP3

EN_TP4

EN_TP5

EN_TP6

EN_TP7

EN_TP8

5 4

SEL_PCK7[2:0]

0 0

DEL_PCK4[1:0]

DEL_PCK8[1:0]

0

0

0

CYCPAT_PO1[2:0]

CYCPAT_PO3[2:0]

CYCPAT_PO5[2:0]

CYCPAT_PO7[2:0]

0

INV_M3

0

3

SEL_CLK6

0

DEL_PCK3[1:0]

DEL_PCK7[1:0]

0

INV_M2

0

0

0

0

CLAMP_RISE[7:0]

CLAMP_RISE[14:8]

CLAMP_FALL[7:0]

CLAMP_FALL[14:8]

2

0

INV_M1

SEL_PCK6[2:0]

SEL_PCK8[2:0]

INV_T2

SEL_FLAG[3:0]

1

0

CYCPAT_PO0[2:0]

CYCPAT_PO2[2:0]

CYCPAT_PO4[2:0]

CYCPAT_PO6[2:0]

0

DEL_PCK2[1:0]

DEL_PCK6[1:0]

0

INV_T1

OB_START[7:0]

OB_START[14:8]

PEAKDET_RISE[7:0]

PEAKDET_RISE[14:8]

PEAKDET_FALL[7:0]

PEAKDET_FALL[14:8]

M1_RISE[7:0]

M1_RISE[14:8]

M1_FALL[7:0]

M1_FALL[14:8]

M2_RISE[7:0]

M2_RISE[14:8]

M2_FALL[7:0]

M2_FALL[14:8]

M3_RISE[7:0]

M3_RISE[14:8]

M3_FALL[7:0]

M3_FALL[14:8]

TP0[7:0]

TP0[14:8]

TP1[7:0]

TP1[14:8]

TP2[7:0]

TP2[14:8]

TP3[7:0]

TP3[14:8]

TP4[7:0]

TP4[14:8]

TP5[7:0]

TP5[14:8]

TP6[7:0]

TP6[14:8]

TP7[7:0]

TP7[14:8]

TP8[7:0]

TP8[14:8]

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

DEFAULT

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

69

WM8235

R251 (FBh) Toggle point 22 LSB

R252 (FCh) Toggle point 22 MSB

R253 (FDh) Toggle point 23 LSB

R254 (FEh) Toggle point 23 MSB

R255 (FFh) Toggle point 24 LSB

R256 (100h) Toggle point 24 MSB

R257 (101h) Toggle point 25 LSB

R258 (102h) Toggle point 25 MSB

R259 (103h) Toggle point 26 LSB

R260 (104h) Toggle point 26 MSB

R261 (105h) Toggle point 27 LSB

R262 (106h) Toggle point 27 MSB

R263 (107h) Toggle point 28 LSB

R264 (108h) Toggle point 28 MSB

R265 (109h) Toggle point 29 LSB

R266 (10Ah) Toggle point 29 MSB

R267 (10Bh) Toggle point 30 LSB

R268 (10Ch) Toggle point 30 MSB

R269 (10Dh) Toggle point 31 LSB

R270 (10Eh) Toggle point 31 MSB

R271 (10Fh) Polarity setting of T1 1

R272 (110h) Polarity setting of T1 2

R273 (111h) Polarity setting of T1 3

R274 (112h) Polarity setting of T1 4

R275 (113h) Polarity setting of T2 1

REG NAME

R225 (E1h) Toggle point 9 LSB

R226 (E2h) Toggle point 9 MSB

R227 (E3h) Toggle point 10 LSB

R228 (E4h) Toggle point 10 MSB

R229 (E5h) Toggle point 11 LSB

R230 (E6h) Toggle point 11 MSB

R231 (E7h) Toggle point 12 LSB

R232 (E8h) Toggle point 12 MSB

R233 (E9h) Toggle point 13 LSB

R234 (EAh) Toggle point 13 MSB

R235 (EBh) Toggle point 14 LSB

R236 (ECh) Toggle point 14 MSB

R237 (EDh) Toggle point 15 LSB

R238 (EEh) Toggle point 15 MSB

R239 (EFh) Toggle point 16 LSB

R240 (F0h) Toggle point 16 MSB

R241 (F1h) Toggle point 17 LSB

R242 (F2h) Toggle point 17 MSB

R243 (F3h) Toggle point 18 LSB

R244 (F4h) Toggle point 18 MSB

R245 (F5h) Toggle point 19 LSB

R246 (F6h) Toggle point 19 MSB

R247 (F7h) Toggle point 20 LSB

R248 (F8h) Toggle point 20 MSB

R249 (F9h) Toggle point 21 LSB

R250 (FAh) Toggle point 21 MSB

70

7

EN_TP9

EN_TP10

EN_TP11

EN_TP12

EN_TP13

EN_TP14

EN_TP15

EN_TP16

EN_TP17

EN_TP18

EN_TP19

EN_TP20

EN_TP21

EN_TP22

EN_TP23

EN_TP24

EN_TP25

EN_TP26

EN_TP27

EN_TP28

EN_TP29

EN_TP30

6 5

EN_TP31

POL7_T1

POL15_T1

POL23_T1

POL31_T1

POL7_T2

POL6_T1

POL14_T1

POL22_T1

POL30_T1

POL6_T2

POL5_T1

POL13_T1

POL21_T1

POL29_T1

POL5_T2

TP22[7:0]

TP22[14:8]

TP23[7:0]

TP23[14:8]

TP24[7:0]

TP24[14:8]

TP25[7:0]

TP25[14:8]

TP26[7:0]

TP26[14:8]

TP27[7:0]

TP27[14:8]

TP28[7:0]

TP28[14:8]

TP29[7:0]

TP29[14:8]

POL4_T1

POL12_T1

POL20_T1

POL28_T1

POL4_T2

TP30[7:0]

TP30[14:8]

TP31[7:0]

TP31[14:8]

POL3_T1

POL11_T1

POL19_T1

POL27_T1

POL3_T2

4 3

TP9[7:0]

TP9[14:8]

TP10[7:0]

TP10[14:8]

TP11[7:0]

TP11[14:8]

TP12[7:0]

TP12[14:8]

TP13[7:0]

TP13[14:8]

TP14[7:0]

TP14[14:8]

TP15[7:0]

TP15[14:8]

TP16[7:0]

TP16[14:8]

TP17[7:0]

TP17[14:8]

TP18[7:0]

TP18[14:8]

TP19[7:0]

TP19[14:8]

TP20[7:0]

TP20[14:8]

TP21[7:0]

TP21[14:8]

2 1

POL2_T1

POL10_T1

POL18_T1

POL26_T1

POL2_T2

POL1_T1

POL9_T1

POL17_T1

POL25_T1

POL1_T2

0

POL0_T1

POL8_T1

POL16_T1

POL24_T1

POL0_T2

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

FFh

FFh

FFh

FFh

FFh

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

DEFAULT

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

Rev 4.5

WM8235

REG NAME

R276 (114h) Polarity setting of T2 2

R277 (115h) Polarity setting of T2 3

R278 (116h) Polarity setting of T2 4

R279 (117h) Polarity setting of P0 1

R280 (118h) Polarity setting of P0 2

R281 (119h) Polarity setting of P0 3

R282 (11Ah) Polarity setting of P0 4

R283 (11Bh) Polarity setting of P1 1

R284 (11Ch) Polarity setting of P1 2

R285 (11Dh) Polarity setting of P1 3

R286 (11Eh) Polarity setting of P1 4

R287 (11Fh) Polarity setting of P2 1

R288 (120h) Polarity setting of P2 2

R289 (121h) Polarity setting of P2 3

R290 (122h) Polarity setting of P2 4

R291 (123h) Polarity setting of P3 1

R292 (124h) Polarity setting of P3 2

R293 (125h) Polarity setting of P3 3

R294 (126h) Polarity setting of P3 4

R295 (127h) Polarity setting of P4 1

R296 (128h) Polarity setting of P4 2

R297 (129h) Polarity setting of P4 3

R298 (12Ah) Polarity setting of P4 4

R299 (12Bh) Polarity setting of P5 1

R300 (12Ch) Polarity setting of P5 2

R301 (12Dh) Polarity setting of P5 3

R302 (12Eh) Polarity setting of P5 4

R303 (12Fh) Polarity setting of P6 1

R304 (130h) Polarity setting of P6 2

R305 (131h) Polarity setting of P6 3

R306 (132h) Polarity setting of P6 4

R307 (133h) Polarity setting of P7 1

R308 (134h) Polarity setting of P7 2

R309 (135h) Polarity setting of P7 3

R310 (136h) Polarity setting of P7 4

7 6 5 4 3 2 1 0

POL15_T2

POL23_T2

POL14_T2

POL22_T2

POL13_T2

POL21_T2

POL12_T2

POL20_T2

POL11_T2

POL19_T2

POL10_T2

POL18_T2

POL9_T2

POL17_T2

POL8_T2

POL16_T2

POL31_T2 POL30_T2 POL29_T2 POL28_T2 POL27_T2 POL26_T2 POL25_T2 POL24_T2

POL7_PO0 POL6_PO0 POL5_PO0 POL4_PO0 POL3_PO0 POL2_PO0 POL1_PO0 POL0_PO0

POL15_PO0 POL14_PO0 POL13_PO0 POL12_PO0 POL11_PO0 POL10_PO0 POL9_PO0 POL8_PO0

POL23_PO0 POL22_PO0 POL21_PO0 POL20_PO0 POL19_PO0 POL18_PO0 POL17_PO0 POL16_PO0

POL31_PO0 POL30_PO0 POL29_PO0 POL28_PO0 POL27_PO0 POL26_PO0 POL25_PO0 POL24_PO0

POL7_PO1 POL6_PO1 POL5_PO1 POL4_PO1 POL3_PO1 POL2_PO1 POL1_PO1 POL0_PO1

POL15_PO1 POL14_PO1 POL13_PO1 POL12_PO1 POL11_PO1 POL10_PO1 POL9_PO1 POL8_PO1

POL23_PO1 POL22_PO1 POL21_PO1 POL20_PO1 POL19_PO1 POL18_PO1 POL17_PO1 POL16_PO1

POL31_PO1 POL30_PO1 POL29_PO1 POL28_PO1 POL27_PO1 POL26_PO1 POL25_PO1 POL24_PO1

POL7_PO2 POL6_PO2 POL5_PO2 POL4_PO2 POL3_PO2 POL2_PO2 POL1_PO2 POL0_PO2

POL15_PO2 POL14_PO2 POL13_PO2 POL12_PO2 POL11_PO2 POL10_PO2 POL9_PO2 POL8_PO2

POL23_PO2 POL22_PO2 POL21_PO2 POL20_PO2 POL19_PO2 POL18_PO2 POL17_PO2 POL16_PO2

POL31_PO2 POL30_PO2 POL29_PO2 POL28_PO2 POL27_PO2 POL26_PO2 POL25_PO2 POL24_PO2

POL7_PO3 POL6_PO3 POL5_PO3 POL4_PO3 POL3_PO3 POL2_PO3 POL1_PO3 POL0_PO3

POL15_PO3 POL14_PO3 POL13_PO3 POL12_PO3 POL11_PO3 POL10_PO3 POL9_PO3 POL8_PO3

POL23_PO3 POL22_PO3 POL21_PO3 POL20_PO3 POL19_PO3 POL18_PO3 POL17_PO3 POL16_PO3

POL31_PO3 POL30_PO3 POL29_PO3 POL28_PO3 POL27_PO3 POL26_PO3 POL25_PO3 POL24_PO3

POL7_PO4 POL6_PO4 POL5_PO4 POL4_PO4 POL3_PO4 POL2_PO4 POL1_PO4 POL0_PO4

POL15_PO4 POL14_PO4 POL13_PO4 POL12_PO4 POL11_PO4 POL10_PO4 POL9_PO4 POL8_PO4

POL23_PO4 POL22_PO4 POL21_PO4 POL20_PO4 POL19_PO4 POL18_PO4 POL17_PO4 POL16_PO4

POL31_PO4 POL30_PO4 POL29_PO4 POL28_PO4 POL27_PO4 POL26_PO4 POL25_PO4 POL24_PO4

POL7_PO5 POL6_PO5 POL5_PO5 POL4_PO5 POL3_PO5 POL2_PO5 POL1_PO5 POL0_PO5

POL15_PO5 POL14_PO5 POL13_PO5 POL12_PO5 POL11_PO5 POL10_PO5 POL9_PO5 POL8_PO5

POL23_PO5 POL22_PO5 POL21_PO5 POL20_PO5 POL19_PO5 POL18_PO5 POL17_PO5 POL16_PO5

POL31_PO5 POL30_PO5 POL29_PO5 POL28_PO5 POL27_PO5 POL26_PO5 POL25_PO5 POL24_PO5

POL7_PO6 POL6_PO6 POL5_PO6 POL4_PO6 POL3_PO6 POL2_PO6 POL1_PO6 POL0_PO6

POL15_PO6 POL14_PO6 POL13_PO6 POL12_PO6 POL11_PO6 POL10_PO6 POL9_PO6 POL8_PO6

POL23_PO6 POL22_PO6 POL21_PO6 POL20_PO6 POL19_PO6 POL18_PO6 POL17_PO6 POL16_PO6

POL31_PO6 POL30_PO6 POL29_PO6 POL28_PO6 POL27_PO6 POL26_PO6 POL25_PO6 POL24_PO6

POL7_PO7 POL6_PO7 POL5_PO7 POL4_PO7 POL3_PO7 POL2_PO7 POL1_PO7 POL0_PO7

POL15_PO7 POL14_PO7 POL13_PO7 POL12_PO7 POL11_PO7 POL10_PO7 POL9_PO7 POL8_PO7

POL23_PO7 POL22_PO7 POL21_PO7 POL20_PO7 POL19_PO7 POL18_PO7 POL17_PO7 POL16_PO7

POL31_PO7 POL30_PO7 POL29_PO7 POL28_PO7 POL27_PO7 POL26_PO7 POL25_PO7 POL24_PO7

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

00h

DEFAULT

FFh

FFh

FFh

00h

00h

00h

00h

00h

00h

00h

00h

EXTENDED PAGE REGISTERS

R432 (1B0h) User access control

R436 (1B4h) LDO2 control

R448 (1C0h) USER_KEY2

R459 (1CBh) Comp control

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

3.

4.

Notes:

1.

2.

To change the LDO2 control, the USER_KEY bit must be set to ‘1’.

If it’s not required to change this register, it must be set as default.

To change the Comp control, the USER_KEY2 bit must be set to ‘1’.

If it’s not required to change this register, must be set as default.

0

0

0

0

LDO2 VSEL

0

0

0 USER_KEY

0 USER_KEY2

PT_COMP[1:0]

00h

10h

00h

01h

Rev 4.5

71

WM8235

REGISTER BITS BY ADDRESS

DEFAULT REGISTER

ADDRESS

R0 (00h)

Software

Reset/Chip

ID 1

BIT

7:0

LABEL

SW_RESET_

CHIP_ID[7:0]

Register 00h Software Reset/Chip ID 1

DESCRIPTION

0011_0101 A write issues a software reset, and returns all control registers to their default values.

A read returns lower bits of the device ID

REGISTER

ADDRESS

R1 (01h)

Chip ID 2

BIT

7:0

Register 01h Chip ID 2

LABEL DEFAULT DESCRIPTION

CHIP_ID[7:0] 1000_0010 A read returns upper bits of the device ID

REGISTER

ADDRESS

R2 (02h)

Chip Rev

BIT

3:0

Register 02h Chip Rev

LABEL

CHIP_REV[3:0]

DEFAULT

0000

DESCRIPTION

A read returns the device revision number

REGISTER

ADDRESS

R3 (03h)

Setup Reg 1

BIT

4

LABEL

CHZPD

DEFAULT

0

DESCRIPTION

3

2

1

0

CHYPD

CHXPD

PDMD

PD

0

0

0

0

ADC powerdown control for channel 7&8&9

(related PGA and digits goes power down)

0 = normal operation

1 = power down

ADC powerdown control for channel 4&5&6

(related PGA and digits goes power down)

0 = normal operation

1 = power down

ADC powerdown control for channel 1&2&3

(related PGA and digits goes power down)

0 = normal operation

1 = power down power down mode

0 : standby

1 : sleep power down

0 : normal operation

1 : power down

Register 03h Setup Reg 1

REGISTER

ADDRESS

R4 (04h)

Setup Reg 2

BIT

7

LABEL

VRLC_TOP_SE

L

DEFAULT

0

72

6 PGAFS 1

DESCRIPTION

selects output range of VRLCDAC

0 = AVDD

1 = 1.6V control PGA input polarity

0 = negative

1 = positive

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

5

1

0

ADCFS

CLPMD

CDS

0

0

0 control ADC full scale range

0 = 1.2V

1 = 1.8V select clamp mode

0 = line clamp

1 = bit clamp

CDS mode control

0 = S/H mode

1 = CDS mode

Register 04h Setup Reg 2

REGISTER

ADDRESS

R5 (05h)

Setup Reg 3

BIT

4

LABEL

SF_BYPLS

DEFAULT DESCRIPTION

3:2

1

0

PT_SF[1:0]

SF_INP

SF_VRLC

1

11

0

0 bypass level shift of VRLC source follower

0 = use level shifter

1 = bypass level shifter source follower power trim

00 = 1mA

01 = 2mA

10 = 3mA

11 = 4mA control source follower on signal inputs INP*

0 = disabled

1 = enabled control source follower on VRLC

0 = disabled

1 = enabled

Register 05h Setup Reg 3

REGISTER

ADDRESS

R6 (06h)

VRLC control

BIT LABEL DEFAULT DESCRIPTION

7

6:5 VRLC_ISEL[1:0]

4:0

VRLCEN

VRLC_VSEL[4:0

]

1

00 enable for VRLC DAC

0 = disabled

1 = enabled selects output current capability

00 = Up to 2mA

01 = Up to 3mA

10 = Up to 4mA

11 = reserved (Up to 2mA)

0_1010 VRLC output voltage setting when VRLC_TOP_SEL=0 (AVDD)

3.3/AVDD * ( 0.2 + 0.09xVRLC_VSEL[4:0]) when VRLC_TOP_SEL=1 (1.6V)

1.6 - 0.048*(31-VRLC_VSEL[4:0])

Register 06h VRLC control

Rev 4.5

WM8235

REFER TO

REFER TO

REFER TO

73

REGISTER

ADDRESS

R7 (07h) output

control

BIT

7

6

5

4

3

LABEL

OE_OP

OUTPD

CMOSMODE

OUTSYNC

LVDSORDER

2:0 LVDSMODE[2:0

]

DEFAULT

0

1

0

0

0

000

DESCRIPTION

output enable of dataout (CMOS/LVDS) when HIZCTRL=0

0= Hi-Z

1= enable dataout when HIZCTRL=1

OE_OP state is neglected and enable dataout control data output

0 = enable data output

1 = mask data output (data out=0) enable CMOS output mode

0 = LVDS output mode based on LVDSMODE[2:0]

1 = CMOS output mode enable syncronous output mode

0 = continuous

1 = syncronized dataout with LineStart signal control LVDS data output order

0 = descending order

1 = ascending order select LVDS dataoutput format

000 = 10bit 5pair + clk

001 = 10bit 3pair + clk

011 = 12bit 4pair + clk

101 = 16bit 5pair + clk

110 = 16bit 3pair + clk

Others = reserved

Register 07h output control

REGISTER

ADDRESS

R8 (08h)

LVDS control

BIT

6

LABEL

LVDS_POL

DEFAULT

0

5:3 LVDS_AMP[2:0]

2:0 LVDS_VCM[2:0]

110

101

DESCRIPTION

invert LVDS outputs polarity

0 = normal

1 = inverted

LVDS amplitude select

000 = 50mV

001 = 100mV

010 = 150mV

011 = 200mV

All other codes are Reserved.

Note that the default code (110) should not be used.

LVDS common mode select

000 = 0.70V

001 = 0.80V

010 = 0.90V

011 = 1.00V

100 = 1.15V

101 = 1.25V

110 = 1.35V

111 = 1.45V

Register 08h LVDS control

WM8235

REFER TO

REFER TO

74 Rev 4.5

REGISTER

ADDRESS

R9 (09h)

LVDS clock pattern

BIT

6:0

LABEL

LVCKPAT[6:0]

Register 09h LVDS clock pattern

DEFAULT

110_0011

LVDS clock pattern

(output MSB first)

DESCRIPTION

REGISTER

ADDRESS

R10 (0Ah) flag control 1

BIT

7:4

3:0

LABEL

FLAG_S1[3:0]

FLAG_S0[3:0]

DEFAULT

0001

0000

DESCRIPTION

output dataflag as S1

(valid only LVDS mode)

0000 = always low

0001 = start flag

0010 = reserved

0011 = reserved

0100 = reserved

0101 = channel ID[0]

0110 = channel ID[1]

0111 = channel ID[2]

1000 = channel ID[3]

1001 = reserved

1010 = reserved

1011 = reserved

1100 = reserved

1101 = reserved

1110 = reserved

1111 = always high output dataflag as S0

(valid only LVDS mode)

0000 = always low

0001 = start flag

0010 = reserved

0011 = reserved

0100 = reserved

0101 = channel ID[0]

0110 = channel ID[1]

0111 = channel ID[2]

1000 = channel ID[3]

1001 = reserved

1010 = reserved

1011 = reserved

1100 = reserved

1101 = reserved

1110 = reserved

1111 = always high

Register 0Ah flag control 1

REGISTER

ADDRESS

R11 (0Bh)

flag control 2

BIT

7:4

LABEL

FLAG_S3[3:0]

DEFAULT

0000

DESCRIPTION

output dataflag as S3

(valid only LVDS mode)

0000 = always low

0001 = start flag

Rev 4.5

WM8235

REFER TO

REFER TO

REFER TO

75

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

3:0 FLAG_S2[3:0] 0000

0010 = reserved

0011 = reserved

0100 = reserved

0101 = channel ID[0]

0110 = channel ID[1]

0111 = channel ID[2]

1000 = channel ID[3]

1001 = reserved

1010 = reserved

1011 = reserved

1100 = reserved

1101 = reserved

1110 = reserved

1111 = always high output dataflag as S2

(valid only LVDS mode)

0000 = always low

0001 = start flag

0010 = reserved

0011 = reserved

0100 = reserved

0101 = channel ID[0]

0110 = channel ID[1]

0111 = channel ID[2]

1000 = channel ID[3]

1001 = reserved

1010 = reserved

1011 = reserved

1100 = reserved

1101 = reserved

1110 = reserved

1111 = always high

Register 0Bh flag control 2

REGISTER

ADDRESS

R12 (0Ch) flag control 3

BIT

3:0

LABEL

FLAG_S4[3:0]

DEFAULT

0000

DESCRIPTION

output dataflag as S4

(valid only LVDS mode)

0000 = always low

0001 = start flag

0010 = reserved

0011 = reserved

0100 = reserved

0101 = channel ID[0]

0110 = channel ID[1]

0111 = channel ID[2]

1000 = channel ID[3]

1001 = reserved

1010 = reserved

1011 = reserved

1100 = reserved

1101 = reserved

76

WM8235

REFER TO

REFER TO

Rev 4.5

WM8235

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION REFER TO

1110 = reserved

1111 = always high

Register 0Ch flag control 3

REGISTER

ADDRESS

R13 (0Dh)

CMOS drivability control 1

BIT

3

LABEL

DRV_CTRL

2:0 OP_DRV[2:0]

DEFAULT

0

000

DESCRIPTION

CMOS output drivability control mode

0 = OP_DRV controls drivability of all output pins OP*

1 = OP_DRV is invalid, and OP*_DRV control drivability of output pin OP*

CMOS output drivability control when DRV_CTRL=0

000: Hi-Z

001: 1mA

010: 2mA

011: 3mA

100: 4mA

101: 5mA

110/111: 6mA

REFER TO

Register 0Dh CMOS drivability control 1

REGISTER

ADDRESS

R14 (0Eh)

CMOS drivability control 2

BIT

6:4

2:0

LABEL

OP1_DRV[2:0]

OP0_DRV[2:0]

DEFAULT

000

000

DESCRIPTION

CMOS output (OP2) drivability

000: Hi-Z

001: 1mA

010: 2mA

011: 3mA

100: 4mA

101: 5mA

110/111: 6mA

CMOS output (OP1) drivability

000: Hi-Z

001: 1mA

010: 2mA

011: 3mA

100: 4mA

101: 5mA

110/111: 6mA

Register 0Eh CMOS drivability control 2

REGISTER

ADDRESS

R15 (0Fh)

CMOS drivability control 3

BIT

6:4

LABEL

OP3_DRV[2:0]

DEFAULT

000

Rev 4.5

DESCRIPTION

CMOS output (OP4) drivability

000: Hi-Z

001: 1mA

010: 2mA

011: 3mA

100: 4mA

101: 5mA

110/111: 6mA

REFER TO

REFER TO

77

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

2:0 OP2_DRV[2:0] 000

CMOS output (OP3) drivability

000: Hi-Z

001: 1mA

010: 2mA

011: 3mA

100: 4mA

101: 5mA

110/111: 6mA

Register 0Fh CMOS drivability control 3

REGISTER

ADDRESS

R16 (10h)

CMOS drivability control 4

BIT

6:4

2:0

LABEL

OP5_DRV[2:0]

OP4_DRV[2:0]

DEFAULT

000

000

DESCRIPTION

Register 10h CMOS drivability control 4

REGISTER

ADDRESS

R17 (11h)

CMOS drivability control 5

BIT

6:4

LABEL

OP7_DRV[2:0]

DEFAULT

000

2:0 OP6_DRV[2:0] 000

DESCRIPTION

CMOS output (OP8) drivability

000: Hi-Z

001: 1mA

010: 2mA

011: 3mA

100: 4mA

101: 5mA

110/111: 6mA

CMOS output (OP7) drivability

000: Hi-Z

001: 1mA

010: 2mA

011: 3mA

100: 4mA

101: 5mA

110/111: 6mA

Register 11h CMOS drivability control 5

CMOS output (OP6) drivability

000: Hi-Z

001: 1mA

010: 2mA

011: 3mA

100: 4mA

101: 5mA

110/111: 6mA

CMOS output (OP5) drivability

000: Hi-Z

001: 1mA

010: 2mA

011: 3mA

100: 4mA

101: 5mA

110/111: 6mA

78

WM8235

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

R18 (12h)

CMOS drivability control 6

BIT

6:4

2:0

LABEL

OP9_DRV[2:0]

OP8_DRV[2:0]

DEFAULT

000

000

DESCRIPTION

CMOS output (OP10) drivability

000: Hi-Z

001: 1mA

010: 2mA

011: 3mA

100: 4mA

101: 5mA

110/111: 6mA

CMOS output (OP9) drivability

000: Hi-Z

001: 1mA

010: 2mA

011: 3mA

100: 4mA

101: 5mA

110/111: 6mA

Register 12h CMOS drivability control 6

REGISTER

ADDRESS

R19 (13h)

CMOS drivability control 7

BIT

6:4

LABEL

OC2_DRV[2:0]

DEFAULT

000

2:0 OC1_DRV[2:0] 000

DESCRIPTION

CMOS output (OC2) drivability

000: Hi-Z

001: 1mA

010: 2mA

011: 3mA

100: 4mA

101: 5mA

110/111: 6mA

CMOS output (OC1) drivability

000: Hi-Z

001: 1mA

010: 2mA

011: 3mA

100: 4mA

101: 5mA

110/111: 6mA

Register 13h CMOS drivability control 7

REGISTER

ADDRESS

R20 (14h)

PG config

BIT

7

LABEL

PGMARCH

DEFAULT

0

DESCRIPTION

Rev 4.5

6:5

4

PGPAT[1:0]

PGINV

00

0 pattern generator marching mode enable

0 = controlled by PGPAT

1 = marching pattern select pattern generator output

00 = fixed value

01 = vertical ramp

10 = horizontal ramp

11 = patch invert pattern generator output

0 = normal

1 = invert

WM8235

REFER TO

REFER TO

REFER TO

79

WM8235

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION REFER TO

3

2

1

0

SEL_PGZ

SEL_PGY

SEL_PGX

PGEN

0

0

0

0 select output of pattern generator (IN7, IN8, IN9)

0 = normal ouput

1 = output generated digital pattern instead of ADC outputs select output of pattern generator (IN4, IN5, IN6)

0 = normal ouput

1 = output generated digital pattern instead of ADC outputs select output of pattern generator (IN1, IN2, IN3)

0 = normal ouput

1 = output generated digital pattern instead of ADC outputs enable pattern generator

0 = disable

1 = enable

Register 14h PG config

REGISTER

ADDRESS

R21 (15h)

PGCODE

LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

PGLEVEL[7:0] 0000_0000 parameter of pattern generator

Register 15h PGCODE LSB

REFER TO

REGISTER

ADDRESS

R22 (16h)

PGCODE

MSB

BIT

7:0

DEFAULT DESCRIPTION

PGLEVEL[7:0] 0000_0000 parameter of pattern generator

Register 16h PGCODE MSB

LABEL

REGISTER

ADDRESS

R23 (17h)

PG width 1

BIT LABEL DEFAULT DESCRIPTION

7:0 PGWIDTH1[7:0] 0000_0000 parameter of pattern generator

Register 17h PG width 1

REGISTER

ADDRESS

R24 (18h)

PG width 2

BIT LABEL DEFAULT DESCRIPTION

7:0 PGWIDTH2[7:0] 0000_0000 parameter of pattern generator

Register 18h PG width 2

REGISTER

ADDRESS

R25 (19h) clock monitor

BIT

2:0

LABEL

MONCLK[2:0]

DEFAULT

000

DESCRIPTION

80

select monitor output

0xx = Low (monitor disabled)

100 = RSMP

101 = VSMP

110 = ACLK

111 = OCLK

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

WM8235

Register 19h clock monitor

REGISTER

ADDRESS

R26 (1Ah)

PLL control 1

BIT

2

LABEL

PLL_LPF_RST

DEFAULT

0

1

0

PLL_CP_PD

PLL_VCO_PD

0

0

DESCRIPTION

Reset Loop Filter.

0 = normal

1 = reset power down Charge Pump.

0 = normal

1 = power down power down VCO

0 = normal

1 = power down

Register 1Ah PLL control 1

REGISTER

ADDRESS

R27 (1Bh)

PLL control 2

BIT

7

6

3:2

1:0

LABEL

PLL_LPF_SEL

PLL_LPF_SEL

PLL_PFD_

CTRL[1:0]

PLL_CP_

GAIN[1:0]

DEFAULT

0

0

10

01

DESCRIPTION

PLL_LPF_SEL[1] is unused.

Control Loop Filter to improve the performance.

Note: these settings are applicable for the specific conditions. x0 = normal filter x1 = larger resistor to improve PLL cutoff freq (for SSC)

PLL_LPF_SEL[1] is unused.

Control Loop Filter to improve the performance.

Note: these settings are applicable for the specific conditions. x0 = normal filter x1 = larger resistor to improve PLL cutoff freq (for SSC)

Control reset delay to improve PFD sensitivity.

00 = 1ns delay

01 = 2.2ns delay

10 = 3.4ns delay (default)

11 = 5.8ns delay

Control Charge Pump current.

00 = 0.5uA

01 = 1uA (default)

10 = 2uA

11 = 4uA

Register 1Bh PLL control 2

REGISTER

ADDRESS

R28 (1Ch)

PLL divider control 1

BIT

6:4

LABEL

PLL_EXDIV_

SEL[2:0]

DEFAULT

001

DESCRIPTION

Select EX DIV ratio.

Need to set according to input frequency. See details in

“PLL DLL Setup”

000 = 1

001 = 2

010 = 4

011 = 8

Rev 4.5

REFER TO

REFER TO

REFER TO

81

WM8235

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION REFER TO

3:0 PLL_FBDIV_

SEL[3:0]

Register 1Ch PLL divider control 1

REGISTER

ADDRESS

R29 (1Dh)

PLL divider control 2

BIT LABEL

5:4 PLL_POSTDIV2

_SEL[1:0]

DEFAULT

01

3:0 PLL_POSTDIV1

_SEL[3:0]

0100

DESCRIPTION

Select POST DIV2 ratio.

(Read Only)

00 = 1

01 = 2

10 = 4

11 = 6

Select POST DIV1 ratio. (Read Only)

0000 = 1

0001 = 2

0010 = 3

0011 = 4

0100 = 6

0101 = 8

0110 = 9

0111 = 12

1000 = 18

1001 to 1111 = reserved.

Register 1Dh PLL divider control 2

REGISTER

ADDRESS

R35 (23h)

Cycle mode control

BIT

3:2

LABEL

INTM[1:0]

0100

DEFAULT

00

100 = 16

101 to 111 = reserved.

Select FB DIV ratio. (ReadOnly)

0000 = 1

0001 = 2

0010 = 3

0011 = 4

0100 = 6

0101 = 8

0110 = 9

0111 = 12

1000 = 18

1001 to 1111 = reserved.

DESCRIPTION

82

1

0

ACYC

LINEBYLINE

0

0

REFER TO

REFER TO

When LINEBYLINE=1, controls the GAIN and DAC mux selector when ACYC=0

00 = IN7

01 = IN8

10 = IN9

11 = reserved when LINEBYLINE=1, determines the function of the MUX control

0 = decided by INTM register

1= auto-cycling enabled select line by line operation

0=normal operation

1=Line by Line operation

Rev 4.5

Register 23h cycle mode control

REGISTER

ADDRESS

R36 (24h)

DAC IN1

BIT

7:0

Register 24h DAC IN1

LABEL DEFAULT DESCRIPTION

DACIN1[7:0] 1000_0000 DACIN1offset value

250 * (DACIN1[7:0] -127.5) / 127.5 [mV]

REGISTER

ADDRESS

R37 (25h)

DAC IN2

BIT

7:0

Register 25h DAC IN2

LABEL DEFAULT DESCRIPTION

DACIN2[7:0] 1000_0000 DACIN2 offset value

250 * (DACIN2[7:0] -127.5) / 127.5 [mV]

REGISTER

ADDRESS

R38 (26h)

DAC IN3

BIT

7:0

Register 26h DAC IN3

LABEL DEFAULT DESCRIPTION

DACIN3[7:0] 1000_0000 DACIN3offset value

250 * (DACIN3[7:0] -127.5) / 127.5 [mV]

REGISTER

ADDRESS

R39 (27h)

DAC IN4

BIT

7:0

Register 27h DAC IN4

LABEL DEFAULT DESCRIPTION

DACIN4[7:0] 1000_0000 DACIN4offset value

250 * (DACIN4[7:0] -127.5) / 127.5 [mV]

REGISTER

ADDRESS

R40 (28h)

DAC IN5

BIT

7:0

Register 28h DAC IN5

LABEL DEFAULT DESCRIPTION

DACIN5[7:0] 1000_0000 DACIN5offset value

250 * (DACIN5[7:0] -127.5) / 127.5 [mV]

REGISTER

ADDRESS

R41 (29h)

DAC IN6

BIT

7:0

Register 29h DAC IN6

LABEL DEFAULT DESCRIPTION

DACIN6[7:0] 1000_0000 DACIN6 offset value

250 * (DACIN6[7:0] -127.5) / 127.5 [mV]

REGISTER

ADDRESS

R42 (2Ah)

DAC IN7

BIT

7:0

Register 2Ah DAC IN7

LABEL DEFAULT DESCRIPTION

DACIN7[7:0] 1000_0000 DACIN7offset value

250 * (DACIN7[7:0] -127.5) / 127.5 [mV]

REGISTER

ADDRESS

R43 (2Bh)

Rev 4.5

BIT

7:0

LABEL DEFAULT

DACIN8[7:0] 1000_0000 DACIN8offset value

DESCRIPTION

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

83

REGISTER

ADDRESS

DAC IN8

BIT

Register 2Bh DAC IN8

LABEL DEFAULT DESCRIPTION

250 * (DACIN8[7:0] -127.5) / 127.5 [mV]

REGISTER

ADDRESS

R44 (2Ch)

DAC IN9

BIT

7:0

Register 2Ch DAC IN9

LABEL DEFAULT DESCRIPTION

DACIN9[7:0] 1000_0000 DACIN9offset value

250 * (DACIN9[7:0] -127.5) / 127.5 [mV]

REGISTER

ADDRESS

R45 (2Dh)

AGAIN IN1

BIT

4:0

Register 2Dh AGAIN IN1

LABEL

AGAININ1[4:0]

DEFAULT DESCRIPTION

0_0001 PGAIN1 gain control gain(V/V) = 0.6 + 0.3*AGAIN*[4:0]

REGISTER

ADDRESS

R46 (2Eh)

AGAIN IN2

BIT

4:0

Register 2Eh AGAIN IN2

LABEL

AGAININ2[4:0]

DEFAULT DESCRIPTION

0_0001 PGA IN2 gain code gain(V/V) = 0.6 + 0.3*AGAIN*[4:0]

REGISTER

ADDRESS

R47 (2Fh)

AGAIN IN3

BIT

4:0

Register 2Fh AGAIN IN3

LABEL

AGAININ3[4:0]

DEFAULT DESCRIPTION

0_0001 PGA IN3 gain code gain(V/V) = 0.6 + 0.3*AGAIN*[4:0]

REGISTER

ADDRESS

R48 (30h)

AGAIN IN4

BIT

4:0

Register 30h AGAIN IN4

LABEL

AGAININ4[4:0]

DEFAULT DESCRIPTION

0_0001 PGA IN4 gain code gain(V/V) = 0.6 + 0.3*AGAIN*[4:0]

REGISTER

ADDRESS

R49 (31h)

AGAIN IN5

BIT

4:0

Register 31h AGAIN IN5

LABEL

AGAININ5[4:0]

DEFAULT DESCRIPTION

0_0001 PGA IN5 gain code gain(V/V) = 0.6 + 0.3*AGAIN*[4:0]

REGISTER

ADDRESS

R50 (32h)

AGAIN IN6

BIT

4:0

Register 32h AGAIN IN6

LABEL

AGAININ6[4:0]

DEFAULT DESCRIPTION

0_0001

PGA IN6 gain code gain(V/V) = 0.6 + 0.3*AGAIN*[4:0]

84

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

R51 (33h)

AGAIN IN7

BIT

4:0

Register 33h AGAIN IN7

LABEL

AGAININ7[4:0]

DEFAULT DESCRIPTION

0_0001

PGA IN7 gain code gain(V/V) = 0.6 + 0.3*AGAIN*[4:0]

REGISTER

ADDRESS

R52 (34h)

AGAIN IN8

BIT

4:0

Register 34h AGAIN IN8

LABEL

AGAININ8[4:0]

DEFAULT DESCRIPTION

0_0001 PGA IN8 gain code gain(V/V) = 0.6 + 0.3*AGAIN*[4:0]

REGISTER

ADDRESS

R53 (35h)

AGAIN IN9

BIT

4:0

Register 35h AGAIN IN9

LABEL

AGAININ9[4:0]

DEFAULT DESCRIPTION

0_0001 PGA IN9 gain code gain(V/V) = 0.6 + 0.3*AGAIN*[4:0]

REGISTER

ADDRESS

R54 (36h)

DGAIN IN1

LSB

BIT

7:4

LABEL

DGAININ1[3:0]

DEFAULT

0000

DESCRIPTION

lower bits of digital gain IN1 digital gain(V/V) = DGAIN[11:0]/2^11

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 36h DGAIN IN1 LSB

REGISTER

ADDRESS

R55 (37h)

DGAIN IN1

MSB

BIT LABEL DEFAULT DESCRIPTION

7:0 DGAININ1[11:4] 1000_0000 upper bits of digital gain IN1

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 37h DGAIN IN1 MSB

REGISTER

ADDRESS

R56 (38h)

Rev 4.5

BIT

7:4

LABEL

DGAININ2[3:0]

DEFAULT

0000 lower bits of digital gain IN2

DESCRIPTION

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

85

REGISTER

ADDRESS

DGAIN IN2

LSB

BIT LABEL DEFAULT DESCRIPTION

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 38h DGAIN IN2 LSB

REGISTER

ADDRESS

R57 (39h)

DGAIN IN2

MSB

BIT LABEL DEFAULT DESCRIPTION

7:0 DGAININ2[11:4] 1000_0000 upper bits of digital gain IN2

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 39h DGAIN IN2 MSB

REGISTER

ADDRESS

R58 (3Ah)

DGAIN IN3

LSB

BIT

7:4

LABEL

DGAININ3[3:0]

DEFAULT

0000

DESCRIPTION

lower bits of digital gain IN3

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 3Ah DGAIN IN3 LSB

REGISTER

ADDRESS

R59 (3Bh)

DGAIN IN3

MSB

BIT LABEL DEFAULT DESCRIPTION

7:0 DGAININ3[11:4] 1000_0000 upper bits of digital gain IN3

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 3Bh DGAIN IN3 MSB

86

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

R60 (3Ch)

DGAIN IN4

LSB

BIT

7:4

LABEL

DGAININ4[3:0]

DEFAULT

0000

DESCRIPTION

lower bits of digital gain IN4

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 3Ch DGAIN IN4 LSB

REGISTER

ADDRESS

R61 (3Dh)

DGAIN IN4

MSB

BIT LABEL DEFAULT DESCRIPTION

7:0 DGAININ4[11:4] 1000_0000 upper bits of digital gain IN4

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 3Dh DGAIN IN4 MSB

REGISTER

ADDRESS

R62 (3Eh)

DGAIN IN5

LSB

BIT

7:4

LABEL

DGAININ5[3:0]

DEFAULT

0000

DESCRIPTION

lower bits of digital gain IN5

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 3Eh DGAIN IN5 LSB

REGISTER

ADDRESS

R63 (3Fh)

DGAIN IN5

MSB

BIT LABEL DEFAULT DESCRIPTION

7:0 DGAININ5[11:4] 1000_0000 upper bits of digital gain IN5

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 3Fh DGAIN IN5 MSB

Rev 4.5

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

87

REGISTER

ADDRESS

R64 (40h)

DGAIN IN6

LSB

BIT

7:4

LABEL

DGAININ6[3:0]

DEFAULT

0000

DESCRIPTION

lower bits of digital gain IN6

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 40h DGAIN IN6 LSB

REGISTER

ADDRESS

R65 (41h)

DGAIN IN6

MSB

BIT LABEL DEFAULT DESCRIPTION

7:0 DGAININ6[11:4] 1000_0000 upper bits of digital gain IN6

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 41h DGAIN IN6 MSB

REGISTER

ADDRESS

R66 (42h)

DGAIN IN7

LSB

BIT

7:4

LABEL

DGAININ7[3:0]

DEFAULT

0000

DESCRIPTION

lower bits of digital gain IN7

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 42h DGAIN IN7 LSB

REGISTER

ADDRESS

R67 (43h)

DGAIN IN7

MSB

BIT LABEL DEFAULT DESCRIPTION

7:0 DGAININ7[11:4] 1000_0000 upper bits of digital gain IN7

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 43h DGAIN IN7 MSB

88

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

R68 (44h)

DGAIN IN8

LSB

BIT

7:4

LABEL

DGAININ8[3:0]

DEFAULT

0000

DESCRIPTION

lower bits of digital gain IN8

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 44h DGAIN IN8 LSB

REGISTER

ADDRESS

R69 (45h)

DGAIN IN8

MSB

BIT LABEL DEFAULT DESCRIPTION

7:0 DGAININ8[11:4] 1000_0000 upper bits of digital gain IN8

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 45h DGAIN IN8 MSB

REGISTER

ADDRESS

R70 (46h)

DGAIN IN9

LSB

BIT

7:4

LABEL

DGAININ9[3:0]

DEFAULT

0000

DESCRIPTION

lower bits of digital gain IN9

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 46h DGAIN IN9 LSB

REGISTER

ADDRESS

R71 (47h)

DGAIN IN9

MSB

BIT LABEL DEFAULT DESCRIPTION

7:0 DGAININ9[11:4] 1000_0000 upper bits of digital gain IN9

1111_1111_1111 = 1.99[V/V]

...

1000_0000_0000 = 1.0[V/V]

...

0100_0000_0000 = 0.5[V/V]

0011_1111_1111 = reserved

0000_0000_0000 = reserved

Register 47h DGAIN IN9 MSB

Rev 4.5

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

89

REGISTER

ADDRESS

R72 (48h)

BLC IN1

target

BIT LABEL DEFAULT DESCRIPTION

7:0 TARGETIN1[7:0

]

0000_0000 target black level for IN1

Register 48h BLC IN1 target

REGISTER

ADDRESS

R73 (49h)

BLC IN2 target

BIT LABEL DEFAULT DESCRIPTION

7:0 TARGETIN2[7:0

]

0000_0000 target black level for IN2

Register 49h BLC IN2 target

REGISTER

ADDRESS

R74 (4Ah)

BLC IN3 target

BIT LABEL DEFAULT DESCRIPTION

7:0 TARGETIN3[7:0

]

0000_0000 target black level for IN3

Register 4Ah BLC IN3 target

REGISTER

ADDRESS

R75 (4Bh)

BLC IN4 target

BIT

Register 4Bh BLC IN4 target

LABEL DEFAULT DESCRIPTION

7:0 TARGETIN4[7:0

]

0000_0000 target black level for IN4

REGISTER

ADDRESS

R76 (4Ch)

BLC IN5 target

BIT

Register 4Ch BLC IN5 target

LABEL DEFAULT DESCRIPTION

7:0 TARGETIN5[7:0

]

0000_0000 target black level for IN5

REGISTER

ADDRESS

R77 (4Dh)

BLC IN6 target

BIT

Register 4Dh BLC IN6 target

LABEL DEFAULT DESCRIPTION

7:0 TARGETIN6[7:0

]

0000_0000 target black level for IN6

REGISTER

ADDRESS

R78 (4Eh)

BLC IN7

target

BIT LABEL DEFAULT DESCRIPTION

7:0 TARGETIN7[7:0

]

0000_0000 target black level for IN7

Register 4Eh BLC IN7 target

90

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

WM8235

REGISTER

ADDRESS

R79 (4Fh)

BLC IN8 target

BIT LABEL DEFAULT DESCRIPTION

7:0 TARGETIN8[7:0

]

0000_0000 target black level for IN8

Register 4Fh BLC IN8 target

REGISTER

ADDRESS

R80 (50h)

BLC IN9 target

BIT LABEL DEFAULT DESCRIPTION

7:0 TARGETIN9[7:0

]

0000_0000 target black level for IN9

Register 50h BLC IN9 target

REFER TO

REFER TO

REGISTER

ADDRESS

R81 (51h)

BLC control 1

BIT

7

6

5

4

3

2:0

LABEL

FRAME_SEQ

FA_EVERYLINE

FA_ACCUM

FA_EN

CA_EVERYLIN

E

CADUR[2:0]

DEFAULT

0

0

0

0

0

000

DESCRIPTION

control frame sequence mode

0 = line by line

1 = frame sequence mode control fine adjustment

0 = Fine adjust only used on the 1st line of a frame

1 = Fine adjust used on every line of a frame makes the fine adjust calibration accumulate a result over multiple lines

0 = not accumulate

1 = accumulate enables the fine adjust operation

0 = disable

1 = enable control coarse ajustment

0 = Coarse adjust only used on the 1st line of a frame

1 = Coarse adjust used on every line of a frame controls the number of coarse adjust iterations to be perfomed

000 = disable

001 = 1time

010 = 2time

011 = 3time

111 = 7time

REFER TO

Register 51h BLC control 1

REGISTER

ADDRESS

R82 (52h)

BLC control 2

BIT

1

LABEL

SEQ_START

DEFAULT

0

Rev 4.5

0 FRAME_START 0

DESCRIPTION

register flag to indicate that the next start-of-line indicator is the first line of the first frame in a frame-sequence. This register is automatically set to zero at the end of the BLC operation on the first line

0 = no effect

1 = first frame of frame-sequence mode

Register flag to indicate that the next start-of-line indicator is the first line in a frame. This register is automatically set

REFER TO

91

WM8235

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION REFER TO

to zero at the end of the BLC operation on the first line

0 = no effect

1 = start of line

Register 52h BLC control 2

REGISTER

ADDRESS

R83 (53h)

BLC control 3

BIT LABEL DEFAULT DESCRIPTION

7:0 BPIX_AVAIL[7:0

]

0000_0000 LSBs of the number of black-pixels available over which to perform the coarse and/or fine adjust calibration

00_0000_0000 = no pixel available

11_1111_1111 = 1023 pixels

Register 53h BLC control 3

REFER TO

REGISTER

ADDRESS

R84 (54h)

BLC control

4

BIT LABEL

1:0 BPIX_AVAIL[9:8

]

DEFAULT

00

DESCRIPTION

MSBs of the number of black-pixels available over which to perform the coarse and/or fine adjust calibration

00_0000_0000 = no pixel available

11_1111_1111 = 1023 pixels

REFER TO

Register 54h BLC control 4

REGISTER

ADDRESS

R85 (55h)

BLC control 5

BIT

7:0

LABEL DEFAULT DESCRIPTION

LINE_DEL[7:0] 0000_0000 LSBs of the number of lines from the start of a frame to delay the start of BLC operation

0_0000_0000 = no delay

1_1111_1111 = 511 line

Register 55h BLC control 5

REGISTER

ADDRESS

R86 (56h)

BLC control 6

BIT

0

LABEL

LINE_DEL[8]

DEFAULT

0

DESCRIPTION

MSBs of the number of lines from the start of aframe to delay the start of BLC operation

0_0000_0000 = no delay

1_1111_1111 = 511 line

Register 56h BLC control 6

REFER TO

REFER TO

REGISTER

ADDRESS

R87 (57h)

AGC config 1

BIT

7:4

LABEL

AGCAVE[3:0]

DEFAULT

0000

DESCRIPTION REFER TO

92

averaging factor before peak detection

0000 = no average

0001 = 2

0010 = 4

0011 = 8

1010 = 1024

1011 = reserved

1100 = reserved

Rev 4.5

WM8235

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION REFER TO

2

1

0

AGC_ERRFLAG

AGC_ENDFLAG

AGC_EN

0

0

0

1101 = reserved

1110 = reserved

1111 = reserved

AGC error flag

0 = no error detected

1 = AGC finish with error

AGC end flag

0 = not end or not run

1 = AGC sequence was done

AGC enable

0 = disable

1 = enable

Register 57h AGC config 1

REGISTER

ADDRESS

R88 (58h)

AGC config 2

BIT

6:4

LABEL

AGC_DPD[2:0]

DEFAULT

000

2:0 AGC_APD[2:0] 000

DESCRIPTION

the number of peak detection iterations to calculate digital gain

000 = no digital gain adjustment

001 = 1line

010 = 2line

111 = 7line the number of peak detection iterations to calculate analogue gain

000 = no analogue gain adjustment

001 = 1line

010 = 2line

111 = 7line

REFER TO

Register 58h AGC config 2

REGISTER

ADDRESS

R89 (59h)

AGC target

IN1 LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

AGC_TARGET

IN1[7:0]

0000_0000 LSBs of AGC target level for IN1

Register 59h AGC target IN1 LSB

REGISTER

ADDRESS

R90 (5Ah)

AGC target

IN1 MSB

BIT

1:0

LABEL

AGC_TARGET

IN1[9:8]

Register 5Ah AGC target IN1 MSB

DEFAULT

00

DESCRIPTION

MSBs of AGC target level for IN1

REGISTER

ADDRESS

R91 (5Bh)

Rev 4.5

BIT

7:0

LABEL DEFAULT

AGC_TARGET 0000_0000 LSBs of AGC target level for IN2

DESCRIPTION

REFER TO

REFER TO

REFER TO

93

REGISTER

ADDRESS

AGC target

IN2 LSB

BIT LABEL

IN2[7:0]

Register 5Bh AGC target IN2 LSB

DEFAULT DESCRIPTION

REGISTER

ADDRESS

R92 (5Ch)

AGC target

IN2 MSB

BIT

1:0

LABEL

AGC_TARGET

IN2[9:8]

Register 5Ch AGC target IN2 MSB

DEFAULT

00

DESCRIPTION

LSBs of AGC target level for IN2

REGISTER

ADDRESS

R93 (5Dh)

AGC target

IN3 LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

AGC_TARGET

IN3[7:0]

0000_0000 LSBs of AGC target level for IN3

Register 5Dh AGC target IN3 LSB

REGISTER

ADDRESS

R94 (5Eh)

AGC target

IN3 MSB

BIT

1:0

LABEL

AGC_TARGET

IN3[9:8]

Register 5Eh AGC target IN3 MSB

DEFAULT

00

DESCRIPTION

MSBs of AGC target level for IN3

REGISTER

ADDRESS

R95 (5Fh)

AGC target

IN4 LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

AGC_TARGET

IN4[7:0]

0000_0000 LSBs of AGC target level for IN4

Register 5Fh AGC target IN4 LSB

REGISTER

ADDRESS

R96 (60h)

AGC target

IN4 MSB

BIT

1:0

LABEL

AGC_TARGET

IN4[9:8]

Register 60h AGC target IN4 MSB

DEFAULT

00

DESCRIPTION

MSBs of AGC target level for IN4

REGISTER

ADDRESS

R97 (61h)

AGC target

IN5 LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

AGC_TARGET

IN5[7:0]

0000_0000 LSBs of AGC target level for IN5

Register 61h AGC target IN5 LSB

94

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

R98 (62h)

AGC target

IN5 MSB

BIT

1:0

LABEL

AGC_TARGET

IN5[9:8]

Register 62h AGC target IN5 MSB

DEFAULT

00

DESCRIPTION

MSBs of AGC target level for IN5

REGISTER

ADDRESS

R99 (63h)

AGC target

IN6 LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

AGC_TARGET

IN6[7:0]

0000_0000 LSBs of AGC target level for IN6

Register 63h AGC target IN6 LSB

REGISTER

ADDRESS

R100 (64h)

AGC target

IN6 MSB

BIT

1:0

LABEL

AGC_TARGET

IN6[9:8]

Register 64h AGC target IN6 MSB

DEFAULT

00

DESCRIPTION

MSBs of AGC target level for IN6

REGISTER

ADDRESS

R101 (65h)

AGC target

IN7 LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

AGC_TARGET

IN7[7:0]

0000_0000 LSBs of AGC target level for IN7

Register 65h AGC target IN7 LSB

REGISTER

ADDRESS

R102 (66h)

AGC target

IN7 MSB

BIT

1:0

LABEL

AGC_TARGET

IN7[9:8]

Register 66h AGC target IN7 MSB

DEFAULT

00

DESCRIPTION

MSBs o AGC target level for IN7

REGISTER

ADDRESS

R103 (67h)

AGC target

IN8 LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

AGC_TARGET

IN8[7:0]

0000_0000 LSBs of AGC target level for IN8

Register 67h AGC target IN8 LSB

REGISTER

ADDRESS

R104 (68h)

AGC target

IN8 MSB

BIT

1:0

LABEL

AGC_TARGET

IN8[9:8]

DEFAULT

00

DESCRIPTION

MSBs of AGC target level for IN8

Rev 4.5

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

95

Register 68h AGC target IN8 MSB

REGISTER

ADDRESS

R105 (69h)

AGC target

IN9 LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

AGC_TARGET

IN9[7:0]

0000_0000 LSBs of AGC target level for IN9

Register 69h AGC target IN9 LSB

REGISTER

ADDRESS

R106 (6Ah)

AGC target

IN9 MSB

BIT

1:0

LABEL

AGC_TARGET

IN9[9:8]

Register 6Ah AGC target IN9 MSB

DEFAULT

00

DESCRIPTION

MSBs of AGC target level for IN9

REGISTER

ADDRESS

R107 (6Bh)

AGC peak level IN1

LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

PEAK_IN1[7:0] 0000_0000 LSBs of detected peak level of IN1 (Read Only)

Register 6Bh AGC peak level IN1 LSB

REGISTER

ADDRESS

R108 (6Ch)

AGC peak level IN1

MSB

BIT

1:0

LABEL

PEAK_IN1[9:8]

Register 6Ch AGC peak level IN1 MSB

DEFAULT

00

DESCRIPTION

MSBs of detected peak level of IN1 (Read Only)

REGISTER

ADDRESS

R109 (6Dh)

AGC peak level IN2

LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

PEAK_IN2[7:0] 0000_0000 LSBs of detected peak level of IN2 (Read Only)

Register 6Dh AGC peak level IN2 LSB

REGISTER

ADDRESS

R110 (6Eh)

AGC peak level IN2

MSB

BIT

1:0

LABEL

PEAK_IN2[9:8]

Register 6Eh AGC peak level IN2 MSB

DEFAULT

00

DESCRIPTION

MSBs of detected peak level of IN2 (Read Only)

96

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

R111 (6Fh)

AGC peak level IN3

LSB

BIT

7:0

LABEL

PEAK_IN3[7:0]

Register 6Fh AGC peak level IN3 LSB

DEFAULT DESCRIPTION

0000_0000 LSBs of detected peak level of IN3 (Read Only)

REGISTER

ADDRESS

R112 (70h)

AGC peak level IN3

MSB

BIT

1:0

LABEL

PEAK_IN3[9:8]

Register 70h AGC peak level IN3 MSB

DEFAULT

00

DESCRIPTION

MSBs of detected peak level of IN3 (Read Only)

REGISTER

ADDRESS

R113 (71h)

AGC peak

level IN4

LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

PEAK_IN4[7:0] 0000_0000 LSBs of detected peak level of IN4 (Read Only)

Register 71h AGC peak level IN4 LSB

REGISTER

ADDRESS

R114 (72h)

AGC peak

level IN4

MSB

BIT

1:0

LABEL

PEAK_IN4[9:8]

Register 72h AGC peak level IN4 MSB

DEFAULT

00

DESCRIPTION

MSBs of detected peak level of IN4 (Read Only)

REGISTER

ADDRESS

R115 (73h)

AGC peak level IN5

LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

PEAK_IN5[7:0] 0000_0000 LSBs of detected peak level of IN5 (Read Only)

Register 73h AGC peak level IN5 LSB

REGISTER

ADDRESS

R116 (74h)

AGC peak level IN5

MSB

BIT

1:0

LABEL

PEAK_IN5[9:8]

Register 74h AGC peak level IN5 MSB

DEFAULT

00

DESCRIPTION

MSBs of detected peak level of IN5 (Read Only)

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

97

REGISTER

ADDRESS

R117 (75h)

AGC peak

level IN6

LSB

BIT

7:0

LABEL

PEAK_IN6[7:0]

Register 75h AGC peak level IN6 LSB

DEFAULT DESCRIPTION

0000_0000 LSBs of detected peak level of IN6 (Read Only)

REGISTER

ADDRESS

R118 (76h)

AGC peak level IN6

MSB

BIT

1:0

LABEL

PEAK_IN6[9:8]

Register 76h AGC peak level IN6 MSB

DEFAULT

00

DESCRIPTION

MSBs of detected peak level of IN6 (Read Only)

REGISTER

ADDRESS

R119 (77h)

AGC peak level IN7

LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

PEAK_IN7[7:0] 0000_0000 LSBs of detected peak level of IN7 (Read Only)

Register 77h AGC peak level IN7 LSB

REGISTER

ADDRESS

R120 (78h)

AGC peak

level IN7

MSB

BIT

1:0

LABEL

PEAK_IN7[9:8]

Register 78h AGC peak level IN7 MSB

DEFAULT

00

DESCRIPTION

MSBs of detected peak level of IN7 (Read Only)

REGISTER

ADDRESS

R121 (79h)

AGC peak level IN8

LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

PEAK_IN8[7:0] 0000_0000 LSBs of detected peak level of IN8 (Read Only)

Register 79h AGC peak level IN8 LSB

REGISTER

ADDRESS

R122 (7Ah)

AGC peak

level IN8

MSB

BIT

1:0

LABEL

PEAK_IN8[9:8]

Register 7Ah AGC peak level IN8 MSB

DEFAULT

00

DESCRIPTION

MSBs of detected peak level of IN8 (Read Only)

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

98 Rev 4.5

WM8235

REFER TO REGISTER

ADDRESS

R123 (7Bh)

AGC peak level IN9

LSB

BIT

7:0

LABEL

PEAK_IN9[7:0]

Register 7Bh AGC peak level IN9 LSB

DEFAULT DESCRIPTION

0000_0000 LSBs of detected peak level of IN9 (Read Only)

REGISTER

ADDRESS

R124 (7Ch)

AGC peak level IN9

MSB

BIT

1:0

LABEL

PEAK_IN9[9:8]

Register 7Ch AGC peak level IN9 MSB

DEFAULT

00

DESCRIPTION

MSBs of detected peak level of IN9 (Read Only)

REGISTER

ADDRESS

R128 (80h)

DLL config 1

BIT

5:4

LABEL

DLGAIN[1:0]

DEFAULT

10

DESCRIPTION

2

1

0

DLLRST

CKOSTB

AFECKSTB

0

0

0 gain control of DLL delay line

Need to set according to input frequency. See details in

“PLL DLL Setup”

reset DLL delay line

0 = normal

1= reset DLL standby TG clock output

0 = generate TG clock

1 = stop generation of TG clock standby AFE clock (VSMP/RSMP/ADCK) output

0 = generate AFE clock

1 = stop generation of AFE clock

Register 80h DLL config 1

REGISTER

ADDRESS

R129 (81h)

DLL config 2

BIT

5:4

LABEL

LVDLGAIN[1:0]

DEFAULT

01

1

0

LVDLLRST

LVDLLSTB

0

0

DESCRIPTION

gain control of LVDS DLL delay line

Need to set according to input frequency. See details in

“PLL DLL Setup”

reset LVDS DLL delay line

0 = normal

1 = reset LVDS DLL standby LVDS serializer clock generation

0 = generate LVDS serializer clock

1 = stop generation of LVDS serializer clock

Register 81h DLL config 2

REGISTER

ADDRESS

R130 (82h)

RSMP rise

BIT

5:0

LABEL

RSMP_RISE

[5:0]

DEFAULT DESCRIPTION

Rev 4.5

01_1100 RSMP rise edge

00_0000 = tap0

00_0001 = tap1

REFER TO

REFER TO

REFER TO

REFER TO

99

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

Register 82h RSMP rise

REGISTER

ADDRESS

R131 (83h)

RSMP fall

BIT

5:0

LABEL

RSMP_FALL

[5:0]

DEFAULT

10_0110

RSMP fall edge

00_0000 = tap0

00_0001 = tap1

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

DESCRIPTION

Register 83h RSMP fall

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

REGISTER

ADDRESS

R132 (84h)

VSMP rise

BIT

5:0

LABEL

VSMP_RISE

[5:0]

DEFAULT

00_0000 VSMP rise edge

00_0000 = tap0

00_0001 = tap1

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

DESCRIPTION

Register 84h VSMP rise

REGISTER

ADDRESS

R133 (85h)

VSMP fall

BIT

5:0

LABEL

VSMP_FALL

[5:0]

DEFAULT

00_1000 VSMP fall edge

00_0000 = tap0

00_0001 = tap1

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

DESCRIPTION

Register 85h VSMP fall

REGISTER

ADDRESS

R134 (86h)

100

BIT

5:0

LABEL

TCLKO_RISE

DEFAULT

11_0111

TCLKO rise edge

DESCRIPTION

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

TGCKO rise

BIT LABEL DEFAULT DESCRIPTION

[5:0]

00_0000 = tap0

00_0001 = tap1

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

Register 86h TGCKO rise

REGISTER

ADDRESS

R135 (87h)

CLK1 rise

BIT LABEL DEFAULT

5:0 CLK1_RISE[5:0] 00_1010 CLK1 rise edge

00_0000 = tap0

00_0001 = tap1

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

Register 87h CLK1 rise

DESCRIPTION

REGISTER

ADDRESS

R136 (88h)

CLK1 fall

BIT LABEL DEFAULT

5:0 CLK1_FALL[5:0] 01_1001 CLK1 fall edge

00_0000 = tap0

00_0001 = tap1

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

Register 88h CLK1 fall

DESCRIPTION

REGISTER

ADDRESS

R137 (89h)

CLK2 rise

BIT LABEL DEFAULT

5:0 CLK2_RISE[5:0] 01_1001 CLK2 rise edge

00_0000 = tap0

00_0001 = tap1

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

Register 89h CLK2 rise

DESCRIPTION

Rev 4.5

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

101

REGISTER

ADDRESS

R138 (8Ah)

CLK2fall

BIT LABEL DEFAULT

5:0 CLK2_FALL[5:0] 10_1000

CLK2 fall edge

00_0000 = tap0

00_0001 = tap1

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

Register 8Ah CLK2fall

DESCRIPTION

REGISTER

ADDRESS

R139 (8Bh)

CLK3 rise

BIT LABEL DEFAULT

5:0 CLK3_RISE[5:0] 10_1000 CLK3 rise edge

00_0000 = tap0

00_0001 = tap1

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

Register 8Bh CLK3 rise

DESCRIPTION

REGISTER

ADDRESS

R140 (8Ch)

CLK3 fall

BIT LABEL DEFAULT

5:0 CLK3_FALL[5:0] 00_1010 CLK3 fall edge

00_0000 = tap0

00_0001 = tap1

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

Register 8Ch CLK3 fall

DESCRIPTION

REGISTER

ADDRESS

R141 (8Dh)

CLK4 rise

BIT LABEL DEFAULT

5:0 CLK4_RISE[5:0] 00_0000

CLK4 rise edge

00_0000 = tap0

00_0001 = tap1

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

Register 8Dh CLK4 rise

DESCRIPTION

102

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

R142 (8Eh)

CLK4 fall

BIT LABEL DEFAULT

5:0 CLK4_FALL[5:0] 00_0000

CLK4 fall edge

00_0000 = tap0

00_0001 = tap1

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

Register 8Eh CLK4 fall

DESCRIPTION

REGISTER

ADDRESS

R143 (8Fh)

CLK5 rise

BIT LABEL DEFAULT

5:0 CLK5_RISE[5:0] 00_1010 CLK5 rise edge

00_0000 = tap0

00_0001 = tap1

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

Register 8Fh CLK5 rise

DESCRIPTION

REGISTER

ADDRESS

R144 (90h)

CLK5 fall

BIT LABEL DEFAULT

5:0 CLK5_FALL[5:0] 10_1000 CLK5 fall edge

00_0000 = tap0

00_0001 = tap1

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

Register 90h CLK5 fall

DESCRIPTION

REGISTER

ADDRESS

R145 (91h)

CLK6 rise

BIT LABEL DEFAULT

5:0 CLK6_RISE[5:0] 00_1010

CLK6 rise edge

00_0000 = tap0

00_0001 = tap1

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

Register 91h CLK6 rise

Rev 4.5

DESCRIPTION

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

103

WM8235

REGISTER

ADDRESS

R146 (92h)

CLK6 fall

BIT LABEL DEFAULT

5:0 CLK6_FALL[5:0] 10_1000

CLK6 fall edge

00_0000 = tap0

00_0001 = tap1

11_1011 = tap59

11_1100 = reserved

11_1101 = reserved

11_1110 = reserved

11_1111 = reserved

Register 92h CLK6 fall

DESCRIPTION

REGISTER

ADDRESS

R160 (A0h)

TG config 1

BIT

7:4

3

2

1

0

LABEL

OFFSET[3:0]

CYCMD

POLSYNC

TGMD

TG_EN

DEFAULT

0000

0

0

0

0

DESCRIPTION

pixel counter offset (valid only in slave mode) cycle mode enable

0 = normal (same operation at everyline)

1 = cycle mode polarity of tgync signal

0 = reset pixel counter at positive edge of tgsync

1 = reset pixel counter at negative edge of tgsync

TG operation mode

0 = slave

1 = master

TG enable

0 = disable

1 = enable

Register A0h TG config 1

REGISTER

ADDRESS

R161 (A1h)

TG config 2

BIT

7:0

Register A1h TG config 2

LABEL DEFAULT DESCRIPTION

LLENGTH[7:0] 0000_0000 LSBs of LLENGTH[14:0] the number of pixels in a line (valid only in master mode)

REFER TO

REFER TO

REFER TO

REGISTER

ADDRESS

R162 (A2h)

TG config 3

BIT LABEL DEFAULT DESCRIPTION

6:0 LLENGTH[14:8] 000_0000 MSBs of LLENGTH the number of pixels in a line (valid only in master mode)

Register A2h TG config 3

REGISTER

ADDRESS

R163 (A3h)

TG config 4

BIT

7:0

Register A3h TG config 4

LABEL DEFAULT DESCRIPTION

FLAGPIX[7:0] 0000_0000 LSBs of FLAGPIX[14:0] flag pixel control pulse flagpix is high when pixel counter equals to flagpix[14:0]

104

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

R164 (A4h)

TG config 5

BIT

6:0

Register A4h TG config 5

LABEL DEFAULT DESCRIPTION

FLAGPIX[14:8] 000_0000

MSBs of FLAGPIX[14:0] flag pixel control pulse flagpix is high when pixel counter equals to flagpix[14:0]

REGISTER

ADDRESS

R165 (A5h)

TG config 6

BIT

7

LABEL

OE_CLK8

DEFAULT

1

DESCRIPTION

6

5

4

3

2

1

0

OE_CLK7

OE_CLK6

OE_CLK5

OE_CLK4

OE_CLK3

OE_CLK2

OE_CLK1

1

1

1

1

1

1

1 output enable of "CLK8"

0 = Hi-Z

1 = output output enable of "CLK7"

0 = Hi-Z

1 = output output enable of "CLK6"

0 = Hi-Z

1 = output output enable of "CLK5"

0 = Hi-Z

1 = output output enable of "CLK4"

0 = Hi-Z

1 = output output enable of "CLK3"

0 = Hi-Z

1 = output output enable of "CLK2"

0 = Hi-Z

1 = output output enable of "CLK1"

0 = Hi-Z

1 = output

Register A5h TG config 6

REGISTER

ADDRESS

R167 (A7h)

TG config 8

BIT

7

LABEL

INV_CLK8

DEFAULT

0

DESCRIPTION

Rev 4.5

6

5

4

3

INV_CLK7

INV_CLK6

INV_CLK5

INV_CLK4

0

0

0

0 invert signal output assigned to CLK8

0 = non-inverted

1 = inverted invert signal output assigned to CLK7

0 = non-inverted

1 = inverted invert signal output assigned to CLK6

0 = non-inverted

1 = inverted invert signal output assigned to CLK5

0 = non-inverted

1 = inverted invert signal output assigned to CLK4

0 = non-inverted

WM8235

REFER TO

REFER TO

105

REFER TO

REGISTER

ADDRESS

BIT

2

1

0

LABEL

INV_CLK3

INV_CLK2

INV_CLK1

DEFAULT

0

0

0

DESCRIPTION

1 = inverted invert signal output assigned to CLK3

0 = non-inverted

1 = inverted invert signal output assigned to CLK2

0 = non-inverted

1 = inverted invert signal output assigned to CLK1

0 = non-inverted

1 = inverted

Register A7h TG config 8

REGISTER

ADDRESS

R169 (A9h)

TG config 10

BIT

7

LABEL

EN_CLK8

DEFAULT DESCRIPTION

6

5

4

3

2

1

0

EN_CLK7

EN_CLK6

EN_CLK5

EN_CLK4

EN_CLK3

EN_CLK2

EN_CLK1

0

0

0

0

0

0

0

0 enable signal output CLK8

0 = disable

1 = enable enable signal output CLK7

0 = disable

1 = enable enable signal output CLK6

0 = disable

1 = enable enable signal output CLK5

0 = disable

1 = enable enable signal output CLK4

0 = disable

1 = enable enable signal output CLK3

0 = disable

1 = enable enable signal output CLK2

0 = disable

1 = enable enable signal output CLK1

0 = disable

1 = enable

Register A9h TG config 10

REGISTER

ADDRESS

R171 (ABh)

TG config 12

BIT

7

106

LABEL

SEL_CLK3

6:4 SEL_PCK3[2:0]

DEFAULT

0

000

DESCRIPTION

select signal for CLK3

0 = output clock

1 = output pulse (select by SEL_PCK3[2:0]) select pulse assigned to CLK3 (valid only when

SEL_CLK3=1)

000 = PO0

001 = PO1

010 = PO2

011 = PO3

WM8235

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

3 SEL_CLK2

2:0 SEL_PCK2[2:0]

Register ACh TG config 13

REGISTER

ADDRESS

BIT LABEL

0

000

Register ABh TG config 12

REGISTER

ADDRESS

R172 (ACh)

TG config 13

BIT

7

LABEL

SEL_CLK5

6:4 SEL_PCK5[2:0]

3 SEL_CLK4

2:0 SEL_PCK4[2:0]

DEFAULT

0

000

0

000

DESCRIPTION

select signal for CLK5

0 = output clock

1 = output pulse (select by SEL_PCK5[2:0]) select pulse assigned to CLK5 (valid only when

SEL_CLK5=1)

000 = PO0

001 = PO1

010 = PO2

011 = PO3

100 = PO4

101 = PO5

110 = PO6

111 = PO7 select signal for CLK4

0 = output clock

1 = output pulse (select by SEL_PCK4[2:0]) select pulse assigned to CLK4 (valid only when

SEL_CLK4=1)

000 = PO0

001 = PO1

010 = PO2

011 = PO3

100 = PO4

101 = PO5

110 = PO6

111 = PO7

DEFAULT

100 = PO4

101 = PO5

110 = PO6

111 = PO7 select signal for CLK2

0 = output clock

1 = output pulse (select by SEL_PCK2[2:0]) select pulse assigned to CLK2 (valid only when

SEL_CLK2=1)

000 = PO0

001 = PO1

010 = PO2

011 = PO3

100 = PO4

101 = PO5

110 = PO6

111 = PO7

DESCRIPTION

Rev 4.5

WM8235

REFER TO

REFER TO

REFER TO

107

REGISTER

ADDRESS

R173 (ADh)

TG config 14

BIT

6:4

LABEL

SEL_PCK7[2:0]

DEFAULT

000

3

2:0

SEL_CLK6

SEL_PCK6[2:0]

0

000

DESCRIPTION

select pulse assigned to CLK7

000 = PO0

001 = PO1

010 = PO2

011 = PO3

100 = PO4

101 = PO5

110 = PO6

111 = PO7 select signal for CLK6

0 = output clock

1 = output pulse (select by SEL_PCK6[2:0]) select pulse assigned to CLK6 (valid only when

SEL_CLK6=1)

000 = PO0

001 = PO1

010 = PO2

011 = PO3

100 = PO4

101 = PO5

110 = PO6

111 = PO7

Register ADh TG config 14

REGISTER

ADDRESS

R174 (AEh)

TG config 15

BIT LABEL

2:0 SEL_PCK8[2:0]

DEFAULT

000

DESCRIPTION

select pulse assigned to CLK8

000 = PO0

001 = PO1

010 = PO2

011 = PO3

100 = PO4

101 = PO5

110 = PO6

111 = PO7

Register AEh TG config 15

REGISTER

ADDRESS

R176 (B0h)

TG config 17

BIT LABEL

7:6 DEL_PCK5[1:0]

DEFAULT

00

5:4 DEL_PCK4[1:0]

3:2 DEL_PCK3[1:0]

00

00

DESCRIPTION

control delay of pulse output assigned to CLK5

00 = 0nsec

01 = 1nsec

10 = 2nsec

11 = 3nsec control delay of pulse output assigned to CLK4

00 = 0nsec

01 = 1nsec

10 = 2nsec

11 = 3nsec control delay of pulse output assigned to CLK3

00 = 0nsec

01 = 1nsec

108

WM8235

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

1:0 DEL_PCK2[1:0] 00

10 = 2nsec

11 = 3nsec control delay of pulse output assigned to CLK2

00 = 0nsec

01 = 1nsec

10 = 2nsec

11 = 3nsec

Register B0h TG config 17

REGISTER

ADDRESS

R177 (B1h)

TG config 18

BIT LABEL

5:4 DEL_PCK8[1:0]

DEFAULT

00

3:2 DEL_PCK7[1:0]

1:0 DEL_PCK6[1:0]

00

00

DESCRIPTION

control delay of pulse output assigned to CLK8

00 = 0nsec

01 = 1nsec

10 = 2nsec

11 = 3nsec control delay of pulse output assigned to CLK7

00 = 0nsec

01 = 1nsec

10 = 2nsec

11 = 3nsec control delay of pulse output assigned to CLK6

00 = 0nsec

01 = 1nsec

10 = 2nsec

11 = 3nsec

Register B1h TG config 18

REGISTER

ADDRESS

R179 (B3h)

TG config 20

BIT

4

3

2

1

0

LABEL

INV_M3

INV_M2

INV_M1

INV_T2

INV_T1

DEFAULT

0

0

0

0

0

DESCRIPTION

invert mask pulse "M3"

0 = non-inverted

1 = inverted invert mask pulse "M2"

0 = non-inverted

1 = inverted invert mask pulse "M1"

0 = non-inverted

1 = inverted invert toggle pulse "T2"

0 = non-inverted

1 = inverted invert toggle pulse "T1"

0 = non-inverted

1 = inverted

Register B3h TG config 20

REGISTER

ADDRESS

BIT LABEL

R180 (B4h) 3:0 SEL_FLAG[3:0]

Rev 4.5

DEFAULT

0000

DESCRIPTION

select signal to be output as datatrig

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

109

REGISTER

ADDRESS

TG config 21

BIT LABEL DEFAULT DESCRIPTION

0xxx = flagpix

1000 = PO0

1001 = PO1

1010 = PO2

1011 = PO3

1100 = PO4

1101 = PO5

1110 = PO6

1111 = PO7

Register B4h TG config 21

REGISTER

ADDRESS

R181 (B5h)

TG config 22

BIT

6:4

2:0

LABEL

CYCPAT_PO1

[2:0]

CYCPAT_PO0

[2:0]

DEFAULT

000

000

DESCRIPTION

PO1 cycle mode control

[0] = pulse enable at cycle-1

[1] = pulse enable at cycle-2

[2] = pulse enable at cycle-3

PO0 cycle mode control

[0] = pulse enable at cycle-1

[1] = pulse enable at cycle-2

[2] = pulse enable at cycle-3

Register B5h TG config 22

REGISTER

ADDRESS

R182 (B6h)

TG config 23

BIT

6:4

LABEL

CYCPAT_PO3

[2:0]

DEFAULT

000

2:0 CYCPAT_PO2

[2:0]

000

DESCRIPTION

PO3 cycle mode control

[0] = pulse enable at cycle-1

[1] = pulse enable at cycle-2

[2] = pulse enable at cycle-3

PO2 cycle mode control

[0] = pulse enable at cycle-1

[1] = pulse enable at cycle-2

[2] = pulse enable at cycle-3

Register B6h TG config 23

REGISTER

ADDRESS

R183 (B7h)

TG config 24

BIT

6:4

LABEL

CYCPAT_PO5

[2:0]

DEFAULT

000

2:0 CYCPAT_PO4

[2:0]

000

DESCRIPTION

PO5 cycle mode control

[0] = pulse enable at cycle-1

[1] = pulse enable at cycle-2

[2] = pulse enable at cycle-3

PO4 cycle mode control

[0] = pulse enable at cycle-1

[1] = pulse enable at cycle-2

[2] = pulse enable at cycle-3

Register B7h TG config 24

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

110

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

R184 (B8h)

TG config 25

BIT

6:4

LABEL

CYCPAT_PO7

[2:0]

DEFAULT

000

2:0 CYCPAT_PO6

[2:0]

000

DESCRIPTION

PO7 cycle mode control

[0] = pulse enable at cycle-1

[1] = pulse enable at cycle-2

[2] = pulse enable at cycle-3

PO6 cycle mode control

[0] = pulse enable at cycle-1

[1] = pulse enable at cycle-2

[2] = pulse enable at cycle-3

Register B8h TG config 25

REGISTER

ADDRESS

R185 (B9h) clamp enable rise LSB

BIT

7:0

LABEL

CLAMP_RISE

[7:0]

Register B9h clamp enable rise LSB

DEFAULT DESCRIPTION

0000_0000 LSBs of CLAMP_RISE clamp enable pulse rise pixel

REGISTER

ADDRESS

R186 (BAh) clamp enable rise MSB

BIT

6:0

LABEL

CLAMP_RISE

[14:8]

Register BAh clamp enable rise MSB

DEFAULT DESCRIPTION

000_0000 MSBs of CLAMP_RISE clamp enable pulse rise pixel

REGISTER

ADDRESS

R187 (BBh) clamp enable fall LSB

BIT

7:0

LABEL

CLAMP_FALL

[7:0]

Register BBh clamp enable fall LSB

DEFAULT DESCRIPTION

0000_0000 LSBs of CLAMP_FALL clamp enable pulse fall pixel

REGISTER

ADDRESS

R188 (BCh) clamp enable fall MSB

BIT

6:0

LABEL

CLAMP_FALL

[14:8]

Register BCh clamp enable fall MSB

DEFAULT DESCRIPTION

000_0000

MSBs of CLAMP_FALL clamp enable pulse fall pixel

REGISTER

ADDRESS

R189 (BDh)

OB start

LSB

BIT LABEL DEFAULT DESCRIPTION

7:0 OB_START[7:0] 0000_0000 LSBs of OB_START optical black calibration start pixel count

Register BDh OB start LSB

REGISTER

ADDRESS

Rev 4.5

BIT LABEL DEFAULT DESCRIPTION

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

111

REGISTER

ADDRESS

R190 (BEh)

OB start

MSB

BIT

6:0

Register BEh OB start MSB

LABEL

OB_START

[14:8]

DEFAULT

000_0000

MSBs of OB_START

DESCRIPTION

optical black calibration start pixel count

REGISTER

ADDRESS

R191 (BFh) peak_det rise

LSB

BIT

7:0

LABEL

PEAKDET_RIS

E

[7:0]

Register BFh peak_det rise LSB

DEFAULT DESCRIPTION

0000_0000 LSBs of PEAKDET_RISE[14:0] peak detection start pixel count

REGISTER

ADDRESS

R192 (C0h) peak_det rise

MSB

BIT

6:0

LABEL

PEAKDET_RIS

E

[14:8]

Register C0h peak_det rise MSB

DEFAULT DESCRIPTION

000_0000 MSBs of PEAKDET_RISE[14:0] peak detection start pixel count

REGISTER

ADDRESS

R193 (C1h) peak_det fall

LSB

BIT LABEL

7:0 PEAKDET_FAL

L

[7:0]

Register C1h peak_det fall LSB

DEFAULT DESCRIPTION

0000_0000 LSBs of PEAKDET_FALL[14:0] peak detection end pixel count

REGISTER

ADDRESS

R194 (C2h) peak_det fall

MSB

BIT LABEL

6:0 PEAKDET_FAL

L

[14:8]

Register C2h peak_det fall MSB

DEFAULT DESCRIPTION

000_0000 MSBs of PEAKDET_FALL[14:0] peak detection end pixel count

REGISTER

ADDRESS

R195 (C3h)

Mask pulse 1 rise LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

M1_RISE[7:0] 0000_0000 LSBs of M1_RISE[14:0] mask pulse "M1" rise pixel count

Register C3h Mask pulse 1 rise LSB

REGISTER

ADDRESS

R196 (C4h)

Mask pulse 1 rise MSB

BIT

6:0

LABEL DEFAULT DESCRIPTION

M1_RISE[14:8] 000_0000 MSBs of M1_RISE[14:0] mask pulse "M1" rise pixel count

Register C4h Mask pulse 1 rise MSB

112

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

R197 (C5h)

Mask pulse 1 fall LSB

BIT

7:0

LABEL

M1_FALL[7:0]

Register C5h Mask pulse 1 fall LSB

DEFAULT DESCRIPTION

0000_0000 LSBs of M1_FALL[14:0] mask pulse "M1" fall pixel count

REGISTER

ADDRESS

R198 (C6h)

Mask pulse 1 fall MSB

BIT

6:0

LABEL DEFAULT DESCRIPTION

M1_FALL[14:8] 000_0000 MSBs of M1_FALL[14:0] mask pulse "M1" fall pixel count

Register C6h Mask pulse 1 fall MSB

REGISTER

ADDRESS

R199 (C7h)

Mask pulse 2 rise LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

M2_RISE[7:0] 0000_0000 LSBs of M2_RISE[14:0] mask pulse "M2" rise pixel count

Register C7h Mask pulse 2 rise LSB

REGISTER

ADDRESS

R200 (C8h)

Mask pulse 2 rise MSB

BIT

6:0

LABEL DEFAULT DESCRIPTION

M2_RISE[14:8] 000_0000 MSBs of M2_RISE[14:0] mask pulse "M2" rise pixel count

Register C8h Mask pulse 2 rise MSB

REGISTER

ADDRESS

R201 (C9h)

Mask pulse 2 fall LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

M2_FALL[7:0] 0000_0000 LSBs of M2_FALL[14:0] mask pulse "M2" fall pixel count

Register C9h Mask pulse 2 fall LSB

REGISTER

ADDRESS

R202 (CAh)

Mask pulse 2 fall MSB

BIT

6:0

LABEL DEFAULT DESCRIPTION

M2_FALL[14:8] 000_0000

MSBs of M2_FALL[14:0] mask pulse "M2" fall pixel count

Register CAh Mask pulse 2 fall MSB

REGISTER

ADDRESS

R203 (CBh)

Mask pulse 3 rise LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

M3_RISE[7:0] 0000_0000 LSBs of M3_RISE mask pulse "M3" rise pixel count

Register CBh Mask pulse 3 rise LSB

Rev 4.5

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

113

REGISTER

ADDRESS

R204 (CCh)

Mask pulse 3 rise MSB

BIT

6:0

LABEL

M3_RISE[14:8]

Register CCh Mask pulse 3 rise MSB

DEFAULT

000_0000

MSBs of M3_RISE

DESCRIPTION

mask pulse "M3" rise pixel count

REGISTER

ADDRESS

R205 (CDh)

Mask pulse 3 fall LSB

BIT

7:0

LABEL DEFAULT DESCRIPTION

M3_FALL[7:0] 0000_0000 LSBs of M3_FALL mask pulse "M3" fall pixel count

Register CDh Mask pulse 3 fall LSB

REGISTER

ADDRESS

R206 (CEh)

Mask pulse 3 fall MSB

BIT

6:0

LABEL DEFAULT DESCRIPTION

M3_FALL[14:8] 000_0000 MSBs of M3_FALL mask pulse "M3" fall pixel count

Register CEh Mask pulse 3 fall MSB

REGISTER

ADDRESS

R207 (CFh)

Toggle point

0 LSB

BIT

7:0

LABEL

TP0[7:0]

Register CFh Toggle point 0 LSB

DEFAULT DESCRIPTION

0000_0000 pixel count of toggle point "TP0"

REGISTER

ADDRESS

R208 (D0h)

Toggle point

0 MSB

BIT

7

LABEL

GEN_TP0

6:0 TP0[14:8]

Register D0h Toggle point 0 MSB

DEFAULT DESCRIPTION

0 global enable of toggle point

0 = disable all toggle point

1 = enable toggle point "TP0"

000_0000 pixel count of toggle point "TP0

REGISTER

ADDRESS

R209 (D1h)

Toggle point

1 LSB

BIT

7:0

LABEL

TP1[7:0]

Register D1h Toggle point 1 LSB

REGISTER

ADDRESS

R210 (D2h)

Toggle point

1 MSB

BIT

7

6:0

114

LABEL

EN_TP1

TP1[14:8]

DEFAULT

0000_0000 pixel count of toggle point "TP1"

DEFAULT

0 enable toggle point "TP1"

0 = disable "TP1" and all subsequent toggle point

1 = enable toggle point "TP1"

000_0000 pixel count of toggle point "TP1"

DESCRIPTION

DESCRIPTION

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

Register D2h Toggle point 1 MSB

REGISTER

ADDRESS

R211 (D3h)

Toggle point

2 LSB

BIT

7:0

LABEL

TP2[7:0]

Register D3h Toggle point 2 LSB

REGISTER

ADDRESS

R212 (D4h)

Toggle point

2 MSB

BIT

7

LABEL

EN_TP2

6:0 TP2[14:8]

Register D4h Toggle point 2 MSB

REGISTER

ADDRESS

R213 (D5h)

Toggle point

3 LSB

BIT

7:0

LABEL

TP3[7:0]

Register D5h Toggle point 3 LSB

REGISTER

ADDRESS

R214 (D6h)

Toggle point

3 MSB

BIT

7

LABEL

EN_TP3

6:0 TP3[14:8]

Register D6h Toggle point 3 MSB

REGISTER

ADDRESS

R215 (D7h)

Toggle point

4 LSB

BIT

7:0

LABEL

TP4[7:0]

Register D7h Toggle point 4 LSB

REGISTER

ADDRESS

R216 (D8h)

Toggle point

4 MSB

BIT

7

LABEL

EN_TP4

6:0 TP4[14:8]

Register D8h Toggle point 4 MSB

Rev 4.5

DEFAULT DESCRIPTION

0000_0000 pixel count of toggle point "TP2"

DEFAULT DESCRIPTION

0 enable toggle point "TP2"

0 = disable "TP2" and all subsequent toggle point

1 = enable toggle point "TP2"

000_0000 pixel count of toggle point "TP2"

DEFAULT DESCRIPTION

0000_0000 pixel count of toggle point "TP3"

DEFAULT DESCRIPTION

0 enable toggle point "TP3"

0 = disable "TP3" and all subsequent toggle point

1 = enable toggle point "TP3"

000_0000 pixel count of toggle point "TP3"

DEFAULT DESCRIPTION

0000_0000 pixel count of toggle point "TP4"

DEFAULT DESCRIPTION

0 enable toggle point "TP4"

0 = disable "TP4" and all subsequent toggle point

1 = enable toggle point "TP4"

000_0000 pixel count of toggle point "TP4"

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

115

REGISTER

ADDRESS

R217 (D9h)

Toggle point

5 LSB

BIT

7:0

LABEL

TP5[7:0]

Register D9h Toggle point 5 LSB

REGISTER

ADDRESS

R218 (DAh)

Toggle point

5 MSB

BIT

7

LABEL

EN_TP5

6:0 TP5[14:8]

Register DAh Toggle point 5 MSB

REGISTER

ADDRESS

R219 (DBh)

Toggle point

6 LSB

BIT

7:0

LABEL

TP6[7:0]

Register DBh Toggle point 6 LSB

REGISTER

ADDRESS

R220 (DCh)

Toggle point

6 MSB

BIT

7

LABEL

EN_TP6

6:0 TP6[14:8]

Register DCh Toggle point 6 MSB

REGISTER

ADDRESS

R221 (DDh)

Toggle point

7 LSB

BIT

7:0

LABEL

TP7[7:0]

Register DDh Toggle point 7 LSB

REGISTER

ADDRESS

R222 (DEh)

Toggle point

7 MSB

BIT

7

LABEL

EN_TP7

6:0 TP7[14:8]

Register DEh Toggle point 7 MSB

REGISTER

ADDRESS

R223 (DFh)

116

BIT

7:0

LABEL

TP8[7:0]

DEFAULT DESCRIPTION

0000_0000 pixel count of toggle point "TP5"

DEFAULT DESCRIPTION

0 enable toggle point "TP5"

0 = disable "TP5" and all subsequent toggle point

1 = enable toggle point "TP5"

000_0000 pixel count of toggle point "TP5"

DEFAULT DESCRIPTION

0000_0000 pixel count of toggle point "TP1"

DEFAULT DESCRIPTION

0 enable toggle point "TP6"

0 = disable "TP6" and all subsequent toggle point

1 = enable toggle point "TP6"

000_0000 pixel count of toggle point "TP6"

DEFAULT DESCRIPTION

0000_0000 pixel count of toggle point "TP7"

DEFAULT DESCRIPTION

0 enable toggle point "TP7"

0 = disable "TP7" and all subsequent toggle point

1 = enable toggle point "TP7"

000_0000 pixel count of toggle point "TP7"

DEFAULT DESCRIPTION

0000_0000 pixel count of toggle point "TP8"

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

Toggle point

8 LSB

BIT LABEL

Register DFh Toggle point 8 LSB

REGISTER

ADDRESS

R224 (E0h)

Toggle point

8 MSB

BIT

7

LABEL

EN_TP8

6:0 TP8[14:8]

Register E0h Toggle point 8 MSB

REGISTER

ADDRESS

R225 (E1h)

Toggle point

9 LSB

BIT

7:0

LABEL

TP9[7:0]

Register E1h Toggle point 9 LSB

REGISTER

ADDRESS

R226 (E2h)

Toggle point

9 MSB

BIT

7

LABEL

EN_TP9

6:0 TP9[14:8]

Register E2h Toggle point 9 MSB

REGISTER

ADDRESS

R227 (E3h)

Toggle point

10 LSB

BIT

7:0

LABEL

TP10[7:0]

Register E3h Toggle point 10 LSB

REGISTER

ADDRESS

R228 (E4h)

Toggle point

10 MSB

BIT

7

LABEL

EN_TP10

6:0 TP10[14:8]

Register E4h Toggle point 10 MSB

REGISTER

ADDRESS

R229 (E5h)

Toggle point

11 LSB

Rev 4.5

BIT

7:0

LABEL

TP11[7:0]

DEFAULT

DEFAULT

0 enable toggle point "TP8"

0 = disable "TP8" and all subsequent toggle point

1 = enable toggle point "TP8"

000_0000 pixel count of toggle point "TP8"

DEFAULT

0000_0000 pixel count of toggle point "TP9"

DEFAULT

DEFAULT

DEFAULT

DESCRIPTION

DESCRIPTION

DESCRIPTION

DESCRIPTION

0 enable toggle point "TP9"

0 = disable "TP9" and all subsequent toggle point

1 = enable toggle point "TP9"

000_0000 pixel count of toggle point "TP9"

DESCRIPTION

0000_0000 pixel count of toggle point "TP10"

0 enable toggle point "TP10"

0 = disable "TP10" and all subsequent toggle point

1 = enable toggle point "TP10"

000_0000 pixel count of toggle point "TP10"

DEFAULT

DESCRIPTION

DESCRIPTION

0000_0000 pixel count of toggle point "TP11"

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

117

Register E5h Toggle point 11 LSB

REGISTER

ADDRESS

R230 (E6h)

Toggle point

11 MSB

BIT

7

LABEL

EN_TP11

6:0 TP11[14:8]

Register E6h Toggle point 11 MSB

REGISTER

ADDRESS

R231 (E7h)

Toggle point

12 LSB

BIT

7:0

LABEL

TP12[7:0]

Register E7h Toggle point 12 LSB

REGISTER

ADDRESS

R232 (E8h)

Toggle point

12 MSB

BIT

7

LABEL

EN_TP12

6:0 TP12[14:8]

Register E8h Toggle point 12 MSB

REGISTER

ADDRESS

R233 (E9h)

Toggle point

13 LSB

BIT

7:0

LABEL

TP13[7:0]

Register E9h Toggle point 13 LSB

REGISTER

ADDRESS

R234 (EAh)

Toggle point

13 MSB

BIT

7

LABEL

EN_TP13

6:0 TP13[14:8]

Register EAh Toggle point 13 MSB

REGISTER

ADDRESS

R235 (EBh)

Toggle point

14 LSB

BIT

7:0

LABEL

TP14[7:0]

Register EBh Toggle point 14 LSB

118

DEFAULT

0 enable toggle point "TP11"

0 = disable "TP11" and all subsequent toggle point

1 = enable toggle point "TP11"

000_0000 pixel count of toggle point "TP11"

DEFAULT

0000_0000 pixel count of toggle point "TP12"

DEFAULT

DEFAULT

DEFAULT

DESCRIPTION

DESCRIPTION

DESCRIPTION

0 enable toggle point "TP12"

0 = disable "TP12" and all subsequent toggle point

1 = enable toggle point "TP12"

000_0000 pixel count of toggle point "TP12"

DESCRIPTION

0000_0000 pixel count of toggle point "TP13"

0 enable toggle point "TP13"

0 = disable "TP13" and all subsequent toggle point

1 = enable toggle point "TP13"

000_0000 pixel count of toggle point "TP13"

DEFAULT

DESCRIPTION

DESCRIPTION

0000_0000 pixel count of toggle point "TP14"

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

R236 (ECh)

Toggle point

14 MSB

BIT

7

LABEL

EN_TP14

6:0 TP14[14:8]

Register ECh Toggle point 14 MSB

REGISTER

ADDRESS

R237 (EDh)

Toggle point

15 LSB

BIT

7:0

LABEL

TP15[7:0]

Register EDh Toggle point 15 LSB

REGISTER

ADDRESS

R238 (EEh)

Toggle point

15 MSB

BIT

7

LABEL

EN_TP15

6:0 TP15[14:8]

Register EEh Toggle point 15 MSB

REGISTER

ADDRESS

R239 (EFh)

Toggle point

16 LSB

BIT

7:0

LABEL

TP16[7:0]

Register EFh Toggle point 16 LSB

REGISTER

ADDRESS

R240 (F0h)

Toggle point

16 MSB

BIT

7

LABEL

EN_TP16

6:0 TP16[14:8]

Register F0h Toggle point 16 MSB

REGISTER

ADDRESS

R241 (F1h)

Toggle point

17 LSB

BIT

7:0

LABEL

TP17[7:0]

Register F1h Toggle point 17 LSB

REGISTER

ADDRESS

R242 (F2h)

Rev 4.5

BIT

7

LABEL

EN_TP17

DEFAULT

0 enable toggle point "TP14"

0 = disable "TP14" and all subsequent toggle point

1 = enable toggle point "TP14"

000_0000 pixel count of toggle point "TP14"

DEFAULT

0000_0000 pixel count of toggle point "TP15"

DEFAULT

0 enable toggle point "TP15"

0 = disable "TP15" and all subsequent toggle point

1 = enable toggle point "TP15"

000_0000 pixel count of toggle point "TP15"

DEFAULT

0000_0000 pixel count of toggle point "TP16"

DEFAULT

0 enable toggle point "TP16"

0 = disable "TP16" and all subsequent toggle point

1 = enable toggle point "TP16"

000_0000 pixel count of toggle point "TP16"

DEFAULT

0000_0000 pixel count of toggle point "TP17"

DEFAULT

0 enable toggle point "TP17"

DESCRIPTION

DESCRIPTION

DESCRIPTION

DESCRIPTION

DESCRIPTION

DESCRIPTION

DESCRIPTION

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

119

REGISTER

ADDRESS

Toggle point

17 MSB

BIT LABEL

6:0 TP17[14:8]

Register F2h Toggle point 17 MSB

REGISTER

ADDRESS

R243 (F3h)

Toggle point

18 LSB

BIT

7:0

LABEL

TP18[7:0]

Register F3h Toggle point 18 LSB

REGISTER

ADDRESS

R244 (F4h)

Toggle point

18 MSB

BIT

7

LABEL

EN_TP18

6:0 TP18[14:8]

Register F4h Toggle point 18 MSB

REGISTER

ADDRESS

R245 (F5h)

Toggle point

19 LSB

BIT

7:0

LABEL

TP19[7:0]

Register F5h Toggle point 19 LSB

REGISTER

ADDRESS

R246 (F6h)

Toggle point

19 MSB

BIT

7

LABEL

EN_TP19

6:0 TP19[14:8]

Register F6h Toggle point 19 MSB

REGISTER

ADDRESS

R247 (F7h)

Toggle point

20 LSB

BIT

7:0

LABEL

TP20[7:0]

Register F7h Toggle point 20 LSB

REGISTER

ADDRESS

R248 (F8h)

Toggle point

BIT

7

LABEL

EN_TP20

120

DEFAULT

0 = disable "TP17" and all subsequent toggle point

1 = enable toggle point "TP17"

000_0000 pixel count of toggle point "TP17"

DEFAULT

0000_0000 pixel count of toggle point "TP18"

DEFAULT

0 enable toggle point "TP18"

0 = disable "TP18" and all subsequent toggle point

1 = enable toggle point "TP18"

000_0000 pixel count of toggle point "TP18"

DEFAULT

0000_0000 pixel count of toggle point "TP19"

DEFAULT

0 enable toggle point "TP19"

0 = disable "TP19" and all subsequent toggle point

1 = enable toggle point "TP19"

000_0000 pixel count of toggle point "TP19"

DEFAULT

0000_0000 pixel count of toggle point "TP20"

DEFAULT

0 enable toggle point "TP20"

0 = disable "TP20" and all subsequent toggle point

DESCRIPTION

DESCRIPTION

DESCRIPTION

DESCRIPTION

DESCRIPTION

DESCRIPTION

DESCRIPTION

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

20 MSB

BIT LABEL

6:0 TP20[14:8]

Register F8h Toggle point 20 MSB

REGISTER

ADDRESS

R249 (F9h)

Toggle point

21 LSB

BIT

7:0

LABEL

TP21[7:0]

Register F9h Toggle point 21 LSB

REGISTER

ADDRESS

R250 (FAh)

Toggle point

21 MSB

BIT

7

LABEL

EN_TP21

6:0 TP21[14:8]

Register FAh Toggle point 21 MSB

REGISTER

ADDRESS

R251 (FBh)

Toggle point

22 LSB

BIT

7:0

LABEL

TP22[7:0]

Register FBh Toggle point 22 LSB

REGISTER

ADDRESS

R252 (FCh)

Toggle point

22 MSB

BIT

7

LABEL

EN_TP22

6:0 TP22[14:8]

Register FCh Toggle point 22 MSB

REGISTER

ADDRESS

R253 (FDh)

Toggle point

23 LSB

BIT

7:0

LABEL

TP23[7:0]

Register FDh Toggle point 23 LSB

REGISTER

ADDRESS

R254 (FEh)

Toggle point

23 MSB

BIT

7

LABEL

EN_TP23

Rev 4.5

DEFAULT

1 = enable toggle point "TP20"

000_0000 pixel count of toggle point "TP20"

DEFAULT

0000_0000 pixel count of toggle point "TP21"

DEFAULT

0 enable toggle point "TP21"

0 = disable "TP21" and all subsequent toggle point

1 = enable toggle point "TP21"

000_0000 pixel count of toggle point "TP21"

DEFAULT

0000_0000 pixel count of toggle point "TP22"

DEFAULT

0 enable toggle point "TP22"

0 = disable "TP22" and all subsequent toggle point

1 = enable toggle point "TP22"

000_0000 pixel count of toggle point "TP22"

DEFAULT

0000_0000 pixel count of toggle point "TP23"

DEFAULT

0 enable toggle point "TP23"

0 = disable "TP23" and all subsequent toggle point

1 = enable toggle point "TP23"

DESCRIPTION

DESCRIPTION

DESCRIPTION

DESCRIPTION

DESCRIPTION

DESCRIPTION

DESCRIPTION

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

121

REGISTER

ADDRESS

BIT LABEL

6:0 TP23[14:8]

Register FEh Toggle point 23 MSB

REGISTER

ADDRESS

R255 (FFh)

Toggle point

24 LSB

BIT

7:0

LABEL

TP24[7:0]

Register FFh Toggle point 24 LSB

REGISTER

ADDRESS

R256 (0100h)

Toggle point

24 MSB

BIT

7

LABEL

EN_TP24

6:0 TP24[14:8]

Register 0100h Toggle point 24 MSB

REGISTER

ADDRESS

R257 (0101h)

Toggle point

25 LSB

BIT

7:0

LABEL

TP25[7:0]

Register 0101h Toggle point 25 LSB

REGISTER

ADDRESS

R258 (0102h)

Toggle point

25 MSB

BIT

7

LABEL

EN_TP25

6:0 TP25[14:8]

Register 0102h Toggle point 25 MSB

REGISTER

ADDRESS

R259 (0103h)

Toggle point

26 LSB

BIT

7:0

LABEL

TP26[7:0]

Register 0103h Toggle point 26 LSB

REGISTER

ADDRESS

R260 (0104h)

Toggle point

26 MSB

BIT

7

6:0

122

LABEL

EN_TP26

TP26[14:8]

DEFAULT

DEFAULT

DEFAULT

0 enable toggle point "TP24"

0 = disable "TP24" and all subsequent toggle point

1 = enable toggle point "TP24"

000_0000 pixel count of toggle point "TP24"

DEFAULT

DEFAULT

0 enable toggle point "TP26"

0 = disable "TP26" and all subsequent toggle point

1 = enable toggle point "TP26"

000_0000 pixel count of toggle point "TP26"

DESCRIPTION

000_0000 pixel count of toggle point "TP23"

0000_0000 pixel count of toggle point "TP24"

0000_0000 pixel count of toggle point "TP25"

0 enable toggle point "TP25"

0 = disable "TP25" and all subsequent toggle point

1 = enable toggle point "TP25"

000_0000 pixel count of toggle point "TP25"

DEFAULT

0000_0000 pixel count of toggle point "TP26"

DEFAULT

DESCRIPTION

DESCRIPTION

DESCRIPTION

DESCRIPTION

DESCRIPTION

DESCRIPTION

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

Register 0104h Toggle point 26 MSB

REGISTER

ADDRESS

R261 (0105h)

Toggle point

27 LSB

BIT

7:0

LABEL

TP27[7:0]

Register 0105h Toggle point 27 LSB

REGISTER

ADDRESS

R262 (0106h)

Toggle point

27 MSB

BIT

7

LABEL

EN_TP27

6:0 TP27[14:8]

Register 0106h Toggle point 27 MSB

REGISTER

ADDRESS

R263 (0107h)

Toggle point

28 LSB

BIT

7:0

LABEL

TP28[7:0]

Register 0107h Toggle point 28 LSB

REGISTER

ADDRESS

R264 (0108h)

Toggle point

28 MSB

BIT

7

LABEL

EN_TP28

6:0 TP28[14:8]

Register 0108h Toggle point 28 MSB

REGISTER

ADDRESS

R265 (0109h)

Toggle point

29 LSB

BIT

7:0

LABEL

TP29[7:0]

Register 0109h Toggle point 29 LSB

REGISTER

ADDRESS

R266

(010Ah)

Toggle point

29 MSB

BIT

7

LABEL

EN_TP29

6:0 TP29[14:8]

Register 010Ah Toggle point 29 MSB

Rev 4.5

DEFAULT DESCRIPTION

0000_0000 pixel count of toggle point "TP27"

DEFAULT DESCRIPTION

0 enable toggle point "TP27"

0 = disable "TP27" and all subsequent toggle point

1 = enable toggle point "TP27"

000_0000 pixel count of toggle point "TP27"

DEFAULT DESCRIPTION

0000_0000 pixel count of toggle point "TP28"

DEFAULT DESCRIPTION

0 enable toggle point "TP28"

0 = disable "TP28" and all subsequent toggle point

1 = enable toggle point "TP28"

000_0000 pixel count of toggle point "TP28"

DEFAULT DESCRIPTION

0000_0000 pixel count of toggle point "TP29"

DEFAULT DESCRIPTION

0 enable toggle point "TP29"

0 = disable "TP29" and all subsequent toggle point

1 = enable toggle point "TP29"

000_0000 pixel count of toggle point "TP29"

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

123

REGISTER

ADDRESS

R267

(010Bh)

Toggle point

30 LSB

BIT

7:0

LABEL

TP30[7:0]

Register 010Bh Toggle point 30 LSB

REGISTER

ADDRESS

R268

(010Ch)

Toggle point

30 MSB

BIT

7

LABEL

EN_TP30

6:0 TP30[14:8]

Register 010Ch Toggle point 30 MSB

REGISTER

ADDRESS

R269

(010Dh)

Toggle point

31 LSB

BIT

7:0

LABEL

TP31[7:0]

Register 010Dh Toggle point 31 LSB

REGISTER

ADDRESS

R270

(010Eh)

Toggle point

31 MSB

BIT

7

LABEL

EN_TP31

6:0 TP31[14:8]

Register 010Eh Toggle point 31 MSB

REGISTER

ADDRESS

R271

(010Fh)

Polarity setting of

T1 1

BIT

7

6

LABEL

POL7_T1

POL6_T1

DEFAULT

0 enable toggle point "TP30"

0 = disable "TP30" and all subsequent toggle point

1 = enable toggle point "TP30"

000_0000 pixel count of toggle point "TP30"

0 enable toggle point "TP31"

0 = disable "TP31"

1 = enable toggle point "TP31"

000_0000 pixel count of toggle point "TP31"

1

1

DESCRIPTION

0000_0000 pixel count of toggle point "TP30"

DEFAULT

DEFAULT

DESCRIPTION

DESCRIPTION

0000_0000 pixel count of toggle point "TP31"

DEFAULT

DEFAULT

DESCRIPTION

DESCRIPTION

124

5

4

3

2

POL5_T1

POL4_T1

POL3_T1

POL2_T1

1

1

1

1 logic level of T1 pulse at toggle point TP7

0 = low at TP7

1 = high at TP7 logic level of T1 pulse at toggle point TP6

0 = low at TP6

1 = high at TP6 logic level of T1 pulse at toggle point TP5

0 = low at TP5

1 = high at TP5 logic level of T1 pulse at toggle point TP4

0 = low at TP4

1 = high at TP4 logic level of T1 pulse at toggle point TP3

0 = low at TP3

1 = high at TP3 logic level of T1 pulse at toggle point TP2

0 = low at TP2

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

BIT

Rev 4.5

1

0

5

4

LABEL

POL1_T1

POL0_T1

POL21_T1

POL20_T1

DEFAULT

1

1

DESCRIPTION

1 = high at TP2 logic level of T1 pulse at toggle point TP1

0 = low at TP1

1 = high at TP1 logic level of T1 pulse at toggle point TP0

0 = low at TP0

1 = high at TP0

Register 010Fh Polarity setting of T1 1

REGISTER

ADDRESS

R272 (0110h)

Polarity setting of

T1 2

BIT

7

6

LABEL

POL15_T1

POL14_T1

DEFAULT

1

1

5

4

3

2

1

0

POL13_T1

POL12_T1

POL11_T1

POL10_T1

POL9_T1

POL8_T1

1

1

1

1

1

1

DESCRIPTION

logic level of T1 pulse at toggle point TP15

0 = low at TP15

1 = high at TP15 logic level of T1 pulse at toggle point TP14

0 = low at TP14

1 = high at TP14 logic level of T1 pulse at toggle point TP13

0 = low at TP13

1 = high at TP13 logic level of T1 pulse at toggle point TP12

0 = low at TP12

1 = high at TP12 logic level of T1 pulse at toggle point TP11

0 = low at TP11

1 = high at TP11 logic level of T1 pulse at toggle point TP10

0 = low at TP10

1 = high at TP10 logic level of T1 pulse at toggle point TP9

0 = low at TP9

1 = high at TP9 logic level of T1 pulse at toggle point TP8

0 = low at TP8

1 = high at TP8

Register 0110h Polarity setting of T1 2

REGISTER

ADDRESS

R273 (0111h)

Polarity setting of

T1 3

BIT

7

6

LABEL

POL23_T1

POL22_T1

DEFAULT

1

1

1

1

DESCRIPTION

logic level of T1 pulse at toggle point TP23

0 = low at TP23

1 = high at TP23 logic level of T1 pulse at toggle point TP22

0 = low at TP22

1 = high at TP22 logic level of T1 pulse at toggle point TP21

0 = low at TP21

1 = high at TP21 logic level of T1 pulse at toggle point TP20

0 = low at TP20

1 = high at TP20

WM8235

REFER TO

REFER TO

REFER TO

125

REGISTER

ADDRESS

BIT

3

2

1

0

LABEL

POL19_T1

POL18_T1

POL17_T1

POL16_T1

DEFAULT

1

1

1

1

DESCRIPTION

logic level of T1 pulse at toggle point TP19

0 = low at TP19

1 = high at TP19 logic level of T1 pulse at toggle point TP18

0 = low at TP18

1 = high at TP18 logic level of T1 pulse at toggle point TP17

0 = low at TP17

1 = high at TP17 logic level of T1 pulse at toggle point TP16

0 = low at TP16

1 = high at TP16

Register 0111h Polarity setting of T1 3

REGISTER

ADDRESS

R274 (0112h)

Polarity setting of

T1 4

BIT

7

6

LABEL

POL31_T1

POL30_T1

5

4

3

2

1

0

POL29_T1

POL28_T1

POL27_T1

POL26_T1

POL25_T1

POL24_T1

DEFAULT

1

1

1

1

1

1

1

1

DESCRIPTION

logic level of T1 pulse at toggle point TP31

0 = low at TP31

1 = high at TP31 logic level of T1 pulse at toggle point TP30

0 = low at TP30

1 = high at TP30 logic level of T1 pulse at toggle point TP29

0 = low at TP29

1 = high at TP29 logic level of T1 pulse at toggle point TP28

0 = low at TP28

1 = high at TP28 logic level of T1 pulse at toggle point TP27

0 = low at TP27

1 = high at TP27 logic level of T1 pulse at toggle point TP26

0 = low at TP26

1 = high at TP26 logic level of T1 pulse at toggle point TP25

0 = low at TP25

1 = high at TP25 logic level of T1 pulse at toggle point TP24

0 = low at TP24

1 = high at TP24

Register 0112h Polarity setting of T1 4

REGISTER

ADDRESS

R275 (0113h)

Polarity setting of

T2 1

BIT

7

6

LABEL

POL7_T2

POL6_T2

126

5 POL5_T2

DEFAULT

1

1

1

DESCRIPTION

logic level of T2 pulse at toggle point TP7

0 = low at TP7

1 = high at TP7 logic level of T2 pulse at toggle point TP6

0 = low at TP6

1 = high at TP6 logic level of T2 pulse at toggle point TP5

WM8235

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

BIT

4

3

2

1

0

LABEL

POL4_T2

POL3_T2

POL2_T2

POL1_T2

POL0_T2

DEFAULT

1

1

1

1

1

DESCRIPTION

0 = low at TP5

1 = high at TP5 logic level of T2 pulse at toggle point TP4

0 = low at TP4

1 = high at TP4 logic level of T2 pulse at toggle point TP3

0 = low at TP3

1 = high at TP3 logic level of T2 pulse at toggle point TP2

0 = low at TP2

1 = high at TP2 logic level of T2 pulse at toggle point TP1

0 = low at TP1

1 = high at TP1 logic level of T2 pulse at toggle point TP0

0 = low at TP0

1 = high at TP0

Register 0113h Polarity setting of T2 1

REGISTER

ADDRESS

R276 (0114h)

Polarity setting of

T2 2

BIT

7

6

5

4

3

2

1

0

LABEL

POL15_T2

POL14_T2

POL13_T2

POL12_T2

POL11_T2

POL10_T2

POL9_T2

POL8_T2

DEFAULT

1

1

1

1

1

1

1

1

DESCRIPTION

logic level of T2 pulse at toggle point TP15

0 = low at TP15

1 = high at TP15 logic level of T2 pulse at toggle point TP14

0 = low at TP14

1 = high at TP14 logic level of T2 pulse at toggle point TP13

0 = low at TP13

1 = high at TP13 logic level of T2 pulse at toggle point TP12

0 = low at TP12

1 = high at TP12 logic level of T2 pulse at toggle point TP11

0 = low at TP11

1 = high at TP11 logic level of T2 pulse at toggle point TP10

0 = low at TP10

1 = high at TP10 logic level of T2 pulse at toggle point TP9

0 = low at TP9

1 = high at TP9 logic level of T2 pulse at toggle point TP8

0 = low at TP8

1 = high at TP8

Register 0114h Polarity setting of T2 2

REGISTER

ADDRESS

R277 (0115h)

Polarity

Rev 4.5

BIT

7

LABEL

POL23_T2

DEFAULT

1 logic level of T2 pulse at toggle point TP23

0 = low at TP23

DESCRIPTION

WM8235

REFER TO

REFER TO

REFER TO

127

REGISTER

ADDRESS

setting of

T2 3

BIT

6

5

4

3

2

1

0

LABEL

POL22_T2

POL21_T2

POL20_T2

POL19_T2

POL18_T2

POL17_T2

POL16_T2

DEFAULT

1

1

1

1

1

1

1

DESCRIPTION

1 = high at TP23 logic level of T2 pulse at toggle point TP22

0 = low at TP22

1 = high at TP22 logic level of T2 pulse at toggle point TP21

0 = low at TP21

1 = high at TP21 logic level of T2 pulse at toggle point TP20

0 = low at TP20

1 = high at TP20 logic level of T2 pulse at toggle point TP19

0 = low at TP19

1 = high at TP19 logic level of T2 pulse at toggle point TP18

0 = low at TP18

1 = high at TP18 logic level of T2 pulse at toggle point TP17

0 = low at TP17

1 = high at TP17 logic level of T2 pulse at toggle point TP16

0 = low at TP16

1 = high at TP16

Register 0115h Polarity setting of T2 3

REGISTER

ADDRESS

R278 (0116h)

Polarity setting of

T2 4

BIT

7

6

LABEL

POL31_T2

POL30_T2

5

4

3

2

1

0

POL29_T2

POL28_T2

POL27_T2

POL26_T2

POL25_T2

POL24_T2

DEFAULT

1

1

1

1

1

1

1

1

DESCRIPTION

logic level of T2 pulse at toggle point TP31

0 = low at TP31

1 = high at TP31 logic level of T2 pulse at toggle point TP30

0 = low at TP30

1 = high at TP30 logic level of T2 pulse at toggle point TP29

0 = low at TP29

1 = high at TP29 logic level of T2 pulse at toggle point TP28

0 = low at TP28

1 = high at TP28 logic level of T2 pulse at toggle point TP27

0 = low at TP27

1 = high at TP27 logic level of T2 pulse at toggle point TP26

0 = low at TP26

1 = high at TP26 logic level of T2 pulse at toggle point TP25

0 = low at TP25

1 = high at TP25 logic level of T2 pulse at toggle point TP24

0 = low at TP24

1 = high at TP24

Register 0116h Polarity setting of T2 4

128

WM8235

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

R279 (0117h)

Polarity setting of

P0 1

BIT

7

6

5

4

3

2

1

0

LABEL

POL7_PO0

POL6_PO0

POL5_PO0

POL4_PO0

POL3_PO0

POL2_PO0

POL1_PO0

POL0_PO0

DEFAULT

0

0

0

0

0

0

0

0

DESCRIPTION

logic level of PO0 pulse at toggle point TP7

0 = low at TP7

1 = high at TP7 logic level of PO0 pulse at toggle point TP6

0 = low at TP6

1 = high at TP6 logic level of PO0 pulse at toggle point TP5

0 = low at TP5

1 = high at TP5 logic level of PO0 pulse at toggle point TP4

0 = low at TP4

1 = high at TP4 logic level of PO0 pulse at toggle point TP3

0 = low at TP3

1 = high at TP3 logic level of PO0 pulse at toggle point TP2

0 = low at TP2

1 = high at TP2 logic level of PO0 pulse at toggle point TP1

0 = low at TP1

1 = high at TP1 logic level of PO0 pulse at toggle point TP0

0 = low at TP0

1 = high at TP0

Register 0117h Polarity setting of P0 1

REGISTER

ADDRESS

R280 (0118h)

Polarity setting of

P0 2

BIT

7

6

LABEL

POL15_PO0

POL14_PO0

DEFAULT

0

0

Rev 4.5

5

4

3

2

1

0

POL13_PO0

POL12_PO0

POL11_PO0

POL10_PO0

POL9_PO0

POL8_PO0

0

0

0

0

0

0

DESCRIPTION

logic level of PO0 pulse at toggle point TP15

0 = low at TP15

1 = high at TP15 logic level of PO0 pulse at toggle point TP14

0 = low at TP14

1 = high at TP14 logic level of PO0 pulse at toggle point TP13

0 = low at TP13

1 = high at TP13 logic level of PO0 pulse at toggle point TP12

0 = low at TP12

1 = high at TP12 logic level of PO0 pulse at toggle point TP11

0 = low at TP11

1 = high at TP11 logic level of PO0 pulse at toggle point TP10

0 = low at TP10

1 = high at TP10 logic level of PO0 pulse at toggle point TP9

0 = low at TP9

1 = high at TP9 logic level of PO0 pulse at toggle point TP8

0 = low at TP8

WM8235

REFER TO

REFER TO

129

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

1 = high at TP8

Register 0118h Polarity setting of P0 2

REGISTER

ADDRESS

R281 (0119h)

Polarity setting of

P0 3

BIT

7

6

LABEL

POL23_PO0

POL22_PO0

DEFAULT

0

0

5

4

3

2

1

0

POL21_PO0

POL20_PO0

POL19_PO0

POL18_PO0

POL17_PO0

POL16_PO0

0

0

0

0

0

0

DESCRIPTION

logic level of PO0 pulse at toggle point TP23

0 = low at TP23

1 = high at TP23 logic level of PO0 pulse at toggle point TP22

0 = low at TP22

1 = high at TP22 logic level of PO0 pulse at toggle point TP21

0 = low at TP21

1 = high at TP21 logic level of PO0 pulse at toggle point TP20

0 = low at TP20

1 = high at TP20 logic level of PO0 pulse at toggle point TP19

0 = low at TP19

1 = high at TP19 logic level of PO0 pulse at toggle point TP18

0 = low at TP18

1 = high at TP18 logic level of PO0 pulse at toggle point TP17

0 = low at TP17

1 = high at TP17 logic level of PO0 pulse at toggle point TP16

0 = low at TP16

1 = high at TP16

Register 0119h Polarity setting of P0 3

REGISTER

ADDRESS

R282

(011Ah)

Polarity setting of

P0 4

BIT

7

6

LABEL

POL31_PO0

POL30_PO0

DEFAULT

0

0

DESCRIPTION

130

5

4

3

2

POL29_PO0

POL28_PO0

POL27_PO0

POL26_PO0

0

0

0

0 logic level of PO0 pulse at toggle point TP31

0 = low at TP31

1 = high at TP31 logic level of PO0 pulse at toggle point TP30

0 = low at TP30

1 = high at TP30 logic level of PO0 pulse at toggle point TP29

0 = low at TP29

1 = high at TP29 logic level of PO0 pulse at toggle point TP28

0 = low at TP28

1 = high at TP28 logic level of PO0 pulse at toggle point TP27

0 = low at TP27

1 = high at TP27 logic level of PO0 pulse at toggle point TP26

0 = low at TP26

1 = high at TP26

WM8235

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

1

0

POL25_PO0

POL24_PO0

0

0 logic level of PO0 pulse at toggle point TP25

0 = low at TP25

1 = high at TP25 logic level of PO0 pulse at toggle point TP24

0 = low at TP24

1 = high at TP24

Register 011Ah Polarity setting of P0 4

REGISTER

ADDRESS

R283

(011Bh)

Polarity setting of

P1 1

BIT

7

6

5

4

3

2

1

0

LABEL

POL7_PO1

POL6_PO1

POL5_PO1

POL4_PO1

POL3_PO1

POL2_PO1

POL1_PO1

POL0_PO1

DEFAULT

0

0

0

0

0

0

0

0

DESCRIPTION

logic level of PO1 pulse at toggle point TP7

0 = low at TP7

1 = high at TP7 logic level of PO1 pulse at toggle point TP6

0 = low at TP6

1 = high at TP6 logic level of PO1 pulse at toggle point TP5

0 = low at TP5

1 = high at TP5 logic level of PO1 pulse at toggle point TP4

0 = low at TP4

1 = high at TP4 logic level of PO1 pulse at toggle point TP3

0 = low at TP3

1 = high at TP3 logic level of PO1 pulse at toggle point TP2

0 = low at TP2

1 = high at TP2 logic level of PO1 pulse at toggle point TP1

0 = low at TP1

1 = high at TP1 logic level of PO1 pulse at toggle point TP0

0 = low at TP0

1 = high at TP0

Register 011Bh Polarity setting of P1 1

REGISTER

ADDRESS

R284

(011Ch)

Polarity setting of

P1 2

BIT

7

6

LABEL

POL15_PO1

POL14_PO1

DEFAULT

0

0

Rev 4.5

5

4

3

POL13_PO1

POL12_PO1

POL11_PO1

0

0

0

DESCRIPTION

logic level of PO1 pulse at toggle point TP15

0 = low at TP15

1 = high at TP15 logic level of PO1 pulse at toggle point TP14

0 = low at TP14

1 = high at TP14 logic level of PO1 pulse at toggle point TP13

0 = low at TP13

1 = high at TP13 logic level of PO1 pulse at toggle point TP12

0 = low at TP12

1 = high at TP12 logic level of PO1 pulse at toggle point TP11

WM8235

REFER TO

REFER TO

REFER TO

131

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

2

1

0

POL10_PO1

POL9_PO1

POL8_PO1

0

0

0

0 = low at TP11

1 = high at TP11 logic level of PO1 pulse at toggle point TP10

0 = low at TP10

1 = high at TP10 logic level of PO1 pulse at toggle point TP9

0 = low at TP9

1 = high at TP9 logic level of PO1 pulse at toggle point TP8

0 = low at TP8

1 = high at TP8

Register 011Ch Polarity setting of P1 2

REGISTER

ADDRESS

R285

(011Dh)

Polarity setting of

P1 3

BIT

7

6

5

4

3

2

1

0

LABEL

POL23_PO1

POL22_PO1

POL21_PO1

POL20_PO1

POL19_PO1

POL18_PO1

POL17_PO1

POL16_PO1

DEFAULT

0

0

0

0

0

0

0

0

DESCRIPTION

logic level of PO1 pulse at toggle point TP23

0 = low at TP23

1 = high at TP23 logic level of PO1 pulse at toggle point TP22

0 = low at TP22

1 = high at TP22 logic level of PO1 pulse at toggle point TP21

0 = low at TP21

1 = high at TP21 logic level of PO1 pulse at toggle point TP20

0 = low at TP20

1 = high at TP20 logic level of PO1 pulse at toggle point TP19

0 = low at TP19

1 = high at TP19 logic level of PO1 pulse at toggle point TP18

0 = low at TP18

1 = high at TP18 logic level of PO1 pulse at toggle point TP17

0 = low at TP17

1 = high at TP17 logic level of PO1 pulse at toggle point TP16

0 = low at TP16

1 = high at TP16

Register 011Dh Polarity setting of P1 3

REGISTER

ADDRESS

R286

(011Eh)

Polarity setting of

P1 4

BIT

7

6

LABEL

POL31_PO1

POL30_PO1

DEFAULT

0

0

132

5 POL29_PO1 0

DESCRIPTION

logic level of PO1 pulse at toggle point TP31

0 = low at TP31

1 = high at TP31 logic level of PO1 pulse at toggle point TP30

0 = low at TP30

1 = high at TP30 logic level of PO1 pulse at toggle point TP29

0 = low at TP29

WM8235

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

4

3

2

1

0

POL28_PO1

POL27_PO1

POL26_PO1

POL25_PO1

POL24_PO1

0

0

0

0

0

1 = high at TP29 logic level of PO1 pulse at toggle point TP28

0 = low at TP28

1 = high at TP28 logic level of PO1 pulse at toggle point TP27

0 = low at TP27

1 = high at TP27 logic level of PO1 pulse at toggle point TP26

0 = low at TP26

1 = high at TP26 logic level of PO1 pulse at toggle point TP25

0 = low at TP25

1 = high at TP25 logic level of PO1 pulse at toggle point TP24

0 = low at TP24

1 = high at TP24

Register 011Eh Polarity setting of P1 4

REGISTER

ADDRESS

R287

(011Fh)

Polarity setting of

P2 1

BIT

7

6

5

4

3

2

1

0

LABEL

POL7_PO2

POL6_PO2

POL5_PO2

POL4_PO2

POL3_PO2

POL2_PO2

POL1_PO2

POL0_PO2

DEFAULT

0

0

0

0

0

0

0

0

DESCRIPTION

logic level of PO2 pulse at toggle point TP7

0 = low at TP7

1 = high at TP7 logic level of PO2 pulse at toggle point TP6

0 = low at TP6

1 = high at TP6 logic level of PO2 pulse at toggle point TP5

0 = low at TP5

1 = high at TP5 logic level of PO2 pulse at toggle point TP4

0 = low at TP4

1 = high at TP4 logic level of PO2 pulse at toggle point TP3

0 = low at TP3

1 = high at TP3 logic level of PO2 pulse at toggle point TP2

0 = low at TP2

1 = high at TP2 logic level of PO2 pulse at toggle point TP1

0 = low at TP1

1 = high at TP1 logic level of PO2 pulse at toggle point TP0

0 = low at TP0

1 = high at TP0

Register 011Fh Polarity setting of P2 1

REGISTER

ADDRESS

R288 (0120h)

Polarity setting of

Rev 4.5

BIT

7

LABEL

POL15_PO2

DEFAULT

0

DESCRIPTION

logic level of PO2 pulse at toggle point TP15

0 = low at TP15

1 = high at TP15

WM8235

REFER TO

REFER TO

REFER TO

133

REGISTER

ADDRESS

P2 2

BIT LABEL DEFAULT DESCRIPTION

6

5

4

3

2

1

0

POL14_PO2

POL13_PO2

POL12_PO2

POL11_PO2

POL10_PO2

POL9_PO2

POL8_PO2

0

0

0

0

0

0

0 logic level of PO2 pulse at toggle point TP14

0 = low at TP14

1 = high at TP14 logic level of PO2 pulse at toggle point TP13

0 = low at TP13

1 = high at TP13 logic level of PO2 pulse at toggle point TP12

0 = low at TP12

1 = high at TP12 logic level of PO2 pulse at toggle point TP11

0 = low at TP11

1 = high at TP11 logic level of PO2 pulse at toggle point TP10

0 = low at TP10

1 = high at TP10 logic level of PO2 pulse at toggle point TP9

0 = low at TP9

1 = high at TP9 logic level of PO2 pulse at toggle point TP8

0 = low at TP8

1 = high at TP8

Register 0120h Polarity setting of P2 2

REGISTER

ADDRESS

R289 (0121h)

Polarity setting of

P2 3

BIT

7

6

LABEL

POL23_PO2

POL22_PO2

DEFAULT

0

0

5

4

3

2

1

0

POL21_PO2

POL20_PO2

POL19_PO2

POL18_PO2

POL17_PO2

POL16_PO2

0

0

0

0

0

0

DESCRIPTION

logic level of PO2 pulse at toggle point TP23

0 = low at TP23

1 = high at TP23 logic level of PO2 pulse at toggle point TP22

0 = low at TP22

1 = high at TP22 logic level of PO2 pulse at toggle point TP21

0 = low at TP21

1 = high at TP21 logic level of PO2 pulse at toggle point TP20

0 = low at TP20

1 = high at TP20 logic level of PO2 pulse at toggle point TP19

0 = low at TP19

1 = high at TP19 logic level of PO2 pulse at toggle point TP18

0 = low at TP18

1 = high at TP18 logic level of PO2 pulse at toggle point TP17

0 = low at TP17

1 = high at TP17 logic level of PO2 pulse at toggle point TP16

0 = low at TP16

1 = high at TP16

Register 0121h Polarity setting of P2 3

134

WM8235

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

R290 (0122h)

Polarity setting of

P2 4

BIT

7

6

5

4

3

2

1

0

LABEL

POL31_PO2

POL30_PO2

POL29_PO2

POL28_PO2

POL27_PO2

POL26_PO2

POL25_PO2

POL24_PO2

DEFAULT

0

0

0

0

0

0

0

0

DESCRIPTION

logic level of PO2 pulse at toggle point TP31

0 = low at TP31

1 = high at TP31 logic level of PO2 pulse at toggle point TP30

0 = low at TP30

1 = high at TP30 logic level of PO2 pulse at toggle point TP29

0 = low at TP29

1 = high at TP29 logic level of PO2 pulse at toggle point TP28

0 = low at TP28

1 = high at TP28 logic level of PO2 pulse at toggle point TP27

0 = low at TP27

1 = high at TP27 logic level of PO2 pulse at toggle point TP26

0 = low at TP26

1 = high at TP26 logic level of PO2 pulse at toggle point TP25

0 = low at TP25

1 = high at TP25 logic level of PO2 pulse at toggle point TP24

0 = low at TP24

1 = high at TP24

Register 0122h Polarity setting of P2 4

REGISTER

ADDRESS

R291 (0123h)

Polarity setting of

P3 1

BIT

7

6

LABEL

POL7_PO3

POL6_PO3

DEFAULT

0

0

5

4

3

2

1

0

POL5_PO3

POL4_PO3

POL3_PO3

POL2_PO3

POL1_PO3

POL0_PO3

0

0

0

0

0

0

DESCRIPTION

logic level of PO3 pulse at toggle point TP7

0 = low at TP7

1 = high at TP7 logic level of PO3 pulse at toggle point TP6

0 = low at TP6

1 = high at TP6 logic level of PO3 pulse at toggle point TP5

0 = low at TP5

1 = high at TP5 logic level of PO3 pulse at toggle point TP4

0 = low at TP4

1 = high at TP4 logic level of PO3 pulse at toggle point TP3

0 = low at TP3

1 = high at TP3 logic level of PO3 pulse at toggle point TP2

0 = low at TP2

1 = high at TP2 logic level of PO3 pulse at toggle point TP1

0 = low at TP1

1 = high at TP1 logic level of PO3 pulse at toggle point TP0

0 = low at TP0

1 = high at TP0

Rev 4.5

WM8235

REFER TO

REFER TO

135

Register 0123h Polarity setting of P3 1

REGISTER

ADDRESS

R292 (0124h)

Polarity setting of

P3 2

BIT

7

6

LABEL

POL15_PO3

POL14_PO3

DEFAULT

0

0

5

4

3

2

1

0

POL13_PO3

POL12_PO3

POL11_PO3

POL10_PO3

POL9_PO3

POL8_PO3

0

0

0

0

0

0

DESCRIPTION

logic level of PO3 pulse at toggle point TP15

0 = low at TP15

1 = high at TP15 logic level of PO3 pulse at toggle point TP14

0 = low at TP14

1 = high at TP14 logic level of PO3 pulse at toggle point TP13

0 = low at TP13

1 = high at TP13 logic level of PO3 pulse at toggle point TP12

0 = low at TP12

1 = high at TP12 logic level of PO3 pulse at toggle point TP11

0 = low at TP11

1 = high at TP11 logic level of PO3 pulse at toggle point TP10

0 = low at TP10

1 = high at TP10 logic level of PO3 pulse at toggle point TP9

0 = low at TP9

1 = high at TP9 logic level of PO3 pulse at toggle point TP8

0 = low at TP8

1 = high at TP8

Register 0124h Polarity setting of P3 2

REGISTER

ADDRESS

R293 (0125h)

Polarity setting of

P3 3

BIT

7

6

136

5

4

3

2

1

LABEL

POL23_PO3

DEFAULT

0

POL22_PO3

POL21_PO3

POL20_PO3

POL19_PO3

POL18_PO3

POL17_PO3

0

0

0

0

0

0

DESCRIPTION

logic level of PO3 pulse at toggle point TP23

0 = low at TP23

1 = high at TP23 logic level of PO3 pulse at toggle point TP22

0 = low at TP22

1 = high at TP22 logic level of PO3 pulse at toggle point TP21

0 = low at TP21

1 = high at TP21 logic level of PO3 pulse at toggle point TP20

0 = low at TP20

1 = high at TP20 logic level of PO3 pulse at toggle point TP19

0 = low at TP19

1 = high at TP19 logic level of PO3 pulse at toggle point TP18

0 = low at TP18

1 = high at TP18 logic level of PO3 pulse at toggle point TP17

0 = low at TP17

WM8235

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

0 POL16_PO3 0

1 = high at TP17 logic level of PO3 pulse at toggle point TP16

0 = low at TP16

1 = high at TP16

Register 0125h Polarity setting of P3 3

REGISTER

ADDRESS

R294 (0126h)

Polarity setting of

P3 4

BIT

7

6

LABEL

POL31_PO3

POL30_PO3

DEFAULT

0

0

5

4

3

2

1

0

POL29_PO3

POL28_PO3

POL27_PO3

POL26_PO3

POL25_PO3

POL24_PO3

0

0

0

0

0

0

DESCRIPTION

logic level of PO3 pulse at toggle point TP31

0 = low at TP31

1 = high at TP31 logic level of PO3 pulse at toggle point TP30

0 = low at TP30

1 = high at TP30 logic level of PO3 pulse at toggle point TP29

0 = low at TP29

1 = high at TP29 logic level of PO3 pulse at toggle point TP28

0 = low at TP28

1 = high at TP28 logic level of PO3 pulse at toggle point TP27

0 = low at TP27

1 = high at TP27 logic level of PO3 pulse at toggle point TP26

0 = low at TP26

1 = high at TP26 logic level of PO3 pulse at toggle point TP25

0 = low at TP25

1 = high at TP25 logic level of PO3 pulse at toggle point TP24

0 = low at TP24

1 = high at TP24

Register 0126h Polarity setting of P3 4

REGISTER

ADDRESS

R295 (0127h)

Polarity setting of

P4 1

BIT

7

6

LABEL

POL7_PO4

POL6_PO4

DEFAULT

0

0

DESCRIPTION

Rev 4.5

5

4

3

POL5_PO4

POL4_PO4

POL3_PO4

0

0

0 logic level of PO4 pulse at toggle point TP7

0 = low at TP7

1 = high at TP7 logic level of PO4 pulse at toggle point TP6

0 = low at TP6

1 = high at TP6 logic level of PO4 pulse at toggle point TP5

0 = low at TP5

1 = high at TP5 logic level of PO4 pulse at toggle point TP4

0 = low at TP4

1 = high at TP4 logic level of PO4 pulse at toggle point TP3

0 = low at TP3

1 = high at TP3

WM8235

REFER TO

REFER TO

REFER TO

137

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

2

1

0

POL2_PO4

POL1_PO4

POL0_PO4

0

0

0 logic level of PO4 pulse at toggle point TP2

0 = low at TP2

1 = high at TP2 logic level of PO4 pulse at toggle point TP1

0 = low at TP1

1 = high at TP1 logic level of PO4 pulse at toggle point TP0

0 = low at TP0

1 = high at TP0

Register 0127h Polarity setting of P4 1

REGISTER

ADDRESS

R296 (0128h)

Polarity setting of

P4 2

BIT

7

6

LABEL

POL15_PO4

POL14_PO4

DEFAULT

0

0

5

4

3

2

1

0

POL13_PO4

POL12_PO4

POL11_PO4

POL10_PO4

POL9_PO4

POL8_PO4

0

0

0

0

0

0

DESCRIPTION

logic level of PO4 pulse at toggle point TP15

0 = low at TP15

1 = high at TP15 logic level of PO4 pulse at toggle point TP14

0 = low at TP14

1 = high at TP14 logic level of PO4 pulse at toggle point TP13

0 = low at TP13

1 = high at TP13 logic level of PO4 pulse at toggle point TP12

0 = low at TP12

1 = high at TP12 logic level of PO4 pulse at toggle point TP11

0 = low at TP11

1 = high at TP11 logic level of PO4 pulse at toggle point TP10

0 = low at TP10

1 = high at TP10 logic level of PO4 pulse at toggle point TP9

0 = low at TP9

1 = high at TP9 logic level of PO4 pulse at toggle point TP8

0 = low at TP8

1 = high at TP8

Register 0128h Polarity setting of P4 2

REGISTER

ADDRESS

R297 (0129h)

Polarity setting of

P4 3

BIT

7

6

138

5

4

LABEL

POL23_PO4

POL22_PO4

POL21_PO4

POL20_PO4

DEFAULT

0

0

0

0 logic level of PO4 pulse at toggle point TP23

0 = low at TP23

1 = high at TP23 logic level of PO4 pulse at toggle point TP22

0 = low at TP22

1 = high at TP22 logic level of PO4 pulse at toggle point TP21

0 = low at TP21

1 = high at TP21 logic level of PO4 pulse at toggle point TP20

DESCRIPTION

WM8235

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

3

2

1

0

POL19_PO4

POL18_PO4

POL17_PO4

POL16_PO4

0

0

0

0

Register 0129h Polarity setting of P4 3

REGISTER

ADDRESS

R298

(012Ah)

Polarity setting of

P4 4

BIT

7

6

LABEL

POL31_PO4

POL30_PO4

DEFAULT

0

0

5

4

3

2

1

0

POL29_PO4

POL28_PO4

POL27_PO4

POL26_PO4

POL25_PO4

POL24_PO4

0

0

0

0

0

0

DESCRIPTION

logic level of PO4 pulse at toggle point TP31

0 = low at TP31

1 = high at TP31 logic level of PO4 pulse at toggle point TP30

0 = low at TP30

1 = high at TP30 logic level of PO4 pulse at toggle point TP29

0 = low at TP29

1 = high at TP29 logic level of PO4 pulse at toggle point TP28

0 = low at TP28

1 = high at TP28 logic level of PO4 pulse at toggle point TP27

0 = low at TP27

1 = high at TP27 logic level of PO4 pulse at toggle point TP26

0 = low at TP26

1 = high at TP26 logic level of PO4 pulse at toggle point TP25

0 = low at TP25

1 = high at TP25 logic level of PO4 pulse at toggle point TP24

0 = low at TP24

1 = high at TP24

Register 012Ah Polarity setting of P4 4

0 = low at TP20

1 = high at TP20 logic level of PO4 pulse at toggle point TP19

0 = low at TP19

1 = high at TP19 logic level of PO4 pulse at toggle point TP18

0 = low at TP18

1 = high at TP18 logic level of PO4 pulse at toggle point TP17

0 = low at TP17

1 = high at TP17 logic level of PO4 pulse at toggle point TP16

0 = low at TP16

1 = high at TP16

REGISTER

ADDRESS

R299

(012Bh)

Polarity setting of

P5 1

Rev 4.5

BIT

7

6

LABEL

POL7_PO5

POL6_PO5

DEFAULT

0

0 logic level of PO5 pulse at toggle point TP7

0 = low at TP7

1 = high at TP7 logic level of PO5 pulse at toggle point TP6

0 = low at TP6

DESCRIPTION

WM8235

REFER TO

REFER TO

REFER TO

139

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

5

4

3

2

1

0

POL5_PO5

POL4_PO5

POL3_PO5

POL2_PO5

POL1_PO5

POL0_PO5

0

0

0

0

0

0

1 = high at TP6 logic level of PO5 pulse at toggle point TP5

0 = low at TP5

1 = high at TP5 logic level of PO5 pulse at toggle point TP4

0 = low at TP4

1 = high at TP4 logic level of PO5 pulse at toggle point TP3

0 = low at TP3

1 = high at TP3 logic level of PO5 pulse at toggle point TP2

0 = low at TP2

1 = high at TP2 logic level of PO5 pulse at toggle point TP1

0 = low at TP1

1 = high at TP1 logic level of PO5 pulse at toggle point TP0

0 = low at TP0

1 = high at TP0

Register 012Bh Polarity setting of P5 1

REGISTER

ADDRESS

R300

(012Ch)

Polarity setting of

P5 2

BIT

7

6

LABEL

POL15_PO5

POL14_PO5

DEFAULT

0

0

5

4

3

2

1

0

POL13_PO5

POL12_PO5

POL11_PO5

POL10_PO5

POL9_PO5

POL8_PO5

0

0

0

0

0

0

DESCRIPTION

logic level of PO5 pulse at toggle point TP15

0 = low at TP15

1 = high at TP15 logic level of PO5 pulse at toggle point TP14

0 = low at TP14

1 = high at TP14 logic level of PO5 pulse at toggle point TP13

0 = low at TP13

1 = high at TP13 logic level of PO5 pulse at toggle point TP12

0 = low at TP12

1 = high at TP12 logic level of PO5 pulse at toggle point TP11

0 = low at TP11

1 = high at TP11 logic level of PO5 pulse at toggle point TP10

0 = low at TP10

1 = high at TP10 logic level of PO5 pulse at toggle point TP9

0 = low at TP9

1 = high at TP9 logic level of PO5 pulse at toggle point TP8

0 = low at TP8

1 = high at TP8

Register 012Ch Polarity setting of P5 2

REGISTER

ADDRESS

140

BIT LABEL DEFAULT DESCRIPTION

WM8235

REFER TO

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

R301

(012Dh)

Polarity setting of

P5 3

BIT

7

6

5

4

3

2

1

0

LABEL

POL23_PO5

POL22_PO5

POL21_PO5

POL20_PO5

POL19_PO5

POL18_PO5

POL17_PO5

POL16_PO5

DEFAULT

0

0

0

0

0

0

0

0

DESCRIPTION

logic level of PO5 pulse at toggle point TP23

0 = low at TP23

1 = high at TP23 logic level of PO5 pulse at toggle point TP22

0 = low at TP22

1 = high at TP22 logic level of PO5 pulse at toggle point TP21

0 = low at TP21

1 = high at TP21 logic level of PO5 pulse at toggle point TP20

0 = low at TP20

1 = high at TP20 logic level of PO5 pulse at toggle point TP19

0 = low at TP19

1 = high at TP19 logic level of PO5 pulse at toggle point TP18

0 = low at TP18

1 = high at TP18 logic level of PO5 pulse at toggle point TP17

0 = low at TP17

1 = high at TP17 logic level of PO5 pulse at toggle point TP16

0 = low at TP16

1 = high at TP16

Register 012Dh Polarity setting of P5 3

REGISTER

ADDRESS

R302

(012Eh)

Polarity setting of

P5 4

BIT

7

6

Rev 4.5

5

4

3

2

1

0

LABEL

POL31_PO5

DEFAULT

0

POL30_PO5

POL29_PO5

POL28_PO5

POL27_PO5

POL26_PO5

POL25_PO5

POL24_PO5

0

0

0

0

0

0

0

DESCRIPTION

logic level of PO5 pulse at toggle point TP31

0 = low at TP31

1 = high at TP31 logic level of PO5 pulse at toggle point TP30

0 = low at TP30

1 = high at TP30 logic level of PO5 pulse at toggle point TP29

0 = low at TP29

1 = high at TP29 logic level of PO5 pulse at toggle point TP28

0 = low at TP28

1 = high at TP28 logic level of PO5 pulse at toggle point TP27

0 = low at TP27

1 = high at TP27 logic level of PO5 pulse at toggle point TP26

0 = low at TP26

1 = high at TP26 logic level of PO5 pulse at toggle point TP25

0 = low at TP25

1 = high at TP25 logic level of PO5 pulse at toggle point TP24

0 = low at TP24

1 = high at TP24

WM8235

REFER TO

REFER TO

141

Register 012Eh Polarity setting of P5 4

REGISTER

ADDRESS

R303

(012Fh)

Polarity setting of

P6 1

BIT

7

6

LABEL

POL7_PO6

POL6_PO6

DEFAULT

0

0

5

4

3

2

1

0

POL5_PO6

POL4_PO6

POL3_PO6

POL2_PO6

POL1_PO6

POL0_PO6

0

0

0

0

0

0

DESCRIPTION

logic level of PO6 pulse at toggle point TP7

0 = low at TP7

1 = high at TP7 logic level of PO6 pulse at toggle point TP6

0 = low at TP6

1 = high at TP6 logic level of PO6 pulse at toggle point TP5

0 = low at TP5

1 = high at TP5 logic level of PO6 pulse at toggle point TP4

0 = low at TP4

1 = high at TP4 logic level of PO6 pulse at toggle point TP3

0 = low at TP3

1 = high at TP3 logic level of PO6 pulse at toggle point TP2

0 = low at TP2

1 = high at TP2 logic level of PO6 pulse at toggle point TP1

0 = low at TP1

1 = high at TP1 logic level of PO6 pulse at toggle point TP0

0 = low at TP0

1 = high at TP0

Register 012Fh Polarity setting of P6 1

REGISTER

ADDRESS

R304 (0130h)

Polarity setting of

P6 2

BIT

7

6

142

5

4

3

2

1

LABEL

POL15_PO6

DEFAULT

0

POL14_PO6

POL13_PO6

POL12_PO6

POL11_PO6

POL10_PO6

POL9_PO6

0

0

0

0

0

0

DESCRIPTION

logic level of PO6 pulse at toggle point TP15

0 = low at TP15

1 = high at TP15 logic level of PO6 pulse at toggle point TP14

0 = low at TP14

1 = high at TP14 logic level of PO6 pulse at toggle point TP13

0 = low at TP13

1 = high at TP13 logic level of PO6 pulse at toggle point TP12

0 = low at TP12

1 = high at TP12 logic level of PO6 pulse at toggle point TP11

0 = low at TP11

1 = high at TP11 logic level of PO6 pulse at toggle point TP10

0 = low at TP10

1 = high at TP10 logic level of PO6 pulse at toggle point TP9

0 = low at TP9

WM8235

REFER TO

REFER TO

Rev 4.5

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

0 POL8_PO6 0

1 = high at TP9 logic level of PO6 pulse at toggle point TP8

0 = low at TP8

1 = high at TP8

Register 0130h Polarity setting of P6 2

REGISTER

ADDRESS

R305 (0131h)

Polarity setting of

P6 3

BIT

7

LABEL

POL23_PO6

6 POL22_PO6

DEFAULT

0

0

5

4

3

2

1

0

POL21_PO6

POL20_PO6

POL19_PO6

POL18_PO6

POL17_PO6

POL16_PO6

0

0

0

0

0

0

DESCRIPTION

logic level of PO6 pulse at toggle point TP23

0 = low at TP23

1 = high at TP23 logic level of PO6 pulse at toggle point TP22

0 = low at TP22

1 = high at TP22 logic level of PO6 pulse at toggle point TP21

0 = low at TP21

1 = high at TP21 logic level of PO6 pulse at toggle point TP20

0 = low at TP20

1 = high at TP20 logic level of PO6 pulse at toggle point TP19

0 = low at TP19

1 = high at TP19 logic level of PO6 pulse at toggle point TP18

0 = low at TP18

1 = high at TP18 logic level of PO6 pulse at toggle point TP17

0 = low at TP17

1 = high at TP17 logic level of PO6 pulse at toggle point TP16

0 = low at TP16

1 = high at TP16

Register 0131h Polarity setting of P6 3

REGISTER

ADDRESS

R306 (0132h)

Polarity setting of

P6 4

BIT

7

6

Rev 4.5

5

4

3

LABEL

POL31_PO6

POL30_PO6

POL29_PO6

POL28_PO6

POL27_PO6

DEFAULT

0

0

0

0

0

DESCRIPTION

logic level of PO6 pulse at toggle point TP31

0 = low at TP31

1 = high at TP31 logic level of PO6 pulse at toggle point TP30

0 = low at TP30

1 = high at TP30 logic level of PO6 pulse at toggle point TP29

0 = low at TP29

1 = high at TP29 logic level of PO6 pulse at toggle point TP28

0 = low at TP28

1 = high at TP28 logic level of PO6 pulse at toggle point TP27

0 = low at TP27

1 = high at TP27

WM8235

REFER TO

REFER TO

REFER TO

143

REGISTER

ADDRESS

BIT

2

LABEL DEFAULT DESCRIPTION

1

0

POL26_PO6

POL25_PO6

POL24_PO6

0

0

0 logic level of PO6 pulse at toggle point TP26

0 = low at TP26

1 = high at TP26 logic level of PO6 pulse at toggle point TP25

0 = low at TP25

1 = high at TP25 logic level of PO6 pulse at toggle point TP24

0 = low at TP24

1 = high at TP24

Register 0132h Polarity setting of P6 4

REGISTER

ADDRESS

R307 (0133h)

Polarity setting of

P7 1

BIT

7

6

LABEL

POL7_PO7

POL6_PO7

DEFAULT

0

0

5

4

3

2

1

0

POL5_PO7

POL4_PO7

POL3_PO7

POL2_PO7

POL1_PO7

POL0_PO7

0

0

0

0

0

0

DESCRIPTION

logic level of PO7 pulse at toggle point TP7

0 = low at TP7

1 = high at TP7 logic level of PO7 pulse at toggle point TP6

0 = low at TP6

1 = high at TP6 logic level of PO7 pulse at toggle point TP5

0 = low at TP5

1 = high at TP5 logic level of PO7 pulse at toggle point TP4

0 = low at TP4

1 = high at TP4 logic level of PO7 pulse at toggle point TP3

0 = low at TP3

1 = high at TP3 logic level of PO7 pulse at toggle point TP2

0 = low at TP2

1 = high at TP2 logic level of PO7 pulse at toggle point TP1

0 = low at TP1

1 = high at TP1 logic level of PO7 pulse at toggle point TP0

0 = low at TP0

1 = high at TP0

Register 0133h Polarity setting of P7 1

WM8235

REFER TO

REFER TO

REGISTER

ADDRESS

R308 (0134h)

Polarity setting of

P7 2

BIT

7

6

144

5

LABEL

POL15_PO7

DEFAULT

0

POL14_PO7

POL13_PO7

0

0

DESCRIPTION

logic level of PO7 pulse at toggle point TP15

0 = low at TP15

1 = high at TP15 logic level of PO7 pulse at toggle point TP14

0 = low at TP14

1 = high at TP14 logic level of PO7 pulse at toggle point TP13

0 = low at TP13

1 = high at TP13

REFER TO

Rev 4.5

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

4

3

2

1

0

POL12_PO7

POL11_PO7

POL10_PO7

POL9_PO7

POL8_PO7

0

0

0

0

0

Register 0134h Polarity setting of P7 2

REGISTER

ADDRESS

R309 (0135h)

Polarity setting of

P7 3

BIT

7

6

LABEL

POL23_PO7

POL22_PO7

DEFAULT

0

0

5

4

3

2

1

0

POL21_PO7

POL20_PO7

POL19_PO7

POL18_PO7

POL17_PO7

POL16_PO7

0

0

0

0

0

0

DESCRIPTION

logic level of PO7 pulse at toggle point TP23

0 = low at TP23

1 = high at TP23 logic level of PO7 pulse at toggle point TP22

0 = low at TP22

1 = high at TP22 logic level of PO7 pulse at toggle point TP21

0 = low at TP21

1 = high at TP21 logic level of PO7 pulse at toggle point TP20

0 = low at TP20

1 = high at TP20 logic level of PO7 pulse at toggle point TP19

0 = low at TP19

1 = high at TP19 logic level of PO7 pulse at toggle point TP18

0 = low at TP18

1 = high at TP18 logic level of PO7 pulse at toggle point TP17

0 = low at TP17

1 = high at TP17 logic level of PO7 pulse at toggle point TP16

0 = low at TP16

1 = high at TP16

Register 0135h Polarity setting of P7 3 logic level of PO7 pulse at toggle point TP12

0 = low at TP12

1 = high at TP12 logic level of PO7 pulse at toggle point TP11

0 = low at TP11

1 = high at TP11 logic level of PO7 pulse at toggle point TP10

0 = low at TP10

1 = high at TP10 logic level of PO7 pulse at toggle point TP9

0 = low at TP9

1 = high at TP9 logic level of PO7 pulse at toggle point TP8

0 = low at TP8

1 = high at TP8

WM8235

REFER TO

REFER TO

REGISTER

ADDRESS

R310 (0136h)

Polarity setting of

P7 4

BIT

7

6

Rev 4.5

LABEL

POL31_PO7

DEFAULT

0

POL30_PO7 0

DESCRIPTION

logic level of PO7 pulse at toggle point TP31

0 = low at TP31

1 = high at TP31 logic level of PO7 pulse at toggle point TP30

REFER TO

145

REGISTER

ADDRESS

BIT LABEL DEFAULT DESCRIPTION

5

4

3

2

1

0

POL29_PO7

POL28_PO7

POL27_PO7

POL26_PO7

POL25_PO7

POL24_PO7

0

0

0

0

0

0

0 = low at TP30

1 = high at TP30 logic level of PO7 pulse at toggle point TP29

0 = low at TP29

1 = high at TP29 logic level of PO7 pulse at toggle point TP28

0 = low at TP28

1 = high at TP28 logic level of PO7 pulse at toggle point TP27

0 = low at TP27

1 = high at TP27 logic level of PO7 pulse at toggle point TP26

0 = low at TP26

1 = high at TP26 logic level of PO7 pulse at toggle point TP25

0 = low at TP25

1 = high at TP25 logic level of PO7 pulse at toggle point TP24

0 = low at TP24

1 = high at TP24

Register 0136h Polarity setting of P7 4

REGISTER

ADDRESS

R432 (1B0h)

User access control

BIT

0

LABEL

USER_KEY

Register 01B0h User access control

DEFAULT

0

DESCRIPTION

0 = User access disabled

1 = User access enabled

REGISTER

ADDRESS

R436 (1B4h)

LDO2 control

BIT

4:0 LDO2 VSEL

Register 01B4h LDO2 control

LABEL DEFAULT

1_0000

1_0000 = 1.8V

1_0010 = 2.0V

REGISTER

ADDRESS

R448 (1C0h)

User access control2

BIT

0

LABEL

User_KEY2

Register 1C0h User access control2

REGISTER

ADDRESS

R459 (1CBh)

Comp control

BIT

1:0

LABEL

PT_COMP

DEFAULT

0

DEFAULT

01

DESCRIPTION

DESCRIPTION

0 = User access2 disabled

1 = User access2 enabled

DESCRIPTION

01 = Standard operation

11 = High performance operation

Other = Inhibit.

Register 1CBh Comp control

146

WM8235

REFER TO

REFER TO

REFER TO

REFER TO

REFER TO

Rev 4.5

WM8235

Rev 4.5

147

WM8235

APPLICATIONS INFORMATION

RECOMMENDED EXTERNAL COMPONENTS

AVDD1 AVDD2

DBVDD

C1

C2

LDO1VDD

LDO2VDD

55

C3

AVDD1

48

AVDD2

22

DBVDD

33

LDO1VDD

C4

9

LDO2VDD

C5

AGND1

56

AGND2

47

AGND3

43

VREF1C

VREF2C

4

VREF3C

1

3

AGND

C8 C7 C6

AGND

Video

Inputs

Timing

Signals

Interface

Controls

C9 C10

C11

2

VRLC/VBIAS

LDO1VOUT

31

LDO2VOUT

11

C12 C13

AGND

AGND

IN1

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

44

45

46

49

50

51

52

53

54

13

34

MCLK

TGSYNC

8

SDI

7

SCK

5

SEN

14

DSLCT1

12

DSLCT2

WM8235

D1P/OP[0]

D1N/OP[1]

D2P/OP[2]

D2N/OP[3]

D3P/OP[4]

D3N/OP[5]

DCLKP/OC[1]

DCLKN/OP[2]

D4P/OP[6]

D4N/OP[7]

D5P/OP[8]

D5N/OP[9]

23

20

19

18

17

16

28

27

26

25

24

15

CLK1

CLK2

CLK3

CLK4

CLK5

CLK6

CLK7

CLK8

35

36

37

38

39

40

41

42

AGND

Output

Data

Bus

AVDD1 AVDD2 DBVDDLDO1VDD LDO2VDD

C14 C15 C16 C17 C18

Timing generator

Outputs

LDO1VOUT

AGND

LDO2VOUT

C19 C20

AGND

NOTES: 1.

C1-20 should be fitted as close to device as possible.

2.

AGND should be connected as close to device as possible.

Figure 53 External Components Diagram

148 Rev 4.5

RECOMMENDED EXTERNAL COMPONENT VALUES

COMPONENT

REFERENCE

C1

C2

C3

C4

C5

C6

C7

C8

C9

C10

C11

C12

C13

C14

C15

C16

C17

C18

C19

C20

SUGGESTED

VALUE

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.1uF

0.01uF

10uF

1uF

1uF

1uF

10uF

10uF

10uF

10uF

10uF

10uF

10uF

DESCRIPTION

Table 16 External Components Descriptions

De-coupling for AVDD1

De-coupling for AVDD2

De-coupling for DBVDD

De-coupling for LDO1VDD

De-coupling for LDO2VDD

De-coupling for VREF1C

De-coupling for VREF2C

De-coupling for VREF3C

High frequency decoupling between VREF1C and VREF3C

Low frequency decoupling between VREF1C and VREF3C

De-coupling for VRLC/VBIAS

De-coupling for LDO1VOUT

De-coupling for LDO2VOUT

Reservoir capacitor for AVDD1

Reservoir capacitor for AVDD2

Reservoir capacitor for DBVDD

Reservoir capacitor for LDO1VDD

Reservoir capacitor for LDO2VDD

Reservoir capacitor for LDOOUT

Reservoir capacitor for LDOOUT

WM8235

Rev 4.5

149

PACKAGE DIMENSIONS

FL: 56 PIN QFN PLASTIC PACKAGE 7

X

7

X

0.85 mm BODY, 0.40 mm LEAD PITCH eee

D2

C B A

A

D2/2

PIN 1

43 56

L

36

1

INDEX AREA

(D/2 X E/2)

EXPOSED

GND

PADDLE

6

E2/2

E2

eee C B A

D

WM8235

DM092.B

B

E

29

28 e

C

SEATING PLANE

M

b

15

ddd

M

C A B

14

2 X

2 X aaa C aaa C

A1

(A3)

A2

A bbb C

M b

D

D2

E

E2 e

L

A

A1

A2

A3

Symbols

MIN

0.8

-

0

0.15

5.10

5.10

0.35

Dimensions (mm)

NOM

0.85

MAX

0.035

0.65

0.9

0.05

0.67

0.203 REF

0.2

7.00 BSC

0.25

5.20

7.00 BSC

5.20

0.4 BSC

5.30

5.30

0.4

0.45

NOTE

1

aaa bbb ccc ddd eee

REF

Tolerances of Form and Position

0.10

0.10

0.08

0.10

0.10

JEDEC, MO-220, VARIATION VKKE

NOTES:

1. DIMENSION b APPLIED TO METALLIZED TERMINAL AND IS MEASURED BETWEEN 0.15 mm AND 0.30 mm FROM TERMINAL TIP.

2. ALL DIMENSIONS ARE IN MILLIMETRES

3. THE TERMINAL #1 IDENTIFIER AND TERMINAL NUMBERING CONVENTION SHALL CONFORM TO JESD 95-1 SPP-002.

4. COPLANARITY APPLIES TO THE EXPOSED HEAT SINK SLUG AS WELL AS THE TERMINALS.

5. THIS DRAWING IS SUBJECT TO CHANGE WITHOUT NOTICE.

6. REFER TO APPLICATIONS NOTE WAN_0118 FOR FURTHER INFORMATION.

150

TOP VIEW

Rev 4.5

IMPORTANT NOTICE

WM8235

Contacting Cirrus Logic Support

For all product questions and inquiries, contact a Cirrus Logic Sales Representative.

To find one nearest you, go to www.cirrus.com.

The products and services of Cirrus Logic International (UK) Limited; Cirrus Logic, Inc.; and other companies in the Cirrus Logic group (collectively either “Cirrus Logic” or “Cirrus”) are sold subject to Cirrus Logic’s terms and conditions of sale supplied at the time of order acknowledgment, including those pertaining to warranty, indemnification, and limitation of liability. Software is provided pursuant to applicable license terms. Cirrus Logic reserves the right to make changes to its products and specifications or to discontinue any product or service without notice. Customers should therefore obtain the latest version of relevant information from Cirrus Logic to verify that the information is current and complete. Testing and other quality control techniques are utilized to the extent Cirrus Logic deems necessary. Specific testing of all parameters of each device is not necessarily performed. In order to minimize risks associated with customer applications, the customer must use adequate design and operating safeguards to minimize inherent or procedural hazards. Cirrus Logic is not liable for applications assistance or customer product design. The customer is solely responsible for its selection and use of Cirrus Logic products. Use of Cirrus Logic products may entail a choice between many different modes of operation, some or all of which may require action by the user, and some or all of which may be optional. Nothing in these materials should be interpreted as instructions or suggestions to choose one mode over another.

Likewise, description of a single mode should not be interpreted as a suggestion that other modes should not be used or that they would not be suitable for operation. Features and operations described herein are for illustrative purposes only.

CERTAIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF DEATH, PERSONAL

INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL APPLICATIONS”). CIRRUS LOGIC

PRODUCTS ARE NOT DESIGNED, AUTHORIZED OR WARRANTED FOR USE IN PRODUCTS SURGICALLY IMPLANTED

INTO THE BODY, AUTOMOTIVE SAFETY OR SECURITY DEVICES, NUCLEAR SYSTEMS, LIFE SUPPORT PRODUCTS OR

OTHER CRITICAL APPLICATIONS. INCLUSION OF CIRRUS LOGIC PRODUCTS IN SUCH APPLICATIONS IS UNDERSTOOD

TO BE FULLY AT THE CUSTOMER’S RISK AND CIRRUS LOGIC DISCLAIMS AND MAKES NO WARRANTY, EXPRESS,

STATUTORY OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR

PARTICULAR PURPOSE, WITH REGARD TO ANY CIRRUS LOGIC PRODUCT THAT IS USED IN SUCH A MANNER. IF THE

CUSTOMER OR CUSTOMER’S CUSTOMER USES OR PERMITS THE USE OF CIRRUS LOGIC PRODUCTS IN CRITICAL

APPLICATIONS, CUSTOMER AGREES, BY SUCH USE, TO FULLY INDEMNIFY CIRRUS LOGIC, ITS OFFICERS, DIRECTORS,

EMPLOYEES, DISTRIBUTORS AND OTHER

AGENTS FROM ANY AND ALL LIABILITY, INCLUDING ATTORNEYS’ FEES AND

COSTS, THAT MAY RESULT FROM OR ARISE IN CONNECTION WITH THESE USES.

This document is the property of Cirrus Logic and by furnishing this information, Cirrus Logic grants no license, express or implied, under any patents, mask work rights, copyrights, trademarks, trade secrets or other intellectual property rights. Any provision or publication of any third party’s products or services does not constitute Cirrus Logic’s approval, license, warranty or endorsement thereof. Cirrus Logic gives consent for copies to be made of the information contained herein only for use within your organization with respect to Cirrus Logic integrated circuits or other products of Cirrus Logic, and only if the reproduction is without alteration and is accompanied by all associated copyright, proprietary and other notices and conditions (including this notice). This consent does not extend to other copying such as copying for general distribution, advertising or promotional purposes, or for creating any work for resale. This document and its information is provided “AS IS” without warranty of any kind (express or implied). All statutory warranties and conditions are excluded to the fullest extent possible. No responsibility is assumed by Cirrus Logic for the use of information herein, including use of this information as the basis for manufacture or sale of any items, or for infringement of patents or other rights of third parties. Cirrus Logic, Cirrus, the Cirrus Logic logo design, and SoundClear are among the trademarks of

Cirrus Logic. Other brand and product names may be trademarks or service marks of their respective owners.

Copyright © 2010

–2015 Cirrus Logic, Inc. All rights reserved.

Rev 4.5

151

WM8235

REVISION HISTORY

DATE

16/11/10

08/12/11

11/12/11

REV

1.0

3.0

3.0

ORIGINATOR

AA/NB

JMacD

AA

01/02/12

20/02/12

20/02/12

14/12/12

17/02/14

3.1

3.2

3.2

4.0

4.1

JMacD

AA/JMacD

AA/JMacD

AA

AA

CHANGES

First Release

Product status updated to Pre-Production

Corrected DAC description 4-bit to 8bit

Corrected temperature range to -40

Corrected PGAFS characteristics

Corrected Supply currents

Added test conditions for TG output

Corrected Clamp timing diagram

Corrected Signal flow summary (removed INVOP description)

Corrected Channel ID description INP to IN

Corrected TG MASK description

Corrected Register Map (PGAFS)

Update to Recommended External Component Values

– (C9)

0.1uF changed to 0.01uF

Corrected Parameter name and Register name for RLCDAC

Corrected RLCDAC resolution

Added channel to channel offset matching specifcation

Corrected offset DAC INL DNL spec

Corrected supply current for full power down mode

Updated timing specificationCorrected figure for ADC INPUT

BLACK LEVEL ADJUST

Corrected figure for overall signal flow

Added description for ADC, PGA Bias Current Control.

Added description for PLL DLL setup

Added description for 3pair LVDS format

Added LVDS output order

Corrected TG timing diagram

Added EXTENDED REGISTERES

Corrected description for R28

Corrected description for R128,R129

Corrected description of conversion rate

Corrected description of reference DAC resolution

Updated test condition for output noise specification

Corrected device ID descriptions (Table 2 and Table 3)

Corrected MCLK High/Low period

Corrected RESET CLAMPING description

Corrected CDS/Non-CDS PROCESSING description

Updated PLL and DLL setting table

Corrected TG-master/slave mode timing chart

Added TGSYNC low period specification

Added description for LINE BY LINE operation

Added description for TEST PATTERN GENERATOR

Added description for Register setting procedure

PAGE

1

5,8

9,10

11

11

24

27

30

34

41,48

124

10,41

10

9

10

11

15,17,36-38

21

22

22

23

29-33

34

36,37

54,131

65

83

1

1

9

13,14

15

18,19

20

23

39,40

40

51,52,62,79

53,54,76

55~61

152 Rev 4.5

DATE

22/05/14

19/08/2014

20/10/2015

REV

4.2

4.3

4.4

ORIGINATOR

AA

AA

PH

PH

CHANGES

Added data latency specification

Updated tPER, tMCLKH and tMCLKL description

Added LVDS synchronous output description

Removed tPER and tMCLKD description

Removed tTRGD and tPCKD description

Updated Data trigger timing delay specification

Corrected Trigger data description

Corrected TG MASK TIMING description

Added description of Data Output Configuration

Removed register description of SEL_PCK9,10,11

Corrected register description of SEL_PCK7,8

Corrected pin name (PO0~PO9)

Test limit (min/max) conditions added in Elec Chars

Signal timing limits added

Amendment to LVDS_AMP description

Electrical characteristics updated

27/11/2015 4.5

WM8235

15

PAGE

15

35

37,39

40

41

42

46

64,65

69,110,111

110

5,66,78~80

8-10

15, 39

64, 74

8-10

Rev 4.5

153

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
