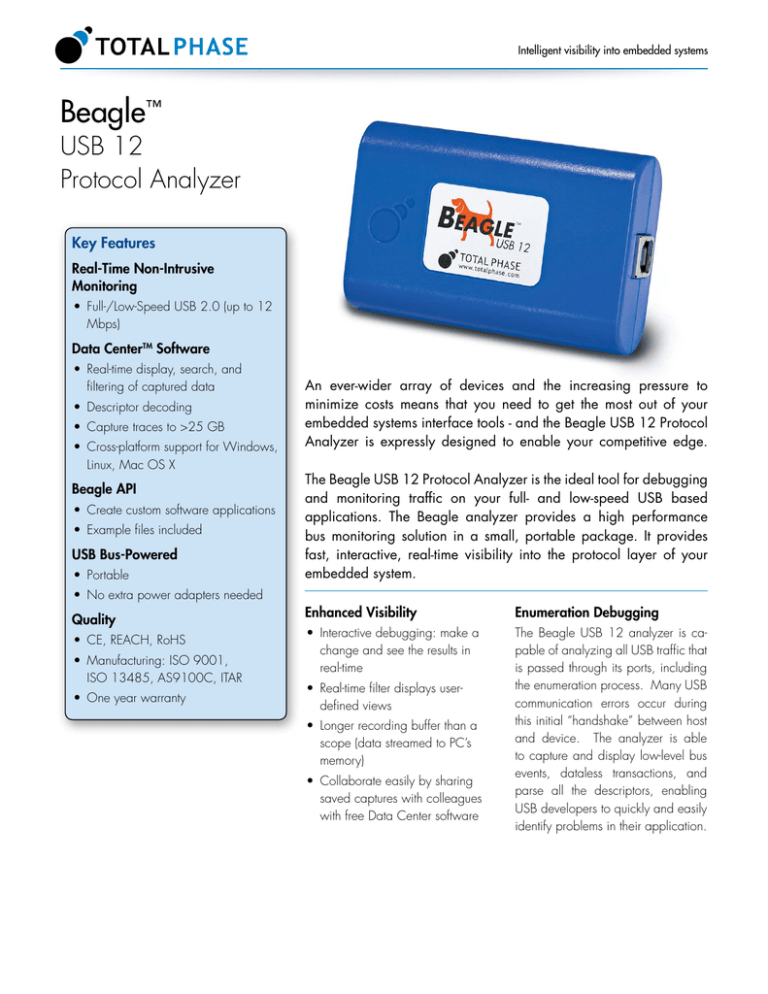

Intelligent visibility into embedded systems
Beagle™
USB 12
Protocol Analyzer
Key Features
Real-Time Non-Intrusive
Monitoring
• Full-/Low-Speed USB 2.0 (up to 12
Mbps)
Data CenterTM Software
• Real-time display, search, and
filtering of captured data
• Descriptor decoding
• Capture traces to >25 GB
• Cross-platform support for Windows,
Linux, Mac OS X
Beagle API
• Create custom software applications
• Example files included
USB Bus-Powered
• Portable
An ever-wider array of devices and the increasing pressure to
minimize costs means that you need to get the most out of your
embedded systems interface tools - and the Beagle USB 12 Protocol
Analyzer is expressly designed to enable your competitive edge.
The Beagle USB 12 Protocol Analyzer is the ideal tool for debugging
and monitoring traffic on your full- and low-speed USB based
applications. The Beagle analyzer provides a high performance
bus monitoring solution in a small, portable package. It provides
fast, interactive, real-time visibility into the protocol layer of your
embedded system.
• No extra power adapters needed
Quality
• CE, REACH, RoHS
• Manufacturing: ISO 9001,
ISO 13485, AS9100C, ITAR
• One year warranty
Enhanced Visibility
Enumeration Debugging
• Interactive debugging: make a
change and see the results in
real-time
The Beagle USB 12 analyzer is capable of analyzing all USB traffic that
is passed through its ports, including
the enumeration process. Many USB
communication errors occur during
this initial “handshake” between host
and device. The analyzer is able
to capture and display low-level bus
events, dataless transactions, and
parse all the descriptors, enabling
USB developers to quickly and easily
identify problems in their application.
• Real-time filter displays userdefined views
• Longer recording buffer than a
scope (data streamed to PC’s
memory)
• Collaborate easily by sharing
saved captures with colleagues
with free Data Center software
Beagle™ USB 12 Protocol Analyzer
Applications
Audio
Bridges
Cameras
HID
Hubs
Mass Storage
Mobile Broadband
Mobile Phones
Music Players
Tablets
Video
Specifications
Software
Hardware
The Data Center Software is a bus monitoring software
application that displays captured USB, I2C, SPI, and
CAN bus data in true real-time through the Beagle™ line
of hardware protocol analyzers and the Komodo™ line
of CAN interfaces.
™
Data Center Software Features
• LiveDisplay™ technology allows for real-time
interactive display and analysis of full- and lowspeed USB (up to 12 Mbps)
• Automatic descriptor parsing
• LiveFilter™ and LiveSearch™ tools allow for real-time
interactive filtering and searching
• Collaborate easily by sharing capture files
• Export saved capture files to CSV format
Beagle API and LabVIEW Support
• Create custom applications using the flexible,
powerful, and well-documented Beagle API
• 32- and 64-bit support for C/C++/C#, Python,
.NET, VB.Net, VB 6
• LabVIEW Instrument drivers
USB Monitoring:
Full Speed, 12 Mbps
Low Speed, 1.5 Mbps Tar get Bus Interface
Target Device Port:
USB Type A receptacle
Target Host Port:
USB Type B receptacle
Analysis Port (connects to PC):
USB Type B receptacle
Analyzer is bus-powered
Dimensions (W x D x L)
55.6 x 22.2 x 89 mm (2.19” x 0.87” x 3.5”)
Weight
64 g (0.14 lbs)
Operating Temperature
10 to 35 oC (50 to 95 oF)
Operating Systems Supported (32-bit and 64-bit)
• Windows: XP, Vista, 7, 8, 8.1
• Linux: Red Hat, SuSE, Ubuntu, Fedora, Arch,
CentOS, Debian
• Mac OS X: 10.4-10.9
Ordering information
Beagle USB 12 Protocol Analyzer
Part Number
Country of Origin
HTS
ECCN
TP320221
USA
9030890100
EAR99
Data Center
+1 (408) 850-6501
| [email protected] | www.totalphase.com
©2014 Total Phase, Inc. All rights reserved.
R20140323
