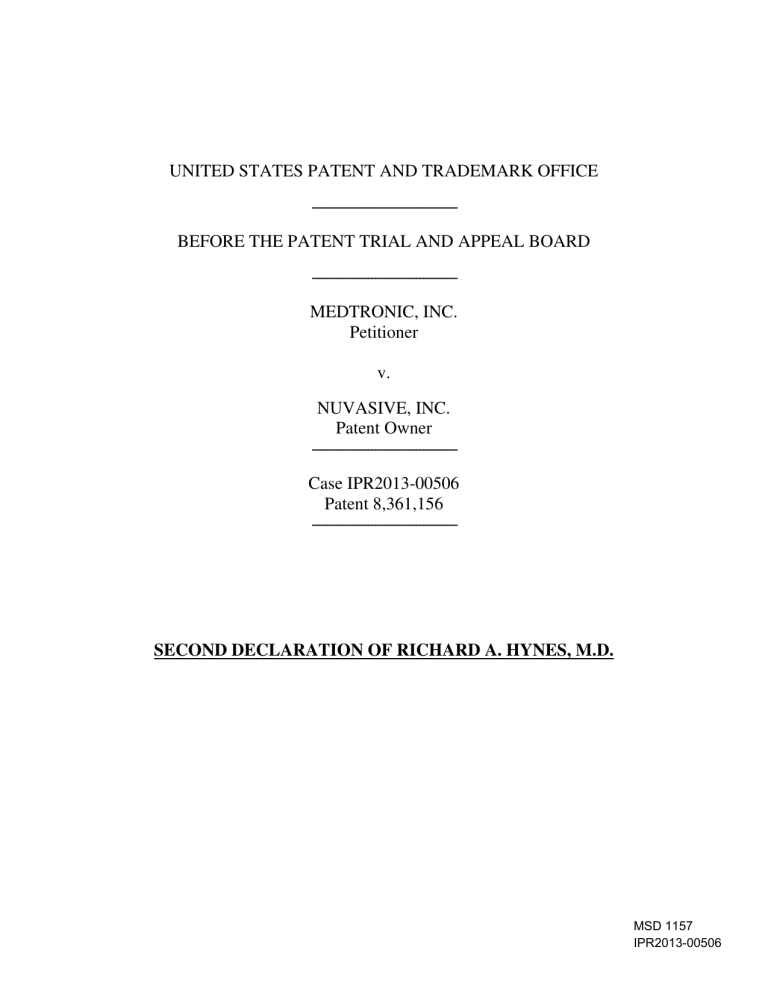

UNITED STATES PATENT AND TRADEMARK OFFICE

---------------------------------------

BEFORE THE PATENT TRIAL AND APPEAL BOARD

---------------------------------------

MEDTRONIC, INC.

Petitioner v.

NUVASIVE, INC.

Patent Owner

---------------------------------------

Case IPR2013-00506

Patent 8,361,156

---------------------------------------

SECOND DECLARATION OF RICHARD A. HYNES, M.D.

MSD 1157

IPR2013-00506

I. INTRODUCTION

1.

On August 14, 2013, I provided a first Declaration in this matter.

See

Declaration of Richard A. Hynes, M.D. (Exhibit MSD 1101). This Second

Declaration is in rebuttal to statements made in NuVasive, Inc.’s (“NuVasive” or

“Patent Owner”) Response (the “Response”) (Paper No. 21) and the accompanying

Declaration of Hansen A. Yuan, M.D. (the “Yuan Declaration”) (Exhibit Nuvasive

2022) filed on May 22, 2014. In this Second Declaration, I will address some of the errors set forth in the Response and the Yuan Declaration. To the extent that I do not address a certain portion of the Yuan Declaration does not mean that I agree with that portion. Instead, I have limited my comments to what I believe are the most pertinent and egregious errors stated by Dr. Yuan.

2.

In preparing this declaration, I have reviewed the following documents: a.

NuVasive’s Preliminary Response (Paper No. 8); b.

NuVasive’s Patent Owner Response (Paper No. 21); c.

Declaration of Hansen A. Yuan, M.D. (Exhibit 2020); d.

Exhibits 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019,

2021, 2022, 2023, 2024, 2025, 2026, 2027, 2028, 2029, and 2030. e.

Transcript of the Deposition of Dr. Hansen A. Yuan (Exhibit MSD

1173)

ACTIVE 26481542v5 09/05/2014

3.

I have also reviewed additional references cited in this Declaration.

II. REBUTTAL OF DR. YUAN’S TESTIMONY REGARDING

BACKGROUND

4.

In ¶ 26 of the Yuan Declaration, Dr. Yuan states that “[h]istorically, ordinary surgeons before 2004 avoided approaching the lumbar spine from the lateral, transpsoas approach because of the fear of neurologic injury associated with penetrating the psoas muscle.” This is incorrect as, prior to 2004, surgeons, such as myself, were not concerned with nor avoided the transpsoas approach, but rather performed surgeries on a regular basis using this approach. In fact, because the lateral transpsoas approach is considered an anterior approach by the North

American Spine Society and within the field in general, surgeons have been utilizing transpsoas techniques at least since introduced by Meuler in 1906 when performing a retroperitoneal anterior approach.

See

NASS Memorandum Re:

Lateral Interbody Fusion (XLIF, DLIF) of the Lumbar Spine, dated January 5,

2010 (a true and correct copy of which is attached hereto as Appendix A); Rick C.

Sasso et al.,

Anterior Lumbar Fusion,

Chapter 10 of “Surgical Management of

Low Back Pain”, 2d Edition (2008) (a true and correct copy of which is attached hereto as Appendix B) at 87; U.S. Patent No. 5,313,962 (attached hereto as

Appendix C) at 6:1-58; LJ O’Hara and RW Marshall,

Far Lateral Lumbar Disc

Herniation. The Key to the Intertransverse Approach

, 79(6) J. Bone Joint Surg. Br.

3

943, 943-47 (1997) (a true and correct copy of which is attached hereto as

Appendix D); Ex. 1153. During his deposition, even Dr. Yuan testified that he had been performing surgeries using the transpsoas approach for the last 30 years.

See

Yuan Deposition, at 110-111. Accordingly, contrary to Dr. Yuan’s statement, lateral transpsoas approaches are not a recent development, but instead are just similar to other anterior approaches that surgeons have been doing for quite some time (and prior to 2004).

5.

In ¶ 35 of the Yuan Declaration, Dr. Yuan states that “[t]he maximum possible length for an implant that is inserted from either the front or the back of the patient is limited to the depth of the vertebrae, measured from the anterior to posterior end of the vertebrae.” At the relevant time, this statement is incorrect because it overlooks the common occurrence, and prior art teachings, and very real possibility of inserting the implant at an angle (when beginning in the front or back of the patient). The maximum length of the implant depends on the starting point and the angle at which the surgeon inserts the implant, and the tools the surgeon uses in doing so. The maximum length that can be accommodated safely is dictated by the side-to-side (or “transverse”) width of the vertebrae and the diagonal depth.

In fact, Dr. Yuan’s own article, in which an X-ray image shows an implant inserted obliquely, demonstrates that his noted statement is not true, because the length of the implant is plainly not limited by the depth of the vertebrae.

See

Ex. 1117 at 3.

4

Simple geometry dictates that the hypotenuse of the right triangle formed by the transverse width and depth is longer than the depth. Further, Dr. Yuan admitted his error during his deposition when he admitted that implants greater than 40 mm would fit in the disc space if inserted at an angle from the back.

See

Yuan

Deposition at 245:9-16. Indeed I regularly perform oblique procedures, on average

5 or 6 per week over the last three to five years. Recently, I have been performing these procedures using the OLIF procedure as depicted in the brochure (attached hereto as Appendix E) and have taught at least 50 other surgeons how to perform this procedure. This is a completely safe procedure. Oblique procedures like the

OLIF have been performed since the late 1990s and allow the use of a longer implant, such as with the Medtronic Clydesdale, which is accused of infringing the

‘156 patent claims. This oblique approach allows the use of a longer and wider implant and such larger implants are often preferred, especially considering that those of ordinary skill in the art have known since at least 2003 that a single long implant inserted obliquely may be preferable to a pair of shorter parallel implants inserted posteriorly.

See

Shih-Tien Wang et al.,

Comparison of Stabilities between

Obliquely and Conventionally Inserted Bagby and Kuslich Cages as Posterior

Lumbar Interbody Fusion in a Cadaver Model

, 66 J.

C

HIN

.

M

ED

.

A

SSOC

. 676, 676-

681 (2003) (filed with the Reply as Ex. 1136) (concluding that obliquely inserted implant is preferable to pair of posteriorly inserted implants, and as it provides

5

same stability while requiring less exposure, enabling precise implantation, and costing less);

see also

U.S. Patent No.

6,626,905 (attached hereto as Appendix F) at

9:32-39; Jie Zhao et al.,

Posterior Lumbar

Interbody Fusion Using One Diagonal Cage

With Transpedicular Screw/Rod Fixation

, 12

E

UR

.

S

PINE

J. 173, 175-77 (2003) (a true and correct copy of which is attached hereto as Appendix G). I, along with many other surgeons, also routinely approach the spine anterior to the psoas at the L4/L5 level using this and other MIS approaches. Numerous long spinal fusion implants that are inserted using this oblique technique are commercially available, including

Medacta’s MectaLIF oblique intervertebral body fusion device. These MectaLIF oblique implants are offered at lengths up to 40 mm.

See

Medacta MectaLIF

Brochure (a true and correct copy of which is attached hereto as Appendix H) at 6,

18. Such oblique procedures are also very popular overseas, including, for example, in Japan, because no neuromonitoring is involved. I also note that

NuVasive promotes a similar approach with its MAS TLIF device and approach and the implant, as mentioned in the associated patent, was at least considered in sizes up to 45 mm.

See

NuVasive Maximum Access Surgery Tranforaminal

Lumbar Interbody Fusion Booklet (filed with the Reply as Ex. 1132); U.S. Patent

6

No. 8,623,088 (filed with the Reply as Ex. 1131), at 5:32-35. Similarly, NuVasive has admitted that its CoRoent XL can be used in TLIF and Posterior Lateral

Approaches.

See

Excerpt of Transcript of Deposition of Patrick Miles, taken

November 8, 2010 (filed with the Reply as Ex. 1172), at 85:1 to 86:25.

6.

In ¶ 39 of the Yuan Declaration, Dr. Yuan states that the Telamon implant referenced in the Telamon literature cited by

Petitioner and Dr. Hynes was designed to be used as a posterior or

PLIF implant. That is, the implant was designed to be inserted from the posterior (or back) side of the patient in a posterior-anterior direction. This is confirmed by the surgical technique guide for the

Telamon that shows the implant being inserted in a direct posterioranterior direction via a PLIF procedure.

While the surgical technique guide cited by Dr. Yuan shows the Telamon implant being used in this manner, in my experience, the implant is not limited to a direct

PLIF approach. In fact, the Telamon implant was initially approved as part of the

Vertestack system, as indicated on the Telamon Brochure.

See

Telamon Brochure

(Exhibit MSD 1107), at 1. The Vertestack System Brochure, submitted in this proceeding as Exhibit MSD 1120, as well as the 510k approval for the Vertestack

System issued by the FDA, submitted in this proceeding as MSD 1134, sets out that the components of the Vertestack System can be inserted by anterior, oblique, or lateral approaches.

See

Ex. 1120, at 8, 11. Accordingly, one of ordinary skill in the art who had experience implanting the components of the Vertestack system would have known that not only could the Telamon Vertestack Vertebral Body

7

Spacer be inserted by anterior, oblique, or lateral approaches, but also that the use of such insertion techniques would have been proper and safe according to the

FDA. Moreover, surgeons are entitled to perform surgeries off label (in a manner other than or in addition to those approved for marketing by the FDA) that the surgeon determines to be safe for their patients and would be motivated to do so in the appropriate situations.

7.

In ¶ 40 of the Yuan Declaration, Dr. Yuan states that “small changes in design . . . can have significant impacts on the functionality of the implant as used by the surgeon and the clinical benefits of the implant to the patient population.” This is an over exaggeration of the effect that certain small changes to an implant may have, especially when those changes are explicitly taught in the prior art, yield predictable and expected results, and involve nothing more than the application of common sense to obtain entirely predictable results. Small dimensional changes, such as those proposed in my first declaration, will not affect or change the function of the implant as the implant will still fit in the patient and will still promote fusion of the vertebrae and create stability in the disc space of the patient. Accordingly, the proposed changes do not create a problem and Dr. Yuan has not presented anything to substantiate his contrary opinion that goes against common sense and routine skill and understanding of a person of skill in this field of endeavor.

8

8.

In ¶ 41 of the Yuan Declaration, Dr. Yuan states that

[s]pinal interbody fusion implants have to be designed to support the heavy loads placed on the spine, to help align the spine and alleviate pain caused by misalignment, to prevent ejection from the disc space after insertion, and to promote fusion of the two adjacent vertebrae.

While it is generally true that interbody fusion implant designers try to design implants with large surface areas, i.e., large footprints, the size of such implants remain limited by the above-described anatomical limitations and the original intended use (for example, the original intended use of Telamon as a PLIF implant). The large surface area of the implant can provide greater structural support and restoring proper spacing between the vertebrae. It is critically important that interbody fusion implants can be inserted along the intended insertion path, can be positioned in the disc space, support the intended load, stay in place after insertion, align the spine, and allow fusion of the vertebrae.

Dr. Yuan’s opinion regarding the size of an implant being limited by its supposed

“original intended use,” and his opinion that it is “critically important that interbody fusion implants can be inserted along the intended insertion path,” is without logical support and in fact is inconsistent with my knowledge and routine experiences. As Dr. Yuan and I agree, the goal of interbody fusion “is to induce bone growth between two vertebrae into a single bony bridge.”

See

Yuan

Declaration at ¶ 31. Accordingly, the intended purpose of any spinal fusion implant is to achieve this goal, and while proper positioning of the implant in the disc space is important, surgeons of ordinary skill in the art knew that there existed multiple insertion paths for a single type of implant, and that the use of one particular path over another was dependent upon the patient’s anatomy, and the

9

specific physiological problem being addressed. Indeed, Dr. Yuan’s experience shows that one implant, the Spine Tech BAK, although originally designed for

PLIF or ALIF use was easily modified by elongation to be used by him in the angled/oblique approaches and laterally. Similarly, the NuVasive Triad implant was promoted for use laterally, posteriorly, and in postero-lateral procedures.

See

NuVasive XLIF 90 Surgical Technique Brochure (filed with the Reply as Ex.

1175); Malberg M., Extreme Lateral Interbody Fusion (XLIF), in Regan J,

Lieberman I, eds. Atlas of Minimal Access Surgery, 2nd ed. St Louis: Quality

Medical Publishing, 2004 (filed with the Reply as Ex. 1176); TLIF Surgical

Technique Brochure (filed with the Reply as Ex. 1177); First Amendment to

Agreement 550002080 By and Between the County of Santa Clara and NuVasive,

Inc., dated October 25, 2011 (filed with the Reply as Ex. 1178), at 3. NuVasive has also indicated its CoRoent XL can be used posteriorly, anteriorly, and as a

TLIF.

See

Ex. 1172, at 85:1 to 86:25.

9.

In ¶ 45 of the Yuan Declaration, Dr. Yuan tries to take my deposition testimony out of context in stating that “[t]he complication with using markers, as identified by Dr. Hynes, is that the implant can have too many of them.” It is important to note that the number of markers (four) in the proposed modified implants would not be too many. In particular, the placement of two markers along the medial plane of an implant is an obvious modification particularly when

10

the implant is made longer, because the markers provide additional information on the location and orientation of the implant that can assist the surgeon in properly positioning the larger implant. As Dr. Yuan testified, such placement of the markers would lead to the predictable result of being able to see the markers in an

X-ray image of the implant.

See

Yuan Deposition at 319:8 to 320:6.

10.

In ¶ 46 of the Yuan Declaration, Dr. Yuan states that “the strategic placement of radiopaque markers is essential to making radiolucent implants safe and effective for use in the human spine.” There is no reason to think that the proposed addition of two markers would impact the safety or effectiveness of the implant, nor did I ever say so in my declaration or deposition testimony. In fact,

Baccelli discloses the placement of the two markers along the medial plane. The addition of a marker along the medial plane of the implant is merely an obvious variant if one needs or otherwise wants to know where the middle of the implant is located and/or how the implant is oriented during or after the implant is placed in the disc space. By having two markers along the medial plane, the surgeon is able to tell if the implant has been inserted at an angle. Additionally, Dr. Yuan’s statement is not true because it is not essential for some uses to have these markers, for example when used in scoliosis or other deformity applications or when no lamina is present or the vertebrae are otherwise misaligned and therefore cannot reliably be compared to the location of the markers. The markers are merely an

11

option that may be nice to have, are sometimes helpful, and that a person of skill in the art would include when wanting the information they provide.

11.

In ¶ 47 of the Yuan Declaration, Dr. Yuan states that “[t]he claims of the ‘156 patent are directed to a combination of features for spinal interbody fusion implants particularly suited for insertion in a lateral, transpsoas surgical approach to the spine.” Dr. Yuan omits that the specification of the ‘156 patent states that implant may also “be introduced in a variety of approaches, such as posterior, anterior, antero-lateral, and postero-lateral . . . .” ‘156 patent, at 5:31-33. In fact,

Dr. Yuan later admitted that he now understands that the claims of the ‘156 patent do not require that implant to be inserted using a transpsoas approach.

See

Yuan

Deposition at 94:17 to 97:13.

12.

Additionally in ¶ 47 of the Yuan Declaration , Dr. Yuan incorrectly states “that the ‘156 patent presents novel dimensions and length-to-width proportions for implants that are greater than 40mm in length . . . .” With the assumption that Dr. Yuan was referring to the claimed length to width ratio of

2.5:1 as the “novel” length to width proportion, spinal implants greater than 40 mm in length and having this claimed length-to-width proportion have been known since at least 1997 as shown in BAK PMA Supplemental Decision (filed as Ex.

1118 with the Reply) (a Michelson disclosed implant), which lists approved spinal fusion implants having length-to-width dimensions of 44 mm x 15 mm and 44 mm

12

x 17 mm.

See

Ex. 1118. Additionally, the Michelson Butterfly was offered in that same size ratio of 2.5:1.

See

Exs. 1116 and 1123 filed with Reply.

13.

In ¶ 48 of the Yuan Declaration, Dr. Yuan states that “[p]rior to

March 29, 2004, the vast majority, if not all, commercially available spinal implants on the market were designed for insertion into the disc space in posterior or anterior approach, not a lateral approach.” This statement is misleading. Prior to March 29, 2004, many implants could be inserted by an anterior or lateral approach. Indeed, as explained by NASS, a lateral approach is merely a variant of an anterior approach and is coded the same for purposes of reimbursement.

See

NASS Memorandum dated January 5, 2010, entitled “Re: Lateral Interbody Fusion

(XLIF, DLIF) of the Lumbar Spine” (Exhibit MSD 1119); NuVasive 2014

Reimbursement Guide (a true and correct copy of which is attached hereto as

Appendix I), at 3.

14.

In ¶ 49 of the Yuan Declaration, Dr. Yuan states that “the direct lateral approach to the lumbar spine presents complications because of the presence of the psoas muscle.” This statement is misleading because a direct lateral approach to the spine is not particularly complicated in comparison to other types of approaches, and surgeons trained to perform anterior surgeries, such as myself, should generally feel comfortable using such a lateral approach as of the time of this invention. This approach was often used to treat tuberculosis or other

13

spinal infection, tumors, or scoliosis, in conjunction with direct visualization as the nerves that a surgeon needs to avoid using this approach are clearly visible.

See e.g.,

Yuan Dep. at 109:20 to 111:1. Additionally, there was no need to perform a lateral surgery by going through the transpsoas muscle, as it was well known to be safe and effective to retract the psoas muscle when using a lateral approach prior to

2004, including in the lower lumbar region.

See, e.g.,

Paul C. McAfee et al.,

Minimally Invasive Anterior Retroperitoneal Approach to the Lumbar Spine

, 23

S

PINE

1476, 1478 (1998) (a true and correct copy of which is attached hereto as

Appendix J).

15.

In ¶ 50 of the Yuan Declaration, Dr. Yuan states that he would find it surprising if someone had used one of Dr. Michelson’s illustrated implants to attempt a fusion on a live human patient because, in my opinion, the lumbar implants described by Dr.

Michelson . . . were not useful and would have been readily recognized in March 2004 as being unnecessarily risky for use in a live human patient based on the surgical techniques practiced at the time.

This is an unexpected and uninformed opinion considering that Medtronic had commercialized a Michelson ‘973 implant that was inserted using a lateral technique as early as 2001. As one example, Medtronic’s Butterfly Fusion System, first made available in 2001 utilized a variety of Michelson-style implants, with widths ranging from 14 to 16 mm, and lengths ranging from 30 to 40 mm.

See

Butterfly Fusion System Surgical Guide (Ex. 1123), at 2, 19. Additionally, long

14

BAK cages were commercialized well before 2004 and were approved by the

FDA. Presumably the FDA, along with the surgeons who used these Michelson implants, did not think they were unnecessarily risky. Additionally, Dr. Yuan testified that it was reasonable given the level of knowledge in the late 1990s for him and Dr. McAfee to use such implants on living patients on at least two occasions. Yuan Dep. at 60:13 to 61:2. Further, I have personally treated a patient with a long lateral implant that was originally inserted in 2001. Attached hereto as

Appendix K is a true and correct copy of an X-ray image of this patient.

16.

In ¶ 51 of the Yuan Declaration, Dr. Yuan states he “perform[ed] a handful of lateral fusion procedures using the BAK cage,” but that “those procedures were performed using a retracted psoas approach to the spine,” “the implants were not commercially available,” and the “results were not what we hoped for.” To provide context to this statement, it is important to note that the

BAK cage was an embodiment of an implant commensurate with the claims of

Michelson and created by a licensee of Michelson.

See

Sulzer Spine-Tech 2000

Price List (filed with the Reply as Ex. 1159). Additionally, whether true or not, the assertions that these procedures were performed with a retracted psoas and that the implants were not commercially available, and whether the results were not what

Dr. Yuan hoped for, are immaterial. What is important is that Dr. Yuan has admitted that such lateral procedures were being performed prior to 2004 with

15

implants that were historically inserted using an anterior or posterior approach and that when motivated to do so he and others obtained customized elongated PLIFs or ALIFs or used longer versions of those implants for lateral or angled approaches.

See

Yuan Dep. at 42:17 to 50:18;

id

at 62:14-19. Dr. Yuan also admitted that at the time, in the late 1990s, it was reasonable and believed to be safe by those reviewing the procedure, for him to proceed with implanting these devices in human patients using this approach.

See

Yuan Deposition at 60:13 to

61:2.

17.

In ¶ 60 of the Yuan Declaration, Dr. Yuan states that “having two radiopaque markers also allows a surgeon to see . . . whether the implant is askew and the degree to which the implant is askew. These uses were not disclosed in the cited prior art references.” This is an incorrect statement as the cited prior art reference Baccelli discloses the use of markers in this manner.

See

Baccelli at

FIG. 2. Moreover, these markers provide an entirely predictable and expected result, as Dr. Yuan also admitted in his deposition. Yuan Dep. at 319:8 to 320:6.

There is nothing new or nonobvious about using markers in the middle of the implant.

18.

In ¶ 63 of the Yuan Declaration, Dr. Yuan notes that “the CoRoent

XL spinal fusion implants are available with a longitudinal length greater than

40mm (e.g., 45mm, 50mm, and 55mm) extending from a proximal end of the

16

proximal wall to a distal end of the distal wall.” Dr. Yuan, however, fails to note that 25% of the CoRoent XL spinal fusion implant sizes that have been offered by

NuVasive have a longitudinal length of only 40 mm, and because these implants have lateral width of 18 mm, the implants have a length-to-width ration of 2.2 to 1.

These facts contradict Dr. Yuan’s earlier statement that the claimed longitudinal length of greater than 40 mm and length-to-width ratio of 2.5 to 1 are necessary to allow the implant to be inserted using a lateral, tranpsoas approach.

II. REBUTTAL OF DR. YUAN’S TESTIMONY REGARDING THE

PRIOR ART RELIED ON BY THE PTAB FOR INSTITUTING IPR

19.

In ¶ 79 of the Yuan Declaration, Dr. Yuan states that “the SVS-PR was designed to be an interbody spacer that is inserted using a PLIF (posterior) procedure in a direct posterior-anterior direction in the disc space,” and that “a person of ordinary skill in the art would have recognized this fact.” This is an incorrect and misleading statement based on a significant underestimation of the skill level of those of ordinary skill in the art and ignoring the description on the brochure and its relationship to the FDA clearance of this product. One of ordinary skill in the art, depending on the patient and the physiological condition to be corrected, would have known that besides being inserted in a “direct anteriorposterior direction in the disc space,” the implant could also be inserted at an angle or laterally if desired. In fact, this angled approach was the technique utilized and

17

described in a journal article authored by Dr. Yuan.

See

Ex. 1117, at 1-6.

Additionally, I also note that this implant was originally cleared by the FDA as a vertebral body replacement device, which, as Dr. Yuan noted, can also be put in anteriorly, laterally, or obliquely just like the CoRoent XL, which was also cleared as a vertebral body replacement device.

See

Yuan Dep. at 154:1-7; CoRoent 510k

(Ex. 1143); Synthes Vertebral Spacer 510k (Ex. 1146); Miles Dep. Transcript 2010

(Ex. 1172), at 75:1-76:26;

id.

at 81:1 to 82:25;

id.

at 85:1 to 86:25. Further, as previously mentioned, surgeons are entitled to perform surgeries off label (in a manner other than or in addition to those approved for marketing by the FDA) that the surgeon determines to be safe for their patients and would be motivated to do so in the appropriate situations.

20.

In ¶ 80 of the Yuan Declaration, Dr. Yuan states “a person of ordinary skill in the art would have recognized that the SVS-PR implant was intended for a

PLIF procedure for final placement in a direct anterior posterior direction by the dimensions in which the SVS-PR was available.” Again, as stated above, this is incorrect because one of ordinary skill in the art would have understood at the time of invention that the SVS-PR could be used not just as a PLIF, but also as an ALIF or laterally, as it was explicitly promoted in the brochure and as indicated by its

FDA approval.

18

21.

In ¶ 81 of the Yuan Declaration, Dr. Yuan states that “the pair of markers at the posterior and distal walls [of the SVS-PR] would provide surgeons with all of the requisite orientation and positioning information for a PLIF procedure.” This statement is incorrect. The noted markers alone do not provide

all

of the requisite information a surgeon may desire. For example, the inclusion of marker along the medial plane of the implant allows the surgeon to accurately track the positioning of the implant as it inserted into the patient. In this way, the middle marker may be analogized to the light found at the center of a long vehicle, such as a stretch limousine, to indicate the presence of a long vehicle.

See e.g.

, 49

C.F.R. 571.108 at Table I-A - Required Lamps and Reflective Devices (requiring placement of intermediate side marker lamps “on each side [of a vehicle over 30 feet] located at or near the midpoint between the front and rear side marker lamps”); Trucks, Buses, MPVs: Federal Lighting Equipment Location

Requirements, http://www.nhtsa.gov/Vehicle+Safety/Other+Equipment/Trucks,+Buses,+MPVs:+

Federal+Lighting+Equipment+Location+Requirements (last visited Sept. 2, 2014)

(noting “functional purpose” of intermediate side marker lamps on vehicles 30 feet or longer is to “indicate presence of a long vehicle.”).

19

This is an especially apt comparison as it comports with NuVasive comparing its large CoRoent implants with stretch limousines.

See

NuVasive Press Release re:

60 mm CoRoent XL Implants (a true and correct copy of which is attached hereto as Appendix L).

20

Further, as depicted below, the addition of a second marker along the medial plane of the implant would inform the surgeon as to whether the implant was askew after insertion in the disc space.

22.

In ¶ 82 of the Yuan Declaration, Dr. Yuan states that as proof of the

SVS-PR’s use as a PLIF only “[t]here are no instrument sets listed [in the SVS-PR

Size and Instrument Set Brochure] for an anterior approach, let alone for a lateral approach.” This fact is irrelevant, as it does exclude implantation of the SVS-PR using a different technique, such as an anterior, lateral or oblique technique.

23.

In ¶ 85 of the Yuan Declaration, Dr. Yuan states that the “length and width dimensions are far smaller than what would be normally required for a

21

lateral, trans-psoas implant in the lumbar spine, and the width is much smaller than typical anterior insertion lumbar implants.” This is irrelevant because there is no requirement in the claims of the ‘156 patent that the claimed implant be inserted using a lateral trans-psoas (or any other type of) approach and no reason why you could not apply the teachings of this reference to implants you might use or that are usable for such an approach. This statement also ignores the explicit disclosure on this brochure that it is also a vertebral replacement device, and like the similarly sized NuVasive Triad, could be inserted in various approaches including laterally and anteriorly.

See

Telamon Brochure (Ex. 1107), at 1; NuVasive XLIF 90

Surgical Technique Brochure; Malberg M., Extreme Lateral Interbody Fusion

(XLIF), in Regan J, Lieberman I, eds. Atlas of Minimal Access Surgery, 2nd ed. St

Louis: Quality Medical Publishing, 2004; TLIF Surgical Technique Brochure; First

Amendment to Agreement 550002080 By and Between the County of Santa Clara and NuVasive, Inc., dated October 25, 2011, at 3; Deposition Transcript of Patrick

Miles, taken September 4, 2014 (filed in Reply as Ex. 1174), at 121-124].

24.

In ¶ 85 of the Yuan Declaration, Dr. Yuan also states that the Telamon implants are designed with a 3° lordosis sloped downwardly in the direction of the trailing end that mates with the inserter tool, thereby further indicating to a person of ordinary skill I the art that the Telamon implant should be inserted in a posterior path.

If a Telamon implant were inserted laterally across the vertebrae, it would create a scoliotic deformity in the patient due to the sloped surface.

22

This statement is based on a substantial underestimation of the skill and knowledge of one of ordinary skill in the art.

The proposed modification to the Telamon, as well as the SVS-PR, is to make the implant longer, thereby increasing its stability.

One of ordinary skill in the art would have found it obvious to adjust the slope of the implant in the proper direction depending on how the modified implant was inserted. One of the functions of these types of implants is to restore the height of disc space. Therefore, one of ordinary skill in the art would have understood that if, for example, the implant was to be inserted using a lateral approach, one would simply change the relationship of the opposing side walls to make one side wall taller than the other, as was well known and common at the time of invention.

Indeed, PLIF implants are rarely actually inserted straight. Rather they are typically inserted at an angle but do not create a scoliotic deformity. This is also clear from the fact that Telamon was originally approved by the FDA as a vertebral body replacement and in that capacity could be inserted at an angle. I do not believe the FDA would have approved this implant for this use if it determined that such use would create scoliosis.

25.

In ¶ 86 of the Yuan Declaration, Dr. Yuan states that “the Telamon implant has a side aperture—often referred to as a visualization window—in the medial plane of the implant. As previously described, these windows are generally designed to help the surgeon visualize bone healing/fusion post-operatively, so

23

such visualization windows should not be obstructed by a radiopaque marker passing through.” The placement of a single wire marker in that window would not present an obstruction and would not prevent a surgeon from observing the bone fusion/growth occurring post-implantation. Dr. Yuan’s statement can be analogized to stating that a mullion on a window would not allow one to see through the window, which is simply not true. Similarly, the heads up display that pilots use to target does not preclude them from seeing the target, but rather merely provides additional information to accurately locate the target relative to the sites on their weapon systems, like the markings on the optics in a rifle scope.

26.

In ¶ 88 of the Yuan Declaration, Dr. Yuan states that “[b]eing a cervical implant, the dimensions of Baccelli’s implant are going to be significantly smaller than the dimensions of an implant used in the lumbar spine.” The facts that the implant disclosed in Baccelli could be used as a cervical implant, and that it may have smaller dimensions than a lumbar implant when used in the cervical spine, are irrelevant because Baccelli has been cited by the Board for its disclosure of four radiopaque markers in the same arrangement as claimed in the ‘156 patent.

The use and size of the implant of the Baccelli implant do nothing to negate the use of this reference for its teaching of four radiopaque markers arranged as claimed in the ‘156 patent, nor does it change the function of those markers, which is entirely predictable. In fact, the smaller sized embodiment of Bacelli that NuVasive relies

24

on shows that 4 markers (two being in the middle) are not confusing even on a smaller implant where the markers are physically closer together.

27.

In ¶ 89 of the Yuan Declaration, Dr. Yuan states that “one of skill in the art would recognize that it would take a great deal of experimentation and modification to make Baccelli’s cervical implant appropriate as a lumbar interbody fusion.” Again, as stated above with respect to ¶ 88, the suitability of the Baccelli implant for use in the lumbar region is irrelevant to the instituted grounds. Further, to the extent that one of ordinary skill in the art would have wanted to modify the

Baccelli implant for such use, I disagree that it would have taken a great deal of experimentation. The function of the implant would be unchanged, and the conditions to promote fusion would be unchanged. All that would have been required at the time is a simple resizing of the implant based on the known anatomical constraints of the lumbar disc space, and the known teachings of

Michelson and the other cited prior art references.

28.

In ¶ 93 of the Yuan Declaration, Dr. Yuan states that

I believe that a person of ordinary skill in the art in March 2004 (and even today) would recognize that Michelson proposes implants in which the width (or diameter in the case of the dowel designs) is quite large even compared to the largest dimension (the length), thereby providing an implant that is both long and wide to fulfill Dr.

Michelson’s intended purpose of an “oversized” spinal implant.

25

This statement ignores the disclosure of long and narrow implants disclosed in

Michelson, including the disclosure of applications incorporated by reference in Michelson, such as U.S. Pat.

Appl. Ser. No. 08/394,836 and U.S. Pat. Appl. Ser. No.

08/074,081. For example, Figures 18 and 19 of Michelson depict such long and narrow implants.

See

Michelson, at Figs. 18 and 19. Michelson explicitly describes an alternative embodiment that “has a narrower width.”

See

Michelson at 10:47-54. Moreover, it would be understood by the disclosure in Michelson, by the permissive language in this exemplary disclosure, that it could be used as a single narrow implant.

See

Michelson at 10:49-54 (“The spinal fusion implant 1000 is similar to the spinal fusion implant 900, but has a narrower width such that more than one spinal fusion implant 1000

may

be combined in a modular fashion for insertion v.rithin the disc space D between the adjacent vertebrae.”). Further, one of ordinary skill in the art, by comparing the relative sizes of the implants shown in Michelson would have readily understood that implant 900 had a width in the range of 12 mm to 16 mm, or approximately half that, or less, of implant 900, which Michelson describes as having a width “in the range of 24 mm to 32 mm.”

See

Michelson at 10:41-44.

29.

In ¶ 91 of the Yuan Declaration, Dr. Yuan states that “nothing in

Michelson ‘973 indicates that his implants are designed to be used in a posterior

26

approach to the spine.” This statement is irrelevant and also ignores the posterior approach implants incorporated into the Michelson disclosure (a concept Dr. Yuan admits he does not understand). Michelson is being relied upon for its disclosure of implants having dimensions as claimed in the ‘156 patent. Again, the claims of the ‘156 patent are not limited the use of any particular approach to insert the implant.

30.

In ¶ 92 of the Yuan Declaration, Dr. Yuan states that “the implants of

Michelson ‘973 are made of titanium.” This is incorrect and misleading. Titanium is merely one example of the materials disclosed by Dr. Michelson, as the specification discloses that the implants may be “made of a material appropriate for human implantation

such as

titanium

and/or may be made of

, and/or filled and/or coated with . . . .” Michelson, at 5:66-67 (emphasis added). Michelson also discloses that the implants “can be made of

any

material suitable for human implantation,” and “may be made of

an

artificial material.”

Id.

at 7:40; 6:37

(emphasis added). Michelson also discloses that the implants may also be made of

“a bone ingrowth inducing material such as, but not limited to, hydroxyapatite or hydroxyapatite tricalcium phosphate or any other osteoconductive, osteoinductive, osteogenic, or other fusion enhancing material.”

Id.

at 5:67 to 6:5.

31.

In ¶ 92 of the Yuan Declaration, Dr. Yuan also states that “it is my understanding that the implants illustrated in Michelson ’973 have never been

27

commercialized and have never been inserted in a live human patient.” This statement is incorrect because Michelson implants were commercialized, for example by Medtronic with its Butterfly system, as well as the long BAK cages that were sold by Spine Tech.

32.

In ¶ 94 of the Yuan Declaration, Dr. Yuan states for some reason that

I “do[] not do very many PLIF procedures.” This statement is both irrelevant, and incorrect. I was trained to perform PLIF procedures by Dr. Cloward, the pioneer for such procedures, and while it is true that I prefer to perform ALIF procedures, I nevertheless have performed hundreds of PLIF procedures, and still routinely perform PLIF procedures.

33.

In ¶ 95 of the Yuan Declaration, Dr. Yuan states that the Saber implant “is not made of PEEK.” This is incorrect. The Saber implant is formed from “carbon fiber reinforced PEEK material.”

See

Exhibit 2017, at 3.

34.

In ¶ 98 of the Yuan Declaration, Dr. Yuan states that “[t]here would be no reason to place an additional marker near the middle or medial plane of the implant, as doing so would be redundant. In fact, doing so could cause problems, including confusing the surgeon,” and that I somehow agreed with him on this point. This is a gross mischaracterization of my testimony. I testified that the placement of too many markers in different orientations may hypothetically create confusion sometimes, and analogized the situation of using too many markers to

28

that of the “big metal blob” that a surgeon would see when looking at an X-ray image of metal implants.

See

Hynes Deposition at 164:10-22. I do not believe that the placement of two markers on the medial plane of an implant would cause confusion to a surgeon of ordinary skill in the art.

35.

In ¶ 99 of the Yuan Declaration, Dr. Yuan states that “redundancy or potential confusion . . . would be caused by excessive markers position[ed] in or near the medial plane of the PLIF implants.” This is an exaggeration as well as an incorrect statement. The addition of two markers along the medial plane would not cause confusion. Additionally, the two additional markers would not be redundant because, as noted above, they would allow the surgeon to determine if an individual implant had been inserted askew.

36.

In ¶ 101 of the Yuan Declaration, Dr. Yuan states

In the PLIF procedure for SVS-PR and Telamon, the vertebrae cannot be distracted to the same degree from a posterior approach due to a number of anatomic structures. Thus, a person of ordinary skill in the art in March 2004 would have recognized that Baccelli’s protruding metal spikes 24 should not be incorporated into PLIF implants such as

SVS-PR or Telamon because the protruding metal spikes 24 would substantially impair posterior insertion of the PLIF implant into the disc space and/or potentially cause a significant amount of tissue damage during impaction into the disc space from the posterior path.

This is an incorrect statement because the spikes 24 of Baccelli are suitable for a

PLIF procedure. It is irrelevant that the vertebrae might not be distracted to the same degree as the cervical vertebrae, and Dr. Yuan does not establish that this

29

difference in the degree of distraction would actually prevent insertion of an implant featuring such spikes. It is also not true that such spikes would potentially cause a significant amount of tissue damage, as these spikes are present on

NuVasive’s own CoRoent XL implants, and it is unlikely that such spikes would be included by NuVasive if they were unsafe. Moreover, even Michelson teaches, by incorporation, the distraction of the disc space by as much as 10 mm.

See

U.S.

Patent No. 5,484,437 (the “‘437 patent”)) incorporated by reference in Michelson through its incorporation by reference in U.S. Patent No. 5,772,661, at 14: 61-62

(“[T]he distraction necessary to restore the height of the interspace would be approximately 10 mm.”). Further, Dr. Yuan admitted in certain PLIF procedures in the lumbar spine the disc space may be distracted by as much as 5 mm.

See

Yuan Dep. at 186:4-15. These tiny spikes in Bacelli and the CoRoent XL are much smaller than 5 or 10 mm and can be implanted safely with no or little distraction.

37.

In ¶ 102 of the Yuan Declaration, Dr. Yuan states

I do not believe that a person of ordinary skill in March 2004, when lateral, trans-psoas procedures were not widely used and there was no commercial lateral, trans-psoas implant available, would have found it obvious to add two radiopaque markers in the medial plane of a PLIF implant such as SVS-PR or Telamon. Doing so would not provide any meaningful additional information regarding the implants location and orientation, and instead would provide imaging information that is redundant or possibly confusing in the X-ray or fluoroscope images, as described above. Moreover, one of ordinary skill in the art in

30

March 2004 would not have had a rational basis to add Baccelli’s protruding metal spikes 24 to the SVS-PR implant or the Telamon implant because of the increased difficulties associated with impacting a PLIF implant with such protruding spikes 24 into the disc space via the posterior insertion, and because of the increased risks of harm to the patient.

There are numerous errors with this statement. First, as discussed above, the statement “there was no commercial lateral, trans-psoas implant available” is both irrelevant to the current proceeding, and incorrect. Second, one of ordinary skill in the art would have been motivated to put in the radiopaque spikes disclosed in

Baccelli on a longer SVS-PR or Telamon for the reasons stated above, especially if the implant was to be put in at an angle or if it was desired to set the implant in the disc space in a particular orientation. Therefore, it is incorrect to state that such a modification would be disadvantageous. Further, it is incorrect to say one of ordinary skill in the art would not have a rational basis to make such modification, as such a basis exists simply because the references are in the same field and share the same function of spinal fusion and these markers provide the predictable result of supplying information on location and orientation in such implants. This is just the basic application of common sense to a potential desire for more information on the location and orientation of an implant in the body as was known in the art.

38.

In ¶ 103 of the Yuan Declaration, Dr. Yuan states that a person of ordinary skill in the art in March 2004 would recognize that the proposed modifications to the SVS-PR and

31

Telamon PLIF implants (increasing the longitudinal length to be greater than 40 mm) would render each implant inoperable for its intended PLIF purpose and would furthermore require a change in the basic principle (a PLIF procedure) under which the SVS-PR or

Telamon construction was designed to operate.

This statement is incorrect for multiple reasons. First, Dr. Yuan is ascribing the wrong “intended purpose” to these implants. The purpose any these types of implants, the SVS-PR and the Telamon and the claimed implants of the ‘156 patent, is to promote fusion of the vertebrae. Moreover, there is nothing in the claims of the ‘156 patent that is directed to or otherwise requires the use of any particular technique to insert the implant. With that in mind, it is important to note that Dr. Yuan has not indicated in any way that the proposed modifications to the

Telamon and SVS-PR would render them inoperable for their intended purpose of fusing vertebrae. This is simply because he cannot legitimately make such a claim.

Additionally, even if the intended purpose of these implants or the claim language necessitated insertion using a posterior approach (which they do not), modifying the implants as proposed would not render the implants inoperable for this purpose.

As stated above, an implant inserted using a posterior approach does not have to be inserted in a direct anterior to posterior direction. Instead, a longer implant may be inserted posteriorly at an angle so as to fit within the disc space. Further, one of ordinary skill in the art would have been motivated to modify SVS-PR and Telamon to have a length greater than 40 mm, to make the implant more stable, and to provide

32

better structural support to the adjacent vertebrae while reducing patient exposure. Dr.

Yuan is also ignoring the teachings in the Telamon and SVS-PR brochures that they are also used (or have a purpose) as vertebral body replacement devices and as he admitted in his deposition such devices may be inserted laterally, anteriorly, and at an angle or obliquely. Further, he ignores the fact that even CoRoent XL could be inserted posteriorly and was similarly originally approved as a vertebral body replacement device.

See

Ex. 1172, at 75:1 to 76:25, 81:1 to 82:25, and 85:1 to 86:25.

39.

In ¶ 105 of the Yuan Declaration, Dr. Yuan states that “both SVS-PR and Telamon were designed to be PLIF implants with an intended use in a traditional PLIF procedure (direct posterior approach).” As noted above, this is incorrect, as both implants, in addition to being usable as a PLIF device, were also explicitly described in their brochures as, and originally cleared by the FDA as vertebral body replacement devices, which would include use for anterior, lateral and oblique procedures.

See

Telamon Brochure (Ex. 1107), at 1; SVS-PR

Brochure (Ex. 1106), at 1; VerteStack 510k – K031780 (Ex. 1134), at 1; Synthes

Vertebral Spacer 510k – K011037 (Ex. 1146), at 1; and Ex. 1172 at 30:5 to 34:6.

Accordingly, the designs of the SVS-PR and Telamon allow for other approaches for insertion.

33

40.

Also in ¶ 105 of the Yuan Declaration, Dr. Yuan misconstrues my testimony when he states

I agree with Dr. Hynes, if a PLIF implant was modified to have a longitudinal length greater than 40 mm and then inserted in the traditional PLIF path (as shown on the cover of the SVS-PR surgical guide and the Telamon guide), the modified implant would indeed

“protrude” from the anterior aspect of the disc space.

I did not say that say that a longer implant would necessary protrude, and, in fact, stated that it would not protrude if angled. Further, when posed with a hypothetical (that NuVasive characterized as an “absurd” question) necessitating that the implant protrude, I did explain that the implant could be safely placed in the space in the vertebral body where the surgeon approaches anteriorly if the surgeon inserted the implant posteriorly. Put another way, the oblique path of insertion from the anterior direction provides a safe space that the implant theoretically could protrude. While this may not be an optimal placement of the implant, nor one that I would necessarily recommend, when asked this hypothetical question I did explain that an implant could nevertheless still potentially be physically placed in this space.

41.

In ¶ 106 of the Yuan Declaration, Dr. Yuan takes Dr. Sachs’ testimony out of context and states that the insertion of “a greater-than-40mm PLIF implant from a posterior approach . . . [is] fraught with risk that would be avoided by a person of ordinary skill in the art.” Dr. Sach’s testimony was based on the

34

knowledge of one skilled in the art

prior

to the teachings provided in Michelson.

With the benefit of the teachings of Michelson, one of ordinary skill in the art would have understood safe ways of inserting a long implant laterally and anterolaterally. Additionally, as noted above, the insertion and placement of a long implant at an angle using a posterior approach will also provide for a safe implantation as was done by Dr. Yuan himself. Accordingly, such a procedure would not be “fraught with risk.” Additionally, while not in the Yuan Declaration,

I note that the Patent Owner has included in its Response a distorted modified image taken from the Telamon Brochure.

See

Response at 52. Patent Owner states that the image has been modified to “show Petitioner’s proposed modification to Telamon’s implant–having a length increased from the original 26

35

mm to the proposed length of greater than 40 mm . . . .”

Id.

As shown below,

Patent Owner’s modified Telamon has an equivalent length of nearly 49 mm.

Original


Original image with length increased by 54%

(assuming original image is 26 mm, equivalent to a length of 40 mm)

Manipulated image from Response (actual increase of length of

88%; assuming original image is 26 mm, equivalent to a length of 48.88 mm)

36

III.

ADDITIONAL REMARKS

I hereby declare that all statements made herein of my own knowledge are true and that all statements made on information and belief are believed to be true; and further that these statements were made with the knowledge that willful false statements and the like are punishable by fine or imprisonment, or both, under

Section 1001 of Title l8 ofthe United States Code.

Richard A. Hyri

3?

Appendices to Second Hynes Declaration

APPENDIX A:

NASS Memorandum Re: Lateral Interbody Fusion (XLIF, DLIF) of the Lumbar Spine, dated January 5, 2010

APPENDIX B:

Rick C. Sasso et al.,

Anterior Lumbar Fusion,

Chapter 10 of

“Surgical Management of Low Back Pain”, 2d Edition (2008)

APPENDIX C:

U.S. Patent No. 5,313,962

APPENDIX D:

LJ O’Hara and RW Marshall,

Far Lateral Lumbar Disc

Herniation. The Key to the Intertransverse Approach

, 79(6) J.

Bone Joint Surg. Br. 943, 943-47 (1997)

APPENDIX E:

OLIF25 Technique Brochure

APPENDIX F:

U.S. Patent No. 6,626,905

APPENDIX G:

Jie Zhao et al.,

Posterior Lumbar Interbody Fusion Using One

Diagonal Cage With Transpedicular Screw/Rod Fixation

, 12 E

UR

.

S

PINE

J. 173, 175-77 (2003)

APPENDIX H:

Medacta MectaLIF Brochure

APPENDIX I:

NuVasive 2014 Reimbursement Guide

APPENDIX J:

Paul C. McAfee et al.,

Minimally Invasive Anterior

Retroperitoneal Approach to the Lumbar Spine

, 23 S

PINE

1476,

1478 (1998)

APPENDIX K:

X-ray image of patient

APPENDIX L:

NuVasive Press Release re: 60 mm CoRoent XL Implants

ACTIVE 26481542v5 09/05/2014

APPENDIX A

ACTIVE 26481542v5 09/05/2014

January 5, 2010

Re: Lateral Interbody Fusion (XLIF, DLIF) of the Lumbar Spine

The North American Spine Society (NASS) has recently become aware that several insurance companies have proposed or are considering noncoverage/nonpayment of a technique of lumbar interbody fusion that utilizes a lateral approach with the use of specialized retractors.

NASS is a multispecialty medical organization dedicated to fostering the highest quality, evidence-based, ethical spine care and wishes to provide comment on this technique and corresponding development.

While the concept of this technique, lumbar interbody fusion utilizing a lateral approach with the use of specialized retractors, is not proprietary, there are two commonly used proprietary retractor systems; XLIF, manufactured by Nuvasive (San Diego, CA) and DLIF Sofamor Danek manufactured by Medtronic (Memphis, TN).

In order to provide comment, it is necessary to fully comprehend the technical aspects of lateral interbody fusion (LIF), performed either using the XLIF or DLIF systems. The procedure utilizes a portal made in the lateral flank through which serial dilators and retractors are placed through the psoas muscle to be seated on the lateral aspects of the disc space and vertebral bodies. By utilizing a smaller incision than other open surgical techniques that often utilize a posterior or anterior approach, it is appropriately described as an open, minimally invasive operation that is performed under direct visualization (in contrast to a percutaneous procedures which are billed using unlisted CPT codes) . While the retractors systems are new in recent years, the approach is not novel. Open lateral approaches to the upper lumbar spine and thoracic spine are considered a standard method of accessing the discs and vertebral bodies in appropriately indicated cases. Such approaches have been used for the treatment of lumbar degenerative disorders, tumors, fractures, and infections of the spine. The major anatomical distinction between open anterior and lateral approaches is, notwithstanding the size of the incision, dissection being performed anterior or through the psoas muscle. As the psoas muscle is only present in the lumbar spine (L1 to S1), this discussion is most relevant to the lumbar spine.

Dictated by surgeon preference, there are variations in the exact manner in which open anterior or lateral exposure of the lumbar is executed. Based on the location of pathology, the patient’s body habitus, and presence or absence of spinal deformity, a direct anterior or more lateral approach to the disc and vertebral bodies can be chosen. The marketed forms of LIF procedures in question (XLIF or DLIF) have standardized the approach to direct lateral access that utilizes dissection through the psoas muscle instead of anterior to the muscle.

1

Some insurance companies have ascribed such descriptors as “investigational” and

“experimental” to XLIF and DLIF procedures. These terms do not seem to be justified. Prior to the introduction of XLIF and DLIF, a spinal surgeon could have chosen to perform an open procedure using a direct lateral corridor, as is performed in LIF, as part of standard customary practice, including transpsoas approaches. Anterior interbody arthrodesis (thoracic, lumbar, additional level) accurately describes these procedures and as such CPT codes 22556, 22558, and 22585 have been recommended. Regardless of the exact direction of accessing the lumbar spine from L1 to L5, the appropriate code has been that for ALIF, 22558. The technical aspects of XLIF and DLIF are not sufficiently distinct from an ALIF to justify another code. NASS has consistently held this position and addresses it in the attached 2006

SpineLine

article.

In an illustrative comparison, describing a procedure such as lumbar artificial disc replacement

(LADR) as “investigational” and “experimental” at the time of its introduction was completely justified. In the case of LADR, the risks, complications, and efficacy were unknown with no analogous procedure from which one could extrapolate results. Thus, randomized controlled trials were needed in order to introduce this novel implant and technique to the general population. Once the results of these studies were evaluated by the FDA, the procedure was approved. Although equivalency (noninferiority) was demonstrated, some payers have been reluctant to provide reimbursement for the newer procedure. Notwithstanding the details of the continued controversy, the course of LADR demonstrates appropriate early use of the terms “investigational” or “experimental” to the betterment of patient care.

In understanding the technical aspects of LIF as detailed above and the nuances of standard open anterior access to the lumbar spine, a major distinction must be made between a new procedure such as LADR and a modified approach for a standard, accepted procedure, such as

LIF. LIF, in the form of XLIF or DLIF, is a method of performing an operation that has long been considered a standard practice. It is novel only in its use of a smaller incision and a different retractor system. If one were to consider LIF as experimental or investigational, than one would need to conclude that there is only one correct method of performing an anterior lumbar interbody fusion, that all surgeons access the spine through the exact same tissue planes, and that the disc and vertebral bodies are all accessed in the exact same orientation. Not only is this technically impossible, it is not verifiable.

It is true that accessing the lumbar spine by dissection of the psoas muscle has attendant risks.

This is the case with other types of open anterior lumbar surgery as well. The known complications with standard anterior retroperitoneal or transperitoneal exposure of the lumbar spine include injury to the structures that reside within or on the psoas muscle, most notably the nerves of the lumbar plexus.

Because of its minimally invasive approach in which the psoas muscle and its associated structures are not widely dissected, surgeons who perform LIF routinely employ some type of neurological monitoring. The purpose of neurological monitoring is to detect if dilators or retractors are too close to a neurological structure in the psoas muscle and, if so, they are repositioned. Historically, this is analogous to neurological monitoring that is performed for any other type of spinal surgery in which the status of nerve function is assessed during the operation. Cadaveric studies have demonstrated the relationship of the neural structures in the psoas muscle which have identified that there is a safe corridor through which the lumbar spine can be accessed by a direct lateral approach.

i

2

As such, approach-related nerve complications have been reported in the limited series available. Knight et al

ii

reported 9 approach-related complications in a series of 58 patients undergoing XLIF or DLIF. The authors compared this to a historical cohort of patients undergoing posterior lumbar fusion at the same institution, finding comparable rates of complications. The types of complications included ipsilateral L4 nerve root injuries, lateral femoral cutaneous nerve injuries, and psoas muscle spasm. In another report, Anand et al

iii

found 3 of 12 patients who underwent XLIF for degenerative scoliosis had new onset thigh dysasthesias, which resolved within six weeks. One of 12 had quadriceps weakness that resolved within six weeks. These types of complications have been reported with open anterior approaches to the lumbar spine.

iv

Literature Review:

In reviewing the literature, there are limited data concerning clinical outcomes specifically with XLIF or DLIF. In fact, the published series primarily report early outcomes and approach-related complications. Perhaps these two parameters are most pertinent, as there are a multitude of studies regarding the outcomes of lumbar interbody fusion, whether via an anterior or posterior technique. Anand et al

iii

published results from a prospective evaluation of 12 patients who underwent XLIF, in addition to other minimally invasive fusion techniques, for the treatment of degenerative scoliosis. At a mean follow-up of

75.5 days, the VAS pain score improved an average of 2.3 points. Complications in this series were detailed above. Knight et al

ii

retrospectively reviewed results of 58 patients who underwent DLIF or XLIF. Though clinical outcomes were not measured, the group found that blood loss, complication rates, and operative times were comparable between the DLIF and

XLIF groups. These parameters were comparable to those in a historical cohort of patients who underwent posterior fusion at the same institution.

Based on the presentation of the aforementioned discussion points, NASS provides the following conclusions regarding coverage of XLIF and DLIF:

Lateral interbody fusion (LIF), in the form of XLIF, DLIF, would be inappropriately characterized as “experimental” or” investigational”

.

While additional clinical outcomes data would be helpful for any surgical procedure including (LIF), these data are not needed to endorse continued use and coverage of these forms of interbody fusion

.

XLIF and DLIF should be coded and reimbursed as an ALIF. The technical execution and surgical principles of LIF are sufficiently analogous to if not a variation of ALIF. It should not be coded as a percutaneous procedure (unlisted CPT code)

.

XLIF and DLIF, which are anterior procedures, should not be confused with posterior procedures that have similar sounding names, such as TLIF, PLIF, and GLIF (Trademark,

Alphatec).

3

After reviewing the above comments, it is hoped that UHC will concur that XLIF and DLIF are

not

investigational or experimental and thus provide coverage accordingly. NASS welcomes the opportunity to further elaborate on the comments provided herein.

Thank you for your consideration.

Regards,

Ray Baker, MD

President c: Christopher Bono, MD, Chair, Professional Economic and Regulatory Committee

William Mitchell, MD, Director, Health Policy Council

Attachment i

Regev GJ, Chen L, Dhawan M, Lee YP, Garfin SR, Kim CW. Morphometric analysis of the ventral nerve roots and retroperitoneal vessels with respect to the minimally invasive lateral approach in normal and deformed spines. Spine.

2009; 34:1330–1335. ii

Knight RQ, Schwaegler P, Hanscom D, Roh J. Direct lateral lumbar interbody fusion for degenerative conditions: early complication profile. J Spinal Disord Tech. 2009; 22:34-37. iii

Anand N, Baron EM, Thaiyananthan G, Khalsa K, Goldstein TB. Minimally invasive multilevel percutaneous correction and fusion for adult lumbar degenerative scoliosis: a technique and feasibility study. J Spinal Disord Tech. 2008; 21:459-

467. iv

Rauzzino MJ, Shaffrey CI, Nockels RP, Wiggins GC, Rock J, Wagner J. Anterior lumbar fusion with titanium threaded and mesh interbody cages. Neurosurg Focus. 1999; 15;7(6):e7.

4

APPENDIX B

ACTIVE 26481542v5 09/05/2014

THMP008-10 resnick.cls

May 25, 2008 13:53

AQ1

10

Anterior Lumbar Interbody Fusion

Rick C. Sasso, A. Kirk Reichard, and Shenil Shah

Historical Background

Anterior lumbar interbody fusion (ALIF) was first used in the treatment of tuberculosis and lumbar spondylolisthesis.

1

3

Although described by Capener

4 in 1932 as the

“ideal’’ operation for spondylolisthesis, he further elaborated that “the technical difficulties of such procedure, however, preclude their trial.’’ This statement was soon to be proven wrong by numerous technical advances in ALIF.

When initially developed, the transperitoneal approach for lumbar arthrodesis was the norm, but was later replaced by the retroperitoneal approach. The first description of the transperitoneal approach was published in 1906 by

Muller,

5 and Iwahara

6 first reported the later approach in 1944. Further broadening the scope of ALIF, Lane and

Moore

7 in 1948 reported ALIF as a treatment for lumbar degenerative disk disease. Here they used the transperitoneal approach with an allogenic bone graft in 97 patients, reporting a 54% fusion rate after 8 months and a clinical success rate of 94%.

Further developing Iwahara’s retroperitoneal approach,

Hodgson and Stock

8

,

9 established the foundation for the modern era of ALIF while treating Pott’s disease with different bone grafting materials. Debridement of the necrotic tissue, followed by decompression of the spinal canal, allowed them to place corticocancellous blocks of autogenous bone into the defect to obtain arthrodesis. The dowel technique, developed by Ralph Cloward in 1953, involved the use of cylindrical shaped corticocancellous dowels. Although Cloward

10

12 used a posterior approach, his methods for disk removal, end-plate preparation, and grafting were widely used. Following Cloward’s dowel technique, four individuals adapted this to make their own innovations in bone grafting methods. Two of them,

Harmon

13 in 1963 and Sacks

14 in 1965, were the first to utilize the dowel technique for an anterior lumbar fusion. The third, Crock, developed a cylindrical allograft for the anterior approach to the lumbar spine. Finally, the fourth, O’Brien et al,

15 modified a technique of using trapezoidal bone blocks for the treatment of lumbar discogenic pain through ALIF. They later developed a hybrid interbody graft using a biologic fusion cage (femoral cortical allograft ring) packed with autogenous cancellous bone graft. By using autogenous iliac crest bone graft, rapid incorporation and vascularization of the graft are achieved, as well as and long-term stability.

16

Furthermore, the femoral allograft ring allows for acute stability of the construct and a compatible framework for host bone ingrowth.

15

Despite the success in safely exposing the anterior lumbar spine, in the 1970s and 1980s stand-alone ALIF was not a reliable procedure due to low fusion rates. Early in the development of the procedure, there was great discrepancy among success rates. The reported numbers were incredibly inconsistent, with some reporting huge success and others complete failure. For example, Lane and Moore,

7 as stated previously, reported a 94% clinical success rate. In contrast, though, Adkins

17 in 1955 had a fusion rate of l%.

Early reports encompassing numerous surgical techniques and a heterogeneous group of patients demonstrated a fusion rate of 95% by Harmon,

13

70% by Hoover,

18

90% by

Crock,

19 and 96% by Fujimaki et al.

20

However, other reports cited fusion rates of 19%, 40%, 45%, and 56% by Calandruccio and Benton,

21

Nisbet and James,

22

Raney and Adams,

23 and Flynn and Hoque,

24 respectively. A 1972 study conducted from the Mayo Clinic and authored by Stauffer and

Conventry

25 concluded definitively that the stand-alone

ALIF had a low success rate. After reporting on 83 patients who underwent ALIF without instrumentation between 1959 and 1967, they found an extremely low success rate, with pseudarthrosis occurring in 44%. The Mayo Clinic study resulted in a review of the ALIF as a stand-alone procedure, and it soon after fell out of favor, particularly for the indication of lumbar degenerative disk disease and lumbar axial back pain.

In response to these low fusion rates, a technique combining an ALIF with posterior fusion became very common.

26

Although the anterior approach continued to be utilized for the diskectomy, lordosis restoration, and fusion block insertion, a posterior approach was used to access the posterior elements for instrumentation and stabilization

(Fig. 10.1).

The addition of posterior instrumentation

Fig. 10.1

increases stability across the segment and decreases motion while the fusion solidifies. Despite having a very high fusion rate, the magnitude of the circumferential fusion increased morbidity. Although the ALIF usage had been revitalized with posterior instrumentation, the search for a better construct continued.

These new innovations included anterior lumbar instrumentation, first reported by Humphries et al

27 in 1961.

They developed a slotted, contoured plate that was placed over the anterior lumbar spine in an attempt to enhance arthrodesis. Another advance in anterior hardware was the cylindrical cage. The first cylindrical cages were modified from a smooth, stainless steel, fenestrated cylinder (Bagby

THMP008-10 resnick.cls

May 25, 2008 13:53

88

Surgical Management of Low Back Pain

Fig. 10.1

Lateral radiograph of circumferential fusion using a femoral ring allograft for the anterior lumbar interbody fusion (ALIF) and translaminar facet screws for posterior stability.

Fig. 10.2

Lateral radiograph of circumferential fusion using a femoral ring allograft for the ALIF and pedicle screws and rods for posterior stability.

basket) used by Bagby and colleagues in the mid-1970s and early 1980s to treat Wobbler syndrome, which is a chronic cervical instability causing myelopathy in thoroughbred horses.

28

In Bagby’s procedure, he packed the cage with cancellous bone chips obtained from the reaming of the cervical decompression, thus eliminating the need for an autograft harvest. Further, the cage was developed with perforations in its walls to allow for bone ingrowth and to enhance fusion. This construct allowed for early stability and improved arthrodesis. Animals studies corroborated the success of this procedure with fusion rates as high as

88%.

28

31

Following the original cylindrical cage, more and more improvements in the design of the cages led to the

Bagby and Kuslich design (BAK, Spine-Tech, Minneapolis,

MN), which was first implanted in humans in 1992.

32

This

BAK titanium cage was threaded and screwed into the end plates for stabilization and fusion of the segment. Another similar device developed by Ray

33

(Ray TFC, Surgical Dynamics, Norwalk, CT) was initially used in posterior lumbar interbody fusion (PLIF) but was later adapted to the ALIFs as well.

Although cylindrical cages were originally metal alloy, the development of machined bone dowels provided several advantages. Threaded bone dowels are similar in nature to a metal cage, but differ in that they are osteoconductive, incorporated over time, radiographically benign, and easier to revise.

Despite the rampant usage and initial success of the threaded cylindrical cage in the late 1990s, the next generation, the lumbar tapered (LT) cage, has several advantages over the cylindrical predecessor. It provides the same benefits of a cylindrical device, but allows the surgeon to symmetrically ream the end plate while restoring lordosis.

Symmetric reaming prepares the end plate for fusion and preserves the strength.

In addition, LT cages packed with recombinant human bone morphogenetic protein (rhBMP-2) perform as well as those packed with autograft.

Other constructs include trapezoidal cages. Trapezoidal constructs can be made from various materials, but several features are shared, including a large footprint for maximum end-plate coverage and a large inner volume for bone graft and future fusion maturation.

Although cages continue to be widely used, femoral ring allografts (FRAs), as well as other trapezoidal implants are growing in popularity. The rhBMP-2 is also commonly used during all spinal fusions. Using rhBMP-2 decreases donorsite morbidity, as well as operating room time, and has proven to be as effective as autologous bone. Not surprisingly, the surgical approach has again been revisited, and recent research has shied away from laparoscopic approaches in favor of a retroperitoneal “mini’’ open approach. Although the ALIF was conceived over 100 years

AQ2

ago, it continues to be updated and improved with each new generation of implant and surgeon.

The ALIF has developed over decades, and specific attributes have been identified as primary contributors to a successful outcome. With the disk as the pain generator, removal of the pain source with a total diskectomy addresses the patient’s presenting complaint. Also, restoration of disk height can alleviate foraminal stenosis. Re-creation of native lordosis may decrease juxtalevel stress. And lastly, posterior stabilization maximizes the likelihood of fusion

Fig. 10.2

(Fig. 10.2).

Biomechanics

The greatest strength of the vertebral body is present in the peripheral subchondral bone of the cortical end plate.

THMP008-10 resnick.cls

May 25, 2008 13:53

10 Anterior Lumbar Interbody Fusion

89

Fig. 10.3

When threaded cages are used, the preparation process violates this peripheral ring of subchondral bone. Although this process compromises the strong ring of subchondral bone and theoretically raises the risk of subsidence, it also exposes vascular cancellous bone that may facilitate healing.

In contrast, to prepare the intervertebral space for a nonthreaded, trapezoidal implant, such as an FRA, the strong peripheral ring of subchondral bone is preserved and directly supports the graft while fusion occurs. In the past when FRAs were fashioned by the surgeon on the back table, the size and shape were difficult to match, and this strong ring of subchondral bone may not have been maximally utilized. Now, FRAs are more frequently manufactured, and thus size and shape are more predictable. This enables the surgeon to match the implant to the patient and build the most stable construct. In addition, manufactured FRAs have the benefit of insertion instruments that distract the adjacent vertebral bodies and ensure proper alignment and placement.

The spine endures a wide range of biomechanical forces, from 400 N while standing, to greater than 7000 N during heavy lifting,

34

,

35 with an maximum compression strength of 10,000 N.

36

The selected implant should not fail under these loads. When tested, modern-day implants usually sustain the maximum loads, with failure occurring at the end plate or the sacroiliac joint.

37

With implants infrequently failing, every effort must be made to utilize the intrinsic strength and healing potential of the end plate to promote rapid fusion. Considering that the implants usually do not fail, when constructs do fail, it generally results in subsidence of the implant into the vertebral body, or cavitation. As the end plate fails, either due to violation during preparation or after excessive loading, the implant migrates into the vertebral body and the segment collapses. Cavitation is addressed by choosing an implant with a large contact area, or footprint. A larger footprint provides a bigger foundation for the implant, decreasing the load per square inch

(Fig. 10.3).

Subsequently, a successful implant should be mechanically strong to withstand compressive loads while providing an osteogenic, osteoinductive, and osteoconductive matrix. Many metal alloy implants provide strength and stability but are unable to incorporate these other attributes. To compensate, metal implants provide an environment that allows the surgeon to place an autogenous cancellous bone graft, which does accomplish these later goals. Although metal implants can provide an environment that is fusion friendly, it is limited by the specific design and subsequent volume available for the fusion to traverse through the implant. To maximize the area available for fusion, the surgeon should expose the entire end plate with a total diskectomy,

38 as well as choose an implant that provides the most volume for the biologic substrate and future fusion block.

Fig. 10.3

Sagittal reconstruction of a computed tomography (CT) scan with a femoral allograft at L5-S1 demonstrating a large footprint and support on the peripheral endplate.

Implant design affects how the load is transmitted to the adjacent vertebra and may contribute to juxtalevel discogenic pain.

39

A recent biomechanical analysis revealed that greater implant contact area transmits loads to the adjacent segment in a more physiologic manner and could decrease adjacent level pain, as Kumar et al

39 found in 2005 that implants with smaller surface areas transmit loads in a similar manner to a degenerative disk that causes discogenic pain. In addition, physiologic stress patterns are better recreated when the patient’s lordotic curve is restored. Consequently, when choosing a device, the largest appropriate implant should be carefully implanted after a total diskectomy. This would theoretically prepare the end plate in the correct fashion, load the adjacent vertebra more physiologically, and, when fused, minimize the risk of juxtalevel disease and pain.

Rh-BMP-2 is now routinely used for spinal fusions. The decrease in donor-site morbidity and operating room (OR) time are inviting; however, a recent study found a concerning trend. This prospective cohort study found a lower fusion rate with rhBMP in FRAs. Although, the ALIFs studied were stand-alone, the fusion rate was decreased with the use of rhBMP. The authors believe that the drop in fusion rate, although insignificant, may be secondary to rhBMPinduced resorption of the FRA

(Fig. 10.4).

If the ring is ab-

Fig. 10.4

sorbed more quickly, the graft may weaken or fragment, which allows motion at the segment before fusion occurs, resulting in an unsatisfactory outcome.

40

This stand-alone study reinforces the significance of stabilizing the fusion segment. Although FRA implants are stable at the time of implantation, rhBMP may accelerate the resorption process and destabilize the segment before fusion can occur.

Posterior stabilization with pedicle screws or translaminar facet screws provides the needed stability necessary for fusion.

THMP008-10 resnick.cls

May 25, 2008 13:53

90

Surgical Management of Low Back Pain

Fig. 10.4

Sagittal reconstruction of CT scan with a femoral allograft packed with recombinant human bone morphogenetic protein (rhBMP-2) demonstrating early resorption of bone at the caudal graft–host junction.

Although the ALIF was conceived as a stand-alone device, posterior instrumentation has proven to be optimal for reliable fusion. Even though the stand-alone ALIF does have intrinsic stability, posterior stabilization is recommended because posterior instrumentation provides stability in the range the cage does not.

41

Several implant options have been used, two of which are pedicle screws and translaminar facet screws. Ferrara et al

42 performed a biomechanical comparison of these two constructs and found both to be reliable constructs, with similar properties. After 180,000 cycles, both constructs were equivalent with regard to stiffness and motion. With similar biomechanical properties, implant choice can be determined by other factors, including surgeon preference, and patientspecific characteristics.

Although both constructs have similar integrity, multiple factors should be considered. Best and Sasso

43 recently reviewed 105 ALIF patients receiving translaminar screws or pedicle screws, and they found that the OR time was greatly reduced with translaminar screws, and the blood loss was significantly less.

43

Translaminar screw placement combines a midline incision and percutaneous screw placement, thus decreasing the overall incision length. To place translaminar facet screws, less muscle stripping is required, the cephalad facet joint is not disrupted, and instrumentation prominence is not an issue.

44

Despite the benefits of translaminar facet screws, patients with a prior complete laminectomy and removal of the spinous process or those with spondylolysis are not candidates.

Understanding the biomechanics of the spine is critical to interpreting the principles with the latest implants and techniques. Despite the ever-changing approach to lumbar disk disease, the ALIF relies on removal of the entire degenerative disk, preserving end-plate strength, re-creating physiologic lordosis, eliminating motion across the segment, and most importantly, achieving a stable fusion.

Patient Selection

Most low back pain is transient and self-limiting; however, 5% does not respond to nonoperative treatment.

45

,

46

Although this small percentage of patients does not improve with the most conservative measures, the surgeon must be confident that all conventional alternatives have been exhausted. Leaving options behind and moving ahead too quickly places risks on patients who would have improved without surgery and puts the surgeon at risk of an unacceptable outcome. Utilizing conservative methods and screening tests with high predictive value improves practice outcomes.

The ALIF is a commonly used surgical intervention to treat discogenic low back pain not controlled by nonoperative measures. Indications for an interbody fusion include degenerative disk disease of one or two adjacent levels of the lumbar spine, with severe, chronic, disabling, low back pain lasting longer than 6 months and unresponsive to adequate nonoperative therapy.

33

,

47

Less than three levels should be addressed at a time, as the risk of pseudarthrosis increases with each additional level fused and clinical success decreases.

48

50

The pathophysiology of discogenic pain is poorly understood; however, we do know that other factors, such as compensation and pending litigation, affect outcomes.

51

These confounding variables must be accounted for prior to determination of the definitive therapy. The importance of the history and physical examination cannot be overstated; the interaction with the patient is an opportunity for the surgeon to assess the patient’s expectations and determine if the patient is motivated by secondary gain.

Magnetic resonance imaging (MRI) is a sensitive and specific tool for diagnosing disk pathology

52

; however, asymptomatic disk pathology or herniation can be as high as 34%.

53

Boden et al

53 studied 20- to 39-year-olds, and found that more than one third had asymptomatic disk degeneration and more than one fifth had asymptomatic disk herniations. MRI should not be used as a screening tool and should be ordered only when clinical suspicion is high for spinal pathology.

Although controversial, diskography can provide the surgeon additional information prior to surgical intervention. Diskography is a diagnostic tool that many feel correlates pathoanatomy and symptomatology in patients with primary discogenic pain. Several studies suggest improved outcomes in interbody fusion patients after supportive preoperative diskography.

54

56

Re-creation of concordant pain with diskography especially under low pressures can verify the pain source or help rule out pathology at a specific level

(Fig. 10.5).

Fig. 10.5

THMP008-10 resnick.cls

May 25, 2008 13:53

Fig. 10.5

Lateral radiograph during diskography with a morphologically abnormal L5-S1 disk and a normal L4-L5 disk.

Fig.10.6

Another provocative test with predictive value is the selective nerve root injection (SNRI), which can elucidate the pathophysiology of the pain generator in patients with complex disk disease or nontraditional radiculopathy. A positive result, meaning the patient has 100% relief of symptoms following the injection of anesthetic, correlates with the benefits achieved following surgical intervention of simply decompressing the offending nerve.

57

This procedure is easily performed by an experienced anesthesiologist and gives the surgeon an added layer of confidence before surgical intervention

(Fig. 10.6).

Operative intervention for spinal pathology places the patient at risk. Utilizing available diagnostic tools improves patient outcome and avoids low-yield surgical intervention. The least expensive and most easily used tools likely are the history and physical examination of the patient.

Fig. 10.6

Anteroposterior radiograph during selective nerve root injection (SNRI) of the left S1 nerve.

10 Anterior Lumbar Interbody Fusion

91

Clinical Studies

The ALIF has evolved over several decades through constant reevaluation and technique revision. To date, the most reliable constructs employ an anterior fusion that is stabilized posteriorly with instrumentation. Several attempts have been made to optimize an anterior-only, stand-alone technique; however, fusion rates have been less reliable.

Posterior instrumentation provides the additional stability needed for rapid fusion, and now with the addition of rh-BMP, donor-site morbidity can be eliminated.

Despite the wide usage of cylindrical cages throughout the 1990s, no prospective fusion data was available until 2004. Starting in 2000, 140 patients were enrolled in a prospective, randomized, controlled, clinical trial comparing fusion rates of stand-alone threaded cages and standalone FRAs.

58

The 13 surgeons who took part in the trial implanted either a pair of cylindrical threaded titanium cages or an FRA. Both implants were packed with autograft, and fusion was evaluated at 6-month intervals by a boardcertified radiologist. At 6 months, 95% of the threaded cages were fused as compared with only 10.9% of the FRAs, and the superior fusion rate remained in favor of threaded cages throughout the study. The highest fusion rate obtained by the FRA control group was 51.9% at 2 years, in contrast to the lowest fusion rate seen with the threaded cages was

95% at 6 months. Regardless of the outstanding fusion capacity of threaded cages, clinical outcomes remained equal between groups.

58

These surprising clinical findings may be explained by Fraser’s

59 analysis in 1995, which attributes the clinical success of the ALIF to the surgical approach to the pathologic disk and not the fusion status.

The more recent emergence of LT cages enables surgeons to restore lumbar lordosis while achieving the similarly high fusion rates seen with cages. Burkus et al

60 compared

LT cages implanted with rh-BMP-2 and FRA with autologous bone graft, and found no difference in outcomes, supporting the use of rh-BMP-2.

60

Having an off-the-shelf substitute for autologous bone graft allows surgeons to spare their patients the morbidity associated with donor sites, without sacrificing the osteoinductive properties needed for a fusion

(Fig. 10.7).

Although donor-site morbidity has overshadowed autologous bone grafting, a prospective analysis was lacking. The senior author of this chapter participated in the first prospective analysis of over 200 spinal fusion patients randomized to an autologous donor arm and an rh-BMP arm comparing postoperative pain. Nearly one third of the autologous donors had persistent donor-site pain 2 years postoperatively compared with zero pain in the rh-BMP randomized group.

61

The ability to eliminate donor-site pain is an appealing option for the spine surgeon, despite appearing to be an added expense.

A comparison of an off-the-shelf osteoinductive growth factor reveals that they are in fact a cost-effective way of

Fig. 10.7

THMP008-10 resnick.cls

May 25, 2008 13:53

92

Surgical Management of Low Back Pain

Fig. 10.7

Lateral radiograph of ALIF with an lumbar tapered (LT) cylindrical cage and BMP.

decreasing patient morbidity and maximizing patient outcomes. This 2003 evaluation found that the cost of BMP is offset by reductions in other care expenses. For example, valuable OR time is reduced with the use of a protein substitute, the postoperative period is less painful, and less nursing staff wound care is required for the patient.

62

Reduction of OR time is beneficial for patients as well as for surgeons. Similar to using rhBMP, performing a 270degree fusion (posterior instrumentation without fusion after an ALIF) versus a 360-degree fusion may be another effective way to trim OR time. A 2001 prospective randomized trial failed to reveal any clinical difference with the addition of the posterior instrumentation. The Oswestry Low

Back Disability Index (ODI) and the Numerical Rating Scale

(NRS) were used to evaluate outcomes following ALIF with or without posterior stabilization, and there were no statistical clinical differences.

63

Without clinical support of the posterior fusion, surgeons could choose to decrease operative supply cost (i.e., supplies needed for posterior fusion), shorten OR time, and decrease intra/postoperative complications.

Evaluation of patient success can be addressed from many perspectives. A clinical evaluation may reveal a painfree patient with total resolution of symptoms despite a radiographic result that may be discordant, or vice versa.

Using interval plain radiographs and computed tomography (CT) scans, a recent study shows that LT cages plus rhBMP compared favorably with LT cages plus autograft, and those supplemented with rhBMP achieved more bone formation outside of the cage. Both constructs formed bone similarly through the implant, but rhBMP improved bony fusion outside the cage. This confirms that rhBMP is not only comparable to autologous bone graft as an osteoinductive agent, but may be superior when specifically evaluating bone formation outside the stabilizing construct.

64

Multiple papers support the stability of threaded cages and the clinical success

33

,

65

,

66

; however, a recent retrospective review revealed an increased complication rate with threaded devices compared with nonthreaded trapezoidal block-type constructs. This retrospective review identified a significantly higher number of intraoperative complications with threaded devices and the tools used to prepare the site and insert the devices. The study also found more postoperative complications; however, this was not statistically significant. The greatest numbers of complications seen were vascular in nature, including both intraoperative and postoperative. Most of these complications can be linked to the added steps required to prepare the level for the threaded device and the insertion instrumentation.

58

The surgical techniques employed to expose the anterior lumbar spine focus on the preservation of adjacent structures to minimize long-term complications. The anterior lumbar spine can be approached via a transperitoneal or extraperitoneal approach using various incisions. As with other surgical disciplines, minimally invasive techniques have been pioneered with varying results. The laparoscopic anterior lumbar interbody fusion (LALIF) first appeared in the late 1990s,

67

,

68 with positive results presented by the early users. Initial LALIF reports indicated that the procedure was a safe, less invasive procedure, with less blood loss and faster patient recovery. However, follow-up reports found LALIF to be more time-consuming, and the touted benefits similar to those achieved with a “mini’’ open retroperitoneal approach.

69

,

70

In 2003, Chung et al

71 performed a 47-patient side-by-side comparison of the

LALIF and the mini-ALIF and reported similar clinical and radiographic outcomes, with no identifiable advantages to the LALIF, despite the added technical challenge. Not only have the proclaimed benefits of the laparoscopic approach been challenged, but also specific complications are higher with the LALIF.

Two studies in 2003 reported a higher risk of retrograde ejaculation following a transperitoneal LALIF as compared with a mini-open retroperitoneal ALIF.

72

,

73

The delicate superior hypogastric plexus lies on top of the L4–S1 anterior spine and innervates the internal vesical sphincter. Damage to the plexus can cause retrograde ejaculation in men. The transperitoneal approach, either laparoscopic or open, dissects through this fragile web of nerves, whereas an open retroperitoneal approach, mini or traditional, sweeps the plexus from left to right. Retraction of the plexus as a whole versus dissection through it appears to decrease the risk of internal vesical sphincter denervation.

Imaging

Evaluation of interbody arthrodesis is difficult and controversial secondary to various fusion criteria.

50

,

59

,

74

,

75

Varying criteria include bridging bone and no motion on flexion and extension films, whereas others allow limited motion.

THMP008-10 resnick.cls

May 25, 2008 13:53

Radiographic assessment is also limited by the materials implanted.

Computed tomography and plain x-ray are traditionally used to assess fusion. Utilizing these tools, pseudarthrosis is identified by lucency around the cage, motion across the segment, or lack of bridging bone extending through the cage. Unfortunately, no study, other than histologic, is 100% reliable. Even with the improved quality of reconstructed, thin-segment, high-resolution CT, it is also unreliable in evaluation of fusion status.

38

,

74

,

76

,

77

Post-ALIF pain is often attributed to pseudarthrosis.

A follow-up study of patients with persistent back pain following ALIFs with radiographically confirmed fusions found a high rate of pseudarthrosis upon reoperation. Six of seven patients had pre-revision CT scans that failed to show peri-implant lucency. Seven of eight patients had prerevision plain films showing no signs of loosening. The CT scan and plain films were both hindered with the use of a metal implant as compared with a bone allograft, making the predictive value of these screening tools low when metal implants were used.

74

,

77

In addition, Cizek and Boyd

74 performed a cadaveric study on three different implant materials to determine the predictive value of CT scan versus plain radiographs for identification of a fusion. They compared bone cages, titanium cages, and carbon fiber cages, and found that neither CT scan nor plain radiograph was reliable. Fusions identified on CT were often refuted with plain films and vice versa.

Another study on pig-tailed macaques

(Macaca nemestrina)

reexamined this controversy, finding thin section helical CT better than plain films at identifying the presence of fusion; however, the extent of fusion was overestimated on CT when compared with histology. The predictive values of the CT results were greater in this nonhuman study with 83% concordance between the CT and the histology, versus 45% concordance with plain radiographs.

References

1. Mercer W. Spondylolisthesis with a description of a new method of operative treatment and notes of ten cases. Edinburgh Med J

1936;43:545–572

2. Burns B. An operation for spondylolisthesis. Lancet 1933;224:

1233–1239

3. Ito H, Tsuchiya J, Asami G. A new radical operation for Pott’s disease. J Bone Joint Surg Br 1934;16:499–515

4. Capener N. Spondylolisthesis. Br J Surg 1932;19:374–386

5. Muller W. Transperitoneale freilegung der wirbelsaule bei tuberkuloser spondylitis. Dtsch Z Chirop 1906;85:128–137

6. Iwahara T. A new method of vertebral body fusion. Surgery

1944;8:271–287

7. Lane JD, Moore E. Transperitoneal approach to the intervertebral disc in the lumbar area. Ann Surg 1948;127:537–551

8. Hodgson A, Stock F. Anterior spinal fusion. Br J Surg 1956;44:226–

275

9. Hodgson AR, Stock FE. Anterior spine fusion for the treatment of tuberculosis of the spine. J Bone Joint Surg Br 1960;42:295–310

In summary, radiographic assessment of interbody fusions is suboptimal secondary to interpretation and implant artifact. Although these tools may be beneficial for identification of the grossly positive or negative result, the more difficult cases may require additional studies and possibly surgical exploration for definitive diagnosis.

Conclusion

10 Anterior Lumbar Interbody Fusion

93

Low back pain is generally treated with nonoperative measures, including nonsteroidal antiinflammatory drugs

(NSAIDs), physical therapy, lifestyle modification, and time. Unfortunately, not all patients with discogenic pain respond to nonoperative treatment. A thorough preoperative evaluation should be able to determine patients with primary discogenic pain who may respond to operative arthrodesis.

The mini-open retroperitoneal ALIF approach allows the surgeon to maximize exposure without compromising the superior hypogastric plexus or the rectus muscles.

The mini-ALIF approach is retroperitoneal and minimally invasive in nature with a low complication rate.

Choosing an implant is a personal decision and should be founded in clinical success. FRA has proven to be successful, especially with posterior instrumentation, and has unique benefits with regard to postoperative imaging. When an

FRA is used in conjunction with posterior instrumentation and an off-the-shelf osteogenic biologic, an ideal construct for a 360-degree fusion has been created. Additionally, using translaminar facet screws to minimize soft tissue insult will optimize clinical success.

Our current assessment of spinal pathology will continue to change and our treatment options will too.

Although spine surgery is an ever-changing world, the patient interactions and clinical success that motivate those involved is a constant.

10. Cloward RB. Spondylolisthesis: treatment by laminectomy and posterior interbody fusion. Clin Orthop Relat Res 1981;154:74–

82

11. Cloward RB. The treatment of ruptured lumbar intervertebral discs by vertebral body fusion. J Neurosurg 1953;10:154–168

12. Cloward RB. Lesions of the intervertebral disks and their treatment by interbody fusion methods. Clin Orthop Relat Res 1963;27:51–

77

13. Harmon PH. Anterior excision and vertebral body fusion operation for intervertebral disc syndromes of the lower lumbar spine. Clin

Orthop Relat Res 1963;26:107–127

14. Sacks S. Anterior interbody fusion of the lumbar spine. J Bone Joint

Surg Br 1965;47:211–223

15. O’Brien JP, Dawson MH, Heard CW. Simultaneous combined anterior and posterior fusion. Clin Orthop Relat Res 1986;203:51–77

16. Holte DC, O’Brien JP, Renton P. Anterior lumbar fusion using a hybrid interbody graft. A preliminary radiographic report. Eur Spine

J 1994;3:32–38

THMP008-10 resnick.cls

May 25, 2008 13:53

94

Surgical Management of Low Back Pain

17. Adkins EWO. Lumbosacral arthrodesis after laminectomy. J Bone

Joint Surg Br 1955;37:208–223

18. Hoover NW. Methods of lumbar spine fusion. J Bone Joint Surg Am

1968;50:194–210

19. Crock HV. Anterior lumbar interbody fusion: Indications for its use and notes on surgical technique. Clin Orthop Relat Res

1982;165:157–163

20. Fujimaki A, Crock H, Bedbrook G. The results of 150 anterior lumbar interbody fusion operations performed by two surgeons in

Australia. Clin Orthop Relat Res 1982;165:164–167

21. Calandruccio RA, Benton BF. Anterior lumbar fusion. Clin Orthop

Relat Res 1964;35:63–68

22. Nisbet NW, James A. Results of intervertebral bony fusions. J Bone

Joint Surg Br 1956;38:952–953

23. Raney FL, Adams JE. Anterior lumbar disc excision and interbody fusion used as a salvage procedure. J Bone Joint Surg Am

1963;45:667–668

24. Flynn JC, Hoque MA. Anterior fusion of the lumbar spine. Endresult study with long-term follow-up. J Bone Joint Surg Am

1979;61:1143–1150

25. Stauffer RN, Coventry M. Anterior interbody lumbar spine fusion:

Analysis of Mayo Clinic studies. J Bone Joint Surg Am 1972;54:756–

768

26. Kozak JA, O’Brien JP. Simultaneous combined anterior posterior fusion: An independent analysis of a treatment for the disabled low back pain patient. Spine 1990;15:322–328

27. Humphries AW, Hawk WA, Berndt AL. Anterior interbody fusion of lumbar vertebrae. Surg Clin North Am 1961;41:1685–1700

28. DeBowes RM, Grant BD, Bagby GW. Cervical vertebral interbody fusion in the horse: a comparative study of bovine xenografts and autografts supported by stainless steel baskets. Am J Vet Res

1984;45:191–199

29. Bagby GW. Arthrodesis by the distraction-compression method using a stainless steel implant. Orthopedics 1988;11:931–934

30. Crawley GR, Grant BD, White KK. A modified Cloward’s technique for arthrodesis of the normal metacarpophalangeal joint in the horse. Vet Surg 1988;17:117–127

31. Wagner PC, Grant BD, Bagby GW, et al. Evaluation of spine fusion as treatment in the equine wobbler syndrome. Vet Surg 1979;8:84–

88

32. Kuslich SD, Ulstrom CI, Griffith SL, et al. The Bagby and Kuslich method of lumbar interbody fusion. History, technique, and 2year follow-up results of a United States prospective, multicenter trial. Spine 1998;23:1267–1278

33. Ray CD. Threaded fusion cages for lumbar interbody fusions. An economic comparison with 360 fusions. Spine 1997;22:681–685

34. Nachemson AL, Schultz AB, Berkson MH. Mechanical properties of human lumbar spine motion segments: influence of age, sex, disc level and degeneration. Spine 1979;4:1–8

35. White AA, Panjabi MM. Clinical Biomechanics of the Spine, 2nd ed.

Philadelphia: Lippincott, 1990

36. Dolan P, Earley M, Adams MA. Bending and compressive stresses acting on the lumbar spine during lifting activities. J Biomech

1994;27:1237–1248

37. Haher TR, Yeung AW, Merola AA, et al. An in vitro biomechanical investigation of spinal interbody fusion devices. 14th Annual

Meeting of the North American Spine Society, 1999, Chicago

38. McAfee PC, Lee GA, Fedder IL, et al. A prospective randomized study of 100 anterior interbody cage arthrodeses: complete versus partial discectomy. 14th Annual Meeting of North American Spine

Society, 1999, Chicago

39. Kumar N, Judith MR, Kumar A, et al. Analysis of stress distribution in lumbar interbody fusion. Spine 2005;30:1731–1735

40. Pradhan BB, Bae HW, Dawson EG, et al. Graft resorption with the use of bone morphogenetic protein: lessons from anterior lumbar interbody fusion using femoral ring allografts and recombinant human bone morphogenetic protein-2. Spine 2006;31:E277–E284

41. Phillips FM, Cunningham B, Carandang G, et al. Effect of supplemental translaminar facet screw fixation on the stability of standalone anterior lumbar interbody fusion cages under physiologic compressive loads. Spine 2004;29:1731–1736

42. Ferrara LA, Secor JL, Jin BH, et al. A biomechanical comparison of facet screw fixation and pedicle screw fixation: effects of shortterm and long-term repetitive cycling. Spine 2003;28:1226–1234

43. Best NM, Sasso RC. Efficacy of translaminar facet screw fixation in circumferential interbody fusions as compared to pedicle screw fixation. J Spinal Disord Tech 2006;19:98–103

44. Beaubien BP, Mehbod AA, Kallemeier PM, et al. Posterior augmentation of an anterior lumbar interbody fusion. Spine

2004;29:E406–E412

45. Deyo RA, Cherkin D, Conrad D, Volinn E. Cost, controversy, crisis: low back pain and the health of the public. Annu Rev Public Health

1991;12:141–156

46. Frymoyer JW, Pope MH, Clements JH, et al. Risk factors in low back pain. An epidemiological survey. J Bone Joint Surg Am

1983;65:213–218

47. Kuslich SD, Ulstrom CL, Griffith SL, et al. The Bagby and Kuslich method of lumbar interbody fusion. History, technique, and 2year follow-up results of a United States prospective, multicenter trial. Spine 1998;23:1267–1278

48. Kozak JA, O’Brien JP. Simultaneous combined anterior and posterior fusion: an independent analysis of a treatment for the disabled low-back pain patient. Spine 1990;15:322–328

49. Goldner JL, Urbaniak JR, McCollum DE. Anterior disc excision and interbody spinal fusion for chronic low back pain. Orthop Clin

North Am 1971;(2):543–568

50. Chow SP, Leong JC, Ma A, Yau AC. Anterior spinal fusion for deranged lumbar intervertebral disc. Spine 1980;5:452–458

51..

52. Forristall RM, Marsh HO, Pay NT. MRI and contrast CT of the lumbar spine: comparison of diagnostic methods and correlation with surgical findings. Spine 1988;13:1049–1054

53. Boden SD, Davis DO, Dina TS, et al. Abnormal magnetic resonance scans of the lumbar spine in asymptomatic subjects: a prospective investigation. J Bone Joint Surg Am 1990;72:403–408

54. Gill K, Blumenthal S. Functional results after anterior lumbar fusions at L5–S1 in patients with normal and abnormal MRI scans.

Spine 1992;17:940–942

55. Colhoun E, McCall IW, Williams L, et al. Provocation discography as a guide to planning operation on the spine. J Bone Joint Surg Br

1988;70B:267–271

56. Schwarzer AC, Aprill CN, Derby R, et al. The prevalence and clinical features of internal disc disruption in patients with chronic low back pain. Spine 1995;20:1878–1883

57. Sasso RC, Macadaeg K, Nordmann D, Smith M. Selective nerve root injections can predict surgical outcome for lumbar and cervical radiculopathy: comparison to magnetic resonance imaging.

J Spinal Disord Tech 2005;18:471–478

58. Sasso RC, Kitchel SH, Dawson EG. A prospective, randomized controlled clinical trial of anterior lumbar interbody fusion using a titanium cylindrical threaded fusion device. Spine 2004;29:113–

122

AQ3

THMP008-10 resnick.cls

May 25, 2008 13:53

59. Fraser RD. Interbody, posterior and combined lumbar fusions.

Spine 1995;20:S167–S177

60. Burkus JK, Gornet MF, Dickman CA, et al. Anterior lumbar interbody fusion using rhBMP-2 with tapered interbody cages. J Spinal

Disord Tech 2002;15:337–349

61. Sasso RC, LeHuec JC, Shaffrey C, et al. Iliac crest bone graft donor site pain after anterior lumbar interbody fusion. J Spinal Disord

Tech 2005;18:S77–S81

62. Polly DW, Ackerman SJ, Shaffrey CI, et al. A cost analysis of bone morphogenetic protein versus autologous iliac crest bone graft in single-level anterior lumbar fusion. Orthopedics 2003;26:1027–

1037

63. Schofferman J, Slosar P, Reynolds J, et al. A prospective randomized comparison of 270 degree fusions to 360 degree fusions (circumferential fusions). Spine 2001;26:E207–E212

64. Burkus JK, Dorchak JD, Sanders DL. Radiographic assessment of interbody fusion using recombinant human bone morphogenetic protein type 2. Spine 2003;28:372–377

65. Rajaraman V, Vingan R, Roth P, et al. Visceral and vascular complications resulting from anterior lumbar interbody fusion. J Neurosurg 1999;91:60–64

66. O’Brien JP, Dawson MH, Heard CW, et al. Simultaneous combined anterior and posterior fusion. A surgical solution for failed spinal surgery with a brief review of the first 150 patients. Clin Orthop

Relat Res 1986;203:191–195

67. Regan JJ, Aronoff RJ, Ohnmeiss DD, Sengupta DK. Laparoscopic approach to L4–L5 for interbody fusion using BAK cages: experience in the first 58 cases. Spine 1999;24:2171–2174

10 Anterior Lumbar Interbody Fusion

95

68. Lieberman IH, Willsher PC, Litwin DE, et al. Transperitoneal laparoscopic exposure for lumbar interbody fusion. Spine 2000;25:509–

514

69. Liu JC, Ondra SL, Angelos P, et al. Is laparoscopic anterior lumbar interbody fusion a useful minimally invasive procedure? Neurosurgery 2002;51:S155–S158

70. Zdeblick TA, David SM. Laparoscopic versus mini anterior lumbar interbody fusion. Spine 2000;25:2682–2687

71. Chung SK, Lee SH, Lim SR, et al. Comparative study of laparoscopic L5–S1 fusion versus open mini-ALIF, with a minimum 2year follow-up. Eur Spine J 2003;12:613–617

72. Escobar E, Transfeldt E, Garvey T, et al. Video-assisted versus open anterior lumbar spine fusion surgery: a comparison of four techniques and complications in 135 patients. Spine 2003;28:729–

732

73. Sasso RC, Burkus JK, LeHuec JC. Retrograde ejaculation after anterior lumbar interbody fusion. Spine 2003;28:1023–1026

74. Cizek GR, Boyd LM. Imaging pitfalls of interbody spinal implants.

14th Annual Meeting of North American Spine Society, 1999,

Chicago

75. McAfee PC. Interbody fusion cages in reconstructive operations on the spine. J Bone Joint Surg Am 1999;81:859–880

76. Heithoff KB, Mullin JW, Holte D, et al. Failure of radiographic detection of pseudoarthrosis in patients with titanium anterior lumbar interbody fusion cages. 14th Annual Meeting of North American

Spine Society, 1999, Chicago

77. Weiner BK, Fraser RD. Spine update: lumbar interbody cages. Spine

1998;23:634–640

THMP008-10 resnick.cls

May 25, 2008 13:53

Queries to Author

AQ1: AU: chapter title has been changed to be consistent with the title in TOC OK?

AQ2: AU: most later chapters use theabbreviation style rhBMP-2. OK?

AQ3: AU: Please supply ref. 51.

APPENDIX C

ACTIVE 26481542v5 09/05/2014

APPENDIX D

ACTIVE 26481542v5 09/05/2014

FAR LATERAL LUMBAR DISC HERNIATION

THE KEY TO THE INTERTRANSVERSE APPROACH

L. J. O’HARA, R. W. MARSHALL

From the Royal Berkshire Hospital, Reading, England

Of a total of 330 patients requiring operation on a lumbar disc, 20 (6.1%) with lateral disc prolapse had a new muscle-splitting, intertransverse approach which requires minimal resection of bone.

There were 16 men and 4 women with a mean age of

52 years. All had intense radicular pain, 15 had femoral radiculopathy and 19 a neurological deficit. Far lateral herniation of the disc had been confirmed by MRI.

At operation, excellent access was obtained to the spinal nerve, dorsal root ganglion and the disc prolapse.

The posterior primary ramus was useful in locating the spinal nerve and dorsal root ganglion during dissection of the intertransverse space.

At review from six months to four years, 12 patients had excellent results with no residual pain and six had good results with mild discomfort and no functional impairment. Two had poor results. There had been neurological improvement in 17 of the 20 patients.

We report a cadaver study of the anatomy of the posterior primary ramus. It is readily identifiable through this approach and can be traced down to the spinal nerve in the intertransverse space.

We recommend the use of a muscle-splitting intertransverse approach to far lateral herniation of the disc, using the posterior primary ramus as the key to safe dissection.

J Bone Joint Surg [Br]

1997;79-B:943-7.

Received 14 April 1997; Accepted after revision 18 July 1997

The term ‘far lateral’ applies to prolapse of a lumbar disc which compresses the nerve root at the same level

1 irrespective of whether it is in the intervertebral canal, at the foramen or further laterally. Failure to recognise its presence has often been responsible for a poor outcome and persistent sciatica after operation.

2-6

CT and MRI now allow successful demonstration of protrusions of the lateral disc which account for between 6% and 10% of all lumbar discs which need operation.

7-10

Prolapse of a lumbar disc at this site, however, may still be overlooked.

11

There has been discussion as to the most suitable surgical approach to a far lateral disc lesion.

12

Most surgeons use an interlaminar approach,

1,3,5,6-9,13-16 but full exposure of the nerve root requires total resection of the facet joint which may prejudice the subsequent stability of the spine.

This has led to the development of approaches to expose the nerve root within the intertransverse space by a paramuscular

5,6,8,9,17 route with retraction of the erector spinae from the midline, or by muscle splitting, usually with a paramedian incision.

8,15,18-21

These require minimal resection of bone. The paramuscular route is preferred by many, despite its disadvantages, because surgeons are not familiar with the anatomy of the muscle-splitting approach. We found that the posterior ramus of the spinal nerve is a useful anatomical landmark in this approach, allowing early identification of the spinal nerve and dorsal root ganglion and safe dissection of the intertransverse space. We describe our experience in 20 operations and in a cadaver study.

L. J. O’Hara, BSc, FRCS, Specialist Registrar

Southampton General Hospital, Tremona Road, Southampton SO16 6YD,

UK.

R. W. Marshall, FRCS, Consultant Orthopaedic Surgeon

Royal Berkshire Hospital, London Road, Reading RG1 5AN, UK.

Correspondence should be sent to Mr R. W. Marshall.

©1997 British Editorial Society of Bone and Joint Surgery

0301-620X/97/67876 $2.00

PATIENTS AND METHODS

Between August 1992 and January 1996 out of a total of

330 patients with prolapse of the lumbar disc requiring operation, 20 with far lateral herniation (6.1%) were treated by the senior author (RWM). There were 16 men and four women with a mean age of 52 years (26 to 78), and a mean duration of symptoms of 23 weeks (4 weeks to 2 years).

All patients complained of intense, unilateral radicular pain which was either sciatic (25%) or femoral (75%). In

13 the onset was sudden. Only five had a history of injury; in the remainder the onset was insidious. Thirteen patients

VOL. 79-B, N

O

. 6, NOVEMBER 1997 943

944 L. J. O’HARA, R. W. MARSHALL

Table I.

Nerve-tension signs on clinical examination in 20 patients

Level

L2/3

L3/4

L4/5

L5/S1

Number SLR*

2

7

6

5

0

2

3

5

Total 20 10

* reduced straight-leg raising

† positive femoral stretch test

FST†

2

6

3

1

12

FST + SLR

0

1

0

1

2

Table II.

Number (%) of far lateral disc herniations as shown by MRI

Disc level Number

L2/3

L3/4

L4/5

L5/S1

Total

2 (

10

)

7 (

35

)

6 (

30

)

5 (

25

)

20 (

100

) had back pain (65%) but this was more intense than the radicular pain in only five. Nineteen patients had neurological deficits (95%); 17 had sensory loss and 14 had motor weakness. The motor deficit was usually mild; only two had weakness to MRC grade 3. Abnormal deep tendon reflexes were found in only five (25%) patients; all were absent knee reflexes in patients with prolapse of the L3/4 disc. All patients had a positive nerve-tension test (Table I).

A positive femoral stretch test was present in 12 (60%), most of whom had a prolapse at L4/5 and above. Reduced straight-leg raising was found in ten patients (50%), including all five with an L5/S1 disc lesion (Table I).

Pain was assessed using a visual analogue scale before and after operation. Plain radiography showed a grade-2 spondylolisthesis at L5/S1 in two patients who had an extraforaminal prolapse at the same level. In one, who was awaiting spinal fusion before the sudden onset of intractable sciatica, fusion was performed at the same time as far lateral discectomy. Axial and sagittal MRI confirmed the diagnosis, and showed that 75% of far lateral disc herniations occurred at L4/5 and above (Table II and Fig. 1).

All patients were assessed clinically at the last review by the first author (LJO’H), who had not been involved in their treatment.

Operative technique.

The patient is anaesthetised and placed prone on a Montreal mattress and antibiotic prophylaxis is given (1.5 g cefuroxime). The intertransverse space is approached through a paramedian incision 5 cm lateral to the midline, splitting multifidus and longissimus as described by Wiltse

22 for spinal fusion. The bases of the transverse processes are identified with a fingertip and a self-retaining retractor inserted. The level is checked by image intensifier.

We use binocular loupe magnification and a fibreoptic headlight to identify the posterior primary ramus of the spinal nerve where it passes through the medial aspect of the intertransverse membrane, before distributing its branches to the dorsal musculature. This nerve is a useful anatomical guide later in the dissection. The transverse process and the facet joint are exposed by reflecting soft tissue, and the isthmus is defined by reflecting muscle from the pars interarticularis.

The dorsal root ganglion and the spinal nerve are embedded in extraforaminal fat and connective tissue beneath the intertransverse membrane. Identification of the posterior primary ramus allows the surgeon to locate these vulnerable neural structures rapidly and safely (Figs 2 and 3) thus reducing the risk of avulsion injury. Overhanging isthmic

Fig. 1a Fig. 1b

Axial (a) and sagittal (b) MRI showing an extraforaminal disc at L4/5. The disc prolapse displaces extraforaminal fat on the sagittal view.

THE JOURNAL OF BONE AND JOINT SURGERY

FAR LATERAL LUMBAR DISC HERNIATION 945

Fig. 2a Fig. 2b

Diagrams showing the intertransverse space at L4/5 through the paramedian muscle-splitting approach (a) and the use of the posterior ramus as the key to its safe dissection (b) (1, isthmus; 2, facet joint; 3, transverse process; 4, intertransverse membrane; 5, posterior primary ramus; 6, dorsal root ganglion; 7, spinal nerve; 8, extraforaminal disc herniation).

Fig. 3a lateral aspect of the superior articular process of the facet with a burr without disturbing the joint itself. Resection of bone is not always needed, but trimming of the superior articular process is invariably required at the L5/S1 level because of the size of the facet.

The spinal nerve is usually found to be under tension from the herniated disc, which is often sequestrated. The nerve is carefully retracted laterally allowing access to the disc material which is removed with pituitary forceps, reducing the tension of the nerve. The remaining degenerative disc material is then cleared from the disc space itself.

Further exploration beneath the dorsal root ganglion with a probe allows any residual, sequestrated material to be removed.

Fig. 3b

Photographs showing the exposure of the intertransverse space obtained by the muscle-splitting approach. The posterior primary ramus leading to the spinal nerve and dorsal root ganglion is clearly shown (a). Herniated extraforaminal disc material is removed by a pituitary rongeur after lateral retraction of the spinal nerve (b) (1, posterior primary ramus; 2, dorsal root ganglion; 3, spinal nerve; 4, sequestrated extraforaminal disc; 5, transverse process.

bone may be cleared, if necessary, with a high-speed burr while protecting the underlying nerves with a blunt dissector. Further access is obtained by trimming the most

RESULTS

The results at six months to four years were excellent in 12 patients (60%) with no residual discomfort, and good in six

(30%) who had only minor leg or back pain and no functional impairment. One patient with a long-standing far lateral protrusion of the L4/5 disc showed no improvement after surgery. Subsequent MRI indicated the possibility of residual extraforaminal disc material, but at a further operation only scar tissue was found. This was released but there was no improvement. The other patient with a poor outcome had increased radicular pain after operation although there was an improvement in neurological function.

Sequestrated disc material was found in 50% of cases.

There was neurological improvement in 17 of 19 patients.

Of 14 patients with motor weakness 12 showed improvement and 11 had complete resolution. A sensory deficit improved in 14 of 17 patients with total resolution in nine.

The mean leg pain score improved from 8.0 preoperatively to 1.5 after operation.

Cadaver study.

A cadaver was dissected to determine whether the medial branch of the dorsal primary ramus could be identified at every level of the lumbar spine. At five levels (L1 to S1) the medial branch of the dorsal

VOL. 79-B, N

O

. 6, NOVEMBER 1997

946 primary ramus was readily identified and traced down through the intertransverse membrane to the spinal nerve and its dorsal root ganglion.

DISCUSSION

L. J. O’HARA, R. W. MARSHALL

Lindblom

23 demonstrated prolapse of the lumbar disc outside the confines of the vertebral canal in a cadaver study in

1944, but the clinical diagnosis has remained difficult, since these lateral protrusions could not be shown by myelography, or by limited operative exploration. In 1971 Macnab

2 reported two cases of compression of the L5 root by an extraforaminal protrusion of the L5/S1 disc after a failed exploration at L4/5. In 1974 Abdullah et al

1 described the clinical syndrome of the “extreme lateral” herniation of the lumbar disc as demonstrated by discography; they found herniations beneath or beyond the facet, compressing the nerve root at the same level, in 11.7% of prolapses of lumbar discs. The characteristic clinical findings included anterior thigh and leg pain, appropriate sensory loss, absence of back pain, an absent knee jerk and no reduction of straight-leg raising. Subsequent authors have described these discs as “extreme lateral”,

3,8,10,13,14,19,21,24

“far lateral”,

6,9,16,18 foraminal”.

“extracanalicular”

4,15,17,25-27

5 and “foraminal” or “extra-

Larger series have reported incidences of between 5.8% and 10.3%

7-10 which agree with our figure of 6.1%.

The characteristic feature is that a far lateral disc compresses the nerve root which exits at the same level; this is in contrast to classic posterolateral disc compression which affects the nerve root leaving at the level below.

Far lateral herniation more often compromises the upper lumbar nerve roots

1,8,10 producing a femoral radiculopathy; in 75% of our patients the nerve root at L4 and above was affected. The femoral nerve traction test is often positive.

8,10,13,16

The Lasegue sign is less reliable in determining the level of root compression, but it is wrong to believe that straight-leg raising is usually normal.

1,7,19

In the series of Abdullah et al

1 there were no cases of compression of the L5 nerve root and the frequency of Lasegue’s sign was only 4%. Since then far lateral herniation at L5/S1 has been found frequently

8-11,14,18 with an incidence of 38% in the

178 cases of Porchet et al

10 and 25% in our series. Since the L5 nerve root is compressed by L5/S1 far lateral protrusion, there is a high frequency of decreased straightleg raising.

The intensity of the radicular pain in far lateral prolapse is particularly severe; this probably results from direct contact of nuclear or annular fragments with the dorsal root ganglion.

3

Instability

5,6 and severe back pain

8 have been reported after an interlaminar approach with facetectomy and spinal fusion has been advocated in every case.

27 extraforaminal disc prolapse is often sequestrated

An

1,5,8,9,18,19 and many migrate superiorly and laterally. These sequestrated fragments may be missed even after full facetectomy, and are the cause of persistent radicular pain.

5

The precise localisation of a far lateral disc by CT

11,24,28 and MRI

11,29 has allowed more direct and anatomically favourable approaches to be used. Since the mid 1980s the intertransverse route has been used to provide direct access to the extraforaminal area and the intervertebral foramen with minimal resection of bone. The paramuscular approach requires a larger incision and greater soft-tissue retraction, but exposes less of the foramen;

8 its advocates find the muscle-splitting approach disorientating because of the lack of anatomical landmarks.

6,9

The course and relationship of the lumbar nerve are different at each level because of the variation in the structure of the lumbar vertebrae which is also altered by disc herniation.

21

A consistent anatomical landmark is of benefit. Fankhauser and de Tribolet

20 using the transmuscular approach observed the posterior ramus of the spinal nerve during operative dissection, but discounted it as an anatomical landmark because systematic identification of its branches was difficult and time-consuming. O’Brien et al

19 using the posterolateral approach of Watkins in far lateral herniation utilised the lateral branch of the posterior primary ramus to direct them to the spinal nerve and hence the intervertebral foramen. Since 1992, we have used the medial branch of the posterior primary ramus as an anatomical guide to the spinal nerve and the underlying disc prolapse.

The posterior primary ramus of the lumbar nerve arises immediately distal to the dorsal root ganglion and is directed backwards towards the upper border of the subjacent transverse process.

30

After piercing the intertransverse membrane it gives off three branches, medial, intermediate and lateral, each having a segmental muscular distribution.

31

The medial and intermediate branches supply multifidus and longissimus, respectively, and are represented at every level. The lateral branch, supplying iliocostalis, is absent at L5/S1 presumably because its segmental muscle has no fibres arising from the L5 transverse process.

31

We have consistently identified the medial branch of the posterior primary ramus both at operation and in the cadaver (Fig. 3). It can then be traced to the intertransverse membrane allowing early identification of the underlying spinal nerve and safe dissection of the extraforaminal area.

Identification of the posterior ramus may also reduce the risk of its avulsion from the dorsal root ganglion: this may be responsible for the dysaesthesia found after operation in some patients.

8,17,18

The appearance of the intertransverse ligament has been described as being that of a membrane

30 and our operative and cadaver studies confirm that the term ‘ligament’ is a misnomer. The intertransverse ‘ligament’ consists of sheets of connective tissue extending from the upper border of one transverse process to the lower border of the one above. It lacks a distinct border medially or laterally, with less densely packed and more irregular collagen fibres than is found in a true ligament. It probably forms part of a complex fascial system separating the paravertebral com-

THE JOURNAL OF BONE AND JOINT SURGERY

FAR LATERAL LUMBAR DISC HERNIATION partments.

30

The membrane extends to the lateral aspect of the pars interarticularis and the facet. It can be incised safely provided that the underlying neural structures are protected after identification by tracing the posterior primary ramus into the intertransverse space.

We recommend the use of a muscle-splitting, intertransverse approach to a far lateral disc, with the posterior primary ramus providing the key to safe exposure of the spinal nerve and the underlying structures.

We are most grateful to Mr C. Sinnatamby, FRCS, for access to cadaver dissection at the Royal College of Surgeons of England, Mr Lionel

Williams and the Photographic Department at the Royal Berkshire Hospital, and to Mrs. J Wood and Miss J. Deacon for collating medical records and arranging the patient assessments.

No benefits in any form have been received or will be received from a commercial party related directly or indirectly to the subject of this article.

REFERENCES

1. Abdullah AF, Ditton EW III, Byrd EB, et al.

Extreme-lateral lumbar disc herniations: clinical syndrome and special problems of diagnosis.

J Neurosurg

1974;41:229-34.

2. Macnab I.

Negative disc exploration: an analysis of the causes of nerve-root involvement in sixty-eight patients.

J Bone Joint Surg [Am]

1971;53-A:891-903.

3. Patrick BS.

Extreme lateral ruptures of lumbar intervertebral discs.

Surg Neurol

1975;3:301-4.

4. Jackson RP, Glah JJ.

Foraminal and extraforaminal lumbar disc herniation: diagnosis and treatment.

Spine

1987;12:577-85.

5. Reulen HJ, Pfaundler S, Ebeling U.

The lateral microsurgical approach to the extracanalicular lumbar disc herniation. I: a technical note.

Acta Neurochir Wien

1987;84:64-7.

6. Siebner HR, Faulhauer K.

Frequency and specific surgical management of far lateral lumbar disc herniations.

Acta Neurochir Wien

1990;105:124-31.

7. Abdullah AF, Wolber PG, Warfield JR, Gunadi AK.

Surgical management of extreme lateral lumbar disc herniations: review of 138 cases.

Neurosurgery

1988;22:648-53.

8. Fankhauser H, de Tribolet N.

Extreme lateral lumbar disc herniation.

Br J Neurosurg

1987;1:111-29.

9. Hood RS.

Far lateral lumbar disc herniations.

Neurosurg Clin N Am

1993;4:117-24.

10. Porchet F, Fankhauser H, de Tribolet N.

Extreme lateral lumbar disc herniation: clinical presentation in 178 patients.

Acta Neurochir Wien

1994;127:203-9.

11. Osborn AG, Hood RS, Sherry RG, et al.

CT/MR spectrum of far lateral and anterior lumbosacral disk herniations.

Am J Neuroradiol

1988;9:775-8.

947

12. Getty CJM, Wiltse LL, Tarlov E, et al.

Discussion on extreme lateral lumbar disc herniation.

J Spinal Disord

1989;2:133-41.

13. Postacchini F, Montanaro A.

Extreme lateral herniations of lumbar disks.

Clin Orthop

1979;138:222-7.

14. Godersky JC, Erickson DL, Seljeskog EL.

Extreme lateral disc herniation: diagnosis by computed tomographic scanning.

Neurosurgery

1984;14:549-52.

15. Recoules-Arche D.

Surgery of disk hernia of the lumbar vertebral canal.

Neurochirurgie

1985;31:61-4.

16. Epstein NE, Epstein JA, Carras R, Hyman RA, Vishnubakhat SM.

Far lateral lumbar disc herniation: diagnosis and surgical management.

Neuroorthopaedics

1986;1:37-44.

17. Melvill RL, Baxter BL.

The intertransverse approach to extraforaminal disc protrusion in the lumbar spine.

Spine

1994;19:

2707-14.

18. Maroon JC, Kopitnik TA, Schulhof LA, Abla A, Wilberger JE.

Diagnosis and microsurgical approach to far-lateral disc herniation in the lumbar spine.

J Neurosurg

1990;72:378-82.

19. O’Brien MF, Peterson D, Crockard HA.

A posterolateral microsurgical approach to extreme-lateral lumbar disc herniation.

J Neurosurg

1995;83:636-40.

20. Fankhauser H, de Tribolet N.

Extraforaminal approach for extreme lateral lumbar disc herniation. In: Torrens MJ and Dickson RA, eds.

Operative spinal surgery (practice of surgery series).

Edinburgh:

Churchill Livingstone, 1991:145-60.

21. Schlesinger SM, Fankhauser H, de Tribolet N.

Microsurgical anatomy and operative technique for extreme lateral lumbar disc herniations.

Acta Neurochir Wien

1992;118:117-29.

22. Wiltse LL.

The paraspinal sacrospinalis splitting approach to the lumbar spine.

Clin Orthop

1973;91:48-57.

23. Lindblom K.

Protrusions of disks and nerve compression in the lumbar region.

Acta Radiol

1944;25:195-212.

24. Kornberg M.

Extreme lateral lumbar disc herniations: clinical syndrome and computed tomography recognition.

Spine

1987;12:586-9.

25. Novetsky GJ, Berlin L, Epstein AJ, Lobo N, Miller SH.

The extraforaminal herniated disc: detection by computed tomography.

AJNR

1982;3:653-5.

26. Kurobane Y, Takahashi T, Tajima T, et al.

Extraforaminal disc herniation.

Spine

1986;11:260-8.

27. Kunogi J, Hasue M.

Diagnosis and operative treatment of intraforaminal and extraforaminal nerve root compression.

Spine

1991;16:1312-20.

28. Williams AL, Haughton VM, Daniels DL, Thornton RS.

CT recognition of lateral lumbar disk herniation.

AJR

1982;139:345-7.

29. Dickman CA, Mamourian A, Drayer BP, et al.

MR imaging of lateral disc herniation (letter, comment).

J Neurosurg

1990;73:642-3.

30. Bogduk N, Twomey LT.

Clinical anatomy of the lumbar spine.

2nd

Ed. Edinburgh: Churchill Livingstone, 1991.

31. Bogduk N, Wilson AS, Tynan W.

The human lumbar dorsal rami.

J Anat

1982;134:383-97.

VOL. 79-B, N

O

. 6, NOVEMBER 1997

APPENDIX E

ACTIVE 26481542v5 09/05/2014

OLIF25

Procedure

Oblique Lateral Interbody Fusion

For L2 to L5 Surgical Technique

As described by:

Richard A. Hynes, MD, FACS

The B.A.C.K Center

Melbourne, Florida

Michael MacMillan, MD

University of Florida

College of Medicine

Gainesville, Florida

Brian Kwon, MD

Tufts University

School of Medicine

Boston, Massachusetts

The

Oblique Lateral Interbody Fusion (OLIF)

Procedure provides spine surgeons with a

complete minimally invasive solution

for the treatment of degenerative lumbar conditions.

By utilizing an

oblique lateral approach to the spine

, this procedure enables placement of a large interbody graft into the disc space for anterior column support while avoiding obstacles associated with traditional anterior, posterior and/or direct lateral approaches. The OLIF25™ Procedure allows for

psoas-preserving access to the L2-L5 levels

. This procedure also incorporates a comprehensive set of instruments and implants including fully integrated neuromonitoring and navigation, streamlined access instrumentation, anatomically designed implants and percutaneous fixation systems.

Interbody

CLYDESDALE®

Spinal System*

Access

MAST QUADRANT™

Lateral Retractor System

Neuromonitoring

NIM-ECLIPSE® Spinal System**

Navigation

O-ARM® System and

StealthStation® System

Fixation

CD HORIZON® SEXTANT® Percutaneous

Rod Insertion Systems and

CD HORIZON® LONGITUDE™ Multi-level

Percutaneous Fixation System

There are some risks associated with minimally invasive spine surgery, including transitioning to a conventional open procedure, neurological damage, damage to the surrounding soft tissue, and, where used, instrument malfunction. Other risks associated with implants used include device migration, non-fusion, loss of spinal curvature, correction, height, and/or reduction. Minimally invasive procedures may be associated with longer operative times.

* The CLYDESDALE® Spinal System is designed to be used with autogenous bone graft to facilitate interbody fusion and is intended for use with supplemental fixation systems cleared for use in the lumbar spine.

**The NIM-ECLIPSE® System is manufactured by Medtronic Xomed, Inc. Distributed by Medtronic Sofamor Danek USA, Inc.

Oblique Lateral Interbody Fusion

Ante-Psoas Approach

OLIF25

Surgical Technique

Preoperative Planning

NIM-ECLIPSE® Spinal System Electrode Placement

Patient Positioning

Localization

Dissection

Placement of Initial Probe

Dilation and Retractor Placement

Disc Preparation

Trialing

Implant Placement

Closure

Explantation

Fixation

Product Ordering Information

Important Product Information

21

22

27

16

17

19

20

9

10

13

15

5

7

2

3

2 OLIF25™ PROCEDURE

|

Surgical Technique

Preoperative Planning

Preoperative planning can be useful in determining:

» Location of the iliac crest and lower ribs in relation to disc space of interest

» Position of the psoas, anterior vasculature, posterior nerve structures and the kidneys via axial MRI

» The oblique angle of entry into the disc space

» Curvature of the spine

Although the OLIF25™ Approach, which is lateral to the anterior vasculature is not recommended for use at L5-S1 in certain patients, it may be performed if the patient has a low bifurcation of anterior vasculature and a low iliac crest.

Physicians should use preoperative planning to determine the location of anterior vasculature, the iliac crest, and the surgical trajectory to determine the appropriateness of this technique at the L5-S1 disc space.

Standard lateral surgical positioning is right lateral decubitus, or left side up, and is the preferred positioning for an oblique lateral approach based on vasculature positioning. However, the surgeon should consider ease of access, surgeon preference and the preoperative images in determining which side to approach. Correction can be achieved equally from either the convex or concave side of the curve.

Figure 1 Figure 2

Psoas

Vena

Cava

Aorta

OLIF25 ™ Trajectory

Psoas

Figure 3

Right Left

Figure 4

OLIF25™ PROCEDURE

|

Surgical Technique

OLIF25™ PROCEDURE

|

Surgical Technique

3

NIM-ECLIPSE® Spinal System Electrode Placement

After the patient is asleep, needle recording electrodes are placed in the innervated muscles in the legs to monitor the affected nerve roots during the procedure.

Please follow the instructions below, as well as the accompanying electrode placement guide, to correctly place the electrodes in the appropriate muscles for the desired levels.

1. Electrodes are placed prior to patient draping and the establishment of the sterile field.

2. Clean the areas with alcohol wipes.

3. The green lead ground electrode should be placed between the stimulator and the monitoring electrodes in a location where the bone is close to the skin and the electrode will not contact muscle.

4. The white stimulus return electrode should be placed near the location of stimulation. Connect the

Probe lead wire to the instrument jack of the Patient

Interface Module.

5. Tape all of the electrodes securely in place and plug the leads into the Patient Interface Module. Power on the NIM-ECLIPSE® Spinal System* to begin monitoring.

Helpful Tip

Let the anesthesiologist know EMG monitoring will be used during the procedure to ensure that no neuromuscular blocking agents are administered during monitoring. During intubation, a fast-acting neuromuscular blocking agent should be used.

Sample L2 – L5 Setup

Active: needle inserted four to five fingerbreadths (fb) below the pubic tubercle and deeply into the palpable muscle belly.

Reference: needle inserted subcutaneously above the active needle.

Channel 1

Channel 5

Left L2 – L3 AL

Right L2 – L3 AL

Adductor Longus (AL)

Active: insert needle tangentially but deep into muscle belly one handbreadth above the patella.

Reference: insert needle subcutaneously at patellar tendon.

Channel 2

Channel 6

Left L2 – L4 VL

Right L2 – L4 VL

Vastus Lateralis (VL)

*NIM-ECLIPSE® Spinal System is manufactured by Medtronic Xomed, Inc. Distributed by Medtronic Sofamor Danek USA, Inc.

4 OLIF25™ PROCEDURE

|

Surgical Technique

NIM-ECLIPSE® Spinal System Electrode Placement

continued

Active: insert needle into muscle belly three fb above the midpoint of the bi-malleolar line (lateral to the tibial crest).

Reference: insert needle over the tibial crest (shin).

Channel 3

Channel 7

Left L5 EHL

Right L5 EHL

Active: insert needle into the muscle belly one handbreadth below the posterior crease of the knee.

Reference: insert needle subcutaneously 2cm to 3cm away from the active electrode.

Channel 4

Channel 8

Left S1 – S2 GASTROC

Right S1 – S2 GASTROC

Extensor Hallucis Longus (EHL)

Medial Gastrocnemius (GASTROC)

Stimulus Return

Ground

Ground/Stimulus Return

OLIF25™ PROCEDURE

|

Surgical Technique

Patient Positioning

The patient should be placed in the right lateral decubitus (left side up) position. An axillary roll is placed to protect the neurovascular structures in the axilla. Padding is placed between the arms to ensure they remain suspended in the neutral position. Padding is also placed beneath and in between the legs from the knees distally (Figures 5 and 6) .

The legs of the patient may be slightly flexed in order to prevent the patient from rolling on the bed. However, extreme flexion to relax the psoas is not required because the approach is outside or within the anterior portion of the psoas (ante-psoas).

Breaking of the surgical table is not required, even if the patient has a high iliac crest and deep seated L4-5 disc space, as the oblique lateral approach is anterior to the iliac crest.

The patient is secured to the surgical table with tape at four locations:

1. Just beneath the iliac crest

2. Over the thoracic region, just beneath the shoulder

3. From the back of the table, over the ankle, and past the knee to the front of the table

4. From the shin to the back of the table

The surgeon and operating team should be positioned to work on the abdominal side of the patient with the C-Arm positioned posterior to the patient.

OLIF25™ PROCEDURE

|

Surgical Technique

5

Figure 6

Figure 5

6 OLIF25™ PROCEDURE

|

Surgical Technique

Patient Positioning

continued

First, an AP image should be obtained to ensure the patient is positioned in a true lateral position

(Figure 7)

.

On the AP x-ray clear, distinct pedicles that are equidistant from the spinous process should be visible. Then, a lateral x-ray is obtained and clean, distinct end plates should be seen

(Figure 8)

. Pedicles should overlap as should transverse processes to ensure a true lateral position has been achieved.

!

Important

It is critical the C-arm remain in the 0° and 90° positions at all times to ensure true lateral positioning and a safe lateral working channel across the disc space. For multilevel cases, rotate the surgical table independent of the C-arm for each level to obtain true images. Each disc space is measured on lateral fluoroscopy and line drawn on the patient to assist the radiology technician with lining up the angle specific to each disc.

Figure 7

Figure 8

OLIF25™ PROCEDURE

|

Surgical Technique

OLIF25™ PROCEDURE

|

Surgical Technique

7

Localization

Fluoroscopy is used to confirm the target segment and mark the location for the initial incision. The disc spaces of interest, lower ribs and iliac crest can be marked on the skin as landmarks. For a single-level case the patient should be marked 4cm-10cm anterior to the midsection of the target disc (or approximately one third of the distance from the top of the iliac crest to the umbilicus).

A 3cm to 6cm vertical, horizontal or oblique incision can be made. For a two-level case, the patient should be marked 4cm-10cm anterior to the midsection of the intervening vertebral body. In addition, the lumbar lordosis of the operative levels can be marked on the skin to determine the angle in line with the disc space

(Figures 9 –11) .

Skin Incision

Zone

Two-level

Incision L2 – 4

Figure 9

Single-level

Incision L4 – 5

Skin Incision

Zone

OLIF25™

Trajectory

Figure 10

Figure 11

8 OLIF25™ PROCEDURE

|

Surgical Technique

Localization

continued

If image guidance is being used, a Navigation probe may be used to approximate the location of the initial skin incision based on the system images (Figures 12 and 13) .

Figure 12

Figure 13

NIM® Stimulated Dilator Set*

(Direct Lateral Dilator)

945NSD2750

Navigated Dilator*

9733817

* Not shown in intraoperative photograph

OLIF25™ PROCEDURE

|

Surgical Technique

OLIF25™ PROCEDURE

|

Surgical Technique

9

Dissection

After making a single skin incision, the subcutaneous fat layers are dissected until the abdominal musculature is reached. A monopolar cautery may be used for hemostasis, and a small self-retaining retractor can be used for initial dissection of the skin and subcutaneous layer.

The external oblique fascia will be the first plane encountered and is the only layer that will need to be sharply incised. A Kelly Clamp is then used to bluntly spread through the fibers of the external oblique, internal oblique, and transversalis muscles. All dissection is done in line with the muscle fibers as these muscle layers run in opposite directions. After bluntly penetrating the transversalis fascia, the yellow retroperitoneal fat is exposed.

Once inside the retroperitoneal space, the index finger is used to follow the internal abdominal wall posteriorly down to the psoas muscle, which can be visualized.

The finger or a blunt instrument is used to sweep the peritoneal contents, including the ureter, which reflects with the peritoneum, and the retroperitoneal fat anteriorly past the anterior portion of the psoas clearing to the anterior vertebral body (Figure 14) .

Direct visualization may be employed in addition to tactile feel to ensure a safe approach to the disc space free from vascular, peritoneal and nerve obstructions.

The fat overlying the psoas muscle can be swept in a cephalad and caudal direction as well as dorsoventral with handheld retractors in order to visualize placement of the NIM® X-PAK Probe or the first Direct

Lateral Dilator (Figure 15) . Use of hand-held retractors placed between peritoneal contents and the Probe will also minimize risk of injury to ureters and vascular structures anteriorly. A kitner or cloth-based dissector may be used to sweep soft tissue structures anteriorly.

Figure 14 Figure 15

Helpful Tip

Entering the transversalis fascia obliquely from anterior in the incision to posterior to the quadratus muscle will prevent inadvertent entry into the peritoneum. Palpating the quadratus muscle, followed by the tip of the transverse process and finally the psoas muscle, will help verify that the correct retroperitoneal plane is being entered and ensures that the peritoneum is not compromised.

10 OLIF25™ PROCEDURE

|

Surgical Technique

Placement of Initial Probe

After a safe retroperitoneal pathway to the anterior portion of the psoas has been established under direct visualization, a probe (NIM® X-PAK Probe or the first

Direct Lateral Dilator) is guided down to the disc space in front or on the anterior portion of the psoas while using the finger or handheld retractors to protect the peritoneal membrane and retract retroperitoneal fat

(Figures 16 and 17)

(see Helpful Tip on Page 9). The

NIM® X-PAK Probe and Direct Lateral Dilator include an insulated shaft that enables controlled electrification at the tip of the devices.

A Needle Driver is used to position the NIM® X-PAK

Probe onto the disc space or psoas. The preferred starting position of the probe on the disc space is anterior to the psoas and away from the major vessels, although the probe may start on the anterior portion of the psoas muscle as well. Approaching the spine obliquely as opposed to direct lateral will further ensure the instruments work away from the peritoneum and anterior vascular structures. The oblique angle of the probe may be assessed preoperatively and measured intraoperatively using a mechanical or digital protractor.

Probe position should be confirmed using lateral fluoroscopy or image-guided navigation (if using the

Direct Lateral Dilator) (Figure 18) .

Figure 16

Figure 17

Figure 18

OLIF25™ PROCEDURE

|

Surgical Technique

OLIF25™ PROCEDURE

|

Surgical Technique

11

Placement of Initial Probe

continued

Avoiding the posterior aspect of the psoas muscle or staying out of the psoas muscle completely will minimize the potential risk to the nerves within the psoas and to the psoas muscle itself. Cadaveric studies have shown that the motor nerves typically reside in the posterior one third of the psoas muscle

(Figure 19)

.

Note that the entry point into the disc may be slightly more anterior than the midpoint of the disc

(Figure 20)

.

This will minimize the risk of injury to the contralateral foramen due to the oblique trajectory of disc preparation instruments and cage placement.

After the proper position has been established, carefully pass the probe into the disc space. If passing the probe through the anterior portion of the psoas, current is delivered to monitor for any neural structures as the fibers of the muscle are being split. The recommended stimulating current setting is between 6 milliamps and 8 milliamps. If an EMG response is generated at this level, the probe should be repositioned until a nerve-free pathway is located.

Figure 19

DLIF Trajectory

OLIF25

Trajectory

Helpful Tip

When monitoring with the NIM-ECLIPSE® Spinal System, the surgeon has the additional option of setting the machine to nerve proximity mode. In this mode, the system will send out a cycling current to continuously search for the stimulus threshold required to elicit an EMG response.

The displayed current value will decrease as the

NIM® X-PAK Probe is moved closer to a nerve. Ensuring threshold values above 8 milliamps is recommended

(Figure 21 ).

Figure 21

Figure 20

!

Important

Please see the NIM-ECLIPSE® Spinal System package insert and user’s manual for complete instructions and a list of warnings, precautions, and other medical information. The NIM-ECLIPSE® Spinal System is intended for use to record, monitor, and stimulate/ record biopotential signals including electromyograph

(EMG), evoked response and nerve/muscle potentials, and intraoperative diagnosis of acute dysfunction in corticospinal axonal conduction. The system provides feedback to the surgeon and OR team to assist in the localization and assessment of spinal nerves and verification of placement of spinal instrumentation to avoid injury to at-risk nerve roots.

12 OLIF25™ PROCEDURE

|

Surgical Technique

Placement of Initial Probe

continued

After the probe has safely passed in front of or through the anterior portion of the psoas, the tip of the probe should be passed into the disc space to secure its location. The oblique angle and lordotic angle of the probe as it enters the disc space may be assessed preoperatively and measured intraoperatively using image guidance or using a mechanical or digital protractor.

Fluoroscopy or image guidance (if using the Direct

Lateral Dilator) is used to confirm proper probe alignment into the disc space (Figures 22 and 23) .

If the NIM® X-PAK Probe is used, the blue stimulating handle is then removed, leaving only the insulated cannula within the disc space. A guidewire is then placed through the cannula into the desired disc space and its position confirmed with fluoroscopy.

Figure 22

Figure 23

OLIF25™ PROCEDURE

|

Surgical Technique

OLIF25™ PROCEDURE

|

Surgical Technique

13

Dilation and Retractor Placement

With the guidewire or first dilator in place and impacted into the annulus for firm fixation, sequential dilation is used to spread the fibers of the abdominal musculature to a diameter of

22mm (Figure 24) . If the anterior portion of the psoas muscle is dilated, EMG is active to detect any mechanical and triggered effect to the nerve roots.

Measure the depth from the skin to the disc space using the graduated markings on the dilators and select the appropriate Retractor Blades. Attach the blades to the Lateral Retractor base and place the assembly over the Grooved Dilator

(Figures 25-27)

.

The retractor should be advanced employing a back and forth twisting motion with only gentle downward pressure through the fascia and muscle.

This technique helps to ensure the fascia and muscle fibers are not pulled down into the surgical corridor.

Helpful Tip

To minimize the amount of residual muscle, employ a back and forth twisting motion with each dilator and use AP fluoroscopy to confirm that each dilator has reached the disc space. The first dilator may be extended slightly into the disc space to ensure complete dilation through the psoas muscle.

!

Important

The grooves on the largest dilator should be aligned cephalad and caudal and must be aligned with the corresponding retractor Stability Pin channels on the blades.

Failure to mate the grooves could cause the blades to splay.

Figure 25

Figure 24

Figure 26

Figure 27

14 OLIF25™ PROCEDURE

|

Surgical Technique

Dilation and Retractor Placement

continued

The Retractor Assembly is then attached to the Flexible

Arm using the Rotating Flex Arm Attachment to provisionally maintain retractor position.

It is important to align the retractor blades so that the opening between them is parallel to the disc space. Utilize the skin markings drawn during localization to orient the Retractor Blades. This will facilitate orthogonal disc preparation and final implant placement.

Use the NIM-SPINE® Ball-tip Probe to test both Stability

Pin channels of the Retractor Blades to ensure a nervefree pathway before placing a pin.

Insert a Stability Pin through one of the Retractor

Blades to help prevent retractor migration during the procedure. Use the Stability Pin Driver to thread the pin in the channel of whichever blade is closest to the end plate (Figure 28) .

Fluoroscopy is recommended for placement of the

Stability Pin to ensure it is not placed too far anteriorly risking injury to vascular structures.

With the Stability Pin in place, the Dilator Tubes are removed, leaving only the Retractor Assembly and Guidewire or first dilator. The Guidewire or first dilator may be left in place as a final reference point to verify position.

A final lateral fluoroscopic image is taken to confirm proper retractor placement over the spine.

Figure 28

OLIF25™ PROCEDURE

|

Surgical Technique

OLIF25™ PROCEDURE

|

Surgical Technique

15

Disc Preparation

The MAST QUADRANT™ Illumination System is attached to the Retractor Blades by placing the metal tips of the light source into the holes on the top of the blades and then sliding the tips under the built-in retaining sleeves.

Typically a thin layer of soft tissue will remain at the base of the Retractor Blades. The NIM-SPINE® Ball-tip Probe is used to stimulate in all four quadrants at the Retractor Base in order to identify any nerve structures that may be present in the residual muscle.

A Penfield 4 is then used to sweep the residual muscle off of the disc space until the annulus is visualized.

The annulus is then incised and an annulotomy at least

18mm in length is created using the Bayoneted Knife

(Figure 29)

. Undercut, beneath the psoas, more annulus as needed with Kerrison rongeur which facilitates implant position and implantation and permits easy rotation of implant into orthogonal position.

A thorough discectomy is then performed using pituitaries and other disc preparation instruments (Figure 30) .

A large Cobb is passed along both end plates to the contralateral annulus. A mallet is then used to gently release both the superior and inferior aspects of the contralateral annulus. This step is critical to ensure that appropriate distraction and coronal alignment can be achieved.

A Paddle Style Shaver is placed into the disc space and rotated several times (clockwise and counterclockwise) to clean the end plates (Figure 31) . AP fluoroscopy should be used to center the shaver in the disc before turning (Figure 32) . The appropriately-sized shavers should be carefully selected to ensure the end plates are not compromised.

Serrated Curettes, Rasps, a Ring Curette, a Uterine Curette and Combo Tools are used to ensure proper end-plate preparation. It is extremely important that the end plates be meticulously prepared for fusion by removing the cartilaginous disc without destroying the cortical end plates.

Figure 29 Figure 30

!

Important

All disc preparation instruments, including the Cobb and Shavers, can enter obliquely through the retractor and then be turned orthogonally to allow the surgeon to work orthogonally across the disc space and release the contralateral annulus.

The retractor should be slightly opened to allow for the instruments to turn orthogonally. A mechanical or digital protractor may be used to assess the oblique and lordotic angles of entry into the disc space, but the location of the instruments is confirmed using fluoroscopy.

Figure 31 Figure 32

16 OLIF25™ PROCEDURE

|

Surgical Technique

Trialing

The disc space is sequentially distracted with Trials until adequate disc space height is obtained and adequate foraminal size is restored.

The Trials are passed through the retractors obliquely and then are turned to allow the surgeon to place them orthogonally across the disc space. A mechanical or digital protractor may be used to further assess the oblique and lordotic angles of entry into the disc space, but the location of the trials is confirmed using fluoroscopy or image guidance

(Figures 33 – 35)

.

The Trial is impacted into the disc space. A properly-sized

Trial should be centered with the spinous process and should span the entire ring apophysis in order to reach fully across the vertebral body end plate.

Helpful Tip

When using 22mm Trials, it may be necessary to open the

Retractor Blades more to allow the passing of the larger Trial.

Figure 33

Figure 34 Figure 35

OLIF25™ PROCEDURE

|

Surgical Technique

Implant Placement

Once trialing is complete, the corresponding CLYDESDALE®

Spinal System implant is attached to the Inserter

(Figure 36) or the optional DL Inserter. The DL Inserter utilizes sleeves for graft containment. The sleeves must be retracted to attach the implant.

If using a lordotic implant, take note of the anterior side of the implant, marked

ANTERIOR

.

Before inserting the CLYDESDALE® Spinal System implant, place autograft in the implant’s central cavity.

If using the DL Inserter, slightly extend the sleeves to cover the implant’s graft chamber or fully extend the sleeves to cover the entire implant by unthreading the nut from the outer sleeve

(Figures 37 and 38)

.

OLIF25™ PROCEDURE

|

Surgical Technique

17

Figure 36

Figure 37

Figure 38

!

Important

For disassembly/reassembly and cleaning information on the DL Inserter (part number 2942001), refer to the Cleaning section of the CLYDESDALE® Spinal

System Important Product Information beginning on page 27 of this surgical technique.

18 OLIF25™ PROCEDURE

|

Surgical Technique

Implant Placement

continued

A mallet is then used to gently insert the implant while monitoring placement under AP fluoroscopy. The inserter enters obliquely and can then be turned orthogonally to allow the surgeon to place it orthogonally across the disc space. A mechanical or digital protractor may be used to further assess the oblique and lordotic angles of entry into the disc space, but the location of the implant is confirmed using fluoroscopy or image guidance. Near complete rotation and alignment of the implant should be complete by the time approximately 50 – 75% of the implant is inserted into the disc space while fluoroscopy is in lateral position. The implant is easily viewed during this insertion due to the oblique view portal through the retractors.

Then, the final positioning of implant should be completed under AP fluoroscopy. Care should be taken to ensure the

CLYDESDALE® Spinal System implant is aligned properly.

After the implant is positioned in the center of the disc space from a medial/lateral perspective, the

Inserter is unthreaded from the implant and removed

(Figures 39 – 44)

.

Figure 39

Figure 41

Figure 40

Figure 42

Figure 43

(For navigation use the Navigation Interbody inserter, Part Number 97344556.

Instrument not shown in intraoperative photographs.)

Figure 44

OLIF25™ PROCEDURE

|

Surgical Technique

OLIF25™ PROCEDURE

|

Surgical Technique

19

Closure

After the autograft material has been inserted into the disc space, the Stability Pin may be unthreaded and removed.

The Retractor is then detached from the Flex Arm and the Retractor Blades are carefully withdrawn from the surgical site. As the Retractor is removed, the muscle and fat layers can be visualized closing back into place.

The surgical site is irrigated appropriately and the fascia over the external oblique is then closed with interrupted synthetic absorbable suture.

Finally, the subcutaneous layers and skin are closed and the skin is sealed with skin adhesive.

20 OLIF25™ PROCEDURE

|

Surgical Technique

Explantation

Should it be necessary to remove or reposition the

CLYDESDALE® Spinal System device, the Removal Tool may be used.

To remove the implant, first fit the tips of the Removal Tool with the divots at the end of the implant (Figure 45) . Next, depress the trigger to lock onto the implant. Finally, attach the Slap Hammer to the Removal Tool and gently impact the Slap Hammer to facilitate implant removal

(Figure 46)

.

Figure 46

Figure 45

OLIF25™ PROCEDURE

|

Surgical Technique

Fixation

Supplemental instrumentation is then placed according to the appropriate surgical technique. The CLYDESDALE®

Spinal System can be used with any Medtronic posterior or anterior fixation system.

»

CD HORIZON® SEXTANT® II

Percutaneous Rod

Insertion System

OLIF25™ PROCEDURE

|

Surgical Technique

21

»

CD HORIZON® LONGITUDE®

Multi-level Percutaneous

Fixation System

INDICATIONS FOR THE CD HORIZON® Spinal System

The CD HORIZON® Spinal System with or without SEXTANT® instrumentation is intended for posterior, non-cervical fixation as an adjunct to fusion for the following indications: degenerative disc disease (defined as back pain of discogenic origin with degeneration of the disc confirmed by history and radiographic studies); spondylolisthesis; trauma (i.e., fracture or dislocation); spinal stenosis; curvatures (i.e., scoliosis, kyphosis and/or lordosis); tumor; pseudarthrosis; and/or failed previous fusion.

Except for hooks, when used as an anterolateral thoracic/lumbar system, the CD HORIZON® Spinal System may also be used for the same indications as an adjunct to fusion.

With the exception of degenerative disc disease, the CD HORIZON® LEGACY™ 3.5mm rods and the CD HORIZON® Spinal System

PEEK rods and associated components may be used for the aforementioned indications in skeletally mature patients as an adjunct to fusion. The 3.5mm rods may be used for the specific pediatric indications noted below.

When used for posterior non-cervical pedicle screw fixation in pediatric patients, the CD HORIZON® Spinal System implants are indicated as an adjunct to fusion to treat adolescent idiopathic scoliosis. Additionally, the CD HORIZON® Spinal System is intended to treat pediatric patients diagnosed with the following conditions: spondylolisthesis/spondylolysis and fracture caused by tumor and/or trauma. These devices are to be used with autograft and/or allograft. Pediatric pedicle screw fixation is limited to a posterior approach.

The CD HORIZON® SPIRE™ Plate is a posterior, single level, non-pedicle supplemental fixation device intended for use in the noncervical spine (T1-S1) as an adjunct to fusion in skeletally mature patients. It is intended for plate fixation/attachment to spinous processes for the purpose of achieving supplemental fixation in the following conditions: degenerative disc disease (as previously defined); spondylolisthesis; trauma; and/or tumor.

In order to achieve additional levels of fixation, the CD HORIZON® Spinal System rods may be connected to the VERTEX®

Reconstruction System with the VERTEX® rod connector. Refer to the VERTEX® Reconstruction System Package Insert for a list of the

VERTEX® indications of use.

Warning:

The safety and effectiveness of this device has not been established for use as part of a growing rod construct. This device is only intended to be used when definitive fusion is being performed at all instrumented levels.

22 OLIF25™ PROCEDURE

|

Surgical Technique

Product Ordering Information

INSTRumENT CASE 1

SPS02028 – Retractor and Kerrison Pituitary Trays

Part

Number

Description

Retractor, Blades, Pins, and Driver

9569000 Retractor Base

9568010 Rotating Flex Arm Attachment

9567319 9cm Retractor Blade Internal Pin, Right

9567309 9cm Retractor Blade Internal Pin, Left

9567310 10cm Retractor Blade Internal Pin, Right

9567300 10cm Retractor Blade Internal Pin, Left

9567311 11cm Retractor Blade Internal Pin, Right

9567301 11cm Retractor Blade Internal Pin, Left

9567312 12cm Retractor Blade Internal Pin, Right

9567302 12cm Retractor Blade Internal Pin, Left

9567313 13cm Retractor Blade Internal Pin, Right

9567303 13cm Retractor Blade Internal Pin, Left

9567315 15cm Retractor Blade Internal Pin, Right

9567305 15cm Retractor Blade Internal Pin, Left

9569309 9cm Blade Pin

9569310 10cm Blade Pin

9569311 11cm Blade Pin

9569312 12cm Blade Pin

9569313 13cm Blade Pin

9569315 15cm Blade Pin

8970400 Stability Pin Driver

Dilators

9560420 5.3mm Dilator

9561421 10.6mm Dilator

9561422 16.0mm Dilator

9561424 20.8mm Grooved Dilator

Guidewires

8670002 Guidewire Sharp (long)

8670005 Guidewire – Trocar Tip

1.6mm, 350mm (short)

Set

Quantity

1

1

1

1

2

2

1

2

1

1

1

1

1

1

1

1

1

1

1

1

1

2

2

2

2

2

1

INSTRumENT CASE 2

SPS02027 – CLYDESDALE® Trial and Inserter Removal Trays

Part

Number

Description

Set

Quantity

Trials

2986845 8mm × 45mm DL Trial

2986850 8mm × 50mm DL Trial

2986855 8mm × 55mm DL Trial

2986045 10mm × 45mm DL Trial

2986050 10mm × 50mm DL Trial

2986055 10mm × 55mm DL Trial

2986245 12mm × 45mm DL Trial

2986250 12mm × 50mm DL Trial

2986255 12mm × 55mm DL Trial

2986445 14mm × 45mm DL Trial

2986450 14mm × 50mm DL Trial

2986455 14mm × 55mm DL Trial

2986645 16mm × 45mm DL Trial

2986650 16mm × 50mm DL Trial

2986655 16mm × 55mm DL Trial

Instruments

9074002 Slap Hammer

2982002 DL Removal Tool

2982001 Threaded Inserter

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

DISPOSABLE CASES

SPS00589 – Disposables

Part

Number

Description

Set

Quantity

NIm-SPINE® Probes, Dilator, Light Source, and Knife

9450015

9450069

9560658

NIM-SPINE® 23cm Ball-tip Probe

NIM® X-PAK Probe

MAST QUADRANT® Illumination

System

9450070 5.3mm Dilator (Plastic)

9560659 Bayoneted Discectomy Knife

1

1

1

1

1

Kerrisons and Pituitaries

2940068 3mm Rotate Kerrison Punch

2940069 5mm Rotate Kerrison Punch

2940075 Pituitary Rongeur, 4mm × 10mm

Straight

1

2940076 Pituitary Rongeur, 4mm × 10mm Up 1

1

1

INSTRumENT CASE 3

SPS00586 – Flex Arm Tray

Part

Number

Description

Flex Arm and Attachment

9561523 Bed Rail Clamp

9561524 Flexible Arm

Set

Quantity

1

1

OLIF25™ PROCEDURE

|

Surgical Technique

OLIF25™ PROCEDURE

|

Surgical Technique

23

Product Ordering Information

continued

INSTRumENT CASE 4

SPS02029 – Instrument Trays 1 and 2

Part

Number

Description

Disc Preparation Instruments Tray 1

2940050 Combo Tool

2940051 Angled Combo Tool

2940052 Reverse Angle Combo Tool

2940053 Straight Serrated Cup Curette

2940054 Angled Serrated Cup Curette

2940055 Reverse Angle Serrated Cup

Curette

2940056 Straight Ring Curette

2940057 10mm Cobb Elevator

2940059 18mm Cobb Elevator

Disc Preparation Instruments Tray 2

2940186 6/8mm Distractor

9561554 Wide Nerve Root Retractor, Long

9569650 Bayoneted Penfield 4 Push/Pull,

Long

2940200 Long Suction

2900165 Cannulated Reamer T-Handle

2941608 8mm Shaver, 45mm length

2941610 10mm Shaver, 45mm length

2941612 12mm Shaver, 45mm length

2941614 14mm Shaver, 45mm length

2941616 16mm Shaver, 45mm length

Set

Quantity

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

2

1

1

1

DL SuPPORT SET - DISC PREPARATION

INSTRumENTS

SPS02408 - Disc Preparation Tray 1

Part

Number

Description

2942001 DL Inserter

2942049 DL Slap Hammer

2942037 10mm Endplate Protector

2942058 18mm Endplate Protector

2942026 8mm Rotate Distractor

2942028 10mm Rotate Distractor

2942030 12mm Rotate Distractor

2942032 14mm Rotate Distractor

2942020 Osteotome

2942017 Dilator Holder

74-619-106 6mm Pituitary Rongeur

Set

Quantity

1

1

1

1

2

2

1

1

1

1

1

DL SuPPORT SET - DISC PREPARATION

INSTRumENTS

SPS02408 - Disc Preparation Tray 2

Part

Number

Description

2942035 10mm Straight Cobb

2942036 18mm Straight Cobb

2942014 5.5mm 90 degree Push Curette

2942015 5.5mm 45 degree Pull Curette

2942016 5.5mm 90 degree Pull Curette

2942012 Uterine Curette

2942018 Flat Rasp

2942019 Curved Rasp

2942023 14mm Wedge Distractor

2942024 18mm Wedge Distractor

DL SuPPORT SET - ACCESS INSTRumENTS

SPS02409 - Access Instrument Tray 1

Part

Number

Description

9569324 14mm Stability Pin

9569326 16mm Stability Pin

9569327 17mm Stability Pin

9567314 DL Blade Right 14cm

9567304 DL Blade Left 14cm

9567316 DL Blade Right 16cm

9567306 DL Blade Left 16cm

9567317 DL Blade Right 17cm

9567307 DL Blade Left 17cm

2942022 Access Handle Left

2942050 Access Handle Right

2942011 Retractor Opener

Set

Quantity

1

1

1

1

2

1

2

2

1

2

1

1

Set

Quantity

1

1

1

1

1

1

1

1

1

1

DL SuPPORT SET - ACCESS INSTRumENTS

SPS02409 - Access Instrument Tray 2

Part

Number

Description

9568008 Medial Lateral Rack Assembly

2942002 9cm Anterior/Posterior Blade

2942003 10cm Anterior/Posterior Blade

2942004 11cm Anterior/Posterior Blade

2942005 12cm Anterior/Posterior Blade

2942006 13cm Anterior/Posterior Blade

2942007 14cm Anterior/Posterior Blade

2942008 15cm Anterior/Posterior Blade

2942009 16cm Anterior/Posterior Blade

2942010 17cm Anterior/Posterior Blade

Set

Quantity

2

2

2

2

2

2

2

2

1

2

24 OLIF25™ PROCEDURE

|

Surgical Technique

Product Ordering Information

continued

CLYDESDALE® 22mm DL Trials

SPS02418

Part Number Description

6° CLYDESDALE® 22mm Trial Set

2988845

2988850

2988855

2988045

2988050

2988055

2988245

2988250

2988255

2988445

2988450

2988455

2988645

2988650

2988655

8mm × 45mm

8mm × 50mm

8mm × 55mm

10mm × 45mm

10mm × 50mm

10mm × 55mm

12mm × 45mm

12mm × 50mm

12mm × 55mm

14mm × 45mm

14mm × 50mm

14mm × 55mm

16mm × 45mm

16mm × 50mm

16mm × 55mm

CLYDESDALE® 22mm DL Trials

SPS02419

Part Number Description

12° CLYDESDALE® 22mm Trial Set

2989045

2989050

2989055

2989245

2989250

2989255

2989445

2989450

2989455

2989645

2989650

2989655

10mm × 45mm

10mm × 50mm

10mm × 55mm

12mm × 45mm

12mm × 50mm

12mm × 55mm

14mm × 45mm

14mm × 50mm

14mm × 55mm

16mm × 45mm

16mm × 50mm

16mm × 55mm

OLIF25™ PROCEDURE

|

Surgical Technique

OLIF25™ PROCEDURE

|

Surgical Technique

25

Product Ordering Information

continued

CLYDESDALE® SPINAL SYSTEm ImPLANTS

Part Number Description

2968440

2968445

2968450

2968455

2968460

2968640

2968645

2968650

2968655

2968660

6° CLYDESDALE® Spinal System SPS02156

2968840 8mm × 40mm

2968845

2968850

8mm × 45mm

8mm × 50mm

2968855

2968860

2968040

2968045

8mm × 55mm

8mm × 60mm

10mm × 40mm

10mm × 45mm

2968050

2968055

2968060

2968240

2968245

2968250

2968255

2968260

10mm × 50mm

10mm × 55mm

10mm × 60mm

12mm × 40mm

12mm × 45mm

12mm × 50mm

12mm × 55mm

12mm × 60mm

14mm × 40mm

14mm × 45mm

14mm × 50mm

14mm × 55mm

14mm × 60mm

16mm × 40mm

16mm × 45mm

16mm × 50mm

16mm × 55mm

16mm × 60mm

CLYDESDALE® SPINAL SYSTEm ImPLANTS

Part Number Description

0° CLYDESDALE® Spinal System SPS02157

2969840

2969845

2969850

2969855

2969040

2969045

2969050

2969055

2969240

2969245

2969250

2969255

2969440

2969445

2969450

2969455

2969640

2969645

2969650

2969655

8mm × 40mm

8mm × 45mm

8mm × 50mm

8mm × 55mm

10mm × 40mm

10mm × 45mm

10mm × 50mm

10mm × 55mm

12mm × 40mm

12mm × 45mm

12mm × 50mm

12mm × 55mm

14mm × 40mm

14mm × 45mm

14mm × 50mm

14mm × 55mm

16mm × 40mm

16mm × 45mm

16mm × 50mm

16mm × 55mm

26 OLIF25™ PROCEDURE

|

Surgical Technique

Product Ordering Information

continued

CLYDESDALE® SPINAL SYSTEm ImPLANTS

Part Number Description

6° CLYDESDALE® 22mm Spinal System SPS02416

2926840

2926845

2926850

2926855

2926860

2926040

2926045

2926050

2926055

2926060

2926240

2926245

2926250

2926255

2926260

2926440

2926445

2926450

2926455

2926460

2926640

2926645

2926650

2926655

2926660

8mm × 40mm

8mm × 45mm

8mm × 50mm

8mm × 55mm

8mm × 60mm

10mm × 40mm

10mm × 45mm

10mm × 50mm

10mm × 55mm

10mm × 60mm

12mm × 40mm

12mm × 45mm

12mm × 50mm

12mm × 55mm

12mm × 60mm

14mm × 40mm

14mm × 45mm

14mm × 50mm

14mm × 55mm

14mm × 60mm

16mm × 40mm

16mm × 45mm

16mm × 50mm

16mm × 55mm

16mm × 60mm

CLYDESDALE® SPINAL SYSTEm ImPLANTS

Part Number Description

12° CLYDESDALE® 22mm Spinal System SPS02417

2922040

2922045

2922050

2922055

2922060

2922240

2922245

2922250

2922255

2922260

2922440

2922445

2922450

2922455

2922460

2922640

2922645

2922650

2922655

2922660

10mm × 40mm

10mm × 45mm

10mm × 50mm

10mm × 55mm

10mm × 60mm

12mm × 40mm

12mm × 45mm

12mm × 50mm

12mm × 55mm

12mm × 60mm

14mm × 40mm

14mm × 45mm

14mm × 50mm

14mm × 55mm

14mm × 60mm

16mm × 40mm

16mm × 45mm

16mm × 50mm

16mm × 55mm

16mm × 60mm

OLIF25™ PROCEDURE

|

Surgical Technique

OLIF25™ PROCEDURE

|

Surgical Technique

27

Important Product Information

IMPORTANT INFORMATION ON CLYDESDALE® SPINAL SYSTEM

PURPOSE

This device is a PEEK (POLYETHERETHERKETONE) interbody fusion device intended for stabilization use and to promote bone fusion during the normal healing process following surgical correction of disorders of the spine. The product should be implanted only by a physician who is thoroughly knowledgeable in the implant's material and surgical aspects and who has been instructed as to its mechanical and material applications and limitations.

DESCRIPTION

The CLYDESDALE® Spinal System consists of PEEK cages of various widths and heights, which include Tantalum markers. These devices can be inserted between two lumbar or lumbosacral vertebral bodies to give support and correction during lumbar interbody fusion surgeries. The hollow geometry of the implants allows them to be packed with autogenous bone graft.

Implied warranties of merchantability and fitness for a particular purpose or use are specifically excluded. See the

MDT Catalog or price list for further information about warranties and limitations of liability.

INDICATIONS

The CLYDESDALE® Spinal System is designed to be used with autogenous bone graft to facilitate interbody fusion and is intended for use with supplemental fixation systems cleared for use in the lumbar spine. The CLYDESDALE®

Spinal System is used for patients diagnosed with degenerative disc disease (DDD) at one or two contiguous levels from L2 to S1. These DDD patients may also have up to Grade 1 Spondylolisthesis or retrolisthesis at the involved levels. DDD is defined as discogenic back pain with degeneration of the disc confirmed by history and radiographic studies. These patients should be skeletally mature and have had six months of non-operative treatment.

These implants may be implanted via a minimally invasive lateral approach.

CONTRAINDICATIONS

This device is not intended for cervical spine use.

Contraindications include, but are not limited to:

• Infection, local to the operative site

• Signs of local inflammation,

• Fever or leukocytosis,

• Morbid obesity,

• Pregnancy,

• Mental illness,

• Any other condition which would preclude the potential benefit of spinal implant surgery, such as the presence of tumors or congenital abnormalities, fracture local to the operating site, elevation of sedimentation rate unexplained by other diseases, elevation of white blood count (WBC), or a marked left shift in the WBC differential count.

• Suspected or documented allergy or intolerance to composite materials,

• Any case not needing a fusion,

• Any case not described in the indications,

• Any patient unwilling to cooperate with postoperative instructions.

• Patients with a known hereditary or acquired bone friability or calcification problem.

• Pediatric cases or where the patient still has general skeletal growth.

• Spondylolisthesis unable to be reduced to Grade 1.

• Any case where the implant components selected for use would be too large or too small to achieve a successful result.

• Any case that requires the mixing of metals from two different components or systems.

• Any patient having inadequate tissue coverage over the operative site or inadequate bone stock or quality.

• Any patient in which implant utilization would interfere with anatomical structures or expected physiological performance.

• Prior fusion at the level to be treated.

NOTA BENE:

Although not absolute contraindications, conditions to be considered as potential factors for not using this device include:

• Severe bone resorption.

• Osteomalacia

• Severe osteoporosis.

POTENTIAL ADVERSE EVENTS

Adverse effects may occur when the device is used either with or without associated instrumentation.

The potential risk of adverse effects as a result of movement and non-stabilization may increase in cases where associated complementary support is not employed. Potential adverse events include but are not limited to:

• Implant migration.

• Breakage of the device(s).

• Foreign body reaction to the implants including possible tumor formation, auto immune disease, and/or scarring.

• Pressure on the surrounding tissues or organs.

• Loss of proper spinal curvature, correction, height, and/or reduction.

• Infection.

• Bone fracture or stress shielding at, above, or below the level of surgery.

• Non-union (or pseudoarthrosis).

• Loss of neurological function, appearance of radiculopathy, dural tears, and/or development of pain.

Neurovascular compromise including paralysis temporary or permanent retrograde ejaculation in males, or other types of serious injury.

• Cerebral spinal fluid leakage.

• Haemorrhage of blood vessels and/or hematomas.

• Discitis, arachnoiditis, and/or other types of inflammation.

• Deep venous thrombosis, thrombophlebitis, and/or pulmonary embolus.

• Bone graft donor site complication.

• Inability to resume activities of normal daily living.

• Early or late loosening or movement of the device(s).

• Urinary retention or loss of bladder control or other types of urological system compromise.

• Scar formation possibly causing neurological compromise or compression around nerves and/or pain.

• Fracture, microfracture, resorption, damage, or pene¬tration of any spinal bone (including the sacrum, pedicles, and/or vertebral body) and/or bone graft or bone graft harvest site at, above, and/or be¬low the level of surgery.

• Retropulsed graft.

• Herniated nucleus pulposus, disc disruption, or degeneration at, above, or below the level of surgery.

• Loss of or increase in spinal mobility or function.

• Reproductive system compromise, including sterility, loss of con¬sortium, and sexual dysfunction.

• Development of respira¬tory problems, e.g. pul¬monary embolism, atelectasis, bron¬chitis, pneumonia, etc.

• Change in mental status.

• Cessation of any poten¬tial growth of the operated por¬tion of the spine.

• Death.

WARNINGS AND PRECAUTIONS

A successful result is not always achieved in every surgical case. This fact is especially true in spinal surgery where other patient conditions may compromise the results. Use of this product without bone graft or in cases that do not develop a union will not be successful.

Preoperative and operating procedures, including knowledge of surgical techniques, good reduction, and correct selection and placement of the implants are important considerations in the successful utilization of the system by the surgeon. Further, the proper selection and the compliance of the patient will greatly affect the results. Patients who smoke have been shown to have a reduced incidence of bone fusion. These patients should be advised of this fact and warned of this consequence. Obese, malnourished, and / or alcohol / drug abuse patients and those with poor muscle and bone quality and / or nerve paralysis are also poor candidates for spinal fusion.

Patients with previous spinal surgery at the levels to be treated may have different clinical outcomes compared to those with a previous surgery.

A device that has been implanted should never be reused, reprocessed or resterilized under any circumstances.

Sterile packaged devices should also never be resterilized. Reuse, reprocessing, or resterilization may compromise the structural integrity of these implants and create a risk of contamination of the implants which could result in patient injury, illness, or death.

PHYSICIAN NOTE: Although the physician is the learned intermediary between the company and the patient, the important medical information given in this document should be conveyed to the patient.

FOR US AUDIENCES ONLY

Caution: Federal law (USA) restricts these devices to sale by or on the order of a physician.

MRI INFORMATION

The CLYDESDALE® Spinal System has not been evaluated for safety,,compatibility, heating, or migration in the MR environment.

IMPLANT SELECTION

The selection of the proper size, shape, and design of the implant for each patient is crucial to the success of the procedure. Surgical implants are subject to repeated stresses in use, and their strength is limited by the need to adapt the design to the human anatomy. Unless great care is taken in patient selection, placement of the implant, and postoperative management to minimize stresses on the implant, such stresses may cause material fatigue and consequent breakage or loosening of the device before the fusion process is complete, which may result in further injury or the need to remove the device prematurely.

DEVICE FIXATION

Installation and positional adjustment of implants must only be done with special ancillary instruments and equipment supplied and designated by MEDTRONIC. In the interests of patient safety, it is therefore recommended that MEDTRONIC implants are not used with devices from any other source.

Never, under any circumstances, reuse a CLYDESDALE® Spinal System device. Even when a removed device appears undamaged, it may have small defects or internal stress patterns that may lead to early breakage.

PREOPERATIVE

• Only patients that meet the criteria described in the indications should be selected.

• Patient conditions and / or predispositions such as those addressed in the aforementioned contraindications should be avoided.

• Care should be taken in the handling and storage of the device(s). They should not be scratched or damaged.

Devices should be protected during storage especially from corrosive environments.

• Further information about this system will be provided upon request.

• The surgeon should be familiar with the various devices before use and should personally verify that all devices are present before the surgery begins.

• The size of device for the case should be determined prior to beginning the surgery. An adequate inventory of implant sizes should be available at the time of surgery, including sizes larger and smaller than those expected to be used.

28 OLIF25™ PROCEDURE

|

Surgical Technique

Important Product Information

continued

• Unless supplied sterile, all devices should be cleaned and sterilized before use. Additional sterile components should be available in case of any unexpected need.

INTRAOPERATIVE

• The instructions in any available CLYDESDALE® Spinal System surgical technique manual should be carefully followed.

• At all times, extreme caution should be used around the spinal cord and nerve roots. Damage to the nerves will cause loss of neurological functions.

• Breakage, slippage, or misuse of instruments or implants may cause injury to the patient or operative personnel.

• To assure proper fusion below and around the location of the fusion, autogenous bone graft must be used.

• Bone cement should not be used, because this material may make removal of these components difficult or impossible. The heat generated from the curing process may damage or deform the PEEK devices.

POSTOPERATIVE

The physician’s postoperative directions and warnings to the patient and the corresponding patient compliance, are extremely important.

• Detailed instructions on the use and limitations of the device should be given to the patient. The patient must be warned that loosening, and / or breakage of the device(s) are complications which may occur as result of early or excessive weight-bearing, muscular activity, or sudden jolts or shock to the spine.

• The patient should be advised not to smoke or consume excess alcohol, during period of the bone fusion process.

• The patient should be advised of the inability to bend at the point of spinal fusion and taught to compensate for this permanent physical restriction in body motion.

• It is important that immobilization of union is established and confirmed by roentgenographic examination. If a non-union develops or if the components loosen, migrate, and / or break, the devices should be revised and / or removed immediately before serious injury occurs.

• CLYDESDALE® Spinal System implants are interbody devices and are intended to stabilize the operative area during the fusion process.

• Any retrieved devices should be treated in such a manner that reuse in another surgical procedure is not possible.

PACKAGING

Devices may be supplied in a sterile or non-sterile form. Packages for each of the components should be intact upon receipt. Once the seal on the sterile package has been broken, the product should not be re-sterilized. If a loaner or consignment system is used, all sets should be carefully checked for completeness and all components, including instruments, should be carefully checked to ensure that there is no damage prior to use. Damaged packages or products should not be used, and should be returned to MEDTRONIC.

CLEANING

Disassembly/reassembly and cleaning instructions can be found at http://manuals.medtronic.com/. Refer to the “Reprocessing Instructions for the Direct Lateral (DL) Inserter– M708348B087” for disassembly and cleaning instructions specific to the DL Inserter instrument (part number 2942001). Refer to the “Reprocessing Instructions for the General Instruments” 0380035 for cleaning instructions for CLYDESDALE® Spinal System trials.

STERILIZATION

Unless marked sterile and clearly labeled as such in an unopened sterile package provided by the company, all implants and instruments used in surgery must be sterilized by the hospital prior to use. Remove all packaging materials prior to sterilization. Only sterile products should be placed in the operative field. Unless specified elsewhere, these products are recommended to be steam sterilized by the hospital using one of the sets of process parameters below:

Table 1: Sterilization Cycle Parameters for the United States and Its Territories below:

NOTE: Because of the many variables involved in sterilization, each medical facility should calibrate and verify the sterilization process (e.g. temperatures, exposure times) used for their equipment.

The sterilization cycles listed in Table 2 above are not considered by the Food and Drug Administration to be standard sterilization cycles. It is the end user’s responsibility to use only sterilizers and accessories (such as sterilization wraps, sterilization pouches, chemical indicators, biological indicators, and sterilization cassettes) that have been cleared by the Food and Drug Administration for the selected sterilization cycle specifications (time and temperature).

Sterilization instructions can be found at http://manuals.medtronic.com/. Refer to the “Reprocessing Instructions for the Direct Lateral (DL) Inserter– M708348B087” for the sterilization instructions specific to the DL Inserter instrument

(part number 2942001). Refer to the “Reprocessing Instructions for the General Instruments” 0380035 for sterilization instructions for CLYDESDALE® Spinal System trials.

SERVICING

Inspect all instruments prior to use. Please return the instrument to Medtronic if any of the following are observed: corrosion, discoloring, pitting, or any other signs of wear.

Inspect the threaded shaft of the inserter instrument. Please return the instrument to Medtronic if threads are damaged or distorted or if the shaft appears bent.

Inspect the silicone handle of the inserter instrument. Please return the instrument to Medtronic if the silicone handle is discolored, cut, or damaged in any way.

PRODUCT COMPLAINTS

Any health care professional (e.g., customer or user of this system of products) who has any complaints or who has experienced any dissatisfaction in the product quality, identity, durability, reliability, safety, effectiveness and/or performance, should notify the distributor or MEDTRONIC. Further, if any of the implanted spinal system component(s) ever malfunctions, (i.e., does not meet any of its performance specifications or otherwise does not perform as intended), or is suspected of doing so, the distributor should be notified immediately. If any MEDTRONIC product ever “malfunctions” and may have caused or contributed to the death or serious injury of a patient, the distributor should be notified immediately by telephone, fax, or written correspondence. When filing a complaint, please provide the component(s) name and number, lot number(s), your name and address, the nature of the complaint and notification of whether a written report from the distributor is requested.

FURTHER INFORMATION

Recommended directions for use of this system (surgical operative techniques) are available at no charge upon request. If further information is needed or required, please contact MEDTRONIC.

Medtronic B.V.

Earl Bakkenstraat 10

6422 PJ Heerlen

The Netherlands

Tel: + 31 45 566 80 00

Fax

Medtronic Sofamor Danek USA, Inc.

1800 Pyramid Place

Memphis, TN 38132

Telephone 800 933 2635 (In U.S.A.)

901 396 3133 (Outside of U.S.A.)

901 396 0356

Covered by one or more of U.S. Pat. Nos. 5,772,661; 5,860,973; 6,991,654; 7,125,425; and other pending patent applications.

©2011 MEDTRONIC SOFAMOR DANEK USA, Inc. All rights reserved.

EXPLANATION OF SYMBOLS

Symbol Definition

CAUTION: Federal law (U.S.A.) restricts this device to sale by or on the order of a physician

Consult Instructions for Use

METHOD CYCLE TEMPERATURE EXPOSURE TIME MINIMUM DRY TIME

1

Steam Gravity Displacement 250°F (121°C) 30 Minutes 30 Minutes

Do Not Reuse.

Steam Gravity Displacement 270°F (132°C) 15 Minutes 30 Minutes

Steam Gravity Displacement 275°F (135°C) 10 Minutes 30 Minutes

Use by

Steam

Steam

Dynamic-Air-Removal 270°F (132°C)

Dynamic-Air-Removal 275°F (135°C)

4 Minutes

3 Minutes

30 Minutes

16 Minutes

Batch Code

For Medical Facilities Located Outside the United States and Its Territories:

Some non-U.S. Health

Care Authorities recommend sterilization according to these parameters so as to minimize the potential risk of transmission of Creutzfeldt-Jakob disease, especially of surgical instruments that could come into contact with the central nervous system.

Table 2: Sterilization Cycle Parameters for Medical Facilities Outside the United States and Its

Territories

METHOD

Steam

Steam

Steam

CYCLE TEMPERATURE EXPOSURE TIME MINIMUM DRY TIME

Gravity Displacement 273°F (134°C)

Dynamic-Air-Removal 273°F (134°C)

Dynamic-Air-Removal 273°F (134°C)

20 Minutes

4 Minutes

20 Minutes

30 Minutes

30 Minutes

30 Minutes

1

1 The minimum dry times were validated using sterilizers having vacuum drying capabilities. Drying cycles using ambient atmospheric pressure may require longer dry times. Refer to the sterilizer manufacturer’s recommendations.

Catalogue Number

Non-sterile

For U.S. audiences only.

Manufacturer

The device complies with European Directive MDD 93/42/EEC

The device complies with European Directive MDD 93/42/EEC

Authorised Representative in the European Community

Sterilized using irradiation

OLIF25™ PROCEDURE

|

Surgical Technique

www.medtronic.com

medtronic

Spinal and Biologics Business

Worldwide Headquarters

2600 Sofamor Danek Drive

Memphis, TN 38132

1800 Pyramid Place

Memphis, TN 38132

(901) 396-3133

(800) 876-3133

Customer Service: (800) 933-2635

For more information visit www.myspinetools.com

The surgical technique shown is for illustrative purposes only. The technique(s) actually employed in each case will always depend upon the medical judgment of the surgeon exercised before and during surgery as to the best mode of treatment for each patient.

Please see the package insert for the complete list of indications, warnings, precautions, and other important medical information.

APPENDIX F

ACTIVE 26481542v5 09/05/2014

APPENDIX G

ACTIVE 26481542v5 09/05/2014

Eur Spine J (2003) 12 : 173–177

DOI 10.1007/s00586-001-0376-4

Jie Zhao

Tiesheng Hou

Xinwei Wang

Shengzhong Ma

O R I G I N A L A RT I C L E

Posterior lumbar interbody fusion using one diagonal fusion cage with transpedicular screw/rod fixation

Received: 15 December 2000

Revised: 9 November 2001

Accepted: 13 November 2001

Published online: 11 January 2003

© Springer-Verlag 2003

J. Zhao · T. Hou · S. Ma

Orthopedic Surgery Department,

Changhai Hospital, 174 Changhai Road,

Shanghai 200433, P.R. China

X. Wang (

)

Orthopedic Department,

Changzheng Hospital, 415 Feng yang

Road, Shanghai, 200003, P.R. China e-mail: [email protected],

Tel.: 86-21-25071456,

Fax: 86-21-25070583

Abstract Posterior lumbar interbody fusion (PLIF) using threaded cages has gained wide popularity for lumbosacral spinal disease. Our biomechanical tests showed that PLIF using a single diagonal cage with unilateral facetectomy does add a little to spinal stability and provides equal or even higher postoperative stability than

PLIF using two posterior cages with bilateral facetectomy. Studies also demonstrated that cages placed using a posterior approach did not cause the same increase in spinal stiffness seen with pedicle screw instrumentation, and we concluded that cages should not be used posteriorly without other forms of fixation. On the other hand, placement of two cages using a posterior approach does have the disadvantage of risk to the bilateral nerve roots. We therefore performed a prospective study to determine whether

PLIF can be accomplished by utilizing a single diagonal fusion cage with the application of supplemental transpedicular screw/rod instrumentation. Twenty-seven patients underwent a PLIF using one single fusion cage (BAK, Sulzer Spine-Tech, Minneapolis, MN, USA) inserted posterolaterally and oriented anteromedially on the symptomatic side with unilateral facetectomy and at the same level supplemental fixation with a transpedicular screw/rod system. The internal fixation systems included 12

SOCON spinal systems (Aesculap

AG, Germany) and 15 TSRH spinal systems (Medtronic Sofamor Danek,

USA). The inclusion criteria were grade 1 to 2 lumbar isthmic spondylolisthesis, lumbar degenerative spondylolisthesis, and recurrent lumbar disc herniations with instability.

Patients had at least 1 year of low back pain and/or unilateral sciatica and a severely restricted functional ability in individuals aged 28–55 years. Patients with more than grade

2 spondylolisthesis or adjacent-level degeneration were excluded from the study. Patients were clinically assessed prior to surgery by an independent assessor; they were then reassessed at 1, 3, 6, 12, 18, and 24 months postoperatively by the same assessor and put into four categories: excellent, good, fair, and poor. Operative time, blood loss, hospital expense, and complications were also recorded. All patients achieved successful radiographic fusion at 2 years, and this was achieved at 1 year in 25 out of 27 patients. At 2 years, clinical results were excellent in 15patients, good in 10, fair in 1, and poor in 1.

Regarding complications, one patient had a postoperative motor and sensory deficit of the nerve root. Reoperation was required in one patient due to migration of pedicle screws. No implant fractures or deformities occurred in any of the patients. PLIF using diagonal insertion of a single threaded cage with supplemental transpedicular screw/rod instrumentation enables sufficient decompression and solid interbody fusion to be achieved with minimal invasion of the posterior spinal elements. It is a clinically safer, easier, and more economical means of accomplishing

PLIF.

Keywords Lumbar · Fusion cage ·

Implant · Transpedicular screw ·

Interbody

174

Introduction

Posterior lumbar interbody fusion (PLIF), introduced by

Dr. Ralph Cloward in the 1940s [2], laid the foundations for future biomechanically ideal fusion. A successful

PLIF has the advantages of restoring the disc height, immobilizing the unstable degenerated intervertebral disc, decompressing the dural sac and the nerve roots, and restoring load-bearing to anterior structures [1]. Numerous techniques have been described, including use of autologous iliac crest bone graft, allograft bone, dowelshaped graft, key stone graft, tricortical graft, and bone chips. Threaded-cage PLIF has the advantages of minimizing complications of graft resorption and disc space collapse and has therefore been recommended [5, 7].

The PLIF method that was introduced involving implantation of two threaded cages [4, 7] lacked supplemental internal fixation with a pedicle screw system. Insertion of one anterior or lateral cage has been successful on a limited basis. It is challenging to insert two cages of appropriate size posteriorly during the surgical procedure without extensive laminectomy and bilateral facetectomy.

From a mechanical point of view, posterior element deficiencies adversely affect the stiffness of intervertebral fusion cages immediately after insertion, as these structures provide resistance to flexion and torsion. In addition, there is the obvious potential for neurological damage during surgery [8].

The results of our biomechanical tests show that the posterolateral single threaded cage PLIF with unilateral facetectomy led to significantly higher postoperative stiffness than PLIF using two cages with bilateral facetectomy in pure compression, left bending, and left and right torsion. Flexion and extension loading modes also showed stiffer values in the single-cage group than in the twocage group, but this was not statistically significant [9].

We therefore decided to perform PLIF utilizing a single diagonal cage with the application of supplementary transpedicular screw/rod instrumentation while maintaining minimal invasion of the posterior elements. This study concerns the first 27 patients who have reached the 2-year follow-up interval.

Table 1 Data on 27 patients

IS DS RDH

Patients (n)

Average age (years)

Sex

Male (n)

Female (n)

9

43±8

7

2

Average blood loss (ml) 711±105

Average surgery time (min) 201±31

11

50±3

2

9

891±274

225±72

7

47±5

2

5

1000±327

225±56

Average hospital stay (days) 14±2

Average hospital costs

(US dollars)

12±3 13±2

4975±318 4872±459 4872±459

IS, isthmic spondylolisthesis; DS, degenerative spondylolisthesis;

RDH, recurrent disc herniation.

Table 2 Pre- and postoperative data on 27 patients

Preoperative Postoperative

Symptoms

Low back pain (n)

Intermittent claudication (n)

Leg pain (n)

Fitness for work

Disability (n)

Partial disability (n)

Restricted duty (n)

Return to previous work (n)

Clinical results

Poor (n)

Fair (n)

Good (n)

Excellent (n)

27

6

12

7

15

5

0

16

10

1

0

8

2

2

0

2

10

15

0

2

10

15

Inclusion criteria

The inclusion criteria were grade 1 to 2 lumbar isthmic spondylolisthesis, lumbar degenerative spondylolisthesis, and recurrent lumbar disc herniations with instability. Patients had at least 1 year of low back pain and/or unilateral sciatica and a severely restricted functional ability in individuals under 60 years of age. The preoperative data on all 27 patients are shown in Table 1 and Table 2.

Patients and methods

From July 1997 to August 1998, 27 patients with symptomatic lumbar disease were treated by PLIF using single BAK (Bagby and Kuslich) and additional pedicle screw internal fixation. Nine patients with grade 1 to 2 lumbar isthmic spondylolisthesis, 11 with lumbar degenerative spondylolisthesis, and 7 with recurrent lumbar disc herniations with instability were treated prospectively.

The internal fixation systems included 12 SOCON spinal systems

(Aesculap AG, Germany) and 15 TSRH spinal systems (Medtronic

Sofamor Danek, USA). There were 16 men and 11 women. The mean age was 46 years (range, 28–55 years). The minimum follow-up for review of 24 months.

Exclusion criteria

The exclusion criteria included active infection, osteopenia, symptomatic vascular disease, active malignancy, gross obesity, greater than grade 2 spondylolisthesis, adjacent level degeneration, and pregnancy.

Surgical technique

The patient was placed in the kneeling/sitting position on an Andrew’s frame under general anesthesia. The surgical procedure is illustrated in Fig. 1. For patients with stenosis, unilateral laminec-

175

Fig. 1A–E Demonstration of the surgical procedure of posterior lumbar interbody fusion (PLIF) using one diagonal fusion cage with transpedicular screw fixation. A An appropriate hemi-laminectomy and unilateral partial facetectomy of the symptomatic side was performed, and pedicle screws were inserted bilaterally. B The disc space was then cleaned and the distraction plug gradually inserted until the desired annular tension was achieved. C A single rod was applied to the contralateral side of the distraction plug, and locking nuts were tightened to maintain distraction. D After bone grafting, the BAK was inserted diagonally; finally, the second rod was put in place, and all the nuts were tightened. E Cross-section of extra bone graft previous to the BAK (Bagby and Kuslich) insertion tomy and facetectomy of the symptomatic side was able to achieve adequate decompression of the stenosis. For patients with spondylolisthesis, sequential distraction until the desired annular tensions were achieved was able to reduce slippage to some extent. Before cage insertion, the bone from laminectomy was grafted into the prepared disc space, while the iliac bone graft was placed in the cage. We believe that the bone outside the cage has greater fusion potential than the bone inside.

X-rays or fluoroscopic images were taken in both the anteroposterior and lateral planes. The size of the implanted cage was determined by both the templates for X-ray, computed tomography

(CT) or magnetic resonance imaging (MRI) scans and the extent of distraction during surgery.

Patients’ clinical symptoms were assessed prior to surgery by an independent assessor (the third author) and reassessed at 1, 3, 6,

12, 18, and 24 months postoperatively by the same assessor; patients were put into four categories: excellent, good, fair, and poor.

Clinical results were rated as excellent if the patient was pain-free and had returned to work at their previous occupation. If the patient continued to have mild backache requiring non-narcotic medication only and had returned to full-time work, the results were rated as good. A fair result indicated that the patient’s continuing back pain prevented him or her returning to work or narcotic medication was required. A poor result indicated that the patient’s condition was worse than it was preoperatively or required additional surgery at the same level [10]. Operative time, blood loss, and hospital expense were also recorded (Table 1).

Fusion status was determined from the anteroposterior, lateral, and flexion–extension radiographs. All radiographs were reviewed by the blinded assessor (the forth author), who determined whether there was radiographic fusion or nonunion. For a fusion to be deemed solid, the anteroposterior or lateral radiograph had to show mature bony trabeculae bridging the fusion area. Flexion–extension films were considered to show fusion with less than 2° of motion on the lateral film. Fusion results were purely determined by radiographic means [3].

Results

All patients achieved successful radiographic fusion at

2 years, and 25 out of 27 patients at 1 year (Fig. 2). Clinical results at 2 years were excellent in 15 patients, good in

10, fair in 1, and poor in 1 (reoperation). Ten patients were able to return to work, but not to their previous occupation. Fifteen patients worked in their previous occupation.

From a functional point of view, 12 patients had a mild level of low back pain, intermittent claudication, or sciatica, while 15 patients had no pain (Table 2). Regarding complications, one patient had a postoperative temporary motor and sensory deficit of the adjacent nerve root. Reoperation was required in one patient due to migration of pedicle screws. No implant fractures or deformities occurred in any of the patients.

Discussion

PLIF using threaded cages has gained wide popularity for lumbosacral spinal disease. Although many studies have concluded that threaded cages provide the same amount of stabilization as a PLIF bone graft with supplementary transpedicular screws/rod constructs, controversy still exists [6, 9]. The threaded fusion cages were originally designed to be placed anteriorly; they have also been used from a posterior lumbar approach, which often involves removal of much of the facet joints to allow safe implantation. Our biomechanical test [9] showed that PLIF using a single diagonal cage with unilateral facetectomy does add a little to spinal stability, but it provides equal or even higher postoperative stability than PLIF using two posterior cages with bilateral facetectomy. Tencer et al. [8] also found that posterior placement of an insert can compromise the facet and lamina structures by reducing torsion stiffness, which is further reduced when two inserts are used. They believe that these data can be interpreted as indicating that it may be better to use a single insert rather than two.

Oxland et al. [6] demonstrated that cages placed from both anterior and posterior directions provided good stability in flexion, but not in extension. Supplementary pos-

176

Fig. 2 A A 41-year-old man with symptomatic grade 1 isthmic spondylolisthesis. B He was treated with posterior lumbar interbody fusion (PLIF) using one diagonal BAK cage with unilateral facetectomy and with transpedicular screw fixation. C The result at 2-year follow-up. D The lateral radiograph at 2-year follow-up showed bony trabeculae bridging the fusion level terior fixation with pedicle or translaminar screws substantially improves stability in all directions. On the other hand, placement of two cages from a posterior approach does have the disadvantage of risk to the bilateral nerve roots [4, 7]. Since posteriorly placed interbody fusion cages offer no significant increase in stiffness, their use as a stand-alone device may not be appropriate.

This method has some obvious advantages. It is an easier technique compared to routine two-cage PLIF. In treatment of patients with unilateral sciatica, the cage can be placed from the symptomatic side so as to avoid retraction of the nerve root and dural sac of the asymptomatic side.

Since the application of the supplementary instrumentation can provide adequate postoperative stability immediately, an undersized cage can be used without worrying about its displacement. Regarding surgical procedure, sin-

177 gle-cage PLIF also has the advantages of less blood loss, shorter surgery time, and a shorter hospital stay.

Indications for PLIF using single threaded fusion cages with supplementary instrumentation in lumbar spine have not yet been fully established or proved by long-term outcome studies. They might include degenerative or less than grade 2 isthmic spondylolisthesis after completion of a decompressive laminectomy, iatrogenic instability after previous decompressive procedures, and certain cases of retrolisthetic instability with disc space collapse and restoration of alignment.

We conclude that PLIF using diagonal insertion of a single threaded cage with supplementary transpedicular screw/rod instrumentation enables sufficient decompression and solid interbody fusion to be achieved, while maintaining minimal invasion to the posterior elements. It is a clinically safer, easier, and more economical way of achieving PLIF.

References

1. Bagby GW (1988) Arthrodesis by the distraction-compression method using a stainless steel implant. Orthopedics

11:931–934

2. Cloward RB (1953) The treatment of ruptured lumbar intervertebral discs by vertebral body fusion. Indications, operation technique, after care. J Neurosurg 10:154–168

3. Herkowitz HN, Kurz LT (1991) Degenerative lumbar spondylolisthesis with spinal stenosis. J Bone Joint Surg

[Am] 73:802–808

4. Kuslich SD, Danielson G, Dowdle JD,

Sherman J, Fredrickson B, Yuan H,

Griffith SL (2000) Four-year follow-up results of lumbar spine arthrodesis using the Bagby and Kuslich lumbar fusion cage. Spine 25:2656–2662

5. Kuslich SD, Ulstrom CL, Griffith SL,

Ahern JW, Dowdle JD (1998) The

Bagby and Kuslich method of lumbar interbody fusion. History, techniques, and 2-year follow up results of a

United States prospective, multicenter trial. Spine 23:1267–1278

6. Oxland TR, Lund T (2000) Biomechanics of stand-alone cages and cages in combination with posterior fixation: a literature review. Eur Spine J

Suppl:S95–101

7. Ray CD (1997) Threaded titanium cages for lumbar interbody fusions.

Spine 22:667–679, discussion 679–680

8. Tencer AF, Hampton D, Eddy S (1995)

Biomechanical properties of threaded inserts for lumbar interbody spinal fusion. Spine 20:2408–2414

9. Zhao J, Hai Y, Ordway NR (2000)

Posterior lumbar interbody fusion using posterolateral placement of a single cylindrical threaded cage. Spine 25:

425–433

10. Zdeblick TA (1993) A prospective, randomized study of lumbar fusion: preliminary results. Spine 18:983–991

APPENDIX H

ACTIVE 26481542v5 09/05/2014

ectaLIF

®

O B L I Q U E & P O S T E R I O R

I N t e r v e r t e b r a l b o d y F u s I o N d e v I c e

Hip Knee Spine Navigation

2

MectaLIF surgical technique Hip Knee

Spine

Navigation

e a c H t o t H e I r o W N

The anatomical Solution for the posterior Interbody Fusion PLIF approach.

The clear Solution for the oblique Interbody Fusion OLIF approach.

The transparent Solution for the transforaminal Interbody Fusion

TLIF approach.

c a u t I o N

Federal law (USA) restricts this device to sale distrribution and use by or on the order of a physician.

a c K N o W l e d G M e N t s

Medacta

®

International would like to express its gratitude to

JOSHUA D. AUERBACH, MD bronx-lebanon Hospital center affiliated with albert einstein college of Medicine

New york, usa

ZSOLT FEKETE, MD roland-Klinik bremen, Germany

CHRISTOPH-E. HEYDE, MD

Professor of university Medical center leipzig, Germany

DEZSÖ JESZENSZKY, MD schulthess Klinik

Zürich, switzerland

for their valuable and constant help in MectaLIF

® implant, instruments and Surgical Technique development.

3

4

MectaLIF surgical technique Hip Knee

Spine

Navigation

c o N t e N t s

1

INtroductIoN

1.1

Material & Marker

2

INdIcatIoNs

3 coNtraINdIcatIoNs

4

Pre-oPeratIve PlaNNING

5 surGIcal tecHNIque: PosterIor (PlIF)

5.1

exposure and Preparation Posterior

5.2

trial Insertion

5.3

Implant Placement

6

7

8

8

8

6 surGIcal tecHNIque: traNsForaMINal/oblIque (tlIF) 12

6.1

exposure and Preparation transforaminal/oblique 12

6.2

trial Insertion transforaminal/oblique 13

6.3

Implant Placement transforaminal/oblique 14

7 reMoval oF aN INcorretly Placed IMPlaNt

8

INstruMeNtatIoN NoMeNclature

9

IMPlaNts NoMeNclature

10 recoMMeNded FIXatIoN oPtIoNs

15

16

18

19

9

9

10

11

5

6

MectaLIF surgical technique Hip Knee

Spine

Navigation

1

INtroductIoN the anatomical design of our MectalIF

®

Intervertebral body Fusion device matches the given biological conditions in each patient and pathology and meets the requirements of the treating surgeon. the PlIF procedure, popularized in the 1950’s and 1960’s by cloward, who inserted iliac crest bone into the intervertebral disc space, lost popularity because of the complication rate and technical difficulties. In the

1980’s spacers made of titanium or carbon fiber reinforced PeeK were designed to overcome these challenges.

However, bone from the iliac crest can be adjusted to the patient’s anatomy, compared to metal spacers which are available in a predetermined design. these thoughts led us to the development of our MectalIF Posterior and MectalIF

®

oblique Intervertebral body

Fusion device, whose anatomical design features offer distinctive benefits, including:

 unilateral transforaminal/oblique approach (tlIF) or a bilateral posterior approach (PlIF).

 biconvex superior/inferior surface that closely match the native anatomy.

MectalIF

®

Posterior MectalIF

®

oblique

 different footprints and five heights are offered to address individual patient anatomy.

 the footprint as well as the outer counter is anatomically shaped to facilitate optimal load transfer and maximize the implant-endplate contact surface.

 large central as well as lateral window to receive filling material to accelerate the occurrence of fusion

 through the implant.

Pyramid shaped teeth to enhance the resistance to implant migration.

 shapes ranging from parallel to lordotic to restore natural sagittal alignment.

 self-distracting nose for simplicity of insertion.

PeeK, radiolucent and optimizes the load transfer between the cage and the adjacent vertebral bodies and reduces the affects of stress shielding on the graft material.

MectalIF

®

oblique MectalIF

®

Posterior

1.1

Material & Marker

 biocompatible radiolucent PeeK-oPtIMa

®1

with a favorable modulus of elasticity allows a clear assessment of bony fusion.

Posterior and anterior marker pins allow a easy and clear visualization.

ventral/dorsal approach MectalIF

®

oblique ventral approach

MectalIF

®

oblique dorsal approach

MectalIF

®

oblique

1

PeeK-oPtIMa

® polymer from Invibio biomaterial solutions

7

8

MectaLIF surgical technique Hip Knee

Spine

Navigation

2

INdIcatIoNs

INtervertebral body FusIoN devIce the MectalIF implants in combination with supplemental fixation are indicated for use with autogenous bone graft in patients with degenerative disc disease (ddd) at one or two contiguous spinal levels from l2 – s1 whose condition requires the use of interbody fusion. degenerative disc disease is defined as discogenic pain with degeneration of the disc confirmed by patient history and radiographic studies. these patients may have had a previous non-fusion spinal surgery at the involved spinal level(s). Patients must be skeletally mature. Patients should have received 6 months of non-operative treatment prior to treatment with the devices.

the MectalIF

®

Posterior Intervertebral body Fusion device is inserted bilaterally in pairs via posterior lumbar interbody fusion approach. the MectalIF

®

oblique Intervertebral body Fusion device is inserted unilaterally via transforaminal lumbar interbody fusion approach in either open or minimal invasive technique.

3 coNtraINdIcatIoNs the MectalIF

®

Posterior, MectalIF

®

oblique Intervertebral body Fusion device system in combination with a pedicle screw system should not be implanted in patients with active systemic infection or infection localized to the site of implantation.

4

Pre-oPeratIve Pl aNNING this important step before each surgery includes the use of MrI and/or ct scans to template and determine the type and size of implant to be used to match the patient’s anatomy.

5 surGIcal tecHNIque: PosterIor (PlIF)

5.1

exposure and Preparation Posterior skin incision and dissection laterally from the midline. locate the spinous process and the lamina of the corresponding level(s).

this is done bilaterally and then disc fragments from the intradiscal space are removed with disc rongeurs in standard fashion. the importance of this is to remove extruded fragments, to adequately decompress the neural elements, and to provide entry to the disc space for distraction with minimal or no nerve root retraction. If there is significant disc space collapse, a complete discectomy may not be possible until disc space distraction is accomplished. It is also important to remove osteophytes and posterior lips of the adjacent vertebral body with an osteotome.

the disc space is sequentially distracted until original disc space height is obtained and normal foraminal heights are restored. It is critical to ensure that the segment is not overdistracted.

Perform a laminotomy sufficiently large enough for the

PlIF preparation. ensure that the neural structures are protected throughout the entire disc space exposure.

depending on the pathology and the surgeon’s preference there are two other methods to achieve disc space distraction: either via pedicle screws or using a lamina spreader. remaining soft tissue or cartilaginous endplate are removed with vigorous scraping or curettage, which is essential for good vascularization of the bone graft. excessive endplate preparation, however, can weaken the endplates and predispose to fracture or device subsidence. It is therefore of paramount importance to remove only the cartilaginous portion of the endplates, and to maintain the integrity of the underlying bony endplate which provides compressive resistance. a conventional discectomy is performed by incising the annulus lateral to the dural sac.

use the curette to remove the disc through the incision window leaving only the anterior and lateral annulus intact.

9

MectaLIF surgical technique Hip Knee

Spine

Navigation

5.2

trial Insertion (PlIF) color code and sizes: select the size of the trial implant as determined during preoperative planning and confirmed by intraoperative fluoroscopy and attach it to the cage

Inserter. Markers on the trial, instrument, as well as the implant will align to confirm proper engagement of the trial/implant with the instrument.

7 mm light blue

9 mm violet

11 mm gold the inserter to be used is marked "MectalIF

®

Posterior" on the shaft. the mark "lateral" indicates the proper alignment of the instrument in respect to the patient.

Insert the trial implant into the disc space by light impaction and confirm proper position, depth, and size with intraoperative fluoroscopy and tactile feel.

If the trial implant is too loose or too tight, try the next larger/smaller size until a secure fit is achieved. using the largest possible implant improves stability by creating tension on the ligaments and the annulus fibrosus.

13 mm blue

10

15 mm dark green the lengths of the trials are 25 mm. the notch on the top of the trial indicates 22 mm which is equivilent to the shorter version of the cage.

remove the trial implant assembly and select the matching implant. If necessary, the slap hammer is available to assist in safe removal of the trial implant.

5.3

Implant Placement

Prepare autologous bone graft and freshly aspirated bone marrow, place it at the anterior rim of the vertebral body and impact it gently before inserting the implant. different bone Graft Impactors as well as a bone tamp are included in the instrument set.

Gently pack bone graft into the opening of the carefully selected cages using the filler block and bone tamp. remove the instrument if the implant position is to your satisfaction. Insert the second implant on the contralateral side as described before. If necessary tap lightly the implant into position with the cage impactor and the hammer. check the position of the implant with the image intensifier. remove the instrument if the implant is in satisfactory position.

attach the implant perpendicular to the Inserter by screwing the thread of the inner shaft into the threaded hole and secure it firmly. the cylindrical tip of the inserter simplifies the fixation of the implant.ensure that the orientation of the implant is correct (see marker line on the implant which should line up with the corresponding line on the instrument).

Insert the implant straight into the intervertebral disc space by gentle impaction. Protect the nerve roots and thecal sac with a suitable instrument. check the position of the implant with the image intensifier. lateral view aP view be careful to ensure proper alignment of the implants.

11

12

MectaLIF surgical technique Hip Knee

Spine

Navigation

6 surGIcal tecHNIque: traNsForaMINal/oblIque (tlIF)

6.1

exposure and Preparation

transforaminal/oblique the tlIF technique can be performed either in open or mini-open approach.

divide the ligamentum flavum from the inferior portion of the lamina. expose the nerve root and dural tube from soft tissue, probe with ball point instrument.

Gently retract the nerve root and dural tube. then create the annular window with an annulus knife.

to assist distraction during disc space preparation, pedicle screws and rod can be inserted on the contralateral side.

skin incision and dissection laterally from the midline. locate the spinous process and the lamina of the corresponding layer(s) (a).

Prepare a window for transforaminal approach, using an osteotome or drill, to remove the inferior facet of the cranial vertebra and the superior facet of the caudal vertebra (b). ensure that the neural structures are spared as much as possible. additional bone removal may be carried out using a Kerrison rongeur or drill.

(a) (b) use the curette to remove the disc through the incision window. the annulus must be preserved to provide additional support. a combination of shavers, pituitary rongeurs, and curettes designed for intervertebral discs can facilitate removal of the nucleus pulposus and the surface layers of the cartilaginous endplates.

the critical steps include adequate removal of extruded disc fragments, adequate decompression of the traversing and exiting nerve roots, and to provide entry to the disc space for distraction with minimal or no nerve root retraction. If there is significant disc space collapse, a complete discectomy may not be possible until disc space distraction is accomplished. be sure to remove osteophytes and posterior lips of the adjacent vertebral body with an osteotome so as to avoid neural impingement or graft malalignment. the disc space is sequentially distracted until adequate disc space height is obtained and normal foraminal heights are restored. Insert the distracters with the curved sides touching the endplates. Insert distracters sequentally until the desired height is obtained. It is critical to ensure that the segment is not overdistracted. depending on the pathology and the surgeon’s preference there are two other methods to achieve disc space distraction: either via pedicle screws or using a lamina spreader. remaining soft tissue or cartilaginous endplate are removed with vigorous scraping or curettage, which is essential for good vascularization of the bone graft. excessive endplate preparation, however, can weaken the endplates and predispose to fracture or device subsidence. It is therefore of paramount importance to remove only the cartilaginous portion of the endplates, and to maintain the integrity of the underlying bony endplate which provides compressive resistance.

6.2

trial Insertion transforaminal/oblique color code and sizes:

7 mm light blue

9 mm violet the mark "MedIal" indicates the proper alignment of the instrument in respect to the patient. visualization of the two holes in the trial indicate on a true lateral x-ray that the trial is in the correct position, i.e. 30° in the sagittal plane. the medial mark on the instrument indicates correct alignment.

11 mm gold

13 mm blue

15 mm dark green the trials as well as the implants have a (anterior) and

P (Posterior)markings to facilitate proper orientation. the lenghts of the trials are 36 mm and the two notches on the trial indicates 32mm. one when vetral access is used and one for dorsal access.

select the size of the trial implant as determined during preoperative templating and confirmed intraoperatively by fluoroscopy and attach it to the cage Inserter. Insert the trial implant into the disc space by light impaction and confirm the proper position with the aid of anterior-posterior and lateral fluoroscopy.

If the trial implant is too loose or too tight, try the next larger/smaller size until a secure fit is achieved. using the largest possible implant improves stability by creating tension on the ligaments and the annulus fibrosus. remove the trial implant assembly and select the matching implant. If necessary, the slap hammer is available to assist in safe removal of the trial implant.

13

MectaLIF surgical technique Hip Knee

Spine

Navigation

6.3

Implant Placement transforaminal/oblique

Prepare autologous bone graft and freshly aspirated bone marrow; place it anteriorly and contralaterally before inserting the implant.

Gently pack bone graft into the opening of the carefully selected cage using the filler block and bone tamp. check the position of the implant with the image intensifier. remove the instrument if the implant is in satisfactory position. the broken line marker indicates the deviation of the implant position (see below).

deviation of +5°

Perfect aligned implant on a lateral x-ray different shapes of bone graft impactors are available in the set.

attach the cage perpendicular to the cage Inserter by screwing the thread of the inner shaft into the threaded hole and secure it firmly. ensure that the orientation of the implant is correct (see illustration). the cylindrical guiding tip on the inserter simplifies the engaging of the instrument.

deviation of -5° use bone tamp to pack graft material into disc space around the implant. to achieve satisfactory immobilization of the grafted interbody space compression on the additional posterior fixation with a pedicle screw system is recommended.

14

Insert the implant into the intervertebral disc space by gentle impaction. Protect the nerve root with a suitable instrument. If necessary tap lightly the implant into position with the cage impactor and the hammer.

7 reMoval oF aN INcorretly Pl aced IMPl aNt attach the cage Inserter perpendicular to the implant and remove the implant from its site. If necessary, the slap hammer is available to assist in safe removal of the implant.

For any further information related to the MectalIF

®

Intervertebral body Fusion devices please refer to the package insert.

the MectalIF

®

Posterior and the MectalIF

®

oblique are supplied sterile in single-use packages; it should never be reimplanted.

15

16

MectaLIF surgical technique Hip Knee

Spine

Navigation ref.

8

INstruMeNtatIoN NoMeNcl ature

GeNeral INstruMeNtatIoN set - tray N° 1 description

03.22.10.0011

MectalIF

®

Posterior Inserter

03.22.10.0012

MectalIF

®

oblique Inserter

03.22.10.0013

bone Filler block

03.22.10.0014

Hammer

03.22.10.0017

03.22.10.0018

03.22.10.0019

03.22.10.0020

03.22.10.0021

03.22.10.0022

03.22.10.0050

MectalIF ® Posterior Implant Impactor

MectalIF

®

oblique Implant Impactor strait bone Graft Impactor curved bone Graft Impactor angled bone Graft Impactor

Flat bone Graft Impactor

Implant remover

ref.

03.22.10.0001

03.22.10.0002

03.22.10.0003

03.22.10.0004

03.22.10.0005

03.22.10.0006

03.22.10.0007

03.22.10.0008

03.22.10.0009

03.22.10.0010

03.22.10.0029

03.22.10.0300

03.22.10.0054

03.22.10.0051

i

03.22s.001

03.22s.002

03.22s.003

description

MectalIF ® Posterior trial, 7 mm, 5°

MectalIF

®

Posterior trial, 9 mm, 5°

MectalIF

®

Posterior trial, 11 mm, 5°

MectalIF

®

Posterior trial, 13 mm, 5°

MectalIF

®

Posterior trial, 15 mm, 5°

MectalIF

®

oblique trial, 7 mm, 0°

MectalIF

®

oblique trial, 9 mm, 5°

MectalIF

®

oblique trial, 11 mm, 5°

MectalIF

®

oblique trial, 13 mm, 5°

MectalIF ® oblique trial, 15 mm, 5°

Implant tray

Instrument tray trial cady addendum trial cady

Instrument set

Instrument set

Instrument set

5° trials

0° and 10° trials

MectalIF

®

Posterior & MectalIF

®

oblique

MectalIF

®

Posterior

MectalIF

®

oblique

MectalIF

®

Posterior 0° aNd 10° trIals

i ref.

03.22.10.0051

03.22.10.0030

03.22.10.0031

03.22.10.0032

03.22.10.0033

03.22.10.0034

03.22.10.0036

03.22.10.0037

03.22.10.0038

03.22.10.0039

description addendum trial cady

MectalIF ® Posterior trial, 7 mm, 0°

MectalIF

®

Posterior trial, 9 mm, 0°

MectalIF

®

Posterior trial, 11 mm, 0°

MectalIF

®

Posterior trial, 13 mm, 0°

MectalIF

®

Posterior trial, 15 mm, 0°

MectalIF ® Posterior trial, 9 mm, 10°

MectalIF

®

Posterior trial, 11 mm, 10°

MectalIF

®

Posterior trial, 13 mm, 10°

MectalIF

®

Posterior trial, 15 mm, 0°

MectalIF

®

oblique 0° aNd 10° trIals

i ref.

03.22.10.0041

03.22.10.0042

03.22.10.0043

03.22.10.0044

03.22.10.0048

03.22.10.0049

description

MectalIF

®

oblique trial, 9 mm, 0°

MectalIF ® oblique trial, 11 mm, 0°

MectalIF

®

oblique trial, 13 mm, 0°

MectalIF

®

oblique trial, 15 mm, 0°

MectalIF

®

oblique trial, 13 mm, 10°

MectalIF

®

oblique trial, 15 mm, 10° i on request

17

MectaLIF surgical technique Hip Knee

Spine

Navigation

9

IMPl aNts NoMeNcl ature

MectalIF

® oblique MectalIF

®

Posterior

18 code

03.20.001

03.20.002

03.20.003

03.20.004

03.20.005

03.20.006

03.20.007

03.20.008

03.20.009

03.20.010

03.20.011

03.20.012

03.20.013

03.20.014

03.20.015

03.20.016

03.20.017

03.20.018

03.20.019

03.20.020

03.20.021

03.20.022

size

12x32x7 mm

12x32x9 mm

12x32x11 mm

12x32x13 mm

12x32x15 mm

12x32x9 mm

12x32x11 mm

12x32x13 mm

12x32x15 mm

12x32x13 mm

12x32x15 mm

12x36x7 mm

12x36x9 mm

12x36x11 mm

12x36x13 mm

12x36x15 mm

12x36x9 mm

12x36x11 mm

12x36x13 mm

12x36x15 mm

12x36x13 mm

12x36x15 mm

10°

10°

0° lordosis color

0° light blue violet

Gold dark blue dark Green

5° violet

Gold dark blue dark Green

10°

10° dark blue dark Green light blue violet

Gold dark blue dark Green violet

Gold dark blue dark Green dark blue dark Green code

03.20.023

03.20.024

03.20.025

03.20.026

03.20.027

03.20.028

03.20.029

03.20.030

03.20.031

03.20.032

03.20.033

on request size

12x40x7 mm

12x40x9 mm

12x40x11 mm

12x40x13 mm

12x40x15 mm lordosis color

0° light blue violet

Gold dark blue dark Green

12x40x9 mm

12x40x11 mm

12x40x13 mm

12x40x15 mm

5° violet

Gold dark blue dark Green

12x40x13 mm

12x40x15 mm

10°

10° dark blue dark Green size

11x22x7 mm

11x22x9 mm

11x22x11 mm

11x22x13 mm

11x22x15 mm

11x22x7 mm

11x22x9 mm

11x22x11 mm

11x22x13 mm

11x22x15 mm

11x22x9 mm

11x22x11 mm

11x22x13 mm

11x22x15 mm

11x25x7 mm

11x25x9 mm

11x25x11 mm

11x25x13 mm

11x25x15 mm

11x25x7 mm

11x25x9 mm

11x25x11 mm

11x25x13 mm

11x25x15 mm

11x25x9 mm

11x25x11 mm

11x25x13 mm

11x25x15 mm

03.21.011

03.21.012

03.21.013

03.21.014

03.21.015

03.21.016

03.21.017

03.21.018

03.21.019

03.21.020

03.21.021

03.21.022

03.21.023

03.21.024

03.21.025

03.21.026

03.21.027

03.21.028

code

03.21.001

03.21.002

03.21.003

03.21.004

03.21.005

03.21.006

03.21.007

03.21.008

03.21.009

03.21.010

10°

10°

10°

10°

10°

10°

10°

10° lordosis color

0° light blue violet

Gold dark blue dark Green

5° light blue violet

Gold dark blue dark Green violet

Gold dark blue dark Green light blue violet

Gold dark blue dark Green light blue violet

Gold dark blue dark Green violet

Gold dark blue dark Green

10 recoMMeNded FIXatIoN oPtIoNs supplemental internal fixation e.g. pedicle screw fixation must be applied.

Part numbers subject to change.

N o t e F o r s t e r I l I Z a t I o N

Note for sterilization : the instrumentation is not sterile upon delivery. It must be cleaned before use and sterilized in an autoclave respecting the regulations of the country, eu directives where applicable and following the instructions for use of the autoclave manufacturer.

For detailed instructions please refer to the document "recommendations for cleaning decontamination and sterilization of Medacta

®

International reusable orthopedic devices" available at www.medacta.com.

Medacta

®

is registered trademark of Medacta

®

International sa, castel san Pietro, switzerland.

19

Medacta International SA strada regina - 6874 castel san Pietro switzerland

Phone +41 91 696 60 60

Fax +41 91 696 60 66 [email protected]

d I s t r I b u t e d b y

Medacta USA

4725 calle quetzal suite b - camarillo california 93012

Phone +1 805 437 7085

Fax +1 805 437 7089 [email protected]

MectalIF

®

oblique

MectalIF ® Posterior surgical technique ref: 99.44.12us

rev. 00

APPENDIX I

ACTIVE 26481542v5 09/05/2014

2014

Reimbursement Guide

63064

63045

63047

22614

63075

63048

22851

20930

20937

63090

22851

63055

22612

22551

22595

61783

63077

22558

20936

20840

63055

22554

63090

22841

38220

61783

63064

22551

20930

20840

63001

CONTENTS

I. Introduction

II. Physician Coding and Payment

1. Fusion Facilitating Technologies

2. NVM5

®

Intraoperative Monitoring System

III. Hospital Inpatient Coding and Payment

1. NuVasive

®

Technology

2. Non-Medicare Reimbursement

I V. Outpatient Facility Coding and Payment

1. Hospital Outpatient

2. Non-Medicare Reimbursement

3. Ambulatory Surgery Center

4. Facility Device and Implant Codes

V. Coding and Payment Scenarios

1. Cervical Anterior Scenarios

2. Cervical Posterior Scenarios

3. Thoracolumbar Anterior Scenarios

4. Lumbar Combined Anterior-Posterior Scenarios

5. Lumbar Posterior-Posterolateral Scenarios

VI. Technology Overview

1. Cervical

2. Thoracolumbar

3. Biologics

4. NVM5 Intraoperative Monitoring System

Addendum A: Healthcare Acronyms

Addendum B: Glossary of Reimbursement Terms

19

19

20

21

25

18

18

16

17

13

14

16

16

3

12

2

3

28

28

29

30

26

27

27

27

QUESTIONS? CONTACT NUVASIVE

®

SPINE REIMBURSEMENT SUPPORT BY CALLING 800-211-0713 OR EMAILING [email protected]

.

THE INFORMATION PROVIDED IS GENERAL CODING INFORMATION ONLY; IT IS NOT

ADVICE ABOUT HOW TO CODE, COMPLETE, OR SUBMIT ANY PARTICULAR CLAIM FOR PAYMENT. IT IS ALWAYS THE PROVIDER’S RESPONSIBILITY TO DETERMINE AND SUBMIT APPROPRIATE CODES, CHARGES, MODIFIERS, AND BILLS FOR THE SERVICES

THAT WERE RENDERED. PAYORS OR THEIR LOCAL BRANCHES MAY HAVE THEIR OWN CODING AND REIMBURSEMENT REQUIREMENTS. BEFORE RENDERING IOM SERVICES, PROVIDERS SHOULD OBTAIN PREAUTHORIZATION FROM THE PAYOR.

1

2014 Reimbursement Guide

I. INTRODUCTION

This Reimbursement Guide has been prepared to assist physicians and facilities (“providers”) in accurately billing for NuVasive

® implants and instrumentation systems. The NuVasive corporate headquarters houses a state-of-the-art education center and cadaver operating lab, designed to provide training and education to physicians on these technologies.

This information details our general understanding of the application of certain codes to NuVasive products. It is the provider’s responsibility to determine and submit appropriate codes, charges, and modifiers for the products and services rendered.

Payors may have additional or different coding and reimbursement requirements. Therefore, before filing any claim, providers should verify these requirements in writing with local payors. For more information, visit

www.nuvasive.com

.

Spine Reimbursement Support

800-211-0713

or

[email protected]

Working with professional medical societies and legislators, NuVasive has taken an active role regarding reimbursement for spine products and procedures. To assist providers with coding and denial issues, NuVasive established Spine Reimbursement

Support assistance, available at

800-211-0713

or

[email protected]

. Please use this resource for reimbursement questions regarding any of the NuVasive products and associated procedures.

2

QUESTIONS? CONTACT NUVASIVE

®

SPINE REIMBURSEMENT SUPPORT BY CALLING 800-211-0713 OR EMAILING [email protected]

.

THE INFORMATION PROVIDED IS GENERAL CODING INFORMATION ONLY; IT IS NOT

ADVICE ABOUT HOW TO CODE, COMPLETE, OR SUBMIT ANY PARTICULAR CLAIM FOR PAYMENT. IT IS ALWAYS THE PROVIDER’S RESPONSIBILITY TO DETERMINE AND SUBMIT APPROPRIATE CODES, CHARGES, MODIFIERS, AND BILLS FOR THE SERVICES

THAT WERE RENDERED. PAYORS OR THEIR LOCAL BRANCHES MAY HAVE THEIR OWN CODING AND REIMBURSEMENT REQUIREMENTS. BEFORE RENDERING IOM SERVICES, PROVIDERS SHOULD OBTAIN PREAUTHORIZATION FROM THE PAYOR.

II. PHYSICIAN CODING AND PAYMENT

When physicians bill for services performed, payors require the physician to assign a Current Procedural Terminology (or

CPT

®

) code to classify or identify the procedure performed. These CPT codes are created and maintained by the American

Medical Association (AMA) and are reviewed and revised on an annual basis. The most commonly used CPT codes are referred to as Category I codes and are five-digit codes accompanied by narrative descriptions.

The AMA assigns a number of relative value units (or RVUs) to most CPT codes to represent the physician work, malpractice costs, and practice expenses associated with a given procedure or service. Medicare annually revises a dollar conversion factor that, when multiplied by the code’s RVUs, results in the national Medicare reimbursement for that procedure. Most private payors also consider a code’s RVUs when establishing physician fee schedules.

Industrial or work-related injury cases are usually paid according to state-established fee schedules or percentage of billed charges. A state-appointed agency or private third party payors handle administration of workers’ compensation benefits and claims.

1. FUSION FACILITATING TECHNOLOGIES

The following CPT codes are generally used to report a decompression and/or arthrodesis procedures. The codes listed here are examples only, not an exhaustive listing. It is always the physician’s responsibility to determine and submit appropriate codes, charges, and modifiers for the services that were rendered.

CPT CODING FOR ARTHRODESIS USING THE NUVASIVE

®

MAXCESS

®

SYSTEM

NASS provided coding guidance for physicians when performing a fusion through an anterolateral approach. During an XLIF

® lateral approach procedure, the patient is typically positioned laterally in order to spread the abdominal muscles to approach the lumber spine via a retroperitoneal exposure. The iliopsoas muscle is either split or mobilized to access the anterior spine from the lateral approach. The target of this approach is the vertebral body and anterior interspace. The physician is therefore performing an anterior fusion through an anterolateral approach. For this reason, NASS recommended the use of the anterior arthrodesis CPT code 22558, as well as the applicable instrumentation code(s) to describe the procedure.

When obtaining preauthorization for this procedure, please keep the following key points in mind:

• Include trade names of the devices to ensure appropriate review by payors. Payors may establish coverage criteria based on the specific devices/approach. In addition, utilize recognized correct coding nomenclature.

• Medical necessity for the fusion must be established through relevant patient diagnosis codes.

• Preauthorization should be requested for all relevant procedure codes for the case (e.g., anterior arthrodesis, posterior arthrodesis, instrumentation, graft material, nerve monitoring, etc.).

QUESTIONS? CONTACT NUVASIVE

®

SPINE REIMBURSEMENT SUPPORT BY CALLING 800-211-0713 OR EMAILING [email protected]

.

THE INFORMATION PROVIDED IS GENERAL CODING INFORMATION ONLY; IT IS NOT

ADVICE ABOUT HOW TO CODE, COMPLETE, OR SUBMIT ANY PARTICULAR CLAIM FOR PAYMENT. IT IS ALWAYS THE PROVIDER’S RESPONSIBILITY TO DETERMINE AND SUBMIT APPROPRIATE CODES, CHARGES, MODIFIERS, AND BILLS FOR THE SERVICES

THAT WERE RENDERED. PAYORS OR THEIR LOCAL BRANCHES MAY HAVE THEIR OWN CODING AND REIMBURSEMENT REQUIREMENTS. BEFORE RENDERING IOM SERVICES, PROVIDERS SHOULD OBTAIN PREAUTHORIZATION FROM THE PAYOR.

3

2014 Reimbursement Guide

Decompression Procedure Codes

CPT

®

CODE 1

63001

MODIFIER

(IF WARRANTED)

63003

63005

63015

63016

63017

63020 -50

PROCEDURE DESCRIPTION

Laminectomy with exploration and/or decompression of spinal cord and/or cauda equina, without facetectomy, foraminotomy or discectomy (e.g., spinal stenosis), 1 or 2 vertebral segments; cervical

Laminectomy with exploration and/or decompression of spinal cord and/or cauda equina, without facetectomy, foraminotomy or discectomy (e.g., spinal stenosis), 1 or 2 vertebral segments; thoracic

Laminectomy with exploration and/or decompression of spinal cord and/or cauda equina, without facetectomy, foraminotomy or discectomy (e.g., spinal stenosis), 1 or 2 vertebral segments; lumbar, except for spondylolisthesis

Laminectomy with exploration and/or decompression of spinal cord and/or cauda equina, without facetectomy, foraminotomy or discectomy (e.g., spinal stenosis), more than 2 vertebral segments; cervical

Laminectomy with exploration and/or decompression of spinal cord and/or cauda equina, without facetectomy, foraminotomy or discectomy (e.g., spinal stenosis), more than 2 vertebral segments; thoracic

Laminectomy with exploration and/or decompression of spinal cord and/or cauda equina, without facetectomy, foraminotomy or discectomy (e.g., spinal stenosis), more than 2 vertebral segments; lumbar

Laminotomy (hemilaminectomy), with decompression of nerve root(s), including partial facetectomy, foraminotomy and/or excision of herniated intervertebral disc; 1 interspace, cervical

63030 -50

63035

63040

63042

63043

63044

63045

-50

-50

-50

-50

Laminotomy (hemilaminectomy), with decompression of nerve root(s), including partial facetectomy, foraminotomy and/or excision of herniated intervertebral disc; 1 interspace, lumbar
