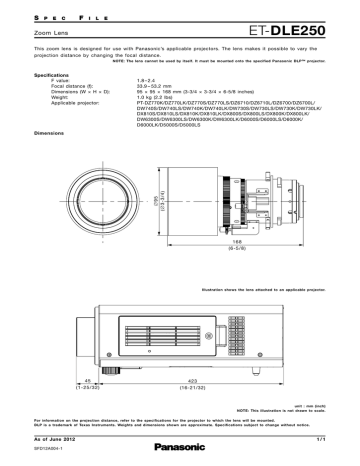

DLE250 S F Zoom  Lens
S
P
E
C
F
I
L
E
ET-DLE250
Zoom Lens
This zoom lens is designed for use with Panasonic’s applicable projectors. The lens makes it possible to vary the
projection distance by changing the focal distance.
NOTE: The lens cannot be used by itself. It must be mounted onto the specified Panasonic DLP™ projector.
Specifications
F value:
Focal distance (f):
Dimensions (W × H × D):
Weight:
Applicable projector:
1.8 – 2.4
33.9 – 53.2 mm
95 × 95 × 168 mm (3-3/4 × 3-3/4 × 6-5/8 inches)
1.0 kg (2.2 lbs)
PT-DZ770K/DZ770LK/DZ770S/DZ770LS/DZ6710/DZ6710L/DZ6700/DZ6700L/
DW740S/DW740LS/DW740K/DW740LK/DW730S/DW730LS/DW730K/DW730LK/
DX810S/DX810LS/DX810K/DX810LK/DX800S/DX800LS/DX800K/DX800LK/
DW6300S/DW6300LS/DW6300K/DW6300LK/D6000S/D6000LS/D6000K/
D6000LK/D5000S/D5000LS
∅ 95
(∅ 3-3/4)
Dimensions
168
( 6 -5 / 8 )
Illustration shows the lens attached to an applicable projector.
45
(1- 25/ 32)
423
(16-21/32)
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
For information on the projection distance, refer to the specifications for the projector to which the lens will be mounted.
DLP is a trademark of Texas Instruments. Weights and dimensions shown are approximate. Specifications subject to change without notice.
As of June 2012
SFD12A004-1
1/1
