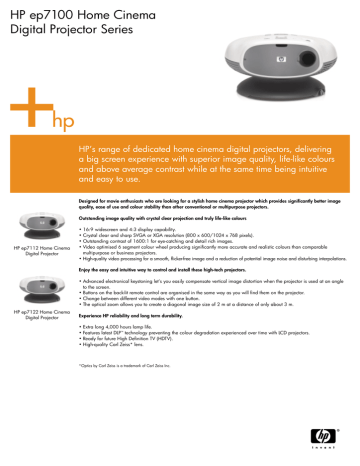

HP ep7100 Home Cinema
Digital Projector Series
HP’s range of dedicated home cinema digital projectors, delivering
a big screen experience with superior image quality, life-like colours
and above average contrast while at the same time being intuitive
and easy to use.
Designed for movie enthusiasts who are looking for a stylish home cinema projector which provides significantly better image
quality, ease of use and colour stability than other conventional or multipurpose projectors.
Outstanding image quality with crystal clear projection and truly life-like colours
HP ep7112 Home Cinema
Digital Projector
• 16:9 widescreen and 4:3 display capability.
• Crystal clear and sharp SVGA or XGA resolution (800 x 600/1024 x 768 pixels).
• Outstanding contrast of 1600:1 for eye-catching and detail rich images.
• Video optimised 6 segment colour wheel producing significantly more accurate and realistic colours than comparable
multipurpose or business projectors.
• High-quality video processing for a smooth, flicker-free image and a reduction of potential image noise and disturbing interpolations.
Enjoy the easy and intuitive way to control and install these high-tech projectors.
• Advanced electronical keystoning let’s you easily compensate vertical image distortion when the projector is used at an angle
to the screen.
• Buttons on the back-lit remote control are organised in the same way as you will find them on the projector.
• Change between different video modes with one button.
• The optical zoom allows you to create a diagonal image size of 2 m at a distance of only about 3 m.
HP ep7122 Home Cinema
Digital Projector
Experience HP reliability and long term durability.
• Extra long 4,000 hours lamp life.
• Features latest DLP™ technology preventing the colour degradation experienced over time with LCD projectors.
• Ready for future High Definition TV (HDTV).
• High-quality Carl Zeiss* lens.
*Optics by Carl Zeiss is a trademark of Carl Zeiss Inc.
Technical specifications
Ordering information
Image contrast
1600:1 JBMA full-on/full-off
Display resolution
HP ep7112: True SVGA (800 x 600 pixels) with 16:9 widescreen and optional 4:3 display capability
HP ep7122: True XGA (1024 x 768 pixels), with 16:9 widescreen and optional 4:3 display capability
Resolutions supported through scaling
HP ep7112: Native SVGA (800 x 600) – scales up from VGA (640 x 480) and scales down from XGA (1024 x 768)
HP ep7122: Scales up from VGA (640 x 480) and scales down from XGA (1024 x 768)
Image technology
HP ep7112: DLP™ with 0.55" 12 degree tilt DMD and video optimised 6 segment (RGBRGB) colour wheel
HP ep7122: DLP™ with 0.7" 12 degree tilt DMD and video optimised 6 segment (RGBRGB) colour wheel
Brightness
HP ep7112: 840 (max) ANSI lumens
HP ep7122: 1020 (max) ANSI lumens
Noise level
< 34 B(A) at 23˚ C
Dimensions (w x d x h)
Out of package: 386 x 365 x 205 mm, packaged: 641.4 x 558.8 x 278.6 mm
Weight
Out of package: 5.7 kg, packaged: 9.3 kg
Colour
24-bit, 16.7 million colours
Uniformity
80%
L1750A
HP ep7112 Home Cinema
Digital Projector, AC 3-conductor
power cord (3 m, 10 ft), wireless
remote control, 6 m composite
video cable, 6 m s-video cable,
multi-language user’s guide
(CD-ROM), multi-language quick
start card, battery x 2, warranty card
L1751A
HP ep7122 Home Cinema
Digital Projector, AC 3-conductor
power cord (3 m, 10 ft), wireless
remote control, 6 m composite
video cable, 6 m s-video cable,
multi-language user’s guide
(CD-ROM), multi-language quick
start card, battery x 2, warranty card
Projector colour coordinates of white point 0.283, 0.304
Lens
F/2.4 max, 1.16:1 manual Zoom Focus
Projection size
Adjustable from 0.8 to 6.9 m (diagonal)
Throw distance
Approximately 1 to 10 m
Display scan frequency
Horizontal frequency: 31-60 kHz, vertical frequency: 43-85 Hz
Offset
128% of image above the centre line
Keystoning
Vertical ± 20˚ (40˚ total)
Advanced electronic keystone correction
Signal interface
Via DVI-to-VGA adapter: XGA, SVGA, VGA, Mac, SXGA, Mac LC 13 in, Mac II 13 in, Mac 16 in, Mac 19 in, Mac G4, i Mac DV
User interface
Wireless remote for basic functionality
Lamp broken: red; temperature warning: red; power: blue
User-friendly multilingual On Screen Display (OSD)
Lens cover control
Cables
L1714A
HP HDTV (RGB) 6 m Cable
L1715A
HP S-Video 6 m Cable
Digital Imaging Accessories
L1717A
HP SCART to Composite/
S-Video with Audio Adapter
L1718A
HP DVI to VGA Adapter*
L1731A
HP ep7100 series/ep9012
Lamp Module
L1733A
HP ep7100 series
Ceiling Mount
Certifications
EU (EMC Directive), USA (FCC Rules), Australia (ACA), New Zealand (MoC), Canada (DoC), China (Requirements for Class B
Products, Class A when connected to LANs), Japan (VCC registered), Korea (RRL certified), Taiwan (BCIQ certified)
L1740A
HP HDTV Mobile
60-inch Screen
Adjustable features
Brightness, Contrast, Sharpness, Color saturation, Tint, Color space, Color settings, Keystone, Wide-screen mode, Picture mode,
Standby lamp delay
L1741A
HP HDTV Mobile
80-inch Screen
Speakers/microphone
Monaural speaker, 5-watt peak output
Video compatibility
NTSC 3.58 MHz and 4.43 MHz; PAL B, D, G, H, I, M, N; SECAM B, D, G, K, K1, L; HDTV (480i/p, 575i/p, 720p, 1080i)
External I/O Ports
Composite Video Input (RCA x 1)
S-Video Input (Mini DIN 4-pin x1)
Component Video Input (RCA x 3)
Stereo-in (RCA x 2)
USB for service upgrades
DVI-I Input*
Power requirements
Universal AC 90-265 V, 47/63 Hz with PFC that meets EN 61000-3-2 Class D for input harmonics
Power consumption
100 to 240V at 50 to 60 Hz
Lamp
210-watt lamp; 4,000 hours lamp life
Operating environment
Environmental ranges: operating temperature: 10 to 40˚ C, operating humidity: 20 to 80% RH, storage temperature: 20 to 60˚ C,
storage humidity: 20 to 80% RH
Mounting capability
Yes, with optional HP ceiling mount
Warranty
One-year limited hardware warranty on digital projector; one-year limited hardware warranty on lamp module or 1,000 lamp
hours (which ever comes first)
Service & support
24/7 free email/web support and free telephone support for basic set-up, installation, and troubleshooting in EMEA during and
out of warranty; calls will be charged at standard phone rates.
*HP ep7122 Home Cinema Projector only
Optional warranty extension
U4802E
3 years Unit Exchange
U8136E
3 years Repair & Return
U8228A
2 years Unit Exchange
*HP ep7122 Home Cinema Projector only
http://www.hp.com
For more information, please call your local HP sales office or representative: Austria: 0800 242 242, Algeria: (0)61 56 45 43, Bahrain: 800 728, Belgium: (078) 15 20 30 (0.0496 EUR/min), Bulgaria: (+359) 2960 1940,
Croatia: (+385 1) 60 60 200, Czech Republic: (00 420 2) 261 108 108 (Prague), Denmark: 48 12 10 00, Egypt: 532 5222, Estonia: (+372) 6813 823, Finland: (+358) 0205350 or 0205 350, France: (1) 69 82 6060,
Germany: 0180 532 6222 (12 Cent/min), Greece: (01) 678 96 00, Hungary: (+36) 1 382-1111, Iceland: (354) 570 1000, Ireland: + 353 1 6158200, Israel: (972) 9 8304848, Italy: (02) 92121, Kazakhstan:
+7 (3272) 980 824, Latvia: (371) 800 80 12, Lithuania: 8 800 10000 or 8 5 2103333, Luxembourg: (+352) 263 160 34, Middle East: 00971 4 883 4427, Morocco (African Region): +212 22 40 47 47,
Netherlands: (020) 5476666, Norway: 22 735600, Poland: infolinia: 0-800 122 622, Portugal: (808) 206 001, Romania: (+401) 205 3300, Russia: +7 (095) 797 35 00, Saudi Arabia: 800 124 4646,
Serbia/Montenegro: +381 11 201 99 00, Slovakia: +421-2-50222111, Slovenia: +3861 2307 420, South Africa: 0800 118 883, Spain: (91) 634 88 00, Sweden: (08) 444 2000, Switzerland: 0848 88 44 66,
Tunisia: 71 891 222, Turkey: +90 (216) 579 71 71, UAE: 8004910, UK: 08705 474747, Ukraine: +380 44 490 61 20.
DLP™ technology by
Texas Instruments offers
crystal clear images
with superior quality
©2004 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP Products and services
are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or omissions contained herein.
Published in EMEA 08/04 5982-8206EEE
