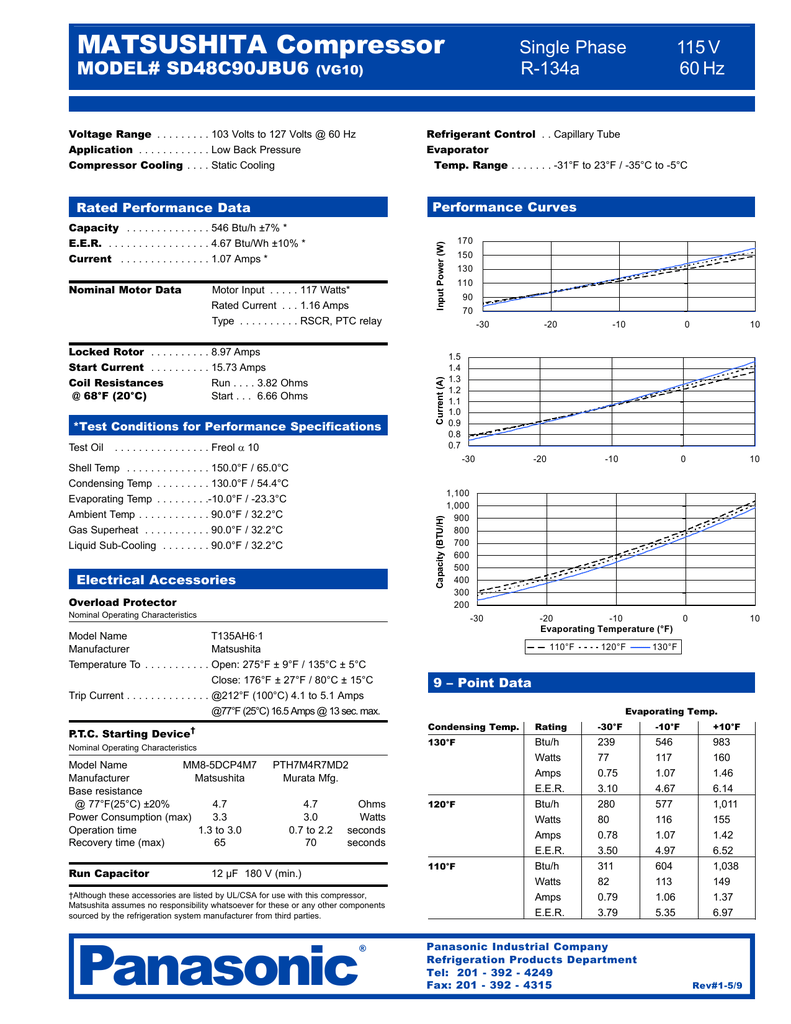

MATSUSHITA Compressor

MODEL# SD48C90JBU6

(VG10)

Single Phase

R-134a

115 V

60 Hz

Voltage Range . . . . . . . . . 103 Volts to 127 Volts @ 60 Hz

Application . . . . . . . . . . . . Low Back Pressure

Compressor Cooling . . . . Static Cooling

Rated Performance Data

Capacity . . . . . . . . . . . . . . 546 Btu/h ±7% *

E.E.R. . . . . . . . . . . . . . . . . . 4.67 Btu/Wh ±10% *

Current . . . . . . . . . . . . . . . 1.07 Amps *

Nominal Motor Data

Motor Input . . . . . 117 Watts*

Rated Current . . . 1.16 Amps

Type . . . . . . . . . . RSCR, PTC relay

Locked Rotor . . . . . . . . . . 8.97 Amps

Start Current . . . . . . . . . . 15.73 Amps

Coil Resistances

@ 68°F (20°C)

Run . . . . 3.82 Ohms

Start . . . 6.66 Ohms

*Test Conditions for Performance Specifications

Test Oil . . . . . . . . . . . . . . . . Freol

α

10

Shell Temp . . . . . . . . . . . . . . 150.0°F / 65.0°C

Condensing Temp . . . . . . . . . 130.0°F / 54.4°C

Evaporating Temp . . . . . . . . .-10.0°F / -23.3°C

Ambient Temp . . . . . . . . . . . . 90.0°F / 32.2°C

Gas Superheat . . . . . . . . . . . 90.0°F / 32.2°C

Liquid Sub-Cooling . . . . . . . . 90.0°F / 32.2°C

Electrical Accessories

Overload Protector

Nominal Operating Characteristics

Model Name

Manufacturer

T135AH6.1

Matsushita

Temperature To . . . . . . . . . . . Open: 275°F ± 9°F / 135°C ± 5°C

Close: 176°F ± 27°F / 80°C ± 15°C

Trip Current . . . . . . . . . . . . . . @212°F (100°C) 4.1 to 5.1 Amps

@77°F (25°C) 16.5 Amps @ 13 sec. max.

P.T.C. Starting Device

Nominal Operating Characteristics

Model Name

Manufacturer

Base resistance

@ 77°F(25°C) ±20%

MM8-5DCP4M7

Power Consumption (max)

Operation time

Recovery time (max)

Matsushita

4.7

3.3

1.3 to 3.0

65

PTH7M4R7MD2

Murata Mfg.

4.7

3.0

Ohms

Watts

0.7 to 2.2

seconds

70 seconds

12 µF 180 V (min.)

Run Capacitor

†Although these accessories are listed by UL/CSA for use with this compressor,

Matsushita assumes no responsibility whatsoever for these or any other components sourced by the refrigeration system manufacturer from third parties.

Panasonic

®

Refrigerant Control . . Capillary Tube

Evaporator

Temp. Range . . . . . . . -31°F to 23°F / -35°C to -5°C

Performance Curves

170

150

130

110

90

70

-30 -20

1.5

1.4

1.3

1.2

1.1

1.0

0.9

0.8

0.7

-30 -20

-10 0 10

-10 0 10

1,100

1,000

900

800

700

600

500

400

300

200

-30 -20 -10

Evaporating Temperature (°F)

110°F 120°F 130°F

0

9 – Point Data

Condensing Temp. Rating

130°F Btu/h

Watts

Amps

E.E.R.

120°F Btu/h

Watts

110°F

Amps

E.E.R.

Btu/h

Watts

Amps

E.E.R.

Panasonic Industrial Company

Refrigeration Products Department

Tel: 201 - 392 - 4249

Fax: 201 - 392 - 4315

3.50

311

82

0.79

3.79

-30°F

Evaporating Temp.

-10°F +10°F

239 546 983

77

0.75

117

1.07

160

1.46

3.10

280

80

0.78

4.67

577

116

1.07

6.14

1,011

155

1.42

4.97

604

113

1.06

5.35

6.52

1,038

149

1.37

6.97

Rev#1-5/9

10

MATSUSHITA Compressor

MODEL# SD48C90JBU6

(VG10)

Single Phase

R-134a

115 V

60 Hz

19mm (.75") DIA

4 Holes

16mm (.63") DIA

4 Holes

130.6mm

70mm

(2.76")

(5.14")

101.6mm

(4.00") 82mm

(2.44")

150.4mm

(5.92")

207.1mm (8.15")

170mm (6.69")

165.1mm (6.50")

Suction

Tube

D

87mm (3.43") 78mm (3.07")

104mm (4.09")

164.4mm (6.47") DIA

Discharge

Tube

41mm

(1.61")

76mm

(2.99")

Process

Tube

B

E

D

C

A

~

8

7

R.S.C.R.

Internal Motor Protector

C

S

6

3 2

M

5

Compressor

Motor

PTC Relay

Running Capacitor

2.5mm (.10")

Dimensions* mm inches

A . . . . . . . . . . . . . . . . . . . . . 172.1 . . . . . . . . . . . . . . . . . . . 6.78

B . . . . . . . . . . . . . . . . . . . . . 60.9 . . . . . . . . . . . . . . . . . . . . 2.40

C . . . . . . . . . . . . . . . . . . . . . 111.2 . . . . . . . . . . . . . . . . . . . 4.38

D . . . . . . . . . . . . . . . . . . . . . 102.0 . . . . . . . . . . . . . . . . . . . 4.02

E . . . . . . . . . . . . . . . . . . . . . 85.0 . . . . . . . . . . . . . . . . . . . . 3.35

* All dimensions are for reference only

This document sets forth certain operational parameters and conditions for operation of this product. If this product is operated outside of the parameters and conditions stated herein, buyer assumes sole and full responsibility and shall indemnify seller with respect to all product failures and all consequences thereof. Operation of the product outside of the parameters and conditions specified herein shall serve to invalidate all seller warranties, if any, with respect to the product. This document is for reference only. For specifications, please contact Panasonic’s engineering department.

Panasonic

®

Tubes

Tube O.D.

Suction . . . . . . . 0.33 in. / 8.3 mm

Wall Material

0.035 in. / 0.9 mm Copper

Process . . . . . . 0.3125 in / 7.94 mm 0.028 in. / 0.7 mm Copper

Discharge . . . . . 0.28 in. / 7.0 mm 0.041 in. / 1.05 mm Copper

U.L. File # . . . . . . . . . SA 4615

C.S.A. File #’s . . . . . . LR - 36593

General Data Oil Charge . . 195 cc ± 5 cc / 11.9 cu.in.± 0.3 cu.in.

Net Weight With Oil . . . . . . . . . . . . 16.3 lbs, 7.4 kg

Approved Oils . . . . . . FREOL

α

10, FREOL

α

10E

. . . . . .FREOL

α

22, FREOL

α

22E

Residual Moisture . . . . . . . . . . . . . . . 120 mg max.

Impurities . . . . . . . . . . . . . . . . . . . . . . . 7 mg max.

Displacement . . . . . . . . . . . 4.85 cc. / 0.296 cu. in.

Panasonic Industrial Company

Refrigeration Products Department

Tel: 201 - 392 - 4249

Fax: 201 - 392 - 4315 Rev#1-5/9
