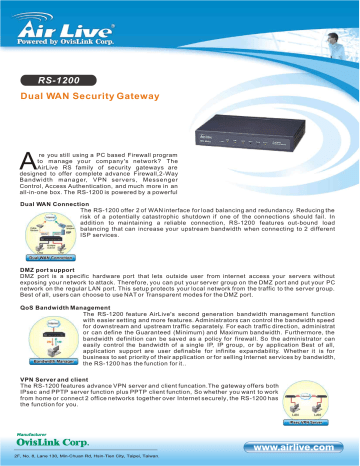

RS-1200 Dual WAN Security Gateway

RS-1200 Dual WAN Security Gateway
RS-1200
Dual WAN Security Gateway
A
re you still using a PC based Firewall program
to manage your company's network? The
AirLive RS family of security gateways are
designed to offer complete advance Firewall,2-Way
B a n d w i d t h m a n a g e r, V P N s e r v e r s , M e s s e n g e r
Control, Access Authentication, and much more in an
all-in-one box. The RS-1200 is powered by a powerful
Dual WAN Connection
The RS-1200 offer 2 of WAN interface for load balancing and redundancy. Reducing the
risk of a potentially catastrophic shutdown if one of the connections should fail. In
addition to maintaining a reliable connection, RS-1200 features out-bound load
balancing that can increase your upstream bandwidth when connecting to 2 different
ISP services.
DMZ port support
DMZ port is a specific hardware port that lets outside user from internet access your servers without
exposing your network to attack. Therefore, you can put your server group on the DMZ port and put your PC
network on the regular LAN port. This setup protects your local network from the traffic to the server group.
Best of all, users can choose to use NAT or Transparent modes for the DMZ port.
QoS Bandwidth Management
The RS-1200 feature AirLive's second generation bandwidth management function
with easier setting and more features. Administrators can control the bandwidth speed
for downstream and upstream traffic separately. For each traffic direction, administrat
or can define the Guaranteed (Minimum) and Maximum bandwidth. Furthermore, the
bandwidth definition can be saved as a policy for firewall. So the administrator can
easily control the bandwidth of a single IP, IP group, or by application Best of all,
application support are user definable for infinite expandability. Whether it is for
business to set priority of their application or for selling Internet services by bandwidth,
the RS-1200 has the function for it..
VPN Server and client
The RS-1200 features advance VPN server and client funcation.The gateway offers both
IPsec and PPTP server function plus PPTP client function, So whether you want to work
from home or connect 2 office networks together over Internet securely, the RS-1200 has
the function for you.
Multiple Virtual Sever
Some router provide Multi-DMZ support. But the RS-1200 goes one extra step to provide multi virtual server
support.
So that means if your ISP provide more than one real IP address, you can take full advantage of it by
assigning different forwarding rules for each real IP address. Up to 4 real IP addresses are supported each
with its own NAT table
Policy Based Firewall with scheduling
At the factory's default setting, the RS-1200 does not open any services. Administrator
should decide whether to open all services (just go to the policy page and create a policy
from inside any to outside any and create another one from outside any to inside any) or
open certain services only. The policies are listed in a order list, so administrator has the
flexibility to choose which policy has the highest priority. Best of all, all these policies can
be activate or deactivate by automatic scheduling
(Monday to Sunday, starting and finishing hours)
Password Authentication for Internet Access
For each policy, administrator can define a password needed for accessing. Take for
example, you can set a policy for web browsing (port 80). And the gateway will
automatically pop-up a window asking the user to enter password when they want to
access the Internet. Up to 200 authentication policies can be made. This feature is
useful for system administrator who want to limit certain service to certain individuals
regardless of which station they use. Furthermore, it can also be used for control of
selling Internet services
Content Filtering
system administrators can establish and enforce acceptable Internet access policies. Content filtering
enables the blocking of certain websites either by IP or by domain name. Administrators can also define
schedule for each content filtering rules. But best of all, you can also choose to block javascript, active-X,
POP-UP, or Cookies. Up to 300 content filtering rules can be made.
Messenger and Skype Blocking
One of the biggest headache for system administrators is to block messenger and Skype traffic. Because
these application use dynamic ports that are hard to block, it is usually difficult to block those particular
applications. With the RS-1200, it can block MSN messenger, Yahoo Messenger, ICQ, QQ messenger, and
Skype traffic with a click of a button.
Advance Security Functions
The gateway can be either configured in transparent mode as a gateway or enable the NAT router function. It
has many security features built-in such as SPI, SYN, ICMP, DoS, UDP, Ping of Death and Port Scan. The
traffic log can be sent automatically by email or by Syslog function. The gateway even features Accounting
Report function that display individual IP/service's usage in time or Kilobytes. Therefore, administrator can
charge account by time or traffic used.
The RS-1200 is a product that combines the most important and useful security features in one package. It
allows you to take complete control over your network. Contact your authorized AirLive dealer for details
Specification
Hardware
·
·
·
·
Processor : Intel IXP425, 266MHz
Memory: 8MB Flash, 64MB SDRAM
Power: 100~240 VAC DC 5V, 2.4A
Dimensions: H: 40mm W: 150m D: 220mm
Connection & Display
·
·
·
LAN port
· 1x 10/100 Base-T Ethernet RJ 45 port
WAN port
· 2 x 10/100 Base-T Ethernet RJ45 port
DMZ port
· 1x 10/100 Base-T Ethernet RJ 45 port
Connecting to Internet
FTP,SNMP,HTTP,DNS)
· Reset
Reset to the original default setting
QoS function
·
·
·
·
·
·
Limit bandwidth by IP and/or by Application
Service
User definable Service
Local User name and password
build in Authentication User (up to 200
Users)
PPPoE
Fixed IP
DHCP
WAN1/ WAN2 interface enable
setup ICMP, DNS WAN connection service
PPTP
70Mbps NAT throughtput
45000 Concurrent NAT sessions
Incoming and Outgoing Policy
Stateful Packet Inspection (SPI)
PI, SYN, ICMP, DoS, UDP
Permited IP
Ping of Death and Port Scan
Blaster Alert
VPN pass-through
IPSec and PPTP
50 max VPN tunnel entries
Log and Stastic
· Email alert
· Syslog
·
·
·
·
·
·
·
Define Guaranteed and Maximum
Bandwidth
build in Authentication Group ( up to 20
Group)
WAN Support
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
Upstream and Downstream Bandwidth
Control
Save QoS rule as a policy
Authentication
·
·
Security Functions
Accounting Report
Incoming IP traffic
Outgoing IP traffic
Incoming Service
Outgoing Service
By usage in Kbps
By Time used
· Event Alarm
Content Filtering
· Javascript, active-X, POP-UP, or Cookies
controls
·
·
eDonkey , BT , WinMX P2P Blocking
IM Blocking
· MSN messenge
· Yahoo Messenger
· ICQ
· QQ
· Skype
Virtual Server
· Multi Virtual Server support (up to 4 real IP)
· Up to 16 virtual server entries
Management and Maintenance
· Web-based management
· Firmware upgrade
· DDNS
· Routed Table
Specification
LAN
Hardware
supportSpecifications
Processor:
Waveplus
MIPS
100MHz
CPU
· DHCP with
2 WINS
server
settings
Memory:
16MB Flash,
· Transparent
mode32MB SDRAM
Power:
100~240
· NAT mode VAC
Dimensions: H: 40mm W: 150m D: 220mm
· Multiple Subnets
Physical
Interfaces
DMZ support
WAN
Port:
1 * 10/100 Base-T Ethernet RJ45 port,
· NAT
mode
LAN Ports: 4 * 10/100 Base-T Ethernet RJ45 port,
· Transparent mode
QoS function
· LAN to DMZ, DMZ to LAN, WAN to
Upstream
and Downstream
Bandwidth Control
DMZ,DMZ
to WAN
Define
Guaranteed
· policy
control and Maximum Bandwidth
Limit bandwidth by IP and/or by Application
Scheduling
·Service
Define Days of the Week
User definable Service
· Define Start Hour (in 30 minutes interval)
Save QoS rule as a policy
· Define Ending Hour (in 30 minutes interval)
Up to 100 rules
· Up to 20 schedule type
Authentication
Local User name and password
Ordering
Information
Up to 200
policies
WAN Support
RS-1200
Dual WAN Security Gateway
PPPoE
Log and Stastic
· Clock
Email alert
· Host name table
Syslog
Environmental
Specifications
Accounting
Report
· Operating Temp: 0 C to 55 C;
·
·
Incoming IP traffic
Storing Temperature : -20 C ~ 70 C
Outgoing IP traffic
Operating Humidity: 90% max relative nonIncoming
Service
condensing
Outgoing
Service
EMI/EMC
Compliance
usage with
in Kbps
· ByComply
FCC part 15, subpart J
By
Time
used
· Class B CISPR/FCC
Event
Alarm with CE/EMC
· Comply
Content Filtering
Javascript, active-X, POP-UP, or Cookies
controls
URL Filtering
IP Filtering
Up to 300 entries
Virtual Server
Multi Virtual Server support (up to 4 real IP)
Up to 16 virtual server entries
Management and Maintenance
Fixed IP
Web-based management
DHCP
Firmware upgrade
