APWLink+ microphone USB demonstration boards based on the
MP34DT01, MP45DT02, or MP34DB01
Introduction
The purpose of this application note is to give a brief description of the APWLink+
microphone USB demonstration boards from STMicroelectronics. These boards host the
microcontroller STM32F107RC and either the MP45DT02, MP34DT01 (top-port digital
microphones) or the MP34DB01 (bottom-port digital microphone). Figure 1 shows the
capability of the board to host these microphones.
These microphones are analog-to-digital transducers, in other words, they are able to sense
sound pressure and convert this signal to a digital signal using the pulse-density modulation
(PDM) technique. The STM32 microcontroller decodes the PDM signal coming from the
microphones and streams the audio via the USB.
This document will provide a brief description of the software that decodes the PDM signal
and also information about the hardware as well as simple steps to use the boards. Ordering
information for these boards can be found in Appendix C on page 12.

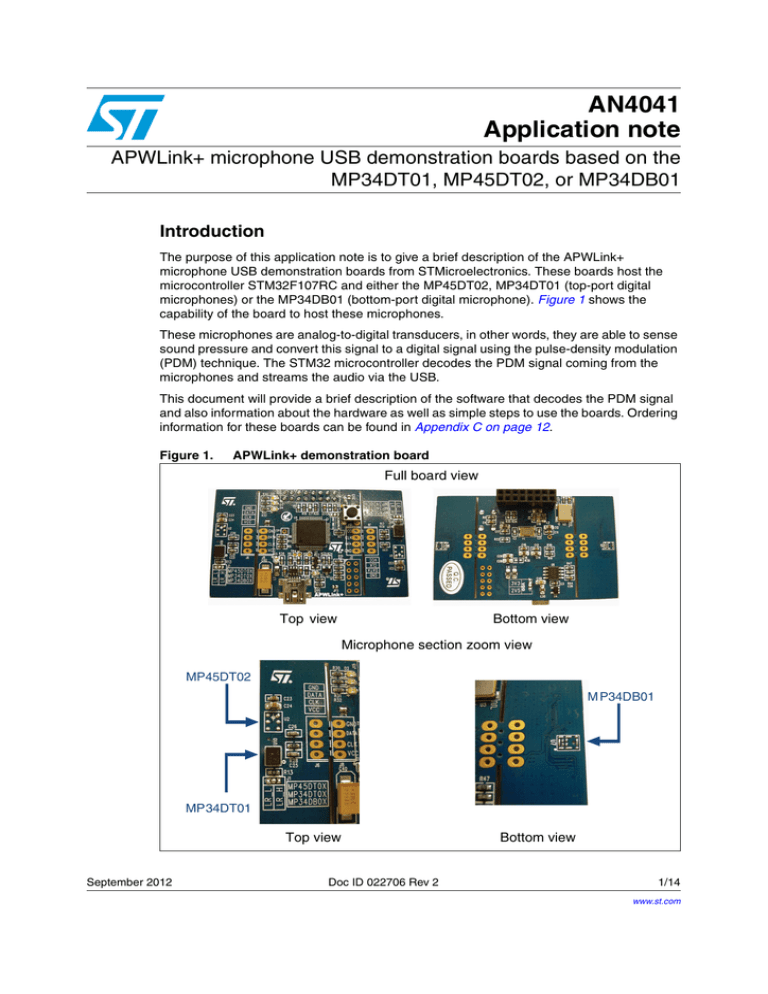

Figure 1.
APWLink+ demonstration board
'VMMCPBSEWJFX
5PQ WJFX
#PUUPNWJFX
.JDSPQIPOFTFDUJPO[PPNWJFX
.1%5
. 1%#
.1%5
5PQWJFX
September 2012
Doc ID 022706 Rev 2
#PUUPNWJFX
1/14
www.st.com
Contents
AN4041
Contents
1
Software description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2
Hardware description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3
Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Appendix A Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Appendix B Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Appendix C Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4
2/14
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Doc ID 022706 Rev 2
AN4041
List of tables
List of tables
Table 1.
Table 2.
Table 3.
Table 4.
Microphone supply voltage range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
L/R channel selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Ordering information for demonstration boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Doc ID 022706 Rev 2
3/14
List of figures
AN4041
List of figures
Figure 1.
Figure 2.
Figure 3.
Figure 4.
Figure 5.
Figure 6.
Figure 7.
Figure 8.
Figure 9.
4/14
APWlink+ demonstration board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
DSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Microphone USB demonstration board (block diagram) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Windows message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Computer management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Recording properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Board layout - top view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Board layout - bottom view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Doc ID 022706 Rev 2
AN4041
1
Software description
Software description
The digital signal processing (DSP) consists of the simple flow depicted in the figure below.
Figure 2.
DSP
The PDM signal from the microphone is filtered and decimated in order to obtain a sound
signal at the required frequency and resolution. The loaded firmware implements a filter
pipeline that has been designed as two filtering-decimation stages.
Assuming an input frequency of 3.072 MHz and a desired output frequency of 48 kHz, the
filter stages are configured to implement a decimation factor of 64. The final gain of the
pipeline is therefore G1 = 7.8125. As a result, the output of the filter pipeline is a 16-bit pulsecode modulated (PCM) signal.
For further information, please refer to application note AN3998, “PDM audio software
decoding on STM32 microcontrollers” available on www.st.com.
Doc ID 022706 Rev 2
5/14
Hardware description
2
AN4041
Hardware description
The board is a sound card automatically recognized by the PC as an audio device. The
connection is done through the USB cable which also supplies the board and then streams
the audio collected from the microphones to the PC.
Figure 3.
Microphone USB demonstration board (block diagram)
APWlink
connector
APWlink+
L/R
J1
Mic_Vdd
SDO56
SDO34
BICK
SDO12
MIC_DATA12
Clk
LRCK
Vdd
SDA
SCL
Mic_Vdd
Vdd
Out
Clk
Out
gnd
I2C
I2S
L/R
gnd
µC_Vdd
STM32F107RC
SEL
SPI
12.288 MHz
SPI_CK
Mic_Vdd
SEL
J5
Mic_Vdd
Timer
MIC_CK
MIC_CK
J4
USB I/F
8 MHz
OSC
SEL
µC_Vdd
Mic_Vdd
2.5V
Regulator
2.5V
3.3V
Regulator
3.3V
5V
USB
Connector
D1
D2
D3
D4
D5
Supply section
The supply section of the board is made up of two voltage regulators that step down the 5 V
of the USB connection to 3.3 V and 2.5 V. The solder jumper J4 gives the user the possibility
to choose the desired supply voltage.The digital microphone voltage ranges are given in the
following table.
Table 1.
Microphone supply voltage range
Part number
Min.
Typ.
Max.
Unit
MP45DT02
1.64
1.8
3.6
V
MP34DB01
1.64
1.8
3.6
V
MP34DT01
1.64
1.8
3.6
V
We recommend using 2.5 V to avoid supplying the microphone with a voltage that is too
high. For instance, the MP34DT01 cannot support a supply voltage of 3.3 V.
Microphone section
Regarding the microphone section, the MEMS outputs are a PDM signal, which is a highfrequency stream (1 to 3.25 MHz) of 1-bit digital samples. According to the application hints
given in the datasheets (available on www.st.com), the microphone can be used in singlechannel configuration or stereo configuration by setting the LR pin. This pin sets the validity
6/14
Doc ID 022706 Rev 2
AN4041
Hardware description
of the output data on the high level of the clock or on the low level, refer to the following
table.
Table 2.
L/R channel selection
L/R
Clock low
Clock high
GND
Data valid
High impedance
VDD
High impedance
Data valid
On this board the microphones are used in stereo configuration, so the two digital outputs
are shorted (Mic_DATA12, refer to the schematic) and the two MEMS LR pins must be set
one to GND and the other one to VDD. On the board, the resistors R1 and R13 have already
set the LR pin of the microphones. In order to change the MEMS polarity, the user must
unsolder these resistors and manually set the LR pin using the solder jumper J1 and J5.
Note that the PCB section mounting the MEMS microphones is detachable. This option has
been implemented in order to let the user put the microphones in the desired position (i.e.
for display applications in which the microphones are placed at the edges of the display).
Microcontroller
The STM32F107RC microcontroller simultaneously works as a PDM interface and also
supports the USB audio streaming. The board hosts two external clocks, the 12.288 MHz
and 8 MHz. The first one serves to clock an internal timer for generating both MIC_CK and
SPI_CK. The 8 MHz is the microcontroller’s external clock connected to the OSC_IN
OSC_OUT pins.
The STM32 samples the microphone’s output data by using the synchronous serial port
(SPI1). The microphone signal MIC_DATA12 is a stereophonic signal and the SPI must be
able to sample both channels. Since MIC_DATA12 is synchronous with its clock, SPI_CK
must be doubled. Summarizing, the timer generates:
-MIC_CK = 3.072 MHz
-SPI_CK = 6.144 MHz
Finally, the USB interface allows streaming the audio on the USB peripheral making this
demonstration board compatible with any laptop or desktop. This streaming capability allows
using any acoustic tool for the sound acquisition done by STMicroelectronics’ MEMS
microphones. The demonstration board also has the possibility to manage the
microcontroller registers using the I2C bus. Another important STM32 peripheral that is used
is the I2S which allows exporting the audio in the most commonly used digital format. This
allows the user to test the signal using audio testing equipment such as Audio Precision. All
these signals can be monitored on the APWLink connector.
LEDs D1-D5
The status of the board is indicated by the following LEDs:
●
D1 on: USB enumeration successful
●
D2 on: Firmware correctly downloaded
●
D3 off: Firmware correctly downloaded
●
D4: not soldered
●
D5 on: Board supplied
Doc ID 022706 Rev 2
7/14
Getting started
3
AN4041
Getting started
The demonstration board is very user-friendly and is ready to use. After connecting the
micro USB cable to the laptop or desktop, the message shown in Figure 4 below appears.
This is possible since the firmware loaded into the STM microcontroller allows the operating
system to recognize the peripheral as an audio device. The version (in this case v1.0)
indicates the firmware loaded. The version v1.0 refers to a software decimator of 48 kHz as
the sampling frequency and 64 as the decimator index.
Figure 4.
Windows message
The user can also check if the USB demonstration board is recognized as an audio device
by accessing the computer management and then clicking on the device manager. The
demonstration board appears as a USB audio device in the list below.
Figure 5.
8/14
Computer management
Doc ID 022706 Rev 2
AN4041
Getting started
Since the firmware is able to let the operating system recognize the peripheral as an audio
device, it is possible to set the "ST 2uPhones EVB_v1.0" evaluation board as the recording
device. In this configuration, the demonstration board can be used to record the input of
general-purpose acoustic tools.
Figure 6.
Recording properties
Doc ID 022706 Rev 2
9/14
Figure 7.
Schematic
AN4041
Appendix A
Schematic
