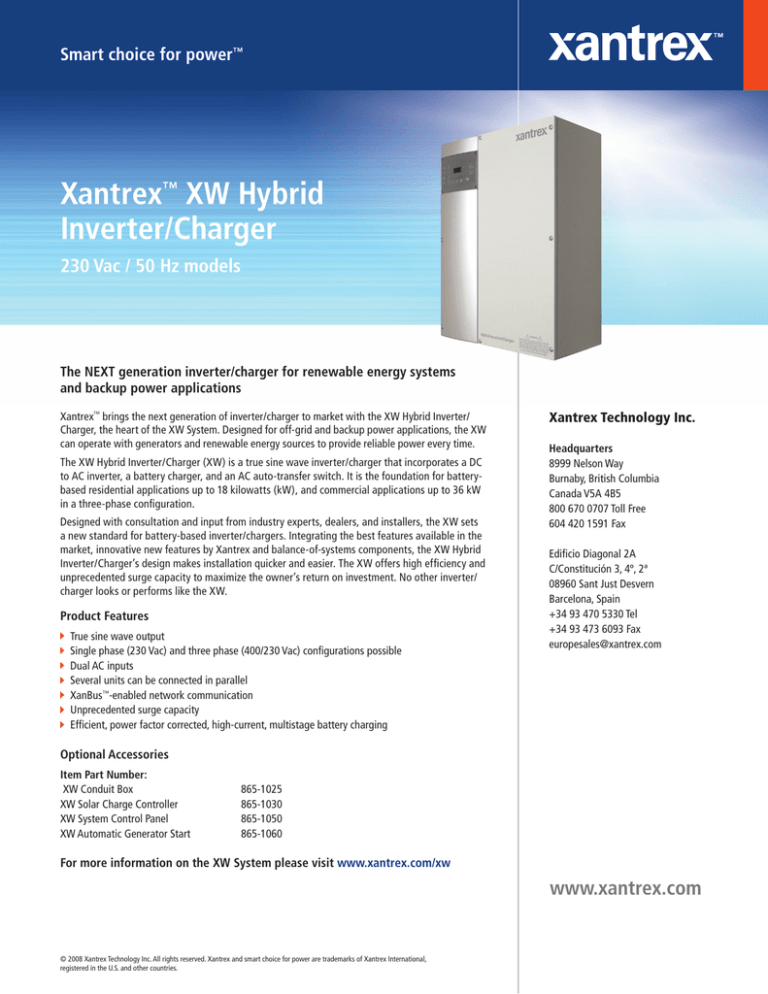

Xantrex XW Hybrid Inverter / Charger
Smart choice for power™
Xantrex™ XW Hybrid
230 Vac / 50 Hz models
The NEXT generation inverter/charger for renewable energy systems
and backup power applications
Xantrex™ brings the next generation of inverter/charger to market with the XW Hybrid Inverter/
Charger, the heart of the XW System. Designed for off-grid and backup power applications, the XW
can operate with generators and renewable energy sources to provide reliable power every time.
The XW Hybrid Inverter/Charger (XW) is a true sine wave inverter/charger that incorporates a DC
to AC inverter, a battery charger, and an AC auto-transfer switch. It is the foundation for batterybased residential applications up to 18 kilowatts (kW), and commercial applications up to 36 kW
in a three-phase configuration.
Designed with consultation and input from industry experts, dealers, and installers, the XW sets
a new standard for battery-based inverter/chargers. Integrating the best features available in the
market, innovative new features by Xantrex and balance-of-systems components, the XW Hybrid
Inverter/Charger’s design makes installation quicker and easier. The XW offers high efficiency and
unprecedented surge capacity to maximize the owner’s return on investment. No other inverter/
charger looks or performs like the XW.
Product Features
True sine wave output
Single phase (230 Vac) and three phase (400/230 Vac) configurations possible
Dual AC inputs
Several units can be connected in parallel
XanBus™-enabled network communication
Unprecedented surge capacity
Efficient, power factor corrected, high-current, multistage battery charging
Xantrex Technology Inc.
8999 Nelson Way
Burnaby, British Columbia
Canada V5A 4B5
800 670 0707 Toll Free
604 420 1591 Fax
Edificio Diagonal 2A
C/Constitución 3, 4º, 2ª
08960 Sant Just Desvern
Barcelona, Spain
+34 93 470 5330 Tel
+34 93 473 6093 Fax
[email protected]
Optional Accessories
Item Part Number:
XW Conduit Box XW Solar Charge Controller XW System Control Panel XW Automatic Generator Start 865-1025
For more information on the XW System please visit www.xantrex.com/xw
© 2008 Xantrex Technology Inc. All rights reserved. Xantrex and smart choice for power are trademarks of Xantrex International,
registered in the U.S. and other countries.
Smart choice for power™
XW Series Hybrid Inverter/Charger - 230 Vac / 50 Hz Models
Electrical Specifications
Continuous output power
6.000 W
4.500 W
4.000 W
Surge rating 12.000 W
9.000 W
8.000 W
Surge current
53 A rms
40 A rms
35 A rms
True sine wave
True sine wave
True sine wave
Peak efficiency
95,4 %
95,6 %
94,0 %
Idle consumption - search mode
< 7 W
< 7 W
AC connections
AC1 (grid), AC2 (generator)
AC1 (grid), AC2 (generator)
AC1 (grid), AC2 (generator)
AC input voltage range (bypass/charge mode)
156 to 280 Vac (230 V nominal)
156 to 280 Vac (230 V nominal)
156 to 280 Vac (230 V nominal)
AC input frequency range (bypass/charge mode) 40 to 68 Hz (50 Hz nominal)
40 to 68 Hz (50 Hz nominal)
40 to 68 Hz (50 Hz nominal)
AC output voltage
230 Vac +/- 3%
230 Vac +/- 3%
230 Vac +/- 3%
Maximum AC pass through current
56 A
56 A
56 A
AC output continuous current
26,1 A
19,6 A
17,4 A
50 Hz +/- 0,1 Hz
AC output frequency
50 Hz +/- 0,1 Hz
50 Hz +/- 0,1 Hz
Total harmonic distortion
< 5% at rated power
< 5% at rated power
< 5% at rated power
Typical transfer time 8 ms
8 ms
8 ms
DC current at rated power
131 A
96 A
178 A
Disabled (default), AC voltage range 198 to 253 Vac, AC frequency range 49,1 to 50,9 Hz
DC input voltage range
44 to 64 V
44 to 64 V
22 to 32 V
Continuous charge rate
100 A
85 A
150 A
Power factor corrected charging
PF (0,98)
PF (0,98)
PF (0,98)
Mechanical Specifications
Wall mount, backplate included
Inverter dimensions (H x W x D)
580 x 410 x 230 mm (23 x 16 x 9”)
Inverter weight
57 kg (125 lb)
Shipping dimensions
711 x 565 x 267 mm (28 x 22.25 x 10.5”)
Shipping weight
60 kg (132 lb)
Supported battery types
Flooded (default), Gel, AGM, custom
Battery bank size
100 to 10000 Ah
Battery temperature sensor
Non volatile memory
Display panel
Status LEDs indicate AC In status, faults/warnings, equalize mode, On/Off and equalize button battery level.
Three-character display indicates output power or charge current
Multiple unit configurations
Single phase: up to 3 parallel units. Three-phase: 1 unit per phase
System network
5 years
5 years
5 years
Part number
52 kg (115 lb)
55 kg (122 lb)
52 kg (115 lb)
55 kg (122 lb)
Environmental specifications
Enclosure type
IP 20 (sensitive electric components sealed inside enclosure)
Operational temperature range
-25 to 70 °C
-25 to 70 °C
-25 to 70 °C
Remote display
Optional XW System Control Panel monitors and configures all devices connected to Xanbus™ Network
Generator support
Optional XW Automatic Generator Start module connects to Xanbus™ Network. Automatically activates generator to recharge depleted
battery bank or assist inverter with heavy loads
Conduit Box
Optional XW Conduit Box encloses the bottom of the inverter and protects the cabling. Provides knockouts for 3/4” (20 mm), 1” (25 mm),
1.25” (32 mm), 2.25” (60 mm), and 2.5” (65 mm) conduit
Solar Charge Controller
Optional XW Solar Charge Controller with maximum power point tracking delivers the maximum energy available from the PV array to the battery bank
Regulatory Approval
CE marked according to the following EU directives and standards: EMC Directive: EN61000-6-1, EN61000-6-3, EN61000-3-2, EN61000-3-3; Low Voltage Directive: EN50178
Specifications subject to change without notice.
© 2008 Xantrex Technology Inc. All rights reserved. Xantrex and smart choice for power are trademarks of Xantrex International, registered in the U.S. and other countries.
