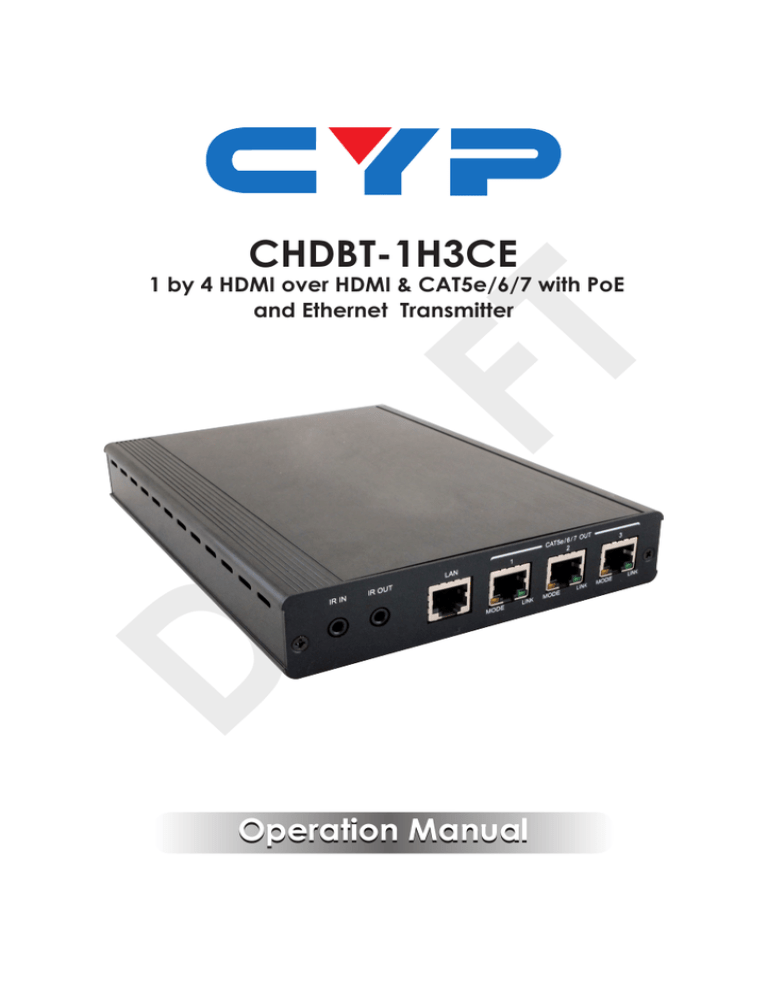

CHDBT-1H3CE

1 by 4 HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Transmitter

DRAFT

DISCLAIMERS

The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.

Cypress Technology reserves the right to make improvements to this document and/or product at any time and without notice.

COPYRIGHT NOTICE

No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer file, in any form or by any means— electronic, mechanical, magnetic, optical, chemical, manual, or otherwise—without express written permission and consent from

Cypress Technology.

© Copyright 2011 by Cypress Technology.

All Rights Reserved.

Version 1.0 September 2011

DRAFT

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.

• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.

RDV3

RDV4

RDV5

REVISION HISTORY

VERSION NO.

RDV1

RDV2

DRAFT

17/06/13

20/06/13

01/07/13

Dimension

Add IR Cable Pin Define

IR Power

CONTENTS

1. Introduction ............................................ 1

2. Applications ........................................... 1

3. Package Contents ................................ 1

4. System Requirements ............................ 1

5. Features .................................................. 2

6. Operation Controls and Functions ....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel .........................................4

6.3 IR Cable Pin Assignment..................5

7. Connection Diagram ........................... 6

8. Specifications ........................................ 7

8.1 CAT5e/6/7 Cable Specification .....8

9. Acronyms ............................................... 8

DRAFT

1

1. INTRODUCTION

The HDMI over HDMI and CAT5e/6/7 Transmitter can support resolutions up to 1080p Full HD, 4Kx2K timing, 3D and multi-channel digital audio formats to one HDTV and three CAT5e/6/7 outputs.

The HDMI can be connected to HDMI display for instant nearby display and the CAT5e/6/7 can be connected to CAT5e/6/7 to HDMI

Receivers for distance up to 100 meters. Further, a total of 100Mbps

Ethernet transmission rate allows all connected device to share the

Ethernet service and the PoE function free the power shortage issue from the Receiver end.

2. APPLICATIONS

• Household entertainment sharing and control

• Lecture room display and control

• Showroom display and control

• Meeting room presentation and control

• Classroom display and control

3. PACKAGE CONTENTS

• HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Transmitter

• IR Receiver x 1

• IR Blaster x 1

• 24V DC Power Adaptor

• Power Cord

• Operation Manual

DRAFT

• HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables

5. FEATURES

• HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant

• The HDMI and CAT5e/6/7 outputs are playing the same source simultaneously

• Supports data rate from 250Mbps up to 3Gbps

• Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4Kx2K ([email protected] and

[email protected])

• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD

Master Audio transmission (32-192kHz sample rate)

• Supports distances up to 100 meters through CAT5e/6/7 cables

• Supports Ethernet transmission rate up to 100Mbps

• Can select Standard or TV EDID

• Supports USB service port

• The 3D signal display follow by display TV’s EDID

• Supports PoE with capable Receiver units

• Supports Bi-directional IR control

Note:

1. This system was tested with CAT6/23AWG cables, results may vary

with cables of a different specification.

2. The PoE function is designed for powering compatible Receiver

units only non-PoE Receivers will need their own power supply.

DRAFT

2

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

HDMI IN

SYNC

HDMI OUT

LINK EDID SERVICE

STD TV

POWER

DC 24V

3

1 2 3 4 5 6 7

1

HDMI IN: Connect with source equipment such as DVD/Blu-ray or

PS3 player.

2

SYNC: This LED will illuminate when the HDMI input port connected to the source.

3

HDMI OUT: Connect to HDMI display for instant image display or cascade with another family type Transmitter.

4

HDMI LINK: This LED will illuminate when HDMI output is connected to TV or display monitor.

5

EDID STD/TV: The default factory setting is on TV, leave as it is when the display is properly. The unit will detect the 1st CAT5e/6/7 output’s EDID when it obtain a 4Kx2K EDID and send out the signal accordingly to other output ports. If the 1st CAT5e/6/7 output is without a 4Kx2K's EDID the unit will detect all output's EDID and send out the signal that all outputs can accept.

This device obtain the last memory function therefore, the device will use the last output port 1's EDID when output port 1 is not connected to a display after power cycling or switch in between the EDID setting.

EDID's video at [email protected] and audio at LPCM 2CH.

6

SERVICE: This slot is reserved for factory service only.

7

POWER LED: Once the power supply is connected the LED will illuminate

8

DC 24V: Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet.

8

6.2 Rear Panel

IR IN

IR OUT LAN

1

CAT5e / 6 / 7 OUT

2 3

MODE LINK MODE LINK MODE LINK

1 2 3 4 5

1

IR IN: Connect with IR Extender to receive IR signal from Transmitter side and blast out at Receiver side. Ensure that remote controller being used is within he direct line-of-sight of the IR Extender.

2

IR OUT: Connect with IR Blaster to blast out the IR signal received from the Receiver side. Place the IR Baster in direct line-of-sight of the equipment to be controlled.

3

LAN: Connect to intra-net or internet service system for a total sharing rate of 100Mbps within the link of Transmitter.

Warning: DO NOT connect this slot with any of the CAT5e/6/7 port, doing so may trigger a power shot down and ruin the device.

4

CAT5e/6/7 OUT 1~3: Connect these ports to CAT5e/6/7 to HDMI

Receivers (with or without PoE function) with CAT5e/6/7 cable to extend the signal up to 100m.

5

MODE & LINK 1~3: The Mode LED will illuminate when the device is connected with power.

DRAFT

4

5

6.3 IR Cable Pin Assignment

IR Blaster

1

2

3

Power 3.3 V

IR Blaster Signal

NC

IR Extender

1

2

3

IR Signal

Power 3.3 V

Grounding

DRAFT

7. CONNECTION DIAGRAM

Blu-ray or PS3 Player

3D TV/Display

HDMI

HDMI

HDMI IN

SYNC

HDMI OUT

LINK EDID SERVICE

STD TV

POWER

DC 24V

IR IN IR OUT LAN

1

CAT5e / 6 / 7 OUT

2 3

MODE LINK MODE LINK MODE LINK

1.5m

60°

IR BLASTER

3m

60°

3m

IR RECEIVER

DRAFT

Router (with

Internet

Connection)

6

7

8. SPECIFICATIONS

Video Bandwidth

Input ports

Resolution

Output ports

300Mbps/10.2Gbps

1 x HDMI,

1 x IR IN, 1 x LAN*,

1 x USB (Service only)

1 x HDMI,

3 x CAT5e/6/7

1 x IR OUT,

Up to 4Kx2K

([email protected]/[email protected])

N/A

Up to 100m

HDMI Input Cable Distance

CAT5e/6/7 Output

Cable Distance

IR Frequency

Power Supply

30~50kHz

24V / 2.7A DC (US/EU standards, CE/FCC/

UL certified)

145 mm(W) x 199 mm(D) x 30 mm(H)

Dimensions

Weight

Chassis Material

Silkscreen Color

ESD Protection

Storage Temperature

Relative Humidity

Power Consumption

590 g

Metal

Black

DRAFT

36W

8.1 CAT5e/6/7 Cable Specification

Cable

Type

Range Pixel clock rate

Video Data

Rate

CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps

(HD Video)

70 m >225 MHz > 5.3 Gbps

(Ultra HD

Video)

Supported Video

Up to 1080p, 60 Hz, 36 bits, 3D (data rates lower than 5.3 Gbps or below 225 MHz

TMDS clock).

4K2K, 30Hz video formats

9. ACRONYMS

ACRONYM COMPLETE TERM

4Kx2K

DTS

EDID

HDCP

HDMI

HDTV

3840x2160 / 4096x2160

Digital Theater System

Extended Display Identification Data

High-Definition Multimedia Interface

High-Definition Television

High-bandwidth Digital Content Protection

DRAFT

8
