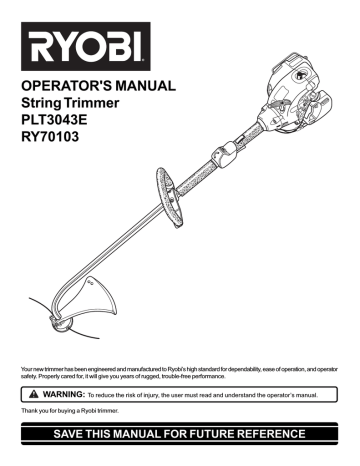

OPERATOR'S MANUAL
String Trimmer
PLT3043E
RY70103
Your new trimmer has been engineered and manufactured to Ryobi’s high standard for dependability, ease of operation, and operator
safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual.
Thank you for buying a Ryobi trimmer.
SAVE THIS MANUAL FOR FUTURE REFERENCE
TABLE OF CONTENTS
■
Safety ..................................................................................................................................................................... 2 - 3
■
Symbols ................................................................................................................................................................. 4 - 5
■
Technical Data ............................................................................................................................................................. 5
■
Unpacking ................................................................................................................................................................... 6
■
Features ...................................................................................................................................................................... 6
■
Assembly ............................................................................................................................................................... 7 - 8
■
Operation .............................................................................................................................................................. 9 - 11
■
Maintenance ....................................................................................................................................................... 12 - 14
■
Troubleshooting ................................................................................................................................................... 15 - 16
■
Warranty .................................................................................................................................................................... 17
■
Safety Directive ......................................................................................................................................................... 17
SAFETY
WARNING:
Do not attempt to operate this trimmer until you have read thoroughly and understand completely all instructions,
safety rules, etc. contained in this manual. Failure to comply can result in accidents involving fire, electric shock,
or serious personal injury. Save operator's manual and review frequently for continuing safe operation, and
instructing others who may use this tool.
■ Clear the work area before each use. Remove all objects
such as rocks, broken glass, nails, wire, or string which
can be thrown or become entangled in the string head.
■ Wear full eye and hearing protection while operating this
unit.
■ Wear heavy long pants, boots, and gloves. Do not wear
loose fitting clothing, short pants, jewelry of any kind, or
go barefoot.
READ ALL INSTRUCTIONS
GENERAL SAFETY RULES
■ For safe operation, read and understand all instructions
before using the trimmer. Follow all safety instructions.
Failure to follow all safety instructions listed below, can
result in serious personal injury.
■ Do not allow children or untrained individuals to use this
unit.
■ Never start or run the engine in a closed or poorly
ventilated area; breathing exhaust fumes can kill.
2
SAFETY
■ Secure long hair so it is above shoulder level to prevent
entanglement in any moving parts.
■ Keep all bystanders, children, and pets at least 15 m
(50 ft.) away.
■ Do not operate this unit when you are tired, ill, or under
the influence of alcohol, drugs, or medication.
■ Do not operate in poor lighting.
■ Keep firm footing and balance. Do not overreach.
Overreaching can result in loss of balance or exposure
to hot surfaces.
■ Keep all parts of your body away from any moving part.
■ Do not touch areas around the muffler or cylinder of the
trimmer, these parts get hot from operation.
■ Always stop the engine and remove the spark plug wire
before making any adjustments or repairs except for
carburetor adjustments.
■ Inspect the unit before each use for loose fasteners,
fuel leaks, etc. Replace any damaged parts before use.
■ The string head will rotate during carburetor adjustments.
■ It has been reported that vibrations from hand-held tools
may contribute to a condition called Raynaud’s Syndrome in certain individuals. Symptoms may include
tingling, numbness and blanching of the fingers, usually
apparent upon exposure to cold. Hereditary factors,
exposure to cold and dampness, diet, smoking and work
practices are all thought to contribute to the development of these symptoms. It is presently unknown what,
if any, vibrations or extent of exposure may contribute
to the condition. There are measures that can be taken
by the operator to possibly reduce the effects of vibration:
a) Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands and wrists
warm. It is reported that cold weather is a major
factor contributing to Raynaud’s Syndrome.
■
■
■
■
b) After each period of operation, exercise to increase
blood circulation.
c) Take frequent work breaks. Limit the amount of
exposure per day.
d) Keep the tool well maintained, fasteners tightened
and worn parts replaced.
If you experience any of the symptoms of this condition,
immediately discontinue use and see your physician
about these symptoms.
Mix and store fuel in a container approved for gasoline.
Mix fuel outdoors where there are no sparks or flames.
Wipe up any fuel spillage. Move 9 m (30 ft. ) away from
refueling site before starting engine.
Stop the engine and allow to cool before refueling or
storing the unit.
Allow the engine to cool; empty the fuel tank and secure
the unit from moving before transporting in a vehicle.
SPECIFIC SAFETY RULES FOR TRIMMER USE
■ Replace string head if cracked, chipped, or damaged in
any way. Be sure the string head is properly installed
and securely fastened. Failure to do so can cause
serious injury.
■ Make sure all guards, straps, deflectors and handles are
properly and securely attached.
■ Use only the manufacturer's replacement string in the
cutting head. Do not use any other cutting attachment.
■ Never operate unit without the grass deflector in place
and in good condition.
■ Maintain a firm grip on both handles while trimming. Keep
string head below waist level. Never cut with the string
head located over 76 cm (30 in.) or more above the
ground.
3
SYMBOLS
Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the tool better and safer.
SYMBOL
NAME
EXPLANATION
Safety Alert Symbol
Indicates danger, warning or caution. It means
attention!!! Your safety is involved.
Read Your Operator’s Manual
Your manual contains special messages to bring
attention to potential safety concerns as well as
operating and servicing information. Please read all
the information carefully to assure satisfaction and
safe use.
Wear eye and hearing protection.
Wear eye and hearing protection when operating this
equipment.
Keep bystanders away.
Keep all bystanders at least (15 m) 50 feet away.
Ricochet.
Danger of Ricochet.
No blade.
Do not install any type of blade on this unit.
RPM Decal
Rotational direction and maximum speed of the shaft
for the cutting attachment.
Boots
Wear non-slip safety footwear when using this
equipment.
Gloves
Wear non-slip, heavy-duty gloves.
No Smoking
Do not smoke when mixing fuel or filling fuel tank.
Gasoline
Use unleaded gasoline intended for automotive use
with an octane rating of 87 ([R + M] / 2) or higher.
Oil
Use 2-cycle oil for air cooled engines.
Mix Gasoline and Oil
Mix the fuel mix thoroughly and also each time before
fueling.
Switch
On/Off Switch
I = ON to Run
O = OFF to Stop
9,000
min -1
4
SYMBOLS
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the explanations
with them, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any
danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.
SYMBOL
MEANING
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING:
Indicates a potentially hazardous situation which, if not avoided, could result in serious
injury.
CAUTION:
Indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices that may cause property damage.
NOTE:
Advises you of information or instructions vital to the operation or maintenance of the equipment.
SAVE THESE INSTRUCTIONS
TECHNICAL DATA
Weight
Without fuel and string head ................................................................................................................ 4.69 Kg
Without fuel, w/string head .................................................................................................................. 5.08 Kg
Fuel tank volume ................................................................................................................................................... 42.5 cm3
Cutting swath .......................................................................................................................................................... 433 mm
Engine displacement ................................................................................................................................................ 30 cm3
Maximum engine performance (in accordance with ISO 8893) ............................................................................... 0.78 kW
Maximum rotational frequency of the spindle ..................................................................................................... 9000 min-1
Engine Speed (rotational frequency) at recommended max. spindle rotational frequency .................................. 12500 min-1
Engine speed (rotational frequency) at idle ............................................................................................... 2000 - 2500 min-1
Fuel consumption (in accordance with ISO 8893) at max. engine performance ................................................... 0.52 kg/h
Specific fuel consumption (in accordance with ISO 8893) at max. engine performance ...................................... 0.47 kg/h
Vibration level idling Front Handle ......................................................................................................................... 5.9
Rear Handle .......................................................................................................................... 3.7
Vibration level racing
Front Handle ......................................................................................................................... 8.2
Rear Handle .......................................................................................................................... 8.6
Sound pressure level (in accordance with EN ISO 11806:1997, ISO 7917:1987) .......................................................... 102
Sound power level (in accordance with ISO 10884) ....................................................................................................... 113
5
UNPACKING
INSTRUCTIONS
PACKING LIST FOR OWNER'S KIT
■ Carefully remove the product from the carton.
■ Inspect the product to make sure no breakage or
damage occurred during shipping.
■ Do not discard the packing material until you have
inspected and operated the product.
■
■
■
■
■
Grass deflector
Front handle
Muffler guard, torx wrench and screws
Hardware
Operator's manual
FEATURES
ENGINE HOUSING
THROTTLE
INTERLOCK
IGNITION
SWITCH
FRONT HANDLE
STARTER GRIP
THROTTLE TRIGGER
SHAFT
GRASS DEFLECTOR
CUTTING
LINE
Fig. 1
6
ASSEMBLY
ASSEMBLY INSTRUCTIONS:
HANDLE BASE
SCREWS
GRASS DEFLECTOR
See Figure 2.
1. Remove wing nut, flat washer, lock washer, and bolt
from the Owner’s Kit.
2. Place grass deflector over shaft and bracket.
3. Install bolt through the slots in the tabs on grass
deflector and bracket on driveshaft housing.
4. Install flat washer, lock washer and wing nut.
5. Tighten Securely.
HANDLE
BASE
GRASS DEFLECTOR
BOLT
NUTS
BRACKET
FLAT WASHER
LOCK WASHER
WING NUT
BRACKET
SPACER
Fig. 2
FRONT HANDLE
See Figure 3.
1. Place the handle base and the bracket on the driveshaft
housing below the spacer.
2. Install the two handle base screws and nuts, but do not
tighten completely.
3. Place the handle grip onto the handle base and install the
two screws. Tighten securely.
4. Adjust the position of the handle for best balance and
comfort.
5. Tighten the two handle base screws securely.
NOTE: Do not attempt to remove or modify the spacer. This
spacer limits the upper position of the handle grip. See
Figure 3.
HANDLE GRIP
SCREWS
7
Fig. 3
ASSEMBLY
MUFFLER GUARD ASSEMBLY
See Figure 4.
1. Remove muffler guard and two screws from the owner's
kit.
2. Attach the muffler guard to the rear housing.
NOTE: Make sure the bent end of the muffler guard fits
securely into the opening of the rear housing.
3. Using the torx wrench supplied, install the two screws
and tighten securely.
REAR HOUSING
TORX
WRENCH
SCREWS
MUFFLER
GUARD
BENT END OF
MUFFLER GUARD
OPENING IN REAR
HOUSING
Fig. 4
8
OPERATION
FUEL AND REFUELING
WARNING
HANDLING THE FUEL SAFELY
■ Always handle fuel with care, it is highly flammable.
■ Always refuel outdoors where there are no sparks and
flames. Do not inhale fuel vapors.
■ Do not let gasoline or oil come in contact with your skin.
■ Keep gasoline and oil away from the eyes. If gasoline or
oil comes in contact with the eyes, wash them immediately with clean water. If irritation is still present, see a
doctor immediately.
■ Clean up spilled fuel immediately.
Always shut off engine before fueling. Never add fuel
to a machine with a running or hot engine. Move at
least 9 m (30 ft.) from refueling site before starting
engine. Do not smoke!
1 Litre
2 Litres
3 Litres
4 Litres
5 Litres
MIXING THE FUEL
■ This product is powered by a 2-cycle engine and requires
pre-mixing gasoline and 2-cycle oil. Pre-mix unleaded
gasoline and 2-cycle engine oil in a clean container
approved for gasoline.
■ This engine is certified to operate on unleaded gasoline
intended for automotive use with an octane rating of 87
([R + M] / 2) or higher.
■ Do not use any type of pre-mixed gasoline/oil from fuel
service stations, this includes the pre-mixed gasoline/oil
intended for use in mopeds, motorcycles, etc.
■ Use high a quality 2-cycle self mixing oil for air cooled
engines. Do not use automotive oil or 2-cycle outboard
oil.
■ Mix 2% oil into the gasoline. This is a 50:1 ratio.
■ Mix the fuel thoroughly and also each time before
fueling.
■ Mix in small quantities. Do not mix quantities larger than
usable in a 30 day period. A 2-cycle oil containing a fuel
stabilizer is recommended.
+
+
+
+
+
20 ml
40 ml
60 ml
80 ml
100 ml
=
=
=
=
=
}
50:1
OPERATING THE TRIMMER
See Figure 5.
Hold the trimmer with the right hand on the rear handle and
the left hand on the front handle. Keep a firm grip with both
hands while in operation. Trimmer should be held at a
comfortable position with the rear handle about hip height.
Always operate trimmer at full throttle. Cut tall grass from
the top down. This will prevent grass from wrapping around
the driveshaft housing and string head which may cause
damage from overheating. If grass becomes wrapped
around the string head, stop the engine, disconnect the
spark plug wire, and remove the grass. Prolonged cutting at
partial throttle will result in oil dripping from the muffler.
FILLING THE TANK
1. Clean surface around fuel cap to prevent contamination.
2. Loosen fuel cap slowly to release pressure and to keep
fuel from escaping around the cap.
3. Carefully pour fuel mixture into the tank. Avoid spillage.
4. Prior to replacing the fuel cap, clean and inspect the
gasket.
5. Immediately replace fuel cap and hand tighten. Wipe up
any fuel spillage. Move 9 m (30 ft.) away from refueling
site before starting engine.
NOTE: It is normal for smoke to be emitted from a new
engine during and after first use.
Fig. 5
9
OPERATION
ADVANCING THE STRING
GRASS DEFLECTOR LINE TRIMMING CUTOFF BLADE
ADVANCING STRING USING THE EZ LINE™ TAP
ADVANCE SYSTEM
String advance is controlled by tapping string head on grass
while running engine at full throttle.
1. Run engine at full throttle.
2. Tap string head on ground to advance string. String
advances each time the head is tapped.
3. Several taps may be required until string strikes the cut
off blade.
4. Resume trimming.
NOTE: If the string is worn too short you may not be able to
advance the string by tapping it on the ground. If so, STOP
THE ENGINE, and manually advance the string.
See Figure 7.
This trimmer is equipped with a line trimming cut-off blade
on the grass deflector. For best cutting, advance string until
it is trimmed to length by the cut-off blade. Advance string
whenever you hear the engine running faster than normal.
This will maintain best performance and keep string long
enough to advance properly.
ADVANCING THE STRING MANUALLY
Push the spool retainer down while pulling on string(s) to
manually advance the string.
CUTTING TIPS
See Figure 6.
■ Keep the trimmer tilted toward the area being cut; this is
the best cutting area.
■ Do not cut in dangerous cutting area.
■ Use the tip of string to do the cutting; do not force string
head into uncut grass.
■ Wire and picket fences cause extra string wear, even
breakage. Stone and brick walls, curbs, and wood may
wear string rapidly.
■ Avoid trees and shrubs. Tree bark, wood moldings,
siding, and fence posts can easily be damaged by the
string.
DANGEROUS
CUTTING AREA
BEST CUTTING
AREA
Fig. 7
Fig. 6
10
OPERATION
STARTING AND STOPPING
TO START A WARM ENGINE:
1. Lay trimmer on a flat, bare surface.
2. Choke lever should already be in the “WARM START”
position. If not, squeeze and release throttle trigger.
Pull the starter rope until unit runs.
See Figures 8 and 9.
NOTE: The unit is equipped with an automatic choke feature.
The starting instructions for this feature are different from units
with a manual choke. Be sure to read and follow the starting
instructions below.
TO STOP THE ENGINE:
To stop the engine, depress the switch to the “O” position.
WARNING
Never start or run the engine inside a closed or poorly
ventilated area; breathing exhaust fumes can kill.
IGNITION SWITCH
I = ON TO RUN
O = OFF TO STOP
TO START A COLD ENGINE:
1. Lay trimmer on a flat, bare surface.
2. Push primer bulb 8 to 10 times.
NOTE: Do not squeeze the throttle trigger before engine
starts. Squeezing the throttle trigger at this time will prevent
the unit from starting.
3. Move the lever to the “COLD START” position. See
Figure 9.
4. Pull the starter rope until engine runs.
5. Allow the engine to warm up for 4-10 seconds.
6. Depress the throttle interlock then squeeze and release
the throttle trigger. This allows the choke to automatically set to the “WARM START” position. Your unit is
now ready for use.
NOTE: The lever will automatically set to the “WARM
START” position after the throttle trigger is squeezed for
the first time.
THROTTLE INTERLOCK
THROTTLE
TRIGGER
Fig. 8
PRIMER BULB
WARM START
POSITION
COLD START
POSITION
LEVER
11
Fig. 9
MAINTENANCE
6. Make sure the string head and the spool retainer are
installed on the drive shaft by turning the retainer
clockwise to tighten.
7. Pull the strings again to rotate the spool into cutting
position. Push the spool retainer down while pulling on
string(s) to manually advance the string and to check for
proper assembly of the string head.
WARNING:
Use only original manufacturer's replacement parts,
accessories and attachments. Failure to do so can
cause possible injury, poor performance and may
void your warranty.
■ You may make adjustments and repairs described here.
For other repairs, have the trimmer serviced by an
authorized service dealer.
■ Consequences of improper maintenance may include
excess carbon deposits resulting in loss of performance
and discharge of black oily residue dripping from the
muffler.
■ Make sure all guards, straps, deflectors and handles are
properly and securely attached to avoid the risk of
personal injury.
SPOOL
RETAINER
SPOOL REPLACEMENT
EZ LINE™ TAP ADVANCE SYSTEM
NEW PREWOUND SPOOL
See Figures 10 and 11.
If replacing string only, refer to “String Replacement” later in
this manual.
Use only 2.4 mm (.095 in.) diameter monofilament string.
Use the manufacturer's replacement string for best performance.
1. Stop the engine, disconnect the spark plug wire. Hold
the string head and unscrew the spool retainer. Turn
counterclockwise.
2. Remove the empty spool from the string head. Keep the
spring attached to the spool.
3. To install the new spool, make sure the two strings are
captured in the slots opposite each other on the new
spool. Make sure the ends of each string is extended
approximately 152 mm (6 in.) beyond each slot.
4. Thread the strings into the eyelets in the string head.
Carefully push the spool into the string head (gently pull
the strings to the outside if necessary). When the spool
is positioned in the string head, grasp the strings and
pull sharply to release them from the slots in the spool.
5. Push down and turn the spool counterclockwise until it
no longer turns. Hold the spool down and rotate clockwise a small amount. Release the spool. The spool
should be locked down in the string head. If not, hold
down and rotate until locked.
Fig. 10
SPRING
SPOOL
SLOTS
STRING HEAD
EYELETS
DRIVESHAFT
12
EYELETS
Fig. 11
MAINTENANCE
STRING REPLACEMENT
See Figures 12, 13, 14 and 15.
1. Stop the engine, disconnect the spark plug wire. Hold
the string head and unscrew the spool retainer. Turn
counterclockwise.
2. Remove the spool from the string head. NOTE: Keep
the spring attached to the spool. Remove any old string
remaining on the spool.
3. Cut two pieces of string, each being approximately
2.7 m (9 ft.) long.
4. Insert the first string into the anchor hole in the upper
part of the spool. Wind the first string around the upper
part of the spool counterclockwise, as shown by the
arrows on the spool. Place string in the slot on upper
spool flange, leaving about 152 mm (6 in.) extended
beyond the slot. Do not overfill. After winding the string,
there should be at least 6 mm (1/4 in.) between the
wound string and the outside edge of the spool.
5. Repeat above step with second string, using the bottom
part of spool. Do not overfill.
6. Replace the spool and the spool retainer. Refer to "Spool
Replacement " earlier in this manual.
SPRING
SPOOL
ARROWS ON
SPOOL
ANCHOR
HOLE
FIRST STRING
Fig. 12
FIRST STRING
SLOT
CLEANING THE EXHAUST PORT AND
MUFFLER
Depending on the type of fuel used, the type and amount of
oil used, and/or your operating conditions, the exhaust port
and muffler may become blocked with carbon deposits. If
you notice a power loss with your gas powered tool, a
qualified service technician will need to remove these
deposits to restore performance.
Fig. 13
SPARK ARRESTOR
The spark arrestor must be cleaned or replaced every 25
hours or yearly to ensure proper performance of your
product. Spark arrestors may be in different locations
depending on the model purchased. Please contact your
nearest service dealer for the location of the spark arrestor
for your model.
Cleaning Instructions:
■ Remove the spark arrestor from the muffler.
■ If your spark arrestor is made of a fiberglass material,
discard and replace.
■ If your spark arrestor is made of a metal material follow
these cleaning instructions:
1. Spray the spark arrestor with a quality carbon
cleaner.
2. Gently clean using a wire brush.
3. Install the new or cleaned spark arrestor and reassemble completely before use.
SECOND
STRING
Fig. 14
SLOT
ARROWS ON
SPOOL
Fig. 15
13
MAINTENANCE
REPLACING AND CLEANING AIR FILTER
LATCH
See Figures 16 and 17.
For proper performance and long life, keep air filter clean.
1. Remove the air filter cover by pushing down on the latch
with your thumb while gently pulling on the cover.
2. Remove the filter, clean it in warm soapy water. Rinse
and let dry completely. For best performance, replace
annually.
3. Install the filter, align tabs, push in, and make sure the
latches are locked into place.
PULL COVER
TO OPEN
Fig. 16
FUEL CAP
WARNING:
A leaking fuel cap is a fire hazard and must be
replaced immediately.
FILTER
The fuel cap contains a non-serviceable filter and a check
valve. A clogged fuel filter will cause poor engine performance. If performance improves when the fuel cap is
loosened, check valve may be faulty or filter clogged.
Replace fuel cap if required.
SPARK PLUG
SLOTS ON AIR
FILTER BASE
This engine uses a Champion RCJ-6Y with 0,63 mm
(.025 in.) electrode gap. Use an exact replacement and
replace annually.
STORAGE (1 MONTH OR LONGER)
1. Drain all fuel from tank into a container approved for
gasoline. Run engine until it stops.
2. Clean all foreign material from the trimmer. Store it in a
well-ventilated place that is inaccessible to children.
Keep away from corrosive agents such as garden
chemicals and de-icing salts.
3. Abide by all ISO and local regulations for the safe
storage and handling of gasoline. Excess fuel should be
used up in other 2-cycle engine powered equipment.
TABS ON AIR
FILTER COVER
Fig. 17
14
TROUBLESHOOTING
IF THESE SOLUTIONS DO NOT SOLVE THE PROBLEM CONTACT YOUR AUTHORIZED SERVICE DEALER.
PROBLEM
POS
SIBLE CA
USE
POSSIBLE
CAUSE
SOLUTION
Engine will not start:
1. No spark.
1. Check spark. Remove spark plug. Reattach the
spark plug cap and lay spark plug on metal
cylinder. Pull the starter rope and watch for
spark at spark plug tip. If there is no spark,
repeat test with a new spark plug.
2. Push primer bulb until bulb is full of fuel. If bulb
does not fill, primary fuel delivery system is
blocked. Contact a service dealer. If primer
bulb fills, engine may be flooded (see next
item).
3. Remove spark plug, turn trimmer so spark plug
hole is aimed at the ground. Make sure lever is
in the “WARM START” position and pull starter
cord 10 to 14 times. This will clear excess
fuel from engine. Clean and reinstall spark plug.
With the throttle trigger fully depressed, pull
starter cord three times with lever at “WARM
START” position. If engine does not start,
move choke lever to “COLD START” and follow
normal starting instructions in "STARTING
AND STOPPING" section. If engine still fails
to start, repeat procedure with a new spark
plug.
4. Contact a service dealer.
2. No fuel.
3. Flooded engine.
4. Starter rope pulls harder now than
when new.
Lever will not go into the
"COLD START" position:
Throttle trigger is depressed.
Release throttle trigger. Refer to “Starting and
Stopping” earlier in this manual.
Engine starts but will not
accelerate:
Carburetor requires adjustment.
*Turn “L” needle counterclockwise 1/16 turn. If
“L” low needle can not be turned counterclockwise, do not force plastic limiter caps. Contact a
service dealer. See Figure 18.
Engine does not reach full
speed and emits excessive
smoke:
1. Check oil fuel mixture.
2. Air filter dirty.
1. Use fresh fuel and the correct 2-cycle oil mix.
2. Clean air filter. Refer to “Replacing and
Cleaning Air Filter” earlier in this manual.
3. Turn “H” needle clockwise 1/16 - 1/8 turn. See
Figure 18.
3. Carburetor requires adjustment.
Engine starts, runs, and
accelerates but will not
idle:
Carburetor requires adjustment.
Turn idle speed screw clockwise to increase
idle speed. See Figure 18.
String will not advance:
1. String welded to itself.
2. Not enough string on spool.
1. Lubricate with silicone spray.
2. Install more string. Refer to “String Replacement” earlier in this manual.
3. Pull strings while alternately pressing down on
and releasing spool retainer.
4. Remove string from spool and rewind. Refer to
“String Replacement” earlier in this manual.
5. Advance string at full throttle.
3. String worn too short.
4. String tangled on spool.
5. Engine speed too slow.
15
TROUBLESHOOTING
IF THESE SOLUTIONS DO NOT SOLVE THE PROBLEM CONTACT YOUR AUTHORIZED SERVICE DEALER.
PROBLEM
POS
SIBLE CA
USE
POSSIBLE
CAUSE
SOLUTION
Grass wraps around
driveshaft housing and
stringhead:
1. Cutting tall grass at ground
level.
2. Operating trimmer at part
throttle.
1. Cut tall grass from the top down.
Spool retainer hard to
turn:
Screw threads dirty or damaged.
Clean threads and lubricate with grease - if no improvement, replace spool retainer.
Oil drips from muffler:
1. Operating trimmer at part
throttle
2. Check oil/fuel mixture.
3. Air filter dirty.
4. Carburetor requires adjustment.
1. Operate trimmer at full throttle.
2. Operate trimmer at full throttle.
2. Use fresh fuel and the correct 2-cycle oil mix.
3. Clean per instruction in Maintenance Section.
4. Turn “H” needle clockwise 1/16 - 1/8 turn. See Figure
18.
NOTE: The carburetor adjustment needle(s) are equipped with
plastic cap(s) that prevents counterclockwise rotation from
the original factory adjustment. If your unit exhibits specific
performance problem(s) where the Trouble Shooting Section
recommends a counterclockwise needle adjustment and no
adjustments have been made since original purchase, the unit
should be taken to a factory authorized service dealer for
repair. In most cases, the needed adjustment is a simple task
for the factory trained service representative.
IDLE SPEED
SCREW
“L” LO
NEEDLE
“H” HIGH
NEEDLE
Fig. 18
16
WARRANTY
GUARANTEE – STATEMENT
(RTSA / RTUK / RTG)
All Ryobi products are guaranteed from defects in material and workmanship, for a period of twenty-four (24) months,
effective and evidenced from date of original invoice or delivery note.
Defects caused by normal wear and tear, unauthorized/improper maintenance/handling or overload are excluded from this
guarantee as are accessories such as battery packs, bulbs, blades and bits,etc.
In the event of malfunction within the guarantee period, please return the assembled product with proof of purchase, to your
dealer or nearest Ryobi Service Centre.
Your statutory rights in respect of defective products remain unaffected by the warranty.
Ryobi Technologies GmbH, Itterpark , D-40724 Hilden, Germany
Ryobi Technologies, Customer Services ,Anvil House, Tuns Lane, Henley-on-Thames, RG9 1SA, UK
Ryobi Technologies, BP 50012 - 95945 Roissy CDG Cedex – FRANCE
Ryobi Technologies Australia PTY Limited, 359-361 Horsley Road, Milperra, NSW 2214 Australia
SAFETY DIRECTIVE
SOUND POWER/PRESSURE & HANDLE VIBRATION CHART FOR STRING TRIMMERS /
BRUSHCUTTERS
Information on Noise Emission per European Machine Safety Directive 98/37/EC.
The individual equipment listed was operated in a manner consistent with normal working conditions.
The A-weighted sound pressure level (LpA) at the operator’s ear and the A-weighted sound power level (LWA) were both measured
in accordance
with Directive 79/113/EEC. Hearing protection is recommended where levels exceed 85 dBA.
Handle vibration was measured in accordance to ISO 7916. Read the safety precautions section of the manual.
SOUND PRESSURE
SOUND POWER
VIBRATION
MODEL
MODEL NO.
LpA (dBA)
LwA (dBpA)
m/s2
PLT3043E
RY70103
102
113
8.6
EC DECLARATION OF CONFORMITY
According to machinery directive 98/37/EC and EMC directive 89/336/EEC - We,
Ryobi Technologies Inc., 1428 Pearman Dairy Road, Anderson, SC 29625
declare in sole responsibility that the product: PLT3043E (RY70103) - to which this certificate applies, conforms to the basic health
and safety requirements of the Machinery Directive 98/37/EC and other relevant directives, like EMC Directive 89/336/EEC and
Outdoor Directive 2000/14/EC.
To effect correct application of the health and safety requirements stated in the EEC directives, the following European and/or
national standards and/or technical specifications were consulted: EN ISO 14982:1998, ISO 7916 & 7917, EN ISO 11806:1997, ISO
7918-1995, ISO 8380-1993, ISO 8893-1989, ISO 10884-1995. EN 292-1.1991, EN 292-2-1991, EN 292-2:1991/A1;1995, EN
563-1994, EN 27917-1991, ISO 7112-1982, ISO 7113-1991
Wayne Hill
Director, Environmental Compliance
Ryobi Technologies Inc.
1428 Pearman Dairy Road
Anderson, SC 29625
December 11, 2002
17
OPERATOR'S MANUAL
String Trimmer
PLT3043E
RY70103
Ryobi Technologies GmbH
Itterpark 7
D-40724 Hilden
Germany
Tel.: +49 (0)2103 / 29 58 0
Fax : +49 (0)2103 / 29 58 29
[email protected]
Ryobi Technologies
Customer Services
Anvil House
Tuns Lane
Henley-on-Thames
RG9 1SA
UK
Ryobi Technologies
BP 50012 - 95945 Roissy CDG Cedex – FRANCE
Ryobi Technologies Australia PTY Limited
983000-201
1-03
359-361 Horsley Road, Milperra, NSW 2214 Australia
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
