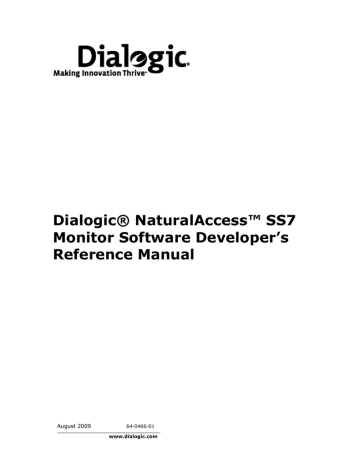

Dialogic® NaturalAccess™ SS7
Monitor Software Developer’s
Reference Manual
August 2009
64-0466-01
www.dialogic.com
Copyright and legal notices
Copyright © 2002-2009 Dialogic Corporation. All Rights Reserved. You may not reproduce this document in
whole or in part without permission in writing from Dialogic Corporation at the address provided below.
All contents of this document are furnished for informational use only and are subject to change without notice
and do not represent a commitment on the part of Dialogic Corporation or its subsidiaries (“Dialogic”).
Reasonable effort is made to ensure the accuracy of the information contained in the document. However,
Dialogic does not warrant the accuracy of this information and cannot accept responsibility for errors,
inaccuracies or omissions that may be contained in this document.
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH DIALOGIC® PRODUCTS. NO LICENSE,
EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY
THIS DOCUMENT. EXCEPT AS PROVIDED IN A SIGNED AGREEMENT BETWEEN YOU AND DIALOGIC, DIALOGIC
ASSUMES NO LIABILITY WHATSOEVER, AND DIALOGIC DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY,
RELATING TO SALE AND/OR USE OF DIALOGIC PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING
TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY INTELLECTUAL
PROPERTY RIGHT OF A THIRD PARTY.
Dialogic products are not intended for use in medical, life saving, life sustaining, critical control or safety systems,
or in nuclear facility applications.
Due to differing national regulations and approval requirements, certain Dialogic products may be suitable for use
only in specific countries, and thus may not function properly in other countries. You are responsible for ensuring
that your use of such products occurs only in the countries where such use is suitable. For information on specific
products, contact Dialogic Corporation at the address indicated below or on the web at www.dialogic.com.
It is possible that the use or implementation of any one of the concepts, applications, or ideas described in this
document, in marketing collateral produced by or on web pages maintained by Dialogic may infringe one or more
patents or other intellectual property rights owned by third parties. Dialogic does not provide any intellectual
property licenses with the sale of Dialogic products other than a license to use such product in accordance with
intellectual property owned or validly licensed by Dialogic and no such licenses are provided except pursuant to a
signed agreement with Dialogic. More detailed information about such intellectual property is available from
Dialogic’s legal department at 9800 Cavendish Blvd., 5th Floor, Montreal, Quebec, Canada H4M 2V9. Dialogic
encourages all users of its products to procure all necessary intellectual property licenses required to implement
any concepts or applications and does not condone or encourage any intellectual property infringement and
disclaims any responsibility related thereto. These intellectual property licenses may differ from country to
country and it is the responsibility of those who develop the concepts or applications to be aware of and comply
with different national license requirements.
Dialogic, Dialogic Pro, Brooktrout, Diva, Cantata, SnowShore, Eicon, Eicon Networks, NMS Communications, NMS
(stylized), Eiconcard, SIPcontrol, Diva ISDN, TruFax, Exnet, EXS, SwitchKit, N20, Making Innovation Thrive,
Connecting to Growth, Video is the New Voice, Fusion, Vision, PacketMedia, NaturalAccess, NaturalCallControl,
NaturalConference, NaturalFax and Shiva, among others as well as related logos, are either registered
trademarks or trademarks of Dialogic Corporation or its subsidiaries. Dialogic's trademarks may be used publicly
only with permission from Dialogic. Such permission may only be granted by Dialogic’s legal department at 9800
Cavendish Blvd., 5th Floor, Montreal, Quebec, Canada H4M 2V9. Any authorized use of Dialogic's trademarks will
be subject to full respect of the trademark guidelines published by Dialogic from time to time and any use of
Dialogic’s trademarks requires proper acknowledgement.
Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries. Other
names of actual companies and product mentioned herein are the trademarks of their respective owners.
This document discusses one or more open source products, systems and/or releases. Dialogic is not responsible
for your decision to use open source in connection with Dialogic products (including without limitation those
referred to herein), nor is Dialogic responsible for any present or future effects such usage might have, including
without limitation effects on your products, your business, or your intellectual property rights.
Using the AMR-NB resource in connection with one or more Dialogic products mentioned herein does not grant
the right to practice the AMR-NB standard. To seek a patent license agreement to practice the standard, contact
the VoiceAge Corporation at http://www.voiceage.com/licensing.php.
Revision history
Revision
Release date Notes
9000-62185-10 June 2002
LBG, Beta
9000-62185-11 August 2002
LBG
9000-62185-12 January 2004 SRR, SS7 Monitor 2.0 Beta
9000-62185-13 April 2004
SRR, SS7 Monitor 2.0
9000-62185-14 July 2006
LBZ, SS7 Monitor 2.3
64-0466-01
LBG, SS7 Monitor
August 2009
Last modified: August 3, 2009
Refer to www.dialogic.com for product updates and for information about support policies, warranty
information, and service offerings.
Table Of Contents
Chapter 1: Introduction .................................................................................7
Chapter 2: SS7 Monitor Software overview....................................................9
System requirements................................................................................... 9
NA SS7 Monitor Software components...........................................................10
NA SS7 Monitor Software interface ...............................................................12
TX device drivers .......................................................................................12
Processes and channels ............................................................................12
CPI Library interface ................................................................................13
Entity and instance IDs ...............................................................................13
Byte ordering considerations ........................................................................13
16-bit fields ............................................................................................14
32-bit fields ............................................................................................14
Chapter 3: Installing and configuring NA SS7 Monitor Software ..................15
Installation and configuration summary .........................................................15
Connecting the monitor server to the network ................................................16
Using TX 4000 boards ..............................................................................16
Using TX 4000C boards ............................................................................18
Using TX 5000E boards ............................................................................20
Configuring TDM ........................................................................................21
Configuring monitor links ............................................................................21
Downloading to the board............................................................................23
Running the sample application ....................................................................24
Chapter 4: NA SS7 Monitor Software function reference..............................25
Using the function reference ........................................................................25
MonClearFilters ..........................................................................................26
MonGetFilters ............................................................................................27
MonGetGenCfg...........................................................................................28
MonGetGenStats ........................................................................................29
MonGetLinkCfg ..........................................................................................30
MonGetLinkStats ........................................................................................31
MonInitGenCfg...........................................................................................32
MonInitLinkCfg...........................................................................................34
MonMgmtInit .............................................................................................36
MonMgmtTerm...........................................................................................37
MonSetFilter ..............................................................................................38
MonSetGenCfg ...........................................................................................40
MonSetLinkCfg...........................................................................................41
MonSetTrace .............................................................................................42
MonStartLink .............................................................................................43
MonStopLink..............................................................................................44
Chapter 5: Utility programs .........................................................................45
Summary of the utility programs ..................................................................45
Monitor Configuration utility: moncfg ............................................................46
Monitor Manager program: monmgr..............................................................49
Sample monitoring application: monapp ........................................................50
SS7 message header ...............................................................................51
Dialogic Corporation
5
Introduction
SS7 Monitor Software Developer's Reference Manual
Chapter 6: NA SS7 Monitor Software message reference .............................55
Using the message reference .......................................................................55
Bind Request .............................................................................................56
Unbind Request..........................................................................................57
Data Indication ..........................................................................................58
6
Dialogic Corporation
1
Introduction
The Dialogic® NaturalAccess™ SS7 Monitor Software Developer's Reference Manual
describes the interface between a host processor and a TX Series board, regardless
of the operating system (Windows or UNIX) or device driver employed on the host.
Subsequent sections of this manual describe the general characteristics and
operation of the Dialogic® NaturalAccess™ SS7 Monitor Software (NA SS7 Monitor
Software) management functions and utility programs, as well as define the
structure of the messages between NA SS7 Monitor Software and the application.
This manual targets programmers and system integrators who develop media server
applications. This manual defines telephony terms where applicable, but assumes
that the reader is familiar with basic telephony and Internet data communication
concepts, switching, and the C programming language.
Note: The product(s) to which this document pertains is/are among those sold by
NMS Communications Corporation (“NMS”) to Dialogic Corporation (“Dialogic”) in
December 2008. Certain terminology relating to the product(s) has been changed,
whereas other terminology has been retained for consistency and ease of reference.
For the changed terminology relating to the product(s), below is a table indicating
the “New Terminology” and the “Former Terminology”. The respective terminologies
can be equated to each other to the extent that either/both appear within this
document.
Former terminology
Current terminology
NMS SS7
Dialogic® NaturalAccess™ Signaling Software
Natural Access
Dialogic® NaturalAccess™ Software
SS7 Monitor
Dialogic® NaturalAccess™ SS7 Monitor Software
Dialogic Corporation
7
2
SS7 Monitor Software
overview
System requirements
To install and use NA SS7 Monitor Software to monitor network traffic, your
installation must have the following components:
•
A monitoring server with an installed TX Series board.
Refer to the appropriate TX Series board installation manual for information
on installing and configuring the TX Series board for NA SS7 Monitor Software
mode.
•
A protected monitoring connection point.
The connection point must not distort the signal more than 20 dB when using
any TX Series board.
•
Cables to connect the TX Series board to the SS7 network at the protected
monitoring connection point.
Refer to the appropriate TX Series board installation manual for information
on the types of cables required.
•
Windows or UNIX operating system.
•
Natural Access software development environment.
Dialogic Corporation
9
SS7 Monitor Software overview
SS7 Monitor Software Developer's Reference Manual
NA SS7 Monitor Software components
A typical NA SS7 Monitor Software implementation consists of the following
components:
10
•
SS7 monitor task running on a TX Series board.
•
TX Alarms Manager task that collects unsolicited alarms (status changes) that
the monitor task generates and forwards to the host for application-specific
alarm processing.
•
TX driver for the host operating system that provides low-level access to the
TX board from the host processor.
•
txalarm application on the host for displaying alarms from the monitor task,
and optionally saving them to disk.
•
NA SS7 Monitor Software interface that is composed of a set of messages
passed between the application and the monitor task on the TX
communications processor (CP). These messages enable the application to
initialize and receive data.
•
moncfg utility that downloads text file configurations to the monitor task.
moncfg is provided in source and executable form.
•
monmgr utility that enables you to manage the monitor task. monmgr is
provided in source and executable form.
•
monapp is a sample application. monapp is provided in source and executable
form.
•
NA SS7 Monitor Software management functions that provide a series of calls
for managing the monitor task. The moncfg and monmgr utilities use these
functions.
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
SS7 Monitor Software overview
The following illustration shows the NA SS7 Monitor Software architecture in a typical
system with separate host applications handling the data and control interface,
system configuration, and system alarms:
Host
txalarm utility
Log
file
Application
CPI library
Configuration
utility
Monitor
Management
functions
Host TX driver
Alarms
Manager
task
TX board
Dialogic Corporation
Monitor task
SS7 Layer 1 driver
11
SS7 Monitor Software overview
SS7 Monitor Software Developer's Reference Manual
NA SS7 Monitor Software interface
The NA SS7 Monitor Software interface consists of messages that govern
communications between an application on the host and the monitor task on the TX
board.
Messages perform the following tasks:
Message
Task
Bind
Request
Establishes the host application as the NA SS7 Monitor Software user. Binding consists of a
single request from the application to NA SS7 Monitor Software for which there is no
response. Binds user application as sole user of NA SS7 Monitor Software.
Data
Indication
Transfers data between the application and NA SS7 Monitor Software. Includes the only
host-bound indication in this implementation: the data indication. This indication can
include one or more SS7 signaling units (SUs) in the packet. Presents monitored message
signaling units (MSUs) to the host.
Unbind
Request
Stops the application from receiving data indications from the monitor task. At this time,
all signaling units (SUs) are discarded. Unbinds user application as sole user of NA SS7
Monitor Software.
TX device drivers
TX device drivers are programs that implement the physical interface between the
host and the TX board communications processor (CP). The TX device drivers
establish a set of virtual channels. Channels enable multiple processes on both the
host and the TX board CP to exchange messages without interfering with each other.
Processes and channels
A process (either on the host or on the CP) that receives messages registers with the
TX device driver for a specific channel number. For a host-resident process, the
channel registration can be implicit with the device open request, or it can be a
separate operation. Channel numbers are assigned statically at compile time.
In the application, specify a channel number from the range of supported values. The
TX board currently supports 256 channels (numbered 0 to 255). Channels 0 to 31
and 128 to 255 are reserved for use by Dialogic standard products. Channels 32 to
127 are available for application use. There is no built-in facility to dynamically learn
the channel assigned to any particular function.
Only one process receives messages for a specific channel. Each message contains a
header that the sender of the message supplies. The header identifies the
destination board and channel, the source board and channel, and the length of the
message.
Each process in an SS7 implementation, both on the CP and on the host, registers
for the channel that corresponds to a layer (or application) entity ID. The monitor
task registers for channel 0x5f. To send a message to the monitor task on TX board
n, set the destination channel to 0x5f, the destination board to n, and the source
channel and board to the sender's entity ID and board number. The host is board
number 0 (zero). For more information, refer to Entity and instance IDs on page 13.
12
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
SS7 Monitor Software overview
CPI Library interface
Applications and TX device drivers can use the CPI Library interface to communicate.
To initialize the CPI Library interface, call cpi_init before using any other CPI calls.
Issue a call to cpi_open, cpia_open, or cpix_open for each board the application
wants to communicate with.
cpi_open creates a synchronous interface suitable for configuration but not
recommended for high traffic load applications. cpia_open and cpix_open create
asynchronous interfaces that are optimized for high traffic applications. For the
synchronous interface, cpi_send and cpi_get_data are then called to send and
retrieve data packets to and from the board. For the asynchronous interface,
cpia_send and cpia_get_data are then called to send and retrieve data packets to
and from the board. For more information, refer to the Dialogic® TX Series SS7
Boards CPI Library Developer's Reference Manual.
Entity and instance IDs
Each application must have a unique entity and instance ID to route messages
among the various processes in the system.
Entity IDs are single byte values in the 0x00 to 0x3f range, assigned by the
application developer. Allocate entity IDs as follows:
Range
Usage
0x00 - 0x1F
Reserved for system utilities, configuration utilities, and management utilities.
0x20 - 0x3F
Reserved for applications.
Instance IDs identify the processor on which an entity executes. The host is always
processor 0 (zero). For all host-resident NA SS7 Monitor Software user applications,
the host instance ID is always 0 (zero). All tasks on TX board number 1 receive an
instance ID of 1, all tasks on TX board number 2 receive an instance ID of 2, and so
on.
Byte ordering considerations
The following byte ordering conventions are for 16-bit and 32-bit parameters in the
messages to and from the monitor task. The host application is responsible for
converting between network and host byte order, if necessary, in both the send and
receive directions.
Note: The byte ordering convention used with NA SS7 Monitor Software is not the
same convention used for short and long integers on Intel 80x86 machines.
The CPI library provides the following macros that enable applications to
transparently handle host and TX board numeric representation issues:
Macro
Task
cpi htocp l
Converts 32-bit value from the host format to the board format.
cpi htocp s
Converts 16-bit value from the host format to the board format.
cpi cptoh l
Converts 32-bit value from the board format to the host format.
cpi cptoh s
Converts 16-bit value from the board format to the host format.
Dialogic Corporation
13
SS7 Monitor Software overview
SS7 Monitor Software Developer's Reference Manual
The Message Length field is part of the dual-ported RAM (DPR) header interface
between the host application and the host device driver, and must be passed in host
native byte order, not the byte order shown in this topic. The Message Start and End
offsets, on the other hand, are part of the interface between the host application and
the NA SS7 Monitor Software process and must be passed in the network byte order
shown in the following example:
16-bit fields
Address
Low
High Order Byte (MSB)
High
Low Order Byte (LSB)
32-bit fields
Address
Low
High Order Word (MSB)
High Order Word (LSB)
Low Order Word (MSB)
High
Low Order Word (LSB)
The following nomenclature is used for data types:
Data type
Description
U8
Unsigned 8-bit quantity
S16
Signed 16-bit quantity
U32
Unsigned 32-bit quantity
14
Dialogic Corporation
3
Installing and configuring NA
SS7 Monitor Software
Installation and configuration summary
Applications that monitor SS7 activity interact with the TX board through the CPI
Library interface. The CPI library processes different types of messages. These
messages are described in NA SS7 Monitor Software interface on page 12 and Using
the message reference on page 55.
The SS7 Monitor task is configured by using management functions that are
described in Using the function reference on page 25. A sample application that
displays SS7 message data is described in Sample monitoring application: monapp
on page 50.
The following table summarizes the steps for initially installing and configuring the
NA SS7 Monitor Software:
Step
Description
For details, refer to...
1
Verify that monitor mode is enabled on the TX
board and that the board is installed properly in the
monitoring server.
The installation manual for the specific TX
Series board installed in the monitoring
server
Note: TX 5000 Series boards do not require
hardware enabling for monitor mode.
2
Connect the monitoring server to the network.
Connecting the monitor server to the
network
3
Install NA SS7 Monitor Software.
Installing Dialogic® NaturalAccess™ SS7
Monitor Software
4
Configure the TDM.
Dialogic® NaturalAccess™ Signaling
Software Configuration Manual
5
Configure the NA SS7 Monitor Software links.
Configuring monitor links on page 21
6
Download the NA SS7 Monitor Software and
configuration files to the TX Series board.
Downloading to the board on page 23
7
Run the sample application to verify the installation.
Running the sample application on page 24
Dialogic Corporation
15
Installing and configuring NA SS7 Monitor Software
SS7 Monitor Software Developer's Reference Manual
Connecting the monitor server to the network
This topic describes how to connect the NA SS7 Monitor Software depending on the
installed TX board:
•
Using TX 4000 boards
•
Using TX 4000C boards
•
Using TX 5000E boards
Using TX 4000 boards
If the monitor server has an installed TX 4000 board, ensure that DIP switch S3 on
the TX board is set to enable monitor mode. For information on setting the DIP
switch, refer to the Dialogic® TX 4000 PCI SS7 Network Interface Board Installation
Manual.
Connect the server to the SS7 network by attaching the cables to the 8-pin modular
jacks on the TX 4000 end bracket. To connect the monitor server in this installation,
use two separate cables: one cable for the transmit side of the B node connector and
one cable for the receive side. Both cables use only pins 1 and 2.
Note: The protected monitoring connection point must not distort the signal more
than 20 dB. This protection must be provided externally. If the loss is higher than 20
dB, the TX 4000 board may not recognize the signal. The 8-pin modular jack must
receive a signal that has less than 20 dB of loss. This value includes the values from
all cables and the protection circuitry.
16
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
Installing and configuring NA SS7 Monitor Software
The following illustration shows how to connect the monitor server with an installed
TX 4000 board to the SS7 network and monitor SS7 traffic:
Central Office B
Central Office A
Operator provided
cross-connect
equipment (DSX)
Live SS7 signaling link
SS7 network
Protected monitoring
connection point
(20 dB maximum)
Live SS7
network element A
Transmit side
for B node
Live SS7
network element B
Receive side
for B node
SS7 Monitor
server with
TX board
Receive side for B node
connector (pins 1 and 2)
Transmit side for B node
connector (pins 1 and 2)
TX 4000 board
The following illustration shows the pinouts for 8-pin modular jacks on the TX 4000
board:
Pin 1
Pin 8
Dialogic Corporation
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
1:
2:
3:
4:
5:
6:
7:
8:
(Port
(Port
(Port
(Port
(Port
(Port
(Port
(Port
1)
1)
2)
1)
1)
2)
2)
2)
R - Receive from
T - Receive from
T1 - Transmit to
R1 - Transmit to
T1 - Transmit to
R1 - Transmit to
T - Receive from
R - Receive from
network
network
network
network
network
network
network
network
17
Installing and configuring NA SS7 Monitor Software
SS7 Monitor Software Developer's Reference Manual
Using TX 4000C boards
If the monitor server has an installed TX 4000C board with an associated rear I/O
transition board, ensure that the shunts are removed from the jumpers on the rear
I/O transition board to enable monitor mode. For information on removing the
shunts, refer to the Dialogic® TX 4000C CompactPCI SS7 Network Interface Board
Installation Manual.
To connect the server to the SS7 network, attach a 50-pin Telco cable first to the RJ48T trunk connector on the rear I/O transition board and then to a punchdown block.
(If connecting to an E1 75 ohm trunk, connect the punchdown block to a 20-port
balun.) Use two separate RJ-45 straight through cables from port 1 and port 2 on the
punchdown block to connect to the network: one cable for the transmit side of the B
node connector (port 2) and one cable for the receive side of the B node connector
(port 1). For more information on establishing network connections, refer to the
Dialogic® TX 4000C CompactPCI SS7 Network Interface Board Installation Manual.
Note: The protected monitoring connection point must not distort the signal more
than 20 dB. This protection must be provided externally. If the loss is higher than 20
dB, the TX 4000C board may not recognize the signal. The RJ-48T connector must
receive a signal that has less than 20 dB of loss. This value includes the values from
all cables, the punchdown block, and the protection circuitry.
18
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
Installing and configuring NA SS7 Monitor Software
The following illustration shows how to connect the monitor server with an installed
TX 4000C board to the SS7 network and monitor SS7 traffic:
Central Office B
Central Office A
Operator provided
cross-connect
equipment (DSX)
Live SS7 signaling link
SS7 network
Protected monitoring
connection point
(20 dB maximum)
Live SS7
network element A
Transmit side
for B node
Live SS7
network element B
Receive side
for B node
SS7 Monitor
server with
TX board
50-pin Telco cable
8 7 6 5
TX 4000C rear I/O
transition board
4 3 2
Punchdown block
1
Receive side for B node
connector (port 1)
Transmit side for B node
connector (port 2)
The following illustration shows the pinouts of the eight RJ-48C connectors on the
punchdown block:
Pin 8
Pin 1
Dialogic Corporation
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
8:
7:
6:
5:
4:
3:
2:
1:
Optional shield, not used
Optional shield, not used
No connection
T1 - Transmit to network
R1 - Transmit to network
No connection
T - Receive from network
R - Receive from network
19
Installing and configuring NA SS7 Monitor Software
SS7 Monitor Software Developer's Reference Manual
Using TX 5000E boards
There is no DIP switch to set for monitor mode on a TX 5000E board. Specify the
monitoring function during configuration. For more information, refer to Configuring
TDM on page 21.
Connect the server to the SS7 network by attaching the cables to the 8-pin modular
jacks on the TX 5000E end bracket. To connect the monitor server in this
installation, use two separate cables: one cable for the transmit side of the B node
connector and one cable for the receive side. Both cables use only pins 1 and 2.
Note: The protected monitoring connection point must not distort the signal more
than 20 dB. This protection must be provided externally. If the loss is higher than 20
dB, the TX 5000E board may not recognize the signal. The 8-pin modular jack must
receive a signal that has less than 20 dB of loss. This value includes the values from
all cables and the protection circuitry.
The following illustration shows how to connect the monitor server with an installed
TX 5000E board to the SS7 network and monitor SS7 traffic:
Central Office A
Central Office B
Operator provided
cross-connect
equipment (DSX)
Live SS7 signaling link
SS7 network
Protected monitoring
connection point
(20 dB maximum)
Live SS7
network element A
Transmit side
for B node
Live SS7
network element B
Receive side
for B node
SS7 Monitor
server with
TX board
Receive side for B node
connector (pins 1 and 2)
Transmit side for B node
connector (pins 1 and 2)
TX 5000E board
20
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
Installing and configuring NA SS7 Monitor Software
Configuring TDM
The TX board sends and receives data on a T1, E1, or H.100/H.110 timeslot. A TDM
configuration file is used to configure all T1/E1 trunks and to define ports. The
configuration file identifies the timeslots to be monitored. TX Series boards are
configured using the txconfig utility. A sample TDM configuration file is provided for
TX boards (txcfg1.txt). The samples support a TX board using T1 lines.
To enable monitoring, set Loop Master to monitor. Do not set Loop Master to
true/false on a per trunk basis to enable monitoring. The following example shows a
txcfg file with Loop Master set to monitor:
clock net=1 #----------------------------------------------------------------------------#
Trunk
Framing
Encoding
Buildout
Loop Master
t1cfg 1
esf
b8zs
0
monitor
t1cfg 2
esf
b8zs
0
monitor
t1cfg 3
esf
b8zs
0
monitor
t1cfg 4
esf
b8zs
0
monitor
#----------------------------------------------------------------------------#
PortNum
L|H|E|T|J
Trunk
Channel
Speed
port 1
t1
1
0
port 2
t1
2
0
For more information, refer to the Dialogic® NaturalAccess™ Signaling Software
Configuration Manual.
Configuring monitor links
NA SS7 Monitor Software enables applications to configure the number of links, as
well as the parameters associated with those links.
The following sample configuration file (MONcp1.cfg) is included with the NA SS7
Monitor Software and is located in \Program Files\Dialogic\tx\config\ for Windows
and /opt/dialogic/tx/etc/ for UNIX:
# Monitoring general configuration section
RECV_LSSU
FALSE
# TRUE/FALSE
RECV_FISU
FALSE
# TRUE/FALSE
MTP2HDR
FALSE
# TRUE/FALSE
TIMER_TIND
5
# Max amount
NUM_BUFS
500
SIZE_BUFS
1000
- Send up LSSUs?
- Send up FISUs?
- Include MTP2 Header?
of time to wait before sending data inds
#
#--- Monitoring link parameters
LINK
0
LINK_TYPE
ANSI
# ANSI/ITU/ANSI_EXT/ITU_EXT
PORT_NUM
1
PORT_TYPE
TDM
# TDM
MAX_FRAME
272
NUM_BUFFERS
500
SIZE_BUFFERS
400
END
#
#--- Monitoring link parameters
LINK
1
LINK_TYPE
ANSI
# ANSI/ITU/ANSI_EXT/ITU_EXT
PORT_NUM
2
PORT_TYPE
TDM
# TDM
MAX_FRAME
272
NUM_BUFFERS
500
SIZE_BUFFERS
400
END
Dialogic Corporation
21
Installing and configuring NA SS7 Monitor Software
SS7 Monitor Software Developer's Reference Manual
NA SS7 Monitor Software supports a configuration of 16 half-links on TX 4000/20 or
TX 4000/20C boards, 32 half-links on TX 4000 or TX 4000C boards, and up to 128
half-links on TX 5000 Series boards. The maximum number of links allowed on a TX
5000 Series board is determined by the licensing options selected for the specific
board. A half-link is the receive half of a full-duplex SS7 link. The application can pair
two of these half-links into the two directions of one full-duplex link.
NA SS7 Monitor Software also supports high speed links (4 half-links). To support
this feature, the TDM configuration file must be properly configured for high speed
links by using an asterisk (*) for channel number. In the NA SS7 Monitor Software
configuration, the application must set the link type to use extended sequence
numbers using ANSI_EXT or ITU_EXT for the LINK_TYPE.
txcfg1.txt example for high speed links
#
PortNum
port 1
port 2
L|H|E|T|J
t1
t1
Trunk
1
2
Channel
*
*
Speed
MONcp1.cfg example for high speed links
#--- Monitoring link parameters
LINK
0
LINK_TYPE
ANSI_EXT
# ANSI/ITU/ANSI_EXT/ITU_EXT
PORT_NUM
1
PORT_TYPE
TDM
# TDM
MAX_FRAME
272
NUM_BUFFERS
500
SIZE_BUFFERS
400
END
22
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
Installing and configuring NA SS7 Monitor Software
Downloading to the board
Once the software and links are set up properly, download the software and the
configuration to the TX board by using the monload batch file. The monload file
accepts the board number to load. This loader file resets the TX board and
downloads the necessary software to the TX board, including support tasks for
alarms and debugging, and the monitor task. Finally, the configuration for the
monitor task is downloaded.
The following sample code is a Windows version of monload.bat:
@echo off
REM ***************************************************************************
REM
TX Series COMMUNICATIONS PROCESSOR BOOT FILE (MONITOR)
REM
REM Execute this file to perform the following:
REM
- Reset the TX board
REM
- Synchronize the on-board flash image with the installed software
REM
- Download TDM configuration
REM
- Download all TX-based tasks
REM
- Configure MONITOR
REM ***************************************************************************
if "%DIALOGIC_ROOT%"=="" set DIALOGIC_ROOT=\Program Files\Dialogic
if "%TX_ROOT%"=="" set TX_ROOT=%DIALOGIC_ROOT%\tx
REM ***************************************************************************
REM Define all other script parameters
REM
if "%TXCONFIG%"=="" set TXCONFIG=%TX_ROOT%\config
if "%TXUTIL%"=="" set TXUTIL=%TX_ROOT%\bin
if "%TXCP%"=="" set TXCP=%TX_ROOT%\cp
REM ***************************************************************************
REM Process arguments - Get the board number
REM
set BRD=1
if not "%1"=="" set BRD=%1
REM ***************************************************************************
REM Clear driver statistics
REM
"%TXUTIL%\txstats" -b %BRD% -z -q
REM ***************************************************************************
REM Get the model number (TX board type)
REM
"%TXUTIL%\cpmodel" -b %BRD%
if %errorlevel% == 4000 goto set4000
if %errorlevel% == 5000 goto set5000
if %errorlevel% == 5020 goto set5000
if %errorlevel% == 5500 goto set5000
echo ERROR! TX board number %BRD% not available.
goto end
REM ***************************************************************************
REM Setup for TX 4000 Family
REM
:set4000
set TASKTYPE=elf
set TXKERNEL=cpk4000.fls
goto resetboard
REM ***************************************************************************
REM Setup for TX 5000 Family
REM
:set5000
set TASKTYPE=elf
set TXKERNEL=cpk5000.elf
REM ***************************************************************************
REM Reset the TX board
REM
:resetboard
REM Reset TX board (and verify TX flash image in sync with installed software)
"%TXUTIL%\txflash" -s "%TXCP%\%TXKERNEL%" -b %BRD%
if %errorlevel% == 1 goto failedreset
Dialogic Corporation
23
Installing and configuring NA SS7 Monitor Software
SS7 Monitor Software Developer's Reference Manual
REM ***************************************************************************
REM Enable the following to use txmon
REM
REM "%TXUTIL%\cplot" -c %BRD% -f "%TXCP%\txmon.%TASKTYPE%" -n txmon -p 19 -a
REM ***************************************************************************
REM Load TDM configuration
REM
"%TXUTIL%\txconfig" -b %BRD% -f "%TXCONFIG%\txcfg%BRD%.txt"
REM ***************************************************************************
REM Load the monitor layer
REM
"%TXUTIL%\cplot" -c %BRD% -f "%TXCP%\monitor.%TASKTYPE%" -n monitor -p 20 -a -s 12000
REM ***************************************************************************
REM Configure the monitor layer
REM
"%TXUTIL%\moncfg" -b %BRD% -f "%TXCONFIG%\MONcp%BRD%.cfg"
goto end
REM ***************************************************************************
REM Report reset error
REM
:failedreset
echo ERROR! Unable to reset TX board number %BRD%.
goto end
REM ***************************************************************************
REM Exit load script
:end
set TXUTIL=
set TXCP=
set TXCONFIG=
set BRD=
set TASKTYPE=
set TXKERNEL=
The txalarm utility is also included to help debug the configuration and user
applications. For more information, refer to the Dialogic® TX Series SS7 Boards TX
Utilities Manual.
Board loaded:
<06/10/2002 11:12:39> monitor
3
1 Monitor task initialized!
Running the sample application
When the board is loaded, you can start the sample application that comes with your
system. The monapp sample application binds to the monitor task and a start
monitoring message is sent to the monitor task. At this point, any data indications
sent to the monapp application display on the screen. The following sample output is
from txalarm at application bind time:
Application bound:
<06/10/2002 11:13:59> monitor
3
1 User application now bound (ent = 32)
When monapp is exited, a stop monitoring message is sent to the monitor task, and
data indications are no longer sent to the host. The following sample output is from
txalarm when the application unbinds:
Application unbound:
<06/10/2002 11:13:59> monitor
3
1 User application unbound
For more information, refer to Sample monitoring application: monapp on page 50.
24
Dialogic Corporation
4
NA SS7 Monitor Software
function reference
Using the function reference
This section provides an alphabetical reference to the NA SS7 Monitor Software
management functions. A prototype of each function is shown with the function
description, details of all arguments, and return values. A typical function includes:
Prototype
The prototype is followed by a listing of the function's arguments. Dialogic data types
include:
•
U8 8-bit unsigned
•
S16 16-bit signed
•
U32 32-bit unsigned
•
Bool 8-bit unsigned
If a function argument is a data structure, the complete data structure is defined.
Return
values
The return value for a function is either MON_SUCCESS or an error code. For
asynchronous functions, a return value of MON_SUCCESS (zero) indicates the function
was initiated; subsequent events indicate the status of the operation.
Dialogic Corporation
25
NA SS7 Monitor Software function reference
SS7 Monitor Software Developer's Reference Manual
MonClearFilters
Clears a filter configuration in the monitor task that was previously set on one or all
links.
Prototype
MON_STATUS MonClearFilters ( U8 board, S16 linkNo )
Argument
Description
board
TX board number on which the desired monitor task resides.
linkNo
Link number from the configuration file. If this parameter is set to MON_ALL_LINKS, the
filters for all links are cleared.
Return values
Return value
Description
MON_BOARD
Board number out of range.
MON_DRIVER
CPI driver returned an error.
MON_HANDLE
Board not previously initialized.
MON_LINKTYPE
Invalid link or switch type.
MON_PARAM
Invalid parameter.
MON_RESPONSE
Wrong response from board.
MON_SUCCESS
MON_TIMEOUT
No response from board.
See also
MonSetFilter
26
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
NA SS7 Monitor Software function reference
MonGetFilters
Retrieves a filter configuration from the monitor task that has been set for one
specific link.
Prototype
MON_STATUS MonGetFilters ( U8 board, MonFilterList *pList, S16 linkNo )
Argument
Description
board
TX board number on which the desired monitor task resides.
plist
Pointer to a MonFilterList structure where the data link configuration values are filled:
typedef struct _MonFilterList
{
U8 numActive;
U8 spare;
U16 spare2;
MonFilterDef filter[MON_MAXFILTERS];
} MonFilterList;
linkNo
Link number from the configuration file.
Return values
Return value
Description
MON_BOARD
Board number out of range.
MON_DRIVER
CPI driver returned an error.
MON_HANDLE
Board not previously initialized.
MON_LINKTYPE
Invalid link or switch type.
MON_PARAM
Invalid parameter.
MON_RESPONSE
Wrong response from board.
MON_SUCCESS
MON_TIMEOUT
No response from board.
See also
MonSetFilter
Dialogic Corporation
27
NA SS7 Monitor Software function reference
SS7 Monitor Software Developer's Reference Manual
MonGetGenCfg
Retrieves a general configuration from the monitor task.
Prototype
MON_STATUS MonGetGenCfg ( U8 board, MonGenCfg *pGenCfg )
Argument
Description
board
TX board number on which the desired monitor task resides.
pGenCfg
Pointer to a MonGenCfg structure where the data link configuration values are filled:
typedef struct _MonGenCfg
{
U8
recvLssu;
U8
recvFisu;
U8
mtp2Hdr;
U8
spare;
U16
numBuffers;
U16
sizeBuffers;
TimerCfg tInd;
/* Send up LSSUs? */
/* Send up FISUs? */
/* Include the mtp2Hdr */
/* Number of buffers in limited pool */
/* Size of each buffer in limited pool */
/* Maximum time to wait before sending up a
data indication */
} MonGenCfg;
Return values
Return value
Description
MON_BOARD
Board number out of range.
MON_DRIVER
CPI driver returned error.
MON_HANDLE
Board not previously initialized.
MON_LINKTYPE
Invalid link or switch type.
MON_PARAM
Invalid parameter.
MON_RESPONSE
Wrong response from board.
MON_SUCCESS
MON_TIMEOUT
No response from board.
See also
MonInitGenCfg
28
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
NA SS7 Monitor Software function reference
MonGetGenStats
Retrieves and potentially resets general statistical information from the monitor task.
Prototype
MON_STATUS MonGetGenStats ( U8 board, MonGenStats *pStats, Bool bReset )
Argument
Description
board
TX board number on which the desired monitor task resides.
pStats
Pointer to a MonGenStats structure where the data link configuration values are filled:
typedef struct _MonGenStats
{
S16
action;
/*
S16
spare1;
/*
U32
numAppCongDrop; /*
*
} MonGenStats;
bReset
Action to take (ZEROSTS or NOZEROSTS) */
Alignment */
Number of messages dropped due to congestion
(limited pool up to host is full) */
Flag that indicates whether or not to set statistics to zero after retrieval.
Return values
Return value
Description
MON_BOARD
Board number out of range.
MON_DRIVER
CPI driver returned an error.
MON_HANDLE
Board not previously initialized.
MON_LINKTYPE
Invalid link or switch type.
MON_PARAM
Invalid parameter.
MON_RESPONSE
Wrong response from board.
MON_SUCCESS
MON_TIMEOUT
Dialogic Corporation
No response from board.
29
NA SS7 Monitor Software function reference
SS7 Monitor Software Developer's Reference Manual
MonGetLinkCfg
Retrieves the configuration of one link.
Prototype
MON_STATUS MonGetLinkCfg ( U8 board, MonLinkCfg *pLinkCfg, S16 linkNo )
Argument
Description
board
TX board number on which the desired monitor task resides.
pLinkCfg
Pointer to a MonLinkCfg structure where the data link configuration values are filled:
typedef struct
{
U16
linkNum;
U16
linkType;
#define MON_LINK_ANSI
#define MON_LINK_ITU
#define MON_LINK_ANSI_EXT
#define MON_LINK_ITU_EXT
U16
portNum;
txconfig) */
U16
portType;
#define MON_PTYPE_SERIAL
#define MON_PTYPE_TDM
U16
dataEnc;
#define DAT_NRZ
#define DAT_NRZI
U16
maxFrameLen;
U16
numBuffers;
U16
sizeBuffers;
} MonLinkCfg;
linkNo
0
1
2
3
/* Link Number */
/* ANSI/ITU */
/* Port number (from tdmcfg or
0
4
0
1
/* Port type (tdm v. serial) */
/*
/*
/*
/*
/*
/*
Data encoding (NRZ/NRZI) */
data format is NRZ */
data format is NRZI */
Maximum SS7 frame length */
Number of buffers in limited pool */
Size of each buffer in limited pool */
Retrieves the configuration information of this specific link number.
Return values
Return value
Description
MON_BOARD
Board number out of range.
MON_DRIVER
CPI driver returned an error.
MON_HANDLE
Board not previously initialized.
MON_LINKTYPE
Invalid link or switch type.
MON_PARAM
Invalid parameter.
MON_RESPONSE
Wrong response from board.
MON_SUCCESS
MON_TIMEOUT
No response from board.
See also
MonInitLinkCfg
30
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
NA SS7 Monitor Software function reference
MonGetLinkStats
Retrieves the link statistics for one link.
Prototype
MON_STATUS MonGetLinkStats ( U8 board, MonLinkStats *pstats, S16 linkNo,
Bool bReset )
Argument
Description
board
TX board number on which the desired monitor task resides.
pstats
Pointer to MonLinkStats structure:
typedef struct _MonLinkStats
{
S16
action;
/*
S16
spare1;
/*
U32
numMsuRx;
/*
U32
numLssuRx;
/*
U32
numFisuRx;
/*
U32
numRxFiltered;
/*
U32
numSUERMFail;
/* MTP level 2 link statistics */
Action to take (ZEROSTS or NOZEROSTS) */
Alignment */
Number of MSUs received */
Number of LSSUs sent up to host */
Number of FISUs sent up to host */
Number of messages dropped due to filter
configuration */
/* Number of times the SUERM has failed on this
link */
} MonLinkStats;
linkNo
Retrieve the statistics of this specific link number.
bReset
Flag that indicates whether or not to set statistics to zero after retrieval.
Return values
Return value
Description
MON_BOARD
Board number out of range.
MON_DRIVER
CPI driver returned an error.
MON_HANDLE
Board not previously initialized.
MON_LINKTYPE
Invalid link or switch type.
MON_PARAM
Invalid parameter.
MON_RESPONSE
Wrong response from board.
MON_SUCCESS
MON_TIMEOUT
Dialogic Corporation
No response from board.
31
NA SS7 Monitor Software function reference
SS7 Monitor Software Developer's Reference Manual
MonInitGenCfg
Builds a basic configuration buffer to be passed to MonSetGenCfg.
Prototype
MON_STATUS MonInitGenCfg ( U8 board, MonGenCfg *pGenCfg )
Argument
Description
board
TX board number on which the desired monitor task resides.
pGenCfg
Pointer to the MonGenCfg structure to be initialized. For more information, refer to
Details.
Return values
Return value
Description
MON_BOARD
Board number out of range.
MON_DRIVER
CPI driver returned an error.
MON_HANDLE
Board not previously initialized.
MON_LINKTYPE
Invalid link or switch type.
MON_PARAM
Invalid parameter.
MON_RESPONSE
Wrong response from board.
MON_SUCCESS
MON_TIMEOUT
No response from board.
Details
This function initializes a MonGenCfg structure to all of its default values:
typedef struct _MonGenCfg
{
U8
recvLssu;
U8
recvFisu;
U8
mtp2Hdr;
U8
spare;
U16
numBuffers;
U16
sizeBuffers;
TimerCfg tInd;
*/
} MonGenCfg;
32
/* Send up LSSUs? */
/* Send up FISUs? */
/* Include the mtp2Hdr? */
/* Number of buffers in limited pool */
/* Size of each buffer in limited pool */
/* Maximum time to wait before sending up a data indication
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
NA SS7 Monitor Software function reference
The following table lists the field defaults and possible values:
Field
Default
Range
Description
recvLssu
FALSE
TRUE|FALSE
If TRUE, the LSSUs are passed to the application. If FALSE,
they are dropped.
recvFisu
FALSE
TRUE|FALSE
If TRUE, the FSUs are passed to the application. If FALSE,
they are dropped.
mtp2Hdr
FALSE
TRUE|FALSE
If TRUE, the MTP2 header on the front of the message is left
intact. If FALSE, the monitor task strips it off.
numBuffers
500
50 - 1000
Number of buffers used on the board for sending up data
indications.
sizeBuffers
1000
300 - 1900
Size of the buffers used for sending up data indications.
tInd
5
0 = send
immediately
0 - 60
The maximum amount of time (in seconds) to wait before
sending an SS7 message.
Dialogic Corporation
33
NA SS7 Monitor Software function reference
SS7 Monitor Software Developer's Reference Manual
MonInitLinkCfg
Builds a link configuration buffer to be passed to MonSetLinkCfg.
Prototype
MON_STATUS MonInitLinkCFg ( U8 board, MonLinkCfg *pLinkCfg, S16 linkNo,
U8 linkType )
Argument
Description
board
TX board number on which the desired monitor task resides.
pLinkCfg
Pointer to the MonLinkCfg structure to initialize. For more information, refer to Details.
linkNo
Specifies the link number for which to set this structure.
linkType
CCITT, ITU, or ANSI.
Return values
Return value
Description
MON_BOARD
Board number out of range.
MON_DRIVER
CPI driver returned an error.
MON_HANDLE
Board not previously initialized.
MON_LINKTYPE
Invalid link or switch type.
MON_PARAM
Invalid parameter.
MON_RESPONSE
Wrong response from board.
MON_SUCCESS
MON_TIMEOUT
No response from board.
Details
This function initializes a MonLinkCfg structure to all of its default values:
typedef struct
{
U16
linkNum;
U16
linkType;
#define MON_LINK_ANSI
#define MON_LINK_ITU
#define MON_LINK_ANSI_EXT
#define MON_LINK_ITU_EXT
U16
portNum;
U16
portType;
#define MON_PTYPE_TDM
U16
dataEnc;
#define DAT_NRZ
#define DAT_NRZI
U16
maxFrameLen;
U16
numBuffers;
U16
sizeBuffers;
} MonLinkCfg;
34
0
1
2
3
4
0
1
/* Link Number */
/* ANSI/ITU */
/* Port number (from tdmcfg or txconfig) */
/* Port type (Serial no longer supported) */
/*
/*
/*
/*
/*
/*
Data encoding (NRZ/NRZI) */
data format is NRZ */
data format is NRZI */
Maximum SS7 frame length */
Number of buffers in limited pool */
Size of each buffer in limited pool */
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
NA SS7 Monitor Software function reference
The following table lists the field defaults and possible values:
Field
Default
linkNum
linkNo parameter
Range
Description
0 - 15 (TX 4000/20, TX 4000/20C)
Link index number to use
to refer to this link.
0 - 31 (TX 4000, TX 4000C)
0 - 127 (TX 5000 Series)
linkType
linkType parameter
portNum
linkNo parameter +
1
Link type can be ANSI or
ITU with or without the
support for extended
sequence numbers. This
is used to help the SS7
Monitor task decode
parts of the SS7
messages.
1 - 16 (TX 4000/20, TX 4000/20C)
1 - 32 (TX 4000, TX 4000C)
Port number from the
TDM configuration.
1 - 128 (TX 5000 Series)
portType
MON_PTYPE_TDM
Only allowed port type is
TDM for T1 or E1.
dataEnc
DAT_NRZ,
DAT_NRZI|DAT_NRZ
Not applicable.
maxFrameLen
272
0 - 500
Maximum frame length
for a received SS7
message.
numBuffers
500
50 - 1000
Number of buffers to use
on the board for
receiving SS7 messages
from the network.
sizeBuffers
400
300 - 500
Size of the buffers used
for receiving SS7
messages from the
network.
Dialogic Corporation
35
NA SS7 Monitor Software function reference
SS7 Monitor Software Developer's Reference Manual
MonMgmtInit
Initializes internal structures and opens communication with the monitor process on
the TX board.
Prototype
MON_STATUS MonMgmtInit ( U8 board, U8 srcEnt, U8 srcInst )
Argument
Description
board
TX board number on which the desired monitor task resides.
srcEnt
Source entity ID.
srcInst
Source instance ID.
Return values
Return value
Description
MON_BOARD
Board number out of range.
MON_DRIVER
CPI driver returned an error.
MON_HANDLE
Board not previously initialized.
MON_LINKTYPE
Invalid link or switch type.
MON_PARAM
Invalid parameter.
MON_RESPONSE
Wrong response from board.
MON_SUCCESS
MON_TIMEOUT
No response from board.
Details
This function must be called before any other management functions can be used.
Source entity must be unique for each application accessing the monitor task.
Note: An application that opens both the management and data functions must use
different entity IDs for MonMgmtInit and data bind request calls.
36
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
NA SS7 Monitor Software function reference
MonMgmtTerm
Terminates the dual-port RAM channel binding, specified in MonMgmtInit, for this
application.
Prototype
MON_STATUS MonMgmtTerm ( U8 board )
Argument
Description
board
TX board number that terminates communication.
Return values
Return value
Description
MON_BOARD
Board number out of range.
MON_DRIVER
CPI driver returned an error.
MON_HANDLE
Board not previously initialized.
MON_LINKTYPE
Invalid link or switch type.
MON_PARAM
Invalid parameter.
MON_RESPONSE
Wrong response from board.
MON_SUCCESS
MON_TIMEOUT
No response from board.
Details
This function frees up resources when an application terminates or finishes
communication with the monitor task.
Dialogic Corporation
37
NA SS7 Monitor Software function reference
SS7 Monitor Software Developer's Reference Manual
MonSetFilter
Passes a filter configuration to the monitor task.
Prototype
MON_STATUS MonSetFilter ( U8 board, MonFilterDef *pfilter, S16 linkNo )
Argument
Description
board
TX board number on which the desired monitor task resides.
pfilter
Pointer to a new filter definition:
typedef struct _MonFilterDef
{
U8 type;
#define MON_FILTER_SIO 1
#define MON_FILTER_DPC 2
#define MON_FILTER_OPC 3
U8 spare;
U16 spare2;
U32 value;
} MonFilterDef;
linkNo
/* Filter types */
Link number from the configuration file. If this parameter is set to MON_ALL_LINKS, all
filters are set for all links, not for just one specific link.
Return values
Return value
Description
MON_BOARD
Board number out of range.
MON_DRIVER
CPI driver returned an error.
MON_HANDLE
Board not previously initialized.
MON_LINKTYPE
Invalid link or switch type.
MON_PARAM
Invalid parameter.
MON_RESPONSE
Wrong response from board.
MON_SUCCESS
MON_TIMEOUT
No response from board.
Details
This function sets destination point code (DPC), originating point code (OPC), or
service information octet (SIO) filters on one or all links.
A filter definition is defined by two values: the type and the value. The type is set to
either MON_FILTER_SIO, MON_FILTER_DPC, or MON_FILTER_OPC. When a
message comes in, it is compared to the defined filters on the link it came in on. If
the message does not match any of the filters, it is dropped. There is a maximum of
three filter definitions per link. You cannot have more than one filter of any type
active at a time. For example, you cannot have two SIO filters active at a time.
38
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
NA SS7 Monitor Software function reference
For OPC and DPC filters, the value field is compared to the DPC or OPC in the MTP3
routing label. For the SIO filter, the service indicator octet is retrieved from the
received message and compared to the filter value. The service indicator determines
for which SS7 upper layer the message is destined (for example, ISUP, SCCP, or
TUP).
Dialogic Corporation
39
NA SS7 Monitor Software function reference
SS7 Monitor Software Developer's Reference Manual
MonSetGenCfg
Passes a general configuration to the monitor task.
Prototype
MON_STATUS MonSetGenCfg ( U8 board, MonGenCfg *pGenCfg )
Argument
Description
board
TX board number on which the desired monitor task resides.
pGenCfg
Pointer to the MonGenCfg structure to send to the board:
typedef struct _MonGenCfg
{
U8
recvLssu;
U8
recvFisu;
U8
mtp2Hdr;
U8
spare;
U16
numBuffers;
U16
sizeBuffers;
TimerCfg tInd;
/* Send up LSSUs? */
/* Send up FISUs? */
/* Include the mtp2Hdr */
/* Number of buffers in limited pool */
/* Size of each buffer in limited pool */
/* Maximum time to wait before sending up a
data indication */
} MonGenCfg;
Return values
Return value
Description
MON_BOARD
Board number out of range.
MON_DRIVER
CPI driver returned an error.
MON_HANDLE
Board not previously initialized.
MON_LINKTYPE
Invalid link or switch type.
MON_PARAM
Invalid parameter.
MON_RESPONSE
Wrong response from board.
MON_SUCCESS
MON_TIMEOUT
No response from board.
See also
MonInitGenCfg
40
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
NA SS7 Monitor Software function reference
MonSetLinkCfg
Passes a link configuration structure to the monitor task.
Prototype
MON_STATUS MonSetLinkCfg ( U8 board, MonLinkCfg *plinkCfg )
Argument
Description
board
TX board number on which the desired monitor task resides.
plinkCfg
Pointer to the MonLinkCfg structure to send to the board:
typedef struct
{
U16
linkNum;
U16
linkType;
#define MON_LINK_ANSI
#define MON_LINK_ITU
#define MON_LINK_ANSI_EXT
#define MON_LINK_ITU_EXT
U16
portNum;
txconfig) */
U16
portType;
#define MON_PTYPE_SERIAL
#define MON_PTYPE_TDM
U16
dataEnc;
#define DAT_NRZ
#define DAT_NRZI
U16
maxFrameLen;
U16
numBuffers;
U16
sizeBuffers;
} MonLinkCfg;
0
1
2
3
/* Link Number */
/* ANSI/ITU */
/* Port number (from tdmcfg or
0
4
0
1
/* Port type (tdm v. serial) */
/*
/*
/*
/*
/*
/*
Data encoding (NRZ/NRZI) */
data format is NRZ */
data format is NRZI */
Maximum SS7 frame length */
Number of buffers in limited pool */
Size of each buffer in limited pool */
Return values
Return value
Description
MON_BOARD
Board number out of range.
MON_DRIVER
CPI driver returned an error.
MON_HANDLE
Board not previously initialized.
MON_LINKTYPE
Invalid link or switch type.
MON_PARAM
Invalid parameter.
MON_RESPONSE
Wrong response from board.
MON_SUCCESS
MON_TIMEOUT
No response from board.
See also
MonInitLinkCfg
Dialogic Corporation
41
NA SS7 Monitor Software function reference
SS7 Monitor Software Developer's Reference Manual
MonSetTrace
Sets the debug output level for the monitor task.
Prototype
MON_STATUS MonSetTrace ( U8 board, U16 traceLevel )
Argument
Description
board
TX board number on which the desired monitor task resides.
traceLevel
New trace level that can be set to the following levels:
#define MON_TRACE_ERROR 0x01
#define MON_TRACE_WARNING 0x02
#define MON_TRACE_DEBUG 0x10
These values can be combined using the OR operator. The default trace level is
MON_TRACE_ERROR.
Return values
Return value
Description
MON_BOARD
Board number out of range.
MON_DRIVER
CPI driver returned an error.
MON_HANDLE
Board not previously initialized.
MON_LINKTYPE
Invalid link or switch type.
MON_PARAM
Invalid parameter.
MON_RESPONSE
Wrong response from board.
MON_SUCCESS
MON_TIMEOUT
42
No response from board.
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
NA SS7 Monitor Software function reference
MonStartLink
Starts the monitoring of a specific link.
Prototype
MON_STATUS MonStartLink ( U8 board, S16 linkNum )
Argument
Description
board
TX board number on which the desired monitor task resides.
linkNum
Link number for which this applies. If this parameter is set to MON_ALL_LINKS, all links
are monitored, not just one specific link.
Return values
Return value
Description
MON_BOARD
Board number out of range.
MON_DRIVER
CPI driver returned an error.
MON_HANDLE
Board not previously initialized.
MON_LINKTYPE
Invalid link or switch type.
MON_PARAM
Invalid parameter.
MON_RESPONSE
Wrong response from board.
MON_SUCCESS
MON_TIMEOUT
No response from board.
Details
When an application binds to the monitor task, the task begins monitoring all links.
The link is enabled and traffic received on it is passed to the application. To stop
monitoring a specific link, call MonStopLink. To restart monitoring a link, use
MonStartLink.
Dialogic Corporation
43
NA SS7 Monitor Software function reference
SS7 Monitor Software Developer's Reference Manual
MonStopLink
Stops the monitoring of a specific link.
Prototype
MON_STATUS MonStopLink ( U8 board, S16 linkNum )
Argument
Description
board
TX board number on which the desired monitor task resides.
linkNum
Link number for which this applies. If this parameter is set to MON_ALL_LINKS,
monitoring is stopped for all links.
Return values
Return value
Description
MON_BOARD
Board number out of range.
MON_DRIVER
CPI driver returned an error.
MON_HANDLE
Board not previously initialized.
MON_LINKTYPE
Invalid link or switch type.
MON_PARAM
Invalid parameter.
MON_RESPONSE
Wrong response from board.
MON_SUCCESS
MON_TIMEOUT
No response from board.
Details
When an application binds to the monitor task, the task begins monitoring all links.
The link is enabled and traffic received on it is passed up to the application. To stop
monitoring a specific link, call MonStopLink. To restart monitoring a link, use
MonStartLink.
44
Dialogic Corporation
5
Utility programs
Summary of the utility programs
SS7 Monitor provides the following utility programs:
Program
Description
moncfg
Downloads the NA SS7 Monitor Software configuration to the TX board at boot time.
monmgr
Monitors and manages the status of the NA SS7 Monitor Software.
monapp
Partially decodes SS7 messages.
Dialogic Corporation
45
Utility programs
SS7 Monitor Software Developer's Reference Manual
Monitor Configuration utility: moncfg
Scans the NA SS7 Monitor Software configuration text file and downloads the
configuration to the monitor task on the TX board.
Usage
moncfg options
Prerequisites
•
A computer with a TX board installed
•
Windows or UNIX
•
Natural Access
Procedure
Follow this procedure to run moncfg:
Step
Action
1
From the command line prompt, navigate to the \Program Files\Dialogic\tx\bin directory under
Windows or the /opt/dialogic/tx/bin directory under UNIX.
2
Enter the following command:
moncfg options
where options include:
Option
Description
-b boardnum
Board number to which the NA SS7 Monitor Software configuration is
downloaded.
Default = 1.
-f filename
Name and location of the NA SS7 Monitor Software configuration file to
be downloaded.
The Monitor Configuration utility scans the information in the ASCII file (specified with the -f
option) and downloads the information to the monitor task on the TX board.
46
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
Utility programs
The NA SS7 Monitor Software configuration file is a text file with the following
format:
# Monitoring general configuration section
RECV_LSSU
FALSE
# TRUE/FALSE - Send up LSSUs?
RECV_FISU
FALSE
# TRUE/FALSE - Send up FISUs?
MTP2HDR
FALSE
# TRUE/FALSE - Include MTP2 Header?
TIMER_TIND
5 # Max amount of time to wait before sending data inds
NUM_BUFS
500
SIZE_BUFS
1000
#
#--- Monitoring link parameters
LINK
0
LINK_TYPE
ANSI
# ANSI/ITU/ANSI_EXT/ITU_EXT
PORT_NUM
1
PORT_TYPE
TDM
# TDM
MAX_FRAME
272
NUM_BUFFERS
500
SIZE_BUFFERS
400
END
#
#--- Monitoring link parameters
LINK
1
LINK_TYPE
ANSI
# ANSI/ITU/ANSI_EXT/ITU_EXT
PORT_NUM
2
PORT_TYPE
TDM
# TDM
MAX_FRAME
272
NUM_BUFFERS
500
SIZE_BUFFERS
400
END
The first link defined in the NA SS7 Monitor Software configuration file is always half
link 0 (zero), the second is always link 1, and so on.
The following table lists general configuration parameters and values:
Parameter
Value
Default
Description
RECV_FISU
TRUE|FALSE
FALSE
When TRUE, FISUs are forwarded to the host application.
RECV_LSSU
TRUE|FALSE
FALSE
When TRUE, LSSUs are forwarded to the host application.
MTP2HDR
TRUE|FALSE
FALSE
When TRUE, MTP2 headers are forwarded to the host
application.
NUM_BUFS
50 - 1000
500
Count of the buffers to use to send data indications to the host.
SIZE_BUFS
300 - 1900
1000
Size of the buffers to use to send data indications to the host.
TIMER_TIND
0 - 60
5
Number of seconds to wait until forwarding a data indication to
the host. If zero, send one packet per buffer immediately.
The following table lists the monitoring link parameters and values. All parameters
are optional (default values are shown) except the LINK port assignment and the
terminating END statement.
Parameter
Value
Default
Description
DATA_ENC
NRZ or NRZI
NRZ
Data encoding (NRZ or NRZ inverted).
LINK
T1-T128
None
Link index.
LINK_TYPE
ANSI, ITU,
ANSI_EXT, or
ITU_EXT
ANSI
Protocol variant. The _EXT values indicate high speed
links using extended sequence numbers.
Dialogic Corporation
47
Utility programs
SS7 Monitor Software Developer's Reference Manual
Parameter
Value
Default
Description
MAX_FRAME
64 - 1024
272
Maximum frame length for MSU.
NUM_BUFFERS
50 - 1000
500
Number of buffers in pool. (Dialogic does not
recommend changing this parameter.)
PORT_NUM
1 - 16 (TX 4000/20
and TX 4000/20C)
None
Maps to TDM port parameter.
Note: The maximum port number for TX 5000 Series
boards is determined by licensing options with a
maximum of 128 ports available.
1 - 32 (TX 4000 and
TX 4000C)
1 – 128 (TX 5000
Series)
PORT_TYPE
TDM
TDM
Port type. Serial ports are no longer supported.
SIZE_BUFFER
300 - 500
400
Size of buffer in pool (Dialogic does not recommend
changing this parameter.)
48
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
Utility programs
Monitor Manager program: monmgr
After downloading the Dialogic configuration to the TX board with moncfg, run the
Monitor Manager (monmgr) program to monitor the status of the monitor task. The
Monitor Manager provides a command line interface that can be used to view
statistics.
Usage
monmgr -b boardnum
Prerequisites
•
A computer with a TX board installed
•
Windows or UNIX
•
Natural Access
Procedure
Follow this procedure to run monmgr:
Step
Action
1
From the command line prompt, navigate to the \Program Files\Dialogic\tx\bin directory in
Windows or the /opt/dialogic/tx/bin directory in UNIX.
2
Enter the following command:
monmgr -b boardnum
where boardnum is the number of the TX board to open.
The monmgr program supports the following commands:
Command
Description
LINK link number START|STOP
Starts or stops monitoring a specific link.
TRACE trace_level
Changes the debug level of information sent to
txalarm.
GET GEN
Displays general configuration.
GET LINK link number | *
Displays configuration of a specific link or all defined
links.
GET FILTERS link number | *
Displays the filter settings of a specific link or all
defined links.
STATS GEN
Displays general statistics.
STATS LINK link number [ RESET ]
Displays a link's statistics.
FILTER link number DPC|OPC|SIO|CLEAR filter
value
Sets the filter for a specific link.
? [command name]
Displays Help for all commands or for a specific
command.
BOARD board number
Switches to a new board.
Q
Quits monmgr.
Dialogic Corporation
49
Utility programs
SS7 Monitor Software Developer's Reference Manual
Sample monitoring application: monapp
Partially decodes SS7 messages, but does not support the decoding of MTP2
extended sequence numbers (used for high speed links).
Usage
monapp -b boardnum
Prerequisites
•
A computer with a TX board installed
•
Windows or UNIX
•
Natural Access
Procedures
Follow this procedure to run monapp:
Step
Action
1
From the command line prompt, navigate to the \Program Files\Dialogic\tx\bin directory under
Windows or the /opt/dialogic/tx/bin directory under UNIX.
2
Enter the following command:
monapp -b boardnum
where boardnum is the number of the TX board to open.
At startup, the sample application attempts to bind to the monitor task and starts printing to
the screen whenever a data indication is received.
50
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
Utility programs
Follow this procedure to enter command mode:
Step
Action
1
Press Enter to display the following prompt:
Command?>
2
Enter one of the following commands from this prompt:
Command
Description
Q
Quit monapp
I
Make tracing to screen invisible
V
Make tracing to screen visible
DATA pattern
set a specific pattern to match on
STATS ISUP|GEN [link_number]
Get statistics for one link or all links
RESET [link_number]
Reset statistics for one link or all links
MTP2 [0|1]
0 = No MTP2 header in the data
1 = MTP2 header in the data
SHOW [0|1]
0 = Do not display data
1 = Display data
ISUP [0|1]
0 = No ISUP messages
1 = Decode ISUP message types
?
Display monapp command help
SS7 message header
The monapp application partially decodes SS7 messages. monapp decodes the
following information from the SS7 message header:
•
SS7 message length
•
Link number
•
Number of spares
•
Time stamp of each SS7 message.
For each SS7 message, a generic trace is displayed. For example:
=======================================================
Length: -Link #:-NumSpare: -Number seconds: -- msecs: --
Dialogic Corporation
51
Utility programs
SS7 Monitor Software Developer's Reference Manual
The following table describes the SS7 message data:
If the message length is...
Then...
Less than 3 bytes
The trace, Bad message length --, displays.
Equal to 3 bytes
A FISU is decoded and the following trace displays: FISU: BSN BSN:BIB
FSN FSN:FIB
Equal to 4 or 5 bytes
A LSSU is decoded. One of the following traces displays, depending on
the LSSU type:
Greater than 5 bytes
•
SIO: BSN BSN:BIB FSN FSN:FIB
•
SIN: BSN BSN:BIB FSN FSN:FIB
•
SIE: BSN BSN:BIB FSN FSN:FIB
•
SIOS: BSN BSN:BIB FSN FSN:FIB
•
SIPO: BSN BSN:BIB FSN FSN:FIB
•
If some other type of LSSU:LSSU: BSN BSN:BIB FSN FSN:FIB
MSU and generic trace display.
MSU: BSN BSN:BIB FSN FSN:FIB
Additional traces display:
52
•
To specify the type of the upper protocol of the MSU (such as MTP3,
TCAP, SCCP, and ISUP)
Protocol: protocol_name
•
In case of ISUP, additional traces are available to specify the ISUP
message type (such as ACM, ANM, REL, and RLC)
Protocol: ISUP
Message: message_name
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
Utility programs
The following table describes the mnemonics that the SS7 message data displays:
Mnemonic
Description
ACM
Address complete message
ANM
Answer message
BIB
Backward indicator bit
BSN
Backward sequence number
FIB
Forward indicator bit
FISU
Fill in signal unit
FSN
Forward sequence number
LSSU
Link status signal unit
MSU
Message signal unit
REL
Release
RLC
Release complete
SIE
Status indicator emergency alignment
SIN
Status indicator normal alignment
SIO
Status indicator out of alignment
SIOS
Status indicator out of service
SIPO
Status indicator processor outage
Dialogic Corporation
53
6
NA SS7 Monitor Software
message reference
Using the message reference
This section specifies the layout of messages between the monitor task and the
application. The message layouts differ depending on whether the message is read
or written directly from or to the TX device driver or whether it is read from the IPC
queue.
The following topics define the structure of each message beginning with the NA SS7
Monitor message type and including all parameters of the message:
•
Bind Request
•
Unbind Request
•
Data Indication
Dialogic Corporation
55
NA SS7 Monitor Software message reference
SS7 Monitor Software Developer's Reference Manual
Bind Request
Establishes communication between the application and the monitor task. An
application must send this message only once at initialization time.
Direction
Application -> Monitor
Parameters
Parameter
Description
Monitor Magic ID
Set to 0x214d4f4e ("!MON").
Msg Type
Set to 0x1 for a Bind Request.
Source Entity ID
Set to a value above 0x20. For more information, refer to Entity and
instance IDs on page 13.
Source Instance ID
Set to 0 for host computers.
Format
The following illustration shows the format of the data [] array:
Type
U32
Monitor magic ID
.
.
.
U8
Msg type == 0x1
U8
Source entity ID
U8
Source instance ID
56
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
NA SS7 Monitor Software message reference
Unbind Request
Tears down communication between the application and the monitor task. An
application must send this message only once when it is shutting down.
Direction
Application --> Monitor
Parameters
Parameter
Description
Monitor magic ID
Set to 0x214d4f4e ("!MON").
Msg type
Set to 0x2 for an Unbind Request.
Format
The following illustration shows the format of the data [] array:
Type
U32
Monitor magic ID
.
.
.
U8
Msg type == 0x2
Dialogic Corporation
57
NA SS7 Monitor Software message reference
SS7 Monitor Software Developer's Reference Manual
Data Indication
Contains the raw SS7 message.
Direction
Monitor --> Application
Details
The data[] array can contain multiple SS7 messages. The following table describes
the content of each message:
Message content
Description
link number
Specifies the link on which the SS7 message was received.
spare indicator
Indicates the number of spare bytes that follow the raw SS7 data portion of the
message.
The spare indicator aligns the fields so that the data length field of the next
message starts on a 32-bit boundary.
timestamp
Indicates the time the message was received. The time is expressed as the
number of seconds in epoch time format.
data
Contains the SS7 message.
length field
Sets the length field to the data length of the SS7 message. The length field
contains only bytes of message data, and does not include the link number or
timestamp.
After a message is decoded, the application looks at the next byte available after the
spares. This next byte becomes the length field for the next message. If the length
field is set to 0, the application is at the last message in the data[] array.
The timer tInd in the general configuration defines how long to hold a buffer before
sending a Data Indication message. If the buffer fills, the Data Indication message is
sent before the timer expires. If the timer is set to 0, each Data Indication contains
only one message.
Parameters
Parameter
Description
Monitor magic ID
Set to 0x214d4f4e ("!MON").
Msg type
Set to 0x3 for a Data Indication.
58
Dialogic Corporation
SS7 Monitor Software Developer's Reference Manual
NA SS7 Monitor Software message reference
Format
The following illustration shows the format of a Data Indication with two SS7
messages:
Type
U32
Monitor magic ID
.
.
.
U8
Msg type == 0x3
Spare
U24
U16
U8
Data length
Link number
U8
Number of spare bytes after
message
U32
Timestamp
(number of seconds)
.
.
U16
Timestamp
(number of milliseconds)
U16
Spare
U16
U8
U16
U32
SS7 message 1
.
.
.
0...2 spare bytes to achieve
32-bit alignment
Data length
Link number
Number of spare bytes after
message
U32
Timestamp
(number of seconds)
.
.
U16
Timestamp
(number of milliseconds)
U16
Spare
U16
SS7 message 2
.
.
.
U8
0...2 spare bytes to achieve
32-bit alignment
U16
Data length = 0
(end indication)
Dialogic Corporation
59
Index
A
sample application 24, 50
applications 24
scanning the configuration file 46
communicating with 12
TDM (time division multiplexing) 21
CPI Library interface 12
tdmcfg utility 21
entity IDs 13
TDMcp1.txt 21
instance IDs 13
time division multiplexing (TDM) 21
monapp 50
tlopt 21
running on the host 10
txcfg1.txt 21
running the sample 24
txconfig utility 21
SS7 Monitor interface 12
connecting to the network 16
txalarm 10
CP (communications processor) 10
architecture 10
CPI Library 13
B
D
Bind Request 56
Data Indication 58
binding 12
data transfer 12
byte order 13
decoding SS7 messages 50
C
downloading the software 23
channels 12
driver interface 13
clearing filters 26
drivers 12
communications processor (CP) 10
E
components 10
elopt 21
configuration buffer 32
entity IDs 13
configuration files 21
epoch time format 58
parameters 46
F
scanning 46
full-duplex link 21
configuring SS7 Monitor 15
functions 25
building a buffer 32
MonClearFilters 26
downloading 23, 46
MonGetFilters 27
elopt 21
MonGetGenCfg 28
links 21
MonGetGenStats 29
passing configurations 38, 40, 41
MonGetLinkCfg 30
receive line monitoring (RLM) option
21
MonGetLinkStats 31
retrieving configurations 27, 28, 30
MonInitLinkCfg 34
Dialogic Corporation
MonInitGenCfg 32
61
Index
Dialogic® NaturalAccess™ SS7 Monitor Software Developer's Reference Manual
MonMgmtInit 36
MonMgmtTerm 37
Unbind Request 57
monapp 24, 50
MonSetFilter 38
running the sample application 24
MonSetTrace 42
sample monitoring application 50
MonStartLink 43
moncfg 46
MonStopLink 44
MonGetFilters 27
H
MonGetGenCfg 28
half-link 21
MonGetGenStats 29
I
MonGetLinkCfg 30
implementation 10
MonGetLinkStats 31
initializing internal structures 36
MonInitGenCfg 32
installing SS7 Monitor 15
MonInitLinkCfg 34
connecting to the network 16
Monitor Configuration utility 46
connection point 16
Monitor Manager program 49
pinouts 16
monitoring 49
instance IDs 13
managing 49
interfaces 12
starting 43
CPI Library 12
stopping 44
SS7 Monitor 12
monload.bat 23
L
MonMgmtInit 36
layouts 55
MonMgmtTerm 37
Bind Request 56
monmgr 49
Data Indication 58
MonSetFilter 38
Unbind Request 57
MonSetTrace 42
links 21
MonStartLink 43
parameters 46
MonStopLink 44
retrieving statistics 31, 34
N
retrieving the configuration 30
NA SS7 Monitor Software interface 12
M
O
message header 51
opening communications 36
messages 12
overview 9
Bind Request 56
P
byte order 13
passing a filter configuration 38
content 58
pinouts 16
Data Indication 58
processes 12
decoding 50
R
header 51
receive line monitoring (RLM) option
21
routing 13
62
Dialogic Corporation
Dialogic® NaturalAccess™ SS7 Monitor Software Developer's Reference Manual
Index
requirements 9
terminating channel binding 37
retrieving a general configuration 28
time division multiplexing (TDM) 21
retrieving a list of filters 27
tlopt 21
retrieving general statistics 29
TX device drivers 12
retrieving link statistics 30
txalarm 10
RLM (receive line monitoring) option
21
txcfg1.txt 21
S
U
sample applications 24, 50
Unbind Request 57
scanning the configuration file 46
unbinding 12
setting the trace level 42
utilities 10
system architecture 10
system requirements 9
T
TDM (time division multiplexing) 21
txconfig utility 21
monapp 50
moncfg 46
monmgr 49
summary 45
tdmcfg utility 21
tdmcfg 21
TDMcp1.txt 21
txcfg 21
Dialogic Corporation
63
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
