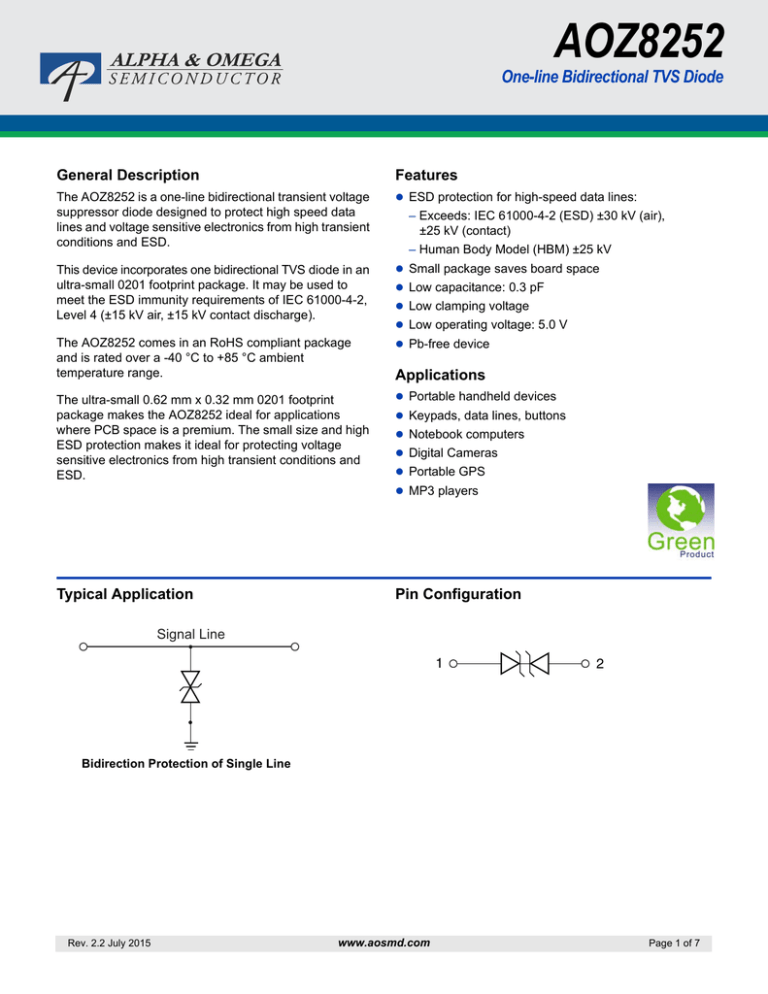

AOZ8252 One-line Bidirectional TVS Diode General Description

AOZ8252 One-line Bidirectional TVS Diode  General Description
AOZ8252
One-line Bidirectional TVS Diode
General Description
Features
The AOZ8252 is a one-line bidirectional transient voltage
suppressor diode designed to protect high speed data
lines and voltage sensitive electronics from high transient
conditions and ESD.
 ESD protection for high-speed data lines:
This device incorporates one bidirectional TVS diode in an
ultra-small 0201 footprint package. It may be used to
meet the ESD immunity requirements of IEC 61000-4-2,
Level 4 (±15 kV air, ±15 kV contact discharge).
 Small package saves board space
The AOZ8252 comes in an RoHS compliant package
and is rated over a -40 °C to +85 °C ambient
temperature range.
 Pb-free device
The ultra-small 0.62 mm x 0.32 mm 0201 footprint
package makes the AOZ8252 ideal for applications
where PCB space is a premium. The small size and high
ESD protection makes it ideal for protecting voltage
sensitive electronics from high transient conditions and
ESD.
 Portable handheld devices
– Exceeds: IEC 61000-4-2 (ESD) ±30 kV (air),
±25 kV (contact)
– Human Body Model (HBM) ±25 kV
 Low capacitance: 0.3 pF
 Low clamping voltage
 Low operating voltage: 5.0 V
Applications
 Keypads, data lines, buttons
 Notebook computers
 Digital Cameras
 Portable GPS
 MP3 players
Typical Application
Pin Configuration
Signal Line
1
2
Bidirection Protection of Single Line
Rev. 2.2 July 2015
www.aosmd.com
Page 1 of 7
AOZ8252
Ordering Information
Part Number
Ambient Temperature Range
Package
Environmental
AOZ8252DI-05
-40 °C to +85 °C
DFN 0.62 x 0.32
Green Product
AOS Green Products use reduced levels of Halogens, and are also RoHS compliant.
Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information.
Absolute Maximum Ratings
Exceeding the Absolute Maximum Ratings may damage the device.
Parameter
Rating
VP – VN
5V
Peak Pulse Current (IPP), tP = 8/20µs
2A
Peak Pulse Power, tP = 8/20µs
30 W
Storage Temperature (TS)
-65 °C to +150 °C
ESD Rating per IEC61000-4-2, Contact
±25 kV
Air(1)
±30 kV
Model(2)
±25 kV
ESD Rating per IEC61000-4-2,
ESD Rating per Human Body
(1)
Notes:
1. IEC 61000-4-2 discharge with CDischarge = 150 pF, RDischarge = 330 Ω.
2. Human Body Discharge per MIL-STD-883, Method 3015 CDischarge = 100 pF, RDischarge = 1.5 kΩ.
Maximum Operating Conditions
The device is not guaranteed to operate beyond the Maximum Operating Conditions.
Parameter
Rating
Junction Temperature (TJ)
Rev. 2.2 July 2015
-40 °C to +125 °C
www.aosmd.com
Page 2 of 7
AOZ8252
Electrical Characteristics
TA = 25°C unless otherwise specified.
Symbol
Parameter
Diagram
IPP
Maximum Reverse Peak Pulse Current
VCL
Clamping Voltage @ IPP (IEC61000-4-5 8/20 µs peak current)
VRWM
Working Peak Reverse Voltage
IR
Maximum Reverse Leakage Current
VBR
Breakdown Voltage
IF
Forward Current
VF
Forward Voltage
PPK
Peak Power Dissipation
CJ
Capacitance @ VR = 0 and f = 1 MHz
IPP
VCL VBR VRWM
IR
IT
VRWM VBR VCL
V
IPP
VBR (V)
Device
Device
Marking
VRWM (V)
Max.
Min.
AOZ8252DI-05
D
5.0
6.0
Rev. 2.2 July 2015
I
Max.
IR (µA)
Max.
VF (V)
Typ.
VCL Max.
IPP = 2 A
CJ (pF)
Typ.
11.0
0.1
1.0
15.0
0.3
www.aosmd.com
Page 3 of 7
AOZ8252
Typical Performance Characteristics
Clamping Voltage vs. Peak Pulse Current
(tperiod = 100ns, tr = 1ns)
Insertion Loss (S21) vs. Frequency
5
0
Insertion Loss (dB)
Clamping Voltage, VCL (V)
30
25
20
15
-5
-10
-15
-20
-25
10
0
2
4
6
8
10
1
12
10
100
1000
10000
Frequency (MHz)
Peak Pulse Current, IPP (A)
Typical Variation of CIN vs. VR
Normalized Input Capacitance
(f = 1MHz, T = 25C)
1.20
1.00
0.80
0.60
0.40
0.20
0
0
1
2
3
4
5
Input Voltage (V)
Rev. 2.2 July 2015
www.aosmd.com
Page 4 of 7
AOZ8252
Package Dimensions, DFN 0.62x0.32, 2L
D
D1
D2
D1
E1
E
TOP VIEW
D3
BOTTTOM VIEW
A
SIDE VIEW
Dimensions in millimeters
RECOMMENDED LAND PATTERN
0.195
0.210
0.320
Symbols
A
Min.
0.27
D
D1
0.57
0.11
0.145
0.305
0.27
0.17
D2
D3
E
E1
Nom.
Max.
0.30
0.62
0.16
0.195
0.355
0.32
0.22
0.33
0.67
0.21
0.245
0.405
0.37
0.27
Dimensions in inches
Symbols Min.
Nom. Max.
A
0.0106 0.0118 0.0130
D
0.0224 0.0244 0.0264
D1
0.0043 0.0063 0.0083
0.0057 0.0077 0.0097
D2
0.0120 0.0140 0.0167
D3
0.0106 0.0126 0.0146
E
0.0067 0.0087 0.0107
E1
0.405
0.615
Unit: mm
Notes:
1. All dimensions are in millimeters.
2. Dimensions are inclusive of plating.
3. Package body sizes exclude mold flash and gate burrs. Mold flash at the non-lead sides should be less than 6mil each.
4. Controlling dimension is millimeter. Converted inch dimensions are not necessarily exact.
5. Paddle exposed on bottom.
Rev. 2.2 July 2015
www.aosmd.com
Page 5 of 7
AOZ8252
Tape and Reel Dimensions, DFN 0.62x0.32
P1
Carrier Tape
D1
P2
T
E1
E2
E
B0
D0
K0
P0
A0
Feeding Direction
UNIT: MM
A0
Package
B0
K0
D0
D1
E
E1
E2
P0
P1
P2
T
0.45
0.74
0.34
0.20
1.50
8.00 1.75 3.50 2.00 4.00 2.00 0.20
DFN 0.62x0.32
+0.02/-0.03 ±0.03 +0.03/-0.01 ±0.05 +0.1/-0.0 ±0.10 ±0.10 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05
(8mm)
W1
Reel
S
G
K
N
M
V
H
R
W
UNIT: MM
Tape Size
Reel Size
M
N
W
W1
H
K
S
G
R
V
8 mm
ø178
ø178.0
ø55.0
MAX.
2.0
N/A
N/A
N/A
±1.0
MAX.
14.4
ø13.0
±0.5
8.4
+1.5/-0
±0.5
10.1
±0.5
Leader/Trailer and Orientation
Trailer Tape
300mm min.
Components Tape
Orientation in Pocket
Leader Tape
500mm min.
Detail:
Unit Direction in Pocket
Rev. 2.2 July 2015
www.aosmd.com
Page 6 of 7
AOZ8252
Part Marking
AOZ8252DI-05
(DFN0.62x0.32)
Date Code
(1st to 15th)
Pin 2
Date Code
(16th to end of month)
Pin 2
Year Code
Pin 1
D
Year Code
Month Code
Pin 1
Product Number Code
D
Month Code
Product Number Code
LEGAL DISCLAIMER
Alpha and Omega Semiconductor makes no representations or warranties with respect to the accuracy or
completeness of the information provided herein and takes no liabilities for the consequences of use of such
information or any product described herein. Alpha and Omega Semiconductor reserves the right to make changes
to such information at any time without further notice. This document does not constitute the grant of any intellectual
property rights or representation of non-infringement of any third party’s intellectual property rights.
LIFE SUPPORT POLICY
ALPHA AND OMEGA SEMICONDUCTOR PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL
COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body or (b) support or sustain life, and (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in a significant injury of
the user.
Rev. 2.2 July 2015
2. A critical component in any component of a life
support, device, or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
www.aosmd.com
Page 7 of 7
