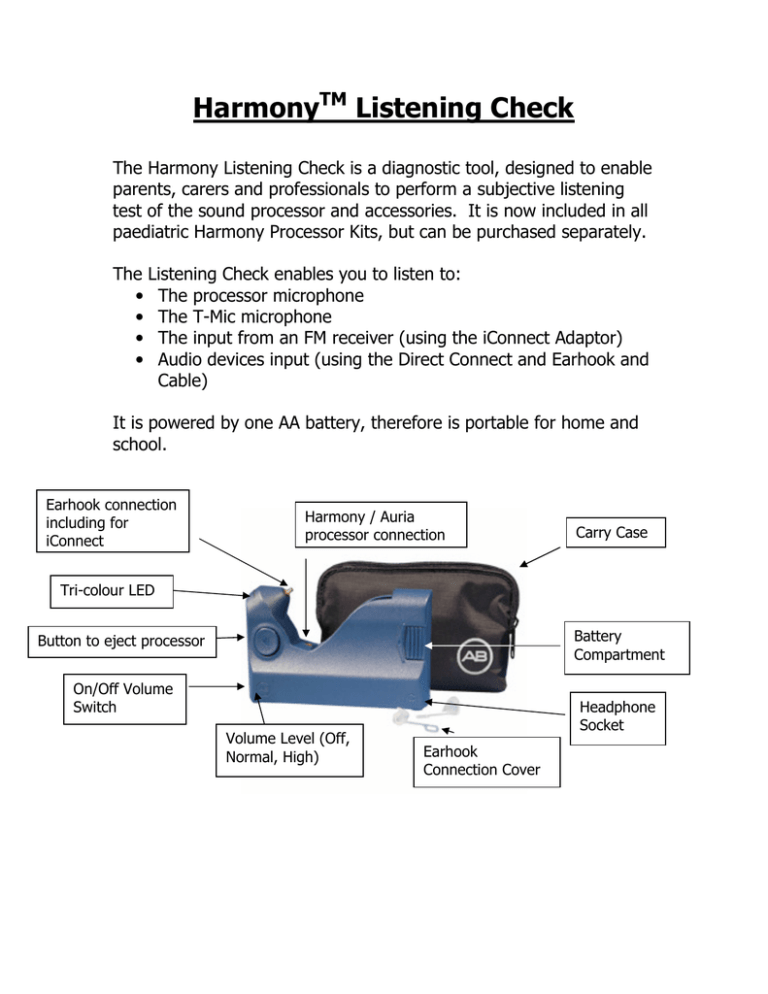

HarmonyTM Listening Check
The Harmony Listening Check is a diagnostic tool, designed to enable
parents, carers and professionals to perform a subjective listening
test of the sound processor and accessories. It is now included in all
paediatric Harmony Processor Kits, but can be purchased separately.
The Listening Check enables you to listen to:
• The processor microphone
• The T-Mic microphone
• The input from an FM receiver (using the iConnect Adaptor)
• Audio devices input (using the Direct Connect and Earhook and
Cable)
It is powered by one AA battery, therefore is portable for home and
school.
Earhook connection
including for
iConnect
Harmony / Auria
processor connection
Carry Case
Tri-colour LED
Battery
Compartment
Button to eject processor
On/Off Volume
Switch
Volume Level (Off,
Normal, High)
Headphone
Socket
Earhook
Connection Cover
How to use:
1. Make sure a battery is inserted into the Listening Check.
2. Switch on the Listening check.
3. LED colour: GREEN – Normal Operation, ORANGE – Low
Battery, RED – Replace Battery.
4. Insert the headphones into the headphone socket. To avoid
any unpleasant sounds, remove headphones from ears before
attaching or detaching any sound processor or earhook or
when changing off/volume settings.
5. Turn off after use.
6. Store in the case provided to protect from dust and moisture.
7. Always attach the Auxiliary Post Cover (Earhook Connection
Cover) when the Earhook Connection is not in use.
To listen to the sound processor internal microphone on the
Harmony or Auria:
1. Find an empty program slot on the processor. On the
Harmony, an empty slot is identified by a constant green LED
on the processor. Remove the T-Mic or earhook from the
processor.
2. Insert the processor into the Processor Connection Slot as
shown in the diagram below:
3. Listen to microphone through connected headphones. If more
volume is required, remove headphones and using the volume
switch increase to high.
4. Press the Eject button to remove the processor.
To listen to the T-Mic / iConnect with FM receiver / Direct
Connect earhook with cable:
1. Remove the earhook from the processor.
2. Place the earhook onto the Earhook Connection as shown in
the diagram below:
• An FM receiver and transmitter are required to properly
check the iConnet Adapter earhook.
• A Direct Connect Cable and input source (e.g. MP3
Player) are required to properly check the Direct Connect
earhook. Turn down the volume on the input source
prior to connection. Do not connect an AC-powered input
source without an appropriate patch cable.
3. Listen to the earhook using connected headphones. If more
volume is required, remove the headphones and using the
volume switch increase to high.
4. Whilst listening it is possible to alter the volume of the input
source and FM transmitter to get a subjective comfortable
mixing ratio.
5. To remove the earhook, turn the earhook 90° to the right and
remove.
