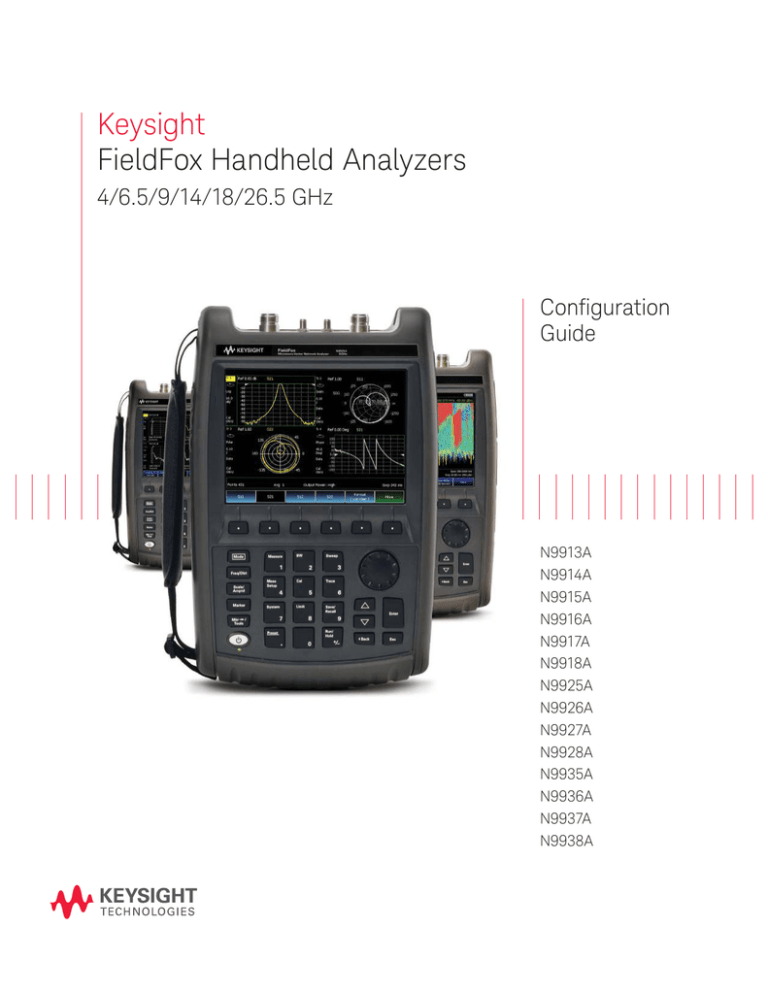

Keysight

FieldFox Handheld Analyzers

4/6.5/9/14/18/26.5 GHz

Coniguration

Guide

N9913A

N9914A

N9915A

N9916A

N9917A

N9918A

N9925A

N9926A

N9927A

N9928A

N9935A

N9936A

N9937A

N9938A

The FieldFox Analyzer Family

This coniguration guide describes conigurations, options, and accessories for the FieldFox family of portable analyzers. This guide should be used in conjunction with the technical overviews and data sheets for a complete description of the analyzers.

The table below shows a comparison of the functions available in the FieldFox family of analyzers.

FieldFox RF and microwave analyzers

(Combination or combo analyzers)

FieldFox microwave vector network analyzers

FieldFox microwave spectrum analyzers

N9925A, N9926A

N9927A, N9928A

N9935A, N9936A

N9937A, N9938A

Functionality N9913A, N9914A

N9915A, N9916A

N9917A, N9918A

Cable and antenna analyzer (CAT) Yes

Vector network analyzer (VNA) Yes

Spectrum analyzer (SA) Yes

Yes

Yes

No

No

No

Yes

1

1.

On the N991xA combination analyzers, order Options 233 and 210 to obtain a tracking generator with the spectrum analyzer. There is no Option 220 on the N991xA analyzers. To obtain tracking generator capability, you need Options

233 and 210. Option 233 provides the spectrum analyzer capability and Option 210 the “tracking” capability.

03 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

The FieldFox Analyzer Family (continued)

The table below shows a comparison of the functions available in the FieldFox family of analyzers.

208

209

309

310

330

030

215

010

112

308

307

302

320

210

211

212

Option Description

233

235

Spectrum analyzer

Preampliier

220 Tracking generator

236

238

305

Interference analyzer and spectrogram

Spectrum analyzer time gating

Cable and antenna analyzer

Relection measurements (RL, VSWR)

VNA transmission/relection

VNA full 2-port S-parameters

Mixed-mode S-parameters

TDR cable measurements

VNA time domain

QuickCal

Vector voltmeter

Built-in GPS receiver

USB power sensor support

USB power sensor measurements versus frequency

Extended range transmission analysis (ERTA)

DC bias variable-voltage source

Built-in power meter

Pulse measurements

Remote control capability

Note 3

N991x Combo

Note 1

Base model

N992x VNA

Note 4

Base model

Notes:

Base model means that the functionality listed is the primary function of that instrument. For example, on the N991xA combo analyzers, cable and antenna analysis is the standard function included with every N991xA.

1.

On the N991xA combination analyzers, order Options 233 and 210 to obtain a tracking generator with the spectrum analyzer. There is no Option 220 on the N991xA analyzers. To obtain tracking generator capability, you need Options 233 and 210. Option 233 provides the spectrum analyzer capability and

Option 210 the “tracking” capability.

2.

Option 305 cable and antenna analyzer, is not available on the N993xA. However, a subset of cable and antenna analyzer measurements return loss and

VSWR, is available as Option 320.

3.

Option 320 is not applicable to N991xA. The relection measurements of return loss and VSWR are included with every N991xA. So there is no need for an

Option 320 on the combo analyzers.

4.

Option 320 is not applicable to N992xA. The relection measurements of return loss and VSWR are included with every N992xA. So there is no need for an

Option 320 on the N992xA.

N993x SA

Base model

Note 2

04 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

FieldFox Microwave Combination Analyzers

Step 1.

Select the model that provides the desired frequency range.

Model

N9913A

N9914A

N9915A

N9916A

N9917A

N9918A

Description

4 GHz FieldFox RF analyzer

6.5 GHz FieldFox RF analyzer

9 GHz FieldFox microwave analyzer

14 GHz FieldFox microwave analyzer

18 GHz FieldFox microwave analyzer

26.5 GHz FieldFox microwave analyzer

CAT and VNA frequency

30 kHz to 4 GHz

30 kHz to 6.5 GHz

30 kHz to 9 GHz

30 kHz to 14 GHz

30 kHz to 18 GHz

30 kHz to 26.5 GHz

SA frequency 1

100 kHz to 4 GHz

100 kHz to 6.5 GHz

100 kHz to 9 GHz

100 kHz to 14 GHz

100 kHz to 18 GHz

100 kHz to 26.5 GHz

Test port connectors

Type-N (f)

Type-N (f)

Type-N (f)

Type-N (f)

Type-N (f)

3.5 mm (m)

All N991xA FieldFox combo analyzers include the cable and antenna analyzer as the base model. Additional functionality such as spectrum analysis or network analysis can be added using the options listed below.

The following accessories are included with every FieldFox: AC/DC adapter, battery, soft carrying case, LAN cable, Quick Reference

Guide and User's Guide.

Step 2.

Select optional measurement capabilities. Note that any of the options can easily be added as software upgrades in the future.

Option

N991xA-233

N991xA-235

N991xA-236

N991xA-238

N991xA-210

N991xA-211

N991xA-212

N991xA-215

N991xA-010

N991xA-112

N991xA-308

N991xA-307

N991xA-302

N991xA-208

N991xA-209

N991xA-309

N991xA-310

N991xA-330

N991xA-030

Description

Spectrum analyzer

Preampliier

Interference analyzer and spectrogram

Spectrum analyzer time gating

Vector network analyzer transmission/relection

Vector network analyzer full 2-port S-parameters

Mixed-mode S-parameters

TDR cable measurements

Vector network analyzer time domain

QuickCal

Vector voltmeter

Built-in GPS receiver

External USB power sensor support

USB power sensor measurements versus frequency

Extended range transmission analysis (ERTA)

DC bias variable-voltage source

Built-in power meter

Pulse measurements

Remote control capability

Prerequisite options/notes

Requires 233

Requires 233

Requires 233

Recommend ordering a cal kit

Requires 210, recommend ordering a cal kit

Requires 210 and 211

Requires 210, recommend 211

See page 5, FAQ #9

210 and 211 required to obtain full VVM functionality. See page 5, FAQ #8

Need to order GPS antenna

Need to order USB power sensor 2

Requires 302

Requires 233 and 210. Recommend 307. Requires two FieldFoxes. See page 6, FAQ # 10.

No power sensor required

Need to order USB peak power sensor 2

, see page 15, FAQs #7 and #8

Requires an iOS device

1.

Usable to 5 kHz.

2.

List of compatible power sensors available from www.keysight.com/ind/ieldfoxsupport

05 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

FieldFox Combo Analyzer FAQ

Question

1. What is included with a base

N991xA analyzer?

2. What is included with N991xA

Option 233?

3. What is included with N991xA

Option 236?

4. What is included with N991xA

Option 210?

5. What is included with N991xA

Option 211?

6. Can I measure group delay on

N991xA analyzers?

7. What is included with N991xA

Option 010?

8. What is included with N991xA

Option 308?

9. What is included with N991xA

Option 112?

Answer

The base model includes the cable and antenna analyzer

Measurements: DTF (dB, linear, VSWR), return loss and DTF, return loss (dB), and 1-port cable loss

Calibrations: CalReady, OSL, and response cal

Note: 2-port insertion loss is NOT included with the base model, if 2-port insertion loss is needed, order Option 210

Note: There is no phase information with the base analyzer, to obtain S11 or S21 phase, order Option 210

Basic spectrum analysis, four traces, different detector types, radio standard selection, limit lines

Channel power, occupied bandwidth, adjacent channel power

AM/FM tune and listen, ield strength measurements, antenna factors, frequency counter marker

– Tracking generator (TG)/Independent source:

TG CW mode (source CW frequency can be set independent of SA frequency) - included

TG CW coupled mode (source CW frequency is autocoupled to SA’s center frequency) - included

TG tracking mode (traditional TG operation, swept SA coupled to swept source) - (requires Option 210)

– Interference analyzer and spectrogram

– Trace playback and recording

Option 210 adds a VNA with transmission/relection (T/R) capability

Measurements: S21, S11, magnitude and phase

Additionally, in the CAT mode, you can measure 2-port insertion loss

Calibrations: CalReady, OSL, response, and enhanced response cal

If you need all four S-parameters, order Options 210 and 211

If you need 2-port cal, order Options 210 and 211

Adds tracking mode to the tracking generator/independent source included with Option 233, spectrum analyzer

Option 211 adds full 2-port S-parameter capability to the VNA mode

Measurements: All four S-parameters (S11, S21, S22, S12), magnitude and phase

Calibrations: CalReady, OSL, response, enhanced response, and full 2-port cal

If you have phase measurement capability, then you can measure group delay. Option 210 is required for any phase measurement capability. So if you do not have Option 210, you cannot measure group delay.

S11/S21 in time domain, if Option 210 is ordered. To get time domain data for all four S-parameters and full

2-port cal, order Option 211.

View both time and frequency domain data at the same time

Low-pass, impulse, and band-pass modes

Minimum, medium, and maximum window

– Gating

N991xA with Option 308: 1-port cable trimming

N991xA with Options 308 and 210: 1-port cable trimming, 2-port transmission

N991xA with Options 308, 210, and 211: 1-port cable trimming, 2-port transmission, A/B and B/A

Note: A/B and B/A measurements require an external source

QuickCal is included with Option 112.

1-port QuickCal with a base analyzer.

1-port and enhanced response QuickCal with a T/R analyzer (one that has Option 210).

1-port, enhanced response, and 2-port QuickCal with a full 2-port analyzer (one that has Option 211).

QuickCal is most accurate for DUTs with 7/16 and Type-N connectors and measurement uncertainties are provided for frequencies ≤ 18 GHz. Reduced accuracy for DUTs with 3.5 mm (m), SMA (m), or other male coaxial connectors; performance is unspeciied. QuickCal is not recommended for DUTs with 3.5 mm (f), SMA (f), or other similar female connectors. QuickCal is not applicable to waveguide.

06 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

FieldFox Combo Analyzer FAQ

(continued)

Question

10. What are the requirements for

Option 209?

Answer

Extended Range Transmission Analysis (ERTA) or Option 209 is a scalar measurement system based on the use of two FieldFoxes. One FieldFox acts as the source and reference receiver, while the second FieldFox acts as the

measurement

receiver.

Required hardware

A. Two FieldFoxes. FieldFoxes can be any of these models:

FieldFox microwave combination analyzers: N9913A, N9914A, N9915A, N9916A, N9917A, N9918A

FieldFox microwave spectrum analyzers: N9935A, N9936A, N9937A, N9938A

ERTA cannot use N9912A, N9923A, N9925A, N9926A, N9927A or N9928A

The two FieldFoxes used in ERTA do not have to be the same model.

ERTA requires the following options on Combo FieldFoxes.

(N9913A, N9913A, N9914A, N9915A, N9916A, N9917A, N9918A)

Option 210, VNA transmission/relection

Option 233, spectrum analyzer

ERTA requires the following options on SA FieldFoxes.

(N9935A, N9936A, N9937A, N9938A)

Option 220, tracking generator

Both FieldFoxes (the one used as the source, and the other used as the receiver) must have the options listed above. The ERTA option (209) cannot be installed unless 210 and 233 are present on a combo analyzer, or 220 is present on an SA analyzer.

With either the Combo or SA FieldFoxes, the following options are highly recommended:

Option 235, preampliier – this option increases the measurement dynamic range by increasing the received signal power.

Option 307, GPS receiver – this option increases the dynamic range by increasing the frequency accuracy and permitting the use of a narrower RBW.

B. Power splitter, two-resistor model, Keysight 11667A or 11667B. Other power splitters can be used but the speciications listed are based on the match and tracking performance of 11667A and 11667B. Three-resister power splitters are not recommended.

C. N9910X-712, Trigger/Reference-in cable, SMA (m) to BNC(f), 1 m, quantity two

D. N9910X-713, Trigger/Reference-out cable, SMB (m) to BNC (m), 1 m, quantity two

E. LAN connection – For ERTA, the two FieldFoxes communicate via a LAN connection. For a direct connection, a cross-over LAN cable is required. Alternately, both analyzers can be on a local area network.

Recommended accessory:

F. N9910X-825, GPS Antenna

ERTA System Typical Coniguration

Item

FieldFox

Power splitter

Type-N(m) to Type-N(m) adapter

Trigger cables 1

Description/Options

Combo analyzer: required Option 210, 233. Recommended: 235, 307

SA analyzer: required: Option 220, recommended: 235, 307

11667A (Type-N) or 11667B (3.5 mm)

N9910X-850 (for use with 11667A or Type-N systems)

N9910X-712, SMA(m) to BNC(f)

N9910X-713, SMB(m) to BNC(m)

RF test cable

RF test cable or adapter

RF jumper cable or adapter

RF jumper cable or adapter

LAN cable

N9910X-825

Connecting FieldFox source port 1 to power splitter input

Connecting power splitter output arm to FieldFox port 2

Power splitter output arm to DUT input

DUT output to FieldFox receiver port 2

LAN cable to connect FieldFoxes directly, or the analyzers must be on the LAN

GPS antenna, recommended. Necessary if Option 307 is ordered.

1. The trigger cables and LAN cables must be at least as long as the separation distance between the two ends of the DUT.

Quantity

2

1

2

1

1

1

1

2 of each

Total of 4 cables

1

1

07 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

FieldFox Combo Analyzer FAQ

(continued)

ERTA system diagram

08 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

FAQ – Applicable To All FieldFox Microwave Analyzers

Question

1. What USB power sensors work with Option 302?

2. What is the difference between

USB power sensor (Option

302) and built-in power meter

(Option 310)?

Answer

All Keysight U2000x Series USB power sensors are supported with FieldFox.

Visit: www.keysight.com/ind/ieldfoxsupport for an up-to-date listing.

Description

External hardware

Power measurement

Frequency range

Settings

Power range

Warm-up time

Accuracy

Programmable

Physical connection

FieldFox source control

Option 302

USB power sensor

Option 302 allows users to connect a USB power sensor to FieldFox’s USB port and make broadband power measurements.

USB power sensor required

Broadband diode detector, measures all frequencies

Depends on USB sensor

Set CW frequency

Depends on USB sensor

30 minutes to meet accuracy speciications

Depends on USB sensor

Yes, via SCPI

The power sensor can easily be moved to the measurement point, with a USB cable connecting the detector to

FieldFox.

Yes, on/off, and nominal power level control

Option 310

Built-in power meter (or channel power meter)

Option 310 is a channelized power measurement capability built into FieldFox analyzers. Maximum bandwidth is 100 MHz.

None. Uses internal receiver.

Tuned receiver, so measures frequencies within deined channel bandwidth

Frequency range of the analyzer

Set CW frequency, Set channel width/span

Depends on channel width and attenuator setting.

No warm-up time required

InstAlign accuracy: ± 0.5 dB typical for a CW signal. Since the measurement is within a certain frequency channel or bandwidth, to make an accurate measurement, the user needs to know the exact center frequency and the signal’s characteristics and set those accurately.

Yes, via SCPI

The measurement point needs to be connected to Field-

Fox’s RF input port. If a RF jumper cable is used, the user needs to account for the loss of the cable with an offset value (can be entered into the analyzer).

No access to FieldFox's source from the built-in power meter mode

09 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

FAQ – Applicable To All FieldFox Microwave Analyzers (continued)

Question

3. What do I need to get GPS information?

Answer

(1) The recommended GPS solution is to order:

– Option 307 - built-in GPS receiver

A GPS antenna such as N9910X-825

Other GPS antennas can also be used

The GPS connector on the instrument is SMA (f)

(2) Alternatively, you can purchase a USB-based GPS receiver, such as Microsoft’s Streets and Trips (need the u-blox chip set). You do not need to purchase any FieldFox options for the USB-based GPS to work. However, the

USB-based GPS only provides time and location data, and time synchronization capability. It cannot be used to increase the frequency accuracy of the instrument.

The DC output has a SMB (m) connector. Recommend ordering N9910X Option 713 bias-tee power cable SMB (f) 4. What is the connector for Option

309, DC output?

5. What are the connectors for the

Reference/Trigger In and Reference/Trigger Out?

to BNC (m).

The connector for the Ref/Trig In is SMA (f). Recommend ordering N9910X Option 712 Trig/Ref in SMA (m) to BNC

(f) cable.

The connector for the Ref/Trig Out is SMB (m). Recommend ordering N9910X Option 713 bias-tee power cable

SMB (f) to BNC (m).

6. What is Option 030 Remote control capability?

7. What USB sensor is required for

Option 330?

(1) Option 030 provides a license for FieldFox to allow remote control via an iOS device.

(2) Not supplied by user, but necessary for operation of Option 030 are:

– iOS device: iPad, iPhone, or iPod Touch with iOS 6.1 or higher with free FieldFox app

A WiFi or 3G/4G network connection between FieldFox and iOS device

Option 330 or pulse measurements requires an Keysight USB peak power sensor. Visit www.keysight.com/ind/usbsensorsforieldfox for a list of supported peak power sensors. Average power sensors cannot be used with Option 330, only peak power sensors. The peak power sensor needs to be purchased sepa-

8. What measurement capabilities are included with Option 330?

rately.

Average power, peak power, and peak to average ratio

Analog gauge display and digital display, dBm and watts

Relative/absolute measurements, dB or %, minimum and maximum limits

Trace graph for pulse proiling with gating

Rise time, fall time, pulse width, pulse period, pulse repetition frequency

9. What is included with Option 208? Option 302, USB power sensor measurements, includes CW power measurements (one frequency at a time). With

Option 208 added, you can make swept-frequency power measurements. You can plot source power, gain, and receive power versus frequency. Additionally, the source frequency can be offset from the receiver frequency. The power sensor needs to be purchased separately.

Warranty and Service

All FieldFox analyzers come standard with a 3 year warranty.

Documentation

A printed copy of the User’s Guide is included with all FieldFox orders. If you do not wish to receive the printed User’s Guide, order

N99xxA Option 0B0.

Option

N99xxA-0B0

N99xxA-ABA

Description

Do not include User’s Guide

Printed User’s Guide in English

Notes

Default option

The latest FieldFox User’s Guide (manual) is available online from: www.keysight.com/ind/ieldfoxsupport

The Service Guide, SCPI Programming Guide, Quick Reference Guide, and Data Link software help ile can also be found via the website above.

10 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

FieldFox Combo Analyzer Visual Diagram

The diagrams below show the various modes in FieldFox combo analyzers and the option dependencies.

CAT/TDR NA SA VVM

Power Meter

(USB sensor)

Modes

Standard/

Option 215

Pulse measurements

Option 210

ERTA

Option 233 Option 308 Option 302

Option 330 Option 209

CAT

Measure

NA

Measure

NA Meas

Setup

Distance to Fault

(dB)

Cable Loss

(1-port)

Standard

S11

Scc11

Option 210

S21

Sdd11

Option 212

S12

Scd11

Option 211

S22

Sdc11

Settings

Standard

Return Loss and

DTF

Insertion Loss

(2-port)

Option 210

Calibration

Settings

Standard

Return Loss (dB)

DTF (Lin)

Standard

VSWR

Standard

TRD (Lin Rho)

Option 215

Power Level

Standard

Output Power

High Low Man

Standard

DTF (VSWR)

TDR (ohm)

Option 215

Format (log mag)

Standard

Conversion

Standard

Port Extensions

Standard

CAT or

NA Cal

Response Cal

Standard

QuickCal

Option 112

Mechanical Cal

ECal

Standard

User Cal

OFF ON

Standard

View Cal

Standard

Response

Cal

QuickCal

Mechanical Cal

ECal

Open response (Port 1)

Short response (Port 1)

Normalization

Open response (Port 2)

Short response (Port 2)

1-port (Port 1)

1-port (Port 2)

Forward enhanced response

Reverse enhanced response

Full 2-port

1-port OSL (Port 1)

1-port OSL (Port 2)

Forward enhanced response

Reverse enhanced response

Full 2-port

Full 2-port, QSOLT

TRL

Open relection response

(Port 1)

Open relection response

(Port 2)

Short relection response

(Port 1)

Short relection response

(Port 2)

Standard

Standard

Standard

Option 211

Option 211

Option 112

Option 112 and 211

Option 112

Option 112 and 211

Option 112 and 211

Standard

Option 211

Standard

Option 211

Option 211

Option 211

Standard

Standard

Option 211

Standard

Option 211

Power Meter

(Built in)

Option 310

More

More

Advanced

Standard

Transform

Option 010

Legend

236

238

302

307

308

309

310

330

211

212

215

233

235

Option

010

112

208

209

210

Description

VNA time domain

QuickCal

USB power sensor measurement versus frequency

Extended range transmission analysis (ERTA)

VNA transmission/relection

VNA full 2-port S-parameters

Mixed-mode S-parameters

TDR Cable measurements

Spectrum analyzer

Preampliier

Interference analyzer and spectrogram

Spectrum analyzer time gating

External USB power sensor support

Built-in GPS receiver

Vector voltmeter

DC bias variable-voltage source

Built-in power meter

Pulse measurements

11 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

FieldFox Combo Analyzer Visual Diagram (continued)

VVM

Measure

1-port Cable

Trimming

Option 308

SA Measure

SA

Source

Radio Standard

Option 233

Source Enable

OFF ON

Source Mode

Tracking

Option 233 and 210

SA

Scale/Amptd

Autoscale

Standard

2-port

Transmission

Option 308 and 210

B/A

Option 308, 210 and

211

Channel

Measurements

Option 233

Source Mode

[CW]

Source Mode

CW

Option 233

Unit dBm

Standard

Tune and Listen

Option 233

Normalize

OFF ON

Source Mode

Coupled CW

Option 233

Corrections

Standard

SA

Trace

SA

Sweep

Trace

1 2 3 4

Standard

Trig Type

[RF burst]

Standard

State

[Clr/Wr]

Standard

Trig Slope

Pos Neg

Standard

Default All

Standard

Trig Delay

Standard

Power Meter

(USB sensor) frequency

System

Conig

GPS

Frequency

Standard

Options

(Licensing)

GPS OFF

GPS

Standard and 307

GPS Internal

Option 307

Frequency Ref

Standard

A/B

Option 308, 210 and 211

Interference

Analysis

Option 236

Source Power

Standard

External Gain

Standard

Trig Level

Standard

Voltage Source

Option 309

Source

Option 233 and 210

Source CW Freq

Standard

Preamp OFF ON

Option 235

Detector [Auto]

Standard

Auto Trigger

OFF ON

Standard

Sweep type

CW Swept

Option 208

Security Level

None High

Standard

Advanced

OFF ON

Record Playback

Setup

Option 236

FFT Gating Setup

Option 238

GPS External

Standard

Legend

215

233

235

236

238

302

307

308

309

310

330

Option

010

112

208

209

210

211

212

Description

VNA time domain

QuickCal

USB power sensor meas. versus frequency

E xtended range transmission analysis (ERTA)

VNA transmission/relection

VNA full 2-port S-parameters

Mixed-mode S-parameters

TDR Cable measurements

Spectrum analyzer

Preampliier

Interference analyzer and spectrogram

Spectrum analyzer time gating

External USB power sensor support

Built-in GPS receiver

Vector voltmeter

DC bias variable-voltage source

Built-in power meter

Pulse measurements

12 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

FieldFox Microwave Vector Network Analyzers

Step 1.

Select the model that provides the desired frequency range.

Model

N9925A

N9926A

N9927A

N9928A

Description

9 GHz FieldFox microwave VNA

14 GHz FieldFox microwave VNA

18 GHz FieldFox microwave VNA

26.5 GHz FieldFox microwave VNA

Frequency

30 kHz to 9 GHz

30 kHz to 14 GHz

30 kHz to 18 GHz

30 kHz to 26.5 GHz

Test port connectors

Type-N (f)

Type-N (f)

Type-N (f)

3.5 mm (m)

A standard N992xA FieldFox microwave VNA includes transmission/relection measurement capability. Additional functionality such as full 2-port S-parameters can be added using the options listed below.

The following accessories are included with every FieldFox: AC/DC adapter, battery, soft carrying case, LAN cable, Quick Reference

Guide and User's Guide.

Step 2.

Select optional measurement capabilities. Note that any of the options can easily be added as software upgrades in the future.

Option

N992xA-211

N992xA-212

N992xA-215

N992xA-010

N992xA-305

N992xA-112

N992xA-308

N992xA-307

N992xA-302

N992xA-208

N992xA-309

N992xA-310

N992xA-330

N992xA-030

Description

Full 2-port S-parameters

Mixed-mode S-parameters

TDR cable measurements

Time domain

Cable and antenna analyzer

QuickCal

Vector voltmeter

Built-in GPS receiver

External USB power sensor support

USB power sensor measurements versus frequency

DC bias variable-voltage source

Built-in power meter

Pulse measurements

Remote control capability

Prerequisite options/notes

Requires 211

Requires 305

Recommend 211

See page 9, FAQ #8

211 required to obtain full VVM functionality. See page 9, FAQ #6

Need to order antenna

Need to order USB power sensor 1

Requires 302

No power sensor required

Need to order USB peak power sensor 1

, see page 15, FAQs #7 and #8

Requires an iOS device

Note: See FAQs for more information.

1.

List of compatible power sensors available from www.keysight.com/ind/ieldfoxsupport

13 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

FieldFox Microwave Vector Network Analyzer FAQ

Question

1. What is included with a base

N992xA analyzer?

2. What is included with N992xA

Option 211?

3. What is included with N992xA

Option 010?

4. What is the difference between cable and antenna analyzer and time domain, in either the combo or the VNA analyzers?

Answer

Measurements: Transmission/relection or S21 and S11, magnitude and phase

Calibrations: CalReady, OSL, response, and enhanced response cal

– Option 211 adds full 2-port S-parameter capability

Measurements: All four S-parameters (S11, S21, S22, S12), magnitude and phase

Calibrations: CalReady, OSL, response, enhanced response, and full 2-port cal

S11/S21 in time domain, if Option 210 is ordered. To get time domain data for all four S-parameters and full

2-port cal, order Option 211

View both time and frequency domain data at the same time

Low-pass, impulse, and band-pass modes

Minimum, normal, and maximum window

– Gating

DTF and time domain use the same iFT to transform frequency domain data to time domain. The DTF user interface is designed so users can ind the location of cable faults easily, with an x-axis of distance. In time domain, they can have an x-axis of both time and distance, and also use gating to remove unwanted responses.

CAT mode

X-axis Distance

Parameters

Number of traces

DTF (or S11)

1, DTF

Viewing of time & frequency domain

No (except DTF and RL, limited setting)

Velocity factor

Transform modes

Windowing

Yes

Band-pass, low-pass impulse

Minimum, medium, maximum

Gating No

Time domain

Distance, time

S11, S21, S22, S12

Up to 4

Yes, full lexibility for four traces

Yes

Band-pass, low-pass impulse, low-pass step

Full control, window %, Kaiser Beta, impulse width

Yes

5. What is included with N992xA

Option 305?

6. What is included with N992xA

Option 308?

7. If I have the full 2-port VNA with time domain, why would I order

Option 305? What additional functionality is available?

8. What is included with N992xA

Option 112?

Measurements: DTF (dB, linear, VSWR), return loss and DTF, return loss (dB), and 1-port cable loss, 2-port insertion loss

Calibrations: CalReady, OSL, and response cal

N992xA with Option 308: 1-port cable trimming, 2-port transmission

N992xA with Options 308 and 211: 1-port cable trimming, 2-port transmission, A/B and B/A

– Note: A/B and B/A measurements require an external source

CAT mode’s basic measurements are similar to VNA measurements. The features listed below are often used for distance-to-fault cable testing and are only available in CAT mode:

3-peak marker tracking for inding faults for DTF measurements

– 1-port cable loss

Cable type selection and editing, includes the cable’s velocity factor and loss

QuickCal is included with Option 112.

1-port and enhanced response QuickCal with a base analyzer

1-port, enhanced response, and 2-port QuickCal with a full 2-port analyzer (one that has Option 211).

QuickCal is most accurate for DUTs with 7/16 and Type-N connectors and measurement uncertainties are provided for frequencies 18 GHz. Reduced accuracy for DUTs with 3.5 mm (m), SMA (m), or other male coaxial connectors; performance is unspeciied. QuickCal is not recommended for DUTs with 3.5 mm (f), SMA (f), or other similar female connectors. QuickCal is not applicable to waveguide.

Additional FAQs on pages 8 and 9. FAQs on pages 8 and 9 apply to all microwave FieldFox models.

14 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

FieldFox VNA Visual Diagram

The diagrams below show the various modes in FieldFox VNA analyzers and the option dependencies.

Modes

NA

Standard

CAT/TDR

Option 305/215

VVM

Option 308

Power Meter

(USB sensor)

Option 302

Power Meter

(Built In)

Option 310

NA

Measure

CAT

Measure

NA

Meas Setup

NA or CAT

Cal

S11

Scc11

Standard

S21

Sdd11

Distance to

Fault (dB)

Cable Loss

(1-port)

Settings

Standard

S12

Return Loss and

DTF

Option 212

Scd11

Insertion Loss

(2-port)

Option 305

Calibration

Settings

Standard

Power Level

Standard

Option 211

S22

Sdc11

Return Loss (dB)

DTF (Lin)

VSWR

Option 305

TRD (Lin Rho)

Option 215

Output Power

High Low Man

Standard

Response Cal

Standard

QuickCal

Option 112

Mechanical Cal

ECal

Standard

Cal OFF ON

Standard

Format (Log mag)

Standard

Conversion

Standard

DTF (VSWR)

TDR (ohm)

Option 215

Port Extensions

Standard

View Cal

Standard

VVM

Measure

1-port Cable

Trimming

Option 308

2-port

Transmission

Option 308

B/A

Option 308 and

211

A/B

Option 308 and 211

Power Meter

(USB sensor) measure

Frequency

Standard

Sweep Type

CW Swept

Option 208

System

Conig

System

GPS

Options (licensing)

Standard

GPS

Standard and 307

GPS OFF GPS Internal

Option 307

Frequency Ref

Standard

GPS External

Standard

Voltage Source

Option 309

Security Level None

High

Standard

Pulse Measurements

Option 330

Advanced

Standard

Transform

Option 010

15 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

FieldFox VNA Visual Diagram (continued)

Response

Cal

QuickCal

Mechanical

Cal

ECal

Open response (Port 1)

Short response (Port 1)

Normalization

Open response (Port 2)

Short response (Port 2)

1-port (Port 1)

1-port (Port 2)

Forward enhanced response

Reverse enhanced response

Full 2-port

1-port OSL (Port 1)

1-port OSL (Port 2)

Forward enhanced response

Reverse enhanced response

Full 2-port

Full 2-port, QSOLT

Open relection response (Port 1)

Open relection response (Port 2)

Short relection response (Port 1)

Short relection response (Port 2)

Standard

Standard

Standard

Option 211

Option 211

Option 112

Option 112 and 211

Option 112

Option 112 and 211

Option 112 and 211

Standard

Option 211

Standard

Option 211

Option 211

Option 211

Standard

Option 211

Standard

Option 211

Legend

238

302

307

308

309

310

330

212

215

233

235

236

Option

010

112

208

210

211

Description

VNA time domain

QuickCal

USB power sensor measurement versus frequency

VNA transmission/relection

VNA full 2-port S-parameters

Mixed-mode S-parameters

TDR Cable measurements

Spectrum analyzer

Preampliier

Interference analyzer and spectrogram

Spectrum analyzer time gating

External USB power sensor support

Built-in GPS receiver

Vector voltmeter

DC bias variable-voltage source

Built-in power meter

Pulse measurements

16 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

FieldFox Microwave Spectrum Analyzers

Step 1.

Select the model that provides the desired frequency range.

Model

N9935A

N9936A

N9937A

N9938A

Description

9 GHz FieldFox microwave spectrum analyzer

14 GHz FieldFox microwave spectrum analyzer

18 GHz FieldFox microwave spectrum analyzer

26.5 GHz FieldFox microwave spectrum analyzer

Frequency range

1

100 kHz to 9 GHz

100 kHz to 14 GHz

100 kHz to 18 GHz

100 kHz to 26.5 GHz

Test port connectors

Type-N (f)

Type-N (f)

Type-N (f)

Type-N (f) 2

The following accessories are included with every FieldFox: AC/DC adapter, battery, soft carrying case, LAN cable, Quick Reference Guide and User's Guide.

Step 2.

Select optional measurement capabilities. With the exception of Option 100 and 320, all other options can easily be added as software upgrades in the future.

Option Description

N9938A-100 3.5 mm (m) connectors

N993xA-220 Full-band tracking generator

N993xA-235

Preampliier

N993xA-236 Interference analyzer and spectrogram

Prerequisite options/notes

3.5 mm (m) - only available on N9938A

CW, CW coupled, and tracking

N993xA-238 Spectrum analyzer time gating

N993xA-320

Relection measurements

N993xA-307 Built-in GPS receiver

320 requires 220 on all N993xAs. On N9938A speciically, 320 also requires 100.

Need to order antenna

N993xA-302 External USB power sensor support Need to order USB power sensor

N993xA-208 USB power sensor measurements versus frequency Requires 302

3

N993xA-309

N993xA-310

N993xA-330

N993xA-030

N993xA-209

DC bias variable-voltage source

Built-in power meter

Power measurements

Remote control capability

Extended range transmission analysis (ERTA)

No power sensor required

Need to order USB peak power senor 3

, see page 14, FAQs #7 and #8

Requires an iOS device

Requires 220. Recommend 307. Requires two FieldFoxes. See page 6, FAQ #10.

FieldFox Spectrum Analyzer FAQ

Question

1. What is included with the basic spectrum analyzer?

2. What is included with N993xA Option 236?

3. What is included with Option 320?

4. What is the difference between Option 320 and the CAT mode on the N991xA combo base model?

Additional FAQs on pages 8 and 9.

Answer

Basic spectrum analysis, four traces, different detector types, radio standard selection, limit lines

Channel power, occupied bandwidth, adjacent channel power

AM/FM tune and listen, ield strength measurements, antenna factors, frequency counter marker

– Interference analyzer and spectrogram

– Trace playback and recording

Return loss and VSWR

– Normalization using data/memory

Option 320 on the N993x SA offers RL and VSWR. CAT mode on the N991x combo analyzers offers RL and VSWR, DTF, insertion loss, and also various calibration capabilities such as QuickCal and OSL.

FAQs on pages 8 and 9 apply to all microwave FieldFox models.

Notes:

1.

The spectrum analyzer can be tuned to 5 kHz.

2.

Order Option 100 for 3.5 mm (m) test port connectors. With N9938A-100, the spectrum analyzer is built with 3.5 mm test port connectors instead of the standard Type-N (f). Option 100 is a prerequisite for Option 320 for N9938A.

3.

List of compatible power sensors available from www.keysight.com/ind/ieldfoxsupport

17 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

FieldFox SA Visual Diagram

The diagrams below show the various modes in FieldFox SA analyzers and the option dependencies.

Modes

SA

Standard

Power Meter

(USB sensor)

Option 302

Relection Meas

Option 320

Power Meter

(Built in)

Option 310

Pulse

Measurements

Option 330

SA

Measure

Interference

Analysis

Option 236

Source

Option 220

SA

Source

SA

Scale/Amptd

Radio Standard

Standard

Source Enable

OFF ON

Source Mode

Tracking

Option 220

Autoscale

Standard

Channel

Measurements

Standard

Source Mode

[CW]

Source Mode

CW

Option 220

Unit dBm

Standard

Tune and Listen

Standard

Normalize

OFF ON

Source Mode

Coupled CW

Option 220

Corrections

Standard

Source Power

External Gain

Standard

Source CW Freq

Preamp OFF ON

Option 235

ERTA

Option 209

SA

Trace

SA

Sweep

Relection

Meas

Power Meter

(USB sensor)

Frequency

Trace 1 2 3 4

Standard

Trig Type

[RF burst]

Standard

Return Loss (dB)

Option 320

State [Clr/Wr]

Standard

Trig Slope Pos Neg

Standard

VSWR

Option 320

System

Conig

System

GPS

Frequency

Standard

Options

(Licensing)

Standard

GPS OFF

Standard

GPS

Standard and 307

GPS Internal

Option 307

Default All

Standard

Trig Delay

Standard

Frequency Ref

Standard

GPS External

Standard

Detector [Auto]

Standard

Trig Level

Standard

Record Playback Setup

Option 236

Auto Trigger OFF ON

Standard

Sweep Type

CW Swept

Option 208

Voltage Source Security Level None High

Option 309 Standard

Recorder Player

Option 236

FFT Gating Setup

Option 238

Legend

Option

208

209

220

235

236

238

302

307

309

310

320

330

Description

USB power sensor meas. versus frequency

Extended range transmission analysis (ERTA)

Full-band tracking generator

Preampliier

Interference analyzer and spectrogram

Spectrum analyzer time gating

External USB power sensor support

Built-in GPS receiver

DC bias variable-voltage source

Built-in power meter

Relection measurements

Pulse measurements

18 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

Upgrades

Information on upgrades is available from: www.keysight.com/find/fieldfoxsupport

N9913A, N9914A, N9915A, N9916A, N9917A, N9918A FieldFox combo upgrades

236

238

302

307

308

211

212

215

233

235

309

310

330

Option

010

030

112

208

209

210

Description

VNA time domain analysis

Order as

N991xAU-010

Remote control capability

Enable QuickCal

N991xAU-030

N991xAU-112

USB power sensor measurements versus frequency N991xAU-208

Extended range transmission analysis (ERTA)

VNA transmission and relection

N991xAU-209

N991xAU-210

VNA full 2-port S-parameters

Mixed-mode S-parameters

TDR cable measurements

Spectrum analyzer

Preampliier

Interference analyzer and spectrogram

Spectrum analyzer time gating

External USB power sensor support

GPS receiver

Vector voltmeter

DC bias variable-voltage source

Built-in power meter

Pulse measurements

N991xAU-211

N991xAU-212

N991xAU-215

N991xAU-233

N991xAU-235

N991xAU-236

N991xAU-238

N991xAU-302

N991xAU-307

N991xAU-308

N991xAU-309

N991xAU-310

N991xAU-330

Upgrade contents

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

Additional requirements

210

None

None

302

233 and 210 1

None

210

210 and 211

None

None

233

233

233

None

None

None

None

None

None

1.

209 is a system based on two FieldFoxes. See page 6, FAQ # 10, for a detailed description of the system requirements.

N9925A, N9926A, N9927A, N9928A FieldFox VNA upgrades

215

302

305

307

308

309

310

330

Option

010

030

112

208

211

212

Description

VNA time domain analysis

Order as

N992xAU-010

Remote control capability

Enable QuickCal

N992xAU-030

N992xAU-112

USB power sensor measurements versus frequency N992xAU-208

VNA full 2-port S-parameters

Mixed-mode S-parameters

N992xAU-211

N992xAU-212

TDR cable measurements

External USB power sensor support

Cable and antenna analyzer

GPS receiver

Vector voltmeter

DC bias variable-voltage source

Built-in power meter

Pulse measurements

N992xAU-215

N992xAU-302

N992xAU-305

N992xAU-307

N992xAU-308

N992xAU-309

N992xAU-310

N992xAU-330

Upgrade contents

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

305

None

None

None

None

None

None

None

Additional requirements

None

None

None

302

None

211

19 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

Upgrades (continued)

Information on upgrades is available from: www.keysight.com/find/fieldfoxsupport

N9935A, N9936A, N9937A, N9938A FieldFox SA upgrades

Option

030

100

208

209

220

235

236

238

302

307

309

310

320

Description

Remote control capability

Extended range transmission analysis (ERTA)

Full-band tracking generator

Preampliier function

Order as

N993xAU-030

3.5 mm connectors No upgrade available for

Option 100. Only available with original N9938A order.

USB power sensor measurements versus frequency N993xAU-208

N993xAU-209

N993xAU-220

Interference analyzer and spectrogram

Spectrum analyzer time gating

External USB power sensor support

GPS receiver

N993xAU-235

N993xAU-236

N993xAU-238

N993xAU-302

N993xAU-307

DC bias variable-voltage

Built-in power meter

Relection measurements

N993xAU-309

N993xAU-310

N993xAU-320

Upgrade contents

License key

Not applicable

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

License key

2

Additional requirements

None

Not applicable

302

220 1

None

None

None

None

None

None

None

None

Option 220 for N9935A,

N9936A and N9937A

– Option 100 and 220 for

N9938A

None 330 Pulse measurements N993xAU-330

License key

1.

209 is a system based on two FieldFoxes. See page 6, FAQ # 10, for a detailed description of the system requirements.

2.

On N9938A, Option 320 is only available as a software upgrade if the spectrum analyzer is already equipped with Option 100, which is 3.5 mm connectors on the test port. Option 100 must have been ordered at the time of original purchase. It cannot be upgraded later.

20 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

Accessories

Calibration kits

1

Type-N, 50 Ω

N9910X-800

N9910X-801

85514A

85515A

85518A

85519A

85054D

Type-N, 75 Ω

2

85036E

3.5 mm

85520A

85521A

85033E

85052D

7-16

N9910X-802

N9910X-803

Waveguide

X11644A

P11644A

K11644A

N9911X

3-in-1 OSL calibration kit, DC to 6 GHz, Type-N (m) 50 Ω

3-in-1 OSL calibration kit, DC to 6 GHz, Type-N (f) 50 Ω

4-in-1 OSLT mechanical calibration kit, DC to 9 GHz, Type-N (m) 50 Ω

4-in-1 OSLT mechanical calibration kit, DC to 9 GHz, Type-N (f) 50 Ω

4-in-1 OSLT mechanical calibration kit, DC to 18 GHz, Type-N (m) 50 Ω

4-in-1 OSLT mechanical calibration kit, DC to 18 GHz, Type-N (f) 50 Ω

Economy calibration kit, DC to 18 GHz, Type-N (male and female) 50 Ω

Economy calibration kit, DC to 3 GHz, Type-N (m) 75 Ω

4-in-1 OSLT mechanical calibration kit, DC to 26.5 GHz, 3.5 mm (m)

4-in-1 OSLT mechanical calibration kit, DC to 26.5 GHz, 3.5 mm (f)

Mechanical calibration kit, DC to 9 GHz, 3.5 mm (male and female)

Economy calibration kit, DC to 26.5 GHz, 3.5 mm (male and female)

3-in-1 OSL calibration kit, DC to 6 GHz, 7/16 DIN (m)

3-in-1 OSL calibration kit, DC to 6 GHz, 7/16 DIN (f)

WR-90 Waveguide calibration kit, 8.2 to 12.4 GHz

WR-62 Waveguide calibration kit, 12.4 to 18 GHz

WR-42 Waveguide calibration kit, 18 to 26.5 GHz

WR-137, WR-90, WR-62, and WR-42 economical waveguide calibration kits

1.

FieldFox analyzers support most standard HP/Keysight mechanical calibration kits.

2.

Recommend ordering quantity 2 of N9910X Option 846, 50 to 75 Ω adapter.

Cables

All cables listed below are rugged phase-stable cables.

Model Cable connector Other cable connector

N9910X-700

N9910X-701

N9910X-708

N9910X-709

N9910X-810

Type-N (m)

Type-N (m)

3.5 mm (m)

3.5 mm (f)

Type-N (m)

Type-N (f)

Type-N (m)

3.5 mm (f)

3.5 mm (f)

Type-N (m)

N9910X-811

N9910X-812

N9910X-813

N9910X-814

N9910X-815

N9910X-816

N9910X-817

Type-N (m)

Type-N (m)

Type-N (m)

Type-N (m)

Type-N (m)

Type-N (m)

Type-N (m)

Type-N (f)

Type-N (m)

Type-N (f)

7/16 (m)

7/16 (m)

Type-N (f)

Type-N (m)

Antennas

N9910X-820

N9910X-821

N9910X-822

N9910X-823

N9910X-824

N9910X-825

Antenna, directional, multiband, 800 to 2500 MHz, 10 dBi, Type-N (f)

Antenna, telescopic whip, 70 MHz to 1 GHz, BNC (m)

Antenna, directional, log periodic, 600 MHz to 9 GHz, Type-N(f)

Antenna, cellular narrowband, 824 to 869 MHz, Type-N (f)

Antenna, cellular narrowband, PCS 1850 to 1990 MHz, Type-N (f)

Antenna, GPS, active, SMA (m)

Max frequency

18 GHz

18 GHz

26.5 GHz

26.5 GHz

6 GHz

6 GHz

8 GHz

8 GHz

6 GHz

6 GHz

6 GHz

6 GHz

Length (ft)

3.28 ft

3.28 ft

3.28 ft

3.28 ft

5 ft

5 ft

12 ft

12 ft

5 ft

12 ft

3.28 ft

3.28 ft

1.5 m

3.6 m

3.6 m

1.5 m

3.6 m

1 m

1 m

Length (m)

1 m

1 m

1 m

1 m

1.5 m

21 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

Accessories (continued)

RF and microwave adapters

83059A

83059B

83059C

N9910X-843

N9910X-845

Coaxial adapter, 3.5 mm (m) to 3.5 mm (m), 26.5 GHz

Coaxial adapter, 3.5 mm (f) to 3.5 mm (f), 26.5 GHz

Coaxial adapter, 3.5 mm (m) to 3.5 mm (f), 26.5 GHz

Coaxial adapter, Type-N (m) to 7/16 DIN (f)

Adapter kit: Type-N (f) to 7/16 DIN (f), Type-N (f) to 7/16 DIN (m), Type-N (f) to Type-N (f)

N9910X-846

N9910X-847

N9910X-848

N9910X-849

N9910X-850

N9910X-851

N9910X-852

Coaxial adapter, Type-N (m) 50 ohm to Type-N (f) 75 ohm

Adapter kit: Type-N (f) to TNC (m) adapter, Type-N (f) to TNC (f) adapter, 11 GHz

Coaxial adapter, Type-N (f) to 3.5 mm (f), 18 GHz

Coaxial adapter, Type-N (f) to 3.5 mm (m), 18 GHz

Coaxial adapter, Type-N (m) to Type-N (m), 18 GHz

Coaxial adapter, Type-N (f) to Type-N (f), 18 GHz

Coaxial adapter, Type-N (m) to Type-N (f), 18 GHz

Other RF and microwave accessories

N9910X-860

N9910X-861

Fixed attenuator, 40 dB, 100 W, DC to 3 GHz, Type-N (m) to Type-N (f)

Fixed attenuator, 40 dB, 50 W, DC to 8.5 GHz, Type-N (m) to Type-N (f)

N9910X-874

N9910X-712

N9910X-713

Other FieldFox accessories

External bias-tee, 2.5 MHz to 6 GHz, 1 W, 0.5 A

Trig/Ref in Cable SMA (m) to BNC (f), 1 m or 3.28 ft

Bias-tee power cable SMB (f) to BNC (m), 1 m or 3.28 ft

N9910X-870

N9910X-872

N9910X-873

N9910X-875

N9910X-880

N9910X-881

Extra battery

External battery charger

AC/DC adapter

DC car charger and adapter

Extra soft carrying case with backpack and shoulder strap

Hard transit case

Reference Web Links

FieldFox family page

All FieldFox user's guides and manuals

FieldFox irmware

FieldFox upgrades

FieldFox RF and microwave accessories, N9910X

USB power sensors www.keysight.com/ind/ieldfox www.keysight.com/ind/ieldfox_manuals www.keysight.com/ind/ieldfoxsupport www.keysight.com/ind/ieldfoxsupport www.keysight.com/ind/n9910x www.keysight.com/ind/u2000

22 | Keysight | FieldFox Handheld Analyzers - Coniguration Guide

Carry Precision With You

Every piece of gear in your ield kit had to prove its worth. Measuring up and earning a spot is the driving idea behind Keysight Technologies, Inc. FieldFox analyzers. They're equipped to handle routine maintenance, in-depth troubleshooting and anything in between. Better yet, FieldFox delivers Keysight-quality measurements - wherever you need to go. Add FieldFox to your kit and carry precision with you.

Literature

FieldFox Handheld Analyzers – Brochure

FieldFox Combination Analyzers – Technical Overview

FieldFox Spectrum Analyzers – Technical Overview

FieldFox Vector Network Analyzers – Technical Overview

FieldFox Handheld Analyzers – Data Sheet

FieldFox Handheld Analyzers – Coniguration Guide

FieldFox RF Analyzer – Technical Overview

FieldFox RF Analyzer – Data Sheet

FieldFox RF Vector Network Analyzer – Technical Overview

FieldFox RF Vector Network Analyzer – Data Sheet

Download application notes, watch videos, and learn more: www.keysight.com/ind/ieldfox

Publication number

5990-9779EN

5990-9780EN

5990-9782EN

5990-9781EN

5990-9783EN

5990-9836EN

5989-8618EN

N9912-90006

5990-5087EN

5990-5363EN myKeysight www.keysight.com/find/mykeysight

A personalized view into the information most relevant to you.

Three-Year Warranty www.keysight.com/find/ThreeYearWarranty

Keysight’s commitment to superior product quality and lower total cost of ownership. The only test and measurement company with three-year warranty standard on all instruments, worldwide.

Keysight Assurance Plans www.keysight.com/find/AssurancePlans

Up to five years of protection and no budgetary surprises to ensure your instruments are operating to specification so you can rely on accurate measurements.

www.keysight.com/ind/go/quality

Keysight Technologies, Inc.

DEKRA Certified ISO 9001:2008

Quality Management System

Keysight Channel Partners www.keysight.com/find/channelpartners

Get the best of both worlds: Keysight’s measurement expertise and product breadth, combined with channel partner convenience.

www.keysight.com/find/fieldfox

For more information on Keysight

Technologies’ products, applications or services, please contact your local Keysight office. The complete list is available at: www.keysight.com/find/contactus

Americas

Canada

Brazil

Mexico

United States

(877) 894 4414

55 11 3351 7010

001 800 254 2440

(800) 829 4444

Asia Paciic

Australia

China

Hong Kong

India

Japan

Korea

Malaysia

Singapore

Taiwan

Other AP Countries

1 800 629 485

800 810 0189

800 938 693

1 800 112 929

0120 (421) 345

080 769 0800

1 800 888 848

1 800 375 8100

0800 047 866

(65) 6375 8100

Europe & Middle East

Austria

Belgium

Finland

France

Germany

Ireland

Israel

Italy

Luxembourg

Netherlands

Russia

Spain

Sweden

Switzerland

United Kingdom

0800 001122

0800 58580

0800 523252

0805 980333

0800 6270999

1800 832700

1 809 343051

800 599100

+32 800 58580

0800 0233200

8800 5009286

800 000154

0200 882255

0800 805353

Opt. 1 (DE)

Opt. 2 (FR)

Opt. 3 (IT)

0800 0260637

For other unlisted countries: www.keysight.com/find/contactus

(BP-09-23-14)

This information is subject to change without notice.

© Keysight Technologies, 2014, 2015

Published in USA, March 6, 2015

5990-9836EN www.keysight.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
