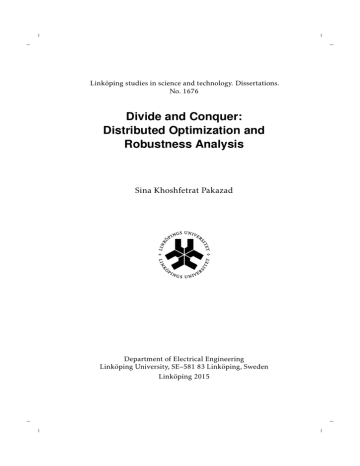

Linköping studies in science and technology. Dissertations.
No. 1676
Divide and Conquer:
Distributed Optimization and
Robustness Analysis
Sina Khoshfetrat Pakazad
Department of Electrical Engineering
Linköping University, SE–581 83 Linköping, Sweden
Linköping 2015
Cover illustration: A design approach for distributed optimization alogirhtms,
used in papers C and F. It states that given the sparstiy graph of a coupled optimization problem, defined in Section 5.1, we can group its variables and its
constituent subprobelms so that the coupling structure can be represented using
a tree. We can then solve the problem distributedly using message passing, which
utilizes the tree as its computational graph.
Linköping studies in science and technology. Dissertations.
No. 1676
Divide and Conquer:
Distributed Optimization and Robustness Analysis
Sina Khoshfetrat Pakazad
[email protected]
www.control.isy.liu.se
Division of Automatic Control
Department of Electrical Engineering
Linköping University
SE–581 83 Linköping
Sweden
ISBN 978-91-7519-050-1
ISSN 0345-7524
Copyright © 2015 Sina Khoshfetrat Pakazad
Printed by LiU-Tryck, Linköping, Sweden 2015
To my parents
Abstract
As control of large-scale complex systems has become more and more prevalent
within control, so has the need for analyzing such controlled systems. This is
particularly due to the fact that many of the control design approaches tend to
neglect intricacies in such systems, e.g., uncertainties, time delays, nonlinearities,
so as to simplify the design procedure.
Robustness analysis techniques allow us to assess the effect of such neglected intricacies on performance and stability. Performing robustness analysis commonly
requires solving an optimization problem. However, the number of variables of
this optimization problem, and hence the computational time, scales badly with
the dimension of the system. This limits our ability to analyze large-scale complex systems in a centralized manner. In addition, certain structural constraints,
such as privacy requirements or geographical separation, can prevent us from
even forming the analysis problem in a centralized manner.
In this thesis, we address these issues by exploiting structures that are common
in large-scale systems and/or their corresponding analysis problems. This enables us to reduce the computational cost of solving these problems both in a centralized and distributed manner. In order to facilitate distributed solutions, we
employ or design tailored distributed optimization techniques. Particularly, we
propose three distributed optimization algorithms for solving the analysis problem, which provide superior convergence and/or computational properties over
existing algorithms. Furthermore, these algorithms can also be used for solving
general loosely coupled optimization problems that appear in a variety of fields
ranging from control, estimation and communication systems to supply chain
management and economics.
v
Populärvetenskaplig sammanfattning
Regulatorer för styrning av system är ofta designade med hjälp av en beskrivning,
typiskt en matematisk modell, av det man vill styra. Dessa modeller är oftast endast approximativa beskrivningar av det verkliga systemet och därför behäftade
med osäkerheter. Detta medför att det beteende man förväntar sig av ett reglerat
system baserat på den matematiska modellen inte alltid stämmer överens med
det observerade beteendet. Att analysera hur stor denna avvikelse kan bli kallas
robusthetsanalys. Detta är ett väl studerat område för mindre och medelstora system. Dock är kunskaperna begränsade för riktigt stora system, speciellt om man
inte vill göra en alltför konservativ analys. Exempel på stora system är kraftnät
och flygplan. Kraftnät är stora på grund av det stora antalet komponenter som
måste modelleras. Flygplan är stora på grund av att man för större flygplan också måste modellera vingarnas flexibilitet. I den här avhandlingen diskuteras hur
man kan analysera riktigt stora system. Lösningen är att särkoppla systemen i
mindre delsystem, vars kopplingar beskrivs t.ex. med bivillkor.

vii
Acknowledgments
Finally I can see the light at the end of the tunnel and this time it seems it is not a
train passing through (or is it?). This journey would not have been accomplished
without the help and persistent guidance of my supervisor Prof. Anders Hansson.
I am sincerely grateful for your remarkable patience, deep insights and diligent
supervision. I am also grateful for additional and essential support I received
from my co-supervisors Dr. Anders Helmersson and Prof. Torkel Glad. Moreover,
I would like to thank Dr. Martin S. Andersen and Prof. Anders Rantzer for their
constructive and inspiring comments and indispensable contributions. For the
financial support, I would like to thank the European Commission under contract
number AST5-CT-2006-030768-COFCLUO and Swedish government under the
ELLIIT project, the strategic area for ICT research.
I have been very fortunate to have been given a chance to do my PhD at the
impressive automatic control group in Linköping University. The group was established by Prof. Lennart Ljung and is now continuing strong under the passionate leadership of Prof. Svante Gunnarsson. Thank you both for granting me
the opportunity for being part of this group. The created friendly environment
in the group fosters collaboration among members with different backgrounds
and research topics. I have been lucky to have been a part of such collaborations
owing to Prof. Lennart Ljung, Dr. Tianshi Chen and Dr. Henrik Ohlsson. Thank
you for the great experience.
The quality of the thesis has improved significantly thanks to comments from
an army of proof readers. Thank you Dr. Daniel Petersson, Lic. Niklas Wahlström
and Dr. Andre Carvalho Bittencourt for being brave enough to be the pioneer
proof readers, and thank you Dr. Gustaf Hendeby, Lic. Jonas Linder, Isak Nielsen,
Dr. Zoran Sjanic, Christian Andersson Naesseth and Hanna Nyqvist for your
constructive comments. The thesis would have looked much worse without our
great LATEXtemplate thanks to Dr. Gustaf Hendeby and Dr. Henrik Tidefelt.
Also special thanks goes to Gustaf for his constant help with my never ending
LATEXrelated issues. I also would like to extend my gratitude to Ninna Stensgård,
Åsa Karmelind and Ulla Salaneck that have made the PhD studies and the group
function much smoother.
To accomplish the PhD studies, is like a long roller coaster ride with high
climbs and dives, sometimes with spiky seats and broken seat belts ,! I have been
truly lucky to have shared this ride with some of the most remarkable, loving and
adventurous people. Dr. Andre Carvalho Bittencourt, always saying the right
thing at the wrong time, Dr. Emre Özkan, one of the most considerate and caring
people I know, Dr. Daniel Ankelhed, with the warmest personality and greatest
taste in music, Dr. Fredrik Linsten, with the coolest temper and an amazing
knack for best beers and whiskies (both tested in Brussels!) and Hanna Nyqvist,
one of the best roommate-friends with an unquenchable thirst for cookies and
candies in any form (it’s just ... up). Thank you guys for the brotherly friendship
and all the great memories and experiences.
ix
x
Acknowledgments
The people I came to know during my PhD years were only my colleagues
for a brief period and became my friends almost instantly. This made going to
work much much more enjoyable, even when you had teaching at 8 on a Monday morning! One of the things that amazed me the most during these years,
was the coherence of the group and how almost everyone was always up for different activities ranging from Hawaii-style summertime BBQs during Swedish
winters, with Dr.-Ing. Carsten Fritsche enjoying comments regarding tenderness
of steaks!, to watching movies based on my rare artistic criteria (some might use
other adjectives!). Speaking of great taste in movies, thank you Dr. Jonas Callmer
for introducing me to Frankenfish, probably the worst best worst movie of all
time, that is including Sharknado I and II.
Lic. Jonas Linder, the king of the lakes of Dalsland, thank you for including
me in the great canoeing experience and honoring the tradition of "whatever happens in Dalsland stays in Dalsland". Speaking of things that should be buried
in the past, thank you Dr. Patrik Axelsson for documenting and remembering
such memories and making sure that they resurface every now and then during our gatherings (of course Jonas also has an exceptional talent in that area).
Also thank you Lic. Johan Dahlin for making sure that we never went hungry or
thirsty during the Canoe trip. Thank you Lic. Ylva Jung and Lic. Manon Kok
for the lussekatt baking ritual that led to the invention of accurate saffron measuring techniques and extending my definition of "maybe". The events always
become more fascinating with Dr. Zoran Sjanic and Dr. Karl Granström (The
Spex masters) with their exceptional ability to steer any conversation towards
more intriguing directions (sometimes to their own surprise) with help from Lic.
Marek Syldatk (the shoe and booze Mooster) and Clas Veibäck (with many great
premium business ideas). Speaking of interesting conversations, I should also
acknowledge, Lic. Niklas Wahlström, Lic. Daniel Simon, Lic. Roger Larsson,
Lic. Michael Roth, George Mathai, Christian Andersson Naesseth and Dr. Martin
Skoglund for all the fascinating exchanges during the fika sessions, ranging from
south park and how jobs were taken to very deep socio-economic issues.
One of the great perks of doing a PhD is that you get to travel around the
world for workshops and conferences. Thank you Dr. Soma Tayamon, Dr. Henrik
Ohlsson, Dr. Christian Lyzell (with strongly held views towards sandy Christmas
snowmen!) and Dr. Ragnar Wallin for being great travel companions, always
enhancing the culinary experience and the activities during the trip.
Within my years in Sweden I have been privileged to have made very close
friends outside of RT. Lic. Behbood Borghei (The Doog) and Farham (Farangul)
thank you for your unfaltering friendship and companionship through all these
years, and thank you Farzad, Amin, Shirin, Mahdis, Claudia and Thomas for
your caring and loving bond and constant support through all the good and not
so good times. I really cherish your friendship.
I have been truly blessed to have the most caring family in the worlds! Thank
you mom and dad for being endless sources of inspiration and energy and always being there for me and supporting me all the way to this point. Also I am
indebted to my brothers, Soheil and Saeed, for always encouraging and helping
me through all my endeavors in my life. And thank you Negi for bringing so
xi
Acknowledgments
much love and joy into my life. It made these final steps to the PhD much easier
to take. I am looking forward to our future and adventures to come.
Finally, (in case I have missed someone) I would like to thank
add your name here
.
for
add all the reasons and all the good times
Linköping, June 2015
Sina Khoshfetrat Pakazad
Contents
Notation
I
xix
Background
1 Introduction
1.1 Contributions and Publications . . . . . . . . . . . . . . . . . . . .
1.2 Additional Publications . . . . . . . . . . . . . . . . . . . . . . . . .
1.3 Thesis Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Convex Optimization Problems
2.1 Convex Sets and Functions . . . . . . . . . . . . . .
2.1.1 Convex Sets . . . . . . . . . . . . . . . . . .
2.1.2 Convex Functions . . . . . . . . . . . . . . .
2.2 Convex Optimization Problems . . . . . . . . . . .
2.2.1 Linear Programs . . . . . . . . . . . . . . . .
2.2.2 Quadratic Programs . . . . . . . . . . . . .
2.2.3 Generalized Inequalities . . . . . . . . . . .
2.2.4 Semidefinite Programs . . . . . . . . . . . .
2.3 Primal and Dual Formulations . . . . . . . . . . . .
2.4 Optimality Conditions . . . . . . . . . . . . . . . .
2.5 Equivalent Optimization Problems . . . . . . . . .
2.5.1 Removing and Adding Equality Constraints
2.5.2 Introduction of Slack Variables . . . . . . .
2.5.3 Reformulation of Feasible Set Description .
3
4
8
9
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
11
12
12
12
13
13
14
14
15
15
16
17
17
18
18
3 Convex Optimization Methods
3.1 Proximal Point Algorithm . . . . . . . . . . . . . . . . .
3.1.1 Monotonicity and Zeros of Monotone Operators
3.1.2 Proximal Point Algorithm and Convex Problems
3.2 Primal and Primal-dual Interior-point Methods . . . . .
3.2.1 Primal Interior-point Methods . . . . . . . . . . .
3.2.2 Primal-dual Interior-point Methods . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
19
19
19
20
22
22
24
xiii
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
xiv
Contents
4 Uncertain Systems and Robustness Analysis
4.1 Linear Systems . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1.1 Continuous-time Systems . . . . . . . . . . . . . . .
4.1.2 H∞ and H2 Norms . . . . . . . . . . . . . . . . . . .
4.2 Uncertain Systems . . . . . . . . . . . . . . . . . . . . . . . .
4.2.1 Structured Uncertainties and LFT Representation .
4.2.2 Robust H∞ and H2 Norms . . . . . . . . . . . . . . .
4.2.3 Nominal and Robust Stability and Performance . . .
4.3 Robust Stability Analysis of Uncertain Systems Using IQCs
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
29
29
29
30
30
31
32
32
33
5 Coupled Problems and Distributed Optimization
35
5.1 Coupled Optimization Problems and Structure Exploitation . . . . 35
5.2 Sparsity in SDPs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
5.2.1 Chordal Graphs . . . . . . . . . . . . . . . . . . . . . . . . . 37
5.2.2 Chordal Sparsity . . . . . . . . . . . . . . . . . . . . . . . . 38
5.2.3 Domain-space Decomposition . . . . . . . . . . . . . . . . . 39
5.3 Distributed Optimization Algorithms . . . . . . . . . . . . . . . . . 40
5.3.1 Distributed Algorithms Purely Based on Proximal Splitting 40
5.3.2 Distributed Solutions Based on Splitting in Primal and Primaldual Methods Using Proximal Splitting . . . . . . . . . . . 44
5.3.3 Distributed Solutions Based on Splitting in Primal and Primaldual Methods Using Message Passing . . . . . . . . . . . . . 47
6 Examples in Control and Estimation
6.1 Distributed Predictive Control of Platoons of Vehicles . . . . . . .
6.1.1 Linear Quadratic Model Predictive Control . . . . . . . . .
6.1.2 MPC for Platooning . . . . . . . . . . . . . . . . . . . . . . .
6.2 Distributed Localization of Scattered Sensor Networks . . . . . . .
6.2.1 A Localization Problem Over Sensor Networks . . . . . . .
6.2.2 Localization of Scattered Sensor Networks . . . . . . . . . .
6.2.3 Decomposition and Convex Formulation of Localization of
Scattered Sensor Networks . . . . . . . . . . . . . . . . . . .
51
51
52
53
56
56
58
7 Conclusions and Future Work
7.1 Future Work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
63
64
Bibliography
65
II
59
Publications
A Distributed Solutions for Loosely Coupled Feasibility Problems Using Proximal Splitting Methods
1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Decomposition and Convex Feasibility . . . . . . . . . . . . . . . .
2.1
Error Bounds and Bounded Linear Regularity . . . . . . . .
2.2
Projection Algorithms and Convex Feasibility Problems . .
73
75
78
78
79
Contents
2.3
Decomposition and Product Space Formulation . . . . . . .
2.4
Convex Minimization Formulation . . . . . . . . . . . . . .
3
Proximity Operators and Proximal Splitting . . . . . . . . . . . . .
3.1
Forward-backward Splitting . . . . . . . . . . . . . . . . . .
3.2
Splitting Using Alternating Linearization Methods . . . . .
3.3
Douglas-Rachford Splitting . . . . . . . . . . . . . . . . . .
4
Distributed Solution . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1
Proximal Splitting and Distributed Implementation . . . .
4.2
Distributed Implementation of von Neumann’s and Dykstra’s AP method . . . . . . . . . . . . . . . . . . . . . . . .
4.3
Local Convergence Tests . . . . . . . . . . . . . . . . . . . .
5
Convergence Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1
Feasible Problem . . . . . . . . . . . . . . . . . . . . . . . .
5.2
Infeasible Problem . . . . . . . . . . . . . . . . . . . . . . .
6
Numerical Results . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1
Flow Feasibility Problem . . . . . . . . . . . . . . . . . . . .
6.2
Semidefinite Feasibility Problems . . . . . . . . . . . . . . .
7
Conclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A
An Algorithm for Random Generation of Connected Directed
Graphs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bibliography . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
xv
80
82
83
84
86
87
88
88
96
96
99
100
101
102
102
108
111
112
114
B A Distributed Primal-dual Interior-point Method for Loosely Coupled
Problems Using ADMM
117
1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
2
Loosely Coupled Problems . . . . . . . . . . . . . . . . . . . . . . . 124
3
Primal-dual Interior-point Methods . . . . . . . . . . . . . . . . . . 125
3.1
Step Size Computations . . . . . . . . . . . . . . . . . . . . 128
4
A Distributed Primal-dual Interior-point Method For Solving Loosely
Coupled Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
4.1
Distributed Primal-dual Direction Computations . . . . . . 131
4.2
Distributed Computations of Perturbation Parameter, Step
Size and Stopping Criterion . . . . . . . . . . . . . . . . . . 135
5
Primal-dual Inexact Interior-point Methods . . . . . . . . . . . . . 138
6
A Distributed Primal-dual Inexact Interior-point Method for Solving Loosely Coupled Problems . . . . . . . . . . . . . . . . . . . . . 140
6.1
Distributed Computations of Perturbation Parameter, Step
Size and Stop Criterion . . . . . . . . . . . . . . . . . . . . . 142
6.2
Distributed Primal-dual Inexact Interior-point Method . . 143
6.3
Distributed Convergence Result . . . . . . . . . . . . . . . . 144
7
Iterative Solvers for Saddle Point Systems . . . . . . . . . . . . . . 145
7.1
Uzawa’s Method and Fixed Point Iterations . . . . . . . . . 145
7.2
Other Iterative Methods . . . . . . . . . . . . . . . . . . . . 145
8
Improving Convergence Rate of ADMM . . . . . . . . . . . . . . . 146
9
Numerical Experiment . . . . . . . . . . . . . . . . . . . . . . . . . 146
9.1
Simulation Setup 1 . . . . . . . . . . . . . . . . . . . . . . . 147
xvi
Contents
9.2
Simulation Setup 2 . . . . . . . . . . . . . . . . . . . . . . .
Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Global Convergence of Distributed Inexact Primal-dual Interiorpoint Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A.1
Break Down . . . . . . . . . . . . . . . . . . . . . . . . . . .
A.2
Convergence Properties . . . . . . . . . . . . . . . . . . . .
B
ADMM, Fixed Point Iterations and Uzawa’s Method . . . . . . . . .
B.1
ADMM and Fixed Point Iterations . . . . . . . . . . . . . . .
B.2
ADMM and Uzawa’s Method . . . . . . . . . . . . . . . . . .
Bibliography . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
A
C Distributed Primal-dual Interior-point Methods for Solving Loosely
Coupled Problems Using Message Passing
1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Coupled Optimization Problems . . . . . . . . . . . . . . . . . . .
2.1
Coupling and Sparsity Graphs . . . . . . . . . . . . . . . . .
3
Chordal Graphs . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1
Chordal Embedding and Its Cliques . . . . . . . . . . . . .
3.2
Clique Trees . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Optimization Over Clique Trees . . . . . . . . . . . . . . . . . . . .
4.1
Distributed Optimization Using Message Passing . . . . . .
4.2
Modifying the Generation of the Computational Graph . .
5
Primal-dual Interior-point Method . . . . . . . . . . . . . . . . . .
6
A Distributed Primal-dual Interior-point Method . . . . . . . . . .
6.1
Loosely Coupled Optimization Problems . . . . . . . . . .
6.2
Distributed Computation of Primal-dual Directions . . . .
6.3
Relations to Multi-frontal Factorization Techniques . . . .
6.4
Distributed Step Size Computation and Termination . . . .
6.5
Summary of the Algorithm and Its Computational Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Numerical Experiments . . . . . . . . . . . . . . . . . . . . . . . . .
8
Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A
Proof of Theorem 1 . . . . . . . . . . . . . . . . . . . . . . . . . . .
B
Proof of Theorem 2 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bibliography . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
D Robust Stability Analysis of Sparsely Interconnected Uncertain Systems
1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1
Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2
Notation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Robustness Analysis Using IQCs . . . . . . . . . . . . . . . . . . . .
2.1
Integral Quadratic Constraints . . . . . . . . . . . . . . . .
2.2
IQC Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
Robust Stability Analysis of Interconnected Uncertain Systems . .
3.1
Interconnected Uncertain Systems . . . . . . . . . . . . . .
162
162
163
163
169
171
171
173
175
179
181
185
185
186
187
187
188
188
193
196
199
199
200
212
214
217
219
223
223
225
226
229
231
233
233
234
234
235
235
235
xvii
Contents
3.2
Lumped Formulation . . . . . . . . . . . . . . . . . . .
3.3
Sparse Formulation . . . . . . . . . . . . . . . . . . . .
4
Sparsity in Semidefinite Programs (SDPs) . . . . . . . . . . .
5
Numerical Experiments . . . . . . . . . . . . . . . . . . . . . .
5.1
Chain of Uncertain Systems . . . . . . . . . . . . . . .
5.2
Interconnection of Uncertain Systems Over Scale-free
work . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Conclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A
Subsystems Generation for Numerical Experiments . . . . . .
Bibliography . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . .
. . .
. . .
. . .
. . .
Net. . .
. . .
. . .
. . .
E Distributed Robustness Analysis of Interconnected Uncertain Systems
Using Chordal Decomposition
1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Robust Stability Analysis of Uncertain Systems Using IQCs . . . .
3
Interconnected Systems: A Definition . . . . . . . . . . . . . . . . .
3.1
Uncertain Interconnections . . . . . . . . . . . . . . . . . .
4
Robust Stability Analysis of Interconnected Uncertain Systems . .
5
Chordal Graphs and Sparsity in SDPs . . . . . . . . . . . . . . . . .
5.1
Chordal Graphs . . . . . . . . . . . . . . . . . . . . . . . . .
5.2
Chordal Sparsity in SDPs . . . . . . . . . . . . . . . . . . . .
6
Numerical Experiment . . . . . . . . . . . . . . . . . . . . . . . . .
7
Conclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bibliography . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
236
237
238
239
240
241
244
244
246
249
251
254
255
256
257
258
259
260
262
262
264
F Distributed Semidefinite Programming with Application to Large-scale
System Analysis
267
1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
2
Coupled and Loosely Coupled SDPs . . . . . . . . . . . . . . . . . 273
3
Primal-Dual Interior-point Methods for Solving SDPs . . . . . . . 275
4
Tree Structure in Coupled Problems and Message Passing . . . . . 281
5
Distributed Primal-dual Interior-point Methods for Coupled SDPs 283
5.1
Distributed Computation of Primal-dual Directions Using
Message Passing . . . . . . . . . . . . . . . . . . . . . . . . . 284
5.2
Distributed Step Size Computation and Termination Check 285
5.3
Summary of the Algorithm and Its Computational Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
6
Chordal Sparsity and Domain-space Decomposition . . . . . . . . 290
6.1
Sparsity and Semidefinite Matrices . . . . . . . . . . . . . . 290
6.2
Domain-space Decomposition . . . . . . . . . . . . . . . . . 291
7
Robustness Analysis of Interconnected Uncertain Systems . . . . . 292
7.1
Robustness Analysis using IQCs . . . . . . . . . . . . . . . . 292
7.2
Robustness Analysis of Interconnected Uncertain Systems
using IQCs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 293
8
Numerical Experiments . . . . . . . . . . . . . . . . . . . . . . . . . 295
9
Conclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297
xviii
Contents
Bibliography . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
G Robust Finite-frequency H2 Analysis of Uncertain Systems with Application to Flight Comfort Analysis
303
1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
1.1
Notation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
2
Problem Formulation . . . . . . . . . . . . . . . . . . . . . . . . . . 307
3
Mathematical Preliminaries . . . . . . . . . . . . . . . . . . . . . . 309
3.1
Finite-frequency Observability Gramian . . . . . . . . . . . 309
3.2
An Upper Bound on the Robust H2 Norm . . . . . . . . . . 310
4
Gramian-based Upper Bound on the Robust Finite-frequency H2
Norm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
5
Frequency-gridding-based Upper Bound on the Robust Finite-frequency
H2 Norm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315
6
Numerical Example . . . . . . . . . . . . . . . . . . . . . . . . . . . 319
7
Application to Flight Comfort Analysis . . . . . . . . . . . . . . . . 322
8
Discussion and General Remarks . . . . . . . . . . . . . . . . . . . 325
8.1
The Observability-Gramian-based Method . . . . . . . . . . 325
8.2
The Frequency-gridding-based Method . . . . . . . . . . . 326
9
Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326
A
Proof of Lemma 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327
B
Proof of Theorem 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 327
C
Proof of Theorem 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
D
Proof of Theorem 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Bibliography . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
xix
xx
Notation
Notation
Symbols, Operators and Functions
Notation
N
R
C
Nn
Rn
Cn
Rm×n
Cm×n
Sn
S+n
n
S++
R+n
∈
dom f
int C
AT
A∗
AB
ab
A⊂B
A⊆B
A\B
tr(A)
In
rank(A)
σ̄ (A)
col(A)
diag(x)
1
∅
min
max
argmin
Meaning
Set of integer numbers
Set of real numbers
Set of complex numbers
Set of integer numbers {1, . . . , n}
Set of n-dimensional real vectors
Set of n-dimensional complex vectors
Set of m × n real matrices
Set of m × n complex matrices
Set of n × n symmetric matrices
Set of n × n positive semidefinite matrices
Set of n × n positive definite matrices
Set of n-dimensional positive real vectors
Belongs to
Domain of a function f
Interior of a set C
Transpose of a matrix A
Conjugate transpose of a matrix A
For A, B ∈ Sn , A − B is negative semidefinte
For a, b ∈ Rn , element-wise inequality
A is a strict subset of B
A is a subset of B
Set difference
Trace of a matrix A
Identity matrix of order n
Rank of a matrix A
Maximum singular value of a matrix A
Column-space of a matrix A
Diagonal matrix with elements of x on the diagonal
Much smaller
A vector with only ones as its elements
Empty set
Minimum value of a function or set
Maximum value of a function or set
Minimizing argument of a function
xxi
Notation
Symbols, Operators and Functions
Notation
IC
inf
sup
|J|
EC
XCC
xJ
A•B
C×J
hx, yi
∩, ∪
(x, y)
k · k∞
k · k, k · k2
∇f
∇2 f
proxf
ln
m×n
RH∞
L2n
∼
N (µ, Σ)
Meaning
Indicator function of a set C
Infimum value of a function
Supremum value of a function
Number of elements in a set J
For C ⊆ Nn , a 0–1 matrix that is obtained from In by
removing all rows indexed by Nn \ C.
The matrix EC XECT
The vector EJ x
tr(AT B)
Cartesian product between two sets C and J
Inner product between two vectors x and y
Set union, intersection
Column vector with x and y stacked
For vectors the infinity norm and for matrices the induced infinity norm
For vectors the two norm and for matrices the induced
two norm
Gradient of a function f
Hessian of a function f
Proximity operator of a function f
Natural logarithm
The set of real, rational m × n transfer function matrices with no poles in the closed right half plane
The set of n-dimensional square integrable functions
Distributed according to
Multivariate Gaussian with mean µ and covariance Σ
Abbreviations
Abbreviation
ADMM
IQC
KKT
KYP
LMI
LP
LTI
MPC
PDF
QCQP
QP
SDP
Meaning
Alternating direction method of multipliers
Integral quadratic constraint
Karush-Kuhn-Tucker
Kalman-Yakubovich-Popov
Linear matrix inequality
Linear program
Linear time-invariant
Model predictive control
Probability density function
Quadratically constrained quadratic program
Quadratic program
Semidefinite program
Part I
Background
1
Introduction
Many control design methods are model driven, e.g., see Glad and Ljung (2000);
Bequette (2003); Åström and Wittenmark (1990). As a result, stability and performance provided by controllers designed using such methods are affected by the
quality of the models. One of the major issues with models is their uncertainty,
and some of the model-based design methods take this uncertainty into consideration, e.g., see Zhou and Doyle (1998); Skogestad and Postlethwaite (2007); Doyle
et al. (1989); Horowitz (1993). However, many of the model-based design methods, specially the ones employed in industry, neglect the model uncertainty to
simplify the design procedure. Hence, it is important to address how model
uncertainty tampers with the performance or stability of the controlled system.
To be more precise, it is essential to check whether there is any chance for the
controlled system, to lose stability or desired performance under any admissible
uncertainty. This type of analysis is called robustness analysis and is extremely
important in applications where the margin for errors is very small, e.g., flight
control design.
Motivated by this, robustness analysis plays a central role in this thesis. Specifically, we consider the problem of robustness analysis of large-scale uncertain
systems, which appear for instance, in applications involving discretized partial
differential equations (PDEs) such as flexible structures, vehicle platooning, aircraft and satellite formation flight, (Swaroop and Hedrick, 1996; Rice and Verhaegen, 2009; Massioni and Verhaegen, 2009). Here we particularly focus on two
examples of such systems, namely complex systems that include a large number
of states and have large uncertainty dimensions, such as aircraft control systems,
and large-scale interconnected uncertain systems. Robustness analysis of such
systems pose different challenges. These can be purely computational or due to
structural constraints in the application.
3
4
1 Introduction
The computational challenges commonly stem from the fact that analyzing
such systems, in many cases, requires solving a large optimization problem. Depending on the dimensions of the uncertain system, e.g., number of states and
input-outputs, and uncertainty dimension, this optimization problem can be very
difficult, time-consuming or even impossible to solve in a centralized manner.
This is mainly due to insufficient memory or processing power of available centralized work stations or in general our limited capability to solve the centralized
problem in a timely manner. Such challenges are commonly addressed by exploiting structure in the problem and devising efficient solvers that use the available
computational and memory resources more wisely, e.g., see Wallin et al. (2009);
Hansson and Vandenberghe (2000); Rice and Verhaegen (2009); Massioni and Verhaegen (2009).
Structural challenges, however, stem from our inability or unwillingness to
form the centralized analysis problem. This can be due to complicating structural constraints or requirements in the application, e.g., physical separation or
privacy requirements. For instance, large-scale uncertain systems can sometimes
arise from an interconnection of several uncertain subsystems, the models of
which are provided by different parties. Then possible reluctance of these parties to share their models with a centralized unit prohibits us from forming the
analysis problem in a centralized manner, and as a consequence prevents us from
solving the problem.
In order to address these challenges, we undertake a divide and conquer strategy. Particularly, by exploiting structure in the corresponding optimization problem, we break it down into smaller subproblems that are easier to solve, and
devise algorithms that deal with the smaller subproblems for solving the original problem. To this end, we first reformulate and decompose the encountered
analysis problems. Then we employ tailored distributed optimization algorithms
for solving the decomposed problems. These algorithms enable us to solve the
decomposed problems using a network of computational agents that collaborate
and communicate with one another. Hence, distributed algorithms enable us to
dispense the computational burden over the network, and moreover satisfy underlying structural requirements in the application, such as privacy.
1.1 Contributions and Publications
The contributions of this thesis can be divided into two categories. The first category concerns the development of distributed optimization algorithms for solving loosely coupled convex optimization problems. The second category of the
contributions concerns analysis of large-scale uncertain systems. We next list the
publications included in the thesis and lay out the contributions in each paper
within either of these categories.
1.1
Contributions and Publications
5
Distributed Solutions for Loosely Coupled Feasibility Problems Using Proximal
Splitting Methods
Paper A,
S. Khoshfetrat Pakazad, M. S. Andersen, and A. Hansson. Distributed
solutions for loosely coupled feasibility problems using proximal splitting methods. Optimization Methods and Software, 30(1):128–161,
2015a.
presents distributed algorithms for solving loosely coupled convex feasibility
problems. These algorithms are devised using proximal splitting methods. The
convergence rate properties for these methods are used to establish unified convergence rate results for the algorithms in terms of distance of the iterates to the
feasible set. These convergence rate results also hold for the case when the feasibility problem is infeasible, in which case the results are in terms of certain
error-bounds.
The first author of Paper A is the corresponding author for this paper and has to
a large extent produced all the material in the paper using extensive comments
from the co-authors.
A Distributed Primal-dual Interior-point Method for Loosely Coupled Problems
Using ADMM
Paper B,
M. Annergren, S. Khoshfetrat Pakazad, A. Hansson, and B. Wahlberg.
A distributed primal-dual interior-point method for loosely coupled
problems using ADMM. Submitted to Optimization Methods and
Software, 2015.
presents a distributed algorithm for solving loosely coupled convex optimization
problems. This algorithm is based on a primal-dual interior-point method and
it utilizes proximal splitting, specifically ADMM, for computing the primal-dual
search directions distributedly. The generated search directions are generally inexact. Hence safe-guards are put in place to assure convergence of the primaldual iterates to an optimal solution while using these inexact directions. The
proposed algorithm in this paper puts very little computational burden on the
computational agents, as they only need to compute one factorization of their
local KKT matrix at every iteration of the primal-dual method.
The material presented in Paper B is the result of close collaboration of the first
two authors, through incorporation of comments of the other co-authors. The
main idea of this paper was produced by the second author, whom was heavily
involved in the writing of the first half of the paper. The second part of the paper
that concerns safe incorporation of inexact search directions within the algorithm
is mainly the work of the first author of the paper.
6
1 Introduction
Distributed Primal-dual Interior-point Methods for Solving Loosely Coupled
Problems Using Message Passing
Paper C,
S. Khoshfetrat Pakazad, A. Hansson, and M. S. Andersen. Distributed
primal-dual interior-point methods for solving loosely coupled problems using message passing. Submitted to Optimization Methods and
Software, 2015b.
proposes a distributed algorithm for solving loosely coupled convex optimization
problems with chordal or an inherent tree structure. Unlike the algorithm presented in Paper B, that relies on the use of inexact directions computed by proximal splitting methods, this algorithm relies on the use of exact directions that are
computed using message passing within a finite number of steps. This number
only relies on the coupling structure of the problem, and hence allows us to compute a practical upper bound on the number of required steps for convergence
of the algorithm. Despite this advantage over the previous distributed algorithm,
one must note that this algorithm can only be applied to problems with chordal
sparsity, and as a result the algorithm presented in Paper B is applicable to more
general classes of problems.
The main contributor for Paper C is the first author of the paper, who is also
the corresponding author. This paper is the result of incorporating extensive
comments from the co-authors.
Robust Stability Analysis of Sparsely Interconnected Uncertain Systems
Paper D,
M. S. Andersen, S. Khoshfetrat Pakazad, A. Hansson, and A. Rantzer.
Robust stability analysis of sparsely interconnected uncertain systems.
IEEE Transactions on Automatic Control, 59(8):2151–2156, 2014.
concerns the analysis of large-scale sparsely interconnected uncertain systems.
Classical methods for analyzing such systems generally require solving a set of
dense linear matrix inequalities. This paper puts forth an alternative but equivalent formulation of the analysis problem that requires solving a set of sparse linear matrix inequalities. These inequalities are much simpler and faster to solve,
in a centralized manner. This formulation of the analysis problem also lays the
foundation for devising distributed robustness analysis techniques for large-scale
interconnected uncertain systems.
The initial idea for Paper D was pitched by the fourth author of the paper, and
was later refined by the first and third authors. The paper has been written by
the second author with contributions concerning the theoretical proofs regarding
the equivalence between different formulations of the analysis problem. The numerical experiment setup was also developed by the second author. The sparse
solver, SMCP, that was used in the numerical experiments have been produced
by the first author. Parts of this paper were also presented in
1.1
Contributions and Publications
7
M. S. Andersen, A. Hansson, S. Khoshfetrat Pakazad, and A. Rantzer.
Distributed robust stability analysis of interconnected uncertain systems. In Proceedings of the 51st Annual Conference on Decision and
Control, pages 1548–1553, December 2012.
Distributed Robustness Analysis of Interconnected Uncertain Systems Using
Chordal Decomposition
Paper E,
S. Khoshfetrat Pakazad, A. Hansson, M. S. Andersen, and A. Rantzer.
Distributed robustness analysis of interconnected uncertain systems
using chordal decomposition. In Proceedings of the 19th IFAC World
Congress, volume 19, pages 2594–2599, 2014b.
utilizes the analysis formulation proposed in Paper D for devising a distributed
robustness analysis algorithm for large-scale sparsely interconnected uncertain
systems, with or without uncertain interconnections. This algorithm relies on
decompositions techniques based on chordal sparsity, for decomposing the analysis problem. In order to solve the decomposed problem, distributed algorithms
proposed in Paper A are used.
Paper E has been put together by the first author of the paper which has been
considerably refined using comments from the the co-authors.
Distributed Semidefinite Programming with Application to Robustness
Analysis of Large-scale Interconnected Uncertain Systems
Paper F,
S. Khoshfetrat Pakazad, A. Hansson, M. S. Andersen, and A. Rantzer.
Distributed semidefinite programming with application to large-scale
system analysis. Submitted to IEEE Transactions on Automatic Control, 2015.
proposes a distributed algorithm for solving coupled semidefinite programs with
a tree structure. This is achieved by extending the distributed algorithm presented in Paper C. The proposed algorithm is then used for solving robustness
analysis problems with this structure.
The first author of Paper F is the corresponding author of this paper. The material
presented in the paper has been produced using extensive comments from the coauthors.
8
1 Introduction
Robust Finite-frequency H2 Analysis of Uncertain Systems with Application to
Flight Comfort Analysis
Paper G,
A. Garulli, A.Hansson, S. Khoshfetrat Pakazad, R. Wallin, and A. Masi.
Robust finite-frequency H2 analysis of uncertain systems with application to flight comfort analysis. Control Engeering Practice, 21(6):
887–897, 2013.
investigates the problem of robustness analysis over a finite frequency range. For
instance, this can be relevant if the system operates within certain frequency intervals, or if the provided models are only valid up to a certain frequency. In either of these cases, performing the analysis over the whole frequency range may
result in misleading conclusions. The algorithms presented in this paper, particularly the one based on frequency-gridding, are capable of solving such analysis
problems, for uncertain systems with large number of states and uncertainty dimensions.
Paper G was written by the third author of the paper. However, the algorithm
labeled Gramian-based in the paper has been entirely developed by the other
authors of the paper, see Masi et al. (2010). Parts of this paper has also been
presented in
S. Khoshfetrat Pakazad, A. Hansson, and A. Garulli. On the calculation of the robust finite frequency H2 norm. In Proceedings of the
18th IFAC World Congress, pages 3360–3365, August 2011.
1.2
Additional Publications
The following publications, that were produced by the author during his PhD
studies, are not included in the thesis.
R. Wallin, S. Khoshfetrat Pakazad, A. Hansson, A. Garulli, and A. Masi.
Applications of IQC-based analysis techniques for clearance. In A. Varga,
A. Hansson, and G. Puyou, editors, Optimization Based Clearance of
Flight Control Laws, volume 416 of Lecture Notes in Control and Information Sciences, pages 277–297. Springer Berlin Heidelberg, 2012.
H. Ohlsson, T. Chen, S. Khoshfetrat Pakazad, L. Ljung, and S. Sastry.
Distributed change detection. In Proceedings of the 16th IFAC Symposium on System Identification, pages 77–82, July 2012.
S. Khoshfetrat Pakazad, M. S. Andersen, A. Hansson, and A. Rantzer.
Decomposition and projection methods for distributed robustness analysis of interconnected uncertain systems. In Proceedings of the 13th
IFAC Symposium on Large Scale Complex Systems: Theory and Applications, pages 194–199, August 2013a.
1.3
Thesis Outline
9
H. Ohlsson, T. Chen, S. Khoshfetrat Pakazad, L. Ljung, and S. Sastry.
Scalable anomaly detection in large homogeneous populations. Automatica, 50(5):1459–1465, 2014.
S. Khoshfetrat Pakazad, H. Ohlsson, and L. Ljung. Sparse control using sum-of-norms regularized model predictive control. In Proceedings of the 52nd Annual Conference on Decision and Control, pages
5758–5763, December 2013b.
S. Khoshfetrat Pakazad, A. Hansson, and M. S. Andersen. Distributed
interior-point method for loosely coupled problems. In Proceedings
of the 19th IFAC World Congress, pages 9587–9592, August 2014a.
1.3
Thesis Outline
This thesis is divided into two parts, where Part I concerns the background material and Part II presents the seven papers listed in Section 1.1. Note that the
background material presented in the first part of the thesis is not discussed in
full detail as to keep the presentation concise. It is possible to find more details
in the provided references.
The outline of Part I of the thesis is as follows. In Chapter 2 we discuss some of
the basics concerning convex optimization problems. Methods for solving such
problems are presented in Chapter 3. We present background material relating
to robustness analysis of uncertain systems in Chapter 4. Chapter 5 provides a
definition of coupled optimization problems and describes three approaches for
devising distributed algorithms for solving such problems. Examples of coupled
problems appearing in control and estimation are presented in Chapter 6, and
we end Part I of the thesis with some concluding remarks in Chapter 7.
2
Convex Optimization Problems
A general optimization problem can be written as
minimize
subject to
f0 (x)
gi (x) ≤ 0,
i = 1, . . . , m,
(2.1a)
(2.1b)
hi (x) = 0,
i = 1, . . . , p,
(2.1c)
where f0 : Rn → R is the cost or objective function and gi : Rn → R for
i = 1, . . . , m, and hi : Rn → R for i = 1, . . . , p, are the inequality and equality constraint functions, respectively. The set defined by the constraints in (2.1b)–(2.1c)
is referred to as the feasible set. The goal is to compute a solution that minimizes
the cost function while belonging to the feasible set. To be able to do this, there
must exist an x such that (2.1b)–(2.1c) are satisfied. The problem of establishing
if this is true or not, is called a feasibility problem. Any x satisfying (2.1b)–(2.1c)
is called feasible.
Many problems in control, estimation and system analysis can be written as
convex optimization problems. In this chapter, we briefly review the definition
of such problems and discuss some of the concepts relating to them. To this
end, we follow Boyd and Vandenberghe (2004). We first review the definitions of
convex sets and functions in Section 2.1. These are then used to describe convex
optimization problems in Section 2.2. We discuss primal and dual formulations
of such problems, in Section 2.3. The optimality conditions for solutions are
reviewed in Section 2.4. Finally, we define equivalence between different problem
formulations in Section 2.5.
11
12
2
2.1
Convex Optimization Problems
Convex Sets and Functions
In order to characterize a convex optimization problem, we first need to define
convex sets and functions. These are described next.
2.1.1 Convex Sets
Let us start by defining affine sets. A set C ⊆ Rn is affine if for any x1 , x2 ∈ C,
x = θx1 + (1 − θ)x2 ∈ C,
(2.2)
for all θ ∈ R. Affine sets are special cases of convex sets. A set C ⊆ Rn is convex
if for any x1 , x2 ∈ C,
x = θx1 + (1 − θ)x2 ∈ C,
(2.3)
for all 0 ≤ θ ≤ 1. Another important subclass of convex sets, are convex cones. A
set C ⊆ Rn is a convex cone if for any x1 , x2 ∈ C,
x = θ1 x1 + θ2 x2 ∈ C,
(2.4)
for all θ1 , θ2 ≥ 0. A convex cone is called proper if
• it contains its boundary;
• it has nonempty interior;
• it does not contain any line.
The sets S+n and R+n which represent the symmetric positive semidefinite n × n
matrices and positive real n-dimensional vectors, respectively, are examples of
proper cones. Next we review the definition of convex functions.
2.1.2 Convex Functions
Convex functions play a central role in defining the cost function and constraints
in a convex optimization problem. A convex function is characterized using the
following definition.
Definition 2.1 (Convex functions). A function f : Rn → R is convex, if dom f
is convex and for all x, y ∈ dom f and 0 ≤ θ ≤ 1,
f (θx + (1 − θ)y) ≤ θf (x) + (1 − θ)f (y).
(2.5)
Also a function is strictly convex if the inequality in (2.5) holds strictly for 0 <
θ < 1.
2.2
13
Convex Optimization Problems
Some important examples of convex functions are affine functions, norms, distance to convex sets and the indicator function of a convex set C defined as



x<C
∞
I C (x) = 
.
(2.6)

0
x∈C
Note that the convexity of the aforementioned functions can be verified using
Definition 2.1.
2.2
Convex Optimization Problems
Having defined convex sets and functions, we can now define a convex optimization problem. Consider the definition of an optimization problem given in (2.1).
We refer to this problem as convex if
• the functions f0 and gi for i = 1, . . . , m, are convex;
• the functions hi for i = 1, . . . , p, are affine.
This definition of the optimization problem is clearly not the only definition of a
convex problem and there are other definitions that, for instance, rely on the convexity of the feasible set and the cost function, see e.g., Bertsekas (2009). Depending on the characteristics of the cost and inequality constraint functions, convex
problems are categorized into several subcategories. Next we review some of
these subcategories that are closely studied in the papers in Part II.
2.2.1 Linear Programs
We call an optimization problem linear if the cost function, and the inequality
and equality constraint functions are all affine. These problems are also referred
to as linear programs (LPs) and can be written as
minimize
cT x + d
(2.7a)
subject to
Gx h,
(2.7b)
Ax = b,
(2.7c)
where c ∈ Rn , d ∈ R, G ∈ Rm×n , h ∈ Rm , A ∈ Rp×n and b ∈ Rp . Here denotes
element-wise inequality.
14
2
Convex Optimization Problems
2.2.2 Quadratic Programs
Quadratic programs (QPs) refer to optimization problems with a convex quadratic
cost function and affine equality and inequality constraint functions. Such problems can be written as
minimize
subject to
1 T
x P x + qT x + c
2
Gx h,
(2.8b)
Ax = b,
(2.8c)
(2.8a)
where P ∈ S+n , q ∈ Rn , c ∈ R, G ∈ Rm×n , h ∈ Rm , A ∈ Rp×n and b ∈ Rp . Note
that by choosing P = 0, this problem becomes an LP and hence, QPs include LPs
as special cases. It is possible to extend the formulation in (2.8) to also include
convex quadratic inequality constraints, as
minimize
subject to
1 T
x P x + qT x + c
2
1 T i
x Q x + (q i )T x + c i ≤ 0,
2
Ax = b,
(2.9a)
i = 1, . . . , m,
(2.9b)
(2.9c)
where the matrices P , Q1 , . . . , Q m ∈ S+n , q, q1 , . . . , q m ∈ Rn , c, c1 , . . . , c m ∈ R, A ∈
Rp×n and b ∈ Rp . Problems of the form (2.9) are referred to as quadratically constrained quadratic programs (QCQPs). Clearly QPs are special cases of QCQPs.
In order to discuss other classes of convex optimization problems, we need to first
take a short detour to describe the concept of generalized inequalities. This will
then enable us to describe problems that are defined via generalized inequality
constraints.
2.2.3 Generalized Inequalities
Generalized inequalities extend the definition of inequalities using proper cones.
Let K be a proper cone. Then for x, y ∈ Rn
x K y ⇔ x − y ∈ K,
x ≺K y ⇔ x − y ∈ int K.
(2.10)
Note that component-wise inequalities, and inequalities involving matrices, see
Section 2.2.4, are special cases of the inequalities in (2.10). This can be seen by
choosing K to be R+n or S+n . Definition 2.1 can also be extended using proper cones.
A function f is said to be convex with respect to a proper cone K, i.e., K-convex,
if for all x, y ∈ dom f and 0 ≤ θ ≤ 1
f (θx + (1 − θ)y) K θf (x) + (1 − θ)f (y).
(2.11)
Also f is strictly K-convex if the inequality in (2.11) holds strictly for 0 < θ < 1.
2.3
15
Primal and Dual Formulations
2.2.4 Semidefinite Programs
Let K be S+d . Then the problem
minimize
x
subject to
cT x
n
X
F0 +
xi Fi K 0,
(2.12)
i=1
Ax = b,
with F0 , F1 , . . . , Fn ∈ Sd , A ∈ Rp×n and b ∈ Rp , defines a semidefinite program
(SDP). In the remainder of this thesis we drop K and simply use to also describe matrix inequality. It will be clear from the context whether denotes
element-wise or matrix inequality. SDPs appear in many problems in control and
estimation, e.g., see Boyd et al. (1994). Particularly in this thesis we encounter
SDPs in problems pertaining to robustness analysis of uncertain systems, see papers D–G, and in localization of sensor networks as discussed in Chapter 6.
2.3
Primal and Dual Formulations
Consider the problem in (2.1). This problem is referred to as the primal problem.
The Lagrangian for this problem is defined as
L(x, λ, υ) = f0 (x) +
m
X
λi gi (x) +
i=1
p
X
υi hi (x),
(2.13)
i=1
where λ = (λ1 , . . . , λm ) ∈ Rm and υ = (υ1 , . . . , υp ) ∈ Rp are the so-called dual
variables or Lagrange multipliers for the inequality and equality constraints of
the problem in (2.1), respectively. Let the collective
domain
ofp the optimization
problem in (2.1) be given as D := dom f0 ∩ ∩m
dom
g
i ∩ ∩i=1 dom hi . Then
i=1
the corresponding dual function for this problem is defined as
g(λ, υ) = inf L(x, λ, υ).
x∈D
(2.14)
Note that for λ 0 and any feasible x we have
f0 (x) ≥ L(x, λ, υ) ≥ g(λ, υ).
(2.15)
Let us define p∗ := f0 (x∗ ) with x∗ the optimal primal solution for (2.1). Then (2.15)
implies that p∗ ≥ g(λ, υ). In other words, g(λ, υ) constitutes a lower bound for
the optimal value of the original problem for all υ ∈ Rp and λ 0. In order to
compute the best lower bound for p∗ , we can then maximize g(λ, υ) as
maximize
g(λ, υ)
subject to
λ 0.
λ,υ
(2.16)
16
2
Convex Optimization Problems
This problem is referred to as the dual problem. Let λ∗ and υ∗ be the optimal dual
solutions for (2.16). Depending on the problem, the lower bound g(λ∗ , υ∗ ) can be
arbitrarily tight or arbitrarily off. However, under certain conditions, it can be
guaranteed that this lower bound is equal to p∗ . In this case, it is said that we have
strong duality. Conditions under which strong duality is guaranteed are called
constraint qualification. For convex problems one of such set of conditions is the
so-called Slater’s condition which states that if the primal problem is convex and
strictly feasible, i.e., there exists a feasible solution for the primal problem such
that all inequality constraints hold strictly, strong duality holds. This condition
can be relaxed for affine inequalities as they do not need to hold strictly, (Boyd
and Vandenberghe, 2004; Bertsekas, 2009).
For convex problems where strong duality holds and (λ∗ , υ∗ ) exists, then any
optimal primal solution is also a minimizer of L(x, λ∗ , υ∗ ). This can sometimes enable us to compute the primal optimal solution using the optimal dual solutions
or through solving the dual problem. For instance, assume that L(x, λ∗ , υ∗ ) is a
strictly convex function of x. Then if the solution of
minimize
x
L(x, λ∗ , υ∗ )
(2.17)
is primal feasible, it is also the optimal primal solution for (2.1). It can be that in
some cases solving the dual problem (2.16) and (2.17) is easier than solving the
primal problem (2.1). In such cases, the above mentioned discussion lays out a
procedure for computing the primal solution in an easier manner. In this thesis
however, we mainly focus on primal formulations of optimization problems, and
we have used the dual formulation only in Paper F. This is because, for most of
the problems considered in this thesis, there was no reason for us to believe that
solving the dual formulation of the problem would be computationally beneficial.
Based on the above discussion, we next express conditions that characterize the
optimal solutions for some convex problems.
2.4
Optimality Conditions
Consider the following optimization problem
minimize
f0 (x)
subject to
gi (x) ≤ 0,
Ax = b,
(2.18a)
i = 1, . . . , m,
(2.18b)
(2.18c)
where f0 : Rn → R and gi : Rn → R for i = 1, . . . , m, are all twice continuously differentiable, b ∈ Rn and A ∈ Rp×n with rank(A) = p < n. Let us assume that strong
duality holds. Then x ∈ Rn , λ ∈ Rm and v ∈ Rp are primal and dual optimal
if and only if they satisfy the Karush-Kuhn-Tucker (KKT) optimality conditions
given as
2.5
17
Equivalent Optimization Problems
∇f0 (x) +
m
X
λi ∇gi (x) + AT v = 0,
(2.19a)
i=1
λi ≥ 0,
i = 1, . . . , m,
(2.19b)
gi (x) ≤ 0,
i = 1, . . . , m,
(2.19c)
−λi gi (x) = 0,
i = 1, . . . , m,
(2.19d)
Ax = b,
(2.19e)
see (Boyd and Vandenberghe, 2004, Ch. 5). Many optimization algorithms solve
this set of conditions for finding the optimal solutions. We review some of these
algorithms in Chapter 3.
As was discussed in Section 2.3, it is sometimes easier to solve the dual formulation of the problem. Devising simpler ways for solving optimization problems
can also sometimes be done by solving equivalent reformulations. We conclude
this chapter by reviewing the definition of equivalence between problems and we
also discuss some instances of such problems.
2.5
Equivalent Optimization Problems
We refer to two problems as equivalent if the solution for one can be trivially computed from the solution of the other. Given an optimization problem there are
many approaches for generating equivalent reformulations. Many approaches
rely on adding and/or removing constraints and variables or changing the description of the constraints such that the feasible set remains the same. In this
section we will review some of these approaches.
2.5.1 Removing and Adding Equality Constraints
Consider the following optimization problem
minimize
x,z
subject to
f0 (x)
(2.20a)
gi (x) ≤ 0,
i = 1, . . . , m,
(2.20b)
hi (x) = 0,
i = 1, . . . , p,
(2.20c)
x + H z = b.
(2.20d)
where x ∈ Rn , z ∈ Rp , H ∈ Rn×p and b ∈ Rn . It is possible to equivalently rewrite
this problem as
minimize
f0 (b − H z)
subject to
gi (b − H z) ≤ 0,
i = 1, . . . , m,
(2.21b)
hi (b − H z) = 0,
i = 1, . . . , p,
(2.21c)
z
(2.21a)
18
2
Convex Optimization Problems
where we have removed the equality constraints in (2.20d). The two problems
are equivalent since any solution z ∗ for (2.20) is also optimal for (2.21) and from
any solution z ∗ it is possible to produce an optimal solution for (2.20) by simply
choosing x∗ = b − H z ∗ . This technique of reformulating optimization problems
is extensively used for devising distributed algorithms for solving optimization
problems.
2.5.2 Introduction of Slack Variables
An inequality constrained optimization problem as
minimize
f0 (x)
subject to
gi (x) ≤ 0,
i = 1, . . . , m,
(2.22b)
hi (x) = 0,
i = 1, . . . , p,
(2.22c)
x
(2.22a)
with x ∈ Rn , can be equivalently rewritten as
minimize
f0 (x)
subject to
gi (x) + si = 0,
x,s
(2.23a)
hi (x) = 0,
si ≥ 0,
i = 1, . . . , m,
i = 1, . . . , p,
i = 1, . . . , m.
(2.23b)
(2.23c)
(2.23d)
Here we have added so-called slack variables s ∈ Rm and the constraints in (2.23d).
Notice that these two problems are equivalent as any solution x∗ for (2.23) is
also optimal for (2.22) and moreover given any optimal solution x∗ for (2.22) one
can easily construct an optimal solution for (2.23) by choosing si∗ = −gi (x∗ ) for
i = 1, . . . , m.
2.5.3 Reformulation of Feasible Set Description
Note that any transformation and change of constraint description that does not
change the feasible set of an optimization problem, does not change its optimal
solution. Consequently, any such changes to the constraint description results
in an equivalent reformulation of the problem. In this thesis, we use this approach to equivalently reformulate optimization problems particularly when we
deal with sparse SDPs, see for example Section 5.2 and Paper E.
In this chapter we reviewed some basic concepts related to convex optimization problems. However, we did not discuss how to solve these problems. Methods for solving convex optimization problems are discussed in the next chapter.
3
Convex Optimization Methods
There are several methods for solving convex optimization problems. In this
chapter, we review two major classes of optimization methods for solving convex problems that are used extensively later on in the thesis. In Section 3.1 we
discuss some of the basics related to the proximal point algorithm. This method
is the foundation of the algorithms discussed in Paper A and is also used in Paper B. In Section 3.2, we review primal and primal-dual interior-point methods
which are utilized in algorithms proposed in papers B, C and F.
3.1
Proximal Point Algorithm
Solving convex problems using the proximal point algorithm is closely related to
computation of zeros of monotone operators. So in order to describe this algorithm, following Eckstein (1989), we first discuss monotone operators and how
we can compute zeros of such operators.
3.1.1 Monotonicity and Zeros of Monotone Operators
Let us start by reviewing the definition of multi-valued operators and monotonicity.
Definition 3.1 (Multi-valued operators and monotonicity). A multi-valued or
set-valued operator T : dom T → Y , with dom T ⊆ Rn , is an operator or a
mapping that maps each x ∈ dom T to a set T (x) ∈ Y := {c | c ⊆ Rn }. The graph
of this mapping is a set T = {(x, y) | x ∈ dom T , y ∈ T (x)}. The inverse of operator
T is an operator T −1 : Y → dom T and T−1 = {(y, x) | (x, y) ∈ T}. We refer to an
operator, T , as monotone if
(y2 − y1 )T (x2 − x1 ) ≥ 0,
∀x1 , x2 ∈ dom T and ∀y1 ∈ T (x1 ), y2 ∈ T (x2 ),
19
(3.1)
20
3 Convex Optimization Methods
and we call it maximal monotone if its graph is not a strict subset of a graph of
any other monotone operator.
Let us define JρT = (I + ρT )−1 . This operator is referred to as the resolvent of the
operator T with parameter ρ > 0, (Eckstein, 1989; Parikh and Boyd, 2014). The
next theorem states one of the fundamental results regarding monotone operators.
Theorem 3.1. Assume that T is maximal monotone and that it has a zero, i.e.,
∃x ∈ dom T such that (x, 0) ∈ T. It is then possible to compute a zero of T using
the following recursion
x(k+1) = JρT x(k) ,
(3.2)
i.e., x(k) → x as k → ∞, for any initial x(0) ∈ dom JρT .
Proof: See (Eckstein, 1989, Thm 3.6, Prop. 3.9).
3.1.2 Proximal Point Algorithm and Convex Problems
It is possible to use the recursion in (3.2) for solving convex optimization problems. In order to explore this possibility we need to put forth another definition.
Definition 3.2 (Subgradient). The subgradient ∂f of a function f : dom f →
R ∪ {∞} is an operator with the following graph
∂f = {(x, g) | x ∈ dom f and f (y) ≥ f (x) + hy − x, gi ∀y ∈ dom f } .
(3.3)
The subgradient operator at each point x ∈ dom f , i.e., ∂f (x), is also referred to
as the subdifferential of f at x, (Bertsekas and Tsitsiklis, 1997).
Let us now consider the following convex optimization problem
minimize
x
f (x),
(3.4)
where f is such that dom f , ∅ and such that it is lower-semicontinuous or closed,
see (Eckstein, 1989, Def. 3.7). It is possible to compute an optimal solution for
this problem by computing a zero of its subgradient operator, i.e., x ∈ dom f such
that 0 ∈ ∂f (x). It can be shown that ∂f is maximal monotone, Rockafellar (1966,
1970). By Theorem 3.1, it is then possible to compute a zero of ∂f or an optimal
solution of (3.4) using the following recursion
x(k+1) = Jρ∂f x(k) = (I + ρ∂f )−1 x(k) .
(3.5)
This recursion can be rewritten as
x(k+1) = proxρf x(k) := argmin
x
(
f (x) +
)
1
kx − x(k) k2 ,
2ρ
(3.6)
3.1
21
Proximal Point Algorithm
where proxρf is referred to as the proximity operator of f with parameter ρ >
0. This method for solving the convex problem in (3.4) is called the proximal
point algorithm. Note that this algorithm can be used for solving general convex
problems given as
minimize
f0 (x)
subject to
gi (x) ≤ 0,
x
(3.7a)
i = 1, . . . , m,
Ax = b.
(3.7b)
(3.7c)
Let us define I C as the indicator function for its feasible set, C. Then this problem
can be equivalently rewritten as
minimize
x
f0 (x) + I C (x),
(3.8)
which is in the same format as (3.4), and hence, can be solved using the proximal
point algorithm.
Remark 3.1. Notice that in many cases using the proximal point algorithm is not a viable
choice for solving convex problems. This is because for many convex problems each iteration of the recursion in (3.6) is at least as hard as solving the problem itself. However,
through the use of operator splitting methods, as we will touch upon in Chapter 5, such
methods can become extremely efficient for solving certain classes of convex problems.
Remark 3.2. The proximal point algorithm is closely related to gradient and subgradient methods for solving convex problems. This can be observed through interpretation
of these methods within a path-following context. For instance, let us assume that f is
differentiable, then it is possible to solve (3.4) by computing a solution for the differential
equation
dx
= −∇f (x),
dt
(3.9)
which results in the steepest descent path, (Bruck, 1975). One way to approximately compute this path is by solving a discrete-time approximation of the differential equation.
Applying the Euler forward method for this purpose, results in the following difference
equation
x(k+1) = x(k) − α∇f x(k) ,
(3.10)
which recovers the gradient descent update for solving (3.4). Notice that extra care must
be taken in choosing α as to assure convergence or to assure that we follow the steepest
descent path with sufficient accuracy, see e.g., (Boyd and Vandenberghe, 2004, Ch. 9). It
is also possible to employ Euler’s backward method for discretizing (3.9). This results in
x(k+1) = (I + ρ∇h)−1 x(k) ,
(3.11)
which is the recursion in (3.6). From the numerical methods perspective for solving differential equations, the Euler backward method has several advantages over its forward
variant, (Ferziger, 1998), some of which cross over to the optimization context, for instance,
the freedom to choose ρ and less sensitivity to bad scaling or ill-conditioning of the function f .
22
3 Convex Optimization Methods
As can be seen from Remark 3.2, the proximal point algorithm is a first order
method. In case the cost and inequality constraints functions are twice continuously differentiable, it is possible to employ much more efficient optimization
tools for solving convex optimization problems. This is discussed in the next
section.
3.2
Primal and Primal-dual Interior-point Methods
Given a convex optimization problem as in (2.18), one way to compute an optimal
solution for the problem is to solve its KKT optimality conditions, (Boyd and
Vandenberghe, 2004), (Wright, 1997). This approach is the foundation for the
methods discussed in this section.
3.2.1 Primal Interior-point Methods
Primal interior-point methods compute a solution for (2.19) by solving a sequence
of perturbed KKT conditions given as
∇f0 (x) +
m
X
λi ∇gi (x) + AT v = 0,
(3.12a)
i=1
i = 1, . . . , m,
(3.12b)
gi (x) ≤ 0, i = 1, . . . , m,
1
−λi gi (x) = , i = 1, . . . , m,
t
Ax = b,
λi ≥ 0,
(3.12c)
(3.12d)
(3.12e)
for increasing values of t > 0. Within a primal framework this is done by first
eliminating the equations in (3.12d) and the dual variables, λ, which results in
∇f0 (x) +
m
X
i=1
1
∇g (x) + AT v = 0,
−tgi (x) i
gi (x) ≤ 0,
(3.13a)
i = 1, . . . , m,
Ax = b.
(3.13b)
(3.13c)
For every given t, primal interior-point methods employ Newton’s method for
solving (3.13). At each iteration of Newton’s method and given an iterate x(k)
such that gi (x(k) ) < 0 for i = 1, . . . , m, the search directions are computed by
solving the following linear system of equations
"
(k)
Hp
A
AT
0
#"
 (k) 
#
 r

∆x
 ,
= −  p,dual

(k)
∆v
r
primal
(3.14)
3.2
23
Primal and Primal-dual Interior-point Methods
Algorithm 1 Infeasible Start Newton’s Method
1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
Given k = 0, > 0, γ ∈ (0, 1/2), β ∈ (0, 1), v (0) and x(0) such that gi (x(0) ) < 0
for i = 1, . . . , m
repeat
Given x(k) , compute ∆x(k+1) and ∆v (k+1) by solving (3.14)
Compute the step size α (k+1) using line search as
start with α (k+1) = 1
while kr(x(k) + α (k+1) ∆x(k+1) , v (k) + α (k+1) ∆v (k+1) )k > (1 −
(k+1)
γα
)kr(x(k) , v (k) )k
α (k) = βα (k)
end while
x(k+1) = x(k) + α (k+1) ∆x(k+1)
v (k+1) = v (k) + α (k+1) ∆v (k+1)
k = k+1
(k)
(k)
until k(rp,dual , rprimal )k2 ≤ where
(k)
rp,dual = ∇f0 (x(k) ) −
m
X
i=1
(k)
rprimal
= Ax
(k)
Hp
2
(k)
1
∇gi (x(k) ) + AT v (k)
tgi (x(k) )
−b
(k)
= ∇ f0 (x ) +
m "
X
i=1
#
1
1
(k)
(k) T
2
(k)
∇gi (x )∇gi (x ) −
∇ gi (x ) .
tgi (x(k) )2
tgi (x(k) )
In order for the computed direction to constitute a proper Newton direction we
need to assume that the coefficient matrix of (3.14) is nonsingular (Boyd and Vandenberghe, 2004). See (Boyd and Vandenberghe, 2004, Sec. 10.1) for some of the
(k)
conditions that guarantee this assumption. In case Hp is nonsingular, instead of
directly solving (3.14), it is also possible to solve this system of equations by first
eliminating the primal variables direction as
(k)
(k)
∆x = −(Hp )−1 AT ∆v + rp,dual ,
(3.15)
and then solving
(k)
(k)
(k)
(k)
A(Hp )−1 AT ∆v = rprimal − A(Hp )−1 rp,dual ,
(3.16)
for ∆v. These equations is referred to as the Newton equations. Having described
the computation of the Newton directions, we can describe an infeasible Newton
method in Algorithm 1 with r(x, v) = (rp,dual , rprimal ). This algorithm is used for
solving (3.13) for any given t. A generic description of a primal interior-point
method based on Algorithm 1 is given in Algorithm 2.
24
3 Convex Optimization Methods
Algorithm 2 Primal Interior-point Method
1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
Given q = 0, t (0) > 0, µ > 1, p > 0 and x(0) such that gi (x(0) ) < 0 for all
i = 1, . . . , m
repeat
Given t q , compute x(q+1) by solving (3.13) using Alg. 1 starting at x(q)
if m/t (q) < p then
x∗ = x(q+1)
Terminate the iterations
end if
t (q+1) = µt (q)
q = q+1
until iterations are terminated
3.2.2 Primal-dual Interior-point Methods
Similar to a primal method, primal-dual methods also compute a solution for (2.19)
by dealing with a sequence of the perturbed KKT conditions as in (3.12). Particularly, at each iteration of a primal-dual method and given primal and dual iterates
(k)
x(k) , λ(k) and v (k) such that gi (x(k) ) < 0 and λi > 0 for all i = 1, . . . , m, these iterates are updated along the Newton directions computed from the linearized
version of (3.12), given as


m
m
X
X


(k)
(k)
∇2 f (x(k) ) +
λi ∇2 gi (x(k) ) ∆x +
∇gi (x(k) )∆λi + AT ∆v = −rdual , (3.17a)

0
i=1
i=1
(k)
(k)
−λi ∇gi (x(k) )T ∆x − gi (x(k) )∆λi = − rcent ,
i
i = 1, . . . , m,
(3.17b)
(k)
A∆x = −rprimal ,
(3.17c)
where
(k)
rdual = ∇f0 (x(k) ) +
m
X
λi ∇gi (x(k) ) + AT v (k) ,
(3.18a)
i=1
(k)
rcent
(k)
(k)
i
= −λi gi (x(k) ) − 1/t,
i = 1, . . . , m,
(3.18b)
and rprimal is defined as for the primal approach. The linearized perturbed KKT
conditions in (3.17) can be rewritten compactly as
3.2
25
Primal and Primal-dual Interior-point Methods

P
(k) 2
(k)
∇2 f0 (x(k) ) + m
i=1 λi ∇ gi (x )

(k)
(k)

− diag(λ )Dg(x )

A
Dg(x(k) )T
− diag(g1 (x(k) ), . . . , gm (x(k) ))
0

 

∆x
 

∆λ

  = − 
 


∆v

AT 

0  ×

0

(k)
rdual 
(k) 

rcent  ,

(k)

r
(3.19)
primal
where


 ∇g1 (x)T 


..
 .
Dg(x) = 

.


T
∇gm (x)
(3.20)
It is common to solve (3.19) by first eliminating ∆λ as
(k)
∆λ = − diag(g1 (x(k) ), . . . , gm (x(k) ))−1 diag(λ(k) )Dg(x(k) )∆x − rcent ,
(3.21)
and then solving the following linear system of equations
 (k)
H
 pd

A
" #
 (k) 
 r

AT  ∆x
= −  (k) 

rprimal
0 ∆v
(3.22)
where
(k)
Hpd
2
(k)
= ∇ f0 (x ) +
m
X
i=1
(k)
λi ∇2 gi (x(k) ) −
m
X
i=1
(k)
λi
gi (x(k) )
∇gi (x(k) )∇gi (x(k) )T ,
(3.23)
and
(k)
(k)
r (k) = rdual + Dg(x(k) )T diag(g1 (x(k) ), . . . , gm (x(k) ))−1 rcent .
for the remainder of the directions. The system of equations in (3.22) is also
referred to as the augmented system. Having expressed a way to compute the
primal-dual directions, we outline a primal-dual interior-point method in Algorithm 3.
(k)
Remark 3.3. In case Hpd is invertible, instead of directly solving (3.22) for computing the
search directions, similar to the primal case, it is possible to first eliminate ∆x as
(k)
∆x = −(Hpd )−1 AT ∆v + r (k) ,
and form and solve the Newton equations instead.
(3.24)
26
3 Convex Optimization Methods
Algorithm 3 Primal-dual Interior-point Method
1:
2:
3:
4:
5:
6:
7:
8:
9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
Given k = 0, µ > 1, > 0, γ ∈ (0, 1/2), β ∈ (0, 1), feas > 0, λ(0) > 0, v (0) , x(0)
P
(0)
(0)
such that gi (x(0) ) < 0 for all i = 1, . . . , m and η̂ (0) = m
i=1 −λi gi (x )
repeat
t = µm/ η̂ (k)
Given t, λ(k) , v (k) and x(k) compute ∆x(k+1) , ∆λ(k+1) , ∆v (k+1) by solving
(3.21) and (3.22)
Compute the step size α (k+1)
using
line search as
(k)
(k+1) (k+1)
∆λ
start with α
= min 1, min −λ /∆λ
<0 ,
max
i
i
i
i
while ∃ i : gi (x(k) + α (k+1) ∆x(k+1) ) ≥ 0
α (k+1) = βα (k+1)
end while
(k) (k+1) (k)
(k+1)
while rprimal , rdual > (1 − γ α (k+1) ) rprimal , rdual α (k+1) = βα (k+1)
end while
x(k+1) = x(k) + α (k+1) ∆x(k+1)
λ(k+1) = λ(k) + α (k+1) ∆λ(k+1)
v (k+1) = v (k) + α (k+1) ∆v (k+1)
k = k +P1
(k)
(k)
η̂ (k) = m
i=1 −λi gi (x )
(k)
(k)
until krprimal k2 , krdual k2 ≤ feas and η̂ (k) ≤ Remark 3.4. There are different types of primal and primal-dual interior-point methods
that mainly differ in the choice of search directions and step size computations. However,
in spite of these differences, they commonly have the same algorithmic structure. In order
to keep the presentation simple, we here abstain from discussing other types of such methods and we refer to Boyd and Vandenberghe (2004); Wright (1997); Forsgren et al. (2002)
for further reading.
Remark 3.5. In this section we have studied application of primal and primal-dual interiorpoint methods for solving non-conic optimization problems. It is also possible to use these
methods for solving conic problems, such as SDPs. Interior-point methods for solving such
problems are commonly more complicated and this is mainly due to intricacies of computing the (matrix-valued) search directions, see Wright (1997); Todd et al. (1998); de Klerk
et al. (2000) for more information on this topic. We also discuss and study such methods
in Paper F.
Remark 3.6. The primal and primal-dual interior-point methods discussed in this section,
compute a solution for (2.19) using different approaches. The primal method does so by
tracing the so-called central path to the optimal solution. This path is defined by the
solutions of (3.12) for different values of t. As a result, at every iteration of Algorithm 2,
we need to solve (3.13) to place the iterates on the central path. Due to this, given feasible
starting points, the iterates in Algorithm 2 remain feasible. In contrast to this, the primal-
3.2
Primal and Primal-dual Interior-point Methods
27
dual method in Algorithm 3 follows the central path to the optimal solution by staying
in its close vicinity. This means that at every iteration of the primal-dual method we do
not need to solve (3.12) and instead we take a single step along the Newton directions
computed from (3.19), with a step size that assures that we stay close to the central path
and that we reduce the primal and dual residuals at every iteration. Because of this, primaldual methods, commonly, converge faster and require less computational effort. However,
this comes at a cost that the iterates in Algorithm 3 do not have to be feasible.
The distributed algorithms proposed in this thesis rely on the optimization
methods described in this chapter. Particularly, these algorithms are achieved by
applying these methods to reformulated and decomposed formulations of convex
problems, and/or by exploiting structure in the computations within different
stages of these methods. This is discussed in more detail in Chapter 5. Next we
discuss some basics relating to robustness analysis of uncertain systems which
are used in papers D–G.
4
Uncertain Systems and Robustness
Analysis
In this chapter, we explore some of the basic concepts in robustness analysis of uncertain systems. Firstly we discuss linear systems and some related topics in Section 4.1. Some concepts regarding uncertain systems are reviewed in Section 4.2.
Finally in Section 4.3, we briefly discuss integral quadratic constraints (IQCs)
and describe how they can be used for analyzing robust stability of uncertain systems. This chapter follows the material in Zhou and Doyle (1998); Megretski and
Rantzer (1997); Jönsson (2001) and it is recommended to consult these references
for more details on the discussed topics.
4.1
Linear Systems
In this section we review some of the basics of linear systems, that are extensively
used in papers D–G.
4.1.1 Continuous-time Systems
Consider the following linear time-invariant (LTI) system
ẋ(t) = Ax(t) + Bu(t),
y(t) = Cx(t) + Du(t),
(4.1)
where x(t) ∈ Rn , u(t) ∈ Rm , y(t) ∈ Rp , A ∈ Rn×n , B ∈ Rn×m , C ∈ Rp×n and
D ∈ Rp×m . This is a state-space representation for the system. The corresponding
transfer function matrix for this system is defined as G(s) = C (sI − A)−1 B + D ∈
Cp×m , with s ∈ C. The relationship between these two representations is sometimes denoted as
"
#
A B
G(s) :=
.
(4.2)
C D
29
30
4
Uncertain Systems and Robustness Analysis
The system is said to be stable, if for all the eigenvalues, λi , of the matrix A we
have that Re λi < 0. Given an initial state, x(t0 ) and an input u(t), the system
responses x(t) and y(t) are given by
x(t) = e
A(t−t0 )
Zt
x(t0 ) +
e A(t−τ) Bu(τ) dτ,
t0
(4.3)
y(t) = Cx(t) + Du(t).
4.1.2
H∞ and H2 Norms
The H2 norm for a stable system of the form (4.1), is defined as
kGk22
1
=
2π
Z∞
tr {G(jω)∗ G(jω)} dω.
(4.4)
−∞
For the H2 norm to be finite it is required that D = 0. In that case, the H2 norm
of the system can be calculated as
n
o
n
o
kGk22 = tr BT QB = tr CP C T ,
(4.5)
where P ∈ S+n and Q ∈ S+n are the controllability and observability Gramians,
respectively, (Zhou and Doyle, 1998). These are the unique solutions to the following Lyapunov equations
AP + P AT + BBT = 0,
AQ T + QA + C T C = 0.
(4.6)
The H∞ norm for a stable system of the form (4.1) is defined as below
kGk∞ = sup σ̄ {G(jω)} ,
(4.7)
ω
where σ̄ denotes the maximum singular value for a matrix. In this thesis, methods for computing the H∞ norm are not discussed and we just state that this
quantity can be computed by solving an SDP, (Boyd et al., 1994), or by iterative
algorithms using bisection, (Boyd et al., 1988; Zhou and Doyle, 1998).
4.2 Uncertain Systems
There are different ways for expressing uncertainty in a system. These descriptions fall mainly into the two categories of structured and unstructured uncertainties. In this section, we only discuss structured uncertainties. For a discussion
on unstructured uncertainties, e.g., see Zhou and Doyle (1998).
4.2
31
Uncertain Systems
Figure 4.1: Uncertain system with structured uncertainty.
4.2.1 Structured Uncertainties and LFT Representation
In case of a bounded uncertainty and rational system uncertainty dependence,
it is possible to describe an uncertain system using a feedback connection of an
uncertainty block and a time-invariant system, as illustrated in Figure 4.1, where
∆ represents the extracted uncertainties from the system and
"
G
G = pq
Gzq
#
Gpw
,
Gzw
(d+l)×(d+m)
d×d
, Gpq (s) ∈ RH∞
,
is the system transfer function matrix. Let G(s) ∈ RH∞
d×m
l×d
l×m
Gpw (s) ∈ RH∞ , Gzq (s) ∈ RH∞ and Gzw (s) ∈ RH∞ . The system transfer
function matrix can always be constructed such that ∆ has the following block
diagonal structure
∆ = blk diag(δ1 Ir1 , . . . , δL IrL , ∆L+1 , . . . , ∆L+F ),
where δi ∈ C for i = 1, . . . , L, ∆L+j ∈ C
mj ×mj
for j = 1, . . . , F, and
(4.8)
L
X
i=1
ri +
F
X
mj = d,
j=1
and where all blocks have a bounded induced ∞-norm less than or equal to 1,
i.e., |δi | ≤ 1, for i = 1, . . . , L, and k∆i k∞ ≤ 1, for i = L + 1, . . . , L + F. Systems
with an uncertainty structure as in (4.8) are referred to as uncertain systems with
structured uncertainties, (Zhou and Doyle, 1998), (Fan et al., 1991).
The representation of the uncertain system in Figure 4.1 is also referred to as
the linear fractional transformation (LFT) representation of the system, (Magni,
2006). Using this representation it is possible to describe the mapping between
w(t) and z(t) as below
∆ ∗ G := Gzw + Gzq ∆(I − Gpq ∆)−1 Gpw ,
(4.9)
which is referred to as the upper LFT with respect to ∆, (Zhou and Doyle, 1998).
This type of representation of uncertain systems is used in papers D–G.
32
4
Uncertain Systems and Robustness Analysis
Figure 4.2: Uncertain system with a structured uncertainty and a controller.
4.2.2 Robust H∞ and H2 Norms
Robust H2 and H∞ norms for uncertain systems with structured uncertainties
are defined as
sup k∆ ∗
∆∈B∆
Gk22
1
= sup
2π
∆∈B∆
Z∞
tr {(∆ ∗ G)∗ (∆ ∗ G)} dω,
−∞
sup k∆ ∗ Gk∞ = sup sup σ̄ {∆ ∗ G} ,
∆∈B∆
(4.10a)
(4.10b)
∆∈B∆ ω
respectively, where B∆ represents the unit ball for the induced ∞-norm for the uncertainty structure in (4.8). These quantities are of great importance and in case
w(t) and z(t) are viewed as disturbance acting on the system and controlled output of the system, respectively, these norms quantify the worst-case effect of the
disturbance on the performance of the system. The computation of these quantities is not discussed in this section and for more information on the calculation of
upper bounds for these norms refer to Paganini and Feron (2000); Paganini (1997,
1999a); Doyle et al. (1989); Zhou and Doyle (1998).
4.2.3 Nominal and Robust Stability and Performance
Consider the interconnection of a controller K with an uncertain system with
structured uncertainty as in Figure 4.2. Let us assume that K has been designed
such that the nominal system, i.e., when ∆ = 0, together with the controller is
stable and satisfies certain requirements over the performance of the closed loop
system. Then it is said that the system is nominally stable and satisfies nominal
performance requirements.
Under this assumption, if the process G and the controller K are combined,
then the setup in Figure 4.2 will transform into the one presented in Figure 4.1.
In this case, if the resulting system together with the uncertainty is stable and
satisfies the nominal requirements on its behavior, it is said that the system is
4.3
33
Robust Stability Analysis of Uncertain Systems Using IQCs
Figure 4.3: Uncertain system with system transfer function matrix G and
uncertainty ∆.
robustly stable and has robust performance. Next we briefly review a framework
for analyzing robust stability of uncertain systems with structured uncertainty.
4.3
Robust Stability Analysis of Uncertain Systems
Using IQCs
There are different approaches for analyzing robust stability of uncertain systems,
one of which is referred to as IQC analysis. This method is based on integral
quadratic constraints (IQCs) which allow us to describe the uncertainty in the
system. Particularly, it is said that a bounded and causal operator ∆ satisfies the
IQC defined by Π, i.e., ∆ ∈ IQC(Π), if
Z∞ "
v
∆(v)
#T
#
v
dt ≥ 0,
Π
∆(v)
"
∀v ∈ L2d ,
(4.11)
0
where Π is a bounded and self-adjoint operator, (Megretski and Rantzer, 1997),
(Jönsson, 2001). This constraint can also be rewritten in the frequency domain as
Z∞ "
#∗
"
#
v̂(jω)
v̂(jω)
Π(jω)
dω ≥ 0,
€
€
∆(v)(jω)
∆(v)(jω)
(4.12)
−∞
where v̂ and €
∆(v) are the Fourier transforms of the signals, and Π is a transfer
function matrix such that Π(jω) = Π(jω)∗ . Consider the following uncertain
system
p = Gq
q = ∆(p),
(4.13)
m×m
where p, q ∈ L2m , G ∈ RH∞
is the system transfer function matrix and ∆ ∈
IQC(Π) is the uncertainty in the system, see Figure 4.3. Then robust stability of
the system in (4.13) can be established using the following theorem.
34
4
Uncertain Systems and Robustness Analysis
Theorem 4.1 (IQC analysis, (Megretski and Rantzer, 1997)). The uncertain
system in (4.13) is robustly stable, if
1. for all τ ∈ [0, 1] the interconnection described in (4.13), with τ∆, is wellposed;
2. for all τ ∈ [0, 1], τ∆ ∈ IQC(Π);
3. there exists > 0 such that
"
#∗
"
#
G(jω)
G(jω)
Π(jω)
−I, ∀ ω ∈ [0, ∞].
I
I
(4.14)
Theorem 4.1 provides a sufficient condition for robust stability of uncertain systems. In order to establish this condition, we are required to find a multiplier
Π, such that ∆ ∈ IQC(Π) and such that the semi-infinite LMI in (4.14) is satisfied. Commonly, the condition ∆ ∈ IQC(Π) imposes structural constraints on Π.
The robust stability analysis problem will then boil down to finding a multiplier,
with the required structure, such that the LMI in (4.14) is satisfied for all frequencies. There are mainly two approaches for solving this LMI, which are based
on frequency gridding and the use of the KYP lemma, (Rantzer, 1996; Paganini,
1999b). The frequency-gridding-based approach solves the analysis problem approximately, by establishing the feasibility of the LMI in (4.14) for a finite number
of frequencies. This approach preserves the structure in the LMI which, as is discussed in papers D–F, will enable us to efficiently solve the analysis problem for
some uncertain systems.
So far we have discussed some of the basics regarding convex optimization
and robustness analysis. Next, we describe the design procedure for optimization algorithms that enable us to solve some of the encountered optimization
problems, especially relating to robustness analysis, distributedly.
5
Coupled Problems and Distributed
Optimization
In this chapter we lay out how the methods described in Chapter 3 can be used for
devising distributed algorithms for solving coupled optimization problems. To
this end, we first put forth definitions of coupled and loosely coupled problems in
Section 5.1. We then consider sparse SDPs and show how they can be equivalently
reformulated as coupled optimization problems in Section 5.2. The importance
of these problems will become clear as we discuss the applications in Chapter 6.
Also such problems particularly take a central role in papers D–F. We describe
the design procedure for distributed algorithms in Section 5.3, where we briefly
discuss the design of distributed algorithms based on proximal splitting, primal
and primal-dual methods in sections 5.3.1–5.3.3.
5.1
Coupled Optimization Problems and Structure
Exploitation
We refer to the problem
minimize
f1 (x) + · · · + fN (x)
subject to
x ∈ Ci ,
i = 1, . . . , N ,
(5.1a)
(5.1b)
with x ∈ Rn , as a coupled convex optimization problem, since this problem can
be viewed as a combination of N coupled subproblems each of which is defined
by a cost function fi and a constraint set Ci . We assume that each subproblem, i,
depends only on some of the elements of x. We denote the ordered set of indices
of these variables by Ji ⊆ Nn . Let us also denote the ordered set of subproblems
that depend on xj with I j ⊆ NN . We refer to this problem as loosely or partially
coupled if |Ji | n and |I j | N for all i = 1, . . . , N , and j = 1, . . . , n. As we will
35
36
5
Coupled Problems and Distributed Optimization
Figure 5.1: The coupling and sparsity graphs for the problem in (5.2), illustrated on the left and right figures, respectively.
discuss later, our proposed distributed algorithms can be efficiently applied for
solving such problems.
Notice that the sets Ji for i = 1, . . . , N , and I j for j = 1, . . . , n, fully describe
the coupling structure in the problem. It is also possible to express the coupling
structure in the problem graphically, using graphs. For this purpose, we introduce coupling and sparsity graphs. The coupling graph Gc (Vc , Ec ) of a coupled
problem nis an undirected graph with
o the vertex set Vc = {1, . . . , N } and the edge
set Ec = (i, j) | i, j ∈ Vc , Ji ∩ Jj , ∅ . Similarly, the sparsity graph Gs (Vs , Es ) for
the problem is also ann undirected graph but with
o the vertex set Vs = {1, . . . , n}
and the edge set Es = (i, j) | i, j ∈ Vs , I i ∩ I j , ∅ . In order to better understand
the introduced concepts, let us consider the following example
minimize
f1 (x1 , x2 , x3 ) + f2 (x3 , x4 , x5 ) + f3 (x5 , x6 , x7 )
(5.2a)
subject to
g1 (x1 , x2 , x3 ) ≤ 0,
(5.2b)
g2 (x3 , x4 , x5 ) ≤ 0,
(5.2c)
g3 (x5 , x6 , x7 ) ≤ 0,
(5.2d)
The coupling and sparsity graphs for this problem are illustrated in Figure 5.1.
The coupling structure and its graphical representation play a central role in
design and description of distributed algorithms for solving coupled problems.
This is discussed later in Section 5.3. Next we briefly discuss how sparsity in
SDPs can be used for reformulating them as coupled problems.
5.2 Sparsity in SDPs
SDPs appear in many robustness analysis problems, and hence in this thesis we
encounter many coupled version of such problems. These problems are commonly the result of reformulation of sparse SDPs which are discussed in this
section.
5.2
Sparsity in SDPs
37
Figure 5.2: A nonchordal graph (on the left) and its chordal embedding (on
the right). As can be seen, the chordal embedding has been achieved by
adding an edge between vertices 5 and 7.
5.2.1 Chordal Graphs
Given a graph G(V , E), vertices i, j ∈ V are adjacent if (i, j) ∈ E. We denote the set
of adjacent vertices or neighbors of i by Ne(i) = {j ∈ V |(i, j) ∈ E}. A graph is said
to be complete if all its vertices are adjacent. An induced graph by V 0 ⊆ V on
G(V , E), is a graph GI (V 0 , E 0 ) where E 0 = E ∩ (V 0 × V 0 ). A clique Ci of G(V , E) is
a maximal subset of V that induces a complete subgraph on G. Consequently, no
clique is properly contained in another clique, (Blair and Peyton, 1994). Assume
that all cycles of length at least four of G(V , E) have a chord, where a chord is an
edge between two non-consecutive vertices in a cycle. This graph is then called
chordal, (Golumbic, 2004, Ch. 4). It is possible to make a non-chordal graph
chordal by adding edges to the graph. The resulting graph from this procedure
is referred to as a chordal embedding.
Figure 5.2 illustrates an example of this process. The figure on the left is a nonchordal graph. This can be seen from the cycle defined over the vertices 5, 6, 7, 8
that does not have a chord. We can produce a chordal embedding by adding a
chord to this cycle, i.e., an edge between vertices 5 and 7 or 6 and 8. The figure on
the right illustrates a chordal embedding of this graph which has been generated
by adding an edge between vertices 5 and 7. Let CG = {C1 , . . . , Cl } denote the set
of its cliques, where l is the number of cliques of the graph. Then there exists
a tree defined on CG such that for every Ci , Cj ∈ CG where i , j, Ci ∩ Cj is
contained in all the cliques in the path connecting the two cliques in the tree.
This property is called the clique intersection property, (Blair and Peyton, 1994).
Trees with this property are referred to as clique trees. Consider the example in
Figure 5.2. The marked cliques of the chordal embedding and its clique tree are
depicted in Figure 5.3. Having introduced some definitions related to chordal
graphs we next discuss sparsity in matrices.
38
5 Coupled Problems and Distributed Optimization
Figure 5.3: Cliques and clique tree for the chordal embedding illustrated in
Figure 5.2.
5.2.2 Chordal Sparsity
A matrix is sparse if the number of non-zero elements in the matrix is considerably smaller than the number of zero elements. The sparsity pattern of a matrix
describes where the non-zero elements are located in the matrix. Let A ∈ Rn×n be
a sparse matrix, then the sparsity pattern of this matrix can be described using
the following set
S = (i, j) | Aij 0 ,
(5.3)
where Aij denotes the element on the i th row and j th column. In the applications
in this thesis we mainly deal with symmetric matrices. As a result, from now
on we only study the sparsity pattern for symmetric matrices. Note that if the
matrix is symmetric and (i, j) ∈ S then (j, i) ∈ S. The sparsity pattern for a sparse
symmetric matrix can also be described through its associated sparsity pattern
graph. The sparsity pattern graph for a matrix A is an undirected
graph with
vertex set V = {1, · · · , n} and edge set E = (i, j) | Aij 0, i j . Note that by this
definition, the sparsity pattern graph does not include any self-loops and does
not represent any of the diagonal entries of the matrix.
Graphs can also be used to characterize partially symmetric matrices. Partially symmetric matrices correspond to symmetric matrices where only a subset
of their elements are specified and the rest are free. We denote the set of all n × n
partially symmetric matrices on a graph G(V , E) by SnG , where only elements with
indices belonging to Is = E ∪ {(i, i) | i = 1, . . . , n} are specified. Now consider a matrix X ∈ SnG . Then X is said to be negative semidefinite completable if by choosing
its free elements, i.e., elements with indices belonging to If = (V × V ) \ Is , we can
obtain a negative semidefinite matrix. The following theorem states a fundamental result on negative semidefinite completion.
5.2
39
Sparsity in SDPs
Theorem 5.1. (Grone et al., 1984, Thm. 7) Let G(V , E) be a chordal graph with
cliques C1 , . . . , Cl such that clique intersection property holds. Then X ∈ SnG is
negative semidefinite completable, if and only if
XCi Ci 0,
i = 1, . . . , l,
(5.4)
where XCi Ci = ECi XECT i with ECi a 0–1 matrix that is obtained from In by removing all rows indexed by Nn \ Ci .
Note that the matrices XCi Ci for i = 1, . . . , l, are the fully specified principle
submatrices of X. Hence, Theorem 5.1 states that a chordal matrix X ∈ SnG is
negative semidefinite completable if and only if all its fully specified principle
submatrices are negative semidefinite. As we will see next, this property can be
used for decomposing SDPs with this structure.
5.2.3 Domain-space Decomposition
Consider a chordal graph G(V , E), with {C1 , . . . , Cl } the set of cliques such that
clique intersection property
holds. Let us define sets J̄i ⊂ Nn such that the sparP
T
sity pattern graph for N
i=1 EJ̄ EJ̄i is G(V , E). Then for the following SDP
i
minimize
X
subject to
N
X
W i • (EJ̄i XEJ̄T )
(5.5a)
i
i=1
i
Q • (EJ̄i XEJ̄T ) = bi ,
i
i = 1, . . . , N ,
X 0,
(5.5b)
(5.5c)
with W i , Q i ∈ S|J̄i | for i = 1, . . . , N and X ∈ Sn , the only elements of X that affect
the cost function in (5.5a) and the constraint in (5.5b) are elements specified by
indices in Is . Using Theorem 5.1, the optimization problem in (5.5) can then be
equivalently rewritten as
minimize
XC1 C1 ,...,XCl Cl
subject to
N
X
W i • (EJ̄i XEJ̄T )
Q • (EJ̄i XEJ̄T ) = bi ,
i
XCi Ci 0,
(5.6a)
i
i=1
i
i = 1, . . . , N ,
i = 1, . . . , l,
(5.6b)
(5.6c)
where notice that the constraint in (5.5c) has been rewritten as several coupled
semidefinite constraints in (5.6c), (Fukuda et al., 2000; Kim et al., 2011). This
method of reformulating (5.5) as the coupled SDP in (5.6) is referred to as the
domain-space decomposition, (Kim et al., 2011; Andersen, 2011). There are other
approaches for decomposing sparse SDPs, one of which is the so-called rangespace decomposition that is discussed in Paper E. This decomposition scheme
is in fact the dual of the procedure discussed in this section. Domain-space decomposition is later used in Paper F and in Chapter 6. Next we discuss design
procedures for generating optimization algorithms for solving coupled problems
distributedly.
40
5.3
5
Coupled Problems and Distributed Optimization
Distributed Optimization Algorithms
It is possible to solve coupled optimization problems using a network of several
computational agents that collaborate or communicate with one another. The algorithms that facilitate such solutions are referred to as distributed algorithms.
The collaboration and/or communication protocol among these agents can be described using a graph, where each vertex of the graph corresponds to each of the
agents and there exists an edge between two vertices if the corresponding agents
need to collaborate and communicate with each other. This graph is referred to as
the computational graph of the algorithm and is usually set by the coupling structure in the problem. Next we describe three approaches for devising distributed
algorithms that have been used in papers A–C.
5.3.1 Distributed Algorithms Purely Based on Proximal Splitting
Operator splitting is at the heart of the design procedure discussed in this section.
So before we go any further let us discuss some of the basics related to this topic.
Recall that given a maximal monotone operator T , we can compute a zero of this
operator using the following iterative scheme
x(k+1) = (I + ρT )−1 x(k) ,
(5.7)
with x(k) ∈ Rn . Now consider the case where T = T1 + T2 , with T1 and T2 both
maximal monotone. Let us assume that computing (I + ρT )−1 is computationally much more demanding than computing either of (I + ρT1 )−1 or (I + ρT2 )−1 .
Operator splitting methods allow us to compute a zero of T using algorithms
that rely on repeated applications of operators T1 , T2 and/or their corresponding
resolvents. For instance, one of such methods is the so-called double-backward
method which can be written as
y (k+1) = (I + ρT1 )−1 x(k) ,
(5.8a)
(k+1)
−1
(k+1)
x
= (I + ρT2 )
y
,
(5.8b)
with y (k) ∈ Rn , where it can be seen that each stage of the algorithm only relies on the resolvent of one of the subsequent operators. As a result, each iteration of (5.8) is much cheaper than that of (5.7). There are many other operator
splitting methods such as forward-backward, Douglas-Rachford and PeacemanRachford, see Eckstein (1989); Combettes and Pesquet (2011); Bauschke and Combettes (2011) for more instances.
We can naturally use operator splitting methods for solving convex problems
of the form
minimize
F(x) := F1 (x) + F2 (x),
(5.9)
where x ∈ Rn , dom F1 , ∅, dom F2 , ∅ and the functions F1 and F2 are both lowersemicontinuous. Solving this optimization problem is equivalent to computing a
5.3
41
Distributed Optimization Algorithms
zero of the subdifferential operator ∂F = ∂F1 + ∂F2 . Notice that ∂F1 and ∂F2 are
both maximal monotone. Let us assume that computing the proximity operator
of F is much more computationally demanding than computing those of F1 and
F2 . It is of course possible to solve (5.9) using the proximal point algorithm.
However, using operator splitting methods, one can compute an optimal solution
for (5.9) using iterative methods that rely on proximity operators of F1 and/or F2
in a computationally cheaper manner. This technique for solving (5.9) is referred
to as proximal splitting. Now let us consider the problem in (5.1). This problem
can be equivalently rewritten as
minimize
f¯1 (s1 ) + · · · + f¯N (s N )
(5.10a)
subject to
s i ∈ C̄i ,
(5.10b)
S,x
s i = EJi x,
i = 1, . . . , N ,
i = 1, . . . , N ,
(5.10c)
where s i ∈ R|Ji | for i = 1, . . . , N are so-called local variables, x ∈ Rn , EJi is a
0–1 matrix that is obtained from In by removing all rows indexed by Nn \ Ji ,
and
C̄i and f¯i are lower-dimensional
descriptions of Ci and fi , given as C̄i =
o
n
s i ∈ R|Ji | | EJTi si ∈ Ci and f¯i (s i ) = fi (EJTi s i ). The constraints in (5.10c) are referred
as the consensus or consistency constraints. We can further rewrite this problem as
minimize
S
N
X
f¯i (s i ) + I C¯i (s i ) + I D (S),
(5.11)
i=1
PN
n
o
where S = (s1 , . . . , s N ) ∈ R i=1 |Ji | and D = S | S ∈ col(Ē) is the so-called conh
iT
sensus set with Ē = EJT1 . . . EJTN . This problem is in the same format as
P
i
¯ i
(5.9). Specifically we can identify F1 (S) = N
i=1 fi (s ) + I C¯i (s ) and F2 (S) = I D (S).
We can employ the proximal point algorithm for solving this problem. However,
notice that doing so results in an algorithm where each of its iterations is as computationally intensive as solving the problem itself. Consequently and in order to
devise more efficient algorithms for solving this problem we harbor to proximal
splitting. Firstly, note that based on the definitions of F1 and F2 , we have


N




1 i
X ¯ i
i 2
i
ks
−
y
k
,
(5.12a)
f
(s
)
+
I
(s
)
+
proxρF1 (Y ) = argmin 
¯

i
C


i


2ρ
S
i=1
)
(
−1
1
2
proxρF2 (Y ) = argmin I D (S) +
kS − Y k = PD (Y ) := Ē Ē T Ē
Ē T Y ,
2ρ
S
(5.12b)
PN
where Y = (y 1 , . . . , y N ) ∈ R i=1 |Ji | . The problem in (5.12a) is separable and hence,
the proximity operator for F1 can be computed by solving N independent sub-
42
5
Coupled Problems and Distributed Optimization
problems, each of which is much cheaper than solving the original problem. Furthermore, note that the proximity operator of the indicator function for the consensus set D is the linear orthogonal projection onto this set which assures the
consistency of the iterates at each iteration. Let us again consider the doublebackward algorithm. Applying this algorithm to (5.11) results in
S (k+1) = proxρF1 Ēx(k) ,
−1
Ē T S (k+1) .
x(k+1) = Ē T Ē
(5.13a)
(5.13b)
Due to the separability of the problem in (5.12a), this iterative algorithm can
be implemented over a network of N computational agents. Particularly the first
stage of (5.13) describes the independent computations that need to be conducted
locally by each agent, i, that is
(
)
1 i
s i,(k+1) = argmin f¯i (s i ) + I C¯i (s i ) +
ks − EJi x(k) k2 ,
2ρ
si
(5.14)
and the second stage describes the communication or collaboration protocol among
these agents. Specifically it expresses that all agents i, j that share variables, i.e.,
when Ji ∩ Jj , ∅, should communicate their computed quantities for these variables to one another. Once each
agent have
n
o received all these quantities from its
neighboring agents, Ne(i) = j | Ji ∩ Jj , ∅ , it then computes
(k+1)
xj
=
1 X T q,(k+1)
EJq s
,
|I j |
j
(5.15)
q∈I j
for all j ∈ Ji . Notice that based on this description of the communication protocol, we see that the computational graph of the resulting algorithm coincides
with the coupling graph of the problem. As a result, by applying the doublebackward algorithm to the problem in (5.11) we have virtually devised a distributed algorithm for solving this problem that utilizes a network of N computational agents, with the coupling graph of the problem as its computational
graph. The spawned distributed algorithms using proximal splitting methods
commonly have the same structural properties and they only differ in local computations description and what each agent needs to communicate to its neighbors,
see e.g., Parikh and Boyd (2014); Combettes and Pesquet (2011) and references
therein. We illustrate the expressed design procedure in Figure 5.4. This technique is used in Paper A for designing distributed solutions for solving coupled
convex feasibility problems.
Remark 5.1. Notice that distributed algorithms of this form can be efficiently applied for
solving loosely coupled problems. This is because for such problems each agent needs to
communicate with only few other agents.
5.3
Distributed Optimization Algorithms
43
Figure 5.4: Illustration of the design procedure for distributed algorithms
based on proximal splitting. The figure reads from top to bottom. It states
that given a coupled problem and its coupling graph, as defined in Section 5.1, we can distribute the constituent subproblems among computational agents, and solve the problem distributedly using proximal splitting.
As illustrated at the bottom of the figure, the computational graph for the
resulting algorithm is the same as the coupling graph of the problem.
In this section we described an approach for devising distributed algorithms
that solely relied on the use of proximal point and proximal splitting methods.
Notice that these methods only use first order information about the problem for
solving it. As a result the algorithms produced using this approach can potentially require many iterations to converge to a highly accurate solution. Furthermore, as can be seen form (5.14), the subproblems that each agent needs to solve
at each iteration are in general themselves constrained optimization problems
and hence local computations can still be computationally costly. Next we briefly
discuss how we can alleviate this issue by devising distributed algorithms that
are based on primal and primal-dual interior-point methods.
44
5
Coupled Problems and Distributed Optimization
5.3.2 Distributed Solutions Based on Splitting in Primal and
Primal-dual Methods Using Proximal Splitting
Let us reconsider the problem
minimize
f0 (x)
(5.16a)
subject to
gi (x) ≤ 0,
i = 1, . . . , m,
Ax = b,
(5.16b)
(5.16c)
where x ∈ Rn , A ∈ Rp×n and b ∈ Rp . We can employ primal and primal-dual
interior-point methods for solving this problem. Recall that at each iteration of
these methods, the search directions are computed by solving a nonsingular system of equations of the form
"
H
A
AT
0
#"
#
" #
r
∆x
=− 1 ,
r2
∆v
(5.17)
where H ∈ S+n and r1 ∈ Rn have different descriptions for primal and primaldual methods. Notice that this system of equations describes the KKT optimality
conditions for the QP
1 T
∆x H ∆x + r1T ∆x
2
A∆x = −r2 ,
minimize
subject to
(5.18a)
(5.18b)
and hence, the solutions to (5.17) can be computed by solving this problem. Now
consider the coupled convex problem
minimize
subject to
f1 (x) + · · · + fN (x)
i
G (x) 0,
i
i
Ax=b,
i = 1, . . . , N ,
i = 1, . . . , N ,
(5.19a)
(5.19b)
(5.19c)
where fi : Rn → R, G i : Rn → Rmi , b i ∈ Rpi and Ai ∈ Rpi ×n with pi < n and
rank(Ai ) = pi for all i = 1, . . . , N . As in Section 5.1, we can equivalently rewrite
this problem as
minimize
f¯1 (s1 ) + · · · + f¯N (s N )
(5.20a)
subject to
Ḡ i (s i ) 0,
(5.20b)
S,x
i i
i
Ā s = b ,
S = Ēx,
i = 1, . . . , N ,
i = 1, . . . , N ,
(5.20c)
(5.20d)
where Āi ∈ Rpi ×|Ji | , and the functions f¯i and Ḡ i are lower-dimensional versions of
fi and G i for i = 1, . . . , N . Let us now apply primal and primal-dual methods to
this problem. For the sake of notational brevity we here drop the iteration index.
5.3
45
Distributed Optimization Algorithms
In order to compute the search directions at each iteration of these methods, we
would then need to solve the coupled QP
N
X
1
minimize
2
∆S,∆x
(∆s i )T H i ∆s i + (r i )T ∆s i − (vc )T Ē∆x
i=1
i
i
i
Ā ∆s = −rprimal
,
subject to
(5.21a)
i = 1, . . . , N ,
(5.21b)
∆S − Ē∆x = −rc ,
(5.21c)
i
where rprimal
= Āi s i − b i , rc = S − Ēx, and for primal methods

mi
X


H = ∇ f¯i (s ) +

i
2
i
j=1
r i = ∇f¯i (s i ) −
mi
X
1
∇Ḡji (s i )∇Ḡji (s i )T
i i 2
t Ḡj (s )
1
t Ḡji (s i )
j=1
−
1
t Ḡji (s i )
2
∇



Ḡji (s i ) ,
∇Ḡji (s i ) + (Āi )T v i + vci ,
and for primal-dual methods
H i = ∇2 f¯i (s i ) +
mi
X
j=1
r i = ∇f¯i (s i ) +
mi
X
λij ∇2 Ḡji (s i ) −
mi
X
λij
Ḡji (s i )
j=1
T
∇Ḡji (s i ) ∇Ḡji (s i ) ,
−1
i
λij ∇Ḡji (s i ) + (Āi )T v i + vci + D Ḡ i (s i ) diag Ḡ i (s i )
rcent
,
j=1
with
i
rcent
= − diag(λi )Ḡ i (s i ) −
1
1.
t
We can employ proximal splitting algorithms, such as alternating direction method of multipliers (ADMM), for solving the problem in (5.21). This allows us to
devise distributed optimization algorithms based on primal or primal-dual methods for solving coupled problems. Notice that the coupling structure for (5.20)
and (5.21) are the same. Consequently, as for the distributed algorithms discussed in Section 5.3.1, the computational graphs for these algorithms are also
the same as the coupling graph of the original problem. Furthermore, notice that
the local subproblems that need to be solved by each agent are all equality constrained QPs. These subproblems are in general much simpler to solve than the
subproblems for the previous approach, as they were general constrained problems. Hence the distributed algorithms generated using this approach, potentially, enjoy much better computational properties. This approach for designing
distributed algorithms is illustrated in Figure 5.5, and it is discussed in full detail
in Paper B.
46
5
Coupled Problems and Distributed Optimization
Figure 5.5: Illustration of the design procedure for distributed algorithms
based on primal or primal-dual methods using proximal splitting. The figure reads from top to bottom. It states that given a coupled problem and its
coupling graph, as defined in Section 5.1, we first apply a primal or primaldual interior-point to the problem. Using proximal splitting, we can then
distribute the computations, at every iteration, among computational agents
and solve the problem distributedly. As illustrated at the bottom of the figure, the computational graph for the resulting algorithm is the same as the
coupling graph of the problem.
So far we have discussed two major approaches for devising distributed algorithms, namely one based on proximal splitting methods and one as a combination of primal or primal-dual methods and proximal splitting algorithms.
Algorithms generated from both of these approaches utilize proximal splitting
5.3
47
Distributed Optimization Algorithms
Figure 5.6: Illustration of extraction of tree structure in a sparsity graph.
methods for distributing the computations. This means that such algorithms potentially require many iterations to converge. Next, we show that in case there
exist a certain additional structure in the problem, we can devise distributed algorithms that are more efficient than the previous ones.
5.3.3 Distributed Solutions Based on Splitting in Primal and
Primal-dual Methods Using Message Passing
Let us now reconsider the example in (5.2). Note that the sparsity graph for this
problem can be represented using a tree, or in other words, the sparsity graph has
an inherent tree structure. This is illustrated in Figure 5.6. This type of structure
is not a general property of coupled problems. However, it is somewhat common,
see Chapter 6 and Paper F for some examples. Let us assume that the problem
in (5.19) has this type of coupling structure. This problem can be equivalently
rewritten as
minimize
f¯1 (EJ1 x) + · · · + f¯N (EJN x),
(5.22a)
subject to
Ḡ i (EJi x) 0,
(5.22b)
x
Āi EJi x = b i ,
i = 1, . . . , N ,
i = 1, . . . , N ,
(5.22c)
which has the same coupling structure as the original problem. Applying primal
or primal-dual interior-point methods for solving this problem, require solving
minimize
∆x
subject to
N
X
1
i=1
i
2
(EJi ∆x)T H i EJi ∆x + (r i )T EJi ∆x
i
Ā EJi ∆x = −rprimal
,
i = 1, . . . , N ,
(5.23a)
(5.23b)
at each iteration for computing the search directions. Note that for primal methods
r i = ∇f¯i (xJi ) −
mi
X
1
t Ḡji (xJi )
j=1
∇Ḡji (xJi ) + (Āi )T v i ,
48
5
Coupled Problems and Distributed Optimization
with xJi = EJi x, and for primal-dual methods
r i = ∇f¯i (xJi ) +
mi
X
−1
i
rcent
,
λij ∇Ḡji (xJi ) + (Āi )T v i + D Ḡ i (xJi ) diag Ḡ i (xJi )
j=1
with
i
rcent
= − diag(λi )Ḡ i (xJi ) −
1
1.
t
The coupling structure in (5.22) is also reflected in this problem. Considering
this observation, we can employ a more efficient technique, called message passing (Koller and Friedman, 2009), for computing the search directions within primal or primal-dual methods iterations. Unlike proximal splitting methods which
solve for search directions iteratively, this technique computes these directions
by performing a recursion over the inherent tree structure in the sparsity graph
of the problem. This approach for devising distributed algorithms is illustrated
in Figure 5.7, and is fully discussed in paper C. Notice that the distributed algorithms generated using this approach use the inherent tree structure in the
sparsity graph as their computational graph. This is in contrast to the algorithms
generated using the previous two approaches which utilize the coupling graph as
their computational graph.
Having described coupled problems and algorithms to solve them distributedly, we present applications for these algorithms within different areas in the
next chapter.
5.3
Distributed Optimization Algorithms
49
Figure 5.7: Illustration of the design procedure for distributed algorithms
based on primal or primal-dual methods using message passing. The figure
reads from top to bottom. It states that given a coupled problem and its sparsity graph, as defined in Section 5.1, we first apply a primal or primal-dual
interior-point to the problem. Using message passing, we can then distribute
the computations, at every iteration, among computational agents and solve
the problem distributedly. As illustrated at the bottom of the figure, the computational graph for the resulting algorithm is a clique tree of the sparsity
graph.
6
Examples in Control and Estimation
In order to solve large-scale robustness analysis problems, in papers D–F we first
showed how to reformulate the problem as an equivalent coupled problem, and
then employed efficient algorithms to solve the coupled problem distributedly. A
similar procedure can also be used for solving large-scale optimization problems
that appear in other fields. To illustrate this, we consider two examples in control
and estimation, and we will discuss how to reformulate and exploit structure in
these problems so as to enable the use of efficient distributed solvers. Particularly,
in Section 6.1 we consider a platooning problem and in Section 6.2 we consider a
sensor network localization problem.
6.1
Distributed Predictive Control of Platoons of
Vehicles
In this section, we consider a vehicle platooning problem. Here, a platoon refers
to a group of vehicles that are moving at close inter-vehicular distances, commonly, in a chain. The platooning problem then corresponds to the problem of
devising control strategies that enable the vehicles to safely operate at such close
distances so that the platoon moves with a speed that is close to a given reference value, see e.g., Turri et al. (2014); Dunbar and Caveney (2012); di Bernardo
et al. (2015); Dold and Stursberg (2009). Here we use model predictive control
(MPC) for solving this control problem. Note that a centralized control strategy
for platooning is not suitable, since such a solution would require high amount
of communications, has a single point of failure, and does not accommodate addition and removal of vehicles from the platoon. This is because such an action
would require reformulating the whole problem. Next we describe how to devise a distributed solution for this problem. But let us first review some basic
51
52
6
Examples in Control and Estimation
concepts relating to MPC.
6.1.1 Linear Quadratic Model Predictive Control
Let us assume that the discrete-time dynamics of the system to be controlled is
given by
x(k + 1) = Ax(k) + Bu(k) + d(k),
(6.1)
where x(k) ∈ Rn , u(k) ∈ Rm , d(k) ∈ Rn , A ∈ Rn×n and B ∈ Rn×m . Here d(k)
represents a measurable disturbance. In a linear quadratic control framework,
given the initial state x0 , we would like to compute a control sequence that is the
minimizing argument for the following problem
#
#T "
∞ "
X
x(k)
x(k)
+ q T x(k) + r T u(k)
(6.2a)
Q
minimize
u(k)
u(k)
k=0
subject to x(k + 1) = Ax(k) + Bu(k) + d(k)
Cx x(k) + Cu u(k) ≤ b,
k = 0, 1, · · · ,
k = 0, 1, · · · ,
x(0) = x0 ,
(6.2b)
(6.2c)
(6.2d)
"
#
Q S
m ,
0, with Q ∈ S+n and R ∈ S++
ST R
q ∈ Rn , r ∈ Rm and b ∈ Rp . In this problem u(0), u(1), · · · and x(0), x(1), · · ·
are the optimization variables which are referred to as the control and state sequences, respectively. Here the matrix Q and the vectors q, r, that define the
cost function, are commonly chosen to reflect our control specifications, the constraints in (6.2b) describe the dynamic behavior of the system and the constraints
in (6.2c) express the feasible operating region of the system. This control strategy
is referred to as infinite-horizon control, and as can be seen from (6.2), defines an
infinite-dimensional optimization problem. One common way to approximately
solve this problem is by using a suboptimal heuristic called model predictive
control (MPC). In this heuristic method the horizon of the control problem is
truncated to a finite value, Hp , and a receding horizon strategy is used to mimic
an infinite horizon, (Rawlings, 2000; Maciejowski, 2002). This means that at each
time instant t and given the state of the system, x(t), we solve the following finitehorizon quadratic control problem
where Cx ∈ Rp×n , Cu ∈ Rp×m , Q =
Hp −1 "
X x̄(k) #T " x̄(k) #
minimize
Q
+ q T x̄(k) + r T ū(k)
ū(k)
ū(k)
(6.3a)
k=0
+ x̄(Hp )T Qt x̄(Hp ) + qtT x̄(Hp )
subject to x̄(k + 1) = Ax̄(k) + Bū(k) + d(k),
Cx x̄(k) + Cu ū(k) ≤ b,
Ct x̄(Hp ) ≤ bt ,
x̄(0) = x(t),
k = 0, 1, · · · Hp − 1
k = 1, · · · , Hp − 1
C0 ū(0) ≤ b0
(6.3b)
(6.3c)
(6.3d)
(6.3e)
(6.3f)
6.1
Distributed Predictive Control of Platoons of Vehicles
53
where ū(0), · · · , ū(Hp − 1), x̄(0), · · · , x̄(Hp ) are the optimization variables, Ct ∈
Rpt ×n , C0 ∈ Rq0 ×m , Qt ∈ S+n , bt ∈ Rpt and b0 ∈ Rq0 .
Having computed the optimal solution ū ∗ (0), · · · , ū ∗ (Hp −1), and x̄∗ (1), · · · , x̄∗ (Hp ),
the MPC controller chooses ū ∗ (0) as the next control input to the system, i.e.,
u(t) = ū ∗ (0). This procedure is then repeated at time t + 1, this time with starting
point x(t + 1). The matrices and vectors Ct , bt , Qt and qt describe the so-called
terminal cost and terminal constraints, and are commonly designed to assure
stability and recursive feasibility, (Maciejowski, 2002; Rawlings, 2000). Here, we
do not discuss the design choice for these matrices, and instead we focus on the
underlying structure of the optimization problem for our application. Next we
describe the use of MPC for the platooning application.
6.1.2 MPC for Platooning
It is possible to address the platooning problem using MPC. To this end and in
order to express the underlying optimization problem, we describe its different
building blocks. We start with the constraints in the problem.
Dynamic Model
We consider the following model for each vehicle i in the platoon
p̄ i (k + 1) = p̄ i (k) + Ts v̄ i (k),
i
(k) ,
v̄ i (k + 1) = v̄ i (k) + Ts Fei (k) − Fbi (k) + Fext
(6.4a)
(6.4b)
where Ts is the sampling time, p̄ i and v̄ i denote the position and velocity of the
i th vehicle, respectively, Fei and Fbi are the engine and braking forces scaled with
i
the mass of the vehicle. Also Fext
represents the known disturbance on the vehicle that summarizes the forces from gravity, roll resistance and aerodynamic
resistance, (Turri et al., 2014). Here, we assume that this disturbance is constant
throughout the prediction horizon. The model in the MPC problem can then be
written as
x̄ i (k + 1) = Ai x̄ i (k) + Bi ū i (k) + d i
(6.5)
i
with x̄ i (k) = (p̄ i (k), v̄ i (k)), ū i (k) = (Fei (k), Fbi (k)) and d i = (0, Ts Fext
).
Constraints Defining the Feasible Operating Area
The first set of constraints we discuss here, describes the limits on the delivered
engine and braking forces for each vehicle i and is given as
i
0 ≤ Fei (k) ≤ Fe,max
,
0≤
Fbi (k)
≤
i
Fb,max
.
(6.6a)
(6.6b)
54
6
Examples in Control and Estimation
Figure 6.1: The figure illustrates a platooning problem, where the platoon is
to follow a given a reference speed vr . This should be achieved while each
vehicle keeps a desired distance, di , to its leading vehicle. In this figure, the
length of each vehicle i is denoted by li .
Let us compactly denote this set of constraints as ū i (k) ∈ U i for some set U i . The
next set of constraints incorporates the speed limits in the problem and is given
by
i
i
≤ v i (k) ≤ vmax
,
vmin
(6.7)
which we compactly denote as x̄ i (k) ∈ X i , for some set X i . The last set of constraints in the problem assures that each vehicle in the platoon stays a safe distance away from the neighboring vehicles, and in the worst case can brake and
stop without colliding with the front vehicle. This constraint for each vehicle, i,
can be written as
p i (td ) −
(v i (td ))2
(v i (0))2
≤ p i−1 (0) −
− li−1 ,
−2ab,min
−2ab,max
(6.8)
with td = Td /Ts and li is the length of the i th vehicle. Here we have assumed
that the reaction time-delay, Td , is an integer multiple of Ts , and ab,min , ab,max ≥ 0
are the minimum and maximum achievable braking accelerations, respectively,
(Turri et al., 2014). This constraint is denoted as qs (x i (td )) ≤ 0. Having defined
the constraints in the problem, we next discuss the cost function of the optimization problem.
Cost Function
The goal of each vehicle in a platoon is to move with a given reference speed,
i.e., the speed of the first vehicle in the platoon, and keep a given distance to the
vehicle in the front with least amount of brakes and engine use. This is illustrated
in Figure 6.1. Then for each vehicle in the platoon, except for the first vehicle, the
cost function that reflects these criteria can be written as
J i p̄ i (k), p̄ i−1 (k), v̄ i (k), v̄ (i−1) (k), ū i (k) =
2
1 i i−1
σ × p̄ (k) − p̄ i (k) − li−1 − di−1
2
2
+δ i × v̄ i (k) − v̄ i−1 (k) + (ū i (k))T Ri ū i (k) , (6.9)
6.1
Distributed Predictive Control of Platoons of Vehicles
55
Figure 6.2: Coupling and sparsity graphs of the platooning problem depicted in the top and bottom figures, respectively. The clusters in the sparsity
graph mark the variables for each subproblem.
where di−1 denotes the desired distance between the (i − 1)th and i th vehicles,
and σ i , δ i > 0, and Ri 0 are design parameters. The cost function for the first
vehicle can also be written similarly as
1
2
J 1 p̄1 (k), v̄ 1 (k), ū 1 (k) =
δ1 × v̄ i (k) − vr (k) + (ū 1 (k))T R1 ū 1 (k) ,
(6.10)
2
where vr is the reference speed for the platoon. Having defined these local cost
functions, we can now describe the MPC problem for platooning. This is given as
Hp −1 
minimize
subject to

N
X  X

i
i
i−1
i
J 1 x̄1 (k), ū 1 (k) +
J x̄ (k), x̄ (k), ū (k) 

i=2
i i
k=0
i
x̄ (k + 1) = Ai x̄ i (k) + B ū (k) + d i ,
x̄ i (k) ∈ X i ,
i
i
ū (k) ∈ U ,
i
i
x̄ (0) = x (t),
i = 1, . . . , N , k = 0, . . . , Hp − 1,
(6.11b)
i = 1, . . . , N , k = 1, . . . , Hp − 1,
(6.11c)
i = 1, . . . , N , k = 0, . . . , Hp − 1,
(6.11d)
qs (x̄ (td )) ≤ 0,
i
(6.11a)
i = 2, . . . , N ,
i = 1, . . . , N ,
(6.11e)
(6.11f)
with x i (t) denoting the state of the i th vehicle at time t, which is a coupled problem. The coupling and sparsity graphs for this problem are depicted in Figure 6.2.
For the sparsity graph illustrated in the figure it is assumed that Hp = 2. Notice
that the coupling graph of the problem has the same structure as the platoon itself. This means that this problem can be solved distributedly using algorithms
generated from the approaches discussed in sections 5.3.1 and 5.3.2, over the
platoon, where each vehicle then takes the role of a computational agent.
Also it is possible to establish that the sparsity graph for this problem is chordal,
with a clique tree that has the same structure as the coupling graph of the prob-
56
6
Examples in Control and Estimation
Figure 6.3: Localization problem with N = 7 sensors, marked with large
dots, and m = 6 anchors. An edge between two sensors shows the availability
of range measurement between the two.
lem. As a result, we can also use the algorithm in Section 5.3.3 for solving
this problem over the platoon of the vehicles. Consequently, we can devise distributed algorithms for solving the platooning problem using any of the approaches
discussed in Section 5.3, and all the resulting algorithms use the platoon structure as their computational graph.
6.2
Distributed Localization of Scattered Sensor
Networks
In this section we discuss a localization problem in sensor networks. Let us assume that we are given a network of N sensors distributed in an area, and in
presence of m anchors. The localization problem then concerns the estimation
of unknown sensor positions, xsi , using inter-sensor and sensor-anchor distance
measurements. Here we assume that the position of the anchors, xai , are known.
Next we describe how this problem can be formulated as a coupled optimization
problem that can be solved using the algorithms discussed in Section 5.3. Note
that similar to the previous case a centralized solution may not be a viable choice
for solving this problem. This is because, aside from the huge communications
demand, for large populations of sensors solving the problem could be computationally intractable. Let us start by describing a localization problem in more
details.
6.2.1 A Localization Problem Over Sensor Networks
Let us assume that the sensors in the network are capable of performing computations and some can measure their distance to certain other sensors and some
6.2
Distributed Localization of Scattered Sensor Networks
57
of the anchors. We assume that if sensor i can measure its distance to sensor j,
this measurement is also available for sensor j. This then allows us to describe
the range measurement availability among sensors using an undirected graph
Gr (Vr , Er ) with vertex set Vr = {1, . . . , N } and edge set Er . An edge (i, j) ∈ Er if
and only if a range measurement between sensors i and j is available, see Figure 6.3. Here, we assume that Gr (Vr , Er ) is connected. Let us define the set of
neighbors of each sensor i, Ner (i), as the set of sensors to which this sensor has
an available range measurement. In a similar fashion let us denote the set of anchors to which sensor i can measure its distance to by Nea (i) ⊆ {1, . . . , m}. We can
describe the inter-sensor range measurements for each sensor as
Rij = Dij + Eij ,
j ∈ Ner (i),
(6.12)
j
where Dij = kxsi − xs k2 defines the sensor distance matrix and Eij is the intersensor measurement noise matrix. Notice that the sparsity pattern of D is defined by the graph Gr (Vr , Er ). Similarly we can describe the anchor range measurements for each sensor i as
Yij = Zij + Vij ,
j ∈ Nea (i),
(6.13)
j
where Zij = kxsi − xa k2 defines the anchor-sensor distance matrix and Vij is the
anchor-sensor measurement noise matrix. We assume that the inter-sensor and
anchor-sensor measurement noises are independent and that Eij ∼ N (0, σij2 ) and
2
Vij ∼ N (0, δij
).
Having defined the setup of the sensor network, we can write the localization
problem in a maximum likelihood setting as
∗
XML



N 
2


X  X 1
i j
D
(x
,
x
)
−
R
= argmax 

s
ij
ij
s



 i=1 j∈Ne (i) σij2
X
r
+
X
j∈Nea (i)


2 
1


i j
Z
(x
,
x
,
)
−
Y

a
ij s
ij 

2


δij

(6.14)
i
h
where X = xs1 . . . xsN ∈ Rd×N with d = 2 or d = 3. This problem can be
formulated as a constrained optimization problem, as was described in Simonetto
and Leus (2014). Let us define matrices Λ and Ξ such that Λij = Dij2 and Ξij =
Zij2 . Then the problem in (6.14) can be equivalently rewritten as the following
constrained optimization problem
58
6
minimize
X,S,Λ,Ξ,D,Z

N  X
X



i=1 j∈Ner (i)
Examples in Control and Estimation
1
(Λij − 2Dij Rij + R2ij )
σij2
X
+
j∈Nea (i)


1
2 
(Ξij − 2Zij Yij + Yij )
2

δij
(6.15a)
subject to




 , i ∈ NN ,
2

Λij = Dij , Dij ≥ 0, j ∈ Ner (i)

j
j


Sii − 2(xsi )T xa + kxa k22 = Ξij


 , i ∈ NN ,
2
Ξij = Zij , Zij ≥ 0, j ∈ Nea (i)
Sii + Sjj − 2Sij = Λij
S = X T X.
(6.15b)
(6.15c)
(6.15d)
So far we have described a way to formulate the localization problem over general
sensor networks as a constrained optimization problem. In this section, however,
we are particularly interested in localization of scattered sensor networks which
corresponds to additional assumptions on the graph Gr (Vr , Er ).
6.2.2 Localization of Scattered Sensor Networks
Let us now assume that the graph Gr (Vr , Er ) is chordal or that it is possible to
compute its chordal embedding by adding only a few edges. Furthermore, given
the set of its cliques CGr = {C1 , . . . , Cl }, we assume that
• |Ci | N ;
• |Ci ∩ Cj | ∀ i , j are small.
Note that the assumptions above imply that each sensor i has access to range
measurements only from a few other sensors. We refer to such sensor networks
as scattered. The localization problem of scattered sensor networks can also be
formulated as a constrained optimization problem using the approach discussed
in Section 6.2.1. However, the formulation of the problem in (6.15) is not fully
representative of the structure in the problem. In order to exploit the structure
in our localization problem we modify (6.15), and equivalently rewrite it as
6.2
Distributed Localization of Scattered Sensor Networks
minimize
X,S,Λ,Ξ,D,Z

N  X
X



i=1 j∈Ner (i)
59
1
(Λij − 2Dij Rij + R2ij )
σij2
X
+
j∈Nea (i)


1
2 

(Ξ
−
2Z
Y
+
Y
)
ij
ij
ij

ij 
2
δij
(6.16a)
subject to




 , i ∈ NN ,
2

Λij = Dij , Dij ≥ 0, j ∈ Ner (i)

j
j


Sii − 2(xsi )T xa + kxa k22 = Ξij


 , i ∈ NN ,
2
Ξij = Zij , Zij ≥ 0, j ∈ Nea (i)
Sii + Sjj − 2Sij = Λij
j
S 0, Sij = (xsi )T xs , ∀ (i, j) ∈ Er ∪ {(i, i) | i ∈ Vr }.
(6.16b)
(6.16c)
(6.16d)
Note that, here, we have modified the constraint in (6.15d) so that the structure
in the problem is more explicit. This modification is based on the observation
that not all the elements of S are used in (6.15b) and (6.15c), and hence we only
have to specify the ones that are needed and leave the rest free. As we will discuss
in the next section, the structure in this problem enables us to use domain-space
decomposition for reformulating the problem to facilitate the use of efficient distributed solvers.
6.2.3 Decomposition and Convex Formulation of Localization of
Scattered Sensor Networks
Consider the inter-sensor measurement graph Gr (Vr , Er ), and assume that this
graph is chordal. In case Gr (Vr , Er ) is not chordal the upcoming discussions hold
for any of its chordal embeddings. Let CGr = {C1 , . . . , Cl } and T (Vt , Et ) be the
clique tree over the cliques. Based on the discussion in Section 5.2.3, then for the
problem in (6.16) we have S ∈ SN
Gm . Hence, we can rewrite (6.16) as
minimize
X,SCi Ci ,Λ,Ξ,D,Z

N  X
X



i=1 j∈Ner (i)
1
(Λij − 2Dij Rij + R2ij )
σij2
X
+
j∈Nea (i)


1
2 
(Ξij − 2Zij Yij + Yij )
2

δij
(6.17a)
subject to




 , i ∈ NN ,

Dij ≥ 0, j ∈ Ner (i)
Sii + Sjj − 2Sij = Λij
Λij = Dij2 ,
(6.17b)
60
6
j
Examples in Control and Estimation
j
Ξij = Zij2 ,





 , i ∈ NN ,
Zij ≥ 0, j ∈ Nea (i)
(6.17c)
SCi Ci 0,
SCi Ci = ECi X T XECT i , i ∈ Nl ,
(6.17d)
Sii − 2(xsi )T xa + kxa k22 = Ξij
Notice that even though the cost function for this problem is convex, the constraints in (6.17b)–(6.17d) are non-convex and hence the problem is non-convex.
Consequently, we next address the localization problem by considering a convex
relaxation of this problem. This allows us to solve the localization problem approximately.
One of the ways to convexify the problem in (6.17) is to relax the quadratic
equality constraints in (6.17b)– (6.17d) using Schur complements, which results
in


N  X

X
X



minimize
fij (Λij , Dij ) +
gij (Ξij , Zij )
(6.18a)



X,SCi Ci ,Λ,Ξ,D,Z
i=1 j∈Ner (i)
j∈Nea (i)
subject to
(Sii , Sjj , Sij , Λij , Dij ) ∈ Ωij ,
(i, j) ∈ Er ,
(Sii , xsi , Ξij , Zij ) ∈ Θ ij , j ∈ Nea (i), i ∈ NN ,
"
#
I
XECT i
0, i ∈ Nl ,
ECi X T SCi Ci
(6.18b)
(6.18c)
(6.18d)
where
fij (Λij , Dij ) =
1
(Λij − 2Dij Rij + R2ij ),
σij2
gij (Ξij , Zij ) =
1
(Ξij − 2Zij Yij + Yij2 ),
2
δij
and




Ωij = 
(Sii , Sjj , Sij , Λij , Dij ) Sii + Sjj − 2Sij = Λij ,



"
#


1 Dij

0, Dij ≥ 0
,

Dij Λij




j
j

i
Θ ij = 
(S , x , Ξ , Z ) S − 2(xsi )T xa + kxa k22 = Ξij ,

 ii s ij ij ii

"
#


1 Zij

0, Zij ≥ 0, j ∈ Nea (i)
.

Zij Ξij

This problem is a coupled SDP and can be solved distributedly using l computational agents. In order to see this with more ease, let us introduce a grouping
6.2
Distributed Localization of Scattered Sensor Networks
61
of the cost function terms and constraints in (6.18a)–(6.18c). To this end we first
describe a set of assignment rules. It is possible to assign
1. the constraint (Sii , Sjj , Sij , Λij , Dij ) ∈ Ωij and the cost function term fij to
agent k if (i, j) ∈ Ck × Ck ;
2. the set of constraints (Sii , xsi , Ξij , Zij ) ∈ Θ ij , j ∈ Nea (i) and the cost function
terms gij , j ∈ Nea (i) to agent k if i ∈ Ck .
We denote the indices of the constraints and cost function terms assigned to agent
k through Rule 1 above as φk , and similarly we denote the set of constraints and
cost function terms that are assigned to agent k through Rule 2 by φ̄k . Using
the mentioned rules and the defined notations, we can now group the constraints
and the cost function terms and rewrite the problem in (6.18) as


l 

X
X X
 X



minimize
f
(Λ
,
D
)
+
g
(Ξ
,
Z
)
(6.19a)
ij
ij
ij
ij
ij
ij


X,SCk Ck ,Λ,Ξ,D,Z
k=1 (i,j)∈φk
i∈φ̄k j∈Nea (i)
subject to






i

(Sii , xs , Ξij , Zij ) ∈ Θ ij , j ∈ Nea (i) i ∈ φ̄k 

, k ∈ Nl ,

"
#

T


I
XECk


0


E XT S
(Sii , Sjj , Sij , Λij , Dij ) ∈ Ωij , (i, j) ∈ φk
Ck
(6.19b)
Ck Ck
Notice that this problem can now be seen as a combination of l coupled subproblems, each defined by a term in the cost function together with its corresponding
set of constraints in (6.19b). It is possible to employ distributed optimization
algorithms generated using the approaches discussed in sections 5.3.1 and 5.3.2
for solving this coupled problem. The computational graphs for these algorithms
are a clique tree of Gr (Vr , Er ). It is also possible to show that the sparsity graph
of this problem is chordal with l cliques, and its corresponding clique tree has
the same structure as that of Gr (Vr , Er ). This enables us to also use the approach
in Section 5.3.3 for designing distributed solutions for (6.19) that share the same
computational graph as that of the other algorithms.
In this section, we showed that the algorithms produced using the approaches
described in Chapter 5, can be used for solving problems in different disciplines.
In the next chapter, we finish Part I of the thesis with some concluding remarks.
7
Conclusions and Future Work
The research conducted towards this thesis was driven by robustness analysis
problems of large-scale uncertain systems. As was discussed in the introduction,
performing such analysis commonly requires solving large-scale optimization
problems. These problems are often either impossible or too time-consuming
to solve. This could be due to the sheer size of the problem and/or due to certain structural constraints. In order to address the associated computational challenges, we firstly exploited the inherent structure in such problems, which then
allowed us to employ efficient centralized optimization algorithms for solving
these problems. This enabled us to handle large analysis problems with much
less computational time, see papers D and G. The structure exploitation also
paved the way for decomposing the problem and formulating it as a coupled
optimization problem. This in turn enabled us to utilize or devise tailored distributed optimization algorithms for solving the decomposed problem. The use
of distributed algorithms extended our ability to handle very large analysis problems and also to address certain structural constraints, such as privacy, see Paper E.
In order to improve the efficiency of the proposed distributed analysis algorithm, we then turned our focus towards devising more efficient distributed optimization algorithms. This led to the papers A–C and F, see Chapter 5 for an
overview of these algorithms. Although the proposed algorithms in these papers
were initially devised for solving decomposed analysis problems, they can also
be used for solving general coupled optimization problems that appear in other
engineering fields. We touched upon this in Chapter 6.
63
64
7.1
7 Conclusions and Future Work
Future Work
In this thesis we utilized a two phase approach for devising distributed algorithms for solving coupled optimization problems. The first phase concerned the
reformulation or decomposition of the problem and the second phase involved
devising efficient algorithms for solving the decomposed problem distributedly.
It is possible to improve the efficiency and extend the application domain of the
resulting distributed algorithms by wisely tweaking flexibilities in each of these
phases. We next describe some examples of such improvements.
Let us start by focusing on the first phase of the approach. The outcome of
this phase is commonly a decomposed or coupled optimization problem. The
constituent subproblems of the coupled problem can have different sizes. Recall
that at every iteration of distributed algorithms, each agent needs to solve a local
problem that is based on its assigned subproblem. As a result, the computational
burden on agents with disproportionately bigger subproblems can be potentially
significantly higher than for the other agents. Furthermore, as a consequence, iterate updates for these agents can take considerably longer time than the other
agents. The unbalanced size of subproblems can hence introduce latencies and
can adversely affect the runtime and efficiency of the proposed algorithms. Consequently, by designing reformulation strategies that produce coupled problems
with balanced subproblems sizes, we can avoid the mentioned issues and potentially improve the computational and convergence properties of the proposed
algorithms. The reformulation procedure can also be modified such that the coupling or sparsity graph of the resulting coupled problem better represent physical coupling structure in the problem. This then results in distributed algorithms
with more sensible computational graphs.
Currently the proposed distributed optimization algorithms can be used for
solving convex coupled optimization problems. This limits the scope of problems that can be solved using these algorithms. As a result a viable research
avenue would be to investigate the possibility of extending the application of the
proposed algorithms to non-convex problems. This, for instance, can be done
by combining the approaches discussed in sections 5.3.2 and 5.3.3 with general
interior-point methods for nonlinear optimization problems.
In this thesis, we mainly focused on applications related to robustness analysis of uncertain systems. A clear extension of applicability of the proposed
algorithms is to use them for robust control synthesis for large-scale uncertain
systems, e.g., using IQCs (Köse and Scherer, 2009; Veenman and Scherer, 2014).
Moreover, as we briefly discussed in Chapter 6, the proposed algorithms can also
be used in applications from other disciplines. We will also explore such possibilities as part of future research work.
