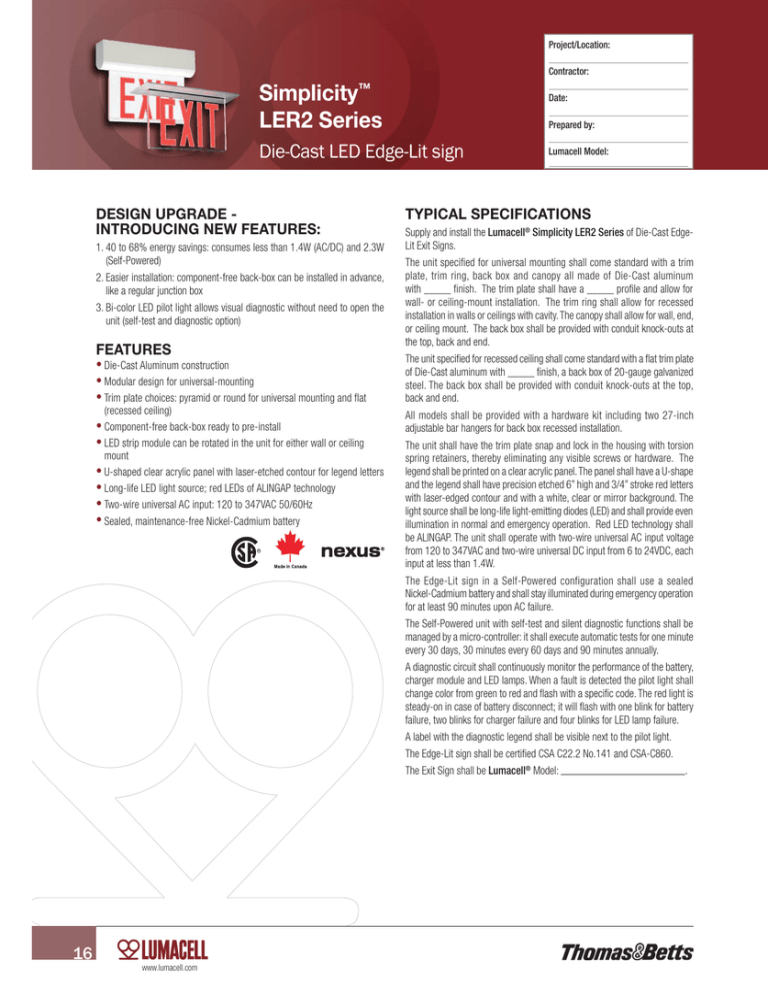

Simplicity™
LER2 Series
Date:
Prepared by:
Die-Cast LED Edge-Lit sign
DESIGN UPGRADE INTRODUCING NEW FEATURES:
1. 40 to 68% energy savings: consumes less than 1.4W (AC/DC) and 2.3W
(Self-Powered)
2. Easier installation: component-free back-box can be installed in advance,
like a regular junction box
3. Bi-color LED pilot light allows visual diagnostic without need to open the
unit (self-test and diagnostic option)
FEATURES
•Die-Cast Aluminum construction
•Modular design for universal-mounting
•Trim plate choices: pyramid or round for universal mounting and flat
(recessed ceiling)
•Component-free back-box ready to pre-install
•LED strip module can be rotated in the unit for either wall or ceiling
mount
•U-shaped clear acrylic panel with laser-etched contour for legend letters
•Long-life LED light source; red LEDs of ALINGAP technology
•Two-wire universal AC input: 120 to 347VAC 50/60Hz
•Sealed, maintenance-free Nickel-Cadmium battery
16
www.lumacell.com
Lumacell Model:
TYPICAL SPECIFICATIONS
Supply and install the Lumacell® Simplicity LER2 Series of Die-Cast EdgeLit Exit Signs.
The unit specified for universal mounting shall come standard with a trim
plate, trim ring, back box and canopy all made of Die-Cast aluminum
with _____ finish. The trim plate shall have a _____ profile and allow for
wall- or ceiling-mount installation. The trim ring shall allow for recessed
installation in walls or ceilings with cavity. The canopy shall allow for wall, end,
or ceiling mount. The back box shall be provided with conduit knock-outs at
the top, back and end.
The unit specified for recessed ceiling shall come standard with a flat trim plate
of Die-Cast aluminum with _____ finish, a back box of 20-gauge galvanized
steel. The back box shall be provided with conduit knock-outs at the top,
back and end.
All models shall be provided with a hardware kit including two 27-inch
adjustable bar hangers for back box recessed installation.
The unit shall have the trim plate snap and lock in the housing with torsion
spring retainers, thereby eliminating any visible screws or hardware. The
legend shall be printed on a clear acrylic panel. The panel shall have a U-shape
and the legend shall have precision etched 6” high and 3/4” stroke red letters
with laser-edged contour and with a white, clear or mirror background. The
light source shall be long-life light-emitting diodes (LED) and shall provide even
illumination in normal and emergency operation. Red LED technology shall
be ALINGAP. The unit shall operate with two-wire universal AC input voltage
from 120 to 347VAC and two-wire universal DC input from 6 to 24VDC, each
input at less than 1.4W.
The Edge-Lit sign in a Self-Powered configuration shall use a sealed
Nickel-Cadmium battery and shall stay illuminated during emergency operation
for at least 90 minutes upon AC failure.
The Self-Powered unit with self-test and silent diagnostic functions shall be
managed by a micro-controller: it shall execute automatic tests for one minute
every 30 days, 30 minutes every 60 days and 90 minutes annually.
A diagnostic circuit shall continuously monitor the performance of the battery,
charger module and LED lamps. When a fault is detected the pilot light shall
change color from green to red and flash with a specific code. The red light is
steady-on in case of battery disconnect; it will flash with one blink for battery
failure, two blinks for charger failure and four blinks for LED lamp failure.
A label with the diagnostic legend shall be visible next to the pilot light.
The Edge-Lit sign shall be certified CSA C22.2 No.141 and CSA-C860.
.
The Exit Sign shall be Lumacell® Model:
Simplicity™
LER2 Series
Die-Cast LED Edge-Lit sign
DIMENSIONS
Dimensions are approximate and subject to change.
DIE-CAST EDGE-LIT
163/4” [42.7 cm]
4” [10.0 cm]
16” [40.8 cm]
121/8” [30.9 cm]
123/8” [31.5 cm]
71/2” [19.0 cm]
61/4” [15.7 cm]
4” [10.0 cm]
105/8” [27.1 cm]
45/8” [11.6 cm]
21/2” [6.4 cm]
11/8” [2.9 cm]
27/8” [7.4 cm]
21/2” [6.4 cm]
45/8” [11.6 cm]
121/4” [31.3 cm]
31/4” [8.3 cm]
85/8” [21.9 cm]
27/8” [7.4 cm]
13” [32.9 cm]
DIE-CAST RECESSED EDGE-LIT
37/8” [9.9 cm]
71/2” [19 cm]
75/8” [19.4 cm]
37/8” [19.9 cm]
31/4” [8.3 cm]
15” [38.1 cm]
127/8” [32.9 cm]
POWER CONSUMPTION
MODEL
AC SPECS
DC SPECS
AC/DC-red
120 to 347VAC
Less than 4.5W
6 to 48VDC
AC/DC-green
120 to 347VAC
Less than 2.5W
6 to 48VDC
Less than 2.5W
Less than 1.5W
Self-Powered-red
120 to 347VAC
Less than 5W
Nickel-Cadmium battery
Minimum 90 minutes
Self-Powered-green
120 to 347VAC
Less than 4W
Nickel-Cadmium battery
Minimum 90 minutes
ORDERING INFORMATION
SERIES
FACES
CHEVRONS
LER2
1= single
face
2= double
face
0= no chevrons
1= one chevron,
double face
2= double chevrons
3= chevron right
4= chevron left
UA= u niversal
chevrons. Field
installed
HOUSING
COLOUR
A= brushed
aluminum
B= black
BR= bronze
CH= chrome
PB= polished
brass
W= factory white
LEGEND
BACKGROUND
R= red
G= green
C= clear single face
M= mirror
W= white
VOLTAGE
TRIM OPTION
P= pyramid,
universal mount
R= round, universal
mount
F= flat trim, ceiling
mount, recessed
only
AC= AC only, 120 to 347VAC
DC=120 to 347VAC, 6 to 24VDC
SD= Self-Powered diagnostic, 120/347VAC
SD2= Self-Powered diagnostic, 120/277VAC
SP= Self-Powered, 120 to 347VAC*
NEX= 120/347VAC; NEXUS® Wired/2 hours**
NEXRF= 120/347VAC; NEXUS® Wireless/2 hours**
* Self-Powered (90 Min time base)
** Consult your sales representative for options available with
NEXUS® system.
EXAMPLE: LER210WRCDCP
www.lumacell.com
17
