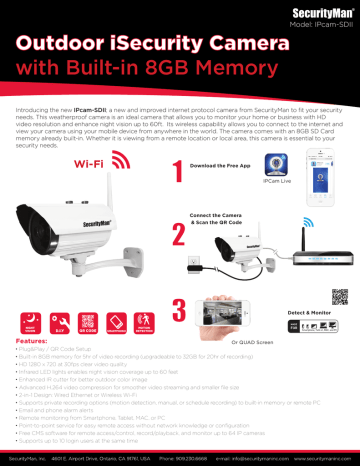

IPCAM-SDII
Model: IPcam-SDII
Outdoor iSecurity Camera
with Built-in 8GB Memory
Introducing the new IPcam-SDII; a new and improved internet protocol camera from SecurityMan to fit your security
needs. This weatherproof camera is an ideal camera that allows you to monitor your home or business with HD
video resolution and enhance night vision up to 60ft. Its wireless capability allows you to connect to the internet and
view your camera using your mobile device from anywhere in the world. The camera comes with an 8GB SD Card
memory already built-in. Whether it is viewing from a remote location or local area, this camera is essential to your
security needs.
Wi-Fi
Download the Free App
IPCam Liv
e
IPCam
Live
Connect the Camera
& Scan the QR Code
Detect & Monitor
NIGHT
VISION
Features:
QR CODE
SMARTPHON E
MOTION
DETECTION
Smartphone, Ta bl et, MAC, and PC
Or QUAD Screen
• Plug&Play / QR Code Setup
• Built-in 8GB memory for 5hr of video recording (upgradeable to 32GB for 20hr of recording)
• HD 1280 x 720 at 30fps clear video quality
• Infrared LED lights enables night vision coverage up to 60 feet
• Enhanced IR cutter for better outdoor color image
• Advanced H.264 video compression for smoother video streaming and smaller file size
• 2-in-1 Design: Wired Ethernet or Wireless Wi-Fi
• Supports private recording options (motion detection, manual, or schedule recording) to built-in memory or remote PC
• Email and phone alarm alerts
• Remote monitoring from Smartphone, Tablet, MAC, or PC
• Point-to-point service for easy remote access without network knowledge or configuration
• Free CMS software for remote access/control, record/playback, and monitor up to 64 IP cameras
• Supports up to 10 login users at the same time
Package Contents:
•
•
•
•
• Mounting screws
• QSG (quick start guide)
• CD (PC software and manual)
IPcam-SDII main unit
Power adapter
Ethernet cable
Mounting Bracket
Key Specifications:
Camera
Image Sensor
1/4” Megapixel CMOS, Color
Video Standard
NTSC
Lens
8mm
Minimum Illumination
0.1 Lux (IR OFF), 0 LUX (IR ON)
Frame Rate
30fps (NTSC)
Resolution
1280 x 720
IR Cut Filter
Yes (For better outdoor color image)
Night Vision
Up to 60 feet
Dimension (L x D)
4.5” x 3.0” (camera only)
G.W/N.W
3.0lbs/1.5lbs (camera/bracket/antenna/visor)
Video Compression
H.264 high profile / Snapshot: JPEG, BMP
Recording/
Recording Mode
Motion detection, manual, and schedule
Playback
Indoor/outdoor usage
Both
Operating temperature
14° -122° Fahrenheit
Humidity
95% Relative Humidity
Power
Input: 100~240VAC, Output: 12VDC, 2.0A
Storage
Internal 8GB built-in. Optional upgrade up to 32GB SD card
Backup
Remote back up to PC
Playback
Playback via SD Card; Playback via remote devices/CMS
Motion Detection
Video Motion Detection
Alarm Actions
Email photo, record video/photo to FTP, record video/photo to SD
Network Interface
10/100 Base Ethernet (for wired network connection)
Wireless Network
Wi-Fi 802.11 b/g/n
IP Mode
Dynamic IP address; static IP address
Online Users
Up to 10 users
Mobile Surveillance
iPhone, Android
Internet Viewing
Supports browsers: Internet Explorer, Firefox, & Safari
Remote Access
Yes
CMS Software
Computer software used to setup recording, remote monitoring, remote access and control, search
Alarm
Network
Software
and playback, and up to 64 multiple cameras surveillance
User Levels For CMS
Administrator, Normal, & Guest (viewing only)
Camera Naming
Customize each camera’s name
Video Adjustment
Brightness, contrast, & saturation
Video Bit Rate
1024 Kbps - 4096 Kbps
Password Protection
Yes
CPU &
Operating System
Embedded Linux OS
System
Micro Processor
32Bit RISC embedded processor
System Requirement
Microsoft Windows XP, Vista, 7, & 8
