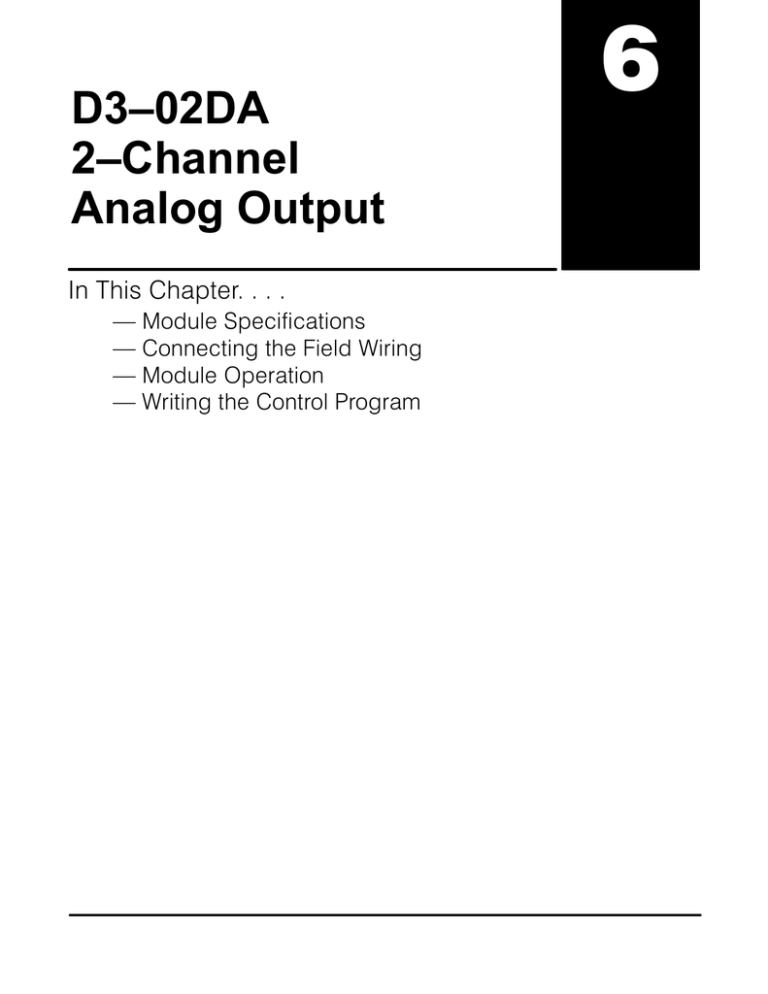

In This Chapter. . . .
Ċ Module Specifications
Ċ Connecting the Field Wiring
Ċ Module Operation
Ċ Writing the Control Program
16
6–2
D3–02DA
2-Channel Analog Output
D3–02DA 2-Channel Analog Output
Module Specifications
The following table provides the specifications for the D3–02DA Analog Output
Module. Review these specifications to make sure the module meets your
application requirements.
Analog Output
Configuration
Requirements
Number of Channels
2 (independent)
Output Ranges
0 – 10V, 4 – 20 mA
Resolution
8 bit (1 in 256)
Output Type
Single ended
Output Impedance
.5W maximum, voltage output
Output Current
10 mA minimum, voltage output @ 10 VDC
Load Impedance
550W maximum, 5W minimum, current output
Total Inaccuracy
"0.4% maximum at 25_ C
Accuracy vs. Temperature
"50 ppm / _C maximum
Conversion Time
100ms maximum (2 channels/scan)
Power Budget Requirement
80 mA @9V
External Power Supply
24 VDC, "10%, 170 mA, class 2
Operating Temperature
32° to 140° F (0° to 60_ C)
Storage Temperature
–4° to 158° F (–20° to 70_ C)
Relative Humidity
5 to 95% (non-condensing)
Environmental air
No corrosive gases permitted
Vibration
MIL STD 810C 514.2
Shock
MIL STD 810C 516.2
Noise Immunity
NEMA ICS3–304
The D3–02DA Analog Output appears as a 16-point module. The module can be
installed in any slot configured for 16 points. See the DL305 User Manual for details
on using 16 point modules in DL305 systems. The limitation on the number of analog
modules are:
S For local and expansion systems, the available power budget and
16-point module usage are the limiting factors.
6–3
D3–02DA 2-Channel Analog Output
Wiring Guidelines
Your company may have guidelines for wiring and cable installation. If so, you should
check those before you begin the installation. Here are some general things to
consider.
S Use the shortest wiring route whenever possible.
S Use shielded wiring and ground the shield at the module or the power
supply return (0V). Do not ground the shield at both the module and the
transducer.
S Don’t run the signal wiring next to large motors, high current switches, or
transformers. This may cause noise problems.
S Route the wiring through an approved cable housing to minimize the risk
of accidental damage. Check local and national codes to choose the
correct method for your application.
User Power Supply The D3–02DA requires a separate power supply. Choose a supply that meets the
following requirements: 24 VDC "10%, Class 2, 170mA current (or greater,
Requirements
depending on the number of modules being used.)
Load
Requirements
Each channel can be wired independently for a voltage or current transducer.
S Current transducers must have an impedance between 5 and 550 ohms
S Voltage transducers must have an impedance greater than 1K ohms.
D3–02DA
2-Channel Analog Output
Connecting the Field Wiring
6–4
D3–02DA
2-Channel Analog Output
D3–02DA 2-Channel Analog Output
Removable
Connector
The D3–02DA module has a removable connector to make wiring easier. Simply
remove the retaining screws and gently pull the connector from the module.
Wiring Diagram
Note 1: Shields should be connected to the 0V
of the module or to the 0V of the P/S.
Note 2: Unused voltage and current outputs
should remain open (no connections).
ANALOG OUTPUT
CH1 1 16 1 16 CH2
18V
Channel 1
is wired for
Current Output
2 32 2 32
4 64 4 64
8 128 8 128
18V
4–20mA
See Note 1
4-20mA
2+
1+
2–
User Load
5–550 ohms
1–
User load
>1K ohm
1+
D–A
Convertor
CH2
2+
2–
0-10VDC
D3–02DA
Internal Module Wiring
CH1
1–
Channel 2
is wired for
Voltage Output
0
V
24
V
– +
24VDC
+/– 10%
(170mA)
+
2
–
0–10V
+
1
–
+
2
–
+24V
+0V
+24V
0
V
+
1
–
24
0 V
V 24
0 V
V
6–5
D3–02DA 2-Channel Analog Output
Channel Scanning
Sequence
Before you begin writing the control program, it is important to take a few minutes to
understand how the module processes and represents the analog signals.
The D3–02DA module updates both channels in the same scan. The control
program updates the two channels of this module independent of each other and
each channel does not have to be refreshed on each scan.
Scan
I/O Update
Channel 1
Scan N
Channel 2
Channel 1
Channel 2
Channel 1
Execute Application Program
Calculate the data
Scan N+1
Scan N+2
Channel 2
Channel 1
Write data
Scan N+3
Channel 2
Channel 1
Channel 2
Scan N+4
D3–02DA
2-Channel Analog Output
Module Operation
6–6
D3–02DA
2-Channel Analog Output
D3–02DA 2-Channel Analog Output
Understanding the You may recall the D3–02DA module appears to the CPU as a 16-point module.
These 16 points provide the digital representation of the analog signal.
I/O Assignments
Since all I/O points are automatically mapped into Register (R) memory, it is very
easy to determine the location of the data word that will be assigned to the module.
D3–02DA
8pt
Relay
8pt
Output
8pt
Output
16pt
Input
050
–
057
040
–
047
030
–
037
020
027
–
120
127
R 002, R012
2ch
(Analog)
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 000, R010
R 011
MSB
R 001
LSB
1
1
1 Channel 2 1
7
0
MSB
LSB
0
0
1 Channel 1 1
0
7
Within these two word locations, the individual bits represent specific information
about the analog signal.
6–7
D3–02DA 2-Channel Analog Output
The first register contains the data for
channel one (R001). The second register
contains the data for channel two (R011).
Bit
Value
Bit
Value
0
1
4
16
1
2
5
32
2
4
6
64
3
8
7
128
R001
MSB
LSB
0
1
7
0
1
0
- analog data bits
Since the module has 8-bit resolution, the analog signal is converted into 256
“pieces” ranging from 0 – 255 (28). For example, with a 0 to 10V scale, a 0V signal
would be 0, and a 10V signal would be 255. This is equivalent to a a binary value of
0000 0000 to 1111 1111, or 00 to FF hexadecimal. The following diagram shows how
this relates to each signal range.
0V – 10V
+10V
4 – 20mA
20mA
4mA
0V
0
255
0
255
Each “piece” can also be expressed in
terms of the signal level by using the
equation shown. The following table
shows the smallest signal levels that will
result in a change in the data value for
each signal range.
Range
0 to 10V
4 to 20mA
Resolution + H * L
255
H = high limit of the signal range
L = low limit of the signal range
Highest Signal
Lowest Signal
Smallest Change
10V
0V
39 mV
20mA
4mA
62.5 mA
Now that you understand how the module and CPU work together to gather and
store the information, you’re ready to write the control program.
D3–02DA
2-Channel Analog Output
Analog Data Bits
6–8
D3–02DA
2-Channel Analog Output
D3–02DA 2-Channel Analog Output
Writing the Control Program (DL330 / DL340)
Identifying the
Data Locations
As mentioned earlier, you can update either channel or both channels during the
same scan. Since the module does not have any channel select bits, you just simply
determine the location of the data word and send the data word to the output module
whenever you need to update the data.
D3–02DA
8pt
Relay
8pt
Output
8pt
Output
050
–
057
040
–
047
030
–
037
16pt
Input
020
027
–
120
127
R 002, R012
2ch
(Analog)
010
017
–
110
117
16pt
Input
000
007
–
100
107
R 000, R010
R 011
MSB
1
1 Channel 2
7
Calculating the
Digital Value
R 001
LSB
MSB
1
1
0
Your program has to calculate the digital
value to send to the analog module.
There are many ways to do this, but most
all applications are understood more
easily if you use measurements in
engineering units. This is accomplished
by using the conversion formula shown.
You may have to make adjustments to
the formula depending on the scale you
choose for the engineering units.
0
1 Channel 1
7
A + 256
LSB
0
1
0
U
H*L
A = Analog value (0 – 255)
U = Engineering Units
H = high limit of the Engineering
unit range
L = low limit of the Engineering
unit range
The following example shows how you would use Engineering Units to obtain the
digital value to represent pressure (PSI) from 0 to 100. This example assumes you
want to obtain a pressure of 42 PSI, which is slightly less than half scale.
A + 256
U
H*L
A + 256
42
100 * 0
A + 107.5 (or 108)
6–9
D3–02DA 2-Channel Analog Output
This example assumes you have already loaded the Engineering unit
value in R400.
Scale the data
374
DSTR
R400
F50
This instruction loads Engineering unit value into
the accumulator.
Accumulator
Aux. Accumulator
0 0 4 2
0 0 0 0
R577
DIV
K100
F74
The Engineering unit value is divided by the
Engineering unit range (42/100=.42). In this case
the range is 100. (100 – 0 = 100)
Accumulator
Aux. Accumulator
0 0 0 0
4 2 0 0
R577
DSTR
R576
F50
F73
R576
The accumulator is then multiplied by the module
resolution, which is 256. (256 x 4200 = 1075200).
Notice the most significant digits are now stored in
the auxilliary accumulator. (This is different from
the Divide instruction operation.)
5
DSTR
R576
R576
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 0 0
4 2 0 0
R577
MUL
K256
R576
Accumulator
2 0 0
F50
Aux. Accumulator
0 1 0 7
R577
R576
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
0 1 0 7
0 1 0 7
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R451
and R450. R451 and R450 now contain the digital
value, which is 107.
0
Accumulator
1 0 7
Store in R451 & R450
0 1 0 7
R451
R450
D3–02DA
2-Channel Analog Output
Here’s how you would write the program to perform the Engineering Unit conversion.
This example assumes you have calculated or loaded the engineering unit value
and stored it in R400. Also, you have to perform this for both channels if you’re using
different data for each channel.
6–10
D3–02DA
2-Channel Analog Output
D3–02DA 2-Channel Analog Output
There will probably be times when you need more precise control. For example,
maybe your application requires 42.9 PSI, not just 42 PSI. By changing the scaling
value slightly, we can “imply” an extra decimal of precision. Notice in the following
example we’ve entered 429 as the Engineering unit value and we’ve added another
digit to the scale. Instead of a scale of 100, we’re using 1000, which implies 100.0 for
the PSI range.
This example assumes you have already loaded the Engineering unit value in R400.
Scale the data
374
DSTR
R400
F50
This instruction loads Engineering unit value into
the accumulator.
Accumulator
Aux. Accumulator
0 4 2 9
0 0 0 0
R577
DIV
K1000
F74
The Engineering unit value is divided by the
Engineering unit range, which in this case is 1000.
(100.0 implied range) (429/1000 = .429)
Accumulator
Aux. Accumulator
0 0 0 0
4 2 9 0
R577
DSTR
R576
F50
F73
F50
R576
The accumulator is then multiplied by the module
resolution, which is 256. (256 x 4290 = 1098240).
Notice the most significant digits are now stored in
the auxilliary accumulator. (This is different from
the Divide instruction operation.)
8
DSTR
R576
R576
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
Accumulator
Aux. Accumulator
4 2 9 0
4 2 9 0
R577
MUL
K256
R576
Accumulator
2 4 0
Aux. Accumulator
0 1 0 9
R577
R576
This instruction moves the two-byte auxilliary
accumulator for further operations.
Accumulator
Aux. Accumulator
0 1 0 9
0 1 0 9
DOUT
R450
F60
R577
R576
This instruction stores the accumulator to R450
and R451. R450 and R451 now contain the digital
value, which is 109.
Accumulator
Store in R451 & R450
0 1 0 9
0 1 0 9
R451
R450
6–11
D3–02DA 2-Channel Analog Output
In some applications, you’ll want to send the same output values to both channels.
The following program example shows how to send the digital values to the module.
This example assumes you have already loaded the Engineering unit value in R450 and R451.
Send Channel 1 & 2
374
DSTR
R450
F50
This rung loads the data into the accumulator on
every scan.
BIN
F85
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
DOUT1
R001
F61
Send the accumulator data to the Register that
corresponds to channel 1, which is R001.
DOUT1
R011
F61
Send the accumulator data to the Register that
corresponds to channel 2, which is R011.
If you want a shorter program, just combine the data scaling and output instructions.
This example assumes you have already loaded the Engineering unit value in R400.
Send Channel 1 & 2
374
DSTR
R400
F50
This instruction loads Engineering unit value into
the accumulator.
DIV
K1000
F74
The Engineering unit value is divided by the
Engineering unit range, which in this case is 1000.
(100.0 implied range)
DSTR
R576
F50
This instruction moves the two-byte decimal
portion into the accumulator for further operations.
MUL
K256
F73
The accumulator is then multiplied by the module
resolution, which is 256.
DSTR
R576
F50
This instruction moves the two-byte auxilliary
accumulator into the regular accumulator.
BIN
F85
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
DOUT1
R001
F61
Send the accumulator data to the Register that
corresponds to channel 1, which is R001.
DOUT1
R011
F61
Send the accumulator data to the Register that
corresponds to channel 2, which is R011.
D3–02DA
2-Channel Analog Output
Sending the Same
Data to Both
Channels
6–12
D3–02DA
2-Channel Analog Output
D3–02DA 2-Channel Analog Output
Sending Specific
Data to Each
Channel
In this case, the example logic is setup to send different data to each channel. Of
course, you would have to have separate routines to calculate the output data and
you would have to store the different values in separate registers.
This example assumes you have already loaded the Engineering unit value for Channel 1 in R450 and R451
and the data for Channel 2 in R452 and R453.
Send Channel 1
374
Send Channel 2
374
DSTR
R450
F50
This rung loads the data for channel 1 into the
accumulator on every scan.
BIN
F85
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
DOUT1
R001
F61
Send the accumulator data to the Register that
corresponds to channel 1, which is R001.
DSTR
R452
F50
This rung loads the data for channel 2 into the
accumulator on every scan.
BIN
F85
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
DOUT1
R011
F61
Send the accumulator data to the Register that
corresponds to channel 2, which is R011.
6–13
D3–02DA 2-Channel Analog Output
Multiplexing:
DL350 with a
Conventional
DL305 Base
This example assumes the module is in the Y10–17 / Y110–117 slot of a 305
conventional base. In this example V1400 contains the BCD data for channel 1 and
V1401 contains the data for channel 2.
Send Channel 1
SP1
LD
V1400
This rung loads the data for channel 1 into the
accumulator on every scan.
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
BIN
ANDD
OUTF
Kff
Masks off the 256 bit analog data for the module.
Y10
Send the accumulator data to the bits that
correspond to channel 1.
K8
Send Channel 2
SP1
LD
V1401
This rung loads the data for channel 2 into the
accumulator on every scan.
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
BIN
ANDD
OUTF
K8
Kff
Masks off the 256 bit analog data for the module.
Y110
Send the accumulator data to the bits that
correspond to channel 2.
D3–02DA
2-Channel Analog Output
Writing the Control Program (DL350)
6–14
D3–02DA
2-Channel Analog Output
D3–02DA 2-Channel Analog Output
Multiplexing:
DL350 with a
D3–xx–1 Base
This example assumes the module is in Y0 address slot of a D3–xx–1 base . In this
example V1400 contains the BCD data for channel 1 and V1401 contains the data
for channel 2. If any expansion bases are used in the system, they must all be
D3–xx–1 to be able to use this example. Otherwise, the conventional base
addressing must be used.
Send Channel 1
SP1
LD
V1400
This rung loads the data for channel 1 into the
accumulator on every scan.
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
BIN
ANDD
OUTF
Kff
Masks off the 256 bit analog data for the module.
Y0
Send the accumulator data to the bits that
correspond to channel 1.
K8
Send Channel 2
SP1
LD
V1401
This rung loads the data for channel 2 into the
accumulator on every scan.
Since the data is in BCD format, you have to
convert it to binary before you send the data to the
module.
BIN
ANDD
OUTF
K8
Kff
Masks off the 256 bit analog data for the module.
Y10
Send the accumulator data to the bits that
correspond to channel 2.
6–15
D3–02DA 2-Channel Analog Output
Range
If you know the digital value ...
If you know the analog signal
level ...
0 to 10V
A + 10D
255
D + 255 A
10
4 to 20mA
A + 16D ) 4
255
D + 255 (A * 4)
16
For example, if you are using the
4–20mA range and you know you need a
10mA signal level, you would use the
following formula to determine the digital
value that should be sent to the module.
D + 255 (A * 4)
16
D + 255 (10mA * 4)
16
D + (15.93) (6)
D + 96
Calculating the
Digital Value
Your program must calculate the digital
value to send to the analog module.
There are many ways to do this, but most
applications are understood more easily
if you use measurements in engineering
units. This is accomplished by using the
conversion formula shown.
You may have to make adjustments to
the formula depending on the scale you
choose for the engineering units.
A + U 255
H*L
A = Analog value (0 – 255)
U = Engineering Units
H = high limit of the engineering
unit range
L = low limit of the engineering
unit range
Consider the following example which controls pressure from 0.0 to 99.9 PSI. By
using the formula, you can easily determine the digital value that should be sent to
the module. The example shows the conversion required to yield 49.4 PSI. Notice
the formula uses a multiplier of 10. This is because the decimal portion of 49.4
cannot be loaded, so you adjust the formula to compensate for it.
A + 10U
255
10(H * L)
A + 494
255
1000 * 0
A + 126
D3–02DA
2-Channel Analog Output
Analog and Digital Sometimes it is helpful to be able to quickly convert between the voltage or current
Value Conversions signal levels and the digital values. This is especially helpful during machine startup
or troubleshooting. The following table provides formulas to make this conversion
easier.
6–16
D3–02DA
2-Channel Analog Output
D3–02DA 2-Channel Analog Output
The example program below shows how you would write the program to perform the
engineering unit conversion. This example assumes you have calculated or loaded
the engineering unit values in BCD and stored them in V2300 and V2301 for
channels 1 and 2 respectively.
NOTE: The DL350 offers various instructions that allow you to perform math
operations using BCD format. It is easier to perform math calculations in BCD and
then convert the value to binary before sending the data to the module.
SP1
LD
V2300
MUL
K255
DIV
K1000
OUT
V1400
SP1
LD
V2301
MUL
K255
DIV
K1000
OUT
V1401
The LD instruction loads the engineering units used with channel 1 into
the accumulator. This example assumes the numbers are BCD. Since
SP1 is used, this rung automatically executes on every scan. You could
also use an X, C, etc. permissive contact.
Multiply the accumulator by 255 (to start the conversion).
Divide the accumulator by 1000 (because we used a multiplier of
10, we have to use 1000 instead of 100).
Store the BCD result in V1400 (the actual steps to write the data
were shown earlier).
The LD instruction loads the engineering units used with channel 2 into
the accumulator. This example assumes the numbers are BCD. Since
SP1 is used, this rung automatically executes on every scan. You could
also use an X, C, etc. permissive contact.
Multiply the accumulator by 255 (to start the conversion).
Divide the accumulator by 1000 (because we used a multiplier of
10, we have to use 1000 instead of 100).
Store the BCD result in V1401 (the actual steps to write the data
were shown earlier).
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
