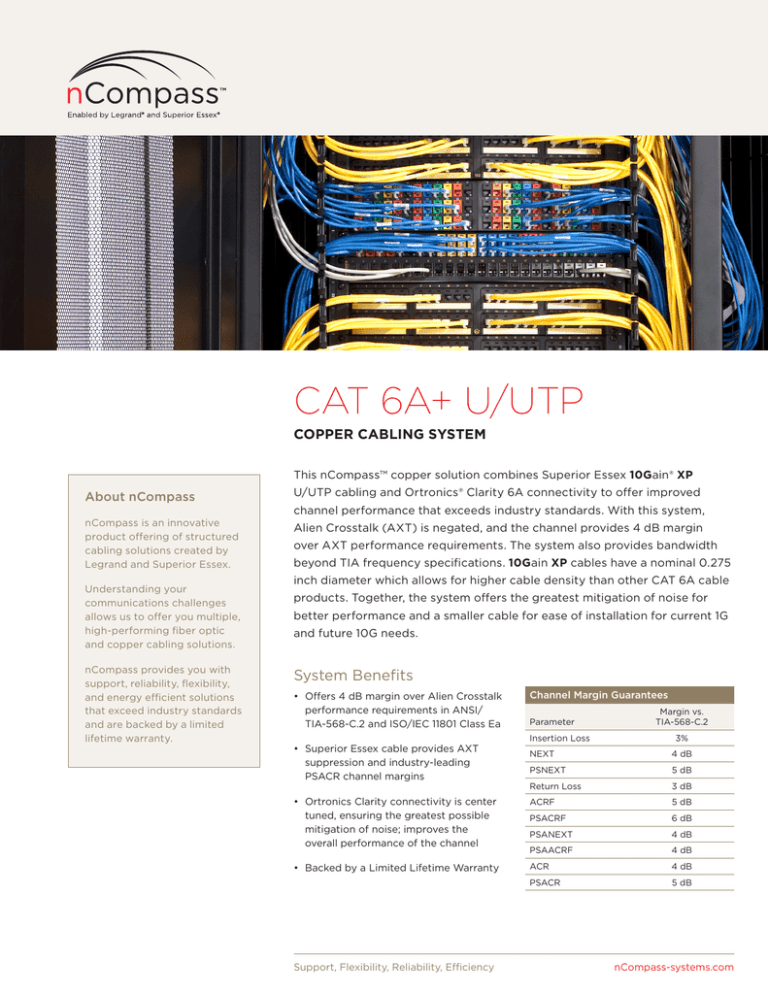

CAT6A+ U/UTP
CAT 6A+ U/UTP
COPPER CABLING SYSTEM
This nCompass™ copper solution combines Superior Essex 10Gain® XP
About nCompass
U/UTP cabling and Ortronics® Clarity 6A connectivity to offer improved
nCompass is an innovative
product offering of structured
cabling solutions created by
Legrand and Superior Essex.
Alien Crosstalk (AXT) is negated, and the channel provides 4 dB margin
Understanding your
communications challenges
allows us to offer you multiple,
high-performing fiber optic
and copper cabling solutions.
nCompass provides you with
support, reliability, flexibility,
and energy efficient solutions
that exceed industry standards
and are backed by a limited
lifetime warranty.
channel performance that exceeds industry standards. With this system,
over AXT performance requirements. The system also provides bandwidth
beyond TIA frequency specifications. 10Gain XP cables have a nominal 0.275
inch diameter which allows for higher cable density than other CAT 6A cable
products. Together, the system offers the greatest mitigation of noise for
better performance and a smaller cable for ease of installation for current 1G
and future 10G needs.
System Benefits
• Offers 4 dB margin over Alien Crosstalk
performance requirements in ANSI/
TIA-568-C.2 and ISO/IEC 11801 Class Ea
• Superior Essex cable provides AXT
suppression and industry-leading
PSACR channel margins
Channel Margin Guarantees
Parameter
Insertion Loss
NEXT
Margin vs.
TIA-568-C.2
3%
4 dB
PSNEXT
5 dB
Return Loss
3 dB
• Ortronics Clarity connectivity is center
tuned, ensuring the greatest possible
mitigation of noise; improves the
overall performance of the channel
ACRF
5 dB
PSACRF
6 dB
PSANEXT
4 dB
PSAACRF
4 dB
• Backed by a Limited Lifetime Warranty
ACR
4 dB
PSACR
5 dB
Support, Flexibility, Reliability, Efficiency
nCompass-systems.com
CAT 6A+ U/UTP
COPPER CABLING SYSTEM
Ortronics® Clarity® CAT 6A U/UTP Modular Jacks for Workstation
Description
Part Number
TracJack® Clarity 6A/10G, 180° Exit T568A/B – Fog White
OR-TJ6A*
High Density Jack Clarity 6A/10G, T68A/B – Fog White
OR-HDJ6A**
*Standard color is Fog White. Choose from additional colors below by adding suffix designation.
-00
-36
-42
-43
-44
-45
-68
-88
-99
**Standard color is Fog White. Choose from additional colors below by adding suffix designation.
-00
-36
-42
-43
-44
-45
OR-TJ6A-42
-88
OR-HDJ6A-44
Ortronics Clarity CAT 6A U/UTP Patch Cords
Description
Part Number
Patch Cord 4 Pair Clarity 6A/10G U/UTP
OR-MC610xx-yy
xx = Length: (03), (05), (07), (09), (15), (20) or (25) feet.
yy = Patch Cord Color: choose from the colors below.
02
03
04
05
06
08
09
Ortronics Clarity CAT 6A U/UTP Patch Panels and Jacks
Description
24-Port
48-Port
Angled Panel Clarity 6A/10G
OR-PHA6AU24
OR-PHA6AU48
Flat Panel Clarity 6A/10G
OR-PHD6AU24
OR-PHD6AU48
Flat PJ Jack Panel Unloaded
OR-PHDPJU24
OR-PHDPJU48
Panel Jack CAT 6A U/UTP T568A/B
OR-PJ6A**
U/UTP Flat HDJ Panel Unloaded
OR-PHDHJU24
OR-PHDHJU48
U/UTP Angled HDJ Panel Unloaded
OR-PHAHJU24
OR-PHAHJU48
High Density Jack Clarity 6A U/UTP T568A/B
OR-HDJ6A**
–
OR-MC61006-06
OR-PHD6AU24
*Standard color is Fog White. Choose from additional colors below by adding suffix designation.
-00
-36
-42
-43
-44
-45
-68
-88
-99
**Standard color is Fog White. Choose from additional colors below by adding suffix designation.
-00
-36
-42
-43
-44
-45
-88
OR-PHDHJU48
Superior Essex 10Gain® XP CAT 6A U/U/UTP Cable
Listing
Part Number
Nom. Diameter
in (mm)
Approx. Weight
lbs/kft (kg/km)
Package
CMR
6H-272-xA
0.275 (6.99)
47 (70)
1,000' Plywood Reel
CMP
6H-272-xB
0.275 (6.99)
45 (67)
1,000' Plywood Reel
x = Jacket Color. Choose from the colors below.
2
3
4
5
6
7
9
D
All information, content, data, specifications, packaging and part numbers detailed herein
are subject to change. For the most up to date information, please visit nCompass-systems.com
LIT#
04/2013
