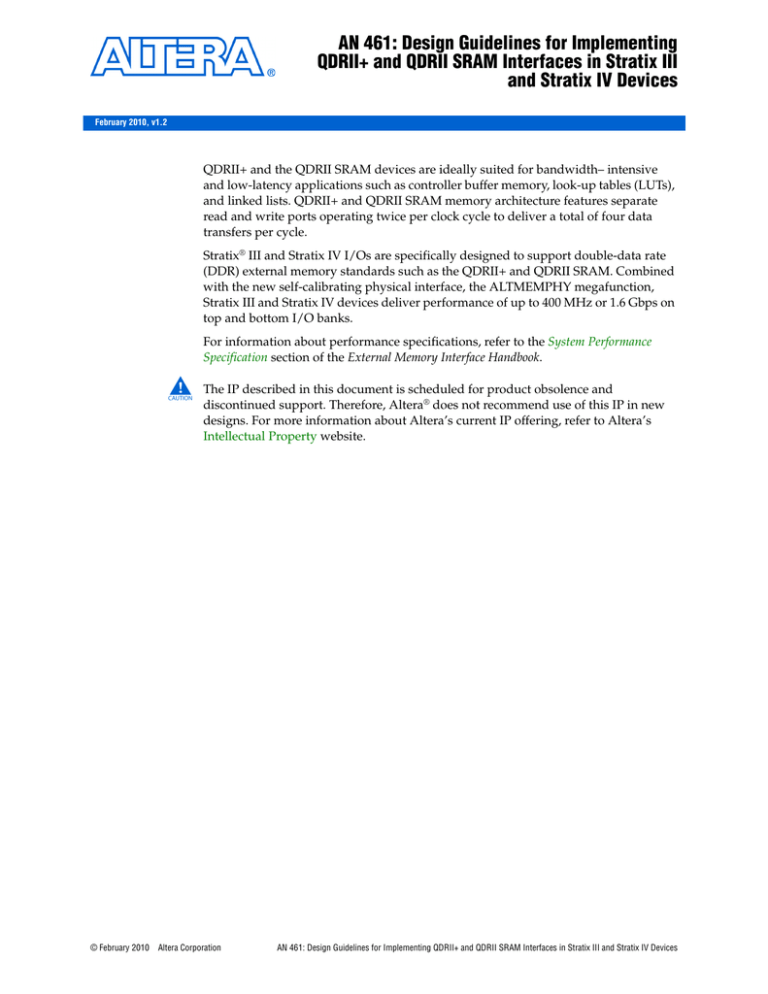

AN 461: Design Guidelines for Implementing

QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices

February 2010, v1.2

QDRII+ and the QDRII SRAM devices are ideally suited for bandwidth– intensive and low-latency applications such as controller buffer memory, look-up tables (LUTs), and linked lists. QDRII+ and QDRII SRAM memory architecture features separate read and write ports operating twice per clock cycle to deliver a total of four data transfers per cycle.

Stratix

®

III and Stratix IV I/Os are specifically designed to support double-data rate

(DDR) external memory standards such as the QDRII+ and QDRII SRAM. Combined with the new self-calibrating physical interface, the ALTMEMPHY megafunction,

Stratix III and Stratix IV devices deliver performance of up to 400 MHz or 1.6 Gbps on top and bottom I/O banks.

For information about performance specifications, refer to the

System Performance

Specification

section of the External Memory Interface Handbook.

c

The IP described in this document is scheduled for product obsolence and discontinued support. Therefore, Altera

®

does not recommend use of this IP in new designs. For more information about Altera’s current IP offering, refer to Altera’s

Intellectual Property website.

© February 2010 Altera Corporation AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices

Page 2

Figure 1

and

Figure 2

show the Stratix III and the Stratix IV input, output, and output-enable register paths for the QDRII+ and QDRII SRAM interface.

Figure 1. Stratix III and Stratix IV IOE Input Registers for QDRII+/QDRII SRAM Interface

(Note 1)

DQ

DQS(3)

Differential

Input Buffer

DQSn

CQn(4)

0

1

Double Data Rate Input Registers

D Q

DFF

Input Reg A

I

D Q neg_reg_out

D Q

DFF

Input Reg B

I

DFF

Input Reg C I

Resynchronization Clock

(resync_clk_2x) (5) .

.

0

7

Alignment & Synchronization Registers

D

DFF

Q D Q

DFF

D Q

DFF

D Q

DFF

D

DFF

Q D

DFF

Q

D Q

DFF

(2)

D Q

DFF

Half Data Rate Registers

D Q

DFF

D Q

DFF

D Q

To Core

(rdata1)

(7)

DFF

0

1

To Core (rdata0)

(7) dataoutbypass

(8)

0

1

To Core (rdata2)

(7)

D Q

DFF

D Q

DFF

D

DFF

Q

To Core

(rdata3)

(7)

I/O Clock

Divider(6)

Half-Rate Resynchronization Clock (resync_clk_1x) to core (7)

Notes to Figure 1 :

(1) You can bypass each register block in this path.

(2) This is the zero phase resynchronization clock (from read-leveling delay chain).

(3) The input clock comes either from the DQS logic block (whether the postamble circuitry is bypassed or not) or from a global clock line.

(4) This input clock comes from the CQn logic block.

(5) This resynchronization clock comes either from the PLL or from the read-leveling delay chain.

(6) The I/O clock divider resides adjacent to the DQS logic block. In addition to the PLL and read-leveled resynchronization clock, the I/O clock divider can also be fed by the DQS bus or CQn bus.

(7) The half-rate data and clock signals feed into a dual-port RAM in the FPGA core.

(8) You can dynamically change the dataoutbypass signal after configuration.

AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices © February 2010 Altera Corporation

Page 3

Figure 2. Stratix III and Stratix IV IOE Output and Output-Enable Path Registers for QDRII+/QDRII SRAM Interface

(Note 1)

From Core (2)

Half Data Rate to Single Data Rate Output-Enable Registers

D Q

DFF

0

1

From Core (2)

D Q

D Q

DFF

DFF

D Q

DFF

Alignment Registers (4)

D Q

DFF

Double Data Rate Output-Enable Registers

DFF

D Q

D Q

DFF

OE Reg A

OE

1

0

DFF

D Q

OR2

Half Data Rate to Single Data Rate Output Registers

Alignment Registers (4)

OE Reg B

OE

From Core

(wdata0) (2)

D Q

DFF

0

1

D Q

D Q

Double Data Rate Output Registers

DFF

D Q

From Core

(wdata1) (2)

D Q D Q

DFF

D Q DFF

TRI

DQ or DQS

1

0

DFF

DFF

DFF

Output Reg Ao

DFF

D Q

D Q

From Core

(wdata2) (2)

DFF

D Q

Output Reg Bo

DFF

0

1

D Q

From Core

(wdata3) (2)

DFF

D Q

D Q D Q

DFF

DFF

DFF

Half-Rate

Clock (3)

Alignment

Clock (3)

Write

Clock (5)

Notes to Figure 2 :

(1) You can bypass each register block of the output and out-enable paths.

(2) Data coming from the FPGA core are at half the frequency of the memory interface.

(3) Half-rate and alignment clocks come from the PLL.

(4) These registers are only used in DDR3 SDRAM interfaces.

(5) The write clock comes either from the PLL or from the write-leveling delay chain. The DQ write clock and DQS write clock have a 90° offset between them.

This application note describes Altera’s recommended design flow to implement a

QDRII+ or a QDRII SRAM memory interface on a Stratix III device. You can implement the same design flow on a Stratix IV device as well. An example of a design walk-through that details the critical aspects of this flow is provided, including:

■ Instantiating the physical interface (PHY) to a QDRII or QDRII+ or a QDRII SRAM device.

Setting the appropriate constraints on the PHY.

Verifying the design functionality using simulation.

Timing closure using the TimeQuest timing analyzer in the Quartus

®

II software.

© February 2010 Altera Corporation AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices

Page 4 Memory Interface Design Flow

Use this application note along with the following literature:

External Memory Interfaces in the Stratix III Devices

Handbook.

chapter of the Stratix III Device

External Memory Interfaces in the Stratix IV Devices

chapter of the Stratix IV Device

Handbook.

Timing Analysis

section of the External Memory Interface Handbook.

Memory Interface Design Flow

Altera recommends the design flow described in this section as the best practices for successful memory interface implementation in Stratix III and the Stratix IV devices.

A detailed discussion of each step shown in Figure 3

appears in this section. The next section includes a design example that discusses the shaded design flow steps

(

Figure 3

) in detail.

AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices © February 2010 Altera Corporation

Memory Interface Design Flow

Figure 3. Memory Interface Design Flow Chart for Implementing Stratix III and Stratix IV Devices

Start Design

Select Device

Perform RTL/

Functional Simulation

Does

Simulation Give

Expected Results?

Yes

No

Debug Design

Instantiate PHY and

Create Driver in a Quartus II Project

Optional (1)

Add Constraints

Yes

Compile Design and

Verify Timing

Adjust Constraints

Adjust Termination

Drive Strength

Determine Board

Design Constraints

Perform Board Level

Simulations

Page 5

Does the

Design Have Positive

Margin?

No

Yes

Verify Design

Functionality on Board

Note to Figure 3

:

(1) This step is optional, but recommended.

Is Design Working?

No

Yes

Design Done

Debug Design

No

Do Signals

Meet Electrical

Requirements?

Yes

© February 2010 Altera Corporation AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices

Page 6 Memory Interface Design Flow

Step 1: Select a Device

The first step in memory interface design is to determine the bandwidth required by your system. Bandwidth can be expressed as:

Bandwidth = Data width (bits) × data transfer rate (1 per second) × efficiency

In quadruple data rate memories like the QDRII+ or the QDRII SRAM, the data transfer rate is four times the clock rate. Hence, the data transfer rate for a 400 MHz interface is 1600 Mbps. The efficiency is the percentage of time the data bus is transferring data. It is dependent on the type of memory. For example, in a QDRII+ or a QDRII SRAM memory interface with separate write and read ports, the efficiency would be 100% when there is an equal number of read and write operations on these memory interfaces.

f

After calculating the bandwidth of the memory interface, determine which memory and FPGA device to use. For information about your memory device, refer to the

Memory Standard Overviews

section of the External Memory Interface Handbook.

Altera’s FPGA devices support the various data widths for different memory interfaces. Stratix III and Stratix IV devices offer dedicated DQS circuitry for DQ group widths ranging from ×4 to ×36. In the ×36 mode, there is one DQS/CQn pin pair that can clock 36 DQ pins using a dedicated peripheral clock network. When interfacing with QDRII+ or the QDRII SRAM devices with a 36-bit read and write busses, connect the memory's CQ/CQn pins to the Stratix III or the Stratix IV device's

DQS/CQn pins and connect the Q pins to the DQ pins. The number and width of DQ groups supported on each density and package combination differs, so you must determine the FPGA device density and package combination best suits your needs.

Support for 36-bit wide DQ groups is only available in Stratix III and Stratix IV devices in 1517-pin and 1760-pin packages. Stratix III and Stratix IV devices in 780-pin and 1152-pin packages also support ×36 mode emulation by using ×16/×18 DQS/DQ groups.

The maximum number of interfaces that you can implement on any given device is limited by the resource availability (number of DQ groups of desired width, number of phase-locked loops (PLLs), number of delay-locked loops (DLLs), and clock resources). For example, the EP3SL150F1152 device supports four ×18 groups on each side of the device. This allows you to interface with a total of 16 QDRII+ or

QDRII SRAM devices. Also, each instance of the ALTMEMPHY megafunction for the

QDRII+ and the QDRII SRAM requires one PLL, one DLL, and four clock resources.

The EP3SL150F1152 supports a total of eight PLLs, four DLLs, and 80 clock networks

(16 global and 64 regional clocks). The four DLLs enable support for four unique memory interface clock frequencies and each DLL is able to drive two adjacent sides of the device. The final consideration is to check the availability of the core resources

(the adaptive logic modules (ALMs) and TriMatrix memory blocks), and user I/O pins for other memory interface signals including the write data, the address, the command, and memory clock signals.

AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices © February 2010 Altera Corporation

Memory Interface Design Flow Page 7

f

For more information on the ×36 QDRII + QDRII/SRAM interface support in the F780 and F1152-pin packages, refer to the

Device and Pin Planning

section of the External

Memory Interface Handbook. For information on the Stratix III and the Stratix IV FPGA density and package support for the different memory types, refer to the

External

Memory Interfaces in Stratix III Devices

chapter of the Stratix III Device Handbook and the

External Memory Interfaces in Stratix IV Devices

chapter of the Stratix IV Device

Handbook.

Step 2: Create a Project in the Quartus II Software

After selecting the appropriate Stratix III or Stratix IV FPGA device, create a project in the Quartus II software that targets the chosen device.

f

For step-by-step instructions on creating a Quartus II software project, refer to the

Tutorial in the Quartus II Online Help.

Step 3: Instantiate PHY

For all the Stratix III and the Stratix IV memory interface designs, use the

ALTMEMPHY megafunction when instantiating the physical interface to the memory device. This megafunction features a license-free physical interface that should be used with your memory interface driver logic. Since SRAM devices do not need a memory controller, Altera does not offer such a product. You should connect the local signals of the memory interface to logic in your top-level design that will access the memory. f

For detailed information about the architecture, ports, parameters, and the resource usage information of the PHY, refer to the External Memory PHY Interface Megafunction

User Guide (ALTMEMPHY)

.

When implementing wider interfaces using multiple memory chips, you can configure a single ALTMEMPHY megafunction instance to support independent read and write signals for each memory device, the shared address, and the command signals to all memory devices. When implementing multiple independent interfaces

(interfaces operating at different clock rates or interfaces with independent address and command buses), you should create unique ALTMEMPHY megafunction instances for each of the interface. f

For details on sharing device resources (PLLs, DLLs, and clock networks) across multiple instances of the PHY, refer to the Implementing Multiple ALTMEMPHY-Based

Controllers chapter in the

DDR, DDR2, and DDR3 SDRAM Design Tutorials

section of the External Memory Interface Handbook.

For the QDRII+ SRAM interface, the ALTMEMPHY megafunction supports devices with 2.5 clock cycle latency directly. QDRII+ SRAM devices with 2.0 clock cycle latency are not supported by the ALTMEMPHY megafunction.

© February 2010 Altera Corporation AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices

Page 8 Memory Interface Design Flow

Step 4: Perform RTL/Functional Simulation (Optional)

Simulating the design to verify functionality is optional but is recommended to ensure the interface performs as intended in your system. When you instantiate the

ALTMEMPHY megafunction using the MegaWizard

Plug-In Manager, the software provides you with an option to generate a simulation model of the PHY in either the

Verilog HDL or the VHDL. This PHY functional simulation model is a cycle-accurate

HDL model file produced by the Quartus II software. These models work with the

Altera-supported VHDL and Verilog HDL simulators. You also need to get the memory’s simulation model file from the memory vendor in order to perform the simulation.

Step 5: Add Constraints

The next step in the design process is to add the appropriate device constraints related to the external memory interface. These constraints include the timing, the I/O standards, the output-enable group and DQ/DQS group assignments. The Quartus II software MegaWizard Plug-In Manger generates the .sdc/.tcl files containing these constraints for each ALTMEMPHY megafunction instance.

The ALTMEMPHY megafunction requires the use of the TimeQuest timing analyzer and is fully timing-constrained using synopsys design constraints (SDC) assignments.

The SDC timing constraints are derived from the parameters you entered for the

ALTMEMPHY megafunction, based on the QDRII+ or QDRII SRAM data sheet and tolerances from the board layout. The ALTMEMPHY megafunction uses the

TimeQuest timing constraints along with the Quartus II timing–driven fitter to achieve timing closure.

After instantiating the ALTMEMPHY megafunction, the ALTMEMPHY MegaWizard

interface generates the following files in Table 1 that you need to apply in order to

properly constrain your design.

Table 1. Constraint Files Created by the ALTMEMPHY MegaWizard Interface

File Name

<variation_name>_ddr_pins.sdc

<variation_name>_report_timing.tcl

Description

Contains procedures used in the <variation_name>_ddr_timing.sdc and

<variation_name>_report_timing.tcl files.

Script that reports timing for your ALTMEMPHY variation during compilation.

f

For detailed information on creating, generating, and setting the constraints for the

PHY, refer to the

External Memory PHY Interface Megafunction User Guide

(ALTMEMPHY)

.

You must add the appropriate pin location and pin loading assignments to the memory interface signals in your design, in addition to timing and device constraints for the rest of your design.

AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices © February 2010 Altera Corporation

Memory Interface Design Flow Page 9

Stratix III devices provide an independent DQS logic block for each DQS and CQn pin for complementary read data-strobe/clock operations. In the Stratix III pin tables, the differential DQS pin-pairs are denoted as DQS pins and DQSn pins, while the complementary DQS signals are denoted as DQS pins and CQn pins. DQSn pins and

CQn pins are marked in the pin table separately. Each CQn pin connects to a DQS logic block and the shifted CQn signals go to the negative-edged input registers in the

IOE registers.

The Quartus II software has the Advanced I/O Timing feature that allows the timing analysis to take the board setup into consideration, specifically for bidirectional or output pins, for more accurate timing analysis results. This feature is turned on for

Stratix III and Stratix IV devices by default. When using the Advanced I/O Timing feature, you should specify the board setup information such as the capacitance and inductance of the board traces, the pull-up or pull-down resistor values, at both far-end, and near-end of the transmission line, as well as the termination voltage.

You can either specify the information in the Board Trace Model setup through the

Device and Pin Options

dialog box in the Quartus II software for all the output or bidirectional pins (

Figure 4 ), or separately for the each pin or net group, such as the

address bus, through the Quartus II Pin Planner ( Figure 5 ). The board traces

information from the Quartus II Pin Planner takes precedence over the information from the Device and Pin Options settings.

Include only the board information. You do not need to include the FPGA device’s pin or package capacitance, on-chip termination or drive strength setting. Typically, the far-end capacitance equals the input capacitance of the far-end device being interfaced to.

Figure 4. Board Trace Model Device and Pin Options

© February 2010 Altera Corporation AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices

Page 10

Figure 5. Board Trace Model Setup for Individual Pin or Net Group

Memory Interface Design Flow

Step 6: Compile the Design and Verify the Timing Closure

After constraining the design, compile the design in the Quartus II software. During the generation of the ALTMEMPHY megafunction, the MegaWizard Plug-In Manager generates a script called <variation_name>_report_timing.tcl that generates a custom timing margin report for that PHY instance. After compiling the design in the

Quartus II software, run the timing script to produce the timing report for different timing paths in the design, such as write data, read data, address, and command timing paths.

f

For information about timing constraints and timing analysis methodology used by the ALTMEMPHY megafunction, refer to Timing Analysis section of the External

Memory Interface Handbook.

Step 7: Adjust the Constraints

In the timing report for your ALTMEMPHY instance, you can see the worst case setup and hold margins for the different timing paths in the design. If the setup and hold margins are unbalanced, achieve a balanced setup and hold margins by adjusting the phase setting of the clocks that are used in these paths.

For example, in the case of the address and the command timing margin, the address and command outputs are clocked by an address and command clock that is 90 o

offset with respect to the system clock. The system clock is used to clock the K/K# clock outputs going to the memory. If the report timing script indicates that using the default phase-shift-setting for the address and command clock results in more setup margin than hold margin, adjust the address and command clock to have higher

AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices © February 2010 Altera Corporation

Memory Interface Design Flow Page 11

phase shift than the default setting so that there will be more hold margin. Similarly, adjust the address and command clock to have fewer phase offset with respect to the system clock if there is more hold margin than setup margin with the default settings.

These clock-phase-shift adjustments can be made by editing the ALTMEMPHY megafunction instance in the MegaWizard Plug–In Manager.

f

For detailed information about the clocks used in the PHY megafunction, refer to the

External Memory PHY Interface Megafunction User Guide (ALTMEMPHY)

.

Step 8: Determine Board Design Constraints

After closing the timing for the design, evaluate the trade-offs posed by various board design choices. Different factors contribute to the signal integrity that can affect the overall timing margin for the memory and the FPGA. Some factors to consider that can affect the signal integrity include the termination scheme used, the slew rate, drive strength settings on the FPGA, and the loading seen by the driver. You should evaluate the trade-offs between the different types of termination schemes, effects of output drive strengths, and the loading, so that you can navigate through the multiple combinations and choose the best possible settings for your design.

f

Altera offers the following application notes regarding high-speed board design information:

AN 315: Guidelines for Designing High-Speed FPGA PCBs

AN 224: High-Speed Board Layout Guidelines

.

.

AN 75: High-Speed Board Designs

.

Stratix III and Stratix IV devices support both series and parallel on-chip termination

(OCT) resistors to improve signal integrity. Another benefit of the Stratix III and the

Stratix IV OCT feature is eliminating the need for external termination resistors on the

FPGA side. This feature simplifies the board design and reduces the overall board cost. The OCT features offer user-mode calibration to compensate for any variation in voltage and temperature during normal operation to ensure that the OCT values remain constant. The parallel and series OCT features on Stratix III and Stratix IV devices are available in either 25-

Ω or 50-Ω setting.

1

For the uni-directional signals found in the QDRII+ and the QDRII SRAM interfaces,

Altera’s recommended default setting is calibrated parallel OCT 50-

Ω for input signals and calibrated series OCT 50-

Ω for output signals. For the write clock signals Altera recommends series OCT 50-

Ω without calibration. You should perform board simulations to validate if these recommendations are optimal for your system.

© February 2010 Altera Corporation AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices

Page 12 Design Example for QDRII+ SRAM Interface at 400 MHz

Step 9: Perform Board Level Simulations

To determine the correct board constraints, run board–level simulations to see if the settings provide the optimal signal quality. With many variables that can affect the signal integrity of the memory interface, simulating the memory interface provides an initial indicator of the memory interface’s performance. There are various electronic design automation (EDA) simulation tools available to perform board level simulations. The simulations should be performed on the data, clock, control, command and address signals. If the memory interface does not have good signal integrity, adjust the settings, such as the drive strength setting, termination scheme or termination values, to improve the signal integrity.

1

Note that changing these settings affects the timing. It may be necessary to go back to the timing closure step if these change.

Step 10: Verify FPGA Functionality

Perform system-level verification to correlate the system against your design targets.

Use Altera’s SignalTap

®

II Logic Analyzer to help in this effort.

f

For detailed information about using the SignalTap II, refer to the

Design Debugging

Using the SignalTap II Embedded Logic Analyzer

chapter in volume 3 of the Quartus II

Handbook.

Design Example for QDRII+ SRAM Interface at 400 MHz

This section describes the memory interface design flow outlined above and implements a QDRII+ SRAM memory interface with a Stratix III FPGA using Altera’s

Stratix III development board. This design example implements an 18–bit wide,

400 MHz or 1600 Mbps memory interface on the Stratix III EP3SL150F1152C2 device.

Although the design example is specifically for the QDRII+ SRAM memory interface with a Stratix III device, the design flow when using a QDRII SRAM or with a

Stratix IV FPGA for the memory interface is the same.

1

This design example can only be instantiated using the Quartus II software version 9.0 and earlier. QDRII or QDRII+ SRAM designs using ALTMEMPHY are no longer available in the Quartus II software version 9.1 and later. You are recommended to migrate or instantiate your QDRII or QDRII+ SRAM designs with UniPHY.

Step 1: Select a Device

For this design, choose the Stratix III EP3SL150F1152C2 device. This device supports four ×18 QDRII interfaces on the I/O banks at each side of the device, at speeds up to

400 MHz. The memory device on the Stratix III development board is an 18-bit wide,

36Mbit, 4–word burst, Cypress CY7C1263V18 QDRII+SRAM device.

AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices © February 2010 Altera Corporation

Design Example for QDRII+ SRAM Interface at 400 MHz Page 13

Step 2: Create a Project in the Quartus II Software

Create a project in the Quartus II design software to implement your QDRII+ SRAM memory interface. If you have already created a project that you would like to implement the memory interface, open that project. Set the target device as the

Stratix III EP3SL150F1152C2 device. f

For step-by-step instructions for creating a Quartus II software project, refer to the

Tutorial in the Quartus II Online Help.

Step 3: Instantiate PHY

Instantiate the ALTMEMPHY megafunction variation using the following steps:

1. Invoke the MegaWizard Plug-In Manager under the Tools menu in the Quartus II software, and select Create a new custom megafunction variation.

2. Select the ALTMEMPHY megafunction from the list of I/O megafunctions.

Choose Stratix III as the target device family, Verilog HDL as the output file type, enter an instance name of your choice (for example, fred) and click Next.

3. In the ALTMEMPHY parameterization page that appears, select Stratix III as the target device family, select the 2 speed grade, and enter the clock rates for the PLL reference input and the memory interface. For this example, set the PLL reference input frequency to 125 MHz and memory clock rate to 400 MHz (

Figure 6

).

Select Half under the selection for Local interface clock frequency. Full-rate PHY for the QDRII+/QDRII interface is currently not supported.

From the Memory Preset List, set the Memory type to QDRII+ SRAM and select

memory preset

titled QDRII+ 1M ×18 BL4 CL2.5 400 MHz.

© February 2010 Altera Corporation AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices

Page 14 Design Example for QDRII+ SRAM Interface at 400 MHz

Figure 6. Parameterizing the ALTMEMPHY for Your Target Memory Type and Frequency

4. The QDRII+SRAM device is a 2M × 18 device, so you need to select the option to

Modify Parameters

. This launches a memory preset editor window that you can modify all the memory parameters. Set the Address width to 19. Verify that the other memory timing parameters match the QDRII+ SRAM datasheet as well.

After making all necessary updates, select OK. This will create a custom memory preset with your selections.

5. Enter the dedicated clock phase for the address/command clock and the board skew specification for your design. These parameters account for skew across all the memory interface pins including K/K#/CQ/CQ# clock pins, D/Q data pins, and address and command pins. You can also fix the read latency. Use the default setting that is 0 cycle, where the read latency is referred as non-deterministic latency. This minimum read latency equals the worst-case latency measured out of all of the DQS groups. Otherwise, you can specify a latency between 15 and 22 cycles, where the latency is deterministic.

1

For more information on the read latency setting, refer to the

External

Memory PHY Interface Megafunction User Guide (ALTMEMPHY)

.

6. In the Controller Interface Settings page, click Next to proceed.

AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices © February 2010 Altera Corporation

Design Example for QDRII+ SRAM Interface at 400 MHz Page 15

7. For performing functional simulation, select Generate simulation model.

8. Select Finish. The MegaWizard Plug-In Manager generates all the necessary files for your ALTMEMPHY instance.

Upon the completion of the ALTMEMPHY megafunction instance generation, the

MegaWizard Plug-In Manager provides detailed instructions to apply the generated constraints as shown in

Figure 7

. This will be discussed in Step 5. With the

ALTMEMPHY instance generated, you must now connect the PHY instance to the driver logic in your design.

Figure 7. Instructions for Applying Constraints for the PHY

1

As SRAM devices do not need a memory controller, Altera does not offer such a product. You should connect the local signals of the memory interface from the PHY to the logic that will access the memory in your top-level design.

If you want to use the ×36 emulation mode, refer to the Creating An Emulated ×36

QDRII+/QDRII SRAM ALTMEMPHY Variation section of the

External Memory PHY

Interface Megafunction User Guide

.

Step 4: Perform RTL/Functional Simulation (Optional)

For performing the functional simulation of your memory interface, use the functional models of the ALTMEMPHY megafunction generated by the MegaWizard

Plug–In Manager in

“Step 3: Instantiate PHY” . You should use this model along with

your own driver or test bench that issues read and write operations, and a memory model.

The Verilog HDL or VHDL simulation model of the PHY can be found in your project directory and is named

<

variation_name>_alt_mem_phy_qdrii_sequencer_wrapper.vo/.vho.

The design example includes the driver, test bench, as well as the memory model that allows you to perform functional simulation on the design. Use the ModelSim-Altera simulator to perform the functional simulation. The design example also comes with a script file that will direct the simulator to perform the necessary compilation and simulation.

© February 2010 Altera Corporation AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices

Page 16 Design Example for QDRII+ SRAM Interface at 400 MHz

Open the ModelSim-Altera simulator and change the path to your project folder.

From the File menu, select Change Directory and specify your project directory. To run the simulation, from the Tools menu, go to TCL and select Execute Macro. From your project directory, go to the modelsim directory and run the run_all.do file. This file directs the ModelSim simulator to compile the necessary files and execute the

wave.do

file for the simulator to display the waveforms. Figure 8 shows the

ModelSim simulation waveform of the design example.

Figure 8. Simulation Waveform

1

The testbench included with the design files is set to 125 MHz. If your design requires a different setting, the PLL reference clock (pll_ref_clk) in the testbench must be modified to match the PLL reference clock settings in the MegaWizard Plug-In

Manager.

Step 5: Add Constraints

As mentioned in Step 3,

Figure 7 lists the steps you should follow to add the relevant

timing and device constraints for your memory interface.

To add constraints, follow these steps:

1. Enable the TimeQuest timing analyzer tool under Settings, Timing Analyzer

Settings

. All designs using the ALTMEMPHY megafunction are required to use the TimeQuest timing analyzer for proper and accurate timing analysis.

AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices © February 2010 Altera Corporation

Design Example for QDRII+ SRAM Interface at 400 MHz Page 17

2. Add the <variation_name>_ddr_timing.sdc file to your project. This file contains all the necessary timing constraints for the memory interface portion of your design

( Figure 9 ).

Figure 9. Adding Timing Constraints for the PHY

3. Add the I/O standard and output enable group assignments for your memory interface pins by executing the <variation_name>_pin_assignments.tcl file

( Figure 10

). Output enable group assignments are required so as not to violate the requirements for the maximum number of pins driving out of a VREF group when a voltage-referenced input pin or bi-directional pin is present.

1

Note that the pin names listed in this script are generic names. You should modify them to match the top-level pin names in your design.

© February 2010 Altera Corporation AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices

Page 18

Figure 10. Run Pin Assignment

Design Example for QDRII+ SRAM Interface at 400 MHz

4. Enable the Optimize Hold Timing option for All Paths for the Quartus II fitter, under Settings, Fitter Settings. Specifying the All Paths setting directs the Fitter to optimize the hold time of all paths by adding delay to the appropriate paths.

1

Note that the pin names listed in this script are generic names and you should modify them to match the top-level pins names in your design.

Executing the <variation_name>_pin_assignments.tcl file does not make the pin location assignments to the pins. You still need to make the pin location assignments based on your board layout. For the Stratix III Host Board, you can use the

SIII_host_qdrii_pin_location.tcl

file from the design example to create the pin location assignment.

In addition to adding constraints for all of your memory interface blocks, you should ensure that the rest of your design is also appropriately constrained. For example, you may need to add timing constraints into other clocks in your design, including the reference clock input to the ALTMEMPHY megafunction’s PLL instance.

When using the Quartus II Advanced I/O Timing option, provide the board trace information for the output and bidirectional pins of your design through the Board

Trace Model in the Quartus II software. Through the Quartus II Pin Planner, you can enter the board trace information for every output or bidirectional pin, or for a net group separately.

AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices © February 2010 Altera Corporation

Design Example for QDRII+ SRAM Interface at 400 MHz Page 19

From the Quartus II Pin Planner, right-click on the pin or net group, and select Board

Trace Model, as in

Figure 11 .

Figure 11. Defining Board Trace Model in the Quartus II Pin Planner

© February 2010 Altera Corporation AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices

Page 20 Design Example for QDRII+ SRAM Interface at 400 MHz

Figure 12 shows the board trace model window.

Figure 12. Board Trace Model

Depending on your board, enter the values such as the trace length, capacitance/length, inductance/length, pull-up, pull-down and others.

Step 6: Compile the Design and Verify the Timing Closure

After your design is constrained, you are ready to compile your design.

After successfully compiling your design in the Quartus II software, run the timing reporting script generated by the ALTMEMPHY megafunction during the megafunction instantiation. This script is called <variation_name>_report_timing.tcl and it produces the timing report for the memory interface portion of your design.

You can either run the .tcl file from the TimeQuest timing analyzer, or from the

Quartus II Tcl Console.

To run the report timing script in the TimeQuest timing analyzer window, open the tool in the Quartus II software. Then complete the following tasks:

■ Update timing netlist

Create timing netlist

Read SDC file

Perform these tasks by double-clicking Update Timing Netlist in the left Tasks pane that will automatically perform the three tasks. After a task is executed, the task in the

Tasks

pane turns green.

Run the report timing script next by going to the Script menu and clicking Run Tcl

Script

. Select the <variation_name>_report_timing_tcl. You can also double click

Report DDR

on the Tasks pane to get the timing numbers.

AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices © February 2010 Altera Corporation

Design Example for QDRII+ SRAM Interface at 400 MHz

Figure 13 shows the timing margin reported in the TimeQuest timing analyzer

window after running the report timing script.

Figure 13. Running the Report Timing Script

Page 21

The report timing script provides information about the following margins and paths:

Address and command setup and hold margin.

Core setup and hold margin.

Core reset and removal setup and hold margin.

Read capture setup and hold margin.

Write setup and hold margin.

1

The timing should be verified on every corner of the timing model. You must run the timing report script with all available timing models: slow 0 o

C, slow 85 o

C, and fast

0 o

C model to ensure positive margins across the process, the voltage and the temperature. To analyze timing on a different corner, first double-click Set Operating

Conditions

in the left pane. Select a new timing corner, then go to the Script menu and rerun the <variation>_report_timing.tcl script.

f

For more information about the TimeQuest timing analyzer window, refer to the

TimeQuest Timing Analyzer

chapter in volume 3 of the Quartus II Handbook.

© February 2010 Altera Corporation AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices

Page 22 Step 7: Adjust the Constraints

Step 7: Adjust the Constraints

If the timing report indicates that the setup or hold margins for one of the timing paths is negative, you must adjust the constraints on the design to improve margins for the failing path.

For instance, suppose that the address command timing path fails the hold time, you need to adjust the PLL clock-phase-shift setting for the clock generating the address and command signals to improve the hold margins (by increasing the phase-shift on the clock). This clock setting could be adjusted by editing the ALTMEMPHY megafunction instance in the MegaWizard Plug-In Manager.

Step 8: Verify FPGA Functionality

In order to use SignalTap II Embedded Logic Analyzer to help you verify your design on the board, create an .stp file and add in the necessary signals. You need to specify a clock source as well as the triggering conditions.

1

The SignalTap II Embedded Logic Analyzer does not allow you to monitor the

D,DQ,DQS, and DQSn signals at the pins.

The design example includes the .stp file for you to verify the design on the Stratix III

Host Board. Open the system_test.stp file to perform the verification using the

SignalTap II Embedded Logic Analyzer. This file has the relevant internal signals added so that you can monitor the signal activities when the Stratix III device performs the read and write operations on the QDRII+SRAM device. Upon successfully configuring the device on the board, you can start monitoring the signal activities. The high pnf signal indicates the design works correctly.

AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices © February 2010 Altera Corporation

Design Checklist Page 23

Design Checklist

Table 2

contains a design checklist that you can use when implementing QDRII+ and

QDRII SRAM memory interfaces in Stratix III and Stratix IV devices.

Table 2. Checklist for Implementing QDRII+ and QDRII SRAM Memory Interfaces in Stratix III Devices (Part 1 of 2)

Item

Select Device

Description

1 Have you selected the memory interface frequency of operation and bus width? And, have you selected the FPGA device density and package combination that you will be targeting?

Ensure that the target FPGA device supports the desired clock rate and memory bus width, as well as the FPGA must have sufficient I/O pins for the DQ/DQS read and write groups. For detailed device resource information, refer to the device handbook chapter on external memory interface support.

Instantiate PHY and Controller

2

3

Have you parameterized and instantiated the ALTMEMPHY megafunction for your target memory interface?

When instantiating multiple instances of the ALTMEMPHY megafunction, ensure effective sharing of device resources and appropriate constraints by referring to the

Implementing Multiple ALTMEMPHY-Based Controllers chapter in the

DDR, DDR2, and DDR3 SDRAM Design Tutorials

section of the External Memory Interface

Handbook

.

Have you connected the PHY's local signals to your driver logic and the PHY's memory interface signals to top level pins?

Ensure that the local interface signals of the PHY are appropriately connected to your own logic. If the ALTMEMPHY megafunction is compiled without these local interface connections, you may encounter compilation problems when the number of signals exceeds the pins available on your target device.

Functional Simulation

4 Have you simulated your design using the RTL functional model?

Use the ALTMEMPHY megafunction functional simulation model in conjunction with your own driver logic/testbench, and a memory model to ensure proper read/write transactions to the memory.

Timing Closure

5 Have you added constraints to the PHY and the rest of your design?

The ALTMEMPHY megafunction is constrained when you use the generated .sdc file and .tcl files. However, you may need to adjust these settings to best fit your memory interface configuration.

Add pin assignment constraints and pin loading constraints to your design. Ensure that generic pin names used in the constraint scripts are modified to match your top level pin names. Note that the loading on memory interface pins is dependent on your board topology (memory components).

Provide the board trace information for the output and bidirectional pins through the

Board Trace Model in the Quartus II software.

Yes/No

© February 2010 Altera Corporation AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices

Page 24 Conclusion

Table 2. Checklist for Implementing QDRII+ and QDRII SRAM Memory Interfaces in Stratix III Devices (Part 2 of 2)

Yes/No

6

Item Description

Have you compiled your design and verified timing closure using all available models?

Run the <variation_name>_report_timing.tcl file to generate a custom timing report for each of your ALTMEMPHY megafunction instances. Run this process across all device timing models (slow 0 o

C, slow 85 o

C, fast 0 o

C).

7 If there are timing violations, have you adjusted your constraints to optimize timing?

Adjust PLL clock phase shift settings or appropriate timing/location assignments margins for the various timing paths within the ALTMEMPHY megafunction.

Board Level Considerations

8 Have you selected the termination scheme and drive strength settings for all the memory interface signals on the memory side and the FPGA side?

Ensure that appropriate termination and drive strength settings are applied on all the memory interface signals, and verified using board level simulations.

9

Stratix III and Stratix IV devices support on-chip termination. Altera recommends calibrated parallel OCT 50

Ω setting for uni-directional input signals from the memory, calibrated series OCT 50

Ω setting for uni-directional output signals to the memory, and series OCT 50

Ω without calibration for the write clock signals. When using the OCT feature on the Stratix III and Stratix IV device, the programmable drive strength feature is unavailable. If there are multiple loads on certain FPGA output pins

(for example, if the address bus is shared across many memory devices), use of maximum drive strength setting may be preferred over the series OCT setting. Use board level simulations to pick the optimal setting for best signal integrity.

On the memory side, Altera recommends the use of external parallel termination on input signals to the memory (write data, address, command, and clock signals).

Have you performed board level simulations to ensure electrical and timing margins for your memory interface?

Ensure you have a sufficient eye opening using simulations. Be sure to use the latest

FPGA and memory IBIS models, board trace characteristics, drive strength and termination settings in your simulation.

System Verification

Any timing uncertainties at the board level that you calculate using such simulations must be used to adjust the input timing constraints to ensure the accuracy of

Quartus II timing margin reports.

10 Have you verified functionality of your memory interface in system?

Conclusion

Stratix III and Stratix IV FPGAs complement high-performance QDRII+ and

QDRII SRAM devices by providing high memory bandwidth, improved timing margin, and great flexibility in system design. QDRII+ and QDRII SRAM with

Stratix III and Stratix IV devices support the high-throughput requirements of today’s communication, networking, and digital signal processing systems.

AN 461: Design Guidelines for Implementing QDRII+ and QDRII SRAM Interfaces in Stratix III and Stratix IV Devices © February 2010 Altera Corporation

Document Revision History

Table 3

shows the revision history for this document.

Table 3. Document Revision History

Date & Document

Version

February 2010 v1.2

July 2008 v1.1

June 2007 v1.0

Changes Made

Moved specification information to the External Memory

Interface Handbook.

Updated figures for Stratix III and Stratix IV IOE Input, and

Output and Output-Enabled Registers:

Figure 1

and

Figure 2

.

Updated references.

Changed application notes title to “AN 461: Design

Guidelines for Implementing QDRII+ and QDRII SRAM

Interfaces in Stratix III and Stratix IV Devices”

.

Updated specification information for Stratix III devices.

Added specification information for Stratix IV devices.

Added figures for Stratix III and Stratix IV IOE Input, and

Output and Output-Enabled Registers:

Figure 1

and

Figure 2

.

Updated GUI-related figures.

Added new paragraph under

“Step 3: Instantiate PHY” ,

“Step

4: Perform RTL/Functional Simulation (Optional)” , “Step 5:

Add Constraints” , and

“Step 7: Adjust the Constraints”

sections.

Initial release

Summary of Changes

Copyright © 2010 Altera Corporation. All rights reserved. Altera, The Programmable Solutions Company, the stylized Altera logo, specific device designations, and all other words and logos that are identified as trademarks and/or service marks are, unless noted otherwise, the trademarks and service marks of Altera Corporation in the U.S. and other countries. All other product or service names are the property of their respective holders. Altera products are protected under numerous U.S. and foreign patents and pending applications, maskwork rights, and copyrights. Altera warrants performance of its semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Altera assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Altera Corporation. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services

.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
