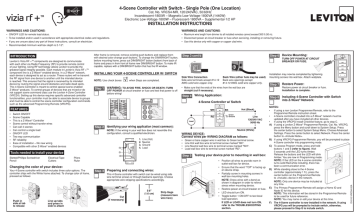

VRCS4-MRZ Instruction Manual

VRCS4-MRZ Instruction Manual
4-Scene Controller with Switch - Single Pole (One Location)
Cat. No. VRCS4-MR, 120/240VAC, 50/60Hz
Incandescent-1800W – Magnetic Low-Voltage-1800VA (1440W)
Electronic Low-Voltage-1800W – Fluorescent-1800VA – Supplemental-1/2 HP
Installation Instructions
WARNINGS AND CAUTIONS:
WARNINGS AND CAUTIONS:
•
•
•
•
• Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft (90 m).
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire.
INTRODUCTION
Leviton’s Vizia RF +TM components are designed to communicate
with each other via Radio Frequency (RF) to provide remote control
of your lighting. Using RF technology allows Leviton to provide the
greatest signal integrity possible. Each module in Leviton’s Vizia RF +TM
component line is a Z-Wave® enabled device. In a Z-Wave® network,
each device is designed to act as a router. These routers will re-transmit
the RF signal from one device to another until the intended device
is reached. This ensures that the signal is received by its intended
device by routing the signal around obstacles and radio dead spots.
This 4-Scene Controller is meant to control special scene enabled
Z-Wave® products. To control groups of devices that are mixed or do
not support scene command class use the Leviton 4-Zone Controller
(VRCZ4). Setting up this device requires specific advanced controller
functionalities, your controller must be able to associate device to groups
and must be able to control the scene controller configuration commands
such as the advanced Programming Remote (VRCPG).
FEATURES
•
•
•
•
•
•
•
•
•
•
•
Switch ON/OFF
Scene Capable
This is a Z-Wave® Controller
Scene control without traveler wires
Can call 4 scenes
Can control a single load
ON/OFF LED
Two way communication
RF reliability
Ease of installation – No new wiring
Compatible with other Z-Wave® enabled devices
Electrical Tape
Cutters
NOTE: Use check boxes when Steps are completed.
Step 1 WARNING: TO AVOID FIRE, SHOCK OR DEATH; TURN
• Make sure that the ends of the wires from the wall box are
straight (cut if necessary).
OFF POWER at circuit breaker or fuse and test that power is off
before wiring!
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
1
Back Wire (either hole may be used)
Back wire openings accept
#14-12 AWG solid wire copper only.
Step 4 Wiring Application:
WH
RD
2
1. Line (Hot)
2. Neutral
3. Ground
4. Load
Green
Ground
Line
120/240 VAC
50/60 Hz
Green or bare copper wire in wall box to Green terminal screw.
Line Hot wall box wire to terminal screw marked "BK".
Line Neutral wall box wire to terminal screw marked "WH".
Load wall box wire to terminal screw marked "RD".
Step 5 Testing your device prior to mounting in wall box:
4
Step 3 Preparing and connecting wires:
This 4-Scene controller with switch can be wired using side
wire terminal screws or through backwire openings. Choose
appropriate wire stripping specifications accordingly.
5/8"
(1.6 cm)
Cut
(if necessary)
Neutral (White)
WIRING DEVICE:
Connect wires per WIRING DIAGRAM as follows:
•
•
•
•
Strip Gage
(measure bare
wire here)
Step 7 Restore Power:
Step 8 Including 4-Scene Controller with Switch
into Z-Wave® Network:
Hot (Black)
BK
Installation may now be completed by tightening
mounting screws into wall box. Attach wallplate.
Restore power at circuit breaker or fuse.
Installation is complete.
4-Scene Controller w/ Switch
3
Your 4-Scene controller with switch includes three color options. The
controller ships with the White frame attached. To change color of frame,
proceed as follows:
Line up tabs
and press in
side to attach
TURN OFF POWER AT CIRCUIT
BREAKER OR FUSE.
Side Wire Connection
Side wire terminals accept #14-12
AWG solid wire copper only.
NOTE: If the wiring in your wall box does not resemble this
configuration, consult a qualified electrician.
Pliers
Ruler
Step 6 Device Mounting:
INSTALLING YOUR 4-SCENE CONTROLLER w/ Switch
Step 2 Identifying your wiring application (most common):
Changing the color of your device:
Push in
side at tab
to release
Bl
Step 3 cont'd
Load
Tools needed to install your device
Slotted/Phillips Screwdriver
Pencil
After frame is removed, remove existing push buttons and replace them
with desired color change push buttons. To change the DIM/BRIGHT button,
before mounting frame, press out DIM/BRIGHT button (bottom) from back of
frame and press in from front of frame new DIM/BRIGHT button. To make IR
capable, replace with a DIM/BRIGHT button that has the IR window.
• Position all wires to provide room in
outlet wall box for device.
• Ensure that the word “TOP” is facing up
on device strap.
• Partially screw in mounting screws in
wall box mounting holes.
NOTE: Dress wires with a bend as
shown in diagram in order to relieve
stress when mounting device.
• Restore power at circuit breaker or fuse.
• LED should turn ON.
• Toggle button 1 ON/OFF to test local
load operation.
If LED or LOAD does not turn ON,
refer to the TROUBLESHOOTING
section.
NOTES:
• If using a non-Leviton Programmer/Remote, refer to the
Programmer/Remote instruction sheet.
• 4-Scene controllers incuded into a Z-Wave® network must be
updated after you have included all other devices.
• If using the VRCPG Install Checklist feature, go to step C.
A) If using a Leviton Z-Wave® Programmer/Remote, Cat. No. VRCPG,
press the Menu button and scroll down to System Setup. Press
the center button to select System Setup Menu. Choose Advanced
Settings. Press the center button to select Network. Press the center
button to <Include Node>.
B) If using VRCPG Programmer/Remote, you will be prompted to place
4-Scene controller into programming mode.
C) To access Program mode, press and hold
buttons 1 and 3 (refer to figure). Wait
5 seconds until the LED turns Amber.
Release the buttons and the LED will blink
Amber. You are now in Programming mode.
NOTE: If the LED on the 4-scene controller
turns solid Red while including, there has
been a communication error.
D) While standing close to the 4-Scene
controller (approximately 1 ft.), press the
center button on the Programmer/Remote
to <Include> device in the network.
NOTE: Only one device may be included at
any time.
E) The Primary Programmer/Remote will assign a Home ID and
Node ID for this device.
NOTE: This information will be stored in the Programmer/Remote
to be used for future reference.
NOTE: You may name or edit your device at this time.
F) The 4-Scene controller is now installed in the network. If using
VRCPG you will be prompted to include switch, otherwise,
please proceed to Step G to include switch.
DI-010-VRCS4-02A
ON/OFF LED for remote load status.
To be installed and/or used in accordance with appropriate electrical codes and regulations.
If you are unsure about any part of these instructions, consult an electrician.
Recommended minimum wall box depth is 2-1/2".
Step 8 cont'd Including 4-Scene Controller with Switch
into Z-Wave® Network:
G)
Including local Switch:
• Remain in Advanced Settings.
• Press Center button to select <Include Node>.
• While standing close to the VRCS4 (approximately 1 ft.) press the
center button on the Programmer/Remote to <Include> device in
the network.
• The Primary Programmer/Remote will assign a Home ID and
Node ID to your new switch.
• You may name or edit the device at this time.
NOTE: By default, switch will be controlled by Button 1 on your scene
controller.
H) After all devices are included into the network, the controller must be
updated. To update controller proceed as follows:
• If using a non-Leviton Programmer/Remote, refer to the
Programmer/Remote instruction sheet for updating controller.
• If using Leviton Z-Wave® Programmer/Remote, Cat. No. VRCPG,
press the Menu button and scroll down to System. Press the
center button to select System. Choose Advanced. Press the
center button to select Advanced Install. Press the center button
to select Update Controller. Select the controller to update. Press
center Button to begin update. Update will start automatically.
Stand within (1ft) of controller while updating Network topology.
• Wait until the VRCPG Programmer/Remote confirms completion.
Update is done.
Note: If the 4-Scene controller with switch Cat. No. VRCPG
has been successfully Included in the
network and the user tries to Include
it again without first excluding it from the
network, the node ID will remain the same.
Menu
Button
1 ON
OFF
2 ON
OFF
3 ON
OFF
4 ON
OFF
Center
Button
Programmer/Remote
Cat. No. VRCPG
NOTE: Programmer/Remote must be
in close proximity to 4-Scene controller
when including in the network.
Step 9 Excluding 4-Scene Controller with Switch from
a Z-Wave® Network:
Excluding Load Control:
A) If using a Leviton Z-Wave® Programmer/Remote, Cat. No. VRCPG,
press the Menu button and scroll down to System Setup. Press the
center button to select System. Choose Advanced. Press the center
button to select Advanced Install. Scroll down to <Exclude Node> and
press the center button.
B) If using VRCPG Programmer/Remote, you will be prompted to place
Local Relay Switch into programming mode.
C) To Exclude, press and hold buttons 2 and 4 (refer to figure). Wait 5
seconds until the LED turns Amber. Release the buttons and the LED
will blink Amber. You are now ready to exclude.
NOTE: If the LED on the Load control turns solid Red while excluding,
there has been a communication error.
D) While standing close to the Load controller (approximately 1 ft.), press
the center button on the Programmer/Remote to <Exclude> device from
the network.
Excluding 4-Scene controller:
A) If using a Leviton Z-Wave® Programmer/Remote, Cat. No. VRCPG,
press the Menu button and scroll down to System Setup. Press the
center button to select System Setup Menu. Choose Advanced Settings.
Press the center button to select Network. Scroll down to <Exclude
Node> and press the center button.
B) If using VRCPG Programmer/Remote, you will be prompted to place
4-Scene controller into programming mode.
C) To access program mode, press and hold buttons 1 and 3 (refer to
figure). Wait 5 seconds until the LED turns Amber. Release the buttons
and the LED will blink Amber. You are now ready to exclude.
NOTE: If the LED on the 4-Scene controller turns solid Red while
excluding, there has been a communication error.
D) While standing close to the 4-Scene controller (approximately 1 ft.),
press the center button on the Programmer/Remote to <Exclude>
device from the network.
Factory Default:
If your 4-Scene controller with switch is not responding, or you are unable to
control it after you have tried to Include/Exclude it multiple times, it may be
necessary to reset the 4-Scene controller with switch to its original factory
settings. To accomplish this, proceed as follows:
• On the 4-Scene controller with switch (refer to
figure), press and hold buttons 1 and 3. Wait
approximately 10 seconds until the LED turns
Amber and then turns solid Red. Allow LED's to
blink red twice, release the buttons. The 4-Scene
controller with switch is now reset. Once the
controller is reset, it will be necessary to ReInclude it to a network before it can be used.
CAUTION: SETTING A DEVICE TO A FACTORY
DEFAULT DOES NOT EXCLUDE THAT DEVICE
FROM A NETWORK. THE EXCLUSION
PROCEDURE MUST STILL BE FOLLOWED TO
REMOVE THE DEVICE FROM THE PRIMARY
CONTROLLER’S INFORMATION TABLE. FAILURE TO DO SO MAY
RESULT IN SYSTEM THAT IS SLOW TO RESPOND, OR MAY FAIL TO
RESPOND TO SOME DEVICES.
Step 10 Device Association:
After inclusion process, you must associate Vizia RF light
switches, to button on the controllers. Refer to the Primary
Programmer/Remote instruction sheet for complete
details.
NOTE: This step requires a controller that can create association lists to
specific groups 1-4.
NOTE: One (1) Z-Wave® light switch can be associated to multiple
controllers (up to five (5) controllers maximum).
NOTE: If using a non-Leviton Programmer/Remote, refer to the
Programmer/Remote instruction sheet for associating a Vizia RF+ light
switch.
NOTE: Your Local switch will be associated by default to button 1.
Step 11
Scene Programming:
NOTE: All devices associated to the buttons must support
Z-Wave® scene command. If a device in the group does not
support the scene command it will not be controlled.
•Press and hold desired scene button on 4-Scene Controller
until LED blinks Green.
•Adjust any loads associated to that button by turning ON/
OFF or Dim/Brighten the load .
•Press button again on 4-Scene Controller and the LED will
stop blinking.
•The scene has now been set.
OPERATION
TROUBLESHOOTING
Load Device/switch:
• Lights Flickering
- Lamp has a bad connection.
- Wires not secured firmly under terminal screws of switch.
• Light does not turn ON
- Circuit breaker or fuse has tripped.
- Lamp is burned out.
- Lamp Neutral connection is not wired.
Controller/scene:
• Locator LED on controller does not turn ON
- Circuit breaker or fuse has tripped.
- If 4-Scene controller is powered up and LED does not turn ON,
check wiring.
• Scene Controller does not operate lights
- Check association.
- Ensure that controller was properly updated.
- Re-program your scene, and ensure each light is in
the correct ON/OFF state..
• LED turns solid Red
- Check association.
- Ensure that each device in the network is within 70 ft. (21m) of
another device.
FCC COMPLIANCE STATEMENT
Scene Application:
Push Button (Default settings)
Turn ON from OFF position:
Press – Scene is activated, Scene LED turns ON.
LED will blink until Scene is reached.
Turn OFF from ON position:
Press – Turns all lights in scene OFF, Scene LED turns OFF.
DIM/BRIGHT:
Press left side of Dim/Bright button – Lights in last activated Scene will dim.
Press right side of Dim/Bright button – Lights in last activated Scene will
brighten.
NOTE: Controller will only Dim/Bright devices located within direct radio
frequency range.
NOTE: LED will be lit only when all
Push
lights in scene have reached their
Button
preset level. If there is a manual
change to any light in the scene, the
LED will turn OFF indicating that you
Dim/Bright
are no longer in that scene.
Button
LED
This device complies with Part 15 of the FCC Rules. Operation is subject
to following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation of the device.
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment OFF and ON, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving Antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/tv technician for help.
FCC CAUTION
Any changes or modifications not expressly approved by Leviton
Manufacturing Co., Inc., could void the user's authority to operate the
equipment.
For additional information, contact Leviton’s
Techline at 1-800-824-3005 or visit Leviton’s
website at www.ViziaRFplus.com
Protected under U.S. Patent Number 6,388,399 and patents pending
and licensed under U.S. Patents Numbers 5,905,442, and 5,982,103
© 2009 Leviton Mfg. Co., Inc.
DI-010-VRCS4-02A
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement,
at its option, if within such five year period the product is returned prepaid, with proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 201 North Service Road, Melville, New York 11747. This warranty excludes and there is disclaimed liability for labor
for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied
warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to five years. Leviton is not liable for incidental,
indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
