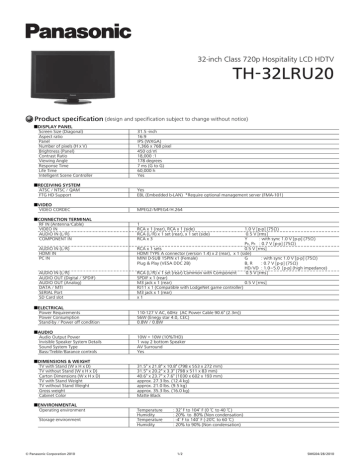

Panasonic TH-32LRU20 Product Sheet

Panasonic TH-32LRU20 Product Sheet
32-inch Class 720p Hospitality LCD HDTV
TH-32LRU20
Product specification (design and specification subject to change without notice)
■DISPLAY PANEL
Screen Size (Diagonal)
Aspect ratio
Panel
Number of pixels (H x V)
Brightness (Panel)
Contrast Ratio
Viewing Angle
Response Time
Life Time
Intelligent Scene Controller
31.5 -inch
16:9
IPS (WXGA)
1,366 x 768 pixel
450 cd/㎡
18,000 :1
178 degrees
7 ms (G to G)
60,000 h
Yes
■RECEIVING SYSTEM
ATSC / NTSC / QAM
FTG HD Support
Yes
EBL (Embedded b-LAN) *Require optional management server (FMA-101)
■VIDEO
VIDEO CORDEC
MPEG2/MPEG4/H.264
■CONNECTION TERMINAL
RF IN (Antenna/Cable)
VIDEO IN
AUDIO IN (L/R)
COMPONENT IN
1
RCA x 1 (rear), RCA x 1 (side)
RCA (L/R) x 1 set (rear), x 1 set (side)
RCA x 3
AUDIO IN (L/R)
HDMI IN
PC IN
AUDIO IN (L/R)
AUDIO OUT (Digital / SPDIF)
AUDIO OUT (Analog)
DATA / MTI
SERIAL Port
SD Card slot
1.0 V [p-p] (75Ω)
0.5 V [rms]
Y
: with sync 1.0 V [p-p] (75Ω)
PB, PR : 0.7 V [p-p] (75Ω)
RCA x 1 sets
0.5 V [rms]
HDMI TYPE A connector (version 1.4) x 2 (rear), x 1 (side)
MINI D-SUB 15PIN x1 (Female)
G
: with sync 1.0 V [p-p] (75Ω)
Plug & Play (VESA DDC 2B)
B, R
: 0.7 V [p-p] (75Ω)
HD/VD : 1.0~5.0 [p-p] (high impedance)
RCA (L/R) x 1 set (rear) Common with Component
0.5 V [rms]
SPDIF x 1 (rear)
M3 jack x 1 (rear)
0.5 V [rms]
RJ11 x 1 (Compatible with LodgeNet game controller)
M3 jack x 1 (rear)
x1
■ELECTRICAL
Power Requirements
Power Consumption
Stand-by / Power off condition
110-127 V AC, 60Hz (AC Power Cable 90.6" (2.3m))
56W (Enegy star 4.0, CEC)
0.8W / 0.8W
■AUDIO
Audio Output Power
Invisible Speaker System Details
Sound System Type
Bass/Treble/Barance controls
10W + 10W (10%THD)
1 way 2 bottom Speaker
AV Surround
Yes
■DIMENSIONS & WEIGHT
TV with Stand (W x H x D)
TV without Stand (W x H x D)
Carton Dimensions (W x H x D)
TV with Stand Weight
TV without Stand Weight
Gross weight
Cabinet Color
31.5" x 21.8" x 10.8" (798 x 553 x 272 mm)
31.5" x 20.2" x 3.3" (798 x 511 x 83 mm)
40.6" x 23.7" x 7.6" (1030 x 602 x 193 mm)
approx. 27.3 lbs. (12.4 kg)
approx. 21.0 lbs. (9.5 kg)
approx. 35.3 lbs. (16.0 kg)
Matte Black
■ENVIRONMENTAL
Operating environment
Storage environment
© Panasonic Corporation 2010
Temperature
Humidity
Temperature
Humidity
:
:
:
:
32°
F to 104°F (0 ℃ to 40 ℃)
20% to 80% (Non condensation)
-4°F to 140°F (-20℃ to 60 ℃)
20% to 90% (Non condensation)
1/2
SMG04/28/2010
TH-32LRU20
32-inch Class 720p Hospitality LCD HDTV
MAIN FEATURE
ACCESSORIES
Contrast Automatic Tracking System
Integrated Pro:Idiom
SD Card Slot
OFF Timer
Hotel Mode
Yes
Yes
Image Viewer (JPEG playback)
Cloning
15/30/60/90
Initial INPUT
INPUT Lock
Initial VOL level
Maximum VOL level
Button Lock
Remote Control User Level
INCLUDED ACCESSORIES(TBD)
OPTIONAL ACCESSORIES
Swivel Stand (degrees:+90°
/-90°)
Remote control transmitter
Operating Instruction
Wall hanging bracket (TY-WK3L2RW)
*VESA Compliant W200xH200
STANDARD (CERTIFICATIONS)
SAFETY REGULATIONS
RADIATION REGULATIONS
UL6500 Ver.2
FCC Part 15 Class-B, ICES-003
UPC Code
885170003996
DIMENSIONS
Cautions: This drawing is not a scale
7.7 (194)
Units : inches (mm)
7.6
(193)
9.8
(248)
Rotation angle of 30°
3.3 (83)
31.5 (798)
2.8 (69)
4.8 (120)
12.8
(323)
21.8 (553)
2 (49)
1.1 (28)
12.2 (308)
15.0
(381)
20.2 (511)
Rotation angle of 60°
2.6 (65)
Rotation angle of 90°
1.7 (42)
7.7 (195)
8.6 (217)
14.2 (359)
14.2
(360)
17.3
(439)
10.8 (272)
CONNECTION TERMINAL
<side>
<rear>
<DATA/MTI>
© Panasonic Corporation 2010
2/2
SMG04/28/2010
