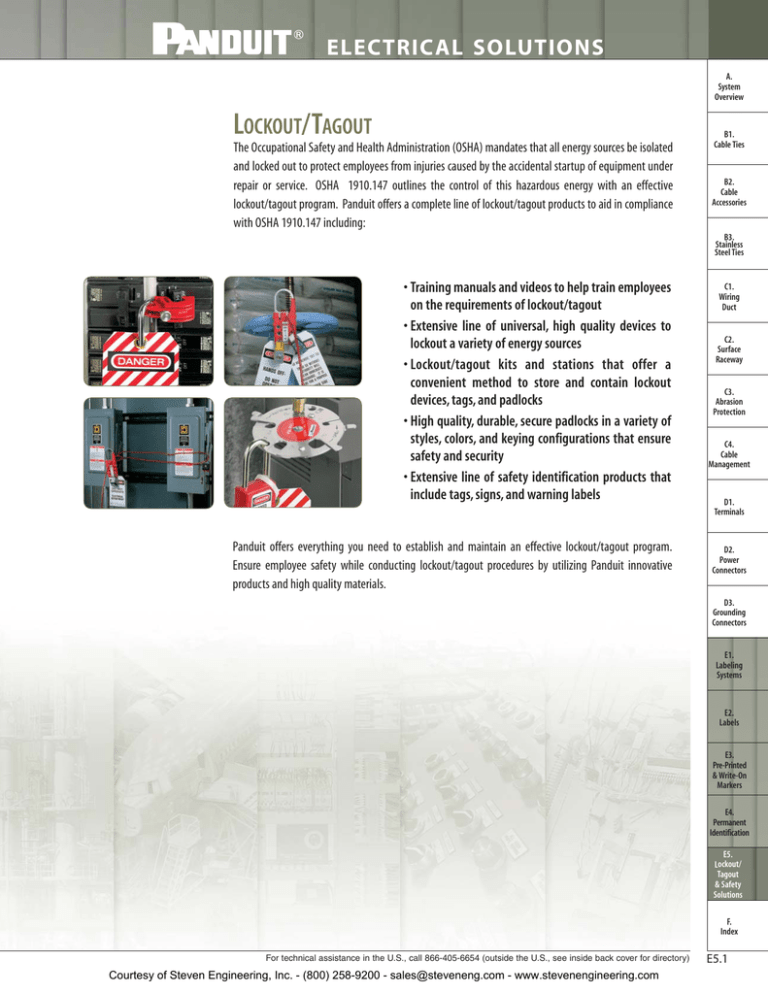

Lockout/Tagout
ELECTRICAL SOLUTIONS
A.
System
Overview
LOCKOUT/TAGOUT
The Occupational Safety and Health Administration (OSHA) mandates that all energy sources be isolated
and locked out to protect employees from injuries caused by the accidental startup of equipment under
repair or service. OSHA 1910.147 outlines the control of this hazardous energy with an effective
lockout/tagout program. Panduit offers a complete line of lockout/tagout products to aid in compliance
with OSHA 1910.147 including:
B1.
Cable Ties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
• Training manuals and videos to help train employees
on the requirements of lockout/tagout
• Extensive line of universal, high quality devices to
lockout a variety of energy sources
• Lockout/tagout kits and stations that offer a
convenient method to store and contain lockout
devices, tags, and padlocks
• High quality, durable, secure padlocks in a variety of
styles, colors, and keying configurations that ensure
safety and security
• Extensive line of safety identification products that
include tags, signs, and warning labels
Panduit offers everything you need to establish and maintain an effective lockout/tagout program.
Ensure employee safety while conducting lockout/tagout procedures by utilizing Panduit innovative
products and high quality materials.
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.1
ELECTRICAL SOLUTIONS
A.
System
Overview
B1.
Cable Ties
OSHA Lockout/Tagout Compliance and Training Kit
•Takes you step-by-step through the process of bringing your
company into compliance with OSHA Standard 1910.147; also
provides training materials and devices for educating employees
on the elements and applications of lockout tagout
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
•This complete package includes:
Training video: DVD video “Life is on the Line” for training
employees on the elements and application of
lockout/tagout (LOTO)
Compliance CD containing:
Training materials: Training agenda, quiz, certificate, and key
points for hands on device training
Templates: Step-by-step interactive presentation; facility and
machine specific procedure templates; equipment, training, and
inspection logs; lockout/tagout program template; periodic and
lockout/tagout checklists
Components: Demonstration components for thorough “hands-on”
training including circuit breakers, ball valves, etc., and the
compatible lockout devices
C1.
Wiring
Duct
C2.
Surface
Raceway
Part Number
PSL-LOTO-TRAIN
Std.
Pkg.
Qty.
1
Part Description
OSHA lockout/tagout compliance kit.
Group Lockout/Tagout Training Video
C3.
Abrasion
Protection
C4.
Cable
Management
• “Your Lock is Your Key to Life” Training Program
provides thorough instruction on OSHA
recommended safety practices and procedures
for group lockout – multi-craft/multi-shift
lockout operations
This complete package includes:
– Group lockout/tagout video
– Participant guides with quizzes
– Certificate of completion cards
– Leader’s guide complete with quiz key
– Training log
– Lockout/tagout samples
– Panduit lockout/tagout bulletin
– Lockout steps wallet cards
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
Part Number
PSL-LTPGP
Part Description
Group lockout/tagout video complete training
program, English, VHS format.
PSL-LTMGP
Replacement group lockout/tagout participant
guides and cards, English.
Number of
Guides and
Cards
Included
10
10
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
5
1
10
Lockout/Tagout Steps/Calendar Wallet Card
• Provides those employees responsible for lockout/tagout with a
constant reminder of the OSHA recommended steps for shutdown
and startup
Part Number
PSL-STEPS
• Current calendar year is printed on back side
Part Description
Lockout/tagout
steps/calendar wallet card.
Number Std. Std.
Width
Height
of Cards Pkg. Ctn.
In.
mm
In.
mm Included Qty. Qty.
2.13 54.00 3.38 86.00
25
1
4
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.2
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
“No Tool” Circuit Breaker Lockout Devices
• Individual circuit breaker can be locked in the off position quickly
and easily without any tools
• Compact, universal design fits a wide range of single, double, and
triple handle circuit breakers
• Accommodates breaker handle sizes ranging from .30 – .60 inches
(7.62mm – 15.24mm) tall and .16 – .35 inches (4.06mm x 8.89mm) thick
Part Number
PSL-CBNT
PSL-CBILNT
• Easily attached with no modifications to panel or circuit breaker
and does not require holes in circuit breaker handle
• Constructed of rugged nylon and stainless steel providing strength,
durability, added security and corrosion resistance
B1.
Cable Ties
B2.
Cable
Accessories
Part Description
“No Tool” universal circuit breaker lockout.
“No Tool” circuit breaker lockout for use with Square D
I-LINE^/Federal Pacific (FPE) circuit breakers.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
1
10
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
^I-LINE is a registered trademark of Square D Company.
C2.
Surface
Raceway
Large Handle Circuit Breaker Lockout Device
• Individual circuit breakers can be locked in the off position quickly
and easily without any tools
• Compact, universal design fits a wide range of large handle
circuit breakers
• Accommodates breaker handle dimensions up to
.80 inches thick x 3.00 inches wide (20.32mm x 76.20mm)
Part Number
PSL-CBL
• Easily attached with no modifications to panel or circuit breaker
• Constructed of rugged nylon and stainless steel providing strength,
durability, added security and corrosion resistance
C3.
Abrasion
Protection
C4.
Cable
Management
Part Description
Large handle circuit breaker lockout.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
Circuit Breaker Lockout Devices
• Individual circuit breakers can be locked in the off position quickly
and easily
• Compact, universal design fits a wide range of single, double, and
triple handle circuit breakers
• Accommodates breaker handles .30 – .60 inches (7.62mm –
15.24mm) tall and .25 – .44 inches (6.35mm – 11.18mm) thick
• Easily attached with no modifications to panel or circuit breaker
and does not require hole in circuit breaker handle
• Constructed of rugged nylon and stainless steel, providing
strength, durability, added security and corrosion resistance
Part Number
PSL-CB
PSL-CBIL
Part Description
Universal circuit breaker lockout.
Circuit breaker lockout device for use with Square D
I-LINE^/Federal Pacific (FPE) circuit breakers.
PSL-CBKIT
PSL-CB-3PC
Circuit breaker lockout kit (1 each PSL-CBL, CBNT, CBILNT).
(3) PSL-CB universal circuit breaker lockout.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
1
10
1
1
10
10
^I-LINE is a registered trademark of Square D Company.
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.3
ELECTRICAL SOLUTIONS
A.
System
Overview
B1.
Cable Ties
Plug Lockout Device
• Individual plugs in a wide range of sizes can be locked out to
prevent energization
• Accommodates padlocks with shackle lengths of 1.50 inches
(38.10mm) or greater and plugs with a hole in a blade
• Constructed of rugged polycarbonate providing strength, durability,
added security and corrosion resistance
B2.
Cable
Accessories
Part Number
PSL-P
PSL-PI
B3.
Stainless
Steel Ties
Part Description
Plug lockout.
Global plug lockout for 220 - 240 Volt AC/Industrial Plugs.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
1
10
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
Cord Lockout Devices
• Individual corded plugs in a wide range of sizes can be locked out
to prevent energization
• Constructed of rugged polypropylene providing strength, durability,
and added security
C4.
Cable
Management
D1.
Terminals
Part Number
PSL-CL110
PSL-CL480
Part Description
Lockout for 120 VAC corded plugs, 2.00" x 2.00" x 3.50"
inside dimensions.
Lockout for 240 – 480 VAC corded plugs, 3.25" x 3.25" x 6.50"
inside dimensions.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
1
10
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
Receptacle Blockout Device
• Accommodates standard 120 V electrical receptacles
• Blockout receptacles to prevent equipment damage from
overloading circuits or electrical interference
Part Number
PSL-ERB
• Constructed of high density polyethylene providing strength,
durability, and added security
Part Description
Blockout for 120 V electrical receptacle.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
25
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.4
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Toggle Switch Lockout Device
• Compact secure design fits most toggle switches and some small
circuit breakers
• Easily attached without removal of faceplate or screws
Part Number
PSL-WS
• Accommodates switches
.45 – .78 inches (11.43mm – 19.81mm) tall x
.25 – .38 inches (6.35mm – 9.65mm) wide x
.25 – .40 inches (6.35mm – 10.16mm) thick
• Constructed of rugged nylon and stainless steel providing strength,
durability, added security and corrosion resistance
Part Description
Toggle switch lockout.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
B1.
Cable Ties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
Toggle/Rocker Switch Lockout Device
• Toggle/rocker switches controlling electrical supply can be
locked out
• Accommodates standard wall switch faceplates
• Install using faceplate screws
Part Number
PSL-WS1A
• Constructed of rugged polypropylene providing strength, durability,
and added security
C3.
Abrasion
Protection
C4.
Cable
Management
Part Description
Toggle/rocker switch lockout.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
Gate Valve Lockout Devices
• Gate valves regulating hydraulic, pneumatic, and chemical energy
can be locked out quickly and easily
• Accommodates valve handles ranging from 1.00 inch (25.40mm)
to 13.00 inches (330.20mm) in diameter
Part Number
PSL-V2A
PSL-V6A
PSL-V9
PSL-V13
• Constructed of rugged polypropylene providing strength, durability,
and added security
Std. Std.
Pkg. Ctn.
Part Description
Qty. Qty.
Gate valve lockout, accommodates 1.00" – 2.50" diameter handle.
1
10
Gate valve lockout, accommodates 2.50" – 6.50" diameter handle.
1
10
Gate valve lockout, accommodates 6.50" – 10.00" diameter handle.
1
10
Gate valve lockout, accommodates 10.00" – 13.00" diameter handle.
1
—
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.5
ELECTRICAL SOLUTIONS
A.
System
Overview
B1.
Cable Ties
Ball Valve Lockout Devices
• Ball valves regulating hydraulic, pneumatic, and chemical energy
can be locked out quickly and easily
• Accommodates valve diameters ranging from .25 inches (6.35mm)
to 3.00 inches (76.20mm)
B2.
Cable
Accessories
Part Number
PSL-BV1
PSL-BV2
B3.
Stainless
Steel Ties
PSL-BV3
PSL-BFV
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
• Constructed of rugged polypropylene providing strength, durability,
and added security
Part Description
Ball valve lockout, accommodates .25" – 1.00" valve pipe diameter.
Ball valve lockout, accommodates 1.25" – 3.00" valve
pipe diameter.
Ball valve lockout, accommodates 2.00" – 8.00" valve
pipe diameter.
Butterfly valve lockout, accommodates most butterfly valve handles.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
1
10
1
10
1
10
Multiple Lockout Device
• Device can be used alone as a lockout hasp or with provided
0.19 inches (4.8mm) diameter cable to lockout electrical
disconnects, gate valves, or large cumbersome devices
• Compact and easy to install
• Constructed of rugged polycarbonate and stainless steel providing
strength, durability, added security and corrosion resistance
Std. Std.
Pkg. Ctn.
Part Number
Part Description
Qty. Qty.
PSL-MLD
Multiple lockout device; includes lockout hasp and 6.0' (1.8m) vinyl
1
20
coated galvanized steel cable with loophole.
PSL-MLDH-X
Multiple lockout device (hasp only).
10
—
PSL-MLDC
6.0' (1.8m) vinyl coated galvanized steel cable with loophole
1
5
(cable only).
PSL-MLDC200
200.0' (61.0m) vinyl coated galvanized steel cable on roll without
1
—
loophole (cable only).
PSL-MLDCT
6.0' (1.8m) nylon coated high temperature rating galvanized steel
1
—
cable with loophole (cable only).
PSL-MLD-CRIMP Additional crimps for creating cable loopholes.
10
20
PSL-MLD-TOOL Tool for installing crimps on custom-length cables using the
1
6
PSL-MDLC200.
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
Lockout single or multiple
electrical disconnects
Lockout gate valves
Immobilize large or
cumbersome devices,
such as forklifts
Pneumatic Energy Lockout Device
• Pneumatic energy devices can be locked out quickly and easily
without costly tool modifications or inconvenient in-line valves
• When installed on the male pneumatic fitting, prevents the ability to
engage into the female fitting
Part Number
PSL-PEL
• Universal compact design makes the pneumatic lockout device
easy to transport and install on almost any fitting, even in
tight spaces
• Rugged stainless steel construction offers superior strength,
durability, added security and corrosion resistance
Part Description
Pneumatic energy lockout device, 3.50" (88.9mm) diameter x 0.10"
(2.54mm) thick.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
20
F.
Index
E5.6
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Electrician Lockout Kit
• Kit contains a variety of lockout/tagout devices commonly used by an individual electrician
Part Number
PSL-PK-EA
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(5)
Contents
Screwdriver.
PSL-PK pouch.
PSL-8 red non-conductive lockout padlock.
PSL-MLD multiple lockout device.
PSL-WS wall switch lockout device.
PSL-CBNT “No Tool” circuit breaker lockout device.
PSL-P plug lockout device.
PVT-30 electrician’s blocking tags.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
5
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
Contractor Lockout Kit
• Kit contains a variety of lockout/tagout devices commonly used by electrical contractors
Part Number
PSL-KT-CONA
B1.
Cable Ties
Contents
(1) Screwdriver.
(1) PSL-KT carrying case – 5.0" x 3.5" x 11.0" (127mm x 89mm x 279mm).
(6) PSL-8 red non-conductive lockout padlocks.
(1) PSL-1A lockout hasp – 1.0" (25mm) jaw diameter.
(1) PSL-MLD multiple lockout device.
(3) PSL-WS wall switch lockouts.
(3) PSL-CBNT “No Tool” circuit breaker lockout device.
(3) PSL-P plug lockouts.
(15 Tags) PVT-98 “EQUIPMENT LOCKED OUT BY...” safety tags.
Std.
Pkg.
Qty.
1
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
MRO Lockout Kit
D1.
Terminals
• Kit contains a variety of lockout/tagout devices commonly used by maintenance and repair personnel
Part Number
PSL-KT-MROA
Contents
(1) Screwdriver.
(1) PSL-BX carrying case – 6.5" x 5.0" x 14.5" (32mm x 127mm x 368mm).
(3) PSL-8 red non-conductive lockout padlocks.
(1) PSL-MLD multiple lockout device.
(2) PSL-WS wall switch lockouts.
(2) PSL-CBNT “No Tool” circuit breaker lockout device.
(2) PSL-P plug lockouts.
(1) PSL-V6A gate valve lockout – 6.5" (165mm).
(1) PSL-V2A gate valve lockout – 2.5" (64mm).
(1) PSL-BV2 ball valve lockout – 3.0" (76mm).
(1) PSL-CL110 110V plug lockout.
(10) PVT-44 “DO NOT OPERATE” maintenance tags.
Std.
Pkg.
Qty.
1
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
Power and Panel Distribution Lockout Kit
• Kit contains a variety of lockout/tagout devices commonly used to
isolate electrical distribution panels
Part Number
PSL-KT-PWR
D2.
Power
Connectors
• Durable steel case can be wall mounted or used as a
portable case
Contents
(1) Screwdriver.
(1) PSL-STATION metal wall mount cabinet.
(2) PSL-8 red non-conductive lockout padlocks.
(1) PSL-MLD multiple lockout device.
(2) PSL-CBNT “No Tool” circuit breaker lockout device.
(2) PSL-CBILNT circuit breaker lockout device for Square D
I-LINE^/Federal Pacific (FPE) circuit breakers.
(2) PSL-CBL large handle circuit breaker lockout devices.
(1) PSL-P plug lockout.
(25) PVT-23-Q “DO NOT OPERATE ELECTRICIANS AT WORK” tags.
Std.
Pkg.
Qty.
1
^ I-LINE is a registered trademark of Square D Company.
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.7
ELECTRICAL SOLUTIONS
A.
System
Overview
B1.
Cable Ties
Metal Wall Mount Cabinet
• Conveniently store lockout tools and accessories in one
common area
B2.
Cable
Accessories
Part Number
PSL-STATION
PSL-PK
PSL-KT
PSL-BX
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
Std.
Pkg.
Qty.
1
1
1
1
Part Description
Metal wall mount cabinet.
Empty pouch for PSL-PK-EA.
Empty plastic kit box for PSL-KT-CONA.
Empty plastic kit Box for PSL-KT-MROA.
Lockout Stations
• Conveniently store padlocks, tags, and lockout devices in one common area
C3.
Abrasion
Protection
D1.
Terminals
Height
In.
mm
23.00
584.2
23.00
584.2
Std.
Pkg.
Qty.
1
1
Part Description
Lockout station only, 20 person.
Lockout station with components, 20
person.
Components include:
(20) PSL-8 red non-conductive
lockout padlocks (keyed differently)
(6) PSL-1.5 lockout hasps
(25 tags) PVT-98 safety tags
(25 tags) PVT-41 safety tags
PSL-10SA
PSL-10SWCA
Lockout station only, 10 person.
Lockout station with components, 10
person.
Components include:
(10) PSL-8 red non-conductive
lockout padlocks (keyed differently)
(3) PSL-1.5 lockout hasps
(15 tags) PVT-98 safety tags
(10 tags) PVT-41 safety tags
11.50
11.50
292.1
292.1
23.00
23.00
584.2
584.2
1
1
PSL-4SA
PSL-4SWCA
Lockout station only, 4 person.
Lockout station with components, 4
person.
Components include:
(4) PSL-8 red non-conductive lockout
padlocks (keyed differently)
(3) PSL-1.5 lockout hasps
(15 tags) PVT-98 safety tags
11.50
11.50
292.1
292.1
11.50
11.50
292.1
292.1
1
1
PSL-10SWCA
D3.
Grounding
Connectors
Width
In.
mm
23.00
584.2
23.00
584.2
Part Number
PSL-20SA
PSL-20SWCA
C4.
Cable
Management
D2.
Power
Connectors
• Durable steel case can be wall-mounted (nine mounting holes) or
used as a portable case
• 14.75" x 10.25" x 4.63" (375.00mm x 260.00mm x 117.00mm)
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
Group Lock Box
• Manage multiple employees and energy sources involved in a
group lockout procedure
• Accommodates up to thirteen padlocks (not included)
Part Number
PSL-GLBN
• Industrial powder coated steel construction
• Dimensions: 9.00"W x 6"H x 3.25"D
(228.60mm x 152.40mm x 82.55mm)
Std.
Pkg.
Qty.
1
Part Description
Group lock box.
F.
Index
E5.8
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Warning Label
• Warning label prohibits tampering with push buttons during repair
or service
• Write-on area for adding your own warning message
• Made of vinyl cloth material that allows label to be removed easily
after repairs are completed
• Features the international prohibition symbol for “Do Not
Throw Switch”
B2.
Cable
Accessories
Material Chart
Material
Vinyl Cloth, White
Print Method
Pre-Printed
Temperature Range
Features
-50°F to 170°F
Indoor/outdoor rated; thin conformable
(-46°C to 77°C)
material with repositionable adhesive allows
label to be removed and reused or used in
temporary applications; provides durability,
high temperature resistance, and dimensional
stability for rough or textured surfaces.
Width
Part Number
PSL-CBWL
B1.
Cable Ties
Part Description
Warning label
In.
4.84
Std.
Std.
Markers Pkg.
Ctn.
Per
Qty.
Qty.
Book (Book) (Books)
mm
14.00
60
1
10
Height
mm
123.00
In.
.54
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
Can be clearly identified with Panduit permanent marking pens, page E5.18.
C4.
Cable
Management
D1.
Terminals
Circuit Breaker Directory Sign
• Adhesive paper sign designed to provide clear identification of
circuit breaker connections, list up to 40 circuits
• Eliminate the guesswork when identifying power sources – a must
for lockout/tagout compliance
D2.
Power
Connectors
Material Chart
Material
Paper
Print Method
Pre-Printed
Temperature
Range
-65°F to 200°F
(-54°C to 93°C)
Features
Indoor rated; general purpose material;
excellent adhesion properties when applied
to a clean, dry surface.
D3.
Grounding
Connectors
E1.
Labeling
Systems
Part Number
PES-S1
Part Description
Circuit breaker directory sign.
Color
(Legend/Background)
Red and Black/White
Labels
Per
Pkg.
5
Width
In.
mm
13.00 330.00
Std. Std.
Height
Pkg. Ctn.
In.
mm
Qty. Qty.
5.50
140.00
1
20
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.9
ELECTRICAL SOLUTIONS
A.
System
Overview
B1.
Cable Ties
B2.
Cable
Accessories
Non-Conductive Lockout Padlocks
• Non-conductive lock body and shackle provide protection against
electrical hazards
• Available in six assorted colors for quick visual color identification
• Padlocks can be ordered with various keying options
(keyed-alike and master-keyed)
Part Number
PSL-8
PSL-8BL
PSL-8BU
PSL-8GR
PSL-8OR
PSL-8YL
PSL-8BR
PSL-8PU
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
Part Number
PSL-8-LABEL
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.10
Std.
Pkg.
Qty.
1
1
1
1
1
1
1
1
Color
Red
Black
Blue
Green
Orange
Yellow
Brown
Purple
Part Description
Package of 20 replacement labels for PSL-8 padlocks.
Std.
Pkg.
Qty.
1
These locks can be master keyed or keyed alike. These locks can also be custom engraved.
See Custom Lock Options on page E5.12 and Order Form on page E5.43.
C4.
Cable
Management
D1.
Terminals
• Key-retention feature means that key cannot be removed from
padlock when open
• Six-pin cylinder design allows for a large number of key options
High Security Padlocks
• Solid aluminum body with anodized aluminum finish provides
improved durability and corrosion resistance
• Available in six assorted colors for quick visual color identification
• Padlocks can be ordered with various keying options
(keyed-alike and master-keyed)
• Six-pin cylinder design allows for a large number of key
change options
Color
Std.
Pkg.
Qty.
Red
Black
Blue
Green
Orange
Yellow
Brown
Purple
1
1
1
1
1
1
1
1
PSL-7-LS
PSL-7BL-LS
Red
Black
1
1
PSL-7BU-LS
PSL-7GR-LS
PSL-7OR-LS
PSL-7YL-LS
PSL-7BR-LS
PSL-7PU-LS
Blue
Green
Orange
Yellow
Brown
Purple
1
1
1
1
1
1
Part Number
Short shackle – 1.00" (25.4mm)
PSL-7
PSL-7BL
PSL-7BU
PSL-7GR
PSL-7OR
PSL-7YL
PSL-7BR
PSL-7PU
Long shackle – 3.00" (76.2mm)
These locks can be ordered with various keying options (keyed-alike or master-keyed) and custom engraved.
See Custom Lock Options on page E5.12 and Order Form on page E5.43.
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Laminated Steel Padlocks
• Standard locks are keyed differently – each padlock is supplied
with two keys
• Hardened steel shackle with double-ball locking mechanism
provides protection from cutting, prying, and rusting
• Available in six vinyl bumper colors for quick visual
color identification
• Padlocks can be ordered with various keying options
(keyed-alike and master-keyed)
• Galvanized layer design provides corrosion resistance in
harsh environments
B1.
Cable Ties
B2.
Cable
Accessories
Part Number
Color
Std.
Pkg.
Qty.
Red
Black
Blue
Green
White
Yellow
1
1
1
1
1
1
Red
Black
Blue
Green
White
Yellow
1
1
1
1
1
1
Short shackle – .75" (19.3mm)
PSL-6
PSL-6BL
PSL-6BU
PSL-6GR
PSL-6WH
PSL-6YL
Long shackle – 2.00" (46.8mm)
PSL-6-LS
PSL-6BL-LS
PSL-6BU-LS
PSL-6GR-LS
PSL-6WH-LS
PSL-6YL-LS
These locks are not suitable for custom engraving.
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
See Custom Lock Options on page E5.12 and Order Form on page E5.43.
D1.
Terminals
Lockout Hasps
• Energy sources can be locked out quickly and easily by more than
one worker for group lockout applications
• Heavy duty hasps with tamper-resistant designs to deter vandalism
PSL-MLD
PSL-1
Part Number
PSL-MLD
PSL-1A
PSL-1.5
PSL-HD1
• Variety of lockout hasp styles and sizes to accommodate a wide
range of lockout applications
PSL-1.5A
PSL-HD3
PSL-MLDH-X
PSL-1
PSL-1.5
PSL-1A
PSL-1.5A
PSL-HD1
PSL-HD2.4
PSL-HD3
Part Description
Multiple lockout device; includes lockout hasp and 6.0'
(1.8m) vinyl coated galvanized steel cable with loophole.
Multiple lockout device (hasp only).
Hasp with 1.00" (25.40mm) diameter jaw and overlapping tabs.
Hasp with 1.50" (38.10mm) diameter jaw and overlapping tabs.
Hasp with 1.00" (25.40mm) diameter jaw.
Hasp with 1.50" (38.10mm) diameter jaw.
Heavy duty hasp with 1.00" x 1.00"
(25.40mm x 25.40mm) clearance.
Heavy duty hasp with 1.00" x 2.40"
(25.40mm x 60.00mm) clearance.
Heavy duty hasp with 1.00" x 3.00"
(25.40mm x 76.00mm) clearance.
Max. Std. Std.
No. Pkg. Ctn.
Locks Qty. Qty.
6
1
20
6
6
6
6
6
5
10
12
12
12
12
12
—
144
144
144
48
—
5
12
—
7
12
—
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.11
ELECTRICAL SOLUTIONS
A.
System
Overview
B1.
Cable Ties
Self-Laminating Padlock Labels
• Used to identify employees’ locks; employees sign the label, attach
it to the padlock, and overwrap with the clear vinyl to protect
the legend
• Available in six colors for departmental coding
• One-piece design is easy to use
B2.
Cable
Accessories
Width
Part Number
PSL-PL1BLKY
PSL-PL1BLUY
PSL-PL1GRNY
PSL-PL1REDY
PSL-PL1WHTY
PSL-PL1YELY
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
Color
Black
Blue
Green
Red
White
Yellow
In.
10.00
10.00
10.00
10.00
10.00
10.00
mm
254.00
254.00
254.00
254.00
254.00
254.00
Height
In.
.75
.75
.75
.75
.75
.75
mm
19.00
19.00
19.00
19.00
19.00
19.00
Std. Std.
Pkg. Ctn.
Qty. Qty.
25
150
25
150
25
150
25
150
25
150
25
150
Labels are designed with blank write-on area for name and department designation and can be clearly identified
with Panduit permanent marking pens.
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
Custom Lock Options
Padlocks are available with the following common lock options:
• Master keyed
• Keyed-alike
• Variety of lock sizes and shackle lengths
• Engraving available on PSL-8 Safety Lockout and PSL-7
High Security Padlocks
Individually Keyed
Keyed-Alike Systems
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
Master Key
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.12
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Metal I.D. Tags and Collars
PSL-TG1
MTB1D-Q
PSL-SC
Part Number
PSL-TG1
PSL-SC
MTB1D-Q
MT172W38-C
Part Description
Brass padlock identification tag.
Padlock shackle collar and rivet.
Marker tag, 1.00" circular, brass.
Marker tag, one hole, 304 Stainless Steel, rectangle, 1.72" x .38".
Std. Std.
Pkg. Ctn.
Qty. Qty.
12
48
12
48
25
250
100 1000
B1.
Cable Ties
B2.
Cable
Accessories
MT172W38-C
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
Padlock Eyes
• Padlock eyes assist with compliance to OSHA standards requiring
that equipment be modified to accept locks and lockout devices
• Surface mounted eyes are made of .13 inches (3.00mm) hard
wrought steel
PSL-PE2
Part Number
PSL-PE1
PSL-PE2
• Tamper resistant inside mounting eyes – 2.50 inches W
(64.00mm), accept shackle diameters up to .63 inches (16.00mm)
Part Description
Padlock eyes, angled (metal mounting screws included).
Padlock eyes, straight (wood mounting screws included).
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
1
10
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
PSL-PE1
D3.
Grounding
Connectors
E1.
Labeling
Systems
Chain Attachment
E2.
Labels
• Optional 9.00 inches (229.00mm) chain for permanently attaching lockouts at pre-designed locations
Part Number
PSL-PC
Part Description
Heavy duty zinc plated steel chain with chain holder attached.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
10
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.13
ELECTRICAL SOLUTIONS
A.
System
Overview
B1.
Cable Ties
B2.
Cable
Accessories
Write-On Safety Tags
• Meet OSHA Standard 1910.147 requirements for
tagout applications
• Semi-rigid plastic tags are 3.00" (76.00mm) W
x 5.75" (146.00mm) H with a .38" (9.00mm) brass grommet for
greater strength and increased durability
• Tags can be attached with a lockout device or with a Panduit
PLT2S nylon tie (50 lb. loop tensile strength) supplied with
each tag
B3.
Stainless
Steel Ties
• PVT-* Package consists of five tags and five cable ties
• PVT-*-Q Package consists of 25 tags and 25 cable ties
• Can be clearly identified with Panduit permanent marking pens
Material Chart
Material
Rigid Vinyl
Print Method
Pre-Printed
C1.
Wiring
Duct
Temperature Range
Features
-40°F to 150°F
Indoor/outdoor rated; rigid material accepts
(-40°C to 66°C)
ink; resistant to UV light, chemical
atmosphere, and abrasion; excellent for
applications where adhesives will not work.
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
Front
PVT-9-Q
Front
Back
PVT-15
Back
Front
D3.
Grounding
Connectors
PVT-23
PVT-23-Q
Back
E1.
Labeling
Systems
E2.
Labels
DO NOT
OPERATE
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
Signed By
Date
Front
E5.
Lockout/
Tagout
& Safety
Solutions
PVT-30
PVT-30-Q
Back
Front
PVT-41
Back
Front
PVT-42-Q
Back
F.
Index
E5.14
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Write-On Safety Tags (continued)
B1.
Cable Ties
B2.
Cable
Accessories
DANGER
LIVE
WIRE
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
Signed By:
Date:
PANDUIT
Front
PVT-43
Back
Front
PVT-44
PVT-44-Q
Back
Front
PVT-56
PVT-56-Q
Back
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
Front
PVT-57-Q
Back
Front
PVT-62-Q
Back
Front
PVT-96
PVT-96-Q
Back
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
DO NOT OPERATE
E3.
Pre-Printed
& Write-On
Markers
Front
PVT-97
PVT-97-Q
Back
Front
PVT-98
PVT-98-Q
Back
Front
PVT-99
Back
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
Tags continue on page E5.16.
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
F.
Index
E5.15
ELECTRICAL SOLUTIONS
A.
System
Overview
Write-On Safety Tags (continued)
B1.
Cable Ties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
Front
PVT-148-Q
Back
Front
PVT-150-Q
Back
Front
PVT-153-Q
Back
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
Front
PVT-155-Q
Back
Front
PVT-156-Q
Front
PVT-160-Q
Back
Front
PVT-157-Q
Back
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
Front
PVT-158-Q
Back
Back
Front
PVT-238-Q
Back
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.16
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Bilingual Write-On Safety Tags
• Tags can be attached with a lockout device or with a Panduit
PLT2S nylon tie (50 lb. loop tensile strength) supplied with
each tag
• Package consists of 25 tags and 25 cable ties
• Can be clearly identified with Panduit permanent marking pens
• Meet OSHA Standard 1910.147 requirements for
tagout applications
• Semi-rigid plastic tags are 3.00"W x 5.75"H
(76.00mm x 146.00mm) with a .38" (9.00mm) brass
grommet for greater strength and increased durability
B1.
Cable Ties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
Front
PVT-97S-Q
Front
Back
PVT-161-Q
Front
Back
PVT-165-Q
C2.
Surface
Raceway
Back
C3.
Abrasion
Protection
ISO Symbol Safety Tags
• Tags have write-on surface and can be attached with a lockout
device or with a Panduit PLT2S nylon tie (50 lb. loop tensile
strength) supplied with each tag
• Package consists of five tags and five cable ties
• Can be clearly identified with Panduit permanent marking pens
• Meets International Organization for Standardization (ISO) to
communicate safety information
• Semi-rigid plastic tags are 3.00"W x 5.75"H
(76.00mm x 146.00mm) with a .38" (9.00mm)
brass grommet for greater strength and durability
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
Front
PVT-110
Back
Front
PVT-111
(Do Not Throw Switch)
Back
Front
(Prohibition)
PVT-112
Back
(Warning of Dangerous
Electrical Voltage)
E2.
Labels
Do It Yourself Tags
E3.
Pre-Printed
& Write-On
Markers
EMPTY
CYLINDER
FULL
CYLINDER
DO NOT
USE
READY FOR
USE
PVT-199
PVT-94-Q
PVT-95-Q
PVT-113-Q
PANDUIT
PVT-199-Q
PVT-200
PVT-179-Q
PANDUIT
PVT-200-Q
DANGER
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
PANDUIT
PVT-118
PVT-118-Q
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
F.
Index
E5.17
ELECTRICAL SOLUTIONS
A.
System
Overview
B1.
Cable Ties
B2.
Cable
Accessories
Self-Laminating Photo Tags
• Semi-rigid plastic tags with polyester laminate to protect photos
and other written data are 3.00"W x 5.75"H
(76.00mm x 146.00mm) with a .38" (9.00mm) brass grommet for
greater strength and durability
• Tags have write-on surface and can be attached with a lockout
device or with a Panduit PLT2S nylon tie (50 lb. loop tensile
strength) supplied with each tag
• Package consists of five tags and five cable ties
• Can be clearly identified with Panduit permanent marking pens
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
DO
NOT
OPERATE
Do not remove
this lock. It
is here to
protect my life.
Front
PLACE
HERE
PST-3
Front
Back
PST-12
Back
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
Permanent Marking Pens
• Fast drying, permanent ink – legible identification on nylon
Part Number
PFX-0
PFX-2
• Used with marker ties, write-on labels and tags, where ordinary
marking pens will not work
Part Description
Permanent marking pen – fine tip.
Permanent marking pen – fine tip.
Ink
Color
Black
Red
Std. Std.
Pkg. Ctn.
Qty. Qty.
12
144
12
144
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.18
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Lockout/Tagout Safety Signs
Indoor/Outdoor Sub-Surface Printed Adhesive Polyester
(Type PPS)
• High quality signs for use indoors and outdoors
• Excellent resistance to UV light, chemical atmosphere,
and abrasion
• Excellent life and adhesion properties
• Printed graphics are protected by clear polyester laminate
Indoor/Outdoor Rigid Polyethylene (Type PRS)
• Rugged signs for indoors and outdoors
• Abrasion resistant
• Used where adhesives will not work
B1.
Cable Ties
Indoor Adhesive Vinyl (Type PVS)
• Economical general purpose signs for use in most environments
• Very good adhesive properties when applied to a clean,
dry surface
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
Material Chart
Material
Print Method
Polyester (PPS)
Rigid Polyethylene
(PRS)
Pre-Printed
Vinyl (PVS)
Temperature
Range
Features
-40°F to 275°F
(-40°C to 135°C)
Indoor/outdoor rated; laminated label material
protects legend from abrasion and chemicals;
resistant to UV light, chemical atmosphere, and
abrasion; excellent life and adhesion properties.
-105°F to 250°F
(-76°C to 121°C)
Indoor/outdoor rated; high quality, rugged material
resistant to abrasion; use where adhesives will
not work.
-40°F to 200°F
(-40°C to 93°C)
Indoor rated; economical general purpose material;
excellent adhesion properties when applied to a
clean, dry surface.
Size Reference Chart
Width
Part
Number In.
mm
*0109*
9.00 228.60
*0204*
4.50 114.30
*0209*
9.00 228.60
*0305*
5.00 127.00
*0503*
3.00
76.20
*0507*
7.00 177.80
*0509*
9.00 228.60
*0710*
10.00 254.00
*1014*
14.00 355.60
*0202*
2.25
57.15
Height
In.
mm
1.50
38.10
2.25
57.15
2.25
57.15
3.50
88.90
5.00 127.00
5.00
127
5.00
127
7.00
177.8
10.00
254
2.25
57.15
*0505*
5.00
5.00
127.00
127.00
*Denotes the part numbers’ prefix and suffix.
Signs
per
Card
1
2
1
1
2
1
1
1
1
4
1
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
WARNING
HIGH VOLTAGE
PVS0305W2102Y
PVS0305W2101Y^
PVS0507W2101Y^
PRS1014B364
PVS0509B364Y
PVS0710B364Y
PPS0710B364
PRS0710B364
PPS0710D72
PRS0710D72
PRS1014D72
PVS0109D72Y
PVS0204D72Y
PVS0710D72Y
PVS0209D445Y
PVS0305C174Y
PVS0505C174Y
PPS0305C174
PVS0710C173Y
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
PVS0204D100Y
E1.
Labeling
Systems
LOCK OUT
BEFORE SERVICING
THE FOLLOWING STEPS MUST
BE PERFORMED WHEN LOCKING
OUT EQUIPMENT:
1 - Identify all potential hazards
and energy sources.
2 - Inform operator / supervisor about
work to be performed.
3 - Prepare equipment for shutdown.
PVS0204C176Y
4 - Shutdown / turn off equipment.
E2.
Labels
5 - Isolate and LOCKOUT energy sources.
6 - Release all stored energy.
PVS0204C171Y
PVS0710C180Y
7 - Test equipment for zero energy state.
8 - Clear personnel / tools before
and after job.
9 - Remove locks and tags when work
completed.
PVS0204C177Y
PVS0503N458Y
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
PVS0204C179Y
PVS0204W172Y
PVS0204C178Y
PPS0202B493
E5.
Lockout/
Tagout
& Safety
Solutions
^Can be clearly identified with Panduit permanent marking pens.
F.
Index
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.19
ELECTRICAL SOLUTIONS
A.
System
Overview
B1.
Cable Ties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
Jack Module Blockout Device
• Blocks unauthorized access to jacks and potentially harmful
foreign objects, saving time and money associated with
data security breaches, network downtime, repair and
hardware replacement
• Compatible with most RJ45 jacks to accommodate a variety of
applications and does not interfere with jack contacts
Part Number*
PSL-DCJB
PSL-DCJB-BL
PSL-DCJB-BU
PSL-DCJB-YL
C2.
Surface
Raceway
PSL-DCJB-IW
PSL-DCJB-GR
C3.
Abrasion
Protection
PSL-DCJB-IG
PSL-DCJB-OR
C4.
Cable
Management
• Can be installed/removed without interfering with adjacent jacks
or hardware
• May only be released with the special removal tool, ensuring the
safety and security of your network infrastructure
Package of ten
removal tool.
Package of ten
removal tool.
Package of ten
removal tool.
Package of ten
removal tool.
Package of ten
removal tool.
Package of ten
removal tool.
Package of ten
removal tool.
Package of ten
removal tool.
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
20
Part Description
RJ45 jack blockout devices and one
Color
Red
RJ45 jack blockout devices and one
Black
1
20
RJ45 jack blockout devices and one
Blue
1
20
RJ45 jack blockout devices and one
Yellow
1
20
RJ45 jack blockout devices and one
International
White
Green
1
20
1
20
International
Gray
Orange
1
20
1
20
RJ45 jack blockout devices and one
RJ45 jack blockout devices and one
RJ45 jack blockout devices and one
*Available in bulk packages of 100 devices and five removal tools. To order bulk package add -C to the suffix of
part number.
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.20
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
RJ45 Plug Lock-In Device
• Tamper-resistant design blocks unauthorized removal of cable,
IP phone, other networking equipment or critical connection
Part Number*
PSL-DCPLX
PSL-DCPLX-BL
PSL-DCPLX-BU
PSL-DCPLX-YL
PSL-DCPLX-IW
PSL-DCPLX-GR
PSL-DCPLX-OR
PSL-DCPLX-IG
PSL-DCPLRX
PSL-DCPLRX-BL
PSL-DCPLRX-BU
PSL-DCPLRX-YL
PSL-DCPLRX-IW
PSL-DCPLRX-GR
PSL-DCPLRX-OR
PSL-DCPLRX-IG
• Deters unauthorized users from moving or stealing VoIP phones
helping to maintain E911 service
• Compact design does not interfere with adjacent jacks, even in
high-density applications
Part Description
Package of ten RJ45 plug lock-in devices and
one installation/removal tool.
Package of ten RJ45 plug lock-in devices and
one installation/removal tool.
Package of ten RJ45 plug lock-in devices and
one installation/removal tool.
Package of ten RJ45 plug lock-in devices and
one installation/removal tool.
Package of ten RJ45 plug lock-in devices and
one installation/removal tool.
Package of ten RJ45 plug lock-in devices and
one installation/removal tool.
Package of ten RJ45 plug lock-in devices and
one installation/removal tool.
Package of ten RJ45 plug lock-in devices and
one installation/removal tool.
Package of ten recessed RJ45 plug lock-in
devices and one installation/removal tool.
Package of ten recessed RJ45 plug lock-in
devices and one installation/removal tool.
Package of ten recessed RJ45 plug lock-in
devices and one installation/removal tool.
Package of ten recessed RJ45 plug lock-in
devices and one installation/removal tool.
Package of ten recessed RJ45 plug lock-in
devices and one installation/removal tool.
Package of ten recessed RJ45 plug lock-in
devices and one installation/removal tool.
Package of ten recessed RJ45 plug lock-in
devices and one installation/removal tool.
Package of ten recessed RJ45 plug lock-in
devices and one installation/removal tool.
Color
Red
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
20
Black
1
20
Blue
1
20
Yellow
1
20
International
White
Green
1
20
1
20
Orange
1
20
International
Gray
Red
1
20
1
20
Black
1
20
Blue
1
20
Yellow
1
20
International
White
Green
1
20
1
20
Orange
1
20
International
Gray
1
20
*Available in bulk packages of 100 devices and five installation/removal tools. To order bulk package add -C to the
suffix of part number.
B1.
Cable Ties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.21
ELECTRICAL SOLUTIONS
A.
System
Overview
B1.
Cable Ties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
LC Duplex Adapter Blockout Device
• TIA/EIA-604 FOCIS-10 compliant device fits all LC duplex
adapters for a variety of applications and installations
• Tamper-resistant design blocks unauthorized access to LC duplex
ports to reduce the risk of damage, saving time and money
associated with downtime, repair and hardware replacement
• Compact, low profile design allows installation or removal
without disturbing adjacent ports or installed patch cords in
high-density applications
Part Number*
PSL-LCAB
PSL-LCAB-AQ
PSL-LCAB-BL
C2.
Surface
Raceway
PSL-LCAB-BU
PSL-LCAB-EI
C3.
Abrasion
Protection
• Also functions as dust plug to mechanically protect the LC adapter
optics and render it “eye-safe”
• Removal tool allows only authorized personnel to release the
device, ensuring safety and security of your network infrastructure
• Available in multiple colors to match or contrast adapter colors for
easy identification of blocked out adapters
Package of ten LC
one removal tool.
Package of ten LC
one removal tool.
Package of ten LC
one removal tool.
Package of ten LC
one removal tool.
Package of ten LC
one removal tool.
Part Description
duplex adapter blockout devices and
Color
Red
Std.
Pkg.
Qty.
1
Std.
Ctn.
Qty.
20
duplex adapter blockout devices and
Aqua
1
20
duplex adapter blockout devices and
Black
1
20
duplex adapter blockout devices and
Blue
1
20
duplex adapter blockout devices and
Electric
Ivory
1
20
*Also available in bulk packages of 100 devices and five removal tools. To order bulk package,
add -C to the end of the part number.
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
SC Adapter Blockout Device
• TIA/EIA-604 FOCIS-3 compliant device fits all SC adapters for a
variety of applications and installations
• Tamper-resistant design blocks unauthorized access to SC switch
and HBA/NIC ports, switch uplinks and user outlets, saving time
and money associated with data security breaches, network
downtime, repairs and hardware replacement
• Compact, low profile design allows installation or removal
without disturbing adjacent ports or installed patch cords in
high-density applications
Part Number*
PSL-SCBD
PSL-SCBD-AG
E2.
Labels
PSL-SCBD-AQ
PSL-SCBD-BL
E3.
Pre-Printed
& Write-On
Markers
PSL-SCBD-BU
PSL-SCBD-EI
E4.
Permanent
Identification
• Also functions as dust plug to mechanically protect the SC
adapters/receptacle optics and renders it “eye-safe” to prevent
exposure to laser radiation and contamination on dust sensitive
transceivers
• Removal tool allows only authorized personnel to release the
device, ensuring safety and security of your network infrastructure
• Available in multiple colors for visual identification or aesthetics
Package of ten
removal tool.
Package of ten
removal tool.
Package of ten
removal tool.
Package of ten
removal tool.
Package of ten
removal tool.
Package of ten
removal tool.
Part Description
SC adapter blockout devices and one
Color
Red
Std.
Pkg.
Qty.
1
Std.
Ctn.
Qty.
20
SC adapter blockout devices and one
Green
1
20
SC adapter blockout devices and one
Aqua
1
20
SC adapter blockout devices and one
Black
1
20
SC adapter blockout devices and one
Blue
1
20
SC adapter blockout devices and one
Electric
Ivory
1
20
*Also available in bulk packages of 100 devices and five removal tools. To order bulk package, add -C to the end of
the part number.
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.22
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
SAFETY AND FACILITY IDENTIFICATION
Panduit offers a full line of safety and facility identification products to ensure employee safety
with an effectively identified workplace.
B1.
Cable Ties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
• Safety signs and labels offered in a variety of materials,
colors, sizes and legends
• Voltage markers in adhesive and snap-on style
• Utility tapes in a variety of materials, colors, sizes
and legends
• Letters and numbers in a variety of materials and sizes
• Tags in a variety of materials, colors, sizes and legends
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
Panduit safety and facility identification products are designed to assist you with creating a safe,
compliant, and efficient workplace.
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.23
ELECTRICAL SOLUTIONS
A.
System
Overview
Electrical Hazard Safety Signs
Material Chart
B1.
Cable Ties
Material
Polyester
(PPS)
B2.
Cable
Accessories
Rigid
Polyethylene
(PRS)
B3.
Stainless
Steel Ties
Print Method
Pre-Printed
Temperature
Range
Features
-40°F to 275°F Indoor/outdoor rated; laminated label material
(-40°C to 135°C) protects legend from abrasion and chemicals;
resistant to UV light, chemical atmosphere, and
abrasion; excellent life and adhesion properties.
-105°F to 250°F Indoor/outdoor rated; high quality, rugged material
(-76°C to 121°C) resistant to abrasion; use where adhesives will
not work.
Vinyl
(PVS)
-40°F to 200°F
(-40°C to 93°C)
C1.
Wiring
Duct
Indoor rated; economical general purpose material;
excellent adhesion properties when applied to a
clean, dry surface.
Size Reference Chart
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
Part
Number
*0109*
In.
9.00
mm
228.60
In.
1.50
mm
38.10
Signs
Per
Card
1
*0204*
4.50
114.30
2.25
57.15
2
*0305*
5.00
127.00
3.50
88.90
1
*0507*
7.00
177.80
5.00
127.00
1
Width
Height
*0509*
9.00
228.60
5.00
127.00
1
*0514*
14.00
355.60
5.00
127.00
1
*0710*
10.00
254.00
7.00
177.80
1
*1007*
10.00
254.00
7.00
177.80
1
*1014*
14.00
355.60
10.00
254.00
1
*1420*
20.00
508.00
14.00
355.60
1
*Denotes the part numbers’ prefix and suffix.
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E4.
Permanent
Identification
PPS0710C141
PPS0710D28^
PPS0710D66
PRS0710D68
PPS0710D70
PRS1014D70
PRS1014D71
PPS0710D101
PPS0710D72
PRS0710D72
PRS1014D72
PVS0109D72Y
PVS0204D72Y
PVS0710D72Y
PPS0305D73
PPS0710D73
PPS1014D73
PRS1014D73
PPS0305D75
PPS0710D75
PRS1420D75
PPS0710D77
PVS0204D100Y
PPS0305C174
PVS0305C174Y
PVS0505C174Y
PPS0710D24
PPS0514B363
PPS0710B364
PRS0710B364
PRS1014B364
PVS0509B364Y
PVS0710B364Y
PRS1014D79
PRS0910D453
PPS0710N203
HIGH
VOLTAGE
ALTO
VOLTAJE
PPS1007D72SE
E5.24
PVS0305W2101Y^
PVS0507W2101Y^
HIGH VOLTAGE
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
PVS0305W2102Y
THIS EQUIPMENT
STARTS AUTOMATICALLY
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
WARNING
^Can be clearly identified with Panduit permanent marking pens.
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Short Circuit Warning Signs
• Aids in compliance with UL 508A requirement
B1.
Cable Ties
Material Chart
WARNING
RISK OF FIRE OR ELECTRIC SHOCK
Material
Polyester
(PPS)
Print Method
Pre-Printed
Temperature Range
-40°F to 275°F
(-40°C to 135°C)
The opening of the branch-circuit protective device may be
an indication that a fault current has been interrupted.
All current carrying parts and other componenets protected
by this device should be examined and replaced if damaged.
If burnout of a current element of an overload relay occurs,
the complete overload relay must be replaced.
SHORT CIRCUIT CURRENT
kA;
VMAX
B2.
Cable
Accessories
Size Reference Chart
PANDUIT PVS0305W2201Y
Width
Part
Number
*0305*
*0507*
*0710*
*1014*
*1209*
PPS0305W2201Y
PPS0507W2201Y
Features
Indoor/outdoor rated; laminated label material protects
legend from abrasion and chemicals; resistant to
resistant to UV light, chemical atmosphere, and
abrasion; excellent life and adhesion properties.
Height
In.
mm
In.
mm
5.00
127.00
3.00
76.20
7.00
177.80
5.00
127.00
10.00
254.00
7.00
177.80
14.00
355.60
10.00
254.00
9.00
228.60
12.00
304.80
*Denotes the part numbers’ prefix and suffix.
B3.
Stainless
Steel Ties
Signs
Per
Card
5
5
1
1
1
C1.
Wiring
Duct
C2.
Surface
Raceway
Photoluminescent Safety Signs
• Used to mark egress routes, fire alarms, and fire equipment that is
clearly visible for up to ten hours after power is lost
• Absorbs energy from ambient light and releases this energy in the
form of a glow when power is lost
• Panduit Photoluminescent Signs meet or exceed the following
safety standard specification for photoluminescent safety markings
including: ASTM E 2072-00, ASTM E 2073-00, ASTM E 2030-99,
DIN67510-1, IMO Resolution A.752.18, ISO/CD 15370, DIN
67510, UL 924, ASTM 162, ASTM 648, ASTM 662, MIL-L-3891 B,
NFPA 101 Life Safety Code, OSHA 1910.37
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
PPS0710G001
PPS1014G002
PPS0710G020
PPS1209G010
PPS1209G011
PPS1209G012
D2.
Power
Connectors
Electrical Symbols on Cards
Material Chart
Material
Vinyl Cloth
Part Number
PESC-H-AT
PESC-J-AT
Symbol
Print Method
Temperature Range
Pre-Printed
-50°F to 170°F
(-46°C to 77°C)
Description
WARNING OF DANGEROUS
ELECTRICAL VOLTAGE
PESC-H-E
PESC-J-E
EARTH (GROUND)
PESC-H-EC
PESC-J-EC
PESC-H-HT
PESC-J-HT
SAFETY FUNCTION
STATIC SENSITIVE DEVICE
– HANDLING
PRECAUTIONS REQUIRED
PESC-H-PE
PESC-J-PE
PROTECTIVE CONDUCTOR
Order number of pieces required, in multiples of Standard Package Quantity.
Features
Indoor/outdoor rated; conformable material with
repositionable adhesive allows label to be removed
and reused or used in temporary applications;
provides durability, high temperature resistance, and
dimensional stability for rough or textured surfaces.
Marker Size
In.
mm
0.51 x 0.51
13.00 x 13.00
Markers
Per
Card
68
Std.
Std.
Pkg.
Ctn.
Card(s) Card(s)
10
100
0.75 x 0.75
19.00 x 19.00
36
10
100
0.51 x 0.51
13.00 x 13.00
68
10
200
0.75 x 0.75
19.00 x 19.00
36
10
100
0.51 x 0.51
13.00 x 13.00
68
10
200
0.75 x 0.75
19.00 x 19.00
36
10
100
0.51 x 0.51
13.00 x 13.00
68
10
100
0.75 x 0.75
19.00 x 19.00
36
10
100
0.51 x 0.51
13.00 x 13.00
68
10
100
0.75 x 0.75
19.00 x 19.00
36
10
100
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.25
ELECTRICAL SOLUTIONS
A.
System
Overview
B1.
Cable Ties
Conductor Identification Labels
Material Chart
Material
Polyester
Print Method
Temperature Range
Features
Pre-Printed
-40°F to 250°F
(-40°C to 121°C)
Indoor/outdoor rated; laminated label
material protects legend from abrasion and
chemicals; resistant to UV light, chemical
atmosphere, and abrasion; excellent life
and adhesion properties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.26
Part Number
PESS-A-CE
PESS-B-CE
PESS-C-CE
PESS-D-CE
PESS-E-CE
Symbol
PESS-A-ES
PESS-B-ES
PESS-C-ES
PESS-D-ES
PESS-E-ES
PESS-A-L1
PESS-B-L1
PESS-C-L1
PESS-D-L1
PESS-E-L1
PESS-A-L2
PESS-B-L2
PESS-C-L2
PESS-D-L2
PESS-E-L2
PESS-A-L3
PESS-B-L3
PESS-C-L3
PESS-D-L3
PESS-E-L3
PESS-A-LF
PESS-A-N
PESS-B-N
PESS-C-N
PESS-D-N
PESS-A-PE
PESS-A-ROHS
PESS-A-SS
PESS-B-SS
PESS-C-SS
PESS-D-SS
Legend
CE SYMBOL
Marker Diameter
In.
mm
0.49
12.50
0.63
16.00
0.79
20.00
0.98
25.00
1.24
31.50
Labels
Per
Sheet
20
20
10
10
10
Std.
Std.
Pkg.
Ctn.
Sheet(s) Sheet(s)
10
100
10
100
10
100
10
100
10
100
0.49
0.63
0.79
0.98
1.24
0.49
0.63
0.79
0.98
1.24
0.49
0.63
0.79
0.98
1.24
0.49
0.63
0.79
0.98
1.24
12.50
16.00
20.00
25.00
31.50
12.50
16.00
20.00
25.00
31.50
12.50
16.00
20.00
25.00
31.50
12.50
16.00
20.00
25.00
31.50
20
20
10
10
10
20
20
10
10
10
20
20
10
10
10
20
20
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
LEAD FREE SYMBOL
0.49
12.50
20
10
100
NEUTRAL
CONDUCTOR – N
0.49
0.63
0.79
0.98
12.50
16.00
20.00
25.00
20
20
10
10
10
10
10
10
100
100
100
100
PROTECTIVE
CONDUCTOR – PE
0.49
12.50
20
10
100
RoHS WHEELED BIN
SYMBOL
0.49
12.50
20
10
100
SAFETY FUNCTION
0.49
0.63
0.79
0.98
12.50
16.00
20.00
25.00
20
20
10
10
10
10
10
10
100
100
100
100
EARTH (GROUND)
OUTER CONDUCTOR – L1
OUTER CONDUCTOR 2 – L2
OUTER CONDUCTOR 3 – L3
Order number of cards required.
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
ISO Warning Symbols
Material Chart
Material
Print Method
Paper
(WL1, WL3)
Polyester
(WL25)
Pre-Printed
-40°F to 176°F
(-40°C to 80°C)
Vinyl
(PESW, WL32Y,
WL33Y, WL35Y,
WL36Y)
Part Number
Symbol
B1.
Cable Ties
Temperature Range
Features
-65°F to 200°F
Indoor rated; general purpose and
(-54°C to 80°C)
material; excellent adhesion properties
when applied to a clean, dry surface.
-40°F to 250°F
Indoor/outdoor rated; laminated label
(-54°C to 93°C)
material protects legend from abrasion and
chemicals; resistant to UV light, chemical
atmosphere, and abrasion; excellent life
and adhesion properties.
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
Indoor/outdoor rated; laminated label
material protects legend from abrasion and
chemicals; resistant to UV light, chemical
atmosphere, and abrasion; excellent life
and adhesion properties.
Description
Triangle Width
In.
mm
Markers
Per
Card/Pkg
Std.
Std.
Pkg.
Ctn.
Card(s) Card(s)
Cards
PESW-A-1Y
PESW-B-1Y
PESW-C-1Y
PESW-D-1Y
PESW-E-1Y
PESW-A-6Y
PESW-B-6Y
PESW-C-6Y
PESW-D-6Y
PESW-E-6Y
PESW-A-8Y
PESW-B-8Y
PESW-C-8Y
PESW-D-8Y
PESW-E-8Y
PESW-A-9Y
PESW-B-9Y
PESW-C-9Y
PESW-D-9Y
PESW-E-9Y
PESW-A-11Y
PESW-B-11Y
PESW-C-11Y
PESW-D-11Y
PESW-E-11Y
0.50
1.00
1.97
3.90
7.90
0.50
1.00
1.97
3.90
7.90
0.50
1.00
1.97
3.90
7.90
0.50
1.00
1.97
3.90
7.90
0.50
1.00
1.97
3.90
7.90
13.0
25.4
50.0
99.1
200.7
13.0
25.4
50.0
99.1
200.7
13.0
25.4
50.0
99.1
200.7
13.0
25.4
50.0
99.1
200.7
13.0
25.4
50.0
99.1
200.7
10
10
10
3
1
10
10
10
3
1
10
10
10
3
1
10
10
10
3
1
10
10
10
3
1
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
200
200
200
200
200
100
100
100
100
100
200
200
100
100
100
200
200
100
100
100
100
100
100
100
100
2.00
50.8
500
1
10
2.00
50.8
500
1
10
1.50
38.10
50
1
10
4.50
114.30
50
1
10
CAUTION – HOT SURFACE
WARNING
2.00
50.80
50
1
10
WARNING – HOT SURFACE
WARNING
2.00
CAUTION - RISK OF
ELECTRIC SHOCK
CAUTION - RISK OF
IONIZING RADIATION
CAUTION - LASER BEAM
CAUTION - GENERAL
WARNING, RISK OF
DANGER
WARNING OF STATIC
SENSITIVE DEVICE
Rolls
WL1
WL3
STATIC AWARENESS
WARNING
WL32Y
WL33Y
WL35Y
WL36Y
RISK OF ELECTRIC SHOCK
symbol
50.80
50
1
10
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.27
ELECTRICAL SOLUTIONS
A.
System
Overview
Electrical Labels in Dispenser
Material Chart
B1.
Cable Ties
Material
Polyester
Print Method
Pre-Printed
Temperature
Range
-40°F to 250°F
(-40° to 121°C)
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.28
Width
Part Number
Dispensers
PLD-12^
Symbol
Description
In.
mm
Features
Indoor/outdoor rated; laminated label material
protects legend from abrasion and chemicals;
resistant to UV light chemical atmosphere and
abrasion; excellent life and adhesion properties.
Height
In.
mm
Labels
Std.
Std.
Per
Pkg.
Ctn.
Pkg. Dispenser(s) Dispenser(s)
CIRCUIT NO., LOCATION
1.50 38.10 1.00 25.40
200
1
10
PLD-30^
CAUTION
1.50 38.10 1.00 25.40
200
1
10
PLD-36
PLD-37
PLD-38
PLD-43^
CAUTION 120 V
CAUTION 220 V
CAUTION 240 V
DANGER HIGH
VOLTAGE
1.50
1.50
1.50
1.50
38.10
38.10
38.10
38.10
1.00
1.00
1.00
1.00
25.40
25.40
25.40
25.40
200
200
200
200
1
1
1
1
10
10
10
10
PLD-45
PLD-46
PLD-47
PLD-52
CAUTION 230 V
CAUTION 277 V
CAUTION 277/480 V
ATTENTION SYMBOL
(ISO 3864)
1.50
1.50
1.50
1.50
38.10
38.10
38.10
38.10
1.00
1.00
1.00
1.00
25.40
25.40
25.40
25.40
200
200
200
200
1
1
1
1
10
10
10
10
PLD-56
HIGH VOLTAGE SYMBOL
(ISO 3864)
1.50 38.10 1.00 25.40
200
1
10
PLD-57
GROUND SYMBOL
(ISO 3864)
.75
19.10
300
1
10
PLD-58
STATIC AWARENESS
WARNING
1.50 38.10 1.00 25.40
200
1
10
PLD-60
STATIC AWARENESS
WARNING
3.00 76.20 1.00 25.40
100
1
10
PLD-67
DANGER HIGH VOLTAGE
1.50 38.10 1.00 25.40
200
1
10
PLD-68^
LOCKOUT BY _____
DATE _____
1.50 38.10 1.00 25.40
200
1
10
PLD-71
WARNING - FOR
CONTINUED PROTECTION ...
2.00 50.80 1.00 25.40
150
1
10
PLD-72
CAUTION LOCK OUT FOR
SAFETY BEFORE ...
1.50 38.10 1.00 25.40
200
1
10
PLD-74
CAUTION HAZARD OF
ELECTRIC SHOCK ...
1.50 38.10 1.00 25.40
200
1
10
PLD-80
INTRINSICALLY
SAFE WIRING
1.00 25.40 1.50 38.10
200
1
10
PLD-81
SERVICE
DISCONNECT
1.50 38.10 1.00 25.40
200
1
10
PLD-91
CAUTION
480 V
1.50 38.10 1.00 25.40
200
1
10
19.10
.75
Order number of dispensers required in multiples of Std. Pkg.
^Can be clearly identified with Panduit permanent marking pens.
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Write-On Labels on Cards
B1.
Cable Ties
Material Chart
Material
Vinyl Cloth
Print Method
Pre-Printed
Temperature
Range
-50°F to 170°F
(-46°C to 77°C)
Features
Indoor/outdoor rated; conformable material with
repositionable adhesive allows label to be
removed and reused or used in temporary
applications; provides durability, high
temperature resistance, and dimensional
stability for rough or textured surfaces.
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
Width
Part Number
PCWL-BL
Symbol
Description
BLANK
In.
mm
Height
In.
mm
Markers Std.
Std.
Per
Pkg.
Ctn.
Card Card(s) Card(s)
25
100
C1.
Wiring
Duct
C2.
Surface
Raceway
PCWL-ACC
PCWL-CAL
ACCEPTED
25
CALIBRATION
25
100
100
C3.
Abrasion
Protection
25
100
C4.
Cable
Management
CALIBRATION
25
100
D1.
Terminals
REJECTED
25
100
PCWL-CALD
CALIBRATED
PCWL-ICAL
PCWL-REJ
1.50
38.10
0.63
15.90
14
D2.
Power
Connectors
D3.
Grounding
Connectors
Order number of cards required.
Can be clearly identified with Panduit permanent marking pens.
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.29
ELECTRICAL SOLUTIONS
A.
System
Overview
Write-On Quality Labels in Dispenser
B1.
Cable Ties
Material Chart
Material
Polyester
B2.
Cable
Accessories
Temperature
Range
-40°F to 250°F
(-40° to 121°C)
Print Method
Pre-Printed
Features
Indoor/outdoor rated; laminated label material
protects legend from abrasion and chemicals;
resistant to UV light, chemical atmosphere, and
abrasion; excellent life and adhesion properties.
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
Width
Part Number^
PLD-17
Symbol
Legend
BLANK
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
mm
In.
mm
Labels
Std.
Std.
Per
Pkg.
Ctn.
Dispenser Dispenser(s) Dispenser(s)
1
10
PLD-18
BLANK
1
10
PLD-3
CALIBRATION, BY, DATE,
DUE
1
10
PLD-4
ACCEPTED, BY, DATE
1
10
PLD-7
TESTED, DATE, BY
1
10
1.50
D1.
Terminals
D2.
Power
Connectors
In.
Height
38.1
1.00
25.4
200
PLD-11
DO NOT USE AFTER
1
10
PLD-22
CALIBRATION, BY, DATE,
DUE
1
10
PLD-28
INSPECTED, BY, DATE
1
10
PLD-29
MAINTENANCE, BY, DATE
1
10
PLD-62
BLANK
1
10
PLD-63
BLANK
1
10
PLD-64
BLANK
1
10
0.75
19.1
300
PLD-77
BLANK
1
10
PLD-78
BLANK
1
10
Order number of dispensers required in multiples of Std. Pkg.
Can be clearly identified with Panduit permanent marking pens.
F.
Index
E5.30
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Inspection Plates
Material Chart
Material
Destructible Vinyl
Print Method
Temperature Range
Pre-Printed
-50°F to 225°F
(-46°C to 107°C)
B1.
Cable Ties
Features
Indoor/outdoor rated; label will destruct
upon removal; for permanent and tamper
resistant labeling applications.
Year
12
In.
0.59
mm
15.0
Markers
Per
Card
10
13
0.59
15.0
10
10
100
14
0.59
15.0
10
10
100
PEIP-A-15Y
15
0.59
15.0
10
10
100
PEIP-D-12Y
2012
1.38
35.0
5
10
100
PEIP-D-13Y
2013
1.38
35.0
5
10
100
PEIP-D-14Y
2014
1.38
35.0
5
10
100
PEIP-D-15Y
2015
1.38
35.0
5
10
100
Marker Diameter
Part Number
PEIP-A-12Y
Symbol
PEIP-A-13Y
PEIP-A-14Y
11
Std.
Std.
Pkg.
Ctn.
Card(s) Card(s)
10
100
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
Inspection Arrows
Material Chart
Material
Vinyl Cloth
Print Method
Pre-Printed
Temperature Range
Features
-50°F to 170°F
Indoor/outdoor rated; conformable material
(-46°C to 77°C)
with repositionable adhesive allows label
to be removed and reused or used in
temporary applications; provides
durability, high temperature resistance,
and dimensional stability for rough or
textured surfaces.
Width
Part Number
PARW125-RED
Symbol
PARW125-YEL
Height
In.
0.13
mm
3.00
In.
0.19
mm
5.00
Markers
Per Card
576
0.13
3.00
0.19
5.00
576
Std.
Std.
Pkg.
Pkg.
Card(s) Card(s)
25
—
25
100
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
Prime items appear in BOLD. E5.31
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
Order number of pieces required, in multiples of Standard Package Quantity.
ELECTRICAL SOLUTIONS
A.
System
Overview
Voltage and Fiber Optic Markers
B1.
Cable Ties
Style
A
B
C
B2.
Cable
Accessories
Material
Polyester
C1.
Wiring
Duct
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
F.
Index
E5.32
In.
2.25
1.13
0.50
Print Method
Pre-Printed
Style A
Part Number
Style B
Style C
PCV-110AY
PCV-115AY
PCV-120/208AY
PCV-120AY
PCV-12470AY
PCV-13200AY
PCV-13800AY
PCV-1PHAY
PCV-208AY
PCV-220AY
PCV-2300AY
PCV-230AY
PCV-2400AY
PCV-240AY
PCV-277/480AY
PCV-277AY
PCV-380AY
PCV-3PHAY
PCV-415AY
PCV-4160AY
PCV-440AY
PCV-460AY
PCV-480AY
PCV-600AY
PCV-BLANKAY
PCV-ESAY
PCV-FAAY
PCV-FOAY
PCV-FOCAY
PCV-MAINAY
PCV-TELEAY
PCV-110BY
PCV-115BY
PCV-120/208BY
PCV-120BY
PCV-12470BY
PCV-13200BY
PCV-13800BY
PCV-1PHBY
PCV-208BY
PCV-220BY
PCV-2300BY
PCV-230BY
PCV-2400BY
PCV-240BY
PCV-277/480BY
PCV-277BY
PCV-380BY
PCV-3PHBY
PCV-415BY
PCV-4160BY
PCV-440BY
PCV-460BY
PCV-480BY
PCV-600BY
PCV-BLANKBY
PCV-ESBY
PCV-FABY
PCV-FOBY
PCV-FOCBY
PCV-MAINBY
PCV-TELEBY
PCV-110CY
PCV-115CY
PCV-120/208CY
PCV-120CY
PCV-12470CY
PCV-13200CY
PCV-13800CY
PCV-1PHCY
PCV-208CY
PCV-220CY
PCV-2300CY
PCV-230CY
PCV-2400CY
PCV-240CY
PCV-277/480CY
PCV-277CY
PCV-380CY
PCV-3PHCY
PCV-415CY
PCV-4160CY
PCV-440CY
PCV-460CY
PCV-480CY
PCV-600CY
PCV-BLANKCY
PCV-ESCY
PCV-FACY
PCV-FOCY
PCV-FOCCY
PCV-MAINCY
PCV-TELECY
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
Length
mm
57.10
28.60
12.70
Pipe/Conduit
Markers
O.D. Range
Per
In.
mm
Card
3.00 and Over 76.20 and Over
1
1.25 – 3.00
31.70 – 76.20
4
1.25 – Under 31.70 and Under
18
Material Chart
B3.
Stainless
Steel Ties
C2.
Surface
Raceway
Width
In.
mm
9.00
228.00
4.50
114.30
2.20
57.10
Style
M
R
Part Number
Style M
Style R
PCV-120RY
PCV-480RY
PCV-FOMY
PCV-FORY
Temperature
Range
-40°F to 275F
(-40°C to 135°C)
Color
(Legend/Background)
Legend
110 Volts
115 Volts
120/208 Volts
120 Volts
12470 Volts
13200 Volts
13800 Volts
Single Phase
208 Volts
220 Volts
2300 Volts
230 Volts
2400 Volts
240 Volts
277/480 Volts
277 Volts
380 Volts
Three Phase
415 Volts
4160 Volts
440 Volts
460 Volts
480 Volts
600 Volts
Blank – No Legend
Emergency Service
Fire Alarm
Fiber Optic
Fiber Optic Cable
Main
Telephone
Width
In.
mm
14.00
355.60
8.00
230.20
Legend
120 Volts
480 Volts
Fiber Optic
Order number of pieces required, in multiples of Standard Package Quantity.
Length
In.
23.00
8.00
Features
Indoor/outdoor rated; pre-coiled material protects
legend from abrasion and chemicals; resistant to
UV light, chemical atmosphere, and abrasion.
mm
584.20
230.20
Black/Orange
Pipe/Conduit
O.D. Range
In.
mm
2.25 – 6.00
57.20 – 152.40
0.75 – 2.25
19.10 – 57.20
Color
(Legend/Background)
Black/Orange
Std. Std.
Pkg. Ctn.
Qty. Qty.
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
Markers
Per
Card
1
1
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
25
1
25
1
25
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Voltage and Safety Marker Books
Material Chart
Material
Print Method
Vinyl
Pre-Printed
Part Number
Temperature
Range
-40°F to 200°F
(-40°C to 93°C)
B1.
Cable Ties
Features
Indoor rated; economical general purpose
material; excellent adhesion properties when
applied to a clean, dry surface.
Markers
Per
Page
Legend
Markers
Per
Book
B2.
Cable
Accessories
Std.
Qty.
Book(s)
Voltage Markers
1.50" x 3.25" (38.00mm x 82.00mm)
PCVB-110Y
PCVB-220Y
PCVB-277Y
PCVB-277/480Y
PCVB-440Y
PCVB-480Y
PCVB-4160Y
110 Volts
220 Volts
277 Volts
277/480 Volts
440 Volts
480 Volts
4160 Volts
C1.
Wiring
Duct
3
30
1
C2.
Surface
Raceway
Safety Markers
1.50" x 3.25" (38.00mm x 82.00mm)
PSSB-13
Danger High Voltage
3
30
C3.
Abrasion
Protection
1
Hazard Tape
C4.
Cable
Management
Material Chart
Material
Print Method
Pre-Printed
Vinyl
Part Number
HT2S-BLK-YEL
HT2S-RED-WHT
HT3S-BLK-YEL
HT3S-RED-WHT
B3.
Stainless
Steel Ties
Temperature
Range
-20°F to 175°F
(-29°C to 79°C)
Part Description
Black/yellow stripe, adhesive
continuous tape.
Red/white striped, adhesive
continuous tape.
Black/yellow striped, adhesive
continuous tape.
Red/white striped, adhesive
continuous tape.
Features
Indoor rated; color-coded for quick identification;
can be used in place of paint; excellent adhesion
properties when applied to a clean, dry surface.
D1.
Terminals
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
12
D2.
Power
Connectors
Width
In.
mm
2.00 50.80
Length
Ft.
m
54.0
16.5
2.00
50.80
54.0
16.5
1
12
3.00
76.20
54.0
16.5
1
10
3.00
76.20
54.0
16.5
1
10
Solid Color Adhesive Warning Tape
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
Material Chart
Material
Vinyl
Temperature Range
Features
-20°F to 175°F
(-29°C to 79³C)
Indoor rated; color-coded for quick identification;
can be used in place of paint; excellent adhesion
properties when applied to a clean, dry surface.
Width
Part Number
HT2-BLU
HT2-GRN
HT2-ORN
HT2-RED
HT2-WHT
HT2-YEL
Color
Blue
Green
Orange
Red
White
Yellow
In.
2.00
2.00
2.00
2.00
2.00
2.00
mm
50.80
50.80
50.80
50.80
50.80
50.80
Length
Ft.
m
180.0
55.0
180.0
55.0
180.0
55.0
180.0
55.0
180.0
55.0
180.0
55.0
Std. Std.
Pkg. Ctn.
Qty. Qty.
1
5
1
5
1
5
1
5
1
5
1
5
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.33
ELECTRICAL SOLUTIONS
A.
System
Overview
B1.
Cable Ties
Reflective Tapes
• Reflective tapes can be used for illuminating or highlighting a
range of objects
• Increases safety during power outages or other low light conditions
• Custom legends can be printed using a Panduit TDP43MY
thermal printer
• Tapes are laminated for improved print quality and durability
B2.
Cable
Accessories
Width
Part Number
T100X000RP1
T200X000RP1
T400X000RP1
T100X000RU1
T200X000RU1
T400X000RU1
T100X000RX1
T200X000RX1
T400X000RX1
T400X000RW1
T400X000RQ1
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
Color
White
White
White
Orange
Orange
Orange
Yellow
Yellow
Yellow
Red
Blue
In.
1.00
2.00
4.00
1.00
2.00
4.00
1.00
2.00
4.00
4.00
4.00
Std.
Pkg.
Qty.
1
1
1
1
1
1
1
1
1
1
1
Length
mm
25.4
50.8
101.6
25.4
50.8
101.6
25.4
50.8
101.6
101.6
101.6
Ft.
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
50.0
m
15.2
15.2
15.2
15.2
15.2
15.2
15.2
15.2
15.2
15.2
15.2
C3.
Abrasion
Protection
Photoluminescent Tapes – Thermal Transfer Printable
C4.
Cable
Management
• Used to mark egress routes, fire alarms, and
fire equipment that is clearly visible for up to
ten hours after power is lost
• Absorb energy from ambient light and releases
this energy in the form of a glow when power
is lost
• Can be used in the Panduit thermal transfer
desktop printers to create direction arrow tape,
striped tape, or safety signs on demand
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
• Panduit Photoluminescent Tapes meet or
exceed the following safety standard
specification for photoluminescent safety
markings including: ASTM E 2072-00, ASTM E
2073-00, ASTM E 2030-99, DIN67510-1, IMO
Resolution A.752.18, ISO/CD 15370, DIN
67510, UL 924, ASTM 162, ASTM 648, ASTM
662, MIL-L-3891 B, NFPA 101 Life Safety
Code, OSHA 1910.37
Normal Lighting
Material Chart
Material
E1.
Labeling
Systems
Polyester,
Photoluminescent
(Y2)
Print Method
Temperature
Range
Thermal Transfer
(T)
-40°F to 230°F
(-40°C to 110°C)
E2.
Labels
Part Number
E3.
Pre-Printed
& Write-On
Markers
Black Light
PT2S-ARW
PT2S-BLK
PT2S-RED
PT2S-ARW
F.
Index
E5.34
Width
In.
mm
Length
Ft.
m
Std. Std.
Pkg. Ctn.
Qty. Qty.
Pre-Printed
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
Part Description
Features
Indoor/outdoor rated; provides durability, high
temperature resistance, and dimensional stability;
does not stretch or easily tear; After power is lost,
material emits glow that is clearly visible for up to
ten hours.
2.00
50.80
30.00
9.14
1
4
2.00
50.80
30.00
9.14
1
4
2.00
50.80
30.00
9.14
1
4
Photoluminescent, polyester tape.
Photoluminescent, polyester tape.
2.00
4.00
50.80 15.00
101.60 15.0
4.5
4.5
1
1
4
4
Blank
T200X000Y2T
T400X000Y2T
PT2S-BLK
Photoluminescent, polyester
tape, black arrow.
Photoluminescent, polyester
tape, black stripe.
Photoluminescent, polyester
tape, red stripe.
Order number of rolls required.
Labels roll mounted on 3.00" cores; when using the TDP43MY thermal transfer desktop printer and 3.00" cores,
the roll stand (TDP43M-RS) is required.
PT2S-RED
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Underground Hazard Tape
Material Chart
Material
Part Number
Print Method
Polyethylene
(HTU, HTB)
Pre-Printed
Detectible
Laminated
Aluminum
(HTDU)
Pre-Printed
Temperature
Range
-30°F to 200°F
(-34°C to 93°C)
-30°F to 220°F
(-34°C to 104°C)
Color
(Legend/Background)
Legend
B1.
Cable Ties
Features
Indoor/outdoor rated; designed for direct burial;
highly visible legend is protected from abrasion
and chemicals; resistant to UV light, chemical
atmosphere, and abrasion; will not biodegrade.
Indoor/outdoor rated; aluminum embedded
material is designed for direct burial; highly visible
legend is protected from abrasion and chemicals;
resistant to UV light, chemical atmosphere, and
abrasion; will not biodegrade.
Height
In.
mm
Length
Ft.
m
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
Std.
Pkg.
Qty.
C1.
Wiring
Duct
C2.
Surface
Raceway
Laminated Detectable Aluminum
HTDU2B-W
CAUTION
WATER LINE BURIED BELOW
Black/Blue
1
HTDU2O-FO
CAUTION
FIBER OPTIC CABLE BURIED BELOW
Black/Orange
1
HTDU2O-T
CAUTION
TELEPHONE LINE BURIED BELOW
Black/Orange
HTDU2R-E
CAUTION
ELECTRIC LINE BURIED BELOW
Black/Red
1
CAUTION
FIBER OPTIC CABLE BURIED BELOW
Black/Orange
1
HTDU3O-T
CAUTION
TELEPHONE LINE BURIED BELOW
Black/Orange
HTDU3R-E
CAUTION
ELECTRIC LINE BURIED BELOW
Black/Red
1
CAUTION
FIBER OPTIC CABLE BURIED BELOW
Black/Orange
1
HTDU6O-T
CAUTION
TELEPHONE LINE BURIED BELOW
Black/Orange
1
HTDU6R-E
CAUTION
ELECTRIC LINE BURIED BELOW
Black/Red
CAUTION
TELEPHONE LINE BURIED BELOW
Black/Green
1
CAUTION
BURIED FIBER OPTIC CABLE
Black/Orange
1
HTU3O-T-M
CAUTION
TELEPHONE LINE BURIED BELOW
Black/Orange
HTU3R-E-M
CAUTION
ELECTRIC LINE BURIED BELOW
Black/Red
1
HTU3Y-E-M
CAUTION
ELECTRIC LINE BURIED BELOW
Black/Yellow
1
HTU6R-E
CAUTION
ELECTRIC LINE BURIED BELOW
Black/Red
1
CAUTION
BURIED FIBER OPTIC CABLE
Black/Orange
1
CAUTION
TELEPHONE LINE BURIED BELOW
Black/Orange
1
HTU6O-TV
CAUTION
CABLE TV LINE BURIED BELOW
Black/Orange
HTU6Y-E
CAUTION
ELECTRIC LINE BURIED BELOW
Black/Yellow
1
HTU6Y-G
CAUTION
GAS LINE BURIED BELOW
Black/Yellow
1
HTDU3O-FO
HTDU6O-FO
2.00
3.00
6.00
50.80
76.00
152.00
1000.00
1000.00
1000.00
305.00
305.00
305.00
1
HTU3O-FO-M
HTU6O-FO
HTU6O-T
C4.
Cable
Management
1
D1.
Terminals
D2.
Power
Connectors
1
D3.
Grounding
Connectors
Polyethylene
HTU3G-T-M
C3.
Abrasion
Protection
3.00
6.00
76.00
152.00
1000.00
1000.00
305.00
305.00
1
1
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.35
ELECTRICAL SOLUTIONS
A.
System
Overview
Barricade Tapes
B1.
Cable Ties
B2.
Cable
Accessories
C1.
Wiring
Duct
Std.
Height
Length
Pkg.
In.
mm
Ft.
m
Qty.
3.00 76.20 1000.00 305.00
1
Part Number
HTB3-C-M
Legend
CAUTION
HTB3-DNE-M
CAUTION DO
NOT ENTER
Black/Yellow
3.00
76.00 1000.00 305.00
1
CAUTION
HIGH VOLTAGE
Black/Yellow
3.00
76.00 1000.00 305.00
1
HTB3-HV-M
B3.
Stainless
Steel Ties
Color
(Legend/
Background)
Black/Yellow
Vinyl Letters and Numbers
Material Chart
C2.
Surface
Raceway
Material
Print Method
Pre-Printed
Legend Height
Height
Vinyl
(PVL)
C3.
Abrasion
Protection
Temperature Range
Features
-50°F to 225°F
Indoor/outdoor rated; heavy duty material for
(-46°C to 107°)
flat applications and safety and facility
identification; resistant to UV light, chemical
atmosphere, and abrasion.
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
Part Number
PVL100BY-0-Y
PVL100BY-1-Y
thru
PVL100BY-9-Y
Legend
0
1
thru
9
PVL100BY-A-Y
thru
PVL100BY-Z-Y
A
thru
Z
PVL100BY-DSH-Y
PVL200BY-0-Y
In.
mm
In.
mm
Width
In.
mm
Color
(Legend/
Background)
Markers
Per
Card
Std.
Pkg.
Card(s)
25
25
1.00
25.40
1.50
38.10
0.88
22.35
Black/Yellow
10
25
—
0
25
25
PVL200BY-1-Y
thru
PVL200BY-9-Y
1
thru
9
25
PVL200BY-A-Y
thru
PVL200BY-Z-Y
A
thru
Z
PVL200BY-DSH-Y
2.00
50.80
2.25
57.15
0.88
22.35
Black/Yellow
10
—
25
25
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.36
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Vinyl Cloth Letters and Numbers
Material Chart
333
Part Number
PCL037-0
PCL037-1
thru
PCL037-9
PCL037-0-9
PCL037-A
thru
PCL037-Z
PCL037-A-Z
PCLCP037-A-Z
PCLCP037-0-9
PCL037-DSH
PCL062-0
PCL062-1
thru
PCL062-9
PCL062-0-9
PCL062-A
thru
PCL062-Z
PCL062-A-Z
PCLCP062-0-9
PCLCP062-A-Z
PCL062-DSH
PCL100-0
PCL100-1
thru
PCL100-9
PCL100-0-9
PCL100-A
thru
PCL100-Z
PCL100-A-J
PCL100-K-T
PCL100-U-Z
PCLCP100-0-9
PCLCP100-A-Z
PCL100-DSH
PCL200-0
PCL200-1
thru
PCL200-9
PCL200-0-9
PCL200-A
thru
PCL200-Z
PCL200-A-J
PCL200-K-T
PCL200-U-Z
PCLCP200-0-9
PCLCP200-A-Z
PCL200-DSH
Material
Vinyl Cloth,
(PCL,PCLCP)
Legend
0
1
thru
9
0 thru 9
A
thru
Z
A thru Z
A thru Z
0 thru 9
–
0
1
thru
9
0 thru 9
A
thru
Z
A thru Z
1 thru 5
6 thru 0
A thru Z
–
0
1
thru
9
0 thru 9
A
thru
Z
A thru J
K thru T
U thru Z
1 thru 5
6 thru 0
A thru Z
–
0
1
thru
9
0 thru 9
A
thru
Z
A thru J
K thru T
UK thru TZ
1 thru 5
6 thru 0
A thru Z
–
Legend
Height
In.
mm
0.38
0.63
1.00
2.00
9.7
16.0
25.4
50.8
Print Method
Pre-Printed
Height
In.
mm
0.50
0.75
1.50
2.25
12.7
19.1
38.1
57.2
Temperature
Range
Features
-50°F to 170°F Indoor/outdoor rated; thin conformable material with
(-46°C to 77°C) repositionable adhesive allows label to be removed and
reused or used in temporary applications; provides
durability, high temperature resistance, and dimensional
stability for rough or textured surfaces.
Width
In.
mm
0.34
0.56
0.88
0.88
8.7
14.2
22.4
22.4
Color
(Legend/Background)
Black/Yellow
Black/Yellow
Black/Yellow
Black/Yellow
Markers
Std.
Std.
Per
Pkg.
Ctn.
Card
Card(s) Card(s)
100
25
25
100
78
25
25
100
100
B1.
Cable Ties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
25
1
1
25
25
25
100
4
4
100
100
100
1
25
4
100
25
1
100
4
1
25
25
25
4
100
100
100
25
25
100
100
25
25
25
1
100
100
100
4
1
25
25
25
4
100
100
100
25
25
100
100
25
25
25
1
100
100
100
4
E5.
Lockout/
Tagout
& Safety
Solutions
1
25
4
100
F.
Index
C3.
Abrasion
Protection
C4.
Cable
Management
32
10
10
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
Table continues on page E5.38
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.37
ELECTRICAL SOLUTIONS
A.
System
Overview
Vinyl Cloth Letters and Numbers (continued)
B1.
Cable Ties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
Part Number
PCL300-0
PCL300-1
thru
PCL300-9
PCL300-A
thru
PCL300-Z
PCLCP300-0-9
PCLCP300-A-Z
PCL300-DSH
Legend
0
1
thru
9
A
thru
Z
1 thru 5
6 thru 0
A thru Z
–
Legend
Height
In.
mm
3.00
76.2
Height
In.
mm
3.50
88.9
Width
In.
mm
1.50
38.1
Color
(Legend/Background)
Markers
Std.
Std.
Per
Pkg.
Ctn.
Card
Card(s) Card(s)
25
100
25
100
Black/Yellow
25
100
1
4
1
25
4
100
6
Reflective Letters and Numbers
Material Chart
C3.
Abrasion
Protection
Material
Reflective Vinyl,
(PRL)
C4.
Cable
Management
Print Method
Pre-Printed
Temperature
Range
Features
-30°F to 200°F Indoor/outdoor rated; heavy duty reflective material for flat
(-34°C to 93°C) applications and safety and facility identification; resistant to
UV light, chemical atmosphere, and abrasion.
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
Part Number
PRL100BY-0
thru
PRL100BY-9
Legend
0
thru
9
PRL100BY-A
thru
PRL100BY-Z
A
thru
Z
Legend
Height
In.
mm
1.00
25.40
Height
In.
mm
1.63
41.40
Width
In.
mm
1.00
25.40
Color
(Legend/Background)
Black/Yellow
Markers Std. Std.
Per
Pkg. Ctn.
Pkg.
Qty. Qty.
25
1
4
25
1
4
25
900
1
1
4
—
PRL100BY-DSH
PRL100BY-18KIT
—
0 thru 9, A thru
D, L, P, R, S
PRL100BY-36KIT
0 thru 9, A thru
Z, –, Blank
950
1
—
PRL100BY-BLNK
PRL150YB-0
thru
PRL150YB-9
BLANK
0
thru
9
25
25
1
1
4
4
25
1
4
25
25
1
1
4
4
25
1
4
25
1
4
PRL150YB-A
thru
PRL150YB-Z
A
thru
Z
PRL150YB-DSH
PRL250YB-0
thru
PRL250YB-9
—
0
thru
9
PRL250YB-A
thru
PRL250YB-Z
A
thru
Z
PRL250YB-DSH
1.50
2.50
38.10
63.50
1.88
2.88
47.75
73.15
—
1.38
1.75
35.05
44.45
Yellow/Black
Yellow/Black
F.
Index
E5.38
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Sign Panels – Blank Space for Custom Messages
Indoor/Outdoor Sub-Surface Printed Adhesive Polyester
(Type PPS)
• High quality signs for use indoors and outdoors
• Excellent resistance to UV light, chemical atmosphere,
and abrasion
• Excellent life and adhesion properties
• Printed graphics are protected by clear polyester laminate
Indoor/Outdoor Rigid Polyethylene (Type PRS)
• Rugged signs for indoors and outdoors
• Abrasion resistant
• Used where adhesives will not work
• Can be used with Panduit Thermal Transfer Desktop Printers and
Easy-Mark ™ Labeling Software to create your own
custom signs
– Print your own legend on clear polyester tape with the TDP43MY
Thermal Transfer Desktop Printer and adhere label to adhesive or
non-adhesive sign panel
• Can also be used with Panduit Die Cut Letter and Numbers
C1.
Wiring
Duct
Print Method
Polyester (PPS)
Temperature
Range
Features
-40°F to 275°F
(-40°C to 135°C)
Indoor/outdoor rated; laminated label material
protects legend from abrasion and chemicals;
resistant to UV light, chemical atmosphere, and
abrasion; excellent life and adhesion properties.
-105°F to 250°F
(-76°C to 121°C)
Indoor/outdoor rated; high quality, rugged
material resistant to abrasion; use where
adhesives will not work.
Pre-Printed
Rigid Polyethylene
(PRS)
Width
Part Number
PPS0710BWHT
PPS1014BWHT
PPS1420BWHT
PRS0710BWHT
PRS1014BWHT
PRS1420BWHT
PPS0710BYEL
PPS1014BYEL
PPS1420BYEL
PRS0710BYEL
PRS1014BYEL
PRS1420BYEL
PPS0710C442
PPS1014C442
PPS1420C442
PRS0710C442
PRS1014C442
PRS1420C442
PPS0710D440
PPS1014D440
PPS1420D440
PRS0710D440
PRS1014D440
PRS1420D440
PPS0710N443
PPS1014N443
PPS1420N443
PRS0710N443
PRS1014N443
PRS1420N443
Symbol
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
Material Chart
Material
B1.
Cable Ties
Header
BLANK
BLANK
CAUTION
DANGER
NOTICE
In.
10.00
14.00
20.00
10.00
14.00
20.00
10.00
14.00
20.00
10.00
14.00
20.00
10.00
14.00
20.00
10.00
14.00
20.00
10.00
14.00
20.00
10.00
14.00
20.00
10.00
14.00
20.00
10.00
14.00
20.00
mm
254.0
355.6
508.0
254.0
355.6
508.0
254.0
355.6
508.0
254.0
355.6
508.0
254.0
355.6
508.0
254.0
355.6
508.0
254.0
355.6
508.0
254.0
355.6
508.0
254.0
355.6
508.0
254.0
355.6
508.0
Height
In.
7.00
10.00
14.00
7.00
10.00
14.00
7.00
10.00
14.00
7.00
10.00
14.00
7.00
10.00
14.00
7.00
10.00
14.00
7.00
10.00
14.00
7.00
10.00
14.00
7.00
10.00
14.00
7.00
10.00
14.00
mm
177.8
254.0
355.6
177.8
254.0
355.6
177.8
254.0
355.6
177.8
254.0
355.6
177.8
254.0
355.6
177.8
254.0
355.6
177.8
254.0
355.6
177.8
254.0
355.6
177.8
254.0
355.6
177.8
254.0
355.6
Std. Std.
Pkg. Ctn.
Qty Qty.
1
25
1
25
1
25
1
10
1
10
1
10
1
25
1
25
1
25
1
10
1
10
1
10
1
25
1
25
1
25
1
10
1
10
1
10
1
25
1
25
1
25
1
10
1
10
1
10
1
25
1
25
1
25
1
10
1
10
1
10
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
Order number of Standard Packages required
F.
Index
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.39
ELECTRICAL SOLUTIONS
A.
System
Overview
B1.
Cable Ties
Thermal Transfer Printable Arc Flash Labels
• Provide employees with the highest degree of safety through
proper identification and communication
• Clearly visible and recognizable hazard information to
communicate arc flash hazards present
• Labels are constructed of durable polyester designed to withstand
UV exposure, outdoor use, water, abrasion
• Custom Arc Flash Hazard Labels can be printed using Panduit
labeling software and desktop thermal transfer printers
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
Part Number
C400X600YX1
C400X600YZ1
C1.
Wiring
Duct
C400X600YX1
C400X400A11
C400X400A21
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
C400X400A21
C400X400A31
C400X400A31
C400X600AX1
C400X600AX1
C400X600AY1
C400X600Y81
C400X600AY1
C400X600Y81
Part Description
Custom – Die-Cut
C400X600YZ1
C400X400A11
Std. Std.
Pkg. Ctn.
Qty. Qty.
C400X600AZ1
4.00" x 6.00" (101.6mm x 152.4mm), polyester arc flash label,
orange header, 100 labels per roll.
4.00" x 6.00" (101.6mm x 152.4mm), polyester arc flash label,
red/white danger header, 100 labels per roll.
4.00" x 4.00" (101.6mm x 101.6mm), polyester safety label, orange
header, green footer, 250 labels per roll.
4.00" x 4.00" (101.6mm x 101.6mm), polyester safety label, orange
header, yellow footer, 250 labels per roll.
4.00" x 4.00" (101.6mm x 101.6mm), polyester safety label, orange
header, red footer, 250 labels per roll.
4.00" x 6.00" (101.6mm x 152.4mm), polyester safety label, blue/
white NOTICE header, 100 labels per roll.
4.00" x 6.00" (101.6mm x 152.4mm), polyester safety label, green/
white SAFETY FIRST header, 100 labels per roll.
4.00" x 6.00" (101.6mm x 152.4mm), polyester safety label, yellow,
100 labels per roll.
4.00" x 6.00" (101.6mm x 152.4mm), polyester arc flash label,
yellow header, 100 labels per roll.
1
4
1
4
1
4
1
4
1
4
1
4
1
4
1
4
1
4
1
4
Custom – Continuous Tape
D1.
Terminals
T400X000YX1
4.00" x 50.0' (101.6mm x 15.24M), polyester arc flash tape,
orange header.
T400X000YX1
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
Laser Printable Adhesive Signs
• Signs can be printed with a standard laser printer
• Indoor polyolefin pressure sensitive signs with square corners on
stay flat liner
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
SEZ-1CLL
SEZ-1DLL
SEZ-1NLL
SEZ-1WLL
SEZ-1WHLL
SEZ-1YLL
Part Number
SEZ-1CLL
Legend
CAUTION
SEZ-1DLL
DANGER
SEZ-1NLL
SEZ-1WLL
• Signs are 8.50" x 11.00" (215.90mm x 279.40mm) in size
• 25 signs per package
Color
(Legend/
Background)
Black/Yellow
Signs Std. Std.
Width
Height
Per Pkg. Ctn.
In.
mm
In.
mm
Pkg. Qty. Qty.
8.50 216.00 11.00 279.00 25
1
5
8.50 216.00 11.00 279.00
25
1
5
NOTICE
Red and
Black/White
Blue/White
8.50 216.00 11.00 279.00
25
1
5
WARNING
Black/Orange
8.50 216.00 11.00 279.00
25
1
5
SEZ-1WHLL
BLANK
White
8.50 216.00 11.00 279.00
25
1
5
SEZ-1YLL
BLANK
Yellow
8.50 216.00 11.00 279.00
25
1
5
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.40
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
Order number of pieces required, in multiples of Standard Package Quantity.
ELECTRICAL SOLUTIONS
A.
System
Overview
Self-Laminating Adhesive Sign Carriers
Material Chart
Material
Rigid Vinyl
Part Number
B1.
Cable Ties
Print Method
Pre-Printed
In.
Temperature Range
Features
-40°F to 150°F
Indoor/outdoor rated; rigid material accepts
(-40°C to 66°C)
ink; resistant to UV light, chemical
atmosphere, and abrasion; excellent for
applications where adhesives will not work.
Height
mm
In.
mm
Carriers
Per
Pkg.
Std. Std.
Pkg. Ctn.
Qty. Qty.
Adhesive
SEZ-SNC4
SEZ-SNC3
SEZ-SNC2
SEZ-SNC1
7.00
12.00
10.50
12.00
178.0
305.0
267.0
305.0
6.00
6.00
7.00
9.50
152.0
152.0
178.0
241.0
5
5
5
5
1
1
1
1
10
10
10
10
7.00
10.50
12.00
12.00
178.0
267.0
305.0
305.0
6.00
7.00
9.50
6.00
152.0
178.0
241.0
152.0
5
5
5
5
1
1
1
1
10
10
10
10
Non-Adhesive
SEZ-RSC1
SEZ-RSC2
SEZ-RSC3
SEZ-RSC4
Material Chart
Part Number
SLCT-IG
Print Method
Pre-Printed
Temperature Range
Features
0°F to 176°F
Indoor/outdoor rated; high quality, rugged
(-18°C to 80°C)
material resistant to abrasion; legend is
protected by overlaminate; use where
adhesives will not work.
Color
Gray
Width
In.
mm
3.00
76.2
Height
In.
mm
1.31 33.3
Tags Std.
Per Pkg.
Pkg. Qty.
25
1
Std.
Ctn.
Qty.
4
Orange
3.00
76.2
1.31
33.3
25
1
4
SLCT-WH
White
3.00
76.2
1.31
33.3
25
1
4
SLCT-YL
Yellow
3.00
76.2
1.31
33.3
25
1
4
SLCT-3
White
4.00
101.6
0.50
12.7
25
1
4
SLCT-3OR
Orange
4.00
101.6
0.50
12.7
25
1
4
SLCT-3YL
Yellow
4.00
101.6
0.50
12.7
25
1
4
Component Labels for Laser/Ink Jet Printers Supplied on 8.5" x 11" Sheets
White, polyester label.
2.00
50.8
1.00
25.4
—
1000
C3.
Abrasion
Protection
White, polyester label.
2.00
50.8
1.00
25.4
—
2500 10000
Component Cassettes for Panther ™ LS8 Hand-Held Thermal Transfer Printer
White, polyester label,
200/cassette.
2.00
50.8
1.00
25.4
—
1
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
5000
Component Labels for Thermal Transfer Desktop Printers Supplied on Rolls
C200X100YJC
C2.
Surface
Raceway
E3.
Pre-Printed
& Write-On
Markers
Attach with Panduit Intermediate or Standard Cross-Section Cable Ties.
C200X100YJT
C1.
Wiring
Duct
D1.
Terminals
SLCT-OR
C200X100YJJ
B3.
Stainless
Steel Ties
C4.
Cable
Management
Self-Laminating Cable Marker Holders for Large Cables or Cable Bundles
Material
Rigid Vinyl,
Self-Laminating
B2.
Cable
Accessories
10
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.41
ELECTRICAL SOLUTIONS
A.
System
Overview
Self-Laminating Fiber Optic Cable Marker Tags
B1.
Cable Ties
Material Chart
Material
Rigid Vinyl,
Self-Laminating
B2.
Cable
Accessories
Print Method
Pre-Printed
Temperature Range
Features
0°F to 176°F
Indoor/outdoor rated; high quality, rugged
(-18°C to 80°C)
material resistant to abrasion; legend is
protected by overlaminate; use where
adhesives will not work.
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
Part Number
PST-FO
PST-FOBLNK
Legend
CAUTION FIBER OPTIC
CABLE TYPE_____
COUNT_____
Width
Height
Color
(Legend/Background)
Black/Yellow
In.
3.50
mm
89.00
In.
2.00
mm
51.00
Yellow
3.50
89.00
2.00
51.00
BLANK
Tags Std. Std.
Per Pkg. Ctn.
Pkg. Qty. Qty.
5
1
40
5
1
40
Order number of packages required in multiples of Std. Pkg. Qty.
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
Ground Warning Tags
D2.
Power
Connectors
Material Chart
Material
Rigid Polyethylene
D3.
Grounding
Connectors
Print Method
Pre-Printed
Temperature
Range
-30°F to 250°F
(-34°C to 121°C)
Features
Indoor/outdoor rated; high quality, rugged
material resistant to abrasion; use where
adhesives will not work.
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
Part Number
PT-BGND
Legend
NETWORK BUILDING
GROUND
Color
(Legend/Background)
Green/Yellow
In.
2.75
mm
70.00
In.
1.38
mm
35.00
Tags Std. Std.
Per Pkg. Ctn.
Pkg. Qty. Qty.
100
1
5
Width
Height
PT-GND
WARNING GROUND
WIRE DO NOT REMOVE
Black/Yellow
2.75
70.00
1.38
35.00
100
1
5
PT-TGND
WARNING TELEPHONE
CO. REPAIR SERVICE
Black/Yellow
2.75
70.00
1.38
35.00
100
1
5
Attach with Panduit Intermediate or Standard cross section cable ties.
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.42
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
Panduit Corp. Generic Padlock Order Form
One Form per Generic Padlock Option
Fax orders to Panduit Corp., Attn: Customer Service (708) 570-3570
Generic Locks are Non-Returnable
Date:
From:
Telephone #:
End User:
Panduit Sales Rep:
Distributor:
A.
System
Overview
B1.
Cable Ties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
Telephone#/Fax#:
Account #:
Distributor Contact:
Telephone#/Fax#:
Account #:
Generic Padlock Opons
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
Qty.
Notes
Min. 12/
(Colors, Key Numbers,
Description
Padlock
Set Description)
Series
PSL-6 Laminated Steel Padlocks: (Select from red, yellow, blue, black, green, or white bumper colors)
GPSL-6KA
Keyed Alike Padlock – ¾" Shackle
GPSL-6LSKA
Keyed Alike Padlock – 2" Shackle
GPSL-6MK
Master Keyed Padlock – ¾" Shackle
GPSL-6LSMK
Master Keyed Padlock – 2" Shackle
GPSL-6KAMK
Keyed Alike and Master Keyed Padlock – ¾" Shackle
GPSL-6LSKAMK Keyed Alike and Master Keyed Padlock – 2" Shackle
GPSL-6MKEY
Master Key for a PSL -6 Master Keyed Padlock
PSL-7 Coated Aluminum Padlocks: (Select from red, yellow, blue, black, green, or orange body colors)
GPSL-7KA
Keyed Alike Padlock – 1" Shackle
GPSL-7LSKA
Keyed Alike Padlock – 3" Shackle
GPSL-7MK
Master Keyed Padlock – 1" Shackle
GPSL-7LSMK
Master Keyed Padlock – 3" Shackle
GPSL-7KAMK
Keyed Alike and Master Keyed Padlock – 1" Shackle
GPSL-7LSKAMK Keyed Alike and Master Keyed Padlock – 3" Shackle
GPSL-7MKEY
Master Key for a PSL -7 Master Keyed Padlock
PSL-8 Safety Lockout Padlocks: (Select from red, yellow, blue, black, green, or orange body colors)
GPSL-8KA
Keyed Alike Padlock – 1.5" Shackle
GPSL-8MK
Master Keyed Padlock – 1.5" Shackle
GPSL-8KAMK
Keyed Alike and Master Keyed Padlock – 1.5" Shackle
GPSL-8MKEY
Master Key for a PSL -8 Master Keyed Padlock
Generic Padlock
Part Number
For Pricing and Lead Time Information, Contact Panduit Customer Service at 800-777-3300
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.43
ELECTRICAL SOLUTIONS
A.
System
Overview
Panduit Corp. Generic PVT Vinyl Tag Order Form
One Form per Generic Tag Option
Fax orders to Panduit Corp., Attn: Customer Service (708) 570-3570
Generic Tags are Non-Returnable
B1.
Cable Ties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
Date:
From:
Telephone #:
End User:
Panduit Sales Rep:
Distributor:
Distributor Contact:
C1.
Wiring
Duct
Telephone#/Fax#:
Account #:
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
Telephone#/Fax#:
Account #:
Select the Generic Vinyl Tag Part Number and Quantity:
Number of
Sides Printed
“No Header”
“No Header”
“No Header”
“No Header”
Black on White
Black on Yellow
Black on White
Black on White
Black on Yellow
Black on Red
Black on Green
1
GPVT-RBW1
GPVT-BY1
GPVT-BBW1
GPVT-W1-1
GPVT-Y1-1
GPVT-R1-1
GPVT-G1-1
2
GPVT-RBW2
GPVT-BY2
GPVT-BBW2
GPVT-W1-2
GPVT-Y1-2
GPVT-R1-2
GPVT-G1-2
Quantity In Packs (min. of 4 packs, 25 tags and ties/pa ck):
D1.
Terminals
Part Number:
Use this space to create a rough sketch of your tag.
Please indicate colors and legend. Please print.
Attach an additional page or customer sketch if needed.
D2.
Power
Connectors
Check Applicable Order Requirements:
D3.
Grounding
Connectors
*
*
Pictogram (type
)
Logo Required (camera ready artwork must
accompany the order form)
E1.
Labeling
Systems
5.75"
E2.
Labels
*Normal position of header. Hole size = .375"
with grommet.
One Panduit tie is included per tag.
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.44
Character Height (legend will be formatted to fit
the size of the tag unless otherwise specified)
Logo Required
(Panduit reserves the right to assign artwork
approval when necessary)
FRONT OF TAG
BACK OF TAG
3.00"
For Pricing and Lead Time Information, Contact Panduit Customer Service at 800-777-3300
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Panduit Corp. Generic Adhesive PPS Safety Sign Order Form
One Form per Generic Sign Option
Fax orders to Panduit Corp., Attn: Customer Service (708) 570-3570
Generic Signs are Non-Returnable
Date:
From:
Telephone #:
End User:
B1.
Cable Ties
Panduit Sales Rep:
Distributor:
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
Distributor Contact:
Telephone#/Fax#:
C1.
Wiring
Duct
Telephone#/Fax#:
Account #:
Account #:
C2.
Surface
Raceway
Generic PPS Sign Options
Select the Generic Polyester Sign Part Number and Quantity
“No Header”
“No Header”
“No Header”
“No Header”
Black on
Orange
Black on
White
Black on
Yellow
Red on
White
Size
Black on
White
Black on
Yellow
Black on
White
Black on
White
Black on
Orange
3" x 5"
GPPS0305D
GPPS0305C
GPPS0305N
GPPS0305SF
GPPS0305W
GPPS0305B-BO GPPS0305B-BW GPPS0305B-BY GPPS0305B-RW
7" x 10"
GPPS0710D
GPPS0710C
GPPS0710N
GPPS0710SF
GPPS0710W
GPPS0710B-BO GPPS0710B-BW GPPS0710B-BY GPPS0710B-RW
10" x 14" GPPS1014D
GPPS1014C
GPPS1014N
GPPS1014SF
GPPS1014W
GPPS1014B-BO GPPS1014B-BW GPPS1014B-BY GPPS1014B-RW
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
Quantity Per Legend Per Size (Minimum of 10):
Part Number:
Print Legend in the Format Required:
D2.
Power
Connectors
Include Logos and/or Pictograms
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
Check Applicable Order Requirements
Pictogram (type
)
Logo Required (camera ready artwork must accompany order form)
Character Height (legend will be formatted to fit the size of the sign unless otherwise specified):
ARTWORK APPROVAL (Panduit reserves the right to assign artwork approval when necessary)
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
Notes:
E5.
Lockout/
Tagout
& Safety
Solutions
For Pricing and Lead Time Information, Contact Panduit Customer Service at 800-777-3300
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
F.
Index
E5.45
ELECTRICAL SOLUTIONS
A.
System
Overview
Panduit Corp. Generic Semi-Rigid PRS Safety Sign Order Form
One Form per Generic Sign Option
Fax orders to Panduit Corp., Attn: Customer Service (708) 570-3570
Generic Signs are Non-Returnable
B1.
Cable Ties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
Date:
From:
Telephone #:
End User:
Panduit Sales Rep:
Distributor:
Distributor Contact:
C1.
Wiring
Duct
Telephone#/Fax#:
Telephone#/Fax#:
Account #:
Account #:
C2.
Surface
Raceway
Generic PRS Sign Options
Select the Generic Semi-Rigid GMPE1 Polyethylene Sign Part Number and Quantity
C3.
Abrasion
Protection
Size
C4.
Cable
Management
Black on
White
Black on
Yellow
Black on
White
Black on
White
Black on
Orange
“No Header”
“No Header”
“No Header”
“No Header”
Black on
Orange
Black on
White
Black on
Yellow
Red on
White
7" x 10"
GPRS0710D GPRS0710C GPRS0710N GPRS0710SF GPRS0710W GPRS0710B-BO GPRS0710B-BW GPRS0710B-BY GPRS0710B-RW
10" x 14"
GPRS1014D GPRS1014C GPRS1014N GPRS1014SF GPRS1014W GPRS1014B-BO GPRS1014B-BW GPRS1014B-BY GPRS1014B-RW
14" x 20"
GPRS1420D GPRS1420C GPRS1420N GPRS1420SF GPRS1420W GPRS1420B-BO GPRS1420B-BW GPRS1420B-BY GPRS1420B-RW
D1.
Terminals
Quantity Per Legend Per Size (Minimum of 10):
D2.
Power
Connectors
Part Number:
Print Legend in the Format Required:
Include Logos and/or Pictograms
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
Each sign will have (1) .1875" hole in each corner and .375" radius corners.
Check Applicable Order Requirements
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
Pictogram (type
)
Logo Required (camera ready artwork must accompany order form)
Character Height (legend will be formatted to fit the size of the sign unless otherwise specified):
ARTWORK APPROVAL (Panduit reserves the right to assign artwork approval when necessary)
Notes:
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.46
For Pricing and Lead Time Information, Contact Panduit Customer Service at 800-777-3300
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
Panduit Corp. Generic Conduit and Voltage Marker Order Form
One Form per Generic Marker Option
Fax orders to Panduit Corp., Attn: Customer Service (708) 570-3570
Generic Markers are Non-Returnable
Date:
From:
Telephone #:
End User:
B1.
Cable Ties
Panduit Sales Rep:
Distributor:
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
Distributor Contact:
Telephone#/Fax#:
C1.
Wiring
Duct
Telephone#/Fax#:
Account #:
Account #:
C2.
Surface
Raceway
Generic Conduit and Voltage Marker Options
Pressure Sensitive Adhesive GMV1 Vinyl
Conduit and Voltage Markers
LEGEND
LEGEND
LEGEND
Semi-Rigid Snap-On GMPET Polyester
Conduit and Voltage Markers
LEGEND
LEGEND
STYLE B
Marker size: 1.125" x 4.5"
1 marker per card
Character height: .75"
C4.
Cable
Management
L
D1.
Terminals
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
LEGEND
STYLE A
Marker size: 2.25" x 9"
1 marker per card
Character height: 1.75"
ND
E
G
E
– Protected graphics
– Six reversible legends per marker
– Character height: Size M – .50"
Size R – .75"
STYLE C
D2.
Power
Connectors
Marker size: .50" x 2.25" – 18 marker per card
Character height: .3125"
Minimum Order Quantity:
Part
Desired Quantity
of Cards
C3.
Abrasion
Protection
10 cards per legend per size
and in multiples of 5 cards
Minimum Order Quantity:
Part
Quantity
of
Desired
Markers
Part
Number
10 markers per legend
per size
Length
Legend Backgrnd Style
of
Marker
Color
Color
Conduit
O.D. Range
(In.)
Part
Number
GPCV-AOY
Legend
Color
BLACK
Backgrnd
Color
ORANGE
Style
A
Markers/
Card
1
GPCV-ROY
BLACK
ORANGE
R
8"
.75" - 2.25"
GPCV-BOY
BLACK
ORANGE
B
4
GPCV-MOY
BLACK
ORANGE
M
14"
2.50" - 6.00"
GPCV-COY
BLACK
ORANGE
C
18
GPCV-RYY
BLACK
YELLOW
R
8"
.75" - 2.25"
GPCV-AYY
BLACK
YELLOW
A
1
GPCV-MYY
BLACK
YELLOW
M
14"
2.50" - 6.00"
GPCV-BYY
BLACK
YELLOW
B
4
GPCV-CYY
BLACK
YELLOW
C
18
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
Print Legend Required
Legend to fit on one line. Max. 17 characters including spaces.
Print Legend Required
Legend to fit on one line. Max. 19 characters including spaces.
*Note: In Style B and C, if you want several different legends on a
card, draw the lines to signify label division on the legend area.
Write in the different legends needed.
For Pricing and Lead Time Information, Contact Panduit Customer Service at 800-777-3300
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.47
ELECTRICAL SOLUTIONS
A.
System
Overview
Panduit Corp. Generic Utility Tapes Order Form
One Form per Generic Utility Tape Option
Fax orders to Panduit Corp., Attn: Customer Service (708) 570-3570
Generic Utility Tapes are Non-Returnable
B1.
Cable Ties
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
Date:
From:
Telephone #:
End User:
Panduit Sales Rep:
Distributor:
Distributor Contact:
C1.
Wiring
Duct
Telephone#/Fax#:
Telephone#/Fax#:
Account #:
Account #:
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
Generic Utility Tape Options
Part
Number
Material
D2.
Power
Connectors
Length
GHTDU6
ALL LEGENDS ARE BLACK
MAXIMUM OF TWO LINES OF TEXT
Part Number:___________________________
D3.
Grounding
Connectors
Use
Barricade
3.0" (76mm) 1,000' (305m)
Polyethylene
Underground
3.0" (76mm) 1,000' (305m)
Polyethylene
Underground
6.0" (152mm) 1,000' (305m)
Polyethylene
Polyethylene Encased
3.0" (76mm) 1,000' (305m) Underground Detectable
Aluminum
Polyethylene Encased 6.0" (152mm) 1,000' (305m) Underground Detectable
Aluminum
GHTB3
GHTU3
GHTU6
GHTDU3
D1.
Terminals
Width
Min. Order
Qty.
Order
Increments
64
64
32
16
16
8
32
16
16
8
ROLLS ARE ON 3 INCH CORE
Quantity:_________________________________
Color: _____________________________________ (select from Blue, Green, Orange, Red, or Yellow)
Sketch Legend and/or Artwork Below:
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
Comments:
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.48
For Pricing and Lead Time Information, Contact Panduit Customer Service at 800-777-3300
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
Panduit Corp. Generic Custom Engraved Marker Plate Order Form
One Form per Custom Engraved Marker Plate Option
Fax orders to Panduit Corp., Attn: Customer Service (708) 570-3570
Custom Engraved Marker Plates are Non-Returnable
A.
System
Overview
B1.
Cable Ties
Date: ___________________________________
Panduit Sales Rep: ________________________
From: ___________________________________
Distributor: _______________________________
Telephone #: _____________________________
_________________________________________
End-User: ________________________________
_________________________________________
_________________________________________
_________________________________________
_________________________________________
Distributor Contact: _______________________
Telephone #: ______________________________
Telephone # / Fax #: _______________________
Account #: ________________________________
Account #: _______________________________
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------C3.
Abrasion
Protection
Generic Custom Engraved Marker Plate Options
1 – Material:
1/16" Thick Acrylic
3 – Select Color (Check One):
Black Text on White Marker Plate
Black Text on Yellow Marker Plate
White Text on Black Marker Plate
White Text on Blue Marker Plate
White Text on Green Marker Plate
White Text on Red Marker Plate
2 – Select Mounting Method
(Check One):
With Adhesive
Screw Mounting Holes
No Mounting Method
4 – Select Size (Check One):
2.0" Wide x 1.0" High
3.0" Wide x 1.0" High
3.0" Wide x 2.5" High
4.0" Wide x 1.0" High
6.0" Wide x 3.0" High
8.5" Wide x 11.0" High
5 – Print Custom Legend Below (3 Lines x 30 Characters Maximum):
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
6 – Specify Part Number: __________________
(See Table Below)
7 – Specify Order Quantity: __________
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Material
2.0" x 1.0"
3.0" x 1.0"
3.0" x 2.5"
4.0" x 1.0"
6.0" X 3.0"
8.5" X 11.0"
ACRYLIC WITH ADHESIVE
GAP2010-A
GAP3010-A
GAP3025-A
GAP4010-A
GAP6030-A
GAP85110-A
ACRYLIC WITHOUT ADHESIVE
GAP2010
GAP3010
GAP3025
GAP4010
GAP6030
GAP85110
Comments: ___________________________________________________________________________________________
_____________________________________________________________________________________________________
For Pricing and Lead Time Information, Contact Customer Service at 800-777-3300
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
For technical assistance in the U.S., call 866-405-6654 (outside the U.S., see inside back cover for directory)
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
E5.49
ELECTRICAL SOLUTIONS
A.
System
Overview
B1.
Cable Ties
B2.
Cable
Accessories
Wire Size Selection Guide
To use this guide place your wire or cable
in the appropriate circle to determine
wire, outside diameter.
Diameter .10" (2.50mm)
Electrical Cables
Approximate Wire Outside Diameter In. (mm)
Diameter .20" (5.10mm)
B3.
Stainless
Steel Ties
Diameter .28" (7.10mm)
C1.
Wiring
Duct
Diameter .54" (13.70mm)
C2.
Surface
Raceway
Diameter .94" (23.90mm)
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
The charts below indicate the approximate cable outside diameter or
various electrical and communication cables.
Diameter 1.40" (35.50mm)
D2.
Power
Connectors
D3.
Grounding
Connectors
Size
18 AWG
16 AWG
14 AWG
12 AWG
10 AWG
8 AWG
6 AWG
4 AWG
3 AWG
2 AWG
1AWG
1/0
2/0
3/0
4/0
250 MCM
300 MCM
350 MCM
400 MCM
500 MCM
600 MCM
700 MCM
750 MCM
800 MCM
900 MCM
1000 MCM
1250 MCM
1500 MCM
1750 MCM
2000 MCM
TF
.11 (2.80)
.12 (3.00)
.13 (3.30)
.15 (3.80)
.17 (4.30)
.24 (6.10)
.32 (8.10)
.37 (9.40)
.40 (10.20)
.43 (10.90)
.51 (12.90)
.55 (14.00)
.59 (15.00)
.65 (16.50)
.70 (17.80)
.79 (20.10)
.84 (21.30)
.89 (22.60)
.94 (23.90)
1.03 (26.20)
1.14 (29.00)
1.21 (30.70)
1.25 (31.80)
1.28 (32.50)
1.34 (34.00)
1.40 (35.60)
1.58 (40.10)
1.70 (43.20)
1.82 (46.20)
1.92 (48.80)
THW
.11 (2.80)
.12 (3.00)
.16 (4.10)
.18 (4.60)
.20 (5.10)
.28 (7.10)
.32 (8.10)
.37 (9.40)
.40 (10.20)
.43 (10.90)
.51 (12.90)
.55 (14.00)
.59 (15.00)
.65 (16.50)
.70 (17.80)
.79 (20.10)
.84 (21.30)
.89 (22.60)
.94 (23.90)
1.03 (26.20)
1.14 (29.00)
1.21 (30.70)
1.25 (31.80)
1.28 (32.50)
1.34 (34.00)
1.40 (35.60)
1.58 (40.10)
1.70 (43.20)
1.82 (46.20)
1.92 (48.80)
Category 3
Diameter 1.90" (48.30mm)
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
Size
2-Pair
3-Pair
4-Pair
25-Pair
50-Pair
100-Pair
300-Pair
Voice Grade
24 AWG UTP
.12 (3.00)
.15 (3.80)
.19 (4.80)
.46 (11.70)
.63 (16.00)
1.07 (27.20)
Coaxial Cable
Size
RG58/u
RG59/u
RG62A/u
RG6/u
RG11/u
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
E5.50
TFN/THHN/
THWN
.09 (2.30)
.10 (2.50)
.10 (2.50)
.12 (3.00)
.15 (3.80)
.22 (5.60)
.26 (6.60)
.33 (8.40)
.36 (9.10)
.39 (9.90)
.45 (11.40)
.49 (12.40)
.54 (13.70)
.59 (15.00)
.65 (16.50)
.72 (18.30)
.77 (19.60)
.82 (20.80)
.87 (22.10)
.95 (24.10)
1.06 (26.90)
1.13 (28.70)
1.16 (29.50)
1.20 (30.50)
1.26 (32.00)
1.32 (33.50)
Category 3, Category 5/5e/6 and 6a Cable
E1.
Labeling
Systems
F.
Index
TW
.11 (2.80)
.12 (3.00)
.16 (4.10)
.18 (4.60)
.20 (5.10)
.28 (7.10)
.32 (8.10)
.37 (9.40)
.40 (10.20)
.43 (10.90)
.51 (12.90)
.55 (14.00)
.59 (15.00)
.65 (16.50)
.70 (17.80)
.79 (20.10)
.84 (21.30)
.89 (22.60)
.94 (23.90)
1.03 (26.20)
1.14 (29.00)
1.21 (30.70)
1.25 (31.80)
1.28 (32.50)
1.34 (34.00)
1.40 (35.60)
1.58 (40.10)
1.70 (43.20)
1.82 (46.20)
1.92 (48.80)
Coax
.19 (4.80)
.24 (6.10)
.24 (6.10)
.27 (6.80)
.40 (10.20)
Category 5/5e/6
Data Grade
24 AWG UTP
Data Grade
24 AWG STP
Data Grade
22 AWG UTP
Data Grade
22 AWG STP
.22 (5.60)
.42 (10.70)
.66 (16.80)
.96 (24.40)
.25 (6.30)
.51 (12.90)
.23 (5.80)
.54 (13.70)
.29 (7.40)
.63 (16.00)
Fiber Optic Distribution (62.5/125)
Size
6 Strand
8 Strand
12 Strand
18 Strand
24 Strand
36 Strand
48 Strand
72 Strand
Non-Plenum
.26 (6.60)
.27 (6.90)
.28 (7.10)
.49 (12.4)
.54 (13.70)
.54 (13.70)
.59 (15.00)
.72 (18.30)
Plenum
.18 (4.60)
.18 (4.60)
.21 (5.30)
.47 (11.90)
.52 (13.2)
.52 (13.2)
.56 (14.2)
.71 (18.0)
Diameter 2.40" (61.00mm)
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
ELECTRICAL SOLUTIONS
A.
System
Overview
B1.
Cable Ties
NOTES
B2.
Cable
Accessories
B3.
Stainless
Steel Ties
C1.
Wiring
Duct
C2.
Surface
Raceway
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
D3.
Grounding
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
E4.
Permanent
Identification
E5.
Lockout/
Tagout
& Safety
Solutions
F.
Index
E5.52
Order number of pieces required, in multiples of Standard Package Quantity.
Prime items appear in BOLD.
Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
