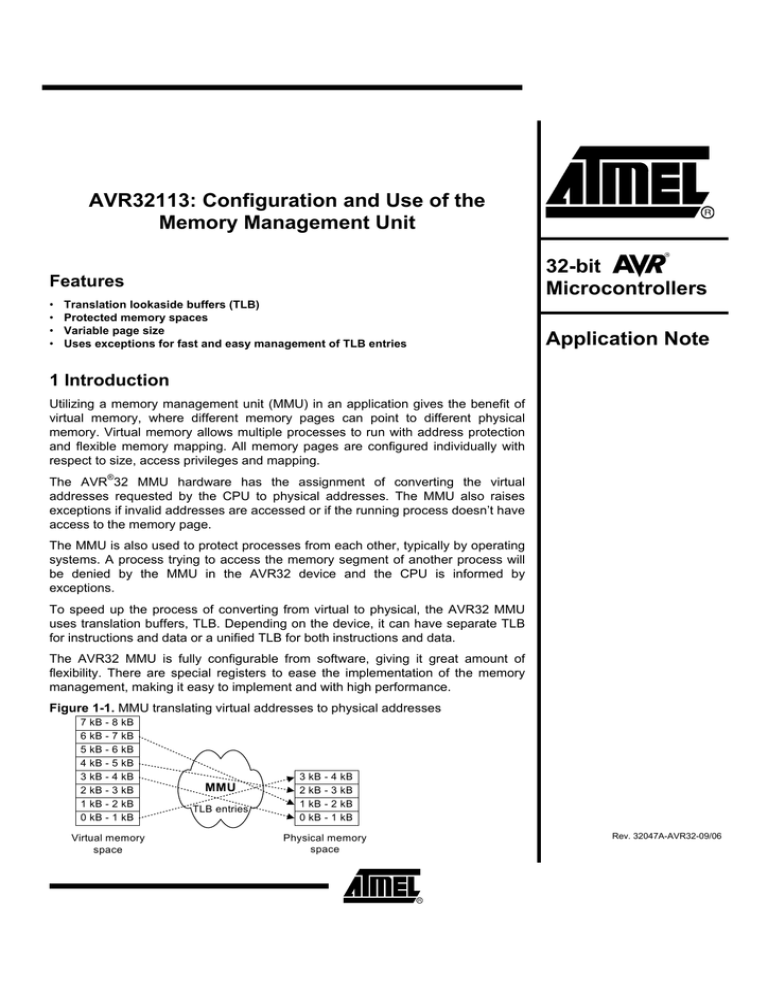

AVR32113: Configuration and Use of the Memory Management Unit

AVR32113: Configuration and Use of the Memory Management Unit

AVR32113: Configuration and Use of the

Memory Management Unit

Features

Translation lookaside buffers (TLB)

Protected memory spaces

Variable page size

Uses exceptions for fast and easy management of TLB entries

1 Introduction

Utilizing a memory management unit (MMU) in an application gives the benefit of virtual memory, where different memory pages can point to different physical memory. Virtual memory allows multiple processes to run with address protection and flexible memory mapping. All memory pages are configured individually with respect to size, access privileges and mapping.

The AVR

®

32 MMU hardware has the assignment of converting the virtual addresses requested by the CPU to physical addresses. The MMU also raises exceptions if invalid addresses are accessed or if the running process doesn’t have access to the memory page.

The MMU is also used to protect processes from each other, typically by operating systems. A process trying to access the memory segment of another process will be denied by the MMU in the AVR32 device and the CPU is informed by exceptions.

To speed up the process of converting from virtual to physical, the AVR32 MMU uses translation buffers, TLB. Depending on the device, it can have separate TLB for instructions and data or a unified TLB for both instructions and data.

The AVR32 MMU is fully configurable from software, giving it great amount of flexibility. There are special registers to ease the implementation of the memory management, making it easy to implement and with high performance.

Figure 1-1. MMU translating virtual addresses to physical addresses

7 kB - 8 kB

6 kB - 7 kB

5 kB - 6 kB

4 kB - 5 kB

3 kB - 4 kB

2 kB - 3 kB

1 kB - 2 kB

0 kB - 1 kB

MMU

TLB entries

3 kB - 4 kB

2 kB - 3 kB

1 kB - 2 kB

0 kB - 1 kB

32-bit

Microcontrollers

Application Note

Rev. 32047A-AVR32-09/06

Virtual memory space

Physical memory space

2 Background

The AVR32 memory management unit (MMU) provides a highly flexible and configurable memory management solution. The MMU is fully configurable by the user, which allows advanced use for operating systems or simpler use for native applications.

The AVR32 has a powerful MMU, which allows efficient implementation of virtual memory and large memory spaces. The highly flexible MMU in the AVR32 has the features to implement basic or more advanced operating system memory mapping.

MMU is the hardware component that manages a systems virtual memory. The MMU includes a small amount of memory that manages the connection between virtual and physical addresses. This table is called the translation lookaside buffer, TLB. When a request for data is sent to the CPU, the MMU translates the requested address into the physical address. The TLB is used to speed up performance by enabling caching on often-used memory locations.

The MMU provides page size from 1 kB to 1 MB with a huge range of individual settings for each page. This application note addresses the basic functionality for the

MMU provided with the AVR32 architecture.

2.1 MMU registers

For more details about the registers and bit-fields see the AVR32 Architecture

Manual.

2.1.1 TLBEHI register

31

TLBEHI register

VPN

10 9

V I

8

ASID

0

The translation buffer entry register high part (TLBEHI) is used for storing the virtual part of the page entry into the TLB with the possibility to connect the page to an a application space identifier (ASID).

• VPN – Virtual page number for the page entry.

• V – Valid page entry tells if an entry is valid.

• I – Instruction page entry, ignored on devices without ITLB (see section

4.1)

• ASID – Application space identifier can be used by the operating system when the

MMU is in private memory mode.

2.1.2 TLBELO register

2

AVR32113

31

TLBELO register

PFN

10 9 8 7

C G B AP

4

SZ

2 1 0

D W

The translation buffer entry low part register (TLBELO) is used for storing the physical part of the page entry into the TLB, along with the page configuration.

• PFN – Physical frame number, the address the virtual frame number is mapped.

• C – Cachable bit, enables caching if supported by device.

32047A-AVR32-09/06

AVR32113

• G – Global bit, enables global address search.

• B – Bufferable bit, enables buffering if supported by device.

• AP – Access permissions bits controls read, write and execute access to an entry.

• SZ – Page size bits sets the page size.

• D – Dirty bit is set when the page is written to.

• W – Write through bit enables write through cache if supported by device.

2.1.3 PTBR register

PTBR register

31

PTBR

The page table base address register (PTBR) can be used by software to hold the memory address in where the page table is stored.

0

2.1.4 TLBEAR register

31

TLBEAR register

0

TLBEAR

The translation buffer exception address register (TLBEAR) contains the most resent virtual address of a MMU related exception.

2.1.5 MMUCR register

31

MMUCR register

IRP

26

ILA

20

DRP

14

DLA

8

--

5 4 3 2 1 0

S N I M E

The memory management unit control register (MMUCR) controls the use of the

MMU.

• IRP – instruction replacement pointer, which instruction TLB entry to access.

• ILA – instruction lockdown amount, number of instruction TLBs to lock.

• DRP – data replacement pointer, which data TLB entry to access.

• DLA – data lockdown amount, number of data TLBs to lock.

• S – Segmentation bit enables segmentation.

• N – Not found bit, i.e. page miss when using the tlbs instruction.

• I – Invalidate bit invalidates all entries in the TLB.

• M – Mode bit selects between shared and private mode.

• E – Enable bit enables paging.

2.1.6 TLBARLO/TLBARHI registers

31

TLBARLO / TLBARHI register

0

TLBARLO / TLBARHI

The translation buffer accessed high and low register contains which TLB entries that have been accessed since the last reset of this register. The two 32 bit registers give

32047A-AVR32-09/06

3

a total of 64 bits that represents the TLB entries. Instruction and data TLB is separated by the I-bit in the TLBEHI register (se section 2.1.1).

2.2 Virtual memory space

The AVR32 architecture uses a 32-bit virtual memory space. The mapping and translation from virtual to physical addresses is done by the MMU.

Figure 2-1. Virtual memory space

Privileged mode

0xFFFFffff

512 MB system space non-cachable

P4

0xFFFFffff

Unprivileged mode

0xE0000000

512 MB translated space cachable

P3

0xC0000000

Unaccessible space

Access error

512 MB non-translated space non-cachable

P2

0xA0000000

512 MB non-translated space cachable

P1

0x80000000

0x80000000

2 GB translated space cachable

P0

2 GB translated space cachable

U

0

0x00000000 0x00000000

1. The AVR32 use two distinct modes, privileged mode and unprivileged mode. The difference between these modes is covered in the AVR32 Architecture Manual. This application note will assume the privileged mode is used (i.e. the CPU in supervisor mode).

2.3 MMU configuration

The AVR32 can use both segmentation and page translation. As these two can be configured independently of each other, there are four different modes of operation as described in Table 2-1.

The segmentation is enabled by the S-bit in MMUCR, and page translation is enabled by the E-bit in MMUCR. Segmentation is enabled by default, and page translation is disabled after a reset.

4

AVR32113

32047A-AVR32-09/06

AVR32113

Table 2-1. Modes of operation

Segment translation

Page translation Description

Off Off Virtual and physical addresses are equal.

The P0, P4 and U0 have no translation while P1, P2 and P3 are mapped to the physical location 0x00000000 to

Off On All addresses are mapped according to TLB entries

( 1)

.

P1 and P2 are mapped directly to the physical address range

0x00000000 to 0x1F000000, while P4 is mapped directly to the corresponding physical address. U0, P0 and P3 are mapped according to TLB entries

( 1)

.

3 Enabling the MMU

3.1 MMUCR – MMU control register

The MMUCR controls the operation of the MMU, making it possible to enable the

MMU, enable segmentation and select mode as specified in Table 2-1.

The control register is also used for replacing and locking entries in the TLB. Four bitfields are used for this purpose:

• IRP – Instruction replacement pointer

• ILA – Instruction lockdown pointer

• DRP – Data replacement pointer

• DLA – Data lockdown pointer

Each of these four bit-fields is up to 6 bits, allowing up to 64 valid pages in both the instruction TLB and data TLB.

The IRP and DRP fields give the index of the page entry to write or read from the

TLB.

The ILA and DLA fields specify the number of entries to be locked down, counting from the first entry in the respective TLB. Thus, to lock down 10 entries these 10 entries have to be organized at the 10 first entries in the TLB.

3.2 Page table

As the MMU is optional in the AVR32 architecture, only segmentation is enabled by default. Page translation is enabled with the E-bit in the MMUCR register.

The AVR32 MMU page table needs to be implemented in software along with an exception handler swapping entries in and out of the TLB (see section 4). This is usually handled by the operating system.

It is recommended that the page table is stored in the format given by the TLBELO register, making it possible to pass the entries directly into the MMU.

For more information see the AVR32 Architecture Manual.

32047A-AVR32-09/06

5

3.3 Page entries

The AVR32 MMU can be configured to support pages from 1 kB to 1 MB.

Depending on the device specification, each page can be configured to be global, cacheable or bufferable, and the cache can be set to be write-through or write-back.

The entries have individual access permissions for read, write and execute for both privileged CPU mode and unprivileged CPU mode. This allows protecting memory segments from illegal access.

The dirty bit is set by hardware in the entry if it is written to. An exception will rise when the dirty bit is set, making it possible for the software to handle the dirty page.

For more information see the AVR32 Architecture Manual.

4 Translation lookaside buffer

In order to speed up the translation process, the AVR32 uses a special cache that contains buffered entries from the page table. This cache is called the translation lookaside buffer (TLB). One can use one unified TLB or two separate TLB, one for instructions and one for data. A single TLB can contain up to 64 different entries and each entry can be individually locked in the TLB to further increase performance.

4.1 TLB types

The TLB entries can be divided into instruction TLB (ITLB) and data TLB (DTLB) or unified TLB (UTLB). This is indicated in each TLB entry by the I-bit in the TLBEHI register. The TLB entries are indexed by using the irp- and drp-field in the MMUCR register.

For devices without ITLB entries the I-bit in TLBEHI is ignored by hardware and all

TLB entries are indexed by the drp-field in the MMUCR register.

4.2 TLB structure

An entry in the TLB is divided into two parts. One part is describing the virtual section and the other part is describing the physical section. The fields of these two parts are extensively covered in the AVR32 Architecture Manual. Though the table entries organization may differ from this document to suit specific implementation needs.

4.3 TLB instructions

Associated with the TLB are three assembly instructions:

• tlbw – write a new entry to the TLB.

• tlbr – read an entry from the TLB.

• tlbs – search the TLB for an entry.

4.3.1 tlbw instruction

A tlbw instruction writes the contents of TLBEHI and TLBELO into the TLB. The drp or

irp fields in the MMUCR register specify the index in the TLB the contents are written to. If an instruction is to be written, the irp field is used, for data the drp field is used.

Before the tlbw instruction can be executed, the correct values must be set in the

MMUCR registers, as well as TBLEHI and TBLELO. Figure 4-1 shows how a tlbw instruction can be executed.

6

AVR32113

32047A-AVR32-09/06

Figure 4-1. Data flow when tlbw instruction executed

AVR32113

DTLB

6

3

MMUCR drp

DTLB[drp]

4.3.2 tlbr instruction

TLBEHI

TLBELO

0

A tlbr instruction reads an entry from the TLB and put the data TLBEHI and TLBELO.

The drp or irp fields in the MMUCR register specify the index to be read in the TLB. If an instruction is to be read, the irp field is used, for data the drp field is used. Before the tlbw instruction can be executed, the correct values must be set in the MMUCR registers, as well as TBLEHI and TBLELO. Figure 4-2 shows how a tlbr instruction can be executed.

Figure 4-2. Data flow when tlbr instruction executed

DTLB

6

3

MMUCR drp

DTLB[drp]

TLBEHI

TLBELO

0

7

32047A-AVR32-09/06

4.3.3 tlbs instruction

A tlbs instruction searches the TLB for an entry matching the contents in TLBEHI and

TLBELO. If the search is successful, the drp field in the MMUCR is updated with the address to the entry in TLB. If the search was unsuccessful the not found bit (N) in

MMUCR is set. Figure 4-3 shows how a tlbs instruction can be executed.

Figure 4-3. Data flow when tlbs instruction executed

DTLB

6

3

MMUCR drp

Yes

Search success?

No

MMUCR

N

TLBEHI

TLBELO

0

5 MMU application design considerations

5.1 Program counter (PC) and valid memory spaces

When switching mode on the MMU the program counter (PC) must be in a place where it can continue executing, if not the MMU will raise an exception. The TLB entries must be entered before a mode change.

5.2 MMU exceptions

Handling exceptions related to the MMU is mandatory when using the MMU, since unhandled MMU exceptions will lead to an unresolved state and the processor will need to be reset.

The exception handler also has to reside inside a valid page entry

5.3 TLB page flags

There are several flags possible to set for each page; they affect the page in different ways. The most important D-flag and V-flag must be set correct to avoid unexpected exceptions.

The dirty bit, D flag, must be set to dirty to allow the CPU to write to a memory address without rising an DTLB modified exception. This flag can also be used by the operating system to detect dirty pages and flush these to disk.

The valid bit, V flag, must be set if the page is valid. Entering an entry in the TLB without this bit set will result in a page miss exception when the memory area is accessed.

8

AVR32113

32047A-AVR32-09/06

AVR32113

6 Implementations

6.1 Driver files

The driver consists of two files “mmu.c” and “mmu.h”. Where “mmu.h” declares all functions and “mmu.c” contains the source code.

6.2 Example application

The example application, mmu_example.c, is using the MMU driver files to show how the MMU works when segmentation is on and paging off, and when both segmentation and paging is turned on.

Since the linker scripts supplied with the native GNU C compiler assumes segmentation is turned on, the example application will only demonstrate the use of the MMU when segmentation is turned on.

Figure 6-1 shows the flow of the example application. For detailed explanation of the functions please see the code documentation (see chapter 6.3).

32047A-AVR32-09/06

9

Figure 6-1. Example code flow chart init_usart exception handler page miss?

No

Yes mmu_addTLBEntry()

--buttonTimer

Yes buttonTime > 0?

No

No

SW0 pressed && buttonTimer == 0?

Yes buttonTimer =

DELAY_TIMEOUT

No

SW1 pressed && buttonTimer == 0?

Yes buttonTimer =

DELAY_TIMEOUT mmu_reset() mmu_reset() mmu_init()

/* shared mode */ mmu_addTLBEntry() mmu_init()

/* paging on and segmentation on*/ print the results mmu_init()

/* paging on and segmentation on*/ mmu_searchVDataPointer()

No SW2 pressed && buttonTimer == 0?

Yes buttonTimer =

DELAY_TIMEOUT mmu_reset() mmu_init()

/* shared mode */ mmu_addTLBEntry() mmu_init()

/* paging on and segmentation on*/ access memory outside TLB entries mmu_searchPDataPointer() mmu_findIndexDataPointer() print the results

6.3 Doxygen documentation

All source code is prepared for doxygen automatic documentation generation.

Premade doxygen documentation is also supplied with the source to this application note, located in src/doxygen/index.html.

Doxygen is a tool for generating documentation from source code by analyzing the source code and using known keywords. For more details see http://www.stack.nl/~dimitri/doxygen/.

10

AVR32113

32047A-AVR32-09/06

Disclaimer

Atmel Corporation Atmel Operations

2325 Orchard Parkway

San Jose, CA 95131, USA

Tel: 1(408) 441-0311

Fax: 1(408) 487-2600

Regional Headquarters

Memory

2325 Orchard Parkway

San Jose, CA 95131, USA

RF/Automotive

Theresienstrasse 2

Postfach 3535

Europe

Atmel Sarl

Route des Arsenaux 41

Case Postale 80

CH-1705 Fribourg

Switzerland

Tel: (41) 26-426-5555

Fax: (41) 26-426-5500

Tel: 1(408) 441-0311

Fax: 1(408) 436-4314

Microcontrollers

2325 Orchard Parkway

San Jose, CA 95131, USA

Tel: 1(408) 441-0311

Fax: 1(408) 436-4314

La Chantrerie

BP 70602

44306 Nantes Cedex 3, France

Tel: (33) 2-40-18-18-18

Fax: (33) 2-40-18-19-60

74025 Heilbronn, Germany

Tel: (49) 71-31-67-0

Fax: (49) 71-31-67-2340

1150 East Cheyenne Mtn. Blvd.

Colorado Springs, CO 80906, USA

Tel: 1(719) 576-3300

Fax: 1(719) 540-1759

Biometrics/Imaging/Hi-Rel MPU/

High Speed Converters/RF Datacom

Avenue de Rochepleine

Asia

Room 1219

Chinachem Golden Plaza

ASIC/ASSP/Smart Cards

Zone Industrielle

BP 123

38521 Saint-Egreve Cedex, France

Tel: (33) 4-76-58-30-00

Fax: (33) 4-76-58-34-80

77 Mody Road Tsimshatsui

East Kowloon

Hong Kong

Tel: (852) 2721-9778

Fax: (852) 2722-1369

Japan

9F, Tonetsu Shinkawa Bldg.

1-24-8 Shinkawa

Chuo-ku, Tokyo 104-0033

Japan

Tel: (81) 3-3523-3551

Fax: (81) 3-3523-7581

13106 Rousset Cedex, France

Tel: (33) 4-42-53-60-00

Fax: (33) 4-42-53-60-01

1150 East Cheyenne Mtn. Blvd.

Colorado Springs, CO 80906, USA

Tel: 1(719) 576-3300

Fax: 1(719) 540-1759

Scottish Enterprise Technology Park

Maxwell Building

East Kilbride G75 0QR, Scotland

Tel: (44) 1355-803-000

Fax: (44) 1355-242-743

Literature Requests

www.atmel.com/literature

Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL’S TERMS AND

CONDITIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED

OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY,

FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT,

CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS

INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel’s products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.

© 2006 Atmel Corporation. All rights reserved. ATMEL

®

, logo and combinations thereof, Everywhere You Are

®

, AVR

®

, and others, are the registered trademarks or trademarks of Atmel Corporation or its subsidiaries. Other terms and product names may be trademarks of others.

32047A-AVR32-09/06

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
