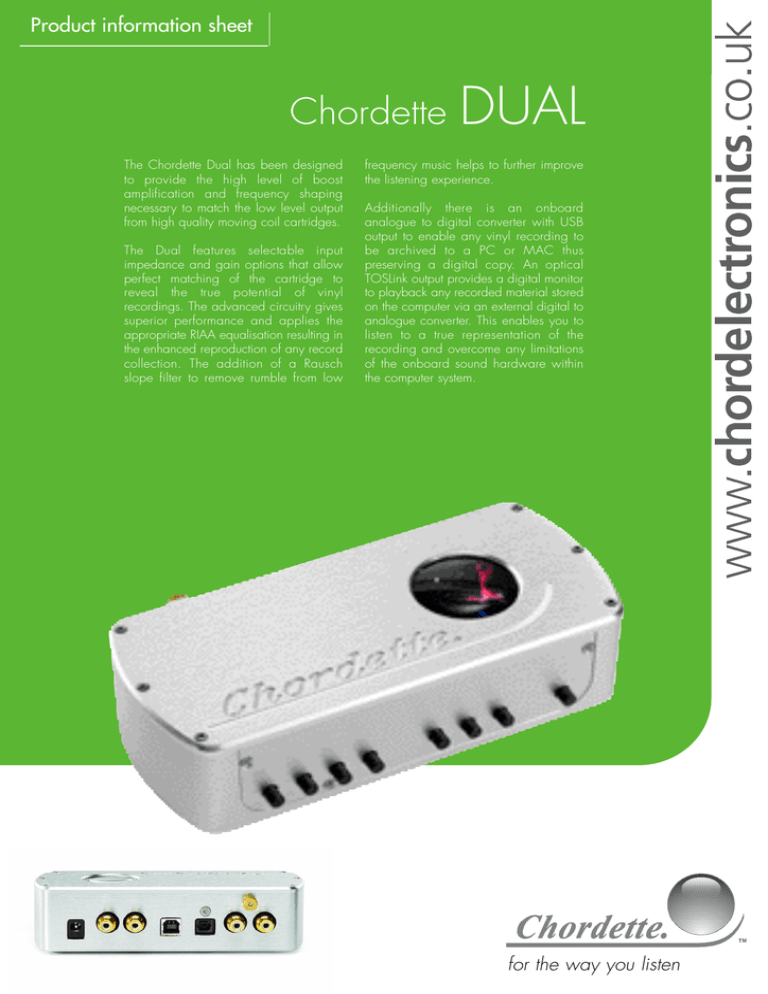

Product information sheet
Chordette
The Chordette Dual has been designed
to provide the high level of boost
amplification and frequency shaping
necessary to match the low level output
from high quality moving coil cartridges.
The Dual features selectable input
impedance and gain options that allow
perfect matching of the cartridge to
reveal the true potential of vinyl
recordings. The advanced circuitry gives
superior performance and applies the
appropriate RIAA equalisation resulting in
the enhanced reproduction of any record
collection. The addition of a Rausch
slope filter to remove rumble from low
DUAL
frequency music helps to further improve
the listening experience.
Additionally there is an onboard
analogue to digital converter with USB
output to enable any vinyl recording to
be archived to a PC or MAC thus
preserving a digital copy. An optical
TOSLink output provides a digital monitor
to playback any recorded material stored
on the computer via an external digital to
analogue converter. This enables you to
listen to a true representation of the
recording and overcome any limitations
of the onboard sound hardware within
the computer system.
for the way you listen
Technical specifications
for the way you listen
INPUT IMPEDANCE
30 ohms – 47K ohms, 50pF – 200pF
INPUT NOISE
1.1nV/Hz
MAX OUTPUT VOLTAGE
10V rms
EQUALISATION
0dBV – 75dBV RIAA curve
GAIN RANGE
60dBV,65dBV,70dBV,75dBV
RUMBLE FILTER
-24dB per octave below 50Hz
INPUT
1 x RCA Phono Pair
OUTPUT
1 x USB ( B type )
1 x RCA Phono pair
1 x optical TOSLink monitor
USB ADC OUTPUT
44/48KHz, USB 2.0 Compliant
POWER SUPPLY
12V 3A 2.1mm connector. Centre Pin Positive.
100V – 240V 50/60Hz 1A wall adapter supplied
DIMENSIONS IN MM
160 x 70 x 40mm (Width x Height x Depth)
WEIGHT
0.4Kg
for more information: 01622 721444 • [email protected] • www.chordelectronics.co.uk
