P
R
E
L
I
M
I
N
A
As of January 2012
R
Y

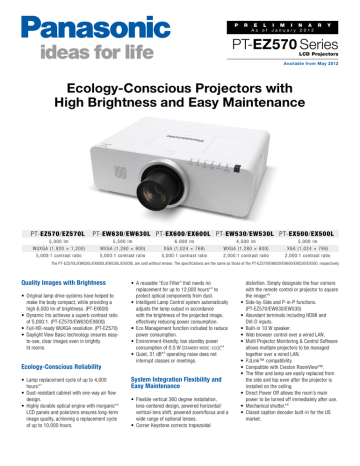

PT-EZ570 Series
LCD Projectors
Available from May 2012
Ecology-Conscious Projectors with
High Brightness and Easy Maintenance
PT-EZ570/EZ570L
5,000 l m
WUXGA (1,920 × 1,200)
5,000:1 contrast ratio
PT-EW630/EW630L PT-EX600/EX600L PT-EW530/EW530L PT-EX500/EX500L
5, 500 lm
WX G A (1, 280 × 800)
5,000:1 contrast ratio
6,000 lm
XG A ( 1 , 0 2 4 × 7 6 8 )
5,000:1 contrast ratio
4,500 lm
W XG A ( 1 , 2 8 0 × 8 0 0 )
2,000:1 contrast ratio
5,000 lm
XG A ( 1 , 0 2 4 × 768)
2,000:1 contrast ratio
The PT-EZ570L/EW630L/EX600L/EW530L/EX500L are sold without lenses. The specifications are the same as those of the PT-EZ570/EW630/EX600/EW530/EX500, respectively.
Quality Images with Brightness
• Original lamp drive systems have helped to
make the body compact, while providing a
high 6,000 lm of brightness. (PT-EX600)
• Dynamic Iris achieves a superb contrast ratio
of 5,000:1. (PT-EZ570/EW630/EX600)
• Full-HD-ready WUXGA resolution. (PT-EZ570)
• Daylight View Basic technology ensures easyto-see, clear images even in brightly
lit rooms.
Ecology-Conscious Reliability
• Lamp replacement cycle of up to 4,000
hours.* 1
• Dust-resistant cabinet with one-way air flow
design.
• Highly durable optical engine with inorganic* 2
LCD panels and polarizers ensures long-term
image quality, achieving a replacement cycle
of up to 10,000 hours.
• A reusable “Eco Filter” that needs no
replacement for up to 12,000 hours* 3 to
protect optical components from dust.
• Intelligent Lamp Control system automatically
adjusts the lamp output in accordance
with the brightness of the projected image,
effectively reducing power consumption.
• Eco Management function included to reduce
power consumption.
• Environment-friendly, low standby power
consumption of 0.5 W (STANDBY MODE: ECO).* 4
• Quiet, 31 dB* 5 operating noise does not
interrupt classes or meetings.
System Integration Flexibility and
Easy Maintenance
•
•
•
•
•
•
•
•
•
• Flexible vertical 360 degree installation,
lens-centered design, powered horizontal/
vertical-lens shift, powered zoom/focus and a
wide range of optional lenses.
• Corner Keystone corrects trapezoidal
•
•
distortion. Simply designate the four corners
with the remote control or projector to square
the image.* 6
Side-by-Side and P-in-P functions.
(PT-EZ570/EW630/EW530)
Abundant terminals including HDMI and
DVI-D inputs.
Built-in 10 W speaker.
Web browser control over a wired LAN.
Multi Projector Monitoring & Control Software
allows multiple projectors to be managed
together over a wired LAN.
PJLink™ compatibility.
Compatible with Creston RoomView™.
The filter and lamp are easily replaced from
the side and top even after the projector is
installed on the ceiling.
Direct Power Off allows the room’s main
power to be turned off immediately after use.
Mechanical shutter.* 6
Closed caption decoder built-in for the US
market.
P
Specifications (Tentative)
PT-EZ570 / EZ570L
Model
Power supply
Power consumption
LCD panel
Panel size
Display method
Drive method
Pixels
Lens
Lamp
Lamp replacement cycle
Screen size (diagonal)
Brightness* 9
Center-to-corner uniformity* 9
Contrast* 9
Resolution
PT-EW630 / EW630L
DVI-D
HDMI
RGB (analog)
YP B P R (YC BC R )
Video/S-Video
Keystone correction range
Installation
Terminals INPUT 1
DVI-D
HDMI
RGB
INPUT 2
RGB 5BNC/VIDEO
INPUT 3
VIDEO
S-VIDEO
MONITOR OUT
AUDIO IN
AUDIO OUT
SERIAL IN
REMOTE IN
LAN
Operating noise* 13
Filter
Mechanical shutter
Cabinet materials
Dimensions (W × H × D)
Weight* 13
Operating environment
Supplied accessories
Fixed-focus lens
ET-ELW21
Bracket assembly
ET-PKE200B
L
I
M
I
N
A
PT-EW530 / EW530L
R
Y
PT-EX500 / EX500L
( Input signals that exceed this
resolution will be converted to
1,280 × 800 pixels.)
( Input signals that exceed this
resolution will be converted to
1,024 × 768 pixels.)
( Input signals that exceed this
resolution will be converted to
1,280 × 800 pixels.)
( Input signals that exceed this
resolution will be converted to
1,024 × 768 pixels.)
f H : 26 –80 kHz, f V : 23 –85 Hz, dot clock: 162 MHz or lower
f H : 26 –80 kHz, f V : 23 –85 Hz, dot clock: 162 MHz or lower
f H : 15–120 kHz, f V : 48 –100 Hz, dot clock: 230 MHz or lower (Signals exceeding the dot clock rate of 163MHz are downsampled.)
f H : 15.75 kHz, f V : 60 Hz [480i (525i)]
f H : 33.75 kHz, f V : 60 Hz [1035/60i]
f H : 27.00 kHz, f V : 48 Hz [1080/24sF]
f H : 31.50 kHz, f V : 60 Hz [480p (525p)]
f H : 33.75 kHz, f V : 60 Hz [1080 (1125)/60i]
f H : 33.75 kHz, f V : 30 Hz [1080/30p]
f H : 15.63 kHz, f V : 50 Hz [576i (625i)]
f H : 28.13 kHz, f V : 50 Hz [1080 (1125)/50i]
f H : 33.75 kHz, f V : 60 Hz [1080/30sF]
f H : 31.25 kHz, f V : 50 Hz [576p (625p)]
f H : 28.13 kHz, f V : 25 Hz [1080/25p]
f H : 67.50 kHz, f V : 60 Hz [1080/60p]
f H : 45.00 kHz, f V : 60 Hz [720 (750)/60p]
f H : 28.13 kHz, f V : 50 Hz [1080/25sF]
f H : 56.25 kHz, f V: 50 Hz [1080/50p]
f H : 37.50 kHz, f V : 50 Hz [720 (750)/50p]
f H : 27.00 kHz, f V : 24 Hz [1080/24p]
f H : 15.75 kHz, f V : 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], f H : 15.63 kHz, f V : 50 Hz [PAL/PAL-N/SECAM]
Horizontal: ±30°,* 12
Horizontal: ±30°,* 12
Vertical: ±40° * 12
vertical: ±30° * 12
vertical: ±40° * 12
Ceiling/floor, front/rear
DVI-D 24-pin × 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
HDMI 19-pin × 1 (Deep Color, compatible with HDCP)
D-Sub HD 15-pin (female) × 1
BNC × 5 (RGB/YP B P R /YC BC R × 1), shared with VIDEO IN (BNC × 1, composite video)
RCA × 3 (YP B P R /YC BC R /composite video × 1)
Mini DIN 4-pin × 1 (S-Video)
D-Sub HD 15-pin (female) × 1 (Cannot be used for some inputs)
RCA (L, R) × 1, M3 (L, R) × 2
M3 (L, R) × 1 (variable)
D-sub 9-pin (female) × 1 for external control (RS-232C compliant)
M3 × 1 for wired remote control
RJ-45 × 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink™)
35 dB ( LAMP POWER : NORMAL ), 31 dB ( LAMP POWER : ECO 1/2 )
× 1, recommended replacement cycle: 12,000 hours* 14
Yes
–
Molded plastic (PC + ABS)
489.5 × 164*15 × 434.8 mm (19-9/32 × 6-15/32* 15 × 17-1/8 in) (with supplied lens)
489.5 × 164*15 × 371.1 mm (19-9/32 × 6-15/32* 15 × 14-5/8 in) (without lens)
Approximately 10.5 kg (23.1 lbs) (with supplied lens), approximately 9.7 kg (21.4 lbs) (without lens)
Operating temperature: 0 °C– 40 °C (32 °F –104 °F)*16, operating humidity: 20% – 80% (no condensation)
Power cord, power cord holder/power cord cover, wireless/wired remote control unit, batteries (R03/LR03/AAA type × 2), RGB cable,
Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring and Control Software)
Optional accessories
Zoom lens
ET-ELW20
ET-ELT20
ET-ELT21
E
As of January 2012
100–240 V AC, 50/60 Hz
490 W (0.5 W with STANDBY MODE set to ECO,* 7
519 W (0.5 W with
423 W (0.5 W with STANDBY MODE set to ECO,* 7
STANDBY MODE set to ECO,* 7
12 W with STANDBY MODE set to NETWORK .)
12 W with STANDBY MODE set to NETWORK .)
12 W with STANDBY MODE
set to NETWORK .)
20.0 mm (0.80˝ )
19.2 mm (0.76˝ )
19.0 mm (0.75˝ )
20.0 mm (0.80˝ )
19.0 mm (0.75˝ )
diagonal (16:10 aspect ratio) diagonal (16:10 aspect ratio) diagonal (4:3 aspect ratio) diagonal (16:10 aspect ratio) diagonal (4:3 aspect ratio)
Transparent LCD panel
Transparent LCD panel
Transparent LCD panel
Transparent LCD panel
Transparent LCD panel
(× 3, R/G/B)
(× 3, R/G/B)
(× 3, R/G/B)
(× 3, R/G/B)
(× 3, R/G/B)
Active matrix
Active matrix
Active matrix
Active matrix
Active matrix
2,304,000 (1,920 × 1,200) × 3, 1,024,000 (1,280 × 800) × 3, 786,432 (1,024 × 768) × 3, 1,024,000 (1,280 × 800) × 3, 786,432 (1,024 × 768) × 3,
total of 6,912,000 pixels
total of 3,072,000 pixels
total of 2,359,296 pixels
total of 3,072,000 pixels
total of 2,359,296 pixels
PT-EZ570/EW630/EX600/EW530/EX500: powered zoom (1.7–2.8:1), powered focus F 1.7–2.3, f 26.9 – 45.4 mm,
PT-EZ570L/EW630L/EX600L/EW530L/EX500L: optional powered zoom/focus and fixed-focus lens
330 W UHM lamp × 1
3,000 hours* 8 ( LAMP POWER : NORMAL ), 4,000 hours* 8 ( LAMP POWER : ECO )
1.02–10.16 m (40 – 400 in), 16:10 aspect ratio for the PT-EZ570/EW630/EW530, 4:3 aspect ration for the PT-EX600/EX500
5,000 lm* 10
5,500 lm* 10
6,000 lm* 10
4,500 lm* 10
5,000 lm* 10
90%
5,000:1* 11
2,000:1* 11
1,920 × 1,200 pixels
1,280 × 800 pixels
1,024 × 768 pixels
1,280 × 800 pixels
1,024 × 768 pixels
( Input signals that exceed this
resolution will be converted to
1,920 × 1,200 pixels.)
Scanning frequency
PT-EX600 / EX600L
R
Ceiling mount bracket
ET-PKE200H (for high ceilings)
ET-PKE200S (for low ceilings)
Replacement lamp unit
ET-LAE200
Replacement filter unit
ET-RFE200
* 1 With the LAMP POWER set to ECO . Up to 3,000 hours with the LAMP POWER set to NORMAL . The usage environment affects
the lamp replacement cycle. * 2 Excluding some polarizers. * 3 The usage environment affects the duration of the filter.
* 4 When the STANDBY MODE is set to ECO , network functions such as power on over the LAN will not operate. Also, only
certain commands can be received for external control using the serial terminal. * 5 With the LAMP POWER set to ECO .
* 6 Not featured on the PT-EW530 and PT-EX500. * 7 When the STANDBY MODE is set to ECO , network functions such as
power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial
terminal. * 8 The usage environment affects the lamp replacement cycle. * 9 Measurement, measuring conditions, and
method of notation all comply with ISO 21118 international standards. * 10 With the LAMP POWER set to AUTO, PICTURE MODE
set to DYNAMIC, and the supplied lens mounted on the unit. * 11 Full on /off. With the LAMP POWER set to AUTO, Iris ON, PICTURE MODE
set to DYNAMIC. * 12 With the supplied lens. Value differs when the correction for both directions is operated. * 13 Average
value. May differ depending on models. * 14 The usage environment affects the duration of the filter. * 15 With legs at
shortest position. * 16 The operating temperature range is 0°C to 30°C (32°F to 86°F) when the fan control is set to ON
1 for altitudes from 1,000 m to 2,000 m (3,281 ft to 6,562 ft) above sea level, 0°C to 30°C (32°F to 86°F) when the fan
control is set to ON 2 for altitudes from 2,000 m to 2,700 m (6,562 ft to 8,858 ft) above sea level.
For more information about Panasonic projectors, please visit:
Projector Global Web Site – panasonic.net/avc/projector
Facebook – www.facebook.com/panasonicprojector
YouTube – www.youtube.com/user/PanasonicProjector
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
Product availability differs depending on region and country. This product may be subject to export control regulations.
The projection distances and throw ratios given in this leaflet are for use only as guidelines. For more detailed information, please consult the dealer from whom you are purchasing the product. The PJLink trademark is an application
trademark in Japan, the United States, and other countries and regions or registered trademarks. RoomView, Crestron
RoomView, and Crestron Connected are trademarks of Crestron Electronics, Inc. All other trademarks are the property
of their respective trademark owners. Projection images simulated. © 2012 Panasonic Corporation. All rights reserved.
All information included here is valid as of January 2012.
PT-EZ570PRE1 Printed in Japan.
