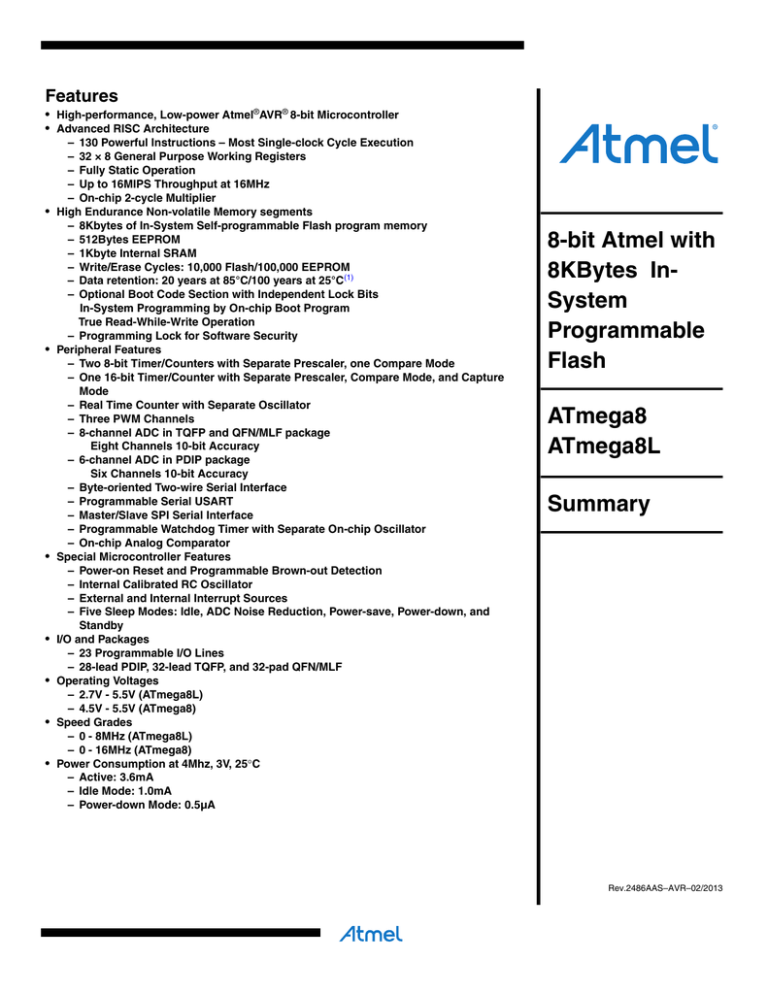

Features

High-performance, Low-power Atmel

®

AVR

®

8-bit Microcontroller

Advanced RISC Architecture

– 130 Powerful Instructions – Most Single-clock Cycle Execution

– 32 × 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16MIPS Throughput at 16MHz

– On-chip 2-cycle Multiplier

High Endurance Non-volatile Memory segments

– 8Kbytes of In-System Self-programmable Flash program memory

– 512Bytes EEPROM

– 1Kbyte Internal SRAM

– Write/Erase Cycles: 10,000 Flash/100,000 EEPROM

– Data retention: 20 years at 85°C/100 years at 25°C

(1)

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program

True Read-While-Write Operation

– Programming Lock for Software Security

Peripheral Features

– Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture

Mode

– Real Time Counter with Separate Oscillator

– Three PWM Channels

– 8-channel ADC in TQFP and QFN/MLF package

Eight Channels 10-bit Accuracy

– 6-channel ADC in PDIP package

Six Channels 10-bit Accuracy

– Byte-oriented Two-wire Serial Interface

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated RC Oscillator

– External and Internal Interrupt Sources

– Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and

Standby

I/O and Packages

– 23 Programmable I/O Lines

– 28-lead PDIP, 32-lead TQFP, and 32-pad QFN/MLF

Operating Voltages

– 2.7V - 5.5V (ATmega8L)

– 4.5V - 5.5V (ATmega8)

Speed Grades

– 0 - 8MHz (ATmega8L)

– 0 - 16MHz (ATmega8)

Power Consumption at 4Mhz, 3V, 25

C

– Active: 3.6mA

– Idle Mode: 1.0mA

– Power-down Mode: 0.5µA

8-bit Atmel with

8KBytes In-

System

Programmable

Flash

ATmega8

ATmega8L

Summary

Rev.2486AAS–AVR–02/2013

Pin

Configurations

(RESET) PC6

(RXD) PD0

(TXD) PD1

(INT0) PD2

(INT1) PD3

(XCK/T0) PD4

VCC

GND

(XTAL1/TOSC1) PB6

(XTAL2/TOSC2) PB7

(T1) PD5

(AIN0) PD6

(AIN1) PD7

(ICP1) PB0

8

9

10

11

12

13

14

5

6

3

4

7

1

2

PDIP

21

20

19

18

17

16

15

28

27

26

25

24

23

22

PC5 (ADC5/SCL)

PC4 (ADC4/SDA)

PC3 (ADC3)

PC2 (ADC2)

PC1 (ADC1)

PC0 (ADC0)

GND

AREF

AVCC

PB5 (SCK)

PB4 (MISO)

PB3 (MOSI/OC2)

PB2 (SS/OC1B)

PB1 (OC1A)

TQFP Top View

(INT1) PD3

(XCK/T0) PD4

GND

VCC

GND

VCC

(XTAL1/TOSC1) PB6

(XTAL2/TOSC2) PB7

5

6

3

4

1

2

7

8

20

19

18

17

24

23

22

21

PC1 (ADC1)

PC0 (ADC0)

ADC7

GND

AREF

ADC6

AVCC

PB5 (SCK)

ATmega8(L)

MLF Top View

(INT1) PD3

(XCK/T0) PD4

GND

VCC

GND

VCC

(XTAL1/TOSC1) PB6

(XTAL2/TOSC2) PB7

5

6

3

4

1

2

7

8

20

19

18

17

24

23

22

21

PC1 (ADC1)

PC0 (ADC0)

ADC7

GND

AREF

ADC6

AVCC

PB5 (SCK)

NOTE:

The large center pad underneath the MLF packages is made of metal and internally connected to GND. It should be soldered or glued to the PCB to ensure good mechanical stability. If the center pad is left unconneted, the package might loosen from the PCB.

2

2486AAS–AVR–02/2013

Overview

Block Diagram

ATmega8(L)

The Atmel

®

AVR

®

ATmega8 is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega8 achieves throughputs approaching 1MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed.

Figure 1. Block Diagram

XTAL1

RESET

VCC

PC0 - PC6 PB0 - PB7

XTAL2

PORTC DRIVERS/BUFFERS

PORTC DIGITAL INTERFACE

PORTB DRIVERS/BUFFERS

PORTB DIGITAL INTERFACE

GND

AGND

AREF

MUX &

ADC

ADC

INTERFACE

PROGRAM

COUNTER

PROGRAM

FLASH

INSTRUCTION

REGISTER

INSTRUCTION

DECODER

CONTROL

LINES

AVR CPU

STACK

POINTER

SRAM

GENERAL

PURPOSE

REGISTERS

X

Y

Z

ALU

STATUS

REGISTER

PROGRAMMING

LOGIC

+

-

SPI

COMP.

INTERFACE

TWI

TIMERS/

COUNTERS

OSCILLATOR

INTERNAL

OSCILLATOR

WATCHDOG

TIMER

MCU CTRL.

& TIMING

INTERRUPT

UNIT

OSCILLATOR

EEPROM

USART

PORTD DIGITAL INTERFACE

PORTD DRIVERS/BUFFERS

PD0 - PD7

3

2486AAS–AVR–02/2013

Disclaimer

ATmega8(L)

The Atmel

®

AVR

®

core combines a rich instruction set with 32 general purpose working registers.

All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.

The ATmega8 provides the following features: 8 Kbytes of In-System Programmable Flash with

Read-While-Write capabilities, 512 bytes of EEPROM, 1 Kbyte of SRAM, 23 general purpose

I/O lines, 32 general purpose working registers, three flexible Timer/Counters with compare modes, internal and external interrupts, a serial programmable USART, a byte oriented Twowire Serial Interface, a 6-channel ADC (eight channels in TQFP and QFN/MLF packages) with

10-bit accuracy, a programmable Watchdog Timer with Internal Oscillator, an SPI serial port, and five software selectable power saving modes. The Idle mode stops the CPU while allowing the SRAM, Timer/Counters, SPI port, and interrupt system to continue functioning. The Powerdown mode saves the register contents but freezes the Oscillator, disabling all other chip functions until the next Interrupt or Hardware Reset. In Power-save mode, the asynchronous timer continues to run, allowing the user to maintain a timer base while the rest of the device is sleeping. The ADC Noise Reduction mode stops the CPU and all I/O modules except asynchronous timer and ADC, to minimize switching noise during ADC conversions. In Standby mode, the crystal/resonator Oscillator is running while the rest of the device is sleeping. This allows very fast start-up combined with low-power consumption.

The device is manufactured using Atmel’s high density non-volatile memory technology. The

Flash Program memory can be reprogrammed In-System through an SPI serial interface, by a conventional non-volatile memory programmer, or by an On-chip boot program running on the

AVR core. The boot program can use any interface to download the application program in the

Application Flash memory. Software in the Boot Flash Section will continue to run while the

Application Flash Section is updated, providing true Read-While-Write operation. By combining an 8-bit RISC CPU with In-System Self-Programmable Flash on a monolithic chip, the Atmel

ATmega8 is a powerful microcontroller that provides a highly-flexible and cost-effective solution to many embedded control applications.

The ATmega8 is supported with a full suite of program and system development tools, including

C compilers, macro assemblers, program simulators, and evaluation kits.

Typical values contained in this datasheet are based on simulations and characterization of other AVR microcontrollers manufactured on the same process technology. Minimum and Maximum values will be available after the device is characterized.

4

2486AAS–AVR–02/2013

ATmega8(L)

Pin Descriptions

VCC

GND

Port B (PB7..PB0)

XTAL1/XTAL2/TOSC1/

TOSC2

Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The

Port B output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port B pins that are externally pulled low will source current if the pull-up resistors are activated. The Port B pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Depending on the clock selection fuse settings, PB6 can be used as input to the inverting Oscillator amplifier and input to the internal clock operating circuit.

Depending on the clock selection fuse settings, PB7 can be used as output from the inverting

Oscillator amplifier.

If the Internal Calibrated RC Oscillator is used as chip clock source, PB7..6 is used as TOSC2..1

input for the Asynchronous Timer/Counter2 if the AS2 bit in ASSR is set.

The various special features of Port B are elaborated in “Alternate Functions of Port B” on page

58 and “System Clock and Clock Options” on page 25 .

Port C (PC5..PC0)

Digital supply voltage.

Ground.

PC6/RESET

Port D (PD7..PD0)

RESET

Port C is an 7-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The

Port C output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port C pins that are externally pulled low will source current if the pull-up resistors are activated. The Port C pins are tri-stated when a reset condition becomes active, even if the clock is not running.

If the RSTDISBL Fuse is programmed, PC6 is used as an I/O pin. Note that the electrical characteristics of PC6 differ from those of the other pins of Port C.

If the RSTDISBL Fuse is unprogrammed, PC6 is used as a Reset input. A low level on this pin for longer than the minimum pulse length will generate a Reset, even if the clock is not running.

The minimum pulse length is given in Table 15 on page 38 . Shorter pulses are not guaranteed to generate a Reset.

The various special features of Port C are elaborated on page 61 .

Port D is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The

Port D output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port D pins that are externally pulled low will source current if the pull-up resistors are activated. The Port D pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port D also serves the functions of various special features of the ATmega8 as listed on page

63 .

Reset input. A low level on this pin for longer than the minimum pulse length will generate a reset, even if the clock is not running. The minimum pulse length is given in Table 15 on page

38 . Shorter pulses are not guaranteed to generate a reset.

5

2486AAS–AVR–02/2013

ATmega8(L)

Ordering Information

Speed (MHz)

8

16

8

16

Power Supply (V)

2.7 - 5.5

4.5 - 5.5

2.7 - 5.5

4.5 - 5.5

Ordering Code

(2)

ATmega8L-8AU

ATmega8L-8AUR

(3)

ATmega8L-8PU

ATmega8L-8MU

ATmega8L-8MUR

(3)

ATmega8-16AU

ATmega8-16AUR

(3)

ATmega8-16PU

ATmega8-16MU

ATmega8-16MUR

(3)

ATmega8L-8AN

ATmega8L-8ANR

(3)

ATmega8L-8PN

ATmega8L-8MN

ATmega8L-8MUR

(3)

ATmega8-16AN

ATmega8-16ANR

(3)

ATmega8-16PN

ATmega8-16MN

ATmega8-16MUR

(3)

Package

32A

32A

28P3

32M1-A

32M1-A

32A

32A

28P3

32M1-A

32M1-A

32A

32A

28P3

32M1-A

32M1-A

32A

32A

28P3

32M1-A

32M1-A

(1)

Operation Range

(-40

(-40

Industrial

C to 85

Industrial

C to 105

C)

C)

Notes: 1. This device can also be supplied in wafer form. Please contact your local Atmel sales office for detailed ordering information and minimum quantities

2. Pb-free packaging complies to the European Directive for Restriction of Hazardous Substances (RoHS directive). Also

Halide free and fully Green

3. Tape & Reel

4. See characterization specification at 105

C

32A

28P3

32M1-A

Package Type

32-lead, Thin (1.0mm) Plastic Quad Flat Package (TQFP)

28-lead, 0.300” Wide, Plastic Dual Inline Package (PDIP)

32-pad, 5 × 5 × 1.0 body, Lead Pitch 0.50mm Quad Flat No-Lead/Micro Lead Frame Package (QFN/MLF)

2486AAS–AVR–02/2013

6

ATmega8(L)

Packaging Information

32A

PIN 1 IDENTIFIER e

PIN 1

D1

D

B

E1 E

C

0°~7°

A1

A2 A

L

Notes:

1. This package conforms to JEDEC reference MS-026, Variation ABA.

2. Dimensions D1 and E1 do not include mold protrusion. Allowable protrusion is 0.25mm per side. Dimensions D1 and E1 are maximum plastic body size dimensions including mold mismatch.

3. Lead coplanarity is 0.10mm maximum.

TITLE

COMMON DIMENSIONS

(Unit of measure = mm)

SYMBOL

A

A1

A2

D

D1

E

E1

8.75

6.90

B 0.30

C

L

e

0.09

0.45

MIN

0.05

0.95

8.75

6.90

NOM

1.00

9.00

7.00

9.00

7.00

0.80 TYP

MAX

1.20

NOTE

0.15

1.05

9.25

7.10 Note 2

9.25

7.10 Note 2

0.45

0.20

0.75

32A, 32-lead, 7 x 7mm body size, 1.0mm body thickness,

0.8mm lead pitch, thin profile plastic quad flat package (TQFP)

2010-10-20

DRAWING NO.

REV.

32A C

2486AAS–AVR–02/2013

7

ATmega8(L)

28P3

D

PIN

1

E1

A

SEATING PLANE

L

A1

B2

(4 PLACES)

B1

B e

E

C

0º ~ 15º REF

Note: 1. Dimensions D and E1 do not include mold Flash or Protrusion.

Mold Flash or Protrusion shall not exceed 0.25mm (0.010").

R

2325 Orchard Parkway

San Jose, CA 95131

TITLE

eB

28P3, 28-lead (0.300"/7.62mm Wide) Plastic Dual

Inline Package (PDIP)

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

MIN

A –

A1

D

E

0.508

34.544

7.620

E1

B

B1

B2

L

C

7.112

0.381

1.143

0.762

3.175

0.203

NOM

MAX

4.5724

8.255

1.397

1.143

3.429

0.356

NOTE

7.493 Note 1

0.533

eB – – 10.160

e 2.540 TYP

09/28/01

DRAWING NO.

REV.

28P3

B

2486AAS–AVR–02/2013

8

ATmega8(L)

32M1-A

D

D1

1

2

3

Pin 1 ID

0

E1

E

SIDE VIEW

P

P

TOP VIEW

K

D2

Pin #1 Notch

(0.20 R) b

BOTTOM VIEW

e

1

2

3

E2

L

K

A2

A

Note: JEDEC Standard MO-220, Fig. 2 (Anvil Singulation), VHHD-2.

A3

A1

0.08 C

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

MIN

A 0.80

A1 –

A2

A3

b

0.18

D

D1

D2

E

E1

E2

e

4.90

4.70

2.95

4.90

4.70

2.95

L

P

0

K

0.30

0.20

NOM

0.90

0.02

0.65

0.20 REF

0.23

5.00

4.75

3.10

5.00

4.75

3.10

0.50 BSC

0.40

MAX

1.00

0.05

1.00

0.50

0.60

12 o

0.30

5.10

4.80

3.25

5.10

4.80

3.25

NOTE

R

2325 Orchard Parkway

San Jose, CA 95131

TITLE

32M1-A, 32-pad, 5 x 5 x 1.0mm Body, Lead Pitch 0.50mm,

3.10mm Exposed Pad, Micro Lead Frame Package (MLF)

5/25/06

DRAWING NO.

REV.

32M1-A E

9

2486AAS–AVR–02/2013

Errata

ATmega8

Rev. D to I, M

ATmega8(L)

The revision letter in this section refers to the revision of the ATmega8 device.

First Analog Comparator conversion may be delayed

Interrupts may be lost when writing the timer registers in the asynchronous timer

Signature may be Erased in Serial Programming Mode

CKOPT Does not Enable Internal Capacitors on XTALn/TOSCn Pins when 32KHz Oscillator is

Used to Clock the Asynchronous Timer/Counter2

Reading EEPROM by using ST or STS to set EERE bit triggers unexpected interrupt request

1.

First Analog Comparator conversion may be delayed

If the device is powered by a slow rising V take longer than expected on some devices.

CC

, the first Analog Comparator conversion will

Problem Fix / Workaround

When the device has been powered or reset, disable then enable theAnalog Comparator before the first conversion.

2.

Interrupts may be lost when writing the timer registers in the asynchronous timer

The interrupt will be lost if a timer register that is synchronized to the asynchronous timer clock is written when the asynchronous Timer/Counter register(TCNTx) is 0x00.

Problem Fix / Workaround

Always check that the asynchronous Timer/Counter register neither have the value 0xFF nor

0x00 before writing to the asynchronous Timer Control Register(TCCRx), asynchronous

Timer Counter Register(TCNTx), or asynchronous Output Compare Register(OCRx).

3.

Signature may be Erased in Serial Programming Mode

If the signature bytes are read before a chiperase command is completed, the signature may be erased causing the device ID and calibration bytes to disappear. This is critical, especially, if the part is running on internal RC oscillator.

Problem Fix / Workaround:

Ensure that the chiperase command has exceeded before applying the next command.

4.

CKOPT Does not Enable Internal Capacitors on XTALn/TOSCn Pins when 32KHz

Oscillator is Used to Clock the Asynchronous Timer/Counter2

When the internal RC Oscillator is used as the main clock source, it is possible to run the

Timer/Counter2 asynchronously by connecting a 32KHz Oscillator between XTAL1/TOSC1 and XTAL2/TOSC2. But when the internal RC Oscillator is selected as the main clock source, the CKOPT Fuse does not control the internal capacitors on XTAL1/TOSC1 and

XTAL2/TOSC2. As long as there are no capacitors connected to XTAL1/TOSC1 and

XTAL2/TOSC2, safe operation of the Oscillator is not guaranteed.

Problem Fix / Workaround

Use external capacitors in the range of 20pF - 36pF on XTAL1/TOSC1 and XTAL2/TOSC2.

This will be fixed in ATmega8 Rev. G where the CKOPT Fuse will control internal capacitors also when internal RC Oscillator is selected as main clock source. For ATmega8 Rev. G,

CKOPT = 0 (programmed) will enable the internal capacitors on XTAL1 and XTAL2. Customers who want compatibility between Rev. G and older revisions, must ensure that

CKOPT is unprogrammed (CKOPT = 1).

10

2486AAS–AVR–02/2013

ATmega8(L)

5.

Reading EEPROM by using ST or STS to set EERE bit triggers unexpected interrupt request.

Reading EEPROM by using the ST or STS command to set the EERE bit in the EECR register triggers an unexpected EEPROM interrupt request.

Problem Fix / Workaround

Always use OUT or SBI to set EERE in EECR.

2486AAS–AVR–02/2013

11

Atmel Corporation

1600 Technology Drive

San Jose, CA 95110

USA

Tel: (+1) (408) 441-0311

Fax: (+1) (408) 487-2600 www.atmel.com

Atmel Asia Limited

Unit 01-5 & 16, 19F

BEA Tower, Millennium City 5

418 Kwun Tong Roa

Kwun Tong, Kowloon

HONG KONG

Tel: (+852) 2245-6100

Fax: (+852) 2722-1369

Atmel Munich GmbH

Business Campus

Parkring 4

D-85748 Garching b. Munich

GERMANY

Tel: (+49) 89-31970-0

Fax: (+49) 89-3194621

Atmel Japan G.K.

16F Shin-Osaki Kangyo Bldg

1-6-4 Osaki, Shinagawa-ku

Tokyo 141-0032

JAPAN

Tel: (+81) (3) 6417-0300

Fax: (+81) (3) 6417-0370

© 2013 Atmel Corporation. All rights reserved. / Rev.: 2486AAS–AVR–02/2013

Atmel

®

, Atmel logo and combinations thereof, Enabling Unlimited Possibilities subsidiaries. Other terms and product names may be trademarks of others.

®

, and others are registered trademarks or trademarks of Atmel Corporation or its

Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND CONDITIONS OF SALES LOCATED ON THE ATMEL WEBSITE, ATMEL ASSUMES

NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT,

CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS AND PROFITS, BUSINESS INTERRUPTION, OR LOSS OF

INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and products descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
