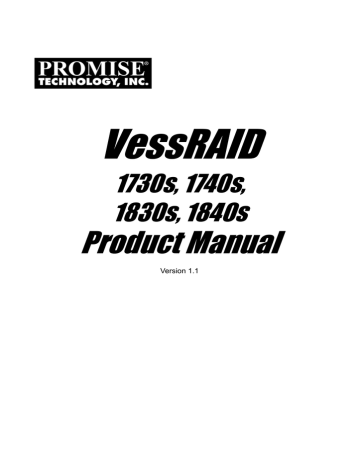

VessRAID
1730s, 1740s,
1830s, 1840s
Product Manual
Version 1.1
VessRAID 1000s Series Product Manual
Copyright
© 2009 Promise Technology, Inc. All Rights Reserved.
Copyright by Promise Technology, Inc. (Promise Technology). No part of this
manual may be reproduced or transmitted in any form without the expressed,
written permission of Promise Technology.
Trademarks
Promise, and the Promise logo are registered in U.S. Patent and Trademark
Office. All other product names mentioned herein may be trademarks or
registered trademarks of their respective companies.
Important data protection information
You should back up all data before installing any drive controller or storage
peripheral. Promise Technology is not responsible for any loss of data resulting
from the use, disuse or misuse of this or any other Promise Technology product.
Notice
Although Promise Technology has attempted to ensure the accuracy of the
content of this manual, it is possible that this document may contain technical
inaccuracies, typographical, or other errors. Promise Technology assumes no
liability for any error in this publication, and for damages, whether direct, indirect,
incidental, consequential or otherwise, that may result from such error, including,
but not limited to loss of data or profits.
Promise Technology provides this publication “as is” without warranty of any kind,
either express or implied, including, but not limited to implied warranties of
merchantability or fitness for a particular purpose.
The published information in the manual is subject to change without notice.
Promise Technology reserves the right to make changes in the product design,
layout, and driver revisions without notification to its users.
This version of the Product Manual supersedes all previous versions.
Recommendations
In this Product Manual, the appearance of products made by other companies,
including but not limited to software, servers, and disk drives, is for the purpose of
illustration and explanation only. Promise Technology does not recommend,
endorse, prefer, or support any product made by another manufacturer.
ii
Contents
Chapter 1: Introduction to VessRAID . . . . . . . . . . . . . . . . . . . . . . . . . .1
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
VessRAID Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Architectural Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Subsystem and Controller Features . . . . . . . . . . . . . . . . . . . . . .4
Operational Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Current (maximum) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Relative Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Dimensions (H x W x D) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Net Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Carton Dimensions (H x W x D) . . . . . . . . . . . . . . . . . . . . . . . . .7
Carton Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Warranty and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
CE Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
KCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Chapter 2: VessRAID Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Unpacking the VessRAID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Installing the LCD Panel (Optional) . . . . . . . . . . . . . . . . . . . . . . . . .11
Mounting VessRAID in a Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Installing Disk Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Drive Slot Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Installing Your Disk Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Making Data and Management Connections . . . . . . . . . . . . . . . . .18
Configuring a Data Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Configuring a Management Path . . . . . . . . . . . . . . . . . . . . . . .18
Setting Up Serial Cable Connections . . . . . . . . . . . . . . . . . . . . . . .20
iii
VessRAID 1000s Series Product Manual
Chapter 2: VessRAID Installation, cont.
Connecting the Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Front Panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Controller LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Disk Drive LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Chapter 3: VessRAID Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Setting up the Serial Connection . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Choosing DHCP or a Static IP Address . . . . . . . . . . . . . . . . . . . . .26
Default IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Setting up with the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Setting up with the CLU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Setting system date and time . . . . . . . . . . . . . . . . . . . . . . . . . .28
Making Manual IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Making Automatic IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . .29
Viewing IP Address and Settings . . . . . . . . . . . . . . . . . . . . . . .29
Exiting the CLU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Setting up with the LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Making Manual IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Making Automatic IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . .31
Creating Disk Arrays with WebPAM PROe . . . . . . . . . . . . . . . . . . .32
Logging into WebPAM PROe . . . . . . . . . . . . . . . . . . . . . . . . . .32
Choosing a Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Creating a Disk Array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Logging out of WebPAM PROe . . . . . . . . . . . . . . . . . . . . . . . .38
Using WebPAM PROe over the Internet . . . . . . . . . . . . . . . . . .39
Chapter 4: Management with WebPAM PROe . . . . . . . . . . . . . . . . . .41
Logging into WebPAM PROe . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Selecting a Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Perusing the Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Using the Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Using Tree View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Using Management View . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Viewing the Event Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Logging out of WebPAM PROe . . . . . . . . . . . . . . . . . . . . . . . .48
iv
Contents
Chapter 4: Management with WebPAM PROe,cont.
Working with the Storage Network . . . . . . . . . . . . . . . . . . . . . . . . .49
Viewing Other Subsytems . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Updating the List of Subsystems . . . . . . . . . . . . . . . . . . . . . . .49
Logging into a Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Hiding the Other Subsystems . . . . . . . . . . . . . . . . . . . . . . . . . .49
Working with Subsystems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Viewing Subsystem Information . . . . . . . . . . . . . . . . . . . . . . . .50
Saving System Service Report . . . . . . . . . . . . . . . . . . . . . . . . .50
Setting an Alias for the Subsystem . . . . . . . . . . . . . . . . . . . . . .51
Setting Subsystem Date and Time . . . . . . . . . . . . . . . . . . . . . .51
Viewing the Runtime Event Log . . . . . . . . . . . . . . . . . . . . . . . .51
Saving the Runtime Event Log . . . . . . . . . . . . . . . . . . . . . . . . .52
Clearing the Runtime Event Log . . . . . . . . . . . . . . . . . . . . . . . .52
Viewing NVRAM Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Saving NVRAM Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Clearing NVRAM Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Viewing Current Background Activities . . . . . . . . . . . . . . . . . . .54
Making Background Activity Settings . . . . . . . . . . . . . . . . . . . .54
Running Background Activities . . . . . . . . . . . . . . . . . . . . . . . . .55
Running Media Patrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Running PDM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Viewing Scheduled Activities . . . . . . . . . . . . . . . . . . . . . . . . . .56
Scheduling an Activity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Deleting a Scheduled Activity . . . . . . . . . . . . . . . . . . . . . . . . . .57
Viewing Lock Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Setting the Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Renewing the Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Releasing the Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Managing Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Viewing User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Making User Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Making Your Own User Settings . . . . . . . . . . . . . . . . . . . . . . . .61
Setting-up User Event Subscriptions . . . . . . . . . . . . . . . . . . . .61
Changing Another User’s Password . . . . . . . . . . . . . . . . . . . . .62
Changing Your Own Password . . . . . . . . . . . . . . . . . . . . . . . . .62
Creating a User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Deleting a User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Viewing User Sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Logging out Other Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
v
VessRAID 1000s Series Product Manual
Chapter 4: Management with WebPAM PROe,cont.
Managing the Network Connection . . . . . . . . . . . . . . . . . . . . . . . . .65
Making Management Port Settings . . . . . . . . . . . . . . . . . . . . . .65
Managing SAS Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Viewing SAS Port Information . . . . . . . . . . . . . . . . . . . . . . . . . .66
Making SAS Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Viewing SAS Port Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Viewing SAS Initiators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Managing Storage Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Adding an Initiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Deleting an Initiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Viewing the LUN Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Enabling LUN Masking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Adding a LUN Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Editing a LUN Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Managing Software Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Making Email Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Making SLP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Making Web Server Settings . . . . . . . . . . . . . . . . . . . . . . . . . .73
Making Telnet Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Making SNMP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Making Netsend Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Exporting the User Database . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Importing a User Database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Importing a Configuration Script . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Updating the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Viewing Flash Image Information . . . . . . . . . . . . . . . . . . . . . . . . . .80
Restoring Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Clearing Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Shutting Down the Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Monitoring the Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Starting Up After Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
Monitoring the Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
Restarting the Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Monitoring the Restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Managing the Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Viewing the Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Viewing Controller Information . . . . . . . . . . . . . . . . . . . . . . . . .86
Viewing Controller Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Making Controller Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Clearing an Orphan Watermark . . . . . . . . . . . . . . . . . . . . . . . .88
vi
Contents
Chapter 4: Management with WebPAM PROe,cont.
Managing Enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Viewing the Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Locating an Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Viewing Enclosure Topology . . . . . . . . . . . . . . . . . . . . . . . . . . .91
Viewing Enclosure Information . . . . . . . . . . . . . . . . . . . . . . . . .91
Making Enclosure Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Viewing FRU VPD Information . . . . . . . . . . . . . . . . . . . . . . . . .92
Checking the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Reconditioning a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Silencing the Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Making Buzzer Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Testing the Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Managing Physical Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Viewing a List of Physical Drives . . . . . . . . . . . . . . . . . . . . . . .96
Identifying a Physical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Making Global Physical Drive Settings . . . . . . . . . . . . . . . . . . .97
Viewing Physical Drive Information . . . . . . . . . . . . . . . . . . . . . .97
Viewing Physical Drive Statistics . . . . . . . . . . . . . . . . . . . . . . .98
Making Physical Drive Settings . . . . . . . . . . . . . . . . . . . . . . . . .98
Clearing Stale and PFA Conditions . . . . . . . . . . . . . . . . . . . . .99
Forcing a Physical Drive Offline or Online . . . . . . . . . . . . . . .100
Locating a Physical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . .100
Managing UPS Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Viewing a List of UPS Units . . . . . . . . . . . . . . . . . . . . . . . . . .102
Making UPS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Viewing UPS Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .104
Managing Disk Arrays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Viewing Disk Arrays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Creating a Disk Array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Creating a Disk Array – Automatic . . . . . . . . . . . . . . . . . . . . .106
Creating a Disk Array – Express . . . . . . . . . . . . . . . . . . . . . . .107
Creating a Disk Array – Advanced . . . . . . . . . . . . . . . . . . . . .108
Deleting a Disk Array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Viewing Disk Array Information . . . . . . . . . . . . . . . . . . . . . . . .110
Making Disk Array Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .111
Creating a Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Deleting a Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Migrating a Disk Array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Rebuilding a Disk Array . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
vii
VessRAID 1000s Series Product Manual
Chapter 4: Management with WebPAM PROe,cont.
Managing Disk Arrays, cont.
Running Media Patrol on a Disk Array . . . . . . . . . . . . . . . . . .115
Running PDM on a Disk Array . . . . . . . . . . . . . . . . . . . . . . . .116
Transitioning a Disk Array . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
Preparing a Disk Array for Transport . . . . . . . . . . . . . . . . . . .117
Managing Logical Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Viewing Information for All Logical Drives . . . . . . . . . . . . . . . .118
Viewing Logical Drive Information . . . . . . . . . . . . . . . . . . . . . .119
Viewing Logical Drive Statistics . . . . . . . . . . . . . . . . . . . . . . .120
Making Logical Drive Settings . . . . . . . . . . . . . . . . . . . . . . . . .120
Initializing a Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . .120
Running Redundancy Check . . . . . . . . . . . . . . . . . . . . . . . . .121
Viewing the Logical Drive Check Table . . . . . . . . . . . . . . . . .122
Making Logical Drive LUN Settings . . . . . . . . . . . . . . . . . . . .123
Managing Spare Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124
Viewing a List of Spare Drives . . . . . . . . . . . . . . . . . . . . . . . .124
Locating a Spare Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124
Creating a Spare Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125
Deleting Spare Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126
Making Spare Drive Settings . . . . . . . . . . . . . . . . . . . . . . . . .126
Running Spare Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127
Working with the Logical Drive Summary . . . . . . . . . . . . . . . . . . .128
Viewing a List of All Logical Drives . . . . . . . . . . . . . . . . . . . . .128
Viewing Individual Logical Drive Information . . . . . . . . . . . . .128
Chapter 5: Management with the CLU . . . . . . . . . . . . . . . . . . . . . . .129
Initial Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130
Making a Serial Connection . . . . . . . . . . . . . . . . . . . . . . . . . .130
Making a Telnet Connection . . . . . . . . . . . . . . . . . . . . . . . . . .131
Logging In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131
Accessing Online Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133
Exiting the CLU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133
Logging Out of the CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133
Logging Back Into the CLI and CLU . . . . . . . . . . . . . . . . . . . .133
Running Quick Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .134
Managing the Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135
Setting an Alias for the Subsystem . . . . . . . . . . . . . . . . . . . . .135
Running Media Patrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135
Locking or Unlocking the Subsystem . . . . . . . . . . . . . . . . . . .135
Setting Subsystem Date and Time . . . . . . . . . . . . . . . . . . . . .136
viii
Contents
Chapter 5: Management with the CLU, cont.
Managing the Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137
Viewing Controller Information . . . . . . . . . . . . . . . . . . . . . . . .137
Clearing an Orphan Watermark . . . . . . . . . . . . . . . . . . . . . . .137
Making Controller Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .137
Locating the Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138
Managing the Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140
Viewing Enclosure Information . . . . . . . . . . . . . . . . . . . . . . . .140
Viewing Power Supply Status . . . . . . . . . . . . . . . . . . . . . . . . .140
Locating a Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . .141
Viewing Cooling Unit Status . . . . . . . . . . . . . . . . . . . . . . . . . .141
Viewing Voltage Sensor Status . . . . . . . . . . . . . . . . . . . . . . . .141
Viewing Temperature Sensor Status . . . . . . . . . . . . . . . . . . .141
Setting Temperature Thresholds . . . . . . . . . . . . . . . . . . . . . .142
Checking the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
Reconditioning a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143
Locating an Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143
Viewing Enclosure Topology . . . . . . . . . . . . . . . . . . . . . . . . . .144
Managing Physical Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145
Making Global Physical Drive Settings . . . . . . . . . . . . . . . . . .145
Setting an Alias . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146
Viewing Advanced Information . . . . . . . . . . . . . . . . . . . . . . . .146
Viewing Physical Drive Statistics . . . . . . . . . . . . . . . . . . . . . .146
Clearing Stale and PFA Conditions . . . . . . . . . . . . . . . . . . . .146
Forcing a Physical Drive Offline or Online . . . . . . . . . . . . . . .147
Locating a Physical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . .147
Managing Disk Arrays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148
Creating a Disk Array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148
Creating a Disk Array – Automatic . . . . . . . . . . . . . . . . . . . . .149
Creating a Disk Array – Express . . . . . . . . . . . . . . . . . . . . . . .150
Creating a Disk Array – Advanced . . . . . . . . . . . . . . . . . . . . .151
Deleting a Disk Array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .152
Viewing Disk Array Information . . . . . . . . . . . . . . . . . . . . . . . .152
Setting an Alias for a Disk Array . . . . . . . . . . . . . . . . . . . . . . .153
Accepting an Incomplete Array . . . . . . . . . . . . . . . . . . . . . . . .153
Enabling Media Patrol on a Disk Array . . . . . . . . . . . . . . . . . .154
Enabling PDM on a Disk Array . . . . . . . . . . . . . . . . . . . . . . . .154
Preparing the Disk Array for Transport . . . . . . . . . . . . . . . . . .154
Rebuilding a Disk Array . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154
Migrating a Disk Array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155
ix
VessRAID 1000s Series Product Manual
Chapter 5: Management with the CLU, cont.
Managing Disk Arrays, cont.
Running PDM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156
Running Transition on a Disk Array . . . . . . . . . . . . . . . . . . . .156
Locating a Disk Array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156
Creating a Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157
Deleting a Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158
Managing Spare Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159
Viewing a list of Spare Drives . . . . . . . . . . . . . . . . . . . . . . . . .159
Creating a Spare Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .159
Making Spare Drive Settings . . . . . . . . . . . . . . . . . . . . . . . . .160
Running Spare Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .160
Deleting a Spare Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .161
Managing Logical Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162
Viewing Logical Drive Information . . . . . . . . . . . . . . . . . . . . . .162
Setting an Alias for a Logical Drive . . . . . . . . . . . . . . . . . . . . .162
Setting Write Cache Policy . . . . . . . . . . . . . . . . . . . . . . . . . . .162
Setting Read Cache Policy . . . . . . . . . . . . . . . . . . . . . . . . . . .163
Initializing a Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . .163
Running Redundancy Check . . . . . . . . . . . . . . . . . . . . . . . . .164
Locating a Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . .164
Managing the Network Connection . . . . . . . . . . . . . . . . . . . . . . . .165
Making Management Port Settings . . . . . . . . . . . . . . . . . . . . .165
Managing SAS Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166
Viewing SAS Port Information . . . . . . . . . . . . . . . . . . . . . . . . .166
Making SAS Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .166
Viewing SAS Port Statistics . . . . . . . . . . . . . . . . . . . . . . . . . .167
Viewing SAS Initiators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .167
Adding a SAS Initiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .167
Managing Background Activity . . . . . . . . . . . . . . . . . . . . . . . . . . .168
Viewing Current Background Activities . . . . . . . . . . . . . . . . . .168
Making Background Activity Settings . . . . . . . . . . . . . . . . . . .168
Working with the Event Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . .170
Viewing Runtime Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . .170
Clearing Runtime Events . . . . . . . . . . . . . . . . . . . . . . . . . . . .170
Viewing NVRAM Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . .170
Clearing NVRAM Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . .171
x
Contents
Chapter 5: Management with the CLU, cont.
Working with LUN Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .172
Viewing a List of Initiators . . . . . . . . . . . . . . . . . . . . . . . . . . . .172
Enabling LUN Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .172
Creating an Initiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .172
Mapping a LUN to an Initiator . . . . . . . . . . . . . . . . . . . . . . . . .173
Deleting an Initiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .173
Managing UPS Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174
Viewing a List of UPS Units . . . . . . . . . . . . . . . . . . . . . . . . . .174
Making UPS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175
Viewing UPS Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .176
Managing Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177
Viewing User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . .177
Creating a User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177
Changing a User’s Password . . . . . . . . . . . . . . . . . . . . . . . . .178
Changing a User’s Display Name and Email Address . . . . . .178
Changing a User’s Privilege and Status . . . . . . . . . . . . . . . . .179
Deleting a User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .179
Working with Software Management . . . . . . . . . . . . . . . . . . . . . . .180
Making Email Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .180
Making SLP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .181
Making Web Server Settings . . . . . . . . . . . . . . . . . . . . . . . . .181
Making Telnet Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .182
Making SNMP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .182
Managing SNMP Trap Sinks . . . . . . . . . . . . . . . . . . . . . . . . . .183
Making Netsend Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .184
Managing Netsend Recipients . . . . . . . . . . . . . . . . . . . . . . . .184
Flashing through TFTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .186
Viewing Flash Image Information . . . . . . . . . . . . . . . . . . . . . . . . .186
Clearing Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .186
Restoring Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .187
Shutting Down the Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . .188
Shutting down the VessRAID – Telnet Connection . . . . . . . .188
Shutting down the VessRAID – Serial Connection . . . . . . . . .189
Starting Up After Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .190
Starting up the VessRAID – Telnet Connection . . . . . . . . . . .190
Starting up the VessRAID – Serial Connection . . . . . . . . . . . .190
Restarting the Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .191
Restarting VessRAID – Telnet Connection . . . . . . . . . . . . . . .191
Restarting VessRAID – Serial Connection . . . . . . . . . . . . . . .191
Making Buzzer Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .193
xi
VessRAID 1000s Series Product Manual
Chapter 6: Management with the LCD Panel . . . . . . . . . . . . . . . . . .195
Using the LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .195
Perusing the Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .196
Making Mode Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .196
Simple Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .196
Advanced Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .197
Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .197
Viewing Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .197
Managing the Network Connection . . . . . . . . . . . . . . . . . . . . . . . .198
Making Management Port Settings . . . . . . . . . . . . . . . . . . . . .198
Managing SAS Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200
Viewing SAS Port Information . . . . . . . . . . . . . . . . . . . . . . . . .200
Making SAS Port Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .200
Managing the Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .202
Viewing Controller Information . . . . . . . . . . . . . . . . . . . . . . . .202
Managing Enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .203
Viewing the Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .203
Making Buzzer Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .203
Managing Physical Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .204
Viewing Physical Drive Information . . . . . . . . . . . . . . . . . . . . .204
Locating a Physical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . .204
Managing Disk Arrays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .206
Creating a Disk Array – Automatic . . . . . . . . . . . . . . . . . . . . .206
Creating a Disk Array – Advanced . . . . . . . . . . . . . . . . . . . . .207
Deleting a Disk Array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .209
Viewing Disk Array Information . . . . . . . . . . . . . . . . . . . . . . . .209
Locating a a Disk Array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .210
Creating a Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . .211
Deleting a Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . .212
Viewing Logical Drive Information . . . . . . . . . . . . . . . . . . . . . .213
Locating a a Logical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . .214
Managing Spare Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .215
Viewing Spare Drive Information . . . . . . . . . . . . . . . . . . . . . .215
Creating a Spare Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .215
Deleting a Spare Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .216
Locating a Spare Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .216
xii
Contents
Chapter 7: Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .219
Updating the Firmware in WebPAM PROe . . . . . . . . . . . . . . . . . .219
Downloading the Firmware Image File . . . . . . . . . . . . . . . . . .219
Updating Firmware from TFTP Server . . . . . . . . . . . . . . . . . .219
Updating Firmware from your PC . . . . . . . . . . . . . . . . . . . . . .220
Restarting the Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . .221
Updating the Firmware in the CLU . . . . . . . . . . . . . . . . . . . . . . . .222
Downloading the Firmware Image File . . . . . . . . . . . . . . . . . .222
Updating the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .222
Restarting Subsystem over a Telnet Connection . . . . . . . . . .223
Restarting Subsystem over a Serial Connection . . . . . . . . . .223
Replacing a Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .224
VessRAID 1700s Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . .224
VessRAID 1800s Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . .224
Replacing a RAID Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . .225
Removing the old controller . . . . . . . . . . . . . . . . . . . . . . . . . .225
Installing the new controller . . . . . . . . . . . . . . . . . . . . . . . . . .225
Replacing a Cooling Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .226
Replacing the Cache Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . .228
Replacing the Memory Module . . . . . . . . . . . . . . . . . . . . . . . . . . .230
Chapter 8: Technology Background . . . . . . . . . . . . . . . . . . . . . . . .233
Introduction to RAID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .233
RAID 0 – Stripe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .234
RAID 1 – Mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .235
RAID 1E – Enhanced Mirror . . . . . . . . . . . . . . . . . . . . . . . . . .236
RAID 5 – Block and Parity Stripe . . . . . . . . . . . . . . . . . . . . . .237
RAID 6 – Block and Double Parity Stripe . . . . . . . . . . . . . . . .238
RAID 10 – Mirror / Stripe . . . . . . . . . . . . . . . . . . . . . . . . . . . . .239
RAID 50 – Striping of Distributed Parity . . . . . . . . . . . . . . . . .240
RAID 60 – Striping of Double Parity . . . . . . . . . . . . . . . . . . . .242
Choosing a RAID Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .244
RAID 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .244
RAID 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .244
RAID 1E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .245
RAID 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .245
RAID 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .245
RAID 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .246
RAID 50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .246
RAID 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .246
xiii
VessRAID 1000s Series Product Manual
Chapter 8: Technology Background, cont.
Choosing Stripe Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .247
Choosing Sector Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .247
2 TB Limitation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .248
Cache Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .248
Read Cache Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .249
Write Cache Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .249
Adaptive Writeback Cache . . . . . . . . . . . . . . . . . . . . . . . . . . .249
Capacity Coercion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .250
Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .251
Hot Spare Drive(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .251
Partition and Format the Logical Drive . . . . . . . . . . . . . . . . . . . . .252
RAID Level Migration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .252
RAID 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .253
RAID 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .254
RAID 1E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .254
RAID 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .255
RAID 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .255
RAID 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .256
RAID 50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .257
RAID 60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .257
Ranges of Disk Array Expansion . . . . . . . . . . . . . . . . . . . . . .258
Media Patrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .259
Predictive Data Migration (PDM) . . . . . . . . . . . . . . . . . . . . . . . . . .260
PDM Triggers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .260
Transition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .261
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .262
Chapter 9: Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .265
VessRAID is Beeping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .265
LEDs Display Amber or Red . . . . . . . . . . . . . . . . . . . . . . . . . . . . .266
Front Panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .266
Disk Drive LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .267
LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .268
Controller LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .268
CLU Reports a Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .270
Viewing Runtime Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . .270
Viewing NVRAM Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . .270
Checking a Reported Component . . . . . . . . . . . . . . . . . . . . . .271
WebPAM PROe Reports a Problem . . . . . . . . . . . . . . . . . . . . . . .272
xiv
Contents
Chapter 9: Troubleshooting, cont.
LCD Panel Reports a Problem . . . . . . . . . . . . . . . . . . . . . . . . . . .275
Viewing a Report from OPAS . . . . . . . . . . . . . . . . . . . . . . . . . . . .275
Event Notification Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . .277
Critical & Offline Disk Arrays . . . . . . . . . . . . . . . . . . . . . . . . . . . . .290
When a Physical Drive Fails . . . . . . . . . . . . . . . . . . . . . . . . . .290
With a Hot Spare Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .291
Without a Hot Spare Drive . . . . . . . . . . . . . . . . . . . . . . . . . . .291
Rebuild Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .292
Incomplete Array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .293
Physical Drive Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .294
Physical Drive Offline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .294
Physical Drive Not Usable . . . . . . . . . . . . . . . . . . . . . . . . . . .294
Physical Drive Failed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .294
Enclosure Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .296
Connection Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .299
Serial Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .299
Network Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .300
Browser Does Not Connect to WebPAM PROe . . . . . . . . . . . . . .301
Unsaved Data in the Controller Cache . . . . . . . . . . . . . . . . . . . . .302
Chapter 10: Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .303
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .303
Contacting Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . .305
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .309
Returning the Product For Repair . . . . . . . . . . . . . . . . . . . . . . . . .311
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .313
xv
VessRAID 1000s Series Product Manual
xvi
Chapter 1: Introduction to VessRAID
This chapter covers the following topics:
•
About This Manual (below)
•
VessRAID Overview (page 2)
•
Architectural Description (page 3)
•
Features and Benefits (page 3)
•
Specifications (page 6)
About This Manual
This Product Manual describes how to setup, use, and maintain the VessRAID
1700s and 1800s Series external disk array subsystems. It also describes how to
use the built-in command-line interface (CLI), command-line utility (CLU) and
embedded Web-based Promise Array Management—Professional (WebPAM
PROe) software.
This manual includes a full table of contents, index, chapter task lists, and
numerous cross-references to help you find the specific information you are
looking for.
Also included are four levels of notices:
Note
A Note provides helpful information such as hints or alternative
ways of doing a task.
Important
An Important calls attention to an essential step or point required
to complete a task. Important items include things often missed.
Caution
A Caution informs you of possible equipment damage or loss of
data and how to avoid them.
Warning
A Warning notifies you of probable equipment damage or loss of
data, or the possibility of physical injury, and how to avoid them.
1
VessRAID 1000s Series Product Manual
VessRAID Overview
VessRAID provides data storage solutions for applications where high
performance and data protection are required. The failure of any single drive will
not affect data integrity or accessibility of the data in a RAID protected logical
drive.
Figure 1. VessRAID 1730s front view
Drive Carrier LEDs
Drive Carriers
Power and Status LEDs
A defective drive may be replaced without interruption of data availability to the
host computer. If so configured, a hot spare drive will automatically replace a
failed drive, securing the fault-tolerant integrity of the logical drive. The selfcontained hardware-based RAID logical drive provides maximum performance in
a compact external chassis.
Figure 2. VessRAID 1730s rear view
RAID Controller
Power Supply
2
Chapter 1: Introduction to VessRAID
Architectural Description
The VessRAID 1700s and 1800s Series are Serial Attached SCSI (SAS)
subsystems suitable for Direct Attached Storage (DAS) and Expanded Storage.
The VessRAID subsystems support:
•
3.0 Gb/s SATA disk drives
•
3.0 Gb/s SAS disk drives
All VessRAID enclosures include a mid-plane, RAID controller, power supply unit,
and enclosure processor all in one cable-less chassis design. Multiple fans and
optional power supplies provide redundancy to ensure continued usage during
component failure. The RAID controller is hardware based and controls all logical
drive functions transparently to the host system. VessRAID appears to the
computer’s operating system as a standard SCSI drive or drives.
Features and Benefits
Highlights
•
Intel 81348 I/O Processor with 4MB NOR flash memory, 128 MB NAND flash
memory for additional functions and 128 KB 8-bit NVRAM.
•
512 MB DDRII SDRAM DIMM expandable to 2GB.
•
SDRAM has battery backup up to 72 hours.
•
PMC PM8388 expander with 2MB flash memory.
•
10/100Mb RJ45 Ethernet management port.
•
RJ11 serial port supports RS232 protocol via adapter cable.
•
USB 2.0 external ports for subsystem management.
•
12 hot-swappable drive bays in a robust 2U rackmount chassis.
•
16 hot-swappable drive bays in a robust 3U rackmount chassis.
•
Redundant, hot-swappable power supplies on 1800s Series models.
•
Supports for SAS and SATA 3 Gb/s drives simultaneously in the same
system—choose the drive that is best suited to your application.
•
Dual 3 Gb/s SAS x4 host ports provide high-availability SAN and clusterfriendly platform.
•
JBOD expansion support through a 3 Gb/s SAS x4 port.
•
Simplified remote management with a comprehensive embedded webbased management via Ethernet—WebPAM PROe. Command Line
Interface Utility via RJ-11 Serial Port.
3
VessRAID 1000s Series Product Manual
•
Three years complete system limited warranty includes 24 x 7 email and
phone support with highly experienced technical support technicians and an
advanced replacements program.
•
Support for the latest RAID technology—RAID 6—Protection from a
catastrophic double-drive failure.
•
Resilient data protection features such as Predictive Data Migration™ and
PerfectRAID™ provide rock solid data protection.
•
LUN Mapping and Masking bring flexibility for multiple application and OS
support on the same storage subsystem.
•
Open architecture, industry’s most comprehensive support for SAS and
SATA hard drives and standards-based management interfaces including
SNMP and WBEM.
•
Support for the industry standard Disk Data Format (DDF from SNIA)
ensures interoperability and drive roaming even among different RAID
vendors.
•
Compatible with leading SAS hard drives, host bus adapters, and RAID
controllers.
Subsystem and Controller Features
•
Drive Support: Up to 16 3.5" x 1" SAS or SATA 3 Gb/s hard disk drives.
•
Supports any combination of SAS and SATA drives in the system.
•
Staggered physical drive spin-up.
•
External I/O Ports: Dual 3 Gb/s SAS x4 host ports; One external 3 Gb/s SAS
x4 port for JBOD expansion.
•
Data Cache: Shared 512 MB predictive data cache (expandable to 2 GB);
Automatic write cache destaging; optional 72-hour battery backup (for 512
MB cache).
•
Command Queue Depth: 1024 commands per VessRAID.
Operational Features
•
RAID Levels: RAID 0, 1, 1E, 5, 6, 10, 50, and 60 – Any combination of these
RAID levels can exist at the same time.
•
Configurable RAID stripe size: 64 KB, 128 KB, 256 KB, 512 KB, and 1 MB
stripe size per logical drive.
•
Background task priority tuning: Adjustment of minimum I/O reserved for
server use during all background tasks.
•
Hot spares: Multiple global or dedicated hot-spare drives with revert option.
•
Maximum LUNs per subsystem: 256 in any combination of RAID levels.
4
Chapter 1: Introduction to VessRAID
•
Maximum LUNs per array: 32 logical drives (LUNs). Supports LUN carving
by allowing an array to be divided into multiple logical drives. Supports outof-order logical drive deletion and re-creation.
•
LUN Masking and Mapping: Supports multiple hosts.
•
Disk Data Formats: Supports Disk Data Format (DDF) for industry-wide
standardization and drive roaming between VTrak systems.
•
Background Activities: Media Patrol, background synchronizing, disk array
rebuild, Redundancy Check, SMART condition pooling, Online Capacity
Expansion (OCE), RAID Level Migration (RLM). Includes priority control, rate
control, and watermarking per BGA in disk and NVRAM.
•
Foreground Activities: Disk array initialization.
•
Physical Drive Error Recovery: Predictive Data Migration (PDM), replaces
un-healthy disk member in array, while maintaining normal array status
during the data transition. Bad Sector Mapping, Media Patrol, SMART, Hard/
Soft Reset to recover HD from bad status, HD Power-control to recover HD
from hung status.
•
Array Error Recovery: Data recovery from bad sector or failed HD for
redundant RAID, RAID 5/6 inconsistent data Prevent (Write Hole Table),
Data content Error Prevent (Read/Write Check Table) NVRAM event
logging.
•
SCSI Commands: Supports extensive SCSI command set equivalent to
SCSI/FC hard disk drives. Variable sector size (512 byte to 4 KB) to break
OS 2TB limitation. 16 byte CDB support for 64-bit LBA addressing.
Management
•
Supported Operating Systems: Windows 2003 Server, Windows 2008
Server, Linux (Red Hat, SuSE), Macintosh OS X, Solaris.
•
Management Tools: WebPAM PROe via out-of-band Ethernet. OS
independent, localized in multiple languages, SSL Security support.
Command Line Interface (CLI) and Command Line Utility (CLU) via RJ-11
Serial Port or Telnet.
•
Standard Management Protocols: SNMP and WBEM
•
RAID Creation: Automatic, Express, and Advanced configuration support for
novice to skilled users.
•
Management Interfaces: WebPAM PROe, CLU, CLI, audible (buzzer) and
visible (LEDs) alarms.
•
Management Protocols: Embedded web server and management support—
no host agent needed. Ethernet, RJ-11 serial port, SNMP, SSL, Telnet,
Email.
5
VessRAID 1000s Series Product Manual
Specifications
Power Supply
1840s: 450W, Dual hot-swappable and redundant, 100-240 VAC auto-ranging,
50-60 Hz, with PFC
1830s: 350W, Dual hot-swappable and redundant, 100-240 VAC auto-ranging,
50-60 Hz, with PFC
1740s: 450W, Single, 100-240 VAC auto-ranging, 50-60 Hz, with PFC and
80PLUS certification
1730s: 350W, Single, 100-240 VAC auto-ranging, 50-60 Hz, with PFC and
80PLUS certification
Current (maximum)
1840s: 8 A @ 100 VAC or 4 A @ 240 VAC current rating with two power cords
1830s: 6A @ 100 VAC or 3 A @ 240 VAC Current rating with two power cords
1740s: 7A @ 100 VAC or 3.5 A @ 240 VAC Current rating with one power cord
1730s: 6A @ 100 VAC or 3 A @ 240 VAC Current rating with one power cord
Power Consumption
1740s, 1840s: without disk drives, 41.8 W; with disk drives, 246.7 W
1730s, 1830s: without disk drives, 73.2 W; with disk drives, 231.2 W
Temperature
Normal conditions:
5° to 40°C operational (-40° to 60°C non-operational)
Conditions of running SAS disk drives with one failed cooling fan:
5° to 35°C operational (-40° to 60°C non-operational)
Relative Humidity
95 percent maximum
Vibration
Random, 0.21 grms, 5-500 Hz, 30 Mins, X, Y, Z axis.
6
Chapter 1: Introduction to VessRAID
Dimensions (H x W x D)
1840s: 13 x 45 x 46 cm (5.1 x 17.7 x 18.1 in)
1830s: 8.8 x 45 x 46 cm (3.5 x 17.7 x 18.1 in)
1740s: 13 x 45 x 46 cm (5.1 x 17.7 x 18.1 in)
1730s: 8.8 x 45 x 46 cm (3.5 x 17.7 x 18.1 in)
Net Weight
1840s: 16.0 kg (35.3 lb) without drives, 24.0 kg (52.9 lb) with 16 drives*
1830s: 13.0 kg (28.7 lb) without drives, 17.0 kg (37.5 lb) with 12 drives*
1740s: 14.0 kg (30.1 lb) without drives, 22.0 kg (48.5 lb) with 16 drives*
1730s: 11.0 kg (25.6 lb) without drives, 17.0 kg (37.5 lb) with 12 drives*
* Assuming 0.5 kg (1.1 lb) per drive.
Carton Dimensions (H x W x D)
All models: 28.5 x 57.2 x 75.2 cm (11.2 x 22.5 x 29.6 in)
Carton Weight
1840s: 20.8 kg (45.9 lb)
1830s: 18.0 kg (39.7 lb)
1740s: 19.2 kg (42.3 lb)
1730s: 16.0 kg (35.3 lb)
Safety
BSMI, CB, CCC, CE, FCC Class B, MIC, VCCI, UL, cUL, TUV.
Environmental
RoHS, China RoHS.
Warranty and Support
Warranty: Three year limited warranty on all components except the battery
backup unit, which has a one-year warranty.
Support: 24x7 email and phone support (English only). 24x7 access to Promise
support site for drivers, firmware, and compatibility.
7
VessRAID 1000s Series Product Manual
CE Statement
Warning: This is a class B product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
KCC Statement
8
Chapter 2: VessRAID Installation
This chapter covers the following topics:
•
Unpacking the VessRAID (below)
•
Installing the LCD Panel (Optional) (page 11)
•
Mounting VessRAID in a Rack (page 13)
•
Installing Disk Drives (page 15)
•
Making Data and Management Connections (page 18)
•
Setting Up Serial Cable Connections (page 20)
•
Connecting the Power (page 21)
Unpacking the VessRAID
The VessRAID box contains the following items:
•
VessRAID Unit
•
Quick Start Guide printed
•
RJ11-to-DB9 serial data cable
•
Screws for disk drives
(70 pieces for 16-bay, 50 pieces
for 12-bay)
•
1.5m (4.9 ft) Power cords
(1700s models, 1; 1800s models, 2)
•
CD with SNMP files, Product
Manual and Quick Start Guide in
PDF format
A Battery Backup Unit (BBU) is optional on the VessRAID subsystem. In the
event of a power failure, the BBU powers the controller cache to preserve any
data it contains.
Caution
•
There is a risk of explosion if the battery is replaced by the
incorrect type.
•
Dispose of used batteries according to the instructions that
accompany the battery.
Warning
The electronic components within the VessRAID enclosure are
sensitive to damage from Electro-Static Discharge (ESD).
Observe appropriate precautions at all times when handling the
VessRAID or its subassemblies.
9
VessRAID 1000s Series Product Manual
VessRAID Models and Descriptions
1800s
Model
Drive
Slots
Power
Supplies
1700s
Model
Drive
Slots
Power
Supplies
1840s
16
2
1740s
16
1
1830s
12
2
1730s
12
1
Figure 1. VessRAID 1730s and 1830s front view
Drive Carrier LEDs
Drive Carriers
Power and Status LEDs
A defective drive may be replaced without interruption of data availability to the
host computer. If so configured, a hot spare drive will automatically replace a
failed drive, securing the fault-tolerant integrity of the logical drive. The selfcontained hardware-based RAID logical drive provides maximum performance in
a compact external chassis.
Figure 2. VessRAID 1840s rear view
RAID Controller
Power Supply
10
Chapter 2: VessRAID Installation
Figure 3. VessRAID 1730s rear view
RAID Controller
Power Supply
For a description of the RAID Controller LEDs, see page 22.
Installing the LCD Panel (Optional)
Cautions
•
The LCD panel is NOT a hot-swap device. Be sure the
VessRAID is powered down before you connect or disconnect
the LCD panel.
•
You must install the LCD panel before you mount the
VessRAID subsystem in a rack.
The LCD panel mounts to the left ear of the VessRAID enclosure.
1.
Align the connector on the left bracket of the VessRAID enclosure to the
connector on the back of the LCD panel, as shown in Figure 4.
Figure 4. Align the connectors on the enclosure and the LCD panel
Connector on
the enclosure
Connector on
the LCD panel
11
VessRAID 1000s Series Product Manual
2.
Insert the two screws that you removed in step 1 through the holes in the left
bracket and into the threaded holes in the LCD panel, as shown in Figure 5.
Tighten the screws to secure the LCD panel to the bracket.
Figure 5. Attach the LCD panel to the VessRAID enclosure
The LCD screen activates when the VessRAID boots. See “Connecting the
Power” on page 21.
12
Chapter 2: VessRAID Installation
Mounting VessRAID in a Rack
The VessRAID subsystem installs to the rack using the optional mounting rails.
You can also use your existing rails.
Figure 6. VessRAID mounted in a rack with the optional rails
Vertical Rack Post
VessRAID subsystem
Mounting rails mount
outside the rack post
Handles mount
outside the rack post
Cautions
•
At least two persons are required to safely lift, place, and
attach the VessRAID subsystem into a rack system.
•
Do not lift or move the VessRAID subsystem by the handles,
power supplies or the controller units. Hold the subsystem
itself.
•
Only a qualified technician who is familiar with the installation
procedure should mount and install the VessRAID subsystem.
•
Be sure all switches are OFF before installing the VessRAID
subsystem or exchanging components.
To install the VessRAID subsystem into a rack with the optional mounting rails:
1.
Check the fit of the mounting rails in your rack system.
2.
Adjust the length of the mounting rails as needed.
13
VessRAID 1000s Series Product Manual
3.
Attach the mounting rail assemblies to the outside of the rack posts, using
the attaching screws from your rack system.
Be sure the support is on the bottom facing inward.
4.
Square the rail assemblies in the rack.
5.
Tighten the adjustment screws and the attaching screws.
6.
Place the VessRAID subsystem onto the rails.
7.
Secure the VessRAID subsystem to the rack through each handle, using the
attaching screws from your rack system.
Figure 7. Rack mount assembly diagram
Rack front post
Rack back post
Locating pins (2 on each end)
Rail attaching screws
(not included)
Flange
Support
Rear rail
Front rail
Inside of post
Rail adjustment screw
(center, outside of rail)
This completes rack mounting.
14
Inside of post
Chapter 2: VessRAID Installation
Installing Disk Drives
You can populate the VessRAID with SAS or SATA hard disk drives. For optimal
performance, install physical drives of the same model and capacity. The drives’
matched performance allows the logical drive to function better as a single drive.
The table below shows the number of drives required for each RAID level.
Level
Number of Drives
Level
Number of Drives
RAID 0
1 or more
RAID 6
4 to 32
RAID 1
2 only
RAID 10
4 or more*
RAID 1E
2 or more
RAID 50
6 or more
RAID 5
3 to 32
RAID 60
8 or more
* Must be an even number of drives.
Drive Slot Numbering
You can install any suitable disk drive into any slot in the enclosure. The diagram
below shows how VessRAID’s drive slots are numbered. Slot numbering is
reflected in the WebPAM PROe and CLU user interfaces.
Figure 8. VessRAID 1740s and 1840s drive slot numbering
1
2
5
9
3
6
10
13
4
8
7
11
12
15
14
15
16
VessRAID 1000s Series Product Manual
Figure 9. VessRAID 1730s and 1830s drive slot numbering
1
2
5
9
3
6
4
8
7
10
11
12
Install all of the drive carriers into the VessRAID enclosure to ensure proper
airflow, even if you do not populate all the carriers with disk drives.
Installing Your Disk Drives
1.
Remove a disk drive carrier.
2.
Carefully lay the disk drive into the drive carrier at the front, so that the screw
holes on the sides line up.
3.
Insert the screws through the holes in the drive carrier and into the sides of
the disk drive.
4.
•
Install only the counter-sink screws supplied with the VessRAID.
•
Install four screws per drive.
•
Snug each screw. Be careful not to over-tighten.
Reinstall the drive carrier into the VessRAID chassis.
Repeat steps 1 through 3 until all of your disk drives are installed.
16
Chapter 2: VessRAID Installation
Figure 10.Disk drive mounted in a drive carrier
Disk drive
mounting screw
mounting screw
This completes disk drive installation.
Caution
VessRAID supports disk drive hot-swapping. To avoid hand
contact with an electrical hazard, do not remove more than one
drive carrier a time.
17
VessRAID 1000s Series Product Manual
Making Data and Management Connections
You can configure your VessRAID for:
•
Direct Attached Storage (DAS)
•
DAS plus JBOD Expansion
Note
VessRAID does not support cascading of multiple RAID
subsystems. Cascading is planned for a future release.
Configuring a Data Path
To establish the data path:
1.
Connect the SAS HBA card in the Host PC to the SAS IN ports (with a circle
icon) on the VessRAID controller. See Figure 11.
2.
Connect the SAS Expansion port (with a diamond icon) of the VessRAID
controller to the SAS IN port (with a circle icon) on the I/O module of the first
VessJBOD.
3.
Connect the SAS OUT port (with a diamond icon) of the VessJBOD I/O
module of the first VessJBOD to the SAS IN port (with a circle icon) on the
I/O module of the second VessJBOD.
4.
Connect the remaining VessJBOD units in the same manner.
Be sure to connect circle icon to diamond icon and vice versa.
All SAS ports have SFF-8088 connectors.
Configuring a Management Path
VessRAID subsystems have one RAID controller. The controller has an Ethernet
(RJ45) Management Port connector that enables you to monitor the VessRAID
over your network using the WebPAM PROe software. VessRAID supports
HTTP, HTTPS, and Telnet protocols.
To establish the management path:
1.
Connect the Management port on each Controller to your network switch.
See Figure 11.
2.
Connect the Host PC’s or Server’s NIC to your network switch.
18
Chapter 2: VessRAID Installation
Figure 11. Data and management connections
SAS HBA
cards
Host PCs or
Servers
Network
Switch
SAS Expansion port
Diamond icon
SAS IN ports
Circle icon
VessRAID
SAS OUT port
Diamond icon
SAS IN port
Circle icon
VessJBOD
SAS IN port
Circle icon
VessJBOD
Caution
Make data connections carefully. If you accidently switch a SAS IN
connection with a SAS OUT, the RAID system cannot function.
This completes data and management connections.
19
VessRAID 1000s Series Product Manual
Setting Up Serial Cable Connections
Serial communication enables the Command Line Interface (CLI) and Command
Line Utility (CLU) on your PC to monitor and control the VessRAID. The
VessRAID package includes a RJ11-to-DB9 serial data cable.
Figure 12. A serial connector is located on the controller
RJ11 Serial Connector
To set up a serial cable connection:
1.
Attach the RJ11 end of the serial data cable to the RJ11 serial connector on
the controller.
2.
Attach the DB9 end of the serial data cable to a serial port on the Host PC or
Server.
This completes the serial cable connection. See “Setting up the Serial
Connection” on page 25.
20
Chapter 2: VessRAID Installation
Connecting the Power
Plug-in the power cord on the power supply on the back of the VessRAID
enclosure and switch on the power supply. If you have a redundant power supply,
plug-in both power supplies and turn on both power supplies.
When the power is switched on, the LEDs and LCD screen light up.
Front Panel LEDs
When boot-up is finished and the VessRAID subsystem is functioning normally:
•
Power, Global Enclosure Status, and Global RAID Status LEDs display
green continuously.
•
Controller Activity LED flashes green when there is controller activity.
•
System Heartbeat LED blinks green seven times in three seconds, goes
dark for six seconds, then repeats the pattern.
Figure 13.VessRAID front panel LEDs
Power
Global Enclosure Status
Global RAID Status
Controller Activity
Reserved
System Heartbeat
21
VessRAID 1000s Series Product Manual
Controller LEDs
When boot-up is finished and the VessRAID subsystem is functioning normally:
•
Battery, and Controller status LEDs display green continuously.
•
Management port activity LEDs display green or flash depending on your
network connection.
Figure 14.VessRAID Controller LEDs
Fan 2
Fan 1
Battery
Dirty
JBOD Expansion Port
USB 2
Cache
Controller
SAS IN Ports
Status USB 1
Fan 2
Fan 1
Disk Drive LEDs
There are two LEDs on each Drive Carrier. They report the presence of a disk
drive, activity of the drive, and the drive’s current condition.
Figure 15.VessRAID disk drive carrier LEDs
Disk Status
Power/Activity
If there is a disk drive in the carrier, the Power/Activity LED displays Green. If not,
the Power/Activity LED remains dark. The Power/Activity LED flashes during
drive activity.
The Disk Status LED displays Green when a drive is configured.
22
Chapter 2: VessRAID Installation
LCD Panel
The LCD panel activates approximately 35 seconds after you switch on the
VessRAID’s power supply.
At first, the LCD screen displays System is Initializing.
When the VessRAID is fully booted and running under normal conditions, the
LCD screen shows the VessRAID model number and IP address, as shown in
Figure 16.
Figure 16.VessRAID optional LCD display
A list of LCD panel functions and instructions for using them is included in the
VessRAID Product Manual on the CD.
This completes the power and start-up.
For setup instructions, see “Chapter 3: VessRAID Setup” on page 25.
23
VessRAID 1000s Series Product Manual
24
Chapter 3: VessRAID Setup
This chapter covers the following topics:
•
Setting up the Serial Connection (below)
•
Choosing DHCP or a Static IP Address (page 26)
•
Setting up with the CLI (page 27)
•
Setting up with the CLU (page 28)
•
Setting up with the LCD (page 30)
•
Creating Disk Arrays with WebPAM PROe (page 32)
Setting up the Serial Connection
VessRAID has a Command Line Interface (CLI) to manage all of its functions,
including customization. A subset of the CLI is the Command Line Utility (CLU), a
user-level interface that manages your VessRAID via your PC’s terminal
emulation program, such as Microsoft HyperTerminal. This procedure uses the
serial cable connection you made in Chapter 2, page 20.
You must use the CLI or CLU to assign an IP address to the VessRAID to enable
a network connection for WebPAM PROe.
1.
Change your terminal emulation program settings to match the following
specifications:
•
Bits per second: 115200
•
Data bits: 8
•
Parity: None
•
Stop bits: 1
•
Flow control: none
2.
Start your PC’s terminal VT100 or ANSI emulation program.
3.
Press Enter once to launch the CLI.
4.
At the Login prompt, type administrator and press Enter.
5.
At the Password prompt, type password and press Enter.
At this point, you are in the CLI. You can continue using the CLI to make
network settings or you can switch to the CLU. Go to:
•
Setting up with the CLI (page 26)
•
Setting up with the CLU (page 27)
25
VessRAID 1000s Series Product Manual
Choosing DHCP or a Static IP Address
When you setup your VessRAID, you have the option of:
•
Enabling DHCP and letting your DHCP server assign the IP address to the
VessRAID’s management port.
•
Specifying a static IP address for the VessRAID’s management port.
If you choose to enable DHCP, have your Network Administrator dedicate an IP
address for the VessRAID, linked to the VessRAID’s MAC address. This action
will prevent the DHCP server from assigning a new IP address when the
VessRAID restarts, with the result that users can no longer log in.
To access the MAC address for VessRAID’s management port:
1.
At the [email protected]> prompt, type menu and press Enter.
The CLU main menu appears.
2.
In the CLU Main Menu, highlight Network Management and press Enter,
then highlight the management port and press Enter.
MAC Address
Default IP Address
VessRAID ships from the factory a default Management Port IP address of
192.168.0.1. You must change this address to work with your network.
26
Chapter 3: VessRAID Setup
Setting up with the CLI
1.
Type the following string to set the system date and time, then press Enter.
[email protected]> date -a mod -d 2009/01/25 -t 14:50:05
In the above example, the date and time are included as examples only.
Your values will be different. Use yyyyy/mm/dd for the date and a 24-hour
clock for the time.
2.
Type the following string to set the Management Port IP address and other
settings, then press Enter.
[email protected]> net -a mod -t mgmt -s "primaryip=192.168.10.85,
primaryipmask=255.255.255.0, gateway=192.168.10.1"
In the above example, the IP addresses and subnet mask are included as
examples only. Your values will be different.
If you prefer to let your DHCP server assign the IP address, type the
following string, then press Enter.
[email protected]> net -a mod -t mgmt -s "dhcp=enable"
3.
To verify the settings, type net and press Enter.
[email protected]> net
===========================================
CId Port Type IP
Mask
Gateway
Link
===========================================
1 1
Mgmt 192.168.10.85 255.255.255.0 192.168.10.1 Up
This completes the Management port setup.
27
VessRAID 1000s Series Product Manual
Setting up with the CLU
1.
At the [email protected]> prompt, type menu and press Enter.
The CLU main menu appears.
Figure 1. CLU main menu
2.
With Quick Setup highlighted, press Enter.
The first Quick Setup screen enables you to make Date and Time settings.
Setting system date and time
1.
Press the arrow keys to highlight System Date.
2.
Press the backspace key to erase the current date.
3.
Type the new date.
4.
Follow the same procedure to set the System Time.
5.
Press Ctrl-A to save these settings and move to the Management Port
configuration screen.
Making Manual IP Settings
To make Management Port settings manually:
1.
Press the arrow keys to highlight IP Address.
2.
Press the backspace key to erase the current IP Address.
28
Chapter 3: VessRAID Setup
3.
Type the new IP Address.
4.
Follow the same procedure to specify the Subnet Mask, Gateway IP
Address and DNS Server IP Address.
If you do not have a DNS server, skip the DNS Server IP address.
5.
Press Ctrl-A to save your settings.
Making Automatic IP Settings
To make Management Port settings automatically:
1.
Press the arrow keys to highlight DHCP.
2.
Press the spacebar to toggle to Enable.
3.
Press Ctrl-A to save these settings.
Viewing IP Address and Settings
To view the current IP address and network settings when using DHCP:
1.
2.
Press the arrow keys to highlight DHCP.
Press the spacebar to toggle to Disable.
The current Management Port settings are displayed.
3.
Press the spacebar to toggle DHCP back to Enable.
4.
Press Ctrl-A to save these settings and move to the RAID configuration
screen.
Exiting the CLU
1.
Highlight Skip the Step and Finish and press Enter.
2.
Highlight Return to CLI and press Enter.
This completes the Management Port setup.
29
VessRAID 1000s Series Product Manual
Setting up with the LCD
The LCD Panel displays the current IP address during normal operation. If you
did not install the LCD Panel, see “Installing the LCD Panel (Optional)” on
page 11. The LCD does not have a date and time function.
Figure 2. LCD Panel default view
Making Manual IP Settings
To make Management Port settings manually:
1.
Press the
2.
Press the
or
button until the display says Management Port.
button and the display says Link Status Up.
If it says Link Status Down, reconnect to the network before preceding.
3.
Press the
4.
Press the
or
button and the display says IP Address.
button to make a change.
The current IP Address displays with the cursor under the first (extreme left)
digit.
5.
Press the
button to increment and the
button decrement.
Press the
button to move left and the
button move right.
To set an IP address with double- or single-digit octets, for example,
192.168.1.50, type zeros as placeholders, 192.168.001.050.
After you have set the last (extreme right) digit, press the
button.
The current Subnet Mask displays with the cursor under the first (extreme
left) digit.
6.
Make the needed changes the same as in step 5.
After you have set the last (extreme right) digit, press the
button.
The current Gateway displays with the cursor under the first (extreme left)
digit.
30
Chapter 3: VessRAID Setup
7.
Make the needed changes the same as in step 5.
After you have set the last (extreme right) digit, press the
button.
The display says Save Network Setting?
8.
Press the
button to confirm.
The display shows the new IP address you set.
Making Automatic IP Settings
To make Management Port settings automatically:
1.
Press the
2.
Press the
or
button until the display says Management Port.
button and the display says Link Status Up.
If it says Link Status Down, reconnect to the network before preceding.
3.
Press the
4.
Press the
button to make a change.
5.
Press the
button to Enable.
Press the
button to confirm.
6.
or
button and the display says DHCP Disable.
The display shows the new IP address set by the DHCP server.
This completes the Management Port setup.
31
VessRAID 1000s Series Product Manual
Creating Disk Arrays with WebPAM PROe
Note
You can also use the CLU or the LCD panel to create disk arrays
and logical drives. See page 148 or page 206 for more
information.
Setting up disk arrays with WebPAM PROe consists of the following actions:
•
Logging into WebPAM PROe (below)
•
Choosing a Language (page 34)
•
Creating a Disk Array (page 34)
•
Logging out of WebPAM PROe (page 38)
Logging into WebPAM PROe
1.
Launch your Browser.
2.
In the Browser address field, type the IP address of the VessRAID
subsystem. See “Setting up the Serial Connection” on page 25.
Note that the IP address shown below is only an example. The IP address
you type into your browser will be different.
Regular Connection
•
WebPAM PROe uses an HTTP connection. . . . . . . . . . . . . . . .http://
•
Enter the VessRAID’s IP address . . . . . . . . . . . . . . . 192.168.10.85
Together, your entry looks like this:
http://192.168.10.85
Secure Connection
•
WebPAM PROe uses a secure HTTP connection . . . . . . . . . .https://
•
Enter the VessRAID’s IP address . . . . . . . . . . . . . . . 192.168.10.85
Together, your entry looks like this:
https://192.168.10.85
Note
Whether you select a regular or a secure connection, your login to
WebPAM PROe and your user password are always secure.
32
Chapter 3: VessRAID Setup
3.
When the log-in screen (Figure 2) appears:
•
Type administrator in the User Name field.
•
Type password in the Password field.
•
Click the Login button.
The User Name and Password are case sensitive.
Figure 3. WebPAM PROe log-in screen
After sign-in, the WebPAM PROe opening screen appears. If there are any
unconfigured physical drives in the enclosure, an Array Configuration menu will
also appear (see page 35).
Note
Make a Bookmark (Netscape Navigator) or set a Favorite (Internet
Explorer) of the Login Screen so you can access it easily next
time.
33
VessRAID 1000s Series Product Manual
Choosing a Language
WebPAM PROe displays in English, German, French, Italian, Spanish, Russian,
Japanese, Chinese Traditional, Chinese Simple, and Korean.
1.
Click Language on the WebPAM PROe banner.
The language list appears in the Header.
2.
Click the language you prefer.
The WebPAM PROe user interface displays in the selected language.
Figure 4. Clicking “Language” on the WebPAM PROe banner
Creating a Disk Array
On a newly activated VessRAID subsystem, there are no disk arrays or logical
drives. To create a disk array:
1.
Click on the Disk Arrays
icon, then click on the Create tab.
The Array Configuration menu appears. See Figure 19.
2.
3.
Choose one of the options:
•
Automatic – Creates a new disk array following a default set of
parameters. Makes one logical drive automatically. Also makes a hot
spare drive for all RAID levels except RAID 0, if at least five
unconfigured physical drives are available. If you have multiple
enclosures, multiple disk array and logical drive sets are created. See
page 35.
•
Express – You choose the parameters for a new disk array by
specifying the characteristics you want. You can create multiple logical
drives at the same time, however they will all be identical. You can
choose to make a hot spare drive for all RAID levels except RAID 0, if at
least five unconfigured physical drives are available. See page 36.
•
Advanced – You directly specify all parameters for a new disk array.
Makes one logical drive automatically. You can create additional logical
drives at a later time, if additional configurable capacity is available.
Does not make a hot spare drive. See page 37.
Click the Next button.
34
Chapter 3: VessRAID Setup
Figure 5. The Array Configuration menu
Automatic
When you choose the Automatic option, the following parameters appear on the
screen:
•
Disk Arrays – The number of physical drives in the disk array, their ID
numbers, configurable capacity, and the number of logical drives to be
created
•
Logical Drives – The ID number of the logical drives, their RAID level,
capacity, and stripe size
•
Spare Drives – The physical drive ID number of the dedicated hot spare
assigned to this disk array
If you have both Hard Disk Drives (HDD) and Solid State Drives (SSD), separate
disk array and logical drive sets will be created for your HDDs and for your SSDs.
These two drive types cannot be mixed in the same disk array.
If you accept these parameters, click the Submit button. The new disk array
appears in the Disk Array List on the Information tab.
If you do NOT accept these parameters, use the Express (page 36) or Advanced
(page 37) option to create your disk array.
35
VessRAID 1000s Series Product Manual
Express
When you choose the Express option, a set of characteristics and options
appears on the screen.
1.
2.
Check the boxes to select any one or a combination of:
•
Redundancy – The array will remain available if a physical drive fails
•
Capacity – The greatest possible amount of data capacity
•
Performance – The highest possible read/write speed
•
Spare Drive – A hot spare drive
In the Number of Logical Drives field, enter the number of logical drives you
want to make from this disk array.
The maximum possible number of logical drives appears to the right of this
field.
3.
4.
From the Application Type menu, select an application that best describes
your intended use for this disk array:
•
File Server
•
Video Stream
•
Transaction Data
•
Transaction Log
•
Other
Click the Update button.
Or check the Automatic Update box and updates will occur automatically.
The following parameters display:
•
Disk Arrays – The number of physical drives in the disk array, their ID
numbers, configurable capacity, and the number of logical drives to be
created
•
Logical Drives – The ID number of the logical drives, their RAID level,
capacity, and stripe size
•
Spare Drives – The physical drive ID number of the dedicated hot spare
assigned to this disk array
If you have both Hard Disk Drives (HDD) and Solid State Drives (SSD),
separate disk arrays will be created for your HDDs and for your SSDs. Each
array will have the number of logical drives that you specified.
If you accept these parameters, proceed to the next step. If NOT, review and
modify your selections in the previous steps.
5.
When you are done, click the Submit button.
The new disk array appears in the Disk Array List on the Information tab.
36
Chapter 3: VessRAID Setup
Advanced
Note
For an explanation of the parameters under the Advanced option,
see “Chapter 8: Technology Background” on page 233.
Step 1 – Disk Array Creation
1.
2.
3.
Enter a name for the disk array in the field provided.
Check the boxes to enable the following features.
•
Media Patrol – A routine maintenance procedure that checks the
magnetic media on each disk drive. Media Patrol is concerned with the
condition of the media itself, not the data recorded on the media.
•
PDM – Predictive Data Migration (PDM) scans the bad sector
remapping table of the disk drives assigned to a logical drive. When the
table fills to a specified percentage of its capacity, PDM triggers a
migration of data from the suspect drive (the disk drive with the bad
sectors) to a spare disk drive.
From the Media Type dropdown menu, choose the physical drive type to use
in the array.
•
HDD – Hard Disk Drives
•
SSD – Solid State Drives
The drive type you selected appears in the list of Physical Drives. You
cannot mix HDDs and SSDs in the same disk array.
4.
Highlight the physical drives you want in the disk array from the Available list
and press the >> button to move them to the Selected list.
You can also double-click them to move them.
5.
When you are done, click the Next button.
Step 2 – Logical Drive Creation
1.
Optional. Enter an Alias (name) for the first logical drive.
2.
Choose a RAID level for the logical drive from the dropdown menu.
The choice of RAID levels depends on the number of physical drives you
selected.
3.
4.
RAID 50 and 60. Choose the number of axles from the dropdown menu.
Specify a Capacity and the unit of measure (MB, GB, or TB).
This value will be the data capacity of the logical drive. If you specify less
than disk array’s maximum capacity, the remainder is available for additional
logical drives.
37
VessRAID 1000s Series Product Manual
5.
Specify a Stripe size from the dropdown menu.
64, 128, 256, 512 KB, and 1 MB are available. 64 KB is the default.
6.
Specify a Sector size from the dropdown menu.
512 Bytes, 1, 2, and 4 KB are available. 512 Bytes is the default.
7.
Choose a Read Cache policy:
Read Cache, Read Ahead Cache, and No Cache are available. Read Ahead
is the default.
8.
Choose a Write Cache policy:
Write Back and Write Through are available. Write Back is the default.
9.
From the Initialization dropdown menu, choose an Initialization policy.
None, Quick, and Full are available. None is the default but is not
recommended.
10. Click the Update button.
A new logical drive is displayed under New Logical Drives.
Repeat the above steps to specify additional logical drives as desired.
11. When you have finished specifying logical drives, click the Next button.
Step 3 – Summary
The Summary lists the disk array and logical drive information you specified.
To proceed with disk array and logical drive creation, click the Submit button.
Note
This function does not automatically create a hot spare drive. After
you create the disk array, you should create a hot spare drive.
See “Chapter 4: Management with WebPAM PROe” on page 41.
Logging out of WebPAM PROe
There are two ways to log out of WebPAM PROe:
•
Close your browser window
•
Click Logout on the WebPAM PROe banner
Figure 6. Clicking “Logout” on the WebPAM PROe banner
Clicking Logout brings you back to the Login Screen. See page 30.
After logging out, you must enter your user name and password in order to log in
again.
38
Chapter 3: VessRAID Setup
Using WebPAM PROe over the Internet
The above instructions cover connections between VessRAID and your company
network. It is also possible to connect to a VessRAID from the Internet.
Your MIS Administrator can tell you how to access your network from outside the
firewall. Once you are logged onto the network, you can access the VessRAID
using its IP address.
While only a Fibre Channel or SAS-capable PC can read and write data to the
logical drives on the VessRAID, other PCs can monitor the VessRAID from
virtually any location.
39
VessRAID 1000s Series Product Manual
40
Chapter 4: Management with WebPAM PROe
This chapter covers the following topics:
•
Logging into WebPAM PROe (page 42)
•
Perusing the Interface (page 44)
•
Working with the Storage Network (page 49)
•
Working with Subsystems (page 50)
•
Managing Users (page 60)
•
Managing the Network Connection (page 65)
•
Managing SAS Connections (page 66)
•
Managing Storage Services (page 68)
•
Managing Software Services (page 71)
•
Exporting the User Database (page 78)
•
Importing a User Database (page 78)
•
Importing a Configuration Script (page 79)
•
Updating the Firmware (page 80)
•
Viewing Flash Image Information (page 80)
•
Restoring Factory Defaults (page 81)
•
Clearing Statistics (page 81)
•
Shutting Down the Subsystem (page 82)
•
Starting Up After Shutdown (page 84)
•
Restarting the Subsystem (page 85)
•
Managing the Controller (page 86)
•
Managing Enclosures (page 90)
•
Managing Physical Drives (page 96)
•
Managing UPS Units (page 102)
•
Managing Disk Arrays (page 105)
•
Managing Logical Drives (page 118)
•
Managing Spare Drives (page 124)
•
Working with the Logical Drive Summary (page 128)
For information about VessRAID’s audible alarm and LEDs, see “Chapter 9:
Troubleshooting” on page 265.
41
VessRAID 1000s Series Product Manual
Logging into WebPAM PROe
1.
Launch your Browser.
2.
In the Browser address field, type the IP address of the VessRAID
subsystem.
See “Setting up the Serial Connection” on page 25. Note that the IP address
shown below is only an example. The IP address you type into your browser
will be different.
Regular Connection
•
WebPAM PROe uses an HTTP connection. . . . . . . . . . . . . . . .http://
•
Enter the VessRAID’s IP address . . . . . . . . . . . . . . . 192.168.10.85
Together, your entry looks like this:
http://192.168.10.85
Secure Connection
•
WebPAM PROe uses a secure HTTP connection . . . . . . . . . .https://
•
Enter the VessRAID’s IP address . . . . . . . . . . . . . . . 192.168.10.85
Together, your entry looks like this:
https://192.168.10.85
Note
Whether you select a regular or a secure connection, your login to
WebPAM PROe and your user password are always secure.
3.
When the log-in screen (Figure 1.) appears:
•
Type administrator in the User Name field.
•
Type password in the Password field.
•
Click the Login button.
The User Name and Password are case sensitive.
42
Chapter 4: Management with WebPAM PROe
Figure 1. WebPAM PROe log-in screen
After sign-in, the WebPAM PROe opening screen appears. If there are any
unconfigured physical drives in the enclosure, an Array Configuration menu will
also appear (see page 31).
Note
Make a Bookmark (Netscape Navigator) or set a Favorite (Internet
Explorer) of the Login Screen so you can access it easily next
time.
Selecting a Language
WebPAM PROe displays in English, German, French, Italian, Spanish, Russian,
Japanese, Chinese Traditional, Chinese Simple, and Korean.
1.
Click Language on the WebPAM PROe banner.
The language list appears in the Header.
2.
Click on the language you prefer.
The WebPAM PROe user interface displays in the selected language.
43
VessRAID 1000s Series Product Manual
Figure 2. Clicking “Language” on the WebPAM PROe banner
Perusing the Interface
WebPAM PROe is browser-based RAID management software with a graphic
user interface.
Figure 3. WebPAM PROe interface
44
Chapter 4: Management with WebPAM PROe
There are four major parts to the graphic user interface:
•
Header (see below)
•
Tree (see page 46)
•
Management View (see page 47)
•
Event Frame (see page 47)
Using the Header
The Header contains the following items:
•
Language – To change languages, see “Selecting a Language” on page 43.
•
View – To view the Event Frame, see “Viewing the Event Frame” on
page 47.
•
Storage Network – To view all of the VessRAID subsystem enclosures
currently accessible the network, see “Working with the Storage Network” on
page 49.
•
Contact Us – Click Contact Us for a list of contact information, including
Technical Support. Also see “Contacting Technical Support” on page 305.
•
Logout – To log out of WebPAM PROe, see page 48.
•
Help – Click Help in the Header to access the main online help menu.
•
About – Click About in the Header to display the WebPAM PROe software
version and build date.
45
VessRAID 1000s Series Product Manual
Using Tree View
Tree View enables you to navigate around all components of the Subsystem,
including SAS management, network and service management, RAID controller,
enclosure, physical drives, disk arrays, logical drives, and spare drives. The
figure below shows the components of Tree View.
Figure 4. WebPAM PROe Tree View
Name of logged-in user
Subsystem IP address and model
Physical Drives
in this Enclosure
46
Chapter 4: Management with WebPAM PROe
Using Management View
Management View provides the actual user interface with the VessRAID,
including creation, maintenance, deletion, and monitoring of disk arrays and
logical drives.
Function Tabs control specific actions and processes. This window changes
depending on which item you choose in Tree View and which tab you choose in
Management View itself.
Click the Help button in Management View to access online help for the function
that is currently displayed.
Viewing the Event Frame
To view the Event Frame:
1.
Click View in the Header.
2.
Click the Show Event Frame popup option.
The VessRAID user interface will display the Event Frame below
Management View.
3.
Click View again to hide the Event Frame.
In the event frame, events are listed and sorted by:
•
Item Number – A consecutive decimal number assigned to a specific event
•
Device – Battery, controller, logical drive, physical drive, port, etc.
•
Event ID – The hexadecimal number that identifies the specific type of event
•
Severity – Information, Warning, Minor, Major, Critical, and Fatal. The
severity level is user-specified. See “Setting-up User Event Subscriptions”
on page 61.
•
Time – Time and date of the occurrence
•
Description – A brief description of the event
Sorting Events
You can sort the events by Item Number, Device, Event ID, Severity, Time and
Date, or Description.
Click the link at the top of the column by which you want to sort the events. After
you click the item, a triangle icon appears.
•
If the triangle points upward, the column is sorted low-to-high or old-to-new.
•
If the triangle points downward, the column is sorted high-to-low or new-toold.
47
VessRAID 1000s Series Product Manual
Click the link a second time to change to flip the triangle and reverse the sort
sequence.
Logging out of WebPAM PROe
There are two ways to log out of WebPAM PROe:
•
Close your browser window
•
Click Logout on the WebPAM PROe banner
Figure 5. Clicking “Logout” on the WebPAM PROe banner
Clicking Logout brings you back to the Login Screen. See page 43.
After logging out, you must enter your user name and password in order to log in
again.
48
Chapter 4: Management with WebPAM PROe
Working with the Storage Network
When you log into WebPAM PROe, you access a specific VessRAID subsystem.
See “Logging into WebPAM PROe” on page 42.
The Storage Network feature enables you to access all of the VessRAID
subsytems with a Management Port connection to your network.
Each VessRAID subsystem is identified by its Management Port IP address.
Storage Network functions include:
•
Viewing other subsystems
•
Updating the list of subsystems
•
Logging into a subsystem
•
Hiding the other subsystems
Viewing Other Subsytems
To view the other VessRAID subsytems the Storage Network:
1.
2.
Click Storage Network in the Header.
Click the Show Network Subsystems popup option.
The list will show all subsystems the network at the time the GUI was
launched.
Updating the List of Subsystems
To update the list of the VessRAID subsytems the Storage Network:
Click the Discover button at the bottom of the subsystem list.
Logging into a Subsystem
To log into any of the displayed VessRAID subsystems:
1.
In Tree View, click the Subsystem
icon of the subsystem you want to see.
If your user name and password do not match the subsystem you are
logging into, the log in screen will appear.
2.
Log into the new subsystem, as needed.
Hiding the Other Subsystems
To hide the other VessRAID subsystems the Storage Network:
1.
Click Storage Network in the Header.
2.
Click the Hide Network Subsystems popup option.
49
VessRAID 1000s Series Product Manual
Working with Subsystems
A VessRAID subsystem is identified by its Management Port IP address.
Subsystem functions include:
•
Viewing Subsystem Information (page 50)
•
Saving System Service Report (page 50)
•
Setting an Alias for the Subsystem (page 51)
•
Setting Subsystem Date and Time (page 51)
•
Viewing the Runtime Event Log (page 51)
•
Saving the Runtime Event Log (page 52)
•
Clearing the Runtime Event Log (page 52)
•
Viewing NVRAM Events (page 52)
•
Saving NVRAM Events (page 53)
•
Clearing NVRAM Events (page 53)
•
Viewing Current Background Activities (page 54)
•
Making Background Activity Settings (page 54)
•
Running Background Activities (page 55)
•
Running Media Patrol (page 55)
•
Running PDM (page 56)
•
Viewing Scheduled Activities (page 56)
•
Scheduling an Activity (page 56)
•
Deleting a Scheduled Activity (page 57)
•
Viewing Lock Status (page 58)
•
Setting the Lock (page 58)
•
Renewing the Lock (page 58)
•
Releasing the Lock (page 59)
Viewing Subsystem Information
To view information about a subsystem, click the Subsystem
View. Management View displays the subsystem information.
icon in Tree
Saving System Service Report
To save a System Service Report as a text file on your Host PC:
1.
In Tree View, click the Subsystem
2.
On the Information tab, click the Save button.
3.
Direct your browser where to save the configuration and status file.
50
icon.
Chapter 4: Management with WebPAM PROe
Setting an Alias for the Subsystem
An alias is optional. To set an alias for this subsystem:
1.
In Tree View, click the Subsystem
icon.
2.
In Management View, click the Settings tab.
3.
Enter a name into the Alias field.
Maximum of 48 characters. Use letters, numbers, space between words,
and underscore.
4.
Click the Submit button.
Setting Subsystem Date and Time
To set a Date and Time for this subsystem:
1.
In Tree View, click the Subsystem
icon.
2.
In Management View, click the Settings tab dropdown menu and choose
Date and Time Settings.
3.
Under Subsystem Date, choose the Month and Day from the dropdown
menus.
4.
Type the current year into the Year field.
5.
Under Subsystem Time, choose the Hour, Minutes and Seconds from the
dropdown menus.
6.
Click the Submit button.
Viewing the Runtime Event Log
Runtime Events lists information about the 1023 most recent runtime events
recorded since the system was started. To view runtime events:
1.
In Tree View, click the Subsystem
2.
In Management View, click the Events tab dropdown menu and choose
Runtime Events.
icon.
Events are displayed by:
•
Item Number – A consecutive decimal number assigned to a specific
event
•
Device – Battery, controller, logical drive, physical drive, port, etc.
•
Event ID – The hexadecimal number that identifies the specific type of
event
•
Severity – Information, Warning, Minor, Major, Critical, and Fatal. The
severity level is user-specified. See “Setting-up User Event
Subscriptions” on page 61.
51
VessRAID 1000s Series Product Manual
3.
•
Time – Time and date of the occurrence
•
Description – A brief description of the event
Click the link at the top of the column by which you want to sort the events.
After you click the item, a triangle icon appears.
•
If the triangle points upward, the column is sorted low-to-high or old-tonew.
•
If the triangle points downward, the column is sorted high-to-low or newto-old.
Click the link a second time to change to flip the triangle and reverse the sort
sequence.
Saving the Runtime Event Log
To save the runtime event log as a text file:
1.
In Tree View, click the Subsystem
icon.
2.
In Management View, click the Events tab dropdown menu and choose
Runtime Events.
3.
Click the Save Event Log button.
4.
In the File Download dialog box, click the Save button.
5.
In the Save dialog box, name the file, navigate to the folder where you want
to save the log file, and click the Save button.
Clearing the Runtime Event Log
To clear the runtime event log:
1.
In Tree View, click the Subsystem
2.
In Management View, click the Events tab dropdown menu and choose
Runtime Events.
icon.
3.
Click the Clear Event Log button.
4.
In the Confirmation dialog box, type confirm and click the OK button.
Viewing NVRAM Events
NVRAM Events lists information about the 63 most recent important events.
NVRAM events are stored in non-volatile memory. To view runtime events:
1.
In Tree View, click the Subsystem
2.
In Management View, click the Events tab dropdown menu and choose
System Events in NVRAM.
Events are displayed by:
52
icon.
Chapter 4: Management with WebPAM PROe
3.
•
Item Number – A consecutive decimal number assigned to a specific
event
•
Device – Battery, controller, logical drive, physical drive, port, etc.
•
Event ID – The hexadecimal number that identifies the specific type of
event
•
Severity – Information, Warning, Minor, Major, Critical, and Fatal. The
severity level is user-specified. See “Setting-up User Event
Subscriptions” on page 61.
•
Time – Time and date of the occurrence
•
Description – A brief description of the event
Click the link at the top of the column by which you want to sort the events.
After you click the item, a triangle icon appears.
•
If the triangle points upward, the column is sorted low-to-high or old-tonew.
•
If the triangle points downward, the column is sorted high-to-low or newto-old.
Click the link a second time to change to flip the triangle and reverse the sort
sequence.
Saving NVRAM Events
To save the NVRAM event log as a text file:
1.
In Tree View, click the Subsystem
icon.
2.
In Management View, click the Events tab dropdown menu and choose
System Events in NVRAM.
3.
Click the Save Event Log button.
4.
In the File Download dialog box, click the Save button.
5.
In the Save dialog box, name the file, navigate to the folder where you want
to save the log file, and click the Save button.
Clearing NVRAM Events
To clear the NVRAM event log:
1.
In Tree View, click the Subsystem
2.
In Management View, click the Events tab dropdown menu and choose
System Events in NVRAM.
icon.
3.
Click the Clear Event Log button.
4.
In the Confirmation dialog box, type confirm and click the OK button.
53
VessRAID 1000s Series Product Manual
Viewing Current Background Activities
To view the current background activities:
1.
2.
In Tree View, click the Subsystem
icon.
In Management View, click the Background Activities tab.
A list of current background activities appears, including:
•
Rebuild
•
PDM (Predictive Data Migration)
•
Synchronization
•
Redundancy Check
•
Migration
•
Transition
•
Initialization
•
Media Patrol
Making Background Activity Settings
To make settings for background activities:
1.
In Tree View, click the Subsystem
2.
In Management View, click the Background Activities tab and choose
Settings from the dropdown menu.
3.
Click the dropdown menu to choose a priority of Low, Medium, and High for
the following functions:
•
icon.
Rebuild – Rebuilds the data from a failed drive in a disk array
•
Synchronization – Checks the data integrity on disk arrays
•
Initialization – Sets all data bits in the logical drive to zero
•
Redundancy Check – Checks, reports and can correct data
inconsistencies in logical drives
•
Migration – Change RAID level or add physical dries to disk arrays
•
PDM – Looks for bad blocks the physical drives of disk arrays
•
Transition – Returns a revertible spare drive to spare status
The rates are defined as follows:
4.
•
Low – Fewer resources to activity, more to data read/write.
•
Medium – Balance of resources to activity and data read/write.
•
High – More resources to activity, fewer to data read/write.
Highlight the following PDM trigger settings and type a value into the
corresponding field:
54
Chapter 4: Management with WebPAM PROe
5.
6.
•
Reassigned Block Threshold – 1 to 512 blocks
•
Error Block Threshold – 1 to 1024 blocks
Check to enable or uncheck to disable the following functions:
•
Media Patrol – Checks the magnetic media on physical drives
•
Auto Rebuild – If there is a spare drive of adequate capacity, a critical
disk array will begin to rebuild automatically. If not spare drive is
available, the disk array will begin to rebuild as soon as you replace the
failed physical drive with an unconfigured physical drive of equal or
greater size.
Click the Submit button to save your settings.
Running Background Activities
To run a background activity from the Background Activities tab:
1.
In Tree View, click the Subsystem
icon.
2.
In Management View, click the Background Activities tab and choose one
of the following from the dropdown menu.
•
Media Patrol – See “Running Media Patrol” on page 55
•
Rebuild – See “Rebuilding a Disk Array” on page 114
•
PDM – See “Running PDM” on page 56
•
Transition – See “Transitioning a Disk Array” on page 116
•
Initialization – See “Initializing a Logical Drive” on page 120
•
Redundancy Check – See “Running Redundancy Check” on page 121
3.
In the next screen, make the choices as requested.
4.
Click the Start button.
Running Media Patrol
Media Patrol checks the magnetic media on physical drives. When it finds the
specified number of bad blocks, it will trigger PDM. See “Making Background
Activity Settings” on page 54 and “Running PDM” on page 56.
You can schedule Media Patrol to run automatically, see “Scheduling an Activity”
on page 56.
To run Media Patrol:
1.
In Tree View, click the Subsystem
2.
From the dropdown menu on the Background Activities tab, choose Start
Media Patrol.
3.
In the next screen, click the Start button.
55
icon.
VessRAID 1000s Series Product Manual
Running PDM
Predictive Data Migration (PDM) migrates data from the suspect physical drive to
a spare disk drive, similar to Rebuilding. But unlike Rebuilding, PDM acts before
the disk drive fails and your Logical Drive goes Critical.
You an also run PDM on a specific disk array, see “Running PDM on a Disk
Array” on page 116.
Also see “Predictive Data Migration (PDM)” on page 260.
To run PDM:
1.
In Tree View, click the Subsystem
2.
In Management View, click the Background Activities tab and choose Start
Media Patrol from the dropdown menu.
3.
icon.
In the next screen, choose the Source and Target physical drives.
The suspect physical drive is the source. The replacement physical drive is
the target.
4.
Click the Start button.
Viewing Scheduled Activities
To view scheduled activities for this subsystem:
1.
Click the Subsystem
2.
Click the Scheduler tab in Management View.
icon Tree View.
Scheduling an Activity
To set a scheduled activity for this subsystem:
1.
Click the Subsystem
2.
From the dropdown menu on the Scheduler tab, choose an item:
icon Tree View.
•
Media Patrol. See “Running Media Patrol” on page 55
•
Redundancy Check. See “Running Redundancy Check” on page 121
•
Battery Reconditioning. See “Reconditioning a Battery” on page 94
•
Spare Drive Check. See “Running Spare Check” on page 127
3.
In the Scheduler dialog box, check the Enable This Schedule box.
4.
Select a start time (24-hour clock).
56
Chapter 4: Management with WebPAM PROe
5.
Select a Recurrence Pattern.
•
Daily – Enter the number of days between events.
•
Weekly – Enter the number of weeks between events and choose
which days of the week.
•
Monthly – Choose a calendar day of the month (1 – 31).
If you choose a higher number than there are days in the current month, the
actual start date will occur at the beginning of the following month.
Or, choose a day of the week and choose the first, second, third, fourth, or
last occurrence of that day in the month.
Then, choose the months in which you want the activity to occur.
6.
Select a Range of Occurrence.
•
Start-from date. The default is today's date.
•
End-on date.
Select No End Date (perpetual).
Or, choose a number of occurrences for this activity.
Or, choose a specific end date. The default is today's date.
7.
For Redundancy Check only:
•
Choose the Auto Fix option. This feature attempts to repair the problem
when it finds an error.
•
Choose the Pause on Error option. This feature stops the process when
it finds an error
•
Check the boxes beside the logical drives (all except RAID 0) to which
this activity will apply.
Each logical drive can have only one scheduled Redundancy Check.
Note
You can schedule only ONE Redundancy Check for each logical
drive.
8.
Click the Submit button.
Deleting a Scheduled Activity
To delete a scheduled activity for this subsystem:
1.
Click the Subsystem
2.
From the dropdown menu on the Scheduler tab, choose Delete Schedules.
icon Tree View.
3.
Check the box to the left of the schedule you want to delete.
4.
Click the Submit button.
57
VessRAID 1000s Series Product Manual
Viewing Lock Status
The lock prevents other sessions (including by the same user) from making a
configuration change to the controller until the lock expires or a forced unlock is
done.
To view the lock status for this subsystem:
1.
Click the Subsystem
2.
Click the Lock tab in Management View.
icon Tree View.
The following information is displayed:
•
Lock Status – The User who set (owns) the current lock.
•
Expiration Time – Amount of time left until the lock automatically
releases.
•
Expire At Time – The date and time when the lock will automatically
release.
Setting the Lock
The lock prevents other sessions (including by the same user) from making a
configuration change to the controller until the lock expires or a forced unlock is
done.
You can set the lock to last from one minute to one day. To set the lock for this
subsystem:
1.
Click the Subsystem
icon Tree View.
2.
Click the Lock tab in Management View.
3.
Click the Lock option.
4.
Enter a time interval between 1 and 1440 minutes (one day) that you want
the lock to stay active.
5.
Click the Submit button.
Renewing the Lock
The lock prevents other sessions (including by the same user) from making a
configuration change to the controller until the lock expires or a forced unlock is
done.
Renewing the lock extends the period of time the controller remains locked. To
renew an existing lock for this subsystem:
1.
Click the Subsystem
icon Tree View.
2.
Click the Lock tab in Management View.
3.
Click the Renew option.
58
Chapter 4: Management with WebPAM PROe
4.
Enter a time interval between 1 and 1440 minutes (one day) that you want
the lock to stay active.
The renew time replaces the previous Expiration Time.
5.
Click the Submit button.
Releasing the Lock
The lock prevents other sessions (including by the same user) from making a
configuration change to the controller until the lock expires or a forced unlock is
done.
When the user who locked the controller logs out, the lock is automatically
released. You can also release the lock before the scheduled time.
To release the lock for this subsystem:
1.
2.
Click the Subsystem
icon Tree View.
Click the Lock tab in Management View.
If you are the User who set the lock, click the Unlock option.
If another User set the lock and you are a Super User, click the Unlock
option and check the Force Unlock box.
3.
Click the Submit button.
59
VessRAID 1000s Series Product Manual
Managing Users
User Management includes all functions dealing with user accounts. Functions
include:
•
Viewing User Information (page 60)
•
Making User Settings (page 60)
•
Making Your Own User Settings (page 61)
•
Setting-up User Event Subscriptions (page 61)
•
Changing Another User’s Password (page 62)
•
Changing Your Own Password (page 62)
•
Creating a User (page 63)
•
Deleting a User (page 64)
•
Viewing User Sessions (page 64)
•
Logging out Other Users (page 64)
Viewing User Information
The view a list of users, their status, access privileges, display name, and email
address:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
3.
Click the User Management
icon.
icon.
The Information tab appears in Management View.
Making User Settings
To change settings of other users:
1.
Log into WebPAM PROe as the Administrator or a Super User.
2.
Click the Subsystem
3.
Click the Administrative Tools
icon in Tree View.
icon.
4.
Click the User Management
5.
On the Information tab, click the link of the user whose settings you want to
change.
icon.
The Settings screen for the selected user displays.
6.
Make the following settings as needed.
•
Check the Enable box to enable this user.
•
Uncheck the box to disable this user.
•
Enter or change the display name.
60
Chapter 4: Management with WebPAM PROe
•
Enter or change the email address.
•
From the Privilege dropdown menu, choose a new level.
See “List of User Privileges” on page 63
7.
Click the Submit button.
The Administrator or Super User can change another user’s password. See
“Changing Another User’s Password” on page 62 for more information.
Making Your Own User Settings
To change your own user settings:
1.
Log into WebPAM PROe under your own user name.
2.
Click the Subsystem
3.
Click the Administrative Tools
icon in Tree View.
icon.
4.
Click the User Management
5.
Click the Settings tab in Management View.
icon.
6.
Enter or change the display name or mail address.
7.
Click the Submit button.
Setting-up User Event Subscriptions
An event subscription enables a user to receive email messages about events
taking place in the VessRAID subsystem. To make or change user event
subscriptions:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
3.
Click the User Management
4.
Click the Event Subscription tab in Management View.
5.
Check the box to enable event notification.
6.
Under the subheadings, choose the lowest level of Severity to be reported
for each event. The selected level plus all higher levels of Severity will be
reported.
icon.
icon.
•
Information – Information only, no action is required
•
Warning – User can decide whether or not action is required
•
Minor – Action is needed but the condition is not a serious at this time
•
Major – Action is needed now
•
Critical – Action is needed now and the implications of the condition are
serious
61
VessRAID 1000s Series Product Manual
7.
•
Fatal – Non-Recoverable error or failure has occurred
•
None – Deactivates this event for notification purposes
Click the Submit button.
The user’s account must have an email address. See “Making User Settings” on
page 60.
For information about the email service, see “Making Email Settings” on page 71.
To send a test message to the email address in the listed under General Info,
click the Test Email button.
Changing Another User’s Password
To change a user’s password:
1.
Log into WebPAM PROe as the Administrator or a Super User.
2.
Click the Subsystem
3.
Click the Administrative Tools
icon in Tree View.
icon.
4.
Click the User Management
5.
In the list of users, click the link of the user whose settings you want to
change.
icon.
The Settings screen for the selected user displays.
6.
Click the Password tab in Management View.
7.
Enter a new password of 1 to 31 characters, no spaces, in the New
Password field.
8.
Enter the new password in the Retype Password field.
9.
Click the Submit button.
Changing Your Own Password
To set or change your own password:
1.
Log into WebPAM PROe under your own user name.
2.
Click the Subsystem
3.
Click the Administrative Tools
4.
Click the User Management
icon in Tree View.
icon.
icon.
5.
Click the Password tab in Management View.
6.
Enter the current password in the Old Password field.
If you do not have a password, leave this field blank.
7.
Enter a new password of 1 to 31 characters, no spaces, in the New
Password field.
62
Chapter 4: Management with WebPAM PROe
8.
Enter the new password in the Retype Password field.
9.
Click the Submit button.
Creating a User
To create a user:
1.
Log into WebPAM PROe as the Administrator or a Super User.
2.
Click the Subsystem
3.
Click the Administrative Tools
icon in Tree View.
icon.
4.
Click the User Management
5.
Click the Create tab in Management View.
icon.
6.
Enter a user name of 1 to 31 characters, no spaces, in the User Name field.
7.
Enter a password of 1 to 31 characters, no spaces, in the New Password
and Retype Password fields.
A password is optional. If you do not specify a password, log into WebPAM
PROe with the User Name and leave the password field blank.
8.
Enter a display name in the Display Name field.
A display name is optional.
9.
Enter the user's email address in the Email Address field.
An email address is required in order to receive email event notification.
10. Select a privilege level from the Privilege dropdown menu.
For definitions of each privilege level, see the List of User Privileges below.
11. Check the Enabled box to enable this user on this subsystem.
12. Click the Submit button.
List of User Privileges
•
View – Allows the user to see all status and settings but not to make any
changes
•
Maintenance – Allows the user to perform maintenance tasks including
Rebuilding, PDM, Media Patrol, and Redundancy Check
•
Power – Allows the user to create (but not delete) disk arrays and logical
drives, change RAID levels, change stripe size; change settings of
components such as disk arrays, logical drives, physical drives, and the
controller.
•
Super – Allows the user full access to all functions including create and
delete users and changing the settings of other users, and delete disk arrays
and logical drives. The default “administrator” account is a Super User.
63
VessRAID 1000s Series Product Manual
Deleting a User
There will always be at least one Super User account. You cannot delete the user
account you used to log in.
To delete a user:
1.
Log into WebPAM PROe as the Administrator or a Super User.
2.
Click the Subsystem
3.
Click the Administrative Tools
icon in Tree View.
icon.
4.
Click the User Management
5.
Click the Delete tab in Management View.
icon.
6.
Check the box to the left of the user you want to delete.
7.
Click the Submit button.
8.
Click OK in the confirmation box.
Viewing User Sessions
To view the current sessions:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
3.
Click the User Management
4.
Click the Sessions tab in Management View.
icon.
icon.
Logging out Other Users
To logout other users:
1.
Log into WebPAM PROe as the Administrator or a Super User.
2.
Click the Subsystem
3.
Click the Administrative Tools
4.
Click the User Management
5.
Click the Sessions tab in Management View.
6.
Check the box to the left of the user you want to log out.
7.
Click the Logout button.
8.
Click OK in the confirmation box.
icon in Tree View.
icon.
icon.
64
Chapter 4: Management with WebPAM PROe
Managing the Network Connection
The network connection deals with the VessRAID’s Management Port.
•
Making Management Port Settings (below)
Making Management Port Settings
When you log into WebPAM PROe over your network, you use the VessRAID’s
management port.
Before you change settings, please see “Choosing DHCP or a Static IP Address”
on page 26.
To make changes to the Management Port settings:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
icon.
3.
Click the Network Management
4.
Click the Port Configuration link in Management View.
5.
icon.
To enable DHCP, check the DHCP box.
When DHCP is NOT enabled, enter:
6.
•
Primary IP address
•
Primary subnet mask
•
Default gateway IP address
•
Enter a primary DNS server IP address.
Click the Submit button.
65
VessRAID 1000s Series Product Manual
Managing SAS Connections
SAS connections deal with the VessRAID’s two host data ports.
•
Viewing SAS Port Information (page 66)
•
Making SAS Port Settings (page 66)
•
Viewing SAS Port Statistics (page 67)
•
Viewing SAS Initiators (page 67)
Viewing SAS Port Information
The SAS Controller has one SAS channel. The SAS channel has two ports.
See “Making Data and Management Connections” on page 18 for information
about how these ports are physically connected to the Host PC.
To view information about the SAS ports:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
3.
Click the SAS Management
icon.
icon.
The port information appears the screen.
•
Channel ID
•
Port Type
•
Link Status
•
Link Speed
•
SAS Address
•
Cable Signal Strength (adjustable under Port Settings)
Making SAS Port Settings
The SAS Controller has one SAS channel. The SAS channel has two ports.
See “Making Data and Management Connections” on page 18 for information
about how these ports are physically connected to the Host PC.
To make settings to the SAS ports:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
icon.
3.
Click the SAS Management
4.
In Management View, click the Port 1 or Port 2 link.
icon.
5.
From the Cable Signal Strength dropdown menu, choose a value.
66
Chapter 4: Management with WebPAM PROe
The range is 1 to 8. 1 is the default. Signal strength correlates to cable length
in meters. Example: If you have a 2 m SAS cable, set signal strength to 2. If
performance is unsatisfactory (see “Viewing SAS Port Statistics” on
page 67), try settings of 1 and 3, then use the best setting for your system.
6.
Click the Submit button.
Viewing SAS Port Statistics
The SAS Management Statistics tab displays statistical information about the
SAS ports on the VessRAID subsystem.
To view information about the SAS ports:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
icon.
3.
Click the SAS Management
4.
In Management View, click the Statistic tab.
icon.
The statistics for the selected port appear the screen.
Clearing Statistics
To clear statistics, see “Clearing Statistics” on page 81.
Viewing SAS Initiators
You must add an initiator to the VessRAID's initiator list in order to use the initiator
to create a LUN for your logical drive.
To view a list of recognized initiators:
1.
Click the Subsystem
2.
Click the Administrative Tools
3.
Click the SAS Management
4.
icon in Tree View.
icon.
icon.
In Management View, click the Initiators tab.
A list of all currently logged-in initiators appears the screen.
Adding an Initiator
To add an initiator to the VessRAID’s initiator list:
1.
Check the box to the left of the initiator.
2.
Click the Add to Initiator List button.
The initiator appears under Storage Services. See page 68. You can then use the
initiator to create a LUN. See “Adding a LUN Map” on page 69.
67
VessRAID 1000s Series Product Manual
Managing Storage Services
Storage services deal with initiators and LUN mapping. LUN masking is the
process of applying a LUN Map so that each initiator can only access the LUNs
specified for it.
Features include:
•
Adding an Initiator (page 68)
•
Deleting an Initiator (page 68)
•
Viewing the LUN Map (page 69)
•
Enabling LUN Masking (page 69)
•
Adding a LUN Map (page 69)
•
Editing a LUN Map (page 70)
Adding an Initiator
You must add an initiator to the VessRAID's initiator list in order to use the initiator
to create a LUN
To add an initiator:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
icon.
3.
Click the Storage Services
4.
Click the Initiators tab in Management View.
icon.
5.
From the Initiators tab dropdown menu, choose Add Initiator.
6.
Enter the initiator's name in the Initiator Name field.
A SAS initiator name is the SAS address of the HBA card in the Host PC.
Obtain the initiator name from the initiator utility on your host system.
Obtain the initiator name from the initiator utility on your host system.
Note that the initiator name you input must match exactly in order for the
connection to work.
7.
Click the Submit button.
You can also add initiators from the Initiators tab. See “Viewing SAS Initiators” on
page 67.
Deleting an Initiator
To delete an initiator:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
icon.
68
Chapter 4: Management with WebPAM PROe
3.
Click the Storage Services
icon.
4.
Click the Initiators tab in Management View.
5.
From the Initiators tab dropdown menu, choose Delete Initiators.
6.
Check the box to the left of the initiator you want to delete.
7.
Click the Submit button.
Viewing the LUN Map
To view the current LUN Map:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
3.
Click the Storage Services
4.
Click the LUN Map tab in Management View.
icon.
icon.
Enabling LUN Masking
To enable the LUN Masking:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
icon.
3.
Click the Storage Services
4.
Click the LUN Map tab in Management View.
icon.
5.
Click the LUN Masking Enabled box.
6.
Click the Submit button.
Adding a LUN Map
To edit the LUN Map:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
icon.
3.
Click the Storage Services
4.
Click the LUN Map tab in Management View and from the dropdown menu,
choose Add a LUN Map.
icon.
5.
Choose an initiator from the Initiator dropdown list.
Or enter the initiator’s name in the Initiator Name field.
Note that the initiator name you input must match exactly in order for the
connection to work.
6.
In the LUN Mapping & Masking list, enter the LUNs for each logical drive.
69
VessRAID 1000s Series Product Manual
You must enter different LUN numbers for each logical drive.
7.
Click the Submit button.
Editing a LUN Map
To edit the LUN Map:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
icon.
3.
Click the Storage Services
4.
Click the LUN Map tab in Management View.
icon.
5.
From the LUN Mapping & Masking Information list, choose an initiator and
click its link.
Or enter the initiator's name in the Initiator Name field.
Note that the initiator name you input must match exactly in order for the
connection to work.
6.
In the LUN field, enter the LUNs for each logical drive.
You must enter different LUN numbers for each logical drive.
7.
Click the Submit button.
70
Chapter 4: Management with WebPAM PROe
Managing Software Services
Software Services include the following functions:
•
Making Email Settings (page 71)
•
Making SLP Settings (page 72)
•
Making Web Server Settings (page 73)
•
Making Telnet Settings (page 74)
•
Making SNMP Settings (page 74)
•
Making Netsend Settings (page 76)
Making Email Settings
The Email sends notification messages to users. See Setting-up User Event
Subscriptions (page 61).
To make Email service settings:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
3.
Click the Email Setting link in Management View.
icon.
4.
Enter the IP address for your SMTP server.
5.
Enter server port number for your SMTP server.
25 is the default.
6.
Choose Yes to enable SMTP authentication or No to disable.
7.
If you chose Yes for SMTP authentication, enter a Username and Password
in the fields provided.
8.
Enter an Email sender address (example: [email protected]).
9.
Enter an Email subject (example: VessRAID Status).
10. Click the Submit button.
Sending a Test Message
To send one test message to the User currently logged into WebPAM PROe:
1.
Under Test Email, check the “Send A Test Email” box.
2.
Click the Submit button.
If you do not receive the Test Email message, see your Network Administrator for
assistance with the mail server setup, email accounts, and other issues.
71
VessRAID 1000s Series Product Manual
Changing the Startup Setting
1.
2.
Under Startup Type:
•
Click the Automatic option to start the service automatically during
system startup. Recommended.
•
Click the Manual option to start the service manually (the service does
not start during system startup).
Click the Submit button.
Stopping Email service
To stop the Email service:
1.
Click the Stop button.
2.
Click OK in the confirmation box.
Starting or Restarting Email service
To start or restart the Email service, click the Start or Restart button.
Making SLP Settings
VessRAID's SLP service discovers services available over the Internet. To make
SLP service settings:
1.
Click the Subsystem
2.
Click the Administrative Tools
3.
Click the Software Management
4.
Click the SLP link.
5.
6.
icon in Tree View.
icon.
icon.
Choose the Startup Type.
•
Click the Automatic option to start the service automatically during
system startup. Recommended.
•
Click the Manual option to start the service manually (the service does
not start during system startup).
Click the Submit button.
Stopping SLP service
To stop the SLP service:
1.
Click the Stop button.
2.
Click OK in the confirmation box.
Starting or Restarting SLP service
To start or restart the SLP service, click the Start or Restart button.
72
Chapter 4: Management with WebPAM PROe
Making Web Server Settings
The Web Server service connects your browser to the WebPAM PROe GUI on
the VessRAID subsystem.
To make Web Server settings:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
3.
Click the Web Server Setting link in Management View.
4.
Enter the HTTP Port number.
icon.
80 is the default.
5.
Enter Session Time Out interval.
This setting causes WebPAM PROe to time-out after a period of inactivity. 24
minutes is the default. The range is 1 to 1440 minutes (one day).
6.
If you want to use a secure connection, check the Enable SSL box.
7.
If you checked the Enable SSL box, enter a HTTPS Port number.
443 is the default.
8.
If you want to download a SSL Certificate, check the Download Certificate
box.
9.
If you checked the Download Certificate box, enter the Certificate filename
or click the Browse... button to locate it.
10. Click the Submit button.
11. Click OK in the confirmation box to restart the Web Server service with your
changes.
Changing the Startup Setting
1.
2.
Under Startup Type:
•
Click the Automatic option to start the service automatically during
system startup. Recommended.
•
Click the Manual option to start the service manually (the service does
not start during system startup).
Click the Submit button.
Stopping Web Server service
To stop the Web Server service:
1.
Click the Stop button.
2.
Click OK in the confirmation box.
Starting or Restarting Web Server service
To start or restart the Web Server service, click the Start or Restart button.
73
VessRAID 1000s Series Product Manual
Making Telnet Settings
VessRAID’s Telnet service enables you to access VessRAID’s Command Line
Interface (CLI) through a network connection. To make Telnet settings:
1.
Click the Subsystem
2.
Click the Administrative Tools
3.
Click the Telnet Setting link in Management View.
4.
icon in Tree View.
icon.
Enter the Telnet Port number.
2300 is the default.
5.
Enter the Maximum Number of Connections.
4 is the default.
6.
Enter the Session Time Out interval.
24 minutes is the default.
7.
Click the Submit button.
8.
Click OK in the confirmation box to restart the Telnet service with your
changes.
Changing the Startup Setting
1.
2.
Under Startup Type:
•
Click the Automatic option to start the service automatically during
system startup. Recommended.
•
Click the Manual option to start the service manually (the service does
not start during system startup).
Click the Submit button.
Stopping Telnet service
To stop the Telnet service:
1.
Click the Stop button.
2.
Click OK in the confirmation box.
Starting or Restarting Telnet service
To start or restart the Telnet service, click the Start or Restart button.
Making SNMP Settings
VessRAID’s SNMP service enables the SNMP browser to obtain information from
the VessRAID. The Trap Sink is where SNMP events are sent and can be
viewed.
74
Chapter 4: Management with WebPAM PROe
To change the SNMP settings:
1.
Click the Subsystem
2.
Click the Administrative Tools
3.
Click the SNMP Management link in Management View.
4.
icon in Tree View.
icon.
Enter the SNMP Port number.
161 is the default.
5.
Enter a System Name.
There is no default name.
6.
Enter a System Location.
USA is the default.
7.
8.
Enter a System Contact (the email address of the administrator or other
individual).
Enter the Read Community.
Public is the default.
9.
Enter the Write Community.
Private is the default.
To add a Trap Sink, see “Adding Trap Sinks” below.
10. Click OK in the confirmation box to restart the SNMP service with your
changes.
Adding Trap Sinks
To add a trap sink:
1.
Enter a Trap Sink IP address.
2.
Select a Trap Filter, choose the lowest level of Severity to be reported for
each event.
See “Setting-up User Event Subscriptions” on page 61 for an explanation of
the Severity levels.
3.
Click the Update button.
The new trap sink appears in the Trap Sinks list.
4.
Click the Submit button.
5.
Click OK in the confirmation box.
Deleting Trap Sinks
To delete a trap sink:
1.
Highlight the trap sink you want to delete from the list.
2.
Click the Delete button to remove the trap sink from the list.
3.
Click the Submit button.
75
VessRAID 1000s Series Product Manual
4.
Click OK in the confirmation box.
Changing the Startup Setting
1.
2.
Under Startup Type:
•
Click the Automatic option to start the service automatically during
system startup. Recommended.
•
Click the Manual option to start the service manually (the service does
not start during system startup).
Click the Submit button.
Stopping SNMP service
To stop the SNMP service:
1.
Click the Stop button.
2.
Click OK in the confirmation box.
Starting or Restarting SNMP service
To start or restart the SNMP service, click the Start or Restart button.
Making Netsend Settings
VessRAID’s Netsend service sends VessRAID subsystem events in the form of
text messages to your Host PC and other networked PCs. This service is
normally Stopped and set to Manual start. See “Netsend Requirements” on
page 77.
To change the Netsend settings:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
3.
Click the Netsend link.
4.
Click the Start button to start the Netsend service.
5.
Click the Submit button.
icon.
Adding Netsend recipients
See “Netsend Requirements” on page 77. To add a Netsent recipient:
1.
In the Recipient Address field, type the IP address of the recipient PC.
2.
Under Recipient filter, choose the lowest level of Severity to be reported for
each event.
See “Setting-up User Event Subscriptions” on page 61 for an explanation of
the Severity levels.
3.
Click the Update button to add the new recipient to the list
4.
Click the Submit button.
76
Chapter 4: Management with WebPAM PROe
5.
Click OK in the confirmation box.
Deleting Netsend Recipients
To delete a Netsend recipient:
1.
Highlight the recipient you want to delete in the recipient list.
2.
Click the Delete button to remove the recipient from the list.
3.
Click the Submit button.
4.
Click OK in the confirmation box.
Changing the Startup Setting
1.
2.
Under Startup Type:
•
Click the Automatic option to start the service automatically during
system startup. Recommended if you plan to use this feature.
•
Click the Manual option to start the service manually (the service does
not start during system startup). The default setting.
Click the Submit button.
Stopping Netsend service
To stop the Netsend service:
1.
Click the Stop button.
2.
Click OK in the confirmation box.
Starting or Restarting Netsend service
To start or restart the Netsend service, click the Start or Restart button.
Netsend Requirements
In order to use Netsend:
•
Netsend must be running the VessRAID
•
You must provide the IP address for each recipient PC
•
The Messenger service must be running on each recipient PC
If your Netsend and Messenger service settings are correct but the recipient PC
does not receive event messages, check the recipient PC’s Firewall settings.
Refer to your OS documentation for more information.
77
VessRAID 1000s Series Product Manual
Exporting the User Database
You can export the User Database file to share user information and settings
among multiple VessRAID subsystems.
The Export action saves a text file a designated folder the Host PC. From there,
you can import the User Database file to other VessRAID subsystems.
To export the User Database file:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
3.
Click the Export link in Management View.
4.
Click the Export button.
5.
In the Opening export dialog box, click the Save to Disk option.
6.
Click the OK button.
icon.
The user database file is saved to the Host PC from which you access
WebPAM PROe.
Note
The Encryption box is grayed out. Encryption is always enabled.
Importing a User Database
Caution
Do NOT use this function to update the VessRAID firmware.
The Software Management–Import tab enables you to import the User Database
file from the Host PC's file system to the VessRAID subsystem. When you make
user settings to one VessRAID, you can export the User Database file to the Host
PC. From there, you can import the User Database file to other VessRAIDs so
that all have the same User information and settings.
To import the User Database file to this subsystem:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
3.
Click the Software Management
4.
Click the Import tab.
icon.
icon.
78
Chapter 4: Management with WebPAM PROe
5.
6.
Under the Type dropdown list, choose User Database.
Enter the name of the file to be imported.
Or, click the Browse... button to search for the file.
Look for a file called export.
7.
8.
Click the Submit button.
Click the Next button.
If the imported file is a valid user database, a warning will appear to inform
you that it will overwrite the previous settings.
9.
In the Warning box, click the OK button.
This user settings are applied to this VessRAID subsystem.
Note
The Decryption box is grayed out. Decryption is enabled for user
databases.
Importing a Configuration Script
The Software Management–Import tab enables you to import a Configuration
Script to the VessRAID subsystem. You can write a CLI configuration script to
automatically configure your VessRAID subsystem. The script must be a plain,
non-encrypted text file. The Import function runs the script and performs the
configuration automatically.
To import a Configuration Script to this subsystem:
1.
Click the Subsystem
2.
Click the Administrative Tools
3.
Click the Software Management
4.
Click the Import tab.
5.
Under the Type dropdown list, choose Configuration Script.
6.
icon in Tree View.
icon.
icon.
Enter the name of the file to be imported.
Or, click the Browse... button to search for the file.
7.
Click the Submit button.
8.
Click the Next button.
If the imported file is a valid configuration script, a warning will appear to
inform you that it will overwrite the previous settings.
9.
In the Warning box, click the OK button.
79
VessRAID 1000s Series Product Manual
The new configuration is applied to this VessRAID subsystem.
Note
The Decryption box is grayed out. Decryption is disabled for
configuration scripts.
Updating the Firmware
See “Chapter 7: Maintenance” on page 219 for instructions.
Viewing Flash Image Information
Flash image information refers to the package of firmware components running
on your VessRAID controller or controllers, including:
•
Component name
•
Version number
•
Build date
•
Flash (installation) date
•
Controller number (1 or 2)
To view flash image information:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
3.
Click the Software Management
4.
Click the Image Version tab.
icon.
icon.
The flash image information displays on the screen.
Running Image Info – The firmware package currently running on the
controllers
Flashed Image Info – The firmware package flashed to memory
If the Running and Flashed Images do not match, the VessRAID has not
restarted since the firmware was last updated. Restart the VessRAID to run the
Flashed firmware package. See “Restarting the Subsystem” on page 85.
Note that all of these components are upgraded together in a package. See
“Updating the Firmware in WebPAM PROe” on page 219.
80
Chapter 4: Management with WebPAM PROe
Restoring Factory Defaults
VessRAID includes a function to restore the default settings to its Firmware and
Software settings.
Caution
The action of restoring default settings can disrupt your VessRAID
functions. Use this feature only when necessary and only the
settings that must reset to default in order to set them correctly.
To access the Restore Defaults feature:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
icon.
The Administrative Tools list appears.
3.
Click the Restore Factory Defaults link at the bottom of the list in
Management View.
The Restore Factory Defaults screen appears.
4.
Check the Firmware and Software functions you want to restore to default
settings.
5.
Click the Submit button.
6.
In the confirmation box, type the word confirm in the field provided.
7.
Click the OK button.
The functions you selected will be automatically restored to their default settings.
Clearing Statistics
The Clear Statistics function clears statistical data on controllers, SAS ports,
physical drives, and logical drives. To clear statistical data:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
3.
Click the Clear Statistics link.
icon.
The Clear Statistics tab appears in Management View.
4.
Click the Submit button.
5.
In the confirmation box, type the word confirm in the field provided.
6.
Click the OK button.
81
VessRAID 1000s Series Product Manual
Shutting Down the Subsystem
You can only do part of this function in WebPAM PROe. Additional action is
required, as described below.
Important
If you have a JBOD Expansion, always power off the RAID
subsystem first. Then power off the JBOD subsystems.
To shutdown the subsystem:
1.
Click the Subsystem
2.
Click the Administrative Tools
3.
icon in Tree View.
icon.
Click the Shutdown link in Management View.
A Shutdown or Restart tab will appear.
4.
Do one of the following actions:
•
On the Shutdown or Restart tab, choose Shutdown from the dropdown
menu.
•
On the Shutdown or Restart tab, choose Poweroff from the dropdown
menu.
5.
Click the Submit button.
6.
In the confirmation box, type the word confirm in the field provided.
7.
Click the OK button.
When the controller shuts down, your WebPAM PROe connection will be
lost.
8.
Wait for no less than two minutes.
Do one of the following actions:
•
If you chose the Shutdown Option, manually turn off the power supply
switch (both switches with redundant power supplies) on the back of the
subsystem.
•
If you chose the Poweroff Option, the subsystem powers down
automatically. On subsystems with redundant power supplies, unplug
the power cords and plug them back in, to activate the power switches.
Caution
After you power off the subsystem, wait at least 10 seconds before
you power on the subsystem again.
82
Chapter 4: Management with WebPAM PROe
Monitoring the Shutdown
To monitor a shutdown, you must use the Command Line Interface (CLI) though
a serial connection to the VessRAID.
Turn off both power supply switches when the following this message appears:
Shutdown complete. It is now safe to power off the subsystem.
83
VessRAID 1000s Series Product Manual
Starting Up After Shutdown
Important
If you have a JBOD Expansion, always power on the JBOD
subsystems first. Then power on the RAID subsystem.
To start the RAID subsystem:
1.
Manually turn on the power supply switches on the back of the subsystem.
If the switches are ON but the subsystem is OFF, turn the switches off and
on again.
On subsystems with redundant power supplies, if the power switches do not
respond, unplug the power cords and plug them back in. Try the power
switches again.
2.
3.
Wait about two minutes.
Open your browser and log into WebPAM PROe.
See “Logging into WebPAM PROe” on page 42.
If you cannot log in, wait 30 seconds and try again.
Monitoring the Startup
To monitor a startup, you must use the Command Line Interface (CLI) though a
serial connection to the VessRAID.
When the Login: prompt appears, the start up is finished.
84
Chapter 4: Management with WebPAM PROe
Restarting the Subsystem
Note
If you have a JBOD Expansion, you are not required to restart the
JBOD subsystems when you restart the RAID subsystem.
You can only do part of this function in WebPAM PROe. Additional action is
required, as described below. To restart the subsystem
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
3.
Click the Shutdown link in Management View.
icon.
A Shutdown or Restart tab will appear.
4.
On the Shutdown or Restart tab, choose Restart from the dropdown menu.
5.
Click the Submit button.
6.
In the warning box, click the OK button.
7.
In the confirmation box, type the word confirm in the field provided.
8.
Click the OK button.
When the controller shuts down, your WebPAM PROe connection will be
lost.
9.
Wait for two to three minutes.
10. In your browser, log into WebPAM PROe once again.
If you cannot log in, wait for 30 seconds, and try again. Repeat until login is
successful.
Monitoring the Restart
To monitor a restart, you must use the Command Line Interface (CLI) though a
serial connection to the VessRAID.
When the Login: prompt appears, the restart is finished.
85
VessRAID 1000s Series Product Manual
Managing the Controller
The RAID controller is the heart of the VessRAID subsystem. Controller
management includes the following functions:
•
Viewing Controller Information (page 86)
•
Viewing Controller Information (page 86)
•
Viewing Controller Statistics (page 87)
•
Making Controller Settings (page 87)
•
Clearing an Orphan Watermark (page 88)
Viewing the Controller
To view information about the controller:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Controllers
icon.
The controller information appears under the Information tab in Management
View. Controller information includes:
•
Controller ID – 1
•
Alias – if assigned
•
Model – if applicable
•
Status – OK means normal
Viewing Controller Information
To view Controller information:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Controllers
icon.
3.
Click the Controller
icon.
The controller information appears the Information tab in Management View.
Adjustable items
You can set or adjust the following items:
•
Alias, if assigned
•
Coercion, enable or disable
•
Coercion Method
•
SMART (Self-Monitoring, Analysis, and Reporting System for physical
drives)
•
SMART Polling Interval
86
Chapter 4: Management with WebPAM PROe
•
Write Back Cache Flush Interval
•
Enclosure Polling Interval
See “Making Controller Settings” on page 87.
Upgradable items
You can upgrade the following items:
•
Boot loader Version
•
Firmware Version number
•
Software Version number
•
Memory Size
See “Chapter 7: Maintenance” on page 219.
Viewing Controller Statistics
To view controller statistics:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Controllers
icon.
3.
Click the Controller
4.
Click the Information tab in Management View and choose Statistics from
dropdown menu.
icon.
Clearing Statistics
To clear statistics, see “Clearing Statistics” on page 81.
Making Controller Settings
To make Controller settings:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Controllers
icon.
3.
Click the Controller
4.
Click the Settings tab in Management View.
icon.
87
VessRAID 1000s Series Product Manual
5.
Make the following settings as needed:
•
Enter a name into the Alias field.
Maximum of 48 characters. Use letters, numbers, space between
words, and underscore. An alias is optional.
•
Check the SMART Log box to enable the Self-Monitoring, Analysis, and
Reporting System (SMART).
•
Enter a polling interval (1 to 1440 minutes) in SMART Polling Interval
field.
•
Check the Coercion Enabled box to enable disk drive capacity coercion.
When disk drives of different capacities are used in the same array,
coercion reduces the usable capacity of the larger disk drive(s) in order
to match the smallest capacity drive.
For more information, see “Capacity Coercion” on page 250.
•
Select a coercion method from the Coercion Method dropdown menu.
The choices are:
GB Truncate – (Default) Reduces the useful capacity to the nearest
1,000,000,000 byte boundary.
10GB Truncate – Reduces the useful capacity to the nearest
10,000,000,000 byte boundary.
Group Rounding – Uses an algorithm to determine how much to
truncate. Results in the maximum amount of usable drive capacity.
Table Rounding – Applies a predefined table to determine how much to
truncate.
•
Enter a time interval (1 to 12 seconds) in the Write Back Cache Flush
Interval field.
For more information, see “Cache Policy” on page 248.
•
Enter a time interval (15 to 255 seconds) in the Enclosure Polling
Interval field.
•
Check the Enable Adaptive Writeback Cache box to enable this
function.
For more information, see “Adaptive Writeback Cache” on page 249.
6.
Click the Submit button.
The changes take effect immediately.
Clearing an Orphan Watermark
An Orphan Watermark condition is the result of a disk drive failure during an
NVRAM RAID level migration on a disk array.
88
Chapter 4: Management with WebPAM PROe
To clear an Orphan Watermark:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Controllers
icon.
3.
Click the Controller
4.
Click the Clear tab in Management View.
icon.
5.
Click the Submit button.
The changes take effect immediately.
89
VessRAID 1000s Series Product Manual
Managing Enclosures
On VessRAID, enclosures include the main VessRAID subsystem or Head Unit
as well as VessJBOD enclosures that are connected through expansion.
Enclosure Management includes the following functions:
•
Viewing the Enclosure (page 90)
•
Locating an Enclosure (page 90)
•
Viewing Enclosure Topology (page 91)
•
Viewing Enclosure Information (page 91)
•
Making Enclosure Settings (page 92)
•
Viewing FRU VPD Information (page 92)
•
Checking the Battery (page 93)
•
Reconditioning a Battery (page 94)
•
Silencing the Buzzer (page 94)
•
Making Buzzer Settings (page 94)
•
Testing the Buzzer (page 95)
Viewing the Enclosure
To view information about the enclosures:
1.
2.
Click the Subsystem
icon in Tree View.
Click the Enclosures
icon.
The following information is shown:
•
Enclosure ID number
•
Enclosure Type
•
Operational Status
•
Status Description (specific components in need of attention, if any)
Locating an Enclosure
To locate an enclosure (subsystem):
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
icon.
3.
Click the Locate Enclosure button.
The disk status LEDs and the LEDs on the back of the enclosure blink for
one minute. See the Figures below.
90
Chapter 4: Management with WebPAM PROe
Figure 6. Disk Status LED
Disk Status
Figure 7. VessRAID enclosure LEDs
Dirty Cache
USB 1
Controller Status
USB 2
Fan 2
Fan 1
Battery
Viewing Enclosure Topology
To view Enclosure Topology:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
icon.
3.
Click the Topology tab in Management View.
Enclosure topology refers to the manner in which the data paths among the
enclosures are connected:
•
Individual Subsystem – One VessRAID subsystem
•
JBOD Expansion – One VessRAID subsystem plus one or more VessJBOD
expansion subsystems, managed through the VessRAID or head unit
The logical connections for these arrangements are shown the Enclosure
Topology tab. The physical connections for these arrangements are discussed in
“Chapter 2: VessRAID Installation” on page 9.
Viewing Enclosure Information
To view enclosure information:
1.
Click the Subsystem
icon in Tree View.
91
VessRAID 1000s Series Product Manual
2.
3.
Click the Enclosures
Click the Enclosure
icon.
icon.
Enclosure information appears the Information tab in Management View. You
can monitor power supplies, fans, enclosure temperatures and voltages, and
the battery.
Adjustable items
You can set or adjust the following items:
•
Enclosure Warning and Critical temperature thresholds
•
Controller Warning and Critical temperature thresholds
See “Making Enclosure Settings” on page 92.
For information on Enclosure problems, see “Chapter 9: Troubleshooting” on
page 265.
Making Enclosure Settings
To make Enclosure settings:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
icon.
3.
Click the Enclosure
4.
Click the Settings tab in Management View.
5.
6.
icon.
Enter a value in the following fields as necessary:
•
Enclosure Warning Temperature Threshold
•
Enclosure Critical Temperature Threshold
•
Controller Warning Temperature Threshold
•
Controller Critical Temperature Threshold
Click the Submit button.
The changes take effect immediately.
Viewing FRU VPD Information
FRU VPD refers to Vital Product Data (VPD) information about Field Replaceable
Units (FRU) in the enclosure. The screen lists the battery backup unit and
backplane.
To view FRU VPD information:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
icon.
92
Chapter 4: Management with WebPAM PROe
3.
Click the Enclosure
4.
Click the FRU VPD tab in Management View.
icon.
Use this information when communicating with Technical Support and when
ordering replacement units. For contact information, see “Contacting Technical
Support” on page 305.
Checking the Battery
The Enclosure–Battery tab displays information about the cache backup battery
(or batteries) in the VessRAID subsystem enclosure. To check the batteries:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
icon.
3.
Click the Enclosure
4.
Click the Battery tab in Management View.
icon.
Battery Notes
Each battery works with a controller. If the battery is present in the subsystem but
the corresponding controller is not present, the battery will not appear in the
interface.
If a battery does not reflect normal conditions and it is not currently under
reconditioning, run the Recondition function before you replace the battery. See
“Reconditioning a Battery” on page 94.
Reconditioning fully discharges, then fully recharges the battery. During
reconditioning, if the Adaptive Writeback Cache function is enabled, the controller
cache is set to Write Thru. After reconditioning, the cache is reset to Write Back.
See “Making Controller Settings” on page 87.
If a battery reaches the threshold temperature while charging or discharging, the
charge or discharge pauses and the blower runs at high speed until the battery
temperature falls below the threshold.
If the battery does not maintain normal values after a Recondition, replace the
battery. See “Replacing the Cache Battery” on page 228.
VessRAID automatically reconditions the battery every two months. To set the
schedule, see “Scheduling an Activity” on page 56.
When you install a new battery, the cycle count shows 0. VessRAID automatically
runs a recondition on the battery to verify it. If you restart the subsystem or
controller before reconditioning is finished, the battery is charged to 100%, then
reconditioning starts again.
93
VessRAID 1000s Series Product Manual
Reconditioning a Battery
To recondition the battery:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
icon.
3.
Click the Enclosure
4.
Click the Battery tab in Management View.
icon.
5.
From the Battery tab dropdown menu, choose Recondition.
6.
Click the Submit button.
Reconditioning fully discharges, then fully recharges the battery. During
reconditioning, if the Adaptive Writeback Cache function is enabled, the
controller cache is set to Write Thru. After reconditioning, the cache is reset
to Write Back. See “Making Controller Settings” on page 87.
VessRAID automatically reconditions the battery every two months. To set
the recondition schedule, see “Scheduling an Activity” on page 56.
Silencing the Buzzer
The buzzer sounds to inform you that the VessRAID needs attention. See
“VessRAID is Beeping” on page 265 for more information.
To silence the buzzer for the current trigger event:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
icon.
3.
Click the Enclosure
4.
Click the Buzzer tab in Management View.
5.
Click the Mute button.
icon.
The buzzer goes silent. If another trigger event occurs, the buzzer will sound
again.
To silence the buzzer for all trigger events, disable it under “Making Buzzer
Settings.”
Making Buzzer Settings
To make buzzer settings:
1.
Click the Subsystem
2.
Click the Enclosures
3.
Click the Enclosure
icon in Tree View.
icon.
icon.
94
Chapter 4: Management with WebPAM PROe
4.
5.
In Management View, from the Buzzer tab dropdown menu, choose
Settings.
Check the Buzzer Enable box to enable the buzzer.
Uncheck the Buzzer Enable box if you do not want the buzzer to sound.
6.
Click the Submit button.
Testing the Buzzer
You must enable the buzzer before you can test it.
To test buzzer function:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
icon.
3.
Click the Enclosure
4.
Click the Buzzer tab in Management View.
5.
icon.
Click the Sound button.
The buzzer will sound for one minute.
95
VessRAID 1000s Series Product Manual
Managing Physical Drives
Managing Physical Drives deals with the physical disk drives installed in the
VessRAID subsystem enclosure, including the following functions:
•
Viewing a List of Physical Drives (page 96)
•
Identifying a Physical Drive (page 96)
•
Making Global Physical Drive Settings (page 97)
•
Viewing Physical Drive Information (page 97)
•
Viewing Physical Drive Statistics (page 98)
•
Making Physical Drive Settings (page 98)
•
Clearing Stale and PFA Conditions (page 99)
•
Forcing a Physical Drive Offline or Online (page 100)
•
Locating a Physical Drive (page 100)
Viewing a List of Physical Drives
To view a list of physical drives in this enclosure:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
icon.
3.
Click the Enclosure
4.
icon.
Click the Physical Drives
icon.
The list of physical drives appears in Management View.
Identifying a Physical Drive
To identify physical drive in the VessRAID subsystem enclosure:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
icon.
3.
Click the Enclosure
4.
Click the Physical Drives
5.
icon.
icon.
In Management View, click the physical drives in the graphic.
The location of the physical drive is highlighted in the Enclosure Front View
diagram.
96
Chapter 4: Management with WebPAM PROe
Making Global Physical Drive Settings
Global settings apply to all of the physical disk drives installed in the VessRAID
subsystem enclosure. To make global physical drive settings:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
3.
Click the Enclosure
4.
Click the Physical Drives
icon.
icon.
icon.
5.
Click the Global Settings tab in Management View.
6.
Make the settings as needed.
For SATA drives, check the boxes to enable:
•
Write Cache
•
Read Look Ahead Cache
•
Command Queuing (for disk drives that support Command Queuing)
•
From the DMA Mode dropdown menu, choose a DMA mode.
For SAS drives, check the boxes to enable:
7.
•
Write Cache
•
Read Look Ahead Cache
•
Command Queuing (for disk drives that support Command Queuing)
•
Read Cache
Click the Submit button.
The functions you enable here depend on whether the physical drives
support those functions. See “Viewing Physical Drive Information” on
page 97 to determine which functions a particular drive supports.
Viewing Physical Drive Information
To view physical drive information:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
icon.
3.
Click the Enclosure
4.
Click the Physical Drives
5.
Click a Physical Drive
icon.
icon.
icon.
Useful information provided here includes:
•
The location of the physical drive is highlighted in the Enclosure Front View
diagram.
97
VessRAID 1000s Series Product Manual
•
Operational Status – OK is normal. Can also show Rebuilding, Forced
Online, Forced Offline, Transition Running, PDM Running, Media Patrol
Running, Stale, PFA, Offline, or Dead.
•
Configuration Status – The array to which the drive is assigned or its spare
designation, including Unconfigured, Stale, PFA, Global Spare, Dedicated
Spare, Revertible Global Spare, Revertible Dedicated Spare.
Adjustable Items
•
Write Cache
•
Read Look Ahead Cache
•
Read Cache (SAS drive only)
•
Command Queuing
•
DMA Mode (SATA drives only)
See “Making Global Physical Drive Settings” on page 97.
Viewing Physical Drive Statistics
To view physical drive statistics:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
3.
Click the Enclosure
4.
Click the Physical Drives
5.
Click a Physical Drive
6.
From the dropdown menu on the Information tab, choose Statistics.
icon.
icon.
icon.
icon.
Clearing Statistics
To clear statistics, see “Clearing Statistics” on page 81.
Making Physical Drive Settings
An alias is the only setting you can make to an individual physical drive. All other
settings are global. See “Making Global Physical Drive Settings” on page 97.
To make physical drive settings:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
icon.
3.
Click the Enclosure
4.
Click the Physical Drives
5.
Click a Physical Drive
icon.
icon.
icon.
98
Chapter 4: Management with WebPAM PROe
6.
7.
Click the Settings tab in Management View.
Type an alias into the Physical Drive Alias field.
Maximum of 32 characters. Use letters, numbers, space between words,
and underscore. An alias is optional.
8.
Click the Submit button.
Clearing Stale and PFA Conditions
The Clear tab only appears when those conditions are present.
•
Stale – The physical drive contains obsolete disk array information.
•
PFA – The physical drive has errors resulting in a prediction of failure.
Be sure you have corrected the condition by a physical drive replacement, rebuild
operation, etc., first. Then clear the condition. See “Physical Drive Problems” on
page 294 for more information.
To clear a Stale or PFA status from a physical drive:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
icon.
3.
Click the Enclosure
4.
Click the Physical Drives
5.
Click a Physical Drive
6.
In Management View, click the Clear tab.
7.
In the Confirmation box, click OK to confirm.
icon.
icon.
icon.
Note
If a physical drive has both a Stale and a PFA condition, click the
Clear tab once to clear the Stale condition, then click again to
clear the PFA condition.
99
VessRAID 1000s Series Product Manual
Forcing a Physical Drive Offline or Online
The Physical Drive–Force Offline/Online tab enables you to force an:
•
Online physical drive to go Offline
•
Offline physical drive to go Online
The Force Offline/Online tab appears only for physical drives that are assigned to
disk arrays.
Caution
Forcing a physical drive offline or online is likely to cause data
loss. Back up your data before you proceed. Use these functions
only when required.
Important
Forcing a physical drive offline will cause your logical drives to
become degraded. If Auto Rebuild is enabled and a spare drive is
available, the disk array will begin rebuilding itself automatically.
To force a physical drive offline or online:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
icon.
3.
Click the Enclosure
4.
Click the Physical Drives
icon.
icon.
5.
Click a Physical Drive
6.
Click the Force Offline/Online tab in Management View.
icon.
7.
Click the Submit button.
8.
In the confirmation box, type the word confirm in the field provided.
9.
Click the OK button.
Locating a Physical Drive
To locate a physical drive:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Enclosures
icon.
3.
Click the Enclosure
4.
Click the Physical Drives
5.
Click a Physical Drive
icon.
icon.
icon.
100
Chapter 4: Management with WebPAM PROe
6.
Click the physical drive you want to locate on the WebPAM PROe screen.
The disk status LED for the physical drive blinks for one minute.
Figure 8. Disk Status LED
Disk Status
101
VessRAID 1000s Series Product Manual
Managing UPS Units
Uninterruptible Power Supply (UPS) Management includes the following
functions:
•
Viewing a List of UPS Units (below)
•
Making UPS Settings (page 103)
•
Viewing UPS Information (page 104)
Viewing a List of UPS Units
To view a list of UPS units supporting the VessRAID:
1.
Click the Subsystem
2.
Click the UPS
3.
icon in Tree View.
icon.
Click the Information tab in Management View.
Information in the UPS List includes:
•
UPS ID – Click the ID number to view the UPS Tab.
•
Operational Status – OK means Normal.
On AC means the UPS is connected to a viable external AC power
source.
On Battery means the external AC power source is offline and the UPS
is running on battery power.
•
Model Name or Number
•
Battery Capacity – Backup capacity expressed as a percentage.
•
Loading Ratio – Actual output of UPS as a percentage of the rated
output. See the Note below.
•
Remaining Backup Time – Number of minutes the UPS is expected to
power your system in the event of a power failure.
Note
The maximum recommended Loading Ratio varies among models
of UPS units. The general range is 60% to 80%. If the reported
Loading Ratio exceeds the recommended value for your UPS unit:
•
Have fewer subsystems or peripherals connected to this UPS
unit.
•
Add more UPS units, or use a higher-capacity UPS unit, to
protect your RAID systems.
102
Chapter 4: Management with WebPAM PROe
Making UPS Settings
These settings control how the VessRAID subsystem detects the UPS unit and
responds to data reported by the UPS unit.
To make UPS settings:
1.
Click the Subsystem
icon in Tree View.
2.
Click the UPS
3.
Click the Settings tab in Management View.
4.
Perform the following actions as required:
•
•
•
•
5.
icon.
Verify the Current UPS Communication method:
•
USB – USB connection.
•
Unknown – No connection.
Choose a Detection Setting from the dropdown menu:
•
Automatic – Default. If a UPS is detected when the subsystem
boots, the setting changes to Enable.
•
Enable – Monitors UPS. Settings changes, reports warnings, and
logs events.
•
Disable – Monitors UPS only.
Choose an Action Mode from the dropdown menu:
•
ShutDown – Shuts down the subsystem when a Threshold value is
exceeded.
•
None – No additional action when Threshold value is exceeded.
Type values into the Threshold fields. See Note 1:
•
Running Time Remaining Threshold – Actual time below this value
resets adaptive writeback cache to writethrough.
•
Warning Temperature Threshold – Actual temperature above this
value triggers a warning and logs an event.
•
Loading Ratio Threshold – Actual loading ratio (percentage) above
this threshold triggers a warning and logs an event. See Note 2.
•
Battery Charge Remaining Threshold – Reserve capacity below
this percentage triggers a warning and logs an event.
Click the Submit button to apply your settings.
103
VessRAID 1000s Series Product Manual
Notes
1. Detection Setting must be set to Auto. If a UPS is detected, the
setting changes to Enable.
2. The maximum recommended Loading Ratio varies among
models of UPS units. The general range is 60% to 80%.
Viewing UPS Information
To view information about a specific UPS unit:
1.
Click the Subsystem
2.
Click the UPS
3.
Click the UPS1
4.
icon in Tree View.
icon.
or UPS2
icon.
Click the UPS tab in Management View.
UPS information includes:
•
Voltage Rating – Output voltage of the UPS.
•
Battery Capacity – Backup capacity expressed as a percentage.
•
Remaining Backup Time – Number of minutes the UPS is expected to
power your system in the event of a power failure.
•
Loading Ratio – Actual output of UPS as a percentage of the rated
output. See the Note below.
Note
The maximum recommended Loading Ratio varies among models
of UPS units. The general range is 60% to 80%. If the reported
Loading Ratio exceeds the recommended value for your UPS unit:
•
Have fewer subsystems or peripherals connected to this UPS
unit.
•
Add more UPS units, or use a higher-capacity UPS unit, to
protect your RAID systems.
104
Chapter 4: Management with WebPAM PROe
Managing Disk Arrays
Disk Array Management includes the following functions:
•
Viewing Disk Arrays (page 105)
•
Creating a Disk Array (page 105)
•
Deleting a Disk Array (page 110)
•
Viewing Disk Array Information (page 110)
•
Making Disk Array Settings (page 111)
•
Creating a Logical Drive (page 112)
•
Deleting a Logical Drive (page 113)
•
Migrating a Disk Array (page 113)
•
Rebuilding a Disk Array (page 114)
•
Running PDM on a Disk Array (page 116)
•
Transitioning a Disk Array (page 116)
•
Preparing a Disk Array for Transport (page 117)
Viewing Disk Arrays
To view the disk arrays in this enclosure plus any expanded or cascaded
enclosures:
1.
2.
Click the Subsystem
icon in Tree View.
Click the Disk Arrays
icon.
A list of disk arrays appears in Management View.
Click the DA link to view a specific disk array. See “Viewing Disk Array
Information” on page 110.
Creating a Disk Array
The CLU provides three methods of creating a disk array:
•
Automatic – Creates a new disk array following a default set of parameters.
Makes one logical drive automatically. Also makes a hot spare drive for all
RAID levels except RAID 0, if at least five unconfigured physical drives are
available. If you have multiple enclosures, multiple disk array and logical
drive sets are created. See “Creating a Disk Array – Automatic” on
page 106.
•
Express – You choose the parameters for a new disk array by specifying the
characteristics you want. You can create multiple logical drives at the same
time, however they will all be identical. You can choose to make a hot spare
drive for all RAID levels except RAID 0, if at least five unconfigured physical
drives are available. See “Creating a Disk Array – Express” on page 107.
105
VessRAID 1000s Series Product Manual
•
Advanced – You directly specify all parameters for a new disk array. Makes
one logical drive automatically. You can create additional logical drives at a
later time, if additional configurable capacity is available. Does not make a
hot spare drive. See “Creating a Disk Array – Advanced” on page 108.
Creating a Disk Array – Automatic
The Disk Array Automatic Creation option enables you to create a new disk array
following a default set of parameters. One logical drive will be made automatically
when you create the disk array.
If you have multiple enclosures, a separate disk array and logical drive set will be
created for each enclosure.
If you have both Hard Disk Drives (HDD) and Solid State Drives (SSD), separate
disk array and logical drive sets will be created for your HDDs and for your SSDs.
These two drive types cannot be mixed in the same disk array.
To create a Disk Array using the Automatic function:
To create a disk array automatically:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Create tab in Management View.
4.
From the Create tab dropdown menu, choose Automatic.
The following parameters display:
5.
•
Disk Arrays – The number of physical drives in the disk array, their slot
numbers, configurable capacity, and the number of logical drives to be
created
•
Logical Drives – The ID number of the logical drive(s), their RAID level,
capacity, and stripe size
•
Spare Drives – The physical drive slot number of the dedicated hot
spare assigned to this disk array. A hot spare drive is created for all
RAID levels except RAID 0, when five or more unconfigured physical
drives are available
If you accept these parameters, click the Submit button.
The new disk array appears in the Disk Array List the Information tab.
If you do NOT accept these parameters, use the Advanced option to create
your disk array.
106
Chapter 4: Management with WebPAM PROe
Creating a Disk Array – Express
The Disk Array Express Creation option enables you to choose the parameters
for a new disk array by specifying the characteristics you want. With this method,
you can create multiple logical drives at the same time you create your disk array.
However, all of the logical drives will be the same.
If you prefer to specific the parameters directly, use the Advanced option to
create your disk array.
If you are uncertain about choosing parameters for your disk array, use the
Automatic option.
If you have both Hard Disk Drives (HDD) and Solid State Drives (SSD), separate
disk arrays will be created for your HDDs and for your SSDs. Each array will have
the number of logical drives that you specified.
To create a new disk array:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Create tab in Management View.
4.
From the Create tab dropdown menu, choose Express.
5.
Check the boxes to choose any one or combination of:
•
Redundancy – The array will remain available if a physical drive fails
•
Capacity – The greatest possible amount of data capacity
•
Performance – The highest possible read/write speed
•
Mixing SATA/SAS Drive – Check this box if you want to use both SATA
and SAS drives in the same disk array
If the box is unchecked, and you have both SATA and SAS drives,
different arrays will be created for each type of drive.
6.
In the Number of Logical Drives field, enter the number of logical drives you
want to make from this disk array.
7.
From the Application Type menu, choose an application that best describes
your intended use for this disk array:
8.
•
File Server
•
Video Stream
•
Transaction Data
•
Transaction Log
•
Other
Click the Update button.
Or check the Automatic Update box and updates will occur automatically.
107
VessRAID 1000s Series Product Manual
The following parameters display:
•
Disk Arrays – The number of physical drives in the disk array, their slot
numbers, configurable capacity, and the number of logical drives to be
created
•
Logical Drives – The slot number of the logical drive(s), their RAID
level, capacity, and stripe size
•
Spare Drives – The physical drive slot number of the dedicated hot
spare assigned to this disk array (all RAID levels except RAID 0)
If you have both Hard Disk Drives (HDD) and Solid State Drives (SSD),
separate disk arrays will be created for your HDDs and for your SSDs. Each
array will have the number of logical drives that you specified.
If you accept these parameters, proceed to the next step. If NOT, review and
modify your selections in the previous steps.
9.
When you are done, click the Submit button.
The new disk array appears in the Disk Array List the Information tab.
Creating a Disk Array – Advanced
The Disk Array Advanced Creation option enables you to directly specify all
parameters for a new disk array. One logical drive will be made automatically
when you create the disk array. If you choose less than the total available
capacity, you can use the remaining space to create additional logical drives at a
later time.
If you are uncertain about choosing parameters for your disk array, use the
Express or Automatic option to create your disk array.
To create a new disk array:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
From the Create tab dropdown menu, choose Advanced.
Step 1 – Disk Array Creation
1.
Enter an alias for the disk array in the field provided.
2.
Check the boxes to enable the following features.
•
Media Patrol – A routine maintenance procedure that checks the
magnetic media on each disk drive. Media Patrol is concerned with the
condition of the media itself, not the data recorded on the media.
•
PDM – Predictive Data Migration (PDM) scans the bad sector
remapping table of the disk drives assigned to a logical drive. When the
table fills to a specified percentage of its capacity, PDM triggers a
108
Chapter 4: Management with WebPAM PROe
migration of data from the suspect drive (the disk drive with the bad
sectors) to a spare disk drive.
3.
From the Media Type dropdown menu, choose the physical drive type to use
in the array.
•
HDD – Hard Disk Drives
•
SSD – Solid State Drives
The drive type you selected appears in the list of Physical Drives. You
cannot mix HDDs and SSDs in the same disk array.
4.
Highlight the physical drives you want in the disk array from the Available list
and press the >> button to move them to the Selected list.
You can also double-click them to move them.
5.
When you are done, click the Next button.
Step 2 – Logical Drive Creation
1.
Optional. Enter an Alias (name) for the first logical drive.
2.
Choose a RAID level for the logical drive from the dropdown menu.
The choice of RAID levels depends on the number of physical drives you
selected.
3.
4.
RAID 50 and 60 only. Choose the number of axles from the dropdown menu.
Specify a Capacity and the unit of measure (MB, GB, or TB).
This value will be the data capacity of the logical drive. If you specify less
than disk array’s maximum capacity, the remainder is available for additional
logical drives.
5.
Specify a Stripe size from the dropdown menu.
64, 128, 256, 512 KB, and 1 MB are available. 64 KB is the default.
6.
Specify a Sector size from the dropdown menu.
512 Bytes, 1, 2, and 4 KB are available. 512 Bytes is the default.
7.
Choose a Read Cache policy:
Read Cache, Read Ahead Cache, and No Cache are available. Read Ahead
is the default.
8.
Choose a Write Cache policy:
Write Back and Write Through are available. Write Back is the default.
9.
From the Initialization dropdown menu, choose an Initialization policy.
None, Quick, and Full are available. None is the default but is not
recommended.
10. Click the Update button.
A new logical drive is displayed under New Logical Drives.
Repeat the above steps to specify additional logical drives as desired.
109
VessRAID 1000s Series Product Manual
11. When you have finished specifying logical drives, click the Next button.
Step 3 – Summary
The Summary lists the disk array and logical drive information you specified.
To proceed with disk array and logical drive creation, click the Submit button.
Note
This function does not automatically create a hot spare drive. After
the disk array is created, you can create a hot spare drive for it.
For more information, see “Creating a Spare Drive” on page 125.
Deleting a Disk Array
The Disk Arrays–Delete tab enables you to delete existing disk arrays.
Caution
If you delete a disk array, you also delete any logical drives that
belong to it, along with the data in those logical drives. Back up
any important data before deleting a disk array.
To delete a disk array:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Delete tab in Management View.
4.
Check the box to the left of the disk array you want to delete.
5.
Click the Submit button.
6.
In the confirmation box, type the word confirm in the field provided.
7.
Click the OK button.
The selected disk array disappears from the Disk Array List the Information tab.
Viewing Disk Array Information
To view Disk Array information:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Disk Array
icon.
The disk array information is shown in Management View.
110
Chapter 4: Management with WebPAM PROe
Disk Array Operational Status
•
OK – The normal state of a disk array. For RAID Levels other than RAID 0
(Striping), the disk array has full redundancy.
•
Synchronizing – When you first create a disk array, the disk array
synchronizes. During that time, your data is available. However, access will
be slower until synchronizing is done.
•
Critical/Degraded – This condition results from a physical drive failure. Your
data is still available. However, the disk array has lost redundancy (fault
tolerance). You must determine the cause of the problem and correct it. See
“Critical & Offline Disk Arrays” on page 290.
•
Rebuilding – This condition is temporary. When a physical drive has been
replaced, the disk array automatically begins rebuilding in order to restore
redundancy (fault tolerance). Your data is still available. However, access will
be slower until rebuilding is done.
•
Transport Ready – The result of a successful Prepare for Transport
operation. You remove the physical drives of this disk array and move them
to another enclosure or to different drive slots in the same enclosure. After
you relocate the physical drives, the disk array status will show OK.
Adjustable Items
•
Alias – Optional.
•
Media Patrol – Enabled or disabled.
•
PDM – Enabled or disabled.
See “Making Disk Array Settings” below.
Making Disk Array Settings
To make Disk Array settings:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Disk Array
4.
Click the Settings tab in Management View.
5.
icon.
Optional. Enter an alias in the Disk Array Alias field.
Maximum of 32 characters. Use letters, numbers, space between words,
and underscore. An alias is optional.
6.
To enable Media Patrol support, check the Media Patrol box.
7.
To enable PDM support, check the PDM box.
8.
Click the Submit button.
111
VessRAID 1000s Series Product Manual
Creating a Logical Drive
When you create a disk array, you automatically create one logical drive also. If
the initial logical drive used less than the full capacity of the disk array, you can
create additional logical drives from the same disk array.
To create a logical drive:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Disk Array
4.
Click the Create LD tab in Management View.
5.
Enter an alias (name) in the Alias field.
icon.
Maximum of 32 characters. Use letters, numbers, space between words,
and underscore. An alias is optional.
6.
From the RAID Level dropdown list, choose a RAID level for this logical
drive.
All RAID levels supported by the disk array appear in the list. See “Choosing
a RAID Level” on page 244.
7.
RAID 50 and 60 only – Specify the number of axles for your array.
For more information on axles, see “RAID 50 Axles” on page 241 or “RAID
60 Axles” on page 243.
8.
Enter a capacity and choose unit of measure (MB, GB, TB).
The default value is the available capacity of the disk array. You can use this
value or any lesser amount.
9.
From the Stripe dropdown menu, choose a Stripe size for this logical drive.
The choices are 64 KB, 128 KB, 256 KB, 512 KB, and 1 MB. 64 KB is the
default. See “Choosing Stripe Size” on page 247.
10. From the Sector dropdown menu, choose a Sector size for this logical drive.
The choices are 512 B, 1 KB, 2 KB, and 4 KB. 512 B is the default. See
“Choosing Sector Size” on page 247.
11. From the Read Policy dropdown menu, choose a Read Cache policy for this
logical drive.
The choices are Read Cache, Read Ahead, and No (read) Cache. Read
Ahead is the default. See “Cache Policy” on page 248.
12. From the Write Policy dropdown menu, choose a Write Cache policy for this
logical drive.
The choices are Write Through (thru) and Write Back. Write Back is the
default. If you selected No Cache under Read Cache, this setting will be
Write Through. See “Cache Policy” on page 248.
112
Chapter 4: Management with WebPAM PROe
13. Click the Update button to enter the logical drive parameters.
14. Review the results. If there is remaining space the disk array, you can create
another logical drive, following the steps above. Each logical drive can have
a different set of parameters.
15. Click the Next button when you are done.
A new window displays with the disk array information and the proposed
logical drives with their parameters.
16. Click the Submit button create the logical drives.
The new logical drive appears in the Logical Drive List the Information tab.
If you created a fault-tolerant logical drive (any RAID level except RAID 0), the
Operational Status of new logical drive will display Synchronizing for several
minutes after creation. You can use the logical drive during this period but read/
write performance could be slower than normal.
Deleting a Logical Drive
Caution
All data the logical drive will be lost. Back up any valuable data
before deleting the logical drive.
To delete a logical drive:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Disk Array
4.
Click the Delete LD tab in Management View.
icon.
5.
Check the box to the left of the logical drive you want to delete.
6.
Click the Submit button.
In the confirmation box, type the word confirm in the field provided.
7.
Click the OK button.
The selected logical disappears from the Logical Drive List the Information tab.
Migrating a Disk Array
The action of migrating a disk array means either or both:
•
Change the RAID Level
•
Expand the storage capacity
113
VessRAID 1000s Series Product Manual
For a list of Migration options and other important information, see “RAID Level
Migration” on page 252.
Notes
•
You can add physical drives to a RAID 50 or RAID 60 array
but you cannot change the number of axles.
•
If you add an odd number of physical drives to a RAID 10
array, it will become a RAID 1E array by default.
To Migrate an existing disk array:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Disk Array
4.
From the dropdown menu the Background Activities tab, choose Start
Migration.
5.
Highlight physical drives you want in the disk array from the Available list and
press the >> button to move them to the Selected list.
icon.
You can also double-click them to move them.
The available drives are either HDD or SSD, depending on the type of drives
in the array.
6.
When you are done, click the Next button.
7.
Select a new RAID Level, if desired.
8.
To expand the disk array's capacity, check the Expand Capacity box.
9.
If you checked the Expand Capacity box, enter a number into the Capacity
field and choose the appropriate unit of measure (MB, GB, TB).
10. Under Capacity Usage, highlight the logical drive whose RAID level you want
to change or whose capacity you want to expand.
11. Click the Update button.
The logical drive changes to reflect your choices.
12. Update other logical drives using the same method.
13. When you are done making the changes, click the Next button.
14. Click the Submit button to begin Migration.
To set Migration priority, see “Making Background Activity Settings” on page 54.
Rebuilding a Disk Array
When you rebuild a disk array, you are actually rebuilding the data on a
replacement physical drive.
114
Chapter 4: Management with WebPAM PROe
Rebuilding Automatically
Normally, a disk array would rebuild itself using a hot disk drive, after going
Critical. However, if the Auto Rebuild function is disabled or no spare drives are
available, you must initiate the procedure.
To enable Auto Rebuild, see “Making Background Activity Settings” on page 54.
To create a spare drive, see “Creating a Spare Drive” on page 125.
For more information, see “Hot Spare Drive(s)” on page 251.
Rebuilding Manually
If a physical drive has failed, identify and replace the drive, then rebuild the disk
array as described below:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Disk Array
icon.
If there are multiple disk arrays, choose the icon with the yellow !.
4.
5.
From the dropdown menu the Background Activity tab, choose Start Rebuild.
Select the Source physical drive.
This is a remaining functional physical drive in the disk array.
6.
Select the Target physical drive.
This is the replacement physical drive. The available drives are either HDD
or SSD, depending on the type of drives in the array.
7.
Click the Submit button.
The Disk Array Background Activity tab shows the rebuild progress on the
replacement (target) physical drive. Depending the size of the physical disk
involved, this process will take some time.
To view more information, click the Rebuild on PDx link.
To set Rebuild priority, see “Making Background Activity Settings” on page 54.
Running Media Patrol on a Disk Array
Media Patrol checks the magnetic media on physical drives. When it finds the
specified number of bad blocks, it will trigger PDM. See “Making Background
Activity Settings” on page 54 and “Running PDM” on page 56.
You can schedule Media Patrol to run automatically, see “Scheduling an Activity”
on page 56.
115
VessRAID 1000s Series Product Manual
To start Media Patrol:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Disk Array
4.
From the dropdown menu the Background Activities tab, choose Start Media
Patrol.
5.
Click the Start button.
icon.
Running PDM on a Disk Array
Predictive Data Migration (PDM) migrates data from the suspect physical drive to
a spare physical drive, similar to Rebuilding. But unlike Rebuilding, PDM acts
before the disk drive fails and your Logical Drive goes Critical.
See “Predictive Data Migration (PDM)” on page 260.
To start PDM:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Disk Array
icon.
4.
Click the Background Activities tab in Management View.
5.
From the dropdown menu the Background Activities tab, choose Start PDM.
6.
In the next screen, choose the Source and Target physical drives.
The suspect physical drive is the source.
The replacement physical drive is the target. The available drives are either
HDD or SSD, depending on the type of drives in the array.
7.
Click the Start button.
Transitioning a Disk Array
Transition is the process of replacing a revertible spare drive that is currently part
of a disk array with an unconfigured physical drive or a non-revertible spare. The
revertible spare drive returns to its original status. For more information, see
“Transition” on page 261.
In order to run the Transition function:
•
The spare drive must be Revertible.
•
You must have an unconfigured physical drive of the same or larger capacity,
and the same type, HDD or SSD, to replace the spare drive.
116
Chapter 4: Management with WebPAM PROe
To run Transition:
1.
Click the Subsystem
2.
From the dropdown menu on the Background Activities tab, choose Start
Transition.
icon in Tree View.
3.
Choose an unconfigured physical drive from the list of available drives.
4.
From the Target Physical Drive dropdown menu, choose an unconfigured
physical drive.
The available drives are either HDD or SSD, depending on the type of drives
in the array.
5.
Click the Submit button.
After Transition is completed, refresh the screen. The revertible spare drive is
listed under the Spare Drives icon and the disk array’s status shows OK.
To set Transition priority, see “Making Background Activity Settings” on page 54.
Preparing a Disk Array for Transport
Transport is the action of moving the physical drives of a disk array:
•
To different slots in the same VessRAID enclosure
•
From one VessRAID enclosure to another
Important
Before you can use this feature, the disk array’s Operational
Status must be OK.
To prepare a disk array for transport:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Disk Array
4.
Click the Transport tab in Management View.
5.
Click the Submit button.
6.
In the confirmation box, type the word confirm in the field provided.
7.
Click the OK button.
8.
After the Transition is complete, move the physical drives comprising the
disk array to their new locations.
9.
Click the Refresh button in your Browser.
icon.
The drives appear in their new locations and disk array status displays OK.
117
VessRAID 1000s Series Product Manual
Managing Logical Drives
Logical drives are made from disk arrays. In the Tree, you can see a graphic
representation of the logical drives that belong to each array. You can see a
summary of all logical drives in the subsystem under Logical Drive Summary.
Logical drive management includes the following functions:
•
Viewing Information for All Logical Drives (below)
•
Viewing Logical Drive Information (page 119)
•
Viewing Logical Drive Statistics (page 120)
•
Making Logical Drive Settings (page 120)
•
Initializing a Logical Drive (page 120)
•
Running Redundancy Check (page 121)
•
Viewing the Logical Drive Check Table (page 122)
•
Making Logical Drive LUN Settings (page 123)
Viewing Information for All Logical Drives
To view information about all logical drives in a disk array:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Disk Array
4.
Click the Logical Drives
icon.
icon
Logical Drive Status
•
OK – The normal state of a logical drive. For RAID Levels other than RAID 0
(Striping), the logical drive has full redundancy.
•
Synchronizing – When you first create a logical drive, the logical drive
synchronizes. During that time, your data is available. However, access will
be slower until synchronizing is done.
•
Rebuilding – This condition is temporary. When a physical drive has been
replaced, the logical drive automatically begins rebuilding in order to restore
redundancy (fault tolerance). Your data is still available. However, access will
be slower until rebuilding is done.
•
Critical – This condition results from a physical drive failure. Your data is still
available. However, the logical drive has lost redundancy (fault tolerance).
You must determine the cause of the problem and correct it. See “Critical &
Offline Disk Arrays” on page 290.
•
Offline – This condition arises as the result of a second physical drive
failure. An Offline logical drive is not accessible but some or all of your data
118
Chapter 4: Management with WebPAM PROe
may remain intact. You must determine the cause of the problem and correct
it. “Critical & Offline Disk Arrays” on page 290
•
Transport Ready – The result of a successful Prepare for Transport
operation. You remove the physical drives of this logical drive and move
them to another enclosure or to different drive slots in the same enclosure.
After you relocate the physical drives, the logical drive status will show OK.
To create a logical drive, see “Creating a Logical Drive” on page 112.
To delete a logical drive, see “Deleting a Logical Drive” on page 113.
For a Degraded or Offline logical drive, see “Critical & Offline Disk Arrays” on
page 290.
Viewing Logical Drive Information
To view information for a single logical drive:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Disk Array
4.
Click the Logical Drives
5.
Click the Logical Drive
icon.
icon
icon.
To specify an Alias or set the Read and Write Policies, click the Settings tab.
Logical Drive Status
See “Logical Drive Status” on page 118.
Logical Drive Synchronization
Synchronization is an automatic procedure applied to logical drives when they
are created. Yes means the logical drive was synchronized.
Adjustable Items
•
Alias (optional)
•
Read Policy
•
Write Policy
•
Preferred Controller ID
See “Making Logical Drive Settings” on page 120.
119
VessRAID 1000s Series Product Manual
Viewing Logical Drive Statistics
To view information for a single logical drive:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Disk Array
4.
Click the Logical Drives
5.
Click the Logical Drive
6.
In Management View, from the dropdown menu on the Information tab,
choose Statistics.
icon.
icon
icon.
Clearing Statistics
To clear statistics, see “Clearing Statistics” on page 81.
Making Logical Drive Settings
To make Logical Drive settings:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Disk Array
4.
Click the Logical Drives
5.
Click the Logical Drive
icon.
icon
icon.
6.
Click the Settings tab in Management View.
7.
Optional. Enter an alias in the Logical Drive Alias field.
Maximum of 32 characters. Use letters, numbers, space between words,
and underscore. An alias is optional.
8.
From the Read Policy dropdown menu, choose a Read Cache policy.
The choices are Read Cache, Read Ahead, and No Cache.
9.
From the Write Policy dropdown menu, choose a Write Cache policy.
The choices are Write Back and Write Through (Thru). If you choose No
Read Cache, Write policy is automatically Write Through.
10. Click the Submit button.
Initializing a Logical Drive
Initialization is done to logical drives after they are created from a disk array.
Initialization sets all data bits in the logical drive to zero. The action is useful
120
Chapter 4: Management with WebPAM PROe
because there may be residual data the logical drives left behind from earlier
configurations. For this reason, Initialization is recommended for all new logical
drives.
Caution
When you initialize a logical drive, all the data the logical drive will
be lost. Backup any important data before you initialize a logical
drive.
Initialize a Logical Drive:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Logical Drive Summary
3.
Click the
icon.
icon of the logical drive you want to Initialize.
You can also start Initialization from the Subsystem
Activities tab
icon Background
4.
Click the Background Activities tab in Management View.
5.
From the Background Activities dropdown menu, choose Initialization.
6.
To choose Quick Initialization, check the box.
If you checked the box, enter a value in the Quick Initialization Size field.
This value is the size of the initialization blocks in MB.
7.
If you did not choose Quick Initialization, enter a hexidecimal value in the
Initialization Pattern in Hex field or use the default 00000000 value.
8.
Click the Submit button.
9.
In the confirmation box, type the word confirm in the field provided.
10. Click the OK button.
To view the progress of the Initialization, click the Background Activity tab.
To set Initialization priority, see “Making Background Activity Settings” on
page 54.
Running Redundancy Check
Redundancy Check is a routine maintenance procedure for fault-tolerant logical
drives (those with redundancy) that ensures all the data matches exactly.
Redundancy Check can also correct inconsistencies. You can also schedule a
Redundancy Check. See “Scheduling an Activity” on page 56.
Redundancy Check a Logical Drive:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Logical Drive Summary
121
icon.
VessRAID 1000s Series Product Manual
3.
Click the
icon of the logical drive you want to Initialize.
You can also start Redundancy check from the Subsystem
Background Activities tab
icon
4.
From the dropdown menu on the Background Activities tab, choose
Redundancy Check.
5.
To choose Auto Fix, check the box.
This feature attempts to repair the problem when it finds an error.
6.
To choose Pause On Error, check the box.
This feature stops the process when it finds an error.
If Auto Fix is also checked, the process stops only when it finds a nonrepairable error.
7.
Click the Submit button.
To view the progress of the Redundancy Check, click the Background Activity
tab.
To set Redundancy Check priority, see “Making Background Activity Settings” on
page 54.
Viewing the Logical Drive Check Table
The Logical Drive Check Table displays errors related to a logical drive. Use this
information to evaluate the integrity of the logical drive and to determine whether
corrective action is needed. To View the tables:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Disk Array
4.
Click the Logical Drives
5.
Click the Logical Drive
6.
Click the Check Table tab in Management View.
7.
Click the option for the table you want to see.
icon.
icon
icon.
The default is All tables.
If there are entries, they are listed as follows:
•
Entry Number – A number assigned to each block of entry.
•
Table Type – Read Check, Write Check or Inconsistent Block (see
below).
•
Start Logical Block Address – LBA of the first block for this entry.
•
Count – Number of continuous blocks starting from this LBA.
122
Chapter 4: Management with WebPAM PROe
Table Definitions
•
Read Check Table – Contains a list of read errors for this logical drive.
•
Write Check Table – Contains a list of write errors for this logical drive.
•
Inconsistent Block Table – Contains a list of inconsistent blocks for
this logical drive. Mirror data for RAID Levels 1, 1E, and 10 or Parity
data for RAID Levels 5, 6, 50, and 60 identified by the Redundancy
Check (a background function).
Making Logical Drive LUN Settings
LUN Masking is the process of applying a LUN Map so that each initiator can
only access the LUNs specified for it.
Before you can specify an initiator for your LUN map, you must add the initiator to
the VessRAID 's initiator list. See “Adding an Initiator” on page 68.
You must enable LUN Masking in order apply a LUN map. See “Enabling LUN
Masking” on page 69.
To specify a LUN Map:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Disk Arrays
icon.
3.
Click the Disk Array
4.
Click the Logical Drives
5.
Click the Logical Drive
6.
Click the LUN Map tab in Management View.
7.
icon.
icon
icon.
From the Unassigned Initiator List, click an initiator to choose it.
Or type the initiator name into the Initiator Name field.
8.
Type a LUN into the Map to LUN field.
9.
Click the Assign button.
The initiator appears in the Assigned Initiator List.
10. Click the Submit button.
Notes
•
Obtain the initiator name from the initiator utility on your host
system.
•
The initiator name you input must match exactly in order for
the connection to work.
123
VessRAID 1000s Series Product Manual
Managing Spare Drives
When a physical drive in a disk array fails and a spare drive of adequate capacity
is available, the disk array will begin to rebuild automatically using the spare
drive. See “Critical & Offline Disk Arrays” on page 290.
Spare drive management includes the following functions:
•
Viewing a List of Spare Drives (page 124)
•
Locating a Spare Drive (page 124)
•
Creating a Spare Drive (page 125)
•
Deleting Spare Drive (page 126)
•
Making Spare Drive Settings (page 126)
•
Running Spare Check (page 127)
Viewing a List of Spare Drives
To view a list of spare drives:
1.
Click the Subsystem
2.
Click the Spare Drives
icon in Tree View.
icon.
The information includes:
•
ID – The unique ID number assigned to the spare drive.
•
Operational Status – OK is normal. Can also show Rebuilding, Transition
Running, PDM Running, or Offline.
•
Physical Drive ID – The ID number of the physical drive in the subsystem
enclosure.
•
Capacity – The data storage capacity of this spare drive.
•
Revertible – Yes or No. A revertible spare drive automatically returns to its
spare drive assignment after the failed physical drive in the disk array is
replaced.
•
Type – Global, can be used by any disk array. Dedicated, can only be used
by the assigned disk array.
•
Dedicated to Array – For dedicated spares, the disk array to which it is
assigned. Global spares show N/A.
Locating a Spare Drive
To locate a physical drive assigned as a spare drive in the VessRAID subsystem
enclosure:
1.
Click the Subsystem
2.
Click the Spare Drives
icon in Tree View.
icon.
124
Chapter 4: Management with WebPAM PROe
3.
Click the Spare Drive
icon.
In Management View, the Enclosure Front View diagram appears with the
location of the spare drive highlighted.
Creating a Spare Drive
Important
•
There must be an unconfigured physical drive available for
selection as a spare drive. See “Viewing a List of Physical
Drives” on page 96.
•
Be sure the unconfigured physical drive has adequate
capacity to replace the largest drive in the disk array.
To create a spare drive:
1.
Click the Subsystem
2.
Click the Spare Drives
3.
Click the Create tab in Management View.
4.
icon in Tree View.
icon.
Choose a spare type, Global or Dedicated.
Global can be used by any disk array. Dedicated can only be used by the
assigned disk arrays
5.
6.
Click the Next button.
To make a revertible spare drive, check the Revertible box.
A revertible spare drive can be returned to spare drive status after it replaces
a failed drive in a disk array. See “Transition” on page 261 for more
information.
7.
To enable Media Patrol on this spare drive, check the Enable Media Patrol
box.
8.
Dedicated spares only. From the Media Type dropdown menu, choose the
physical drive type used in the array.
•
HDD – Hard Disk Drives
•
SSD – Solid State Drives
The drive type you selected appears in the list of Physical Drives. You
cannot mix HDDs and SSDs in the same disk array.
9.
In the Physical drives field, highlight the physical drive you want to assign as
a spare drive in the Available list and press the >> button to move the drive
to the Selected list.
You can also double-click drives to move them.
125
VessRAID 1000s Series Product Manual
10. If you selected a Dedicated spare drive, in the Dedicated to Disk Arrays field,
highlight disk arrays to which you want assign the spare drive from the
Available list and press the >> button to move the array to the Selected list.
You can also double-click arrays to move them.
11. Click the Update button.
Your choices are displayed under New Hot Spare Drives.
12. If you agree with the proposed choices, click the Submit button.
Deleting Spare Drive
Note
If an existing spare drive has the wrong parameters for your
needs, click the Settings tab to change the parameters rather
than delete the spare drive and create a new one.
To delete a spare drive:
1.
Click the Subsystem
2.
Click the Spare Drives
3.
Click the Delete tab in Management View.
4.
Check the box to the left of the spare drive you want to delete.
5.
icon in Tree View.
icon.
Click the Submit button.
In the confirmation box, type the word confirm in the field provided.
6.
Click the OK button.
Making Spare Drive Settings
The Spare Drive–Settings tab enables you to change the settings of an existing
spare drive. To change spare drive settings:
1.
Click the Subsystem
2.
Click the Spare Drives
icon in Tree View.
icon.
3.
Click the Spare Drive
4.
Click the Settings tab in Management View.
5.
icon.
Choose a spare type, Global or Dedicated.
Global can be used by any disk array. Dedicated can only be used by the
assigned disk arrays
6.
To make a revertible spare drive, check the Revertible box.
A revertible spare drive automatically returns to its spare drive assignment
after the failed physical drive in the disk array is replaced.
126
Chapter 4: Management with WebPAM PROe
7.
If you selected a Dedicated spare drive, in the Dedicated to Disk Arrays field,
highlight the disk arrays to which you want assign the spare drive from the
Available list and press the >> button to move them to the Selected list.
You can also double-click array to move it.
8.
Click the Submit button.
Running Spare Check
Spare Check verifies the operational status of your spare drives. You can also
schedule a Spare Check. See “Scheduling an Activity” on page 56.
To check a spare drive:
1.
Click the Subsystem
2.
Click the Spare Drives
icon in Tree View.
icon.
3.
Click the Spare Check tab in Management View.
4.
From the Physical Drive dropdown menu, choose the spare drive you want
to check.
Or choose All to check all the spare drives at the same time.
5.
Click the Submit button.
The results of the Spare Check appear under Spare Check Status in the
Information tab. “Healthy” means normal condition.
127
VessRAID 1000s Series Product Manual
Working with the Logical Drive Summary
The Logical Drive Summary displays a list of all logical drives in the VessRAID
enclosure plus the expanded or cascaded enclosures. This list does not arrange
the logical drives under the disk array to which they belong nor under the
enclosure in which they are located.
Logical Drive Summary includes the following functions:
•
Viewing a List of All Logical Drives (page 128)
•
Viewing Individual Logical Drive Information (page 128)
Viewing a List of All Logical Drives
To view a list of all logical drives in all enclosures:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Drive Summary
icon.
Viewing Individual Logical Drive Information
1.
Click the Subsystem
2.
Click the Drive Summary
3.
Click the Logical Drive
icon in Tree View.
icon.
icon.
The information and location for the logical drive appear in Management
View. See Viewing Logical Drive Information (page 119).
128
Chapter 5: Management with the CLU
This chapter covers the following topics:
•
Initial Connection (page 130)
•
Running Quick Setup (page 134)
•
Managing the Subsystem (page 135)
•
Managing the Controller (page 137)
•
Managing the Enclosure (page 140)
•
Managing Physical Drives (page 145)
•
Managing Disk Arrays (page 148)
•
Managing Spare Drives (page 159)
•
Managing Logical Drives (page 162)
•
Managing the Network Connection (page 165)
•
Managing SAS Connections (page 166)
•
Managing Background Activity (page 168)
•
Working with the Event Viewer (page 170)
•
Working with LUN Mapping (page 172)
•
Managing UPS Units (page 174)
•
Managing Users (page 177)
•
Working with Software Management (page 180)
•
Flashing through TFTP (page 186)
•
Viewing Flash Image Information (page 186)
•
Clearing Statistics (page 186)
•
Restoring Factory Defaults (page 187)
•
Shutting Down the Subsystem (page 188)
•
Restarting the Subsystem (page 191)
•
Making Buzzer Settings (page 193)
For information about VessRAID’s audible alarm and LEDs, see “Chapter 9:
Troubleshooting” on page 265.
129
VessRAID 1000s Series Product Manual
Initial Connection
Making an initial connection includes the following functions:
•
Making a Serial Connection (below)
•
Making a Telnet Connection (page 131)
•
Logging In (page 131)
•
Accessing Online Help (page 133)
•
Exiting the CLU (page 133)
•
Logging Out of the CLI (page 133)
•
Logging Back Into the CLI and CLU (page 133)
Making a Serial Connection
Before you begin, be sure the RJ11-to-DB9 serial data cable is connected
between the Host PC and VessRAID, and that both machines are booted and
running.
Figure 1. Serial port on the controller
Serial port
Then do the following actions:
1.
Change your terminal emulation program settings to match the following
specifications:
•
Bits per second: 115200
•
Data bits: 8
•
Parity: None
•
Stop bits: 1
•
Flow control: none
2.
Start your PC’s terminal VT100 or ANSI emulation program.
3.
Press Enter once to launch the CLI.
130
Chapter 5: Management with the CLU
Making a Telnet Connection
A Telnet connection requires a network connection between the Host PC and
VessRAID controller’s Management (Ethernet) port.
Figure 2. Management port on the controller
Management port
To start the telnet program:
1.
Go to the command line prompt (Windows) or click the terminal icon (Linux).
2.
Type telnet 192.168.1.56 2300 and press Enter.
The IP address above is only an example.
Use your VessRAID's Management port IP address.
2300 is the Telnet port for the VessRAID.
3.
Press Enter once to launch the CLI.
Logging In
1.
At the Login prompt, type the user name and press Enter.
The default user name is administrator.
2.
At the Password prompt, type the password and press Enter.
The default password is password.
The CLI screen appears.
3.
At the [email protected]> prompt, type menu and press Enter.
The CLU Main Menu appears.
131
VessRAID 1000s Series Product Manual
Figure 3. CLU main menu
Quick Setup – A sequence of four steps to setup System Date & Time,
Management Port, and RAID Configuration.
Subsystem Management – View controller information, lock/unlock the
controller, set date and time, and monitor the enclosure.
Physical Drive Management – View disk drive assignments and parameters,
change disk drive cache settings and command queuing, and locate a physical
drive.
Disk Array Management – View disk array information, create and delete disk
arrays, transport, rebuild, PDM, and transition functions, and locate a disk array,
create and delete logical drives.
Spare Drive Management – View a list of spare drives, create, modify, and
delete spare drives, and run spare check.
Logical Drive Management – View logical drive information, name logical
drives, initialization and redundancy check, and locate a logical drive.
Network Management – Set IP address for Management Port, gateway, and
DNS server; subnet mask.
SAS Management – SAS Port information, settings, status, and statistics; SAS
Initiators.
132
Chapter 5: Management with the CLU
Background Activity – Settings for Media Patrol, Auto Rebuild, Rebuild,
Migration, PDM, Transition, Synchronization, Initialization, Redundancy Check
rate, and thresholds.
Event Viewer – View the event logs.
Additional Info and Management – Spare Drives, LUN Mapping, User
management, Email, SLP, Web Server, Telnet, SNMP, and Netsend settings,
firmware flash, clear statistics and restore factory default settings.
Buzzer – Enable, disable or silence the buzzer (audible alarm).
Accessing Online Help
To access online help on any CLU screen, press Ctrl-E.
To return to the CLU, press Enter.
Exiting the CLU
1.
Highlight Return to Previous Menu and press Enter.
Repeat this action until you arrive at the Main Menu.
2.
From the Main Menu, highlight Return to CLI and press Enter to exit
3.
Close the terminal emulation, Telnet or terminal window.
Logging Out of the CLI
When you shut down or restart the VessRAID subsystem, you are automatically
logged out of the CLI.
To manually log out of the CLI (no shut down or restart):
At the [email protected]> prompt, type logout and press Enter.
The prompt changes to cli>.
Logging Back Into the CLI and CLU
To log into the CLI and CLU after a manual logout:
1.
At the cli:> prompt, type login followed by your user name and press Enter.
2.
At the Password: prompt, type your password and press Enter.
3.
At the [email protected]> prompt, type menu and press Enter to open the CLU.
133
VessRAID 1000s Series Product Manual
Running Quick Setup
Quick Setup is discussed under “Setting up the Serial Connection” on page 25.
134
Chapter 5: Management with the CLU
Managing the Subsystem
Subsystem Management includes the following functions:
•
Setting an Alias for the Subsystem (page 135)
•
Running Media Patrol (page 135)
•
Locking or Unlocking the Subsystem (page 135)
•
Setting Subsystem Date and Time (page 136)
Setting an Alias for the Subsystem
An alias is optional. To set an Alias for this subsystem:
1.
2.
From the Main Menu, highlight Subsystem Management and press Enter.
Type and alias into the Alias field.
Maximum of 48 characters. Use letters, numbers, space between words
and underscore.
3.
Press Ctrl-A to save your settings.
Running Media Patrol
Media Patrol is a routine maintenance procedure that checks the magnetic media
on each disk drive. Media Patrol checks all physical drives assigned to disk
arrays and spare drives. It does not check unconfigured drives.
To start, stop, pause or resume Media Patrol:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Media Patrol and press enter.
3.
Highlight Start, Stop, Pause, or Resume and press Enter.
4.
If you chose Stop, press Y to confirm.
Locking or Unlocking the Subsystem
The lock prevents other sessions (including by the same user) from making a
configuration change to the controller until the lock expires or a forced unlock is
done. When the user who locked the controller logs out, the lock is automatically
released.
Setting the Lock
To set the lock:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Lock Management and press Enter.
3.
In the Lock Time field, type a lock time in minutes.
1440 minutes = 24 hours
135
VessRAID 1000s Series Product Manual
4.
Highlight Lock and press Enter.
Resetting the Lock
To reset the lock with a new time:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Lock Management and press Enter.
3.
In the Lock Time field, type a lock time in minutes.
1 to 1440 minutes (24 hours)
4.
Highlight Renew and press Enter.
Releasing the Lock
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Lock Management and press Enter.
3.
Highlight Unlock and press Enter.
Releasing a Lock set by another user
To release somebody else’s lock:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Lock Management and press Enter.
3.
Highlight Force Unlock and press the Spacebar to change to Yes.
4.
Highlight Unlock and press Enter.
Setting Subsystem Date and Time
Use this screen to make Date and Time settings:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Modify System Date and Time and press Enter.
3.
Highlight the System Date or System Time setting.
4.
Press the backspace key to erase the current value.
5.
Type in a new value.
6.
Press Ctrl-A to save your settings.
136
Chapter 5: Management with the CLU
Managing the Controller
Controller Management includes the following functions:
•
Viewing Controller Information (page 137)
•
Clearing an Orphan Watermark (page 137)
•
Making Controller Settings (page 137)
•
Locating the Controller (page 138)
Viewing Controller Information
Controller Management includes information, settings and statistics.
To access Controller Management:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Controller Management and press Enter.
3.
Highlight the controller you want and press Enter.
Basic Controller information displays.
To access additional controller information, highlight Advanced Information and
press Enter.
To access controller statistics, highlight Controller Statistics and press Enter.
Clearing an Orphan Watermark
This condition is the result of a disk drive failure during an NVRAM RAID level
migration on a disk array.
To clear an orphan watermark:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Controller Management and press Enter.
3.
Highlight one of the controllers and press Enter.
4.
Highlight Clear Orphan Watermark and press Enter.
The condition is cleared. See “Physical Drive Failed” on page 294 for more
information.
Making Controller Settings
If your subsystem has two controllers, any settings you make to one controller
will automatically apply to the other controller.
To make Controller settings:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Controller Management and press Enter.
137
VessRAID 1000s Series Product Manual
3.
Highlight the controller you want and press Enter.
4.
Highlight Controller Settings and press Enter.
5.
Make the following settings as required:
•
Type and alias into the Alias field.
Maximum of 48 characters. Use letters, numbers, space between words
and underscore. An alias is optional.
•
Highlight Coercion and press the spacebar to toggle between Enabled
and Disabled.
•
Highlight Coercion Method and press the spacebar to toggle through:
GB Truncate – Reduces the capacity to the nearest 1 GB boundary
10 GB Truncate – Reduces the capacity to the nearest 10 GB boundary
Grp (group) Rounding – Uses an algorithm to determine truncation.
Results in the maximum amount of usable drive capacity
Table Rounding – Applies a predefined table to determine truncation
6.
•
Highlight Cache Flush Interval and press the backspace key to erase
the current value. Type a new interval value (1 to 12 seconds).
•
Highlight SMART and press the spacebar to toggle between Enable and
Disable.
•
Highlight SMART Poll Interval and press the backspace key to erase the
current value. Type a new interval value (1 to 1440 minutes).
•
Highlight Poll Interval and press the backspace key to erase the current
value. Type a new interval value (15 to 255 seconds).
•
Highlight Adaptive Writeback Cache and press the spacebar to toggle
between Enabled and Disabled.
Press Ctrl-A to save your settings.
Locating the Controller
To locate this controller:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Controller Management and press Enter.
3.
Highlight the controller you want and press Enter.
4.
Highlight Locate Controller and press Enter.
The Controller Status LED blinks green for one minute.
138
Chapter 5: Management with the CLU
Figure 4. Controller Status LED
Controller Status
139
VessRAID 1000s Series Product Manual
Managing the Enclosure
Enclosure Management includes the following functions:
•
Viewing Enclosure Information (page 140)
•
Viewing Power Supply Status (page 140)
•
Locating a Power Supply (page 141)
•
Viewing Cooling Unit Status (page 141)
•
Viewing Voltage Sensor Status (page 141)
•
Viewing Temperature Sensor Status (page 141)
•
Setting Temperature Thresholds (page 142)
•
Checking the Batteries (page 142)
•
Reconditioning a Battery (page 143)
•
Locating an Enclosure (page 143)
•
Viewing Enclosure Topology (page 144)
Viewing Enclosure Information
Enclosure Management includes information, status, settings and location. To
access Enclosure Management:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Enclosure Management and press Enter.
To access FPU VPD information (vital product data on field replaceable units),
highlight FPU VPD Information and press Enter.
This function lists the battery backup unit and backplane.
Viewing Power Supply Status
To view the status of the power supplies:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Enclosure Management and press Enter.
3.
Highlight Power Supply Units and press Enter.
The screen displays the status of VessRAID’s power supply. If any status
differs from Powered On and Functional, there is a power supply
malfunction. See “Replacing a Power Supply” on page 224.
140
Chapter 5: Management with the CLU
Locating a Power Supply
To locate a power supply:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Enclosure Management and press Enter.
3.
Highlight Power Supplies and press Enter.
4.
Highlight Locate Power Supply and press Enter.
The LED on the selected power supply blinks for one minute.
Viewing Cooling Unit Status
To view the status of the blowers:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Enclosure Management and press Enter.
3.
Highlight Cooling Units and press Enter.
The screen displays the status and speed of VessRAID’s cooling fans. If the
speed is below the Healthy Threshold, there is a fan malfunction. See
“Replacing a Cooling Fan” on page 226.
Viewing Voltage Sensor Status
To view the status of the voltage sensors:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Enclosure Management and press Enter.
3.
Highlight Voltage Sensors and press Enter.
If any voltage is outside the Healthy Threshold values, there is a voltage
malfunction in the enclosure. See “Chapter 9: Troubleshooting” on page 265.
Viewing Temperature Sensor Status
To view the status of the temperature sensors:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Enclosure Management and press Enter.
3.
Highlight Temperature Sensors and press Enter.
If any temperature exceeds the Healthy Threshold value, there is an
overheat condition in the enclosure. See “Setting Temperature Thresholds”
on page 142 and “Chapter 9: Troubleshooting” on page 265.
141
VessRAID 1000s Series Product Manual
Setting Temperature Thresholds
To change temperature thresholds:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Enclosure Management and press Enter.
3.
Highlight Enclosure Settings and press Enter.
4.
Highlight the Temperature Warning threshold you want to change.
5.
Press the backspace key to erase the current value.
6.
Type a new interval value in degrees C.
7.
Press Ctrl-A to save your settings.
Checking the Batteries
This feature enables you monitor and recondition the subsystem battery or
batteries.
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Enclosure Management and press Enter.
3.
Highlight Batteries and press Enter.
4.
Highlight the battery you want to monitor and press Enter.
Battery Notes
Each battery works with a controller. If the battery is present in the subsystem but
the corresponding controller is not present, the battery will not appear in the
interface.
If a battery does not reflect normal conditions and it is not currently under
reconditioning, run the Recondition function before you replace the battery. See
“Reconditioning a Battery” on page 143.
Reconditioning fully discharges, then fully recharges the battery. During
reconditioning, if the Adaptive Writeback Cache function is enabled, the controller
cache is set to Write Thru. After reconditioning, the cache is reset to Write Back.
See “Making Controller Settings” on page 137.
If a battery reaches the threshold temperature while charging or discharging, the
charge or discharge pauses and the blower runs at high speed until the battery
temperature falls below the threshold.
If the battery does not maintain normal values after a Recondition, replace the
battery. See “Replacing the Cache Battery” on page 228.
VessRAID automatically reconditions the battery every two months.
When you install a new battery, the cycle count shows 0. VessRAID automatically
runs a recondition on the battery to verify it. If you restart the subsystem or
142
Chapter 5: Management with the CLU
controller before reconditioning is finished, the battery is charged to 100%, then
reconditioning starts again.
Reconditioning a Battery
To recondition the subsystem battery:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Enclosure Management and press Enter.
3.
Highlight Batteries and press Enter.
4.
Highlight the battery you want to recondition and press Enter.
5.
Highlight Start Reconditioning and press Enter.
6.
Press Y to confirm.
Reconditioning fully discharges, then fully recharges the battery. During
reconditioning, if the Adaptive Writeback Cache function is enabled, the
controller cache is set to Write Thru. After reconditioning, the cache is reset
to Write Back. See “Making Controller Settings” on page 137.
Locating an Enclosure
This feature helps you identify the physical VessRAID enclosure you are working
with through the CLU.
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Enclosure Management and press Enter.
3.
Highlight Locate Enclosure and press Enter.
The disk status LEDs and the LEDs on the back of the enclosure blink for
one minute. See the Figures below.
Figure 5. Disk Status LEDs
Disk Status
143
VessRAID 1000s Series Product Manual
Figure 6. VessRAID enclosure LEDs
Dirty Cache
USB 1
Controller Status
USB 2
Fan 2
Fan 1
Battery
Viewing Enclosure Topology
Enclosure topology refers to the manner in which the data paths among the
enclosures are connected:
•
Individual Subsystem – One VessRAID subsystem
•
JBOD Expansion – One VessRAID subsystem plus one or more VessJBOD
expansion subsystems, managed through the VessRAID or head unit
The physical connections for these arrangements are discussed in “Chapter 2:
VessRAID Installation” on page 9.
To view enclosure topology:
1.
From the Main Menu, highlight Subsystem Management and press Enter.
2.
Highlight Enclosure Topology and press Enter.
144
Chapter 5: Management with the CLU
Managing Physical Drives
Physical Drive Management includes the following functions:
•
Making Global Physical Drive Settings (page 145)
•
Setting an Alias (page 146)
•
Viewing Advanced Information (page 146)
•
Viewing Physical Drive Statistics (page 146)
•
Clearing Stale and PFA Conditions (page 146)
•
Forcing a Physical Drive Offline or Online (page 147)
•
Locating a Physical Drive (page 147)
Making Global Physical Drive Settings
All physical drive settings are made globally, except for setting an alias, which
applies to individual drives.
To make global physical drive settings:
1.
From the Main Menu, highlight Physical Drive Management and press Enter.
2.
Highlight Global Physical Drives Settings and press Enter.
3.
Change the following settings as required.
For SATA drives:
•
Highlight Write Cache and press the spacebar to toggle between
Enabled and Disabled.
•
Highlight Read Look Ahead Cache and press the spacebar to toggle
between Enabled and Disabled.
•
Highlight CmdQueuing and press the spacebar to toggle between
Enabled and Disabled.
•
Highlight DMA Mode and press the spacebar to toggle through UDMA
0–5 and MDMA 0–2.
For SAS drives:
4.
•
Highlight Write Cache and press the spacebar to toggle between
Enabled and Disabled.
•
Highlight Read Look Ahead Cache and press the spacebar to toggle
between Enabled and Disabled.
•
Highlight CmdQueuing and press the spacebar to toggle between
Enabled and Disabled.
•
Highlight Read Cache and press the spacebar to toggle between
Enabled and Disabled.
Press Ctrl-A to save your settings.
145
VessRAID 1000s Series Product Manual
Setting an Alias
An alias is optional. To set an Alias for a physical drive:
1.
From the Main Menu, highlight Physical Drive Management and press Enter.
2.
Highlight the physical drive of your choice and press Enter.
3.
Type an alias into the Alias field.
Maximum of 32 characters. Use letters, numbers, space between words
and underscore.
4.
Press Ctrl-A to save your settings.
Viewing Advanced Information
To view advanced information about the selected physical drive:
1.
From the Main Menu, highlight Physical Drive Management and press Enter.
2.
Highlight the physical drive of your choice and press Enter.
3.
Highlight Advanced Information and press Enter.
Viewing Physical Drive Statistics
To view the statistics for the selected physical drive:
1.
From the Main Menu, highlight Physical Drive Management and press Enter.
2.
Highlight the physical drive of your choice and press Enter.
3.
Highlight Physical Drive Statistics and press Enter.
Clearing Stale and PFA Conditions
The Clear Stale and Clear PFA functions only appear when those conditions exist
on the physical drive. To clear a Stale or PFA condition on a physical drive:
1.
From the Main Menu, highlight Physical Drive Management and press Enter.
2.
Highlight the physical drive of your choice and press Enter.
3.
Highlight Clear Stale or Clear PFA and press Enter.
If a physical drive is still online and shows a PFA error but “Clear PFA” does not
appear, use PDM to copy the data to a new physical drive. Go to Disk Array Info
and Settings.
If a physical drive is offline and shows a PFA error, rebuild the disk array. Go to
Disk Array Info and Settings. After rebuilding, the drive will show Stale. Run Clear
Stale then run Clear PFA.
If the physical drive with a PFA error is a spare, you must delete the drive as a
spare, then Clear PFA will be available.
146
Chapter 5: Management with the CLU
After you clear a PFA error, watch for another PFA error to appear. If it does,
replace the physical drive.
Forcing a Physical Drive Offline or Online
This function enables you to force an:
•
Online physical drive to go Offline
•
Offline physical drive to go Online
The Force Offline/Online function appears only for physical drives that are
assigned to disk arrays.
Caution
Forcing a physical drive offline or online is likely to cause data
loss. Back up your data before you proceed. Use these functions
only when required.
To force a physical drive offline or online:
1.
From the Main Menu, highlight Physical Drive Management and press Enter.
2.
Highlight Global Physical Drives Settings and press Enter.
3.
Highlight the physical drive of your choice and press Enter.
4.
Highlight Force Offline or Force Online and press Enter.
5.
Press Y to confirm.
Locating a Physical Drive
This feature helps you identify a physical drive within the VessRAID enclosure
you are working with through the CLU. To locate a physical drive:
1.
From the Main Menu, highlight Physical Drive Management and press Enter.
2.
Highlight the physical drive of your choice and press Enter.
3.
Highlight Locate Physical Drive and press Enter.
The disk status LED for the physical drive blinks for one minute.
Figure 7. Disk Status LEDs
Disk Status
147
VessRAID 1000s Series Product Manual
Managing Disk Arrays
Disk Array Management includes the following functions:
•
Creating a Disk Array (page 148)
•
Deleting a Disk Array (page 152)
•
Viewing Disk Array Information (page 152)
•
Setting an Alias for a Disk Array (page 153)
•
Enabling Media Patrol on a Disk Array (page 154)
•
Enabling PDM on a Disk Array (page 154)
•
Preparing the Disk Array for Transport (page 154)
•
Rebuilding a Disk Array (page 154)
•
Migrating a Disk Array (page 155)
•
Running PDM (page 156)
•
Running Transition on a Disk Array (page 156)
•
Locating a Disk Array (page 156)
•
Locating a Disk Array (page 156)
•
Creating a Logical Drive (page 157)
•
Deleting a Logical Drive (page 158)
Creating a Disk Array
The CLU provides three methods of creating a disk array:
•
Automatic – Creates a new disk array following a default set of parameters.
Makes one logical drive automatically. Also makes a hot spare drive for all
RAID levels except RAID 0, if at least five unconfigured physical drives are
available. If you have multiple enclosures, multiple disk array and logical
drive sets are created. See “Creating a Disk Array – Automatic” on
page 149.
•
Express – You choose the parameters for a new disk array by specifying the
characteristics you want. You can create multiple logical drives at the same
time, however they will all be identical. You can choose to make a hot spare
drive for all RAID levels except RAID 0, if at least five unconfigured physical
drives are available. See “Creating a Disk Array – Express” on page 150.
•
Advanced – You directly specify all parameters for a new disk array. Makes
one logical drive automatically. You can create additional logical drives at a
later time, if additional configurable capacity is available. Does not make a
hot spare drive. See “Creating a Disk Array – Advanced” on page 151.
148
Chapter 5: Management with the CLU
Creating a Disk Array – Automatic
To create a disk array using the Automatic feature:
1.
From the Main Menu, highlight Disk Array Management and press Enter.
2.
Highlight Create New Array and press Enter.
3.
Highlight Configuration Method and press the spacebar to toggle to
Automatic.
4.
Review the proposed configuration of disk array and logical drive(s).
•
To accept the proposed configuration and create the disk array and
logical drive(s), highlight Save Configuration and press Enter.
•
To reject the proposed configuration, highlight Cancel Array
Configuration and press Enter. You will return to the Disk Arrays
Summary screen.
To create a disk array with different characteristics, repeat the steps
above specifying different parameters but choose the Express or
Advanced option.
If you have both Hard Disk Drives (HDD) and Solid State Drives (SSD),
separate disk array and logical drive sets will be created for your HDDs
and for your SSDs. These two drive types cannot be mixed in the same
disk array.
149
VessRAID 1000s Series Product Manual
Creating a Disk Array – Express
To create a disk array using the Express feature:
1.
From the Main Menu, highlight Disk Array Management and press Enter.
2.
Highlight Create New Array and press Enter.
3.
Highlight Configuration Method and press the spacebar to toggle to Express.
4.
Highlight Configuration Method and press to spacebar to choose each of the
following characteristics for your disk array:
•
Redundancy
•
Capacity
•
Performance
•
Spare Drive
5.
Highlight Number of Logical Drives and press the backspace key to erase
the current value.
6.
Enter the number of logical drives you want.
7.
Highlight Application Type and press the spacebar to toggle though the
applications and choose the best one for your disk array.
•
File Server
•
Video Stream
•
Transaction Data
•
Transaction Log
•
Other
8.
Press Ctrl-A to save your settings and move to the next screen.
9.
Review the proposed configuration of disk array and logical drive(s).
To accept the proposed configuration and create the disk array and logical
drive(s), highlight Save Configuration and press Enter.
To reject the proposed configuration, highlight Cancel Array Configuration
and press Enter. You will return to the Disk Arrays Summary screen.
To create a disk array with different characteristics, highlight Create New
Array and press Enter. Repeat the steps above specifying different
parameters.
If you have both Hard Disk Drives (HDD) and Solid State Drives (SSD),
separate disk arrays will be created for your HDDs and for your SSDs. Each
array will have the number of logical drives that you specified.
150
Chapter 5: Management with the CLU
Creating a Disk Array – Advanced
For more information on the choices below, see “Chapter 8: Technology
Background” on page 233.
To create a disk array:
1.
From the Main Menu, highlight Disk Array Management and press Enter.
2.
Highlight Create New Array and press Enter.
3.
Highlight Configuration Method and press the spacebar to toggle to
Advanced.
4.
Choose whether to enable Media Patrol and PDM.
5.
If you want to specify an alias to the disk array, highlight Alias and type a
name.
Maximum of 32 characters. Use letters, numbers, space between words and
underscore.
6.
Highlight Save Settings and Continue and press Enter.
7.
Highlight a physical drive you want to add to your array and press the
spacebar to choose it.
Repeat this action until you have selected all the physical drives for your
array.
Note that you cannot mix HDDs and SSDs in the same disk array.
8.
Highlight Save Settings and Continue and press Enter.
9.
If you want to specify an alias to the logical drive, highlight Alias and type a
name.
Maximum of 32 characters. Use letters, numbers, space between words and
underscore.
10. Highlight RAID Level and press the spacebar to toggle though a list of
available RAID levels.
11. If you want to create multiple logical drives, highlight Capacity, press the
backspace key to remove the current value, then type a new smaller value.
12. Highlight Number of Axles and press the spacebar to choose the number of
axles. Applies to RAID 50 and 60 only.
13. Highlight Stripe and press the spacebar to toggle through stripe sizes and
choose 64 KB, 128 KB, 256 KB, 512 KB, or 1 MB.
14. Highlight Sector and press the spacebar to toggle through sector sizes and
choose 512 B, 1 KB, 2 KB, or 4 KB.
15. Highlight Write Policy and press the spacebar to toggle write cache policy
between WriteBack and WriteThru (write though).
16. Highlight Read Policy and press the spacebar to toggle read cache policy
though ReadCache, ReadAhead, and NoCache.
151
VessRAID 1000s Series Product Manual
17. Highlight Save Logical Drive and press Enter.
18. Review logical drive(s) you are about to create for your new array. Then do
one of the following actions:
•
If you agree with the logical drive(s) as specified, highlight Complete
Disk Array Creation and press Enter. A note will appear to remind you to
set up LUN mapping for your new logical drive(s). Press any key to
continue.
•
If you specified less than the full capacity for the logical drive in the
previous screen, and you want to add another logical drive now,
highlight Create New Logical Drive and press Enter.
•
If you do not agree with the logical drive(s), highlight Return to Previous
Screen and press Enter to begin the process again.
Deleting a Disk Array
Caution
When you delete a disk array, you delete all the logical drives and
the data they contain. Back up all important data before deleting a
disk array.
1.
From the Main Menu, highlight Disk Array Management and press Enter.
2.
Highlight the disk array you want to delete and press the spacebar to mark it.
The mark is an asterisk (*) to the left of the listing.
3.
Highlight Delete Marked Arrays and press Enter.
4.
Press Y to confirm the deletion.
Viewing Disk Array Information
1.
2.
From the Main Menu, highlight Disk Array Management and press Enter.
Highlight the disk array you want and press Enter.
The information and settings screen appears.
3.
Highlight any of the following and press Enter to view a list of:
•
Spare drives in this array, dedicated and global
•
Physical drives in this array
•
Logical drives in this array
Disk Array Operational Status
•
OK – The normal state of a disk array. For RAID Levels other than RAID 0
(Striping), the disk array has full redundancy.
152
Chapter 5: Management with the CLU
•
Synchronizing – When you first create a disk array, the disk array
synchronizes. During that time, your data is available. However, access will
be slower until synchronizing is done.
•
Critical/Degraded – This condition results from a physical drive failure. Your
data is still available. However, the disk array has lost redundancy (fault
tolerance). You must determine the cause of the problem and correct it. See
“Critical & Offline Disk Arrays” on page 290.
•
Rebuilding – This condition is temporary. When a physical drive has been
replaced, the disk array automatically begins rebuilding in order to restore
redundancy (fault tolerance). Your data is still available. However, access will
be slower until rebuilding is done.
•
Transport Ready – The result of a successful Prepare for Transport
operation. You remove the physical drives of this disk array and move them
to another enclosure or to different drive slots in the same enclosure. After
you relocate the physical drives, the disk array status will show OK.
Setting an Alias for a Disk Array
This function sets an alias for the disk array. To set an alias:
1.
From the Main Menu, highlight Disk Array Management and press Enter.
2.
Highlight the disk array you want and press Enter.
3.
To set an alias for this disk array, highlight Alias and type an alias into the
field.
Maximum of 32 characters. Use letters, numbers, space between words and
underscore. An alias is optional.
4.
Press Ctrl-A to save your settings.
Accepting an Incomplete Array
This condition is the result of a missing physical drive. See “Incomplete Array” on
page 293 before you use this function.
To accept an incomplete array:
1.
From the Main Menu, highlight Disk Array Management and press Enter.
2.
Highlight the disk array you want and press Enter.
3.
Highlight Accept Incomplete Array and press Enter.
153
VessRAID 1000s Series Product Manual
Enabling Media Patrol on a Disk Array
Media Patrol checks the magnetic media on physical drives.
To enable or disable Media Patrol:
1.
From the Main Menu, highlight Disk Array Management and press Enter.
2.
Highlight the disk array you want and press Enter.
3.
Highlight Media Patrol and press the spacebar to toggle between Enable and
Disable.
4.
Press Ctrl-A to save your settings.
Enabling PDM on a Disk Array
This function enables and disables Predictive Data Migration (PDM).
To enable or disable PDM:
1.
From the Main Menu, highlight Disk Array Management and press Enter.
2.
Highlight the disk array you want and press Enter.
3.
Highlight PDM and press the spacebar to toggle between Enable and
Disable.
4.
Press Ctrl-A to save your settings.
See “Running PDM” on page 156.
Preparing the Disk Array for Transport
To run the Transport function on a disk array:
1.
From the Main Menu, highlight Disk Array Management and press Enter.
2.
Highlight the disk array you want and press Enter.
3.
Highlight Transport and press Enter.
4.
Press Y to confirm.
Rebuilding a Disk Array
Before you can rebuild, you must have a replacement physical drive of adequate
capacity or your disk array. To rebuild a disk array:
1.
From the Main Menu, highlight Disk Array Management and press Enter.
2.
Highlight the disk array you want and press Enter.
3.
Highlight Background Activities and press Enter.
4.
Highlight Rebuild and press Enter.
5.
Specify the source and target physical drives.
154
Chapter 5: Management with the CLU
The available drives are either HDD or SSD, depending on the type of drives
in the array.
6.
Highlight Start and press Enter.
Migrating a Disk Array
In order to migrate RAID level, you may have to add physical drives. For more
information, see “RAID Level Migration” on page 252.
To migrate a disk array:
1.
From the Main Menu, highlight Disk Array Management and press Enter.
2.
Highlight the disk array you want and press Enter.
3.
Highlight Background Activities and press Enter.
4.
Highlight Migration and press Enter.
5.
Highlight the physical drive you want to add and press the spacebar to
choose it.
The available drives are either HDD or SSD, depending on the type of drives
in the array.
Repeat this action to add more physical drives.
Notes
6.
•
You can add physical drives to a RAID 50 or 60 array but you
cannot change the number of axles.
•
If you add an odd number of physical drives to a RAID 10
array, it will become a RAID 1E array by default.
Highlight Save Settings and Continue and press Enter.
7.
To change RAID level, Highlight the logical drive in the list and press Enter.
8.
Highlight RAID Level and press the spacebar to toggle through the available
RAID levels.
9.
Optional. If you want to increase capacity, highlight Expand Capacity and
press the spacebar to toggle to Yes.
10. Optional. If you want to increase capacity, highlight Capacity, press the
backspace key to erase the current logical drive capacity and type in the new
value.
The new value must be equal or larger than the current capacity.
11. Highlight Save Logical Drive and press Enter.
The screen returns to Disk Array Migration Logical Drives.
12. Highlight Complete Disk Array Migration and press Enter.
13. In the confirmation message, press Y to confirm.
155
VessRAID 1000s Series Product Manual
The screen jumps to Disk Arrays Summary.
Running PDM
Be sure PDM must be enabled. See “Enabling PDM on a Disk Array” on
page 154.
To run Predictive Data Migration on a disk array:
1.
From the Main Menu, highlight Disk Array Management and press Enter.
2.
Highlight the disk array you want and press Enter.
3.
Highlight Background Activities and press Enter.
4.
Highlight Predictive Data Migration and press Enter.
5.
Specify the source and target physical drives.
The available drives are either HDD or SSD, depending on the type of drives
in the array.
6.
Highlight Start and press Enter.
Running Transition on a Disk Array
Transition is the process of replacing a revertible spare drive that is currently part
of a disk array with an unconfigured physical drive or a non-revertible spare drive.
For more information, see “Transition” on page 261.
In order to run Transition:
•
The spare drive must be Revertible.
•
You must have an unconfigured physical drive of the same or larger capacity,
and the same type, HDD or SSD, to replace the spare drive.
To run Transition on a disk array:
1.
From the Main Menu, highlight Disk Array Management and press Enter.
2.
Highlight the disk array you want and press Enter.
3.
Highlight Background Activities and press Enter.
4.
Highlight Transition and press Enter.
5.
Specify the source and target physical drives.
The available drives are either HDD or SSD, depending on the type of drives
in the array.
6.
Highlight Start and press Enter.
Locating a Disk Array
This feature helps you identify the physical drives assigned to the disk array you
are working with in the CLU.
156
Chapter 5: Management with the CLU
To locate a disk array:
1.
From the Main Menu, highlight Disk Array Management and press Enter.
2.
Highlight the disk array you want and press Enter.
3.
Highlight Locate Disk Array and press Enter.
The disk status LEDs for the physical drives in the disk array blink for one
minute.
Figure 8. Disk Status LED
Disk Status
Creating a Logical Drive
You can create logical drives on existing disk arrays if there is available space in
the array. For more information on the choices below, see “Chapter 8:
Technology Background” on page 233.
To create a logical drive from an existing disk array:
1.
From the Main Menu, highlight Disk Array Management and press Enter.
2.
Highlight the disk array in which you want to create a logical drive and press
Enter.
3.
Highlight Create New Logical Drive and press Enter.
The Disk Array ID number and Maximum capacity available for the new
logical drive are displayed.
4.
5.
Highlight the following parameters and press the backspace key to erase the
current value:
•
Alias – Type an alias into the field, if desired. Maximum of 32
characters. Use letters, numbers, space between words and
underscore.
•
Capacity – Maximum capacity shown. Enter a smaller capacity if
desired.
Highlight the following parameters and press the spacebar to toggle though
the available choices:
•
Stripe size – Press the spacebar to choose: 64 KB, 128 KB, 256 KB,
512 KB, or 1 MB
•
Sector size – Press the spacebar to choose: 512 B; 1 KB, 2 KB, or 4 KB
157
VessRAID 1000s Series Product Manual
•
Write Policy – Press spacebar to choose: Write Back or Write Through
•
Read Policy – Press spacebar to choose: No Cache, Read Cache, or
Read Ahead Cache
6.
Highlight Number of Axles and press the spacebar to choose the number of
axles. Applies to RAID 50 and 60 only.
7.
Press Ctrl-A to save your settings.
Note
If you did not use all of the available capacity of the disk array, you
can create an additional logical drive at this point.
Deleting a Logical Drive
Caution
When you delete a logical drive, you delete all the data it contains.
Back up all important data before deleting a logical drive.
To delete a logical drive from a disk array:
1.
From the Main Menu, highlight Disk Array Management and press Enter.
2.
Highlight the disk array that contains the logical drive you want to delete and
press Enter.
3.
Highlight the logical drive you want to delete and press the spacebar to mark
it.
The mark is an asterisk (*) to the left of the listing.
4.
Highlight Delete Marked Logical Drives and press Enter.
5.
Press Y to confirm the deletion.
158
Chapter 5: Management with the CLU
Managing Spare Drives
Spare Drive Management includes the following functions:
•
Viewing a list of Spare Drives (page 159)
•
Creating a Spare Drive (page 159)
•
Making Spare Drive Settings (page 160)
•
Running Spare Check (page 160)
•
Deleting a Spare Drive (page 161)
Viewing a list of Spare Drives
To view a list of spare drives:
From the Main Menu, highlight Spare Drive Management and press Enter.
A list of the current spare drives appears, including the following parameters:
•
ID number
•
Operational Status
•
Physical Drive ID number
•
Configured Capacity
•
Revertible – The spare drive returns to spare status after you replace
the failed drive in the disk array. See “Transition” on page 261 for more
information.
•
Type – Global (all disk arrays) or Dedicated (to specified disk arrays)
•
Dedicated to Array – The array to which a dedicated spare is assigned
Creating a Spare Drive
Only unconfigured physical drives can be used to make spares. Check your
available drives under Physical Drive Management. See “Managing Physical
Drives” on page 145.
1.
From the Main Menu, highlight Spare Drive Management and press Enter.
2.
Highlight Create New Spare Drive and press Enter.
3.
Highlight Physical Drive Number and press the backspace key to erase the
current value, then type the new value.
Specify the number of the physical drive you want for your spare. The
available drive numbers are in parentheses.
4.
Highlight Revertible and press the spacebar to toggle between Yes and No.
A revertible drive can be returned to spare status after you replace the failed
drive in a disk array. See “Transition” on page 261 for more information.
5.
Highlight Spare Type and press the spacebar to toggle between Dedicated
and Global.
159
VessRAID 1000s Series Product Manual
Dedicated means this spare drive can only be used with the specified disk
arrays. Global means this spare drive can be used by any disk array.
6.
If you chose Dedicated, highlight Dedicated to Arrays and press the
backspace key to erase the current value, then type the new value.
Specify the number(s) of the disk array(s) you want to assign your spare.
The current disk arrays are listed in parentheses.
A dedicated spare drive must be the same drive type, HDD or SSD, as the
drives in the assigned array.
7.
Press Ctrl-A to save the spare drive.
Making Spare Drive Settings
To change spare drive settings:
1.
From the Main Menu, highlight Spare Drive Management and press Enter.
A list of the current spare drives appears, including the following parameters:
2.
3.
Highlight the spare drive you want to change and press Enter.
Highlight the setting you want to change:
•
Revertible – A revertible drive can be returned to spare status after you
replace the failed drive in a disk array. See “Transition” on page 261 for
more information.
•
Type – Dedicated means this spare drive can only be used with the
specified disk array(s). Global means this spare drive can be used by
any disk array.
4.
Press the spacebar to toggle between the choices.
5.
For dedicated spares, type the array number the spare is assigned to.
6.
Press Ctrl-A to save your settings.
Running Spare Check
To run Spare Check:
1.
From the Main Menu, highlight Spare Drive Management and press Enter.
A list of the current spare drives appears.
2.
Highlight the spare drive you want to check and press Enter.
3.
Highlight Start Spare Check and press Enter.
The results appear next to Spare Check Status.
160
Chapter 5: Management with the CLU
Deleting a Spare Drive
Caution
If the spare drive you delete is the only spare, the controller will not
rebuild a critical array until you provide a new spare drive.
To delete a spare drive:
1.
From the Main Menu, highlight Spare Drive Management and press Enter.
A list of the current spare drives appears.
2.
Highlight the spare drive you want to delete and press the spacebar to mark
it.
The mark is an asterisk (*) to the left of the listing.
3.
Highlight Delete Marked Spare Drives and press Enter.
4.
Press Y to confirm the deletion.
161
VessRAID 1000s Series Product Manual
Managing Logical Drives
The Logical Drive Management function deals with settings and functions of
existing logical drives. To create or delete a logical drive, see “Managing Disk
Arrays” on page 148. Logical drive management includes:
•
Viewing Logical Drive Information (page 162)
•
Setting an Alias for a Logical Drive (page 162)
•
Setting Write Cache Policy (page 162)
•
Setting Read Cache Policy (page 163)
•
Initializing a Logical Drive (page 163)
•
Running Redundancy Check (page 164)
•
Locating a Logical Drive (page 164)
Viewing Logical Drive Information
To view logical drive information:
1.
2.
From the Main Menu, highlight Logical Drive Management and press Enter.
Highlight the logical drive you want and press Enter.
The information and settings screen appears.
3.
Highlight any of the following and press Enter to view more information:
•
Check Table – Read Check, Write Check, and Inconsistency Check
Tables
•
Logical Drive Statistics
Setting an Alias for a Logical Drive
To set an alias for a logical drive:
1.
From the Main Menu, highlight Logical Drive Management and press Enter.
2.
Highlight the logical drive you want and press Enter.
3.
To set an alias for this disk array, highlight Alias and type an alias into the
field.
Maximum of 32 characters. Use letters, numbers, space between words and
underscore. An alias is optional.
4.
Press Ctrl-A to save your settings.
Setting Write Cache Policy
To set write cache policy on a logical drive:
1.
From the Main Menu, highlight Logical Drive Management and press Enter.
2.
Highlight the logical drive you want and press Enter.
162
Chapter 5: Management with the CLU
3.
To set write cache policy for this logical drive, highlight WritePolicy and press
the spacebar to toggle between WriteBack and WriteThru (write though).
4.
Press Ctrl-A to save your settings.
Setting Read Cache Policy
To set read cache policy on a logical drive:
1.
From the Main Menu, highlight Logical Drive Management and press Enter.
2.
Highlight the logical drive you want and press Enter.
3.
To set read cache policy for this logical drive, highlight ReadPolicy and press
the spacebar to toggle though ReadCache, ReadAhead and None.
4.
Press Ctrl-A to save your settings.
Initializing a Logical Drive
This function sets all data bits in the logical drive to zero.
Caution
When you initialize a logical drive, you delete all the data it
contains. Back up all important data before initializing a logical
drive.
To initialize a logical drive:
1.
From the Main Menu, highlight Logical Drive Management and press Enter.
2.
Highlight the logical drive you want and press Enter.
3.
Highlight Background Activity and press Enter.
4.
Highlight Start Initialization and press Enter.
The initialization parameters appear.
•
Initialization pattern – The default 00000000 is best for most
applications
•
Quick Initialization – Yes means only the first and last sections of the
logical drives are initialized. No means the entire logical drive is
initialized.
•
Quick Initialization Size – Enter a value for the first and last sections of
the logical drive to be initialized or use the default 64 MB.
To change a parameter, highlight it and press the backspace key to erase the
current value, then type the new value.
5.
Highlight Start and press Enter.
If necessary, you can pause and resume or stop and restart the Initialization.
You cannot access the logical drive until Initialization has finished.
163
VessRAID 1000s Series Product Manual
Running Redundancy Check
Redundancy Check is a maintenance procedure for logical drives in fault-tolerant
disk arrays that ensures all the data matches exactly. To run Redundancy Check:
1.
From the Main Menu, highlight Logical Drive Management and press Enter.
2.
Highlight the logical drive you want and press Enter.
3.
Highlight Background Activity and press Enter.
4.
Highlight Start Redundancy Check and press Enter.
The redundancy check parameters appear.
•
Auto Fix – Corrects inconsistencies automatically
•
Pause On Error – Pauses the Redundancy Check when an error is
found
To change a parameter, highlight it and press the backspace toggle between
Yes and No.
5.
Highlight Start and press Enter.
If necessary, you can pause and resume or stop and restart the Redundancy
Check. You can use the logical drive while Redundancy Check is running.
Locating a Logical Drive
This feature helps you identify the physical drives assigned to the logical drive
you are working with in the CLU. To locate a logical drive:
1.
From the Main Menu, highlight Logical Drive Management and press Enter.
2.
Highlight the disk array you want and press Enter.
3.
Highlight Locate Logical Drive and press Enter.
The disk status LEDs for the physical drives in this logical drive blink for one
minute.
Figure 9. Disk Status LED
Disk Status
164
Chapter 5: Management with the CLU
Managing the Network Connection
The network connection deals with the VessRAID’s Management Port.
•
Making Management Port Settings (below)
Making Management Port Settings
When you log into the VessRAID over your network, you use the VessRAID’s
management port.
Before you change settings, please see “Choosing DHCP or a Static IP Address”
on page 26.
Making Automatic Settings
1.
From the Main Menu, highlight Network Management and press Enter.
2.
Highlight the management port and press Enter.
3.
Highlight NetMgmt Ethernet Port Settings and press Enter
4.
Highlight DHCP and press the spacebar to toggle to Enabled.
5.
Press Ctrl-A to save your settings.
Making Manual Settings
1.
From the Main Menu, highlight Network Management and press Enter.
2.
Highlight the management port and press Enter.
3.
Highlight NetMgmt Ethernet Port Settings and press Enter
4.
Highlight DHCP and press the spacebar to toggle to Disabled.
5.
Highlight each of the following and press the backspace key to erase the
current value, then type the new value.
6.
•
IP Address
•
Subnet Mask
•
Default Gateway IP Address
•
DNS Server IP Address
Press Ctrl-A to save your settings.
165
VessRAID 1000s Series Product Manual
Managing SAS Connections
SAS connections deal with the VessRAID’s two host data ports.
•
Viewing SAS Port Information (page 166)
•
Making SAS Port Settings (page 166)
•
Viewing SAS Port Statistics (page 167)
•
Viewing SAS Initiators (page 167)
•
Adding a SAS Initiator (page 167)
Viewing SAS Port Information
There are two SAS data ports on the controller. To view information about the
SAS ports:
1.
From the Main Menu, highlight SAS Management and press Enter.
2.
Highlight SAS Ports and press Enter.
3.
Highlight the port you want to see and press Enter.
The port information appears on the screen.
Adjustable Items
•
Cable Signal Strength
See “Making SAS Port Settings” on page 166.
Making SAS Port Settings
There are two SAS data ports on the controller. To make settings to the SAS
ports:
1.
From the Main Menu, highlight SAS Management and press Enter.
2.
Highlight SAS Ports and press Enter.
3.
Highlight the port you want to see and press Enter.
4.
Highlight SAS Port Settings and press Enter.
5.
Highlight Cable Signal Strength, press the backspace key to erase the
current value, then type in the new value.
The range is 1 to 8. 1 is the default. Signal strength correlates to cable length
in meters. Example: If you have a 2 m SAS cable, set signal strength to 2. If
performance is unsatisfactory (see “Viewing SAS Port Statistics” on
page 167), try settings of 1 and 3, then use the best setting for your system.
6.
Press Ctrl-A to save your settings.
166
Chapter 5: Management with the CLU
Viewing SAS Port Statistics
There are two SAS data ports on the controller. To view information about the
SAS ports:
1.
From the Main Menu, highlight SAS Management and press Enter.
2.
Highlight SAS Ports and press Enter.
3.
Highlight the port you want to see and press Enter.
4.
Highlight SAS Port Statistics and press Enter.
The statistics for the selected port appear on the screen.
Viewing SAS Initiators
There are two SAS data ports on the controller. To a view a list of initiators
currently logged either of the SAS ports:
1.
From the Main Menu, highlight SAS Management and press Enter.
2.
Highlight SAS Initiators and press Enter.
A list of all currently logged-in initiators appears on the screen.
Adding a SAS Initiator
You must add an initiator to the VessRAID’s initiator list in order to use the
initiator to create a LUN for your logical drive.
To add an initiator:
1.
From the Main Menu, highlight SAS Management and press Enter.
2.
Highlight SAS Initiators and press Enter.
3.
Highlight the initiator you want to add and press the spacebar to choose it.
4.
Highlight Add Marked Initiators and press Enter.
The initiator is added to VessRAID’s initiator list.
167
VessRAID 1000s Series Product Manual
Managing Background Activity
Background activity refers to any of several functions that take place in the
background while normal operation of the VessRAID continues.
Background activities work in conjunction with disk arrays and logical drives. See
“Managing Disk Arrays” on page 148 and “Managing Logical Drives” on page 162
for more information about how and when to use background activities.
Background Activity Management includes the following functions:
•
Viewing Current Background Activities (page 168)
•
Making Background Activity Settings (page 168)
Viewing Current Background Activities
From the Main Menu, highlight Background Activity and press Enter. A count of
current background activities appears, including:
•
Rebuild
•
PDM (Predictive Data Migration)
•
Synchronization
•
Redundancy Check
•
Migration
•
Transition
•
Initialization
•
Media Patrol
Making Background Activity Settings
1.
From the Main Menu, highlight Background Activity and press Enter.
2.
Highlight Background Activity Settings and press Enter.
3.
Highlight following and press the spacebar to toggle between Enabled and
Disabled.
4.
•
Media Patrol – Checks the magnetic media on physical drives
•
Auto Rebuild – If there is a spare drive of adequate capacity, a critical
disk array will begin to rebuild automatically. If not spare drive is
available, the disk array will begin to rebuild as soon as you replace the
failed physical drive with an unconfigured physical drive of equal or
greater size.
Highlight following and press the spacebar to toggle through Low, Medium,
and High rates:
•
Rebuild – Checks the data integrity on disk arrays
•
Migration – Change RAID level or add physical dries to disk arrays
168
Chapter 5: Management with the CLU
•
PDM – Looks for bad blocks on the physical drives of disk arrays
•
Transition – Returns a revertible spare drive to spare status
•
Synchronization – Checks the data integrity on disk arrays
•
Initialization – Sets all data bits in the logical drive to zero
•
Redundancy Check – Checks, reports and can correct data
inconsistencies in logical drives
The rates are defined as follows:
5.
6.
•
Low – Fewer resources to activity, more to data read/write.
•
Medium – Balance of resources to activity and data read/write.
•
High – More resources to activity, fewer to data read/write.
Highlight the following PDM trigger settings and press the backspace key to
erase the current value:
•
Reassigned Block Threshold – 1 to 512 blocks
•
Error Block Threshold – 1 to 1024 blocks
Press Ctrl-A to save your settings.
169
VessRAID 1000s Series Product Manual
Working with the Event Viewer
The Event Viewer displays log of subsystem events. Events are classified as:
•
Runtime Events – A list of and information about the 1023 most recent
runtime events recorded since the subsystem was started
•
NVRAM Events – A list of and information about most important events over
multiple subsystem startups. NVRAM events are stored in non-volatile
memory
Working with the Event Viewer includes the following functions:
•
Viewing Runtime Events (page 170)
•
Clearing Runtime Events (page 170)
•
Viewing NVRAM Events (page 170)
•
Clearing NVRAM Events (page 171)
Viewing Runtime Events
To display Runtime Events:
1.
From the Main Menu, highlight Event Viewer and press Enter.
The log of Runtime Events appears. Events are added to the top of the list.
Each item includes:
2.
•
Sequence number – Begins with 0 at system startup.
•
Device – Disk Array, Logical Drive, Physical Drive by its ID number.
•
Severity – (lowest to highest) Information, Warning, Minor, Major,
Critical and Fatal
•
Timestamp – Date and time the event happened.
•
Description – A description of the event in plain language.
Press the up and down arrow keys to scroll through the log.
Clearing Runtime Events
To clear the Runtime Event log:
1.
From the Main Menu, highlight Event Viewer and press Enter.
2.
Highlight Clear Runtime Event Log and press Enter.
3.
Press Y to confirm.
Viewing NVRAM Events
This screen displays a list of and information about 63 most important events
over multiple subsystem startups.
170
Chapter 5: Management with the CLU
To display NVRAM events:
1.
From the Main Menu, highlight Event Viewer and press Enter.
2.
Highlight NVRAM Events and press Enter.
The log of NVRAM Events appears. Events are added to the top of the list.
Each item includes:
3.
•
Sequence number – Begins with 0 at system startup.
•
Device – Disk Array, Logical Drive, Physical Drive by its ID number.
•
Severity – (lowest to highest) Information, Warning, Minor, Major,
Critical and Fatal
•
Timestamp – Date and time the event happened.
•
Description – A description of the event in plain language.
Press the up and down arrow keys to scroll through the log.
Clearing NVRAM Events
To clear the Runtime Event log:
1.
From the Main Menu, highlight Event Viewer and press Enter.
2.
Highlight NVRAM Events and press Enter.
3.
Highlight Clear NVRAM Event Log and press Enter.
4.
Press Y to confirm.
171
VessRAID 1000s Series Product Manual
Working with LUN Mapping
LUN Mapping includes the following functions:
•
Viewing a List of Initiators (page 172)
•
Enabling LUN Mapping (page 172)
•
Creating an Initiator (page 172)
•
Mapping a LUN to an Initiator (page 173)
•
Deleting an Initiator (page 173)
Viewing a List of Initiators
LUN Mapping must be enabled in order for VessRAID to recognize a Fibre
Channel or SAS initiator. To view a list of initiators:
1.
2.
From the Main Menu, highlight Additional Info and Management and press
Enter.
Highlight LUN Mapping and press Enter.
A list of the current initiators appears.
Enabling LUN Mapping
To enable LUN mapping:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight LUN Mapping and press Enter.
A list of the current Fibre Channel or SAS initiators appears.
LUN Mapping must be enabled in order for VessRAID to recognize the initiator. If
LUN Mapping is currently disabled, highlight Enable LUN Mapping and press
Enter.
Creating an Initiator
You must add an initiator to the VessRAID’s initiator list in order to use the
initiator to create a LUN. You can also add initiators under SAS Management,
see page 167.
To create (add) a new initiator:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight LUN Mapping and press Enter.
3.
Highlight Create New Initiator and press Enter.
4.
Type the name of the initiator.
172
Chapter 5: Management with the CLU
A SAS initiator name is the SAS address of the HBA card in the Host PC.
Obtain the initiator name from the initiator utility on your host system.
Note that the initiator name you input must match exactly in order for the
connection to work.
5.
Press Ctrl-A to save the initiator.
Note
LUN Mapping must be enabled in order for VessRAID to
recognize the initiator.
Mapping a LUN to an Initiator
You must add an initiator to the VessRAID’s initiator list in order to use the
initiator to create a LUN. You can add initiators under SAS Management, see
page 167, or under “Creating an Initiator” on page 172.
To map a LUN to an initiator:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight LUN Mapping and press Enter.
3.
Highlight an existing Initiator and press Enter.
A list of logical drives displays.
4.
In the LUN field, press the backspace key to erase the current value, then
type the LUN you want to assign to this initiator, from 0 to 255.
If you make a error, press Ctrl-R to restore the current LUN.
5.
Press Ctrl-A to save the LUN map.
Deleting an Initiator
To delete an initiator:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight LUN Mapping and press Enter.
3.
Highlight the initiator you want to delete and press the spacebar to mark it.
The mark is an asterisk (*) to the left of the listing.
4.
Highlight Delete Marked Initiators and press Enter.
5.
Press Y to confirm the deletion.
173
VessRAID 1000s Series Product Manual
Managing UPS Units
Uninterruptible Power Supply (UPS) Management includes the following
functions:
•
Viewing a List of UPS Units (below)
•
Making UPS Settings (page 175)
•
Viewing UPS Information (page 176)
Viewing a List of UPS Units
To view a list of UPS units supporting the VessRAID:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight UPS Management and press Enter.
Information in the UPS List includes:
•
UPS ID – Click the ID number to view the UPS Tab.
•
Operational Status – OK means Normal.
On AC means the UPS is connected to a viable external AC power
source.
On Battery means the external AC power source is offline and the UPS
is running on battery power.
•
Model Name or Number
•
Capacity – Backup capacity expressed as a percentage.
•
Loading – Actual output of UPS as a percentage of the rated output.
See the Note below.
•
Remaining Minutes – Number of minutes the UPS is expected to power
your system in the event of a power failure.
Note
The maximum recommended Loading Ratio varies among models
of UPS units. The general range is 60% to 80%. If the reported
Loading Ratio exceeds the recommended value for your UPS unit:
•
Have fewer subsystems or peripherals connected to this UPS
unit.
•
Add more UPS units, or use a higher-capacity UPS unit, to
protect your RAID systems.
174
Chapter 5: Management with the CLU
Making UPS Settings
These settings control how the VessRAID subsystem detects the UPS unit and
responds to data reported by the UPS unit.
To make UPS settings:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight UPS Management and press Enter.
3.
Highlight UPS Settings and press Enter.
4.
Perform the following actions as required:
•
•
•
•
5.
Verify the Current UPS Communication method:
•
USB – USB connection.
•
Unknown – No connection.
Choose a Detection Setting from the dropdown menu:
•
Automatic – Default. If a UPS is detected when the subsystem
boots, the setting changes to Enable.
•
Enable – Monitors UPS. Settings changes, reports warnings, and
logs events.
•
Disable – Monitors UPS only.
Choose an Action Mode from the dropdown menu:
•
Shutdown - Shuts down the subsystem when a Threshold value is
exceeded.
•
None – No additional action when Threshold value is exceeded.
Type values into the Threshold fields. See Note 1:
•
Running Time Remaining Threshold – Actual time below this value
resets adaptive writeback cache to writethrough.
•
Warning Temperature Threshold – Actual temperature above this
value triggers a warning and logs an event.
•
Loading Ratio Threshold – Actual loading ratio (percentage) above
this threshold triggers a warning and logs an event. See Note 2.
•
Battery Charge Remaining Threshold – Reserve capacity below
this percentage triggers a warning and logs an event.
Press Ctrl-A to save your settings.
175
VessRAID 1000s Series Product Manual
Figure 1.
Notes
1. Detection Setting must be set to Auto. If a UPS is detected, the
setting changes to Enable.
2. The maximum recommended Loading Ratio varies among
models of UPS units. The general range is 60% to 80%.
Viewing UPS Information
To view information about a specific UPS unit:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight UPS Management and press Enter.
3.
Highlight the UPS unit you want and press Enter.
UPS information includes:
•
Voltage Rating – Output voltage of the UPS.
•
Battery Capacity – Backup capacity expressed as a percentage.
•
Remaining Backup Time – Number of minutes the UPS is expected to
power your system in the event of a power failure.
•
Loading Ratio – Actual output of UPS as a percentage of the rated
output. See the Note below.
Note
The maximum recommended Loading Ratio varies among models
of UPS units. The general range is 60% to 80%. If the reported
Loading Ratio exceeds the recommended value for your UPS unit:
•
Have fewer subsystems or peripherals connected to this UPS
unit.
•
Add more UPS units, or use a higher-capacity UPS unit, to
protect your RAID systems.
176
Chapter 5: Management with the CLU
Managing Users
User Management includes the following functions:
•
Viewing User Information (page 177)
•
Creating a User (page 177)
•
Changing a User’s Password (page 178)
•
Changing a User’s Display Name and Email Address (page 178)
•
Changing a User’s Privilege and Status (page 179)
•
Deleting a User (page 179)
Viewing User Information
Each user types their user name and password to log into the CLI.
To view a list of current user accounts:
1.
2.
From the Main Menu, highlight Additional Info and Management and press
Enter.
Highlight User Management and press Enter.
A list of the current users appears.
Creating a User
To create a new user account:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight User Management and press Enter.
3.
Highlight Create New User and press Enter.
4.
Highlight each field and type in the appropriate information:
5.
•
User name (no spaces)
•
Password (Optional. Maximum 31 characters. Use letters, numbers,
and underscore)
•
Display name (Optional)
Highlight Privilege and press the space bar to toggle though the options:
For definitions of each privilege level, see the List of User Privileges below.
6.
7.
Highlight Status and press the space bar to toggle between the options:
•
Enabled – Allows the user to log in to the system
•
Disabled – Prevents the user from logging in to the system
Press Ctrl-A to save the user.
177
VessRAID 1000s Series Product Manual
List of User Privileges
•
View – Allows the user to see all status and settings but not to make any
changes
•
Maintenance – Allows the user to perform maintenance tasks including
Rebuilding, PDM, Media Patrol, and Redundancy Check
•
Power – Allows the user to create (but not delete) disk arrays and logical
drives, change RAID levels, change stripe size; change settings of
components such as disk arrays, logical drives, physical drives, and the
controller.
•
Super – Allows the user full access to all functions including create and
delete users and changing the settings of other users, and delete disk arrays
and logical drives. The default “administrator” account is a Super User.
Changing a User’s Password
Each user can change their own password. A Super user can change other
user’s passwords. To change a user’s password:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight User Management and press Enter.
3.
Highlight a User in the list and press Enter.
4.
Highlight Change Password... and press Enter.
5.
Highlight New Password and type a password.
Maximum 31 characters. Use letters, numbers, and underscore.
6.
Highlight Retype Password and type the password again to verify.
7.
Press Ctrl-A to save the password.
Changing a User’s Display Name and Email Address
Each user can change their display name and email address. To change a
display name or email address:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight User Management and press Enter.
3.
Highlight a User in the list and press Enter.
4.
Highlight Display Name and press Enter.
5.
Highlight the items you want and press the backspace key to erase the
current value, then type the new value:
•
User name
•
Email address
178
Chapter 5: Management with the CLU
6.
Press Ctrl-A to save the settings.
Changing a User’s Privilege and Status
No user can change their own privilege or status. To change another user’s
privilege or status.
1.
Log in as the Administrator or a Super user.
2.
From the Main Menu, highlight Additional Info and Management and press
Enter.
3.
Highlight User Management and press Enter.
4.
Highlight a User in the list and press Enter.
5.
Highlight Display Name and press Enter.
6.
Highlight Privilege and press the space bar to toggle though the options:
For definitions of each privilege level, see “List of User Privileges” on
page 178.
7.
8.
Highlight Status and press the space bar to toggle between the options:
•
Enabled – Allows the user to log in to the system
•
Disabled – Prevents the user from logging in to the system
Press Ctrl-A to save the settings.
Deleting a User
To delete a user:
1.
Log in under a user name other than the one you want to delete.
2.
From the Main Menu, highlight Additional Info and Management and press
Enter.
3.
Highlight User Management and press Enter.
4.
Highlight the user you want to delete and press the spacebar to mark it.
The mark is an asterisk (*) to the left of the listing.
5.
Highlight Delete Marked Users and press Enter.
6.
Press Y to confirm the deletion.
179
VessRAID 1000s Series Product Manual
Working with Software Management
Software Management includes the following functions:
•
Making Email Settings (page 180)
•
Making SLP Settings (page 181)
•
Making Web Server Settings (page 181)
•
Making Telnet Settings (page 182)
•
Making SNMP Settings (page 182)
•
Managing SNMP Trap Sinks (page 183)
•
Making Netsend Settings (page 184)
•
Managing Netsend Recipients (page 184)
Making Email Settings
By default, Email service is set to Automatic and its normal status is Started.
To make Email service settings:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Software Management and press Enter.
3.
Highlight Email and press Enter.
4.
Highlight Startup Type and press the spacebar to toggle between Automatic
and Manual.
5.
Highlight the following and press the backspace key to erase the current
value, then type the new value:
6.
•
Server IP address
•
Server Port number (25 is the default)
Highlight Authentication and press the spacebar to toggle between Yes and
No.
If you selected Yes, type in a User name and Password in the fields
provided.
7.
8.
The following items are optional but recommended. Highlight and press the
backspace key to erase the current value, then type the new value:
•
Sender’s email address
•
Subject Line for the email message
Press Ctrl-A to save your settings.
To start, stop or restart the Email service, highlight Start, Stop or Restart and
press Enter.
180
Chapter 5: Management with the CLU
Making SLP Settings
By default, SLP service is set to Automatic and its normal status is Started.
To make SLP service settings:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Software Management and press Enter.
3.
Highlight SLP and press Enter.
4.
Highlight Startup Type and press the spacebar to toggle between Automatic
and Manual.
5.
Press Ctrl-A to save your settings.
To start, stop or restart the SLP service, highlight Start, Stop, or Restart and press
Enter.
Making Web Server Settings
By default, Web Server service is set to Automatic and its normal status is
Started.
To make Web Server service settings:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Software Management and press Enter.
3.
Highlight Web Server and press Enter.
4.
Highlight Startup Type and press the spacebar to toggle between Automatic
and Manual.
5.
Highlight the following and press the backspace key to erase the current
value, then type the new value:
•
HTTP Port (80 is the default)
•
Session Time Out (24 minutes is the default. 1440 minutes = 24 hours)
6.
Highlight SSL and press the spacebar to toggle between Enabled and
Disabled.
7.
Highlight HTTPS Port and press the backspace key to erase the current
value, then type the new value. 443 is the default.
8.
Press Ctrl-A to save your settings.
To start, stop or restart the Web Server service, highlight Start, Stop, or Restart
and press Enter.
181
VessRAID 1000s Series Product Manual
Making Telnet Settings
By default, Telnet service is set to Automatic and its normal status is Started. To
make Telnet service settings:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Software Management and press Enter.
3.
Highlight Telnet and press Enter.
4.
Highlight Startup Type and press the spacebar to toggle between Automatic
and Manual.
5.
Highlight the following and press the backspace key to erase the current
value, then type the new value:
6.
•
Port number (2300 is the default)
•
Session Time Out (24 minutes is the default. 1440 minutes = 24 hours)
•
Maximum number of connections (4 is the default)
Press Ctrl-A to save your settings.
To start, stop or restart the Telnet service, highlight Start, Stop, or Restart and
press Enter.
Making SNMP Settings
By default, SNMP (Simple Network Management Protocol) service is set to
Automatic and its normal status is Started.
To make SNMP service settings:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Software Management and press Enter.
3.
Highlight SNMP and press Enter.
4.
Highlight Startup Type and press the spacebar to toggle between Automatic
and Manual.
5.
Highlight the following and press the backspace key to erase the current
value, then type the new value:
•
Port Number – 161 is the default
•
System Name – (optional) Type a system name in this field
•
System Location – Type a country name in this field
•
System Contact – Type the email address of your system administrator
in this field
•
Read Community – Type a community name in this field
•
Write Community – private (no change possible)
182
Chapter 5: Management with the CLU
6.
Press Ctrl-A to save your settings.
To start, stop or restart the SNMP service, highlight Start, Stop, or Restart and
press Enter.
Managing SNMP Trap Sinks
Creating a SNMP trap sink
To create a trap sink:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Software Management and press Enter.
3.
Highlight SNMP and press Enter.
4.
Highlight Trap Sinks and press Enter.
A list of the current trap sinks appears.
Adding a trap sink
To add a trap sink:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Software Management and press Enter.
3.
Highlight Create New Trap Sink and press Enter
4.
Highlight Trap Sink IP address and press the backspace key to erase the
current value, then type the new IP address in this field.
5.
Highlight Trap Filter and press the spacebar to toggle through the severity
levels.
The Severity Levels are (lowest to highest) Information, Warning, Minor,
Major, Critical and Fatal.
6.
Press Ctrl-A to save the Trap Sink.
Deleting a trap sink
To delete a trap sink:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Software Management and press Enter.
3.
Highlight the trap sink you want to delete and press the spacebar to mark it.
The mark is an asterisk (*) to the left of the listing.
4.
Highlight Delete Marked Entries and press Enter.
183
VessRAID 1000s Series Product Manual
Making Netsend Settings
By default, Netsend service is set to Manual and its normal status is Stopped.
To make Netsend service settings:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Software Management and press Enter.
3.
Highlight Netsend and press Enter.
4.
Highlight Startup Type and press the spacebar to toggle between Automatic
and Manual.
5.
Press Ctrl-A to save your settings.
To start, stop or restart the Netsend service, highlight Start, Stop, or Restart and
press Enter.
Managing Netsend Recipients
Note that the Messenger service must be running on the recipient PC in order to
receive reports.
Adding a recipient
To add a recipient:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Software Management and press Enter.
1.
Highlight Netsend and press Enter.
2.
Highlight Message Recipient and press Enter.
3.
Highlight Create New Message Recipient and press Enter.
4.
Type the recipient’s IP address into the field provided.
5.
Highlight Message Event Severity Filter and press the spacebar to change
severity levels.
The selected level and all higher severity levels of severity will be reported.
Severity levels (from lowest to highest) are: Info, Warning, Minor, Major,
Critical, and Fatal.
6.
Press Ctrl-A to save your settings.
Changing Recipient Settings
To change recipient settings:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
184
Chapter 5: Management with the CLU
2.
Highlight Software Management and press Enter.
1.
Highlight the recipient whose settings you want to change and press Enter.
2.
Type the recipient’s IP address into the field provided.
3.
Highlight Message Event Severity Filter and press the spacebar to change
severity levels.
4.
Press Ctrl-A to save your settings.
Deleting a Recipient
To delete a recipient:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Software Management and press Enter.
1.
Highlight the recipient you want to delete and press the spacebar to mark it.
The mark is an asterisk (*) to the left of the listing
2.
Highlight Delete Marked Entries and press Enter.
Netsend Requirements
In order to use Netsend:
•
NetSend must be running the VessRAID
•
You must provide the IP address for each recipient PC
•
The Messenger service must be running on each recipient PC
If your Netsend and Messenger service settings are correct but the recipient PC
does not receive event messages, check the recipient PC’s Firewall settings.
Refer to your OS documentation for more information.
185
VessRAID 1000s Series Product Manual
Flashing through TFTP
See “Chapter 7: Maintenance” on page 219 for instructions.
Viewing Flash Image Information
Flash image information refers to the package of firmware components running
on your VessRAID controller, including:
•
Component name
•
Version number
•
Build date
•
Flash (installation) date
To view flash image information:
1.
From the Main Menu, highlight Additional Info and Management, and press
Enter.
2.
Highlight Flash Image Version Info and press Enter.
The flash image information displays on the screen.
Running Image Info – The firmware package currently running on the
controllers
Flashed Image Info – The firmware package flashed to memory
If the Running and Flashed Images do not match, the VessRAID has not
restarted since the firmware was last updated. Restart the VessRAID to run the
Flashed firmware package. See “Restarting the Subsystem” on page 191.
Note that all of these components are upgraded together in a package. See
“Updating the Firmware in the CLU” on page 222.
Clearing Statistics
This function clears the statistical counts for the RAID controller, SAS ports,
physical drives, and logical drives.
To clear statistics:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Clear Statistics and press Enter.
3.
Press Y to confirm the deletion.
186
Chapter 5: Management with the CLU
Restoring Factory Defaults
This function restores the factory default settings to the firmware and software
items you select.
Caution
Use this function with care. Do not restore to default settings for
any item unless you are sure this action is needed.
To restore factory default settings:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Restore Factory Defaults and press Enter.
3.
Highlight the setting group you want and press the spacebar to toggle
between Yes and No.
Yes means this setting will be restored to the default value.
4.
Highlight Restore Factory Defaults and press Enter.
5.
Press Y to confirm the reset.
187
VessRAID 1000s Series Product Manual
Shutting Down the Subsystem
There are two methods for shutting down the subsystem, depending on your
connection. Choose the applicable procedure:
•
Shutting down the VessRAID – Telnet Connection (page 188)
•
Shutting down the VessRAID – Serial Connection (page 189)
Important
If you have a JBOD Expansion, always power off the RAID
subsystem first. Then power off the JBOD subsystems.
Shutting down the VessRAID – Telnet Connection
This function enables you to shutdown the VessRAID subsystem on a Telnet
connection. You can only do part of this procedure in the CLU. Additional action is
required, as described below.
To shutdown the VessRAID:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Shutdown or Restart and press Enter.
3.
Highlight Shutdown or Restart and press Enter.
4.
5.
Do one of the following actions:
•
Highlight Option and press the spacebar to display Shutdown.
•
Highlight Option and press the spacebar to display Poweroff.
Highlight Submit and press Enter.
A warning message appears.
6.
Press Y to continue.
The screen goes blank.
7.
8.
Wait for no less than two minutes.
Do one of the following actions:
•
If you chose the Shutdown Option, manually turn off the power supply
switch (both switches with redundant power supplies) on the back of the
subsystem.
•
If you chose the Poweroff Option, the subsystem powers down
automatically. On subsystems with redundant power supplies, unplug
the power cords and plug them back in, to activate the power switches.
188
Chapter 5: Management with the CLU
•
Caution
After you power off the subsystem, wait at least 10 seconds before
you power on the subsystem again.
Shutting down the VessRAID – Serial Connection
This function enables you to shutdown the VessRAID subsystem on a serial
connection. You can only do part of this procedure in the CLU. Additional action is
required, as described below.
To shutdown the VessRAID:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Shutdown or Restart and press Enter.
3.
Highlight Shutdown or Restart and press Enter.
4.
5.
Do one of the following actions:
•
Highlight Option and press the spacebar to display Shutdown.
•
Highlight Option and press the spacebar to display Poweroff.
Highlight Submit and press Enter.
A warning message appears.
6.
Press Y to continue.
7.
When you see the following message:
Shutdown complete. It is now safe to power off the subsystem.
Do one of the following actions:
•
If you chose the Shutdown Option, manually turn off the power supply
switch (both switches with redundant power supplies) on the back of the
subsystem.
•
If you chose the Poweroff Option, the subsystem powers down
automatically. On subsystems with redundant power supplies, unplug
the power cords and plug them back in, to activate the power switches.
Caution
After you power off the subsystem, wait at least 10 seconds before
you power on the subsystem again.
189
VessRAID 1000s Series Product Manual
Starting Up After Shutdown
There are two methods for shutting down the subsystem. Choose one:
•
Starting up the VessRAID – Telnet Connection (page 190)
•
Starting up the VessRAID – Serial Connection (page 190)
Important
If you have a JBOD Expansion, always power on the JBOD
subsystems first. Then power on the RAID subsystem.
Starting up the VessRAID – Telnet Connection
To start the RAID subsystem:
1.
Manually turn on the power supply switches on the back of the subsystem.
If the switches are ON but the subsystem is OFF, turn the switches off and
on again.
On subsystems with redundant power supplies, if the power switches do not
respond, unplug the power cords and plug them back in. Try the power
switches again.
2.
Wait about two minutes.
3.
Establish a Telnet connection to the VessRAID.
See “Making a Telnet Connection” on page 131.
If you cannot log in, wait 30 seconds and try again.
4.
Type menu and press Enter to open the CLU.
Starting up the VessRAID – Serial Connection
To start the RAID subsystem:
1.
Manually turn on the power supply switches on the back of the subsystem.
If the switches are ON but the subsystem is OFF, turn the switches off and
on again.
On subsystems with redundant power supplies, if the power switches do not
respond, unplug the power cords and plug them back in. Try the power
switches again.
2.
3.
Wait about two minutes.
Establish a serial connection to the VessRAID.
See “Making a Serial Connection” on page 130.
When the Login: prompt appears, the start up is finished.
4.
Type menu and press Enter to open the CLU.
190
Chapter 5: Management with the CLU
Restarting the Subsystem
There are two methods for shutting down the subsystem, depending on your
connection. Choose the applicable procedure:
•
Restarting the Subsystem (page 191)
•
Restarting VessRAID – Serial Connection (page 191)
Note
If you have a JBOD Expansion, you are not required to restart the
JBOD subsystems when you restart the RAID subsystem.
Restarting VessRAID – Telnet Connection
This function enables you to restart the VessRAID subsystem on a Telnet
connection. You can only do part of this procedure in the CLU. Additional action is
required, as described below.
To restart the VessRAID:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Shutdown or Restart and press Enter.
3.
Highlight Option and press the spacebar to display Restart.
4.
Highlight Submit and press Enter.
A warning message appears.
5.
Press Y to continue.
The screen goes blank.
6.
Wait for no less than two minutes.
7.
Re-establish your Telnet connection to the VessRAID CLU.
If you cannot re-establish a connection, wait 30 seconds, then try again.
Restarting VessRAID – Serial Connection
This function enables you to restart the VessRAID subsystem on a serial
connection. You can only do part of this procedure in the CLU. Additional action is
required, as described below.
To restart the VessRAID:
1.
From the Main Menu, highlight Additional Info and Management and press
Enter.
2.
Highlight Shutdown or Restart and press Enter.
3.
Highlight Option and press the spacebar to display Restart.
191
VessRAID 1000s Series Product Manual
4.
Highlight Submit and press Enter.
A warning message appears.
5.
Press Y to continue.
The screen will display shutdown and startup functions.
6.
When the Login: prompt appears, log into the CLU again.
192
Chapter 5: Management with the CLU
Making Buzzer Settings
This function enables the buzzer on the controller. When you first power-up the
VessRAID, it beeps twice to show normal operation. To change buzzer settings:
1.
From the Main Menu, highlight Buzzer and press Enter.
A list of Controllers appears with the current buzzer setting and status.
2.
Highlight the Controller whose buzzer you want to set and press Enter.
3.
Highlight Enabled and press the spacebar to toggle between Yes and No.
4.
Press Ctrl-A to save your settings.
The buzzer provides the audible alarm. See “VessRAID is Beeping” on page 265.
193
VessRAID 1000s Series Product Manual
194
Chapter 6: Management with the LCD Panel
This chapter covers the following topics:
•
Using the LCD Panel (below)
•
Perusing the Interface (page 196)
•
Managing the Network Connection (page 198)
•
Managing SAS Connections (page 200)
•
Managing the Controller (page 202)
•
Managing Enclosures (page 203)
•
Managing Physical Drives (page 204)
•
Managing Disk Arrays (page 206)
•
Managing Spare Drives (page 215)
Using the LCD Panel
The LCD panel is optional and typically installed during VessRAID installation.
See page 11.
The LCD panel activates approximately 35 seconds after you switch on the
VessRAID’s power supply.
At first, the LCD screen displays System is Initializing.
When the VessRAID is fully booted and running under normal conditions, the
LCD screen displays the VessRAID model number and IP address, as shown in
Figure 1.
Figure 1. LCD default display
If the LCD panel displays Check Event, see “Chapter 9: Troubleshooting” on
page 265 for more information on diagnosing the issue.
195
VessRAID 1000s Series Product Manual
Perusing the Interface
•
Making Mode Settings (page 196)
•
Simple Mode (page 196)
•
Advanced Mode (page 197)
•
Limitations (page 197)
•
Viewing Events (page 197)
Making Mode Settings
The LCD panel has two modes, Simple and Advanced. Simple is the default
setting. The setting function toggles between Simple and Advanced mode.
To make LCD mode settings:
1.
Press the
2.
Press the
3.
Press the
4.
Press the
button again and the display shows the current Mode setting
on the top and the alternative mode setting on the bottom.
5.
Press the
or
button until the display says Misc. Management.
button and the display says Buzzer Configure.
or
button and the display says Change Menu Mode.
button choose the alternative mode setting.
The alternative LCD mode is set.
Simple Mode
Simple Mode enables you to perform the following enclosure and RAID
management functions:
•
View Events – View critical events, if any have been set
•
View Controller – View IP address, MAC address, LCD UI version, Vendor
name, WWN, memory size, and firmware version
•
Spare Drive Management – View SD ID, physical drive ID number,
capacity, revertible or not, global or dedicated, status; Locate spare drive
•
Misc. Management – Buzzer setting, Menu mode setting
•
Management Port – Link status up/down, DHCP enable/disable: Settings
for subsystem IP address, Subnet Mask, Gateway IP, and DNS Server IP
•
SAS Management – SAS Port link status, port type, link speed, SAS
address, signal strength setting
•
Array Configure – Automatic or Advanced Configuration. Advanced
includes disk array, logical drive, and spare drive creation and deletion
196
Perusing the Interface
Advanced Mode
Advanced Mode enables you to perform the Simple Mode functions, plus:
•
View Enclosure – View overall enclosure status. Also view individual status
of temperature, fan, power supply, and voltage
•
Physical Drive Management – View PD ID, model, interface, capacity,
location (enclosure and slot number), configuration (array and sequence
number), firmware version, status; Locate physical drive
•
Logical Disk Management – View LD ID, capacity, RAID level, write cache,
stripe size, sector size, disk array ID, status; Locate logical drive
Limitations
The LCD panel does not perform these functions:
•
Setting enclosure date and time
•
Clearing a Stale or PFA condition from a physical drive
•
Creating a revertible spare drive or a dedicated spare drive
•
Running background activity, such as Media Patrol, PDM, Rebuild, or RAID
level migration
•
Viewing event logs
•
Shutting down or restarting the VessRAID
Refer to “Chapter 4: Management with WebPAM PROe” on page 41 and
“Chapter 5: Management with the CLU” on page 129 when you need to perform
these functions.
Viewing Events
The LCD panel reports events with a severity of Warning, Minor, Major, Critical, or
Fatal. See “Setting-up User Event Subscriptions” on page 61 for a description of
the severity levels.
To view events:
1.
Press the
2.
Press the
•
Press the
•
Press the
or
button until the display says View Events.
button and the display the first critical event.
button to display more information about the event.
or
button to scroll through any additional events.
197
VessRAID 1000s Series Product Manual
Managing the Network Connection
The network connection deals with the VessRAID’s Management Port.
•
Making Management Port Settings (below)
Making Management Port Settings
Manual IP Settings
To make Management Port settings manually:
1.
Press the
2.
Press the
or
button until the display says Management Port.
button and the display says Link Status Up.
If it says Link Status Down, reconnect to the network before preceding.
3.
4.
Press the
Press the
or
button and the display says IP Address.
button to make a change.
The current IP Address displays with the cursor under the first (extreme left)
digit.
5.
Press the
button to increment and the
button decrement.
Press the
button to move left and the
button move right.
To set an IP address with double- or single-digit octets, for example,
192.168.1.50, type zeros as placeholders, 192.168.001.050.
After you have set the last (extreme right) digit, press the
button.
The current Subnet Mask displays with the cursor under the first (extreme
left) digit.
6.
Make the needed changes the same as in step 5.
After you have set the last (extreme right) digit, press the
button.
The current Gateway displays with the cursor under the first (extreme left)
digit.
7.
Make the needed changes the same as in step 5.
After you have set the last (extreme right) digit, press the
The display says Save Network Setting?
8.
Press the
button to confirm.
The display shows the new IP address you set.
198
button.
Managing the Network Connection
Automatic IP Settings
To make Management Port settings automatically:
1.
Press the
2.
Press the
or
button until the display says Management Port.
button and the display says Link Status Up.
If it says Link Status Down, reconnect to the network before preceding.
3.
Press the
or
button and the display says DHCP Disable.
4.
Press the
button to make a change.
5.
Press the
button to Enable.
6.
Press the
button to confirm.
The display shows the new IP address set by the DHCP server.
199
VessRAID 1000s Series Product Manual
Managing SAS Connections
SAS connections deal with the VessRAID’s two host data ports.
•
Viewing SAS Port Information (page 200)
•
Making SAS Port Settings (page 200)
To add a SAS initiator, see “Adding an Initiator” on page 68 (WebPAM PROe) or
page 167 (CLU).
Viewing SAS Port Information
The SAS Controller has one SAS channel. The SAS channel has two ports.
See “Making Data and Management Connections” on page 18 for information
about how these ports are physically connected to the Host PC.
To view information about the SAS ports:
1.
Press the
2.
Press the
button and the display says SAS Port Info.
3.
Press the
button again and the display says SAS Port 1.
•
Press the
•
Press
or
button until the display says SAS Management.
button again to see SAS Port 1.
button and the
button to see SAS Port 1.
If it says Link Status Down, reconnect to the network before preceding.
4.
Press the
or
button to scroll through the port information.
•
Link Status
•
Port Type
•
Link Speed
•
SAS Address
•
Signal Strength
Making SAS Port Settings
The SAS Controller has one SAS channel. The SAS channel has two ports.
See “Making Data and Management Connections” on page 18 for information
about how these ports are physically connected to the Host PC.
To make settings to the SAS ports:
1.
Press the
2.
Press the
button and the display says SAS Port Info.
3.
Press the
button again and the display says SAS Port 1.
•
Press the
or
button until the display says SAS Management.
button again to choose SAS Port 1.
200
Managing SAS Connections
•
4.
Press
Press the
5.
Press the
6.
Press the
button and the
or
button to choose SAS Port 2.
button to scroll to Signal Strength.
button to highlight the current value.
or
button to increment or decrement the value.
The range is 1 to 8. 1 is the default. Signal strength correlates to cable length
in meters. Example: If you have a 2 m SAS cable, set signal strength to 2. If
performance is unsatisfactory try settings of 1 and 3, then use the best
setting for your system.
7.
Press the
button again to set the value.
201
VessRAID 1000s Series Product Manual
Managing the Controller
The RAID controller is the heart of the VessRAID subsystem. To view Controller
statistics or to make Controller settings, see “Managing the Controller” on
page 86 (WebPAM PROe) or page 137 (CLU).
Viewing Controller Information
To view information about the controller:
1.
Press the
2.
Press the
3.
Press the
or
button until the display says View Controller.
button and the display says Vendor.
or
button to scroll through the list of items:
•
Vendor Name
•
WWN – World Wide Name
•
Memory Size
•
Firmware Version
•
IP Address
•
MAC Address
•
LCD UI Version
To change memory size or update the firmware, see “Chapter 7: Maintenance” on
page 219.
To change the IP address, see “Managing the Network Connection” on page 198.
202
Managing Enclosures
Managing Enclosures
The LCD panel provides information on the main VessRAID subsystem or Head
Unit only. For a JBOD as well as other Enclosure functions, see “Managing
Enclosures” on page 90 (WebPAM PROe) or page 140 (CLU).
Viewing the Enclosure
This function requires the LCD to be in Advanced mode. See page 196.
To view enclosure information:
1.
Press the
or
button until the display says View Enclosure.
2.
Press the
button and the display says Enclosure Status.
3.
Press the
button again and the display says Temperature Status.
This is the item list. It includes:
•
Temperature status
•
Fan status
•
Power Supply status
•
Voltage status
4.
Press the
or
button to scroll through the list of items:
5.
Press the
button to display the reported value for the item. Then press
the
button to return to the item list.
Making Buzzer Settings
The buzzer sounds to inform you that the VessRAID needs attention. See
“VessRAID is Beeping” on page 265 for more information.
To make buzzer settings:
1.
Press the
or
2.
Press the
button and the display says Buzzer Configure.
3.
Press the
setting.
button again and the display shows the current Buzzer
4.
Press the
5.
Press the
button make the new buzzer setting.
6.
Press the
button again to confirm.
or
button until the display says Misc. Management.
button to toggle between Enable and Disable.
203
VessRAID 1000s Series Product Manual
Managing Physical Drives
These functions require the LCD panel to be in Advanced mode. See page 196.
Managing physical drives with the LCD includes:
•
Viewing Physical Drive Information (page 204)
•
Locating a Physical Drive (page 204)
For other physical drive functions, see “Managing Physical Drives” on page 96
(WebPAM PROe) or page 145 (CLU).
Viewing Physical Drive Information
This function requires the LCD to be in Advanced mode. See page 196.
To view physical drive information:
1.
Press the
or
Management.
2.
Press the
3.
Press the
4.
Press the
5.
Press the
button until the display says Physical Drive
button and the display a list of physical drives by ID number.
or
button to scroll through the list of physical drives.
button choose a physical drive.
or
button to scroll through the list of items:
•
Model
•
Interface – SAS or SATA
•
Capacity
•
Location – Enclosure number and slot number
•
Configuration – Array number and sequence number or Spare
•
Firmware version
•
Status
Locating a Physical Drive
This function requires the LCD to be in Advanced mode. See page 196. This
feature helps you identify a physical drive in the VessRAID enclosure.
To locate a physical drive:
1.
Press the
or
Management.
2.
Press the
3.
Press the
4.
Press the
5.
Press the
button until the display says Physical Drive
button and the display a list of physical drives by ID number.
or
button to scroll through the list of physical drives:
button choose a physical drive.
or
button until the display says Locate Physical Drive.
204
Managing Physical Drives
6.
Press the
button. The disk status LED for the physical drive blinks for
one minute. See Figure 2.
Figure 2. Disk Status LED
Disk Status
205
VessRAID 1000s Series Product Manual
Managing Disk Arrays
Disk Array Management in the LCD includes the following functions:
•
Creating a Disk Array – Automatic (page 206)
•
Creating a Disk Array – Advanced (page 207)
•
Deleting a Disk Array (page 209)
•
Viewing Disk Array Information (page 209)
•
Locating a a Disk Array (page 210)
•
Creating a Logical Drive (page 211)
•
Deleting a Logical Drive (page 212)
•
Viewing Logical Drive Information (page 213)
•
Locating a a Logical Drive (page 214)
For other disk array functions, see “Managing Disk Arrays” on page 105
(WebPAM PROe) or page 148 (CLU).
For other logical drive functions, see “Managing Logical Drives” on page 118
(WebPAM PROe) or page 162 (CLU).
Creating a Disk Array – Automatic
The Disk Array Automatic Creation option enables you to create a new disk array
following a default set of parameters. One logical drive will be made automatically
when you create the disk array.
If you have multiple enclosures, a separate disk array and logical drive set will be
created for each enclosure.
If you have both Hard Disk Drives (HDD) and Solid State Drives (SSD), separate
disk array and logical drive sets will be created for your HDDs and for your SSDs.
These two drive types cannot be mixed in the same disk array.
Creating
To create a disk array automatically:
1.
Press the
or
button until the display says Array Configure.
2.
Press the
button and the display says Auto Configure.
3.
Press the
button again and the display says Are you sure?
4.
Press the
5.
Press the
button to input your answer.
6.
Press the
button again to confirm.
button so the display says Yes.
The display shows the array, logical drive, and spare drive creation process.
206
Managing Disk Arrays
Verifying
To verify the results of the automatic disk array creation:
1.
From the default screen, press the
Logical Disk Management.
or
2.
Press the
button and the display says 000.
3.
Press the
button again to choose this logical drive.
4.
From the default screen, press the
information for the logical drive.
or
button until the display says
buttons to scroll through the
Creating a Disk Array – Advanced
Creating a Disk Array
For more information on the choices below, see “Chapter 8: Technology
Background” on page 233.
To create a disk array:
1.
Press the
or
button until the display says Array Configure.
2.
Press the
3.
Press the
4.
Press the
button and the display says Disk Array Create.
5.
Press the
button again and the display says Physical Drive Select.
6.
Press the
number.
button again to display the available physical drives by
7.
Press the
button to move through the list. Press the
choose a physical drive for your array.
button and the display says Auto Configure.
or
button until the display says Advanced Configure.
button to
Note that you cannot mix HDDs and SSDs in the same disk array.
8.
9.
Press the
choices.
Press the
button to move to END and press the
button to input your
button again to confirm.
The display shows the array creation process. When the creation is finished,
the LCD returns to Disk Array Create.
Creating a Logical Drive
For more information on the choices below, see “Chapter 8: Technology
Background” on page 233.
To create a logical drive on your new disk array:
1.
Press the
button and the display says Logical Disk Create.
207
VessRAID 1000s Series Product Manual
2.
Press the
button again and the display says 000.
3.
Press the
button again and the display says RAID Level.
4.
Press the
or
button until the display shows the RAID level you want.
Note that the available RAID levels depend on the number of physical drives
in your disk array.
5.
Press the
button to choose the RAID level shown on the screen.
The display shows the maximum available capacity.
6.
Press the
7.
Press the
or
button until the display shows the capacity you want.
button to choose the capacity shown on the screen.
The display shows the default stripe size.
The choices are 64 KB, 128 KB, 256 KB, 512 KB, and 1 MB.
8.
9.
Press the
Press the
or
button until the display shows the stripe size you want.
button to choose the stripe size shown on the screen.
The display shows the default sector size.
The choices are 512 B; 1 KB, 2 KB, and 4 KB
10. Press the
or
button until the display shows the sector size you want.
The display shows the default read policy.
The choices are ReadCache, ReadAhead and None.
11. Press the
12. Press the
or
button until the display shows the read policy you want.
button to choose the read policy shown on the screen.
The display shows the default write policy.
The choices are WriteBack and WriteThru (write though).
13. Press the
or
button until the display shows the write policy you want.
14. Press the
button to choose the write policy shown on the screen.
15. Press the
button again to confirm.
The display shows the logical drive creation process. When the creation is
finished, the LCD returns to Logical Disk Create.
Creating a Spare Drive
This function creates a non-revertible, global spare drive. If you want a revertible
or a dedicated spare drive, see “Creating a Spare Drive” on page 125 or
page 159.
To create a spare drive for your new disk array:
1.
Press the
button and the display says Spare Drive Create.
208
Managing Disk Arrays
2.
Press the
number.
button again to display the available physical drives by
3.
Press the
button to move through the list. Press the
choose a physical drive for your spare drive.
button to
Note that your spare drive must be the same type of drive, HDD or SSD, as
the drives in your disk array.
4.
Press the
button again to confirm.
The display shows the spare drive creation process. When the creation is
finished, the LCD returns to Spare Drive Create.
Deleting a Disk Array
Caution
When you delete a disk array, you delete all the logical drives and
the data they contain. Back up all important data before deleting a
disk array.
To delete a disk array:
1.
Press the
2.
Press the
or
button until the display says Array Configure.
button and the display says Auto Configure.
3.
Press the
or
button until the display says Advanced Configure.
4.
Press the
or
button until the display says Disk Array Delete.
5.
Press the
6.
Press the
7.
Press the
button and the display says Delete Disk Array X?
8.
Press the
button again and the display says Are you sure? NO.
9.
Press the
button.
10. Press the
button again to display a list of disk arrays.
or
button choose a disk array for deletion.
button to change the answer to YES, then press the
button again to confirm.
The chosen disk array is deleted.
Viewing Disk Array Information
To view disk array information:
1.
Press the
2.
Press the
3.
Press the
or
button until the display says Disk Array Management.
button and the display a list of disk arrays by ID number.
or
button to scroll through the list of disk arrays.
209
VessRAID 1000s Series Product Manual
4.
5.
Press the
Press the
button choose a disk array.
or
button to scroll through the list of items:
•
ID Number
•
Configured Capacity
•
Free Capacity
•
Number of Physical Drives*
•
Number of Logical Drives*
•
Status
* Press the
button to view physical drive or logical drive information
from this point.
Disk Array Status
•
OK – The normal state of a disk array. For RAID Levels other than RAID 0
(Striping), the disk array has full redundancy.
•
Synchronizing – When you first create a disk array, the disk array
synchronizes. During that time, your data is available. However, access will
be slower until synchronizing is done.
•
Critical/Degraded – This condition results from a physical drive failure. Your
data is still available. However, the disk array has lost redundancy (fault
tolerance). You must determine the cause of the problem and correct it. See
“Critical & Offline Disk Arrays” on page 290.
•
Rebuilding – This condition is temporary. When a physical drive has been
replaced, the disk array automatically begins rebuilding in order to restore
redundancy (fault tolerance). Your data is still available. However, access will
be slower until rebuilding is done.
•
Transport Ready – This function is not supported in the LCD panel. See
“Preparing a Disk Array for Transport” on page 117 (WebPAM PROe) or
page 154 (CLU).
Locating a a Disk Array
This feature helps you identify the physical drives assigned to the disk array you
are working with in the LCD panel. To locate a disk array:
1.
Press the
or
Management.
2.
Press the
3.
Press the
4.
Press the
5.
Press the
button until the display says Physical Drive
button to display a list of disk arrays by ID number.
or
button to scroll through the list of disk arrays.
button choose a disk array.
or
button until the display says Locate Disk Array.
210
Managing Disk Arrays
6.
Press the
button. The disk status LEDs for the physical drives in the disk
array blink for one minute. See Figure 3.
Figure 3. Disk Status LED
Disk Status
Creating a Logical Drive
You can create logical drives on existing disk arrays if there is available space in
the array. For more information on the choices below, see “Chapter 8:
Technology Background” on page 233.
To create a logical drive from an existing disk array:
1.
To Press the
2.
Press the
3.
Press the
or
button until the display says Advanced Configure.
4.
Press the
or
button until the display says Logical Disk Create.
5.
Press the
button again and the display says 000.
6.
Press the
button again and the display says RAID Level.
7.
Press the
or
button until the display says Array Configure.
button and the display says Auto Configure.
or
button until the display shows the RAID level you want.
Note that the available RAID levels depend on the number of physical drives
in your disk array.
8.
Press the
button to choose the RAID level shown on the screen.
The display shows the maximum available capacity.
9.
Press the
10. Press the
or
button until the display shows the capacity you want.
button to choose the capacity shown on the screen.
The display shows the default stripe size.
The choices are 64 KB, 128 KB, 256 KB, 512 KB, and 1 MB.
11. Press the
12. Press the
or
button until the display shows the stripe size you want.
button to choose the stripe size shown on the screen.
The display shows the default sector size.
The choices are 512 B; 1 KB, 2 KB, and 4 KB
13. Press the
or
button until the display shows the sector size you want.
211
VessRAID 1000s Series Product Manual
The display shows the default read policy.
The choices are ReadCache, ReadAhead and None.
14. Press the
15. Press the
or
button until the display shows the read policy you want.
button to choose the read policy shown on the screen.
The display shows the default write policy.
The choices are WriteBack and WriteThru (write though).
16. Press the
or
button until the display shows the write policy you want.
17. Press the
button to choose the write policy shown on the screen.
18. Press the
button again to confirm.
The display shows the logical drive creation process. When the creation is
finished, the LCD returns to Logical Disk Create.
Deleting a Logical Drive
Caution
When you delete a logical drive, you delete all the data it contains.
Back up all important data before deleting a logical drive.
To delete a logical drive from a disk array:
1.
Press the
2.
Press the
3.
Press the
or
button until the display says Advanced Configure.
4.
Press the
or
button until the display says Logical Drive Delete.
5.
Press the
6.
Press the
7.
Press the
button and the display says Delete Logical Drive X?
8.
Press the
button again and the display says Are you sure? NO.
9.
Press the
button.
10. Press the
or
button until the display says Array Configure.
button and the display says Auto Configure.
button again to display a list of logical drives.
or
button choose a logical drive for deletion.
button to change the answer to YES, then press the
button again to confirm.
The chosen logical drive is deleted.
212
Managing Disk Arrays
Viewing Logical Drive Information
This function requires the LCD to be in Advanced mode. See page 196.
To view logical drive information:
1.
Press the
2.
Press the
3.
Press the
4.
Press the
5.
Press the
or
button until the display says Logical Disk Management.
button and the display a list of logical drives by ID number.
or
button to scroll through the list of logical drives.
button choose a logical drive.
or
button to scroll through the list of items:
•
Logical Drive ID Number
•
Capacity
•
RAID Level
•
Write Cache
•
Stripe Size
•
Sector Size
•
Disk Array ID Number
•
Status
Logical Drive Status
•
OK – The normal state of a logical drive. For RAID Levels other than RAID 0
(Striping), the logical drive has full redundancy.
•
Synchronizing – When you first create a logical drive, the logical drive
synchronizes. During that time, your data is available. However, access will
be slower until synchronizing is done.
•
Rebuilding – This condition is temporary. When a physical drive has been
replaced, the logical drive automatically begins rebuilding in order to restore
redundancy (fault tolerance). Your data is still available. However, access will
be slower until rebuilding is done.
•
Critical – This condition results from a physical drive failure. Your data is still
available. However, the logical drive has lost redundancy (fault tolerance).
You must determine the cause of the problem and correct it. See “Critical &
Offline Disk Arrays” on page 290.
•
Offline – This condition arises as the result of a second physical drive
failure. An Offline logical drive is not accessible but some or all of your data
may remain intact. You must determine the cause of the problem and correct
it. See “Critical & Offline Disk Arrays” on page 290.
•
Transport Ready – This function is not supported in the LCD panel. See
“Preparing a Disk Array for Transport” on page 117 (WebPAM PROe) or
page 154 (CLU).
213
VessRAID 1000s Series Product Manual
Locating a a Logical Drive
This function requires the LCD to be in Advanced mode. See page 196. This
feature helps you identify the physical drives assigned to the logical drive.
To locate a logical drive:
1.
Press the
or
button until the display says Logical Disk Management.
2.
Press the
3.
Press the
4.
Press the
5.
Press the
6.
Press the
button. The disk status LEDs for the physical drives in the
logical drive blink for one minute. See Figure 4.
button to display a list of logical drives by ID number.
or
button to scroll through the list of logical drives.
button choose a logical drive.
or
button until the display says Locate Logical Drive.
Figure 4. Disk Status LED
Disk Status
214
Managing Spare Drives
Managing Spare Drives
Spare Drive Management on the LCD includes:
•
Viewing Spare Drive Information (page 215)
•
Creating a Spare Drive (page 215)
•
Deleting a Spare Drive (page 216)
•
Locating a Spare Drive (page 216)
For other spare drive functions, see “Managing Spare Drives” on page 124 or
“Managing Spare Drives” on page 159.
Viewing Spare Drive Information
To view spare drive information:
1.
Press the
2.
Press the
3.
Press the
4.
Press the
5.
Press the
or
button until the display says Spare Drive Management.
button and the display a list of spare drives by ID number.
or
button to scroll through the list of spare drives.
button choose a spare drive.
or
button to scroll through the list of items:
•
Spare Drive ID Number
•
Physical Drive ID Number*
•
Capacity
•
Revertible – See “Transition” on page 261 for more information.
•
Type – Global (all disk arrays) or Dedicated (to specified disk arrays)
•
Status
* Press the
button to view physical drive information from this point.
Spare Drive Status
•
OK – The normal state of a spare drive.
•
Offline – Not available for use as a spare. Requires corrective action. See
“Physical Drive Problems” on page 294.
Other status conditions involve functions not supported by the LCD panel.
Creating a Spare Drive
Only unconfigured physical drives can be used to make spares. The spare drive
must be the same type of drive, HDD or SSD, as the other drives in disk array.
To create a spare drive:
1.
Press the
or
button until the display says Array Configure.
215
VessRAID 1000s Series Product Manual
2.
Press the
button and the display says Auto Configure.
3.
Press the
or
button until the display says Advanced Configure.
4.
Press the
or
button until the display says Spare Drive Create.
5.
Press the
6.
Press the
or
button to move through the list. Press the
choose a physical drive for your spare drive.
button again to display a list of unconfigured physical drives.
button to
To create a dedicated or revertible spare drive, see “Creating a Spare Drive”
on page 125 (WebPAM PROe) or page 159 (CLU).
Deleting a Spare Drive
Caution
If the spare drive you delete is the only spare, the controller will not
rebuild a critical array until you provide a new spare drive.
To delete a spare drive:
1.
Press the
2.
Press the
or
button until the display says Array Configure.
button and the display says Auto Configure.
3.
Press the
or
button until the display says Advanced Configure.
4.
Press the
or
button until the display says Spare Drive Delete.
5.
Press the
6.
Press the
7.
Press the
8.
Press the
button.
9.
Press the
button again to display a list of spare drives.
or
button to choose the spare drive to delete.
button and the display says Are you sure? NO.
button to change the answer to YES, then press the
button again to confirm.
The chosen spare drive is deleted.
Locating a Spare Drive
This feature helps you identify the physical drive assigned as a spare drive.
To locate a spare drive:
1.
Press the
2.
Press the
3.
Press the
or
button until the display says Spare Drive Management.
button and the display a list of spare drives by ID number.
or
button to scroll through the list of spare drives:
216
Managing Spare Drives
4.
Press the
button choose a spare drive.
5.
Press the
6.
Press the
button. The disk status LED for the physical drive blinks for
one minute. See Figure 5.
or
button until the display says Locate Spare Drive.
Figure 5. Disk Status LED
Disk Status
217
VessRAID 1000s Series Product Manual
218
Chapter 7: Maintenance
This chapter covers the following topics:
•
Updating the Firmware in WebPAM PROe (below)
•
Updating the Firmware in the CLU (page 222)
•
Replacing a Power Supply (page 224)
•
Replacing a RAID Controller (page 225)
•
Replacing a Cooling Fan (page 226)
•
Replacing the Cache Battery (page 228)
•
Replacing the Memory Module (page 230)
Updating the Firmware in WebPAM PROe
A firmware update consists of the following actions:
•
Downloading the Firmware Image File (page 219)
•
Updating the Firmware from one of these sources:
•
•
TFTP Server (page 219)
•
The Host PC or Server (page 220)
Restarting the Subsystem (page 221)
Downloading the Firmware Image File
Go to the Promise website at http://www.promise.com/support/support_eng.asp
and download the latest firmware image (.img) file to your TFTP server or your
PC. The firmware update image file includes all of the files for the VessRAID,
including:
•
Redboot ROM
•
Ramdisk
•
Kernel
•
SEP Firmware
•
Firmware
•
OEM Customization
•
Software
•
Other files
Updating Firmware from TFTP Server
To update the firmware from a TFTP server:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
3.
Click the Software Management
4.
Click the Firmware Update tab.
icon.
219
icon.
VessRAID 1000s Series Product Manual
5.
Do one of the following actions:
•
Click the Download from TFTP Server option, then click the Next
button.
•
From the Firmware Update tab dropdown menu, choose Download from
TFTP Server.
6.
Enter the hostname or IP address of your TFTP server in the field provided.
7.
Enter the port number of your TFTP server in the field provided (69 is the
default).
8.
Enter the filename of the Firmware Update file in the field provided.
9.
Click the Submit button.
10. When the download is completed, click the Next button.
A popup message appears warning you not to reboot the VessRAID during
the firmware update procedure.
11. In the popup message, click the OK button.
The update progress displays. Then a popup message appears to tell you to
reboot the VessRAID.
12. In the popup message, click the OK button.
13. Restart the VessRAID. See “Restarting the Subsystem” on page 221.
Note
After you click the Submit button, if WebPAM PROe displays this
message: error transferring image, you entered an incorrect file
name or an incorrect location. Check the information and try
again.
Updating Firmware from your PC
To update the firmware from your PC:
1.
Click the Subsystem
icon in Tree View.
2.
Click the Administrative Tools
3.
Click the Software Management
icon.
4.
Click the Firmware Update tab.
5.
Do one of the following actions:
icon.
•
Click the Download Flash File from Local File through HTTP option,
then click the Next button.
•
From the Firmware Update tab dropdown menu, choose Download from
Local File.
220
Chapter 7: Maintenance
6.
Enter the filename of the Firmware Update file in the field provided.
Or, click the Browse... button and choose the Firmware Update file in the
Open dialog box.
7.
8.
Click the Submit button.
When the download is completed, click the Next button.
A popup message appears to warn you not to reboot the VessRAID during
the firmware update procedure.
9.
In the popup message, click the OK button.
The update progress displays. Then a popup message appears to tell you to
reboot the VessRAID.
10. In the popup message, click the OK button.
11. Restart the VessRAID. See “Restarting the Subsystem” on page 221.
Note
After you click the Submit button, if WebPAM PROe displays this
message: error transferring image, you entered an incorrect file
name or an incorrect location. Check the information and try
again.
Restarting the Subsystem
Warning
Do not restart the VessRAID during a firmware upgrade
procedure. Wait until the upgrade is done and you are prompted to
restart.
To restart the VessRAID subsystem:
1.
Click the Subsystem
2.
Click the Administrative Tools
3.
icon in Tree View.
icon.
Click the Shutdown link in Management View.
A Shutdown or Restart tab will appear.
4.
On the Shutdown or Restart tab, choose Restart from the dropdown menu.
5.
Click the Submit button.
6.
In the warning box, click the OK button.
7.
In the confirmation box, type the word confirm in the field provided.
8.
Click the OK button.
221
VessRAID 1000s Series Product Manual
When the controller shuts down, your WebPAM PROe connection will be
lost.
9.
Wait for two to three minutes.
10. In your browser, log into WebPAM PROe once again.
If you cannot log in, wait for 30 seconds, and try again. Repeat until login is
successful.
Updating the Firmware in the CLU
A firmware update consists of the following actions:
•
Downloading the Firmware Image File (page 222)
•
Updating the Firmware (page 222)
•
Restarting Subsystem over a Telnet Connection (page 223)
•
Restarting Subsystem over a Serial Connection (page 223)
Downloading the Firmware Image File
Go to the Promise website at http://www.promise.com/support/support_eng.asp
and download the latest firmware image file to your TFTP server.
Updating the Firmware
To update the firmware file in the CLU:
1.
From the Main Menu, highlight Additional Info and Management, and press
Enter.
2.
Highlight Flash through TFTP and press Enter.
3.
Highlight TFTP Server and type the IP address of your TFTP server in the
field provided.
4.
Highlight Port Number and press the backspace key to erase the current
value, then type the new value. 69 is the default.
A list of the current users appears.
5.
Highlight File Name and type the file name of the firmware image file in the
field provided.
6.
Highlight Start and press Enter.
A message appears to tell you to reboot the VessRAID.
7.
Restart the VessRAID.
See “Restarting Subsystem over a Telnet Connection” on page 223 or
“Restarting Subsystem over a Serial Connection” on page 223.
222
Chapter 7: Maintenance
Restarting Subsystem over a Telnet Connection
Warning
Do not restart the VessRAID during a firmware upgrade
procedure. Wait until the upgrade is done and you are prompted to
restart.
To restart the VessRAID subsystem on a Telnet connection:
1.
From the Main Menu, highlight Additional Info and Management, and press
Enter.
2.
Highlight Shutdown or Restart and press Enter.
3.
Press the spacebar to display Restart then press Enter.
A warning message appears.
4.
Press Y to continue.
The screen will go blank.
5.
6.
Wait for two to three minutes.
Re-establish your Telnet connection to the VessRAID CLU.
If you cannot re-establish a connection, wait 30 seconds, then try again.
Restarting Subsystem over a Serial Connection
Warning
Do not restart the VessRAID during a firmware upgrade
procedure. Wait until the upgrade is one and you are prompted to
restart.
To restart the VessRAID subsystem on a serial connection:
1.
From the Main Menu, highlight Additional Info and Management, and press
Enter.
2.
Highlight Shutdown or Restart and press Enter.
3.
Press the spacebar to display Restart then press Enter.
A warning message appears.
4.
Press Y to continue.
The screen will display shutdown and startup functions.
5.
When the Login: prompt appears, log into the CLU again.
223
VessRAID 1000s Series Product Manual
Replacing a Power Supply
VessRAID 1700s Series
The power supply on the VessRAID 1700s Series is not replaceable onsite. If you
need to replace the power supply, contact Technical Support and make
arrangements to return the subsystem to Promise for service. See page 305.
VessRAID 1800s Series
The redundant power supplies on the VessRAID 1800s Series are designed as
field-replaceable units. You can replace a power supply without removing the
VessRAID from the rack.
Removing the old power supply
To remove the power supply:
1.
Verify that the power supply LED is amber or red.
2.
Switch off the power to the power supply you plan to replace.
3.
Unplug the power cord.
4.
Loosen and remove the retaining screw on the left side of the power supply.
5.
Pull the power supply out of the VessRAID enclosure.
Installing the new power supply
To install the power supply:
1.
Carefully slide the power supply into the enclosure.
2.
Install and tighten the retaining screw on the left side of the power supply.
3.
Plug in the power cord.
4.
Switch on the power supply.
5.
Verify that the new power supply LED is green.
This completes the power supply replacement procedure.
224
Chapter 7: Maintenance
Replacing a RAID Controller
The RAID Controller monitors and manages the logical drives. When the
controller is replaced, all of your logical drive data and configurations remain
intact because this logical drive information is stored on the disk drives.
RAID Controller failure is rare. But you might have to remove and reinstall the
same RAID Controller in order to replace a cooling fan, cache battery, or memory
module as described in this chapter.
Caution
•
Do not replace the RAID Controller based on LED colors
alone. Only replace the RAID Controller when directed to do
so by Promise Technical Support. See page 305.
•
Only a qualified technician should perform this procedure.
•
You must shut down the VessRAID subsystem before you can
perform this procedure.
Removing the old controller
To replace the RAID Controller:
1.
Shut down the VessRAID. See “Shutting Down the Subsystem” on page 82
or page 188.
2.
On the RAID Controller, loosen the thumbscrew, swing the latch to the right
and pull the RAID Controller out of the enclosure.
3.
Disconnect the SAS, Ethernet, serial, and power cables.
4.
On the RAID Controller, loosen the thumbscrew, swing the latch to the right
and pull the RAID Controller out of the enclosure. See Figure 1.
Figure 1. Removing the RAID Controller
Thumbscrew
Latch
Installing the new controller
1.
Verify that the new RAID Controller has a cache battery and memory module
installed.
If it does not have these items, transfer them from the old RAID Controller.
225
VessRAID 1000s Series Product Manual
See page 228 and page 230 for more information.
2.
Carefully slide the new RAID Controller into the enclosure.
3.
Swing the latch to the left and secure it with the thumbscrew.
4.
Reconnect the SAS, Ethernet, serial, and power cables.
5.
Switch on the power.
The VessRAID restarts. For more information about VessRAID’s start-up
behavior, see “Connecting the Power” on page 21.
This completes the RAID Controller replacement procedure.
Replacing a Cooling Fan
Cautions
•
Only a qualified technician should perform this procedure.
•
You must shut down the VessRAID subsystem before you
can perform this procedure.
To replace a fan:
1.
Verify that the Fan LED on the cooling unit is amber or red. See Figure 2.
Figure 2. Fan LEDs
Fan 1 LED
2.
Fan 2 LED
Shut down the VessRAID and remove the RAID Controller.
See “Replacing a RAID Controller” on page 225.
3.
Lay the RAID Controller on a non-static surface and remove the cover
attaching screws, one on each side, then remove the cover.
226
Chapter 7: Maintenance
Figure 3. RAID Controller cover and attaching screw
Cover
Attaching screw
(one each side)
4.
Remove the four attaching screws. See Figure 4.
5.
Detach the fan’s power connector and lift the old fan out of the controller.
Figure 4. RAID Controller cooling fan
Power
connectors
6.
7.
Attaching
screws (4)
Place a new fan in the controller, attach the power connector, and install the
four attaching screws.
Attach the RAID Controller cover and install the two attaching screws.
See Figure 3.
227
VessRAID 1000s Series Product Manual
8.
Reinstall the RAID Controller.
See “Replacing a RAID Controller” on page 225.
This completes the fan replacement procedure.
Replacing the Cache Battery
The cache battery, or Battery Backup Unit (BBU), is located inside the RAID
Controller. The battery assembly is replaced as a unit.
Cautions
•
Try reconditioning the battery before you replace it. See
page 94 or page 143 for more information.
•
If power service has failed, do not remove the RAID Controller
if the Dirty Cache LED is lighted. See Figure 5. Wait until
power service is restored.
•
Only a qualified technician should perform this procedure.
•
You must shut down the VessRAID subsystem before you
can perform this procedure.
•
Installing the wrong replacement battery can result in an
explosion.
•
Dispose of used batteries according to the instructions that
come with the battery.
To replace the cache battery:
1.
Verify that the Battery LED is amber or red. See Figure 5.
Figure 5. VessRAID enclosure LEDs
Status LED
Dirty Cache LED
Battery LED
2.
3.
Shut down the VessRAID. See “Shutting Down the Subsystem” on page 82
or page 188.
Remove the RAID Controller.
See “Replacing a RAID Controller” on page 225.
228
Chapter 7: Maintenance
4.
Lay the RAID Controller on a non-static surface and remove the cover
attaching screws, one on each side, then remove the cover.
5.
Remove the battery assembly attaching screw on the outside of the RAID
controller housing.
6.
Detach the battery connector and remove the battery assembly.
See page 227, Figure 3.
Figure 6. RAID Controller cache battery
Battery
assembly
Attaching screw
(on controller
housing)
Mounting
post
Connector
In the above photo, the memory module was removed so you can see the
battery connector. You do not have to remove the memory module to replace
the battery assembly.
7.
Attach the connector of the new battery assembly.
Be careful to line-up the connector pins correctly. See Figure 7.
229
VessRAID 1000s Series Product Manual
Figure 7. Battery connector pins
No pin
Blank
8.
Put the battery assembly into place and install the attaching screw.
9.
Replace the RAID Controller cover and install the two attaching screws.
See page 227, Figure 3.
10. Reinstall the RAID Controller.
See “Replacing a RAID Controller” on page 225.
This completes the cache battery replacement procedure.
Replacing the Memory Module
The memory module is a single inline memory module (SIMM) installed on the
main board of the RAID Controller. You might replace the memory module as a
capacity upgrade as well as a repair.
Cautions
•
Only a qualified technician should perform this procedure.
•
You must shut down the VessRAID subsystem before you can
perform this procedure.
•
Installing the wrong SIMM will cause boot failure.
To replace the memory module:
1.
Shut down the VessRAID and remove the RAID Controller.
See “Replacing a RAID Controller” on page 225.
230
Chapter 7: Maintenance
Figure 8. Removing the RAID Controller
Thumbscrew
Latch
2.
Lay the RAID Controller on a non-static surface and remove the cover
attaching screws, one on each side, then remove the cover.
3.
Gently press the retainers outward until the memory module pops out of the
memory slot.
See page 227, Figure 3.
Figure 9. RAID Controller memory module
Retainer
Memory
module
Alignment
groove
Memory
slot
Retainer
4.
Align the new memory module with the memory slot so the groove lines up.
5.
Gently press the memory module into the slot until the retainers click into
locked position.
6.
Attach the RAID Controller cover and install the two attaching screws.
See page 227, Figure 3.
7.
Reinstall the RAID Controller.
See “Replacing a RAID Controller” on page 225.
This completes the memory module replacement procedure.
231
VessRAID 1000s Series Product Manual
232
Chapter 8: Technology Background
This chapter covers the following topics:
•
Introduction to RAID (below)
•
Choosing a RAID Level (page 244)
•
Choosing Stripe Size (page 247)
•
Choosing Sector Size (page 247)
•
Cache Policy (page 248)
•
Capacity Coercion (page 250)
•
Initialization (page 251)
•
Hot Spare Drive(s) (page 251)
•
Partition and Format the Logical Drive (page 252)
•
RAID Level Migration (page 252)
•
Media Patrol (page 259)
•
Predictive Data Migration (PDM) (page 260)
•
Transition (page 261)
Introduction to RAID
RAID (Redundant Array of Independent Disks) allows multiple physical drives to
be combined together in a disk array. Then all or a portion of the disk array is
formed into a logical drive. The operating system sees the logical drive as a
single storage device, and treats it as such.
The RAID software and controller manage all of the individual drives. The
benefits of a RAID can include:
•
Higher data transfer rates for increased server performance
•
Increased overall storage capacity for a single drive designation (such as, C,
D, E, etc.)
•
Data redundancy/fault tolerance for ensuring continuous system operation in
the event of a hard drive failure
Different types of logical drives use different organizational models and have
varying benefits. Also see “Choosing a RAID Level” on page 244. The following
outline breaks down the properties for each type of RAID logical drive:
233
VessRAID 1000s Series Product Manual
RAID 0 – Stripe
When a logical drive is striped, the read and write blocks of data are interleaved
between the sectors of multiple physical drives. Performance is increased, since
the workload is balanced between drives or “members” that form the logical drive.
Identical drives are recommended for performance as well as data storage
efficiency.
Figure 1. RAID 0 Striping interleaves data across multiple drives
Data
Stripe
Physical Drives
The disk array’s data capacity is equal to the number of disk drive members
multiplied by the smallest drive's capacity. For example, one 100 GB and three
120 GB drives will form a 400 GB (4 x 100 GB) disk array instead of 460 GB.
If physical drives of different capacities are used, there will also be unused
capacity on the larger drives.
RAID 0 logical drives on VessRAID consist of one or more physical drives.
234
Chapter 8: Technology Background
RAID 1 – Mirror
When a logical drive is mirrored, identical data is written to a pair of physical
drives, while reads are performed in parallel. The reads are performed using
elevator seek and load balancing techniques where the workload is distributed in
the most efficient manner. Whichever drive is not busy and is positioned closer to
the data will be accessed first.
With RAID 1, if one physical drive fails or has errors, the other mirrored physical
drive continues to function. Moreover, if a spare physical drive is present, the
spare drive will be used as the replacement drive and data will begin to be
mirrored to it from the remaining good drive.
Figure 2. RAID 1 Mirrors identical data to two drives
Data Mirror
Physical Drives
The logical drive’s data capacity equals the smaller physical drive. For example,
a 100 GB physical drive and a 120 GB physical drive have a combined capacity
of 100 GB in a mirrored logical drive.
If physical drives of different capacities are used, there will be unused capacity on
the larger drive.
RAID 1 logical drives on VessRAID consist of two physical drives.
If you want a mirrored logical drive with more than two physical drives, see
“RAID 1E – Enhanced Mirror” on page 236 and “RAID 10 – Mirror / Stripe” on
page 239.
235
VessRAID 1000s Series Product Manual
RAID 1E – Enhanced Mirror
RAID 1E offers the security of mirrored data provided by RAID 1 plus the added
capacity of more than two physical drives. It also offers overall increased read/
write performance plus the flexibility of using an odd number of physical drives.
With RAID 1E, each data stripe is mirrored onto two physical drives. If one drive
fails or has errors, the other drives continue to function, providing fault tolerance.
Figure 3. RAID 1E can mirror data over an odd number of drives
Enhanced Data Mirrors
Physical Drives
The advantage of RAID 1E is the ability to use an odd number of physical drives,
unlike RAID 1 and RAID 10. You can also create a RAID 1E Logical Drive with an
even number of physical drives. However, with an even number of drives, you will
obtain somewhat greater security with comparable performance using RAID 10.
RAID 1E logical drives consist of three or more physical drives. You can create
an array with just two physical drives and specify RAID 1E. But the resulting array
will actually be a RAID 1.
236
Chapter 8: Technology Background
RAID 5 – Block and Parity Stripe
RAID 5 organizes block data and parity data across the physical drives.
Generally, RAID Level 5 tends to exhibit lower random write performance due to
the heavy workload of parity recalculation for each I/O. RAID 5 is generally
considered to be the most versatile RAID level. It works well for file, database,
application and web servers.
Figure 4. RAID 5 stripes all drives with data and parity information
Distributed Parity
Data
Blocks
Physical Drives
The capacity of a RAID 5 logical drive equals the smallest physical drive times
the number of physical drives, minus one. Hence, a RAID 5 logical drive with four
100 GB physical drives will have a capacity of 300 GB. A RAID 5 logical drive
with two 120 GB physical drives and one 100 GB physical drive will have a
capacity of 200 GB.
RAID 5 is generally considered to be the most versatile RAID level.
A RAID 5 on VessRAID consists of 3 to 32 physical drives.
237
VessRAID 1000s Series Product Manual
RAID 6 – Block and Double Parity Stripe
RAID level 6 stores dual parity data is rotated across the physical drives along
with the block data. A RAID 6 logical drive can continue to accept I/O requests
when any two physical drives fail.
Figure 5. RAID 6 stripes all drives with data and dual parity
Double Distributed (Wide-space Q+Q) Parity
Data
Blocks
Physical Drives
Hence, a RAID 6 logical drive with (7) 100 GB physical drives will have a capacity
of 500 GB. A RAID 6 logical drive with (4) 100 GB physical drives will have a
capacity of 200 GB.
RAID 6 becomes more capacity efficient in terms of physical drives as the
number of physical drives increases.
RAID 6 provides double fault tolerance. Your logical drive remains available when
up to two physical drives fail.
RAID 6 is generally considered to be the safest RAID level.
A RAID 6 on VessRAID consists of 4 to 32 physical drives.
238
Chapter 8: Technology Background
RAID 10 – Mirror / Stripe
Mirror + Stripe combines both of the RAID 1 and RAID 0 logical drive types.
RAID 10 can increase performance by reading and writing data in parallel—
striping—while protecting data by duplicating it—mirroring.
Promise implements RAID 10 by creating a data stripe over one pair of disk
drives, then mirroring the stripe over a second pair of disk drives. Some
applications refer to this method as RAID 0+1.
Figure 6. Promise RAID 10 starts with a data stripe, then mirrors it
1. Data Stripe
2. Data Mirror
Disk Drives
The data capacity RAID 10 logical drive equals the capacity of the smallest
physical drive times the number of physical drives, divided by two.
In some cases, RAID 10 offers double fault tolerance, depending on which
physical drives fail.
RAID 10 arrays require an even number of physical drives and a minimum of
four.
For RAID 10 characteristics using an odd number of physical drives, choose
RAID 1E.
239
VessRAID 1000s Series Product Manual
RAID 50 – Striping of Distributed Parity
RAID 50 combines both RAID 5 and RAID 0 features. Data is striped across
physical drives as in RAID 0, and it uses distributed parity as in RAID 5. RAID 50
provides data reliability, good overall performance, and supports larger volume
sizes.
Figure 7. RAID 50 is a combination of RAID 5 and RAID 0
Distributed Parity
Axle 1
Data
Stripes
Axle 2
Disk Drives
The data capacity RAID 50 logical drive equals the capacity of the smallest
physical drive times the number of physical drives, minus two.
RAID 50 also provides very high reliability because data is still available even if
multiple physical drives fail (one in each axle). The greater the number of axles,
the greater the number of physical drives that can fail without the RAID 50 logical
drive going offline.
Component
Minimum
Maximum
Number of Axles
2
16
Physical Drives per Axle
3
32
Physical Drives per Logical Drive
6
256
240
Chapter 8: Technology Background
RAID 50 Axles
When you create a RAID 50, you must specify the number of axles. An axle
refers to a single RAID 5 logical drive that is striped with other RAID 5 logical
drives to make RAID 50. An axle can have from 3 to 16 physical drives,
depending on the number of physical drives in the logical drive.
The chart below shows RAID 50 logical drives with 6 to 16 physical drives, the
available number of axles, and the resulting distribution of physical drives on
each axle.
RAID 50 Logical Drive
No. of
Drives
No. of
Axles
Drives per
Axle
No. of
Drives
No. of
Axles
Drives per
Axle
6
2
3,3
14
2
7,7
7
2
3,4
3
4,5,5
8
2
4,4
9
2
4,5
3
10
11
3
2
12
13
4
3,3,4,4
2
7,8
3,3,3
3
5,5,5
2
5,5
4
3,4,4,4
3
3,3,4
2
5,6
15
5
3,3,3,3,3
2
8,8
3,4,4
3
5,5,6
6,6
4
4,4,4,4
3
4,4,4
5
3,3,3,3,4
4
3,3,3,3
2
6,7
3
4,4,5
4
3,3,3,4
16
241
VessRAID 1000s Series Product Manual
RAID 60 – Striping of Double Parity
RAID 60 combines both RAID 6 and RAID 0 features. Data is striped across
disks as in RAID 0, and it uses double distributed parity as in RAID 6. RAID 60
provides data reliability, good overall performance and supports larger volume
sizes.
Figure 8. RAID 60 is a combination of RAID 6 and RAID 0
Double Distributed Parity
Axle 1
Data
Stripes
Axle 2
Disk Drives
Figure 9. RAID 60 Striping of Double Distributed Parity disk arrays
The total capacity of a RAID 60 logical drive is the smallest physical drive times
the number of physical drives, minus four.
RAID 60 also provides very high reliability because data is still available even if
multiple physical drives fail (two in each axle). The greater the number of axles,
the greater the number of physical drives that can fail without the RAID 60 logical
drive going offline.
Component
Minimum
Maximum
Number of Axles
2
16
Physical Drives per Axle
4
32
Physical Drives per Logical Drive
8
256
242
Chapter 8: Technology Background
RAID 60 Axles
When you create a RAID 60, you must specify the number of axles. An axle
refers to a single RAID 6 logical drive that is striped with other RAID 6 logical
drives to make RAID 60. An axle can have from 4 to 16 physical drives,
depending on the number of physical drives in the logical drive.
The chart below shows RAID 60 logical drives with 8 to 20 physical drives, the
available number of axles, and the resulting distribution of physical drives on
each axle.
RAID 60 Logical Drive
No. of
Drives
No. of
Axles
Drives per
Axle
No. of
Drives
No. of
Axles
Drives per
Axle
8
2
4,4
17
2
8,9
9
2
4,5
3
5,6,6
10
2
5,5
11
2
5,6
12
2
3
13
14
15
16
4
4,4,4,5
2
9,9
6,6
3
6,6,6
4,4,4
4
4,4,5,5
18
2
6,7
2
9,10
3
4,4,5
19
3
6,6,7
2
7,7
4
4,5,5,5
3
4,5,5
2
10,10
20
2
7,8
3
6,7,7
3
5,5,5
4
5,5,5,5
2
8,8
5
4,4,4,4,4
3
5,5,6
4
4,4,4,4
243
VessRAID 1000s Series Product Manual
Choosing a RAID Level
There are several issues to consider when choosing the RAID Level for your
VessRAID disk array. The following discussion summarizes some advantages,
disadvantages, and applications for each choice.
RAID 0
Advantages
Disadvantages
Implements a striped disk array, the
data is broken down into blocks and
each block is written to a separate disk
drive
I/O performance is greatly improved by
spreading the I/O load across many
channels and drives
No parity calculation overhead is
involved
Not a true RAID because it is not faulttolerant
The failure of just one drive will result in
all data in an disk array being lost
Should not be used in mission critical
environments
Recommended Applications for RAID 0
•
Image Editing
•
Pre-Press Applications
•
Any application requiring high bandwidth
RAID 1
Advantages
Disadvantages
Simplest RAID storage subsystem
design
Can increase read performance by
processing data requests in parallel
since the same data resides on two
different drives
Very high disk overhead - uses only
50% of total capacity
Recommended Applications for RAID 1
•
Accounting
•
Payroll
•
Financial
•
Any application requiring very high availability
244
Chapter 8: Technology Background
RAID 1E
Advantages
Disadvantages
Implemented as a mirrored disk array
whose segments are RAID 0 disk
arrays
High I/O rates are achieved thanks to
multiple stripe segments
Can use an odd number of disks
Very high disk overhead - uses only
50% of total capacity
Recommended Applications for RAID 1E
•
Imaging applications
•
Database servers
•
General file server
RAID 5
Advantages
Disadvantages
High Read data transaction rate
Medium Write data transaction rate
Good aggregate transfer rate
Disk failure has a medium impact on
throughput
Recommended Applications for RAID 5
•
File and Application servers
•
Intranet servers
•
WWW, E-mail, and News servers
•
Most versatile RAID level
RAID 6
Advantages
Disadvantages
High Read data transaction rate
Medium Write data transaction rate
Good aggregate transfer rate
Safest RAID level, except for RAID 60
High disk overhead – equivalent of two
drives used for parity
Slightly lower performance than RAID 5
Recommended Applications for RAID 6
•
Accounting and Financial
•
Database servers
•
Any application requiring very high availability
245
VessRAID 1000s Series Product Manual
RAID 10
Advantages
Disadvantages
Implemented as a mirrored disk array
whose segments are RAID 0 disk
arrays
High I/O rates are achieved thanks to
multiple stripe segments
Very high disk overhead - uses only
50% of total capacity
Recommended Applications for RAID 10
•
Imaging applications
•
Database servers
•
General file server
RAID 50
Advantages
Disadvantages
High Read data transaction rate
Medium Write data transaction rate
Good aggregate transfer rate
High reliability
Supports large volume sizes
Higher disk overhead than RAID 5
Recommended Applications for RAID 50
•
File and Application servers
•
Transaction processing
•
Office application with many users accessing small files
RAID 60
Advantages
Disadvantages
High Read data transaction rate
Medium Write data transaction rate
Good aggregate transfer rate
Safest RAID level
High disk overhead – equivalent of two
drives used for parity
Slightly lower performance than RAID
50
Recommended Applications for RAID 60:
•
Accounting and Financial
•
Database servers
•
Any application requiring very high availability
246
Chapter 8: Technology Background
Choosing Stripe Size
Stripe Size, also called “Stripe Block Size”, refers to the size of the data blocks
written to, and read from, the physical drives. Stripe Size is specified when you
create a disk array. In order to change the Stripe Size of an existing disk array,
you must delete the disk array and create a new one. You can choose Stripe Size
directly when you use the Advanced function to create a disk array. If you use the
Express function to create a disk array, WebPAM PRO selects the Stripe Size
when you choose an Application Type.
The available Stripe Sizes are 64, 128, 256 KB, 512 KB, and 1 MB. 64 KB is the
default. There are two issues to consider when selecting the Stripe Size.
First, you should choose a Stripe Size equal to, or smaller than, the smallest
cache buffer found on any physical drive in the disk array. Selecting a larger
value slows read/write performance because physical drives with smaller cache
buffers need more time for multiple accesses to fill their buffers.
Second, if your data retrieval consists of fixed data blocks, such as with some
database or video applications, then you should choose that size as your Stripe
Size.
If you do not know the cache buffer or fixed data block sizes, Promise suggests
you choose 64 KB as your Stripe Size. Generally speaking, email, POS, and Web
Servers prefer smaller stripe sizes. Video and database applications prefer larger
stripe sizes.
Choosing Sector Size
A sector is the smallest addressable area on a physical disk drive. Sector Size
refers to the size of sector measured by the number of bytes of data it can hold.
The most common sector size is 512 bytes (512 B). A smaller sector size results
in a more efficient use of a disk drive’s capacity. 512 B is the default sector size
for logical drives on VessRAID.
The number of usable sectors is limited by the addressing method of the
computer's operating system:
•
Windows 2000 and Windows XP (32-bit) support 10-bit logical bit addressing
(LBA), so with 512 B sectors, they can only support up to 2 terabytes (TB) of
data storage capacity. To increase the capacity, you must use larger sectors.
See “2 TB Limitation” on page 248.
•
Windows XP (64-bit), Windows 2003 Server, Windows 2008 Server, and
Windows Vista support 64-bit LBA, so they are not affected by this limitation.
For these OSes, always choose the default 512 B sector size.
•
Linux operating systems with the 2.4 kernel do not support variable sector
sizes. For these OSes, always choose the default 512 B sector size.
247
VessRAID 1000s Series Product Manual
•
Linux operating systems with the 2.6 kernel support 64-bit LBA. For these
OSes, always choose the default 512 B sector size.
2 TB Limitation
If your Host PC runs Windows 2000 or Windows XP (32-bit), and you want to
create logical drives larger than 2TB, you must choose a sector size larger than
512 B when you create the logical drive. The table below correlates sector size
with logical drive capacity.
Logical Drive Size
Sector Size
8 to 16 TB
4096 bytes (4 KB)
4 to 8 TB
2048 bytes (2 KB)
2 to 4 TB
1024 bytes (1 KB)
0 to 2 TB
512 bytes (512 B)
Because logical drives can be expanded, you may encounter a situation where
the usable capacity of your expanded logical drive is reduced by the addressing
issue described above. There are two alternatives:
•
Limit your logical drive expansion to within the limits described in the chart.
•
Back up your data, then delete your existing logical drive and create a new
one with a larger sector size.
Cache Policy
As it is used with VessRAID, the term cache refers to any of several kinds of highspeed, volatile memory that hold data moving from your computer to the physical
drives or vice-versa. Cache is important because it can read and write data much
faster than a physical drive. There are read caches, which hold data as it is read
from a physical drive; and write caches, which hold data as it is written to a
physical drive.
In order to tune the cache for best performance in different applications, useradjustable settings are provided. Cache settings are made in conjunction with
logical drives:
•
When you create a logical drive. See “Creating a Logical Drive” on page 112
(WebPAM PROe) or page 157 (CLU)
•
On an existing logical drive. See “Making Logical Drive Settings” on
page 120 (WebPAM PROe) or “Setting Write Cache Policy” on page 162
(CLU)
248
Chapter 8: Technology Background
Read Cache Policy
•
Read Cache – The read cache is enabled.
•
Read Ahead – The read cache and the read-ahead feature are enabled.
Read-ahead anticipates the next read and performs it before the request is
made. Can increase read performance.
•
No Cache – The read cache is disabled.
Write Cache Policy
•
Write Back – Data is written first to the cache, then to the logical drive.
Better performance. VessRAID has a cache backup battery to protect data in
the cache from a sudden power failure.
•
Write Thru – Also “Write Through”. Data is written to the cache and the
logical drive at the same time. Safer.
If your write cache policy is set to Write Back, the write policy automatically
changes to Write Thru when all of the following conditions occur:
•
The logical drive write policy is set to Write Back
•
The Adaptive Writeback Cache feature is enabled
•
The cache backup battery goes offline
When the battery comes back online, the write policy automatically changes back
to Write Back.
Adaptive Writeback Cache
On the VessRAID subsystem, you can set the logical drive write cache policy to
Write Thru or Write Back.
If you set the write cache policy to Write Back, your data is first written to the
controller cache, and later to the logical drive. This action improves performance.
To preserve the data in the cache in the event of a power failure, the subsystem
has a backup battery that powers the cache. To see an estimate of how long the
battery will power the cache, see “Checking the Battery” on page 93 or page 142.
The Adaptive Writeback Cache feature protects your data by changing the write
cache settings while the cache backup battery is offline. When all of the following
conditions occur:
•
The logical drive write policy is set to Write Back
•
The Adaptive Writeback Cache feature is enabled
•
The cache backup battery goes offline
The write policy automatically changes to Write Thru. When the battery comes
back online, the write policy automatically changes back to Write Back.
249
VessRAID 1000s Series Product Manual
To enable the Adaptive Writeback Cache option, see “Making Controller Settings”
on page 87 (WebPAM PROe) or page 137 (CLU).
Also see “Replacing the Cache Battery” on page 228.
Capacity Coercion
This feature is designed for fault-tolerant logical drives (RAID 1, 1E, 5, 10, 50,
and 60). It is generally recommended to use physical drives of the same size in
your disk arrays. When this is not possible, physical drives of different sizes will
work but the system must adjust for the size differences by reducing or coercing
the capacity of the larger drives to match the smaller ones. With VessRAID, you
can choose to enable Capacity Coercion and any one of four methods.
Enable Capacity Coercion and choose the Method in the Controller Settings
menu. See page 87 (WebPAM PROe) or page 137 (CLU). The choices are:
•
GB Truncate – (Default) Reduces the useful capacity to the nearest
1,000,000,000 byte boundary.
•
10GB Truncate – Reduces the useful capacity to the nearest 10,000,000,000
byte boundary.
•
Group Rounding – Uses an algorithm to determine how much to truncate.
Results in the maximum amount of usable drive capacity.
•
Table Rounding – Applies a predefined table to determine how much to
truncate.
Capacity Coercion also affects a replacement drive used in a disk array.
Normally, when an physical drive fails, the replacement drive must be the same
capacity or larger. However, the Capacity Coercion feature permits the
installation of a replacement drive that is slightly smaller (within 1 gigabyte) than
the remaining working drive. For example, the remaining working drives can be
80.5 GB and the replacement drive can be 80.3, since all are rounded down to
80 GB. This permits the smaller drive to be used.
Without Capacity Coercion, the controller will not permit the use of a replacement
physical drive that is slightly smaller than the remaining working drive(s).
250
Chapter 8: Technology Background
Initialization
Initialization is done to logical drives after they are created from a disk array.
Initialization sets all data bits in the logical drive to zero. The action is useful
because there may be residual data on the logical drives left behind from earlier
configurations. For this reason, Initialization is recommended for all new logical
drives. See “Initializing a Logical Drive” on page 120 (WebPAM PROe) or
page 163 (CLU).
Caution
When you initialize a logical drive, all the data on the logical drive
will be lost. Backup any important data before you initialize a
logical drive.
Hot Spare Drive(s)
A hot spare is a disk drive that is connected to the disk array system but is not
assigned as a member of the disk array. In the event of the failure of a drive
within a functioning fault tolerant disk array, the hot spare is activated as a
member of the disk array to replace a drive that has failed.
VessRAID will replace a failing disk drive in a disk array with an unassigned drive,
if one is available. The unassigned drive is not part of any disk array. Such a drive
is called a hot spare drive. There are two types:
•
Global – An unassigned disk drive available to any disk array on the
VessRAID.
•
Dedicated – An unassigned disk drive that can only be used by a specified
disk array.
The hot spare policy function lets you choose whether a disk array will access
any unassigned disk drive or a designated drive in the event of disk drive failure.
See “Managing Spare Drives” on page 124 (WebPAM PROe) or page 159 (CLU)
for information on how to make this setting.
The spare drive effectively takes the place of the failed drive and the RAID
system immediately begins to rebuild data onto the drive. When the rebuild is
complete, the disk array is returned to fault tolerant status.
VessRAID includes a function that enables you to return a hot spare drive from a
disk array back to spare status. When you create the hot spare drive, check the
Revertible box to enable this feature. See “Transition” on page 261.
See also “Critical & Offline Disk Arrays” on page 290.
251
VessRAID 1000s Series Product Manual
Partition and Format the Logical Drive
Like any other type of fixed disk media in your system, a RAID logical drive must
also be partitioned and formatted before use. Use the same method of
partitioning and formatting on an logical drive as you would any other fixed disk.
Depending on the operating system you use, there may or may not be various
capacity limitations applicable for the different types of partitions.
RAID Level Migration
To migrate a disk array is to do one or both:
•
Change its RAID level
•
Increase the number of disk drives (sometimes called Expansion)
On VessRAID, RAID level migration is performed on the disk array but it applies
to the logical drives. Migration takes place on an existing Functional disk array
without disturbing the existing data. While the disk array is migrating, you can
access the data as before. When migration is complete, your disk array will have
a different RAID level and/or a larger capacity.
In most cases, you must add one or more physical drives during the migration
process. You can never reduce the number of physical drives.
The tables below show the migration options for a source logical drive according
to its RAID level. The available target RAID levels are shown with their
requirements.
See “Migrating a Disk Array” on page 113 or page 155.
252
Chapter 8: Technology Background
RAID 0
A RAID 0 source logical drive can migrate to the following target logical drives:
Target
Requirements
RAID 0
Add physical drives.
RAID 1
2 physical drives only.
Only a single-drive RAID 0 can migrate to RAID 1 by adding 1
physical drive.
RAID 1E
3 or more physical drives.
If existing physical drives have no unused space, add 1 or
more physical drives.
RAID 5
3 physical drives minimum, 32 maximum.
RAID 0 must have less than 16 physical drives.
If existing physical drives have no unused space, add 1 or
more physical drives.
RAID 6
4 physical drives minimum, 32 maximum.
If existing physical drives have no unused space, add 1 or
more physical drives.
RAID 10
4 physical drives minimum.
Even number of physical drives.
If existing physical drives have no unused space, add 1 or
more physical drives.
RAID 50
6 physical drives minimum, 32 per axle maximum.
If existing physical drives have no unused space, add 1 or
more physical drives.
RAID 60
8 physical drives minimum, 32 per axle maximum.
If existing physical drives have no unused space, add 1 or
more physical drives.
253
VessRAID 1000s Series Product Manual
RAID 1
A RAID 1 Source logical drive can migrate to the following Target logical drives:
Target
Requirements
RAID 0
None.
RAID 1E
3 or more physical drives.
Add 1 or more physical drives.
RAID 5
3 physical drives minimum, 32 maximum.
Add 1 or more physical drives.
RAID 10
4 physical drives minimum.
Even number of physical drives.
Add 2 or more physical drives.
RAID 50
6 physical drives minimum, 32 per axle maximum.
Add 4 or more physical drives.
RAID 1E
A RAID 1E Source logical drive can migrate to the following Target logical drives:
Target
Requirements
RAID 0
None.
RAID 1E
Add physical drives.
RAID 5
3 physical drives minimum, 32 maximum.
RAID 1E must have less than 32 physical drives.
If existing physical drives have no unused space, add 1 or
more physical drives.
RAID 10
4 physical drives minimum.
Even number of physical drives.
If existing physical drives have no unused space, add 1 or
more physical drives.
RAID 50
6 physical drives minimum, 32 per axle maximum.
254
Chapter 8: Technology Background
RAID 5
A RAID 5 Source logical drive can migrate to the following Target logical drives:
Target
Requirements
RAID 0
None.
RAID 1E
None.
RAID 5
Add physical drives. 32 maximum.
RAID 6
4 physical drives minimum, 32 maximum.
If existing physical drives have no unused space, add 1 or
more physical drives.
RAID 10
4 physical drives minimum.
Even number of physical drives.
If existing physical drives have no unused space, add 1 or
more physical drives.
RAID 50
6 physical drives minimum, 32 per axle maximum.
If existing physical drives have no unused space, add 1 or
more physical drives.
RAID 60
8 physical drives minimum, 32 per axle maximum.
If existing physical drives have no unused space, add 1 or
more physical drives.
RAID 6
A RAID 6 Source logical drive can migrate to the following Target logical drives:
Target
Requirements
RAID 6
Add physical drives. 32 maximum.
RAID 60
8 physical drives minimum, 32 per axle maximum.
If existing physical drives have no unused space, add 1 or
more physical drives.
255
VessRAID 1000s Series Product Manual
RAID 10
A RAID 10 Source logical drive can migrate to the following Target logical drives:
Target
Requirements
RAID 0
None.
RAID 1E
None.
RAID 5
3 physical drives minimum, 32 maximum.
RAID 10 must have less than 16 physical drives.
RAID 6
4 physical drives minimum, 32maximum.
RAID 10 must have less than 32 physical drives.
If existing physical drives have no unused space, add 1 or
more physical drives.
RAID 10
Add physical drives.
Even number of physical drives.
RAID 50
6 physical drives minimum, 32 per axle maximum.
RAID 60
8 physical drives minimum, 32 per axle maximum.
If existing physical drives have no unused space, add 1 or
more physical drives.
256
Chapter 8: Technology Background
RAID 50
A RAID 50 Source logical drive can migrate to the following Target logical drives:
Target
Requirements
RAID 0
None.
RAID 1E
None.
RAID 5
32 physical drives maximum.
RAID 50 must have less than 32 physical drives.
RAID 6
32 physical drives maximum.
RAID 50 must have less than 16 physical drives.
If existing physical drives have no unused space, add 1 or
more physical drives.
RAID 10
Even number of physical drives.
RAID 50
Add physical drives. 32 per axle maximum.
RAID 60
8 physical drives minimum, 32 per axle maximum.
If existing physical drives have no unused space, add 1 or
more physical drives.
RAID 60
A RAID 60 Source logical drive can migrate to the following Target logical drives:
Target
Requirements
RAID 6
32 physical drives maximum.
RAID 60 must have less than 32 physical drives.
If existing physical drives have no unused space, add 1 or
more physical drives.
RAID 60
Add physical drives. 32 per axle maximum.
257
VessRAID 1000s Series Product Manual
Important
•
The Target disk array may require more physical drives than
the Source disk array
•
If the Target disk array requires an EVEN number of physical
drives but the Source disk array has an ODD number, ADD a
physical drive as part of the migration process
•
You cannot reduce the number of physical drives in your disk
array, even if the Target disk array requires fewer physical
drives than the Source disk array
•
RAID 1 (mirroring) works with two drives only. Only a singledrive RAID 0 disk array can migrate to RAID 1. Other RAID
Levels use too many drives to migrate
•
You cannot migrate a disk array when it is Critical or
performing activities such as Synchronizing, Rebuilding, and
PDM
•
For RAID 6 or RAID 60, you can only migrate between these
two RAID levels. Destination RAID 60 axles can have up to
32 physical drives. Other limitations might apply
Ranges of Disk Array Expansion
The Windows 2000 and Windows XP (32-bit) operating systems support a
10-byte LBA format. As a result, these OSes can only recognize 4 billion
addresses. If you create a logical drive using the default 512 B sector size, the
logical drive will be limited to 2 TB of data, even if there is more space available
on your disk drives.
This limitation does not apply to Windows XP (64-bit), 2003 Server, Vista, and
Linux OSes with the 2.6 kernel. Linux OSes with the 2.4 kernel do not support
variable sector sizes, therefore you cannot apply the solution described here to
those OSes.
Note that once you create your logical drive, you cannot change the size of the
sectors. Nor can you increase the number of address blocks that the OS
recognizes.
You can direct WebPAM PROe to expand a logical drive beyond the maximum
expansion size. When the expansion is finished:
•
WebPAM PROe will show the logical drive in the desired size.
•
Your operating system might show the logical drive at the maximum size
listed in the table below.
•
Additional capacity might appear as unpartitioned and unformatted.
258
Chapter 8: Technology Background
Current LD Size
Maximum LD
Expansion Size
8 to 16 TB
16 TB
4096 bytes
4 to 8 TB
8 TB
2048 bytes
2 to 4 TB
4 TB
1024 bytes
up to 2 TB
2 TB
512 bytes
Sector Size
At this point, you have the choice of:
•
Format the unpartitioned/unformatted capacity as a second logical drive
•
Delete the existing disk array and create a new one in the desired size
Delete and Recreate
If you require a logical drive larger than the maximum expansion size:
1.
Backup the data from the current logical drive.
2.
Delete the current logical drive.
See page 113 (WebPAM PROe) or page 158 (CLU).
3.
Create a new logical drive with the desired capacity.
See page 112 (WebPAM PROe) or page 157 (CLU).
4.
Restore the data to the new logical drive.
Media Patrol
Media Patrol is a routine maintenance procedure that checks the magnetic media
on each disk drive. Media Patrol checks all physical drives assigned to disk
arrays. Media Patrol does not check unconfigured drives.
Media Patrol will also check spare drives, if those drives have Media Patrol
enabled. Media Patrol for spare drives is enabled by default. You can disable it in
VessRAID’s Command Line Interface (CLI).
Unlike Synchronization and Redundancy Check, Media Patrol is concerned with
the condition of the media itself, not the data recorded on the media. If Media
Patrol encounters a critical error, it triggers PDM if PDM is enabled.
You can run Media Patrol from the subsystem. See “Running Media Patrol” on
page 55 (WebPAM PROe) or page 135 (CLU).
You can also run Media Patrol on a disk array. See “Running Media Patrol on a
Disk Array” on page 115 (WebPAM PROe only).
259
VessRAID 1000s Series Product Manual
Predictive Data Migration (PDM)
Predictive Data Migration (PDM) is the migration of data from the suspect disk
drive to a spare disk drive, similar to Rebuilding a Logical Drive. But unlike
Rebuilding, PDM constantly monitors your disk drives and automatically copies
your data to a spare disk drive before the disk drive fails and your Logical Drive
goes Critical. See “Running PDM” on page 56 (WebPAM PROe) or page 156
(CLU).
After the data is copied from the suspect disk drive, the controller marks the
suspect disk drive with a Stale configuration and a PFA error.
You can clear the Stale configuration and PFA error and put the disk drive back
into service. See “Clearing Stale and PFA Conditions” on page 99 (WebPAM
PROe) or page 146 (CLU). In some cases, however, you might remove the disk
drive for repair or replacement.
PDM Triggers
The following actions trigger PDM:
•
A disk drive with unhealthy status (see below)
•
Media Patrol finds a disk critical error*
•
You initiate PDM manually
*PDM also counts the number of media errors reported by Media Patrol.
A disk drive becomes unhealthy when:
•
A SMART error is reported
•
The bad sector remapping table fills to the specified level
Because data would be lost if written to a bad sector, when a bad sector is
detected, the disk drive creates a map around it. These maps are saved in the
bad sector remapping table, which has a capacity of 512 reassigned blocks and
1024 error blocks.
When the table fills to a specified percentage of its capacity, PDM triggers a
migration of data from the suspect drive (the disk drive with the bad sectors) to a
spare disk drive.
During data migration, you will have access to the Logical Drive but it will respond
more slowly to read/write tasks because of the additional operation. The time
required for data migration depends on the size of the disk drive.
See “Making Background Activity Settings” on page 54 (WebPAM PROe) or
page 168 (CLU).
260
Chapter 8: Technology Background
Transition
The Transition feature enables you to specify “permanent” spare drives for your
VessRAID subsystem. Transition is the process of replacing a revertible spare
drive that is currently part of a disk array with an unconfigured physical drive or a
non-revertible spare. The revertible spare drive returns to its original status.
Transition happens automatically when the following sequence of events takes
place:
•
You create a revertible spare drive.
•
A physical drive assigned to your disk array fails and the array goes critical
or degraded.
•
VessRAID automatically rebuilds your array to the revertible spare drive and
the array becomes functional again.
•
You replace the failed physical drive with a new physical drive of equal or
greater capacity.
•
VessRAID automatically transitions (moves) the data from the revertible
spare to the new physical drive.
•
The new physical drive becomes part of the array and the revertible spare
drive returns to its original spare status.
See page 125 (WebPAM PROe) or page 159 (CLU).
Transition happens manually when you specify a different unconfigured physical
drive to transition (move) the data from the revertible spare drive.
Caution
VessRAID supports disk drive hot-swapping. To avoid hand
contact with an electrical hazard, do not remove more than one
drive carrier a time.
See the example below.
261
VessRAID 1000s Series Product Manual
Example
Following is an example to explain the Transition function.
In the example above, there is a four-drive RAID 5 disk array and a global spare
drive. Physical drives 1, 2, 3, and 4 belong to the disk array. Physical drive 5
remains unconfigured. Physical drive 6 is a revertible spare drive.
If a physical drive fails in a disk array and there is a spare drive of adequate
capacity available, the controller automatically rebuilds the array using the spare
drive. In this example, physical drive 3 failed and the array is rebuilt using
physical drive 6, the revertible spare drive.
When the rebuild is complete, the spare drive has replaced the failed drive. In this
example, failed drive 3 was replaced by spare drive 6. The disk array now
consists of physical drives 1, 2, 4, and 6.
262
Chapter 8: Technology Background
There is no spare drive at this moment. Even if physical drive 5 is of adequate
capacity, it has not been designated as a spare, therefore the controller cannot
use it as a spare.
Automatic Transition
At this juncture, you would replace the failed drive in slot 3 with a new one of the
same or greater capacity.
When the VessRAID controller detects the new drive in slot 3, it will:
•
Automatically transition the data on drive 6 to drive 3
•
Return drive 6 to spare status
When the Automatic Transition is finished, physical drives 1, 2, 3, and 4 belong to
the disk array and physical drive 6 is a revertible spare drive. The original
configuration is restored.
Manual Transition
If you wanted to use the drive in slot 5 as a member of the disk array, rather than
the drive in slot 3, you would run the Transition function manually. See page 116
(WebPAM PROe) or page 156 (CLU).
When the Manual Transition is finished, physical drives 1, 2, 4, and 5 belong to
the disk array and physical drive 6 is a revertible spare drive.
At this point, you would replace the drive in slot 3. The new drive in slot 3 will be
unconfigured until you assign it to a disk array or as a spare.
263
VessRAID 1000s Series Product Manual
264
Chapter 9: Troubleshooting
This chapter covers the following topics:
•
VessRAID is Beeping (below)
•
LEDs Display Amber or Red (page 266)
•
CLU Reports a Problem (page 270)
•
WebPAM PROe Reports a Problem (page 272)
•
LCD Panel Reports a Problem (page 275)
•
Viewing a Report from OPAS (page 275)
•
Event Notification Response (page 277)
•
Critical & Offline Disk Arrays (page 290)
•
Incomplete Array (page 293)
•
Physical Drive Problems (page 294)
•
Enclosure Problems (page 296)
•
Connection Problems (page 299)
•
Browser Does Not Connect to WebPAM PROe (page 301)
•
Unsaved Data in the Controller Cache (page 302)
VessRAID is Beeping
VessRAID’s alarm has five different patterns, as shown below.
Figure 1. Audible alarm sound patterns
1
.25s .25s .25s
2
.25s
3
.25s
4
.25s .25s .25s
5
1x
.75s
.5s
.25s
.75s
2.5s
.25s
.25s
.5s
6s
.25s
.75s
.25s
1s
.25s
1.25s
.25s
3s
2x
8
s
When you first power-up the VessRAID, it beeps twice to show normal operation.
The audible alarm sounds at other times to inform you that the VessRAID needs
attention. But the alarm does not specify the condition. When the alarm sounds:
•
Check the front and back of VessRAID for red or amber LEDs, as described
above.
265
VessRAID 1000s Series Product Manual
•
If email notification is enabled, check for new messages.
•
Check for yellow !s
•
Check the event log. See page 47 or page 170.
red Xs
in Tree View, see page 272.
When a continuous tone sounds, there are multiple alarm patterns sounding at
the same time.
To make alarm settings or cancel an alarm, see “Making Buzzer Settings” on
page 94 or page 193.
LEDs Display Amber or Red
Front Panel LEDs
When boot-up is finished and the VessRAID subsystem is functioning normally:
•
Power, Global Enclosure Status, and Global RAID Status LEDs display
green continuously.
•
Controller Activity LED flashes green when there is controller activity.
•
System Heartbeat LED blinks green seven times in three seconds, goes
dark for six seconds, then repeats the pattern.
Figure 2. VessRAID front panel LEDs
Power
Global Enclosure Status
Global RAID Status
Controller Activity
Reserved
System Heartbeat
See the table below.
266
Chapter 9: Troubleshooting
State
LEDs
Dark
Steady
Green
Flashing
Green
Amber
Red
System Off
Normal
—
—
—
Global RAID
System Off
Status
Normal
—
Logical
Logical
Drive Critical Drive Offline
Normal
Locating the
Enclosure
Fan, battery, power
supply, temperature, or
voltage problem*
Power
Global
Enclosure
Status
System Off
Controller
Activity
System Off
One or more
or no SAS
SAS ports
ports
connected
connected
Activity
—
—
Controller
Heartbeat
System Off
Normal*
—
—
—
* Check the LEDs on the back of the enclosure for more information.
** Blinks blinks green seven times in three seconds, goes dark for six seconds,
then repeats the pattern.
When the Global Enclosure LED on VessRAID’s front panel shows Amber or
Red, check the LEDs on the back of VessRAID. These LEDs give the status of
individual components. See page 269, Figure 5.
Disk Drive LEDs
There are two LEDs on each Drive Carrier. They report the presence of a disk
drive, activity of the drive, and the drive’s current condition.
Figure 3. VessRAID disk drive carrier LEDs
Disk Status
Power/Activity
If there is a disk drive in the carrier, the Power/Activity LED displays Green. If not,
the Power/Activity LED remains dark.
267
VessRAID 1000s Series Product Manual
The Power/Activity LED flashes during drive activity.
The Disk Status LED displays Green when a drive is present and configured.
State
LEDs
Dark
Steady
Green
Flashing
Green
Amber
Red
Power/
Activity
No Drive
Drive
Present
Activity
—
—
Status
No Drive or
Unconfigured
Drive OK
Locating the
Drive
Drive
Rebuilding
Array Drive
Offline
See “Critical & Offline Disk Arrays” on page 290 for a discussion of rebuilding and
failed disk drives.
LCD Panel
When the VessRAID is fully booted and running under normal conditions, the
LCD screen shows the VessRAID model number and IP address. If a problem is
detected in the subsystem, the LCD screen displays a Check Event message, as
shown in Figure 4.
Figure 4. VessRAID optional LCD display
Press the
or
button to see the View Events menu. Then press the
button to read the Events.
Controller LEDs
Under normal conditions, the Controller Status LED is green and the Dirty Cache
LED icon is dark. The battery and fan LEDs should display green. See the figure
and table below.
268
Chapter 9: Troubleshooting
Figure 5. VessRAID Controller LEDs
Fan 2
Fan 1
Battery
JBOD Expansion Port
Dirty
16- and 12-bay models
USB 2
Cache
Controller
SAS IN Ports
Status USB 1
Fan 2
Fan 1
State
LEDs
Dark
Controller
Status
no power
Dirty Cache
No data in
cache
Battery
Fan
Not
detected or
Not installed
Green
Amber
Red
Blinking
OK
Error
Malfunction
at start-up
Green:
Activity
—
Unsaved
data
in cache
—
Amber:
Unsaved
data
in cache
OK
Backup
capacity
below 72
hours
No power to
controller
cache
—
One fan
Multiple
turning too fans turning
slowly
too slowly
—
Not
detected
OK
USB Ports
No device
detected
Device
detected
—
Failed data
transfer
Amber:
Activity
SAS OUT
Port
No
connection
Port
connected
—
—
Green:
Activity
If the Controller Status LED is amber, restart the VessRAID. See “Restarting the
Subsystem” on page 85 (WebPAM PROe) or page 191 (CLU).
269
VessRAID 1000s Series Product Manual
If the Controller Status LED continues to display amber after startup, contact
Promise Technical Support. See page 305.
The Dirty Cache LED flashes during input/output operation. If the LED shines
amber and the power is off, there is unsaved data in the cache. Do NOT power
down the VessRAID while this LED is on. See “Browser Does Not Connect to
WebPAM PROe” on page 301 for more information.
If the battery LED is amber or red, try reconditioning the battery. See
“Reconditioning a Battery” on page 94 or page 143. If the condition returns,
replace the battery.
If the fan LED is amber or red:
1.
Identify the malfunctioning fan. See “Viewing Enclosure Information” on
page 91 or page 140.
2.
Replace the fan. See “Replacing a Cooling Fan” on page 226.
Also see “Enclosure Problems” on page 296.
CLU Reports a Problem
The CLU reports information passively—you must determine which functions to
check based on the sound of the VessRAID’s buzzer and any amber or red
LEDs. See page 265 through 269.
Check the event logs first. Then check the reported component.
Viewing Runtime Events
To display Runtime Events:
1.
From the Main Menu, highlight Event Viewer and press Enter.
The log of Runtime Events appears. Events are added to the top of the list.
Each item includes:
•
Sequence number – Begins with 0 at system startup.
•
Device – Disk Array, Logical Drive, Physical Drive by its ID number.
•
Severity – (lowest to highest) Information, Warning, Minor, Major,
Critical and Fatal
•
Timestamp – Date and time the event happened.
•
Description – A description of the event in plain language.
Press the up and down arrow keys to scroll through the log.
Viewing NVRAM Events
This screen displays a list of and information about 63 most important events
over multiple subsystem startups.
270
Chapter 9: Troubleshooting
To display NVRAM events:
1.
From the Main Menu, highlight Event Viewer and press Enter.
2.
Highlight NVRAM Events and press Enter.
The log of NVRAM Events appears. Events are added to the top of the list.
Each item includes:
3.
•
Sequence number – Begins with 0 at system startup.
•
Device – Disk Array, Logical Drive, Physical Drive by its ID number.
•
Severity – (lowest to highest) Information, Warning, Minor, Major,
Critical and Fatal
•
Timestamp – Date and time the event happened.
•
Description – A description of the event in plain language.
Press the up and down arrow keys to scroll through the log.
Checking a Reported Component
In this example, let us check disk array status.
1.
Open the CLU.
2.
Highlight Disk Array Management and press Enter.
3.
Observe the status of your disk arrays.
DaId Alias OpStatus CfgCapacity FreeCapacity MaxContiguousCap
------------------------------------------------------------------------------------------0
DA0 OK
75.44GB
66.06GB
66.06GB
1
DA1 Degraded 189.06GB
179.68GB
179.68GB
2
DA2 OK
73.57GB
64.20GB
64.20GB
At this point, you can highlight the Degraded array and press Enter to see more
information. See below.
Disk Array ID
:
OperationalStatus
:
FreeCapacity
:
SupportedRAIDLevels:
Disk Array Alias
MediaPatrol
PDM
1
Degraded
179.68 GB
0 5 10 1E
: DA1
: Enabled
: Enabled
Transport
Rebuild
Predictive Data Migration
Transition
Dedicated Spare Drives in the Array
271
Physical Capacity
: 189.06GB
MaxContiguousCapacity : 11.18GB
ConfigurableCapacity
: 179.68GB
VessRAID 1000s Series Product Manual
Physical Drives in the Array
Logical Drives in the Array
[Locate Disk Array]
Save Settings
[CTRL-A]
Restore Settings
[CTRL-R]
Return to Previous Menu
From this screen:
•
Highlight Physical Drives in the Array and press Enter to identify the failed
disk drive
•
Highlight Rebuild and press Enter to rebuild the array after you replace the
failed disk drive
For more information, see “Critical & Offline Disk Arrays” on page 290.
WebPAM PROe Reports a Problem
WebPAM PROe aids in troubleshooting your logical drives and enclosure by
continuous monitoring and reporting to the User in the following ways:
•
Displays yellow !s
red Xs
in Tree View.
Figure 6. Yellow !s and red Xs in Tree View
272
Chapter 9: Troubleshooting
To set up email and popup message notification, see “Setting-up User Event
Subscriptions” on page 61.
Figure 7. An example of a popup message
•
Keeps a record in the Event Log.
Figure 8. The Event Log
•
Keeps a record in the Event Log.
•
Displays full information in Management View.
273
VessRAID 1000s Series Product Manual
Figure 9. A failed disk drive shown in Management View
Auto Rebuild
Replacement Drive
Failed Disk Drive
Critical / Rebuilding Status
Also see these troubleshooting topics:
•
“Event Notification Response” on page 277
•
“Critical & Offline Disk Arrays” on page 290
•
“Frequently Asked Questions” on page 303
274
Chapter 9: Troubleshooting
LCD Panel Reports a Problem
The LCD panel can report a certain problems, including a Critical logical drives.
Figure 10.The optional LCD panel reports a Critical logical drive
Press the
or
button until you see the View Events menu.
Then press the
button to read the corresponding event. The event gives
specific information, such as which physical drive failed or was removed.
Viewing a Report from OPAS
The VessRAID subsystem comes with One Plug Auto Service (OPAS). OPAS
automatically saves a comprehensive system profile and diagnostic report as a
text file when you plug a USB stick in one of the USB ports on the VessRAID
controller.
To view an OPAS report on the VessRAID:
1.
Plug a USB stick into one of the USB ports on the VessRAID controller.
Figure 11. USB ports on the VessRAID controller
USB ports
2.
Wait 30 seconds, then remove the USB stick from the VessRAID.
The controller automatically manages safe removal of the USB stick.
3.
Plug the USB stick into one of the USB ports on your PC.
275
VessRAID 1000s Series Product Manual
4.
Open the root folder of the USB stick and copy the file
subinfo_xxxxxxxxxx.log to the PC desktop or a convenient location.
Figure 12.Locating the report file on the USB stick
5.
Open the subinfo_xxxxxxxxxx.log file in a text editor to read the system
profile and diagnostic report.
Note
Choose a text editor with some word processor capability, such as
WordPad on a Windows PC, for easier viewing.
276
Chapter 9: Troubleshooting
Event Notification Response
When you choose Event Notification, WebPAM PROe sends popup and/or email
messages regarding its status. The messages you see depend on your
notification selection and what is currently happening in the VessRAID. See
“Setting-up User Event Subscriptions” on page 61.
The table below cites:
•
Reported Events – Events that require you to take action
•
Corrective Actions – The action you should take in response to the event
A list of event categories is shown below.
•
Battery (page 277)
•
PDM (page 283)
•
Blowers (page 278)
•
Physical Disk (page 284)
•
Cache (page 279)
•
•
Controller (page 279)
PSU (Power Supply Units)
(page 285)
•
Disk Array (page 279)
•
RAID Level Migration (page 286)
•
Drive Interface Controller
(page 280)
•
Rebuild (page 286)
•
Redundancy Check (page 287)
•
Enclosure (page 280)
•
Resource (page 288)
•
Event Log (page 280)
•
Spare Check (page 288)
•
Host Interface Controller
(page 280)
•
Spare Drives (page 288)
•
SMART (page 288)
•
Logical Drive (page 281)
•
Synchronization (page 288)
•
Media Patrol (page 282)
•
System (VessRAID) (page 289)
•
Online Capacity Expansion
(page 283)
•
Transition (page 289)
•
Watermark (page 289)
Reported Event
Corrective Action
Battery
Battery temperature is
above the threshold
The battery is too hot. Verify proper airflow around
the through the VessRAID. If airflow is OK, replace
the battery. See page 228.
Battery temperature is
normal
Normal.
Battery capacity is below
the threshold
Battery is drained. Run battery reconditioning. See
page 94 (WebPAM PROe) or page 143 (CLU).
Battery capacity is normal Normal.
277
VessRAID 1000s Series Product Manual
Reported Event
Corrective Action
Battery is discharging
Battery is undergoing reconditioning.
Battery is charging
Battery is being recharged.
Battery reconditioning is
complete
Battery reconditioning is finished.
Battery is malfunctioning
Run battery reconditioning. Run battery
reconditioning. See page 94 (WebPAM PROe) or
page 143 (CLU). If this message reappears, replace
the battery.
Battery reconditioned
successfully
Battery reconditioning is finished.
Battery reconditioning has Replace the battery. See page 228
failed
Battery is reaching end of Replace the battery. See page 228.
life
Battery is removed
The battery was disconnected or removed. Reinstall
the battery. See page 228
Battery charging failed
Replace the battery. See page 228.
Battery reconditioning
started
Battery reconditioning has begun.
Battery recondition
terminated
The battery was disconnected or removed during
reconditioning. Reinstall the battery. See page 228.
Blowers
Blowers have started
Normal.
Blowers have stopped
Verify that the fans are properly installed. If they still
does not turn, replace the fan. See page 226.
Blower speed is
increased
Check the VessRAID for overheating. See page 296.
Blower speed is
decreased
Temporary overheat condition was corrected.
Blowers are NOT
functioning
Replace the fans. See page 226.
Blowers have been
inserted
Normal.
Blowers have been
removed
Reinstall the fan. If the fan does not turn, replace it.
See page 226.
278
Chapter 9: Troubleshooting
Reported Event
Blowers are functioning
normally
Corrective Action
Normal.
Blowers are NOT installed Reinstall the fan. If the fan does not turn, replace it.
See page 226.
Blower status is unknown Check for airflow out of the cooling unit. If there is
none, check for proper installation.
Cache
BBU flushing has started
VessRAID’s cache is being flushed.
BBU flushing has ended
VessRAID’s cache has been flushed.
BBU flushing has failed
VessRAID’s cache could not be flushed. Check your
cache flush interval setting. See page 87 (WebPAM
PROe) or page 137 (CLU).
Controller
The controller
The user successfully changed controller settings.
parameter(s) changed by See page 87 (WebPAM PROe) or page 137 (CLU).
user
The controller has new
crash information
Check the event logs. See page 51 and 52 (WebPAM
PROe) or page 170 (CLU)
Controller temperature is
above the threshold/
warning threshold
The VessRAID controller is overheating. Check for
airflow around and through the controller, and verify
that all fans are working. Replace fans as needed.
Controller temperature is
above the critical
threshold
The VessRAID controller is seriously overheating.
Check for airflow around and through the controller,
and verify that all fans are working. Replace fans as
needed.
Disk Array
New disk array has been
created
Result of settings or user action. Normal.
Disk array has been
deleted
Result of settings or user action. Normal.
Disk array has been
added
Result of settings or user action. Normal.
Disk array has been
removed
The physical drives of the disk array were removed
from the enclosure.
Disk array settings have
been changed
The user successfully disk array settings. See
page 111 (WebPAM PROe) or page 153 (CLU).
279
VessRAID 1000s Series Product Manual
Reported Event
Corrective Action
Drive Interface Controller
Drive-interface controller
found
Normal.
Drive-interface controller
is NOT found
Restart the VessRAID. See page 85 (WebPAM
PROe) or page 191 (CLU). If this message appears
repeatedly, contact Technical Support. See page 305.
Drive-interface
diagnostics has passed
Normal.
Drive-interface
diagnostics has failed
Restart the VessRAID. See page 85 (WebPAM
PROe) or page 191 (CLU). If this message appears
repeatedly, contact Technical Support. See page 305
Drive-interface controller Drive-to-controller parity error. If this message
has generated a general/ appears repeatedly, contact Technical Support. See
data parity error.
page 305.
Enclosure
Enclosure temperature is The VessRAID is overheating. Check for airflow
above the threshold/
around and through the VessRAID, and verify that all
warning threshold
fans are working. Replace fans as needed.
Enclosure temperature is The VessRAID is seriously overheating. Check for
above the critical
airflow around and through the VessRAID, and verify
threshold
that all fans are working. Replace fans as needed.
Enclosure temperature is Normal.
within the normal range
Event Log
Event logging is enabled
Event logging has been successfully enabled.
Event logging is disabled Event logging has been disabled.
Event log buffer is cleared The event log was cleared.
in RAM
Event log buffer is cleared The non-volatile RAM event log was cleared.
in NVRAM
Event log buffer is cleared The MDD (disk drive) event log was cleared.
in MDD
Host Interface Controller
Host-interface controller
has detected bus reset
The initiator sent a reset command. If this message
appears repeatedly, contact Technical Support. See
page 305.
280
Chapter 9: Troubleshooting
Reported Event
Corrective Action
Host-interface controller
has encountered an
unrecoverable error
Restart the VessRAID. See page 85 (WebPAM
PROe) or page 191 (CLU).
Host-interface controller
has received an aborttask/ abort task set/clear
task set command.
Result of user action. Normal.
Host-interface controller
has received an clear
ACA command.
Result of clearing an auto contingent alliance
condition. If this message appears repeatedly,
contact Technical Support. See page 305.
Host-interface controller Result of user action. Normal.
has received a LUN reset
command.
Host-interface controller The VessRAID rebooted itself. If this message
has received a bus reboot appears repeatedly, contact Technical Support. See
page 305.
Host-interface controller
has encountered an
unknown error
An unidentified error occurred. If this message
appears repeatedly, contact Technical Support. See
page 305.
Host-interface controller
has encountered a
system error
A VessRAID system error occurred. If this message
appears repeatedly, contact Technical Support. See
page 305.
Host-interface controller
has encountered a fatal
error
Restart the VessRAID. See page 85 (WebPAM
PROe) or page 191 (CLU). If this message appears
repeatedly, contact Technical Support. See page 305.
Host-interface controller
settings have changed
Result of user action. Normal.
Logical Drive
Logical drive initialization Result of user action. Normal.
has started
Logical drive initialization Logical drive is ready to use. Normal.
has completed
Logical drive initialization Initialization paused because of user intervention,
has paused
schedule or a higher priority background activity.
Logical drive initialization Initialization has resumed again after a pause.
has resumed
281
VessRAID 1000s Series Product Manual
Reported Event
Corrective Action
Logical drive initialization Initialization stopped because of user intervention,
has stopped
schedule or the logical drive was deleted or went
critical or offline.
Logical drive initialization Initialization failure due to a failed disk drive. Replace
marks the logical drive
the disk drive, delete and recreate the logical drive.
offline
See page 105 (WebPAM PROe) or page 148 (CLU).
Logical drive initialization System resources are low. Reduce system load or
is aborted due to an
restart the VessRAID. See page 85 (WebPAM PROe)
internal error.
or page 191 (CLU).
Logical drive initialization Initialization has been set manually or by schedule.
is queued
A new logical drive has
been created
Result of user action. Normal.
Logical drive has been
deleted
Result of user action. Normal.
Logical drive has been
placed online
The physical drives of the array are restored to online
status.
Logical drive has been
placed online. Possible
data loss
One or more physical drives in the array went offline.
See page 290.
Logical drive has been set One or more physical drives in the array went offline.
to critical.
See page 290.
Logical drive axle has
been placed online
RAID 50 and 60. One of the axles (RAID 5 or 6
arrays) returned on online status.
Media Patrol
Media patrol is started
Result of settings or user action. Normal.
Media patrol is completed Normal.
Media patrol is paused
Media patrol paused because of user intervention,
schedule or a higher priority background activity.
Media patrol is resumed
Media patrol has resumed again after a pause.
Media patrol is stopped
Media patrol stopped because of user intervention,
schedule or the logical drive was deleted or went
critical or offline.
Media patrol is aborted
due to an internal error.
System resources are low. Reduce system load or
restart the VessRAID. See page 85 (WebPAM PROe)
or page 191 (CLU).
282
Chapter 9: Troubleshooting
Reported Event
Corrective Action
Media patrol is queued
Media patrol has been set manually or by schedule.
Media patrol is stopped
internally
Media patrol stopped because the disk array was
deleted or removed.
Online Capacity Expansion
Online capacity
expansion has started
Result of settings or user action. Normal.
Online capacity
Normal.
expansion has completed
Online capacity
expansion has paused
Expansion paused because of user intervention,
schedule or higher priority background activity.
Online capacity
expansion has resumed
Expansion has resumed again after a pause or a
reboot.
Online capacity
expansion has stopped
Expansion stopped because of user intervention,
schedule or the logical drive was deleted or went
critical or offline.
Online capacity
expansion has
encountered a physical
disk error
Bad block found on a disk drive. Migration will finish.
Check the disk drive check table after migration and
replace disk drive as needed. See page 97 (WebPAM
PROe) or page 146 (CLU).
Online capacity
System resources are low. Reduce system load or
expansion is aborted due restart the VessRAID. See page 85 (WebPAM PROe)
to an internal error.
or page 191 (CLU).
Online capacity
expansion is queued
Synchronization has been set manually or by
schedule.
PDM
PDM is started
Result of settings or user action. Normal.
PDM is completed
Normal.
PDM is paused
PDM paused because of user intervention, schedule
or a higher priority background activity.
PDM is resumed
PDM has resumed again after a pause.
PDM is stopped
PDM stopped because of user intervention, schedule
or the logical drive was deleted or went critical or
offline.
PDM is switched to
rebuild.
PDM changed to rebuild because the logical drive
went critical
283
VessRAID 1000s Series Product Manual
Reported Event
Corrective Action
PDM is stopped internally The destination drive was removed or used for a
rebuild.
Physical Disk
Physical disk is marked
online
Disk drive restored to normal operation.
Physical disk is marked
online
Disk drive removed from service due to errors. If
necessary, try to force the disk online. See page 100
(WebPAM PROe) or page 147 (CLU).
Physical disk is marked
as dead.
Disk drive failure. Replace the disk drive.
Physical disk is marked
as dead after it was
removed and reinserted
by the user.
Try forcing the disk online. See page 100 (WebPAM
PROe) or page 147 (CLU)
Physical disk has been
reset
Disk drive reset after error and should function
normally.
Physical disk assigned as Result of settings or user action. Normal.
global spare
Physical disk is no longer Result of settings or user action. Normal.
assigned as global spare
Physical disk assigned as Result of settings or user action. Normal.
dedicated spare
Physical disk is no longer Result of settings or user action. Normal.
assigned as dedicated
spare
Physical disk has been
inserted
A disk drive has been inserted into the VessRAID
subsystem.
Physical disk has been
removed
A disk drive has been removed from the VessRAID
subsystem.
Bad sector is found on
physical disk
Disk drive has a bad sector. The drive should remap
around the bad sector. If this message appears
repeatedly, replace the disk drive.
Error is detected in remap Disk drive has a bad remap sectors. If this message
sectors
appears repeatedly, replace the disk drive.
Command times out on
physical drive
Disk drive not responding to commands. If this
message appears repeatedly, replace the disk drive.
284
Chapter 9: Troubleshooting
Reported Event
Physical disk negotiation
speed is decreased.
Corrective Action
Disk drive had to reduce its data rate. If this message
appears repeatedly, replace the disk drive.
Previously configured disk Disk drive may have failed or was removed from the
is no longer found
enclosure. Replace or reinstall the disk drive as
needed.
A physical disk has
Disk drive experienced an unknown error. If this
encountered an unknown message appears repeatedly, replace the disk drive.
(non-ECC) media error.
A physical disk has
encountered PFA
condition
A potentially faulty address or bad sector was found.
A configured dead
physical drive has been
inserted
The disk drive inserted into the VessRAID was
marked as dead and will not work on the VessRAID.
Replace the disk drive.
A physical drive page 0/1 Result of settings or user action. Normal.
settings have been
changed
Physical disk is marked
as dead due to removal/
failure of reassign
sectors/PFA condition/
forced offline state
Replace the disk drive.
PSU (Power Supply Units)
PSU is not inserted/has
been removed
A power supply unit is missing from the VessRAID.
Reinstall the power supply unit.
PSU is off
A power supply unit is present but turned off. Turn on
he power supply.
PSU is on
Normal.
PSU is installed/
Normal.
operational and turned on
PSU is installed/
A power supply unit is present but turned off. Turn on
operational and turned off the power supply.
PSU is malfunctioning
and turned on/off
Replace the power supply unit.
PSU 12V/5V/3.3V power
is out of the threshold
range
Replace the power supply unit.
285
VessRAID 1000s Series Product Manual
Reported Event
PSU 12V/5V/3.3V power
is within the range
Corrective Action
Normal.
RAID Level Migration
RAID Level migration is
started
Result of settings or user action. Normal.
RAID Level migration is
completed
Normal.
RAID Level migration is
paused
Migration paused because of user intervention,
schedule or a higher priority background activity.
RAID Level migration is
resumed
Migration has resumed again after a pause.
RAID Level migration is
stopped
Migration stopped because of user intervention,
schedule or the logical drive was deleted or went
critical or offline.
RAID Level migration has Bad block found on a disk drive. Migration will finish.
encountered a physical
Check the disk drive check table after migration and
disk error
replace disk drive as needed.
System resources are low. Reduce system load or
RAID Level migration is
aborted due to an internal restart the VessRAID. See page 85 (WebPAM PROe)
or page 191 (CLU).
error.
RAID Level migration is
queued
Migration has been set manually or by schedule.
Migration has detected/
cleared stale NV
Watermark
Watermarks are progress markers left as the result of
interrupted RAID migrations. If the watermark was
cleared, migration should finish.
Array was incomplete due RAID migration was interrupted by a shutdown.
to missing NV Watermark If array is online, try migration again. See page 113
(WebPAM PROe) or page 155 (CLU).
If array is offline, delete and recreate array. See
page 110 and page 105 (WebPAM PROe) or
page 152 and page 148 (CLU).
Rebuild
Rebuild is started
Result of settings or user action. Normal.
Rebuild is completed
Normal.
Rebuild is paused
Rebuild paused because of user intervention,
schedule or a higher priority background activity.
286
Chapter 9: Troubleshooting
Reported Event
Corrective Action
Rebuild is resumed
Rebuild has resumed again after a pause.
Rebuild is stopped
Rebuild stopped because of user intervention,
schedule or the logical drive was deleted or the target
disk drive encountered an error.
If rebuild stopped by the user, restart the rebuild. See
page 114 (WebPAM PROe) or page 154 (CLU).
Rebuild stopped internally The logical drive is offline. See page 290.
Rebuild is aborted due to System resources are low. Reduce system load or
an internal error.
restart the VessRAID. See page 85 (WebPAM PROe)
or page 191 (CLU).
Rebuild is queued
Rebuild has been set manually or by schedule.
Rebuild marks logical
drive synchronized upon
rebuild completion
Result of successful rebuild. Normal.
Redundancy Check
Redundancy Check is
started
Redundancy Check has started manually or by
schedule.
Redundancy Check is
completed
Redundancy Check has finished.
Redundancy Check is
paused
Redundancy Check paused because of user
intervention, schedule or a higher priority background
activity.
Redundancy Check is
resumed
Redundancy Check has resumed again after a
pause.
Redundancy Check is
stopped
Redundancy Check stopped because of user
intervention, schedule or the logical drive was deleted
or went critical or offline. See page 290.
Redundancy Check is
aborted due to internal
error
System resources are low. Reduce system load or
restart the VessRAID. See page 85 (WebPAM PROe)
or page 191 (CLU).
Redundancy Check
Check the logical drive’s inconsistent block table. See
encountered inconsistent page 122. Rebuild the disk array if necessary. See
block(s)
page 105 (WebPAM PROe) or page 148 (CLU).
Redundancy Check task
is queued
Redundancy Check has been set manually or by
schedule.
Redundancy Check task
is stopped internally
The logical drive is offline. See page 290.
287
VessRAID 1000s Series Product Manual
Reported Event
Corrective Action
Resource
Resource is NOT
available
System resources are low. Reduce system load or
restart the VessRAID. See page 85 (WebPAM PROe)
or page 191 (CLU).
Spare Check
Spare check started on
the given spare drive
Result of settings or user action. Normal.
Spare check completed
Normal.
successfully on the given
spare drive
Spare Drives
Physical disk assigned as Result of settings or user action. Normal.
global spare
Physical disk is no longer Result of settings or user action. Normal.
assigned as global spare
Global Spare has been
deleted
Result of settings or user action. Normal.
Physical disk assigned as Result of settings or user action. Normal.
dedicated spare
Physical disk is no longer Result of settings or user action. Normal.
assigned as dedicated
spare
Dedicated Spare has
been deleted
Result of settings or user action. Normal.
SMART
SMART error is received
A disk drive reported a SMART error. If this message
appears repeatedly, replace the disk drive.
Synchronization
Synchronization is started Result of settings or user action. Normal.
Synchronization is
completed
Normal.
Synchronization is
paused
Synchronization paused because of user
intervention, schedule or higher priority background
activity.
Synchronization is
resumed
Synchronization has resumed again after a pause or
a reboot.
288
Chapter 9: Troubleshooting
Reported Event
Synchronization is
stopped
Corrective Action
Synchronization stopped because of user
intervention, schedule or the logical drive was deleted
or went critical or offline.
Synchronization is
System resources are low. Reduce system load or
aborted due to an internal restart the VessRAID. See page 85 (WebPAM PROe)
error.
or page 191 (CLU).
Synchronization is
queued
Synchronization is already running on another logical
drive in the same array.
Synchronization is
stopped internally
Synchronization stopped because the disk array was
deleted or removed.
System (VessRAID)
The system is started
The VessRAID has been started.
The system is stopped
The VessRAID was shut down.
Transition
Transition is started
Result of settings or user action. Normal.
Transition is completed
Normal.
Transition is paused
Transition paused because of user intervention,
schedule or a higher priority background activity.
Transition is resumed
Transition has resumed again after a pause.
Transition is stopped
Transition stopped because of user intervention or
the logical drive was deleted.
Transition was switched
to rebuild
Transition changed to rebuild because the logical
drive went critical.
Watermark
Migration has detected/
cleared stale NV
Watermark
Watermarks are progress markers left as the result of
interrupted RAID migrations. If the watermark was
cleared, migration should finish.
Array was incomplete due RAID migration was interrupted by a shutdown.
to missing NV Watermark If array is online, try migration again. See page 113
(WebPAM PROe) or page 155 (CLU).
If array is offline, delete and recreate array. See
page 110 and page 105 (WebPAM PROe) or
page 152 and page 148 (CLU).
289
VessRAID 1000s Series Product Manual
Critical & Offline Disk Arrays
A fault-tolerant disk array—RAID 1, 1E, 5, 10, and 50—goes critical when a disk
drive is removed or fails. A RAID 6 or 60 disk array—goes degraded when a disk
drive is removed or fails and critical when two disk drives are removed of fail.
Due to the fault tolerance of the disk array, the data is still available and online.
However, once the disk array goes critical, the disk array has lost its fault
tolerance, and performance may be adversely affected.
If the fault was caused by a failed drive that was removed, the drive must be
replaced by another drive, either identical or larger, in order for the RAID system
to rebuild and restore optimal configuration.
If your fault-tolerant disk array—RAID 1, 1E, 5, 6, 10, 50, and 60— goes offline,
contact Promise Technical Support. See page 305.
Warning
Take no further corrective action until you have consulted with
Promise Technical Support.
A non-fault tolerant disk array—RAID 0—goes offline when a disk drive is
removed or fails. Since the disk array is not fault tolerant, the data stored in the
disk array is no longer accessible.
If one disk drive fails, all of the data on the disk array is lost. You must replace the
failed drive. Then, if the disk array had more than one disk drive, delete the disk
array and re-create it. Restore the data from a backup source.
When a Physical Drive Fails
VessRAID provides both audible and visual indicators to alert you of a disk drive
failure. The following will occur when a disk drive fails or goes offline:
•
The Global RAID Status LED changes from green to amber.
Figure 13.VessRAID front panel LEDs
Power
Global Enclosure Status
Global RAID Status
290
Chapter 9: Troubleshooting
•
The Disk Status LED changes from green to red.
Figure 14.VessRAID disk drive carrier LEDs
Disk Status
Power/Activity
•
The audible alarm repeatedly sounds two short beeps. See page 265.
•
WebPAM PROe reports the condition. See page 272.
Also see “Physical Drive Problems” on page 294.
With a Hot Spare Drive
When a physical drive in a disk array fails and a spare drive of adequate capacity
is available, the disk array will begin to rebuild automatically using the spare
drive.
After the disk array rebuilds itself using the spare drive, you must replace the
failed drive.
To set up a spare drive, see “Creating a Spare Drive” on page 125 (WebPAM
PROe) or page 159 (CLU).
Without a Hot Spare Drive
If there is no hot spare drive of adequate capacity, you must remove the failed
drive and install an unconfigured replacement drive of the same or greater
capacity in the same slot as the failed drive. Until you install the replacement
drive, the logical drive will remain Degraded.
Caution
VessRAID supports disk drive hot-swapping. To avoid hand
contact with an electrical hazard, do not remove more than one
drive carrier a time.
•
If the Auto Rebuild function is ENABLED, the disk array will begin to rebuild
automatically as soon as you replace the failed drive.
•
If the Auto Rebuild function is DISABLED, you must manually rebuild the
disk array after you replace the failed drive.
291
VessRAID 1000s Series Product Manual
To enable Automatic Rebuild, see “Making Background Activity Settings” on
page 54 (WebPAM PROe) or page 168 (CLU).
To set Hot Spare Policy, see “Making Spare Drive Settings” on page 126
(WebPAM PROe) or page 160 (CLU).
Important
If your replacement disk drive was formerly part of a different disk
array or logical drive, you must clear the configuration data on the
replacement drive before you use it.
See page 99 (WebPAM PROe) or page 146 (CLU).
Rebuild Operation
During rebuild:
•
The alarm sounds a single short beep, repeated
•
No warning icon displays over the Disk Array or Logical Drive in the Tree.
Management View reports the Disk Array’s Operational Status as OK,
Rebuilding.
•
The drive carrier holding the rebuilding physical drive displays a green
Activity (lower) LED while the Status (upper) LED flashes green once per
second.
Figure 15.VessRAID disk drive carrier LEDs
Disk Status
Power/Activity
During rebuilding, you can still read and write data to the logical drive. However,
fault tolerance is lost until the Disk Array returns to OK (not-rebuilding) status.
After a successful rebuild:
•
The alarm is silent
•
The Disk Array’s Operational Status as OK
•
The rebuilt disk drive Status LED displays steady green
292
Chapter 9: Troubleshooting
Incomplete Array
An incomplete array can result from any of the following conditions:
•
The NVRAM watermark for the RAID level migration currently in progress is
missing or cannot be found
•
A physical drive goes missing during transport
See “Physical Drive Failed” on page 294 for more information.
When VessRAID discovers an incomplete array, WebPAM PROe displays a
dialog box asking you to:
•
Click the OK button to accept the incomplete array
•
Click the Cancel button to reject the incomplete array
Before you accept the incomplete array, be sure all of the physical drives are
present and that their drive carriers are properly installed into the enclosure. See
“Installing Disk Drives” on page 15.
If you choose to accept the incomplete array:
1.
Click OK in the incomplete array dialog box.
2.
Check the operational status of the logical drives in the array.
3.
•
If the logical drives are critical or degraded, proceed with a rebuild.
See “Rebuilding a Disk Array” on page 114 (WebPAM PROe) or
page 154 (CLU).
•
If the logical drives are offline, contact Technical Support. See
page 305.
Restore your data from a backup source, if required.
The CLU displays the option Accept Incomplete Array on the Disk Array Info and
Settings screen. Highlight the option and press Enter to accept the incomplete
array.
If you choose NOT to accept the incomplete array:
1.
Click Cancel in the incomplete array dialog box.
2.
Do one of the following:
•
Delete the array. See “Deleting a Disk Array” on page 110 (WebPAM
PROe) or page 152 (CLU).
•
Replace the missing physical drive.
293
VessRAID 1000s Series Product Manual
Physical Drive Problems
Physical Drive Offline
Check the drive for:
•
PFA Condition – Caused by a bad block or sector.
See “Clearing Stale and PFA Conditions” on page 99 (WebPAM PROe) or
page 146 (CLU).
•
Stale Configuration – Caused by obsolete array information on the physical
drive. Identify the disk array to which the physical drive belongs. Then delete
the disk array. See “Deleting a Disk Array” on page 110 (WebPAM PROe) or
page 152 (CLU).
If the error condition remains on the physical drive, clear the error condition.
See “Clearing Stale and PFA Conditions” on page 99 (WebPAM PROe) or
page 146 (CLU).
Physical Drive Not Usable
This condition occurs when you have a missing or defective SAS cable between
the VessRAID subsystem and a VessJBOD enclosure.
Physical Drive Failed
When physical drive status shows failed, the physical drive cannot be repaired.
You must replace the failed drive.
Caution
VessRAID supports disk drive hot-swapping. To avoid hand
contact with an electrical hazard, do not remove more than one
drive carrier a time.
Physical Drive Fails during Migration
VessRAID has two methods for migrating a disk array:
•
DDF – The default setting. Slower but reliable
•
NVRAM – An optional setting that requires special access. Faster but risks
data loss
Normally, RAID level migration is done under the default Disk Data Format (DDF)
setting. If a physical drive or the controller fails during migration, the disk array
goes critical, and you can rebuild it. Migration under DDF can take up to several
hours depending on the number and size of the physical drives and data input/
output activity.
294
Chapter 9: Troubleshooting
You can set the VessRAID to migrate disk arrays under Non-Volatile Random
Access Memory (NVRAM), a much faster process because it writes data to the
memory in the controller. However, if a physical drive or the controller fails during
migration, the logical drives will go offline and you will lose data. See “Incomplete
Array” on page 293.
Because the setting for migration under NVRAM requires special access, most
users will not encounter this condition.
Physical Drive Fails during Transport
Transport is the action of moving the physical drives of a disk array:
•
To different slots in the same VessRAID enclosure
•
From one VessRAID enclosure to another
If a physical drive fails during a transport, or you do not move all of the physical
drives to their new locations, WebPAM PROe will display an incomplete array.
See “Incomplete Array” on page 293.
295
VessRAID 1000s Series Product Manual
Enclosure Problems
WebPAM PROe displays yellow !s
components that need attention.
red Xs
in Tree View to identify
When a yellow ! appears over a Subsystem
in Tree View, click the Enclosure
icon. The Enclosure screen will display (below).
Figure 16.Enclosure information in Management View
In this example, one of the RAID Controller fans has failed. The Enclosure
Diagram displays color and motion changes to identify the failed fan. In WebPAM
PROe, RAID Controller fans are called Blowers.
See “Replacing a Cooling Fan” on page 226 for instructions.
Note that the image above was shortened to fit on the page.
296
Chapter 9: Troubleshooting
Enclosure
Overheat
Overheating is a potentially serious condition because the
excessively high temperatures can lead to disk drive failure and
controller malfunction.
Overheating usually results from:
•
Fan failure
•
Poor air circulation around the enclosure
Fan Failure
On VessRAID, there are two kinds of fans:
•
Power supply fan
•
RAID Controller fan
If a power supply fan fails, you must replace the power supply.
If a RAID Controller fan fails, you can replace it onsite. See
page 226.
Air Circulation
Air circulation around the VessRAID enclosure may be a more
complex problem. Use the thermometer icons to help you locate
the specific hot spot. Check for these conditions:
•
Accumulated dust or objects blocking the fans
•
Less than a minimum of 5 inches (13 cm) space between the
back of the VessRAID and the wall or other object
•
Ambient temperature above 95°F (35°C) where the
VessRAID is operating
Cooling Down the Enclosure
To cool down a VessRAID enclosure:
•
Correct any problems identified above
•
Power down the VessRAID and let it sit for an hour or longer
297
VessRAID 1000s Series Product Manual
Power Supply
VessRAID 1800s Series
VessRAID 1800s Series has two power supplies. The advantage
of two power supplies is that, should one fail, the other will
continue powering the subsystem. The power supplies are hotswappable.
VessRAID 1700s Series
VessRAID 1700s Series has only one power supply and it is not
replaceable onsite. If you need to replace the power supply,
contact Technical Support and make arrangements to return the
subsystem to Promise for service. See page 305.
Fan Failure
As noted above, if a power supply fan fails, you must replace the
power supply. Without the fan to cool it, the power supply will
overheat and eventually fail anyway.
See page 224 for instructions on replacing a power supply.
Battery
VessRAID uses a battery as backup power for the cache. Should
a power failure occur, the battery enables the cache to hold data
up to 72 hours. The battery recharges during normal VessRAID
operation.
First, try reconditioning the battery. See page 94 or page 143.
If the battery does not respond, installing a replacement battery
will correct a marginal or failed condition.
See page 228 for instructions on replacing the battery.
298
Chapter 9: Troubleshooting
Connection Problems
When you install your Promise product following the instructions in the Quick
Start Guide and this Product Manual, you should have little trouble getting your
equipment to work the first time. But connection problems can arise that are not
the User's or Installer's fault. Every conceivable problem cannot be covered in
the documentation but some guidelines could be helpful.
Connection problems cause a majority of failures in almost any electrical system.
While the installation of the cables and components was correct, they don't
function properly, or at all, because:
•
A connector is dirty or corroded.
•
A connector is loose or damaged.
•
A cable looks OK outside but has an open circuit inside.
•
The wrong cable was used.
VessRAIDs ship with a full set of new cables, as required for each specific model.
Be sure to use these components because:
•
They are the proper ones for your RAID subsystem.
•
They are in brand-new condition.
•
You paid for them with the purchase of your VessRAID.
Serial Connections
VessRAID uses a serial connection for the command line interface (CLI) and the
command line utility (CLU). After you set the IP address, you can access the CLI
and CLU through a network connection, also. Normally, users prefer WebPAM
PROe because of its graphic user interface. But the CLI and CLU can do the
same jobs. And they will work when your network connection is down.
For VessRAID, you must use the CLI or CLU to set the Management Port IP
address in order for WebPAM PROe to connect with it. See “Setting Up Serial
Cable Connections” on page 20 and “Setting up the Serial Connection” on
page 25.
The CLI and CLU control and manage but they do not move data. They
communicate through a RJ11-to-DB9 cable, supplied with the VessRAID. An
ordinary serial cable will not work for this purpose. You may choose not use the
CLI or CLU often and want to disconnect and store the cable. Consider leaving it
connected, to be sure it will be there when you need it.
299
VessRAID 1000s Series Product Manual
Network Connections
Each controller has an Ethernet (RJ45) Management Port connector on the back
of the enclosure. This is a Gigabit Ethernet connector designed to connect to
your network. The VessRAID becomes a node on your network like any other
PC, server or other component with an IP address.
VessRAID ships from the factory a default Management Port IP address of
192.168.0.1. You must change this address to one that will work with your
network. See “Chapter 3: VessRAID Setup” on page 25.
Figure 17.Management port connection on the RAID controller
Activity LED
Connectivity L
State
LEDs
Dark
Green
Flashing Green
Activity
No activity
—
Activity
Connectivity
10BaseT
100BaseT
—
Note that VessRAID Management Port can accept IP address assignments from
a DHCP server. Use VessRAID’s Command Line Utility (CLU) to enable this
feature. If you have not activated DHCP support but there is a DHCP server on
your network, there is a chance that it will inadvertently assign the VessRAID’s
Management Port IP address to another node. You might see a warning to this
effect on your Host PC’s monitor. If this happens, WebPAM PROe might not
connect. See your network administrator to work out a suitable arrangement.
300
Chapter 9: Troubleshooting
Browser Does Not Connect to WebPAM PROe
If you successfully setup and connected to WebPAM PROe, then suddenly you
can no longer connect, it might be the result of the following three conditions:
•
DHCP is enabled on your VessRAID’s management port
•
The DHCP server does not have a dedicated IP address for the VessRAID
•
The VessRAID restarted and your DHCP server assigned a new IP address
You must obtain the new IP Address for the management port in order to direct
your browser to the VessRAID and start WebPAM PROe.
If your VessRAID has a LCD panel, it displays the VessRAID model number and
management port IP address, as shown in Figure 18.
Figure 18.LCD panel default display
If your VessRAID does not have an LCD panel, set up a serial connection to
access the CLI. See page 20 and 25 for more information.
To find the new IP address:
1.
Start your PC’s terminal VT100 or ANSI emulation program.
2.
Press Enter once to launch the CLI.
3.
At the Login prompt, type administrator and press Enter.
4.
At the Password prompt, type password and press Enter.
5.
Type net and press Enter.
[email protected]> net
===========================================
CId Port Type IP
Mask
Gateway
Link
===========================================
1
1
Mgmt 192.168.10.85 255.255.255.0 192.168.10.1 Up
The new management port IP address and other network settings are
displayed on the screen.
Enter the new IP address into your browser to log into WebPAM PROe.
301
VessRAID 1000s Series Product Manual
Unsaved Data in the Controller Cache
The Dirty Cache LED informs you that there is data in the cache that has not
been saved to non-volatile memory. Such data is sometimes called “dirty,” not to
suggest it is corrupted in some way but because it has not been saved to a disk
drive.
Figure 19.Dirty Cache LED
Dirty Cache LED
If there is unsaved data in the controller’s cache, the Dirty Cache LED shines
amber. During this time, do NOT power down the VessRAID. Wait until the LED
will goes dark.
302
Chapter 10: Support
•
Frequently Asked Questions (below)
•
Contacting Technical Support (page 305)
•
Limited Warranty (page 309)
•
Returning the Product For Repair (page 311)
Frequently Asked Questions
What kind of disk drives can I use with VessRAID?
VessRAID supports 3.0 GB/s Serial ATA disk drives and 3.0 Gb/s SAS
drives.
VessRAID does not support Parallel ATA (PATA) disk drives.
Can I take the disk drives from my Promise VTrak, put them into the
VessRAID, and keep my disk array or logical drive intact?
Yes. Like VessRAID, the newer VTrak subsystems use the industry-standard
DDF method of disk metadata, stored in the reserve sector of each physical
drive. Use the Transport function to prepare your disk drives before moving
them. See “Preparing the Disk Array for Transport” on page 154 or page 117.
Early VTrak subsystems used a proprietary method of disk metadata.
VessRAID subsystems have a metadata-to-DDF conversion feature. To use
the conversion feature, you must restart the VessRAID after installing disk
drives from an older VTrak subsystem.
Note that if you move your disk drives from the VessRAID to an early VTrak,
the older subsystem will not recognize your disk array or logical drive.
How can I tell when the VessRAID has fully booted?
When the VessRAID is fully booted up, the Power and FRU LEDs will light
up green. If a disk array is present, the Logical Drive LED will light up green
also. The system heartbeat LED blinks green seven times in three seconds,
goes dark for six seconds, then repeats the pattern.
Why does VessRAID come with a Command Line Utility?
First, to assign your VessRAID an IP address in order for the WebPAM
PROe management software to connect to it. Second, in the event of a
network failure, you can still access the VessRAID. Third, some users prefer
the Command Line Utility.
303
VessRAID 1000s Series Product Manual
WebPAM PROe connection was working OK. But later on, it timed out. What
do I do now?
The network condition can time-out for several reasons. When an open
connection has no action for a specific amount of time (the Administrator can
change it), the connection times-out automatically for security reasons.
When you attempt to use WebPAM, it returns to the login screen. Enter your
user name and password and click Login, and WebPAM will establish a new
connection. See “Making Web Server Settings” on page 92.
I can access the VessRAID over my company’s intranet. But I can’t access it
from an outside Internet connection. How do I make the Internet connection
work?
This condition is not related to VessRAID, but is due to your firewall and
network connection protocol. Contact your MIS Administrator.
With some Promise RAID subsystems, I used the Server’s IP address in
WebPAM PRO to connect with the RAID subsystem. Why is this VessRAID
different?
VessRAID has the server software embedded. With VessRAID, you point
your browser directly to the VessRAID rather than a server. Also, with
VessRAID, you do not have to create a subsystem because the subsystem
already exists.
Why can a RAID 1 logical drive on VessRAID consist of only two disk
drives?
On VessRAID, RAID 1 logical drives work in mirrored physical drive pairs.
You could create up to eight RAID 1 logical drives. Or you can create a
single RAID 10 logical drive with data mirroring and up to 16 physical drives.
If you have an odd number of drives but still want data mirroring, use RAID
1E.
See “Installing Disk Drives” on page 17 and “Introduction to RAID” on
page 237 for more information on the number of physical drives you can use
for each RAID level.
Are logical drives on VessRAID limited to 2 TB?
No. But verify that your operating system supports logical drives over 2 TB.
Also, for the operating system to recognize the full capacity of logical drives
over 2 TB, you must specify a sector size of 1 KB or larger when you create
the logical drive. See “Choosing Sector Size” on page 253 or more
information.
Do I have to install WebPAM PROe on my network server?
No. Use the WebPAM PROe embedded with the VessRAID.
304
Chapter 10: Support
How can I be sure everything is working OK on the VessRAID?
Locally: The VessRAID enclosure has LEDs on the front to monitor the
status of power, field replaceable units (FRUs) and logical drives. When
these are green, VessRAID is functioning normally.
Remotely: Check the Tree Icons in WebPAM. If there are no yellow or red
warning icons displayed, VessRAID is functioning normally.
What happens if a logical drive goes critical?
On the front of VessRAID, the logical drive LED turns amber and an audible
alarm sounds. See “Critical & Offline Disk Arrays” on page 301.
Can a VessRAID dual-power-supply models run on just one power supply?
Yes, it is possible to run the VessRAID dual-power-supply models on a single
power supply. There are two power supplies so that these systems will
continue running if one of the power supply fails. But deliberately leaving one
power supply off negates this advantage.
In addition, leaving one power supply off reduces air flow through the
VessRAID enclosure and can contribute to overheating. Always switch on
both power supplies.
VessRAID’s Netsend service does not report all events to Windows PCs.
This condition results from a shortcoming in Windows Messenger that
causes miscommunication with Netsend. Promise is developing a
workaround at the time of this writing. Note that all events are correctly
reported in the Event Viewer.
Contacting Technical Support
Promise Technical Support provides several support options for Promise users to
access information and updates. We encourage you to use one of our electronic
services, which provide product information updates for the most efficient service
and support.
If you decide to contact us, please have the following information available:
•
Product model and serial number
•
BIOS, firmware, and driver version numbers
•
A description of the problem / situation
•
System configuration information, including: motherboard and CPU type,
hard drive model(s), SAS/SATA/ATA/ATAPI drives & devices, and other
controllers.
305
VessRAID 1000s Series Product Manual
Technical Support Services
Promise Online™ Web Site
http://www.promise.com/support/
support_eng.asp
(technical documents, drivers, utilities, etc.)
United States
E-mail Support
e-Support On-Line
Fax Support
+1 408 228 1100 Attn: Technical Support
Phone Support
+1 408 228 1400 option 4
If you wish to write us for
support:
Promise Technology, Inc.
580 Cottonwood Drive
Milpitas, CA 95035, USA
The Netherlands
E-mail Support
e-Support On-Line
Fax Support
+31 0 40 256 9463 Attn: Technical Support
Phone Support
+31 0 40 235 2600
If you wish to write us for
support:
Promise Technology Europe B.V.
Science Park Eindhoven 5542
5692 EL Son, The Netherlands
Germany
E-mail Support
e-Support On-Line
Fax Technical Support
+49 0 2 31 56 76 48 29
Attn: Technical Support
Phone Technical Support
+49 0 2 31 56 76 48 10
If you wish to write us for
support:
Promise Technology Germany
Europaplatz 9
44269 Dortmund, Germany
306
Chapter 10: Support
Italy
E-mail Support
e-Support On-Line
Fax Support
+39 0 6 367 124 00 Attn: Technical Support
Phone Support
+39 0 6 367 126 26
If you wish to write us for
support:
Promise Technology Italy
Piazza del Popolo 18
00187 Roma, Italia
Taiwan
E-mail Support
e-Support On-Line
Fax Support
+886 3 578 2390 Attn: Technical Support
Phone Support
+886 3 578 2395 ext. 8825 or 8826
If you wish to write us for
support:
Promise Technology, Inc.
2F, No. 30, Industry E. Rd. IX
Science-based Industrial Park
Hsin-Chu 30075, Taiwan (R.O.C.)
307
VessRAID 1000s Series Product Manual
China
E-mail Support
e-Support On-Line
Fax Support
+86 10 8857 8015 Attn: Technical Support
Phone Support
+86 10 8857 8085 or 8095
If you wish to write us for
support:
Promise Technology China – Beijing
Room 1205, Tower C
Webok Time Center, No.17
South Zhong Guan Cun Street
Hai Dian District, Beijing 100081, China
E-mail Support
e-Support On-Line
Fax Support
+86 21 6249 4627 Attn: Technical Support
Phone Support
+86 21 6249 4192, 4193, or 4199
If you wish to write us for
support:
Promise Technology China – Shanghai
Room 508, Leader Tower
1189 West Wu Ding Road
Jing An District, Shanghai 200042, China
308
Chapter 10: Support
Limited Warranty
Promise Technology, Inc. (“Promise”) warrants that this product, from the time of
the delivery of the product to the original end user:
a)
all components, except the cache backup battery, for a period of three
(3) years;
b)
the cache backup battery, for a period of one (1) year;
c)
will conform to Promise’s specifications;
d)
will be free from defects in material and workmanship under normal use
and service.
This warranty:
a)
applies only to products which are new and in cartons on the date of
purchase;
b)
is not transferable;
c)
is valid only when accompanied by a copy of the original purchase
invoice.
d)
Is not valid on spare parts.
This warranty shall not apply to defects resulting from:
a)
improper or inadequate maintenance, or unauthorized modification(s),
performed by the end user;
b)
operation outside the environmental specifications for the product;
c)
accident, misuse, negligence, misapplication, abuse, natural or
personal disaster, or maintenance by anyone other than a Promise or a
Promise-authorized service center.
Disclaimer of other warranties
This warranty covers only parts and labor, and excludes coverage on software
items as expressly set above.
Except as expressly set forth above, Promise DISCLAIMS any warranties,
expressed or implied, by statute or otherwise, regarding the product, including,
without limitation, any warranties for fitness for any purpose, quality,
merchantability, non-infringement, or otherwise. Promise makes no warranty or
representation concerning the suitability of any product for use with any other
item. You assume full responsibility for selecting products and for ensuring that
the products selected are compatible and appropriate for use with other goods
with which they will be used.
309
VessRAID 1000s Series Product Manual
Promise DOES NOT WARRANT that any product is free from errors or that it will
interface without problems with your computer system. It is your responsibility to
back up or otherwise save important data before installing any product and
continue to back up your important data regularly.
No other document, statement or representation may be relied on to vary the
terms of this limited warranty.
Promise’s sole responsibility with respect to any product is to do one of the
following:
a)
replace the product with a conforming unit of the same or superior
product;
b)
repair the product.
Promise shall not be liable for the cost of procuring substitute goods, services,
lost profits, unrealized savings, equipment damage, costs of recovering,
reprogramming, or reproducing of programs or data stored in or used with the
products, or for any other general, special, consequential, indirect, incidental, or
punitive damages, whether in contract, tort, or otherwise, notwithstanding the
failure of the essential purpose of the foregoing remedy and regardless of
whether Promise has been advised of the possibility of such damages. Promise
is not an insurer. If you desire insurance against such damage, you must obtain
insurance from another party.
Some states do not allow the exclusion or limitation of incidental or consequential
damages for consumer products, so the above limitation may not apply to you.
This warranty gives specific legal rights, and you may also have other rights that
vary from state to state. This limited warranty is governed by the State of
California.
Your Responsibilities
You are responsible for determining whether the product is appropriate for your
use and will interface with your equipment without malfunction or damage. You
are also responsible for backing up your data before installing any product and
for regularly backing up your data after installing the product. Promise is not liable
for any damage to equipment or data loss resulting from the use of any product.
310
Chapter 10: Support
Returning the Product For Repair
If you suspect a product is not working properly, or if you have any questions
about your product, contact our Technical Support Staff through one of our
Technical Services, making sure to provide the following information:
•
Product model and serial number (required)
•
Return shipping address
•
Daytime phone number
•
Description of the problem
•
Copy of the original purchase invoice
The technician will assist you in determining whether the product requires repair.
If the product needs repair, the Technical Support Department will issue an RMA
(Return Merchandise Authorization) number.
Important
Obtain an RMA number from Technical Support before you return
the product and write the RMA number on the label. The RMA
number is essential for tracking your product and providing the
proper service.
Return ONLY the specific product covered by the warranty (do not ship cables,
manuals, diskettes, etc.), with a copy of your proof of purchase to:
USA and Canada:
Promise Technology, Inc.
Customer Service Dept.
Attn.: RMA # ______
47654 Kato Road
Fremont, CA 94538
Other Countries:
Return the product to your dealer
or retailer.
Contact them for instructions
before shipping the product.
You must follow the packaging guidelines for returning products:
•
Use the original shipping carton and packaging
•
Include a summary of the product’s problem(s)
•
Write an attention line on the box with the RMA number
•
Include a copy of proof of purchase
311
VessRAID 1000s Series Product Manual
You are responsible for the cost of insurance and shipment of the product to
Promise. Note that damage incurred due to improper transport or packaging is
not covered under the Limited Warranty.
When repairing returned product(s), Promise may replace defective parts with
new or reconditioned parts, or replace the entire unit with a new or reconditioned
unit. In the event of a replacement, the replacement unit will be under warranty
for the remainder of the original warranty term from purchase date, or 30 days,
whichever is longer.
Promise will pay for standard return shipping charges only. You will be required to
pay for any additional shipping options (such as express shipping).
312
Index
Numerics
battery
checking 93, 142
failure 298
LED 269
reconditioning 94, 143
reported events 277
BBU, reported events 279
blower, reported events 278
boot the subsystem 84, 190
browser, does not connect 301
buzzer
settings 94, 193, 203
silence 94
sounding 265, 291
test 95
10GB Truncate 88, 138, 250
2 TB Limitation 248, 304
A
about this manual 1
adaptive writeback cache
defined 249
enable 88, 138
alarm
cancel 94, 193, 203
sounds 265, 291
alias
controller 88, 138
disk array 108, 111, 112, 151,
157
C
logical drive 120, 151
physical drive 99, 146
subsystem 51, 135
array incomplete, reported events
cable, RJ11-to-DB9 20, 130
cache battery, replace 228
cancel alarm 94, 193, 203
capacity coercion
defined 250
setting 88, 138
capacity, specify for logical drive
289
Auto Fix 57, 122, 164
Auto Rebuild
enable 55, 168
function 115, 291
axles
RAID 50 112, 151,
RAID 60 112, 151,
112, 151, 157
CE statement 8
change RAID level 113, 155, 252
check table, logical drive 122
circle icon 18
clear statistics 81, 186
clear tab, controller 89
CLU
log out 133
online help 133
problem reporting 270
serial connection 130
Telnet connection 131
Command Line Utility (CLU) 303
158, 241
158, 243
B
background activities
delete schedule 57
list of scheduled 56
running 55
scheduling 56
settings 54, 168
view 54
313
VessRAID 1000s Series Product Manual
command queuing, physical drives
delete, cont.
logical drive 113, 158, 212
schedule, background
activities 57
spare drive 126, 161, 216
user 64, 179
DHCP server changed IP address
97, 145
configuration script, import 79
configuration status, physical drive
98
connection
power 21
problems 299
connector
RJ11 20
RJ45 18, 300
SAS 18
controller
activity LED 21, 266
alias 88, 138
cache flush interval 88, 138
clear tab 89
information 86, 137, 202
locate 138
replace 225
reported events 279, 280, 281
settings 87, 137
statistics 87
status LED 268
unsaved data in cache 302
view 86
create
disk array 105, 148
logical drive 112
spare drive 125, 159, 215
user 63, 177
301
diagnostic report 275
diamond icon 18
dirty cache LED 268
Discover button 49
disk array
advanced creation 108,
151,
207
alias 108, 111, 112, 151, 157
automatic creation 106, 149,
206
create 105, 148
critical 290
delete 110, 152, 209
expand 155
expansion 258
express creation 107, 150
incomplete array 153
information 110, 152, 209
locate 156, 210
manual rebuild 115
Media Patrol, run 115
migrate 113, 155
offline 290
operational status 111, 152,
210
PDM 116, 156, 157, 211
physical drive selection 151
rebuild 114, 154, 292
reported events 279
settings 111, 153, 154
D
date and time, subsystem 51, 136
dedicated spare drive 124, 125,
126, 159, 160, 215, 251
default IP address 26, 300
default settings, restore 81, 187
delete
disk array 110, 152, 209
initiator 173
314
Index
disk array, cont.
status
critical 111, 153, 210
rebuilding 111, 153, 210
synchronizing 111, 153,
event
notification response 277
severity 61, 76, 184
subscriptions 61
event log
clear 52, 53, 170, 171
NVRAM 170, 270
problem reporting 273
reported events 280
runtime 51, 170, 270
save 52, 53
expand disk array 113, 155
expansion ranges 258
export user database 78
210
transport ready
111, 153,
210
transition 116
transport 117, 154
view 105
disk drive
install 15
LEDs 22, 267
slot numbering 15
status LED 291, 292
disk status LED 292
DMA mode, SATA drives 97, 145
download firmware image file 219,
F
failed
battery 298
power supply 298
power supply fan 297
RAID controller fan 296, 297
failure recovery, physical drive 290
fan
LED 269
replace 226
status 92
FCC statement 8
Features
highlights 3
operational 4
subsystem and controller 4
system management 5
firmware update
from PC 220
from TFTP server 219, 222
WebPAM PROe 219, 222
firmware version 80, 86, 186, 202
flash image information 80, 186
flush interval, controller cache 88,
222
E
edit LUN map 70
email
service 72, 180
settings 71, 180
test message 62, 71
enable LUN masking 69, 172
enclosure
drive slot numbering 15
global status LED 21, 266
information 91, 140
locate 90, 143
overheat 297
reported events 280
settings 92, 142
temperature 92, 141
topology 91, 144
view 90, 203
voltage 92, 141
error block threshold 55, 169
138
force offline/online
315
100, 147
VessRAID 1000s Series Product Manual
forced unlock 58
FRU VPD information
initiator, cont.
map LUN to 69, 173
view 67, 167
Internet access to WebPAM PROe
92, 140
G
GB Truncate 88, 138, 250
global RAID status LED 290
global spare drive 124, 125,
39
intranet access to WebPAM PROe
304
126,
IP address
default 26, 300
DHCP or static 26
DHCP server changed 301
finding 195, 301
management port 27, 29, 30,
159, 160, 215
88, 138, 250
Group Rounding
H
Head Unit 90, 203
hot spare drive 251,
291
165, 198
Netsend recipient
77, 185
I
import
configuration script 79
user database 78
incomplete array 153, 293
inconsistent block table 123
information
controller 86, 137, 202
disk array 110, 152, 209
enclosure 91, 140
flash image 80, 186
FRU VPD 92, 140
logical drive 118, 128, 162,
J
JBOD expansion
data path 18
physical drive not usable
topology 91, 144
294
K
KCC statement
8
L
LCD panel
advanced mode 197
at startup 23, 195
buzzer settings 203
Check Event 268
controller, view 202
create
disk array, advanced
disk array, automatic
logical drive 211
spare drive 215
213
physical drive 97, 146, 204
SAS port 66, 166, 200
subsystem 50
UPS unit 104, 176
initialization
defined 251
logical drive 38, 109, 120, 163
rate 54, 169
initiator
add 67, 68, 167, 172
delete 68, 173
316
207
206
Index
LCD panel, cont.
delete
disk array 209
logical drive 212
spare drive 216
disk array
create, advanced 207
create, automatic 206
delete 209
locate 210
view 209
enclosure, view 203
events, view 197
installing 11
LD Critical 275
limitations 197
locate
disk array 210
logical drive 214
physical drive 204
spare drive 216
logical drive
create 211
delete 212
locate 214
view 213
management port settings 198
mode settings 196
physical drive
locate 204
view 204
SAS port
settings 200
view 200
settings
buzzer 203
management port 198
mode 196
SAS port 200
simple mode 196
LCD panel, cont.
spare drive
create 215
delete 216
locate 216
view 215
view
controller 202
disk array 209
enclosure 203
events 197
logical drive 213
physical drive 204
SAS port 200
spare drive 215
LED
battery 269
controller 303
controller activity 21, 266
controller status 268
dirty cache 268, 302
disk drive power/activity 22,
267
disk drive status 22, 267, 291,
292
disk status 292
drive carrier 22, 267
Ethernet connector 300
fan 269
front panel 21, 266
FRU 303
global enclosure status 21,
266
global RAID status
21, 266,
290
heartbeat 303
power 21, 266, 303
red or amber 266
RJ45 connector 300
system heartbeat 21,
317
266
VessRAID 1000s Series Product Manual
locate
controller 138
disk array 156, 210
enclosure 90, 143
logical drive 164, 214
physical drive 96, 97, 100,
logical drive, cont.
status 118, 213
critical 118, 213
offline 118, 213
rebuilding 118, 213
synchronizing 118, 213
transport ready 119, 213
Summary 128
synchronization 119
view list of all 128
LUN map
add 69, 173
edit 70
logical drive 123
view 69
LUN masking, enable 69, 172
147, 204
power supply 92, 141
spare drive 124, 216
lock
releasing 59, 136
renewing 58, 136
setting 58, 135
subsystem 58, 135
view status 58, 135
log in
CLI 301
WebPAM PROe 32, 42
log out
CLU 133
other users 64
WebPAM PROe 38, 48
logical drive
alias 120, 151
capacity 112, 151, 157
check table 122
create 112, 156
delete 113, 158, 212
information 118, 128, 162,
M
MAC address 26
Media Patrol 115
defined 259
enable 55, 151, 154, 168
reported events 282
run 55, 135
memory module, replace 230
migrate
disk array 113, 155
physical drive failure 294
rate 54, 168
reported events 286
213
initialization 38, 109, 120, 163
locate 164, 214
LUN 123
partition and format 252
RAID level 112, 151
Redundancy Check 121, 164
reported events 281, 282
settings 120, 162, 163
N
Netsend
event reporting to Windows
305
recipients 76, 184
requirements 77, 185
service 77, 184
settings 76, 184
NVRAM event log 170, 270
318
Index
O
physical drive, cont.
information 97, 146, 204
list 96
locate 96, 97, 100, 147, 204
not usable 294
operational status 98
read cache 97, 145
reported events 284
select for array 151
select for spare 125, 159
settings 98
stale and PFA condition 99,
one plug auto service 275
online capacity expansion 252
reported events 283
online help
CLU 133
WebPAM PROe 45
OPAS 275
operational status, disk array 111,
152, 210
orphan watermark 88, 137
overheated enclosure 297
146, 292, 294
statistics 98
supported 303
write cache 97, 145
power connection 21
power LED 21, 266
power supply
failed 298
fan failure 297
locate 141
replace 224
reported events 285
status 92, 140
Predictive Data Migration 260
privileges
CLU user 178
WebPAM PROe user 63
problem reporting
CLU 270
LCD panel 275
WebPAM PROe 272, 291
P
partition and format 252
password
CLI/CLU 131
CLU 178
WebPAM PROe 62
Pause On Error 57, 122, 164
PDM
defined 260
enable 151, 154
rate 54, 169
reported events 283
running 56, 116, 156
triggers 54, 169, 260
PFA condition 99, 146
physical drive
alias 99, 146
capacity coercion 88, 138, 250
command queuing 97, 145
configurational status 98
DMA mode 97, 145
fail during migration 294
fail during transport 295
failure recovery 290
force offline or online 100, 147
from VTrak subsystem 303
global settings 97, 145
R
RAID
block and double parity stripe
238
block and parity stripe 237
enhanced mirror 236
global status LED 21, 266
319
VessRAID 1000s Series Product Manual
RAID, cont
introduction 233
mirror 235
mirror + stripe 239
stripe 234
striping of distributed parity
read cache
physical drive 97, 145
policy 112, 120, 151, 158,
208
policy, defined 249
read check table 123
reassigned block threshold 55, 169
rebuild
disk array 114, 154, 292
manual 115
rate 54, 168
reported events 286, 287
recipients, Netsend 76
recondition a battery 94, 143
red X 266, 296
Redundancy Check 57, 121, 164
rate 54, 169
reported events 287
regulatory statements 8
releasing lock 59, 136
renewing lock 58, 136
replace
BBU 228
blower 226
cache battery 228
controller 225
fan 226
memory module 230
power supply 224
reported events
array incomplete 289
battery 277
BBU 279
blower 278
controller 279, 280, 281
disk array 279
enclosure 280
event log 280
logical drive 281, 282
Media Patrol 282
240
striping of double parity 242
RAID controller fan failure 296,
297
RAID levels
changing 252
choosing 244
logical drive 112, 151
RAID 0
applications 244
description 234
RAID 1
applications 244
description 235
RAID 10
applications 246
description 239
RAID 1E
applications 245
description 236
RAID 5
applications 245
description 237
RAID 50
applications 246
description 240
RAID 6
applications 245
description 238
RAID 60
applications 246
description 242
320
Index
reported events, cont.
online capacity expansion 283
PDM 283
physical drive 284
power supply 285
RAID level migration 286
rebuild 286, 287
Redundancy Check 287
resource not available 288
SMART error 288
Spare Check 288
spare drive 288
synchronization 288
system 289
transition 289
watermark 289
resource not available reported
event 288
restart the subsystem 85, 191,
scheduling background activities
56
screws, counter-sink 16
sector size
defined 247
setting 112, 151, 157, 208
serial connection 20
setting up 130
setting lock 58, 135
settings
background activities 54, 168
buzzer 94, 193, 203
controller 87, 137
disk array 111, 153, 154
email 71, 180
enclosure 92, 142
logical drive 120, 162, 163
management port 65, 165,
198
221, 223
Netsend 76, 184
physical drive 98
physical drives 97, 145
restore default 81, 187
SAS port 66, 166, 200
SLP 72, 181
SNMP 74, 182
spare drive 126, 160
Telnet 74, 182
temperature 92, 142
UPS units 103, 175
user 60, 61, 178, 179
Web Server 73, 181
severity of events 61, 76, 184
shutdown the subsystem 82, 188
SLP
service 72, 181
settings 72, 181
SMART
enable 88, 138
error 288
restore default settings 81, 187
returning product for repair 311
revertible spare drive 116, 124,
125, 126, 159, 160, 215, 261
RJ11 connector 20
RJ11-to-DB9 cable 20, 130
RJ45 connector 18, 300
running background activities 55
runtime event log 51, 170, 270
S
SAS
add initiator 67, 68, 167, 172
circle/diamond icons 18
connector 18
delete initiator 68
port information 66, 166, 200
port settings 66, 166, 200
port statistics 67, 167
view initiator 67, 167
321
VessRAID 1000s Series Product Manual
SNMP
service 76, 183
settings 74, 182
trap sinks 75, 183
Software Services 71
Spare Check
reported events 288
run 127, 160
spare drive
create 125, 159, 215
delete 126, 161, 216
description 251
in rebuild 291
locate 124, 216
reported events 288
select physical drive 125, 159
settings 126, 160
Spare Check 127, 160
transition 116
view 124
specifications, VessRAID 6
stale condition 99, 146
statistics
clear 81, 186
controller 87, 137
physical drive 98, 146
SAS port 67, 167
status
controller 86, 137
fans 92
logical drive 118, 162, 213
physical drive 98, 146
power supply 92, 140
spare drive 124
subsystem lock 58, 135
Storage Network 49
stripe size
defined 247
setting 112, 151, 157, 208
subsystem
alias 51, 135
date and time 51, 136
fully booted 303
heartbeat LED 21, 266
information 50
lock 58, 135
logging into 49
maintenance 219
management port settings
65,
165, 198
Media Patrol 135
restart 85, 191, 221, 223
service report, save as text file
50
shutdown 82, 188
startup after shutdown 84, 190
storage network 49
synchronization
logical drive 119
new logical drive 113
rate 54, 169
reported events 288
system reported event 289
T
Table Rounding 88, 138, 250
Technical Support, contact 305
Telnet
connection 131
service 74, 182
settings 74, 182
temperature, enclosure 92, 141
terminal emulation program 130
test
buzzer 95
email 62, 71
TFTP server 219, 222
timing out, WebPAM PROe 304
topology, enclosure 91, 144
322
Index
Transition
automatic 263
defined 261
manual 263
rate 54, 169
reported events 289
spare drive 116
transport
disk array 117, 154
physical drive failure
trap sinks 75, 183
VessRAID, cont.
drive slot numbering 15
features and benefits 3
overview 2
specifications 6
warranty 7, 309
view
background activities 54
controllers 86
disk arrays 105
enclosure 90, 203
list of all logical drives 128
lock status 58
LUN map 69
physical drives 96
scheduled activities 56
spare drives 124
users 60, 177
voltage, enclosure 92, 141
295
U
uninterruptible power supply (UPS)
102, 174
UPS
information 104, 176
list of units 102, 174
settings 103, 175
USB stick for diagnosis 275
user
create 63, 177
database, export 78
database, import 78
delete 64, 179
event subscriptions 61
logout others 64
password, change 62
privileges 63, 178
settings 60, 61, 178, 179
view 60, 177
view sessions 64
username and password
CLI/CLU 25, 131
WebPAM PROe 33, 42
W
warranty on VessRAID 309
watermark
orphan 88, 137
reported events 289
Web Server
service 73, 181
settings 73, 181
WebPAM PROe
access over an intranet 304
access over the Internet 39
Event Frame 47
Header 45
interface 44
login 32, 42
logout 38, 48
Management View 47
no browser connection 301
problem reporting 272, 291
Regular Connection 32, 42
V
VessRAID
architectural description
beeping 265, 291
3
323
VessRAID 1000s Series Product Manual
WebPAM PROe, cont.
Secure Connection 32, 42
times out 304
Tree View 46
write cache policy 112, 120, 151,
write check table
Y
yellow !
158, 208
defined 249
physical drive
123
97, 145
324
266, 272, 296
