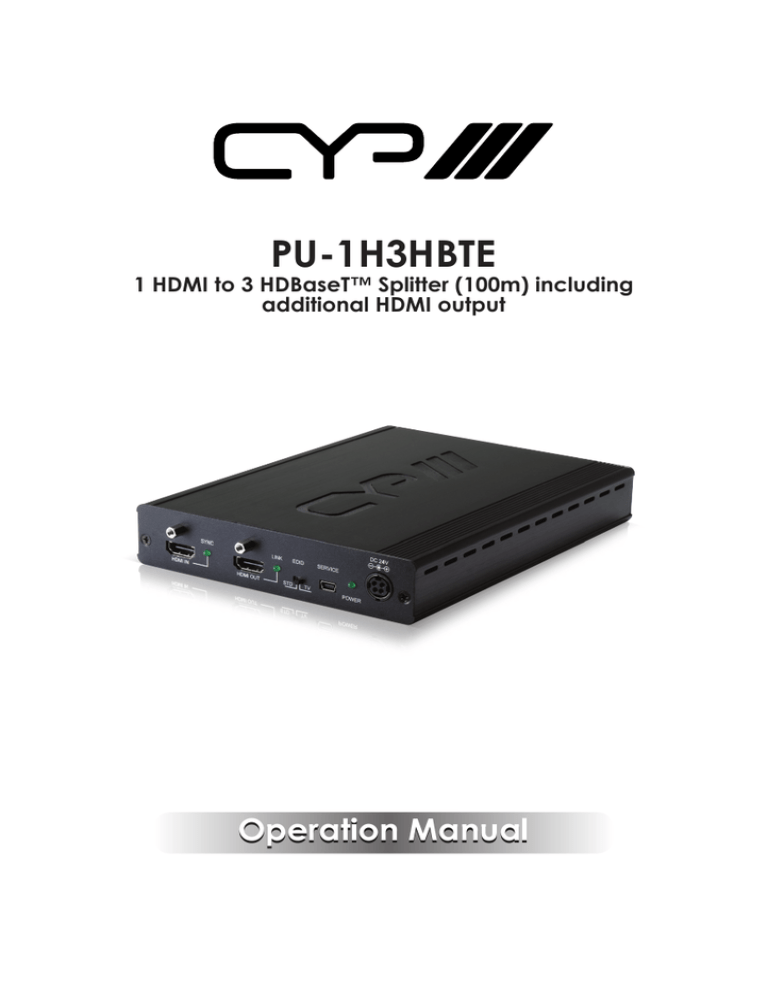

PU-1H3HBTE
1 HDMI to 3 HDBaseT™ Splitter (100m) including
additional HDMI output
Operation Manual
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
•
Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
•
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
•
Never spill liquid of any kind on or into this product.
•
Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
•
Do not attach the power supply cabling to building surfaces.
•
Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
•
Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
•
To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO.
DATE DD/MM/YY SUMMARY OF CHANGE
RDV1
27/02/13
Preliminary Release
RDV2
13/06/13
Package Contents
RDV3
17/06/13
Dimension
RDV4
20/06/13
Add IR Cable Pin Define
RDV5
01/07/13
IR Power
CONTENTS
1. Introduction�������������������������������������������� 1
2. Applications������������������������������������������� 1
3. Package Contents�������������������������������� 1
4. System Requirements���������������������������� 1
5. Features�������������������������������������������������� 2
6. Operation Controls and Functions������� 3
6.1 Front Panel����������������������������������������3
6.2 Rear Panel�����������������������������������������4
6.3 IR Cable Pin Assignment�����������������5
7. Connection Diagram ��������������������������� 6
8. Specifications���������������������������������������� 7
8.1 CAT5e/6/7 Cable Specification�����8
9. Acronyms����������������������������������������������� 8
1. INTRODUCTION
The HDMI over HDMI and CAT5e/6/7 Transmitter can support
resolutions up to 1080p Full HD, 4Kx2K timing, 3D and multi-channel
digital audio formats to one HDTV and three CAT5e/6/7 outputs.
The HDMI can be connected to HDMI display for instant nearby
display and the CAT5e/6/7 can be connected to CAT5e/6/7 to HDMI
Receivers for distance up to 100 meters. Further, a total of 100Mbps
Ethernet transmission rate allows all connected device to share the
Ethernet service and the PoE function free the power shortage issue
from the Receiver end.
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
• HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Transmitter
• IR Receiver x 1
• IR Blaster x 1
• 24V DC Power Adaptor
• Power Cord
• Operation Manual
4. SYSTEM REQUIREMENTS
• Source equipment with HDMI output connector
• Display TV/Monitor with HDMI input connector
• HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables
1
5. FEATURES
• HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant
• The HDMI and CAT5e/6/7 outputs are playing the same source
simultaneously
• Supports data rate from 250Mbps up to 3Gbps
• Supports wide range of PC resolutions from VGA to WUXGA
and HDTV resolutions up to 4Kx2K ([email protected] and
[email protected])
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission (32-192kHz sample rate)
• Supports distances up to 100 meters through CAT5e/6/7 cables
• Supports Ethernet transmission rate up to 100Mbps
• Can select Standard or TV EDID
• Supports USB service port
• The 3D signal display follow by display TV’s EDID
• Supports PoE with capable Receiver units
• Supports Bi-directional IR control
Note:
1. This system was tested with CAT6/23AWG cables, results may vary with cables of a different specification.
2. The PoE function is designed for powering compatible Receiver
units only non-PoE Receivers will need their own power supply.
Receivers of another brand may not be compatible.
3. Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI cable and display in order for proper image displaying.
2
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
DC 24V
SYNC
2
3
EDID
STD
HDMI OUT
HDMI IN
1
LINK
4
SERVICE
TV
5
POWER
6
7
8
1 HDMI IN: Connect with source equipment such as DVD/Blu-ray or
PS3 player.
2 SYNC: This LED will illuminate when the HDMI input port connected
to the source.
3 HDMI OUT: Connect to HDMI display for instant image display or
cascade with another family type Transmitter.
4 HDMI LINK: This LED will illuminate when HDMI output is connected
to TV or display monitor.
5 EDID STD/TV: The default factory setting is on TV, leave as it is
when the display is properly. The unit will detect the 1st CAT5e/6/7
output’s EDID when it obtain a 4Kx2K EDID and send out the signal
accordingly to other output ports. If the 1st CAT5e/6/7 output is
without a 4Kx2K's EDID the unit will detect all output's EDID and
send out the signal that all outputs can accept.
This device obtain the last memory function therefore, the device
will use the last output port 1's EDID when output port 1 is not
connected to a display after power cycling or switch in between
the EDID setting.
Switch to STD to use build-in EDID if the display has problem. STD
EDID's video at [email protected] and audio at LPCM 2CH.
6 SERVICE: This slot is reserved for factory service only.
7 POWER LED: Once the power supply is connected the LED will
illuminate
8 DC 24V: Plug the 24V DC power supply into the unit and connect
the adaptor to an AC outlet.
3
6.2 Rear Panel
IR IN
IR OUT
LAN
MODE
1
2
3
CAT5e / 6 / 7 OUT
2
1
4
LINK
MODE
3
LINK
MODE
LINK
5
1 IR IN: Connect with IR Extender to receive IR signal from Transmitter
side and blast out at Receiver side. Ensure that remote controller
being used is within he direct line-of-sight of the IR Extender.
2 IR OUT: Connect with IR Blaster to blast out the IR signal received
from the Receiver side. Place the IR Baster in direct line-of-sight of
the equipment to be controlled.
3 LAN: Connect to intra-net or internet service system for a total
sharing rate of 100Mbps within the link of Transmitter.
Warning: DO NOT connect this slot with any of the CAT5e/6/7 port,
doing so may trigger a power shot down and ruin the device.
4 CAT5e/6/7 OUT 1~3: Connect these ports to CAT5e/6/7 to HDMI
Receivers (with or without PoE function) with CAT5e/6/7 cable to
extend the signal up to 100m.
5 MODE & LINK 1~3: The Mode LED will illuminate when the device is
connected with power.
The link LED will illuminate when CAT5e/6/7 output(s) has been
connected to the Receiver(s) and the Receiver(s) has connected
with display that shows image on screen.
4
6.3 IR Cable Pin Assignment
IR Blaster
1 Power 3.3 V
2 IR Blaster Signal
3 NC
IR Extender
1 IR Signal
2 Power 3.3 V
3 Grounding
5
7. CONNECTION DIAGRAM
3D TV/Display
Blu-ray or PS3 Player
HDMI
HDMI
DC 24V
SYNC
HDMI IN
IR IN
IR OUT
LINK
EDID
HDMI OUT
STD
LAN
1
SERVICE
TV
POWER
CAT5e / 6 / 7 OUT
2
3
1.5m
MODE
60°
LINK
MODE
LINK
MODE
LINK
IR BLASTER
IR2 Blaster
Power
60°
3m
7m
m
IR1 Extender
Link
CAT5e/6 In
3m
IR RECEIVER
Router (with
Internet
Connection)
6
8. SPECIFICATIONS
Video Bandwidth
300Mbps/10.2Gbps
Input ports
1 x HDMI,
1 x IR IN, 1 x LAN*,
1 x USB (Service only)
Output ports
1 x HDMI,
3 x CAT5e/6/7
1 x IR OUT,
Resolution
Up to 4Kx2K
([email protected]/[email protected])
HDMI Input Cable Distance
N/A
CAT5e/6/7 Output
Cable Distance
Up to 100m
IR Frequency
30~50kHz
Power Supply
24V / 2.7A DC (US/EU standards, CE/FCC/
UL certified)
Dimensions
145 mm(W) x 199 mm(D) x 30 mm(H)
Weight
590 g
Chassis Material
Metal
Silkscreen Color
Black
ESD Protection
Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Operating Temperature 0°C ~ 40°C
Storage Temperature
-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity
20 ~ 90% RH (non-condensing)
Power Consumption
36W
7
8.1 CAT5e/6/7 Cable Specification
Cable
Range Pixel clock
Type
rate
CAT5e/6/7 100 m
70 m
Video Data
Supported Video
Rate
<=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36
(HD Video) bits, 3D (data rates
lower than 5.3 Gbps
or below 225 MHz
TMDS clock).
>225 MHz
> 5.3 Gbps
4K2K, 30Hz video
(Ultra HD
formats
Video)
9. ACRONYMS
ACRONYM
COMPLETE TERM
4Kx2K
3840x2160 / 4096x2160
DTS
Digital Theater System
EDID
Extended Display Identification Data
HDCP
High-bandwidth Digital Content Protection
HDMI
High-Definition Multimedia Interface
HDTV
High-Definition Television
8
