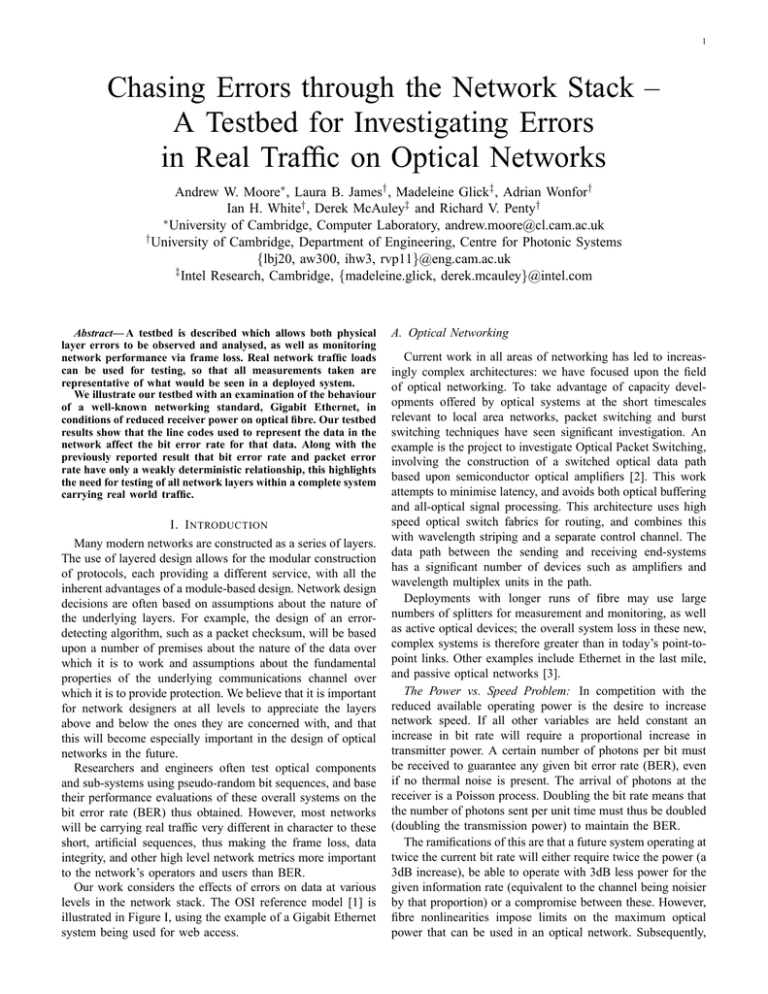

Chasing Errors through the Network Stack –
A Testbed for Investigating Errors
in Real Traffic on Optical Networks
Andrew W. Moore∗ , Laura B. James† , Madeleine Glick‡ , Adrian Wonfor†
Ian H. White† , Derek McAuley‡ and Richard V. Penty†
∗ University of Cambridge, Computer Laboratory, [email protected]
† University of Cambridge, Department of Engineering, Centre for Photonic Systems
{lbj20, aw300, ihw3, rvp11}@eng.cam.ac.uk
‡ Intel Research, Cambridge, {madeleine.glick, derek.mcauley}@intel.com
Abstract— A testbed is described which allows both physical
layer errors to be observed and analysed, as well as monitoring
network performance via frame loss. Real network traffic loads
can be used for testing, so that all measurements taken are
representative of what would be seen in a deployed system.
We illustrate our testbed with an examination of the behaviour
of a well-known networking standard, Gigabit Ethernet, in
conditions of reduced receiver power on optical fibre. Our testbed
results show that the line codes used to represent the data in the
network affect the bit error rate for that data. Along with the
previously reported result that bit error rate and packet error
rate have only a weakly deterministic relationship, this highlights
the need for testing of all network layers within a complete system
carrying real world traffic.
I. I NTRODUCTION
Many modern networks are constructed as a series of layers.
The use of layered design allows for the modular construction
of protocols, each providing a different service, with all the
inherent advantages of a module-based design. Network design
decisions are often based on assumptions about the nature of
the underlying layers. For example, the design of an errordetecting algorithm, such as a packet checksum, will be based
upon a number of premises about the nature of the data over
which it is to work and assumptions about the fundamental
properties of the underlying communications channel over
which it is to provide protection. We believe that it is important
for network designers at all levels to appreciate the layers
above and below the ones they are concerned with, and that
this will become especially important in the design of optical
networks in the future.
Researchers and engineers often test optical components
and sub-systems using pseudo-random bit sequences, and base
their performance evaluations of these overall systems on the
bit error rate (BER) thus obtained. However, most networks
will be carrying real traffic very different in character to these
short, artificial sequences, thus making the frame loss, data
integrity, and other high level network metrics more important
to the network’s operators and users than BER.
Our work considers the effects of errors on data at various
levels in the network stack. The OSI reference model [1] is
illustrated in Figure I, using the example of a Gigabit Ethernet
system being used for web access.
A. Optical Networking
Current work in all areas of networking has led to increasingly complex architectures: we have focused upon the field
of optical networking. To take advantage of capacity developments offered by optical systems at the short timescales
relevant to local area networks, packet switching and burst
switching techniques have seen significant investigation. An
example is the project to investigate Optical Packet Switching,
involving the construction of a switched optical data path
based upon semiconductor optical amplifiers [2]. This work
attempts to minimise latency, and avoids both optical buffering
and all-optical signal processing. This architecture uses high
speed optical switch fabrics for routing, and combines this
with wavelength striping and a separate control channel. The
data path between the sending and receiving end-systems
has a significant number of devices such as amplifiers and
wavelength multiplex units in the path.
Deployments with longer runs of fibre may use large
numbers of splitters for measurement and monitoring, as well
as active optical devices; the overall system loss in these new,
complex systems is therefore greater than in today’s point-topoint links. Other examples include Ethernet in the last mile,
and passive optical networks [3].
The Power vs. Speed Problem: In competition with the
reduced available operating power is the desire to increase
network speed. If all other variables are held constant an
increase in bit rate will require a proportional increase in
transmitter power. A certain number of photons per bit must
be received to guarantee any given bit error rate (BER), even
if no thermal noise is present. The arrival of photons at the
receiver is a Poisson process. Doubling the bit rate means that
the number of photons sent per unit time must thus be doubled
(doubling the transmission power) to maintain the BER.
The ramifications of this are that a future system operating at
twice the current bit rate will either require twice the power (a
3dB increase), be able to operate with 3dB less power for the
given information rate (equivalent to the channel being noisier
by that proportion) or a compromise between these. However,
fibre nonlinearities impose limits on the maximum optical
power that can be used in an optical network. Subsequently,
2
OSI
Reference
Model
...GET http://www.google.co.uk
Application
TCP
header
TCP payload
IP
header
IP payload
Presentation
Session
Transport
Ethernet Ethernet payload
header
packet
checksum
Network
FRAMING: Ethernet payload
consists of individual octets
Data Link
...0010101011110010110100001110001010101001...
Physical
CODING: Each byte encoded into a 10 bit
code-group using 8B/10B block coding scheme
...110100100101010100110101110011...
MODULATION: Digital electrical signal
converted to analogue optical signal
and transmitted on fibre
... 1 0 1 0 1
Fig. 1.
0 1 0 0 1 ...
The framing, coding and modulation of data, Gigabit Ethernet in this example, in the context of the OSI Reference Model
we maintain that a greater understanding of the low-power
behaviour of network systems, where errors are more likely
to occur, will provide invaluable insight for future designs.
With both increased system complexity and higher speeds
in future optical networks reducing the available power, the
receivers will have to operate at lower optical powers, and
be tolerant of errors. To design for this situation, a thorough
understanding of the nature and effects of these errors is
crucial.
of the link. A coding scheme must ensure the recovery of
transmitted bits; often this requires a minimum number of bit
transitions to occur for successful clock and data recovery. In
most systems, transceivers are AC coupled, which can lead to
distorted pulses and baseline wander (as the DC component
of the signal builds up), so an equal balance of 0s and 1s
is important to counteract this. Numerous mechanisms exist
to convert data to be communicated into a form suitable for
transmission; two of the more common types are scramblers
and block codes.
B. Bit Error Rate and Packet Error Rate
Scrambling: is where the transmitter, using a reversible
function, modifies the input data in a known way. The receiver
can reverse the function and recover the original data. Given
the desire to maintain a balance of 0s and 1s along with sufficient transitions to maintain clock synchronization, a scrambler
need only whiten the input data, ensuring that there are suitable
numbers of 0s and 1s for transmission. The operation of
a scrambler may be considered as the multiplication of the
input data with a random number; the receiver divides the
incoming bits by the random number to recover the original
Previous work showed that the relationship between bit error
rate and power at the receiver could not offer a prediction of
the outcome for packet error rate versus receiver power [4].
This is due to the processing of the data through the network
stack, and in particular the effects of line coding at the physical
and data-link layers.
Using a transmission code improves the resilience of a
communications link, by ensuring the data stream has known
characteristics that are well matched to the physical behaviour
3
data. Scramblers do have drawbacks, in that a malicious user
may engineer input data that will cause a long stream of 0s or
1s, or a special control sequence, to be produced. Aside from
attacks such as these, the scrambler has an inherent latency
delay of the length of the random number, and can be complex
to implement.
Block codes: are another popular choice; they translate s
bits of data into x bits for transmission, where s ≤ x. Such
block codes include the 8th-bit parity check of RS-232 serial
lines. They may be implemented as a look-up table, making
them simpler and lower latency than scrambler operation; the
redundancy added by using more bits for transmission than
are required means that problematic codes, such as all 0s, can
be avoided.
The coding scheme used will affect the way in which bit
errors on the line will propagate up the network stack.
C. Higher Layer Implications
Our previous work showed that the physical conditions,
line coding and particular data for transmission through a
network interact so as to cause non-uniform distribution of
packet errors. We also found that certain data values had a
substantially higher probability of being received in error than
others: error hot-spotting [4]. Further sets of wide-ranging
experiments allowed us to conclude that Ethernet frames
containing a given octet of certain value were up to 100 times
more likely to be received in error (and thus dropped), when
compared with a similarly sized packet that did not contain
such octets [5]. This type of behaviour can lead to failures
inducing, at best, poor performance and, at worst, undetected
errors that may focus upon specific networks, applications
and users. This content-specific effect is particularly insidious
because it occurs without a total failure of the network. These
effects highlight the need for thorough testing of the whole
network system in realistic and representative conditions.
In addition to increasing the chances of frame-discard due
to data-contents, error hot-spotting also has implications for
higher level network protocols. Packet checksums assume that
there will be a uniformity of errors within the frame, justifying
detection of single-bit errors with a given precision. While
Jain [6] demonstrates that the checksum as used in Ethernet
is sufficiently strong as to detect all 1, 2 and 3 bit errors for
frames up to 8 KBytes in length, problems may be encountered
for certain combinations of errors above this. We note that in
some coding schemes, single-bit errors on the physical layer
will translate into multi-bit errors following decoding (see
Section III). Also, Stone et al. [7] discuss the impact this nonuniformity of error has for the checksum of TCP, further up the
network stack. This may call into question our assumption that
only increased packet-loss will be the result of the error hotspots. Instead of just lost packets, Stone et al. noted certain
“unlucky” data would rarely have errors detected. However,
the probability of 4 or more bits of data error occurring in
a pattern which would defeat the CRC’s detection ability is
low [6].
In this paper, having outlined the motivations for this work,
we describe the construction of our testbed. This allows
Tx
Network
Interface
Test traffic
Traffic source,
sink and test
system
Rx
Network
Interface
Optical
Isolator
Variable
Optical
Attenuator
Control signals
Fig. 2.
Main test environment, set up for low receiver power testing
network performance to be measured at various levels in the
network stack, enabling us to fully understand the behaviour of
a system under real world load. We can monitor bit errors on
the line due to physical conditions at the same time as packet
loss, which affects network application performance. We then
present some example results obtained using the testbed, and
note how these illustrate the importance of understanding the
impact of errors on several layers of the networking stack.
These effects would be virtually impossible to investigate using traditional Bit Error Rate techniques, and this demonstrates
the true flexibility of our testbed.
II. E XPERIMENTAL M ETHOD
Our testbed allows us to compare two commonly used
metrics: bit error rate, as used to describe the physical layer
performance, and packet error rate: a measurement of network,
transport and application layer performance.
A. Testbed Environment
Figure 2 illustrates our testbed. A variable optical attenuator
and an optical isolator are placed in one direction of the test
link. A traffic generator feeds this link, and the link terminates
in a traffic sink and tester. We use software to control the test
bed and to generate and evaluate test data.
A packet capture and measurement system is implemented
within the traffic sink using an enhanced driver for the network
interface card. The modified driver allows application processes to receive error-containing frames that would normally
be discarded.
We use a special-purpose traffic generator and comparator,
which is combined into one real-time software module. This
system transmits pre-constructed test data frames in a standard
format. Transmitted frames are compared to their received
versions and if they differ, both original and error frames are
stored for later analysis. This testbed software, tcpfirediff, is
based upon tcpfire1 . We also use purpose-built code for error
analysis in the receiving system.
While a variable optical attenuator is shown in this figure,
we are not limited to testing reduced power cases, and the
1 http://www.cl.cam.ac.uk/Research/SRG/netos/nprobe/downloads/
4
modular nature of the test environment allows us to substitute
other devices as needed. The attenuation in the link can be
varied automatically for new measurements, based on previous
results. We had previously noted interference due to reflection
and the isolator allows us to remove this aspect from the
results.
Clearly this testbed is a simplified version of a true network with multiple nodes, each with multiple input sources.
However, the effects observed in such a network will be
comparable to those seen here, with more complexity added
by, for example, power and clock synchronisation variation
between packets.
B. Lower OSI Layer Testing
As well as measuring packet loss, our testbed hardware and
software allows us to examine errors at lower layers in the
network stack. The received data just above the physical line
coding layer is easily observed and recorded. Depending on
the system under test, actual line errors are either observed or
can be deduced from the decoded data.
The ability to monitor network application performance at
the same time as observing lower level errors and how they
propagate through the network layers allows us to fully test
and understand the interactions between network layers. The
nature of the modular, layered design of network stacks has
sometimes worked against the architects, implementers and
users. There exists a tension between the desire to place functionality in the most appropriate sub-system, ideally optimised
for each incarnation of the system, and the practicalities of
modular design intended to allow independent developers to
construct components that will inter-operate with each other
through well-defined interfaces. This can lead to problems
when layers do not behave as the designers of other system
components expect. The ability to test a network at multiple
points in the stack is the contribution of our testbed.
C. Real Traffic
Our testbed can use any available traffic, including traces
from genuine networks. Tests are conducted either with manually constructed test-frames or with real network traffic, such
as the day-trace referred to in our example. This network
traffic was captured from the interconnect between a large
research institution and the Internet [8]. We consider it a representative sample of network traffic for an academic/research
organisation of approximately 150 users.
Other traffic tested included pseudo-random data, consisting
of a sequence of frames of the same number and size as
the day-trace data — preserving packet-size characteristics —
although each is filled with a stream of octets whose values
were drawn from a pseudo-random number generator.
III. E XAMPLE R ESULTS OBTAINED USING THE T ESTBED
Our previous work examined Gigabit Ethernet on fibre
(1000BASE-X), and identified that a uniformly-distributed set
of random data, after encoding according to the specification [9] using 8B/10B block code, will not suffer code-errors
with the same uniformity.
This led to the investigation of the impact of the line coding
scheme upon physical layer errors, when those errors would
be observed in the data-link layer. Here we investigate Gigabit
Ethernet on optical fibre, under conditions where the received
power is sufficiently low as to induce errors in the Ethernet
frames. The results described here are drawn from several sets
of data taken at a range of attenuation values.
We assume that while the packet checksum within Ethernet
is sufficiently strong to catch the errors, the dropped frames
and resulting packet loss will result in a significantly higher
probability of packet errors than the norm for certain hosts,
applications and perhaps users.
8B/10B Block Coding: Gigabit Ethernet uses 8B/10B block
coding, which converts 8 bits of data for transmission (ideal
for any octet-orientated system) into a 10 bit line code. Although this adds a 25% overhead, 8B/10B has many valuable
properties: at least 3 transitions in each 10 bit code group
and a maximum run length of 5 bits (both important for
clock recovery), and virtually no DC spectral component. In
addition to being the standard Physical Coding Sublayer for
Gigabit Ethernet [9], it is used in Fibre Channel, the 800Mbps
extensions to the IEEE 1394 / Firewire standard, and is the
basis of coding for the electrical signals of PCI Express.
The 8B/10B codec defines encodings for data octets and
control codes which are used to delimit the data sections
and maintain the link. Individual codes or combinations of
codes are defined for Start of Packet, End of Packet, line
Configuration, and so on. Also, Idle codes are transmitted
when there is no data to be sent to keep the transceiver optics,
electronics, and clock-recovery active.
Line coding schemes, although they handle many of the
physical layer constraints, can introduce problems. In the case
of 8B/10B coding, a single bit error on the line can lead to
multiple bit errors in the received data byte. For example, a
one bit error in a code-group can be decoded to give a byte
with 4 bits of difference from the original transmitted byte. In
addition, the calculations for the scheme used to maintain DC
balance after the code-group may be be thrown off, leading to
potential errors in subsequent decoding.
A. Octet Analysis in the Testbed
For use with Gigabit Ethernet, the testbed contains a module
which allows per-octet analysis of received packets, comparing
to the known transmitted data octets. This allows us to observe
both actual line errors in the 10 bit code-groups of Gigabit
Ethernet, and also the data errors in the decoded octets as
would be passed up the network stack.
Various types of code-group damage may be observed. One
of these is the single-bit error caused by the low signal to
noise ratio at the receiver; another results from a loss of
bit clock causing a subsequent bit ro be read as having the
value of the previous bit. A final example results from the
loss of code-group clock synchronisation. This can lead to the
code-group boundaries being misplaced, so that a sequence of
several code-groups, and thus several octets, will be incorrectly
recovered.
This octet-analysis software allows us to collect a great deal
of information about errors in the system, and can also store
5
We have found that individual errored octets in Gigabit
Ethernet do not appear to be clustered within frames but
are independent of each other. However, we are interested
in whether earlier transmitted octets have an effect on the
likelihood of a subsequent octet being received in error.
Our custom testbed software allows us to collect statistics
on how many times each transmitted octet value is received
in error, and also store the sequence of octets transmitted
preceding this. Our software can store error counts in 2D
matrices (or histograms) of size 256 × 256, representing each
pair of octets in the sequence leading up to the errored
octet. One histogram is produced for the errored octet and its
immediate predecessor, one for the predecessor and the octet
before that, and so on. We normalise the error counts for each
of these histograms by dividing by the matrix representing the
frequency of occurrence of this octet sequence in the original
transmitted data. We then scale each histogram matrix so that
the sum of all entries in each matrix is 1.
Figure 3 shows error frequencies with darker areas representing higher error probabilities. Figure 3(a) has the “current
octet” Xi (the correct transmitted value of the octet which was
then received in error) on the x-axis, versus the octet which
was transmitted before each specific errored octet, Xi−1 , on
the y-axis. Figure 3(b) shows the preceding octet and the octet
before that: Xi−1 vs Xi−2 , where Xi is the octet which was
received in error. An example of this might be the transmitted
sequence 1,2,3,4 which was received as 1,2,9,4. The
octet received in error, which is the one we are interested in,
is Xi sent in this case as 3. Xi−1 = 2, Xi−2 = 1 and so on.
Vertical lines in Figure 3(a) are indicative of an octet that is
error-prone independently of the value of the previous octet. In
contrast, horizontal bands indicate a correlation of errors with
the value of the previously transmitted octet; these appear as
vertical lines in Figure 3(b).
It can be seen from Figure 3 that while correlation between
errors and the value in error, or the immediately previous
value, are significant, beyond this there is no significant
correlation. The equivalent plot for Xi−2 vs. Xi−3 produces
a featureless white square.
C. 8B/10B code-group frequency components and their effects
It is illustrative to consider the octets which are most subject
to error, and the 8B/10B codes used to represent them. In the
pseudo-random data, the following ten octets give the highest
error probabilities (independent of the preceding octet value):
0x43, 0x8A, 0x4A, 0xCA, 0x6A, 0x0A, 0x6F, 0xEA, 0x59,
0x2A. It can be seen that these commonly end in A, and this
causes the start of the code-group to be 01010. The octets
not beginning with this sequence in general contain at least
4 alternating bits. Of the ten octets giving the lowest error
probabilities (independent of previous octet), which are 0xAD,
0xED, 0x9D, 0xDD, 0x7D, 0x6D, 0xFD, 0x2D, 0x3D and
xi-1
B. Effects on data sequences
0xFF
0x7F
0x00
0x00
0x7F
xi
0xFF
(a) Error counts for Xi vs. Xi−1
0xFF
xi-2
information for further study in different environments. Similar
analysis is possible for other line coding schemes.
0x7F
0x00
0x00
0x7F
xi - 1
0xFF
(b) Error counts for Xi−1 vs. Xi−2
Fig. 3. Error counts for pseudo-random data octets, darker values represent
higher probability of error
0x8D, the concluding D causes the code-groups to start with
0011.
Fourier Transforms (FTs) were generated for data sequences
consisting of repeated instances of the code-groups of 8B/10B.
Examining the FTs of the high error octet sequences shows the
peak corresponding to the base frequency (625MHz, half the
baud rate) is pronounced in most cases, although there is no
such feature in the FTs of the low error octet sequences. The
pairs of preceding and current octets leading to the greatest
error (which are most easily observed in Figure 3) give much
higher error probabilities than the individual octets. The noted
high error octets (e.g. 0x8A) do occur in the top ten high error
octet pairs and normally follow an octet giving a code-group
ending in 10101 or 0101, which serves to further emphasise
that frequency component.
The 8B/10B codec defines both data and control encodings,
and these are represented on a 1024x1024 space in Figure 4(a),
which shows valid combinations of the current code-group
(Ci ) and the preceding one (Ci−1 ).
6
0x400
Ci - 1
0x200
0x00
0x00
control,
control
0x200
control, data
or
data, control
Ci
data,
data
0x400
Invalid
(a) Valid C(i−1) , Ci pairs
sensitivity. However, as the received power is reduced toward
the sensitivity of the optical receiver it is the single ones,
e.g. 010101 which produce errors first, as these are of lower
amplitude than the multiple ones, e.g., 110011. In addition
to optical issues of data-pattern, the packaging requirements
(printed circuit board tracks, wires, etc.) imposed in the
electrical domain can exacerbate this effect.
It is worth noting that the code-groups with multiple transitions, which we have observed as subject to increased error
probability, are also beneficial to the network. Clock and data
recovery systems at the receiver use these frequent transitions
to recover and maintain an accurate bit clock.
These broadband limitation effects will be much more significant at the increased modulation rates required for 10 Gbps
Ethernet. Our testbed system is fully modular and can use
conventional network interface cards; as such it can easily be
modified to test 10 Gbps Ethernet, other standard physical
layers, or prototype cards.
IV. C ONCLUSIONS
Ci = 0011... C = 010101...
i
Ci - 1
0x400
0x200
0x00
0x00
0x200
Ci
0x400
(b) Errors using day-trace as a function of code-groups
Fig. 4.
The codebook for 8B/10B represented on a 1024x1024 space
In Figure 4(a) the octet errors found in the day-trace have
been displayed on this codespace, showing the regions of high
error concentration for real Internet data. It can be seen that
these tend to be clustered and that the clusters correspond to
certain features of the code-groups. Two clusters have been
ringed, the one indicated as Ci = 0011 . . . represents those
codes with a low-error suffix. In contrast that indicated as Ci =
010101 . . . indicates the error-prone symbols with a suffix of
0xA.
Transceiver Effects: This bit frequency-dependent error
patterning is primarily due to effects in the electrical/optical
interfaces. It is well known that in a directly modulated optical
source it is possible that bandwidth limitations can cause
single ones to achieve slightly less amplitude than a run of
multiple ones. In normal operation, this has no effect on the
error rate of the received signal and error-free operation is
achieved at a received power significantly above the receiver
We have illustrated how problems may arise in the design,
development and evolution of the physical components, algorithms, protocols and applications that make up our networks.
These problems are caused by the undesirable interactions
between network modules when carrying real traffic loads and
may not be detected by the traditional tests of bit error rate
in pseudo-random sequences used by the designers of optical
systems.
Prototype networks, such as the optically switched system
described in [2], illustrate how future optical networks will be
complex, consisting of an increasingly large number of diverse
elements, with greater limitations on the optical power budget.
The 8B/10B codebook is widely deployed and we do not
propose alterations to this (of course, specific applications may
benefit from the addition of some corrective action to protect
those codewords most likely to suffer from errors). However,
the design of these new networks must carefully consider the
physical layer and its effects on higher level network protocols
to ensure that the system is adequately tolerant to errors;
thorough testing and understanding of error propagation at all
network layers will be vital.
Our testbed system, consisting of a special hardware setup
and a suite of custom software, allows error measurements
at both network and physical coding levels so that the
performance of the network when subject to real traffic can
be fully understood.
Acknowledgements: Andrew Moore acknowledges the Intel Corporation’s generous support of his research fellowship.
Laura James thanks the EPSRC & Marconi for their support
of her PhD research.
R EFERENCES
[1] U. Black, OSI: A Model for Computer Communication Standards.
Prentice-Hall, 1991.
[2] D. McAuley, “Optical Local Area Network,” in Computer Systems:
Theory, Technology and Applications, A. Herbert and K. Spärck-Jones,
Eds. Springer-Verlag, Feb 2003.
7
[3] IEEE, “IEEE 802.3ah — Ethernet in the First Mile,” 2004, standard.
[4] L. B. James et al., “Structured Errors in Optical Gigabit Ethernet,” in
Passive and Active Measurement Workshop (PAM 2004), Apr. 2004.
[5] L. B. James et al., “Packet error rate and bit error rate non-deterministic
relationship in optical network applications,” in Proceedings of OFC2005, Anaheim, CA, 2005.
[6] R. Jain, “Error Characteristics of Fiber Distributed Data Interface
(FDDI),” IEEE Transactions on Communications, vol. 38, no. 8, pp.
1244–1252, 1990.
[7] J. Stone, M. Greenwald, C. Partridge, and J. Hughes, “Performance
of Checksums and CRCs over Real Data,” in Proceedings of ACM
SIGCOMM 2000, Stockholm, Sweden, Aug. 2000.
[8] A. W. Moore et al, “Architecture of a Network Monitor,” in Passive &
Active Measurement Workshop 2003 (PAM2003), Apr. 2003.
[9] IEEE, “IEEE 802.3z — Gigabit Ethernet,” 1998, standard.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
