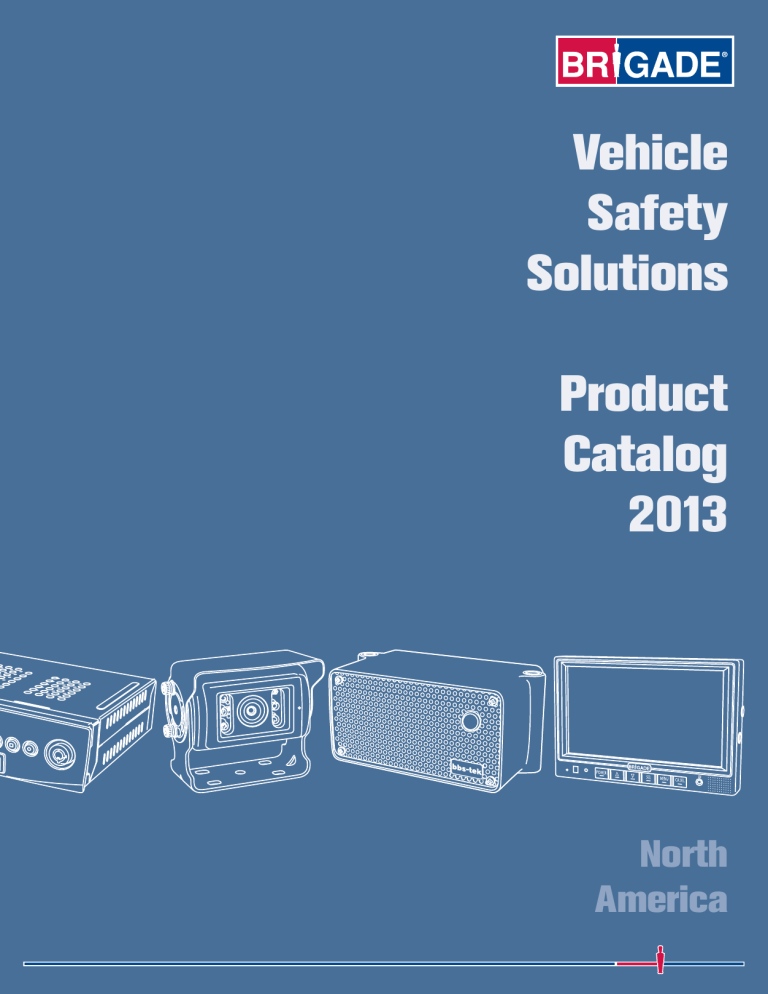

Vehicle
Safety
Solutions
Product
Catalog
2013
North
America
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Part number
contents
camera monitor systems
2
complete systems
4
cameras
6
monitors
11
cables & adapters / ancillaries
16
mobile digital recording
22
ultrasonic obstacle detection
24
back-up and warning alarms
28
®
white sound alarms - bbs-tek
29
speaking alarms
31
ancillaries
33
glossary
34
warranties
36
Driving Global Safety
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Part number
camera monitor systems
Choosing your camera monitor system
Select from our range of popular complete standard systems featured on pages 4-5 or build your own system referring to the
camera monitor compatibility chart below, adding cables, adapters and ancillaries to connect and upgrade your system.
BE-970WM
BE-865DDM
BE-870LM
VBV-770FM
VBV-770DM
VBV-750DM
VBV-770DM-S
VBV-750DM-S
SELECT
BE-811C
shutter camera
9
9
9
SC-1000-ECU
Shutter module
AC-007
+
SC-1000-ECU
8
All other
Elite range cameras
9
9
9
9
AC-007
AC-007
VBV-711C
shutter camera
AC-035
+
AC-006
AC-035
+
AC-006
AC-035
+
AC-006
AC-035
+
AC-006
AC-035
9
All other
Select range cameras
AC-006
AC-006
AC-006
AC-006
9
9
9
= Compatible
AC-0xx = Compatible with
adapter(s) shown
8
= Not compatible
CAMERAS
SELECT
ELITE
EXTREME
MONITORS
ELITE
BE-970WFM
Camera/monitor
compatibility
NEW Digital wireless system
Cable free connection
Connecting a rear view camera system to a large
vehicle or machine can be timely and awkward
due to the amount of cable to install. Brigade's
new wireless system eliminates excess cabling,
saving up to two hours fitment time and removes
the need for an additional retractable coiled cable
(suzie).
New digital wireless technology gives almost
instantaneous pictures (camera to monitor in
less than 200 milliseconds) and is not affected
by electrical interference from other vehicle or
machine equipment. The camera image is sent
to the monitor via a transmitter and receiver,
and once paired, the wireless link is secure. The
system also features an easy re-pairing function,
allowing the receiver to be linked to a different
transmitter making interchanging trailers possible.
See page 18
3
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Part number
SELECT RANGE CAMERA MONITOR SYSTEM
VBV-770D-100N - Single camera monitor system for rigid vehicles
• VBV-770DM - monitor
• VBV-711C - camera
• VBV-L520 - 66' cable
3709
Monitor
Camera
• 12-24Vdc
• 3 camera inputs
• Size (WxHxD)
7.1 x 4.8 x 1.6 inches
• Viewing angle (HxVxD)
85 x 62 x 110º
• IP67
• Size (WxHxD)
4.8 x 3.2 x 3.2 inches
• 2 year warranty
7.0"
BEST SELLER
See individual products for detailed specifications
SELECT RANGE CAMERA MONITOR SYSTEM
VBV-750D-000N - Single camera monitor system for rigid vehicles
3284
with VBV-L420 66' cable
VBV-750D-010N - Single camera monitor system for vans & small rigid vehicles 3394
with VBV-L410 33' cable
• VBV-750DM - monitor
• VBV-701C - camera
• VBV-L420 - 66' cable
Monitor
Camera
• 12-24Vdc
• 3 camera inputs
• Size (WxHxD)
5.8 x 4.3 x 1.2 inches
• Viewing angle (HxVxD)
90 x 71 x 120º
• IP67
• Size (WxHxD)
3.1 x 2.8 x 2.7 inches
• 2 year warranty
5.0"
See individual products for detailed specifications
ESSENTIAL RANGE CAMERA MONITOR SYSTEM
VBV-650A-000N - Single camera monitor system for rigid vehicles
• VBV-650AM - monitor
• VBV-621C - camera
• VBV-L420 - 66' cable
3682
Monitor
Camera
• 12-24Vdc
• 1 camera input
• Size (WxHxD)
5.8 x 4.3 x 1.1 inches
• Viewing angle (HxVxD)
76 x 55 x 96º
• IP67
• Size (WxHxD)
2.5 x 2.1 x 2.3 inches
• 1 year warranty
5.0"
ADDITIONAL CAMERA MONITOR SYSTEMS
Kits for articulated trucks and trucks with draw-bar trailers are available. We
also offer kits with twin cameras, shutter cameras and side view cameras.
Please contact us for details
5
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Part number
ELITE RANGE CAMERA
BE-821C - Mini camera (mirror image)
• Viewing angle (HxVxD)
111 x 87 x 129°
• IP68
• Size (WxHxD)
1.8 x 1.5 x 2 inches
2002
Features
Durability & Standards
• 1/4" Sony CCD
• TV System: NTSC
• TV Lines: 380
• Mechanical vibration: 10G
• Mechanical shock: 100G
• Operating temperature: -4 to +158°F
• CE marked
• EMC approved: E
• HALT tested
Power
• Power consumption: 1.5 Watts
• Current: 0.1 Amps
• 3 year warrranty
ELITE RANGE CAMERA - PAL ONLY
DMC-1025 - Digital mini camera (internal use)
• Viewing angle (HxVxD)
73 x 51 x 89°
• IP66
• Size (WxHxD)
1.7 x 1.8 x 1.5 inches
1529
Features
Durability & Standards
• Mirror / Normal view
• 1/3" Sony CCD
• TV System: PAL ONLY
• TV Lines: 520
• Mechanical vibration: 10G
• Operating temperature: -4 to +158°F
• CE marked
Power
• Power consumption: 0.84 Watt|
• Current: 0.07Amps
• 3 year warranty
7
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Part number
ELITE RANGE CAMERA
MD-51 - Mini dome camera (internal use)
• Viewing angle (HxVxD)
73 x 51 x 89°
• IP66
• Size (Diameter x H)
3 x 1 inches
• 3 year warranty
4049
Features
Durability & Standards
• Mirror/Normal view
• 1/3" Sony CCD
• TV System: NTSC
• TV Lines: 520
• Mechanical vibration: 10G
• Operating temperature: -4 to +158°F
• CE marked
Power
• Power consumption: 0.84W
• Current: 0.07 Amps
OPTIONAL EXTRAS
BEST SELLER
MD-50SM - Surface mounting adapter (1.2" deep)
2582
MD-50AM - Angled surface mounting adapter (adds 15°)
2583
SELECT RANGE CAMERA
VBV-701C
VBV-791C - Waterproof to IP69K, no audio
• Viewing angle (HxVxD)
90 x 71 x 120°
• IP67
• Size (WxHxD)
3.1 x 2.8 x 2.7 inches
• 2 year warranty
2575
2842
Features
Durability & Standards
• 18 Infrared LEDs for ultra-low light
performance
• 50' illumination distance
• Audio
• Day / Night sensor
• Mirror view
• 1/3" Sharp CCD
• TV System: NTSC
• TV Lines: 420
• Mechanical vibration: 10G
• Mechanical shock: 100G
• Operating temperature: -4 to +158°F
• CE marked
• EMC approved: e
• HALT tested
Power
• Power consumption: 2.4 Watts
• Current: 0.2 Amps
9
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Part number
SELECT RANGE CAMERA
VBV-011C - Eyeball camera (Mirror image)
VBV-021C - Eyeball camera (Normal image)
VBV-031C - Eyeball camera - Side view (Mirror image)
VBV-041C - Eyeball camera - Side view (Normal image)
• Viewing angle (HxVxD)
86 x 67 x 113°
• IP69K
• Size (WxHxD)
2.2 x 1.8 x 2 inches
2 x 1.6 x 3.5 inches (side view)
• 2 year warranty
3765
3767
3761
3763
Features
Durability & Standards
• 5 infra red LEDs for ultra low-light
performance
• 33' illumination distance
• Day/night sensor
• 1/3 " Sharp CCD
• TV System: NTSC
• TV Lines: 420
• Mechanical vibration: 8G
• Operating temperature: -4 to +140°F
• CE marked
• EMC approved: e
• R46 and 2003/97/EC approved for
indirect vision (For use with specific
monitors only)
Power
• Power consumption: 2.1 Watts
• Current: 0.15 Amps
Side view
NEW
ESSENTIAL RANGE MONITOR
VBV-243M - 4.3" Digital mirror monitor
• 12Vdc
• 1 camera input
• Size (WxDxH)
10.1 x 3.4 x 0.9 inches
• 1 year warranty
4.3"
4070
Features
Power
• On screen display menu
• Digital LCD panel
• 1 Auto-trigger
• TV system: PAL/NTSC
• Power consumption: 4.95 Watts
• Current: 450mA @ 11Vdc
Picture Quality
• Resolution: 480 x 3 x 272
• Contrast ratio: 500:1
• Brightness: 200cd/m2
• Viewing angles:
Side 50° x Top 60° x Bottom 55°
Durability & Standards
• Vibration rating: 6G
• Operating temperature:
-4 to +158°F
• CE marked
11
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Part number
ELITE RANGE MONITOR
BE-870LM - 7" LCD monitor
2705
Features
• 12-24Vdc
• ‘Button-lock’ anti tamper feature
• 2 Auto-triggers
• Mirror / Normal switching from menu
• On-screen distance markers
• Vertical markers to align tow hooks or
bin lift mechanisms
• Audio
• Sun shield
• Auto-dimmer
• Multi-lingual menus
• Auto-switching PAL / NTSC
• 2 camera inputs
• Size (WxHxD)
7.7 x 5 x 1.1 inches
• 3 year warranty
7.0"
Picture Quality
• LED backlighting
(gives 20,000 hours life)
• Anti-glare screen
• Resolution: 480 x 3 x 234
• Contrast ratio: 250:1
• Brightness: 450cd/m2
• Viewing angles:
Side 60° x Top 30° x Bottom 60°
Power
• Power consumption: 8.4 Watts
• Current: 0.28 Amps
Durability & Standards
• Mechanical vibration: 10G
• Mechanical shock: 100G
• Operating temperature: -40 to +158°F
• CE marked
• EMC approved: e
• ISO 16750
ELITE RANGE MONITOR
BE-865DDM - Double DIN 6.5" Digital LCD Monitor
Features
• 12-24Vdc
• 4 camera inputs
• Size (WxHxD) Double DIN
7.4 x 4.5 x 4.5 inches
• 3 year warranty
6.5"
Single
Split
Picture in picture
Triple
Quad
Plus Additional
In-Built Image
Options
• Shutter camera compatible
• Tilt camera compatible
• Backlit touch screen button panel
• ‘Button-lock’ anti tamper feature
• 5 Auto-triggers with option to select 3
triggers for split mode
• Mirror/Normal switching from menu
• On screen distance and vertical
line markers
• Audio
• Speed switch trigger to operate system
or determine split screen display
• Sun shield
• Multi-lingual menus
• Audio/video inputs/output
• Auto-switching PAL/NTSC
Picture Quality
• LED backlighting
(gives 20,000 hours life)
3935
• Anti-glare screen
• Resolution: 800 x 3 x 480
• Contrast ratio: 500:1
• Brightness: 500cd/m2
• Viewing angles:
Side 70° x Top 50° x Bottom 70°
Power
• Power consumption: min 15.4 Watts
• Current: min 1.4 Amps
Durability & Standards
• Mechanical vibration: 6G
• Operating temperature: -40 to +158°F
• CE marked
• EMC approved: e
• ISO 13766: 2006
• R46 and 2003/97/EC approved for
indirect vision (For use with specific
cameras only)
13
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
BEST SELLER
Part number
SELECT RANGE MONITOR
VBV-770DM VBV-770DM-S -
7" Digital LCD monitor
7" Digital LCD monitor
3355
3984
Includes 1 5-pin input for connection to VBV-711C shutter camera
• 12-24Vdc
• 3 camera inputs
• Size (WxHxD)
7.1 x 4.8 x 1.6 inches
• 2 year warranty
7.0"
Features
• 3 Auto-triggers
• Mirror / Normal switching from menu
• 'Button lock' anti-tamper feature
• On-screen distance markers
• Audio
• Sun shield
• Auto-dimmer
• ‘Plug and Play’ to accept DVD, sat nav
or other add-ons
• Multi-lingual menus
• Auto-switching PAL / NTSC
Picture Quality
• LED backlighting
(gives 20,000 hours life)
• Anti-glare screen
BEST SELLER
• Resolution: 800 x 3 x 480
• Contrast ratio: 500:1
• Brightness: 400cd/m2
• Viewing angles:
Side 70° x Top 50° x Bottom 60°
Power
• Power consumption: 5 Watts
• Current: 0.18 Amps
Durability & Standards
• Mechanical vibration: 10G
• Mechanical shock: 100G
• Operating temperature: -4 to +158°F
• CE marked
• EMC approved: e
• HALT tested
SELECT RANGE MONITOR
VBV-750DM VBV-750DM-S -
5" Digital LCD monitor
5" Digital LCD monitor
3280
3982
Includes 1 5-pin input for connection to VBV-711C shutter camera
• 12-24Vdc
• 3 camera inputs
• Size (WxHxD)
5.8 x 4.3 x 1.2 inches
• 2 year warranty
5.0"
Features
• 3 Auto-triggers
• Mirror / Normal switching from menu
• On-screen distance markers
• ‘Button lock’ anti-tamper feature
• Audio
• Sun shield
• Auto-dimmer
• Multi-lingual menus
• Auto-switching PAL / NTSC
Picture Quality
• LED backlighting
(gives 20,000 hours life)
• Anti-glare screen
• Resolution: 640 x 3 x 480
• Contrast ratio: 500:1
• Brightness: 200cd/m2
• Viewing angles:
Side 70° x Top 50° x Bottom 70°
Power
• Power consumption: 5 Watts
• Current: 0.18 Amps
Durability & Standards
• Mechanical vibration: 10G
• Mechanical shock: 100G
• Operating temperature: -4 to +158°F
• CE marked
• EMC approved: e
• HALT tested
15
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Part number
ELITE/EXTREME RANGE TRUCK/TRAILER CABLE KIT
SK-15-04 - Single camera & single buzzer Ultrasonic Detection
System (new generation) cable kit for articulated trucks
• SP-15A-04 - 15-pin bulkhead socket
for cab & cab-end camera connector
plus stripped wires and display/
buzzer connection for Ultrasonics
3997
• SP-15B-04 - 15-pin bulkhead socket
for trailer & trailer-end camera
connector plus stripped wires and
display/buzzer connection for
Ultrasonics
• SC-15-01 - Coiled shielded cable
with 15-pin plugs
SELECT RANGE TRUCK/TRAILER CABLE KIT
VSK-31E - Cable kit for articulated trucks - unique pin layout
VSK-31E-T - Trailer only version
• VBV-L410 - 33' cable for cab
• VBV-L420 - 66' cable for trailer
• SP-7A - 7-pin bulkhead
socket for cab & cab-end camera
connector (unique pin layout)
2539
2543
• SP-7B - 7-pin bulkhead socket
for trailer & trailer-end camera
connector (unique pin layout)
• AC-014 - Adapter cable
• AC-006 - Adapter cable
• SC-7 - Coiled cable with 7-pin plugs
(unique pin layout)
VSK-31E Cable kit
SELECT RANGE TRUCK/TRAILER CABLE KIT
VSK-30E - Cable kit for articulated trucks
VSK-30E-T - Trailer only version
• VBV-L410 - 33' cable for cab
VSK-30E Cable kit
2538
2542
• VBV-L420 - 66' cable for trailer
• VSP-47B -7-pin bulkhead socket
for trailer & trailer-end camera
connector
• VSP-47A - 7-pin bulkhead socket for
cab & cab-end camera connector
• SC-07-24S - Coiled cable with type
24S 7-pin plugs
TRUCKS WITH DRAW-BAR TRAILER CABLE KITS
Kits for draw-bar trailers, including twin cameras and shutter cameras are
available, please contact us for details
17
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Part number
SELECT RANGE Y-PIECE CABLE
VBV-L403PC - 10' Y-piece for 12Vdc power and camera cable
connection to monitor
1550
CAMERA MONITOR ADAPTER CABLE
AC-006 - Connects Select series camera to Elite or Extreme series cable 1983
AC-007 - Connects Select series monitor to Elite or Extreme series cable 1984
AC-012 - Connects 2 Elite/Extreme series monitors to Elite/Extreme
series cable
2076
AC-014 - Connects Extreme or Elite series camera to Select series cable 2094
AC-020 - Connects Extreme or Elite series monitor to Select
series cable
2590
AC-022 - Upgrades monitor from VBV-750M (6 pin) to
VBV-750/770BM/DM (13 pin)
2930
AC-023 - Upgrades monitor from VBV-750AM (8 pin) to
VBV-750/770BM/DM (13 pin)
2931
AC-035 - 5-pin to 4-pin shutter camera adapter
3702
OEM CAMERA MONITOR ADAPTER CABLES
A range of OEM specific adapters to connect Brigade cameras to factory
fit monitors are available - Please contact us for details
19
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Part number
CAMERA MONITOR SYSTEM ANCILLARIES
LS-20-A - Low speed trigger module (normally closed)
LS-20-B - Low speed trigger module (normally open)
• 12-24Vdc
• Auto-triggers safety equipment
at the designated speed
• Size (WxHxD)
2.4 x 1.4 x 3.7 inches
• 2 year warranty
3177
3178
Features
Power
• Simple to change triggering speed
using DIP switch
• Normally closed - safety device on
by default, turning off at designated
speed
• Normally open - safety device off by
default, turning on at designated speed
• Compatible with Brigade camera
monitor systems
• Power consumption: 0.1 Watts
• Current: 0.05 Amps
Durability & Standards
• Mechanical vibration: 10G
• Operating temperature: -40 to +158°F
• CE marked
CAMERA MONITOR SYSTEM ANCILLARIES
SC-1000-ECU - Shutter camera module
• Allows BE-811C shutter camera to function
with any Extreme or Elite range monitor
(using Extreme/Elite range cables).
3666
• Use AC-007 adaptor to connect to Select or
Essential range monitor.
• CE marked
• EMC approved: e
21
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Part number
MOBILE DIGITAL RECORDER
MDR-304A-500 - 500GB hard disk with improved data download speed
Features
• 12-24Vdc
• 4 camera inputs
• 4 trigger/alarm inputs
• Lockable central caddy
• Fast, easily downloadable
recordings and data
• Size (WxHxD)
7 x 2 x 6.8 inches
• 3 year warranty
• Black box recorder with docking
station and anti-vibration mounting
• Removable central caddy with integral
hard disk and lockable keypad
• Up to 780 hours recording (based on
6 frames per second and standard
image quality)
• Recording can be triggered by motion
detection even when vehicle inactive
• Record images prior to alarm activation
and after vehicle turned off
• Easy to use via ‘DVD’ style front panel
• Video and audio recordings saved on
hard disk
• Download data to PC 10x faster than
previous model via high speed USB
2.0 interface. Alternatively save data to
removable SDHC card
• Simple to use HDD viewer software
enables search of recorded video and
export of critical moments to AVI video
or static JPEG files
3880
• 2 trigger / alarm outputs to trigger
other devices
• Compatible with Brigade camera
monitor systems
• Optional GPS sensor to record
location, route and speed data
• Optional G sensor to record X, Y and Z
impact data in the event of an accident
• Manually selectable PAL / NTSC
Picture Quality
• MPEG4 image compression allows
high quality image resolution
• Choice of recorded image quality – low
to high resolution
• Record at between 2 and 30 frames
per second per channel
Durability & Standards
• Mechanical vibration: 2G
• Mechanical Shock: 15G
• Operating temperature: -4 to +122°F
• EMC approved: e
OPTIONAL EXTRAS
AC-301
Connects Select camera to MDR & monitor
2904
AC-302
Connects Elite/Extreme camera to MDR & monitor
2923
AC-006
Connects Select series camera cable to MDR
1983
RC-300-060
Remote control with 20' cable
2803
GPS-6015-050 GPS receiver (speed & location data) with 16' cable
2925
GS-6016-030
4140
G sensor with 9' cable
23
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Part number
BACKSCAN® ULTRASONIC DETECTION SYSTEM
BS-4000W - Backscan reversing sensor system
• 4 sensor system
• 12-24 Volts
• 8' detection range outer sensors 8'/2'
(selectable via dip switch)
• Graduated visual and audible
distance warning display
• Underslung and flush-mount
fixings included
• 1.6' compensation range for
sensors fitted inboard of
vehicle rear (selectable via
dip switch)
• 2 year warranty
Contents
• 4 x sensors
• Visual and audible display
• 4 x 0° flush mount fixings
• 4 x 11° flush mount fixings
• 4 x underslung fixings
• Waterproof control box
• 50' display cable
• 4 x 8' sensor cables
3744
Durability &
Standards
• Operating temperature -40 to +176ºF
• Waterproof sensors to IP68
• Waterproof control box to
IP69K
• CE marked
• EMC approved: E
Features
• Obstacles detected in
under 200 milliseconds
• Environment Learning
Mode prevents false
alarms from tow-hooks
and other ancillary
equipment that intrudes in
the first 3' of the detection
zone
• Self-diagnostic function
• 5' detection range model
also available - Please
contact us for details
REQUIRED ADDITIONS FOR ARTICULATED VEHICLES
SK-15-04
SK-UDS-05
UDS-10BC
Truck/trailer camera/sensor cable kit - see p17
Truck/trailer sensor only cable kit
33' Buzzer/display cable
3997
4219
3716
FRONTSCAN® ULTRASONIC DETECTION SYSTEM
FS-4000W - Frontscan sensor system
• 4 sensor system
3747
Contents
• 7'/3' detection range outer sensors can be reduced
to 2'
(selectable via dip switches)
• 4 x sensors
• Buzzer
• 4 x 11° flush mount fixings
• 4 x 18° flush mount fixings
• 4 x 26° flush mount fixings
• Waterproof control box
• 8' buzzer cable
• 4 x 8' sensor cables
• Audible distance warning
Features
• 12-24 Volts
• Flush-mount
• 2 year warranty
• Obstacles detected in
under 200 milliseconds
• Environment Learning
Mode prevents false
alarms from tow-hooks
and other ancillary
equipment that intrudes in
the first 3' of the detection
zone
• Self-diagnostic function
Durability &
Standards
• Operating temperature -40 to +176ºF
• Waterproof sensors to IP68
• Waterproof control box to
IP69K
• CE marked
• EMC approved: E
RECOMMENDED EXTRA
LS-20-A
Low speed trigger module
(enables sensors below designated speed)
3177
25
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Part number
STEPSCAN™ ULTRASONIC DETECTION SYSTEM
ST-2000 - Stepscan sensor system
• 2 sensor system
• 12-24 Volts
• 2'/3' detection range (selectable via dip switch)
• Audible distance warning
• Flush-mount
• 2 levels of sensitivity (selectable via dip switch)
• 2 year warranty
3742
Contents
• 2 x sensors
• Buzzer
• 2 x 11° flush mount fixings
• 2 x 18° flush mount fixings
• 2 x 26° flush mount fixings
• Waterproof control box
• 8' buzzer cable
• 2 x 8' sensor cables
Features
• Obstacles detected in
under 200 milliseconds
• Environment Learning
Mode prevents false
alarms from ancillary
equipment that intrudes in
the first 3' of the detection
zone
• Self-diagnostic function
Durability &
Standards
• Operating temperature -40 to +176ºF
• Waterproof sensors to IP68
• Waterproof control box to
IP69K
• CE marked
• EMC approved: E
CORNERSCAN™ ULTRASONIC DETECTION SYSTEM
CS-3000 - Cornerscan sensor system
• 3 sensor system
• 12-24 Volts
• 2'/3' detection range (selectable via dip switch)
• Audible distance warning
• Flush-mount
• 2 levels of sensitivity (selectable via dip switch)
• 2 year warranty
3712
Contents
• 3 x sensors
• Buzzer
• 3 x 11° flush mount fixings
• 3 x 18° flush mount fixings
• 3 x 26° flush mount fixings
• Waterproof control box
• 8' buzzer cable
• 3 x 8' sensor cables
Features
• Obstacles detected in
under 200 milliseconds
• Environment Learning
Mode prevents false
alarms from ancillary
equipment that intrudes in
the first 3' of the detection
zone
• Self-diagnostic function
Durability &
Standards
• Operating temperature -40 to +176ºF
• Waterproof sensors to IP68
• Waterproof control box to
IP69K
• CE marked
• EMC approved: E
RECOMMENDED EXTRA
LS-20-A
Low speed trigger module
(enables sensors below designated speed)
3177
EXTENSION CABLES
UDS-2.5BC - Buzzer/display extension cable 8'
UDS-10BC - Buzzer/display extension cable 33'
UDS-15BC - Buzzer/display extension cable 50'
UDS-2.5SC - Sensor extension cable 8'
UDS-4.5SC - Sensor extension cable 15'
3717
3716
3746
3719
3720
27
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Part number
WHITE SOUND® SMART BACK-UP ALARM
SA-BBS-107 - Self adjusting heavy duty - 87-107 Decibels
• 12-24 Volts
• IP68
• Size (WxHxD)
6.7 x 3.1 x 3.7 inches
• Lifetime warranty
Features
Power
• Alarm continually adjusts to 5-10dB
above ambient
• Multi frequency broadband sound
• Instantly locatable
• Sound confined to danger area
• Eliminates noise nuisance
• Sounder unit: Driver
• Hole centers (inches): 6
• Current: Max 1 Amp
1400
Durability & standards
• Mechanical vibration: 10G
• Operating temperature: -40 to +185°F
• CE marked
• SAE J994
• OSHA & MSHA compliant (providing
appropriate unit correctly installed).
WHITE SOUND® SMART BACK-UP ALARM
SA-BBS-97 - Self adjusting - medium duty - 77-97 Decibels
SA-BBS-97HV - Self adjusting - electric forklift - 77-97 Decibels
• 12-24 Volts
• 36-80 Volts (HV)
• IP68
• Size (WxHxD)
5 x 3 x 2.5 inches
• Lifetime warranty
1399
1398
Features
Durability & standards
• Alarm continually adjusts to 5-10dB
above ambient
• Multi frequency white sound alarm
• Instantly locatable
• Sound confined to danger area
• Eliminates noise nuisance
• Sounder unit: Driver
• Hole centers (inches): 3.8-4.2
• Mechanical vibration: 10G
• Operating temperature: -40 to +185°F
• CE marked
• SAE J994
• OSHA & MSHA compliant (providing
appropriate unit correctly installed).
Power
• Current: Max 1 Amps
WHITE SOUND® BACK-UP ALARM
BBS-107 - Heavy duty - 107 Decibels
BBS-102 - Heavy duty - 102 Decibels
• 12-24 Volts
• IP68
• Size (WxHxD)
6.7 x 3.1 x 3.7 inches
• Lifetime warranty
0899
0898
Features
Durability & standards
• Multi frequency broadband sound
• Instantly locatable
• Sound confined to danger area
• Eliminates noise nuisance
• Sounder unit: Driver
• Hole centers (inches): 6
• Mechanical vibration: 10G
• Operating temperature: -40 to +185°F
• CE marked
• EMC approved: e
• SAE J994
• OSHA & MSHA compliant (providing
appropriate unit correctly installed).
Power
• Current: Max 1 Amps
29
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Part number
SPEAKING ALARM
BC-01HP(B) - Bespoke single message - 110 Decibels
• 12-24 Volts
• IP68
• Size (WxHxD)
4.5 x 4.5 x 4.7 inches
• 2 year warranty
1199
Features
Power
• Real speech alarm
* BC-01HP message “Ssh! Stand well
clear, vehicle reversing...”
• Bespoke message up to 8 seconds,
under 4 seconds for best speech quality
• Sounder unit: Speaker
• Hole centers (inches): 4
• Current: 0.5 Amps
Durability & standards
• CE marked
• EMC approved: e
NIGHTSHIFT® SPEAKING ALARM
BC-01(NS-B) - Bespoke single message - Nightshift - 90 or 0 Decibels
• 12-24 Volts
• IP68
• Size (WxHxD)
4.8 x 3.3 x 2 inches
• 2 year warranty
Features
• Real speech alarm
* BC-01(NS) message "Bleep! Stand
well clear, vehicle reversing..."
• Bespoke message up to 8 seconds,
under 4 seconds for best speech quality
• Double engage reverse to cut-out or
reduce sound
1198
• Sounder unit: Speaker
• Hole centers (inches): 4
Power
• Current: 0.5 Amps
Durability & standards
• CE marked
• EMC approved: e
SPEAKING ALARM
BC-01(B) - Bespoke single message - 90 Decibels
BC-02(B) - Bespoke dual message - 90 Decibels
• 12-24 Volts
• IP68
• Size (WxHxD)
4.8 x 3.3 x 2 inches
0079
0083
Features
Power
• Real speech alarm
• Bespoke message up to 8 seconds,
under 4 seconds for best speech quality
• Sounder unit: Speaker
• Hole centers (inches): 4
• Current: 0.5 Amps
Durability & standards
• CE marked
• EMC approved: e
• 2 year warranty
31
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Part number
ALARM ANCILLARIES
TCO-47 - Auto-reset Backalarm cut-out (dash mount)
• 12-24 Volts
• 2 year warranty
0663
Features
Durability and Standards
• Single touch timed relay
• Allows driver to cut-out Backalarm if
backing-up between 11.30pm-7.00am
• Auto-resets after 3-4 mins delay
• CE marked
• EMC approved
ALARM ANCILLARIES
NS-2 - Nightshift Backalarm cut-out switch
NS-3 - Nightshift Backalarm cut-out switch (auto gear box)
• 12-24 Volts
• IP68
• 2 year warranty
0334
0974
Features
Durability and Standards
• Double engage reverse gear to cut out
Backalarm
• Resets when reverse gear disengaged
(longer time delay for NS-3)
• No wiring necessary to cab
• CE marked
• EMC approved
ALARM ANCILLARIES
SW-16 - Pigtail microswitch - electro-mechanical
• 2 year warranty
0153
Features
• Fits adjacent to gearshift lever /
linkage so that pigtail tip is moved 1
inch
33
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Model
Stock code
Model
Part number
glossary
HALT (Highly Accelerated Life Test)
A comprehensive stress test applied to
electronic equipment to identify design
weakness.
Illumination distance (camera)
Distance a camera with infrared LEDs can
see in ultra-low light conditions, measured
in feet.
IP## (Ingress Protection)
An international classification for the
sealing of electrical equipment against
the intrusion of solid objects (digit 1) and
liquids (digit 2). Higher the rating the
better protection in each case.
ISO 13766:2006
Specific standard for earthmoving
equipment, includes requirements for
some additional tests that are not covered
in the tests for ‘E’ or ‘e’ under EMC.
ISO 15008:2003
Standard relating to the specifications
and compliance procedures for in-vehicle
visual presentation i.e. in relation to
monitors.
ISO 16750
Standard providing guidance regarding
environmental conditions commonly
encountered by electrical and electronic
systems installed in vehicles.
LCD (Liquid Crystal Display)
Thin, flat display device made up of any
number of color or monochrome pixels i.e.
monitor screen.
LED (Light Emitting Diode (camera))
Emits infrared light for high efficiency and
performance in ultra-low light.
SD Card
Small portable memory card to store
digital data.
LED (Light Emitting Diode (monitor))
Used to backlight the monitor display for
crisp images and superior image quality.
Sounder unit
Unit which produces the sound of an
alarm.
Mechanical shock
Level of sudden acceleration or
deceleration, such as impact or being
dropped, to which product will still perform.
Measured in gravitational force (G).
TV Lines
Number of horizontal lines used to create
an image.
Mechanical vibration
Level of continuous or repetitive motion,
such as engine vibration, to which product
will still perform. Measured in gravitational
force (G).
NTSC (National Television Systems
Committee)
TV color encoding standard.
PAL (Phase Alternating Line)
TV color encoding standard.
Resolution (RGB)
Number of pixels used to display an
image. Measured in Width x 3 channels
(Red, Green, Blue) x Height.
USB port
Communication connection between
electronic devices i.e. to download data
from mobile digital recorder.
Viewing angles (camera)
The maximum angle of vision.
Viewing angles (monitor)
The maximum angle at which an image
can be successfully viewed. Measured
from the center point on the monitor.
Watt
A measure of the power needed to drive a
product.
SAE J994
Performance testing for electrically
operated reversing alarms primarily
intended for use on off-road, selfpropelled construction and industrial
machines.
35
M.
S
.F
os
t
erEqui
pmentS
al
es www.
ms
f
os
t
er
.
com
Ph.2198799225 or8884524053 F
ax2198799313 emai
l
:s
al
es
@ms
f
os
t
er
.
com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
