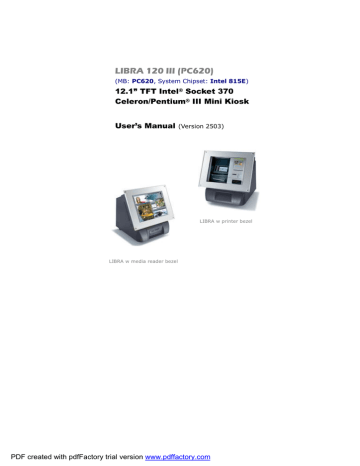

LIBRA 120 III (PC620)
(MB: PC620, System Chipset: Intel 815E)
12.1” TFT Intel® Socket 370
Celeron/Pentium® III Mini Kiosk
User’s Manual
(Version 2503)
LIBRA w printer bezel
LIBRA w media reader bezel
PDF created with pdfFactory trial version www.pdffactory.com
Copyright Notice
This document is copyrighted 2005 by the Manufacturer.
The information provided in this document has been
carefully checked and is accurate at the time of publication.
However, the Manufacturer assumes no responsibility for
any infringements of patents or other rights of third parties
that may result from its use.
No part of this publication may be reproduced, stored in a
retrieval system, or transmitted in any form of or via any
means without the prior written permission of the
Manufacturer. Further, this publication and features
described herein are subject to change without notice.
Trademarks
All brand and product names used for identification in this
document are trademarks or registered trademarks of their
respective companies.
© Copyright 2005, March Version 2503
All rights reserved.
Printed in Taiwan
PDF created with pdfFactory trial version www.pdffactory.com
Unpacking
After unpacking the LIBRA III carton, check and see if the
following items are included and in good condition.
u
u
LIBRA III main system
x1
Accessories
- Power cord
x1
- Utilities & drivers & user manual CD diskette x 1
(for touchscreen drivers, please download the
updated drivers from the following website
http://www.elotouch.com or
http://www.3m.com or
http://www.eturbotouch.com
Make sure that all of the items listed above are present. If
any of the above items is missing, contact your dealer
immediately.
Warranty
All products manufactured by the Manufacturer. are
warranted against defective materials and workmanship for
one year starting from the date of delivery to the original
purchaser. However, warranty or service will not be
extended if 1). the product is repaired, modified or altered
unless such repair, modification or alteration is authorized
by the Manufacturer; or 2). the product serial number or
warranty label is defaced or missing; or 3). the product is
not properly used.
PDF created with pdfFactory trial version www.pdffactory.com
Important Safety Precautions
Before getting started, read these instructions and save
them for later reference.
1.
2.
3.
Turn off the computer before cleaning. Clean with a
damp or dry cloth only. Do not spray any liquid cleaner
on screen directly.
The power outlet socket used to plug in the computer
power cord must be located near the system and easily
accessible. Do not use outlets on the same circuit of
the systems that regularly switched on and off.
Make sure the voltage of the power source is correct
before connecting the computer to the power outlet.
4.
If the computer is sharing an extension cord with other
devices, make sure the total ampere rating of the
devices plugged into the extension cord does not
exceed the cord’s ampere rating.
5.
Do not expose the power cord, extension cord and
power outlet to moisture.
6.
Install the computer on a reliable surface to prevent
damage caused by dropping.
7.
This computer is not equipped with an operating
system. An operating system must be loaded first
before installing any software into the computer.
8.
Disconnect the power cord from the computer before
any installation. Make sure both the computer and the
external devices are turned off. The sudden surge of
power may ruin any sensitive components. Also make
sure the computer is properly grounded.
9.
During installation of any internal components, be sure
to ground yourself to keep from any static charge.
Most electronic components are sensitive to the static
electric charge. Use a grounding wrist strap and place
all electronic components in any static-shielded
devices.
PDF created with pdfFactory trial version www.pdffactory.com
10. The openings on the computer cabinet are for the cabin
ventilation to prevent the computer from overheating.
DO NOT COVER THE OPENINGS.
11. The brightness of the flat panel display will decrease
with use. However, hours of use will vary depending on
the application environment.
12. If the computer is equipped with a touch panel, avoid
using sharp objects to operate the touch panel.
Scratches on the touch panel may cause
mal-calibration or non-function to the panel.
13. The LCD panel display is not subject to shock or
vibration. When assembling the computer, make sure
it is securely installed.
PDF created with pdfFactory trial version www.pdffactory.com
Table of Contents
1. INTRODUCTION............................................. 1-1
1.1.
1.2.
1.3.
GENERAL INFORMATION ..................................1-2
WHAT COVERS IN THIS MANUAL.........................1-3
SPECIFICATIONS ...........................................1-4
2. USING THE SYSTEM ....................................... 2-7
2.1.
IDENTIFYING THE SYSTEM ................................2-8
2.1.1. Front View.............................................2-9
2.1.2. Side Views........................................... 2-11
2.1.3. Dimension ........................................... 2-12
2.1.4. Wall Mounting...................................... 2-13
2.1.5. Panel PC I/O Outlets ............................. 2-14
2.2.
SYSTEM SETUP FOR THE FIRST-TIME USE ............ 2-15
2.2.1. Installation Procedures.......................... 2-15
2.2.2. Running the BIOS Setup ....................... 2-16
2.2.3. Operating System and Driver Installation 2-17
3. HARDWARE INSTALLATION AND UPGRADE . 3-19
3.1.
PANEL PC ASSEMBLY .................................... 3-22
3.1.1. Touchscreen Module ............................. 3-22
3.1.2. LCD Module Assembly........................... 3-23
3.1.3. MB & Touch Controller Assembly ............ 3-25
3.1.3.1. Installing the CPU ........................... 3-25
3.1.3.2. Installing the SDRAM Memory Module3-26
3.1.3.3. MB & Touch Controller Assembly....... 3-27
3.1.3.4. I/O Module Assembly ...................... 3-29
3.1.3.5. Security Door Module Assembly........ 3-30
3.1.3.6. CD-ROM Module Assembly ............... 3-31
3.1.4. Panel PC Module Assembly .................... 3-32
3.2.
KIOSK CABINET & PERIPHERAL ASSEMBLY ........... 3-34
3.2.1. HDD Module Assembly .......................... 3-34
3.2.2. Power Module Assembly ........................ 3-35
3.2.3. Printer Module Assembly ....................... 3-36
3.2.3.1. Printer Module Assembly.................. 3-36
3.2.3.2. Printer Power Module Assembly ........ 3-38
3.2.4. Media Reader/CD-ROM Module Assembly 3-39
PDF created with pdfFactory trial version www.pdffactory.com
3.2.5. Kiosk Cabinet Integration ...................... 3-40
3.2.5.1. LIBRA with printer bezel integration .. 3-40
3.2.5.2. LIBRA with Media reader bezel integration
3-43
3.3.
KIOSK INTEGRATION .................................... 3-45
4. SYSTEM MOTHERBOARD & I/O BOARD ........ 4-47
4.1.
LIBRA MOTHERBOARD ................................. 4-48
4.1.1. General Information ............................. 4-48
4.1.2. Specifications....................................... 4-49
4.1.3. Locating Jumpers & Connectors.............. 4-51
4.1.4. Jumpers & Jumper Setting..................... 4-52
4.1.4.1. DOC 2000 Address Setting (JP2)....... 4-52
4.1.4.2. LCD Interface Select (JP5) ............... 4-52
4.1.4.3. Clear CMOS (JP9) ........................... 4-52
4.1.4.4. AT/ATX power selection (JP11) ......... 4-52
4.1.5. Connectors & Pin Assignment................. 4-53
4.1.5.1. ATXP1: ATX Power connector............ 4-54
4.1.5.2. CN1: Touchscreen Power Connector .. 4-54
4.1.5.3. PWR1: CD-ROM Power Connector .... 4-54
4.1.5.4. INV1: LCD Inverter Connector .......... 4-55
4.1.5.5. LCD1: LVDS Connector .................... 4-55
4.1.5.6. LCD2: TTL Connector ...................... 4-56
4.1.5.7. IDE1/IDE2: Primary/Secondary HDD. 4-57
4.1.5.8. FDD1: FDD connector...................... 4-58
4.1.5.9. COM2:........................................... 4-58
4.1.5.10. COM3 ............................................ 4-59
4.1.5.11. CD1: CD Audio IN .......................... 4-59
4.1.5.12. IR1: IR/CIR Connector .................... 4-59
4.1.5.13. CN4: Power LED & EXT. KB/MS, USB . 4-60
4.1.5.14. IOINF 1: I/O Slot ............................ 4-60
4.1.5.15. CN4: PCI/ISA Expansion Slot............ 4-61
4.1.5.16. FAN1~3: FAN Connector .................. 4-64
4.1.5.17. JP6: External SMI Connector ............ 4-64
4.1.5.18. CN3: ATX Power ON/OFF & Reset...... 4-64
4.1.5.19. RST1: RESET SYSTEM Connector ...... 4-64
4.1.5.20. CN2: External LAN WAKE-UP............ 4-64
4.2.
LIBRA I/O BOARD ..................................... 4-65
4.2.1. I/O Board-IO005 .................................. 4-66
PDF created with pdfFactory trial version www.pdffactory.com
4.2.1.1. Jumper Setting & Connectors ...... 4-67
4.2.1.2. Jumpers & Jumper Setting ............... 4-67
4.2.1.3. CN4: EXT. Connector ....................... 4-67
4.2.2. IO Board-IO006 ................................... 4-68
4.2.2.1.1.Jumpers & Jumper Setting ............... 4-69
4.2.2.2. CN6: EXT. Connector ....................... 4-69
4.2.3. Connectors & Pin Assignment................. 4-70
4.2.3.1. Keyboard: PS/2 KB Connector .......... 4-71
4.2.3.2. Mouse: PS/2 Mouse......................... 4-71
4.2.3.3. COM1, COM2, COM4 (DB-9) ............ 4-71
4.2.3.4. DC Power: DC Power Output ........... 4-71
4.2.3.5. LPT1: D-SUB-25 Parallel Port............ 4-72
4.2.3.6. CRT: VGA (D-SUB 15 Pin) ................ 4-72
4.2.3.7. FDD: External FDD Connector .......... 4-72
4.2.3.8. J11: USB 1, USB2 Connector........... 4-73
4.2.3.9. DIO1: RJ-11 Connector ................... 4-73
4.2.3.10. LAN1: RJ-45 Ethernet Connector ...... 4-73
4.2.3.11. MIC1 ............................................. 4-73
4.2.3.12. LINE 1 ........................................... 4-74
4.2.3.13. SPK 1 ............................................ 4-74
5. AWARD BIOS SETUP .................................... 5-75
5.1.
AWARD BIOS .......................................... 5-76
5.2.
CONTROL KEY DEFINITION ............................. 5-77
5.3.
GETTING HELP ........................................... 5-78
5.3.1. Main Menu........................................... 5-78
5.4.
AWARD BIOS SETUP.................................. 5-78
5.4.1. AWARD BIOS Setup Main Menu.............. 5-78
5.4.2. Standard CMOS Features....................... 5-80
5.4.3. Advanced BIOS Features ....................... 5-83
5.4.4. Advanced Chipset Features.................... 5-87
5.4.5. Integrated Peripherals .......................... 5-89
5.4.6. Power Management Setup ..................... 5-93
5.4.7. PnP/PCI Configuration........................... 5-94
5.4.8. PC Health Status .................................. 5-96
5.4.9. Frequency Voltage Control..................... 5-97
5.4.10. Load Fail-Safe Defaults ......................... 5-98
5.4.11. Load Optimized Defaults........................ 5-99
5.4.12. User Password ................................... 5-100
PDF created with pdfFactory trial version www.pdffactory.com
5.4.13. Save and Exit Setup ........................... 5-101
5.4.14. Exit Without Saving ............................ 5-102
6. SOFTWARE & DRIVERS INSTALLATION ..... 6-103
6.1.
SYSTEM CHIPSET DRIVERS ........................... 6-104
6.2.
IDE ACCELERATION DRIVERS ........................ 6-104
6.3.
ETHERNET DRIVERS ................................... 6-105
6.4.
PC620 AGP XGA .................................... 6-106
6.5.
AUDIO SETUP .......................................... 6-107
6.6.
TOUCHSCREEN DRIVERS .............................. 6-108
6.7.
PERIPHERAL DEVICE DRIVERS ....................... 6-109
6.8.
DRIVER INSTALLATION ................................ 6-110
APPENDIX .......................................................... 6-111
A: LCD SPECIFICATION ......................................... 6-111
B: DIO (DIGITAL INPUT & OUTPUT) .......................... 6-114
C: DISKONCHIP INSTALLATION .............................. 6-116
D: SYSTEM I/O PORTS .......................................... 6-117
E: WAKE-ON-LAN............................................... 6-118
F: FIRST MB MEMORY MAP ..................................... 6-121
G: POWER SUPPLY ............................................... 6-122
H: 8-IN-1 CARD READER ....................................... 6-125
I: THERMAL PRINTER ............................................ 6-127
PDF created with pdfFactory trial version www.pdffactory.com
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
1. INTRODUCTION
This chapter provides background
information and detail specification on
the LIBRA III. Sections in this chapter
include:
u General Information
u
u
What covers in this Manual
Specification
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
1-1
User Manual version 2503
1.1. General Information
The information revolution that started from the mid ’90
inaugurated a new competitive era where consumercomputing technology was exploited to business operation
quicker than ever before. Many enterprises from our life
related industries such as POS, POI, Kiosk, Banking,
Medical to the high-tech Telecom, Aerospace,
Semiconductor … etc. all are eager or forced to automate
their industries with PCs in order to thrive in this new age. For
their industrial automation, there is one thing in common, i.e.
space is always a premium and system stability is always a
must in their environmental applications.
Compact in its profile and self-contained in its functions, the
LIBRA 120 is a 12.1" TFT Intel Socket 370 Celeron/Pentium
III or Socket 478 Celeron-based mini Kiosk. By integrating a
thermal receipt printer and a swipe card reader, the LIBRA
Kiosk can be used as a point of sale and point of information
solution for bankers, photo processors, retailers, photo kiosk
operators, OEMs, and POS manufacturers… etc…. With
changeable front bezel design, the LIBRA can be easily
tailored to accommodate different peripheral devices to meet
specific environmental requirements.
Fully configurable and with its sleek outlook, the LIBRA is an
ideal platform for any space-constricted retail application
1-2
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
1.2. What Covers in this Manual
This handbook contains most information you need to set up
and use the LIBRA IV system. Only service technicians are
allowed to open the system for service. You do not need to
read everything in this handbook to use the system.
Chapter 1 (the current chapter) provides background
information and detail specification on the LIBRA
III.
Chapter 2 identifies the LIBRA system exterior components
and provides instructions to help you to use the
system as soon as possible.
Chapter 3 helps you to recognize the LIBRA system internal
modules. It also provides the installation
procedures including the panel PC, display
module and peripheral modules.
Chapter 4 provides detail information of the jumper settings
and connector signals of the system control
board.
Chapter 5 explains the AWARD BIOS setup.
Chapter 6 introduces the Ethernet, XGA, audio and
touchscreen drivers.
Appendix A details the 12.1” LCD specifications.
Appendix B introduces the system’s onboard DIO.
Appendix C introduces the DiskOnChip installation.
Appendix D introduces the Wake-On-LAN feature.
Appendix E describes the system IO port address
Appendix F explains the first MB memory map.
Appendix G provides the specifications for the built-in power
supply.
Appendix H provides the specifications for the 8-in-1 card reader.
Appendix I provides the specifications for the thermal printer.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
1-3
User Manual version 2503
1.3. Specifications
LIBRA III: 12.1” TFT Intel® Socket 370 Celeron Mini Kiosk
Display Module
LCD
²
12.1” color TFT, 800*600
²
Luminance (cd/m2): 150 or above
²
Simultaneous mode: yes
u Touchscreen
u
²
²
12.1” analog resistive type with RS-232 controller
12.1” capacitive type with RS-232 controller
Panel PC
u
u
u
u
u
u
u
Motherboard: PC620
CPU (Socket 370):
²
Intel Pentium III FCPGA 1GHz/133MHz
²
Intel Pentium III FCPGA 650-933/133MHz
²
Intel Pentium III FCPGA 500E-850E/100MHz
²
Intel Celeron FCPGA 800MHz-1.10GHz/100MHz
²
Intel Celeron FCPGA 533AMHz-766MHz/66MHz
²
Intel Celeron PPGA 300A-533MHz/66MHz
System Chipset: Intel 815E
System BIOS: Award PnP Flash BIOS
System Memory: 2*168pin DIMM socket supporting
SDRAM up to 512MB
L2 Cache: CPU built-in
Ethernet
²
100/10 Base-T Ethernet with RJ-45 phone jack
²
1-4
Supports WAKE-ON-LAN
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
u
Display
²
²
²
²
u
Novatek NT68521 scaler
LVDS/24 bit TTL LCD Interface via jumper setting
Integrated 2D/3D graphics engine, 4X AGP
Share system memory architecture able to utilize
the display memory size up to 64MB
Standard I/O (Inside the Kiosk cabinet)
² Serial ports*4: COM 1, 2 & 4 with +5V/12 power
output on pin #9, COM 3 internal type reserved for
touchscreen, COM2 RS-232/485 jumper selectable
²
Parallel Port*1: supports SPP/EPP/ECP
²
External FDD Interface*1
²
+5V/+12V DC-out*1
²
PS/2 Keyboard Interface*1
²
PS/2 Mouse Interface*1
²
DIO: Input*2, output*2
²
USB Interface*2
²
VGA Interface*1
²
Brightness VR*1
²
Speaker-out, MIC-in, Line in
u Audio Function
²
²
Full duplex and independent sample rate converter
for audio recording & playback
Supports Microsoft DirectSound
3D positional audio effects
²
²
²
Hi-performance, mixed-signal, stereo
MIC-In, Speaker-Out, Line-In
Pin header for CD-audio in
²
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
1-5
User Manual version 2503
u
Hardware Monitor
²
²
²
²
²
²
²
u
u
u
u
u
Monitoring processor & system
Monitoring 5VSB, VBAT, 1.5V, 3.3V, +5V, +12V, -12V,
and processor voltages
Monitoring processor, chassis fan speeds
Controlling processor, chassis fan speed and failure
alarm
Automatic fan on/off control
Read back capability that displays temperature,
voltage and fan speed
Supporting Intel processor thermal diode output
(real processor temperature)
Power Supply: ATX 180W, input range, 100~240VAC
Drive Bay
² 3.5" HDD*1
² Slim CD-ROM or equivalent device*1
Speakers*2
External USB*2
Front Bezel options
² Printer bezel
² Media card reader bezel
PERIPHERAL DEVICES (optional)
u
u
u
Magnetic card reader – swipe type, track I, II & III
Thermal receipt printer (Printer bezel)
8-in-1 media reader (Card reader bezel)
MECHANICAL & ENVIRONMENTAL
Construction: heavy-duty steel
Dimension: 350 x 365 x 295 mm (W*H*D)
§
1-6
Specifications are subject to change without notice.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
2. USING THE SYSTEM
u
u
Identifying the LIBRA Kiosk
System setup for the first-time use
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
2-7
User Manual version 2503
2.1. Identifying the System
The LIBRA Kiosk features with changeable front bezel design
able to accommodate different peripherals to fit into specific
business requirements. It has two standard front bezel
options; one is LIBRA with printer bezel to accommodate an
Epson open-framed thermal receipt printer as illustrated in
Fig. 2-1 and the other is LIBRA with media card reader bezel,
to accommodate an 8-1 media card reader as illustrated in
Fig. 2-2.
Due to the Kiosk cabinet internal space restriction, when the
LIBRA is integrated with the receipt printer, no internal media
card reader can be integrated into the Kiosk cabinet and the
internal slim CD-ROM needs to be installed with the panel PC
module and to be accessed from the right side of the Kiosk
cabinet. When the LIBRA unit is integrated with an 8-1
media card reader, no internal thermal receipt printer can be
installed into the Kiosk cabinet and the internal slim CD-ROM
can be integrated with the media reader from easy access
from the front.
Before getting started, take a moment to familiarize yourself
with the LIBRA system with different peripheral bezels.
2-8
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
2.1.1. Front View
When the LIBRA with printer bezel is put upright on the
desktop, its front view appears as below.
Acrylic bezel
Slim CD-ROM
12.1” LCD &
Touchscreen
Thermal printer
USB x 2
FIGURE 2-1: LIBRA W PRINTER BEZEL FRONT V IEW
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
2-9
User Manual version 2503
When the LIBRA with media card reader bezel is put upright
on the desktop, its front view appears as below.
Acrylic bezel
12.1” LCD &
Touchscreen
USB x 2
8-1 media card reader
Slim CD-ROM
FIGURE 2-2: LIBRA W MEDIA CARD READER BEZEL FRONT VIEW
2-10
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
2.1.2. Side Views
The left side of the LIBRA appears as below:
Cooling fan
Speaker*2
USB*2
Rubber feet*4
FIGURE 2-3: SIDE VIEW
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
2-11
User Manual version 2503
2.1.3. Dimension
The mini Kiosk cabinet size is shown below.
294.74
FIGURE 2-4: DIMENSION DRAWING
2-12
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
2.1.4. Wall Mounting
At the rear side of the cabinet, there are four avocado-shape
holes reserved for system’s wall mounting.
The following figure illustrates the distance between the
avocado holes.
FIGURE 2-5: WALL MOUNT DRAWING
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
2-13
User Manual version 2503
2.1.5. Panel PC I/O Outlets
When you open the security door or lift the display module
upwards, you will find the power switch and all the I/O ports
of the panel PC are located at upper side of the Kiosk. The
following figure illustrates the LIBRA’s I/O arrangement.
A
B C
DE
F G H I
Q
J
K
L
M N OP
FIGURE 2-6: I/O ARRANGEMENT
A. VGA PORT
D. COM 2
G. PS/2 KEYBOARD
J. VR BRIGHTNESS
M. 2-CHANNEL DIO
B. PRINTER PORT
E. COM 1
H. PS/2 MOUSE
K. EXTERNAL FDD
N. MIC-IN
P. SPEAKER-OUT
Q. POWER SWITCH
2-14
C. COM 4
F. USB*2
I. ETHERNET (RJ-45)
L. +5/12V DC-OUT
O. LINE-IN
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
2.2. System Setup for the First-time Use
To set up the LIBRA system for the first-time use, you should
have the following items ready. The items are either in the
accessory box or available in any computer stores.
u 110V or 220V power cord
u
u
PS/2 keyboard or USB keyboard
PS/2 mouse or USB mouse
2.2.1. Installation Procedures
The LIBRA system can be powered by an AC electrical outlet
(115~230V/4A @47/63Hz). Be sure to use the right power
cord (110V or 220V) for connection.
1.
Insert the 3-pin female end of the power cord to the
Kiosk cabinet from the rectangle opening located at the
left rear side of the cabinet and have it connected to the
power inlet of the power supply.
2.
Connect the 3-pin male end of the power cord to an
electrical outlet.
Open the Kiosk security door at the upper side. Connect
a PS/2 keyboard and a PS/2 mouse to the PC’s PS/2 ports.
Or connect a USB keyboard and mouse to the USB ports
located at the right side of the Kiosk cabinet.
Power on the system by switching the power switch
located at the I/O board.
3.
4.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
2-15
User Manual version 2503
2.2.2. Running the BIOS Setup
If you are a commercial user, the LIBRA system should have
been properly set up and configured by your dealer. You may
still find it necessary to change the system configuration
information. In this case, you need to run the system’s BIOS
setup program.
Under the following conditions, the CMOS settings are to be
changed.
1. The system is starting for the first time.
2. The hardware devices attached to the LIBRA III system
have been changed.
3. The CMOS memory has lost power and the configuration
information has been erased.
The BIOS setup program is stored in ROM, which can be
accessed by pressing <DEL> key on the keyboard
immediately when the system is powered on.
In order to retain the specified setup information when the
system power is turned off, the system setup information is
stored in a battery-backed CMOS RAM. The battery is to
ensure the settings will not be erased when the computer is
turned off or reset. When the computer is powered on again,
the system will read the settings stored in the CMOS RAM and
compare them to the equipment check conducted during the
power on self-test (POST). If any error or mismatch occurs,
an error message will be shown on the screen and the
computer will be prompted to run the setup program.
To change the BIOS setup, please refer to Chapter 7 for more
information.
2-16
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
2.2.3. Operating System and Driver Installation
The LIBRA III system is not equipped with an operating
system when delivered from the original manufacturer. If
you are a commercial user, the system is likely to have been
pre-installed proper operating system and software drivers
by your dealer or system integrator.
If the system is not pre-installed with any system OS and
drivers or you intend to install your preferred ones, there are
several ways to load OS and software into the system.
1. Via an USB data-retrieval devices
2. Via the CD-ROM
3. Via Ethernet: You can boot up the system via Ethernet
bootrom (optional) and download system OS or software
from the network.
Recent releases of operating systems always include setup
programs that load automatically and guide you through the
installation. You can also refer to your OS user manual for
instructions on formatting or partitioning the hard disk drive
before any software installation.
The LIBRA III system provides the following utility drivers
stored in the CD-ROM diskette or utilities diskettes;
² Ethernet utilities
² VGA utilities
²
²
²
Audio drivers
Touchscreen drivers
Printer drivers
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
2-17
User Manual version 2503
3-18
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
3. HARDWARE INSTALLATION AND UPGRADE
This chapter overviews the installation of the
LIBRA III’s internal components and devices.
Sections include:
u Panel PC assembly
u Display assembly
u
u
Peripheral assembly
Kiosk cabinet assembly
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
3-19
User Manual version 2503
The LIBRA Kiosk has two standard front bezels; one for
thermal receipt printer and the other for media card reader.
Due to Kiosk cabinet space limitation, the standard LIBRA
cabinet can only accommodate either a receipt printer or a
media card reader. Both peripherals cannot be housed in the
cabinet at a given time.
When the Kiosk unit is accommodated with thermal printer, it
is mainly composed of 2 major modules, one panel PC
module and the other Kiosk cabinet module.
The panel PC module with printer bezel is made of five
individual modules:
1.
2.
3.
4.
5.
Touchscreen module
LCD module
Motherboard module
I/O module
CD-ROM module
The Kiosk cabinet module with printer bezel is made of four
individual modules,
1. Kiosk cabinet module
2. HDD module
3. Power supply module
4. Thermal Printer module
3-20
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
When the Kiosk unit is accommodated with media reader, it is
mainly composed of 2 major modules, one panel PC module
and the other Kiosk cabinet module.
The panel PC module with media card reader bezel is made of
four individual modules:
1.
2.
3.
4.
Touchscreen module
LCD module
Motherboard module
I/O module
The Kiosk cabinet module with media card reader bezel is
made of four individual modules,
1.
2.
3.
4.
Kiosk cabinet module
HDD module
Power supply module
Media card reader and CD-ROM module
The two major modules are to be made first, and then
integrated together to make a complete unit.
The assembly of LIBRA with printer bezel is basically same to
that of LIBRA with media reader except the assembly of the
printer, CD-ROM and media card reader.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
3-21
User Manual version 2503
3.1. Panel PC Assembly
The LIBRA’s panel PC is composed of several modules
including a touchcreen module, LCD module, motherboard
module, I/O module and door module.
3.1.1. Touchscreen Module
The following steps illustrate the ways to integrate the
touchscreen module. Refer to Fig. 3-1.
1. Integrate the acrylic bezel (A) to the metal bezel (B)
with four bolts.
2. There are 4 one-side adhesive rubber strips. Attach the
4 rubbers to the front bezel (B). The 4 rubbers act as
bumpers to absorb the pressure when the touchscreen is
fixed to the front bezel.
3. There are 4 metal brackets (D) used to fix the
touchscreen to the front bezel. The metal brackets have
to be taped with foam sponge strips. The foam sponges
are used to absorb the pressure when the metal
brackets fix the touchscreen to the front bezel.
4. Fix the touchscreen (C) to the front bezel with the four
metal brackets and retain them together.
5. Make sure the touchscreen flat cable comes out from the
small opening of the touch bracket on the right side.
Bracket opening
FIGURE 3-1: TOUSHCREEN MODULE ASSEMBLY
3-22
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
3.1.2. LCD Module Assembly
The following steps illustrate the sequences to assemble the
LCD module. Refer to Fig. 3-2.
1. Attach the insulator to the invertor (A).
2. Retain the invertor to the LCD holder (C) with two PMS
M3*6 screws. The invertor cable (8) is a 4-pin to 4-pin
cable with wafer connectors at both sides. Connect one
end to invertor first. The other end is to go through the
rectangle opening of the LCD holder to the reverse side
for later connection to motherboard.
3. The standard LCD used in LIBRA 120 is TORISAN
MXS121022010 or its equivalent. It is a TTL interface
LCD. The LCD cable is a 35 cm DF9-41S to DF13-40
cable. Plug the DF9-41S end to the 41-pin connector at
the rear side of the LCD panel. The DF11-30 end is to
go through the rectangle opening (D) of the LCD
holder to the reverse side for later connection to the
motherboard. MAKE SURE THE LCD JUMPER IS SET PROPERLY
TO THE TTL MODE.
4. Retain the LCD (B) to the LCD holder with four PMS
M3*6 screws.
5. Connect the pink-white wires from the LCD to the
invertor.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
3-23
User Manual version 2503
(B)
(front)
(A)
(D)
(C)
(back)
FIGURE 3-2: LCD MODULE ASSEMBLY
After finishing the LCD module assembly, the module is to be
integrated to the touchscreen module to make a complete
display module.
6.
7.
Use special air blower to blow any dust between the LCD
and touchscreen before the two modules are assembled
together.
Retain the LCD module (Fig. 3-4, B) and the touchcreen
module (Fig. 3-4, A) together with four PMS M3*8
screws. Make sure the touchscreen flat cable is coming
through the opening at the LCD holder (Figure 3-2, C)
for later connection to the touchscreen controller.
If you reverse the complete display module at this time, you
will see three cables, LCD cable, invertor cable and
touchscreen flat cable come out from the rear-side opening
(D) of the LCD holder.
3-24
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
3.1.3. MB & Touch Controller Assembly
3.1.3.1.
Installing the CPU
The LIBRA III’s motherboard, PC620 can adapt Socket 370
Intel Celeron or Pentium III CPU. Upgrading the CPU can
increase the system performance.
The motherboard provides one 370-pin ZIF socket (Socket
370). The CPU must come with a CPU fan with a heat sink on
to avoid overheating.
To install a CPU or upgrade a new CPU, follow the instructions
below.
1. If there is an existing CPU on the socket, remove the CPU
cooling fan first. Then remove the CPU by pulling the
lever out a little and raising it, then lifting out the existing
CPU from the socket.
2. To insert the CPU into the socket, the notch on the corner
of the CPU (the corner with golden dot) should point
toward the end of the socket lever. If the insertion of the
CPU to the socket is not easy, check whether the CPU pins
correspond with the holes on the socket.
3.
After inserting the CPU into the socket, pull the lever down
to make sure the CPU is in place.
4.
The CPU cooling fan comes with a 3-pin power wire.
Connect the power wire to the 3-pin power connector on
the motherboard. Tie the power wires together with a
nylon cable tie.
5.
There are two silver clips on the CPU socket. Make sure
the cooling CPU fan clips click into place.
3-pin CPU fan power connector
CPU socket
FIGURE 3-3
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
3-25
User Manual version 2503
3.1.3.2. Installing the SDRAM Memory Module
The panel PC’s control board provides 2 x 168-pin DIMM
socket, able to support SDRAM memory from 32MB up to
512MB. To install the memory module, follow the
instructions below.
1.
2.
3.
Find the 168 pin DIMM socket on the motherboard
There are two white eject levers at each end of the DIMM
socket. Push them outward until they separate from the
two vertical posts.
Holding the memory module with the notch on the upper
right corner, then insert the memory module into the
DIMM socket at 90° angle.
4.
Push the two eject levers toward the vertical posts until
they click into place. The memory module is now
upright.
5.
Retain the memory module to the SDRAM socket by
firmly fastening the SDRAM and the eject levers together
with nylon cable ties.
The system is able to auto detect the new memory size and
there is no need to change the system configuration after
installation.
Make sure that the memory module you are using can handle
the specified SDRAM MHz. Inadequate memory module will
make the computer unable to boot up.
PLEASE NOTE THAT ALTHOUGH THE MOTHERBOARD HAS TWO 168-PIN
DIMM SOCKETS, YET DUE TO CHIPSET LIMITATION, THE MAXIMUM
MEMORY CAPACITY SUPPORTED IS 512MB. IF TWO 512MB SDRAM
MODULES ARE INSERTED, ONLY 512MB SIZE CAN BE DETECTED.
3-26
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
3.1.3.3. MB & Touch Controller Assembly
Refer to Fig. 3-4. Follow the steps below to assemble the
motherboard to the system chassis. Make sure the CPU with
cooling fan and SDRAM are already properly installed to the
motherboard before the motherboard is attached to the
display metal plate.
1. Reverse the display module with the rectangle openings at
the right bottom side. From your point of view, the
motherboard module is to be installed to the right upper
side of the metal plate.
2. Tape the motherboard insulator to the motherboard (C)
first. The insulator is to separate the electronic
components on the reverse side of the motherboard from
the metal plate to prevent short circuitry caused during
system operation.
3. Fix the motherboard with an insulator to the chassis with
nine PMS M3*6 screws.
4. Fix the touchscreen controller (D) to the lower side of the
metal plate with four PMS M3*5 screws.
FIGURE 3-4: FRONT BEZEL MODULE ASSEMBLY
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
3-27
User Manual version 2503
After integrating the motherboard and touchscreen controller
to the reverse side of the display module, all the cable
connection needs to be done.
5. There are three cables, touchscreen flat cable, LCD cable
and invertor cable coming out from the rear-side opening
of the LCD holder. Connect the other end of the
touschcreen flat cable to the 5-pin header connector, P5 on
the touchscreen controller. Connect the DF11-30 end of
the LCD cable to the LCD2 on the motherboard. Connect
the 4-pin invertor cable to the motherboard’s INV1.
6. For Elo resistive touch, the touchscreen cable is a ribbon
cable with 2*5 box headers at both side. Connect one end
to P1 on the touchscreen controller with the other end
firmly plugged to the motherboard COM3.
7. There is a 2-pin (black & red) wire to provide the power
source for the touchscreen. Connect the 2-pin
touchscreen power wire to P2 on the touch controller with
the other end of plugged to the onboard CN1.
8. Connect one end of the 40-pin HDD ribbon cable to the
onboard IDE1.
9. Connect one the 40-pin end of the CD-ROM ribbon cable to
the motherboard IDE2 connector.
10. There is a 4-pin CD audio-in wire to be plugged to CD1
on the motherboard.
11. Connect the one end of the Y-shape USB cable the
onboard USB3 and USB1 connectors. The other ends are
for later connection to the exteriors of the Kiosk cabinet for
external USB devices.
3-28
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
3.1.3.4. I/O Module Assembly
Refer to Figure 3-5.
1. Attach the IO-005 (A) I/O board to the I/O bracket (C)
and fix them together with ten secure bolts.
2. Attach the IO-006 I/O board (B) to the I/O bracket and fix
them together with two secure bolts and one FMS 3*5
screws.
3. Link the two IO boards together by plug one end of the
2*22 pin ribbon cable to CN4 on the IO-005 with the other
end to CN6 on IO-006.
4. Insert the power switch to the small opening located at
the right side of the I/O bracket.
(D)
(C)
(A)
(B)
FIGURE 3-5: I/O MODULE ASSEMBLY
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
3-29
User Manual version 2503
3.1.3.5. Security Door Module Assembly
The security door module is to be integrated to the top of
Kiosk cabinet to prevent the system I/O ports from
unauthorized access. By opening the door, the thermal
printer status can also be monitored.
1. Insert the latch set (B) to the door plate (A) and retain
them together with a set of small bolt and washer.
2. Retain the two door butt hinges (C) to the plate with two
M3 nuts for each.
(C)
(B)
(C)
(A)
(B)
FIGURE 3-6: SECURE DOOR ASSEMBLY
3-30
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
3.1.3.6. CD-ROM Module Assembly
The LIBRA Kiosk provides enough space to accommodate a
slim CD-ROM or an equivalent device.
If a thermal receipt printer is integrated with the Kiosk, due
to space limitation, the slim CD-ROM device is to be installed
in the panel PC chassis as illustrated in Fig. 3-8 and accessed
from the right side of the Kiosk cabinet. If no receipt printer
is integrated with the Kiosk, the slim CD-ROM device can be
integrated with the media card reader module and accessed
from the front side.
Refer to Fig. 3-7. The following steps show the ways to install
a CD-ROM module before it is integrated to the panel PC.
1. Attach the CD-ROM board to the slim CD-ROM drive (A)
and fix them together with 2 screws.
2. There is a small metal bracket (B) used to firmly fix the
CD-ROM drive to the CD-ROM bracket. Retain the small
bracket to the CD-ROM drive first with two IMS M2*2.25
screws. This small bracket is to prevent the CD-ROM drive
from moving when installed to the CD-ROM bracket.
3. Insert the CD-ROM module with a small bracket on to the
CD-ROM bracket (C) and fix them together with two IMS
M2*2.25 screws and two PMS M3*5 screws.
(A)
(B)
(D)
(C)
FIGURE 3-7: SLIM CD-ROM MODULE ASSEMBLY
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
3-31
User Manual version 2503
3.1.4. Panel PC Module Assembly
The panel PC’s individual modules are now ready to be
integrated to a complete panel PC module. Refer to Fig. 3-8.
1. Install the two speakers (B) to the chassis (C) with two
TMS MS*5 screws for each.
2. Attach the metal support bracket (G) to the chassis with
one TMS M3*4 screw with washer.
3. Integrate the CD-ROM module (D) to the chassis with two
TMS M3*4 screws. If the LIBRA unit is with media reader
bezel, for easy access, the CD-ROM is integrated with the
media reader module instead.
4. Retain the chassis to the front bezel module (A) with five
PMS M3*6 screws.
5. Connect the other ends of the two 2-pin speaker wires to
CN4 on the motherboard. The wire for the left speaker is
plugged to pin# 13, 15 and the wire for the right speaker
to pin# 14, 16 on CN4.
6. Connect the other end of the 40-pin IDE ribbon cable to
the CD-ROM board. Plug the other end of the CD-Audio
wire to the 4-pin black pin connector on the CD-ROM
board.
7. Plug I/O module (F) to the IOINF 1 slot on the
motherboard. Retain the I/O module to chassis with five
FMS M3*5 screws. If no CD-ROM is accommodated with
the system, only four screws are needed to retain the I/O
module to the chassis.
3-32
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
8. Connect the other end of the power switch wire form the
I/O module to the 2-pin POWER ON switch, CN3 on the
motherboard
9. Fix the service door plate (E) to the chassis with four M3
nuts.
FIGURE 3-8: PANEL PC MODULE ASSEMBLY
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
3-33
User Manual version 2503
3.2. Kiosk Cabinet & Peripheral Assembly
The Kiosk cabinet contains several individual modules
including HDD module, power supply module, thermal printer
module or media card reader and the cabinet module. These
modules are to be made first; then integrated to make the
Kiosk cabinet module.
3.2.1. HDD Module Assembly
Fix the hard disk drive to the HDD bracket with three FTS 3*5
screw as shown on Fig. 3-9.
FIGURE 3-9: HDD MODULE ASSEMBLY
3-34
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
3.2.2. Power Module Assembly
The power supply is to be integrated with the power bracket
before it is installed to the Kiosk cabinet. The following
diagram shows the steps to assemble the ATX power module.
For the specification of the power supply, please refer to
APPENDIX.
1. Insert the power supply to power bracket and fix them
together with one FMS M3*5 screw and two FMS 6#32 5L
screws.
2. Attach a nylon adhesive mounting base to the surface of
the power bracket.
3. Anchor the power wire bundle to the mounting base with
a cable tie.
FIGURE 3-10: POWER SUPPLY MODULE ASSEMBLY
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
3-35
User Manual version 2503
3.2.3. Printer Module Assembly
The printer module consists of two individual modules, one
printer module and the other printer power module.
3.2.3.1. Printer Module Assembly
Figure 3-11 illustrates the way to assemble the printer
module.
1. Plug the other end of the 6-pin LED cable to C2 on the
printer control board. Plug one end of the big 4-pin
printer power cable to the onboard CN4. Bundle the two
cables together with a plastic clamp.
2. Insert one end of the 21-pin and 15-pin flat cables to CN6
and CN7 on the printer control board BA-T500 (A).
3. Retain the control board to the printer bracket from the
bottom side with four PMS M3*5 screws (B). Make sure
the other ends of the 21-pin and 15-pin flat cables come
out from the rectangle opening at the right side of the
bracket.
4. Fix the paper tray (F) to the metal bracket (E) with two
M3*2 nuts.
5. Connect the other ends of the 21-pin and 15-pin flat
cables to the printer module (D). Fix the printer module
(D) to the module bracket (E) with four TMS 3*6 screws.
6. Retain the printer module (G) to the printer bracket (B)
with four TMS M3*6 screws. Fix the 21-pin and 15-pin
flat cables on the exterior of the printer bracket (B) with
two nylon cable clips.
7. Fix the two paper roll brackets (C) to the printer bracket
with two TMS M3*6 screws for each.
8. Insert the spindle (I) to the paper roll (H) and have the
paper roll module put to the paper roll brackets.
9. Align the thermal paper to the paper tray (F) to make sure
the paper would go smoothly into the printer module.
10. Plug the 40-pin end of the printer cable to the printer
module.
3-36
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
(H)
(F)
(I)
(C)
(E)
(G
(D
(A)
(B)
FIGURE 3-11. PRINTER MODULE ASSEMBLY
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
3-37
User Manual version 2503
3.2.3.2. Printer Power Module Assembly
1. Fix the LED board, LPT-001 (A) to the printer power
bracket (C) with two PMS M3*5 screws. The tack switch
is used to control the back and forth of the thermal paper.
The green LED is to indicate the printer power-on status
and the two red LEDs are indicators for the thermal paper
status.
2. Fix the printer power board, PW-001 (B) to the reverse
side of the power bracket with two PMS M3*5 screws.
The power board is used to transform the panel PC’s 12V
power to 24V to provide necessary power source for the
thermal printer.
(A)
(C)
(B)
FIGURE 3-12: PRINTER POWER MODULE ASSEMBLY
Due to space restriction of the Kiosk cabinet, all the cable
connection between the printer and the printer power
modules needs to be done before the two modules are
integrated to the Kiosk cabinet.
3. Connect the other end of the 6-pin LED cable from the
printer module to CN4 on the LPT-001 board (B).
4. Connect the 6-pin wafer connector of the power cable
from the printer module to CN1 on PW-001 board (A).
5. There is a Y-shape power cable. Connect the 8-pin wafer
end to CN2 on the PW-001 board.
3-38
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
3.2.4. Media Reader/CD-ROM Module Assembly
Refer to Fig. 3-7. The following steps show the ways to install
a media reader/CD-ROM module before it is integrated to the
panel PC.
1. Insert the media reader (B) to the media reader/CD-ROM
bracket and fix them together with four TMS 3*6 screws.
2. Attach the CD-ROM board to the slim CD-ROM drive (C)
and fix them together with 2 screws.
4. There is a small metal bracket (D) used to firmly fix the
CD-ROM drive to the bracket. Retain the small bracket to
the CD-ROM drive first with two IMS M2*2.25 screws.
This small bracket is to prevent the CD-ROM drive from
moving when installed to the device bracket.
5. Insert the CD-ROM module with a small bracket on to the
media reader/CD-ROM bracket (A) and fix them together
with two IMS M2*2.25 screws and two PMS M3*5 screws.
FIGURE 3-13.MEDIA READER/CD-ROM MODULE ASSEMBLY
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
3-39
User Manual version 2503
3.2.5. Kiosk Cabinet Integration
The Kiosk cabinet integration of printer bezel model slightly
differs from that of the media reader bezel model.
Before integrating the three modules into the Kiosk cabinet,
some accessories need to be installed to the cabinet first.
3.2.5.1. LIBRA with printer bezel integration
Refer to Fig. 3-14.
1. The first parts to be assembled to the Kiosk cabinet are
four M8*23.7 rubber feet. Acting as bumpers to prevent
the table surface from abrading by the metal base of the
Kiosk cabinet, the rubber feet are simply to be driven
tightly to the metal cabinet from the base (A).
2. Fix the two butt hinges (B) to the cabinet with two M3
K-lock nuts for each. The K-lock nuts are zinc-plated nuts
with attached free-spinning external teeth lock washer. The
external teeth are used for locking and tension. The two
butt hinges are used to retain the panel PC module to the
cabinet later.
3. Fix the metal bracket (C) to the cabinet with two TMS
M3*4 screws. This metal strip is used to click the plastic
printer bezel (M) into the Kiosk cabinet.
4. Connect the two USB cables to the USB outlets (D)
located at the right side of the cabinet.
5. Retain the support bracket catch (E) to the left side of the
cabinet with two M3 nuts. This bracket is used to
accommodate the support bracket (Fig. 3-8, G) to sustain
the PC module when it is integrated to the Kiosk cabinet.
6. Fix the heat pipe (F) to the left bottom side of the cabinet
with two M3 nuts. The heat pipe is used to direct the cabin
heat generated by the power supply out of the cabinet.
7. The Kiosk cabinet provides one 50*50*10mm cooling fan
(G) to accelerate the cabin ventilation. Attach this cooler
to the right side of the Kiosk cabinet with four M3 nuts.
3-40
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
8. Insert the power cord (H) from the opening at the left
bottom side of the cabinet. Connect the power cord to the
power module and integrate the power module (I) to the left
bottom side of the cabinet with three TMS M3*6 screws.
9. Fix the HDD module (J) to the right bottom side of the
cabinet with three TMS M3*6 screws. Connect the big
4-pin power cable from the power module to the HDD.
10. Make sure all the cables from the printer power module (K)
to the printer module (L) are already properly connected.
11. Integrate the printer power module (K) to the left upper
side of the cabinet with three M3 nuts. Retain the printer
module (L) to the bottom of the cabinet with four TMS
M3*4 screws.
12. Plug the 4-pin male end of the Y-shape extension cable
from the printer power board to the big 4-pin female end
of the power supply.
13. Attach the plastic printer bezel (M) to the Kiosk cabinet
front side and clip it into place.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
3-41
User Manual version 2503
(I)
(J)
(K)
(B)
(E)
(F)
(H)
(C)
(D)
(A)
(M)
(L)
(G)
FIGURE 3-14: KIOSK ENCLOSURE W PRINTER BEZEL ASSEMBLY
3-42
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
3.2.5.2.
LIBRA with Media reader bezel integration
The Kiosk cabinet integration of media reader bezel model is
basically same to that of the printer bezel model except for
the peripheral modules and front bezel integration.
Before integrating the three modules into the Kiosk cabinet,
some accessories need to be installed to the cabinet first.
Refer to Fig. 3-15.
1. The first parts to be assembled to the Kiosk cabinet are
four M8*23.7 rubber feet. Acting as bumpers to prevent
the table surface from abrading by the metal base of the
Kiosk cabinet, the rubber feet are simply to be driven
tightly to the metal cabinet from the base (A).
2. Fix the two butt hinges (B) to the cabinet with two M3
K-lock nuts for each. The K-lock nuts are zinc-plated nuts
with attached free-spinning external teeth lock washer. The
external teeth are used for locking and tension. The two
butt hinges are used to retain the panel PC module to the
cabinet later.
3. Fix the metal bracket (C) to the cabinet with two TMS
M3*4 screws. This metal strip is used to click the plastic
media reader bezel (M) into the Kiosk cabinet.
4. Retain the support bracket catch (E) to the left side of the
cabinet with two M3 nuts. This bracket is used to
accommodate the support bracket (Fig. 3-8, G) to sustain
the PC module when it is integrated to the Kiosk cabinet.
5. Fix the heat pipe (F) to the left bottom side of the cabinet
with two M3 nuts. The heat pipe is used to direct the cabin
heat generated by the power supply out of the cabinet.
6. The Kiosk cabinet provides one 50*50*10mm cooling fan
(G) to accelerate the cabin ventilation. Attach this cooler
to the right side of the Kiosk cabinet with four M3 nuts.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
3-43
User Manual version 2503
7. Insert the power cord (H) from the opening at the left
bottom side of the cabinet. Connect the power cord to the
power module and integrate the power module (I) to the left
bottom side of the cabinet with three TMS M3*6 screws.
8. Fix the HDD module (J) to the right bottom side of the
cabinet with three TMS M3*6 screws. Connect the big
4-pin power cable from the power module to the HDD.
9. Retain the media reader/CD-ROM module (K) to the
bottom of the cabinet with four TMS M3*4 screws.
10. Attach the plastic media reader bezel (M) to the Kiosk
cabinet front side and clip it into place.
(I)
(J)
(B)
(E)
(F)
(H)
(C)
(K)
(D)
(A)
(M)
(G)
FIGURE 3-14: KIOSK ENCLOSURE W MEDIA READER BEZEL ASSEMBLY
3-44
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
3.3. Kiosk Integration
The panel PC module and Kiosk cabinet module are now
ready for final integration to make a complete Kiosk unit.
1. Retain the panel PC module to the Kiosk cabinet with four
M4 nuts.
2. Connect the small 4-pin power cable from the power
supply to the CD-ROM board.
3. Plug the ATX power cable from the power supply to the
ATX power connector, ATXP2 on the motherboard.
4. Plug the ATX12V power cable to the ATX12V power
connector, ATXP1 on the motherboard.
5. Connect the HDD ribbon cable from the motherboard’s
IDE1 to the hard disk drive.
6. Connect the two USB cables to the USB outlets (Fig. 3-14,
3-15 (D)) located at the right side of the cabinet.
7. Plug the cooling fan power connector to the 5V power port
on the I/O board.
8. If a receipt printer is integrated with the Kiosk, plug the
DB25 printer cable from the printer module to the PRT
port on the I/O board.
9. If other peripherals are integrated with the Kiosk, make
sure all the cables and wires are properly connected.
10. Lift the panel PC module upright and leave it ajar from the
Kiosk cabinet. Retain the support bracket located at the
right side of the chassis to the cabinet with one TMS M3*4
screw and one metal washer.
11. Insert the panel PC support bracket (Fig. 3-8, G) into the
bracket catch (Fig. 3-13, E) at the left side of the Kiosk
cabinet. The support bracket can slide in the gutter of the
catch to control the up and down of the panel PC module.
The status of the peripherals inside the cabinet can thus
be monitored.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
3-45
User Manual version 2503
12. Release the PC support brackets. Align the PC module to
the cabinet and click it into place. Close the service door
at the top by lifting the latch (Fig. 3-6, B) on the door
plate a little bit; then clip the door into place.
Support bracket
Support bracket catch
FIGURE 3-15: LIBRA W PRINTER BEZEL ASSEMBLY
FIGURE 3-15: LIBRA W MEDIA READER BEZEL ASSEMBLY
3-46
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
4. SYSTEM MOTHERBOARD & I/O BOARD
T The system controller used in the LIBRA III
system is a special-design Celeron/Pentium® III
multimedia motherboard. All the onboard signal
is connected to the external I/O ports via two I/O
boards. This chapter provides jumper definition
and connector signal of the motherboard and the
I/O boards.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
4-47
User Manual version 2503
4.1. LIBRA Motherboard
This section provides background information and detail
specification on the APOLLO 120/150 III system engine,
PC620. Sections include:
² General Information
² Features
² Specification
² Board placement & Dimension
4.1.1. General Information
The PC620 is an Intel Celeron/Pentium III (Socket 370)
multimedia ATX motherboard with LCD/VGA controller,
Ethernet 100/10, AC97 sound, and IDE flash disk. By
integrating single chip, Intel 815E, the PC620 provides a high
performance/low cost desktop solution.
Highly integrated, the PC620 can adapt Intel Celeron
(66/100MHz) and Pentium III (100/133MHz) CPU. Onboard
features include four serial ports, one multi–mode Parallel
ports, a floppy drive controller and a PS/2 keyboard PS/2
mouse interface. The built-in high speed PCI IDE controller
supports both PIO and ATA 100 mode. Up to four IDE devices
can be connected, including large hard disks, CD-ROM drives
and other IDE devices. The full PC functionality coupled with
its multi-I/Os stand ready to accommodate a wide range of
PC peripherals. Compact in size and with its highly integrated
multimedia and networking functions, the PC620 is the most
powerful PC engine to build any small footprint all-in-one PC
system for integration into any space-constricted embedded
applications.
Fully configurable and with its modular design, the PC620 is
an ideal platform for any consumer computing applications
where space is a premium.
4-48
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
4.1.2. Specifications
PC620: Multimedia Intel Celeron/Pentium III Motherboard
with XGA, LCD, Ethernet & Audio Interface
CPU: Intel Socket 370
• Intel Pentium III FCPGA 1GHz/133MHz
• Intel Pentium III FCPGA 650-933/133MHz
• Intel Pentium III FCPGA 500E-850E/100MHz
• Intel Celeron FCPGA 800MHz-1.10GHz/100MHz
• Intel Celeron FCPGA 533AMHz-766MHz/66MHz
• Intel Celeron PPGA 300A-533MHz/66MHz
u Main Chipset: Intel 815E
u
u System BIOS: Phoenix Award PnP Flash BIOS
u System Memory: 2 x 168 pin DIMM sockets
supporting SDRAM up to 512MB
u L2 Cache: CPU built-in
u Standard I/O
• Serial ports x 4
• Parallel port x 1
• ATA 100/66 IDE x 2: supports up to 4 IDE devices
• FDD x 1: supports up to 2 floppy disk drives
• PS/2 Keyboard Interface x 1
• Internal Keyboard Interface x 1
• PS/2 Mouse Interface x 1
• USB Interface x 4 supporting USB 1.0 devices
u IrDA: 5-pin header with CIR support
u Ethernet
• 100/10 Base-T Ethernet
• Support WAKE-ON-LAN
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
4-49
User Manual version 2503
u
Display
• Novatek NT68521 scaler
• LCD controller: LVDS/24 bits TTL via jumper
setting
• Integrated 2D/3D graphics engine, 4X AGP
• Share system memory architecture able to utilize
the display memory size up to 64MB
• Maximum resolution for video chipset: up to
1600*1200 True-color
u
u
Audio Function
• Full duplex and independent sample rate
converter for audio recording & playback
• Supports Microsoft DirectSound
• 3D positional audio effects
• Hi-performance, mixed-signal, stereo
• MIC-In, Speaker-Out, Line-In
• Pin header for CD-audio in
Hardware Monitor
• Monitoring processor & system
• Monitoring 5VSB, VBAT, 1.5V, 3.3V, +5V, +12V,
-12V, and processor voltages
• Monitoring processor, chassis fan speeds
• Controlling processor and chassis fan speed and
failure alarm
• Automatic fan on/off control
• Read back capability that displays temperature,
voltage and fan speed
• Supporting Intel processor thermal diode output
(real processor temperature)
u
u
u
Expansion Bus: PCI/ISA x 1
Power: ATX power
Dimension: 300*146 mm (L*W)
Specifications are subject to change without notice.
4-50
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
4.1.3. Locating Jumpers & Connectors
DIMM2
IOINF1
SDRAM
Intel
FW82815
CN3
JP11
JP8
JP9
CN4
JP3
JP4
JP5
BIOS
COM2
26
1
CN2 JP6
2
1
IDE2
Inv1 CN1
COM3
CD1
4
3
JP2
FDD1
DOC
1
JP10
IR1
RST1
Battery
JP1
1
2
IDE1
1
2
Intel
FW82801BA
LCD1
LCD2
ATXP1
JP7
PWR1
FAN1
CPU FAN
FAN2
Riser Card SLOT
PGA370
System FAN
DIMM1
FAN3
The following figure helps you to locate the jumpers and
connectors on the motherboard.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
4-51
User Manual version 2503
4.1.4. Jumpers & Jumper Setting
The table below lists the function of each jumper. The related
jumper settings are shown in the coming sections.
Jumper
Description
JP2
DOC Address Selection
JP5
LCD Interface Select
JP9
Clear CMOS
JP11
4.1.4.1.
AT/ATX power selection
DOC 2000 Address Setting (JP2)
1-2
D000
3-4
D800
4.1.4.2. LCD Interface Select (JP5)
The PC620 provides two LCD connectors, one LVDS and the
other TTL. The LCD mode is selected via Jumper setting.
1-2
LVDS Interface
2-3
TTL Level Interface
4.1.4.3. Clear CMOS (JP9)
1-2
Normal
2-3
Clear CMOS
4.1.4.4.
AT/ATX power selection (JP11)
1-2
ATX Power Function
2-3
AT Power Function
4-52
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
4.1.5. Connectors & Pin Assignment
The table below lists the function of each connector on the
PC620. Their corresponding pin assignments will be shown in
the following sections.
Connector
Description
ATXP1
ATX power connector
CN1
Touchscreen power connector
PWR1
CD-ROM power connector
INV1
LCD Inverter connector
LCD1
LCD LVDS Connector
LCD2
LCD TTL Level Connector
IDE1
Primary IDE connector
IDE2
Primary IDE connector
FDD1
FDD connector
COM2
Serial port 2
COM3
Serial port 3 (For Touch Screen)
CD1
CD audio In
IR1
IR/CIR connector
CN4
KB/Mouse/Speaker/LED Connector
EISA1
PCI/ISA expansion slot
IOINF1
For I/O connector
FAN1
CPU FAN connector
FAN2/FAN3
System FAN connector
JP6
External SMI connector
CN3
ATX power ON/OFF
RST1
RESET connector
CN2
EXT. LAN Wake up connector
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
4-53
User Manual version 2503
4.1.5.1.
ATXP1: ATX Power connector
ATXP1 is a standard ATX power connector. This connector is
provided to connect to an ATX power supply. The plug of the
power supply will only insert in one orientation due to the
different hole size. Find the proper orientation and push
down the power connector firmly to make sure the pins are
aligned. Its pin assignments are listed below:
Pin # Signal
Pin # Signal
1
3.3V
11
3.3V
2
3.3V
12
-12V
3
GND
13
GND
4
+5V
14
PSON#
5
GND
15
GND
6
+5V
16
GND
7
GND
17
GND
8
PWROK
18
-5V
9
SB5V
19
+5V
10
+12V
20
+5V
4.1.5.2. CN1: Touchscreen Power Connector
Pin # Signal
1
GND
2
VCC
4.1.5.3. PWR1: CD-ROM Power Connector
Pin # Signal
1
+12V
GND
GND
2
4-54
VCC
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
4.1.5.4. INV1: LCD Inverter Connector
Pin # Signal
1
Backlight ADJ
2
GND
3
Backlight Enable
4
12V
4.1.5.5. LCD1: LVDS Connector
Pin # Signal
Pin # Signal
1
YA0M
2
YA0P
3
YA1M
4
YA1P
5
YA2M
6
YA2P
7
GND
8
CLKAM
9
CLKAP
10
YA3M
11
YA3P
12
YB0M
13
YB0P
14
GND
15
YB1M
16
YB1P
17
GND
18
YB2M
19
YB2P
20
CLKBM
21
CLKBP
22
YB3M
23
YB3P
24
GND
25
VCC3
26
VCC3
27
VCC3
28
VCC
29
VCC
30
VCC
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
4-55
User Manual version 2503
4.1.5.6. LCD2: TTL Connector
Pin # Signal
Pin # Signal
1
VCC
2
VCC
3
GND
4
GND
5
VCC3
6
VCC3
7
NC
8
ENAVDD
9
B0
10
B1
11
B2
12
B3
13
B4
14
B5
15
B6
16
B7
17
G0
18
G1
19
G2
20
G3
21
G4
22
G5
23
G6
24
G7
25
R0
26
R1
27
R2
28
R3
29
R4
30
R5
31
R6
32
R7
33
GND
34
GND
35
SHFCLK
36
VSYNC
37
DE
38
HSYNC
39
GND
40
GND
4-56
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
4.1.5.7. IDE1/IDE2: Primary/Secondary HDD
The PC620 provides 2 sets of 40-pin IDE connectors. The
built-in high speed PCI IDE controller supports both PIO and
ATA 100 mode. Up to four IDE devices can be connected,
including large hard disks, CD-ROM drives and other IDE
devices. Their corresponding pin assignments are listed
below:
Pin # Signal
Pin # Signal
1
RESET#
2
GND
3
DATA 7
4
DATA 8
5
DATA 6
6
DATA 9
7
DATA 5
8
DATA10
9
DATA 4
10
DATA11
11
DATA 3
12
DATA12
13
DATA 2
14
DATA13
15
DATA 1
16
DATA14
17
DATA 0
18
DATA15
19
GND
20
NC
21
IDEREQ
22
GND
23
IOW#
24
GND
25
IOR#
26
GND
27
ICHRDY#
28
GND
29
DACK
30
GND
31
IDEIRQ
32
NC
33
A1
34
LID
35
A0
36
A2
37
IDECS0
38
IDECS1
39
HDD LED
40
GND
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
4-57
User Manual version 2503
4.1.5.8. FDD1: FDD connector
Pin # Signal
Pin # Signal
1
VCC
2
INDEX#
3
VCC
4
DSA#
5
VCC
6
DSKCHG#
7
NC
8
NC
9
NC
10
MOA#
11
NC
12
DIR#
13
RWC#
14
STEP#
15
GND
16
WD#
17
GND
18
WE#
19
GND
20
TRAK0#
21
GND
22
WP#
23
GND
24
RDATA#
25
GND
26
HEAD#
4.1.5.9. COM2:
COM2 is a RS-232, 422 or 485, selected via BIOS setup.
Pin # Signal
Pin # Signal
1
DCD/422TX-
2
DSR
3
RXD/422TX+
4
RTS
5
TXD/422RX+
6
CTS
7
DTR/422RX-
8
RI
9
GND
4-58
10
KEY
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
4.1.5.10. COM3
COM 3 is an internal RS-232 reserved for touchscreen. Its
corresponding pin assignment is listed as below;
Pin # Signal
Pin # Signal
1
DCD
2
DSR
3
RXD
4
RTS
5
TXD
6
CTS
7
DTR
8
RI
9
GND
10
VCC
4.1.5.11. CD1: CD Audio IN
Pin # Signal
1
Left channel
2
CD GND
3
CD GND
4
Right channel
4.1.5.12. IR1: IR/CIR Connector
IR
Pin # Signal
1
5V
2
NC
3
IRRX
4
GND
5
IRTX
6
CIRRX
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
4-59
User Manual version 2503
4.1.5.13. CN4: Power LED & EXT. KB/MS, USB
Pin #
Signal
Pin #
Signal
1
VCC
2
VCC
3
HDD LED
4
LAN LED
5
Suspend LED
6
IRTX
7
KEY
8
IRRX
9
BACKLIGHT CTRL INPUT
10
CIRRX (Option)
11
GND
12
GND
13
SPK-LO
14
SPK-RO
15
SPK-LN
16
SPK-RN
17
GND
18
GND
19
USB P2-
20
EXT.KBDAT
21
USB P2+
22
EXT.KBCLK
23
USB P3-
24
EXT.MSDAT
25
USB P3+
26
EXT.MSCLK
4.1.5.14. IOINF 1: I/O Slot
The PC620B’s onboard I/O signal for LAN, USB, keyboard,
mouse, VGA, TV-out, COM ports and parallel port are all
mixed in the IOINF1 slot. By plugging an IO-005 I/O board
and connected to another IO-006 I/O board, all the onboard
signal are connected to the system external I/O ports. PLEASE
BE NOTED THAT THE IOINF1 IS A SLOT IN AGP SLOT FORM, BUT IT IS
NOT TO BE PLUGGED WITH ANY AGP CARD.
4-60
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
4.1.5.15. EISA1: PCI/ISA Expansion Slot
The PC620 provides an ISA/PCI slot for ISA and PCI device
expansion.
B1
F1
B2
F2
B3
F3
B4
F4
B5
F5
B6
F6
B7
E1
E2
E3
E4
E5
E6
E7
A1
A2
A3
A4
A5
A6
A7
F7
B31
E31
A31
F31
D1
H1
D2
H2
D3
H3
D4
G1
G2
G3
G4
C1
C2
C3
C4
H4
D18
G19
C18
H19
EISA1: PCI/ISA Slot Side View
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
4-61
User Manual version 2503
EISA1: PCI/ISA Slot Connector Pin Assignment
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
F1
GND
B1
GND
E1
GND
A1
IOCHK
F2
GND
B2
ISARST
E2
GND
A2
SD7
F3
INTB
B3
VCC
E3
INTC
A3
SD6
F4
INTA
B4
IRQ9
E4
INTD
A4
SD5
F5
VCC
B5
-5V
E5
VCC
A5
SD4
F6
KEY
B6
DRQ2
E6
KEY
A6
SD3
F7
VCC
B7
-12V
E7
VCC
A7
SD2
F8
PCICLK1 B8
OWS
E8
PCIRST
A8
SD1
F9
GND
+12V
E9
GNT0
A9
SD0
B9
F10 GNT3
B10 GND
E10 REQ0
A10 IORDY
F11 GND
B11 SMEMW
E11 GND
A11 AEN
F12 REQ3
B12 SMEMR
E12 PCILKE2 A12 SA19
F13 AD31
B13 IOW
E13 GND
A13 SA18
F14 AD29
B14 IOR
E14 AD30
A14 SA17
F15 NC
B15 DACK3
E15 NC
A15 SA16
F16 KEY
B16 DRQ3
E16 KEY
A16 SA15
F17 NC
B17 DACK1
E17 NC
A17 SA14
F18 AD27
B18 DRQ1
E18 AD28
A18 SA13
F19 AD25
B19 REF
E19 AD26
A19 SA12
F20 CBE3
B20 ATCLK
E20 AD24
A20 SA11
F21 AD23
B21 IRQ7
E21 AD22
A21 SA10
F22 AD21
B22 IRQ6
E22 AD20
A22 SA9
F23 AD19
B23 IRQ5
E23 AD18
A23 SA8
F24 NC
B24 IRQ4
E24 NC
A24 SA7
F25 KEY
B25 IRQ3
E25 KEY
A25 SA6
F26 NC
B26 DACK2
E26 NC
A26 SA5
F27 AD17
B27 TC
E27 AD16
A27 SA4
F28 IRDY
B28 ALE
E28 FRAME
A28 SA3
4-62
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
To continue…
Pin
Signal
Pin
Signal
Pin
Signal
Pin
Signal
F29 DEVSEL
B29 VCC
E29 CBE2
A29
SA2
F30 LOCK
B30 OSC
E30 TRDY
A30
SA1
F31 PERR
B31 GND
E31 STOP
A31
SA0
H1
SERR
D1
MEMCS16
G1
NC
C1
SBHE
H2
AD15
D2
IOCS16
G2
NC
C2
LA23
H3
AD14
D3
IRQ10
G3
CBE1
C3
LA22
H4
AD12
D4
IRQ11
G4
PAR
C4
LA21
H5
GND
D5
IRQ12
G5
GND
C5
LA20
H6
KEY
D6
IRQ15
G6
KEY
C6
LA19
H7
GND
D7
IRQ14
G7
GND
C7
LA18
H8
AD10
D8
DACK0
G8
AD13
C8
LA17
H9
AD8
D9
DRQ0
G9
AD11
C9
MEMR
H10 AD7
D10 DACK5
G10 AD9
C10
MEMW
H11 AD5
D11 DRQ5
G11 CBE0
C11
SD8
H12 AD3
D12 DACK6
G12 AD6
C12
SD9
H13 AD1
D13 DRQ6
G13 AD4
C13
SD10
H14 AD0
D14 DACK7
G14 AD2
C14
SD11
H15 KEY
D15 DRQ7
G15 KEY
C15
SD12
H16 VCC
D16 VCC
G16 VCC
C16
SD13
H17 VCC
D17 MASTER
G17 VCC
C17
SD14
H18 GND
D18 GND
G18 GND
C18
SD15
H19 GND
G19 GND
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
4-63
User Manual version 2503
4.1.5.16. FAN1~3: FAN Connector
Pin #
Signal
1
GND
2
+12V
3
FAN SPEED DECECT
4.1.5.17. JP6: External SMI Connector
Pin # Signal
1
SMI
2
GND
4.1.5.18. CN3: ATX Power ON/OFF & Reset
Pin #
Signal
1
5VSB
2
Power ON/OFF
4.1.5.19. RST1: RESET SYSTEM Connector
Pin # Signal
1
RESET
2
GND
4.1.5.20. CN2: External LAN WAKE-UP
Pin # Signal
1
5VSB
2
GND
3
LAN WAKE-UP
4-64
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
4.2. APOLLO I/O Board
All the onboard I/O signal of the APOLLO’s motherboard is
connected to two I/O boards, IO-005 and IO-006 for external
device connection. This section provides jumper definition
and connector signal of the I/O board.
2
1
4
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
4-65
User Manual version 2503
4.2.1. I/O Board-IO005
The IO-005 connects the onboard keyboard, mouse, Ethernet,
USB ports, COM1, COM2, COM4 , parallel port and VGA signal
for external device connection.
LAN
COM2
USB
COM1
LPT1
KB
Mouse
COM4
VGA1
LAN
VGA1
LPT1
COM4
CN4
COM2
COM1
KB
Mouse
USB
JP1 JP2 JP3
IO-005 V1.0
4-66
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
4.2.1.1. Jumper Setting & Connectors
4.2.1.2. Jumpers & Jumper Setting
The table below lists the function of each jumper on IO-005.
The related jumper settings are shown in the coming
sections.
JP3
COM1 pin 9 power selection
JP2
COM2 pin 9 power selection
JP1
COM4 pin 9 power selection
The APOLLO onboard COM port power selection is selected
via jumper setting
RI
5V
12V
1-2
3-4
5-6
4.2.1.3. CN4: EXT. Connector
The onboard speaker-out, line-in, MIC-in, DIO and external
FDD are connected to the CN4 on IO-005. Then, via a 44-pin
flat cable, these signals are linked to IO-006 for external
device connection.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
4-67
User Manual version 2503
4.2.2. IO Board-IO006
The IO-006 is an I/O board links the onboard speaker-out,
line-in, MIC-in, DIO and external FDD for external device
connection.
SPK
Out
Line
in
MIC
DIO
S-Video
DC PWR
JP2
CN6
4-68
S-Video
FDD
AV
FDD
AV
Light
DC PWR
JP4
DIO
MIC
Line
in
Light
SPK
Out
IO-006 V1.0
JP1 JP3
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
4.2.2.1.1. Jumpers & Jumper Setting
The DIO port address setting is selected in CMOS SETTING.
Select ADDRES 200H OR 208H
Read DIO IN BIT0~BIT3 IN DIO PORT ADDRES BIT0~3
WRITE DIO OUT BIT0~3 IN DIO PORT ADDRES BIT4~7
JP2: CN4 DIO port pin#2 select
1-2
DIO IN Bit 0
2-3
DIO OUT Bit 2
JP1: CN4 DIO port pin#3 select
1-2
DIO IN Bit 1
2-3
DIO OUT Bit 3
JP4: CN4 DIO port pin#5 select
1-2
DIO OUT Bit 0
2-3
DIO IN Bit 2
JP2: CN4 DIO port pin#6 select
1-2
DIO OUT Bit 1
2-3
DIO IN Bit 3
4.2.2.2. CN6: EXT. Connector
CN6 is a 44-pin connector links the onboard speaker-out,
line-in, MIC-in, DIO and external FDD to the IO-006 for
external device connection.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
4-69
User Manual version 2503
4.2.3. Connectors & Pin Assignment
The table below lists the function of each connector on
IO-005 and IO-006. Their corresponding pin assignments will
be shown in the following sections.
Keyboard
Keyboard connector
Mouse
Mouse connector
COM1
Serial port 1 (3F8)
COM2
Serial port 2 (2F8)
COM4
Serial port 4 (2E8)
DC Power
DC power +5V/+12VC output
LPT
Parallel port
CRT
CRT display connector
FDD
External FDD connector
USB1
USB connector 1
USB2
USB connector 2
DIO
Digital I/O connector
LAN
Ethernet connector
MIC-in
Microphone-in connector
Line-in
Line-in connector
SPK-out
Speaker output connector
VR
LCD Backlight control
4-70
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
4.2.3.1. Keyboard: PS/2 KB Connector
Pin # Signal
1
KBDATA
2
NC
3
GND
4
SB5V
5
KBCLK
6
NC
4.2.3.2. Mouse: PS/2 Mouse
Pin # Signal
1
MSDATA
2
NC
3
GND
4
5V
5
MSCLK
6
NC
4.2.3.3. COM1, COM2, COM4 (DB-9)
Pin #
Pin # Signal
Signal
1
DCD
6
DSR
2
RXD
7
RTS
3
TXD
8
CTS
4
DTR
9
RI (+5V/12V)
5
GND
4.2.3.4. DC Power: DC Power Output
Pin #
Pin # Signal
Signal
1
GND
5
+5V
2
GND
6
+12V
3
+5V
7
GND
4
+12V
8
GND
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
4-71
User Manual version 2503
4.2.3.5. LPT1: D-SUB-25 Parallel Port
Pin #
Pin # Signal
Signal
1
STRB#
14
AFD#
2
DATA 0
15
ERROR#
3
DATA 1
16
INIT#
4
DATA 2
17
SLINT#
5
DATA 3
18
GND
6
DATA 4
19
GND
7
DATA 5
20
GND
8
DATA 6
21
GND
9
DATA 7
22
GND
10
ACK#
23
GND
11
BUSY
24
GND
12
PE
25
GND
13
SLCT
4.2.3.6. CRT: VGA (D-SUB 15 Pin)
Pin # Signal
Pin # Signal
Pin # Signal
1
Red
6
GND
11
NC
2
Green
7
GND
12
DDCDATA
3
Blue
8
GND
13
Hsync
4
NC
9
NC
14
Vsync
5
GND
GND
15
DDCCLK
10
4.2.3.7. FDD: External FDD Connector
Pin # Signal
Pin # Signal
Pin # Signal
1
RWC#
6
WP#
11
RDATA#
2
INDEX#
7
TRAK0#
12
HEAD#
3
MOA#
8
WE#
13
DSKCHG#
4
DSA#
9
WD#
14
GND
5
DIR#
10
STEP#
15
GND
4-72
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
4.2.3.8. J11: USB 1, USB2 Connector
USB1
Pin #
Signal
USB2
Pin #
Signal
1
USBVCC
1
USBVCC
2
Data-
2
Data-
3
Data+
3
Data+
4
GND
4
GND
4.2.3.9. DIO1: RJ-11 Connector
Pin #
Signal
Pin #
Signal
1
+12V
2
IN_0/OUT_2
3
IN_1/OUT_3
4
GND
5
OUT_0/IN_2
6
OUT_1/IN_3
4.2.3.10. LAN1: RJ-45 Ethernet Connector
Pin #
Signal
Pin #
Signal
1
TD+
2
TD-
3
RO+
4
NC
5
NC
6
RO-
7
NC
8
NC
4.2.3.11. MIC1
Pin # Signal
1
Vref
2
NC
3
NC
4
MIC IN
5
GND
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
4-73
User Manual version 2503
4.2.3.12. LINE 1
Pin # Signal
1
Right CHI
2
NC
3
NC
4
Left CH
5
GND
4.2.3.13. SPK 1
Pin # Signal
1
Right CHI
2
NC
3
NC
4
Left CH
5
GND
4-74
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
5. AWARD BIOS SETUP
The chapter describes how to set up BIOS
configuration.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
5-75
User Manual version 2503
5.1. AWARD BIOS
The Award BIOS ROM builds in a setup program, which allows
the users to modify the basic system configuration such as
the current date and time or the type of peripheral devices
attached to the computer.
Under the following conditions, the CMOS settings are to be
changed:
1. The system is starting for the first time
2. The hardware devices attached to the systems have been
changed
3. The CMOS memory has lost power and the configuration
information has been erased.
The BIOS setup program is stored in ROM, which can be
accessed by pressing <DEL> key on the keyboard
immediately when the system is powered on.
In order to retain the specified setup information when the
system power is turned off, the system setup information is
stored in a battery-backed CMOS RAM. The battery is to
ensure the settings will not be erased when the computer is
turned off or reset. When the computer is powered on again,
the system will read the settings stored in the CMOS RAM and
compare them to the equipment check conducted during the
power on self test (POST). If any error or mismatch occurs,
an error message will be shown on the screen and the
computer will be prompted to run the setup program.
5-76
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
5.2. Control Key Definition
Up arrow
Down
arrow
Left arrow
Right
arrow
ESC key
PgUp key
PgDn key
F1 key
F2
F3
F4
F5
key
key
key
key
F6 key
F7 key
F8 key
F9 key
F10 key
Move to previous item
Move to next item
Move to the item in the left hand
Move to the item in the right hand
Main Menu - Quit and not save changes into
CMOS
Status Page Setup Menu and Option Page
Setup Menu - Exit current page and return
to Main Menu
Increase the numeric value or make
changes
Decrease the numeric value or make
changes
General help, only for Status Page Setup
Menu and Option Page Setup Menu
Change color from total 16 colors
Reserved
Reserved
Restore the previous CMOS value from
CMOS, only for Option Page Setup Menu
Load the default CMOS value from BIOS
default table, only for Option Page Setup
Menu
Load the default
Reserved
Reserved
Save all the CMOS changes, only for Main
Menu
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
5-77
User Manual version 2503
5.3. Getting Help
5.3.1. Main Menu
The on-line description of the highlighted setup function is
displayed at the bottom of the screen.
Press <F1> to pop up a small help window that describes the
appropriate keys to use and the possible selections for the
highlighted item. To exit the Help Window, press <ESC>.
5.4. AWARD BIOS Setup
5.4.1. AWARD BIOS Setup Main Menu
Power on the computer and press <DEL> immediately to run
the AWARD BIOS setup. The setup main menu will appear on
the screen;
Phoenix - Award BIOS Setup Utility
Standard CMOS Features
Ø
Standard CMOS Features
Ø
Advanced BOIS Features
Ø
Advanced Chipset Features
Ø
Integrated Peripherals
Ø
Power Management Setup
Ø
PnP/PCI Configuration
Ø
PC Health Status
Esc: Quit
Ø
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
F9: Menu in BIOS
:
Select Item
F10: Save & Exit Setup
Time, Date, Hard Disk Type …
Use the arrow keys to move among the items and press
<Enter> to enter the sub-menu.
5-78
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
u
STANDARD CMOS SETUP: This setup page includes all
the items in standard compatible BIOS.
u
ADVANCED BIOS FEATURES: This setup page includes
all the items of Award special enhanced features.
u
ADVANCED CHIPSET FEATURES: This setup page
includes all the items of chipset special features.
u
INTEGRATED PERIPHERALS: This setup page
includes all onboard peripherals.
u
POWER MANAGEMENT SETUP: This setup page
includes all the items of Green function features.
u
PNP/PCI CONFIGURATION: This setup page includes
all the configurations of PCI & PnP ISA resources.
u
PC HEALTH STATUS: This setup page auto detects the
temperature, voltage and fan speed.
u
FREQUENCY/VOLTAGE CONTROL: This setup page
includes the CPU/SDRAM/PCI frequency setting
u
LOAD FAIL-SAFE DEFAULTS: BIOS Defaults indicates
the most appropriate value of the system parameters
that the system would be in safe configuration.
u
LOAD OPTIMIZED DEFAULTS: Setup Defaults
indicates the value of the system parameters that the
system would be in the best performance configuration.
u
SET SUPERVISOR PASSWORD: Change, set, or
disable password. It allows you to limit access to the
system and Setup, or just to Setup.
u
SET USER PASSWORD: Change, set, or disable User
password. It allows you to limit access to the system and
Setup, or just to Setup.
u
SAVE & EXIT SETUP: Save CMOS value settings to
CMOS and exit setup.
u
EXIT WITHOUT SAVING: Abandon all CMOS value
changes and exit setup.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
5-79
User Manual version 2503
5.4.2. Standard CMOS Features
If the STANDARD CMOS FEATURE is selected from the
main menu, the screen below will appear. This menu allows
the users to configure the system components such as date,
time, hard disk drive, floppy disk drive and display type. The
system BIOS will automatically detect the memory size;
therefore no setting is needed.
Phoenix - Award BIOS Setup Utility
Standard CMOS Features
Item Help
Date (mm: dd: yy) Thu. Jan. 16 2003
Time (hh: mm: ss) 11:45:58
Menu Level
Ø
IDE Primary Master
Change the day, month,
Ø
IDE Primary Slave
year and century
Ø
IDE Secondary Master
Ø
IDE Secondary Slave
Drive A
(1.44M, 3.5 in.)
Drive B
(None)
Video
(EGA/VGA)
Halt On
(All, But Keyboard)
Base Memory
Extended Memory
Total Memory
640K
65472K
1024K
: Move Enter: Select +/-/PU/PD: Value F10: Save
ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults
F7: Optimized Defaults
5-80
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
u
DATE
The date format is <day>, <month>, <date>, <year>.
day
The day, from Sun to Sat, determined by the
BIOS and is display-only
month
The month, Jan. through Dec.
date
The date, from 1 to 31 (or the maximum
allowed in the month)
year
The year, from 1994 through 2079
u TIME
The times format in <hour> <minute> <second>. The time
is calculated base on the 24-hour military-time clock. For
example, 1 p.m. is 13:00:00.
u PRIMARY HDDS/SECONDARY HDDS
This category identifies the types of hard disk from drive C to
F that has been installed in the computer. There are two types:
auto type, and user definable type. User type is
user-definable; Auto type that will automatically detect HDD
type.
Note that the specifications of your drive must match with the
drive table. The hard disk will not work properly if you enter
improper information for this category.
If you select User Type, related information will be asked to
enter to the following items. Enter the information directly
from the keyboard and press <Enter>. Such information
should be provided in the documentation form your hard disk
vendor or the system manufacturer.
CYLS.
Number of cylinders
HEADS
Number of heads
PRECOMP
Write precomp
LANDZONE
Landing zone
SECTORS
Number of sectors
If a hard disk has not been installed select NONE and press
<Enter>.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
5-81
User Manual version 2503
u
DRIVE A: TYPE/DRIVE B: TYPE
This category identifies the types of floppy disk drive A or
drive B that has been installed in the computer.
None
No floppy drive installed
360K, 5.25" 5.25 inch PC-type standard drive; 360K byte
1.2M, 5.25"
5.25 inch AT-type high-density drive; 1.2M
bytes (3.5 inch when 3 Mode is Enabled).
720K, 3.5"
3.5 inch double-sided drive; 720K byte
1.44M, 3.5"
3.5 inch double-sided drive; 1.44M byte
2.88M, 3.5"
3.5 inch double-sided drive; 2.88M byte
u VIDEO
This category selects the default video device.
Options: EGA/VGA/CGA40/CGA80/Mono
u HALT ON
The category determines whether the computer will stop if an
error is detected during power up.
NO Errors
The system boot will not stop for any
error that may be detected
All Errors
Whenever the BIOS detects a
non-fatal error the system will be
stopped and you will be prompted
All, But Keyboard The system boot will not stop for a
keyboard error; it will stop for all
other errors
All, But Diskette
The system boot will not stop for a
disk error; it will stop for all other
errors
All, But Disk/Key The system boot will not stop for a
keyboard or disk error; it will stop for
all other errors
5-82
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
5.4.3. Advanced BIOS Features
If the ADVANCED BIOS FEATURES option is selected from
the main menu, the screen below will appear. The following
sample screen consists of the default values for PC620.
Phoenix - Award BIOS Setup Utility
Advanced BIOS Features
Virus Warning
(Disabled)
CPU Internal Cache
(Enabled)
External Cache
(Enabled)
Item Help
Menu Level
CPU L2 Cache ECC Checking
(Enabled)
Allow you to choose the
Processor Number Feature
(Enabled)
VIRUS warning
Quick Power On Self Test
(Enabled)
features for IDE Hard
First Boot Device
(HDD-0)
Disk boot sector
Second Boot Device
(CDROM)
protection. If this
Third Boot Device
(FDD)
function is enabled and
Boot up Other Devices
(Enabled)
someone attempt to
Swap Floppy Drive
(Disabled)
write data into this
Boot up Floppy Seek
(Disabled)
area, BIOS will show a
Boot up NumLock Status
(ON)
warning message on
Gate A20 Option
(Fast)
the screen and alarm
Typematic Rate Setting
(Disabled)
beep
Typematic Rate (Chars/Sec)
Typematic Delay (Msec)
Security Option
OS Select For DRAM > 64MB
Report NO FDD for Win 95
6
250
(Setup)
(Non-OS2)
(Yes)
C8000-CBFFF Shadow
(Disabled)
CC000-CFFFF Shadow
(Disabled)
D0000-D3FFF Shadow
(Disabled)
D4000-D7FFF Shadow
(Disabled)
D8000-DBFFF Shadow
(Disabled)
DC000-DFFFF Shadow
(Disabled)
Small logo EPA Show
(Disabled)
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
5-83
User Manual version 2503
u
VIRUS WARNING
This category allows you to choose the VIRUS Warning
feature for IDE Hard Disk boot sector protection. If this
function is enabled and someone attempts to write data into
this area, BIOS will show a warning message on screen and
alarm beep.
Enabled: Activates automatically when the system boots up
causing a warning message to appear when anything
attempts to access the boot sector or hard disk partition
table.
Disabled: No warning message will appear when anything
attempts to access the boot sector or hard disk partition
table.
u CPU INTERNAL CACHE/EXTERNAL CACHE
These two categories speed up memory access. However, it
depends on CPU/chipset design.
Enabled: Enable cache
Disabled: Disable cache
u CPU L2 CACHE ECC CHECKING
This category allows you to enable/disable CPU L2 cache ECC
checking.
The choice: Enabled & Disabled.
u PROCESSOR NUMBER FEATURE
Some of the new socket-370 processors are installed with a
unique processor number. This number may be used for
verification in Internet transactions and e-commerce. If you
prefer not to use or distribute the unique processor number,
use this item to suppress the processor number.
The choice: Enabled & Disabled.
5-84
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
u
QUICK POWER ON SELF TEST
This category speeds up Power on Self Test (POST) after you
power up the computer. If it is set to Enable, BIOS will
shorten or skip some check items during POST.
Enabled: Enable quick POST
Disabled: Normal POST
u FIRST/SECOND/THIRD/OTHER BOOT DEVICE
The BIOS attempts to load the operating system from the
devices in the sequence selected in these items.
The Choice: Floppy, LS/ZIP, HDD, SCSI, CDROM & Disabled.
The choice: Enabled & Disabled.
u SWAP FLOPPY DRIVE
If the system has two floppy drives, you can swap the logical
drive name assignments.
The choice: Enabled & Disabled.
u BOOT UP FLOPPY SEEK
This category seeks disk drives during boot up. Disabling
speeds boot up.
The choice: Enabled & Disabled.
u BOOT UP NUMLOCK STATUS
This category selects power on state for NumLock.
The choice: Enabled & Disabled.
u GATE A20 OPTION
Select this category if chipset or keyboard controller should
control GateA20.
Normal A pin in the keyboard controller controls GateA20
Fast Lets chipset control GateA20
u TYPEMATIC RATE SETTING
Keystrokes repeat at a rate determined by the keyboard
controller.
When enabled, the typematic rate and typematic delay can
be selected.
The choice: Enabled & Disabled.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
5-85
User Manual version 2503
u TYPEMATIC RATE (CHARS/SEC)
This category sets the number of times a second to repeat a
keystroke when you hold the key down.
The choice: 6, 8, 10, 12, 15, 20, 24 & 30.
u TYPEMATIC DELAY (MSEC)
This category sets the delay time after the key is held down
before it begins to repeat the keystroke.
The choice: 250, 500, 750 & 1000.
u SECURITY OPTION
This category sets whether the password is required every
time the system boots or only when you enter setup.
Setup The system will not boot and access to Setup will be
denied if the correct password is not entered at the prompt.
Setup The system will boot, but access to Setup will be
denied if the correct password is not entered at the prompt.
Note: To disable security, select PASSWORD SETTING at
Main Menu and then you will be asked to enter
password. Do not type anything and just press
<Enter>, it will disable security. Once the security is
disabled, the system will boot and you can enter
Setup freely.
u OS SELECT FOR DRAM > 64MB
This category sets the operating system that is running with
greater than 64MB of RAM on the system.
The choice: Non-OS2, OS2.
u REPORT NO FDD FOR WIN 95
Whether report no FDD for Win 95 or not.
The choice: Yes & No.
u VIDEO BIOS SHADOW
This category allows the video BIOS to be copied to system
memory for faster performance.
The choice: Enabled & Disabled.
5-86
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
5.4.4. Advanced Chipset Features
If the ADVAMCED CHIPSET FEATURES option is selected
from the main menu, the screen below will appear. The
following sample screen consists of the default values for
PC620.
Phoenix - Award BIOS Setup Utility
Advanced Chipset Features
SDRAM Cycle Time Tres/Trc
(Auto)
SDRAM RAS-to-CAS Delay
(Auto)
SDRAM RAS Precharge Time
(Auto)
System BIOS Cacheable
(Enabled)
Video BIOS Cacheable
(Disabled)
Memory Hole at 15M-16M
(Disabled)
CPU Latency Time
(Enable)
Delay Transaction
(Enabled)
AGP Aperture Size (MB)
(64MB)
Display Cache Frequency
(100 MHz)
System Memory Frequency
(Auto)
On-Chip Video Windows Size
(64MB)
: Move
ESC: Exit
Enter: Select
F1: General Help
Item Help
Menu Level
+/-/PU/PD: Value
F5: Previous Values
F10: Save
F6: Fail-Safe Defaults
F7: Optimized Defaults
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
5-87
User Manual version 2503
u
MEMORY FREQUENCY FOR
u SYSTEM BIOS CACHEABLE:
When Enabled is selected, it allows caching of the system
BIOS ROM at F0000h-FFFFFh, resulting in better system
performance.
However, if any program writes to this memory area, a
system error may occur.
The choice: Enabled or Disabled.
u VIDEO BIOS CACHEABLE
When Enabled is selected, it allows caching of the Video RAM,
resulting in better system performance. However, if any
program writes to this memory area, a system error may
occur.
The choice: Enabled or Disabled.
u MEMORY HOLE AT 15M-16M:
You can reserve this area of system memory for ISA adapter
ROM. When this area is reserved, it cannot be cached. The
user information of peripherals that need to use this area of
system memory usually discusses their memory
requirements.
u DELAYED TRANSACTION
u DELAY PRIOR TO THERMAL
u AGP APERTURE SIZE (MB)
This category selects the size of Accelerated Graphics Port
(AGP) aperture. The aperture is a portion of the PCI memory
address range dedicated for graphics memory address space.
Host cycles that hit the aperture range are forwarded to the
AGP without any translation.
The Choice: 4M, 8M, 16M, 32M, 64M, 128M & 256M.
u DISPLAY CACHE FREQUENCY
u SYSTEM MEMORY FREQUENCY
u ON-CHIP VIDEO WINDOWS SIZE
5-88
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
5.4.5. Integrated Peripherals
If the INTEGRATED PERIPHERALS option is selected from
the main menu, the screen below will appear. The following
sample screen consists of the default values for PC620.
Phoenix - Award BIOS Setup Utility
Advanced BIOS Features
On-Chip Primary PCI IDE
On-Chip Secondary PCI IDE
IDE Primary Master PIO
IDE Primary Slave PIO
IDE Secondary Master PIO
IDE Secondary Slave PIO
IDE Primary Master UDMA
IDE Primary Slave UDMA
IDE Secondary Master UDMA
IDE Secondary Slave UDMA
USB Controller
USB Keyboard Support
Init Display First
AC97 Audio
Flash ROM Write
Onboard LAN1 Function
IDE HDD Block Mode
Power On Function
KB Power On Password
Hot Key Power On
Onboard FDC Controller
Onboard Serial Port 1
Serial Port 1 Use IRQ
Onboard Serial Port 2
Serial Port 2 Use IRQ
UART Mode Select
RxD, TxD Active
IR Transmission Delay
UR2 Duplex Mode
Use IR Pins
Onboard Parallel Port 3
Serial Port 3 Use IRQ
Onboard Serial Port 4
Serial Port 4 Use IRQ
Onboard Parallel Port 1
Parallel Port 1 Use IRQ
Parallel Port 1 Mode
LPT1 EPP Mode Select
LPT1 ECP Mode Use DMA
PWRON After PWR-Fail
DIO Port Address
(Enabled)
(Enabled)
(Auto)
(Auto)
(Auto)
(Auto)
(Auto)
(Auto)
(Auto)
(Auto)
(Enabled)
(Disabled)
(PCI Slot)
(Auto)
(Enable)
(Enable)
(Enable)
(Button Only)
(Enter)
(Ctrl-F1)
(Enable)
(3F8)
(IRQ4)
(2F8)
(IRQ3)
(Normal)
(Hi, Lo)
(Enabled)
(Half)
(IR-Rx2Tx2)
(3e8)
(IRQ10)
(2E8)
(IRQ 11)
(378)
(IRQ7)
(SPP)
(EPP1.7)
(3)
(OFF)
(200)
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
Item Help
Menu Level
5-89
User Manual version 2503
u
INTERNAL PCI/IDE
This chipset contains an internal PCI IDE interface to support
two IDE channels.
The choice: Primary, Secondary or Both.
u IDE PRIMARY MASTER/SLAVE PIO
The four IDE PIO (Programmed Input/Output) fields let you
set a PIO mode (0-4) for each of the four IDE devices that the
onboard IDE interface supports. Modes 0 through 4 provide
successively increased performance. In Auto mode, the
system automatically determines the best mode for each
device.
The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3 or Mode 4.
u PRIMARY MASTER/SLAVE ULTRA DMA
UDMA (Ultra DMA) is a DMA data transfer protocol that
utilizes ATA commands and the ATA bus to allow DMA
commands to transfer data at a maximum burst rate of 33
MB/s. When you select Auto in the four IDE UDMA fields (for
interface supports), the system automatically determines the
optimal data transfer rate for each IDE device.
The choice: Auto or Disabled.
u USB CONTROLLER
Select Enabled if your system contains a Universal Serial Bus
(USB) controller and you have USB peripherals.
The choice: Enabled or Disabled.
u USB 2.0 CONTROLLER
Select Enabled if your system is using with a USB 2.0 devices
The choice: Enabled or Disabled.
u USB KEYBOARD SUPPORT
Select Enable if your system contains a Universal Serial Bus
(USB) controller and you have a USB keyboard.
The choice: Enabled or Disabled.
u AC97 AUDIO
Select Auto to support AC97 Audio.
The choice: Auto or Disabled.
5-90
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
u INIT DISPLAY FIRST
This item allows you to decide to active which bus first (PCI
slot or onboard/AGP).
The choice: PCI Slot or Onboard/AGP
u FLASH ROM WRITE
This item supports the BIOS ROM write Enable/Boot block
lock/Disable.
u ONBOARD LAN FUNCTION
The item can disable the onboard built-in LAN function.
u IDE HDD BLOCK MODE:
Block mode is also called block transfer, multiple commands,
or multiple sector read/write. If your IDE hard drive supports
block mode (most new drives do), select Enabled for
automatic detection of the optimal number of block
read/write per sector the drive can support.
The choice: Enabled or Disabled.
u POWER ON FUNCTION
u KB POWER ON PASSWORD
This category can be used to prompt a password when the
system power is resumed by keyboard action.
u HOT KEY POWER ON
u ONBOARD FDC CONTROLLER
Select Enabled if your system has a floppy disk controller
(FDC) installed on the system board and you wish to use it. If
you install and-in FDC or the system has no floppy drive,
select Disabled in this field.
u ONBOARD SERIAL PORT1/PORT2/PORT3/PORT4
This category is to select an address and corresponding
interrupt for the first and second serial ports.
The choice: 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ10, 2E8/IRQ11,
Disabled or Auto.
Serial Port 2 is RS232/RS422/RS485 selected via BIOS
setting.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
5-91
User Manual version 2503
u
ONBOARD PARALLEL PORT 1:
This category allows you to determine the onboard parallel
port controller’s I/O address and parallel port mode.
u PWRON AFTER PWR-FAIL:
u DIO PORT ADDRESS
This category sets the DIO port address.
The choice: 200, 208 or Disabled.
5-92
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
5.4.6. Power Management Setup
If the POWER MANAGEMENT SETUP option is selected
from the main menu, the screen below will appear. The
following sample screen consists of the default values for
PC620.
Phoenix - Award BIOS Setup Utility
Power Management Setup
ACPI function
(Enabled)
ACPI Suspend Type
(S3 (STR))
Run VGABIOS if S3 Resume
(No)
Power Management
(User Define)
Video Off Method
(DPMS)
Video Off In Suspend
(Yes)
Suspend Type
(Stop Grant)
Modem Use IRQ
(3)
Suspend Mode
(Disabled)
HDD Power Down
(Disabled)
Soft-Off by PWR BTTN
(Instant Off)
Wake-Up by PCI Card
(Enabled)
Power-On by Ring/LAN
(Enabled)
USB KB Wake-Up From S3
(Disabled)
Resume by Alarm
(Disabled)
X
Date (of Month) Alarm
0
X
Time (hh: mm: ss) Alarm
0:0:0
Item Help
Menu Level
** Reload Global Timer Event **
Primary IDE 0
(Disabled)
Primary IDE 1
(Disabled)
Secondary IDE 0
(Disabled)
Secondary IDE 1
(Disabled)
FDD/COM/LPT Port
(Disabled)
PCI PIRQ (A-D)#
(Disabled)
: Move
Enter : Select
+/-/PU/PD: Value
F10: Save
ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults
F7: Optimized Defaults
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
5-93
User Manual version 2503
5.4.7. PnP/PCI Configuration
If the PNP/PCI CONFIGURATION option is selected from
the main menu, the screen below will appear. The following
sample screen consists of the default values for PC620.
Phoenix - Award BIOS Setup Utility
PnP PCI Configuration
Reset Configuration Data
Item Help
(Disabled)
Menu Level
Resources Controlled By
(Auto(ESCD))
x IRQ Resources
Press Enter
x DMA Resources
Press Enter
PCI/VGA Palette Snoop
(Disabled)
Select Yes if you are
using a Plug and Play
capable operation
system. Select No if you
need the BIOS to
configure a non-boot
device
: Move
Enter : Select
+/-/PU/PD: Value
F10: Save
ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults
F7: Optimized Defaults
5-94
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
u
RESET CONFIGURATION DATA
Normally, you leave this field Disabled. Select Enabled to
reset Extended System Configuration Data (ESCD) when you
exit Setup if you have installed a new add-on and the system
reconfiguration has caused such a serious conflict that the
operating system cannot boot.
The choice: Enabled or Disabled.
u RESOURCE CONTROLLED BY
The Award Plug and Play BIOS has the capacity to
automatically configure all of the boot and Plug and Play
compatible devices.
However, this capability means absolutely nothing unless you
are using a Plug and Play operating system such as
Windows95. If you set this field to “manual” choose specific
resources by going into each of the sub menu that follows this
field (a sub menu is preceded by a “Ø”).
The choice: Auto (ESCD), Manual.
u
IRQ RESOURCES
When resources are controlled manually, assign each system
interrupt a type, depending on the type of device using the
interrupt.
u
IRQ3/4/5/7/9/10/11/12/14/15 ASSIGNED TO
This item allows you to determine the IRQ assigned to the
ISA bus and is not available to any PCI slot. Legacy ISA for
devices compliant with the original PC AT bus specification,
PCI/ISA PnP for devices compliant with the Plug and Play
standard whether designed for PCI or ISA bus architecture.
The Choice: Legacy ISA and PCI/ISA PnP.
u
PCI/VGA PALETTE SNOOP
Leave this field at Disabled.
The choice: Enabled or Disabled.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
5-95
User Manual version 2503
5.4.8. PC Health Status
The PC HEALTH STATUS auto detects the system’s
temperature, voltage and fan speed.
Phoenix - Award BIOS Setup Utility
PC Health Status
Shutdown Temperature
Item Help
(Disabled)
Current System Temp.
Menu Level
Current CPU1 Temp.
VCore (From VID)
VCore (V)
VCC1.8 (V)
VCC3.3 (V)
VIO 3.3V
+5V
+12 V
- 12 V
- 5V
Current CPU Fan Speed
Current System Fan1 Speed
Current System Fan2 Speed
: Move
Enter: Select
+/-/PU/PD: Value
F10: Save
ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults
F7: Optimized Defaults
u
SHUTDOWN TEMPERATURE:
This category allows you to select System shutdown
temperature.
The choice: 60oC/140 oF, 65 oC /149 oF, 70 oC/158 oF or
Disabled.
5-96
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
5.4.9. Frequency Voltage Control
This setup page is for the CPU, SDRAM and PCI frequency
setting.
Phoenix - Award BIOS Setup Utility
Frequency Voltage Control
Auto Detect PCI Clk
(Enabled)
Spread Spectrum
(Disabled)
CPU Clock Ratio
(8X)
: Move
Enter : Select
Item Help
Menu Level
+/-/PU/PD: Value
F10: Save
ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults
F7: Optimized Defaults
u
CPU CLOCK RATIO
This category allows you to select CPU Ratio.
u AUTO DETECT PCI CLK
This category allows you to select auto detect PCI Clock.
The choice: Enabled or Disabled.
u SPREAD SPECTRUM
This category allows you to enable or disable the spread
spectrum modulate.
The choice: Enabled or Disabled.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
5-97
User Manual version 2503
5.4.10. Load Fail-Safe Defaults
The default values of the LOAD FAIL-SAFE DEFAULTS
indicates the most appropriate value of the system
parameters that the system would be in safe configuration.
Phoenix - Award BIOS Setup Utility
Ø
Standard CMOS Features
Ø
Advanced BOIS Features
Ø
Advanced Chipset Features
Ø
Integrated Peripherals
Ø
Power Management Setup
Ø
Ø
Ø
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
PnP/PCI Configuration
Load
Fail-Safe
Defaults
(Y/N) ? N
Exit Without
Saving
PC Health Status
Esc : Quit
F9 : Menu in BIOS
:
Select Item
F10: Save & Exit Setup
Load Fail-Safe Defaults
5-98
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
5.4.11. Load Optimized Defaults
The default values of the LOAD OPTIMIZED DEFAULTS
indicate the most appropriate value of the system
parameters that the system would be in best performance
configuration.
CMOS Setup Utility – Copyright (C) 1984-200 Award Software
Ø
Standard CMOS Features
Ø
Advanced BOIS Features
Ø
Advanced Chipset Features
Ø
Integrated Peripherals
Ø
Frequency/Voltage Control
Load Fail-Safe Defaults
Load
Load Optimized
Optimized Defaults
Defaults
Set Password
Ø
Save & Exit Setup
Power Management Setup
Exit Without
Load
Optimized
Defaults
(Y/N) Saving
?N
PnP/PCI Configuration
Ø
PC Health Status
Ø
Esc : Quit
F9 : Menu in BIOS
:
Select Item
F10: Save & Exit Setup
Load Optimized Defaults
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
5-99
User Manual version 2503
5.4.12.
User Password
The USER PASSWORD is used to set the password. To
change the password, select this option from the main menu
and press <Enter>.
If the CMOS does not work properly or the USER
PASSWORD option is selected for the first time, then a
default password is stored in the ROM. The following
message will appear on the screen;
Enter Password
Press <Enter>.
If the CMOS is working properly or the USER PASSWORD
option is selected to change the default password, then the
current password (the ROM password or the use-defined
password) stored in the ROM needs to be entered first. The
following message will appear on the screen;
Confirm Password
Enter the current password and press <Enter>.
After pressing <Enter>, then the new password (8 characters
at most) can be entered now. The new password will be
stored in the CMOS.
Please note that to enable this option, either Setup or
System is to be selected from the ADVANCED BIOS
FEATRUES first.
5-100
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
5.4.13. Save and Exit Setup
If the SAVE & EXIT SETUP option is selected, the values
entered the setup utilities will be saved in the chipset’s CMOS
memory. When the system is turned on every time, the CPU
will check the CMOS to compare the CMOS data to see
whether it matches the system. These data are very
important for the system operation.
Phoenix - Award BIOS Setup Utility
Ø
Standard CMOS Features
Ø
Advanced BOIS Features
Ø
Advanced Chipset Features
Ø
Integrated Peripherals
Ø
Power Management Setup
Ø
Ø
Ø
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Save
Save && Exit
Exit Setup
Setup
Exit
Without
Saving
PnP/PCI Configuration
Save to CMOS and Exit (Y/N) ? Y
PC Health Status
Esc : Quit
F9 : Menu in BIOS
:
Select Item
F10: Save & Exit Setup
Save Data to CMOS
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
5-101
User Manual version 2503
5.4.14. Exit Without Saving
If the EXIT WITHOUT SAVING option is selected and
<ENTER> is pressed, you will exit the Setup program without
saving any new values. The CMOS will still keep the old
values.
Phoenix - Award BIOS Setup Utility
Ø
Standard CMOS Features
Ø
Advanced BOIS Features
Ø
Advanced Chipset Features
Ø
Integrated Peripherals
Ø
Power Management Setup
Ø
Ø
Ø
Frequency/Voltage Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Save & Exit Setup
QuitWithout
WithoutSaving
Saving
Exit
PnP/PCI Configuration
Quit without Saving (Y/N) ? N
PC Health Status
Esc : Quit
F9 : Menu in BIOS
:
Select Item
F10: Save & Exit Setup
Abandon All Data
5-102
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
6. SOFTWARE & DRIVERS INSTALLATION
The chapter introduces the PC620 onboard VGA,
Ethernet, Audio and the respective drivers and
installation.
.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
6-103
User Manual version 2503
6.1. System Chipset Drivers
The system chipset used on PC620 is Intel 815E. The
chipset drivers for different operating systems are stored
under the following route:
PanelPC & Motherboard/Drivers & Utilities/Panel PC &
Motherboard Drivers/INF (System Chipset Drivers for
PC_620_700_710_800_810_820)
For updated system drivers, please have them downloaded
from the following website
http://www.intel.com
6.2. IDE Acceleration Drivers
The PC620 is able to support UDMA IDE. To extend this
functionality, the UDMA acceleration needs to be installed
first. The related drivers are stored under the following
route:
PanelPC & Motherboard/Drivers & Utilities/Panel PC &
Motherboard Drivers/iaa (IDE accel. Drivers for
PC_620_700_710_800_810_820)
6-104
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
6.3. Ethernet Drivers
The PC620 provides a 10/100 Base T fast Ethernet.
The Ethernet chipset used on PC620 is Realtek RTL8100B.
The PC620 Ethernet drive diskette or CD diskette contains
the following drivers.
Realtek RTL8100 Ethernet drivers for
² Windows 95/95OSR2
² Windows 98
² Windows 2000
² Windows NT
² Windows ME
² Windows XP
The related drivers are stored under the following route:
PanelPC & Motherboard/Drivers & Utilities/Panel PC &
Motherboard Drivers/Ethernet Drivers (RTL8100 for
PC_620_700_710_800_810_820)
For the Ethernet drivers, please download the updated
drivers from the following website
http://www.realtek.com.tw
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
6-105
User Manual version 2503
6.4. PC620 AGP XGA
By integrating an advanced hardware 2D/3D GUI engine and
64-bit graphic display interface, the PC620 can deliver AGP
4X performance and memory bandwidth of up to 1GB.
In addition to providing standard interface for analog monitor,
the PC620 also provides an interface for digital flat panels.
The PC620 XGA driver diskettes contain the following driver:
Intel 815E VGA drivers for
²
²
²
²
²
²
Windows
Windows
Windows
Windows
Windows
Windows
95/95OSR2
98
ME
2000
NT
XP
The related drivers are stored under the following route:
PanelPC & Motherboard/Drivers & Utilities/Panel PC &
Motherboard Drivers/VGA Drivers for
PC_620_700_710_800_810_820)/PC620 Panel PC
(370_Celeron_P3_Intel815E)
For updated system drivers, please have them downloaded
from the following website
http://www.intel.com
6-106
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
6.5. Audio Setup
The audio chipset used on PC620 is Realtek ALC202A.
PC620 audio driver diskette contains the following drivers:
The Realtek ALC202A audio drivers contain the following
drivers:
²
²
²
²
²
²
Windows
Windows
Windows
Windows
Windows
Windows
95/95OSR2
98
2000
NT
ME
XP
The related drivers are stored under the following route:
PanelPC & Motherboard/Drivers & Utilities/Panel PC &
Motherboard Drivers/Audio Drivers (ALC202A for
PC_620_700_710_800_810_820)
For updated audio drivers, please have them downloaded
from the following website
http://www.realtek.com.tw
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
6-107
User Manual version 2503
6.6. Touchscreen Drivers
The panel PC audio driver diskette contains the following
drivers and are stored in the following route:
PanelPC & Motherboard/Drivers & Utilities/Touchscreen
Drivers
²
²
²
²
Elo resistive/SAW touch driver
3M capacitive touch drivers
3M resistive touch drivers
e-Turbo touch drivers
The most updated touch drivers are also downloadable from
the following websites:
http://www.elotouch.com or
http://www.3m.com or
http://www.eturbotouch.com
6-108
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
6.7. Peripheral Device Drivers
The drivers to set up the media card reader is stored in the
following directory:
Kiosk/Kiosk Device Drivers/Media Card Reader 8 in 1 Pro 9
The drivers to set up the printer is stored in the following
directory:
Kiosk/Kiosk Device Drivers/Kiosk Printer/EPSON BAT-500
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
6-109
User Manual version 2503
6.8. Driver Installation
To install the Ethernet, VGA and Audio drivers, make sure you
know the chipset models on the motherboard.
Motherboard Model
PC620
System Chipset
Intel 815E
VGA Chipset
Intel 815E integrated
Ethernet Chipset
Realtek RTL8100B
Audio Chipset
Realtek ALC202A
Find the correct drivers from the correct directory and
execute the execution files. All the related drivers are stored
in the floppy diskettes or the panel PC tool CD under the
following route:
PanelPC & Motherboard/Drivers & Utilities/Panel PC &
Motherboard Drivers
Please refer to the readme.txt file under each directory for
more drivers’ information.
Recent releases of operating systems always include setup
programs that load automatically and guide you through the
installation.
6-110
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
Appendix
A: LCD Specification
The standard display used for the LIBRA 120 is a TORISAN
12.1” TFT LCD, MXS121022010 or a LG.Phillips 12.1” TFT
LCD, LB121S02 or its equivalent.
A-1. 12.1” MXS121022010
It composes of LCD panel, driver ICs, control circuit and
backlight. By applying 6 bit digital data, 800x600,
260K-color images are displayed on the 12.1” diagonal
screen. Input power voltage is single 3.3V for LCD driving.
A-1-1. SPECIFICATION
Inverter backlight is not included in this LCD module. General
specifications are summarized in the following:
ITEM
SPECIFICATION
Display Area (mm)
246.0 (H) x 184.5 (V)
(12.106 inch diagonal)
Number of Pixel
800 x R.G.B (W) x 600 (H)
Sub Pixel Pitch (mm)
0.1025 (W) x 0.3075 (H)
Pixel Pitch (mm)
0.3075 (W) x 0.3075 (H)
Number of Color
262144 colors
Active Viewing Angle
246.0 (W) x 184.5 (H)
Bezel opening area
250.0 (W) x 188.5 (H)
Brightness (cd/m2)
150 (cd/m2 )
Module Size (mm)
275.0(W)*199(H)*6.9max (T)
Module Weight (g)
440 g (TYP.)
Backlight Unit
CCFL, 1-tube
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
6-111
User Manual version 2503
A-2. 12.1” LB121S02
The LB121S02 is a color active matrix liquid crystal isplay
with an integrated Cold Cathode Fluorescent Lamp (CCFL)
backlight system. The matrix employs a-Si Thin Film
Transistor as the active element. It is a transmissive type
display operating in the normally white mode. This TFT-LCD
has 12.1 inches diagonally measured active display area with
SVGA resolution (600 vertical by 800 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or
dots that are arranged in vertical stripes. Gray scale or the
brightness of the sub-pixel color is determined with a 6-bit
gray scale signal for each dot, thus, presenting a palette of
more than 262,144 colors
A-2-1. GENERAL SPECIFICATION
Inverter backlight is not included in this LCD module. General
specifications are summarized in the following:
ITEM
SPECIFICATION
Active Screen Size
12.1 inches (30.75cm) diagonal
Outline Dimension
280(H) × 218(V) × 12(D) mm
Pixel Pitch
0.1025 (W) x 0.3075 (H)
Pixel Format
800 horiz. By 600 vert. Pixels RGB
strip arrangement
Color Depth
6-bit, 262,144 colors
Brightness (cd/m2)
300 cd/m (Typ.)
Power Consumption
7.8 Watt (Typ.)
Module Weight (g)
675 g (Typ.)
Display Operating Mode Transmissive mode, normally white
Surface Treatment
Hard coating (3H) Anti-glare
treatment of the front polarizer
2
6-112
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
A-2-2. ABSOLUTE MAXIMUM RATING
Parameter
Value
Symbol
Min.
Power Input Voltage
VCC
Operating Temperature TOP
TST
Storage Temperature
Operating Ambient
Units
Max.
Notes
-0.3
4.0
VDC
at 25 ± 5°C
0
50
°C
1
1
-20
60
°C
HOP
10
90
%RH 1
HST
10
90
%RH 1
Humidity
Storage Humidity
NOTE 1. Temperature and relative humidity range are shown
in the figure below. Wet bulb temperature should be
39°°C Max, and no condensation of water.
A -2-3. ELECTRICAL ABSOLUTE MAXIMUM RATINGS
The LB121S02-A2 requires two power inputs. One is
employed to power the LCD electronics and to drive the TFT
array and liquid crystal.
Parameter
Symbol
Min.
Value
Typ.
Max.
Unit
VCC
3.0
3.3
3.6
VDC
ICC
-
-240
-310
mA
PC
-
0.8
1
Watt
Module
Power Supply Input
Voltage
Power Supply Input
Current
Power Consumption
Lamp
Operating Voltage
Operating Current
Life Time
VBL
IBL
540
580
665
(8.0mA)
(6.0mA)
(3.0mA)
3.0
50,000
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
6.0
8.0
VRMS
mARMS
hrs
6-113
User Manual version 2503
B: DIO (Digital Input & Output)
The LIBRA III provides 2-channel digital input and output
that can be used for the system’s simple automation control
needs. The digital I/O can be configured to control the
opening of a cash drawer or to sense the warning signal of an
uninterrupted power system (UPS) or to do the store security
control.
The DIO port address and pin definition is listed below;
I/O Port address: 200H/208H By CMOS Setting
DIO1
RJ11
Read: SD0, SD1
Write: SD4, SD5
1 2 3 4 5 6
IO
IO 208H(READ)
206H(READ)
SD0
SD1
18
16
14
12
9
7
5
3
20
1Y 1
1Y 2
1Y 3
1Y 4
2Y 1
2Y 2
2Y 3
2Y 4
1A1
1A2
1A3
1A4
2A1
2A2
2A3
2A4
VDD
1G
2G
GND
2
4
6
8
11
13
15
17
1
19
IO 208H(WRITE)
IO
206H(WRITE)
IN_0
IN_1
SD4
SD5
-IOR206H
-IOW206H
10
3
4
7
8
13
14
17
18
11
1
D1
D2
D3
D4
D5
D6
D7
D8
CLK
CLR
Q1
Q2
Q3
Q4
Q5
Q6
Q7
Q8
VCC
GND
2
5
6
9
12
15
16
19
OUT_0
OUT_1
20
10
74LS273
74LS244
VCC5
VCC12
4.7K
OUT_0
VCC5
IN_0
IN_1
4.7K
OUT_1
6-114
1
2
3
4
5
6
DIO1
RJ11
MOSFET N
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
The Digital I/O is of TTL interface.
software programming.
It is controlled via
Digital I/O Programming
Input/output address:
208H
In_Data 0~3=SD0~SD1
Out_Data 0~3 SD4~SD7
EXAMPLE:
10 REM Digital I/O example program
20 X = INP (&H208)
REM INPUT Digital I/O port
30
X = OUT (&H208)
for 4 bit
REM OUTPUT Digital I/O port
for 4 bit
60 END
100 Return
Port 208H Definition
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
6-115
User Manual version 2503
C: DiskOnChip Installation
The LIBRA 120 III is equipped with an internal flash disk
which can emulate a floppy disk drive by adapting
DiskOnChip memory chips from 2MB to 144MB capacity,
and the flash disk is fully compatible with floppy disk format
of MS-DOS system.
To install a DiskOnChip memory to the provided socket,
follow the instructions below;
1. Make sure the computer is turned off
2. Insert the DiskOnChip memory device into the onboard
socket. Make sure that pin 1 of the DiskOnChip is aligned
with the pin 1 of the socket.
3. Power up the computer
4. During the power up, the DiskOnChip drivers will be
automatically loaded into the system memory.
5. At this time, the DiskOnChip can be accessed as any
disk drive.
6. If it is the only disk in the system, it will appear as the
first drive, drive C:.
7. If there are more drives already attached to the system,
then by default, the DiskOnChip will appear as the last
drive unless specially programmed.
8. If the DiskOnChip is to be bootable, then follow the
steps below
a.
Use DOS command to copy the operating files into
the DiskOnChip
b.
The DiskOnChip is to be configured as the first
drive, drive C: in the system. Use the DUPDATE
utility.
DUPDATE D /S: DOC104.EXB /FIRST (set as c:)
DUPDATE C /S: DOC104.EXB (set as d:)
For more information and for the latest software utility and
utilities manual on the DiskOnChip, visit M-System website
at www.m-sys.com .
6-116
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
D: System I/O Ports
Address range (Hex) Device
000-01F
DMA controller
020-021
Interrupt controller 1, master
022-023
Chipset address
040-05F
8254 timer
060-06F
8024 keyboard controller
070-07F
Real time clock, non-maskable
interrupt mask (NMI)
080-09F
DMA page register
0A0-0BF
Interrupt controller 2
0C0-0DF
DMA controller
0F0
Clear math co-processor
0F1
Reset math co-processor
0F8-0FF
Math co-processor
1F0-1F8
Fixed disk
200-207
Game Port (not used)
443
Watchdog timer
143
Watchdog timer
208
DIO port
2E8
Serial port #4
2F8-2FF
Serial port #2
300-31F
Prototype card (not used)
330-331
MPU-401 Compatible
360-36F
Reserved
378-37F
Parallel printer port 1 (LPT1)
380-38F
SDLC, bisynchronous 2 (not used)
3A0-3AF
Bisynchronous 1 (not used)
3B0-3BF
Monochrome display and printer
adapter (LPT1) (not used)
3C0-3CF
Reserved
3D0-3DF
Color/graphics monitor adapter
3E8
Serial port #3
3F0-3F7
Diskette controller
3F8-3FF
Serial port #1
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
6-117
User Manual version 2503
E: Wake-On-LAN
The Wake-On-LAN is a remote management tool with the
advantage to reduce system management workload. It
provides the capability to remotely power on the client
computers supporting Wake-On-LAN by simply sending a
“wake up packet”. After powering up the client systems, the
user is able to monitor the remote systems’ status and to
upload or download files to or from the clients. With this
feature, MIS persons can flexibly perform client maintenance
during off-hours; the Total Cost of Ownership (TCO) will be
thus lowered.
To use Wake On LAN function, the client system must have a
network card with chipset that supports the Wake-On-LAN
and an ATX power supply meeting 2.01 with at least 720mA
standby current is also required to support the Ethernet card
for this function. The LIBRA is a panel PC system with these
two features. To use the LIBRA Wake-On-LAN function,
please refer to the following;
1. Download the “Wake up packet”,
PCnet Family Software Magic Packet Utility. This utility is
downloadable from AMD website at
http://www.amd.com/us-en/Networking/ProductInformatio
n/0,,50_2330,00.html
Or refer to the Magic Packet™ Technology at AMD website
for how to write your own wake-up program.
http://www.amd.com/us-en/Networking/TechnicalResource
s/0,,50_2334_2481,00.html
2. BIOS Setting
Enter the \POWER MANAGEMENT SETUP\PM WAKE UP EVENTS to
enable the MACPME POWER UP CONTROL
6-118
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
3. Wake up Packet
To use the AMD’s Magic Packet, program installation is not
needed. Just open the MAGPAC.EXE, then the following screen
will pop up.
The remote computer can be waken up by selecting the MAGIC
PACKETS\POWER ON ONE HOST as shown below.
Do not change the IP BROADCAST ADDRESS. The DESTINATION
ETHERNET ADDRESS is to be filled in with the Ethernet card’s
MAC address.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
6-119
User Manual version 2503
To obtain the Ethernet card MAC, under Windows 9x, just
enter START\RUN to open the winipcfg.exe, then the following
screen will pop up. If the OS is Windows NT 4.0 or 2000 or XP,
then you need to enter DOS mode to run ipconfig.exe to
obtain the MAC.
The adapter address is the LAN card’s MAC address.
4. After obtaining all the above information, the remote
computer can be powered on now.
Now you can use Desktop On Call or other remote software to
control the remote computer.
6-120
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
F: First MB Memory Map
Address range (Hex) Device
F000h-FFFFh
System ROM
CC00h-EFFFh
Unused
C000h-CBFFh
Expansion ROM
B800h-BFFFh
CGA/EGA/VGA text
B000h-B7FFh
Unused
A000h-AFFFh
EGA/VGA graphics
0000h-9FFFh
Base memory
D000-D7FFH
DiskOnChip(Default)
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
6-121
User Manual version 2503
G: Power Supply
The AC power supply used in the LIBRA 120 III is a 180 watts,
1U ATX power supply, FSP180-50PLA.
G-1. ELECTRICAL REQUIREMENT
G-1-1: OUTPUT RATING
Nominal
Regulation Ripple & Noise
Min
Max
+3.3V
+/- 5%
50mV
0.3A
16.8A
+5V
+/- 5%
50mV
0.3A
12.0A
+12V
+/- 5%
120mV
1.5A
10.0A
-12V
+/- 10%
120mV
0.0A
0.8A
+5VSB
+/- 5%
50mV
0.0A
2.0A
* -12V, +3.3V, +5V, +12V will have the regulation to
+/-10% when all load take off.
* The +3.3V and +5V total output shall not exceed 61 watts.
The +3.3V, +5V and +12V total output shall not exceed 165
watts. Ripple and noise measurements shall be made under
all specified conditions through a single pole low pass filter
with 20MHz cutoff frequency.
G-1-2: HOLD-UP TIME (@FULL LOAD)
u 115V/60Hz: 17 msec min.
u 230V/50Hz: 17 msec min.
G-1-3: OUTPUT RISE TIME
u
115V-rms or 230V-rms +5VDC 20ms min.
6-122
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
G-1-4: OVER VOLTAGE PROTECTION
u
u
u
+5VDC output: +5.7VDC output min. +6.5VDC output max.
+12VDC output: +13.3VDC output min. +15.6VDC output max.
+3.3VDC output: +3.7VDC output min. +4.5VDC output max.
G-1-5: SHORT CIRCUIT PROTECTION
Output short circuit is defined to be a short circuit load of 0.1
ohm. In the event of short circuit condition on +3.3V, +5V or
+12V, the power supply will shutdown and latch off. The
power supply shall return to normal operation after the short
circuit has been removed and the power switch has been
turned off for no more than 2 seconds.
In the event of short circuit condition on –12V, the power
supply will not latch off. The power supply shall return to
normal operation as soon as the short circuit has been
removed and the power switch has been turned off for no
more than 2 seconds.
G-1-6: AC INPUT LINE REQUIREMENT
Parameter
Min.
Nom.
Max.
VIN (115VAC)
90
115
135
VIN (230VAC)
180
230
263
VIN Frequency
47
63
u Input current: 4.0A @115VAC, 2.0A @230VAC
u Inrush current: 50A @115VAC, 80A @230VAC
u
Unit
VAC rms
VAC rms
Hz
Efficiency: >68% min. @full load, 115VAC & 230VAC
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
6-123
User Manual version 2503
G-1-7: ENVIRONMENTAL
u
u
u
u
Operating temperature: 0o C to +50o C
Storage temperature: -50o C to +80o C
Operating humidity: 5~95% RH, non-condensing
Storage humidity: 5~95% RH, non-condensing
u
MTBF: >100,000 hours of continuous operation at
25oC maximum-output load, and nominal input
voltage
G1-8: SAFETY
The power supply is designed to meet the following safety
standard.
u NEMKO
u
u
u
u
TUV or VDE
UL 1950
CSA 22.2 LEVEL3
CE
6-124
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
H: 8-in-1 Card Reader
The model number of the standard 8-in-1 card reader
integrated in the LIBRA Kiosk is Pro-9.
FEATURES
u
Ultra High speed USB 2.0 interface - up to 480 Mb/s
transfer rates. It is also backward compatible with USB
1.1 interface.
u
Front IEEE 1394 (FireWire) extension port* - for easy
connection to FireWire devices, such as Digital Video
(DV) camcorders, FireWire Hard Drives and etc.
u
4 independent card slots - allow you to access 4 different
media cards concurrently and direct file transferring
among media cards in different slots.
u
Fully Plug and Play - No software driver needed on
Windows ME, XP or later.
u
USB powered - no additional power adaptor or battery
required. External or Internal Use - can be installed into
a computer 3.5" drive bay or use externally.
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
6-125
User Manual version 2503
SPECIFICATIONS:
u
Dimension (W x H x D):
4.02 inch x 1 inch x 4.92 inch
(102 mm x 25 mm x 125 mm)
u
Power Requirement:
5V DC (USB Bus powered)
u
Transfer rate:
Up to 480 Mbps (Via USB 2.0)
or Up to 12 Mbps (Via USB 1.1)
u
Supported O/:
Windows 98 SE,
Windows 2000,
Windows ME (No driver required)
Windows XP (No driver required)
Mac OS 9.0 or higher
u
Supported media format:
Compact Flash™ (Type I & II),
IBM MicroDrive™
Smart Media™ (3.3V),
MultiMedia™,
Secure Digital™,
Memory Stick™,
Memory Stick Pro™,
xD-Picture Card™*.
The drivers to set up the card reader is stored in the following
directory:
Kiosk/Kiosk device driver/Media Card Reader 8-in-1 Pro 9
6-126
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
User Manual version 2503
I: Thermal Printer
The standard receipt printer integrated in the LIBRA is an
Epson open-framed thermal printer with a semi-cut paper
cutter. The printer control board model no. BA-T500.
SPECIFICATIONS:
u
u
u
u
u
u
u
u
u
u
u
u
u
u
u
1
2
3
4
u
u
Print Method: Thermal line printing
Print font: Font A: 12x24/Font B: 9x17/Kanji: 24x24
Column capacity: 48 (Font A), 64 (Font B), 24 (Kanji)
Character size: 1.25 (W) x 3.0 (H)
Character set: 95 alphanumeric, 37 international, 11
pages of 128 graphic
Data buffer: 4 K bytes
Interface: Serial RS-232 or IEEE 1284 Bi-directional parallel
Print speed: 150 mm/sec
Paper dimensions: 80mm
Power: 24VDC
Reliability MCBF: 37 000 000 lines
Operating temperature: 5 - 50
Dimensions (W x D x H): 133 x 198 x 138.5; 133 x 225
x 145 with 80mm roll option)
Weight: 2.5kg
Sensors:
Print head temperature sensor: Thermistor
Platen open sensor: Micro switch
Black mark sensor: Reflecting photosensor
Paper-end sensor: Mechanical Switch
Bar Codes: EAN-8, EAN-13, UPC-A, UPC-E, Code 39,
Code 93, Code 128, ITF, CODABAR
Software: Windows™ Driver; Status Monitor
The drivers to set up the printer is stored in the following
directory:
Kiosk/Kiosk device driver/KIOSK printer/EPSON BAT-T500
LIBRA 120 III (PC620 Intel 815E)
PDF created with pdfFactory trial version www.pdffactory.com
6-127
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
