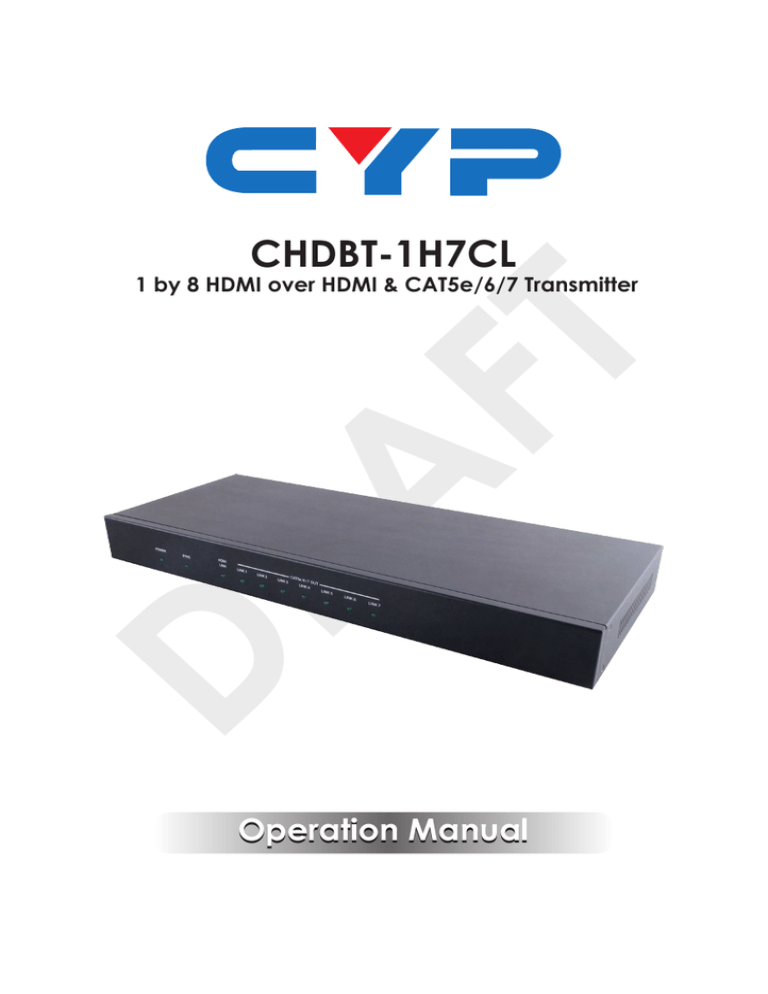

CHDBT-1H7CL

1 by 8 HDMI over HDMI & CAT5e/6/7 Transmitter

DRAFT

DISCLAIMERS

The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.

Cypress Technology reserves the right to make improvements to this document and/or product at any time and without notice.

COPYRIGHT NOTICE

No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer file, in any form or by any means— electronic, mechanical, magnetic, optical, chemical, manual, or otherwise—without express written permission and consent from

Cypress Technology.

© Copyright 2011 by Cypress Technology.

All Rights Reserved.

Version 1.0 September 2011

DRAFT

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.

• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO.

RDV1

DRAFT

CONTENTS

1. Introduction ............................................ 1

2. Applications ........................................... 1

3. Package Contents ................................ 1

4. System Requirements ............................ 1

5. Features .................................................. 2

6. Operation Controls and Functions ....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel .........................................3

6.3 IR Cable Pin Assignment..................5

7. Connection Diagram ............................ 6

8. Specifications ........................................ 7

8.1 CAT5e/6/7 Cable Specification .....8

9. Acronyms ............................................... 8

DRAFT

1

1. INTRODUCTION

The HDMI over HDMI and CAT5e/6/7 Transmitter can support resolutions up to 1080p Full HD, 4Kx2K timing, 3D and multi-channel digital audio formats to one HDTV and seven CAT5e/6/7 outputs.

The HDMI can be connected to HDMI display for instant nearby display and the CAT5e/6/7 can be connected to CAT5e/6/7 to HDMI

Receivers for distance up to 60 meters.

2. APPLICATIONS

• Household entertainment sharing and control

• Lecture room display and control

• Showroom display and control

• Meeting room presentation and control

• Classroom display and control

3. PACKAGE CONTENTS

• HDMI over HDMI & CAT5e/6/7 Transmitter

• IR Receiver x 1

• IR Blaster x 1

• 24V DC Power Adaptor

• Power Cord

• Operation Manual

DRAFT

5. FEATURES

• HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant

• The HDMI and CAT5e/6/7 outputs are playing the same source simultaneously

• Supports one HDTV and seven CAT5e/6/7 outputs

• Supports data rate from 250Mbps up to 3Gbps

• Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4Kx2K ([email protected] and

[email protected]).

• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD

Master Audio transmission (32-192kHz sample rate)

• Supports distances up to 60 meters through CAT5e/6/7 cables

• Can select Standard or TV EDID

• Supports USB service port

• Supports Bi-directional IR control

• The 3D signal display follow by display TV’s EDID

Note:

1. This system was tested with CAT6/23AWG cables, results may vary

with cables of a different specification.

2. Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI

cable and display in order for proper image displaying.

DRAFT

2

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

HDMI

LINK LINK 1 LINK 2 LINK 3

CAT5e / 6 / 7 OUT

LINK 4 LINK 5 LINK 6 LINK 7 POWER SYNC

1 2 3 4

1

POWER LED: Once the power supply is connected the LED will

illuminate.

2

SYNC: This LED will illuminate when the HDMI input port connected to the source.

3

HDMI LINK: This LED will illuminate when HDMI output is connected to TV or display monitor.

4

LINK 1~7: The link LED will illuminate when CAT5e/6/7 output(s) has been connected to the Receiver(s) and the Receiver(s) has connected with display that shows image on screen.

3

6.2 Rear Panel

HDMI IN

1 2

HDMI OUT 1 2 3

CAT5e / 6 / 7 OUT

4

3

5 6 7 IR IN IR OUT

4 5

DRAFT

EDID

STD TV

SERVICE

DC 24V

6 7 8

1

HDMI IN: Connect with source equipment such as DVD/Blu-ray or

PS3 player.

2

HDMI OUT: Connect to HDMI display for instant image display or cascade with another family type Transmitter.

3

CAT5e/6/7 OUT 1~7: Connect these ports to CAT5e/6/7 to HDMI

Receivers with CAT5e/6/7 cable to extend the signal up to 60m.

4

IR IN: Connect with IR Extender to receive IR signal from Transmitter side and blast out at Receiver side. Ensure that remote controller being used is within the direct line-of-sight of the IR Extender.

5

IR OUT: Connect with IR Blaster to blast out the IR signal received from the Receiver side. Place the IR Blaster in direct line-of-sight of

the equipment to be controlled.

6

EDID STD/TV: The default factory setting is on TV, leave as it is when the display is properly. The unit will detect the 1 st

CAT5e/6/7 output’s EDID when it obtain a 4Kx2K EDID and send out the signal accordingly to other output ports. If the 1 st

CAT5e/6/7 output is without a 4Kx2K's EDID the unit will detect all output's EDID and send out the signal that all outputs can accept.

This device obtain the last memory function therefore, the device will use the last output port 1's EDID when output port 1 is not connected to a display after power cycling or switching in between the EDID setting.

Switch to STD to use build-in EDID if the display has problem.

STD EDID’s video at [email protected] and audio at LPCM 2CH.

7

SERVICE: This slot is reserved for factory service only.

8

DC 24V: Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet.

DRAFT

4

5

6.3 IR Cable Pin Assignment

IR Blaster

1

2

3

Power 3.3 V

IR Blaster Signal

NC

IR Extender

1

2

3

IR Signal

Power 3.3 V

Grounding

DRAFT

7. CONNECTION DIAGRAM

Blu-ray or PS3 Player

HDMI

HDMI IN HDMI OUT 1 2 3

CAT5e / 6 / 7 OUT

4 5 6 7 IR IN IR OUT

EDID SERVICE

STD TV

DC 24V

1.5m

60°

HDMI

3D TV/Display

Power

IR2 Blaster

IR1 Extender

Link

CAT5e/6 In

HDMI Receiver

3D TV/Display

3m

IR BLASTER

DRAFT

60°

3m

6

7

8. SPECIFICATIONS

Video Bandwidth

Input ports

Resolution

Output ports

300Mbps/10.2Gbps

1 x HDMI,

1 x IR IN,

1 x USB (Service only)

1 x HDMI,

1 x IR OUT,

7 x CAT5e/6/7

Up to 4Kx2K

([email protected]/[email protected])

N/A

Up to 60m

HDMI Input Cable Distance

CAT5e/6/7 Output

Cable Distance

IR Frequency

Power Supply

30~50kHz

24V / 2.7A DC (US/EU standards, CE/FCC/

UL certified)

432mm(W) x 179 mm(D) x 49 mm(H)

Dimensions

Weight

Chassis Material

Silkscreen Color

ESD Protection

Storage Temperature

Relative Humidity

Power Consumption

2122 g

Metal

Black

DRAFT

32W

8.1 CAT5e/6/7 Cable Specification

Cable

Type

Range Pixel clock rate

Video Data

Rate

CAT5e/6/7 60 m <=225 MHz <=5.3 Gbps

(HD Video)

40 m >225 MHz > 5.3 Gbps

(Ultra HD

Video)

Supported Video

Up to 1080p, 60 Hz, 36 bits, 3D (data rates lower than 5.3 Gbps or below 225MHz

TMDS clock)

4K2K, 30Hz video formats

9. ACRONYMS

ACRONYM

4Kx2K

COMPLETE TERM

3840x2160 / 4096x2160

DTS

EDID

HDCP

HDMI

HDTV

Digital Theater System

Extended Display Identification Data

High-Definition Multimedia Interface

High-Definition Television

High-bandwidth Digital Content Protection

DRAFT

8
