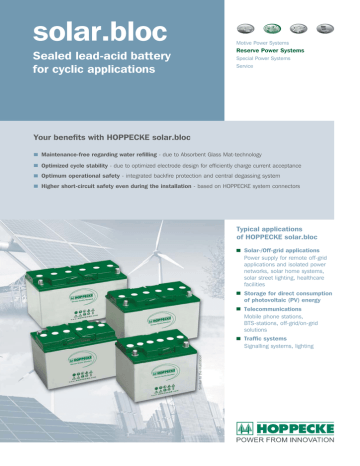

solar.bloc
Motive Power Systems
Reserve Power Systems
Sealed lead-acid battery
for cyclic applications
Special Power Systems
Service
Your benefits with HOPPECKE solar.bloc
■
Maintenance-free regarding water refilling - due to Absorbent Glass Mat-technology
■
Optimized cycle stability - due to optimized electrode design for efficiently charge current acceptance
■
Optimum operational safety - integrated backfire protection and central degassing system
■
Higher short-circuit safety even during the installation - based on HOPPECKE system connectors
Similar to the illustration
Typical applications
of HOPPECKE solar.bloc
■
Solar-/Off-grid applications
Power supply for remote off-grid
applications and isolated power
networks, solar home systems,
solar street lighting, healthcare
facilities
■
Storage for direct consumption
of photovoltaic (PV) energy
■
Telecommunications
Mobile phone stations,
BTS-stations, off-grid/on-grid
solutions
■
Traffic systems
Signalling systems, lighting
solar.bloc
Type overview
Height H Weight Connection Handle Terminal layout
mm
kg
190
19.00
A-Terminal
yes
B
190
23.00
A-Terminal
yes
B
190
24.00
A-Terminal
yes
B
190
28.00
A-Terminal
yes
B
230
38.00
F-M8
no
A
275
46.00
F-M8
no
A
230
55.00
F-M8
no
A
275
32.00
F-M8
no
C
275
41.00
F-M8
no
C
C100, C48, C24 and C10 = Capacity at 100 h, 48 h, 24 h and 10 h discharge
Service life in cycles and Depth of Discharge
4000
Number of cycles [n]
3500
3000
Connection and torque
2500
A-Terminal
2000
F-M8
1500
1000
500
0
0
10
20
30
40
50
60
70
80
90
8 Nm
Depth of Discharge [%]
20 Nm
solar.bloc 12 V 58 - 6 V 250
solar.bloc 12 V 105
solar.bloc 12 V 135
solar.bloc 12 V 150
C
solar.bloc 12 V 58
solar.bloc 12 V 70
solar.bloc 12 V 80
solar.bloc 12 V 90
solar.bloc 6 V 200
solar.bloc 6 V 250
Optimal environmental compatibility - closed loop for recovery of materials in an accredited recycling system.
IEC 60896-21
IEC 61427
HOPPECKE Batterien GmbH & Co. KG
P.O. Box 1140 · D-59914 Brilon · Germany
Bontkirchener Straße 1 · D-59929 Brilon-Hoppecke
Phone: + 49 (0) 29 63 61-3 74
Fax:
+ 49 (0) 29 63 61-2 70
Email: [email protected]
Internet: www.hoppecke.com
W
B
W
A
W
Terminal layout
Printed in Germany
solar.bloc 12 V 58
solar.bloc 12 V 70
solar.bloc 12 V 80
solar.bloc 12 V 90
solar.bloc 12 V 105
solar.bloc 12 V 135
solar.bloc 12 V 150
solar.bloc 6 V 200
solar.bloc 6 V 250
Width W
mm
175
175
175
175
177
170
177
170
170
Form solar.bloc EN/12.10/2 K
C100/1.85 V C48/1.80 V C24/1.80 V C10/1.80 V Length L
Ah
Ah
Ah
Ah
mm
58.3
54.0
53.3
50.0
247
70.0
64.8
64.0
60.0
278
81.7
75.6
74.6
70.0
315
93.3
86.4
85.3
80.0
353
105.0
97.2
95.9
90.0
344
134.2
124.2
122.6
115.0
344
151.7
140.4
138.6
130.0
498
198.3
183.6
181.2
170.0
242
251.0
237.0
234.0
220.0
308
Type
All details in this brochure are based on state-of-the-art technology. Our products are subject to constant development. We therefore reserve the right to make changes.
Capacities, dimensions and weights
