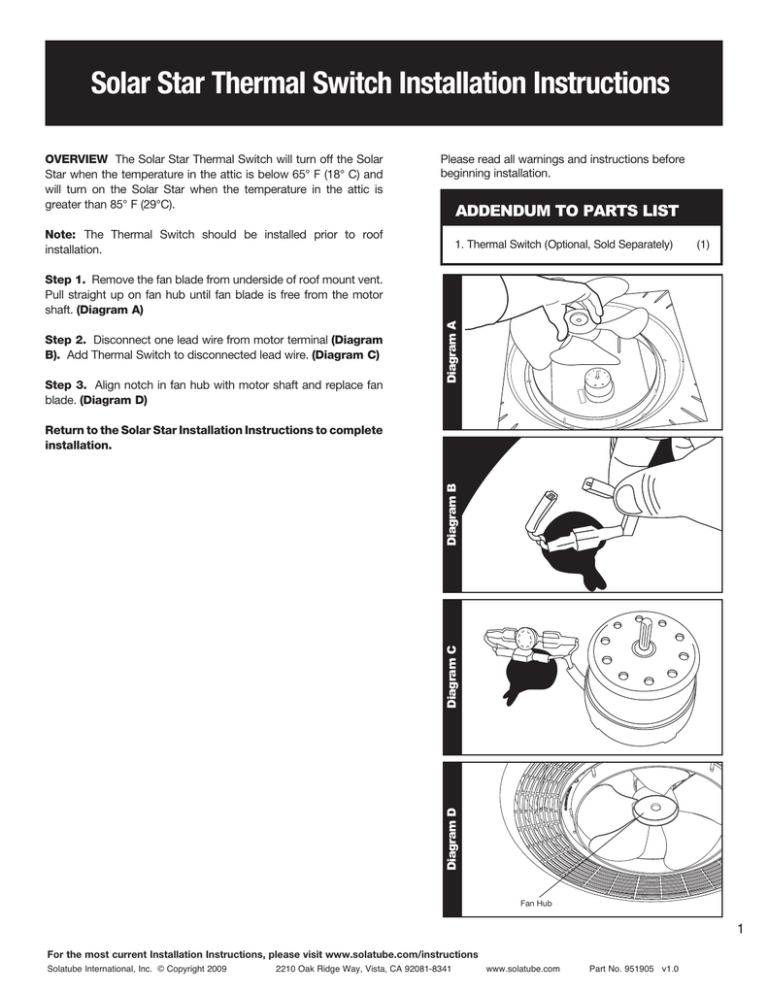

Thermal Switch Manual
Solar Star Thermal Switch Installation Instructions
OVERVIEW The Solar Star Thermal Switch will turn off the Solar
Star when the temperature in the attic is below 65° F (18° C) and
will turn on the Solar Star when the temperature in the attic is
greater than 85° F (29°C).
Please read all warnings and instructions before
beginning installation.
ADDENDUM TO PARTS LIST
Note: The Thermal Switch should be installed prior to roof
installation.
1. Thermal Switch (Optional, Sold Separately) (1)
Step 2. Disconnect one lead wire from motor terminal (Diagram
B). Add Thermal Switch to disconnected lead wire. (Diagram C)
Step 3. Align notch in fan hub with motor shaft and replace fan
blade. (Diagram D)
Diagram A
Step 1. Remove the fan blade from underside of roof mount vent.
Pull straight up on fan hub until fan blade is free from the motor
shaft. (Diagram A)
Diagram D
Diagram C
Diagram B
Return to the Solar Star Installation Instructions to complete
installation.
Fan Hub
1
For the most current Installation Instructions, please visit www.solatube.com/instructions
Solatube International, Inc. © Copyright 2009
2210 Oak Ridge Way, Vista, CA 92081-8341
www.solatube.com
Part No. 951905 v1.0
