Mobile Media Station with Competition-Level Quality
Synes godt om
0
Where to Buy
Print

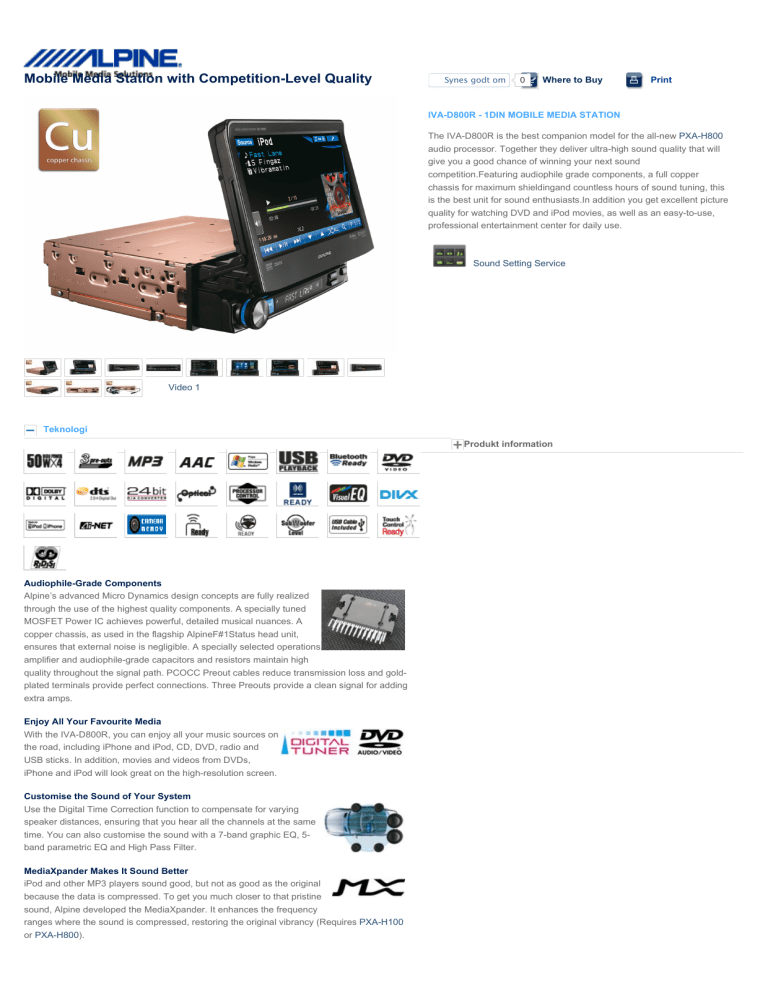

IVA-D800R - 1DIN MOBILE MEDIA STATION
The IVA-D800R is the best companion model for the all-new PXA-H800
audio processor. Together they deliver ultra-high sound quality that will
give you a good chance of winning your next sound
competition.Featuring audiophile grade components, a full copper
chassis for maximum shieldingand countless hours of sound tuning, this
is the best unit for sound enthusiasts.In addition you get excellent picture
quality for watching DVD and iPod movies, as well as an easy-to-use,
professional entertainment center for daily use.
Sound Setting Service
Video 1
Teknologi
Produkt information
Audiophile-Grade Components
Alpine’s advanced Micro Dynamics design concepts are fully realized
through the use of the highest quality components. A specially tuned
MOSFET Power IC achieves powerful, detailed musical nuances. A
copper chassis, as used in the flagship AlpineF#1Status head unit,
ensures that external noise is negligible. A specially selected operations
amplifier and audiophile-grade capacitors and resistors maintain high
quality throughout the signal path. PCOCC Preout cables reduce transmission loss and goldplated terminals provide perfect connections. Three Preouts provide a clean signal for adding
extra amps.
Enjoy All Your Favourite Media
With the IVA-D800R, you can enjoy all your music sources on
the road, including iPhone and iPod, CD, DVD, radio and
USB sticks. In addition, movies and videos from DVDs,
iPhone and iPod will look great on the high-resolution screen.
Customise the Sound of Your System
Use the Digital Time Correction function to compensate for varying
speaker distances, ensuring that you hear all the channels at the same
time. You can also customise the sound with a 7-band graphic EQ, 5band parametric EQ and High Pass Filter.
MediaXpander Makes It Sound Better
iPod and other MP3 players sound good, but not as good as the original
because the data is compressed. To get you much closer to that pristine
sound, Alpine developed the MediaXpander. It enhances the frequency
ranges where the sound is compressed, restoring the original vibrancy (Requires PXA-H100
or PXA-H800).
Best Companion for PXA-H800
As described on the following two pages, the
PXA-H800 gives you both superb sound
quality and extensive sound tuning
capabilities. The IVA-D800R is the perfect
model to match it with, due to its digital
outputs for Dolby and DTS surround sound,
and the full control capability it gives you. You
can even store individual MediaXpander settings for each source, so you don’t
have to re-adjust each time you switch sources.
Upgrade with Parrot Bluetooth
If you have a Bluetooth-enabled phone, you’ll want to
add the KCE-400BT or KCE-250BT to your system.
Compatible with many phones, they allow hands-free
operation, phonebook downloading, and A2DP AV
streaming (KCE-400BT). You also get the advantage
of Parrot software updates for new phones.
USB Connectivity
The USB port allows you to connect your USB sticks or hard
discs to easily select and enjoy your entire music library. A
great way to expand your system is to connect your iPod or
iPhone via the KCU-451iV iPod cable (including video playback). While you
connect your iPod to the USB port you're also able to upgrade your Mobile Media
Station with an advanced USB video interface KCE-635UB including allowing
Direct Touch control. It lets you connect USB sticks and portable HDD units,
provides a cool looking, easy-to-use interface to enjoy the variety of your files.
Funktioner og specifikationer
FEATURES
Tuner
Memory Presets: 6 stations/band; FM-1, FM-2, FM-3, MW and LW
Memory: Auto Memory
Seek Mode: Local/DX Selection/Manual
RDS
RDS Functions: TA, TP, PTY, NEWS, RADIO TEXT, EON, AF
Bluetooth®
Parrot Bluetooth Ready
Alpine KCE-400BT / KCE-250BT Required. Features may differ between phone model
and service providers.
Hands Free Calling
Phone Book Transfer
Streaming Music Playback (use with KCE-400BT)
Streaming Music Control (use with KCE-400BT)
Steering Wheel Remote Control Ready: Call starts and Call finishes (Adapter Required )
Connection for iPod®
Made for iPod and iPhone
Connection Type: USB Connection
Connection: iPod Adapter with Video (requires KCU-451iV)
M.I.X. (Shuffle) Capability: Songs, Albums, All
Music Control: Song Up / Down for Playlist, Artist, Genre, Composer, Episode
Video Playback
Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook
Percentage Search
Alphabet Skip Function
Information Display: Album Artwork, Song, Title, Album
Disc Player
Disc Type: CD / DVD Player
Disc Playback Type: Type CD/CD-R/CD-RW/DVD-R/-RW/VR
Compressed Media Playback: Divx/MP3/WMA/AAC Playback
24-Bit Burr-Brown DAC
Zero data Mute
Digital Servo
Music Sensor Scan/Repeat
Playback Control: Play/Pause/Forward/Backward
M.I.X. Mode: One (Folder) /All (Random Play) /Random (CD Only)
USB Media Connection
2.0m USB Cable Included
Music Playback: MP3/AAC/WMA Playback
Banking: Max. 20 banks (20,000 songs)
MTP Ready: Search music by: Album, Artist, Song, Playlist, Genre, Composer, Folder,
File and Alphabet Skip
Sound Tuning
Audiophile Grade Parts, Components and RCA plugs
Copper chassis for maximum shielding
Subwoofer Level Adjustment
High Pass Filter Adjustment (Front/Rear)
MultEQ Ready (PXA-H100 Required)
Imprint EQ Ready (PXA-H800 Required)
MediaXpander (1, 2, 3, OFF)
6-Channel Digital Time Correction
5 Band Graphic or 7 Band Parametric Equalizer
CD/DVD Changer Control
M.I.X.: One/All (Shuffle)
Music Text Information: CD: Text Scroll Display, MP3:Text Information Display (ID3 Tag)
Music Control: Play/Pause/Forward/Backward
Repeat: Song/Disc
General
Power Output: 4 x 50W (MOSFET Power IC)
Display: 7” WVGA Touch Screen Display
Illumination Buttons: Dual Illumination (Blue/Red)
4 On-screen Color Schemes Selectable
3 PreOuts (2V Front/Rear/Subwoofer) with PCOCC Cables and 1 AV Output
1 AV Input
Digital Optical Output (Requires KWE-610A)
Steering Wheel Remote Control Ready (Adapter Required)
DIN Trim Plate
Detachable Face Plate
Remote Control Ready
Navi RGB Connection
Rear Camera Inputs: Direct/RCA
4 Visual EQ Modes: OFF/Night Movie/Soft/Sharp/Contrast
SPECIFICATIONS
Max Power Output Ratings
Max Power Output: 4 x 50 W
FM Tuner
Tuning Range: 87.5-108.0 MHz
Mono Usable Sensitivity: 8.1 dBf (0.7µV/75 Ohms)
50dB Quieting Sensitivity: 12 dBf (1.1µV/75 Ohms)
Alternate Channel Selectivity: 80.0 dB
Signal-to-Noise (S/N) Ratio: 65.0 dB
Stereo Separation: 35.0 dB
Capture Ratio: 2.0 dB
MW Tuner
Tuning Range: 531-1,602 kHz
Usable Sensitivity (IEC Standard): 25.1/28.0 (µV/dB)
LW Tuner
Tuning Range: 153-281kHz
Usable Sensitivity (IEC Standard): 31.6/30.0 (µV/dB)
Connection for USB
USB Requirements: 1.1/2.0
Max. Power Consumption: 500 mA
USB Class: Mass Storage
File System: FAT 12/16/32
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: ACC-LC format “m4a” files
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5-20 k ±1 dB (Frequency Response may differ
depending on the encoder software and bitrate)
Total Harmonic Distortion: 0.008% (at 1 kHz)
Dynamic Range: 95 dB (at 1 kHz)
Signal-to-Noise Ratio: 105 dB
Channel Separation: 85 dB (at 1 kHz)
Disc Player
Frequency Response: 5-20 k ±1 dB
Channel Separation (1kHz): 85dB
Dynamic Range (1kHz): 95 dB
Total Harmonic Distortion (THD): 0.008% (at 1 kHz)
Wow & Flutter (%WRMS): B.M.L.
Audio Signal-to-Noise (S/N): 105 dB
Signal System: NTSC / PAL
Horizontal Resolution: 500 lines or greater
Video Output Level: 1Vp-p (75 Ohms)
Video Signal-to-Noise (S/N): DVD: 60 dB
Sound Tuning
Subwoofer Level Adjustment: 0 to 15
High Pass Filter: OFF/60/80/100Hz, -12dB/oct (Selectable). Front & Rear
individually selectable
MediaXpander Modes: CD, MP3, (Level 1, 2, 3, Off), DVD Video (Level 1, 2,
Off), DVD Music (Level 1, Off). Requires PXA-H100 or PXA-H800.
6-Channel Time Correction: (L-F/R-F/L-R/R-R/L-SW/R-SW) 0.1 ms steps
Equalizer: 5 Band Parametric EQ (63Hz - 17.5KHz, 1/3 oct. Steps), Adjustable
level: -6 to +6 dB, Adjustable bandwidth: 1/2/3/4, or 7 Band Graphic EQ
Adjustble output level: -6 to +6dB
Remote Control
Remote Control Ready
Model Number: RUE-4202
Dimensions
DIN Size: 1DIN
Chassis Size (W x H x D) mm: 178 mm x 50 mm x 165 mm
Nose Piece Size (W x H x D) mm: 170 mm x 34.8 mm x 25 mm
General
Power Requirement: 14.4 (11-16) V.DC
Power Consumption: 2A
Operating Temperature (°C): 0°C to +45°C
Maximum Mounting Angle: 30° from Horizontal
Weight: 2.7 kg
Recommended Accessories
System Integration Audio Processor PXA-H800
Optical digital adapter cable KWE-610A
Navigation Module NVE-M300P
Advanced Multimedia Interface KCE-635UB
Bluetooth Interface KCE-400BT
Bluetooth Interface KCE-250BT
IMPRINT Audio Processor PXA-H100
iPod/iPhone Adapter KCU-451iV
Reversing Camera HCE-C117D
Front View Camera HCE-C212F
ACTIVE VIEWTM CAMERA SYSTEM HCE-C300R
Mobile Digital TV Receiver TUE-T150DV
Remote Control RUE-4202
Remote Control RUE-4191
