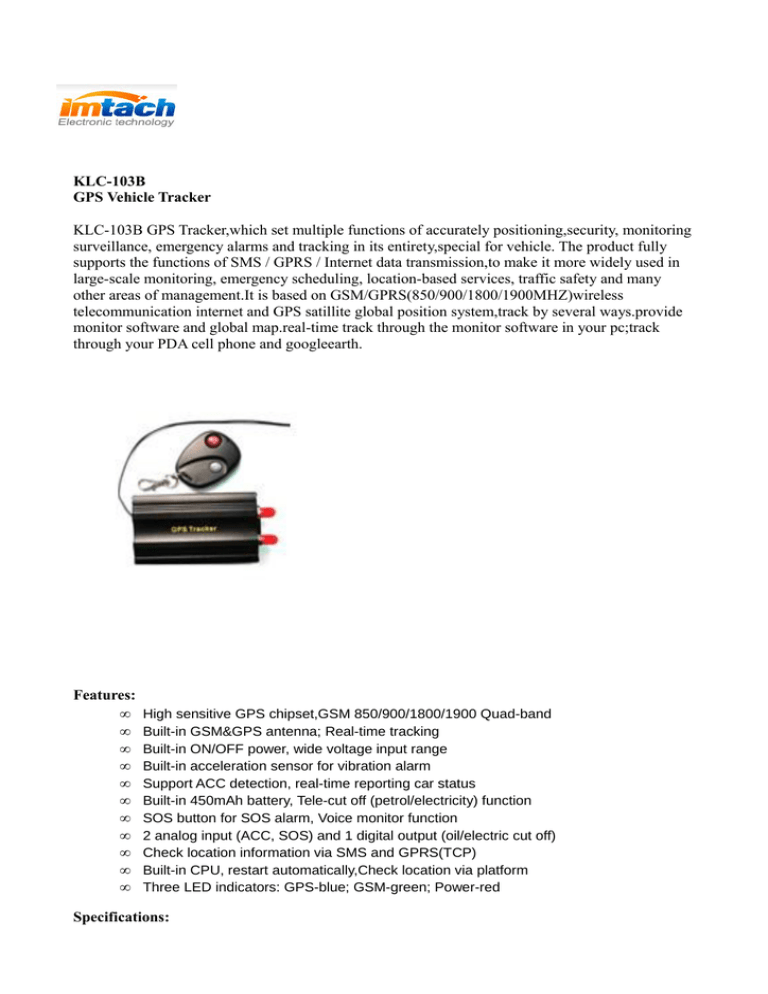

KLC-103B
KLC-103B
GPS Vehicle Tracker
KLC-103B GPS Tracker,which set multiple functions of accurately positioning,security, monitoring
surveillance, emergency alarms and tracking in its entirety,special for vehicle. The product fully
supports the functions of SMS / GPRS / Internet data transmission,to make it more widely used in
large-scale monitoring, emergency scheduling, location-based services, traffic safety and many
other areas of management.It is based on GSM/GPRS(850/900/1800/1900MHZ)wireless
telecommunication internet and GPS satillite global position system,track by several ways.provide
monitor software and global map.real-time track through the monitor software in your pc;track
through your PDA cell phone and googleearth.
Features:
•
•
•
•
•
•
•
•
•
•
•
High sensitive GPS chipset,GSM 850/900/1800/1900 Quad-band
Built-in GSM&GPS antenna; Real-time tracking
Built-in ON/OFF power, wide voltage input range
Built-in acceleration sensor for vibration alarm
Support ACC detection, real-time reporting car status
Built-in 450mAh battery, Tele-cut off (petrol/electricity) function
SOS button for SOS alarm, Voice monitor function
2 analog input (ACC, SOS) and 1 digital output (oil/electric cut off)
Check location information via SMS and GPRS(TCP)
Built-in CPU, restart automatically,Check location via platform
Three LED indicators: GPS-blue; GSM-green; Power-red
Specifications:
Content
GSM Frequenccy
GPS Chips
GPRS GPS Sensitivity GPS Accuracy GSM Accuracy GPS center frequency Reacquisition
Cold Status
Warm Status Hot Status
Battery
Standby time
Dimensions
Weight
Storage Temperature
Working Temperature
Humidity
Voltage Current
Stuandy Average current
Specification
850/900/1800/1900MHz
SIRF Star III
Class 12, TCP/IP build in GSM Module
-159dBm
5m
50-200m
L1, 1575.42MHz
0.1s
<45s
<35s
<1s
Chargeable 3.7V 800mAh Li-ion battery
5 Hours
83(L)x54(W)x26(H)mm
120g
-40° C to +85° C
-20°C--+65°C
5%---95%RH
7--30v DC
60mA(12v DC) --35mA(24v DC)
<80MA
