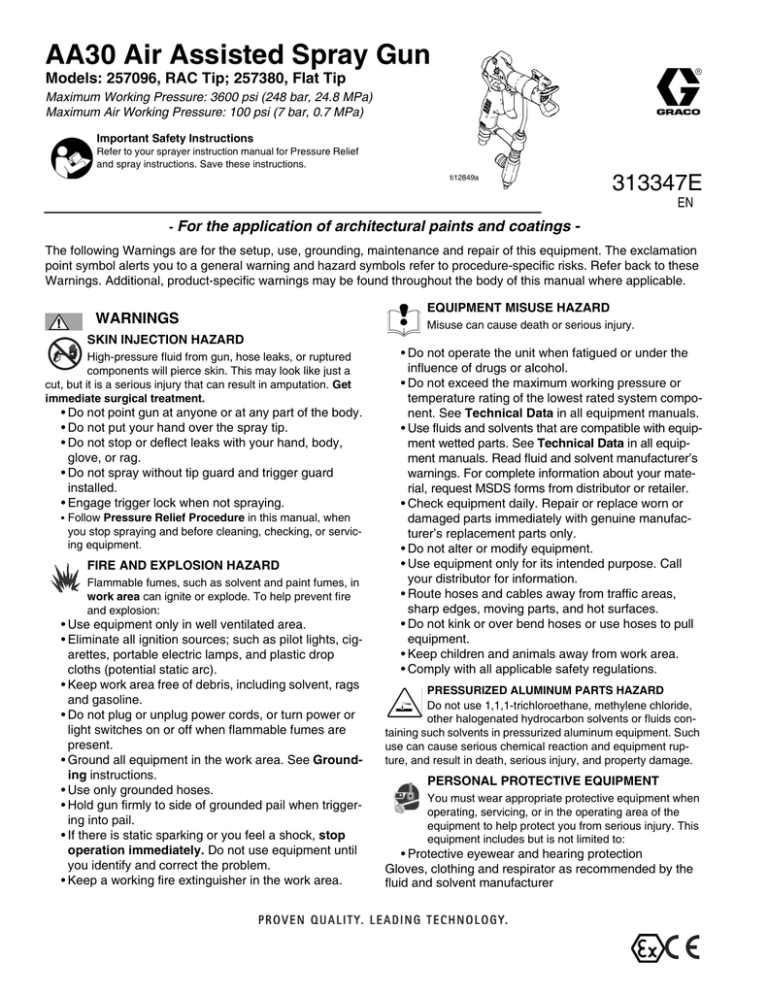

AA30 Air Assisted Spray Gun
Models: 257096, RAC Tip; 257380, Flat Tip
Maximum Working Pressure: 3600 psi (248 bar, 24.8 MPa)
Maximum Air Working Pressure: 100 psi (7 bar, 0.7 MPa)
Important Safety Instructions
Refer to your sprayer instruction manual for Pressure Relief
and spray instructions. Save these instructions.
ti12849a
313347E
EN
-
For the application of architectural paints and coatings -
The following Warnings are for the setup, use, grounding, maintenance and repair of this equipment. The exclamation
point symbol alerts you to a general warning and hazard symbols refer to procedure-specific risks. Refer back to these
Warnings. Additional, product-specific warnings may be found throughout the body of this manual where applicable.
WARNINGS
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured
components will pierce skin. This may look like just a
cut, but it is a serious injury that can result in amputation. Get
immediate surgical treatment.
• Do not point gun at anyone or at any part of the body.
• Do not put your hand over the spray tip.
• Do not stop or deflect leaks with your hand, body,
glove, or rag.
• Do not spray without tip guard and trigger guard
installed.
• Engage trigger lock when not spraying.
• Follow Pressure Relief Procedure in this manual, when
you stop spraying and before cleaning, checking, or servicing equipment.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in
work area can ignite or explode. To help prevent fire
and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop
cloths (potential static arc).
• Keep work area free of debris, including solvent, rags
and gasoline.
• Do not plug or unplug power cords, or turn power or
light switches on or off when flammable fumes are
present.
• Ground all equipment in the work area. See Grounding instructions.
• Use only grounded hoses.
• Hold gun firmly to side of grounded pail when triggering into pail.
• If there is static sparking or you feel a shock, stop
operation immediately. Do not use equipment until
you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the
influence of drugs or alcohol.
• Do not exceed the maximum working pressure or
temperature rating of the lowest rated system component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all equipment manuals. Read fluid and solvent manufacturer’s
warnings. For complete information about your material, request MSDS forms from distributor or retailer.
• Check equipment daily. Repair or replace worn or
damaged parts immediately with genuine manufacturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call
your distributor for information.
• Route hoses and cables away from traffic areas,
sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull
equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
PRESSURIZED ALUMINUM PARTS HAZARD
Do not use 1,1,1-trichloroethane, methylene chloride,
other halogenated hydrocarbon solvents or fluids containing such solvents in pressurized aluminum equipment. Such
use can cause serious chemical reaction and equipment rupture, and result in death, serious injury, and property damage.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when
operating, servicing, or in the operating area of the
equipment to help protect you from serious injury. This
equipment includes but is not limited to:
• Protective eyewear and hearing protection
Gloves, clothing and respirator as recommended by the
fluid and solvent manufacturer
Component Identification
Trigger Lock
WARNING
B
To prevent injury when gun is not in use, always set gun
trigger lock (A) if sprayer is turned off or left unattended.
A
(B)
(A)
C
D
ti10352a
ti10353a
H
G
E
Setup
WARNING
Make sure sprayer is turned off and unplugged from
power source. Refer to your sprayer instruction manual
for priming and spray instructions.
F
ti12849a
ID
Component
ID
Component
A
Trigger lock
E
Air on/off valve
Connect Gun to Sprayer
B
Spray Tip
F
Air hose connection
1. Attach air hose.
C
Safety RAC guard
G
Air adjustment valve
D
Trigger
H
Fluid hose connection
Pressure Relief Procedure
NOTE: The first time you set
up the gun for spraying you
will have to cut the black air
hose to length desired.
ti13317a
2. Attach fluid hose.
Follow this Pressure Relief Procedure whenever
instructed to relieve pressure, stop spraying, check or
service equipment, or install or clean spray tip.
1. Turn OFF power and turn sprayer pressure control to
lowest pressure setting.
3. See Setup instructions in
sprayer operation manual
(313316).
ti13318a
2. Hold gun against side of grounded metal flushing
pail. Trigger gun into pail to relieve pressure.
If you suspect spray tip or hose is clogged or that
pressure has not been fully relieved after following the
steps above, VERY SLOWLY loosen tip guard retaining
nut or hose end coupling to relieve pressure gradually,
then loosen completely. Clear hose or tip obstruction.
2
313347E
Operation
Tip and Guard on Gun
Setup
1. Prime sprayer. See manual 313316.
2. Slide air on/off valve on (up).
AA30 Gun with RAC Tip (257096)
1. Relieve pressure, page 2.
2. Insert seat housing (27)
into guard (29).
27a
3. Insert SwitchTip (28).
27b
ti8249a
4. Insert seal (27b) over
28
seat (27a) and insert in
seat housing (27). Use black seal for water-based
materials and orange for solvent and oil-based
materials.
NOTICE
If air cap is not fully installed on gun, fluid pressure
can force paint into air line and damage sprayer.
5. Install guard (6) over end of gun. Hand tighten firmly
to ensure a good seal.
6. Replace seat (33a) and/or retighten guard nut if you
notice fluid leaking from front of gun.
AA30 Gun with Flat Tip (257380)
1. Relieve pressure, page 2.
2. Insert spray tip into flat tip air
cap assembly. Insert spray tip
locating tab (A) into air cap
locating slot (B).
3. Install guard over end of gun.
Hand tighten firmly to ensure a
good seal.
ti13321a
4. Increase fluid pressure to
eliminate tails.
5. Decrease fluid pressure until
just before tails start to
appear.
A
ti13279a
ti13280a
6. Increase air pressure with air
adjustment valve to eliminate
tails.
7. Slide air on/off valve off
(down) when finished spraying
to save proper air pressure
setting.
ti13281a
Spray
B
ti13263a
Operation
Note: The following instructions are for guns used with
Graco FinishPro Sprayers. See the sprayer instruction
manual 313316. If you are using a different sprayer, see
your equipment instruction manual.
1. Unlock trigger lock.
2. Be sure the arrow shaped tip (B) faces forward
(spray) (257096).
3. Hold gun perpendicular and approximately 12 in.
(304 mm) from surface. Move gun first, then pull gun
trigger (D) to spray a test pattern.
4. Do not spray in an arc. This causes an uneven fluid
coat. Spray in a path parallel to the surface, with a
50% overlap, to obtain an even fluid coat.
RIGHT
313347E
ti12855a
3. Turn air adjustment valve off at
gun.
27
29
WRONG
3
Maintenance
Clearing RAC Tip Clogs (257096)
WARNING
1. Relieve pressure. Set trigger lock (A).
2. Rotate tip (B) 180°. Unlock trigger lock (A). Trigger
gun into pail or onto ground to remove clog.
3. Set trigger lock (A). Rotate tip (B) 180° back to spray
position.
Maintenance
Before performing any maintenance on gun, read all
warnings on front cover of this manual and relieve
pressure.
Daily Maintenance
Flush gun after each work shift and store in a dry location.
Do not immerse the gun or any parts in water or cleaning
solvents.
• Do not point gun up while cleaning it.
• Do not wipe gun with cloth soaked in solvent; wring
out excess.
• Solvent left in gun air passages could result in a poor
quality paint finish. Do not use any cleaning method
that may allow solvent into gun air passages.
Flushing and Cleaning
gun with solvent until all traces of fluid are removed
from gun passages.
6. Turn sprayer function selection switch to OFF.
7. Relieve pressure, page 2.
8. Disconnect fluid supply hose from gun.
9. If it is necessary to remove diffuser (5) to clean, follow
Needle Replacement Removal procedure, steps 1
through 6.
10. Dip soft-bristle brush into a compatible solvent. Do
not use a wire brush.
11. Point gun down, clean front of gun with soft-bristle
brush and solvent.
12. Scrub tip (28) and guard (29) with soft-bristle brush.
Clean air cap holes with a toothpick to avoid
damaging critical surfaces. Blow air through spray tip
(28) to ensure orifice is clean.
13. If diffuser (5) was removed, trigger gun while you
reinstall diffuser. Torque to 26-32 ft-lb (36-40 N•m).
When properly tightened, flange bottoms out on gun.
14. Install air cap manifold; follow Needle Replacement
Installation procedure, steps 9 - 13.
15. Install tip (28) and guard (29) on gun, page 2.
16. Wipe off outside of gun with soft cloth dampened in
solvent,
Cleaning/Replacing Filter (6)
1. Relieve pressure. Set trigger lock (11a).
• Flush gun before changing colors, before storing and before
repairing gun.
• Flush at lowest possible pressure. Check connectors for
leaks and tighten as necessary.
• Flush with fluid compatible with fluid being dispensed and
equipment wetted parts.
1. Relieve pressure. Unplug sprayer.
2. Remove tip (28) and guard (29).
3. Remove sprayer siphon tube set from paint and place
in flushing fluid. See Cleanup instructions in sprayer
operation manual 313316.
2. Disconnect fluid hose from gun at swivel (5).
3. Disconnect bracket (36) from retainer (16) and swivel
out of way.
4. Place a wrench on flats below handle and loosen
from gun.
5. Unscrew handle (14) from gun (1).
6. Remove filter (6) through top of handle (14).
7. Clean filter (6). Use a soft brush to loosen and
remove excess debris.
4. Plug sprayer in outlet. Set sprayer function selection
switch to AIRLESS or ON.
8. Insert clean filter (6) into handle (14).
5. Increase pressure slowly. Point gun down into
grounded metal container. Pull gun trigger and flush
10. Place a wrench on flats below handle and tighten
securely.
9. Reattach handle (14) to gun (1). Tighten securely.
11. Connect bracket (36) to retainer (16).
4
313347E
Needle Replacement
Needle Replacement
1
10
9
11a
3
8
5
26
15
11
ti12852a
Removal
Installation
1. Relieve pressure, page 2. Set trigger lock (11a).
1. Apply non-silicon grease to o-rings of new needle.
2. Disconnect air hose from gun.
2. Guide new needle (8), Parts, page 7, through front of
gun.
3. Disconnect bracket (36) from retainer (16) and swivel
bracket out of the way
4. Remove tip (28) and guard (29), Parts, page 7, from
air cap manifold (26).
5. Release trigger lock (11a). Squeeze trigger (11).
Remove set screw (39) at base of air cap manifold
(26). Unscrew air cap manifold from front of gun (26).
6. Squeeze trigger. Remove diffuser housing (3).
7. Remove locknut (10) and end cap (9).
8. Tap needle assembly (8), Parts, page 7, out, with
needle exiting through front of gun.
9. Use a soft brush to clean out internal passages of
gun.
3. Loosely install end cap (9) and locknut (10).
4. Grease threads of needle housing (3).
5. Squeeze trigger (11) and install diffuser (5). Torque
to 26-32 ft-lb (36-40 N•m).
6. Hold gun with nozzle facing up.
7. Turn locknut (10) clockwise until you see and feel
trigger (11) raise slightly.
8. Turn locknut (10) 3/4 turn counter-clockwise.
NOTE: Needle is properly adjusted when trigger moves
freely.
NOTICE
The end of the diffuser housing must be flush or
sticking out beyond the manifold in order to ensure a
proper seal.
9. Screw air cap manifold
(26) on until end of
manifold is flush with end
of diffuser housing (5).
ti12851a
313347E
5
Technical Data
10. If air tube is not in downward position, continue to
thread manifold until it is.
11. Connect bracket (36) to retainer (16).
Test Needle Installation
1. Prime sprayer. See sprayer instruction manual.
2. Trigger gun into bucket until fluid flows from gun.
12. Pull trigger (11) and install set screw (39). Torque set
screw to 10 - 12 in-lb (1,1 - 1,4 N•m).
3. Release trigger (11). Fluid flow stops immediately.
13. Install tip (28) and guard (29). Tighten securely.
4. Set trigger lock (11a).
14. Connect air hose.
5. Aim gun into bucket. Trigger gun. No fluid show flow.
6. If gun fails tests of steps 3 and/or 5, relieve pressure
and disconnect hose. Readjust needle. Repeat tests.
Technical Data
Maximum inlet fluid pressure
Maximum inlet air pressure
Air inlet
Fluid inlet
Sound levels per ISO 3744
Sound power level
Sound pressure level
3600 psi (24,8 MPa, 240 bar)
100 psi (0,7 MPa, 7 bar)
1/4 nps
1/4 nps
less than 65.0 dB(A)
less than 65.0 dB(A)
Wetted parts
Bare spray gun
stainless steel, aluminum
Translated Manuals
6
Bulgarian- 313371
Dutch - 313351
German - 313355
Latvian - 313359
Portuguese - 313363
Croatian - 313348
Estonian - 313352
Czech - 313349
Finnish - 313353
Danish - 313350
French - 313354
Slovenian - 313367
Greek - 313356
Lithuanian - 313360
Romanian - 313364
Spanish - 313368
Hungarian - 313357
Norwegian - 313361
Russian - 313365
Swedish - 313369
Italian - 313358
Polish - 313362
Slovakian - 313366
Turkish - 313370
313347E
Parts
Parts
8c
7
1
8d
12
26f
26e
8
9
3
13
8b
2
42
43
8a
26b
27
24
11
29
32e
26c
32d
31
32c
16
33
257526
257527
8a
8b
8c
8d
9
11
12
13
14
14a
14b
16
22
24
26
156766
115483
15W164
256963
177538
105334
257781
15W291
278003
122530
257783
257784
313347E
Description
HOUSING, fluid (plated)
SEAL, sleeve
HOUSING, needle
FILTER, gun, latex, 100 mesh
FILTER, gun, latex, 50 mesh
FILTER, gun, latex, 150 mesh
PIN, actuator
KIT, needle
GUN Model 257096 (includes 8a, 8b, 8c)
GUN Model 257380 (includes 8b, 8c, 8d)
HOUSING, diffuser, assembly
GASKET
NUT, lock
HOUSING, diffuser, assembly, flat
CAP, end
TRIGGER, gun, 2 finger, assembly
STUD, trigger
NUT, lock, hex
KIT, repair, handle AA30 (includes 14a, 14b)
HANDLE, gun
SWIVEL, gun
RETAINER, guard
HANDLE, gun
O-RING
KIT, repair, manifold
GUN Model 257096 (includes 26a, 26b, 26c,
26d)
GUN Model 257380 (includes 26c, 26d, 26e,
26f)
ti12853a
30
32b
7
8
44
32f
6
14b
47b
28
26d
32e
14a
Part
15W295
179733
195419
288750
288749
256975
115484
46
26a
22
Ref.
1
2✓
3
6✓
47a
32a
Qty.
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Ref. Part
Description
Qty.
26a
MANIFOLD, air cap, RAC
1
26b 120775 O-RING
1
26c 15W160 GASKET, tube
2
26d 111102 SCREW, set
1
26e
MANIFOLD, air cap, flat
1
26f
122486 O-RING
1
27
15J770 HOUSING, RAC
1
28✓ FFT210 TIP
1
29✓ 288465 GUARD, RAC, Alpha G40
1
31
257078 TUBE, air, assembly
1
32
257782 KIT, repair, valve, slide (includes 32a-32f)
32a
BODY, valve
1
32b
FITTING, adapter
1
32c
O-RING
1
32d
BRACKET, air tube
1
32e
O-RING
2
32f
SLEEVE, valve
1
33
288715 VALVE, swivel, ASM
1
42✓ AAM411 TIP, G15, G40
1
43
111116 O-RING, seat
1
44✓ 249256 TIP, guard
1
46
249180 AIR CAP
1
47
253032 AIR CAP Seal Kit (includes 47a, 47b)
47a 109213 PACKING, o-ring PTFE
1
47b 15G320 WASHER, PTFE
1
▲ Replacement Warning labels, tags, and cards are available at no
cost.
✓ Keep these spare parts on hand to reduce downtime.
7
Graco Standard Warranty
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material
and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by
Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be
defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco
component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with structures,
accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance of structures,
accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of the
claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned to the
original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made
at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to the
warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or the
furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of
Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite de
ou en rapport, directement ou indirectement, avec les procédures concernées.
ADDITIONAL WARRANTY COVERAGE
Graco does provide extended warranty and wear warranty for products described in the “Graco Contractor Equipment Warranty Program”.
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the nearest distributor.
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
For patent information, see www.graco.com/patents.
Original instructions. This manual contains English. MM 313347
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 2009 Graco Inc. is registered to ISO 9001
www.graco.com
Revised May/2013
8
313347E
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
