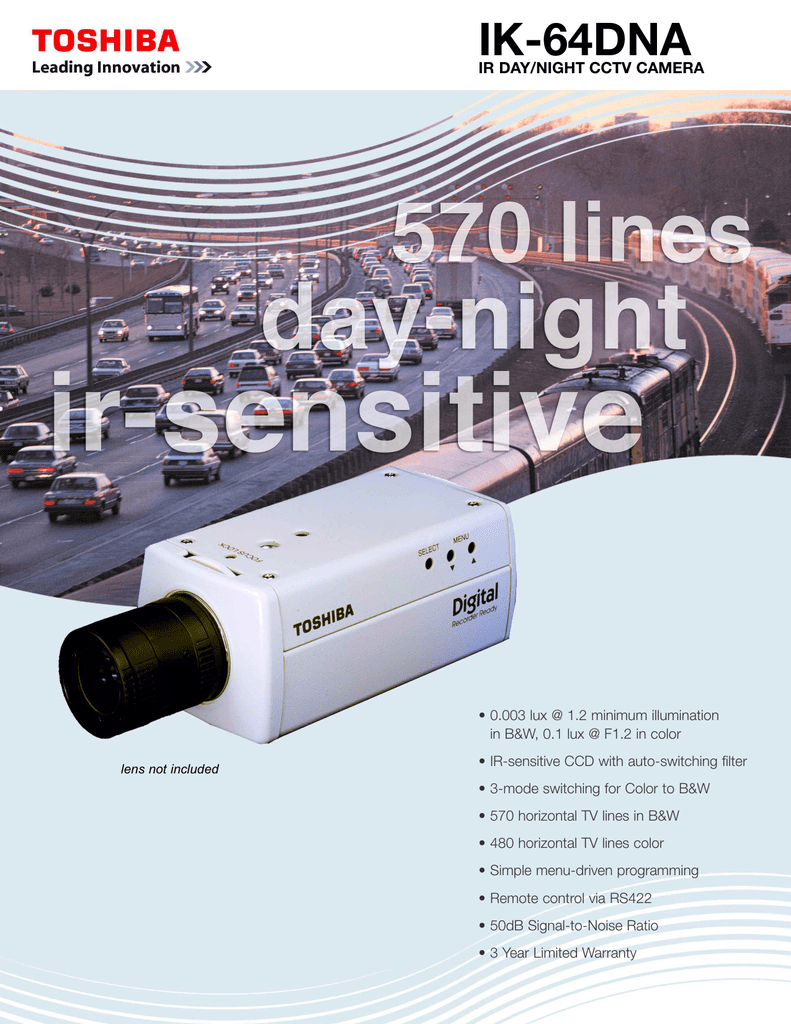

IK-64DNA Spec Sheet 2010

IK-64DNA
IR DAY/NIGHT CCTV CAMERA
• 0.003 lux @ 1.2 minimum illumination
in B&W, 0.1 lux @ F1.2 in color
lens not included
• IR-sensitive CCD with auto-switching filter
• 3-mode switching for Color to B&W
• 570 horizontal TV lines in B&W
• 480 horizontal TV lines color
• Simple menu-driven programming
• Remote control via RS422
• 50dB Signal-to-Noise Ratio
• 3 Year Limited Warranty
IK-64DNA
The Toshiba IK-64DNA’s CCD
has a sensitivity to IR light in
the 900 nm range.
IR DAY/NIGHT CCTV CAMERA
This advanced IR function plus the cam-
Pick-Up Element
I/3” IR Sensitive CCD
Effective Picture Elements
768 (H) x 494 (V)
Resolution
570 TVL Horizontal in Black and White;
era’s day-night mode makes it a cost-
480 TVL Horizontal in Color
Minimum Subject Illumination
effective solution for parking facilities,
warehouses, highways and other lowlight applications requiring sharp, highly
0.003 lux @ F1.2 Black and White;
detailed images day and night.
0.1 lux @ F1.2 in Color
AWB Range
2,500°K to 10,000°K, Manual
MAIN FEATURES
Lens Mount
CS
Communication Port
RS422 for remore control
•
•
•
•
•
•
•
•
•
Backlight Compensation
Four Mode BLC Function
S/N Ratio
50dB (AGC Off, Weight On)
Video Output
VBS 1V P-P (75 Ω)
Video Format
NTSC, 2:1 Interlace
Sync System
Line-Lock/Internal
Gamma Compensation
0.45 fixed
Auto Electric Shutter
ON (1/60 to 1/100,000), OFF (1/60)
Gain Control
Average AGC-STD (21dB), HIGH (30dB)
Ambient Temperature
14° F to 122° F, 90% Max Relative Humidity
Camera Mounting Method
1/4-inch x 20 Threaded Hole Provided
Day/night imaging
IR sensitive CCD
0.003 lux @ F=1.2 (b&w)
50 dB signal-to-noise
570 TVL black & white
480 TVL color
1/100,000 shutter speed
RS422
3 year limited warranty
(Top and Bottom)
Power Supply
AC 24V ±10%/60Hz ±1Hz, DC 12V±10%
Dimensions
2.48-inch(W) x 1.97-inch(H) x 4.57-inch(D)
Weight
21.2 ounces
Auto-Iris Lens Support
DC/Video Type
Day/Night Function
AUTO/Manual Adjustable threshold from
B/W to Color (LOW=4.5Lx, HIGH=7.5Lx)
Set Up Menu
Day/Night Function, Shutter Speed, Gain,
Sync, Backlight Compensation, Sharpness
Control, White Balance, Camera Number
Safety Standard
UL2044, CSA
Emission Standard
FCC/A, DOC/A
IK-64DNA IMAGING IN LOW LIGHT
APPLICATIONS
STEP ONE: Removable IR cut
filter adjusts either automatically
or by dry contact closure
(actual image)
STEP TWO: Camera switches
to black and white in low light
(actual image)
©2010 Toshiba America Information Systems, Inc. All rights reserved. All products and
names mentioned are the property of their respective owners. While Toshiba has made
every effort at the time of publication to ensure the accuracy of the information provided
herein, product specifications, configurations, prices, system/component/options availability are all subject to change without notice.
REV 4
STEP THREE: Add IR
Illuminator to enhance the
image (actual image)
Toshiba America Information Systems, Inc.
Surveillance & IP Video Products, Imaging Systems Division
9740 Irvine Boulevard, Irvine, California 92618
1-877-855-1349 • www.toshibasecurity.com
•
•
•
•
•
•
•
•
•
•
Parking lots
Public buildings
Warehouses
Loading docks
Outdoor parks
School grounds
Highways
Tollbooths
Retail malls
Government
