RGB Toppers

RGB Toppers

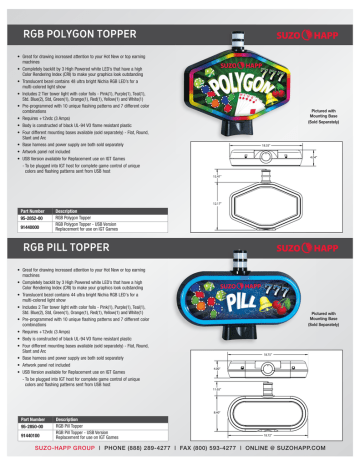

RGB POLYGON TOPPER

• Great for drawing increased attention to your Hot New or top earning machines

• Completely backlit by 3 High Powered white LED’s that have a high

Color Rendering Index (CRI) to make your graphics look outstanding

• Translucent bezel contains 48 ultra bright Nichia RGB LED’s for a multi-colored light show

• Includes 2 Tier tower light with color foils - Pink(1), Purple(1), Teal(1),

Std. Blue(2), Std, Green(1), Orange(1), Red(1), Yellow(1) and White(1)

• Pre-programmed with 10 unique flashing patterns and 7 different color combinations

• Requires +12vdc (3 Amps)

• Body is constructed of black UL-94 VO flame resistant plastic

• Four different mounting bases available (sold separately) - Flat, Round,

Slant and Arc

• Base harness and power supply are both sold separately

• Artwork panel not included

• USB Version available for Replacement use on IGT Games

- To be plugged into IGT host for complete game control of unique colors and flashing patterns sent from USB host

18.35”

Pictured with

Mounting Base

(Sold Separately)

4.04”

15.41”

12.17”

Part Number

95-2852-00

91440000

Description

RGB Polygon Topper

RGB Polygon Topper - USB Version

Replacement for use on IGT Games

RGB PILL TOPPER

• Great for drawing increased attention to your Hot New or top earning machines

• Completely backlit by 3 High Powered white LED’s that have a high

Color Rendering Index (CRI) to make your graphics look outstanding

• Translucent bezel contains 44 ultra bright Nichia RGB LED's for a multi-colored light show

• Includes 2 Tier tower light with color foils - Pink(1), Purple(1), Teal(1),

Std. Blue(2), Std, Green(1), Orange(1), Red(1), Yellow(1) and White(1)

• Pre-programmed with 10 unique flashing patterns and 7 different color combinations

• Requires +12vdc (3 Amps)

• Body is constructed of black UL-94 VO flame resistant plastic

• Four different mounting bases available (sold separately) - Flat, Round,

Slant and Arc

• Base harness and power supply are both sold separately

• Artwork panel not included

• USB Version available for Replacement use on IGT Games

- To be plugged into IGT host for complete game control of unique colors and flashing patterns sent from USB host

18.75”

Pictured with

Mounting Base

(Sold Separately)

4.00”

11.65”

8.40”

Part Number

95-2850-00

91440100

Description

RGB Pill Topper

RGB Pill Topper - USB Version

Replacement for use on IGT Games

18.72”

SUZO-HAPP GROUP | PHONE (888) 289-4277 | FAX (800) 593-4277 | ONLINE @ SUZOHAPP.COM

RGB OVAL TOPPER

• Great for drawing increased attention to your Hot New or top earning machines

• Completely backlit by 3 High Powered white LED’s that have a high

Color Rendering Index (CRI) to make your graphics look outstanding

• Translucent bezel contains 40 ultra bright Nichia RGB LED's for a multi-colored light show

• Includes 2 Tier tower light with color foils - Pink(1), Purple(1), Teal(1),

Std. Blue(2), Std, Green(1), Orange(1), Red (1), Yellow(1) and White(1)

• Pre-programmed with 10 unique flashing patterns and 7 different color combinations

• Requires +12vdc (3 Amps)

• Body is constructed of black UL-94 VO flame resistant plastic

• Four different mounting bases available (sold separately) - Flat, Round,

Slant and Arc

• Base harness and power supply are both sold separately

• Artwork panel not included

• USB Version available for Replacement use on IGT Games

- To be plugged into IGT host for complete game control of unique colors and flashing patterns sent from USB host

17.59”

4.00”

13.53”

10.24”

Part Number

95-2861-00

91440200

Description

RGB Oval Topper

Oval Topper - USB Version

Replacement for use on IGT Games

ACCESSORIES FOR RGB POLYGON, PILL & OVAL TOPPERS

Pictured with

Mounting Base

(Sold Separately)

Base Harness Power Supply

Part Number

95-2866-00

80-0071-00

Description

Base Harness for RGB Polygon, Pill and Oval Toppers

+12vdc 3A Power Supply with GSA 4-Pin Connector

For use with RGB Polygon, Pill and Oval Toppers, Flat

SUZO-HAPP GROUP | PHONE (888) 289-4277 | FAX (800) 593-4277 | ONLINE @ SUZOHAPP.COM

TOPPER BASES FOR RGB POLYGON, PILL & OVAL TOPPERS

TOPPER BASE, FLAT DIMENSIONS

M4 STUD 4 PLCS

3.74”

2.50”

M4 INSERT

4 PLCS

2.03”

1.10”

2.00”

.275

4 PLCS

2.00”

1.00”

1.25”

2.50”

MOUNTING PATTERN

3.38”

5.05”

TOPPER BASE, ROUND DIMENSIONS

3.74”

2.59”

M4 STUD 4 PLCS

2.20”

1.10”

3.35”

M4 INSERT

4 PLCS

2.00”

R11.19”

.275

4 PLCS

2.00

1.00

1.30

2.59

MOUNTING PATTERN

5.08”

TOPPER BASE, ARCH DIMENSIONS

3.74” 2.76”

M4 STUD 4 PLCS

1.10”

2.07”

3.34” 2.00”

R 20.58”

.275

4 PLCS

2.00

1.00

1.38

2.76

MOUNTING PATTERN

5.06”

TOPPER BASE, SLANT DIMENSIONS

M4 STUD 4 PLCS

3.74”

3.75”

M4 X 0.7MM PITCH

SELF CLINCHING

NUT - 4 PLCS

3.05”

1.10”

1.50”

3.45”

15.00°

.250

4 PLCS

1.50

.75

1.88

3.75

3.45”

5.21”

MOUNTING PATTERN

Part Number

95-2862-00

95-2863-00

95-2864-00

95-2865-00

Description

Topper Base for RGB Polygon, Pill and Oval Toppers, Flat

Topper Base for RGB Polygon, Pill and Oval Toppers, Round

Topper Base for RGB Polygon, Pill and Oval Toppers, Arch

Topper Base for RGB Polygon, Pill and Oval Toppers, Slant

SUZO-HAPP GROUP | PHONE (888) 289-4277 | FAX (800) 593-4277 | ONLINE @ SUZOHAPP.COM

RGB TOWER LIGHT TOPPER

• Designed to be mounted on top of any standard round classic tower light with the included special top mounting bracket

• Works on any standard round tower light that has a diameter between 1.98" (50.29mm) and 2.00" (50.29mm)

• Great for advertising special machine features such as Multi-Denomination, Ticket-In Ticket-Out,

Hot New Game, Server Based Gaming, etc.

• Translucent bezel with 20 ultra bright Nichia multi-color RGB LED’s provide light output for a elegant multi-colored lightshow

• Pre-Programmed with 8 unique flashing patterns and 7 different color combinations (104-08000)

• Alternative Solid color pattern version available (104-08000-AM)

• Backlit by 9 white high power Nichia LED’s

*Tower Light

NOT Included

• Operates on +12vdc power

• Comes with dual sized hex thumb nut that has English (6/32" Thread) and Metric (M4 Thread) for easy installation

• Several optional base/cap adapters make it easy to use on other styles of tower lights

- WMS Bluebird I (PR020-670-03)

- Aristocrat Veridian (95-2860-00)

- Bally Super Candle (95-0034-00)

• Optional power harness 11-2801-00 makes it easy to install on existing games by simply tapping into +12vdc and ground or simply use the power supply 80-0414-10 into the service outlet inside of machine

• Artwork panel and tower light are not included

• Durable flame retardant UL94 V0 ABS plastic housing

• Small in size: 7.64" W x 6.83" H x 2.34" D

Part Number

104-08000

Description

RGB Tower Light Topper with Standard Color Patterns

104-08000-AM

RGB Tower Light Topper with AM Color Patterns

PR020-670-03

RGB Tower Light Topper Base/Cap Adapter

For WMS Bluebird I Tower Light

95-2860-00

95-0034-00

RGB Tower Light Topper Base/Cap Adapter

For Aristocrat Veridian Tower Light

RGB Tower Light Topper Base/Cap Adapter

For Bally Super Candle

80-0414-10

11-2801-00

Power Supply, +12vdc 2.5A for RGB Tower Light Topper

Power Extension Harness Kit for RGB Tower Light Topper

STANDARD COLOR PATTERN

1

Red-Blue-White (Default)

2

Red-White-Green

3

Red-Yellow-White

4

Blue-White-Yellow

5

Blue-Purple-White

6

Green-Blue-Yellow

7

Blue-Red-Green

AM COLOR PATTERN

1

Red (Default)

2

Blue

3

Green

4

Yellow

5

Purple

6

Red-White

7

Blue-White

2.17”

6.42”

7.64”

2.35”

11-2801-00

80-0414-10

*Tower Lights NOT

Included

Adapter for WMS Bluebird I Tower Light

PR020-670-03

Adapter for Aristocrat Veridian

Tower Light

95-2860-00

Adapter for Bally Super Candle

95-0034-00

SUZO-HAPP GROUP | PHONE (888) 289-4277 | FAX (800) 593-4277 | ONLINE @ SUZOHAPP.COM

RGB TOPPER

Order number for RGB Topper:

104-06000

568-ID03-REV.A

Page 1 of 6

RGB TOPPER

568-ID03-REV.A

Toppers are supplied without tower light, base and artwork plate. There are various options for tower light and lease refer to General Catalogue for detail.

Page 2 of 6

RGB TOPPER

Drawing of front panel

568-ID03-REV.A

Page 3 of 6

RGB TOPPER

TOPPER A

SEE DETAIL A

TOPPER B

J4

J1 J2 J3 J4 J1 J2 J3 J4

WIRE CONNECTION

NO

J1

J2

J3

J4

WIRE COLOR

BLACK

YELLOW

WHITE

BLUE

ORANGE

BLACK

TINNED STRAP

BLACK

WHITE

DESCRIPTION

COMMON TOWERLIGHT

LAMP 2ND FROM BOTTOM

LAMP BOTTOM

LAMP 3TH FROM BOTTOM

POWER 12VDC

POWER GROUND

EARTH BONDING STRAP

GROUND

TXD/RXD

PIN

TOPPER

CONNECTOR TYPE

4

1

-

2

1

2

1

2

3

03-09-2049

03-09-2022

MACHINE

CONNECTOR TYPE

RING TERMINAL 4mm

IMPORTANT:1>SHUT-OFF THE POWER FROM THE HOST MACHINE UNTIL ANY

INSTALLATION WORK IS COMPLETED

2>POWER SUPPLY MUST BE 12VDC,2 AMP.

568-ID03-REV.A

Page 4 of 6

DETAIL A

RGB TOPPER

Setting colour for RGB Topper

You may select colours of flashing on the illumination cover out of the seven pre-set combination. Every time the COLOUR button on the main control board was triggered, the topper will switch to next colour set.

Seven colour sets were defined as follow:

1. Red - Blue - White (Default setting)

2. Green - White - Red

3. White - Yellow - Red

4. Yellow - White - Blue

5. Blue - Purple - White

6. Green - Blue - Yellow

7. Green - Red - Blue

Setting flashing pattern for RGB Topper

Once powered up,Topper will light up and cycle through seven preprogrammed flashing patterns. You can switch to next flashing pattern by pressing MODE button once.

Toppers connected in series

If Toppers are connected in series, you can perform above setting on any one of the toppers in series. Press MODE button once, all toppers in series will be synchronized in same colour set and flashing pattern.

568-ID03-REV.A

Page 5 of 6

Topper

Control

Board

RGB TOPPER

Ballast, 22-0138, used on RGB topper complies with UL and CE regulations.

You may search UL certificate information through website http://database.ul.com with with UL file no. E309359

Note: The specifications and information contained here are for quick reference only and

are subject to change without notice. For detail product specification, please refer to formal product documentation.

568-ID03-REV.A

Page 6 of 6
