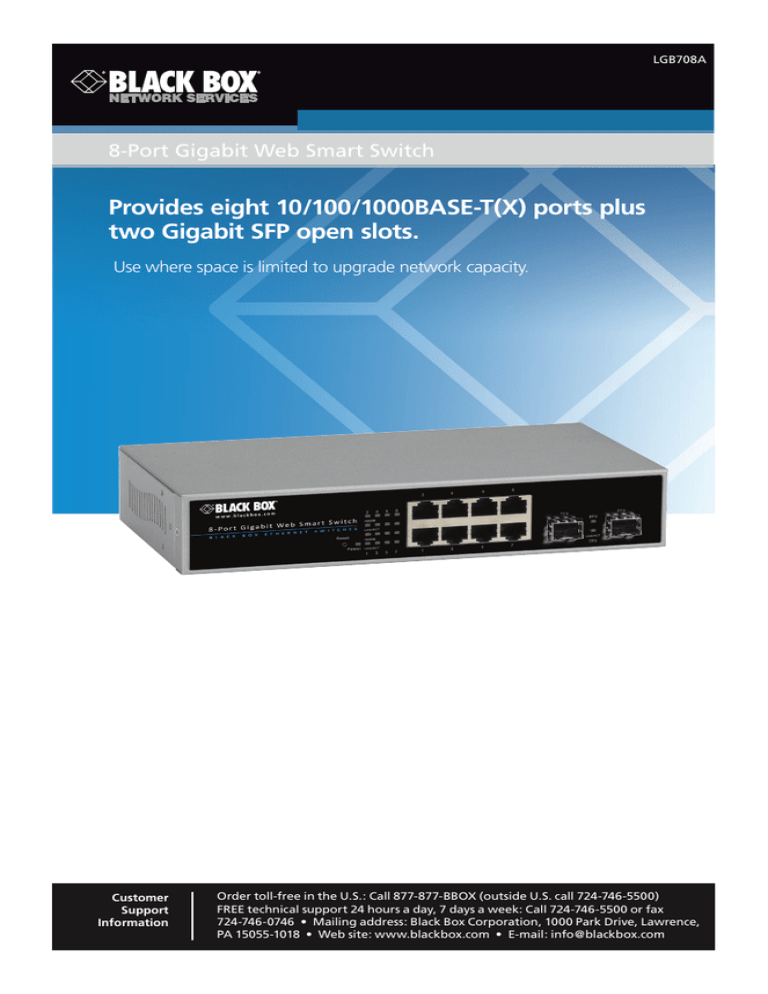

LGB708a_rev1

8-Port Gigabit Web Smart Switch

Provides eight 10/100/1000BASE-T(X) ports plus two Gigabit SFP open slots.

BLACK BOX

®

Use where space is limited to upgrade network capacity.

LGB708A

Customer

Support

Information

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax

724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,

PA 15055-1018 • Web site: www.blackbox.com • E-mail: [email protected]

FCC and IC RFI Statements/NOM Statement

FEDERAL COMMUNICATIONS COMMISSION AND

INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter ference to radio communication.

It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emis sion from digital apparatus set out in the Radio Interference Regulation of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le

Règlement sur le brouillage radioélectrique publié par Industrie Canada.

Normas Oficiales Mexicanas (NOM)

Electrical Safety Statement

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes

de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia

futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación

deben ser respetadas.

Page 2 724-746-5500 | blackbox.com

NOM Statement

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,

cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,

etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales

que sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá

lo descrito en las instrucciones de operación. Todo otro servicio deberá ser

referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,

alfombra o superficie similar puede bloquea la ventilación, no se debe

colocar en libreros o gabinetes que impidan el flujo de aire por los orificios

de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del

tipo descrito en el instructivo de operación, o como se indique en el

aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la

polarización del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen

del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las

lineas de energia.

724-746-5500 | blackbox.com

Page 3

NOM Statement

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea

usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

Page 4 724-746-5500 | blackbox.com

Trademarks Used in this Manual

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks of

BB Technologies, Inc.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

724-746-5500 | blackbox.com

Page 5

Table of Contents

Table of Contents

1. Specifications ..............................................................................................7

2. Overview ..............................................................................................8

2.1 Introduction .......................................................................................8

2.2 Web Management Features ..............................................................8

2.3 What’s Included .................................................................................9

2.4 Hardware Description ........................................................................9

2.4.1 Front Panel .............................................................................9

2.4.2 Rear Panel ............................................................................10

3. Hardware Installation ................................................................................11

4. Software Description .................................................................................12

4.1 Configuration ...................................................................................13

4.1.1 System .................................................................................13

4.1.2 Ports ....................................................................................15

4.1.3 VLAN ...................................................................................18

4.1.4 Aggregation .........................................................................21

4.1.5 LACP ................................................................................... 22

4.1.6 RSTP .................................................................................... 23

4.1.7 802.1x ..................................................................................26

4.1.8 IGMP Snooping ................................................................... 30

4.1.9 Mirroring ..............................................................................31

4.1.10 QoS ......................................................................................33

4.1.11 Storm Control ......................................................................37

4.2 Monitoring ...................................................................................... 38

4.2.1 Statistics Overview .............................................................. 38

4.2.2 Detailed Statistics ................................................................ 39

4.2.3 LACP Status ........................................................................ 39

4.2.4 RSTP Status ..........................................................................41

4.2.5 IGMP Status .........................................................................42

4.2.6 VeriPHY ................................................................................43

4.2.7 Ping ......................................................................................45

5. Maintenance ........................................................................................... 49

5.1 Warm Restart.................................................................................. 49

5.2 Factory Default ............................................................................... 49

5.3 Software Upload............................................................................. 49

5.4 Configuration File Transfer .............................................................. 50

5.5 Logout ........................................................................................... 50

Page 6 724-746-5500 | blackbox.com

Chapter 1: Specifications

1. Specifications

Buffer Memory — 176 KB

Jumbo Frames — 9.6 K

MAC Addresses — 8 K

Standards — IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.ab

1000BASE-T, IEEE 802.3z 1000BASE-SX/LX, IEEE 802.3x flow control, IEEE 802.1x port-based network access control, IEEE 802.1Q VLAN tagging, IEEE 802.3ad port aggregation, IEEE 802.1d spanning tree protocol, IEEE 802.1w rapid spanning tree protocol, IEEE 802.1p class of service, priority protocols

Transmission Method — Store-and-Forward

Connectors — (8) RJ-45 10/100/1000BASE-T(X), (2) Gigabit SFP open slots

Indicators — (17) LEDs: Per port: (1) Link/Act LED, (1) 1000M LED;

Per unit: (1) Power LED

Power — 100–240 VAC, 50–60 Hz;

Consumption: 12 watts (max.)

Size — 1.7"H x 4.9"W x 8.9"D (4.4 x 12.4 x 22.8 cm)

Weight — 2.1 lb. (0.95 kg)

724-746-5500 | blackbox.com

Page 7

Chapter 2: Overview

2. Overview

2.1 Introduction

The LGB708A switch has eight 10/100/1000BASE-T(X) ports plus two Gigabit SFP open slots. It’s easy to install and performs well in an environment where traffic is on the network and the number of users increases continuously. The compact desktop size was specifically designed for small to medium workgroups. It can be installed where space is limited; plus, it provides smooth network migration and easy upgrade to network capacity.

In addition, the switch features QoS (Quality of Service), Spanning Tree, VLAN,

Port Trunking, Port Security, and IGMP Snooping capability via the intelligent software. Use it for both metro-LAN and office applications.

2.2 Web Management Features

• Configuration

- System

- Ports

- VLANs

- Aggregation

- LACP

- RSTP

- 802.1X

- IGMP Snooping

- Mirroring

- Quality of Service

- Storm Control

• Monitoring

- Statistics Overview

- Detailed Statistics

- LACP Status

- RSTP Status

- IGMP Status

Page 8 724-746-5500 | blackbox.com

Chapter 2: Overview

- VeriPHY

- Ping

• Maintenance

- Warm Restart

- Factory Default

- Software Upload

- Configuration File Transfer

- Logout

2.3 What’s Included

Your package should contain the following items. If anything is missing or damaged, contact Black Box Technical Support at 724-746-5500 or [email protected]

• (1) 8-Port Gigabit Web Smart Switch

• (1) power cord

• This user’s manual on CD-ROM

2.4 Hardware Description

Figures 2-1 and 2-2 show the front and back panels of the the switch. Table 2-1 describes its components.

2.4.1 Front Panel

The front panel of the Web Smart Switch consists of eight Gigabit RJ-45 ports with two Gigabit SFP open slots. The LED indicators are also located on the front panel.

4, 5

6 3

1 2 4, 5 6 7 3 7

Figure 2-1. Front panel.

724-746-5500 | blackbox.com

Page 9

Chapter 2: Overview

2.4.2 Rear Panel

The three-prong power plug is on the rear panel of the switch, right side shown

(see Figure 2-2).

8 9

2

3

4

5

6

7

8

9

Number Component

1 Reset button

Power LED

(8) RJ-45 ports

(2) SFP open slots

On/off switch

Three-prong plug

Figure 2-2. Back panel.

Table 2-1. The switch’s components.

7 FX/8 FX Link LEDs

1000M Ports 1–8 LEDs

Link/Act Ports 1–8 LEDs

Status

On

Off

On

Off

On

Description

Press to reset the unit.

Power is on.

Power is off.

SFP module is connected.

SFP module is disconnected.

Gigabit link is connected.

On 10/100/1000 Link is connected

Flashing Passing data

Links to devices or segments.

Holds SFP modules.

Turns the unit on or off.

Links to 100–240 VAC, 50-60 Hz, 1 A outlet

Page 10 724-746-5500 | blackbox.com

Chapter 3: Hardware Installation

3. Hardware Installation

Set the switch on a large flat space with a power socket nearby. The flat space should be clean, smooth, level, and sturdy. Make sure there is enough clearance around the switch to attach cables and power cord, and enable air circulation. Use twisted pair cable to connect this switch to your PC to enable you to configure the switch for your application.

724-746-5500 | blackbox.com

Page 11

Chapter 4: Software Description

4. Software Description

This chapter describes how to set up and manage the switch through the Web user interface.

1. First, open the Web browser, and go to the 192.168.2.1 site. You will see the login screen.

2. Type in the password, then click “Apply.” The login process completes and the

“Password successfully entered” message appears.

Login Password: admin

Figure 4-1. Password successfully entered screen.

After you login, the right side of the Web site displays all functions shown in

Figure 4-2.

Page 12 724-746-5500 | blackbox.com

Chapter 4: Software Description

Figure 4-2. Web functions.

4.1 Configuration

4.1.1 System Configuration

This page shows system configuration information. You can configure the information shown in Figure 4-3.

724-746-5500 | blackbox.com

Page 13

Chapter 4: Software Description

Page 14

Figure 4-3. System configuration screen.

724-746-5500 | blackbox.com

Chapter 4: Software Description

• MAC Address: Displays the unique hardware address assigned by the manufacturer (default).

• S/W Version: Displays the switch’s firmware version.

• H/W Version: Displays the switch’s hardware version.

• DHCP Enabled: Click the box to enable DHCP.

• Fallback IP address: Manually assign the IP address that the network is using.

The default IP is 192.168.2.1.

• Fallback Subnet Mask: Assign the subnet mask to the IP address.

• Fallback Gateway: Assign the network gateway for the switch. The default gateway is 0.0.0.0.

• Management VLAN: ID of a configured VLAN (1–4094) through which you can manage the switch. By default, all ports on the switch are members of VLAN 1.

However, if the management VLAN is changed, the management station must be attached to a port that belongs to this VLAN.

• Name: Type in the new user name (the default value is “admin”).

• Password: Type in the new password (the default value is “admin”).

• SNMP Enabled: Enables or disables SNMP on the switch. Supports SNMP version

1a nd 2c management clients.

• SNMP Trap Destination: IP address of the trap manager to receive notification messages from this switch. Traps indicating status changes are issued by the switch to specified trap managers. You must specify trap managers so that key events are reported by this switch to your management station.

• SNMP Read Community: A community string that acts like a password and permits access to the SNMP database on this switch. Authorized management stations are only able to retrieve MIB objects.

• SNMP Trap Community: Community string sent with the notification operation.

4.1.2 Ports

Port Security ensures access to a switch port based on MAC address. This limits the total number of devices that use a switch port and protects against MAC flooding attacks.

724-746-5500 | blackbox.com

Page 15

Chapter 4: Software Description

Port Configuration

In Port Configuration, you can set and view the operation mode for each port.

• Enable Jumbo Frames: This switch provides more efficient throughput for large sequential data transfers by supporting jumbo frames on Gigabit Ethernet ports up to 9.6 KB. Compared to standard Ethernet frames that run only up to 1.5 KB, using jumbo frames significantly reduces the per-packet overhead required to process protocol encapsulation fields.

• Power Saving Mode: Adjusts the power provided to ports based on the length of the cable used to connect to other devices. Only sufficient power is used to maintain connection requirements.

• Mode: Enables you to manually set the port speed such as Auto, 10-Mbps half-duplex, 10-Mbps full-duplex, 100-Mbps half-duplex, 100-Mbps full-duplex,

1000-Mbps full-duplex, or disabled. Press the “Apply” button to complete the configuration procedure.

Page 16 724-746-5500 | blackbox.com

Chapter 4: Software Description

Figure 4-4. Port configuration screen.

724-746-5500 | blackbox.com

Page 17

Chapter 4: Software Description

Figure 4-5. Select the port speed.

4.1.3 VLAN

A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which would allow you to isolate network traffic, so only the members of the same VLAN will receive traffic from the members of the same VLAN. Basically, creating a VLAN on a switch is logically equivalent to reconnecting a group of network devices to another Layer 2 switch. However, all the network devices are still plugged into the same switch physically.

Port Segmentation (VLAN) Configuration

• VLAN ID: ID of configured VLAN (1-4094, no leading zeroes).

• VLAN Configuration List: Lists all the current VLAN groups created for this system. Up to 16 VLAN groups can be defined. VLAN 1 is the default untagged

VLAN.

Page 18 724-746-5500 | blackbox.com

Chapter 4: Software Description

Figure 4-6. VLAN screen.

VLAN Setup

The switch supports up to 16 VLANs based on the 802.1Q standard. From the

VLAN Membership page, you can create and delete VLANs, and change the

VLAN port membership.

Figure 4-7. VLAN setup screen.

724-746-5500 | blackbox.com

Page 19

Chapter 4: Software Description

VLAN Per Port Configuration

The 802.1Q per-port configuration page enables you to change the VLAN parameters for individual ports or trunks. You can configure VLAN behavior for specific interfaces, including the accepted frame types and default VLAN identifier

(PVID). Each row of the table corresponds to one port or trunk; trunked ports cannot be configured individually—configure the trunk instead.

Figure 4-8. VLAN per-port configuration screen.

• Port/Trunk: The port number of the port or the ID of a trunk.

• VLAN Aware Enabled: VLAN aware ports are able to use VLAN tagged frames to determine the destination VLAN of a frame. (Default: Enabled)

• VLAN aware ports will strip the VLAN tag from received frames and insert the tag in transmitted frames (except for the PVID). VLAN unaware ports will not strip the tag from received frames or insert the tag in transmitted frames.

• Ingress Filtering Enabled: If enabled, incoming frames for VLANs that do not include this ingress port in their member set will be discarded. (Default:

Disabled)

Page 20 724-746-5500 | blackbox.com

Chapter 4: Software Description

• Packet Type: Sets the interface to accept all frame types, including tagged or untagged frames, or only tagged frames (Default: All). If the Packet Type is set to “All,” the port can accept incoming tagged and untagged packets. Any received packets that are untagged are assigned to the default VLAN. Any tagged packets will be dropped unless the port is a member of the VLAN identified by the VLAN tag in the packet. If the Packet Type is set to “Tagged

Only,” the port will drop untagged packets and will only receive tagged packets.

Tagged packets will be dropped unless the port is a member of the VLAN identified by the VLAN tag in the packet. Switches should be connected to each other with the Packet Type set to “Tagged Only.”

• PVID: The PVID (Port VLAN ID) is associated with untagged ingress packets. It is assigned to untagged frames received on the specified interface. The PVID has no effect on ports that have Packet Type set to “Tagged Only” (Default PVID:1).

You can’t remove a port from VLAN 1 unless its PVID has been changed to something other than 1. Outgoing packets are tagged unless the packet’s VLAN

ID is the same as the PVID. When the PVID is set to “None,” all outgoing packets are tagged.

NOTE: If you select “Tagged Only” mode for a port, we recommend setting the

PVID to “None” as the standard configuration.

4.1.4 Aggregation

Port trunk allows multiple links to be bundled together and act as a single physical link for increased throughput. It provides load balancing, and redundancy of links in a switched inter-network. Actually, the link does not have an inherent total bandwidth equal to the sum of its component physical links. Traffic in a trunk is distributed across an individual link within the trunk using a method called a hash algorithm. The hash algorithm automatically applies load balancing to the ports in the trunk. A port failure within the trunk group causes the network traffic to be directed to the remaining ports. Load balancing is maintained whenever a link in a trunk is lost or returned to service.

724-746-5500 | blackbox.com

Page 21

Chapter 4: Software Description

Aggregation/Trunking Configuration

To assign a port to a trunk, click the required trunk number, then click “Apply.”

Figure 4-9. Aggregate/trunking configuration screen.

4.1.5 LACP

IEEE 802.3ad Link Aggregation Control Protocol (LACP) increases bandwidth by automatically aggregating several physical links together as a logical trunk and providing load balancing and fault tolerance for uplink connections.

LACP Port Configuration

• Port: The port number.

• Enabled: Enables LACP on the associated port.

• Key Value: Configures a port’s LACP administration key. The port administrative key must be set to the same value for ports that belong to the same link aggregation group (LAG). If this administrative key is not set when an LAG is formed (that is, it has the null value of 0), this key will automatically be set to the same value as that used by the LAG.

Page 22 724-746-5500 | blackbox.com

Chapter 4: Software Description

Figure 4-10. LACP port configuration screen.

4.1.6 RSTP

IEEE 802.1w Rapid Spanning tree protocol (LACP) provides a loop-free network and redundant links to the core network with rapid convergence for faster recovery from failed links, enhancing overall network stability and reliability.

RSTP System Configuration

• System Priority: This parameter configures the spanning tree priority globally for this switch. The device with the highest priority becomes the STP root device.

However, if all devices have the same priority, the device with the lowest MAC address will then become the root device. Numbers range between 0–61440 in increments of 4094. There are 16 distinct values.

• Hello Time: Interval (in seconds) that the root device transmits a configuration message (BPDU frame). Number between 1–10 (default is 2).

• Max Age: The maximum time (in seconds) that a device can wait without receiving a configuration message before attempting to reconfigure. That also means the maximum life time for a BPDU frame. Numbers range between 6–40

(default is 20).

• Forward Delay: The maximum time (in seconds) the root device will wait before changing states (that is, discarding to learning to forwarding). Numbers range between 4–30 (default is 15).

724-746-5500 | blackbox.com

Page 23

Chapter 4: Software Description

• Force Version: Set and show the RSTP protocol to use. Normal —use RSTP,

Compatible—compatible with STP.

Figure 4-11. RSTP system configuration screen.

RSTP Port Configuration

• Port: The port ID. It cannot be changed. Aggregations mean any configured trunk group.

• Enabled: Click on the tick-box to enable/disable the RSTP protocol for the port.

• Edge: Expect the port to be an edge port (linking to an end station) or a link to another STP device.

• Path Cost: This parameter is used by the STP to determine the best path between devices. Lower values should be assigned to ports attached to faster media, and higher values assigned to ports with slower media. Set the RSTP pathcost on the port. Numbers range between 0–200000000. 0 means auto generated pathcost.

Page 24 724-746-5500 | blackbox.com

Chapter 4: Software Description

Figure 4-12. RSTP port configuration screen.

Figure 4-13. RSTP system priority drop-down menu.

724-746-5500 | blackbox.com

Page 25

Chapter 4: Software Description

Figure 4-14. RSTP system configuration force version drop-down menu.

4.1.7 802.1X

802.1X provides port-based authentication, which involves communications between a supplicant, authenticator, and authentication server. Port refers to a single point of attachment to the LAN infrastructure. The supplicant is often software on a client device, such as a laptop; the authenticator is a network device, such as an Ethernet switch or wireless access point; and the authentication server is typically a host running software supporting the RADIUS and EAP protocols.

Port-based network access control (PNAC) ensures that all users are authorized before being granted access to the network. User authentication is carried out using any standard-based RADIUS server.

802.1X Configuration

• Mode: Enables or disables 802.1X globally for all ports on the switch. The

802.1X protocol must be enabled globally for the switch before the port settings are active. (Default: Disabled)

• RADIUS IP: Address of authentication server.

• RADIUS UDP Port: Network port of authentication server used for authentication messages. (Range: 1–65535; Default: 1812)

• RADIUS Secret: Sets the text string used for encryption between the switch and the RADIUS server. This key is used to authenticate logon access for the client.

Do not use blank spaces in the string. (Maximum length: 48 characters)

Page 26 724-746-5500 | blackbox.com

Chapter 4: Software Description

Figure 4-15. 802.1x configuration screen.

724-746-5500 | blackbox.com

Page 27

Chapter 4: Software Description

Figure 4-16. Mode disabled drop-down menu in the 802.1x configuration screen.

Page 28

Figure 4-17. Select force authorized or force unauthorized from the drop-down menu.

724-746-5500 | blackbox.com

Chapter 4: Software Description

802.1x Parameters

• Reauthentication Enabled: Sets the client to be re-authenticated after the interval specified by the Re-authentication Period. Re-authentication can be used to detect if a new device is plugged into a switch port. (Default: Disabled)

• Reauthentication Period: Sets the time period after which a connected client must be re-authenticated. (Range: 1–3600 seconds; Default: 3600 seconds)

• EAP timeout: The time the switch will wait for the supplicant response before re-transmitting a packet. (Range: 1–255; Default: 30 seconds Port Settings)

Figure 4-18. 802.1x parameters screen.

802.1x statistics for port 1

Press “Statistics link” to see the 802.1x statistics for port 1.

• Port Statistics: You can view statistics on a per-port basis. Select the port that you want to view here.

• Authenticator Counters: General statistics for authenticator.

• Backend Authenticator Counters: General statistics for RADIUS server.

• 802.1X MIB Counters: MIB module defined for 802.1X.

724-746-5500 | blackbox.com

Page 29

Chapter 4: Software Description

Figure 4-19. 802.1x statistics screen.

4.1.8 IGMP Snooping

IGMP Snooping is the process of listening to IGMP network traffic. IGMP

Snooping, as implied by the name, is a feature that allows a layer 2 switch to

“listen in” on the IGMP conversation between hosts and routers by processing the layer 3 IGMP packets sent in a multicast network.

When IGMP Snooping is enabled in a switch it analyzes all IGMP packets between hosts connected to the switch and multicast routers in the network. When a switch hears an IGMP report from a host for a given multicast group, the switch adds the host’s port number to the multicast list for that group. And, when the switch hears an IGMP leave, it removes the host’s port from the table entry.

It also prevents flooding of IP multicast traffic, and limits bandwidth intensive video traffic to only the subscribers.

IGMP Configuration

• IGMP Enabled: When enabled, the switch will monitor network traffic to determine which hosts want to receive multicast traffic.

• Router Ports: Set if ports are connecting to the IGMP administrative routers.

• Unregistered IPMC Flooding enabled: Set the forwarding mode for unregistered

(not-joined) IP multicast traffic. The traffic will flood when enabled, and forward to router ports only when disabled.

• IGMP Snooping Enabled: When enabled, the port will monitor network traffic to determine which hosts want to receive the multicast traffic.

Page 30 724-746-5500 | blackbox.com

Chapter 4: Software Description

• IGMP Querying Enabled: When enabled, the port can serve as the Querier, which is responsible for asking hosts if they want to receive multicast traffic.

Figure 4-20. IGMP configuration screen.

4.1.9 Mirroring

Port Mirroring is used on a network switch to send a copy of network packets seen on one switch port (or an entire VLAN) to a network monitoring connection on another switch port. This is commonly used for network appliances that require monitoring of network traffic, such as an intrusion-detection system.

Mirroring Configuration

• Port to Mirror to: The port that will “duplicate” or “mirror” the traffic on the source port. Only incoming packets can be mirrored. Packets will be dropped when the available egress bandwidth is less than the ingress bandwidth.

• Ports to Mirror: Select the ports that you want to mirror from this section of the page. A port will be mirrored when the “Mirroring Enabled” checkbox is checked.

724-746-5500 | blackbox.com

Page 31

Chapter 4: Software Description

Figure 4-21. Mirroring configuration screen.

Page 32 724-746-5500 | blackbox.com

Chapter 4: Software Description

Figure 4-22. Mirror port drop-down menu.

4.1.10 QoS

In QoS Mode, select QoS Disabled, 802.1p, or DSCP to configure the related parameters.

QoS Configuration

• Strict: Services the egress queues in sequential order, transmitting all traffic in the higher priority queues before servicing lower priority queues.

• WRR: Weighted Round-Robin shares bandwidth at the egress ports by using scheduling weights with default values of 1, 2, 4, 8 for queues 0 through 7, respectively. (This is the default selection.)

NOTE: WRR can only be selected if Jumbo Frame mode is disabled on the Port

Configuration page.

724-746-5500 | blackbox.com

Page 33

Chapter 4: Software Description

Figure 4-23. QoS configuration screen.

QoS Mode: QoS Disabled

When the QoS Mode is set to QoS Disabled, the following screen is displayed.

Figure 4-24. QoS disabled mode.

QoS Mode: 802.1p

Packets are prioritized using the 802.1p field in the VLAN tag. This field is three bits long, representing the values 0–7. When the QoS Mode is set to 802.1p, the

802.1p configuration table appears, allowing you to map each of the eight 802.1p values to a local priority queue (low, normal, medium, or high). The default settings are shown below.

When the QoS Mode is set to 802.1p, the 802.1p Configuration table is displayed as shown next.

Page 34 724-746-5500 | blackbox.com

Chapter 4: Software Description

Figure 4-25. QoS prioritize traffic drop-down menu.

Figure 4-26. QoS priorty drop-down menu.

724-746-5500 | blackbox.com

Page 35

Chapter 4: Software Description

QoS Mode: DSCP

DSCP: Packets are prioritized using the DSCP (Differentiated Services Code Point) value. The Differentiated Services Code Point is a six-bit field that is contained within an IP (TCP or UDP) header. The six bits allow the DSCP field to take any value in the range 0–63. When QoS Mode is set to DSCP, the DSCP Configuration table is displayed, allowing you to map each of the DSCP values to a hardware output queue (low, normal, medium, or high). The default settings map all DSCP values to the high priority egress queue.

Use the Prioritize Traffic drop-down list to quickly set the values in the DSCP

Configuration table to a common priority queue. Use Custom if you want to set each value individually.

When the QoS Mode is set to DSCP, the DSCP Configuration table is displayed as shown next.

Figure 4-27. DSCP configuration table.

Page 36 724-746-5500 | blackbox.com

Chapter 4: Software Description

Figure 4-28. Priority drop-down menu.

4.1.11 Storm Control

Broadcast storms may occur when a device on your network is malfunctioning, or if application programs are not well designed or properly configured. If there is too much broadcast traffic on your network, performance can be severely degraded or everything can come to a complete halt.

You can protect your network from broadcast storms by setting a threshold for broadcast traffic for each port. Any broadcast packets exceeding the specified threshold will then be dropped.

Storm Control Configuration

There are three types of traffic which can be rate limited, including broadcast multicast frame and flooded unicast rate.

Figure 4-29. Storm control configuration screen.

724-746-5500 | blackbox.com

Page 37

Chapter 4: Software Description

• Enable Rate Limit: Click the check box to enable storm control.

• Rate (number of frames per second): The Rate field is set by a single drop-down list. The same threshold is applied to every port on the switch. When the threshold is exceeded, packets are dropped, regardless of the flow-control settings.

• Web: Click PORTS, Storm Control. This page enables you to set the broadcast storm control parameters for every port on the switch.

Figure 4-30. Broadcast rate drop-down menu.

4.2 Monitoring

4.2.1 Statistic Overview

Statistic Overview for all ports—You can mirror traffic from any source port to a target port for real-time analysis. Figures 4-31 and 4-32 shows the statistics overview.

Page 38 724-746-5500 | blackbox.com

Chapter 4: Software Description

4.2.2 Detailed Statics

Figure 4-31. Statistic overview screen.

Figure 4-32. Detailed statistics screen.

4.2.3 LACP Status

LACP Aggregation Overview

Figure 4-33. LACP aggregation screen.

724-746-5500 | blackbox.com

Page 39

Chapter 4: Software Description

Figure 4-34. Legend.

• Port: The port number.

• Port Active: Shows if the port is a member of an active LACP group.

• Partner Port Number: A list of the ports attached at the remote end of this LAG link member.

• Operational Port Key: Current operational value of the key used by this LAG.

LACP Port Status

Page 40

Figure 4-35. LACP port status screen.

724-746-5500 | blackbox.com

4.2.4 RSTP Status

RSTP VLAN Bridge Overview

Chapter 4: Software Description

Figure 4-36. RSTP VLAN bridge overview.

• Hello Time: Interval (in seconds) at which the root device transmits a configuration message.

• Max Age: The maximum time (in seconds) a device can wait without receiving a configuration message before attempting to reconfigure. All device ports (except for designated ports) should receive configuration messages at regular intervals.

Any port that ages out STA information (provided in the last configuration message) becomes the designated port for the attached LAN. If it is a root port, a new root port is selected from among the device ports attached to the network.

• Fwd Delay: The maximum time (in seconds) the root device will wait before changing states (that is, discarding to learning to forwarding). This delay is required because every device must receive information about topology changes before it starts to forward frames. In addition, each port needs time to listen for conflicting information that would make it return to a discarding state; otherwise, temporary data loops might result.

• Topology: Indicates if spanning tree topology is steady or undergoing reconfiguration. (The time required for reconfiguration is extremely short, so no values other than “steady” state are likely to appear in this field.)

• Root ID: The priority and MAC address of the device in the Spanning Tree that this switch has accepted as the root device, and the port connected to the root device.

724-746-5500 | blackbox.com

Page 41

Chapter 4: Software Description

RSTP Port Status

Figure 4-37. RSTP port status.

• Port/Group: The number of a port or the ID of a static trunk.

• Path Cost: The cost for a packet to travel from this port to the root in the current Spanning Tree configuration. The slower the media, the higher the cost.

• Edge Port: Shows if this port is functioning as an edge port, either through manual selection (see the RSTP Port Configuration table) or auto-detection.

NOTE: If the switch detects another bridge connected to this port, it will override the manual setting for Edge Port, and the port will instead function as a point-to-point connection.

• P2P Port: Shows if this port is functioning as a Point-to-Point connection to exactly one other bridge. The switch can automatically determine if the interface is attached to a point-to-point link or to shared media. If shared media is detected, the switch will assume that it is connected to two or more bridges.

• Protocol: Shows the spanning tree protocol functioning on this port, either RSTP or STP (that is, STP-compatible mode).

4.2.5 IGMP Status

IGMP Status shows the IGMP Snooping statistics for the entire switch.

• VLAN ID: VLAN ID number.

• Querier: Shows whether Querying is enabled.

• Queries transmitted: Shows the number of transmitted Query packets.

• Queries received: Show the number of received Query packets.

Page 42 724-746-5500 | blackbox.com

Chapter 4: Software Description

• v1 Reports: Shows the number of received v1 Report packets.

• v2 Reports: Shows the number of received v2 Report packets.

• v3 Reports: Shows the number of received v2 Report packets.

• v3 Leave: Shows the number of v3 leave packets received.

Figure 4-38. IGMP status screen.

4.2.6 VeriPHY

VeriPHY Cable Diagnostics

You can perform cable diagnostics for all ports or selected ports to diagnose any cable faults (short, open, etc.) and feedback a distance to the fault.

• Cable Diagnostics: Cable diagnostics is performed on a per-port basis. Select the port number from the drop-down list.

• Cable Status: Shows the cable length and its operating conditions, and isolates a variety of common faults that can occur on Category 5 twisted pair cabling.

724-746-5500 | blackbox.com

Page 43

Chapter 4: Software Description

Figure 4-39. VeriPHY diagnostics screen.

Figure 4-40. VeriPHY cable diagnostics screen.

Page 44 724-746-5500 | blackbox.com

Chapter 4: Software Description

Figure 4-41. Cable status screen.

Figure 4-42. Port drop-down menu.

4.2.7 Ping

This command sends ICMP echo request packets to another node on the network.

Ping Parameters

• Target IP Address: IP address of the host

724-746-5500 | blackbox.com

Page 45

Chapter 4: Software Description

• Count: Number of packets to send. (Range: 1–20)

• Time Out: Setting the time period for the host to ping

Use the ping command to see if another site on the network can be reached.

The following are some results of the ping command:

• Normal response: The normal response occurs in one to ten seconds, depending on network traffic.

• Destination does not respond: If the host does not respond, a “timeout” appears in ten seconds.

• Destination unreachable: The gateway for this destination indicates that the destination is unreachable.

• Network or host unreachable: The gateway found no corresponding entry in the route table.

Press <Esc> to stop pinging.

Page 46

Figure 4-43. Ping parameters screen.

724-746-5500 | blackbox.com

Chapter 4: Software Description

Figure 4-44. Target IP address drop-down screen.

Figure 4-45. Refresh button.

724-746-5500 | blackbox.com

Page 47

Chapter 4: Software Description

Figure 4-46. Ping results screen.

Page 48 724-746-5500 | blackbox.com

Chapter 5: Maintenance

5. Maintenance

5.1 Warm Restart

Press the “Yes” button to restart the switch. The reset will be complete when the power lights stop blinking.

Figure 5-1. Warm restart prompt.

5.2 Factory Default

Forces the switch to restore the original factory settings. To reset the switch, select

“Reset to Factory Defaults” from the drop-down list and click “Apply.” The LAN IP

Address, Subnet Mask, and Gateway IP Address will be reset to their factory defaults.

Figure 5-2. Software upload button.

5.3 Software Upload

Select “Upgrade Firmware” from the Tools drop-down list then click on the

“Browse” button to select the firmware file. Click the “Apply” button to upgrade the selected switch firmware file. You can download firmware files for the switch from blackbox.com.

Figure 5-3. Software upload screen.

724-746-5500 | blackbox.com

Page 49

Chapter 5: Maintenance

5.4 Configuration File Transfer

Configuration file transfer enables you to save the switch’s current configuration or restore a previously saved configuration back to the device. Configuration files can be saved to any location on the web management station. Upload the configuration file to save a configuration or "Download" to restore a configuration. Use the Browse button to choose a file location on the web management station, or to find a saved configuration file.

Figure 5-4. Download button.

5.5 Logout

The administrator has write access for all parameters governing the onboard agent. Assign a new administrator password as soon as possible, and store it in a safe place.

Page 50

Figure 5-5. Enter password screen.

724-746-5500 | blackbox.com

NOTES

724-746-5500 | blackbox.com

Page 51

Black Box Tech Support: FREE! Live. 24/7.

Tech support the way it should be.

Great tech support is just 30 seconds away at

724-746-5500 or blackbox.com.

About Black Box

Black Box provides an extensive range of networking and infrastructure products.

You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7

Tech support available in 30 seconds or less.

© Copyright 2012. Black Box Corporation. All rights reserved.

LGB708A, version 1

724-746-5500 | blackbox.com

BLACK BOX

®

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
