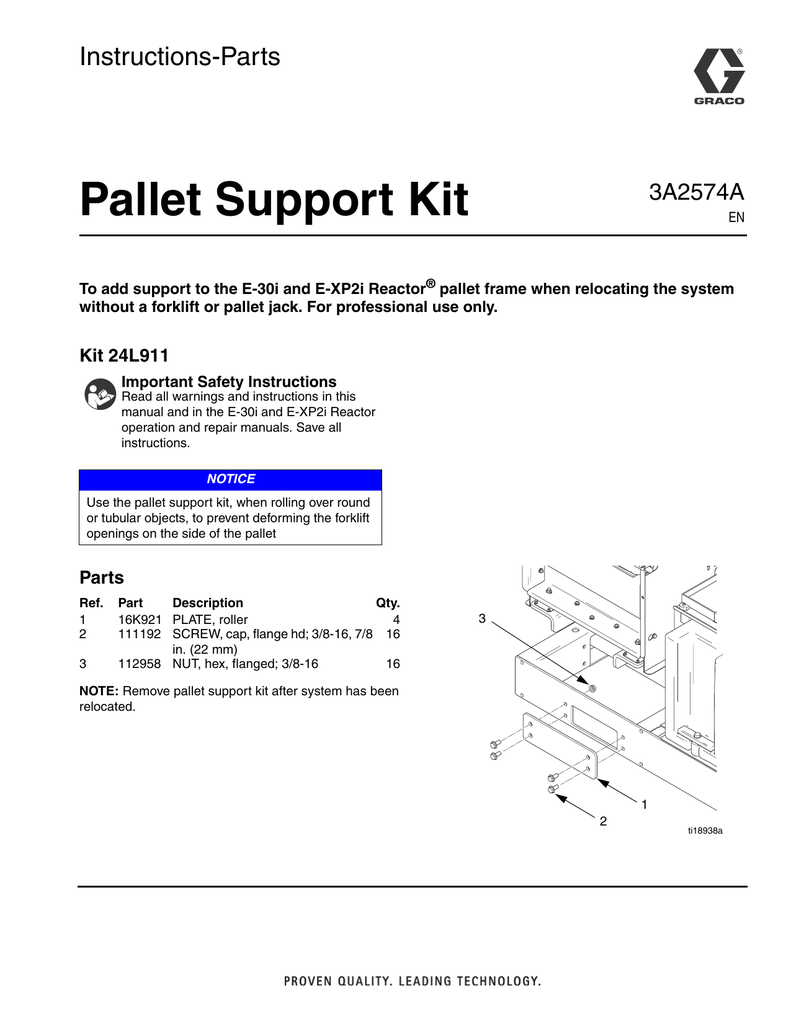

Graco 3A2574A - Pallet Support Kit Instructions

Instructions-Parts
Pallet Support Kit
3A2574A
EN
To add support to the E-30i and E-XP2i Reactor® pallet frame when relocating the system
without a forklift or pallet jack. For professional use only.
Kit 24L911
Important Safety Instructions
Read all warnings and instructions in this
manual and in the E-30i and E-XP2i Reactor
operation and repair manuals. Save all
instructions.
NOTICE
Use the pallet support kit, when rolling over round
or tubular objects, to prevent deforming the forklift
openings on the side of the pallet
Parts
Ref.
1
2
3
Part
Description
Qty.
16K921 PLATE, roller
4
111192 SCREW, cap, flange hd; 3/8-16, 7/8 16
in. (22 mm)
112958 NUT, hex, flanged; 3/8-16
16
3
NOTE: Remove pallet support kit after system has been
relocated.
1
2
ti18938a
