LubeToolsEquip

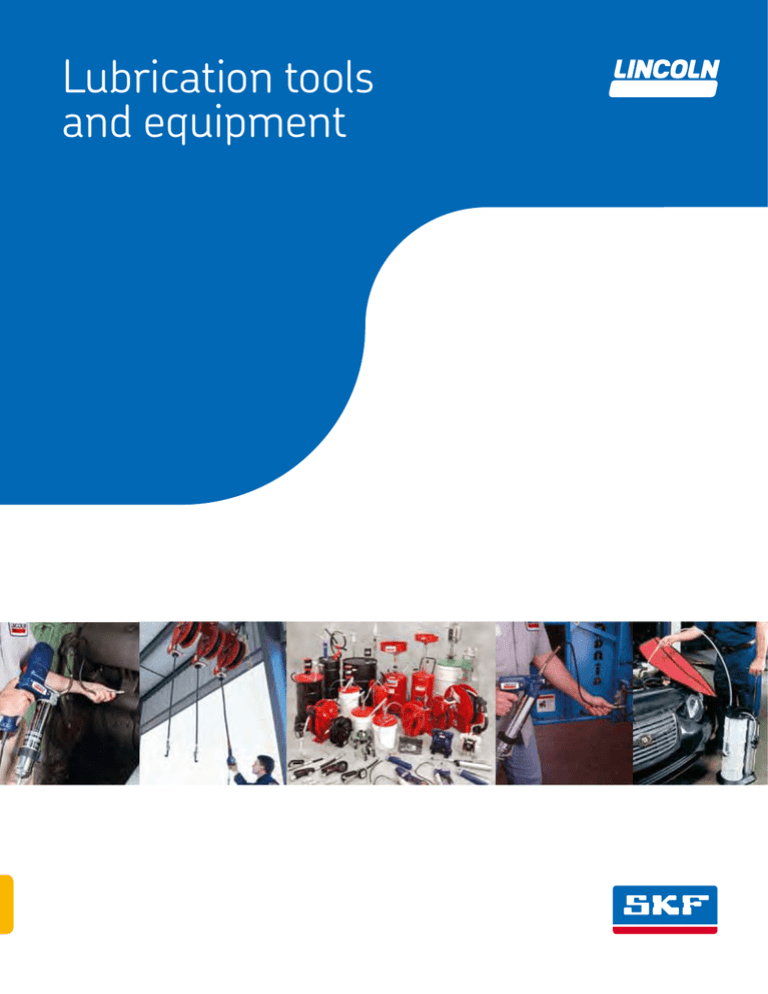

Lubrication tools and equipment

People, Capabilities and Systems to Save Money and Increase Productivity

Industry Leader

Continually satisfying our customers with the world’s best lubrication equipment and pumping systems has made Lincoln the largest and most successful company in our field. For nearly a century, companies have relied on our technical and quality leadership; our world-class manufacturing and customer service, and our vast network of distributors and support facilities.

Providing Solutions

Industrial customers in large processing plants, automotive manufacturing, pulp and paper mills, food and beverage and other manufacturing facilities can depend on solutions from Lincoln. For the toughest mobile applications, on the road or in the field, Lincoln protects heavy equipment used in mining, construction, agriculture and over-the-road trucking. In addition,

Lincoln offers the best lubrication equipment to meet the needs of automotive service professionals.

Complete Product Line

Lincoln supplies automated lubrication systems, pumps and pump stations and top quality lubrication equipment and accessories. Our quality systems in the

United States and Germany are ISO 9001 registered and our fittings business is

QS 9000 registered.

Worldwide Support

With five technical support centers on three continents, and a network of distributors supported by regional sales and service offices, our customers can always draw on our worldwide resources. Other Lincoln

Sites Lincoln has developed new internet sites to better serve customers by providing information customized for their needs.

Visit us at lincolnlube.com, mityvac.com and mityvacFST.com.

Table of Contents

Hand-held lubrication and accessories

18-volt lithium ion PowerLuber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

14.4-volt and 18-volt PowerLuber grease guns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

120-volt electric PowerLuber grease gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Automatic pneumatic grease gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Grease guns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Clear grease guns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Grease hose extensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Grease accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Grease fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Wheel bearing packers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Pumps and accessories

PMV pump family . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

High-pressure grease pumps and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3” PMV oil pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.25” PMV oil pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

PMV pump specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Medium-pressure oil pumps and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Bulk oil systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Transfer pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Rotary drum pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Used fluid equipment and accessories

Oil drains and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Fluid recovery and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Mityvac fluid evacuation equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Installed fluid evacuation and disposal systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Lube dispensing stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Hose reels and accessories

Lincoln fluid reel (LFR) series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Dual support hose reel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Heavy-duty series hose reels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

High-flow reels/ball stops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Hose/hose adapters for reels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Power cord and light reels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Control valves and meters

Grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Fluid lubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Metering control valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Inline/volume meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Air/water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Air line products

Airline sprayers/valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Air couplers and nipples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Diesel exhaust fluid (DEF) handling equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Air controls and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Regulators, filters and lubricators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

AirCare air preparation systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Guardian grease products

Guardian grease guns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Guardian accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Guardian pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Guardian oil accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Guardian grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Numerical index

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Merchandising displays

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . inside back cover

1

PowerLuber

®

Grease Gun

PowerLuber – 18-Volt Lithium Ion Series

Lincoln .introduces .the .most .advanced .grease .gun .on .the .market . .The .new .Li .Ion .Series .offers .far .more .than .just .extended .run .times . .

This .powerful .grease .gun .includes .a .multi-function .LCD .with .many .features .including .an .easy .to .understand .readout .showing .how .much .

lubricant .is .being .dispensed .to .prevent .over .lubricating .and .wasting .grease .

18V Li Ion PowerLuber Features

• .LCD .– .Quantity .of .grease .dispensed, .quantity .of .grease .remaining .in .cartridge, .

battery .charge .level, .stall .indicator, .operation .symbol

• .LED .lights .up .hard .to .locate .fittings .when .under .equipment .or .in .the .shade

• .New .18V .low-interference, .high-performance .motor

• .New .HD .pump .casting

• .New .motor .protection .design .includes .self-resetting .thermal .switch .and .front .

relief .valve

• .2-speed .transmission

• .New .longer .36 .inch .high-pressure .hose

• .New .non-clog .air-purge .valve .for .immediate .prime

• .Bulk .filler .valve

• .Accessible .clean-out .check .to .prevent .potential .priming .problems

Model 1862

Packed .in .a .convenient .heavy-duty .carrying .case .molded .from .impact- .and .

stain-resistant .plastic . .Model .1862 .comes .complete .with .the .18v .Li .Ion .

PowerLuber .and .battery .(Model .1861), .a .110v .one-hour .charger .(Model .

1850) .and .a .36" .high-pressure .flex .hose .with .spring .guard .(Model .1236) .

Model 1864

Includes .the .same .content .as .Model .1862 .plus .a .second .18v .Li .Ion . .

rechargeable .battery .(Model 1861) .

1860

18V Li Ion PowerLuber Accessories

Battery – Model 1861

3 .0 .high-amp .Li .Ion .slide-on .battery .

Charger – Model 1850

One .hour .high-output .charger .

Hose – Model 1236

36" .high-pressure .hose .with .spring .guards .

2

1861

1864

1850

PowerLuber

®

Grease Gun

Professional Two-Speed 14.4v and 18v NiCad Cordless Grease Guns

Lincoln, .the .inventor .of .the .cordless .gease .gun, .remains .a .valuable .partner .with .technicians, .mechanics, .maintenance .teams, .farmers .and .

others .for .almost .every .lubrication .and .preventative .maintenance .task .imaginable .

PowerLuber’s .versatile .two-speed .design .gives .it .the .capability .of .two .powerful .tools .in .one . .At .the .touch .of .a .button, .it .can .deliver .high .

volumes .of .lubricant .(8 .5 .oz . .per .minute) .at .medium .pressure .or .a .concentrated .stream .at .high .pressure .(7500 .psi .working .pressure) . . .

The .PowerLuber .includes .a .built-in .stroke .indicator .to .make .it .easy .to .measure .total .output .

1400

PowerLuber 14.4 and 18v NiCad Features

• .Powerful .high-torque .motor .

• .7,500 .psi .working .output .pressure

• .9 .oz/min .grease .output .at .1,000 .psi .(H)

• .Air .purge .valve .for .immediate .prime

• .2-speed .output .selection

• .30” .high-pressure .whip .hose .with .spring . .

guards .and .coupler

• .Slotted .HD .casting .accepts .shoulder .strap

• .Check-ball .accessibility .allows .easy .cleaning .

of .contaminated .or .hardened .grease

• .One-hour .smart .charger

• .High-capacity .battery

Model 1842

Packed .in .a .convenient .heavy-duty .carrying .case .molded .from .impact- .and .stain-resistant .

plastic . .Model .1842 .comes .complete .with .the .18v .NiCad .PowerLuber .and .battery .(Model

1801), .a .110v .one-hour .charger .(Model 1410), .and .a .30" .high-pressure .flex .hose .with .

spring .guard .(Model 1230) .

Model 1844

Includes .the .same .content .as .Model .1842 .plus .a .second .18v .NiCad .rechargeable .battery .

(Model 1801) .

Model 1442

Packed .in .a .convenient .heavy-duty .carrying .case .molded .from .impact- .and .stain-resistant .

plastic . .Model .1442 .comes .complete .with .the .14 .4v .NiCad .PowerLuber .and .battery .(Model

1401), .a .110v .one-hour .charger .(Model 1410), .and .a .30" .high-pressure .flex .hose .with .

spring .guard .(Model 1230) .

Model 1444

Includes .the .same .content .as .Model .1442 .plus .a .second .14 .4v .NiCad .rechargeable .battery .

(Model 1401) .

Multi-speed .output .selector** .

– .control .the .powerful .twospeed .transmission .with .just

a .push

Stroke .cycle .indicator .pin .– .lets .

you .monitor .total .output .by .

touch

Motor .protection .– .reset .breaker .

protects .motor .from .overload

** High output setting (H) delivers 2.5 times the volume as lower output setting (L).

1444

Models 1442, 1444, 1842 and 1844 all include carrying case.

3

PowerLuber

®

Grease Gun

Model 1242

The .standard .12-volt .PowerLuber .grease .gun .is .powerful, .generating .up .to .6000 .psi .of .operating .

pressure . .The .battery .recharges .in .only .one .hour .and .lasts .long .enough .to .dispense .as .much .as .

3 .tubes .of .grease .against .1,000 .psi .back .pressure . .It’s .perfect .for .hard .to .reach .fittings . .It .relieves .

worker .fatigue .and .speeds .up .routine .lubrication .tasks . .Lube .capacity .is .16 .oz . .bulk .and .14 .5 .oz . .

cartridge .

1242

Comes .complete .with:

• .110-volt .fast .charger .(Model .1210)

• .12-volt .NiCad .rechargeable .battery .(Model .1201)

• .30" .high-pressure .flex .hose .with .spring .guard .(Model .1230)

• .Pressure .relief .valve .to .prevent .motor .damage

• .Accessible .clean .out .check .to .prevent .potential .priming .problems

1240

Model 1244

Includes .second .12-volt .rechargeable .battery .(Model .1201) .for .uninterrupted .lube .application .

Model 1240

Economy .packed .without .carrying .case . .Includes .one .12-volt .rechargeable .battery .(Model .1201) .

and .battery .charger .(Model .1210) .

Model 1200

PowerLuber .and .battery .only .

1861

1801

1201

1210

1850

1401

1815A

1410

1215

PowerLuber Accessories

Batteries – Models 1861, 1801, 1401, 1201

High .quality .rechargeable .PowerLuber .batteries . .Model 1861 .(18v .Li .Ion), .Model 1801 .(18 .0v .

NiCad), .Model 1401 .(14 .4v .NiCad), .Model 1201 .(12 .0v .NiCad) . .

NOTE: .NiCad .and .Li .Ion .batteries .are .not .interchangeable .

Whip Hoses – Models 1218, 1224, 1230, 1236

Attach .to .PowerLuber .with .7/16" .UNEF .fitting, .1/8" .NPT(m) .outlet . .Working .pressure .7500 .psi .

(517 .bar) . .Model 1218 .(18"), .1224 .(24"), .1230 .(30") .and .1236 .(36") .

Chargers

Model 1815A

Charges .both .Lincoln .models .1401 .(14 .4-volt .NiCad) .and .1801 .(18-volt .NiCad) .battery .packs . .

Designed .for .use .with .18- .and .14 .4-volt .PowerLubers .grease .guns . .1-hour .fast .charger .with .

automatic .trickle .charge .maintenance .mode . .For .use .in .vehicles .and .heavy .equipment .using .12- . .

or .24-volt .outlets . .

Model 1850

One .hour .high-output .Li .Ion .charger .

Model 1410

“Smart” .charger .recharges .batteries .in .less .than .one .hour .and .recognizes .battery .condition .when .

not .in .use . .For .use .with .Models 1442, .1444, .1842 .and .1844 . .

Model 1210

—110-volt .one-hour .fast .charger .for .use .with .battery .pack .1201 . .6 .ft . .cord; .

UL/ULC .listed .

Model 1215

12-volt .to .12-volt .DC .field .charger .for .use .with .battery .pack .Model 1201 .(plugs .into .cigarette .

lighter) .

.Model 1215A

.allows .use .of .both .12-volt .and .24-volt .DC .input .

Model 1414

Shoulder .strap .for .hands-free .movement .from .job .to .job .(14 .4V .and .18V .PowerLubers .only) .

1414

4

PowerLuber

®

Grease Gun

The Newest Addition to the Electric PowerLuber Family

The .first .of .its .kind .in .the .industry, .the .120-volt .corded .PowerLuber’s .motor .provides .the .highest .torque .values .in .its .class . .Its .variablespeed .trigger .combines .with .a .two-speed .transmission .for .precise .flow .control . .Ideal .for .filling .grease .reservoirs, .the .120-volt .grease .gun .

is .an .excellent .alternative .to .pneumatic .lube .tools .

AC2440

120V PowerLuber Features

• .High .torque .120V .AC .motor

• .Unmatched .for .power, .longevity .and .performance

• .Variable .speed .trigger .combines .with .the .2-speed .transmission .for .

excellent .flow .control

• .Plated .barrel, .head .and .handle

• .Excellent .for .refilling .grease .reservoirs

• .Excellent .alternative .to .pneumatic .lube .tools

• .Pressure .relief .valve .to .prevent .motor .damage

• .Accessible .clean .out .check .to .prevent .potential .priming .problems

120V PowerLuber Specifications

Models

Voltage

Transmission

Lube Capacity

Grease Flow Indicator

Output Pressure

Output Rate*

AC2440 / AC2400**

120v

2-Speed .Transmission .with .Variable .

Speed .Trigger

16 .oz . .bulk ./ .14 .5 .oz . .cartridge

Patented .Stroke .Counter

7000

3 .6 .oz/min .(L) .- .8 .0 .oz/min .(H)

Cartridges Dispensed Per Charge

*

Unlimited

Overload Protection

Pressure .Relief .Valve

Bulk Filler Valve

Quick Vent - Air Purge Valve

Hose Type

Yes

Yes

30" .High-Pressure .with .Dual .Spring .

Guards .and .5852 .Coupler

Compact Carrying Case

Hose/Coupler/Cord Clip

6' Power Cord

Yes .(Model AC2440 only)

Yes

Yes

* @ 1000 psi back pressure

** Does not include carrying case

5

6

Automatic Pneumatic Grease Gun

Model 1162 PowerLuber

®

Fully Automatic Pneumatic

Grease Gun

The .variable .speed .trigger .provides .excellent .grease .flow .control .while .the .

advanced .pump .design .eliminates .traditional .priming .issues .

• .Outstanding .durability .and .dependability

• .Fully .automatic, .continuous .operation

• .Variable-speed .trigger

• .Accessible .check .valve .assembly

• .Comfortable .grip

• .30" .high-pressure .hose .with .coupler .and .attachment .clip .(Model .1230)

• .Includes .a .combination .filler .nipple .and .bleeder .valve

• .Superior .flow .performance .obtained .through .advanced .design

• .Standard .grease .cartridge

Pump Ratio

Max. Grease Pressure

Air Pressure Range

Lube Capacity

Weight

40:1 .at .150 .psi

6000 .psi .(414 .bar)

40-150 .psi .(2 .8-10 .3 .bar)

16 .oz . .bulk ./ .14 .5 .oz . .cartridge

5 .375 .lbs . .(2 .4 .kg)

1162

Grease Guns

Lincoln. . . the brand the pros demand for quality lubrication tools

For .over .a .century .the .industry .has .recognized .Lincoln .as .the .leader .in .professional .lubrication .tools . .Professional .automotive, .agricultural .

and .industrial .mechanics .depend .on .Lincoln .tools .for .their .livelihood . .Lincoln .tools .offer .a .lifetime .of .performance .and .are .backed .by .the .

most .comprehensive .warranty .in .the .industry .

Lincoln hand-held grease guns offer:

• .Rugged .cast .pump .head .for .strength .and .durability .

• .Jam-proof .toggle .mechanism .prevents .binding .or .accidental .bending .of .plunger .

• .Performance-proven .design .

• .Locking .follower .rod .with .removable .end .cap .

• .Extra-heavy .follower .spring .insures .positive .priming .and .uninterrupted .pumping .action .

• .Accessible .check .valve .allows .easy .cleaning .without .gun .disassembly .

• .Precision .fit .and .hardened .plunger .prevents .lubricant .bypass, .resists .scoring .for .longer .life .

• .Follower .rod .locks .into .follower .to .force .prime .

1142

Includes

Durable .high-pressure .grease .gun

Precision .fit .and .hardened .plunger

Accessible .check .valve

5852 .hydraulic .coupler

Rugged .cast .head

Locking .follower .rod

Removable .end .cap

Variable .stroke/variable .pressure

Multi-port .pickup .for .greasing .in .tight .areas

Air .purge .valve

Large .piston .and .bore

High .output .setting

360° .rotating .extension

Quick .adjustment .handle

Plated .barrel, .head .and .handle

Bulk .filler .nipple

Ergonomic .hand .grip

1142

X

X

X

X

X

X

X

1148

X

X

X

X

X

X

X

X

X

X

1148

1013

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

1013

7

8

Lever & Pistol Grip Grease Guns

1142

1147

1148

Heavy-Duty Lever Type

Model 1142

The first choice of top mechanics and industrial maintenance professionals everywhere. It’s designed for rough treatment on the job with a cast iron pump head, precision fit plunger and extra heavy follower spring.

Model 1147

Same as 1142 with 18" whip hose and coupler.

Model 1148

Premium version of our popular model 1142. This pump head includes dual grease inlet ports that provide the user the option of high pressure or high volume delivery. The tool also includes a comfortable vinyl grip and vent valve for purging air.

Model 1151

Same as 1142 but holds 21 ounces bulk.

1134

1151

1133

Heavy-Duty Pistol Grip Type

Model 1132

Fast, one-hand operation with similar features and benefits of Lincoln lever-type grease guns. Includes 5" extension with coupler.

Model 1133

Same as 1132 with 18" whip hose and coupler.

Model 1134

Extra-heavy-duty pistol grip grease gun. Cast head design. Jam proof handle return mechanism. Develops up to 7500 psi. Includes both 18" whip hose with coupler and 6" rigid tube. Variable stroke allows a high pressure option for high tolerance applications. Includes combination air bleeder/filler nipple to bulk fill capabilities and easy release of trapped air.

Model 91108 Filler Nipple

Enables hand guns to be loaded using filler pump method. Includes ball check; 1/8" NPT(m).

Model 82760 Grease Gun Holder

Can be mounted to almost any surface. Holds grease guns and suction guns with 2-1/4" OD barrel. Holds guns until ready to use. Not for use with clear tubes.

91108

82760

Grease Guns Lever Type

Model Lube Capacity

1142 16oz. Bulk/14.5oz. Cartridge

1148 16oz. Bulk/14.5oz. Cartridge

Extension

5853 6" & 5852 coupler

5853 6" & 5852 coupler

Length

21-3/4"

21-3/4"

1147 16oz. Bulk/14.5oz. Cartridge 71518 18" Hose & 5852 coupler 21-3/4"

1151 21oz. Bulk/14.5oz. Cartridge 5853 6" & 5852 coupler 24-1/2"

Specifications: Output 1oz. per 33 strokes using No. 1 grease at 70°F. Barrel diameter 2-1/4"

Suction Gun

Model 615

Holds up to 18 ounces of fluid. Flexible nozzle for transmission, differential or oil filter service. Precision follower fitted to barrel for superior suction and is impervious to oil,grease and water.

Finished in rust-resistant, powder coated blue paint.

Grease Guns Pistol Grip

Model

1133

1132

1134

Lube Capacity

16oz. Bulk/14.5oz. Cartridge

Extension

71518 18" Flex Hose &

5852 coupler

Length

15-1/2"

16oz. Bulk/14.5oz. Cartridge 6" Straight Pipe & 5852 coupler 15-1/2"

16oz. Bulk/14.5oz. Cartridge

18" Flex Hose, 6" Straight Pipe

& Coupler

15-1/2"

Specifications: Output 1oz. per 39 strokes using No. 1 grease at 70°F. Barrel diameter 2-1/4"

615

Heavy-Duty & Air-Operated Grease Guns

1162

1013

1145

Air Operated

Model 1162 PowerLuber

®

• .Fully .automatic, .pneumatic .grease .gun .with .variable-speed .trigger

• .Outstanding .performance, .durability .and .grease .flow

• .Patented .anti-cavitation .pump

• .6000 .psi .(414 .bar) .greasing .capability

• .Air .operating .range .40-150 .psi .(2 .8-10 .3 .bar)

• .Accessible .check .valve .for .easy .clean .out

• .Includes .advanced .vent .valve .with .filler .nipple

• .30" .high-pressure .hose .(with .Model .1230)

• .Low .operational .noise

• .Lube .capacity: .16 .oz . .bulk ./ .14 .5 .oz . .cartridge

Dual Pressure – Dual Output

Model 1013 and 1145

• .High-output .setting .delivers .twice .the .grease .per .stroke

• .High .or .low .pressure .for .light- .or .heavy-duty .greasing .action

• .Full .pressure .on .short .strokes .for .heavy .greasing .in .tight .places; .develops .

full .pressure .with .just .1/4" .stroke

• .Extension .swivels .360° .for .hard-to-reach .fittings

• .Plated .barrel, .head .and .handle

• .Handy .three-way .loading: .cartridge, .filler .pump .or .bulk

• .Grease .resistant .rubber .handle .grip .for .positive .pumping .action

Precision High Pressure and Volume

Model 1035 & 1037

• .Exclusive .toggle .mechanism .design .uses .compound .leverage .for . .

high-pressure .pumping .with .little .effort

• .Rust .resistant .plated .gun .barrel .and .handle, .black .enamel .head

• .Equipped .with .filler .nipple .for .fast .refill .from .Lincoln .filler .pump

• .21 .oz . .bulk .capacity .for .heavy-duty .greasing .applications

• .High .volume .(Model .1037) .delivers .1 .oz . .in .just .nine .strokes

1035

Load Pin in Rear Position for High-Output Delivery

With .handle .in .REAR .(lo) .shift .position, .grease .is .delivered .at .low .pressure . .

(maximum .4000 .psi) .with .strokes .from .1/4" .to .12" . .Output .1 .ounce .per .18 .full .strokes .

Load Pin in Front Position for High-Pressure Delivery

With .handle .in .FRONT .(hi) .shift .position, .grease .is .delivered .at .high .pressure . .

(maximum .7000 .psi) .with .strokes .from .¼" .to .9" . .Output .1 .ounce .per .33 .full .strokes .

Dual-Pressure

Model Lube Capacity Extension Length Max. Pressure

1013 16oz . .Bulk/14 .5oz . .Cartridge

6" .& .hydraulic .coupler

22-1/2" 7000/4000 .psi

1145 21oz . .Bulk/14 .5oz . .Cartridge

5853 .6" .& .hydraulic .coupler

25-1/4" 7000/4000 .psi

Specifications: .Output .at .low .pressure .1oz . .per .18 .strokes; .at .high .pressure .1 .oz . .per .33 .strokes .using .No . .1 .cup .

grease .at .70°F . .Barrel .diameter .2-1/4" .

High-Pressure

Model Lube Capacity Extension Length Max. Pressure

1035 21oz . .bulk/14 .5oz . .cartridge

5834 .6" .& .hydraulic .coupler

27-1/4" 7000 .psi

Specifications: .Lubricant .output .1 .oz . .per .25 .strokes .using .No . .1 .cup .grease .at .70°F . .Barrel .diameter .2-1/4" .

Volume

Model Lube Capacity Extension Length Max. Pressure

1037 21oz . .bulk/14 .5oz . .cartridge

5834 .6" .& .hydraulic .coupler

27-1/4" 3000 .psi

Specifications: .Lubricant .output .1 .oz . .per .9 .strokes .using .No . .1 .cup .grease .at .70°F . .Barrel .diameter .2-1/4” .

9

Clear Grease Guns

Lincoln’s Premium Line of Clear Grease Guns for 100% Positive Grease Identification

Not All Grease Is Created Equally—Different .equipment, .machines, .bearing .types .and .vehicles .require .different .types .of .grease . .Proper .

identification .of .the .grease .once .installed .in .a .grease .gun .can .be .challenging . .Lincoln’s .clear .tube .allows .for .quick .grease .identification .

eliminating .the .risk .of .mixing .incompatible .or .unspecified .greases .

Built to Last—The .high .strength .clear .tube .and .aircraft .aluminum .adapters .create .one .of .the .most .durable .tube .assemblies .in .the .

industry . .Traditional .steel .tubes .are .subject .to .damage .in .the .workplace .through .drops .and .hits .from .other .tools . .The .Lincoln .clear .tube .

design .is .impervious .to .this .type .of .damage . .Its .resilient .shell .eliminates .waste .from .grease .bypass .

Military Proven—Lincoln’s .clear .tube .design .was .developed .successfully .for .military .maintenance .support . .The .clear .tube .is .being .used .

successfully .in .these .harsh .environments, .and .it .provides .the .100% .grease .identification .they .demand .

1440CLR

The clear design enables:

• .Positive .grease .type .identification .(bulk .or .cartridge)

• .Visual .confirmation .of .quantity .of .grease .remaining .in .tube .(bulk)

• .Visual .confirmation .of .air .pockets .eliminating .the .loss .of .prime .(bulk)

• .Visual .confirmation .of .grease .separation .or .contamination .(bulk)

• .Perfect .concentricity .and .resilience .eliminates .bypass .(bulk .or .cartridge)

• .Visual .recognition .of .grease .brand .promotes .quality .of .shop .(cartridge)

Clear Grease Gun Models

Model Description

1100CLR Clear .Tube .– .for .easy .conversion .from .standard .Lincoln .steel .tubes

1107CLR Clear .tube– .for .conversion .of .many .competitive .models . .

1134CLR Gun, .heavy-duty .pistol .with .clear .tube

1142CLR Gun, .lever .with .clear .tube

1148CLR Gun, .lever .deluxe .with .clear .tube

1240CLR 12V .PowerLuber

®

.with .clear .tube

1440CLR 14 .4V .PowerLuber

®

.with .clear .tube

Clear .Tube .Kits .(1100CLR .and .1107CLR) .are .available .to .allow .the .conversion .of .grease .guns .

currently .in .use

1142CLR

1100CLR

10

Grease Hose Extensions

WARNING

Whip .Hoses .Models .3029, .3034, .5812,

5818, .5861, .81725, .81726, .81795

Install as shown

Incorrect

Correct

5812

Premium Extensions for Manually Operated Grease Guns

Maximum .working .pressure .4500 .psi . .Strategically .placed .coil .spring .provides .nonslip, .push-pull .grip .and .prevents .accidental .“kinking” .which .could .cause .hose .ruptures .

71512

Model

5812

5818

5861

Length

12"

18"

36"

Thread Size

1/8" .NPT(m)

1/8" .NPT(m)

1/8" .NPT(m)

1230

81726

Extensions for Manually Operated Grease Guns

Maximum .working .pressure .3000 .psi .

Manually Operated—Packaged

Model

71512

Length

12"

71518 18"

Thread Size

1/8" .NPT(m)

1/8" .NPT(m)

81795

3029

3034

Manually Operated—Bulk (Unpackaged)

Model

75912CL

Length

12"

Thread Size

1/8" .NPT(m)

75918CL

75924CL

75936CL

18"

24"

36"

1/8" .NPT(m)

1/8" .NPT(m)

1/8" .NPT(m)

5858

PowerLuber

®

Whip Hoses

Attaches .with .7/16" .UNEF .fitting; .1/8" .NPT(m) .outlet . .Working .press . .7500 .psi .(517 .bar) . . .

For .use .with .120-, .18-, .14 .4- .and .12-volt .PowerLubers .and .pneumatic .model .1162 .

Model

1218

1224

1230

1236

Length

18"

24"

30"

36"

Assemblies for Standard Hydraulic Fittings

Maximum .working .pressure .4500 .psi .

Model

81725

81726

81795 *

* Includes 81980 locking sleeve.

Whip Hose

5818/18"

5812/12"

5812/12"

Coupler

5845

5845

5845

Thread Size

1/8" .NPT(m)

1/8" .NPT(m)

1/8" .NPT(m)

Assemblies for Button-Head Couplers with Swivel

Maximum .working .pressure .4000 .psi . .Includes .81606 .swivel .

Model

3029

3034

3055

3056

Whip Hose

5812/12"

5812/12"

5861/36"

5861/36"

Coupler

80933/large

81458/standard

81458/standard

80933/large

Thread Size

1/8" .NPT(m)

1/8" .NPT(m)

1/8" .NPT(m)

1/8" .NPT(m)

Flexible & Rigid Extension Adapter

Model 5858

Maximum .working .pressure .5000 .psi . .Allows .operator .to .switch .from .flexible .to .rigid .

extension .with .one .hand . .Overall .length .13" . .1/8" .NPT(m) . .For .use .on .hand .guns .or .

air .operated .grease .control .valves .

11

Grease Accessories

5852

Hydraulic Coupler Displays

Hydraulic Couplers

Model 5852

• .6000 .psi .maximum .operating .pressure .

• .For .all .hydraulic .type .grease .fittings .

• .Small .outside .diameter .permits .easy .contact .with .recessed .fittings .

• .Built-in .ball .check .prevents .leak .and .lubricant .backup .

• .Inlet .1/8" .NPT(f) .

• .Bulk .part .no . .245978

Hydraulic Coupler Displays

Model 5852

• .One .hydraulic .coupler .in .a .resealable .clamshell .

Model 5852-2

• .Two .hydraulic .couplers .in .the .same .clamshell .as .the .5852 . .

• .Bulk .model .no . .245978

Model 5852-5

• .Contains .five .couplers; .reduces .cost .per .unit .

Model 5852-54 Counter Display

• .Contains .54 .couplers .in .a .displayable .box; .best .value .

Model 5845 Heavy-Duty

• .7500 .psi .maximum .operating .pressure .

• .11/16" .Hex

• .Inlet .1/8" .NPT

• .Bulk .part .no . .245976

5848

5845

5883

Model 5848 Adapter

• .7500 .psi .maximum .operating .pressure .

• .Built-in .swivel .allows .full .360° .circle .

• .Locks .in .any .one .of .eight .45° .positions .

• .Adjustable .coupler .section .permits .contact .with .fittings .in .reverse .positions .

• .Angle .body .has .1/8" .NPT(f) .inlet .permits .addition .of .pipe .extension . .

when .required .

81458 10536 80933

WARNING

MATERIAL .USE: .Lincoln .swivels .are .to .be .used .only .to .transport .

grease, .oil .and .other .lubricants .and .are .designed .only .for .these . .

non-abrasive .and .noncorrosive .purposes . .Do .not .use .with .abrasive .

and .corrosive .materials .such .as .sound-deadening .materials .

which .may .contain .limestone .and .mica .particles . .Transport .of .

such .materials .causes .rapid .premature .wear .to .critical .swivel .

components .and .can .cause .failure .of .swivel . .Failure .could .expose .

the .user .to .severe .bodily .injury, .permanent .disfigurement .or .death .

INSTALLATION .& .SERVICE: .Tighten .all .fluid .connections .securely .

before .using .swivel . .Never .exceed .7500 .psi .maximum .operating .

pressure . .Never .alter .or .modify .any .part .of .the .swivel . .Never .

attempt .to .repair .or .disassemble .the .swivel .while .the .system .is .

pressurized . .Never .stop .or .deflect .leaks .with .hand .or .body .

MEDICAL .ATTENTION: .Get .medical .attention .immediately .if .

exposed .to .high .pressure .fluids . .Tell .the .attending .physician .what .

was .injected .

Special Access Coupler

Model 5883 90° Grease Coupler

• .Provides .access .to .difficult .to .reach .fittings .

• .Allows .for .easy .lubrication .in .tight .areas .

Button-Head Couplers & Adapters

Model 80933

4000 .psi .maximum .operating .pressure . .For .pull-on, .push-on .or .hook-on .

service . .Use .with .large .7/8" .diameter .button-head .fittings . .7/16"-27 .(f) .

thread .

Model 81458

Same .as .80933 .except .for .5/8" .diameter .button-head .fittings .

Model 10460

5000 .psi .maximum .operating .pressure . .For .adapting .standard .or .large .

button-head .couplers .to .hose .with .1/8" .NPT .connections . .1/8" .NPT(f) .x .

7/16"-27 .(m) .thread . .Use .gasket .31138, .not .included .

Model 10536

4500 .psi .maximum .operating .pressure . .For .adapting .standard .or .large .

button-head .couplers .to .hose .with .3/8" .NPT .connections . .3/8" .NPT(f) .x .

7/16"-27 .(m) .thread . .Use .gasket .31138, .not .included .

12

Grease Accessories

* With quick-connect

locking sleeve

5834

5853

62028

*5884

*5859

*5855

81980

*5849

5803

*82784

*83278

58000

Coupler Extensions

Model 5834

7500 .psi .maximum .operating .pressure . .Includes .

5845 .coupler .and .62028 . .

6" .extension .tube . .1/8" .NPT(m) .connection .

Model 5853

6000 .psi .maximum .operating .pressure . .

Includes .5852 .hydraulic .coupler .and .62028 .

6" .extension .tube . .1/8" .NPT(m) .connection .

Rigid Extensions

Model 62028

6" .length . .Tough, .heavy-wall .seamless .steel .

tubing . .1/8" .NPT(m) .at .each .end .

Model 62061

Same .as .62028 .except .12" .length .

Model 62117

Same .as .62028 .except .18" .length .

Extensions Adapters

Model 5884*

Contains .the .5883 .90° .grease .coupler .plus .a .

quick-connect .locking .sleeve .for .fast .access .to .

hard-to-reach .lube .points .

Model 5859 Angle*

• .90° .angle .solves .problem .of .contacting . .

so-called .“inaccessible” .grease .fittings .

• .Design .eliminates .need .to .remove .from .“deep .

dish” .wheels .for .lubrication .of .the .tie .rod .ends .

and .ball .joints .

• .Use .to .service .cars, .truck, .machines .and .farm .

equipment .

Model 5855 Recessed*

Straight .extension . .Use .to .lubricate .recessed .

fittings .where .obstructions .will .not .permit .use .of .

hydraulic .coupler . .Includes .extension .and .locking .

sleeve .

Model 81980 Locking Sleeve*

For .adapting .any .1/8" .NPT(m) .extension .nozzle .

to .a .hydraulic .coupler .

Model 5849 360 Degree*

7500 .psi .maximum .operating .pressure . .Includes .

5848 .360° .coupler .for .full .swivel, .2" .steel .

extension .tube .and .locking .sleeve .

Needle Nozzles

Model 5803

1/8" .NPT(f) .thread . .Allows .operator .to .contact .

flush .type .or .hard-to-reach .hydraulic .type .

fittings .

Model 5806

Same .as .5803 .except .6" .length .

*5807

Model 82784*

Same .as .5803 .except .with .extension .

and .locking .sleeve .

Model 83278*

Use .to .lubricate .U-joints .and .spindles . .

Attaches .to .hydraulic .coupler .of .control .

valve .or .grease .gun . .Includes .rubber .tip .

Extension Kit

Model 58000

Heavy-duty .lube .accessory .kit .contains .

quick-connect .versions .of .seven .of .

Lincoln’s .most .popular .lube .accessories . .

Use .with .all .standard .grease .guns .and .

dispensing .devices . .Includes .models: .

5849, .5855, .5859, .5884, .81795, .

82784 .and .83278 .

Grease Injection Tool

Model 5807*

• .Provides .a .solution .to .noisy .sealed . .

bearings, .joints, .chassis .pivot .points, . .

dry .splines, .etc .

• .Provides .a .way .to .apply .a .long-lasting .

lubricant .into .close-fitting .areas

• .Allows .access .into .difficult-to-reach .

areas

• .Includes .a .quick-connect .coupler .to .

limit .grease .by-pass

• .Includes .a .threaded .protective .cap . .

that .removes .and .reattaches .safely . .

and .easily

• .Quickly .attaches .to .all .3- .and .4-jaw .

grease .couplers

• .For .use .with .hand .guns .only

Impact Fitting Cleaner

Model 5805

• .Clears .hardened .grease .from . .

fittings/joints .

• .Includes .steel .drive .cylinder, .piston, .

safety .shield, .high-pressure .hose .and .

5852 .coupler .

5805

WARNING

Never .point .needle .nozzles, .adapters .or .coupler .at .

any .part .of .the .body .or .another .person .

13

Packaged Grease Fittings

5468

Packaged Fittings–U.S. Threads

All the most popular fittings and sizes

Model 5468 Mini

Ten assorted grease fittings in three popular sizes, blister packed on one card.

Assortment Contents

Quantity Description

6 1/4"-28 straight

2

2

1/4"-28 45°

1/4"-28 90°

5191

5470

5470

5469

Model 5470 Economy

24 assorted grease fittings in six popular sizes blister packed on one card.

Assortment Contents

Quantity Description

6 1/8" NPT straight

6

3

1/4"-28 straight, short thread

1/8" NPT 45° angle

3

3

3

1/4"-28 45° angle, short thread

1/8" NPT 90° angle

1/4"-28 90° angle, short thread

Model 5469 Deluxe

100 assorted grease fittings in six popular sizes.

Sturdy, easy to handle transparent dispenser box has labeled and illustrated compartments.

Assortment Contents

Quantity Description

20 1/8" NPT straight

40

10

1/4"-28 straight, short thread

1/4”-28 45° angle, short thread

10

10

10

1/8" NPT 65° angle

1/8" NPT 90° angle

1/4"-28 90° angle, short thread

5290

5291

1/4"-28 Taper Thread Packs

Short Thread Grease

Model

5191

Description

Card of (10) straight fittings

5291

5491

Card of (10) 45° angle fittings

Card of (10) 90° angle fittings

1/8" Pipe Thread Packs

Grease Fittings

Model

5190

5290

5490

Description

Card of (10) straight fittings

Card of (10) 45° angle fittings

Card of (10) 90° angle fittings

5490

14

Packaged Fittings–Metric Threads

All the most popular fittings and sizes

Model 5184 Mini

An assortment of three of the most used 6mm sizes and configurations blister packed on one card.

Assortment Contents

Quantity Description

6 6mm straight

2

2

6mm 45°

6mm 90°

Model 5185 Economy

30 grease fittings in three of the most popular

6mm metric sizes blister packed on one convenient card.

Assortment Contents

Quantity Description

16 6mm straight

6 6mm 45°

8 6mm 90°

Model 5186 Deluxe

100 assorted grease fittings in all the most popular metric sizes. Sturdy, easy to handle dispenser box has labeled and illustrated compartments.

Assortment Contents

Quantity Description

40 6mm straight

20

10

6mm 45°

6mm 90°

5

5

5

5

5

5

8mm straight

8mm 45°

8mm 90°

10mm straight

10mm 45°

10mm 90°

5184

5186

Boxed and Bulk Grease Fittings

1/8" NPT

100 Pc. Box No.

5000C

5003C

5200C

5300C

5400C

5200

5000

5400

1/4" NPT

100 Pc. Box No.

5050C

5350C

5010

5410

5210

1/4"-28 SAE

100 Pc. Box No.

5010C

5013C

5527C

5210C

5410C

Metric

100 Pc. Box No.

5175C

5176C

5177C

5178C

5179C

5180C

5181C

5182C

5183C

5701, 5706

5033

Button Head

100 Pc. Box No.

5701C

5706C

Drive Type

100 Pc. Box No.

5033C

5385C

5031C

Bulk No.

5000

5003

5200

5300

5400

Bulk No.

5050

5350

Bulk No.

5010

5013

5527

5210

5410

Bulk No.

5175

5176

5177

5178

5179

5180

5181

5182

5183

Bulk No.

5701

5706

Bulk No.

5033

5385

5318

5031

Description

65° angle 1/4" NPT

Straight 1/4" NPT

Description

Straight–short thread

Straight–long thread

Straight–short thread

45° angle–short thread

90° angle–short thread

Description

1/8" NPT(m) thread

1/4" NPT(m) thread

Description

Straight

65° angle

65° angle

Straight

Description

Straight

Straight

45° angle

65° angle

90° angle

Description

Straight

45°

90°

Straight

45°

90°

Straight

45°

90°

Length

9/16"

13/16"

49/64"

37/64"

Length

21/32"

1-1/4"

7/8"

29/32"

27/32"

Length

1-5/32"

15/16"

Length

1/2"

11/16"

31/64"

7/8"

25/32"

Length

6mm

6mm

6mm

8mm

8mm

8mm

10mm

10mm

10mm

Length

25/32"

53/64"

Drive Dia.

3/16"

3/16"

1/4"

5/16"

IMPORTANT ORDERING INFORMATION

To order BULK FITTINGS: specify exact quantity desired. Product will arrive in one package containing that quantity.

To order 100 PC. BOXED FITTINGS: specify exact quantity of boxes desired. Product will arrive in boxes containing 100 fittings each.

15

Fitting Thread Adapters, Bushings, Angle Bodies & Tools

Metric Thread Adapters

Convert any ¼"-28 thread grease fitting to metric thread.

Metric Thread Adapters

Model

103307E

103308E

103309E

Thread

6mm x 1/4"-28 (f)

8mm x 1/4"-28 (f)

10mm x 1/4"-28 (f)

10787

10461

20028

Fitting Bushings & Angle Bodies

Bushings & Angle Bodies

Model

10461

10787

20028

20029

20026

Description

Hex bushing

Face bushing

45° angle body

90° angle body

90° angle body

Length

1/8" NPT(f) x 1/4" NPT(m)

1/8" NPT(f) x 1/4" NPT(m)

1/8" NPT(f) x 1/8" NPT(m)

1/8" NPT(f) x 1/8" NPT(m)

1/4"-28 (m) x 1/8" NPT(f)

20029

90776

Easy-Out Tools

A combination tool used to remove worn or broken fittings and to retap holes for installation of new fittings. Tool has socket wrenches for removing both straight and angle fittings. May also be used to remove old pin-type fittings.

Model 66953

For tapping 1/4"-28 threads and removal of both 3/8" and 5/16" hex. straight or angle fittings.

Model 90776

For tapping 1/8" NPT threads and removal of 7/16" hex. straight or angle fittings.

Fitting Drive Tools

Model 11485

Use to install straight Drive-Type Fittings only.

Model 11509

Use to install angle Drive-Type Fittings only.

11485

11509

16

Wheel Bearing Packers

102891

224

816

844

Lincoln Bearing Packers

Flush and pack in one operation eliminating inefficient and messy hand packing.

Model 224

Universal Bearing Packer forces out old grease while evenly injecting fresh grease.

Pack bearing up to 4-1/2" I.D. Connects to standard grease coupler. 4.5" OD.

Model 816

Services bearings with 5/8" to 1-1/2" I.D. This versatile, compact unit mounts on work-bench or wall. Bearing is flushed and packed by contacting fitting in packer head with power gun control valve or by high-pressure hand gun. Overall dimension:

4-1/2" high, 4" wide. 3-1/4" OD.

Model 102891

Bearing packer head only; for bench mounting or attachment to any Lincoln airoperated economy, Series 20 or Series 40 grease pump. Services bearings 1-3/4" to 9-1/2" O.D. with minimum I.D. of 9/16".Accepts grease through fitting from highpressure control valve or hand gun. For bench mount use 1/2" pipe flange.

Model 844

Services bearings to 9-1/2" O.D. with minimum 9/16" I.D. Includes adapters to service bearings from 1" to 1-3/4" O.D. For use with 120 lb. original refinery container (not included). Includes 84780 universal follower.

Specifications: Maximum pressure 800 psi. 1 ounce per stroke.

Finish: Drum cover in red enamel, pump head and handle in black.

Dimensions: Overall height 41-7/8" with standard 120 lb. drum.

Model 102697 Super Speed Packer

Services bearings with 5/8" to 1-1/2" I.D. with up to 3-1/4" O.D. on passenger cars, light trucks and farm vehicles. Clamps securely on 25 to 50 pound original refinery container. Primes easily and pumps efficiently even when using heavy greases at low temperatures. Includes flexible follower.

Specifications: 21" overall height.

Finish: Drum cover in red enamel.

Model 102929

Same as 102697 except has larger packer head to service bearing to 9-1/2" O.D. with minimum 9/16" I.D. Includes adapter to permit servicing smaller bearings of 1" to 1-3/4" O.D. Includes flexible follower plate.

102697

102929

17

PMV Pump Family

Designed for Exceptional Performance, Long Service Life,

Low Maintenance Cost

Lincoln’s new PMV family of grease and oil pumps represents 100 years of high-quality engineering, technology and manufacturing. The unique, modular design of these pumps includes precision-machined parts made with durable materials which allows for a longer pump life.

Based on Lincoln’s proven PowerMaster III air logic pump technology, PMV is a simple design with few moving parts. This translates to exceptional performance, long service life and low maintenance cost.

PMV Features and Benefits

Air Valve Assembly

• Proven design based on the PowerMaster III air logic pump technology

– More than 25 years of precision pump

engineering ensures dependable,

quiet performance

• Modular, fastened by four bolts

– Quick and easy to maintain throughout

the service life of the pump

• Precision machined and made from aircraft aluminum

– Precise, durable and less susceptible

to temperature than plastic spools

• Runs without external lubrication

– Reduces cost of ownership

• No springs, rods, levers or slides

– Fewer parts to wear out, increasing

durability, decreasing repair cost

• Designed to work in a contaminated air supply

Air Cylinder

• One-piece cylinder casting contains all ports and passages

– Simplifies repairs

• One-piece piston

– No connection to any rods, spools,

springs or poppets reduces premature

mechanical failures, simplifies repairs

• One O-ring on the piston

– Reduces leak paths,

improves durability

Pump Tube

• One-piece, machined gland nut

– Easy to maintain over the life

of the pump

• Divorced pump tube and air motor seal

– Air motor seal is a separate

O-ring which reduces the chance

of contamination in the motor

Pump Seals

• Made from durable polyurethane

– Compatible with a wide range of natural

and synthetic lubricants

Pump Rod

• Hard-chrome plated

– Allows for superior sealing

which extends the life

of the rod

Outlet Check

• For oil pump models

• Protects pump from system back pressure

18

High-Pressure, Portable, Heavy-Duty Grease Pumps

9989

9989 50:1 – 25-, 50-lb. Portable with Pail Cover

Package Includes:

• Bare Pump Model No. 85791

– Drum Cover Model No. 275370

– Air Coupler/Nipple

Model No. 5874/5875

– Universal Swivel Model No. 81387

– Flexible Follower Model No. 84775

– 7' Grease Hose Model No. 75084

– Straight Swivel Model No. 82399

– Control Valve Model No. 740

9917 50:1 – 120-lb. Portable with Caster Base

Package Includes:

• Bare Pump Model No. 85792

– Drum Cover Model No. 46007

– Air Coupler/Nipple

Model No. 5874/5875

– Universal Swivel Model No. 81387

– Caster Base No. 80895

– Flexible Follower Model No. 84780

– 7' Grease Hose Model No. 75084

– Straight Swivel Model No. 82399

– Control Valve Model No. 740

9917-57 50:1 – 120-lb. Portable without Caster Base

84775

84780

9917

Accessories

(included with 9917, 9989 shown above)

Follower Plates

Model 84775

Deluxe universal follower for use with 25-50 lb. containers for 1", 1-1/4", 1-1/2" diameter pump tubes. All rubber unit ensures complete grease dispensing to the bottom of dented or plastic lined drums; wipes pail or drum clean. Metal cap holds insert firmly in place, ensuring seal and maintaining vacuum.

Model 84780

Same as 84775 except for use with 120 lb. containers for 1", 1-1/4", 2-1/8" diameter pump tubes. Used with Series 20 and 40 air-operated grease pumps.

Model 81387 Universal High-Pressure Swivel

1/2"-27(m) x 1/4" NPT(m)

Model 740 Heavy-Duty High-Pressure

• 7500 psi maximum operating pressure

• Precision-machined, all steel handle, body and guard bracket provides durability and longevity

• Unique, precision control inlet check valve provides ease of handle operation even with increase in pressure

• Knurled handle for positive grip

• Handy trigger guard prevents pinching

• Reversible inlet check seat and hydraulic jaws provide double life

• Balanced design reduces user fatigue

• Lubricant inlet 1/4" NPT(f); outlet 1/8" NPT(f)

• Easily repaired for extended life

740

81387

19

High-Pressure, Portable, Heavy-Duty Grease Pumps

Model 6917 Air-Operated Portable

Grease Pump Package

Lincoln’s new heavy-duty portable grease pump delivers the same volume and pressure as the more expensive pumps – but at an affordable price.

• Lincoln’s time-tested, 2-1/2", 50:1, air-operated, double-acting grease pump ensures dependable, high-output grease delivery.

• Lube the hard-to-reach fittings with the heavy-duty control valve and universal swivel.

• Standard follower wipes 120 lb. drum sides clean and keeps the pump primed.

• Four-wheel dolly maneuvers easily around the shop.

6917

20

Model Ratio

6917 50:1

Max.

Pressure

Output/Min

Free Delivery

Base

Grease

Hose

7500 psi

(517 bar)

80 cubic in.

(1311 cubic cm)

84192

Band Dolly

75084 7'

Heavy Duty

Control

Valve

740

Heavy

Duty

Swivel

81387

Heavy

Duty

Follower

Add Longer

Grease

Hose?

274327

Std.

Follower

Yes

Add

Hose

Reel?

Yes

917

The Industry Standard

Series 20 & 40 • 50:1

Air-Operated • Double Acting

The following models contain Lincoln’s high–pressure Series 20 grease pumps.

Model 917 120 lb. Drum

Will dispense 45 ounces or 80 cubic inches of NLGI 0-2 grease per minute at 150 psi. Assures positive prime at lowest temperature. Drum cover 46007 finished in Lincoln red; roll-a-round base 80895 base in black; air motor cover in white. Height 43-1/8".

Base 17" square. Drum not included.

Model 917–57 120 lb. Drum

Same as 917 without roll-a-round base.

Model 346P 120 lb. Drum

Same as 917 except with 674 hand truck which provides convenient transportation for unit. Hand truck has two semi-pneumatic disc wheels and screw-type clamp which locks unit to truck. Drum not included.

346P

High-Pressure, Portable, Heavy-Duty Grease Pumps

987

Model 987 25-50 lb. Pail/60 lb. Bulk

For 25-30 lb. refinery containers or 60 lb. bulk. Gasket and air vent in lid assembly makes unit completely dust-proof, leak-proof and spill-proof. Ideal for use in all types of weather; container rust-proofed and finished in Lincoln red. Height 31-3/4"; inside diameter of container 12-1/2".

Model 989 25-50 lb. Drum

Steel cover has three thumb screws to clamp securely to any original 25-50 lb. refinery container. Carrying handle provides easy portability. Follower plate assures positive prime at lowest temperatures. Cover rust-proofed and finished in Lincoln red. Bucket not included.

Heavy-Duty Portable Grease Pump Assemblies

Model Bare

Drum

Cover

917–57 82050 46007

987 83513 90656

989 82716 91499

Base Delivery Kit* Follower Plate

NA

NA

NA

Included

84780 not supplied**

84775

Drum Size

120 lb.

25-50 lb.

25-50 lb.

*Delivery kits for all units include: 75084 high-pressure hose, 11659 nipple, 740 control valve, 815 air coupler, 82399 straight swivel and 81387 universal swivel.

**Follower plate recommended to assure positive prime at lowest temperatures. Must be ordered separately.

NOTE: Free delivery 80 cu. in. per min.

4417

989

Value Series 40:1 Single-Acting Grease Pumps

Features and Benefits

• Air-powered lubrication at an affordable price

• Portable medium- to light-duty chassis lubrication

• Simple grease plunger/bushing

• Control valve and universal swivel

• High-pressure

• Proven valved piston design

• Easy, one-hand operation

• Built for durability and reliability

• Maximum output: 5 cu. in./2.5 oz. per min.

Pump Models

Model

Container Size

Four Wheel Caster Dolly

Delivery Kit

Ratio

Air Motor Effective Diameter

Air Inlet Connection

Lube Outlet

Volume Output/Minute

Max. Air Pressure

Minimum Air Pressure

Maximum Grease Output Pressure

Flexible Follower

4417 4459 4489

120 lb.

25-50 lb.

Yes No

High-Pressure Grease Control Valve and Coupler,

Universal Swivel, 7’ Connecting Hose

40:1

2" / 52 mm

1/4" NPTF (female)

SAE-6 O-Ring Port

5 in³ / 82 cm³

100 psi / 10.34 bar

40 psi / 2.75 bar

4000 psi / 413 bar

Included with all models

4459

602003

Recommended Accessories

Air Line controls are a must for safe and effective pump operation.

Model No.

815

11659

602003

247843

10462

Description

1/4"( f) Air Coupler

1/4"(m) Air Nipple

1/4" Miniature Air Regulator

Air Line Pressure Gauge

1/4" Pipe Nipple for Regulator attachment

21

3" PMV Grease Pumps–Stationary and Replacement

DESCRIPTION

V350120DC

V350120HF

V350120LT

MODEL NO.

50:1 — 3" 25-, 50-lb. Models

85791

50:1 — 3" 120-lb. Models

85792

V350120DC

V350120000

K050120DC

85826

10198

80202

75060

273299

84780

5874/5875

V350120HF

V350120000

274932

V350120LT

V350120000

K050120LT

85829

80202

5874/5875

275415

50:1 — 3" 400-lb. Models

V350400000

V350400DC

V350400000

K050400DC

85827

10198

80202

75060

273299

5874/5875

V350400HF (not shown)

V350400000

275260

V350400LT

V350400000

K050400LT

85829

80202

5874/5875

275415

Bare Replacement Pump for 9989

Bare Replacement Pump for 9917

Stationary Package

Bare Pump

120-lb. Stationary Kit

Drum Cover

(2) Hose Connectors

Elbow Union

1/4" x 5' Grease Hose

3/8" x 5' Air Hose

Follower

Air Coupler/Nipple

Inductor Package

Bare Pump

Hoist/Follower Kit

Lube Truck Package

Bare Pump

120-lb. Lube Truck Kit

120-lb. Drum Cover with Tie Downs

Elbow Union

Air Coupler/Nipple

Lifting Eye

Bare Pump

Stationary Package

Bare Pump

400-lb. Drum Cover Kit

Drum Cover

(2) Hose Connectors

Elbow Union

1/4" x 5' Grease Hose

3/8" x 5' Air Hose

Air Coupler/Nipple

Inductor Package

Bare Pump

Hoist/Follower Kit

Lube Truck Package

Bare Pump

400-lb. Lube Truck Kit

400-lb. Drum Cover with Tie Downs

Elbow Union

Air Coupler/Nipple

Lifting Eye

V350400DC

V350400LT

50:1 3" Grease Pump Specifications

Pumping Ratio

Air Pressure

Max. Output Pressure

Air Inlet

Material Outlet

Airmotor Bore Dia.

Stroke

Output Per Cycle

Wetted Parts

Free Flow

Overall Length (35 Lb.)

Overall Length (120 Lb.)

Overall Length (400 Lb.)

50:1

40 - 150 psi (2.7 - 10.3 bar)

7500 psi (517 bar)

3/8 NPTF

1/4 NPTF

3 in. (76.2 mm)

3-1/4 in. (82.5 mm)

0.78 cu. in. (12.8 cc)

Carbon Steel, Brass, Zinc, Polyurethane, Nitrile

168 in³/min. (2753 cc/min)

27-7/8" (708 mm)

36-3/8" (924 mm)

42-7/8" (1089 mm)

Decibels less than 85 at all normal operating conditions

22

4.25" PMV Grease Pumps–Stationary

V450120DC

V450120LT

V450400DC

V4504000000

MODEL NO.

50:1 — 4.25" 120-lb. Models

V4501200000 (not shown)

V450120DC

V450120000

K050120DC

85826

10198

80202

75060

273299

84780

5874/5875

V350120LT

V450120000

K050120LT

84829

80202

5874/5875

275416

50:1 — 4.25" 400-lb. Models

V4504000000

V450400DC

V450400000

K050400DC

85827

10198

80202

75060

273299

5874/5875

V450400HF

V450400000

275260

V450400HR

V450400000

85840

275260

V450400LT

V450400000

K050400LT

83115

80202

5874/5875

275416

V450400HF

DESCRIPTION

Bare Pump

Stationary Package

Bare Pump

120-lb. Stationary Kit

Drum Cover

(2) Hose Connectors

Elbow Union

1/4" x 5' Grease Hose

3/8" x 5' Air Hose

Follower

Air Coupler/Nipple

120-lb. Drum Cover with Tie Downs

Elbow Union

Air Coupler/Nipple

Lifting Eye

Elbow Union

Air Coupler/Nipple

Lifting Eye

Bare Pump

Stationary Package

Bare Pump

400-lb. Drum Cover Kit

Drum Cover

(2) Hose Connectors

Elbow Union

1/4" x 5' Grease Hose

3/8" x 5' Air Hose

Air Coupler/Nipple

Inductor Package

Bare Pump

Hoist/Follower Kit

Inductor/Runaway Package

Bare Pump

Runaway Control

Hoist/Follower Kit

Lube Truck Package

Bare Pump

400-lb. Lube Truck Kit

400-lb. Drum Cover with Tie Rods

Elbow Union

Air Coupler/Nipple

Lifting Eye

50:1 4.25" Grease Pump Specifications

Pumping Ratio

Air Pressure

Max. Output Pressure

Air Inlet

Material Outlet

Airmotor Bore Dia.

Stroke

Output Per Cycle

Wetted Parts Polyurethane, Nitrile

Free Flow

Overall Length (120 Lb.)

Overall Length (400 Lb.)

Decibels less than 85 at all normal operating conditions

50:1

40-150 psi (2.7-10.3 bar)

7500 psi (517 bar)

3/8 NPTF

1/4 NPTF

4-1/4 in. (108 mm)

3-1/4 in. (82.5 mm)

1.47 cu. in. (24.1 cc)

Carbon Steel, Brass, Zinc,

220 in³/min (3605 cc/min)

36-7/16" (926 mm)

42-15/16" (1091 mm)

V450400LT

23

High-Pressure, Stationary Grease Pumps

918

926

83447

50:1 • Double Acting • Air-Operated

Shop/Plant/Lube Truck Applications*

Model 918 120 lb. Drum

Equipped with 82050 bare pump assembly, 46007 drum cover, 815 air coupler,11659 air nipple, 72036 3' air connecting hose, 75060 5’ high-pressure grease connecting hose,

84780 deluxe follower plate, 80202 volume elbow union. Height with drum is 39-3/8".

Drum not included.

Model 83447 Pump Elevator Assembly

Pump elevator assembly lifts pump assembly clear of drum for easy, one person drum changes. Also helps prevent introduction of foreign material into grease during drum changes. Height with drum is 39-3/8", 67-1/4" with elevator raised. Drum not included.

Model 926 400 lb. Drum

Equipped with 82054 bare pump assembly, 81523 drum cover, 815 air coupler, 11659 air nipple, 72036 3' air connecting hose, 75060 5' high-pressure grease connecting hose and

80202 volume elbow union. Height with drum is 46". Drum not included.

Model 926-1 400 lb. Drum

Same as 926 except without 81523 drum cover.

Shop/Garage Applications

Model 1418 120 lb. Drum

Equipped with 84667 bare pump assembly, 46007 drum cover, 815 air coupler, 11659 air nipple, 72036 3' air connecting hose, 75060 5' high-pressure grease connecting hose, 84780 deluxe follower plate and 80202 volume elbow union. Height with 120 lb. drum is 41-3/8". Drum not included.

Model 1426 400 lb. Drum

Equipped with 84668 bare pump assembly, 81523 drum cover, 815 air coupler, 11659 air nipple, 72036 3' air connecting hose, 75060 5' high-pressure grease connecting hose and

80202 volume elbow union. Height with 400 lb. drum is 48". Drum not included.

NOTE: Deluxe follower plate 83366 is recommended for use when pumping extra-heavy lubricants and must be ordered separately for this model. See page 24.

1418

2740

Model 1426-1 400 lb. Drum

Same as 1426 except without 81523 drum cover.

Model 2740 400 lb. Inductor

Equipped with 84668 bare pump assembly, 274681 primer assembly with follower, air powered hoist, 815 air coupler, 11659 nipple, 274728 7' air hose, 75084 7' grease hose,

602003 air regulator for hoist, and 274843 air gauge. Raised height is 97".

Grease Pumps

Model Description

918 Shop/garage

926 Shop/garage

Bare

Pump

Free

Delivery

(per min.)

Air Inlet

NPT

82050 80 cu. in.

50:1 120 lb 1/4" (f)

82054 80 cu. in.

50:1 400 lb.

1/4" (f)

1418 High-volume shop 84667 90 cu. in.

50:1 120 lb.

1/4" (f)

1426 High-volume shop 84668 90 cu. in.

50:1 400 lb.

1/4" (f)

2740 Pump with inductor 84668 90 cu. in.

50:1 400 lb.

1/4" (f)

Material

Outlet NPT

1/4" (f)

1/4" (f)

1/4" (f)

1/4" (f)

1/4" (f)

24

High-Pressure Grease Pump Accessories

46007

84775

81523

83366

Drum Covers

Model 46007

Drum cover for 120 lb. or 16-gallon open-top refinery containers for all series 20,

25 and 40 pumps.

Model 81523

Drum cover for 400 lb. or 55-gallon open-top refinery containers for all series 20,

25 and 40 pumps.

Follower Plates

Recommended when pumping lubricants that will not seek their own level.

Model 84775

Deluxe universal follower for use with 25-50 lb. containers for 1", 1-1/4", 1-1/2" diameter pump tubes. All rubber unit ensures complete grease dispensing to the bottom of dented or plastic lined drums; wipes pail or drum clean. Metal cap holds insert firmly in place, ensuring seal and maintaining vacuum.

Model 84780

Same as 84775 except for use with 120 lb. containers for 1", 1-1/4", 2-1/8" diameter pump tubes. Used with Series 20 and 40 air-operated grease pumps.

Model 83366

Deluxe pressed steel follower plate for 400 lb. drums includes a seal in the hub to prevent channeling of grease past the pump tube.

80895

84191

674

84377

84941

66060

Drum Dollies

Model 84191 25-50 lb. Band Dolly

Band-type dolly for any original 25-50 lb. refinery containers; caster 66060.

Model 84192 120 lb. Band Dolly

Band-type dolly for use with 120 lb. refinery containers; caster 66060.

Model 84377 Drum Dolly

Use with any 400 lb. drum. ID 23-1/4", height 5-1/4", hard rubber wheels: 1" wide, 2-1/2" dia.

Model 674 Hand Truck

All steel, rugged construction with 6" dia. wheels. Finished in Lincoln red. 41" high x 15" wide. For use with an 120 lb. or 16-gallon drum.

Model 80895 Roll-A-Round Base

Use with 120 lb. refinery containers. Four ball-bearing swivel casters and screw clamps.

80202

84942

Accessories

Model 66060 2-1/2" Caster

for Roll-A-Round Base Units

Standard equipment on Lincoln drum and band dollies.

Model 84941

Eye bolt kit for all series 20, 25 and 40 pumps, makes drum changing easy. Two part kit screws directly onto pump for lifting with pump elevator.

Model 84942 Flange Mount Kit

For mounting Series 24 and 40 oil pumps to custom made tanks/lube trucks.

Model 80202 Volume Elbow

For use in stationary installations with high-pressure Lubriguns. 1/4" NPT(m) inlet;

1/4" NPT(f) outlet.

25

High-Pressure Grease Pump Accessories

PowerMaster Pump Features

• Gives years of dependable trouble-free operation.

• Costs much less to operate–costs much less to maintain.

• High-volume output–air motor has extra-long stroke for powerful, uniform delivery on both up and down strokes.

• Shovel-type pump tube used to add mechanical priming to normal suction when needed.

• Sturdy construction—plunger and bushing of hardened steel for longer life, greater wear resistance.

• Plunger, bushing and air valve mating parts are micro-lapped to close tolerances. Prevents by-passing of lubricant and bleeding of air. Eliminates need to replace washers and packings.

• Simplified maintenance. Modular design of pump tube allows for easy disassembly. Air motor piston and cylinder…no oiling required, minimum friction, no leather cups.

66764

1716

81538

81412

83369

Accessories

Drum Covers

Model 81538

Standard 16-gallon drum cover for mounting PowerMaster II and III drum pumps to full open drums.

Model 81412

Standard 55-gallon drum cover for mounting PowerMaster II & III Series drum pumps on full open drums.

Follower Plates

Recommended when pumping lubricants that will not seek their own level.

Model 83369

For 400 lb. drums. Diameter 21-5/8".

Model 84780

For 120 lb. drums.

Air Motor Muffler

Model 66764

For use on pump stations that incorporate the PowerMaster II air motor. 3/4" NPT(m).

Two required per air motor.

Model 1716 Pump Hoist

For use with all PowerMaster II Series 1900 pumps. Air-operated single post pump hoist for 55-gallon drums performs several functions in applications of low- to mediumviscosity materials. Facilitates drum changeovers. Includes follower and wiper which uses normal suction to help maintain pump prime.

Specifications

Model

Lowered

Height

1716 73" / 1.9m

Raised

110-1/2"

2.8m

Operating Air

Pressure psi / bar

40-200 / 3-14

Beam

Length Rotation

19"

.5m

360°

Lift

Capacity

400 lbs

182kg

Series 1900 PowerMaster High-Pressure Grease Pumps

Model Ratio

1903 40:1

1904 75:1

1908 75:1

1910 50:1

Pump Tube

Type

55-gal

55-gal

16-gal

55-gal

82730

82730

82730

82730

4-1/4 / 108

4-1/4 / 108

4-1/4 / 108

4-1/4 / 108

Material

Outlet

82792 3/4" NPTF

82793 3/4" NPTF

82883 3/4" NPTF

83271 3/4" NPTF

Output per cycle cu. in / cc

2.8 / 46

1.6 / 26

1.6 / 26

2.3 / 38

Approx. Cycles per gal / liter

83 / 22

144 / 39

144 / 39

101 / 26

Model

Gallons / Liters per Minute

30 CPM 50 CPM 70 CPM

1903 .4 / 1.4

.6 / 2.3

.8 / 3.2

1904 .2 / .8

.3 / 1.3

.5 / 1.8

1908 .2 / .8

.3 / 1.3

.5 / 1.8

1910 .3 / 1.1

.5 / 1.9

.7 / 2.6

Min. ID Air

Supply Hose in. / mm

1/2" / 12

1/2" / 12

1/2" / 12

1/2" / 12

[email protected] psi M³/[email protected] bar [email protected] psi M³/ [email protected] bar

.5

.5

.5

.5

*All PowerMaster pumps include 3/4" NPTF(m) x 1/2" NPTF(f) bushing in the material outlet.

Full range of Series II and Series III PowerMaster pumps available. See your Lincoln representative.

Air Consumption Per Cycle

.014

.014

.014

.014

.62

.62

.62

.62

.017

.017

.017

.017

26

High-Pressure Portable/Manual Pumps

1292

Manual Bucket Pumps

These quality-built Lincoln bucket pumps dispense high-pressure lubrication in any weather—even at 0ºF. Select from pump units developing 2500 to 5000 psi for normal lubrication service or lubrication of trac-roll bearings.

Model 1292 Grease Pump

Unit clamps on any 25-50 lb. refinery container in 60 seconds. Includes 275184 flexible follower. Dimensions: 21-1/2"h. x 12-1/4"w. Tube size 1-1/4".

1272 shown with optional hose

Model 1272

Large 30 lb. lubricant capacity with easy pumping action, develops a 3500 lb. maximum pressure to lubricate the most closely fitted bearings. Automatic pressure release prevents nozzle drippage, waste and mess. Pump and lid assembly easily removed as a single unit for filling. Order 7' hose and coupler assembly (81768) separately.

Dimensions: 28"h x 14"w x 9"dia.

Model 1275

All purpose pump dispenses both lubricants and greases. Especially useful for lubrication of trac-roller bearings. Handle slot pin switches for high pressure 5000 psi or high volume, low pressure 2000 psi delivery. 40 lb. capacity steel container filled through pivot cover opening in lid. May also be used for fast, clean refilling of transmissions, differentials, gear cases and final drives. Order 5' hose (79060) and coupler (80933) separately. Dimensions: 23-1/2"h x 11-3/8"w x 14-5/8" long.

1275 shown with optional hose and coupler assembly

81768

81673

Delivery Hose Assemblies for Bucket Pumps

2250 psi maximum operating pressure

Model Length Swivel

FOR CONTACTING HYDRAULIC FITTINGS

Coupler Extension

81768 7' 80924

FOR CONTACTING STANDARD BUTTON-HEAD FITTINGS

5834

81673

81168

7'

7'

80924

FOR CONTACTING LARGE BUTTON-HEAD FITTINGS

80924

81458

80933

81168

Manual Grease Pumps

Model Cont. Size

Max.

Pressure

Hose Follower Output

FOR USE WITH ORIGINAL REFINERY CONTAINERS–SUPPLIED W/BUCKET COVER ASSEMBLY

1292 25–50 lb.

2500 psi 5852 5 ft. 79060 275184 .303 oz./stroke¹

SELF-CONTAINED MODELS

Coupler

Acces.

1275

1272

40 lb. bulk

30 lb. bulk

5000 psi

3500 psi none none none not supplied

.37 oz./stroke high²

.95 oz./stroke low

.28 oz./stroke low

¹Using no. 1 multi-purpose grease at 80°F ²Using no. 1 cup grease at 70°F

WARNING

For safe and proper use, always consult instructions accompanying product. See

Safety

Warning Information

for appropriate warnings.

27

High-Pressure Portable/Manual Pumps

Filler Pumps—Portable & Stationary

• Fast (less than a minute), positive gun refilling with simple pumping action

• Filler socket assembly eliminates mess, waste and air pockets

Model 1296 Clamp–On Carry

Clamps to any original 25-50 lb. refinery container. Handles medium- and lightpressure lubricants in any weather. Includes pump, filler socket, 274790 flexible follower plate and ribbed steel drum cover. Rust resistant. Tube size 1-1/2".

Model 500L Stationary 120 lb. Drum

For use with original refinery drums with maximum head diameter of 14-9/16" and overall height of 26-5/8". Handles all high-pressure lubricants. Includes pump, filler socket and drum cover with one set of adjusting screws to accommodate variations in drum diameter. Red enamel finish; pump head and handle in black. Delivers 1 oz. per stroke.

1296

Filler pumps

Model

1296

500L

Container Size

25-50 lb.

120 lb.

Follower Plate

274790 none*

Filler Socket**

274712

80133

Dimensions

20"h x 12-1/4"w

26-5/8" h x

14-9/16" dia.

* For pumping extra heavy lubricants, order follower plate 84780 for 500L pump.

**Requires 91108 filler nipple on receiving tool.

500L

91108

80133

Model 80133 Filler Socket Assembly

Convert guns and pumps for fast, convenient, economical loading. For attaching to filler pumps that are not Lincoln models; 3/8" NPT(f).

Model 91108 Filler Nipple

Enables any grease gun to be loaded using a Lincoln filler pump or any filler pump with a

80133 filler socket assembly.

28

3" PMV Oil Pumps

V305000000

V305016DC

V30500SSU

V305055BB

V30500SWM

V305275BB

MODEL NO.

5:1 — 3" MODELS

V406000000

V40600SSU

V406000000

K40600SSU

85824

5874/5875

72024A

73024

241584

V305055BB

V305000000

K000055BB

85824

5874/5875

273299

73060

85807

241584

V305016DC

V305000000

K000016DC

85826

85824

5874/5875

273299

73060

85806

V305275BB

V305000000

K000275BB

85824

5874/5875

273299

73060

85949

V30500SWM

V305000000

84945

275398

5874/5875

273299

73060

241584

275413

V305055LT

V305000000

K000055LT

83115

85807

273299

73060

241584

275413

V410055LT

V410000000

K000055LT

83115

85807

275415

5874/5875

273299

V305055LT

DESCRIPTION

Bare Pump

Stub/Universal Pump

Bare Pump

Stub/Universal Kit

Bung Bushing

Air Coupler/Nipple

3/8" x 2’ Air Hose

1/2" x 2’ Fluid Hose

90° Swivel

55-Gallon Pump

Bare Pump

Stub/Universal Kit

Bung Bushing

Air Coupler/Nipple

3/8" x 5' Air Hose

1/2" x 5' Fluid Hose

Down Tube

90° Swivel

16-Gallon Pump

Bare Pump

Drum Cover Kit

Drum Cover

Bung Bushing

Air Coupler/Nipple

3/8" x 2' Air Hose

1/2" x 5’ Fluid Hose

Suction Tube

275-Gallon Pump

Bare Pump

275-Gallon Pump Mount Kit

Bung Bushing

Air Coupler/Nipple

3/8" x 5' Air Hose

1/2" x 5' Fluid Hose

Universal Suction Tube

Wall Mount Pump

Bare Pump

Remote Suction Kit

Wall Mount Kit

Air Coupler/Nipple

3/8" x 5' Air Hose

1/2" x 5’ Fluid Hose

90° Swivel

Wall Mount Assembly

55-Gallon Lube Truck Pump

Bare Pump

Drum Cover and Hose Kit

400-lb. Drum Cover with Tie Rods

85807

3/8" x 5' Air Hose

1/2" x 5' Fluid Hose

90° Swivel

Wall Mount Assembly

55-Gal. Lube Truck Pump with Drum Cover

Bare Pump

Drum Cover and Hose Kit

400-lb. Drum Cover with Tie Rods

Down Tube

Lifting Eye

Air Coupler/Nipple

3/8" x 5' Air Hose

29

4.25" PMV Oil Pumps

V40600SSU

V410000000

V410055DC

V41000SWM

V406000000

V40600SWM

V41000SSU

V410055BB

V410055LT

85827

5874/5875

273299

73060

85807

241584

V410055BB

V410000000

K000055BB

85824

5874/5875

273299

85807

241584

V41000SWM

V410000000

84945

275398

5874/5875

273299

73060

241584

275413

V410055LT

V410000000

K000055LT

83115

85807

275415

5874/5875

273299

V410055LB

V410000000

K000055LB

85824

83131

85807

5874/5875

273299

MODEL NO.

6:1 — 4.25" Models

V406000000

V40600SSU

V406000000

K40600SSU

5874/5875

72024A

73024

241584

V40600SWM

V406000000

84945

275398

5874/5875

273299

73060

241584

275413

10:1 — 4.25" Models

V410000000

V41000SSU

V410000000

K00000SSU

85824

5874/5875

72024A

73024

241584

V410055DC

V410000000

K000055DC

V410055LB

30

DESCRIPTION

Bare Pump

Stub Pump

Bare Pump

6:1 Stub Kit

Air Coupler/Nipple

3/8" x 2' Air Hose

1/2" x 2' Fluid Hose

90° Swivel

Wall Mount Pump

Bare Pump

Remote Suction Kit

Wall Mount Kit

Air Coupler/Nipple

3/8" x 5' Air Hose

1/2" x 5' Fluid Hose

90° Swivel

Wall Mount Assembly

6:1 PUMPS FOR

STUB OR WALL

MOUNT ONLY.

NOT FOR USE WITH

BUNG BUSHINGS.

10:1 Bare Pump

10:1 Stub/Universal Pump

Bare Pump

Stub/Universal Kit

Bung Bushing

Air Coupler/Nipple

3/8" x 2' Air Hose

1/2" x 2' Fluid Hose

90° Swivel

55-Gallon Pump with Drum Cover

Bare Pump

55-Gallon Drum Cover Kit

Drum Cover

Air Coupler/Nipple

3/8" x 5' Air Hose

1/2" x 5' Fluid Hose

Suction Tube

90° Swivel

55-Gallon Pump with Bung Bushing

Bare Pump

55-Gallon Bung Mount Kit

Bung Bushing

Air Coupler/Nipple

3/8" x 5' Air Hose

Down Tube

90° Swivel

Wall Mount Pump

Bare Pump

Remote Suction Kit

Wall Mount Kit

Air Coupler/Nipple

3/8" x 5' Air Hose

1/2" x 5' Fluid Hose

90° Swivel

Wall Mount Assembly

55-Gal. Lube Truck Pump with Drum Cover

Bare Pump

Drum Cover and Hose Kit

400-lb. Drum Cover with Tie Rods

Down Tube

Lifting Eye

Air Coupler/Nipple

3/8" x 5' Air Hose

55-Gal. Lube Truck Pump with Bung Bushing

Bare Pump

55-Gallon Lube Truck Kit with Bung Bushing

Bung Bushing

Tie Rod Kit

Suction Tube

Air Coupler/Nipple

3/8" x 5' Air Hose

PMV Pump Specifications

5:1 3" Oil Pumps

Pumping Ratio

Air Pressure

Max. Output Pressure

Air Inlet

Material Outlet

Material Inlet

Airmotor Bore Dia.

Stroke

Output Per Cycle

5:1

40-150 psi

(2.7-10.3 bar)

750 psi (51 bar)

3/8 NPTF

1/2 NPTF

1-1/2 NPTF

3 in. (76.2 mm)

3-1/4 in. (82.5 mm)

6.7 cu. in. (110 cc)

Cycles/Gal (Liter)

34.5 (9.1)

Wetted Parts Polyurethane, Nitrile Carbon Steel, Brass, Zinc,

Free Flow

Overall Length (Stub)

7 gpm (26.5 lpm)

17-3/8" (442 mm)

Decibels less than 85 at all normal operating conditions

6:1

40-150 psi

(2.7 -10.3 bar)

900 psi (62 bar)

3/8 NPTF

1/2 NPTF

1-1/2 NPTF

4-1/4 in. (108 mm)

3-1/4 in. (82.5 mm)

11.9 cu. in. (195 cc)

19.4 (5.1)

Free Flow

Overall Length

7 gpm (26.5 lpm)

18-7/8" (480 mm)

Decibels less than 85 at all normal operating conditions

NOTE:

6:1 pumps for stub or wall mount only. Not for use with bung bushings. Use the suction kit and wall mount bracket that are packaged with the pump assembly model.

10:1 4.25" Oil Pumps

Pumping Ratio

Air Pressure

10:1

40-150 psi

(2.7-10.3 bar)

1500 psi (103 bar)

Max. Output Pressure

Air Inlet

Material Outlet

Material Inlet

3/8 NPTF

1/2 NPTF

1-1/2 NPTF

Airmotor Bore Dia.

Stroke

Output Per Cycle

Cycles/Gal (Liter)

4-1/4 in. (108 mm)

3-1/4 in. (82.5 mm)

7.2 cu. in. (118 cc)

32.1 (8.5)

Wetted Parts Polyurethane, Nitrile Carbon Steel, Brass, Zinc,

Free Flow

Overall Length

5 gpm (18.4 lpm)

17-7/16" (443 mm)

Decibels less than 85 at all normal operating conditions

6:1 4.25" Oil Pumps

Pumping Ratio

Air Pressure

Max. Output Pressure

Air Inlet

Material Outlet

Material Inlet

Airmotor Bore Dia.

Stroke

Output Per Cycle

Cycles/Gal (Liter)

31

Medium-Pressure, Stationary Oil Stub Pumps

3:1–5:1 • Motor Oil, ATF, Gear Lube and Other Fluid Lubricants

Now you can build your 3:1 ratio or 5:1 ratio oil pump with a stub pump plus suction kit or you can order complete models. You make the choice.

84538

282398

Series 25 Pumps

This 2" diameter, 25 cubic inch displacement stub pump family is based on our 3:1 ratio

282396 bare stub pump.

Model 282398

3:1 pressure ratio stub pump assembly comes complete with 282396 bare stub pump,

84935 pump cover kit, 73024 oil connecting hose, 72024 air connecting hose, 241584

90° volume union elbow, 815 air coupler, 11659 air nipple and 84538 bung bushing.

Delivers a uniform six gallons of product per minute free delivery. Ideal for dispensing fluids from drums, tanks or remote standpipe mount.

Series 40 Pumps

This industry proven 2-1/2" diameter, 40 cubic inch displacement stub pump family is based on the Lincoln 5:1 ratio 84933 bare stub pump.

84934

Model 84934

5:1 pressure ratio stub pump assembly comes complete with 84933 bare stub pump, 85935 pump cover kit, 73024 oil connecting hose, 72024 air connecting hose, 241584 90° volume union elbow, 815 air coupler, 11659 air nipple and 84538 bung bushing. Delivers a uniform six gallons of product per minute free delivery.

Versatile Stub Pump Mounting Options

Standpipe and wall mount assembly to remote bulk tanks

3:1 (282398) or 5:1 (84934) pump, wall mount kit (84940), low level cut-off (84946) or foot valve

(85765).

Wall mount to any size drum

3:1 (282398) or 5:1 (84934) pump, wall mount kit

(84940), suction kit (84945) and low level cut-off

(84946) or foot valve (85765).

Above ground tank

(275-gallon tank shown) 3:1 (282398) or 5:1

(84934) pump and universal suction kit (85949).

55-gallon drum mount using bung bushing

3:1 (282398) or 5:1 (84934) pump and 55-gallon drum suction (85755).

32

16-gallon drum mount using drum cover

3:1 (282398) or 5:1 (84934) pump, drum cover

(46007) and 16-gallon drum suction kit (85716).

55-gallon drum mount on lube truck using drum cover

3:1 (282398) or 5:1 (84934) pump, eyebolt kit

(84941), drum cover/tie–down kit (83115) and

55-gallon drum suction kit (85755).

Medium-Pressure, Stationary Oil Pumps

83447

3:1–5:1 • Motor Oil, ATF, Gear Lube and Other Fluid Lubricants

Shop/Garage/Lube Truck* Applications —16-Gallon Drums

Model 2437

Complete with pump, 73060 lubricant connecting hose, 241584 volume elbow,

72060 air connecting hose, 815 air coupler, 11659 air nipple.

2424

Model 83447

Pump elevator assembly lifts pump assembly clear of drum for easy, one person drum changes. Helps prevent introduction of foreign material into grease during drum changes.

Height with drum is 39-3/8", 67-1/4" with elevator raised. Drum not included.

55-Gallon Drums

Model 2424

Comes complete with 282133 pump, 84538 2" NPT(m) bung bushing, to fit original

55-gallon bung opening drums, 241584 volume union elbow, 815 air coupler,

11659 air nipple, 73060 lubricant connecting hose and 72060 air hose.

284168

250-/275-Gallon Tanks

Model 284168

Comes complete with 282396 pump and 85949 universal suction tube kit, 84538 bung bushing, air and lubricant connecting hose. Pumps oil, gear lube, ATF, etc. from tanks, drums.

*For lube truck applications, contact your Lincoln distributor.

All models based on the 282396 series 25 3:1 bare oil pump which delivers 6 gpm free flow plus a suction tube.

Series 25 Oil Pumps

Model Description

Bare Pump

No.

Free

Delivery Ratio

Drum Size Air Inlet

Material

Outlet

Use/

Location

282396 6 gallons 3:1

282396 Bare stub pump 282396 6 gallons 3:1

2424 Stationary 282133 6 gallons 3:1

2437

Stationary w/ suction kit

85716

282396 6 gallons 3:1

55-gallon

16-gallon

1/4" NPT 1/2" NPT replacement stub/universal 1/4" NPT 1/2" NPT universal

55-gallon 1/4" NPT 1/2" NPT

1/4" NPT 1/2" NPT shop shop

282396 6 gallons 3:1 stub/universal 1/4" NPT 1/2" NPT universal

284168 Stationary tank 282396 6 gallons 3:1 250-/275-gallon 1/4" NPT 1/2" NPT shop

All models based on the 84933 Series 40 5:1 bare oil pump which delivers 6 gpm free flow plus a suction tube.

Series 40 Oil Pumps

Model Description

Bare Pump

No.

84933 bare stub pump 84933

Free

Delivery Ratio

Drum Size Air Inlet

Material

Outlet

Use/

Location

6 gallons 5:1 stub/universal 1/4" NPT 1/2" NPT universal

84933 6 gallons 5:1 55-gallon 1/4" NPT 1/2" NPT replacement

84933 6 gallons 5:1 55-gallon 1/4" NPT 1/2" NPT shop

2537 stationary 16 gal. w/ suction kit 85716

84933 6 gallons 5:1 16-gallon 1/4" NPT 1/2" NPT shop

285168 stationary tank

84933

84933

6 gallons 5:1 stub/universal 1/4" NPT 1/2" NPT universal

6 gallons 5:1 250- or 275-gal. 1/4" NPT 1/2" NPT shop

33

Medium-Pressure Pump Accessories

85824

84538

85765

Series 25 & 40

Bung Bushing / Low Level Cut-Off / Foot Valves

Model Description

Threaded

Connection

Notes

84538 Pump bung bushing

85824 Bung bushing

82439 Low-level cutoff

84946 Low-level cutoff

85765 Foot valve

2" (m)

2" NPTF (m)

Mounts series 25 or 40 pump to 2" oil drum opening

Mounts PMV pumps to 55 gal. drum or custom-built tanks

1-1/2" NPT(m) Used with “new oil” oil pumps

1" NPT(m) Used with “new oil” oil pumps

1" NPT(f) Used with “new oil” oil pumps

Wall Mount Kit

Model Description

84940 Wall-mount kit–Series 25 & 40

84942 Flange-mount kit–Series 25 & 40

Notes

Used with 84945 Suction Kit

Mounts pump to custom made tanks (lube trucks)

82439

Suction Kits

Model Description

Threaded

Connection

Notes

84945 Remote suction kit

84940

85716 16-gal. drum suction kit

84942

85755 55-gal. drum suction kit (steel) 1" NPT(m) Adapts any series 25 or 40 oil pump to

85949 Universal suction kit

84945

Pump Covers

Model Description

84935 Pump cover

85935 Pump cover

Hose

Model Description

72036 3' low-pressure connecting

72060 5' low-pressure connecting

Notes

Series 20 pumps

Series 25 & 40 pumps

Threaded Connection

1/4" NPT(m)

1/4" NPT(m)

1/2" NPT(m)

1/2" NPT(m)

Notes

Max working pressure: 250 psi

Max working pressure: 250 psi

Max working pressure: 1000 psi

Max working pressure: 1000 psi

85935

282876

85949

72036

73036

Eye Bolt Kit

Model 84941

Eye bolt kit for all series 20, 25 and 40 pumps, makes drum changing easy. Two part kit screws directly onto pump for lifting with pump elevator.

Thermal Pressure Relief Valve

Model 282876

Protect lube system components from high-pressure spikes caused by temperature change in a closed fluid network.

Model

282876

282902

275197

282597

Application

Diaphragm Pumps,

3:1, 5:1

Pre-Set Relief Pressure

1000 psi (68 bar)

150 psi (10 bar)

500 psi (34 bar)

1500 psi (105 bar)

Port Size

1/2" NPT

34

84941

Medium-Pressure, Stationary, HD PowerMaster

®

II Pumps

1914

Motor Oil, ATF, Gear Lube and Other Solutions

PowerMaster Pump Features

• Gives years of dependable trouble-free operation.

• Costs much less to operate–costs much less to maintain.

• High-volume output–air motor has extra-long stroke for powerful, uniform delivery on both up and down strokes.

• Pump outlet body of all-steel construction designed to withstand pulsation and extreme pressure. All wearing parts are tough, heat-treated steel.

• Trouble-free, positive performance. Air motor operation has no springs to wear out, rust or lose tension. Air valve is stall-proof, leak-proof and pre-lubricated. Double-acting mechanisms ensure dependable low-surge operation with minimum air consumption.

• Simplified maintenance. Modular design of pump tube allows for easy disassembly.

Air motor piston and cylinder…no oiling required, minimum friction, no leather cups.

84826

Model 84826 Universal Wall Mounting Bracket

For PowerMaster II or III air motor assemblies.

1901

66764

Air Motor Muffler

Model 66764

For use on pump stations that incorporate the PowerMaster II air motor. 3/4" NPT(m).

Two required per air motor.

Ball Type Medium-Pressure Pumps

Model Ratio

1901

1952

12:1

6:1

Pump Tube

Type

55-gal

55-gal

Air Motor

Diameter in. / mm

Pump

Tube

82730 4-1/4" / 108 82790

82895 3" / 76 82790

Material

Outlet**

3/4" NPTF

3/4" NPTF

Output per cycle cu. in / cc

9 / 148

9 / 148

Approx. Cycles per gal / liter

26 / 7

26 / 7

Medium-Pressure Stub Pumps

Model Ratio

1914 12:1

Pump Tube

Type

stub

Air Motor

Diameter in. / mm

Pump

Tube

82730 4-1/4 / 108 84335

Material

Outlet**

3/4" NPTF

* Not to be used with meters. ** All PowerMaster pumps include 3/4" NPTF(m) x 1/2" NPTF(f) bushing in the material outlet.

NOTE: Model number with “-1” indicates model including bung bushing (ex., 1935-1).

Model number with “-2” indicates model including drum cover (ex., 1935-2).

Output per cycle cu. in / cc

9 / 148

Approx. Cycles per gal / liter

26 / 7

Full range of Series II and Series III PowerMaster pumps available. See your Lincoln representative.

83132

84945

Model 83132 Bung Bushing

Screws in bung opening of 400 lb. drums and custom-built tanks to secure any PM II & III pumps.

Plated to resist rust. Threaded 2" NPT(m).

Model 84945 Suction Kit

For transfer of product from drums, bulk tanks or reservoirs. Includes bung bushing suction tube, hose and coupling assembly.

82439

282876

Model 82439 Low-Level Cutoff

Automatically shuts off flow of oil; keeps supply lines primed. Recommended when dispensing oil through metering devices to conform with standards of the National Conference of Weights and

Measures. Assembles to 1-1/2" NPT standpipe which assembles to pump.

Model 84946 Low-Level Cutoff

Same as 82439, except 1" NPT.

Thermal Pressure Relief Valve Model 282876

Protect lube system components from high-pressure spikes caused by temperature change in a closed fluid network.

Model Application

282876 Diaphragm Pumps, 3:1, 5:1

Pre-Set Relief Pressure

1000 psi (68 bar)

Port Size

1/2" NPT

35

Medium-Pressure, Portable/Manual Fluid Pumps

Medium-Pressure • Gear Lube and ATF

Air-Operated Mobile Gear Lube Dispensers

Fast, clean refilling using efficient Lincoln air-operated pumps.

• 3:1 (2435) and 5:1 (2535) pump ratios delivers gear oil with minimum consumption.

• Air expeller built into pump tube prevents air from registering through meter.

• Large replaceable swivel casters provide ease of maneuverability (mobile models).

• Baked on enamel finish retards rust and corrosion.

• Includes air coupler 815 and 780 shut-off valves. Drum not included.

2535

535

Manual Gear Lube Dispensers

These quality manually operated pumps provide fast, clean refilling of differentials,gear cases and final drives.

• Cast iron pump outlet body and handle (except 1293) provide durability and longevity.

• Metered models have air expeller built into pump tube (prevents air from registering on meter).

• Large replaceable swivel casters provide ease of maneuverability (mobile models).

• Baked enamel finish helps prevent rust and corrosion.

• Self-contained units and sealed models prevent contamination or spillage of product being dispensed.

• Smooth, easy pumping action (no crank or gears) dispenses all types of gear lubricants, even in the coldest weather.

ATF Dispensers

Provides fast, clean refilling of all types of transmissions. Ideal for passenger vehicles, light trucks and vans.

• Cast iron pump outlet body and handle provide durability and longevity.

• Air expeller built into pump tube prevents air from registering through meter.

• Large replaceable swivel casters provide ease of maneuverability (mobile models).

• Baked-on enamel finish retards rust and corrosion.

• Smooth, easy pumping action for positive fluid dispensing, even in the coldest weather.

WARNING

For safe and proper use of pumps, always consult instructions accompanying product.

See Safety Warning Information for appropriate warnings.

1253

Note:

Specifications on page 37.

527

1293

MV6410

82757

1254

36

Medium-Pressure, Portable/Manual Fluid Pumps

Air-Operated Mobile Gear Lube Dispensers

Model

2435

2535

2435LN

Container

120 lb.

120 lb.

120 lb.

Meters

870 (pint)

870 (pint)

2873 (liter)

Style

Drum cover

Drum cover

Drum cover

Base

80895 roll-a-round

80895 roll-a-round

80895 roll-a-round

Hose Length Pump Tube

5 ft. (73060)

5 ft. (73060)

5 ft. (73060)

25-3/4"

25-3/4"

25-3/4"

Nozzle Output

780

780

780

6 gpm

6 gpm

6 gpm

Manual Gear Lube Dispensers

535

535LN

535–58

549

549–58

1253

1253LN

1254

1293

120 lb.

120 lb.

120 lb.

120 lb.

120 lb.

30 lb. bulk

30 lb. bulk

30 lb. bulk

30 lb. bulk

(pints)

2873 (liters)

(pints) none none

(pints)

2873 (liters) none none

15" ID drum cover

15" ID drum cover

15" ID drum cover

15" ID drum cover

15" ID drum cover self cont. handle self cont. handle self cont. handle

12" ID clamp-on carry

80895 roll-a-round

80895 roll-a-round none

80895 roll-a-round

5 ft. (74560)

5 ft. (74560)

5 ft. (74560)

5 ft. (74560)

25-3/4"

25-3/4"

25-3/4"

25-3/4"

80599

80599

80599

80599 none 5 ft. (74560) 25-3/4" 80599

Int. 9"dia / 13-3/4"w 5 ft. (74560) 17" below rim 80599

Int. 9"dia / 13-3/4"w 5 ft. (74560) 17" below rim 80599

Int. 9"dia / 13-3/4"w 5 ft. (74560) 13" below rim 80599 none 5 ft. (74560) 13" below rim 80999

Model 82757 Hose/Nozzle Kit

Hose and nozzle upgrade kit for model 1293. Includes 80999 nozzle assembly and 5' 74560 hose. Order separately.

ATF Dispensers

527

527A

120 lb.

120 lb.

none

(quarts)

* 1 pt. per 7 strokes using SAE 90 Gear Lubricator at 70ºF

15" ID drum cover 80895 roll-a-round

15" ID drum cover 80895 roll-a-round

** 1 oz. per stroke using SAE 90 at 70ºF

7 ft.

(91265)

7 ft.

(91265)

25-3/4" below rim

25-3/4" below rim

*** 8 strokes per quart

93547 ***

93547 ***

*

*

*

*

**

*

*

*

*

674

ATF Refill System

Model MV6410

• 1-gallon (5-liter) capacity reservoir

• Integrated manual pressure pump

• Conveniently located ON/OFF switch

• Quick-change accessory coupler with auto-shutoff valve

• Custom-molded adapter storage case

Drum Transporters

Model 674 Hand Truck

All steel, rugged construction with 6" dia. wheels. Finished in Lincoln red.

41" high x 15" wide. For use with an 120 lb. or 16-gallon drum.

Model 80895 Roll-A-Round Base

Use with 120 lb. refinery containers. Four ball bearing swivel casters and screw clamps.

Drum Dollies

Model 84191 25-50 lb. Band Dolly

Band-type dolly for any original 25-50 lb. refinery containers.

Model 84192 120 lb. Band Dolly

Band-type dolly for use with 120 lb. refinery containers.

Model 84377 Drum Dolly

Use with any 400 lb. drum. ID 23-1/4", height 5-1/4", hard rubber wheels: 1" wide, 2-1/2" dia.

80895

84191

84377

37

Bulk Oil Systems

Bulk Oil Systems

3:1 and 5:1 Ratio Pump Packages

Lincoln pump 3:1 and 5:1 ratio packages include 600003 regulator, 600401 gauge,

815 coupler and 11659 nipple. Control valve, inline meter or handheld metering control valve must be ordered separately (except model 4283).

Model 4283 5:1 with 50' Reel & Meter

Deluxe assembly including 84934 5:1 ratio pump with bung bushing, universal suction tube with foot valve to fit any size container up to 275 gallons. Includes 1/2" x 50' oil hose reel 94354 with

2' connecting hose. 967 electronic meter totalizes in liters and gallons with quart, gallon or pint readout.

NOTE: Pipe, fittings and hardware for installation of overhead reel assembly supplied by others.

4283

4493 System for mounting pump and reel on tank

Reel • Pump • Meter Packages

Lincoln puts all the components you specify in one easy-to-order package.

RPM Packages

Model

RPM7

RPM8

Pump Kit/

Ratio

282398/3:1

282398/3:1

RPM10 84934/5:1

Reel/30'

94334

94334

94334

Electronic Meter

980 manual universal

982 automatic universal

982 automatic universal

Air Regulator

600003

600003

600003

Air Gauge

600401

600401

600401

NOTE: Always consult fluid/solution manufacturer specifications AND local fire code(s) before installing any pump into service.

Most modern automotive fluid/solutions include some type of “additive package” which may not be compatible with the typical applications listed below. Some fluids or solutions are considered flammable and/or combustible in which case the dispensing pump should be properly grounded. (Order air coupler and 4283 air nipple separately)

Model 4493 Value Series Pump,

Reel and Meter Package

• Configured for above-ground tank installations.

• For use with natural and synthetic oils, automatic transmission fluid, gear oil, antifreeze or hydraulic oil throughout the shop.

• Fast, reliable dispensing with the 4491/six GPM free delivery pump.

• Easy handling, dependable service with the 94000 Series hose reel’s heavy-gauge steel base, brass bushings and extra-wide hose guide.

• Accurate and easy dispensing with the 980 electronic oval gear meter with flexible extension.

• Package includes 4491/3.5:1 pump, 94334 reel with 30' x 1/2" hose, ball stop, 980 electronic meter

(measures in quarts), air line regulator and gauge, air coupler and nipple, 2' fluid connecting hose from pump to reel and adapter union.

38

Value Series 1:1 & 3.5:1 Transfer and Dispensing Pumps

4475

Features and Benefits—Designed for Value

• Proven horizontal, valved-piston motor design for simplicity and reliability

• Provides quick dispense, fill or transfer with high-volume output

• Built-in muffler for quiet operation

• Cost-effective solution for oil distributors who need to supply pumps for customers who purchase bulk oil in tanks or drums

• Available as stub pump, 16-/55-gallon pump or 250- to 275-gallon tank pump

• Motor’s single-stroke action delivers cost effective, high performance and high flow

• Provides quick dispense and fill of ATF, oil, gear lube and other fluid lubricants with the speed of many higher-priced pumps

• Ideal for use with one or two overhead reels in applications such as medium-to-light vehicle service facilities, car dealerships, small contractors, farmers and agriculture equipment dealers

Specifications

Pump

Ratio

Output/

Stroke

Delivery

Output

Pneumatic

Inlet

Pressure

Max.

Pneumatic

Inlet

Pressure

Min.

Operating

Temp.

Range

Weight

(Empty)

Pneum.

Port

Inlet

Material

Port

Outlet

Rec’d.

Fluids

120 psig

8.3 bar

20 psig

1.4 bar

30°F - 120°F

-1°C - 49°C 14 lbs.

1/4-18

NPTF

1/2

NPTF

Motor oils, transmission fluid, petroleumbased fluids

4480

Pump Models

Model No.

4490

4491

4492

Application

16-55 gallon

Mounting

2" NPT male bung adapter

250-275-gallon oval tank 2" NPT male bung adapter

Stub 1.5" NPT male

Down Tube Length

36.5"

47.0"

N/A

Model 4475 Series Pump

The Model 4475 pump is a reciprocating-piston, low-pressure single action pump. Air powers the pump’s piston on the dispensing, or working, stroke. An internal spring returns the piston and resets it for the working stroke. It pumps continuously when the dispensing

(fluid outlet) valve is open and 20-120 psig air is supplied to the pump.

Specifications

Model

No.

* 4480

Description

Spigot

Pump

Material

Outlet

* 4475 Bare Pump 1/2" NPTF

Spigot extension with on/off valve

Operation

Pneum. pressure delivery stroke, spring return stroke

Pump Tube

Length

34"

(86 cm)

Attachment

2" Bung, adj. for 55- &

16-gal. drums, bench & portable tank

Effective

Pump Ratio

Approx.

0.7:1 to

0.8:1 depending on inlet air pressure

Inlet Air

Pressure

Max: 120 psi

(8.3 bar)

Min: 20 psig

(1.4 bar)

Output/

Stroke

2.9 in³

(48 cm³)

Free

Delivery

Up to

4 gpm

(15 lpm)

* Bung bushing 261102, 261103, 261104

602003

Recommended Accessories

Air Line controls are a must for safe and effective pump operation.

Model

815

11659

602003

247843

10462

Description

1/4" (f) Air Coupler

1/4" (m) Air Nipple

1/4" Miniature Air Regulator

Air Line Pressure Gauge

1/4" Pipe Nipple for Regulator attachment

39

Stationary, Manual Transfer Pumps

82230

1:1 Piston Transfer Pumps

Model

84829

Pump

Description

stub

Pump

Body

alum/steel/ plastic

Wetted or Soft

Parts

Buna–N

Pump Inlet/

Outlet NPT

1"/ 3/4"

Max. Free

Delivery

GPM

14 gpm

Air Inlet

NPT(F)

1/4"

Max. Rec.

Inlet Air

Pressure

150 psi

Max. Susp.

Solids Dia.

NA

NA

Typical Automotive

Use

Universal/new oil transfer

55-gal. drum/new oil transfer

82230 55-gal. drum alum/steel Buna–N

3/4" –

11-1/2" A.N.

20 gpm 1/8" 150 psi

Model 84829 Universal

Stub pump design provides the versatility to transfer and dispense controlled amounts of lubricant using an oil spigot, control valve or meter. Adaptable for 16- or 55-gal. containers as well as bulk tank or standpipe installations. Delivers 12.5 cu. in. per cycle. Includes suction tube, bung bushing, air coupler and air nipple. Includes 241937 extension tube.

84829

Model 82230

Transfer pump quickly transfers fluids directly from 55-gallon drums. 2" bung bushing adjusts to varied drum lengths. Designed to stall against lubricant pressure. Empties a 55-gallon drum in less than three minutes and has adjustable air flow lever.

Model 1326 Diaphragm Action

Neoprene seals resist wear from abrasive fluids. Double acting diaphragm delivers one full gallon per eight strokes. 8' hose with discharge nozzle.

1326

Transfer Pump

Model

1326

Drum Size

16- to 55-gal. w/2" bung opening

Bung Bushing

2" NPT(m)

Output

1 pint per stroke

1335

85634

1340

Model 1335*

This close tolerance pump utilizes brass rings for extreme durability and expanded fluid compatibility. Telescoping pick-up tube for 16- through 55-gallon drums with standard

2" bung openings. Bung opening tool built into pump head to open sealed refinery container. Provides 8.5 fl. oz. per full stroke.

Model 1340* Lever Action Barrel Pump

Extended pump body improves top-of-barrel clearance while providing excellent flow per stroke (14.0 fl oz. minimum per stroke).

• Pumps non-corrosive automotive, agricultural and industrial fluids*

• Removable non-drip spout allows for threaded hose connection

• Telescoping pick-up tube for 16- to 55-gallon drums

• Two-tier threaded bung fits standard 2" and 1.5" drums

* For use with

non-corrosive

fluids,

automotive,

agricultural and

industrial fluids

such as motor oil,

transmission

fluid, gear oil,

engine coolant,

silicone oils,

and more.

(Not suitable

for gasoline)

1:1 Air-Operated Diaphragm Pump Line

Model

Number

85632

85627

Pump

Description

1/2"

1"

U.L. Listed

Pump

Body

Wetted or

Soft Parts

Aluminum Teflon

®

Aluminum Buna-N

Pump Inlet/

Outlet NPT

1/2" / 1/2"

1"/ 1"

Max. Free

Delivery GPM

15

45

45 85634 1" UL Aluminum Buna-N 1"/ 1"

Dual Inlet

85636 1/2" UL Aluminum Buna-N 1/2" / 1/2" 15

* 50 psi flammable liquids, 125 psi others.

Air Inlet

NPT(F)

1/4"

1/2"

Max. Rec. Inlet

Air Pressure

100 psi

125 psi

Max. Susp.

Solids

1/8"

1/4"

Application

New oil, AF

New/used oil, AF

1/2"

1/4"

50 psi *

125 psi*

1/4"

1/8"

Used oil, diesel, kerosene

Antifreeze/Water

40

Rotary Drum Pumps

1384

1385

1385-H

Model 1384

• Durable cast iron pump head

• Internal check assures immediate restart

• Low friction design reduces operator input

• Unbeatable performance and durability

• Fluid types – Oils, diesel, kerosene, coolant, non-corrosive materials, petroleum-based

fluids, hydraulic oils, ATF

• Fit 16- and 55-gallon drums with standard 2" bung bushing

• Threaded ¾" FNPT (male) outlet

• Fully serviceable

Model 1385

• Fluid types – Oils, diesel, kerosene, coolant, non-corrosive materials, petroleum-based fluids, hydraulic oils, ATF

• 10 gallons/minute at 120 RPM low viscous, 7 gallons/minute at 80 RPM oil

• Approximately 1 gallon per 12 revolutions

• Internal check prevents drain-back and assures immediate restart

• Seal-tight telescoping pick-up tube with strainer for 16- to 55-gallon drums with

2" bung bushing

Model 1385-H (with Hose)

Same as Model 1385 except includes heavy-duty 8' x 3/4" anti-static hose with non-sparking aluminum nozzle.

Model 1387 (Fuel)

• Fluid types- Gasoline, diesel, kerosene, coolant, non-corrosive materials, medium-viscosity petroleum-based fluids, hydraulic oils, ATF

• Heavy-duty 8' x 3/4" anti-static hose with non-sparking aluminum nozzle

• Flame arrestor and anti-siphoning vacuum break

• Seal-tight telescoping pick-up tube with strainer for 16- to 55-gallon drums with

2" bung bushing

• 10 gallons/minute (38 LPM) at 110 RPM

• FM approved

1387

41

Portable Oil Drains

Choose the fluid handling equipment that fits your needs.

Traditional Drain:

the traditional method for handling used fluids allows gravity to drain fluids from vehicle(s) into a portable or mobile fluid drain and then gravity allowing

those fluids to drain into a used fluid storage tank.

Drain & Evacuate:

instead of gravity draining fluids into a storage tank, fluids are evacuated from the fluid drain into the tank with a suction pump system.

3644

613

66493

82460

3605

Standard Oil Drains

Model 613

Used with 16-gallon (120 lb.) open-top drum (66493 drum not included). Convenient float gauge shows when drum is full. Includes 17" square rolling base 80895 with 2-1/2" ball bearing caster wheels and 14" drain bowl 91197 (without lid).

Order suction pick-up tube and fluid nipple Kit 247748 for easy evacuation through drum cover using a used-oil evacuation pump. Order evacuation pump 4100 and fluid coupler

244390 separately.

Model 3644

Used with 16-gallon (120 lb.) open-top drum. (66493 drum not included). Float gauge shows when drum is full. Includes 17" square rolling base 80895 with 2-1/2" caster wheels.

20" diameter drain bowl 3609 is adjustable from 42-3/4" to 70".

Model 66493 120 lb. Drum

16-gallon (120 lb.) drum with 3/4" NPT(f) threaded hole near bottom/side of drum for drain valve or spigot (70526 – sold separately.)

Pedestal-Style Oil Drain

Model 3605

Lightweight, easy to position and maneuver. Latch trigger automatically locks drain bowl at any height. Reversible for double life! Bowl cover lid hinged for splash guard extends to catch oil flowing from hard to reach drain plugs. Spring actuated valve in drain bowl to prevent leakage. Includes 82460 drain adapter bushing for draining bowl. Includes large 13-1/2",

4-1/2-gallon bowl assembly 83386.

Model 82460 Drain Adapter

Used with 3605 to drain bowl. When bowl is set into drain adapter bushing a pin automatically releases spring loaded valve. Adapter bushing assembles to a 2" NPT used oil tank stand pipe or screws directly into a 2" 55-gallon drum opening.

Truck Oil Drain

Model 84714 20 Gallon Cart

Ideal oil drain for RV, truck, heavy equipment maintenance and repair. Low profile,large

20-gallon capacity cart. 42" T-handle for easy cart positioning. Used oil transfer by either gravity or suction evacuation. Order drain valve or suction evacuation pump and fluid couplings separately. Two stationary rear wheels and one front wheel caster with grab handle for ease of under vehicle positioning. Metal grating, two baffles and continuous side splash guards to prevent oil spillage during vehicle draining and cart movement.

Maximum height is 8.65".

84714

42

Suction and Drain Accessories

Drain Bowls

Model 3608

Large 20" bowl used on 3643 or to update an existing 3613 to a 20" drain bowl.

3608

Model 3609

Large 20" bowl used on 3644 or to update an existing 613 to a 20" drain bowl.

82786

Model 91197

Standard 14" bowl used on 613 and 3613 used-oil drains.

Model 82786

Same as 91197 but includes lid.

Model 83386

Standard 13-1/2" bowl used on 3605 used-oil drains. Large 4-1/2-gallon capacity.

83386

3610

Funnel & Drain Adapters

Model 3610

24-1/2" diameter. Use when larger draining area is required. 3610 molded plastic drain pan rests securely on top of used-oil drains. Can be used with pedestal or portable drain devices with 6" or larger drain.

Model 275296

Funnel assembly for use with 3614.

Model 70526 Drain Spigot

Used fluid drain valve for use with 613. 1/2" NPT(m) connection.

275296

43

Pressurized Fluid Recovery & Accessories

Handling / Recovery / Accessories

Drain & Pressurize: this new concept in used fluid handling employs the benefits of the drain & evacuate system without an evacuation pump—the fluid drain is pressurized to evacuate the used fluid.

Pressurized Evacuation Drains

Model 3624 26-Gallon Tank

Pressurized waste oil tank and bowl made from high-strength polyethylene—no dents or corrosion.

Built-in oil filter drain, tool tray and sight gauge. Very stable and easy to maneuver. Includes pop-off valve and fixed air regulator for safety. Compatible with all lubrication fluids.

3624

Model 3614 20-Gallon Tank

This new model simplifies the used fluid evacuation process by allowing the technician to drain, transfer and evacuate used oils with virtually no chance of spillage. Extra large 18-inch offset bowl easily catches fluid without repositioning the tank. Telescopic (44 to 72 inch range) bowl height adjustment allows for greater flexibility. Low profile design is extremely stable and easy to maneuver.

Large 20-gallon (75 L) capacity averages 15-20 vehicles before tank evacuation. Special valve design allows evacuation with bowl set at any height.

Closed-Loop Pressurized Evacuation Drains

Drain & Pressurize (Closed-loop): the newest Lincoln used fluid handling concept takes the standard drain and pressurized system to a new level by eliminating used fluid spills while evacuating the mobile drain unit.

3614

3618

241408

44

3601

237105

3617

To Drain Oil

With valve fully open, (valve handle in vertical position), raise drain bowl to desired height and lock in place. Drain oil into bowl/tank assembly.

To Transport Tank

With valve fully open, (valve handle in vertical position), lower drain bowl to desired height. Always use the tank handle to transport the tank assembly.

To Evacuate Oil

Raise drain bowl and lock in place (valve handle in horizontal position) and place nozzle securely into collection reservoir.

Connect air inlet nipple and discharge oil.

Disconnect air supply when oil is no longer discharging into reservoir.

Non-Pressurized Evacuation Drains

Model 3618 Used Fluid Drain

Designed for use in shops with diaphragm pump or centralized evacuation systems, the drains were built to perform under heavy use. Drain has a male 3/4 inch cam and groove connector located on top of the tank to provide a quick, clean connection to a shop’s used fluid evacuation system and to reduce the chance of spills. Other features include a 20-gallon (75-liter) capacity tank, heavy-duty steel construction and an extra-large 18-inch offset drain bowl with oil filter screen.

Model 3617 Used Antifreeze Drain

Same as Model 3618 except for antifreeze use only.

Model 3601 Value Series Used Oil Receiver

Designed to provide an affordable option to draining, transferring and evacuating used oil quickly and safely. All-steel design includes reinforced caster supports for durability and dependability.

18-gallon tank includes a preset air regulator that allows the use of standard shop air up to 150 psi. 14-inch telescoping bowl with a height adjustment range of 45 to 72 inches. Reinforced dispensing hose doubles as a sight gauge to prevent overfilling. Includes safety valve.

Evacuation Coupler & Nipple Kit

Model 237105 Suction Hose

For use in high-volume transfer and evacuation systems, 1" NPT(m) threads x 7'.

Fluid Couplers & Nipples

Model 241408 Coupler & Model 241409 Nipple

For use in high-volume transfer applications, both models have 1" NPT(f) thread.

241409

Mityvac Fluid Evacuation Equipment

Fluid Evacuators

These portable units are designed for convenient evacuation of fluids from virtually any type of reservoir or tank. With capacities ranging from 1.9 quarts (1.8 liters) up to 2.3 gallons (8.8 liters), they are perfect for draining coolants from machinery,or for use when changing fluids (oil, lubricants, hydraulic fluids, etc.) on motorized equipment.

Model MV7300 Pneumativac

The larger capacity model MV7300 fluid evacuator holds up to 2.3 gallons (8.8 liters) of fluid. It uses standard compressed shop-air and a powerful venturi vacuum to quickly and conveniently evacuate reservoirs with no manual effort.

Capacity: 2.3 gallons (8.8 liters)

Weight: 7.5 lbs. (3.4 kg)

Size: 25.6" (650mm) tall x 13" (330mm) wide x 9.5" (240mm) deep

MV7300

Model MV7400 Fluid Evacuator

The model MV7400 fluid evacuator is a manually operated unit that requires no electricity or compressed air. The unit is extremely lightweight, and features durable,chemical resistant construction, a large stable base and three evacuation tubes with adapters.

Capacity: 1.9 gallons (7.3 liters)

Weight: 5.5 lbs. (2.5 kg)

Size: 25" (725mm) tall x 7.5" (190mm) diameter

MV7400

Model MV7201 Fluid Evacuator Plus

The Fluid Evacuator Plus has a reversing valve that allows the unit to be used for evacuating or dispensing fluids. It has a large 2.3-gallon (8.8) liter reservoir, and operates without electricity or compressed air. The unit features durable, chemical resistant construction, a large stable base, and three evacuation tubes with adapters.

Capacity: 2.3 gallons (8.8 liters)

Weight: 10 lbs. (4.5 kg)

Size: 25.6" (650mm) tall x 13" (330mm) wide x 9.5" (240mm) deep

Suction Guns

Model 615

Holds up to 18 ounces of fluid. Flexible nozzle for transmission, differential or oil filter service.

Precision follower fitted to barrel for superior suction and is impervious to oil,grease and water.

Finished in rust-resistant, powder coated blue paint.

MV7201

615

45

Installed Fluid Evacuation & Disposal Systems

Don’t waste valuable time waiting on gravity to empty waste oil drains. Lincoln installed systems provide the fast, profitable, safe way to get rid of waste oils and other fluids when gravity draining is not possible or practical. Quickly pump out fluids from rolling drain pans, portable oil drains, differentials and trans axles.

Basic Fluid Evacuation Pumping System

Lincoln’s Basic Fluid Evacuation and Disposal System features a 1" U.L. Listed corrosion-resistant aluminum double diaphragm pump that creates a powerful suction to drain used fluids quickly, and transfers them though a completely enclosed system to any type of remote storage tank. Provides clean, safe disposal of waste fluids with no drips, no spills. Pump is air-operated and can be easily mounted on any convenient wall surface. One basic system can serve multiple bays with the addition of hardware.

4105

84817

4110

84700

Model 4100

Includes rugged, heavy-duty, 1" U.L. Listed air-operated double diaphragm self-priming pump 85634, 1" x 5' fluid hose 237105, 3' air hose 72036, airline filter 600104, regulator 600004, 3/4" x 5' fluid inlet hose 68620 and other air couplings for easy outlet installation.

Note: Include (1) 241408 coupler and (1) 241409 nipple per receiver

4100

Model 4105 Portable Drain Adapter Kit

Includes 1" x 7' suction hose 237105, quick disconnect coupler 241408, nipple 241409 and mounting hardware for hookup to side port of 16-gal. drum 66493 or truck oil drain 84714.

Model 4110 Differential & Transaxle Kit

Includes suction hose, fittings and two interchangeable wands for all vehicle makes and models that allow you to drain fluids through plug openings.

Model 84700 Rolling Drain Pan

Designed for pit installation, 30-gallon capacity 84700 features quarter-turn ball valve drain on front or back of unit for multiple drain hook-up 1½" NPT. Infinite-adjustable axles fits pits 36" to 49½" wide. Polyurethane wheels for smooth, quiet operation, dust cap, chain and splash guard assemblies included.

Model 92572 Splash Guard Assembly

Included with 84700 drain pan. Mounts to either side to deflect oil from side draining engine oil pans.

Model 85255 Wall Mount Bracket

Wall mount bracket for 1/4" to 1/2" air-operated diaphragm pumps

Model 84817 Wall Mount Bracket

Wall mount bracket for 1/2" to 2" air-operated diaphragm pumps

84815

Used Fluid Overfill Warning Valves

Float rises with used fluid to activate “whistle" warning at prescribed level.

Model 84815 Single Wall

For single wall tanks & drums in used fluid systems and above ground tanks.

Model 84824 Double Wall

Same as 84815 except for double walled tanks and above ground tanks.

Model 84816 4-Way Valve

Four port, two position valve used in waste fluid systems. Enables one pump to pump into and out of drum or tank.

84816

46

Lube Dispensing Stations

Model 84951 Oil Bar

Modular 3 spigot capable steel oil bar for use with dispensing motor oil, ATD and other fluids. Unit includes a removable tray for disposal of spillage and knock-outs for mounting inline digital meters.

Model 277564 Locking Spigot

Spring-loaded oil spigot for use with oil pumps to dispense fluids into fill cans. The unit has a latching-style lever to lock the spigot open while dispensing. Recommended when used in conjunction with a Lincoln fluid inventory management system. 3/4"

MPT (M) and 1/2" NPT (F).

84951

(shown with two

277564 spigots and one 812 meter)

277564

Model 277565 Nonlocking Spigot

Spring-loaded oil spigot for use with oil pumps to dispense fluids into fill cans.

3/4" NPT (M) and 1/2" NPT (F).

Model 277566 15PM Flow Control Valve

Flow control valve that provides precision flow control in one direction and automatically allows unrestricted free flow in opposite direction. Two-step needle allows fine adjustment at low flow with first three turns of adjusting knob. Next three turns give full-open needle position and conventional throttling control. 1/2" - 14

NPTF; flow range: 15 GPM; maximum pressure: 2000 psi.

Model 812 Universal Digital Inline Meter

Measures in quarts, gallons or liters. Resettable and non resettable accumulative totals. 1000 psi max, 1/2" inlet/outlet, 8 GPM max.

277566

812

47

Lincoln’s Fluid Reel (LFR) Series

Lincoln’s Fluid Reel Series (LFR) incorporates both new and proven design features and capabilities.

• Advanced design provides consistent, repetitive performance.

• Top-of-the-line features in our most popular reel.

• Engineered for durability and reliability.

• Low-, medium- and high-pressure models available.

Features

• Low-pressure, fully-ported swivel designed to be corrosion resistant when used for air and water-based solutions.

• Medium-pressure, fully-ported swivel provides unrestricted flow, dispensing higher volumes of fluid.

• High-pressure swivel includes quick-disconnect for easy hose attachment.

• Two hose clamps perfectly spaced to prevent the hose from locking in the fully extended position.

• Easily accessible–yet fully contained–power springs designed for optimum performance at various operating pressures.

• Dual needle bearings reduce the stress on the spring, providing smooth, balanced operation during both hose extension and retraction.

• Rounded edges on hose guide face enhances safety.

• Electroless nickel plated, corrosion-resistant, low-pressure axle prevents contamination of fluid and restriction of flow.

• Double ratchet teeth provide solid latch to lock hose in multiple usable positions.

• Mounting base accepts Lincoln No. 82206 mounting pattern and is slotted at both ends for easy installation.

• Powder-coat finish creates a corrosion-resistant reel that stands up to the elements.

Pressure

Application

High

Medium

Low

Hose

Diameter

1/4"

3/8" & 1/2"

1/2"

1/4" & 3/8"

1/2"

Max. Working Pressure psi (bar)

5,000 (340)

4,000 (272)

1,500 (102)

250 (17)

200 (13.6)

Assembly Models: 94 5 5 2 G BK

Pressure

5 – High

3 – Medium

1 – Low

Hose Length

5 – 50'

3 – 30'

6 – 60'

Hose Diameter

2 – 1/4"

3 – 3/8"

4 – 1/2"

NOTE: Not all models are available outside the standard red.

Valve

G – 740

Color

(blank) – Red

H – 3050 -BK – Black

A – Air Coupler/Tire -MB – Saphire-Blue

W – Bibbcock -RB – Signal Blue

48

Lincoln’s Fluid Reel (LFR) Series

Bare Reel Specifications

Model Application

94100** Air, A-F, Water, WW

94300** Oil

94500** Grease

Rating

RMA

Hose Capacity

SAE100R3

Type

Class A

73

SAE100R2 75, 76

Max.

Length

60'

60'

50'

Max. Working Pressure

Bare Reel, psi

* Note: Actual working pressure of the reel should not exceed pressure rating of the installed hose.

60' hose should be used on installations allowing for a 10' to 12' hose hand down.

1000*

4000*

8000*

Inlet/Outlet

(f)

1⁄2" NPTF

1⁄2" NPTF

3⁄8" NPTF

High-Pressure Reels and Assemblies

Grease Reel and Hose Assemblies

Model

94532

94552

94553 **

Description

1/4" x 30'

1/4" x 50'

3/8" x 50'

Bare Reel

Model

94500

94500

94500

Included with Reel Assemblies

Connecting

Hose

Delivery

Hose

Ball

Stop

75024

75024

76024B

75360

75600

76600B

85515

85515

85516

Grease Assemblies

with Universal Swivel & Control Valve

94532G

94552G

94553H

1/4" x 30'

1/4" x 50'

3/8" x 50'

94500

94500

94500

75024

75024

76024B

Control Valve or Meter

NA

NA

NA

75360

75600

85515 81387 & 740

85515 81387 & 740

76600B 85516 81729 & 3050

Medium-Pressure Reels and Assemblies

Oil Reel and Hose Assemblies

94334 **

94354 **

94364

1/2" x 30'

1/2" x 50'

1/2" x 60'

94300

94300

94300

73024

73024

73024

73360

73600

73720

85517

85517

85517

NA

NA

NA

Low-Pressure Reels and Assemblies

Air, Water, A-F, WW Reel and Hose Assemblies

94132 1/4" x 30' 94100 74024 72360

94133 3/8" x 30' 94100 74024 72360A

94152

94153 **

94154 **

94163

94153M *

94154M *

1/4" x 50'

3/8" x 50'

1/2" x 50'

3/8" x 60'

1/2" x 50'

1/2" x 50'

94100

94100

94100

94100

94100M

94100M

74024

74024

74024

74024

74024

74024

72600

72600A

74600

72720A

72600A

74600

* “M” models denote a high spring for use when using a metered control handle.

Air Assemblies

with Air Coupler and Tire Chuck

94132A

94133A

94152A

94153A

94154A

1/4" x 30'

3/8" x 30'

1/4" x 50'

3/8" x 50'

1/2" x 50'

94100

94100

94100

94100

94100

74024

74024

74024

74024

74024

Water Assemblies

with Water/Antifreeze Bibbcock

94132W

94133W

94152W

94153W

94154W

1/4" x 30'

3/8" x 30'

1/4" x 50'

3/8" x 50'

1/2" x 50'

94100

94100

94100

94100

94100

74024

74024

74024

74024

74024

72360

72360A

72600

72600A

74600

72360

72360A

72600

72600A

74600

85515

85516

85515

85516

85517

85516

85516

85517

NA

NA

NA

NA

NA

NA

NA

NA

85515

815/11659/66951

85516

815/11659/66951

85515

815/11659/66951

85516

815/11659/66951

85517

815/11659/66951

85515 846 Bibbcock

85516 846 Bibbcock

85515 846 Bibbcock

85516 846 Bibbcock

85517 846 Bibbcock

NOTE: ** Denotes that these models are available in black (-BK), sapphire blue (-MB) and signal blue (-RB) in addition to the standard

Lincoln red. Add the paint sufix to the end of the existing part number (e.g. 94100-BK)

49

Dual Support Hose Reel

The 75' Dual Support Hose Reel – Exceptional Stability for

Rugged, Demanding Applications

Features and Benefits

• The 75' Dual Support Hose Reel is designed based on the proven 94000DS series reels with the added feature of greater hose lengt

• The heavy-duty reel includes a dual arm and dual pedestal that gives the needed foundation for demanding environments

• Dual support from base to axle to roller outlet provides stability for applications with heavy vibration and impact

• Easy to install

• Assembled reels come with 75' delivery hose, ball stop and 2' inlet hose

• For use in high ceiling, fleet and municipalities, mining workshops and applications requiring shared reel banks

• Special 5-year warranty

Specifications

Model No.

94100DS

94200DS

94300DS

94400DS

94500DS

94600DS

94163DS

94154DS

94273DS

94274DS

94354DS

94474DS

94553DS

94673DS

Description

Bare Reel

Bare Reel

Bare Reel

Bare Reel

Bare Reel

Bare Reel

Assembled

Assembled

Assembled

Assembled

Assembled

Assembled

Assembled

Assembled

Hose

N/A

N/A

N/A

N/A

N/A

N/A

3/8" x 60'

1/2" x 50'

3/8" x 75'

1/2" x 75'

1/2" x 50'

1/2" x 75'

3/8" x 50'

3/8" x 75'

Application

Air & Water

Air & Water

Oil

Oil

Grease

Grease

Air & Water

Air & Water

Air & Water

Air & Water

Oil

Oil

Grease

Grease

Working Pressure

1000 psi

1000 psi

4000 psi

4000 psi

8000 psi

8000 psi

300 psi

300 psi

300 psi

300 psi

2000 psi

2000 psi

4000 psi

4000 psi

Inlet/Outlet

1/2" NPTF

1/2" NPTF

1/2" NPTF

1/2" NPTF

3/8" NPTF

3/8" NPTF

1/2" NPTF

1/2" NPTF

1/2" NPTF

1/2" NPTF

1/2" NPTF

1/2" NPTF

3/8" NPTF

3/8" NPTF

50

Value Series Hose Reels/Mini Workbench Reel

WARNING

Reels used with hazardous fluids or fuels, hose with static grounding wire must be used. For aircraft fuels, a separate static grounding cable must be furnished by the user. Consult federal and local codes for details.

Air Reel – Value Series

Lincoln’s Value Series air hose reels are constructed of durable, heavy-gauge steel and rubber air hoses. The slotted mounting base allows for easy attachment to ceilings, walls and work benches. Features include five-position adjustable outlet roller arm, spring-powered automatic recoil, angled hose guide for smooth, parallel hose pull-out and retraction and an eight-position ratchet gearing that locks the reel at the desired hose length.

Model 83753

3/8" x 50' assembled air hose reel includes bare hose reel, 50' delivery hose and ball stop.

Model 83754

1/2" x 50' assembled air hose reel includes bare hose reel, 50' delivery hose and ball stop.

Specifications

Part No.

83753

83754

Assembly

Description

50' of 3/8" air hose

50' of 1/2" air hose

Inlet/Outlet

Connection

1/4" NPT

1/2" NPT

Max. Pressure

300 psi

300 psi

Maximum Air

Flow

25 cfm

35 cfm

Replacement Hose

Model

275173

275172

Assembly Description

50' of 1/2" air hose

50' of 3/8" air hose

Inlet/Outlet

Connection

1/2" NPT

1/4" NPT

Maximum

Pressure:

300 psi

300 psi

Maximum Air

Flow

35 cfm

25 cfm

Replacement Swivels

Model

83753

83754

Swivel

279135

279136

81133

85515

Ball Stops

Model

85515

85516

85517

84347

84122

84257

Description

Adjustable

Adjustable

Adjustable

Adjustable

Adjustable

Adjustable

Hose Type

72

72A & 74

73, 74, 76A & 76B

78 & 78B

NA

NA

Hose OD

5/8"

11/16" – 23/32"

27/32" – 31/32"

11/32"

1-3/4" – 1-7/8"

1-1/2" – 1-5/8"

Mini Workbench Reel

Lincoln’s smallest reel excels in the tightest places.

• Compact size allows for easy installation under workbenches or in cabinets

• Narrow 5-1/4" width and 14" spool makes this the most narrow reel in its class

• 1" quality spring provides reliable, consistent performance and retractability

• 5-year warranty

• Integrated swivel stem and shaft design means easy servicing by simply removing

the swivel body

• High gloss, UV-resistant powder coat finish reduces scuffs and impact marks

Specifications

Model

81133

81323

Pressure

Low

Medium

Fluid

Air/Water

Oil

Diameter

3/8"

3/8"

Length

35'

25'

51

Heavy-Duty Series Hose Reels

The Heavy-Duty Series reels are the finest Lincoln lube reels ever designed. Years of engineering, testing and experience preceded their introduction. The quality and reliability the professional expects from Lincoln is not only met but exceeded in form and function by the HD Series. Value, long-life and top performance were the criteria demanded before these incredible reels were released.

You should expect the best from Lincoln… the HD Series reel delivers it.

82206

82206

Features

• All bare reels rated for high, medium and low pressure

• Reel assemblies available in standard 30', 40' and

50' hose lengths

• Dual needle roller bearings

• Ball bearing inlet swivel design

• Quick disconnects on delivery and connecting hose

• Spring canister with seals

• Thirteen position roller outlet arm

• Delrin rollers

• Quarter-inch thick steel welded base and roller outlet arm

• Reel sheaves are rolled

• Components individually powder painted for long life and scratch resistance

• All reel assemblies factory assembled and pressure tested to insure a quality leak-free installation every time

• Basic reel assemblies can be ordered with one model number; include delivery hose, ball stop and connecting hose

• Complete reel assemblies with meter, control valve or air coupler are also available as one model number

• Backed by a five-year limited warranty.

See your Lincoln representative fordetails

Bare Reel Specifications

Model

82206

Lincoln Reel

Application

Heavy-duty long length

Rating

Hose Capacity

SAE100R2

SAE100R2

SAE100R2

SAE100R3

SAE100R1

RMA

Type Length

75

76A

76B

73

78

Class A

50'

50'

50'

50'

50'

50'

* Note: Actual working pressure of the reel should not exceed pressure rating of the installed hose.

Working

Pressure

Sheave

Width

Inlet/

Outlet

8000* 5-1/2" 1/2" NPTF

8000* 5-1/2" 1/2" NPTF

8000* 5-1/2" 1/2" NPTF

8000* 5-1/2" 1/2" NPTF

8000* 5-1/2" 1/2" NPTF

8000* 5-1/2" 1/2" NPTF

High-Pressure Reels & Assemblies

Basic Grease Assemblies*

Less Hose End Control

Basic Reel

85003-30

85004

85004-50

85006-30B

85004-50B

85008-50A

Bare Reel Delivery Hose Hose Size Connecting Hose Ball Stop Control Valve

82206

82206

82206

82206

82206

82206

75360

75480

75600

76360B

76600B

76600A

30' x 1/4"

40' x 1/4"

50' x 1/4"

30' x 3/8"

50' x 3/8"

50' x 1/2"

75024

75024

75024

76024B

76024B

76024A

85516

85516

85516

85517

85517

85517

NA

NA

NA

NA

NA

NA

Medium-Pressure Reels & Assemblies

Basic Fluid Lubricant, Antifreeze & WW Fluid Assemblies*

Less Hose End Control

Basic Reel

83463

83463-30

83464

83464-50

85009-50

Bare Reel Delivery Hose Hose Size Connecting Hose Ball Stop Control Valve

82206

82206

82206

82206

82206

73240

73360

73480

73600

78600

20' x 1/2"

30' x 1/2"

40' x 1/2"

50' x 1/2"

50' x 5/8"

73024

73024

73024

73024

73024

85517

85517

85517

85517

84347

NA

NA

NA

NA

NA

Low-Pressure Reels & Assemblies

Basic Air, Water*

Less Hose End Control

Basic Reel Bare Reel Delivery Hose Hose Size Connecting Hose Ball Stop Control Valve

85232

85011

85002A

85001

85012

85005

85010-50

82206

82206

82206

82206

82206

82206

82206

72360

72600

72480A

72600A

74480

74600

30' x 1/4"

50' x 1/4"

40' x 3/8"

50' x 3/8"

60' x 3/8"

40' x 1/2"

50' x 1/2"

72024

72024

72024A

72024A

72024A

74024

74024

85515

85515

85516

85516

85516

85517

85517

NA

NA

NA

NA

NA

NA

NA

See pages 57-65 for meter, valve, or air coupler options for end of delivery hose.

52

83464-50

High-Flow Reels/Ball Stops

Extra-Heavy-Duty Reels for Applications that Require High Product Flow and/or Longer

Hose such as Service Trucks, Lube Trucks, Transit Facilities and Large Fleet Shops.

Model 84275

Extra-heavy-duty dual reel sheave support base design and large hose capacity make this

1/2" (inlet/outlet) reel the ideal high-pressure reel for grease, petroleum oils, air and water.

Model 84672

Extra-heavy-duty high flow design makes this 3/4" inlet/outlet reel the perfect mediumpressure reel for petroleum oils, used fluid evacuation, air and water service.

84275

Model 84673

Extra-heavy-duty dual reel sheave support base, high flow design and large hose capacity make this 3/4" inlet/outlet reel the ideal medium-pressure reel for petroleum oils, used fluid evacuation, air and water service.

Model 84432

Dual reel sheave support base design and high-flow swivel make this 1" inlet/outlet reel the ideal low-pressure/volume reel. This reel is suitable for gasoline, diesel fuel, fuel oil, air and water. Not suitable for ceiling or wall mounted applications.

84672

84673

High-Flow Reel Specifications

HOSE CAPACITY

Model Designation

SAE Type

84275

84672

84673

Extra-heavyduty large capacity

Extraheavy-duty high flow

Large capacity

100R1

100R2

100R3

100R1

100R3

100R6

100R1

100R1

100R3

78

75/76A/76B

73

3/4"ID x 1-1/4"OD

73

74

3/4"ID x 1-1/4"

78

1"OD low pressure

Length

75'

75'

75"

30'

50'

50"

75'

75'

50'

Inlet/

Outlet

NPTF

Working

Pressure psi

Sheave

Width

1/2"

3/4"

3/4"

1"

5000

2000

2000

300

10"

INSTALLATION

Width Depth

13-1/8" 12-3/4"

5-1/2" 9-15/16" 12-3/4"

10"

8"

14-1/2" 12-3/4"

15-3/4" 24-1/4"

50' 1-1/4" 500 22-1/8" 26-1/4"

84432

53

Hose/Hose Adapters for Reels

Lincoln high-, medium- & low-pressure hoses—every size for every application

High-Pressure Hose—Grease

Model

75024

75060

75084

75120

75168

75240

75360

75480

75600

76024B

76120B

76360B

76600B

76900B

76024A

76600A

Size

50'

75'

2'

50'

50'

2'

10'

30'

14'

20'

30'

40'

2'

5'

7'

10'

Hose Type/SAE

75/100R2A

75/100R2A

75/100R2A

75/100R2A

75/100R2A

75/100R2A

75/100R2A

75/100R2A

75/100R2A

76B/100R2

76B/100R2

76B/100R2

76B/100R2

76B/100R2

76B/100R2

76B/100R2

3/8

3/8

3/8

1/2

1/2

1/4

1/4

3/8

3/8

1/4

1/4

1/4

1/4

ID

1/4

1/4

1/4

Inches

11/16

11/16

27/32

27/32

27/32

27/32

27/32

27/32

27/32

OD

11/16

11/16

11/16

11/16

11/16

11/16

11/16

Thread

1/2"–27(f)

1/2"–27(f)

1/2"–27(f)

1/2"–27(f)

1/2"–27(f)

1/2"–27(f)

1/2"–27(f)

1/2"–27(f)

1/2"–27(f)

1/2"NPT(f)

1/2"NPT(f)

1/2"NPT(f)

1/2"NPT(f)

1/2"NPT(f)

1/2"NPT(f)

1/2"NPT(f)

Medium-Pressure Hose—Oil, Gear Lube & Antifreeze

72024

72036

72060

72120

72240

72360

72600

72024A

72360A

72480A

72600A

72720A

72900A

74024

74060

74480

74600

74900

275172

275173

73024

73036

73060

73120

73240

73360

73480

73600

73720

73900

1230120

20'

30'

40'

50'

2'

3'

5'

10'

60'

75'

10'

73/100R3

73/100R3

73/100R3

73/100R3

73/100R3

73/100R3

73/100R3

73/100R3

73/100R3

73/100R3

1230/100R2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

3/4

Low-Pressure Hose—Air & Water

75'

2'

5'

40'

30'

40'

50'

75'

50'

75'

50'

50'

20'

30'

50'

2'

2'

3'

5'

10'

RMA Class A

RMA Class A

RMA Class A

RMA Class A

RMA Class A

RMA Class A

RMA Class A

RMA Class A

RMA Class A

RMA Class A

RMA Class A

RMA Class A

RMA Class A

RMA Class A

RMA Class A

RMA Class A

RMA Class A

RMA Class A

RMA Class C

RMA Class C

3/8

1/2

1/2

1/2

3/8

3/8

3/8

3/8

1/2

1/2

3/8

1/2

1/4

1/4

1/4

3/8

1/4

1/4

1/4

1/4

23/32

23/32

23/32

23/32

23/32

27/32

27/32

27/32

5/8

5/8

5/8

5/8

5/8

5/8

5/8

23/32

27/32

7/8

23/32

27/32

13/16

13/16

13/16

13/16

13/16

13/16

13/16

13/16

13/16

13/16

1-1/4

1/2"NPT(m)

1/2"NPT(m)

1/2"NPT(m)

1/2"NPT(m)

1/2"NPT(m)

1/2"NPT(m)

1/2"NPT(m)

1/2"NPT(m)

1/2"NPT(m)

1/2"NPT(m)

3/4"NPT(m)

1/4"NPT(m)

1/4"NPT(m)

1/4"NPT(m)

1/4"NPT(m)

1/4"NPT(m)

1/4"NPT(m)

1/4"NPT(m)

3/8"NPT(m)

3/8"NPT(m)

3/8"NPT(m)

3/8"NPT(m)

3/8"NPT(m)

3/8"NPT(m)

1/2"NPT(m)

1/2"NPT(m)

1/2"NPT(m)

1/2"NPT(m)

1/2"NPT(m)

1/4"NPT(m)

1/2"NPT(m)

Max Pressure psi (bar) Working

250 (17.01)

250 (17.01)

250 (17.01)

250 (17.01)

250 (17.01)

250 (17.01)

250 (17.01)

250 (17.01)

250 (17.01)

250 (17.01)

250 (17.01)

300 (20.68)

300 (20.68)

200 (13.61)

200 (13.61)

200 (13.61)

200 (13.61)

300 (20.68)

300 (20.68)

300 (20.68)

5000 (340)

5000 (340)

5000 (340)

5000 (340)

5000 (340)

5000 (340)

5000 (340)

5000 (340)

5000 (340)

4000 (272)

4000 (272)

4000 (272)

4000 (272)

4000 (272)

4000 (272)

4000 (272)

1500 (102)

1500 (102)

1500 (102)

1500 (102)

1500 (102)

1500 (102)

1500 (102)

1500 (102)

1500 (102)

1500 (102)

2250 (153)

Hose Accessories Nipples, Couplers & Bushings for Lincoln Grease Hose

Nipples

Model Thread

Reducing Couplings

10198 1/4" NPT(m) x 1/2"–27 (m)

11852

10199 1/8" NPT(m) x 1/2"–27 (m)

10522

1/8" NPT(f) x 1/2"–27 (f)

10202 1/2"–27(m) x 1/2"–27(m)

67171

1/4" NPT(f) x 1/2"–27 (f)

12957 1/2" NPT(m) x 1/2"–27 (m)

3/4" NPT(m) x 1/2" NPT(f)

11197 1/2" NPT(m) x 1/2" NPT(m)

Lincoln High-Pressure Replacement Hose Cross Reference

Bushings

10200

10204

12287

1/8" NPT (f) x 1/2"-27(m)

1/4" NPT(f) x 1/2"–27 (m)

1/2"-27(f) x 1/2" NPT(m)

Model

Alemite

Aro

1/2"–27(f) x 1/2"–27(f)

1/8" NPT(m) x 1/8" NPT(f)

Balcrank 1/8" NPT(m) x 1/8" NPT(f)

Graco

Original Threads Replacement

Any Type 75 Hose

Any Type 75 Hose, 10199 Nipple, 10200 Bushing

Any Type 75 Hose

1/4" NPT(m) x 1/4" NPT(m) Any Type 75 Hose, Two (2) 10198 Bushing

54

Power Cord and Light Reels

Introducing Lincoln's New Line of Power Cord and Light Reels. Designed for Light-,

Medium- and Heavy-Duty Applications in Home, Shop and Factory Environments.

Power Cord Reels

• Clear triple tap illuminates when receiving power

• Overload protection

• Adjustable cord stop with anti-kink cord spring

• 4 ft. connection lead

•125 VAC input voltage

• cUL listed

91025

Model 91025 Light Duty

• 30' 16/3 SJTOW cord - cold weather compatible, grease, oil and water resistant

• Steel housing

• Hardware included for wall or ceiling mounting

• 10 amp rating

Model 91029 Medium Duty

• 50' 14/3 SJTOW cord - cold weather compatible, grease, oil and water resistant

• Heavy-duty flame resistant ABS housing

• Wall, ceiling or bench mounted with three fixed-angle positions

• 12 amp rating

91029

91024

Fluorescent Light Reels

• Super bright 13W fluorescent PCB electronic bulb

• Soft PVC handle and top cap for superior impact protection

• Fully enclosed safety switch

• Shatter-proof design light extension with polycarbonate clear tube

• Steel wire hooks for hanging light while you work

• Steel retraction spring for positive reel winding

• Adjustable cord stop with anti-kink cord spring

• cUL listed

• 125 VAC input voltage

• 4 ft. connection lead

Model 91024 Light Duty

• 30' 18/2 SJTOW cord - cold weather compatible, grease, oil and water resistant

• Steel housing

• Hardware included for wall or ceiling mounting.

Model 91026 Medium Duty

• 50' 18/2 SJTOW cord - cold weather compatible, grease, oil and water resistant

• Heavy-duty flame resistant ABS housing

• Wall, ceiling or bench mounted with three fixed-angle positions

• 12 amp rating

91026

55

Power Cord and Light Reels

91027

LED Light Reels

• 50' 18/2 SJTOW cord - cold weather compatible, grease, oil and water resistant

• Soft PVC handle and top cap for superior impact protection

• Fully enclosed safety switch

• Wall, ceiling or bench mounted with three fixed-angle positions

• Shatter-proof design light extension with polycarbonate clear tube

• Steel retraction spring for positive reel winding

• Adjustable cord stop with anti-kink cord spring

• cUL listed

• 125 VAC input voltage

• 4 ft. connection lead

91028

Model 91027 Medium Duty

• 30 super bright premium white LEDs

• Curved chrome plated panel focuses the light intensity on work area

• Steel wire hooks for hanging light while you work

Model 91028 Medium Duty

• 60 super bright premium white LEDs

• 360° rotating plastic hook

91030

91033

91032

91034

Heavy-Duty Reels

• Spring retractable with latch

• Compact for critical space requirements

• Durable abrasion and corrosion resistant baked-on powder coat finish

• Wall, ceiling or bench mount

• Engineered for industrial use

• All models supplied with cord are complete with approximately 4 foot pigtail and threeprong plug

• Adjustable cord stop

• cUL listed

Model 91030

• Single receptacle

• 50' 16/3 SJTOW cord - cold weather compatible, grease, oil and water resistant

• 13 amp rating

Model 91031

• Single receptacle

• 45' 12/3 SJEOW cord

• 20 amp rating

Model 91032

• Duplex outlet box with GFCI (F)

• 45' 12/3 SJEOW cord

• 20 amp rating

Model 91033

• Fluorescent light

• 50' 16/2 SJTOW cord - cold weather compatible, grease, oil and water resistant

Model 91034

• Fluorescent light and outlet

• 50' 16/3 SJTOW cord - cold weather compatible, grease and oil resistant

• 10 amp rating

56

Control Valves & Swivels—Grease

740

Lincoln Control Valves, Meters and Accessories Provide the

Durability and Precision You Need for Your Lubrication Systems.

Model 740 Heavy-Duty High-Pressure

• 7500 psi maximum operating pressure

• Precision-machined, all steel handle, body and guard bracket provides

durability and longevity

• Unique, precision control inlet check valve provides ease of handle

operation even with increase in pressure

• Knurled handle for positive grip

• Handy trigger guard prevents pinching

• Reversible inlet check seat and hydraulic jaws provide double life

• Balanced design reduces user fatigue

• Lubricant inlet 1/4" NPT(f); outlet 1/8" NPT(f)

• Easily repaired for extended life

WARNING

Whip Hoses Models

3029, 3034, 5812,

5818, 5861, 81725,

81726, 81795

Incorrect

Install as shown.

Correct

WARNING

For safe and proper use, always consult instructions accompanying product. See Safety Warning

Information for appropriate warnings.

Swivels

Volume High-Pressure Swivels

Model Description Thread Size

81728 Straight 1/2" NPT(m) x 3/8" NPT(m)

82072 Straight 1/2" NPT(m) x 1/2" NPT(m)

82087 90º Angle 1/2" NPT(m) x 1/2" NPT(m)

81729

82073

Universal

Universal

1/2" NPT(m) x 3/8" NPT(m)

1/2" NPT(m) x 1/2" NPT(m)

Model 82158 Repair Kit

Repair Parts Kit for 81387 standard universal swivel.

81974

81387

82399

Model 3050 Volume High-Pressure

Same as 740 except with 3/8" NPT(f) lubricant inlet for use with Lincoln volume high-pressure swivels and hose.

Model 82157 Repair Parts Kit

For control valves 740 and 3050.

High-Pressure Grease Control Valve

Model Description Thread Size Extension Coupler Valve

740

3050

Hi-Pressure

Control Valve

1/4" NPT(f)

Volume

1/4" NPT(f) Rigid Tube

3/8" NPT(f) Rigid Tube

5845

5845

82393

81495

High-Pressure Control Valve

No Extension

Model Description Thread Size

82393

81495

Heavy-Duty

Volume

1/4" NPT(f)

3/8" NPT(f)

High-Pressure Swivels

Model

*

81606

*

81703

82080

Description

Straight

Straight

Straight

82399 Straight

83938

81386

81723

81974

82251

81387

82252

83594

Straight

90º Angle

90º Angle

90º Angle

90º Angle

Universal

Universal

Universal

*Whip Hose only; max. pressure 4500psi

Thread Size

1/8" NPT(f) x 1/8" NPT(m)

1/8" NPT(m) x 1/8" NPT(m)

1/2"-27 (m) x 1/2"-27 (m)

1/2"-27 (m) x 1/4" NPT(m)

¼" NPT(m) x 1/4" NPT(m)

1/2"-27 (m) x 1/8" NPT(m)

1/8" NPT(m) x 1/8" NPT(f)

1/2"-27 (m) x 1/4" NPT(m)

1/8" NPT(m) x 1/8" NPT(m)

1/2"-27 (m) x 1/4" NPT(m)

1/8" NPT(m) x 1/8" NPT(m)

1/4" NPT(m) x ¼" NPT(m)

Model 85021 Kit

Consists of 740 control valve and 81387 universal "z" swivel.

57

Control Valves—Fluid Lubricants

712R

758F

712F

758

Heavy-Duty Fluid Control Valves

These new fluid control valves provide all the benefits of the latest design technology and offer all the features and components for a low-cost solution for your fluid dispensing needs.

• Rugged aluminum construction

• Dispenses all automotive fluids: motor oils, gear oils,transmission fluid and antifreeze

• All indoor and outdoor applications

Model 712 Series

Oil control gun with semi-automatic nozzle operation. Inlet 3/4" NPT(f).

Model 780

Gear oil shut-off valve for use with fluid lubricant pumps. Includes shut-off valve with built-in swivel and 82070 non-drip nozzle extension. Inlet 1/2" NPT(f).

Model 769

Includes 780 valve with built-in swivel, flexible extension and 277814 nozzle.

Model 758

Includes 260381 rigid extension. Inlet/outlet 1/2" NPT(f). Can be locked in open position for continuous dispensing. Trigger guard prevents accidental dispensing. 1015 psi

(70 bar) maximum operating pressure. 7.5 GPM flow.

Model 758F

Same as 758 except with flexible extension.

780

846

774

779

282930

775

66584

769

Heavy-Duty Volume

Model 774

Includes 82906 shut-off valve and 242503 pipe extension and 277814 automatic nozzle.

Model 775

Includes 82906 shut-off valve and 82932 rigid extension nozzle.

Model 776

Includes 82906 shut-off valve and 12" flexible hose and 277814 non-drip nozzle with manual shut-off.

Model 779

Gear oil shut-off valve for use with fluid lubricant pumps.

Model 282930

High-flow valve rated up to 15 gpm and 1500 psi. Includes flexible extension and manual nozzle.

Model 282951

Same as Model 282930 without the nozzle.

Oil Control Valves

Model No.

Max. Flow Rate

712F

712R

758

758F

774

775

776

780

799

282930

12 GPM

12 GPM

7.5 GPM

7.5 GPM

5 GPM

5 GPM

5 GPM

5 GPM

5 GPM

15 GPM

Inlet Thread

Size

3/4 NPT(f)

3/4 NPT(f)

1/2 NPT(f)

1/2 NPT(f)

1/2 NPT(f)

1/2 NPT(f)

1/2 NPT(f)

1/2 NPT(f)

1/2 NPT(f)

3/4 NPT(f)

Extension

Flex Hose

Rigid Pipe

Rigid Assembly

Flex Assembly

Rigid Pipe

Rigid Pipe

Flex Hose

Rigid Pipe

None

Flex Hose

Nozzle

276281

276282

260381

260380

277814

82932

277814

82070

None

282941 Kit

Model 66584 Strainer

For use with 775, 776, 82906. #30 mesh, 9/16" OD.

58

Metering Control Valves—Fluid Lubricants

905

967

981

982

912EF

Electronic Lube Meters

Features

• Dispense motor oil, ATF and gear lube

• One model can dispense pints, quarts, liters or gallons

• Automatic non-drip nozzle

• Narrow nozzle fits into small I.D. ATF fill tubes

• Easy to read digital display for accurate bulk dispensing

• .01 increment readout for precise measurement

• Includes inline swivel, rigid extension, automatic non-drip nozzle and inline containment filter

Electronic Lube Meters

Totalizing liters or gallons. 1/2" NPT(f).

Model

905*

905SF**

912EF***

912ER***

954

967

980

981

982

Lock-On / Lock Open

Rigid/70º/Auto nozzle

For water-based solutions

Flexible

Rigid

Flexible with auto nozzle

Flexible w/ 84799 nozzle

Flexible 90º w/ Manual tip

Rigid/30º/Auto tip

Flexible w/ Auto tip

Extension PSI

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

1000

1000

1500

1500

1500

1500

1500

1500

1500

GPM

5.0*

5.0

12.0

12.0

6.0

4.0

8.0

8.0

8.0

* 8.0 gpm without nondrip nozzle. ** Models 905 and 905SF offers preset mode. ***3/4" NPT

Model 905 – ATF, hydraulic fluid, motor oils, gear oils

Model 905SF – Antifreeze, windshield washer solution, brake fluid

980

Electronic High Flow Control Valve

Model Measure Extension

280690 Programmable Flexible

PSI

1500

GPM

15

878

877

280690

Mechanical Lube Meters

Totalizing in meters. 3-1/2" diameter, inlet/outlet 1/2" NPT(f).

Model Dial Totals

Oils, ATF and Antifreeze

Graduation Extension PSI GPM

867

*

16 gallons 1/16 gallon 10" flex w/ 84799 1000 4.0

1/4 quart 4" rigid w/ 93548 1000 4.0

876

*

16 quarts

877

*

16 quarts

883

*

16 quarts

68410

899

16 quarts

*

10 liters

Gear Lube

1/4 quart 10" flex w/ 84799 1000 4.0

1/4 quart 20" flex w/ 84799 1000 4.0

1/4 quart None 1000 4.0

1/10 liter 10" flex w/ 84799 1000 4.0

878 8 pints 1/16 gallon 7" rigid w/ nozzle 1000 4.0

881 10 liters 1/10 liter 7" rigid w/ nozzle 1000 4.0

Pre-set Countdown for Oils, ATF and Antifreeze

3866

*

16 quarts/

10 liters

1/2 gallon Rigid w/ 93548 1000 4.0

3867

*

60 quarts

3868

*

60 gallons

3942

*

60 liters

1 quart

1 gallon

1 liter

Rigid w/ 93548 1000 4.0

Rigid w/ 93548 1000 4.0

Rigid w/ 93548 1000 4.0

* Includes 90464 swivel.

3867

59

Accessories—Fluid Lubricants

85799

82258

Non-Drip Nozzles & Assemblies

Model 93547 Nozzle

1/4" NPT(f) inlet automatic non-drip nozzle with manual closure feature. For packaged version, please use model 84799.

Model 93548 Nozzle

Same as 93547 with 1/2" NPT(m) inlet.

Model 85799 Nozzle

Same as 84799 with 1/2" NPT (f) inlet.

Model 277814 Nozzle

1/2" NPT(f), features manual shut-off.

Model 82258 Assembly

1/2" x 1/4" NPT(m), 10" hose (91241) and 1/4" NPT(f) automatic non-drip nozzle (93547).

277814

260380

Control Valve Accessories

Model 276281

Flexible extension with semi-auto nozzle (712) 3/4" NPT(f).

Model 276283

Rigid extension with semi-auto nozzle (712) 3/4" NPT(f).

260381

260374—Red

260375—Black

260376—Blue

260377—Yellow

260378—Green

Electronic Meter Accessories

Model 260380

Flexible extension with non-drip valve for fluid dispensing in hard-to-reach areas.

Model 260381

Rigid extension with non-drip valve.

Colored Swivel Guards

Attach these flexible swivel guards to separate meters to differentiate between fluids.

Available in red, black, blue, yellow and green.

Meter Accessories

Model 242911 Shroud Protector

Universal shock protector for all 3-1/2" diameter Lincoln electronic lube meters. Heavyduty rubber cover fits easily over meter face. Order as separate accessory.

Model 90464 Swivel

Straight oil meter swivel, 1/2" NPT(m) x 1/2" NPT(f). 1000 psi (68 bar) maximum working pressure.

242911

90464

60

Inline/Volume Meters

961

962

870

857

812

Model 961 High-Volume Gallons

U.L. approved for gasoline and diesel fuels. Meters light-weight petroleum-base products by pump or gravity flow. Volume flow of 6 to 38 gpm. Calibrated in U.S.gallons; 1/10 gallon graduations. Straight readout to 999.9 gallons; reset knob on meter body. Nonreset totalizer on meter face. 50 psi max. pressure. 6-1/4" h, 7-1/8" w; 5-1/2 lbs.

1" NPT(f) inlet/outlet.

NOTE: For consumer use only. Not intended for measurement where resale is contemplated.

Model 964 Liters

Same as 961, except meter is calibrated in liters. Straight readout to 999.9 liters.

Maximum working pressure: 3.5 kilograms per square centimeter.

Model 962 Volume Gallons

For oils and ATF up to SAE 40 weight. Calibrated in U.S. gallons; 1/10 gallon graduations.Straight readout to 999.9 gallons; reset knob on meter body. Non-reset totalizer on 6" diameter dial face. 1000 psi max. pressure. 1" NPT(f) inlet/outlet.

NOTE: For consumer use only. Not intended for measurement where resale is contemplated.

Model 963 Liters

Same as 962, except meter is calibrated in liters.

Model 870 Pints

Dial diameter 3-1/2"; inlet 1/2" NPT(f). 1000 psi maximum working pressure.

Model 871 Quarts

Calibrated and totalizes in quarts. Total measure on dial is 4 quarts.

Model 873 Liters

Calibrated and totalizes in liters. Total measure on dial is 10 liters.

Model 857

Calibrated in quarts. Large electronic display to 999.9.

Inline Lube Meters

Model 2873 Liters

Calibrated in liters.

Total on dial is 4 liters.

Model 812 Universal

Digital Inline Meter

Measures in quarts, gallons and liters. Resettable and non-resettable accumulative totals. 1000 psi max.,

1/2" inlet/outlet, 8GPM max.

Model 813 Universal

Digital Inline Meter

Same as Model 812 but with 3/4" inlet/outlet, 0.8 to 21GPM range.

961

962

963

964

2873

Model Totalizing Totals Graduation Max.

857

870

871

873

Yes

Yes

Yes

Yes

999.9 qt.

8 pints

4 quarts

10 liters

.05 quart

1/4 pint

1/4 quart

1/10 liter

1000

1000

1000

1000

812

Yes

Yes

Yes

Yes

No

Yes

999.9 gal. 1/10 gallon 50

999.9 gal.

1/4 pint 1000

999.9 ltr. 1/10 liters 1000

999.9 ltr. 1/10 liters 50

4 liters

9999.9 units

1/10 liter 1000

.01 units 1000

813 Yes

9999.9 units

.01 units 1500

61

Air & Water Control Valves

840

Blow Guns

Model 840

• Handy thumb-button design provides ease of operation

• Brass stem and synthetic packaging for service life

• Addition of air nipple permits quick connect or disconnect

• Inlet 1/4" NPT(f); outlet 7/64" diameter

960

Model 950

• Same as 840, except with air restricter

• Nozzle inlet pressure 30 psi maximum complies with Federal Safety Regulation 50-204.8 and OSHA 1910 242.B.

Model 960

• Light-weight cast aluminum pistol grip

• Inlet 1/4" NPT(f); outlet 7/64" diameter; height 5-3/4"

• Nozzle inlet pressure 30 psi maximum complies with Federal Safety Regulation 50-204.8 and OSHA 1910 242.B.

Model 940

• Same as 960 less air restricter

• When used for large cleaning requirement or chip cleaning, regulated air pressure must not exceed Federal recommended maximum.

5980

5990

Model 5980

• Thumb control provides comfort and ease of operation

• Inlet 1/4" NPT(f); outlet 1/8" NPT(f) outlet

Model 5990 Rubber Tip for Blow Guns

• Rubber tip will not scratch surfaces.

• Fits 840, 940 and 5980 blow guns, as well as many competitive models.

• 1/8" NPT(m) threads.

815

846

66951

Air & Water Accessories

Model 846 Water Bibbcock

For attaching to water service hose.

• 1/4" NPT(f) inlet.

• Thumb-action trigger. Built-in strainer filters out contaminants.

Model 845 Water Bibbcock

Same as 846 except inlet 3/4"–11-1/2" AN connects to standard lawn hose.

Air/Water Accessories

Model

815

845

846

Description

1/4"(f) Air Coupler

Inlet 3/4" –11-1/2" AN

1/4"(f) Water Bibbcock

11659

66951

1/4"(m) Air Nipple

1/4"(f) Tire Chuck

Style

Lincoln “Long Stem”

Connects to standard lawn hose

Low-pressure water

Lincoln “Long Stem”

Standard tire chuck

11659

62

Airline Sprayers/Valves

939

Air-Operated Sprayers

Model 939

• Adjustable suction control varies fluid volume as needed.

• Strainer assembly in suction hose keeps out contaminants while assuring uninterrupted flow of fluid.

• 6' vinyl suction hose permits use with most any container from gallon jug to

400 lb. drum.

• Convenient addition of air coupler nipple permits quick coupling to any air hose.

• Rust and corrosion resistant–pistol grip handle includes brass stem and synthetic packing.

• Use with solvents or detergent solutions. Compatible with vinyl, aluminum and carbon steel.

• Standard air inlet 1/4" NPT(f).

• Powerful spray. Maximum operating pressure 200 psi.

Model 5983

• Use with solvents or detergent solutions.

• 1/4" NPT(f) inlet.

• Maximum operating pressure 150 psi.

5983

80423

Tire Accessories

Model 80423 Tire Inflator

• 12" hose extension provides extra-reach capacity.

• Tapered chuck nut allows inflator to fit wheel covers on cars and light trucks.

• Dual chuck permits use of gauge on trucks with dual tires.

• Includes 11659 nipple for use with 815 coupler. 200 psi maximum inlet pressure.

0-120 psi scale in 2 psi graduations.

Model 66951 Air Chuck

For inflating tire. 1/4" NPT(f) inlet.

Self-Coiling Air Hose

Model 84606

• Tough abrasive resistant material provides long service life.

• Coiled spring guards prevent kinking.

• 1/4" I.D. x 25’ long–extra length for those hard-to-reach places.

• Working pressures up to 200 psi. 1/4" NPT(m) fittings each end.

Note: Blow guns on page 62.

66951

84606

63

Air Couplers & Nipples

815 1/4" (f)

11659 1/4" (m) 11660 1/8" (m)

11661 1/4" (f)

Coupler and nipple can be joined without user pulling back on sleeve. A true quick-connect design!

Lincoln air couplers provide split-second coupling of grease guns, impact wrenches, paint sprayers and other air-operated equipment. Air flow products from Lincoln have the features and durability you demand for your business.

815 Cut-away

1/4" (f)

• Positive action locking mechanism so coupler cannot be detached accidentally.

• Extra large air passage insures greater air flow.

• Automatic air check valve shuts off air instantly when uncoupled, providing leak-proof seal.

• Corrosion-resistant steel plug and stainless steel check and check spring for long service life.

• Free swiveling action prevents curling or kinking of air hose.

13329 1/4" (f)

13331 1/4" (f)

5874 3/8" (f)

5875 3/8" (m)

5876 3/8" (f)

Lincoln-Style Couplers & Nipples for 1/4" ID

Models 815, 11659, 11660, 11661

250 psi maximum operating pressure. Extra-long stem of nipple and coupler body assures long service life, easy connections under severe operating conditions. Maximum air flow 52 scfm at 100 psi.

815 Length 2-1/2" (65mm); diameter 1-1/16" (37mm); weight 4-1/2" ounces (126g).

NOTE: 11659 is available non-packaged for bulk orders as 238394.

ARO-Style Couplers & Nipples for 1/4" ID

Models 5862, 13329, 13331

Fits ARO style nipples for 1/4" ID hose. 300 psi maximum operating pressure. 1/4" (f) NPT inlet.

Maximum airflow 38 scfm at 100 psi. Length 2"; diameter 1-1/8"; weight 4 ounces.

Universal Coupler

Model 5862

Fits all Automotive/Tru-Flate, ARO, and Industrial/Miltonstyle nipples for 1/4" ID hose 300 psi maximum operating pressure. 1/4" (f) NPT inlet. Maximum airflow 38 scfm at

100 psi. Length 2"; diameter 1-1/8"; weight 4 ounces.

Coupler and nipple can be joined without user pulling back on sleeve. A true quick-connect design!

5862

Automotive/Tru-Flate-Style Couplers & Nipples for 3/8" ID

Models 5874, 5875, 5876

300 psi maximum operating pressure. Maximum air flow 100 scfm at 100 psi.

Length 2-3/8"; diameter 1"; weight 4.8 ounces.

64

Air Couplers & Nipples

Industrial/Milton-Style Couplers & Nipples for 1/4" ID (63 Series)

Models 632004, 630104, 630204

Maximum operating pressure 250 psi (17 bar). Maximum air flow 45 scfm at 100 psi.

Length 1-3/4" (44mm); diameter 1-1/8" (29mm); weight 3 ounces (84g).

632004 ¼" (f)

630104 ¼" (m)

630204 ¼" (f)

642006 ?" (f)

Industrial-Style Couplers & Nipples for 3/8" ID (64 Series)

Models 642006, 640104, 640204, 640106, 640206

Maximum operating pressure 250 psi. Maximum air flow 108 scfm at 100 psi.

Length 2-1/16" (52mm); diameter 1-5/16" (49mm); weight 6 ounces (168g).

640104 ¼" (m)

640204 ¼" (f)

652008 ½" (f)

Industrial-Style Couplers & Nipples for 1/2" ID (65 Series)

Models 652008, 650108, 650208

Maximum operating pressure 200 psi (14 bar). Maximum air flow 176 scfm at 100 psi.

Length 2-3/4" (70mm); diameter 1-1/2" (38mm); weight 9 ounces (252g).

650108 ½" (m)

650208 ½" (f)

KEY xx

Series x

O = nipple

2 = coupler x

1 = male

2 = Female xx thread size

IN 1/16"

65

DEF Equipment

Lincoln's Heavy-Duty Answer to the EPA's New Emission Regulations

Power, Durability and Reliability for Stationary, Installed and Portable Service Applications in Heavy-Duty Shops

85700-50

Hose Reels

• DEF-specific reels are smaller and easier to operate

• Designed for versatile installation options

• Steel reel with stainless steel fluid paths

Model No.

85700-30

85700-50

277265

277266

277267

Description

1/2" x 30' DEF hose on reel

1/2" x 50' DEF hose on reel

1/2" x 2' Reel inlet hose with 1/2" BSPP threads

1/2" x 30' Hose with 1/2" BSPP threads

1/2" x 50' Hose with 1/2" BSPP threads

85622

Air-Operated Diaphragm Pump

• Environmentally friendly - no motors, seals or packing to leak

• Self-priming

IBC Tote

• Electric or air operated

– Electric - 277280

– Air-operated diaphragm pump with wall mount (custom BOM per installation requirements)

• 275/330 gallon

• Dispense at tote 1/2" x 30' Hose with 1/2" BSPP threads

• Pipe to reels

277280

55-Gallon Drum

• Electric

– Portable - 277281

– Stationary - 277280

• Air Operated

– Stationary - Air-operated diaphragm pump (custom BOM per installation requirements)

277281

AC Electric Pump - Model 272251

• High-wattage motor works harder with less effort.

• 110 VAC or 12 VDC stainless steel rotary vane pump, small compact

• Self priming, continuous duty, ½ Hp, 3450 ROM

• 8 GPM flow rate, 29 PSI maximum pressure

277250

66

DEF Equipment

277230

277219

277256

277235

277236

277237

277255

Meters/Dispense Valves

Model 277255 S.S. Automatic Nozzle

• 3/4" BSPP threads

• 50 psi maximum pressure

Model 277256 DEF Meter

• 2 to 20 GPm flow range

• ± 0.5% accuracy

• 3/4" female BSPP inlet/outlet

• 120 psi maximum pressure

• LCD display

Model 277538 Metered Control Valve

• 0.26 to 9 GPM flow range

• ± 0.5% accuracy

• 1/2" female BSP threads

• 145 psi maximum pressure

• Resettable totalizer and non-resettable total on 2 line LCD register

277538

Accessories

• Couplers

- Disposable drums and totes

- Returnable drums and totes

- 3/4" BSPP female threads

• Dip Tubes

- Drums

- 275 gal. totes

- 330 gal. totes

277233

Model No.

277230

277219

277232

277233

277234

277235

277236

277237

277238

277239

277254

277258

277633

277635

Description

Coupler, ¾" hose barb for colder-style drum insert

Coupler, ¾" hose barb for micro-matic drum insert

Coupler, ¾" male BSPP

Drum insert, 2" buttress thread

Drum insert, 2" NPS (ISO G2) thread, colder style for plastic 55-gallon drums

Dip tube, 35.5" long for 55 gallon drums, colder style for

275-/330-gallon totes

Dip tube, 39.0" long for 275 gallon IBCs

Dip tube, 39.0" long for 330 gallon IBCs

Torque socket tool for drum inserts

Air filter, ¼" NPT(M), 70 micron - recommended for colder-style coupler

3/4" x 12' hose with 3/4" BSPP threaded fittings

3/4" x 6' hard wall suction hose with 3/4" BSPP stainless fittings

+ hose barb

1/2" x 5' hose with 1/2" BSPP threads

3/4" x 6' suction hose with hose barb

67

Air Controls and Accessories

Lincoln Regulators, Filters & Lubricators

A well-planned compressed air system ensures minimum pressure loss in the system and the removal of contaminants: water, compressor oil, etc. An inefficient system results in higher costs per unit of compressed air, improper or erratic tool operation, shortened component life and reduced capacity. Lincoln provides individual components and combined component systems to give you the highest quality for your compressed air tool operations.

Changes in air pressure can affect the performance of air-powered equipment. Most equipment will operate beyond recommended pressure, but this causes excess torque, force and wear and wastes compressed air. Lincoln air regulators eliminate this problem by providing the consistent pressure required for each tool, ensuring maximum life and working efficiency for your pneumatic equipment.

Air filters are essential for proper performance of air powered tools, equipment and machinery. Lincoln filters are designed to minimize water vapor and contaminates in the air supply. Install a large filter in the main distribution line immediately after the compression accumulator tank. Another smaller filter should be placed inline within 20 feet of the equipment it will protect. This ensures the removal of solid particles at point of use and most condensed moisture.

Most air-operated tools, equipment and components of air systems require oil lubrication for proper function and to ensure long service life. Lincoln air line lubricators are designed to meter precise amounts of lubricant into the air supply, improving the efficiency of cylinders, valves and air motors. Lubrication is automatically provided in a nearly constant oil-to-air ratio over a wide range of air flows. Air passing through the operated device is a very fine mist that can be carried over a long distance, serving more than one tool at a time.

600103

600203

600003

Miniature Units

Model 600003 Miniature Regulator

All brass construction with Buna N diaphragm. For 1/4" pipe size. Maximum supply pressure 300 psig. Reduced pressure range: 0-125 psig.

Operating temperature range: -40° to 180°F. Diameter 1-3/8", height 2-3/4", weight 1/2 lb.

Model 600103 Miniature Filter

All brass construction with porous bronze filter (20 micron) element and shatter proof polycarbonate bowl. For 1/4" pipe size. Maximum supply pressure 200 psi.

Maximum operating temperature 120°F. Diameter 1-9/16", height 4", weight 3/8 lb.

Model 600203 Miniature Lubricator

All brass construction with shatterproof polycarbonate bowl. For 1/4" pipe size. Maximum supply pressure 200 psi. Maximum operating temperature 120°F. Oil viscosity limitation not over 800

S.S.U. (SAE #30 not under 85°F.). Diameter 1-9/16", height 4-3/8", weight 1-4 lb.

66100

600401

247843

Gauges

Model 66100 Gauge

Registers pressures up to 200 psi. Dial diameter 2". 1/4" NPT(m) bottom connection. Calibrated both in psi and kg/cm

2

.

Model 66101 Gauge

Same as 66100 except 1/8" NPT(m) bottom connection.

Model 600401 Gauge

Same as 66100 except with 1/4" NPT center back connection.

Model 66111

Same as 66100 except registers to 5000 psi.

Air Line Equipment Accessories—Pressure Gauges

Available in 1/8" NPT and 1/4" NPT back connection.

Model

247843

247844

247863

For Regulator Sizes

1/4" and 3/8"

1/2", 3/4" and 1"

Gauge Dia.

1-1/2"

2"

Connection

1/8" NPT

1/4" NPT

Pressure Range

0 to 160 / 0 to 11

0 to 300 / 0 to 20

68

Regulators, Filters and Lubricators

C

D

B

Regulators

Die-cast zinc construction with stainless steel strainer and renewable brass seat.

Diaphragm and disc are oil-resistant Buna-N. Secondary pressure side gauge connections are 1/4" NPTF and are sealed with removable pipe plugs. Maximum supply pressure is 300 psi (20 bar) for all sizes listed. Operating range 0-250 psi

(0-17 bar). Operating temperature range: 40°–120°F (4°–49°C).

Model

Pipe

Size inches

600004 1/4

A in. (mm)

B in. (mm)

C in. (mm)

D in. (mm)

Weight lbs. / kg

600006 3/8

600008 1/2

3 (75)

3 (75)

6 (150) 1-3/8 (35) 2-3/8 (70) 1.8 (0.8)

6 (150) 1-3/8 (35) 2-3/8 (70) 1.8 (0.8)

3-9/16 (90) 7 (175) 1-1/2 (38) 3-1/4 (79) 2.8 (1.3)

600012 3/4 4-11/16 (119) 10 (254) 1-7/8 (48) 4-3/8 (111) 6.2 (2.8)

600016 1 4-11/16 (119) 10 (254) 1-7/8 (48) 4-3/8 (111) 6.2 (2.8)

A

600004

82413 Control Assembly

Includes 66100 Gauge and 600004 Regulator. Inlet and outlet 1/4" NPTF.

C

D

A

600104

B

82413

Filters

Construction of die-cast zinc with 40 micron filter element of porous bronze.

Metal bowl with sight glass. Maximum supply pressure 250 psi (17 bar).

Maximum temperature 150°F (65°C).

Model

Pipe

Size in.

Capacity oz (cc)

A in. (mm)

B in. (mm)

C in. (mm)

D in. (mm)

600104 1/4

600106 3/8

600108 1/2

5 (148)

5 (148)

8 (237)

600112 3/4 16 (473)

600116 1 16 (473)

2-15/16

(75)

2-15/16

(75)

3-3/4

(95)

4-7/8

(124)

4-7/8

(124)

5-5/8

(143)

5-5/8

(143)

6-1/4

(159)

8-3/4

(222)

8-3/4

(222)

5-1/8

(130)

5-1/8

(130)

5-5/8

(143)

7-3/4

(197)

7-3/4

(197)

2-1/2

(64)

2-1/2

(64)

3-1/4

(83)

4-9/16

(116)

4-9/16

(116)

Weight lbs. / kg

1.8 (0.8)

1.8 (0.8)

2.8 (1.3)

6.3 (2.9)

6.3 (2.9)

C

D

A

600204

B

600301

600301 Automatic Drain Conversion Kit

Converts manual drain filter to automatic drain. Increases filter efficiency and eliminates problem of manual draining.

Lubricators

Constructed of die-cast zinc. Metal bowl with sight glass. Maximum supply pressure

250 psi (17 bar). Maximum temperature 150°F (65°C). Oil viscosity maximum not over 800 S.S.U. (SAE 30, not under 85°F/29°C).

Note: Oil adjustment may be made tamper-proof by removing “Dial Set" knob on all models. All sizes may be filled while under pressure.

Model

Pipe

Size in.

Capacity oz (cc)

600204 1/4 5 (148)

600206 3/8 5 (148)

A in. (mm)

2-15/16

(75)

2-15/16

(75)

600208 1/2 8 (237) 3-3/4 (95)

B in. (mm)

7-5/8

(194)

7-5/8

(194)

8-1/8

(206)

600212 3/4 16 (473) 4-7/8 (124) 10-1/2

600216 1

C in. (mm)

5-5/8

(143)

5-5/8

(143)

5-1/4

(146)

7-7/8

(200)

7-7/8

(200)

D in. (mm)

2-1/2

(64)

2-1/2

(64)

3-1/4

(83)

4-9/16

(116)

4-9/16

(116)

Weight lbs. / kg

2.2 (1)

2.2 (1)

3.3 (1.5)

4.2 (1.9)

4.2 (1.9)

69

AirCare™ Air Preparation Systems

Lincoln’s MODULAR AirCare™ Regulators, Filters and Lubricators

• Modular components snap into place for quick assembly and service

• Wide selection of sizes, styles and capacities to meet specific application requirements

Modular Air Line Filters

Model

No.

602104

602106

602108

602109

Max. Air

Supply psi / bar

250 / 17

Operating

Temperature

Range - F / C

0 to 150 /

-18 to 65

Material of Construction

Body Bowl

Zinc Zinc*

0 to 175 Aluminum Aluminum*

Element

Material

Particle

Size

Sintered

Polypropylene

40µ

Modular Air Line Regulators

Model

No.

Max. Air

Supply psi / bar

Operating

Temperature

Range

Body

Material of Construction

Bonnet

Valve

Seals

Bottom

Plug

602004

602005

602006

602007

602008

602009

300 / 20

0° to 150°F /

-18° to 65°C

Zinc Acetal

0° to 175°F /

-18° to 79°C Aluminum Aluminum

Brass

Nitrile

Acetal

Secondary

(Gauge)

Connections

- in.

1/8 NPT (F)

1/4 NPT (F)

Modular Air Line Lubricators

Model

No.

Max. Air

Supply psi

/ bar

Operating

Temperature

Range - F / C

602204

602206

0 to 150 /

-18 to 65

602208

250 / 17.2

0 to 175 /

-18 to 79

* Transparent nylon liquid level indicator lens.

Material of Construction

Body

Zinc

Bowl

Zinc

Aluminum Aluminum*

Sight feed

Dome

Transp.

Nylon

Recommended

Lubricants

Misting type oil

50 to 200 SSU

(ISO Grade 7 to

46) at 100°F

(38°C)

Integrated/Modular Filter/Regulator with Gauge

Can be used with other AirCare Modular Components.

Model

No.

Max. Air Supply psi / bar

Operating

Temperature Range

- F / C

Element Particle Size

602134

602136

602138

250 / 17

0 to 150 / -18 to 65

0.3 to 10 / -18 to 79

40µ

Outlet Pressure

Adj. Range psi/bar

5 to 150 / 0.3 to

10

70

AirCare™ Air Preparation Systems

Model

No.

602104

602106

602108

602109

Drain Type

Manual

Automatic

Port Size

PTF

1/4

3/8

1/2

A

Dimensions - in. / mm

B C Dia.

5.27 / 1.34 0.75 / 19 1.98 / 50 1.91 / 48

6.95 / 177

6.35 / 161

1.00 / 25 3.15 / 80 2.89 / 74

Weight lbs. / kg

1.1 / 0.5

1.8 / 0.8

Model

No.

Outlet Pressure Adj.

Range psi/bar

Connections

NPT-Female in.

602004

602005

602006

602007

5 to 150 / 0.3 to 4

602008 10 to 250 / 0.7 to 16

602009 5 to 150 / 0.3 to 4

1/4

3/8

1/2

A

Dimension - in. / mm

B C

4.0 / 102

2.88 / 73

4.0 / 102

2.88 / 73

1.31 /

33

5.95 / 151 1.69 /

5.0 / 127

43

2.0 /

50

3.15

/ 80

D

Adjuster

3.2 /

83

5.1 /

130

T-Handle

Knob

T-Handle

Knob

T-Handle

Knob

Weight

0.8 / 0.4

1.77 /

0.80

Model

No.

602204

602206

602208

Connections

NPT-Female

1/4

3/8

1/2

Bowl Capacity ozs. / ml

2.0 / 58

7.0 / 207

A

5.27 /

134

6.95 /

177

Dimension - in. / mm

B C

1.63 /

41

2.12 /

53

1.98 /

50

3.15 /

80

D

1.91 /

48

2.89 /

74

Weight lbs. / kg

1.1 / 0.5

1.6 / 0.7

Model

No.

602134

602136

602138

Drain Type Port Size PTF

Manual

1/4

3/8

1/2

A

Dimension - in. / mm

B C D

Weight lbs. / kg

5.27 / 134 2.89 / 73 1.98 / 50 3.29 / 83 1.2 / 0.5

6.95 / 177 4.98 / 127 3.15 / 80 5.10 / 130 2.6 / 1.2

71

AirCare™ Air Preparation Systems

Modular Air Line Combination Units

Filter-Regulator with Gauge-Lubricator

Model

No.

Max. Air Supply psi / bar

Operating

Temperature Range

- F / C

85387-4

85387-6 250 / 17

0 to 150 / -18 to 65

85387-8 0 to 175 / -18 to 79

* Transparent nylon liquid level indicator lens.

Element

Particle

Size

40µ

Outlet

Pressure

Adj. Range psi/bar

Lubricator

Bowl Capacity ozs. / ml

5 to 150 /

0.3 to 10

2.0 / 58

7.0 / 207

Modular Air Line Combination Units

Filter-Regulator with Gauge

Model No.

Max. Air

Supply psi/bar

85388-4

85388-8

250 / 17

* Transparent nylon liquid level indicator lens.

Operating Temperature

Range - F / C

0° to 150°F / -18° to 65°C

0° to 175°F / -18° to 79°C

Element

Particle Size

40µ

Outlet Pressure Adj.

Range psi/bar

5 to 150 /

0.3 to 10

Modular Air Line Combination Units

Filter-Lubricator

Model

No.

85389-8

Max. Air Supply psi / bar

250 / 17.2

Operating

Temperature Range

- F / C

0 to 175 / -18 to 79

Element

Particle Size

40µ

* Transparent nylon liquid level indicator lens.

Lubricator Bowl Capacity ozs. / ml

7.0 / 207

High-Capacity Air Line Filters

Model

No.

Max. Air

Supply psi/bar

Operating

Temperature Range

- F / C

Material of Construction

Body

602112

602113

602116

602117

250 / 17.2 0 to 175 / -18 to 79 Aluminum

* Pyrex liquid level indicator.

Bowl

Aluminum* w/ Pyrex sight glass

Element

Material

Particle

Size

Sintered

Bronze

50µ

72

AirCare™ Air Preparation Systems

Model

No.

85387-4

85387-6

85387-8

Drain

Type

Port Size

PTF

Manual

1/4

3/8

1/2

A

Dimension - in. / mm

B C

5.27 / 134 1.63 / 41 6.46 / 164

6.95/ 177 2.12 / 53 10.52 / 267

Weight lbs. / kg

3.3 / 1.5

6.2 / 2.8

Model

No.

85388-4

85388-8

Drain

Type

Manual

Port Size

PTF

1/4

1/2

A

Dimension - in. / mm

B C

5.27 / 134 1.31 / 33 4.22 / 108

6.95 / 177 1.69 / 43 6.84 / 174

Weight lbs. / kg

2.0 / 1.0

4.2 / 2.0

Model No.

85389-8

Drain

Type

Manual

Port Size

PTF

1/2

A

Dimension - in. / mm

B C

6.95/ 177 2.12 / 53 6.84 / 174

Weight lbs. / kg

3.8 / 1.7

Model

No.

Drain

Type

602112 Manual

602113 Automatic

602116 Manual

602117 Automatic

Port

Size

PTF

3/4

1

A

10.44 / 265

10.06 / 256

10.44 / 265

10.06 / 256

Dimensions - in. / mm

B C Dia.

Weight lbs. / kg

1.25 / 32 4.75 / 121 5.52 / 140 4.1 / 1.9

73

AirCare™ Air Preparation Systems

High-Capacity Air Line Regulators

Material of Construction

Model

No.

Max. Air

Supply psi

/ bar

Operating

Temperature

Range

Body

602012

602013

602016

300 / 20

0 to 175 /

-18 to 79

Aluminum

Secondary

(Gauge)

Connections in.

1/4

NPT (F)

High-Capacity Air Line Lubricators

Model

No.

Max.

Air

Supply psi/bar

Operating

Temperature

Range - F / C

Material of Construction

Body Bowl

Sight feed

Dome

602212

602216

250 /

17.2

0 to 175 /

-18 to 9

Aluminum Aluminum*

Transp.

Nylon

Recommended

Lubricants

Misting type oil

50 to 200 SSU

(ISO Grade 7 to 46) at 100°F (38°C)

* Pyrex liquid level indicator.

High-Capacity Air Line Combination Units

High Capacity Filter-Regulator with Gauge-Lubricator

Model No.

Max. Air

Supply psi/bar

85387-12

85387-16

250 / 17

* Pyrex liquid level indicator.

Operating

Temperature

Range - F / C

0 to 175 /

-18 to 79

Element

Particle

Size

50µ

Outlet

Pressure Adj.

Range psi/bar

5 to 125 /

0.3 to 8.6

Lubricator Bowl

Capacity ozs. / ml

32 / 946

High-Capacity Air Line Combination Units

Filter-Regulator with Gauge

Model

No.

Max. Air

Supply psi/bar

Operating

Temperature Range

- F / C

Element Particle

Size

85388-12 250 / 17 0 to 175 / -18 to 79 50µ

* Pyrex liquid level indicator.

High-Capacity Air Line Combination Units

Filter-Lubricator

Operating

Temperature Range

- F / C

Element Particle

Size

85389-12

85389-16

250 / 17

* Pyrex liquid level indicator.

0 to 175 / -18 to 79 50µ

Outlet Pressure Adj.

Range psi/bar

5 to 125 / 0.3 to 8.6

Lubricator Bowl

Capacity ozs. / ml

32 / 946

74

AirCare™ Air Preparation Systems

Model

No.

Outlet Pressure

Adj. Range psi/bar

602012 10 to 250 / 0.7 to 16

602013 5 to 150 / 0.3 to 10

602016 10 to 250 / 0.7 to 16

Connections

NPT-

Female in.

3/4

1

A

Dimensions - in. / mm

5.69/145

4.71/120

5.69/145

B

2.38/

60

C

4.25/

108

D

Adjuster Weight

2.38/

60

T-Handle

Knob

T-Handle

2.5 /

1.1

Model

No.

602212

602216

Connections

NPT-Female in.

3/4

1

Bowl

Capacity ozs. / ml

32 / 946

A

Dimension - in. / mm

B C D

10.24 /

260

2.22 /

56

4.50 /

114

5.52 /

140

Weight lbs. / kg

3.6 / 1.6

Model No.

85387-12

85387-16

Drain Type

Manual

Port Size

PTF

3/4

1

A

Dimension - in. / mm

B C

10.44 / 265 2.22 / 56 14.75 / 375

Weight lbs. / kg

10.6 / 4.8

Model No.

Drain

Type

85388-12 Manual

Port Size

PTF

3/4

A

Dimension - in. / mm

B C D

Weight lbs. / kg

10.44 / 265 2.38 / 60 10 / 254 5.52 / 140 6.9 / 3.1

Model

No.

85389-12

85389-16

Drain

Type

Manual

Port Size

PTF

3/4

1

A

Dimension - in. / mm

B C D

Weight lbs. / kg

10.44 / 265 2.22 / 56 10.25 / 260 5.52 / 140 7.8 / 3.5

75

AirCare™ Air Preparation Systems

Miniature Air Line Components—Air Line Filter

Model

No.

Max. Air

Supply psi / bar

Operating

Temperature Range

- F / C

Material of

Construction

Body Bowl

602103

150 /

10.3

0 to 125 / -18 to 79 Zinc Polycarbonate

Element

Material

Porous

Polypropylene

Particle Size

50µ

Miniature Air Line Components—Air Line Regulator

Model

No.

Max. Air

Supply psi/bar

Operating

Temperature

Range:

Material of Construction

Body Bonnet

Valve

Seals

Bottom

Plug

Acetal

Brass/

Nitrile

Acetal

Secondary

(Gauge)

Connections - in.

1/8 NPT (F)

Miniature Air Line Components—Air Line Lubricator

Model

No.

Max. Air

Supply psi/bar

Operating

Temperature

Range - F / C

Body

Material of Construction

Bowl

Sight feed

Dome

Recommended

Lubricants

602203

150 /

10.3

0 to 125 /

-18 to 52

Aluminum Polycarbonate

Transp.

Nylon

Misting type oil

50 to 200 SSU

(ISO Grade 7 to

46) at 100°F

(38°C)

Miniature Air Line Combination Units

Filter-Regulator with Gauge-Lubricator

Model

No.

85672

Max. Air

Supply psi / bar

150 /

10.3

Operating

Temperature

Range - F / C

0 to 150 /

-18 to 65

Element

Particle Size

50µ

Outlet Pressure

Adj. Range psi/bar

5 to 100 /

0.3 to 6.9

Lubricator Bowl

Capacity ozs. / ml

1.0 / 30

Miniature Air Line Combination Units

Filter-Lubricator

Model

No.

85674

Max. Air

Supply psi/bar

150 / 10.3

Operating

Temperature

Range - F / C

0 to 125 /

-18 to 52

Element

Particle Size

Lubricator Bowl Capacity ozs. / ml

1.0 / 30

76

AirCare™ Air Preparation Systems

Model

No.

602103

Drain Type Port Size PTF

Manual 1/4

A

Dimensions - in. / mm

B C Dia.

3.25 / 83 0.38 / 10 1.63 / 42 1.45 / 37

Weight lbs. / kg

1.1 / 0.12

Model

No.

602003

Outlet Pressure Adj.

Range psi/bar

5 to 100 / 0.3 to 6.9

Connections

NPT-Female in. Adjuster

1/4

Weight lbs. / kg

Knob 0.3 / 0.13

A

Dimensions - in. / mm

B C D

2.52 /

64

0.39 /

10

1.63 /

41

1.45 /

37

Model

No.

Connections

NPT-Female in.

Bowl Capacity ozs. / ml

A

Dimension - in. / mm

B C Dia.

602203 1/4 1.0 / 30 3.25 / 83 1.98 / 50 1.63 / 41 1.45 / 37

Weight lbs. / kg

0.3 / 0.13

Model

No.

85672

Drain Type

Manual

Port Size

PTF

1/4

A

Dimension - in. / mm

B C Dia.

3.25 / 83 1.98 / 50 5.61 / 143 1.45 / 37

Weight lbs. / kg

1.3 / 0.6

Model

No.

85674

Drain

Type

Manual

Port Size

PTF

1/4

A

Dimension - in. / mm

B C Dia.

3.25 / 83 1.98 / 50 3.66 / 93 1.45 / 37

Weight lbs. / kg

0.9 / 0.4

77

AirCare™ Air Preparation Systems

Modular Air Line Equipment Accessories—Lockout Valve

Install in-line or modular with other AirCare products to help conform to OSHA Lockout

Regulations. In the closed position, valves block inlet air flow and exhaust downstream air.

Model

247770

247771

247772

For Modular use with

1/4" Modular

3/8" Modular

1/2" Modular

For In-Line use with

1/4"

3/8"

1/2"

Max. Air Supply psi / bar

250 / 17

Operating Temperature

Range

0 to 150 / -20 to 65

Modular Air Line Equipment Accessories—Quick Clamp

Use with Modular Air Line Components to provide modular installation capability. Flanges on the products slide into “V” grooves in the quick clamp. Two face-sealing o-rings in the quick clamp provide an air tight connection when the clamp is closed.

Model

247782

247783

For Modular Sizes

1/4" and 3/8"

1/2" and 3/4"

Dimensions - in. / mm A

1.50 / 38

2.00 / 51

Modular Air Line Equipment Accessories—Quick Clamp Wall

Mounting Bracket

Use with quick clamp to provide secure mounting to a wall, machine panel or other flat surface.

Model

247792

247793

For Modular Sizes

1/4" and 3/8"

1/2" and 3/4"

A

2.32 / 59

3.25 / 83

Dimensions - in. / mm

B

0.55 / 14

0.95 / 24

C

2.91 / 74

4.0 / 102

Modular Air Line Equipment Accessories—Quick Mount Pipe

Adapters

Use with quick clamp to provide threaded connections to the system piping.

Model

No.

247787

247789

247791

For Modular use with

3/8" Modular

1/2" and 3/4" Modular

Port Size - in.

3/8

3/8

3/4

Modular Air Line Equipment Accessories—Manifold Block

Installs with quick clamps. Ports are threaded pipe to provide manifolding capability for up to three components.

Model

No.

247795

Port Size - in.

3/4

For Modular Sizes

1/2" and 3/4"

Dimensions-in. / mm

A B

2.27 / 57.8

3.15 / 80

78

AirCare™ Air Preparation Systems

Modular Air Line Equipment Accessories—Pressure Switch

Monitors air pressure and provides an electrical signal when the pressure drops below or exceeds the preset pressure. Installs between two quick clamps. Also provides three additional

1/4" auxiliary outlets.

Model No.

For Modular

Sizes

Maximum Inlet

Pressure psi / bar

Operating

Temperature Range

- F / C

Adjustment

Range

247797 1/2" and 3/4" 250 / 17 0 to 150 / -20 to 65

30 to 150 /

2 to 10

Modular Air Line Equipment Accessories—

Tamper Resistant Cover & Seal Wire

Install on the adjusting knob of regulators to help prevent unauthorized adjustment of the pressure setting.

Model No.

247778

For Modular Sizes

1/2" and 3/4"

Modular Air Line Equipment Accessories—

Wall Mount Bracket

Use to secureModular Air Line components to a wall, machine panel or other flat surface.

Model No.

247775

247776

For Modular Sizes

1/4" and 3/8"

1/2" and 3/4"

Air Line Equipment Accessories—

Mounting Bracket and Nut-Miniature

Use to secure Miniature Air Line components to a wall, machine panel or other flat surface.

Model No.

247774

Component

All Regulators and Lubricators

Air Line Equipment Accessories—Pressure Gauges

Available in 1/8" NPT and 1/4" NPT back connection.

Model No.

For Regulator Sizes Gauge Diameter Connection

247843

247844

247863

1/4" and 3/8"

1/2", 3/4" and 1"

1/2", 3/4" and 1"

1-1/2"

2"

1/8" NPT

1/4" NPT

1/4" NPT

Pressure Range

0 to 160 psig /

0 to 11

0 to 160 psig /

0 to 11

0 to 300 psig /

0 to 20 bar

79

Guardian Grease Guns

For more than 100 years, service professionals have looked to Lincoln for lubrication equipment designed to meet the demands of day-to-day shop life. In response to overwhelming requests, Lincoln proudly makes its equipment available to those outside the service industry with our Guardian line of lubrication products. Designed for life outside the shop, Guardian brings you a level of performance previously unavailable in over-the-counter lubrication equipment. Every Guardian product is engineered to meet the industry’s most exacting standards for reliability and performance. Like all Lincoln products, the Guardian name is your assurance that what you’re buying is an extraordinary piece of equipment.

G110

G150

G100

G102

“The Bulldog”

G113

G120

Grease Guns

G100 Lever Action

Features electro-static, corrosion-resistant finish and non-slip knurling for better grip.

Steel block head offers protection for hardened steel plunger. Heavy-duty steel barrel for long life. Posi-lock follower rod with T-handle provides sure-handed grip and easy filling at any position. Uses standard 14 oz. grease cartridge.

G102 “The Bulldog” Premium Lever Action

“The Bulldog” was designed to take punishment! Same as G100 plus filler nipple for

3-way loading; bulk, filler pump or cartridge. Bleeder valve allows purging of air from gun head. Includes sure-handle grip.

G112/G113 Heavy-Duty Pistol Grip

Die-cast head with 4" rigid pipe extension and coupler (G113 equipped with 18" flex hose extension and coupler). One-hand operation. Uses standard 14 oz. cartridge or can be bulk filled. Features heavy-duty steel barrel, electro-static,corrosion-resistant finish and non-slip knurling. Posi-lock follower rod with T-handle provides surehanded grip and easy filling at any position.

G110 Mini Pistol Grip

Zinc die-cast head with 4" rigid pipe extension and coupler. Uses standard 3 oz. grease cartridges. Compact and lightweight, the G110 is the perfect tool for smaller, less frequent lubrication projects.

G120 Air-Operated Pistol Grip

Ergonomic pistol grip design ensures easy operation. Rugged stainless steel barrel for long life. Handy 3-way loading. 1/4" NPT air inlet. Develops up to 4800 psi operating pressure. Input pressure of 40-120 psi.

G150 Suction Gun

18 oz. capacity with 12" flex hose. Perfect for draining and filling differentials, clutches, power steering reservoirs and transmissions. Needs no priming. Features heavy-duty steel barrel, electro-static, corrosion-resistant finish and non-slip knurling.

Guardian Accessories

G160

G901

G903

Adapters

G160 Grease Gun Holder

Holds grease and suction guns with 2-1/2" OD barrel. Mount to any surface.

G901 4" Needle Nozzle

For those hard-to-reach grease points on farm equipment, 4WDs and other recreational vehicles. Use with hand grease guns only.

G902 Seal-Off Adapter With Rubber Tip

For use with grease plugs. Use with hand grease guns only. 1/8" NPT(f).

G903 Needle Nose Adapter

For those hard-to-reach spots. Use with hand grease guns only 1/8" NPT(f).

G902

80

Guardian Accessories

G904

G906

G907

G905

G904 Small 4-Way Grease Fitting Tool

For tap repair of damaged threads (1⁄4”-28) and removal of broken fittings.

G905 Large 4-Way Grease Fitting Tool

For tap repair of damaged threads (1⁄8”-NPT) and removal of broken fittings.

G906 Grease Gun Pipe

6” extension replacement for grease guns. 1⁄8” NPT(m) on both ends.

G907 Grease Gun Filler Nipple

Used to bulk fill grease guns. 1⁄8” NPT(m) fitting.

Hose Extensions

For hand-operated grease guns only. Both ends have 1⁄8” NPT(m) threads. Working pressure 3500 psi. Burst pressure 14,000 psi.

Model Description

G212 12" length

G212S 12" length w/spring guard

Model Description

G218 18" length

G218S 18" length w/spring guard

G300

G310

G320

G212

G212S

G321

Couplers

G300 Standard Grease Coupler

For use with most hand-operated grease guns and equipment. 1/8" NPT. Knurled body and mill flats for easy use, installation and removal.

G310 Heavy-Duty Grease Coupler

For use with most hand-operated grease guns and equipment. 1/8" NPT. Knurled body.

Hex base for proper installation and removal.

G320 90° Grease Coupler

Specially designed for later model vehicles with hard-to-reach fittings. Complete with small and large quick-disconnect adapters.

G321 360° Grease Coupler

Designed for cars, trucks and equipment with hard-to-reach fittings. Great for frontwheel drive vehicles. 1/8" NPT(f) inlet.

Guardian Pumps

G400

G404

G410

G401

G402

G400 Lever-Action Bucket Pump

Fits 5-gallon buckets. Includes pump, 18” drum cover and 4’ delivery hose. Perfect for transferring transmission fluid or heavier fluids.

G401 Lever-Action Barrel Pump

Fits 16- to 55-gallon drums. Delivers 10 oz. per stroke. Includes standard bung bushing.

Designed for transfer of petroleum-based, non-corrosive liquids. Rugged, corrosiveresistant finish. Curved metal spout features threads to fit all garden hoses.

G402 Rotary Barrel Pump

Cast iron pump head for transferring petroleum-based, non-corrosive fluids.Comes with standard bung bushing. Delivers approximately one gallon per 18 revolutions of handle.

Great for commercial, automotive, farm and industrial applications.

G404 Grease Gun Filler Pump

For bulk filling grease gun G102 or any gun using filler nipple G907. Fits 5-gallon buckets. Comes with follower plate, drum cover and filler adapter.

G410 Plastic Barrel Pump

Fits 5-, 6-, 15-, 30- and 55-gallon drums with 3⁄4" or 2" drum opening. For use with mild chemicals, antifreeze, detergent and petroleum-based products.

81

Guardian Pumps

G412

G415

G412 Plastic Bucket

5-gallon capacity. Dispenses on down stroke. Complete with fixed curved metal spout and bung adapter.

G414 Lift-Action Steel Piston with Fixed Spout

Zinc-plated steel drum pump for use with non-corrosive liquids. Fits all 2” drum openings on 16- to 55- gallon drums. Features die-cast head and curved metal spout.

G415 Lightweight Siphon Drum

Fits 55-gallon drums. Easily dispense small amounts of fluid.

Materials

Model

G400

G401

G402

G404

G410

G412

G414

G415

Materials (can be pumped)

Antifreeze, automotive additives, motor oil, oils (heavy & light), transmission fluid

Motor oil, oils (heavy & light), heating oil, lacquer thinner, solvents, thinners, transmission fluid

Diesel fuel, heating oil, kerosene, lacquer thinner, motor oil, oils

(heavy & light), transmission fluid

Grease

Acids (weak), alcohols, alkalis (weak), antifreeze, automotive additives, benzene, chloride water, detergents, diesel fuel, disinfectants, fertilizers, herbicides, lacquer thinner, motor oil, oils (light), thinners, transmission fluid

Alcohols, antifreeze, automotive additives, benzene, chloride water,cleaning solutions, diesel fuel, heating oil, kerosene, lacquer thinner, motor oil, oils (heavy & light), petroleum products (other), soaps,solvents, thinners, transmission fluid, water (cold & hot), water-based fluids, waxes wLaacxqueesr thinner, motor oil, oils (heavy & light), petroleum products

Acetone, acids (strong & weak), alkalis (weak), alcohols, antifreeze,automotive additives, benzene, chemicals (aggressive, mild, inorganic), cleaning solutions, corrosive fluids (mild), detergents, diesel fuel,disinfectants, farm chemicals, fertilizer, herbicides, insecticides, motor oil, oils (light), soaps, water (cold)

Additional Accessories

G781 Waste Oil Drain

5-gallon capacity, telescopic drain pan tube.

G414

G781

82

Guardian Oil Accessories

G503

G700

G525

G524

Oiler Cans

Guardian offers oilers in variety of sizes with rigid or flexible spouts to fit your needs.

Model

G502

G503

G504

G507

Description

6 oz, rigid spout

6 oz, flexible spout

12 oz, rigid spout

16 oz, flexible spout

Flexible Spout Measures

Guardian’s flexible spout measures are designed for one-hand operation.Thumb-operated valve controls flow. 14" flexible spout with tapered tip swings into the necessary angle for hard-to-reach spots. Recessed bottom drains fully and guards against puncture.

Rolled-edge top helps prevent spilling.

Model

G524

G525

G528

Description

4 quarts

5 quarts

8 quarts

G528

Filter Wrenches

G700 Heavy-Duty Filter Wrench

With swivel handle For those hard-to-reach filters. Fits standard car and truck filters 3-1/2" to 3-7/8" diameter.

G701 Heavy-Duty Filter Wrench

With swivel handle For hard-to-reach filters. Fits standard car and truck filters 2-7/8" to 3-3⁄16" diameter.

G702 Universal Nylon Strap Filter Wrench

Easily adapts to any spin-on filter up to 6" in diameter. Works with

1/2" drive socket wrench.

G705 Adjustable Filter Wrench

Adjustable band conforms to filters ranging in size from 2-3/4" to 4" in diameter

G701

G702

G705

83

Guardian Grease

Multi-Purpose Lithium Grease

Heavy-duty, lithium-based grease is great for most agricultural, automotive and industrial applications. Perfect for chassis and U-joints that require frequent regreasing.

Model

G800

G801

G802

Quantity

2 pack

4 pack

1 cartridge

Size

3 oz.

3 oz.

14 oz.

Heavy-Duty Red Farm/Industrial Grease

This durable “red” grease is ideal for high-wear applications.

Manufactured to resist rust, oxidation, extreme pressures.

Water insoluble.

Model

G830

Quantity

1 cartridge

Size

14 oz.

G802

G800

Grease Fitting Assortment

G721

Grease Fitting Assortments

Guardian assortments contain the most popular fittings.

G600 Mini SAE

Quantity Description

2

2

2

2

1/4"-28 straight short w/ball check

1/8"-27 straight long w/ball check

1/8"-27 45° short w/ball check

1/8"-27 90° long w/ball check

G601 Mini Metric

Quantity Description

2

2

2

2

6mm x 1 straight

6mm x 1 45°

6mm x 1 90°

8mm x 1 straight

G620 Deluxe SAE

Quantity

8

Description

1/4"-28, straight short w/ball check

5

3

7

5

2

1/8"-27, straight long w/ball check

1/8"-27, 45° short w/ball check

1/8"-27, 90° long w/ball check

1/4"-28, 90° short w/ball check

1/4"-28, 45° short w/ball check

Grease Fittings

Guardian fittings are engineered for automotive, industrial and farm applications.

Domestic/SAE Fittings

Quantity Model Description

10

10

10

10

10

10

10

G630

G631

G632

G633

G634

G635

G636

1/4"-28 straight short w/ball check

1/8"-27 straight long w/ball check

1/8"-27 45° short w/ball check

1/8"-27 90° long w/ball check

1/4"-28, 90° short w/ball check

3/16"-drive/ball check

1/4"-28, 45° short w/ball check

Metric Fittings

Quantity

10

10

10

10

10

Model

G640

G641

G642

G644

G645

Description

6mm x 1, straight

6mm x 1, 45°

6mm x 1, 90°

8mm x 1, 45°

8mm x 1, 90°

G721 Universal Bearing Packer

Will pack any bearing up to 4-1⁄2” ID while forcing out old grease. Can be used with any manual grease gun.

84

AC2400 . . . . . . . . . . . . . . . . . . . . .5

AC2440 . . . . . . . . . . . . . . . . . . . . .5

G100 . . . . . . . . . . . . . . . . . . . . . 80

G102 . . . . . . . . . . . . . . . . . . . . . 80

G110 . . . . . . . . . . . . . . . . . . . . . 80

G112 . . . . . . . . . . . . . . . . . . . . . 80

G113 . . . . . . . . . . . . . . . . . . . . . 80

G120 . . . . . . . . . . . . . . . . . . . . . 80

G150 . . . . . . . . . . . . . . . . . . . . . 80

G160 . . . . . . . . . . . . . . . . . . . . . 80

G212 . . . . . . . . . . . . . . . . . . . . . 81

G212S . . . . . . . . . . . . . . . . . . . . 81

G300 . . . . . . . . . . . . . . . . . . . . . 81

G310 . . . . . . . . . . . . . . . . . . . . . 81

G320 . . . . . . . . . . . . . . . . . . . . . 81

G321 . . . . . . . . . . . . . . . . . . . . . 81

G400 . . . . . . . . . . . . . . . . . . 81, 82

G401 . . . . . . . . . . . . . . . . . . 81, 82

G402 . . . . . . . . . . . . . . . . . . 81, 82

G404 . . . . . . . . . . . . . . . . . . 81, 82

G410 . . . . . . . . . . . . . . . . . . 81, 82

G412 . . . . . . . . . . . . . . . . . . 82, 82

G414 . . . . . . . . . . . . . . . . . . 82, 82

G415 . . . . . . . . . . . . . . . . . . 82, 82

G502 . . . . . . . . . . . . . . . . . . . . . 83

G503 . . . . . . . . . . . . . . . . . . . . . 83

G504 . . . . . . . . . . . . . . . . . . . . . 83

G507 . . . . . . . . . . . . . . . . . . . . . 83

G524 . . . . . . . . . . . . . . . . . . . . . 83

G525 . . . . . . . . . . . . . . . . . . . . . 83

G528 . . . . . . . . . . . . . . . . . . . . . 83

G600 . . . . . . . . . . . . . . . . . . . . . 84

G601 . . . . . . . . . . . . . . . . . . . . . 84

G620 . . . . . . . . . . . . . . . . . . . . . 84

G630 . . . . . . . . . . . . . . . . . . . . . 84

G631 . . . . . . . . . . . . . . . . . . . . . 84

G632 . . . . . . . . . . . . . . . . . . . . . 84

G633 . . . . . . . . . . . . . . . . . . . . . 84

G634 . . . . . . . . . . . . . . . . . . . . . 84

G635 . . . . . . . . . . . . . . . . . . . . . 84

G636 . . . . . . . . . . . . . . . . . . . . . 84

G640 . . . . . . . . . . . . . . . . . . . . 84S

G641 . . . . . . . . . . . . . . . . . . . . . 84

G642 . . . . . . . . . . . . . . . . . . . . . 84

G644 . . . . . . . . . . . . . . . . . . . . . 84

G645 . . . . . . . . . . . . . . . . . . . . . 84

G700 . . . . . . . . . . . . . . . . . . . . . 83

G701 . . . . . . . . . . . . . . . . . . . . . 83

G702 . . . . . . . . . . . . . . . . . . . . . 83

G705 . . . . . . . . . . . . . . . . . . . . . 83

G721 . . . . . . . . . . . . . . . . . . . . . 84

G781 . . . . . . . . . . . . . . . . . . . . . 82

G800 . . . . . . . . . . . . . . . . . . . . . 84

G801 . . . . . . . . . . . . . . . . . . . . . 84

G802 . . . . . . . . . . . . . . . . . . . . . 84

G830 . . . . . . . . . . . . . . . . . . . . . 84

G901 . . . . . . . . . . . . . . . . . . . . . 80

G902 . . . . . . . . . . . . . . . . . . . . . 80

G903 . . . . . . . . . . . . . . . . . . . . . 80

G904 . . . . . . . . . . . . . . . . . . . . . 81

G905 . . . . . . . . . . . . . . . . . . . . . 81

G906 . . . . . . . . . . . . . . . . . . . . . 81

G907 . . . . . . . . . . . . . . . . . . . . . 81

K00000SSU . . . . . . . . . . . . . . . 30

K000016DC . . . . . . . . . . . . . . . 29

Numerical Index

Model No. Page No.

Model No. Page No.

Model No.

K000055BB . . . . . . . . . . . . 29, 30

K000055DC . . . . . . . . . . . . . . . 30

K000055LB . . . . . . . . . . . . . . . 30

K000055LT . . . . . . . . . . . . . 29, 30

K000275BB . . . . . . . . . . . . . . . 29

K050120DC . . . . . . . . . . . . 22, 23

K050120LT . . . . . . . . . . . . . 22, 23

K050400DC . . . . . . . . . . . . 22, 23

K050400LT . . . . . . . . . . . . . 22, 23

K40600SSU . . . . . . . . . . . . 29, 30

MV6410 . . . . . . . . . . . . . . . 36, 37

MV7201 . . . . . . . . . . . . . . . . . . 45

MV7300 . . . . . . . . . . . . . . . . . . 45

MV7400 . . . . . . . . . . . . . . . . . . 45

RPM7 . . . . . . . . . . . . . . . . . . . . 38

RPM8 . . . . . . . . . . . . . . . . . . . . 38

RPM10 . . . . . . . . . . . . . . . . . . . 38

V305016DC . . . . . . . . . . . . . . . 29

V305275BB . . . . . . . . . . . . . . . 29

V350120DC . . . . . . . . . . . . . . . 22

V350120HF . . . . . . . . . . . . . . . 22

V350120LT . . . . . . . . . . . . . 22, 23

V350400DC . . . . . . . . . . . . . . . 22

V350400HF . . . . . . . . . . . . . . . 22

V350400LT . . . . . . . . . . . . . . . . 22

V40600SSU . . . . . . . . . . . . 29, 30

V41000SSU . . . . . . . . . . . . . . . 30

V410055BB . . . . . . . . . . . . . . . 30

V410055DC . . . . . . . . . . . . . . . 30

V410055LB . . . . . . . . . . . . . . . 30

V410055LT . . . . . . . . . . . . . 29, 30

V450120DC . . . . . . . . . . . . . . . 23

V450400DC . . . . . . . . . . . . . . . 23

V450400HF . . . . . . . . . . . . . . . 23

V450400HR . . . . . . . . . . . . . . . 23

V450400LT . . . . . . . . . . . . . . . . 23

V305000000 . . . . . . . . . . . . . . 29

V30500SWM . . . . . . . . . . . . . . 29

V350120000 . . . . . . . . . . . . . . 22

V350400000 . . . . . . . . . . . . . . 22

V406000000 . . . . . . . . . . . 29, 30

V40600SWM . . . . . . . . . . . . . . 30

V410000000 . . . . . . . . . . . . . . 29

V41000SWM . . . . . . . . . . . . . . 30

V450120000 . . . . . . . . . . . . . . 23

V450400000 . . . . . . . . . . . . . . 23

V4501200000 . . . . . . . . . . . . . 23

V4504000000 . . . . . . . . . . . . . 23

224 . . . . . . . . . . . . . . . . . . . . . . 17

346P . . . . . . . . . . . . . . . . . . . . . 20

500L . . . . . . . . . . . . . . . . . . . . . 28

527 . . . . . . . . . . . . . . . . . . . 36, 37

527A . . . . . . . . . . . . . . . . . . . . . 37

535 . . . . . . . . . . . . . . . . . . . 36, 37

535LN . . . . . . . . . . . . . . . . . . . . 37

535-58 . . . . . . . . . . . . . . . . . . . 37

549 . . . . . . . . . . . . . . . . . . . . . . 37

549-58 . . . . . . . . . . . . . . . . . . . 37

613 . . . . . . . . . . . . . . . . . . . 42, 43

615 . . . . . . . . . . . . . . . . . . . . 8, 45

674 . . . . . . . . . . . . . . . . 20, 25, 37

712 . . . . . . . . . . . . . . . . . . . . . . 58

712F . . . . . . . . . . . . . . . . . . . . . 58

712R . . . . . . . . . . . . . . . . . . . . . 58

740 . . . . . . . . . . 19, 20, 21, 49, 57

Page No.

758 . . . . . . . . . . . . . . . . . . . . . . 58

758F . . . . . . . . . . . . . . . . . . . . . 58

769 . . . . . . . . . . . . . . . . . . . . . . 58

774 . . . . . . . . . . . . . . . . . . . . . . 58

775 . . . . . . . . . . . . . . . . . . . . . . 58

776 . . . . . . . . . . . . . . . . . . . . . . 58

779 . . . . . . . . . . . . . . . . . . . . . . 58

780 . . . . . . . . . . . . . . . . 36, 37, 58

799 . . . . . . . . . . . . . . . . . . . . . . 58

812 . . . . . . . . . . . . . . . . . . . 47, 61

813 . . . . . . . . . . . . . . . . . . . . . . 61

815 . . . . . . .21, 24, 32, 33, 36, 38

. . . . . . . . . . . . . 39, 49, 62, 63, 64

816 . . . . . . . . . . . . . . . . . . . . . . 17

840 . . . . . . . . . . . . . . . . . . . . . . 62

844 . . . . . . . . . . . . . . . . . . . . . . 17

845 . . . . . . . . . . . . . . . . . . . . . . 62

846 . . . . . . . . . . . . . . . . . . . 49, 62

857 . . . . . . . . . . . . . . . . . . . . . . 61

867 . . . . . . . . . . . . . . . . . . . . . . 59

870 . . . . . . . . . . . . . . . . . . . 37, 61

871 . . . . . . . . . . . . . . . . . . . . . . 61

873 . . . . . . . . . . . . . . . . . . . . . . 61

876 . . . . . . . . . . . . . . . . . . . . . . 59

877 . . . . . . . . . . . . . . . . . . . . . . 59

878 . . . . . . . . . . . . . . . . . . . . . . 59

881 . . . . . . . . . . . . . . . . . . . . . . 59

883 . . . . . . . . . . . . . . . . . . . . . . 59

899 . . . . . . . . . . . . . . . . . . . . . . 59

905 . . . . . . . . . . . . . . . . . . . . . . 59

905SF . . . . . . . . . . . . . . . . . . . . 59

912EF . . . . . . . . . . . . . . . . . . . . 59

912ER . . . . . . . . . . . . . . . . . . . . 59

917 . . . . . . . . . . . . . . . . . . . . . . 20

917-57 . . . . . . . . . . . . . . . . 20, 21

918 . . . . . . . . . . . . . . . . . . . . . . 24

926 . . . . . . . . . . . . . . . . . . . . . . 24

926-1 . . . . . . . . . . . . . . . . . . . . 24

939 . . . . . . . . . . . . . . . . . . . . . . 63

940 . . . . . . . . . . . . . . . . . . . . . . 62

950 . . . . . . . . . . . . . . . . . . . . . . 62

954 . . . . . . . . . . . . . . . . . . . . . . 59

960 . . . . . . . . . . . . . . . . . . . . . . 62

961 . . . . . . . . . . . . . . . . . . . . . . 61

962 . . . . . . . . . . . . . . . . . . . . . . 61

963 . . . . . . . . . . . . . . . . . . . . . . 61

964 . . . . . . . . . . . . . . . . . . . . . . 61

967 . . . . . . . . . . . . . . . . . . . 38, 59

980 . . . . . . . . . . . . . . . . . . . 38, 59

981 . . . . . . . . . . . . . . . . . . . . . . 59

982 . . . . . . . . . . . . . . . . . . . 38, 59

987 . . . . . . . . . . . . . . . . . . . . . . 21

989 . . . . . . . . . . . . . . . . . . . . . . 21

1013 . . . . . . . . . . . . . . . . . . . . . . .9

1035 . . . . . . . . . . . . . . . . . . . . . . .9

1037 . . . . . . . . . . . . . . . . . . . . . . .9

1100CLR . . . . . . . . . . . . . . . . . . 10

1107CLR . . . . . . . . . . . . . . . . . . 10

1132 . . . . . . . . . . . . . . . . . . . . . . .8

1133 . . . . . . . . . . . . . . . . . . . . . . .8

1134 . . . . . . . . . . . . . . . . . . . . . . .8

1134CLR . . . . . . . . . . . . . . . . . . 10

1142 . . . . . . . . . . . . . . . . . . . . 7, 8

1142CLR . . . . . . . . . . . . . . . . . . 10

1145 . . . . . . . . . . . . . . . . . . . . . . .9

Model No. Page No.

1147 . . . . . . . . . . . . . . . . . . . . . . .8

1148 . . . . . . . . . . . . . . . . . . . . 7, 8

1148CLR . . . . . . . . . . . . . . . . . . 10

1151 . . . . . . . . . . . . . . . . . . . . . . .8

1162 . . . . . . . . . . . . . . . . . 6, 9, 11

1200 . . . . . . . . . . . . . . . . . . . . . . .4

1201 . . . . . . . . . . . . . . . . . . . . . . .4

1210 . . . . . . . . . . . . . . . . . . . . . . .4

1215 . . . . . . . . . . . . . . . . . . . . . . .4

1215A . . . . . . . . . . . . . . . . . . . . . .4

1218 . . . . . . . . . . . . . . . . . . . 4, 11

1224 . . . . . . . . . . . . . . . . . . . 4, 11

1230 . . . . . . . . . . . . . 3, 4, 6, 9, 11

1236 . . . . . . . . . . . . . . . . . 2, 4, 11

1240 . . . . . . . . . . . . . . . . . . . . . . .4

1240CLR . . . . . . . . . . . . . . . . . . 10

1242 . . . . . . . . . . . . . . . . . . . . . . .4

1244 . . . . . . . . . . . . . . . . . . . . . . .4

1253 . . . . . . . . . . . . . . . . . . 36, 37

1253LN . . . . . . . . . . . . . . . . . . . 37

1254 . . . . . . . . . . . . . . . . . . 36, 37

1272 . . . . . . . . . . . . . . . . . . . . . 27

1275 . . . . . . . . . . . . . . . . . . . . . 27

1292 . . . . . . . . . . . . . . . . . . . . . 27

1293 . . . . . . . . . . . . . . . . . . 36, 37

1296 . . . . . . . . . . . . . . . . . . . . . 28

1326 . . . . . . . . . . . . . . . . . . . . . 40

1335 . . . . . . . . . . . . . . . . . . . . . 40

1340 . . . . . . . . . . . . . . . . . . . . . 40

1384 . . . . . . . . . . . . . . . . . . . . . 41

1385 . . . . . . . . . . . . . . . . . . . . . 41

1385-H . . . . . . . . . . . . . . . . . . . 41

1387 . . . . . . . . . . . . . . . . . . . . . 41

1401 . . . . . . . . . . . . . . . . . . . . 3, 4

1410 . . . . . . . . . . . . . . . . . . . . 3, 4

1414 . . . . . . . . . . . . . . . . . . . . . . .4

1418 . . . . . . . . . . . . . . . . . . . . . 24

1426 . . . . . . . . . . . . . . . . . . . . . 24

1426-1 . . . . . . . . . . . . . . . . . . . 24

1440CLR . . . . . . . . . . . . . . . . . . 10

1442 . . . . . . . . . . . . . . . . . . . . 3, 4

1444 . . . . . . . . . . . . . . . . . . . . . 3,4

1716 . . . . . . . . . . . . . . . . . . . . . 26

1801 . . . . . . . . . . . . . . . . . . . . 3, 4

1815A . . . . . . . . . . . . . . . . . . . . . .4

1842 . . . . . . . . . . . . . . . . . . . . 3, 4

1844 . . . . . . . . . . . . . . . . . . . . 3, 4

1850 . . . . . . . . . . . . . . . . . . . . . . .2

1861 . . . . . . . . . . . . . . . . . . . . 2, 4

1862 . . . . . . . . . . . . . . . . . . . . 2, 3

1864 . . . . . . . . . . . . . . . . . . . . . . .2

1901 . . . . . . . . . . . . . . . . . . . . . 35

1903 . . . . . . . . . . . . . . . . . . . . . 26

1904 . . . . . . . . . . . . . . . . . . . . . 26

1908 . . . . . . . . . . . . . . . . . . . . . 26

1910 . . . . . . . . . . . . . . . . . . . . . 26

1914 . . . . . . . . . . . . . . . . . . . . . 35

1952 . . . . . . . . . . . . . . . . . . . . . 35

2424 . . . . . . . . . . . . . . . . . . . . . 33

2435 . . . . . . . . . . . . . . . . . . . . . 37

2435LN . . . . . . . . . . . . . . . . . . . 37

2437 . . . . . . . . . . . . . . . . . . . . . 33

2524 . . . . . . . . . . . . . . . . . . . . . 33

2535 . . . . . . . . . . . . . . . . . . 36, 37

2537 . . . . . . . . . . . . . . . . . . . . . 33

85

2740 . . . . . . . . . . . . . . . . . . . . . 24

2873 . . . . . . . . . . . . . . . . . . 37, 61

3029 . . . . . . . . . . . . . . . . . . . . . 11

3034 . . . . . . . . . . . . . . . . . . . . . 11

3050 . . . . . . . . . . . . . . . . . . 49, 57

3055 . . . . . . . . . . . . . . . . . . . . . 11

3056 . . . . . . . . . . . . . . . . . . . . . 11

3601 . . . . . . . . . . . . . . . . . . . . . 44

3605 . . . . . . . . . . . . . . . . . . 42, 43

3608 . . . . . . . . . . . . . . . . . . . . . 43

3609 . . . . . . . . . . . . . . . . . . 42, 43

3610 . . . . . . . . . . . . . . . . . . . . . 43

3613 . . . . . . . . . . . . . . . . . . . . . 43

3614 . . . . . . . . . . . . . . . . . . 43, 44

3617 . . . . . . . . . . . . . . . . . . . . . 44

3618 . . . . . . . . . . . . . . . . . . . . . 44

3624 . . . . . . . . . . . . . . . . . . . . . 44

3643 . . . . . . . . . . . . . . . . . . . . . 43

3644 . . . . . . . . . . . . . . . . . . 42, 43

3866 . . . . . . . . . . . . . . . . . . . . . 59

3867 . . . . . . . . . . . . . . . . . . . . . 59

3868 . . . . . . . . . . . . . . . . . . . . . 59

3942 . . . . . . . . . . . . . . . . . . . . . 59

4100 . . . . . . . . . . . . . . . . . . 42, 46

4105 . . . . . . . . . . . . . . . . . . . . . 46

4110 . . . . . . . . . . . . . . . . . . . . . 46

4283 . . . . . . . . . . . . . . . . . . . . . 38

4417 . . . . . . . . . . . . . . . . . . . . . 21

4459 . . . . . . . . . . . . . . . . . . . . . 21

4475 . . . . . . . . . . . . . . . . . . . . . 39

4480 . . . . . . . . . . . . . . . . . . . . . 39

4489 . . . . . . . . . . . . . . . . . . . . . 21

4490 . . . . . . . . . . . . . . . . . . . . . 39

4491 . . . . . . . . . . . . . . . . . . 38, 39

4492 . . . . . . . . . . . . . . . . . . . . . 39

4493 . . . . . . . . . . . . . . . . . . . . . 38

5000 . . . . . . . . . . . . . . . . . . . . . 15

5000C . . . . . . . . . . . . . . . . . . . . 15

5003 . . . . . . . . . . . . . . . . . . . . . 15

5003C . . . . . . . . . . . . . . . . . . . . 15

5010 . . . . . . . . . . . . . . . . . . . . . 15

5010C . . . . . . . . . . . . . . . . . . . . 15

5013 . . . . . . . . . . . . . . . . . . . . . 15

5013C . . . . . . . . . . . . . . . . . . . . 15

5031 . . . . . . . . . . . . . . . . . . . . . 15

5031C . . . . . . . . . . . . . . . . . . . . 15

5033 . . . . . . . . . . . . . . . . . . . . . 15

5033C . . . . . . . . . . . . . . . . . . . . 15

5050 . . . . . . . . . . . . . . . . . . . . . 15

5050C . . . . . . . . . . . . . . . . . . . . 15

5175 . . . . . . . . . . . . . . . . . . . . . 15

5175C . . . . . . . . . . . . . . . . . . . . 15

5176 . . . . . . . . . . . . . . . . . . . . . 15

5176C . . . . . . . . . . . . . . . . . . . . 15

5177 . . . . . . . . . . . . . . . . . . . . . 15

5177C . . . . . . . . . . . . . . . . . . . . 15

5178 . . . . . . . . . . . . . . . . . . . . . 15

5178C . . . . . . . . . . . . . . . . . . . . 15

5179 . . . . . . . . . . . . . . . . . . . . . 15

5179C . . . . . . . . . . . . . . . . . . . . 15

5180 . . . . . . . . . . . . . . . . . . . . . 15

5180C . . . . . . . . . . . . . . . . . . . . 15

5181 . . . . . . . . . . . . . . . . . . . . . 15

5181C . . . . . . . . . . . . . . . . . . . . 15

5182 . . . . . . . . . . . . . . . . . . . . . 15

86

Numerical Index

Model No. Page No.

Model No. Page No.

Model No.

5182C . . . . . . . . . . . . . . . . . . . . 15

5183 . . . . . . . . . . . . . . . . . . . . . 15

5183C . . . . . . . . . . . . . . . . . . . . 15

5184 . . . . . . . . . . . . . . . . . . . . . 14

5185 . . . . . . . . . . . . . . . . . . . . . 14

5186 . . . . . . . . . . . . . . . . . . . . . 14

5190 . . . . . . . . . . . . . . . . . . . . . 14

5191 . . . . . . . . . . . . . . . . . . . . . 14

5200 . . . . . . . . . . . . . . . . . . . . . 15

5200C . . . . . . . . . . . . . . . . . . . . 15

5210 . . . . . . . . . . . . . . . . . . . . . 15

5210C . . . . . . . . . . . . . . . . . . . . 15

5290 . . . . . . . . . . . . . . . . . . . . . 14

5291 . . . . . . . . . . . . . . . . . . . . . 14

5300 . . . . . . . . . . . . . . . . . . . . . 15

5300C . . . . . . . . . . . . . . . . . . . . 15

5318 . . . . . . . . . . . . . . . . . . . . . 15

5350 . . . . . . . . . . . . . . . . . . . . . 15

5350C . . . . . . . . . . . . . . . . . . . . 15

5385 . . . . . . . . . . . . . . . . . . . . . 15

5385C . . . . . . . . . . . . . . . . . . . . 15

5400 . . . . . . . . . . . . . . . . . . . . . 15

5400C . . . . . . . . . . . . . . . . . . . . 15

5410 . . . . . . . . . . . . . . . . . . . . . 15

5410C . . . . . . . . . . . . . . . . . . . . 15

5468 . . . . . . . . . . . . . . . . . . . . . 14

5469 . . . . . . . . . . . . . . . . . . . . . 14

5470 . . . . . . . . . . . . . . . . . . . . . 14

5490 . . . . . . . . . . . . . . . . . . . . . 14

5491 . . . . . . . . . . . . . . . . . . . . . 14

5527 . . . . . . . . . . . . . . . . . . . . . 15

5527C . . . . . . . . . . . . . . . . . . . . 15

5701 . . . . . . . . . . . . . . . . . . . . . 15

5701C . . . . . . . . . . . . . . . . . . . . 15

5706 . . . . . . . . . . . . . . . . . . . . . 15

5706C . . . . . . . . . . . . . . . . . . . . 15

5803 . . . . . . . . . . . . . . . . . . . . . 13

5805 . . . . . . . . . . . . . . . . . . . . . 13

5806 . . . . . . . . . . . . . . . . . . . . . 13

5807 . . . . . . . . . . . . . . . . . . . . . 13

5812 . . . . . . . . . . . . . . . . . . . . . 11

5818 . . . . . . . . . . . . . . . . . . . . . 11

5834 . . . . . . . . . . . . . . . . 9, 13, 27

5845 . . . . . . . . . . . . 11, 12, 13, 57

5848 . . . . . . . . . . . . . . . . . . 12, 13

5849 . . . . . . . . . . . . . . . . . . . . . 13

5852 . . . . . . . . . 2, 5, 8, 12, 13, 27

5852-2 . . . . . . . . . . . . . . . . . . . 12

5852-5 . . . . . . . . . . . . . . . . . . . 12

5852-54 . . . . . . . . . . . . . . . . . . 12

5853 . . . . . . . . . . . . . . . . . 8, 9, 13

5855 . . . . . . . . . . . . . . . . . . . . . 13

5858 . . . . . . . . . . . . . . . . . . . . . 11

5859 . . . . . . . . . . . . . . . . . . . . . 13

5861 . . . . . . . . . . . . . . . . . . . . . 11

5862 . . . . . . . . . . . . . . . . . . . . . 64

5874 . . . . . .19, 22, 23, 29, 30, 64

5875 . . . . . .19, 22, 23, 29, 30, 64

5876 . . . . . . . . . . . . . . . . . . . . . 64

5883 . . . . . . . . . . . . . . . . . . . . . 12

5884 . . . . . . . . . . . . . . . . . . . . . 13

5980 . . . . . . . . . . . . . . . . . . . . . 62

5983 . . . . . . . . . . . . . . . . . . . . . 63

5990 . . . . . . . . . . . . . . . . . . . . . 62

6917 . . . . . . . . . . . . . . . . . . . . . 20

Page No.

9917 . . . . . . . . . . . . . . . . . . 19, 22

9917-57 . . . . . . . . . . . . . . . . . . 19

9989 . . . . . . . . . . . . . . . . . . 19, 22

10198 . . . . . . . . . . . . . . 22, 23, 54

10199 . . . . . . . . . . . . . . . . . . . . 54

10200 . . . . . . . . . . . . . . . . . . . . 54

10202 . . . . . . . . . . . . . . . . . . . . 54

10204 . . . . . . . . . . . . . . . . . . . . 54

10460 . . . . . . . . . . . . . . . . . . . . 12

10461 . . . . . . . . . . . . . . . . . . . . 16

10462 . . . . . . . . . . . . . . . . . 21, 39

10522 . . . . . . . . . . . . . . . . . . . . 54

10536 . . . . . . . . . . . . . . . . . . . . 12

10787 . . . . . . . . . . . . . . . . . . . . 16

11197 . . . . . . . . . . . . . . . . . . . . 54

11485 . . . . . . . . . . . . . . . . . . . . 16

11509 . . . . . . . . . . . . . . . . . . . . 16

11659 . . . . . . . . 21, 24, 32, 33, 38

. . . . . . . . . . . . . 39, 49, 62, 63, 64

11660 . . . . . . . . . . . . . . . . . . . . 64

11661 . . . . . . . . . . . . . . . . . . . . 64

11852 . . . . . . . . . . . . . . . . . . . . 54

12287 . . . . . . . . . . . . . . . . . . . . 54

12957 . . . . . . . . . . . . . . . . . . . . 54

13329 . . . . . . . . . . . . . . . . . . . . 64

13331 . . . . . . . . . . . . . . . . . . . . 64

20026 . . . . . . . . . . . . . . . . . . . . 16

20028 . . . . . . . . . . . . . . . . . . . . 16

20029 . . . . . . . . . . . . . . . . . . . . 16

46007 . . . . . . . . 19, 20, 21, 24, 25

. . . . . . . . . . . . . . . . . . . . . . . . . 32

58000 . . . . . . . . . . . . . . . . . . . . 13

62028 . . . . . . . . . . . . . . . . . . . . 13

62061 . . . . . . . . . . . . . . . . . . . . 13

62117 . . . . . . . . . . . . . . . . . . . . 13

66060 . . . . . . . . . . . . . . . . . . . . 25

66100 . . . . . . . . . . . . . . . . . 68, 69

66101 . . . . . . . . . . . . . . . . . . . . 68

66111 . . . . . . . . . . . . . . . . . . . . 68

66493 . . . . . . . . . . . . . . . . . 42, 46

66584 . . . . . . . . . . . . . . . . . . . . 58

66764 . . . . . . . . . . . . . . . . . 26, 35

66951 . . . . . . . . . . . . . . 49, 62, 63

66953 . . . . . . . . . . . . . . . . . . . . 16

67171 . . . . . . . . . . . . . . . . . . . . 54

68410 . . . . . . . . . . . . . . . . . . . . 59

68620 . . . . . . . . . . . . . . . . . . . . 46

70526 . . . . . . . . . . . . . . . . . 42, 43

71512 . . . . . . . . . . . . . . . . . . . . 11

71518 . . . . . . . . . . . . . . . . . . 8, 11

72024 . . . . . . . . . . . 32, 49, 52, 54

72024A . . . . . . . . . . 29, 30, 52, 54

72036 . . . . . . . . . . . 24, 34, 46, 54

72060 . . . . . . . . . . . . . . 33, 34, 54

72120 . . . . . . . . . . . . . . . . . . . . 54

72240 . . . . . . . . . . . . . . . . . . . . 54

72360 . . . . . . . . . . . . . . 49, 52, 54

72360A . . . . . . . . . . . . . . . . 49, 54

72480A . . . . . . . . . . . . . . . . 52, 54

72600 . . . . . . . . . . . . . . 49, 52, 54

72600A . . . . . . . . . . . . . 49, 52, 54

72720A . . . . . . . . . . . . . . . . 49, 54

72900A . . . . . . . . . . . . . . . . . . . 54

73024 . . . . .29, 30, 32, 49, 52, 54

73036 . . . . . . . . . . . . . . . . . 34, 54

Model No. Page No.

73060 . . . . . .29, 30, 33, 3437, 54

73120 . . . . . . . . . . . . . . . . . . . . 54

73240 . . . . . . . . . . . . . . . . . 52, 54

73360 . . . . . . . . . . . . . . 49, 52, 54

73480 . . . . . . . . . . . . . . . . . 52, 54

73600 . . . . . . . . . . . . . . 49, 52, 54

73720 . . . . . . . . . . . . . . . . . 49, 54

73900 . . . . . . . . . . . . . . . . . . . . 54

74024 . . . . . . . . . . . . . . 49, 52, 54

74060 . . . . . . . . . . . . . . . . . . . . 54

74480 . . . . . . . . . . . . . . . . . 52, 54

74560 . . . . . . . . . . . . . . . . . . . . 37

74600 . . . . . . . . . . . . . . 49, 52, 54

74900 . . . . . . . . . . . . . . . . . . . . 54

75024 . . . . . . . . . . . . . . . . . 52, 54

75060 . . . . . . . . . . . 22, 23, 24, 54

75084 . . . . . . . . 19, 20, 21, 24, 54

75120 . . . . . . . . . . . . . . . . . . . . 54

75168 . . . . . . . . . . . . . . . . . . . . 54

75240 . . . . . . . . . . . . . . . . . . . . 54

75360 . . . . . . . . . . . . . . 49, 52, 54

75480 . . . . . . . . . . . . . . . . . 52, 54

75600 . . . . . . . . . . . . . . 49, 52, 54

75912CL . . . . . . . . . . . . . . . . . . 11

75918CL . . . . . . . . . . . . . . . . . . 11

75924CL . . . . . . . . . . . . . . . . . . 11

75936CL . . . . . . . . . . . . . . . . . . 11

76024A . . . . . . . . . . . . . . . . 52, 54

76024B . . . . . . . . . . . . 49, 52, 54

76120B . . . . . . . . . . . . . . . . . . 54

76360B . . . . . . . . . . . . . . . 52, 54

76600A . . . . . . . . . . . . . . . . 52, 54

76600B . . . . . . . . . . . . 49, 52, 54

76900B . . . . . . . . . . . . . . . . . . 54

78600 . . . . . . . . . . . . . . . . . . . . 52

79060 . . . . . . . . . . . . . . . . . . . . 27

80133 . . . . . . . . . . . . . . . . . . . . 28

80202 . . . . . . . . . . . 22, 23, 24, 25

80423 . . . . . . . . . . . . . . . . . . . . 63

80599 . . . . . . . . . . . . . . . . . . . . 37

80895 . . . . . . . . 19, 20, 25, 37, 42

80924 . . . . . . . . . . . . . . . . . . . . 27

80933 . . . . . . . . . . . . . . 11, 12, 27

80999 . . . . . . . . . . . . . . . . . . . . 37

81133 . . . . . . . . . . . . . . . . . . . . 51

81168 . . . . . . . . . . . . . . . . . . . . 27

81323 . . . . . . . . . . . . . . . . . . . . 51

81386 . . . . . . . . . . . . . . . . . . . . 57

81387 . . . . . . . . 19, 20, 21, 49, 57

81412 . . . . . . . . . . . . . . . . . . . . 26

81458 . . . . . . . . . . . . . . 11, 12, 27

81495 . . . . . . . . . . . . . . . . . . . . 57

81523 . . . . . . . . . . . . . . . . . 24, 25

81538 . . . . . . . . . . . . . . . . . . . . 26

81606 . . . . . . . . . . . . . . . . . . . . 57

81673 . . . . . . . . . . . . . . . . . . . . 27

81703 . . . . . . . . . . . . . . . . . . . . 57

81723 . . . . . . . . . . . . . . . . . . . . 57

81725 . . . . . . . . . . . . . . . . . . . . 11

81726 . . . . . . . . . . . . . . . . . . . . 11

81728 . . . . . . . . . . . . . . . . . . . . 57

81729 . . . . . . . . . . . . . . . . . 49, 57

81768 . . . . . . . . . . . . . . . . . . . . 27

81795 . . . . . . . . . . . . . . . . . 11, 13

81974 . . . . . . . . . . . . . . . . . . . . 57

81980 . . . . . . . . . . . . . . . . . . . . 13

82050 . . . . . . . . . . . . . . . . . 21, 24

82054 . . . . . . . . . . . . . . . . . . . . 24

82070 . . . . . . . . . . . . . . . . . . . . 58

82072 . . . . . . . . . . . . . . . . . . . . 57

82073 . . . . . . . . . . . . . . . . . . . . 57

82080 . . . . . . . . . . . . . . . . . . . . 57

82087 . . . . . . . . . . . . . . . . . . . . 57

82157 . . . . . . . . . . . . . . . . . . . . 57

82158 . . . . . . . . . . . . . . . . . . . . 57

82206 . . . . . . . . . . . . . . . . . . . . 52

82230 . . . . . . . . . . . . . . . . . . . . 40

82251 . . . . . . . . . . . . . . . . . . . . 57

82252 . . . . . . . . . . . . . . . . . . . . 57

82258 . . . . . . . . . . . . . . . . . . . . 60

82393 . . . . . . . . . . . . . . . . . . . . 57

82399 . . . . . . . . . . . . . . 19, 21, 57

82413 . . . . . . . . . . . . . . . . . . . . 69

82439 . . . . . . . . . . . . . . . . . 34, 35

82460 . . . . . . . . . . . . . . . . . . . . 42

82716 . . . . . . . . . . . . . . . . . . . . 21

82730 . . . . . . . . . . . . . . . . . 26, 35

82757 . . . . . . . . . . . . . . . . . 36, 37

82760 . . . . . . . . . . . . . . . . . . . . . .8

82784 . . . . . . . . . . . . . . . . . . . . 13

82786 . . . . . . . . . . . . . . . . . . . . 43

82790 . . . . . . . . . . . . . . . . . . . . 35

82792 . . . . . . . . . . . . . . . . . . . . 26

82793 . . . . . . . . . . . . . . . . . . . . 26

82883 . . . . . . . . . . . . . . . . . . . . 26

82895 . . . . . . . . . . . . . . . . . . . . 35

82906 . . . . . . . . . . . . . . . . . . . . 58

82932 . . . . . . . . . . . . . . . . . . . . 58

83115 . . . . . . . . . . . 23, 29, 30, 32

83131 . . . . . . . . . . . . . . . . . . . . 30

83132 . . . . . . . . . . . . . . . . . . . . 35

83271 . . . . . . . . . . . . . . . . . . . . 26

83278 . . . . . . . . . . . . . . . . . . . . 13

83366 . . . . . . . . . . . . . . . . . 24, 25

83369 . . . . . . . . . . . . . . . . . . . . 26

83386 . . . . . . . . . . . . . . . . . 42, 43

83447 . . . . . . . . . . . . . . . . . 24, 33

83463 . . . . . . . . . . . . . . . . . . . . 52

83463-30 . . . . . . . . . . . . . . . . . 52

83464 . . . . . . . . . . . . . . . . . . . . 52

83464-50 . . . . . . . . . . . . . . . . . 52

83513 . . . . . . . . . . . . . . . . . . . . 21

83594 . . . . . . . . . . . . . . . . . . . . 57

83753 . . . . . . . . . . . . . . . . . . . . 51

83754 . . . . . . . . . . . . . . . . . . . . 51

83938 . . . . . . . . . . . . . . . . . . . . 57

84122 . . . . . . . . . . . . . . . . . . . . 51

84191 . . . . . . . . . . . . . . . . . 25, 37

84192 . . . . . . . . . . . . . . 20, 25, 37

84257 . . . . . . . . . . . . . . . . . . . . 51

84275 . . . . . . . . . . . . . . . . . . . . 53

84335 . . . . . . . . . . . . . . . . . . . . 35

84347 . . . . . . . . . . . . . . . . . . . . 51

84377 . . . . . . . . . . . . . . . . . 25, 37

84432 . . . . . . . . . . . . . . . . . . . . 53

84538 . . . . . . . . . . . . . . 32, 33, 34

84606 . . . . . . . . . . . . . . . . . . . . 63

84667 . . . . . . . . . . . . . . . . . . . . 24

84668 . . . . . . . . . . . . . . . . . . . . 24

84672 . . . . . . . . . . . . . . . . . . . . 53

Numerical Index

Model No. Page No.

Model No. Page No.

Model No.

84673 . . . . . . . . . . . . . . . . . . . . 53

84700 . . . . . . . . . . . . . . . . . . . . 46

84714 . . . . . . . . . . . . . . . . . 42, 46

84775 . . . . . . . . . . . . . . 19, 21, 25

84780 . . . . . . . 17, 19, 21, 22, 23,

. . . . . . . . . . . . . . . . 24, 25, 26, 28

84799 . . . . . . . . . . . . . . . . . 59, 60

84815 . . . . . . . . . . . . . . . . . . . . 46

84816 . . . . . . . . . . . . . . . . . . . . 46

84817 . . . . . . . . . . . . . . . . . . . . 46

84824 . . . . . . . . . . . . . . . . . . . . 46

84826 . . . . . . . . . . . . . . . . . . . . 35

84829 . . . . . . . . . . . . . . . . . 23, 40

84933 . . . . . . . . . . . . . . . . . 32, 33

84934 . . . . . . . . . . . . . . 32, 33, 38

84935 . . . . . . . . . . . . . . . . . 32, 34

84940 . . . . . . . . . . . . . . . . . 32, 34

84941 . . . . . . . . . . . . . . 25, 32, 34

84942 . . . . . . . . . . . . . . . . . 25, 34

84945 . . . . . . . . 29, 30, 32, 34, 35

84946 . . . . . . . . . . . . . . 32, 34, 35

84951 . . . . . . . . . . . . . . . . . . . . 47

85001 . . . . . . . . . . . . . . . . . . . . 52

85002A . . . . . . . . . . . . . . . . . . . 52

85003-30 . . . . . . . . . . . . . . . . . 52

85004 . . . . . . . . . . . . . . . . . . . . 52

85004-50 . . . . . . . . . . . . . . . . . 52

85005 . . . . . . . . . . . . . . . . . . . . 52

85006-30B . . . . . . . . . . . . . . . 52

85004-50B . . . . . . . . . . . . . . . 52

85008-50A . . . . . . . . . . . . . . . . 52

85009-50 . . . . . . . . . . . . . . . . . 52

85010-50 . . . . . . . . . . . . . . . . . 52

85011 . . . . . . . . . . . . . . . . . . . . 52

85012 . . . . . . . . . . . . . . . . . . . . 52

85021 . . . . . . . . . . . . . . . . . . . . 57

85232 . . . . . . . . . . . . . . . . . . . . 52

85255 . . . . . . . . . . . . . . . . . . . . 46

85387-4 . . . . . . . . . . . . . . . 72, 73

85387-6 . . . . . . . . . . . . . . . 72, 73

85387-8 . . . . . . . . . . . . . . . 72, 73

85387-12 . . . . . . . . . . . . . . 74, 75

85387-16 . . . . . . . . . . . . . . 74, 75

85388-4 . . . . . . . . . . . . . . . 72, 73

85388-8 . . . . . . . . . . . . . . . 72, 73

85388-12 . . . . . . . . . . . . . . 74, 75

85389-8 . . . . . . . . . . . . . . . 72, 73

85389-12 . . . . . . . . . . . . . . 74, 75

85389-16 . . . . . . . . . . . . . . 74, 75

85515 . . . . . . . . . . . . . . . . . 51, 52

85516 . . . . . . . . . . . . . . . . . 51, 52

85517 . . . . . . . . . . . . . . . . . 51, 52

85622 . . . . . . . . . . . . . . . . . . . . 66

85627 . . . . . . . . . . . . . . . . . . . . 40

85632 . . . . . . . . . . . . . . . . . . . . 40

85634 . . . . . . . . . . . . . . . . . 40, 46

85636 . . . . . . . . . . . . . . . . . . . . 40

85672 . . . . . . . . . . . . . . . . . 76, 77

85674 . . . . . . . . . . . . . . . . . 76, 77

85700-30 . . . . . . . . . . . . . . . . . 66

85700-50 . . . . . . . . . . . . . . . . . 66

85716 . . . . . . . . . . . . . . 32, 33, 34

85755 . . . . . . . . . . . . . . . . . 32, 34

85765 . . . . . . . . . . . . . . . . . 32, 34

85791 . . . . . . . . . . . . . . . . . 19, 22

Page No.

85792 . . . . . . . . . . . . . . . . . 19, 22

85799 . . . . . . . . . . . . . . . . . . . . 60

85806 . . . . . . . . . . . . . . . . . . . . 29

85807 . . . . . . . . . . . . . . . . . 29, 30

85824 . . . . . . . . . . . . . . 29, 30, 34

85826 . . . . . . . . . . . . . . 22, 23, 29

85827 . . . . . . . . . . . . . . 22, 23, 30

85829 . . . . . . . . . . . . . . . . . . . . 22

85840 . . . . . . . . . . . . . . . . . . . . 23

85935 . . . . . . . . . . . . . . . . . . . . 34

85949 . . . . . . . . . . . 29, 32, 33, 34

89010 . . . . . . . . . . . . . . . . . . . . 53

90464 . . . . . . . . . . . . . . . . . . . . 60

90656 . . . . . . . . . . . . . . . . . . . . 21

90776 . . . . . . . . . . . . . . . . . . . . 16

91024 . . . . . . . . . . . . . . . . . . . . 55

91025 . . . . . . . . . . . . . . . . . . . . 55

91026 . . . . . . . . . . . . . . . . . . . . 55

91027 . . . . . . . . . . . . . . . . . . . . 56

91028 . . . . . . . . . . . . . . . . . . . . 56

91029 . . . . . . . . . . . . . . . . . . . . 55

91030 . . . . . . . . . . . . . . . . . . . . 56

91031 . . . . . . . . . . . . . . . . . . . . 56

91032 . . . . . . . . . . . . . . . . . . . . 56

91033 . . . . . . . . . . . . . . . . . . . . 56

91034 . . . . . . . . . . . . . . . . . . . . 56

91108 . . . . . . . . . . . . . . . . . . 8, 28

91197 . . . . . . . . . . . . . . . . . 42, 43

91265 . . . . . . . . . . . . . . . . . . . . 37

91392 . . . . . . . . . . . . . . . . . . . . 60

91499 . . . . . . . . . . . . . . . . . . . . 21

92572 . . . . . . . . . . . . . . . . . . . . 46

93547 . . . . . . . . . . . . . . . . . 37, 60

93548 . . . . . . . . . . . . . . . . . 59, 60

94000 . . . . . . . . . . . . . . . . . . . . 38

94000DS . . . . . . . . . . . . . . . . . 49

94100 . . . . . . . . . . . . . . . . . . . . 49

94100M . . . . . . . . . . . . . . . . . . 49

94100DS . . . . . . . . . . . . . . . . . 49

94200DS . . . . . . . . . . . . . . . . . 49

94300DS . . . . . . . . . . . . . . . . . 49

94400DS . . . . . . . . . . . . . . . . . 49

94500DS . . . . . . . . . . . . . . . . . 49

94600DS . . . . . . . . . . . . . . . . . 49

94132 . . . . . . . . . . . . . . . . . . . . 49

94132A . . . . . . . . . . . . . . . . . . . 49

94132W . . . . . . . . . . . . . . . . . . 49

94133 . . . . . . . . . . . . . . . . . . . . 49

94133A . . . . . . . . . . . . . . . . . . . 49

94133W . . . . . . . . . . . . . . . . . . 49

94152 . . . . . . . . . . . . . . . . . . . . 49

94152A . . . . . . . . . . . . . . . . . . . 49

94152W . . . . . . . . . . . . . . . . . . 49

94153 . . . . . . . . . . . . . . . . . . . . 49

94153A . . . . . . . . . . . . . . . . . . . 49

94153M . . . . . . . . . . . . . . . . . . 49

94153W . . . . . . . . . . . . . . . . . . 49

94154 . . . . . . . . . . . . . . . . . . . . 49

94154A . . . . . . . . . . . . . . . . . . . 49

94154DS . . . . . . . . . . . . . . . . . 49

94154M . . . . . . . . . . . . . . . . . . 49

94154W . . . . . . . . . . . . . . . . . . 49

94163 . . . . . . . . . . . . . . . . . . . . 49

94163DS . . . . . . . . . . . . . . . . . 49

94273DS . . . . . . . . . . . . . . . . . 49

Model No. Page No.

94274DS . . . . . . . . . . . . . . . . . 49

94300 . . . . . . . . . . . . . . . . . . . . 49

94334 . . . . . . . . . . . . . . . . . 38, 49

94354 . . . . . . . . . . . . . . . . . 38, 49

94354DS . . . . . . . . . . . . . . . . . 49

94364 . . . . . . . . . . . . . . . . . . . . 49

94474DS . . . . . . . . . . . . . . . . . 49

94500 . . . . . . . . . . . . . . . . . . . . 49

94532 . . . . . . . . . . . . . . . . . . . . 49

94532G . . . . . . . . . . . . . . . . . . . 49

94552 . . . . . . . . . . . . . . . . . . . . 49

94552G . . . . . . . . . . . . . . . . . . . 49

94553 . . . . . . . . . . . . . . . . . . . . 49

94553DS . . . . . . . . . . . . . . . . . 49

94553H . . . . . . . . . . . . . . . . . . 49

94673DS . . . . . . . . . . . . . . . . . 49

102697 . . . . . . . . . . . . . . . . . . . 17

102891 . . . . . . . . . . . . . . . . . . . 17

102929 . . . . . . . . . . . . . . . . . . . 17

103307E . . . . . . . . . . . . . . . . . . 16

103308E . . . . . . . . . . . . . . . . . . 16

103309E . . . . . . . . . . . . . . . . . . 16

237105 . . . . . . . . . . . . . . . . 44, 46

241408 . . . . . . . . . . . . . . . . 44, 46

241409 . . . . . . . . . . . . . . . . 44, 46

241584 . . . . . . . . . . 29, 30, 32, 33

241937 . . . . . . . . . . . . . . . . . . . 40

242911 . . . . . . . . . . . . . . . . . . . 60

244390 . . . . . . . . . . . . . . . . . . . 42

245976 . . . . . . . . . . . . . . . . . . . 12

245978 . . . . . . . . . . . . . . . . . . . 12

247748 . . . . . . . . . . . . . . . . . . . 42

247770 . . . . . . . . . . . . . . . . . . . 78

247771 . . . . . . . . . . . . . . . . . . . 78

247772 . . . . . . . . . . . . . . . . . . . 78

247774 . . . . . . . . . . . . . . . . . . . 79

247775 . . . . . . . . . . . . . . . . . . . 79

247776 . . . . . . . . . . . . . . . . . . . 79

247778 . . . . . . . . . . . . . . . . . . . 79

247782 . . . . . . . . . . . . . . . . . . . 78

247783 . . . . . . . . . . . . . . . . . . . 78

247787 . . . . . . . . . . . . . . . . . . . 78

247789 . . . . . . . . . . . . . . . . . . . 78

247791 . . . . . . . . . . . . . . . . . . . 78

247792 . . . . . . . . . . . . . . . . . . . 78

247793 . . . . . . . . . . . . . . . . . . . 78

247795 . . . . . . . . . . . . . . . . . . . 78

247797 . . . . . . . . . . . . . . . . . . . 79

247843 . . . . . . . . . . 21, 39, 68, 79

247844 . . . . . . . . . . . . . . . . 68, 79

247863 . . . . . . . . . . . . . . . . 68, 79

260380 . . . . . . . . . . . . . . . . 58, 60

260381 . . . . . . . . . . . . . . . . 58, 60

261102 . . . . . . . . . . . . . . . . . . . 39

261103 . . . . . . . . . . . . . . . . . . . 39

261104 . . . . . . . . . . . . . . . . . . . 39

272251 . . . . . . . . . . . . . . . . . . . 66

273299 . . . . . . . . . . 22, 23, 29, 30

274327 . . . . . . . . . . . . . . . . . . . 20

274681 . . . . . . . . . . . . . . . . . . . 24

274712 . . . . . . . . . . . . . . . . . . . 28

274728 . . . . . . . . . . . . . . . . . . . 24

274790 . . . . . . . . . . . . . . . . . . . 28

274843 . . . . . . . . . . . . . . . . . . . 24

274932 . . . . . . . . . . . . . . . . . . . 22

87

Numerical Index

Model No. Page No.

Model No.

275172 . . . . . . . . . . . . . . . . . . . 54

275173 . . . . . . . . . . . . . . . . . . . 54

275174 . . . . . . . . . . . . . . . . . . . 51

275175 . . . . . . . . . . . . . . . . . . . 51

275184 . . . . . . . . . . . . . . . . . . . 27

275197 . . . . . . . . . . . . . . . . . . . 34

275260 . . . . . . . . . . . . . . . . 22, 23

275296 . . . . . . . . . . . . . . . . . . . 43

275370 . . . . . . . . . . . . . . . . . . . 19

275398 . . . . . . . . . . . . . . . . 29, 30

275413 . . . . . . . . . . . . . . . . 29, 30

275415 . . . . . . . . . . . . . 22, 29, 30

275416 . . . . . . . . . . . . . . . . . . . 23

276281 . . . . . . . . . . . . . . . . 58, 60

276283 . . . . . . . . . . . . . . . . . . . 60

277219 . . . . . . . . . . . . . . . . . . . 67

277230 . . . . . . . . . . . . . . . . . . . 67

277232 . . . . . . . . . . . . . . . . . . . 67

277233 . . . . . . . . . . . . . . . . . . . 67

277234 . . . . . . . . . . . . . . . . . . . 67

277235 . . . . . . . . . . . . . . . . . . . 67

277236 . . . . . . . . . . . . . . . . . . . 67

277237 . . . . . . . . . . . . . . . . . . . 67

277238 . . . . . . . . . . . . . . . . . . . 67

277239 . . . . . . . . . . . . . . . . . . . 67

277250 . . . . . . . . . . . . . . . . . . . 66

277254 . . . . . . . . . . . . . . . . . . . 67

277255 . . . . . . . . . . . . . . . . . . . 67

277256 . . . . . . . . . . . . . . . . . . . 67

277258 . . . . . . . . . . . . . . . . . . . 67

Page No.

Model No.

277265 . . . . . . . . . . . . . . . . . . . 66

277266 . . . . . . . . . . . . . . . . . . . 66

277267 . . . . . . . . . . . . . . . . . . . 66

277280 . . . . . . . . . . . . . . . . . . . 66

277281 . . . . . . . . . . . . . . . . . . . 66

277538 . . . . . . . . . . . . . . . . . . . 67

277564 . . . . . . . . . . . . . . . . . . . 47

277565 . . . . . . . . . . . . . . . . . . . 47

277566 . . . . . . . . . . . . . . . . . . . 47

277633 . . . . . . . . . . . . . . . . . . . 67

277635 . . . . . . . . . . . . . . . . . . . 67

277814 . . . . . . . . . . . . . . . . . . . 58

280690 . . . . . . . . . . . . . . . . . . . 59

282133 . . . . . . . . . . . . . . . . . . . 33

282396 . . . . . . . . . . . . . . . . 32, 33

282398 . . . . . . . . . . . . . 32, 33, 38

282597 . . . . . . . . . . . . . . . . . . . 34

282876 . . . . . . . . . . . . . . . . 34, 35

282902 . . . . . . . . . . . . . . . . . . . 34

282930 . . . . . . . . . . . . . . . . . . . 58

282941 . . . . . . . . . . . . . . . . . . . 58

282951 . . . . . . . . . . . . . . . . . . . 58

284168 . . . . . . . . . . . . . . . . . . . 33

285133 . . . . . . . . . . . . . . . . . . . 33

285168 . . . . . . . . . . . . . . . . . . . 33

600003 . . . . . . . . . . . . . . . . 38, 68

600004 . . . . . . . . . . . . . . . . 46, 69

600006 . . . . . . . . . . . . . . . . . . . 69

600008 . . . . . . . . . . . . . . . . . . . 69

600012 . . . . . . . . . . . . . . . . . . . 69

Page No.

600016 . . . . . . . . . . . . . . . . . . . 69

600103 . . . . . . . . . . . . . . . . . . . 68

600104 . . . . . . . . . . . . . . . . 46, 69

600106 . . . . . . . . . . . . . . . . . . . 69

600108 . . . . . . . . . . . . . . . . . . . 69

600112 . . . . . . . . . . . . . . . . . . . 69

600116 . . . . . . . . . . . . . . . . . . . 69

600203 . . . . . . . . . . . . . . . . . . . 68

600204 . . . . . . . . . . . . . . . . . . . 69

600206 . . . . . . . . . . . . . . . . . . . 69

600208 . . . . . . . . . . . . . . . . . . . 69

600212 . . . . . . . . . . . . . . . . . . . 69

600216 . . . . . . . . . . . . . . . . . . . 69

600301 . . . . . . . . . . . . . . . . . . . 69

600401 . . . . . . . . . . . . . . . . 38, 68

602003 . . . . . . . 21, 24, 39, 76, 77

602004 . . . . . . . . . . . . . . . . 70, 71

602005 . . . . . . . . . . . . . . . . 70, 71

602006 . . . . . . . . . . . . . . . . 70, 71

602007 . . . . . . . . . . . . . . . . 70, 71

602008 . . . . . . . . . . . . . . . . 70, 71

602009 . . . . . . . . . . . . . . . . 70, 71

602012 . . . . . . . . . . . . . . . . 74, 75

602013 . . . . . . . . . . . . . . . . 74, 75

602016 . . . . . . . . . . . . . . . . 74, 75

602103 . . . . . . . . . . . . . . . . 76, 77

602104 . . . . . . . . . . . . . . . . 70, 71

602106 . . . . . . . . . . . . . . . . 70, 71

602108 . . . . . . . . . . . . . . . . 70, 71

602109 . . . . . . . . . . . . . . . . 70, 71

Model No. Page No.

602112 . . . . . . . . . . . . . . . . 72, 73

602113 . . . . . . . . . . . . . . . . 72, 73

602116 . . . . . . . . . . . . . . . . 72, 73

602117 . . . . . . . . . . . . . . . . 72, 73

602134 . . . . . . . . . . . . . . . . 70, 71

602136 . . . . . . . . . . . . . . . . 70, 71

602138 . . . . . . . . . . . . . . . . 70, 71

602203 . . . . . . . . . . . . . . . . 76, 77

602204 . . . . . . . . . . . . . . . . 70, 71

602206 . . . . . . . . . . . . . . . . 70, 71

602208 . . . . . . . . . . . . . . . . 70, 71

602212 . . . . . . . . . . . . . . . . 74, 75

602216 . . . . . . . . . . . . . . . . 74, 75

630104 . . . . . . . . . . . . . . . . . . . 65

630204 . . . . . . . . . . . . . . . . . . . 65

632004 . . . . . . . . . . . . . . . . . . . 65

640104 . . . . . . . . . . . . . . . . . . . 65

640106 . . . . . . . . . . . . . . . . . . . 65

640204 . . . . . . . . . . . . . . . . . . . 65

640206 . . . . . . . . . . . . . . . . . . . 65

642006 . . . . . . . . . . . . . . . . . . . 65

650108 . . . . . . . . . . . . . . . . . . . 65

650208 . . . . . . . . . . . . . . . . . . . 65

652008 . . . . . . . . . . . . . . . . . . . 65

875172 . . . . . . . . . . . . . . . . . . . 51

875173 . . . . . . . . . . . . . . . . . . . 51

1230120 . . . . . . . . . . . . . . . . . . 54

88

Lubricating Tools and Accessories Display Centers

Purchase Lincoln’s best selling lubrication products. . . and we give you the merchandiser!

Model 219

Lincoln/Guardian

2-Sided Combo

Merchandiser

Display, 24˝ x 72˝

Model 214

Guardian

Mini

Merchandiser

24˝ x 32˝

Model 218

Lincoln 2-Sided

Merchandiser

Display

24˝ x 72˝

Model 212

Lincoln Mini

Merchandiser

24˝ x 32˝

MODEL Description

1133 GUN, GREASE PISTOL

1142 GUN, LEVER

1132 GUN, GREASE PISTOL

1147 GUN, LEVER

1148 GUN, LEVER DELUXE

1162 GUN, AUTOMATIC AIR OPERATED

224 BEARING PACKER

5184 FTG, MINI METRIC ASST

5185 FTG, METRIC ASST

5190 FTG, LUBE STR 1/8MPT QTY-10

5191 FTG, LUBE STR 1/4-28 QTY-10

5290 FTG, LUBE 45° 1/8MPT QTY-10

5291 FTG, LUBE 45° 1/4-28 QTY-10

5468 FTG, LUBE ASSORTMENT

5470 FTG, LUBE ASSORTMENT

5490 FTG, LUBE 90° 1/8MPT QTY-10

5491 FTG, LUBE 90° 1/4-28 QTY-10

5803 NEEDLE ASSY

5812 HOSE, WHIP W/SPR

5818 HOSE, WHIP W/SPR

5845 COUPLER, HYD ASSY

5848 COUPLER, HYD SWIVEL ASSY

5852 COUPLER, MIDGET HYD

5852-2 COUPLER, MIDGET HYD, 2 PKG

5855 ADPTR, HYD ASSY

5859 ADPTR, HYD ASSY

615 GUN, SUCTION

62028 NOZZLE, EXTENSION

66953 TOOL, EASY OUT

71512 HOSE, WHIP 12”

71518 HOSE, WHIP 18”

740 VALVE, CONTROL ASSY

81387 SWIVEL, UNIVERS

82760 GREASE GUN HOLDER CLAMP

82784 NEEDLE NOZZLE ASSY

83594 SWIVEL, UNIVERS

90776 TOOL, EASY OUT

91108 FILLER NIPPLE

G100 GUN, GREASE STD LVR ACTI

G102 GREASE GUN

G110 GUN, GREASE, MINI PISTOL

G112 GUN, GREASE, HD PISTOL

G113 GUN, PISTOL GREASE

G150 GUN, SUCTION

G160 HOLDER, GREASE GUN

G212 HOSE, 12”-1/8” NPT

G212S HOSE, 12”-1/8” NPT, W/SPRING

G218 HOSE, 18”-1/8” NPT

G218S GREASE HOSE W/SPRING 18”

G300 COUPLER, STD

G310 COUPLER, HD

G321 COUPLER, SWIVEL, 360 DEG

G600 FITTINGS, DOMESTIC MINI

G601 FITTINGS, METRIC MINI

G800 GREASE, TUBE LITHIUM 2 PK

G901 ADAPTER, 4” NEEDLE NOZZL

G904 TOOL, GREASE 4-WAY SM

G905 TOOL, GREASE 4-WAY LG

G907 FITTING, GREASE GUN LOADER

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

212 213 214 218 219

Lincoln Combo Guardian 2-sided 2-sided

Mini

1

Mini

1

Mini Lincoln Combo

2 1

1 1 2

1

2

1

1

1

1

1

1

1

1

1

1

1

1

2

1

1

1

1

1

1

2

1

1

1

1

1

1

2

1

1

1

1 1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

2

1

1

1

1

1

1

1

1

1

1

1

® SKF is a registered trademark of the SKF Group.

® Lincoln is a registered trademark of Lincoln Industrial Corp.

© SKF Group 2009

The contents of this publication are the copyright of the publisher and may not be reproduced (even extracts) unless prior written permission is granted. Every care has been taken to ensure the accuracy of the information contained in this publication but no liability can be accepted for any loss or damage whether direct, indirect or consequential arising out of the use of the information contained herein.

FORM 442940 · October 2011

skf.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
