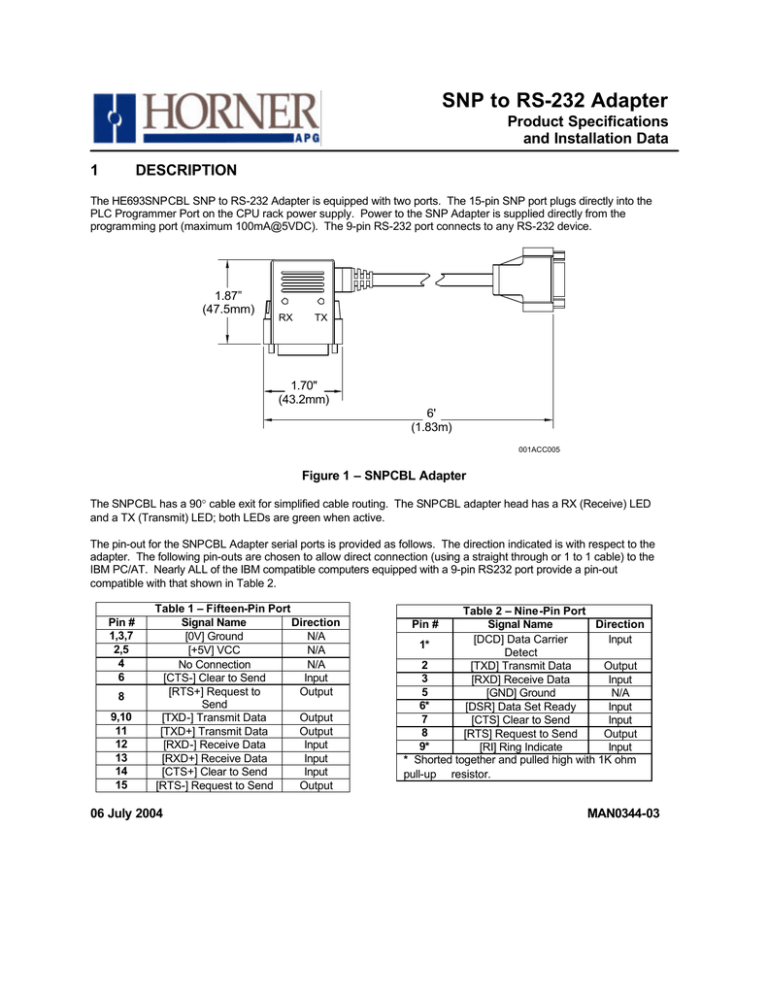

MAN0344-03
SNP to RS-232 Adapter
Product Specifications
and Installation Data
1
DESCRIPTION
The HE693SNPCBL SNP to RS-232 Adapter is equipped with two ports. The 15-pin SNP port plugs directly into the
PLC Programmer Port on the CPU rack power supply. Power to the SNP Adapter is supplied directly from the
programming port (maximum [email protected]). The 9-pin RS-232 port connects to any RS-232 device.
1.87”
(47.5mm)
RX
TX
1.70"
(43.2mm)
6'
(1.83m)
001ACC005
Figure 1 – SNPCBL Adapter
The SNPCBL has a 90° cable exit for simplified cable routing. The SNPCBL adapter head has a RX (Receive) LED
and a TX (Transmit) LED; both LEDs are green when active.
The pin-out for the SNPCBL Adapter serial ports is provided as follows. The direction indicated is with respect to the
adapter. The following pin-outs are chosen to allow direct connection (using a straight through or 1 to 1 cable) to the
IBM PC/AT. Nearly ALL of the IBM compatible computers equipped with a 9-pin RS232 port provide a pin-out
compatible with that shown in Table 2.
Pin #
1,3,7
2,5
4
6
8
9,10
11
12
13
14
15
Table 1 – Fifteen-Pin Port
Signal Name
Direction
[0V] Ground
N/A
[+5V] VCC
N/A
No Connection
N/A
[CTS-] Clear to Send
Input
[RTS+] Request to
Output
Send
[TXD-] Transmit Data
Output
[TXD+] Transmit Data
Output
[RXD-] Receive Data
Input
[RXD+] Receive Data
Input
[CTS+] Clear to Send
Input
[RTS-] Request to Send
Output
06 July 2004
Table 2 – Nine-Pin Port
Signal Name
Direction
[DCD]
Data
Carrier
Input
1*
Detect
2
[TXD] Transmit Data
Output
3
[RXD] Receive Data
Input
5
[GND] Ground
N/A
6*
[DSR] Data Set Ready
Input
7
[CTS] Clear to Send
Input
8
[RTS] Request to Send
Output
9*
[RI] Ring Indicate
Input
* Shorted together and pulled high with 1K ohm
pull-up resistor.
Pin #
MAN0344-03
PAGE 2
06 JUL 2004
2
WIRING
2.1
Cable Diagrams
MAN0344-03
When connecting the SNP adapter to IBM compatible PCs with hardware handshaking, the following
cable interfaces are used.
CBL
Figure 2
CBL
Figure 3
CBL
Figure 4
MAN0344-03
2.2
06 JUL 2004
PAGE 3
XT Adapter Pin-out
The XT Adapter can be used on an IBM compatible PC, which has a 25-pin RS232 port. The internal
wiring of the XT Adapter is in the following figure.
Figure 5
PAGE 4
06 JUL 2004
NOTES
MAN0344-03
